Chapter 5: Radiation Protection
- 1.
- 2. Learning Objectives Lesson 5.1:Radiation Protection 1. Define the key terms associated with radiation protection. 2. Describe in detail the basics of patient protection before x-ray exposure. 3. Discuss the different types of filtration, and state the recommended total filtration for dental x-ray machines operating above and below 70 kV. 4. Describe the collimator used in dental x-ray machines and state the recommended diameter of the useful beam at the patient’s skin. 2

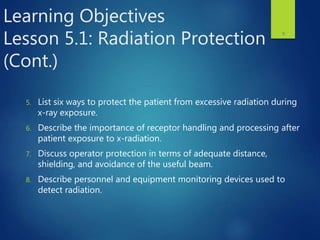

- 3. Learning Objectives Lesson 5.1:Radiation Protection (Cont.) 5. List six ways to protect the patient from excessive radiation during x-ray exposure. 6. Describe the importance of receptor handling and processing after patient exposure to x-radiation. 7. Discuss operator protection in terms of adequate distance, shielding, and avoidance of the useful beam. 8. Describe personnel and equipment monitoring devices used to detect radiation. 3
- 4. Learning Objectives Lesson 5.1:Radiation Protection (Cont.) 9. Discuss radiation exposure guidelines, including radiation safety legislation, maximum permissible dose (MPD), and the ALARA concept. 10. Discuss with the dental patient radiation protection steps used before, during, and after exposure to x-radiation. 4

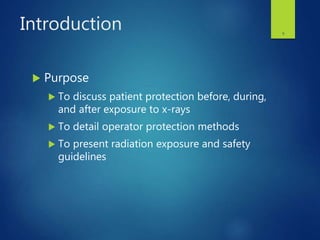

- 5. Introduction Purpose Todiscuss patient protection before, during, and after exposure to x-rays To detail operator protection methods To present radiation exposure and safety guidelines 5

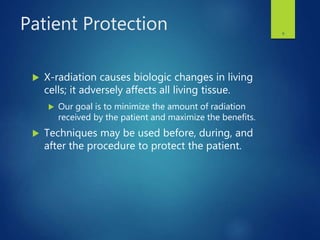

- 6. Patient Protection X-radiationcauses biologic changes in living cells; it adversely affects all living tissue. Our goal is to minimize the amount of radiation received by the patient and maximize the benefits. Techniques may be used before, during, and after the procedure to protect the patient. 6

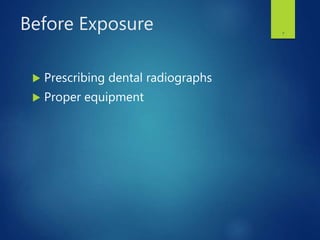

- 7. Before Exposure Prescribingdental radiographs Proper equipment 7

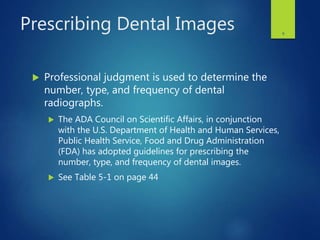

- 8. Prescribing Dental Images Professional judgment is used to determine the number, type, and frequency of dental radiographs. The ADA Council on Scientific Affairs, in conjunction with the U.S. Department of Health and Human Services, Public Health Service, Food and Drug Administration (FDA) has adopted guidelines for prescribing the number, type, and frequency of dental images. See Table 5-1 on page 44 8
- 9. Proper Equipment Useof equipment that complies with state and federal radiation guidelines will minimize the radiation a patient receives. Filtration Inherent filtration Added filtration Total filtration Collimation Position-indicating device 9
- 10. Inherent Filtration Inherentfiltration takes place when the primary beam passes through the glass window of the x- ray tube, the insulating oil, and the tubehead seal. Is equivalent to approximately 0.5 to 1.0 mm of aluminum Does not meet the standards regulated by state and federal law, so additional filtration is required 10
- 11. Added Filtration Analuminum disk is placed between the collimator and the tubehead seal to filter out longer wavelength, lower energy x-rays from the x-ray beam. Filtration results in a higher-energy and more penetrating useful beam. 11
- 12. Total Filtration Thesum of inherent and added filtration Regulated by state and federal laws Machines operating at or below 70 kVp Require a minimum total of 1.5 mm aluminum filtration Machines operating above 70 kVp Require a minimum total of 2.5 mm aluminum filtration 12
- 13. Collimation Collimation restrictsthe size and shape of the x-ray beam. It reduces patient exposure. Collimator Round Produces a cone-shaped beam 2.75 inches in diameter Rectangular Produces a rectangular beam slightly larger than a #2 film 13
- 14.
- 15. Position-Indicating Device Anextension of the x-ray tubehead used to direct the x-ray beam May be conical, rectangular, or round Conical PIDs are no longer used in dentistry; they scatter radiation. Rectangular and round PIDs usually come in 8- or 16-inch lengths; they are open ended and lead lined. The long PID produces the least divergence of the x-ray beam. 15
- 16.
- 17. During Exposure Thyroidcollar Lead apron Image receptors Beam alignment devices Exposure factor selection Proper technique 17
- 18. Thyroid Collar Thisis a flexible lead shield placed around the patient’s neck. Protects the thyroid gland from scatter radiation May be separate or part of the lead apron It is recommended for all intraoral exposures. It is not recommended for extraoral exposures. 18

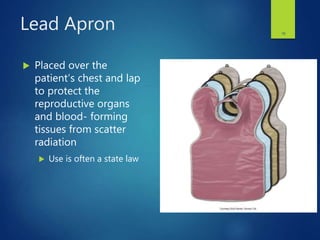

- 19. Lead Apron Placedover the patient’s chest and lap to protect the reproductive organs and blood- forming tissues from scatter radiation Use is often a state law 19
- 20. Image Receptors Digitalimage receptors require less radiation exposure of the patient. Use of a digital receptor is the most effective method of reducing a patient’s exposure to radiation. Fast film D-speed and F-speed film are now the two speeds on the market. F-speed (Kodak Insight) is the faster of the two. 20
- 21. Beam Alignment Device Stabilizes the receptor in the mouth and reduces the chance for movement Eliminates the need for the patient to hold the receptor in position with a finger, reducing unnecessary exposure 21
- 22. Exposure Factor Selection Adjustment of kVp, milliamperage, and time settings on the control panel to limit the amount of x-radiation exposure received by the patient On most units, the kilovolt peak and milliamperage are preset by the manufacturer and cannot be adjusted. 22
- 23. Proper Technique Nondiagnosticimages must be retaken, resulting in additional radiation exposure for the patient. Re-exposure of an image must be avoided at all times. 23
- 24. After Exposure Properreceptor handling Artifacts caused by improper film handling result in nondiagnostic films. Proper film processing and image retrieval Improper film processing may necessitate retakes, needlessly exposing the patient to excess x-radiation. 24

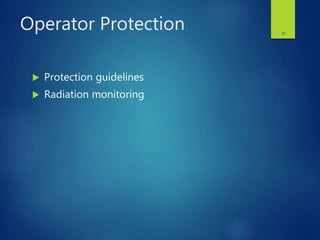

- 25. Operator Protection Protectionguidelines Radiation monitoring 25

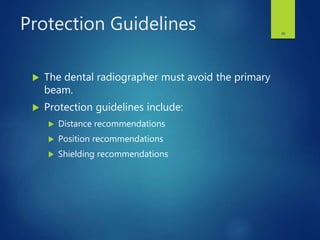

- 26. Protection Guidelines Thedental radiographer must avoid the primary beam. Protection guidelines include: Distance recommendations Position recommendations Shielding recommendations 26
- 27. Distance and Position Recommendations Maintain an adequate distance during exposure. The dental radiographer must maintain a distance of at least 6 feet from the tubehead during an exposure. 27

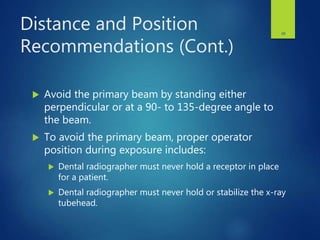

- 28. Distance and Position Recommendations(Cont.) Avoid the primary beam by standing either perpendicular or at a 90- to 135-degree angle to the beam. To avoid the primary beam, proper operator position during exposure includes: Dental radiographer must never hold a receptor in place for a patient. Dental radiographer must never hold or stabilize the x-ray tubehead. 28
- 29.
- 30. Shielding Recommendations Dentaloffice design may include walls to protect the operator from primary and scatter radiation. Protective barriers may be incorporated into the office design. 30

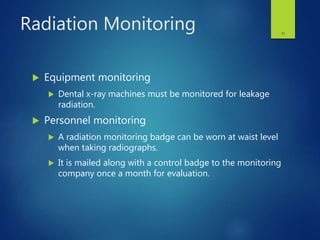

- 31. Radiation Monitoring Equipmentmonitoring Dental x-ray machines must be monitored for leakage radiation. Personnel monitoring A radiation monitoring badge can be worn at waist level when taking radiographs. It is mailed along with a control badge to the monitoring company once a month for evaluation. 31
- 32. Radiation Exposure Guidelines Radiationsafety legislation Maximum permissible dose Cumulative occupational dose ALARA concept 32
- 33. Radiation Safety Legislation Radiation Control for Health and Safety Act, 1968 Enacted to standardize the operation of x-ray equipment Consumer-Patient Radiation Health and Safety Act, 1981 Enacted to address the issues of educating and certifying operators of radiographic equipment 33
- 34. Maximum Permissible Dose (MPD) MPD is the maximum dose equivalent that a body is permitted to receive in a specific period. MPD for occupationally exposed persons is 50 mSv/year (0.05 Sv/year or 5.0 rem/year). For nonoccupationally exposed persons, it is 1 mSv/year (0.1 rem/year). For occupationally exposed pregnant women, MPD is 0.5 mSv per month during the pregnancy months. 34
- 35. Cumulative Occupational Dose Cumulativeoccupational dose is the dose accumulated over a lifetime. An individual’s cumulative occupational effective dose should not exceed the worker’s age multiplied by 10 mSv. 35

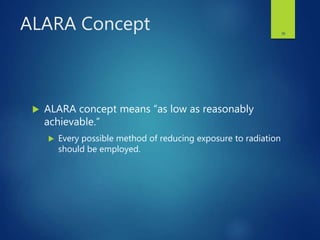

- 36. ALARA Concept ALARAconcept means “as low as reasonably achievable.” Every possible method of reducing exposure to radiation should be employed. 36
- 37. Radiation Protection and PatientEducation What you say to the patient before, during and after the procedure Patient education may take the form of an informal conversation or printed literature Dental radiographer must be prepared to explain exactly how patients are protected before, during, and after x-ray exposure 37
- 38.
