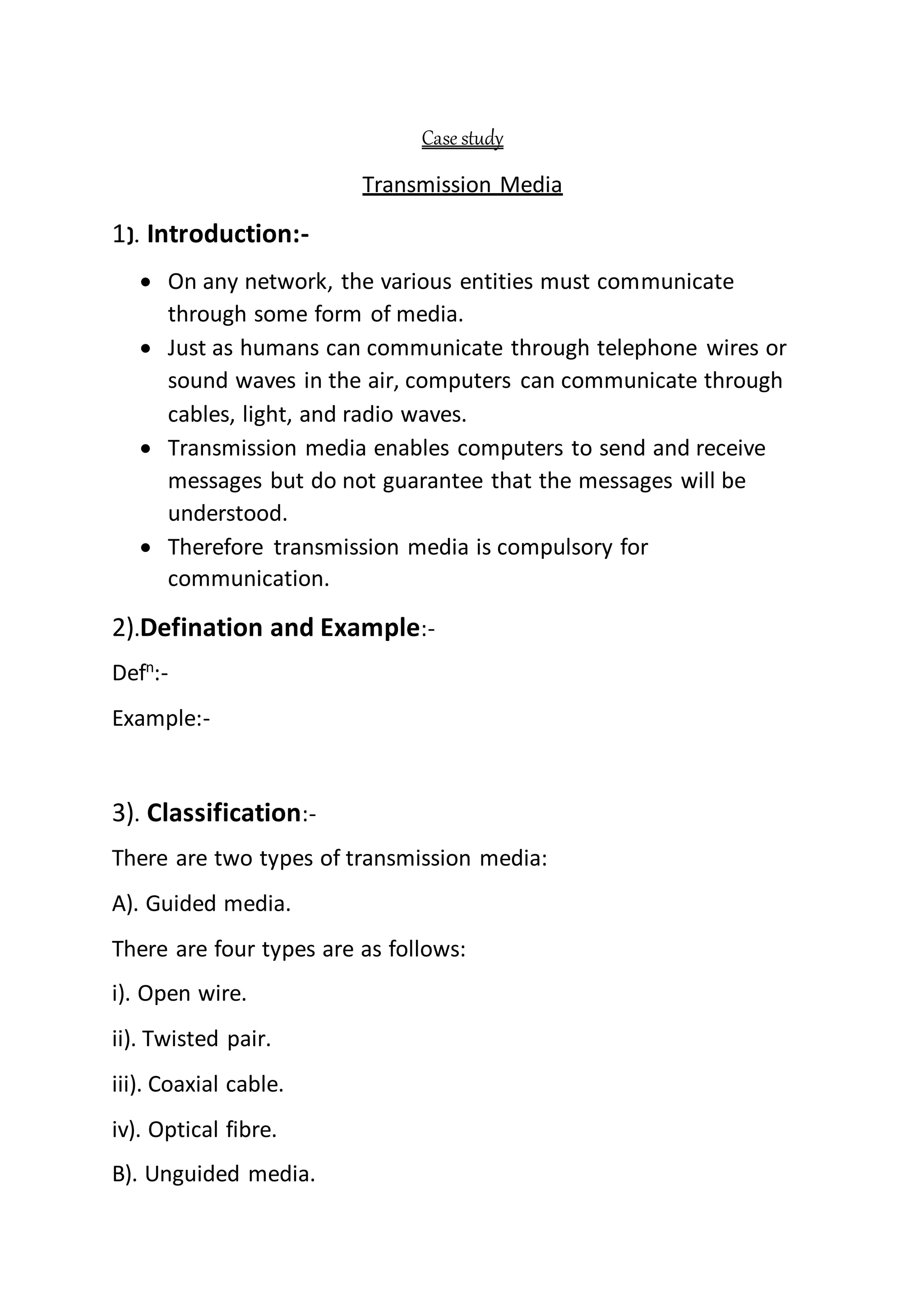

1. Case study
Transmission Media
1). Introduction:-
On any network, the various entities must communicate
through some form of media.
Just as humans can communicate through telephone wires or
sound waves in the air, computers can communicate through
cables, light, and radio waves.
Transmission media enables computers to send and receive
messages but do not guarantee that the messages will be
understood.
Therefore transmission media is compulsory for
communication.
2).Defination and Example:-
Defn
:-
Example:-
3). Classification:-
There are two types of transmission media:
A). Guided media.
There are four types are as follows:
i). Open wire.
ii). Twisted pair.
iii). Coaxial cable.
iv). Optical fibre.
B). Unguided media.

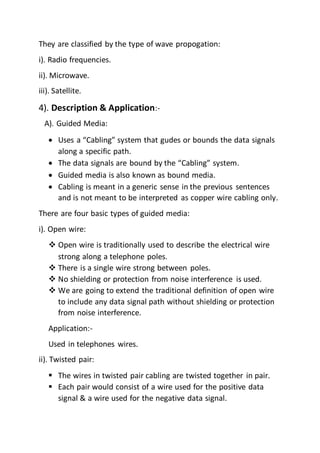

2. They are classified by the type of wave propogation:
i). Radio frequencies.
ii). Microwave.
iii). Satellite.
4). Description & Application:-
A). Guided Media:
Uses a “Cabling” system that gudes or bounds the data signals
along a specific path.
The data signals are bound by the “Cabling” system.
Guided media is also known as bound media.
Cabling is meant in a generic sense in the previous sentences
and is not meant to be interpreted as copper wire cabling only.
There are four basic types of guided media:
i). Open wire:
Open wire is traditionally used to describe the electrical wire
strong along a telephone poles.
There is a single wire strong between poles.
No shielding or protection from noise interference is used.
We are going to extend the traditional definition of open wire
to include any data signal path without shielding or protection
from noise interference.
Application:-
Used in telephones wires.
ii). Twisted pair:
The wires in twisted pair cabling are twisted together in pair.
Each pair would consist of a wire used for the positive data
signal & a wire used for the negative data signal.

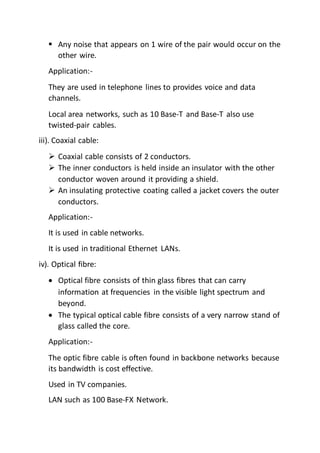

3. Any noise that appears on 1 wire of the pair would occur on the
other wire.
Application:-
They are used in telephone lines to provides voice and data
channels.
Local area networks, such as 10 Base-T and Base-T also use
twisted-pair cables.
iii). Coaxial cable:
Coaxial cable consists of 2 conductors.
The inner conductors is held inside an insulator with the other
conductor woven around it providing a shield.
An insulating protective coating called a jacket covers the outer
conductors.
Application:-
It is used in cable networks.
It is used in traditional Ethernet LANs.
iv). Optical fibre:
Optical fibre consists of thin glass fibres that can carry
information at frequencies in the visible light spectrum and
beyond.
The typical optical cable fibre consists of a very narrow stand of
glass called the core.
Application:-
The optic fibre cable is often found in backbone networks because
its bandwidth is cost effective.
Used in TV companies.
LAN such as 100 Base-FX Network.
4. B). Unguided media:
Unguided transmission media is data signals that flow through
the air.
They are not guided or bound to a channel to follow.
They are classified by the type of wave propagation;
i). Radio frequency:
o There are 3 types of RF(Radio Frequency) Propogation:
a). Ground Wave propogation.
b). Ionospheric propogation.
c). Line of sight propogation.
a).Ground Wave propogation:
o Ground wave propogation follow the curvature of the earth.
o Ground Wave have carries frequencies up to 2 MHz.
o AM radio is an example of ground wave propogation.
b). Ionospheric propogation:
o Ionospheric propogation bounces off of the earth ionospheric
layer in the upper atmosphere.
o It is sometimes called Double Hop Propogation.
o It operates in the frequency range of 30-85 MHz.
o Ham radio operates in this range.
c). Line of sight propogation:
o Line of sight propogation transmit exactly in the line of sight.
o The receive station must be in the view of the transmit station.
o It is sometimes called space waves or Tropospheric
Propogation.
Application:-

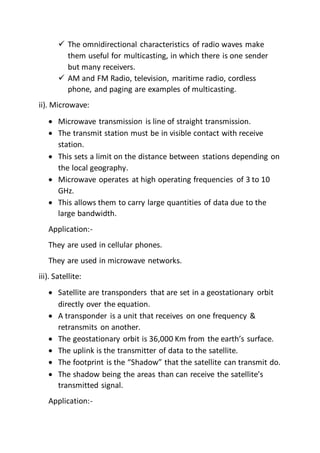

5. The omnidirectional characteristics of radio waves make
them useful for multicasting, in which there is one sender
but many receivers.
AM and FM Radio, television, maritime radio, cordless
phone, and paging are examples of multicasting.
ii). Microwave:
Microwave transmission is line of straight transmission.
The transmit station must be in visible contact with receive
station.
This sets a limit on the distance between stations depending on
the local geography.
Microwave operates at high operating frequencies of 3 to 10
GHz.
This allows them to carry large quantities of data due to the
large bandwidth.
Application:-
They are used in cellular phones.
They are used in microwave networks.
iii). Satellite:
Satellite are transponders that are set in a geostationary orbit
directly over the equation.
A transponder is a unit that receives on one frequency &
retransmits on another.
The geostationary orbit is 36,000 Km from the earth’s surface.
The uplink is the transmitter of data to the satellite.
The footprint is the “Shadow” that the satellite can transmit do.
The shadow being the areas than can receive the satellite’s
transmitted signal.
Application:-

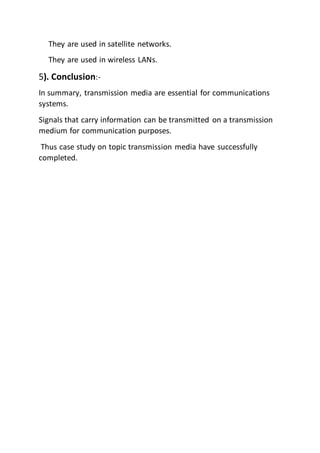

6. They are used in satellite networks.
They are used in wireless LANs.
5). Conclusion:-
In summary, transmission media are essential for communications
systems.
Signals that carry information can be transmitted on a transmission
medium for communication purposes.
Thus case study on topic transmission media have successfully
completed.
