This document provides specifications for a PM 6013 motor with a 5:1 ratio gearbox. The motor runs on 90V DC with a no-load speed of 2550 rpm. It has a rated speed of 506.6 rpm, torque of 5.4 lb-in, current of 0.73 amps, and power output of 32 watts or 0.0435 horsepower. The gearbox efficiency is 81.8%, motor efficiency is 61.9%, and system efficiency is 50.7%. Startup requires 3.76 amps and 39.89 lb-in of torque. Performance curves show torque and efficiency over speed.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
90 v DC
2550 rpm 2 Poles
PS 1900 5:1 Ratio
Product ID: 50125
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
506.6 rpm
5.4lb-in
.73 amps
32 watts
0.0435 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
81.8 %
61.9 %
50.7 %
Start/Stall Conditions:
Current:
Torque:
3.76 amps
39.89 lb-in
Constants:
Ke: 28.68 v/krpm
Kt: 2.42 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
60.0
0.0
0.0
4.0
120.0
8.0
180.0
12.0
240.0
16.0
300.0
20.0
360.0
24.0
420.0
28.0
480.0
32.0
540.0
36.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

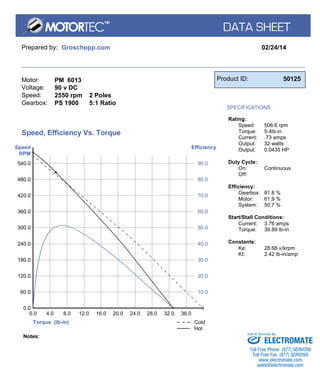

Speed, Efficiency Vs. Torque
Cold
Hot
