This document provides specifications for a PM 6013 motor with a 90V DC voltage, 1700 RPM speed, and 15:1 ratio PS 1900 gearbox. The motor has an output of 112.3 RPM, 16.7 lb-in of torque, 0.54 amps of current, and 22 watts of power. It has a continuous duty cycle and system efficiency of 45.9%. Start/stall conditions are 2.19 amps and 89.92 lb-in of torque. Performance curves show speed, torque, efficiency, and RPM relationships. The motor is sold and serviced by Electromate.

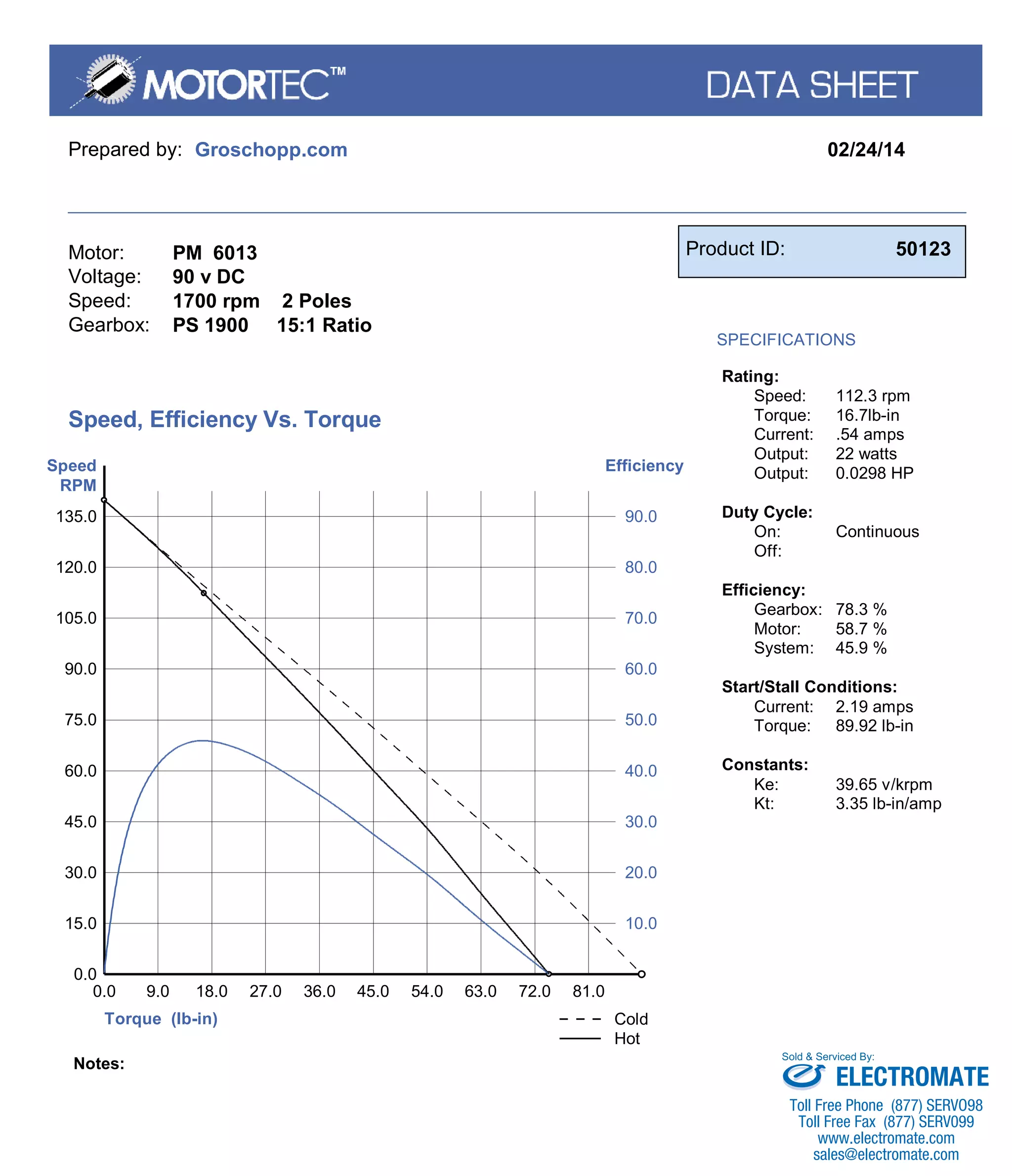

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
90 v DC
1700 rpm 2 Poles
PS 1900 15:1 Ratio
Product ID: 50123
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
112.3 rpm
16.7lb-in
.54 amps
22 watts
0.0298 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
78.3 %
58.7 %
45.9 %
Start/Stall Conditions:
Current:
Torque:
2.19 amps
89.92 lb-in
Constants:
Ke: 39.65 v/krpm
Kt: 3.35 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
15.0
0.0
0.0
9.0
30.0
18.0
45.0
27.0
60.0
36.0
75.0
45.0
90.0
54.0
105.0
63.0
120.0
72.0
135.0
81.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
