This document provides specifications for a PM 6013 motor with a 5:1 ratio gearbox. The motor runs on 115V and has a no-load speed of 2550 RPM. Key specifications include a loaded speed of 509.9 RPM, torque of 3.8 lb-in, current of 0.52 amps, and power output of 23 watts or 0.0308 HP. The gearbox and motor efficiencies are 78.6% and 52% respectively, yielding a system efficiency of 40.8%. Startup requires 2.52 amps and 33.86 lb-in of torque. Performance curves show torque, speed, and efficiency at varying RPM.

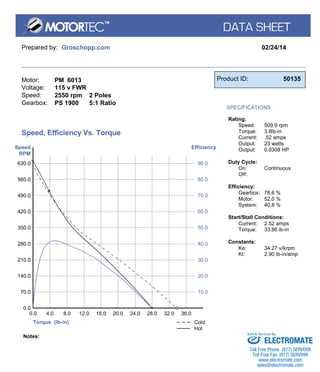

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
115 v FWR
2550 rpm 2 Poles
PS 1900 5:1 Ratio
Product ID: 50135
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
509.9 rpm
3.8lb-in
.52 amps
23 watts
0.0308 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
78.6 %
52.0 %
40.8 %
Start/Stall Conditions:
Current:
Torque:
2.52 amps
33.86 lb-in
Constants:
Ke: 34.27 v/krpm
Kt: 2.90 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
70.0
0.0
0.0
4.0
140.0
8.0
210.0
12.0
280.0
16.0
350.0
20.0
420.0
24.0
490.0
28.0
560.0
32.0
630.0
36.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
