This document provides specifications for a PM 6013 12V DC motor with a 60:1 ratio gearbox. Key specifications include a no load speed of 45.8 rpm, maximum torque of 43.0 lb-in, and maximum power output of 23 watts. The motor has an efficiency of 61.1% while the gearbox efficiency is 55.9% resulting in an overall system efficiency of 34.2%. Charts show torque and efficiency at varying speeds. The motor is sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
12 v DC
2750 rpm 2 Poles
PS 1900 60:1 Ratio
Product ID: 50110
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
45.8 rpm
43.0lb-in
5.5 amps
23 watts
0.0313 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
55.9 %
61.1 %
34.2 %
Start/Stall Conditions:
Current:
Torque:
21.88 amps
315.38 lb-in
Constants:
Ke: 3.63 v/krpm
Kt: 0.31 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
6.0
0.0
0.0
40.0
12.0
80.0
18.0
120.0
24.0
160.0
30.0
200.0
36.0
240.0
42.0
280.0
48.0
320.0
54.0
360.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

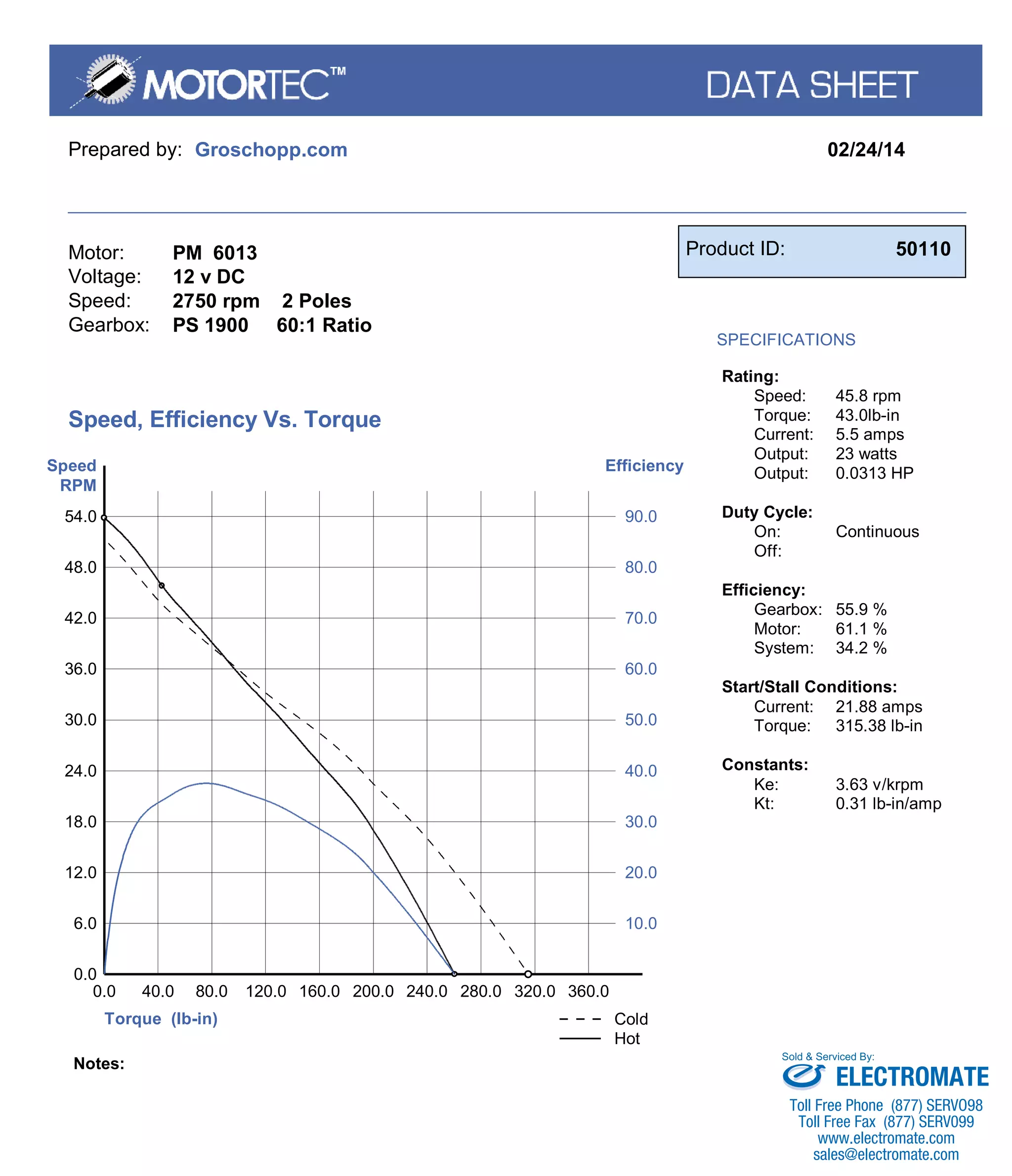

Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
