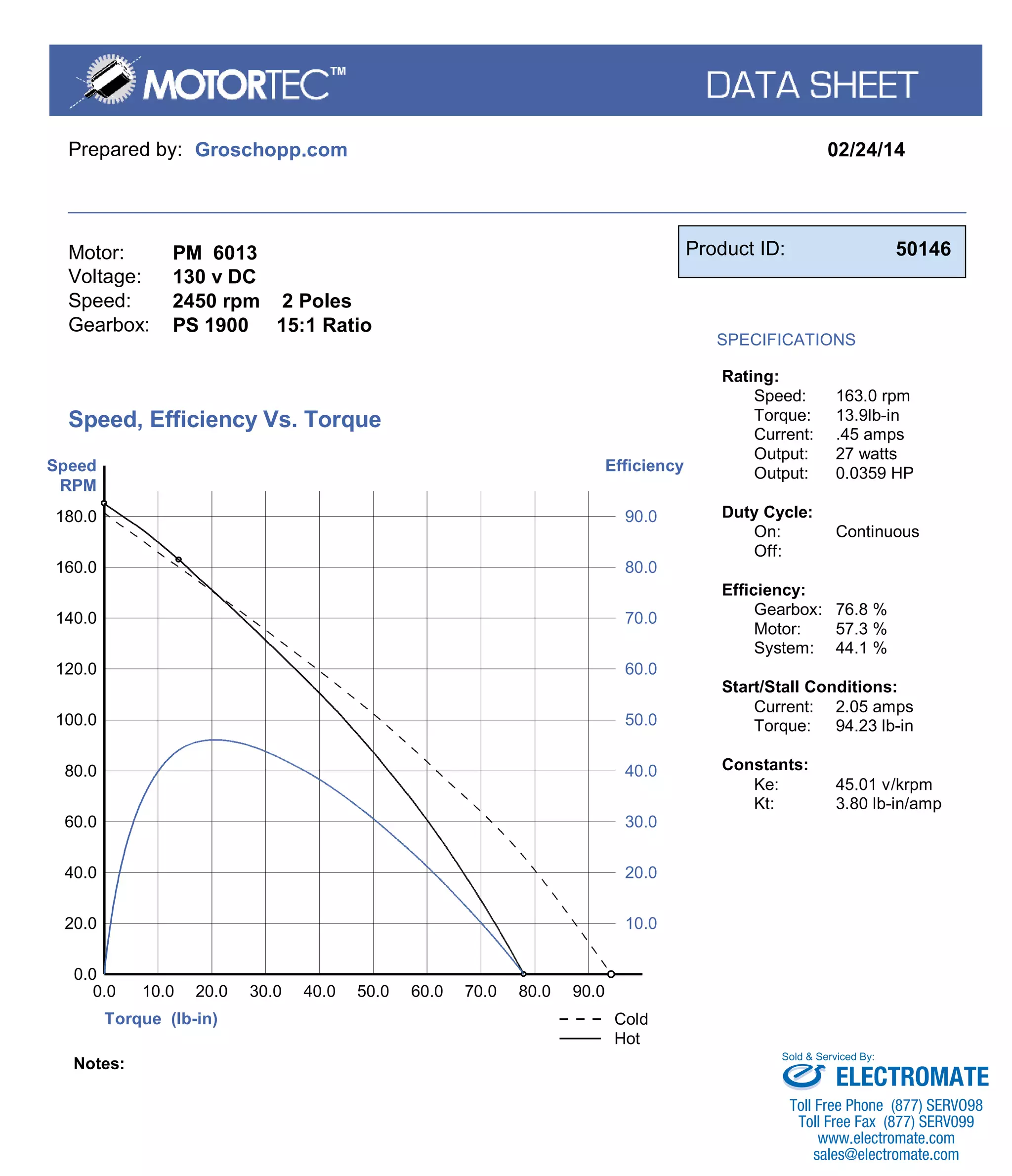

This document provides specifications for a PM 6013 130V DC motor with a 15:1 ratio gearbox. Key specifications include a no-load speed of 2450 rpm, rated speed of 163.0 rpm, torque of 13.9 lb-in, and efficiencies of 76.8% for the gearbox and 44.1% for the system overall. Charts show torque, speed, and efficiency at varying torque levels.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
130 v DC
2450 rpm 2 Poles
PS 1900 15:1 Ratio
Product ID: 50146
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
163.0 rpm
13.9lb-in
.45 amps
27 watts
0.0359 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
76.8 %
57.3 %
44.1 %
Start/Stall Conditions:
Current:
Torque:
2.05 amps
94.23 lb-in
Constants:
Ke: 45.01 v/krpm
Kt: 3.80 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
20.0
0.0
0.0
10.0
40.0
20.0
60.0
30.0
80.0
40.0
100.0
50.0
120.0
60.0
140.0
70.0
160.0
80.0
180.0
90.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
