This document provides specifications for a small electric motor. The motor runs on 115V, has a no-load speed of 2550 RPM, and includes a 10:1 ratio gearbox. Key specifications include a rated speed of 255 RPM, torque of 7.2 lb-in, current draw of 0.52 amps, and power output of 22 watts or 0.0293 horsepower. Charts show torque and efficiency at varying speeds. The motor has a start/stall current of 2.52 amps and torque of 65.78 lb-in.

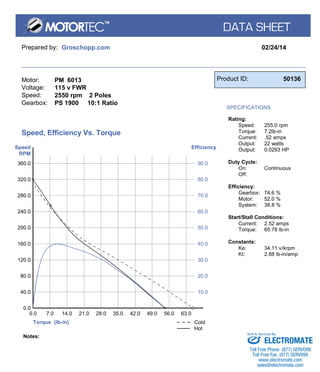

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
115 v FWR
2550 rpm 2 Poles
PS 1900 10:1 Ratio
Product ID: 50136
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
255.0 rpm
7.2lb-in
.52 amps
22 watts
0.0293 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
74.6 %
52.0 %
38.8 %
Start/Stall Conditions:
Current:
Torque:
2.52 amps
65.78 lb-in
Constants:
Ke: 34.11 v/krpm
Kt: 2.88 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
40.0
0.0
0.0
7.0
80.0
14.0
120.0
21.0
160.0
28.0
200.0
35.0
240.0
42.0
280.0
49.0
320.0
56.0
360.0
63.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
