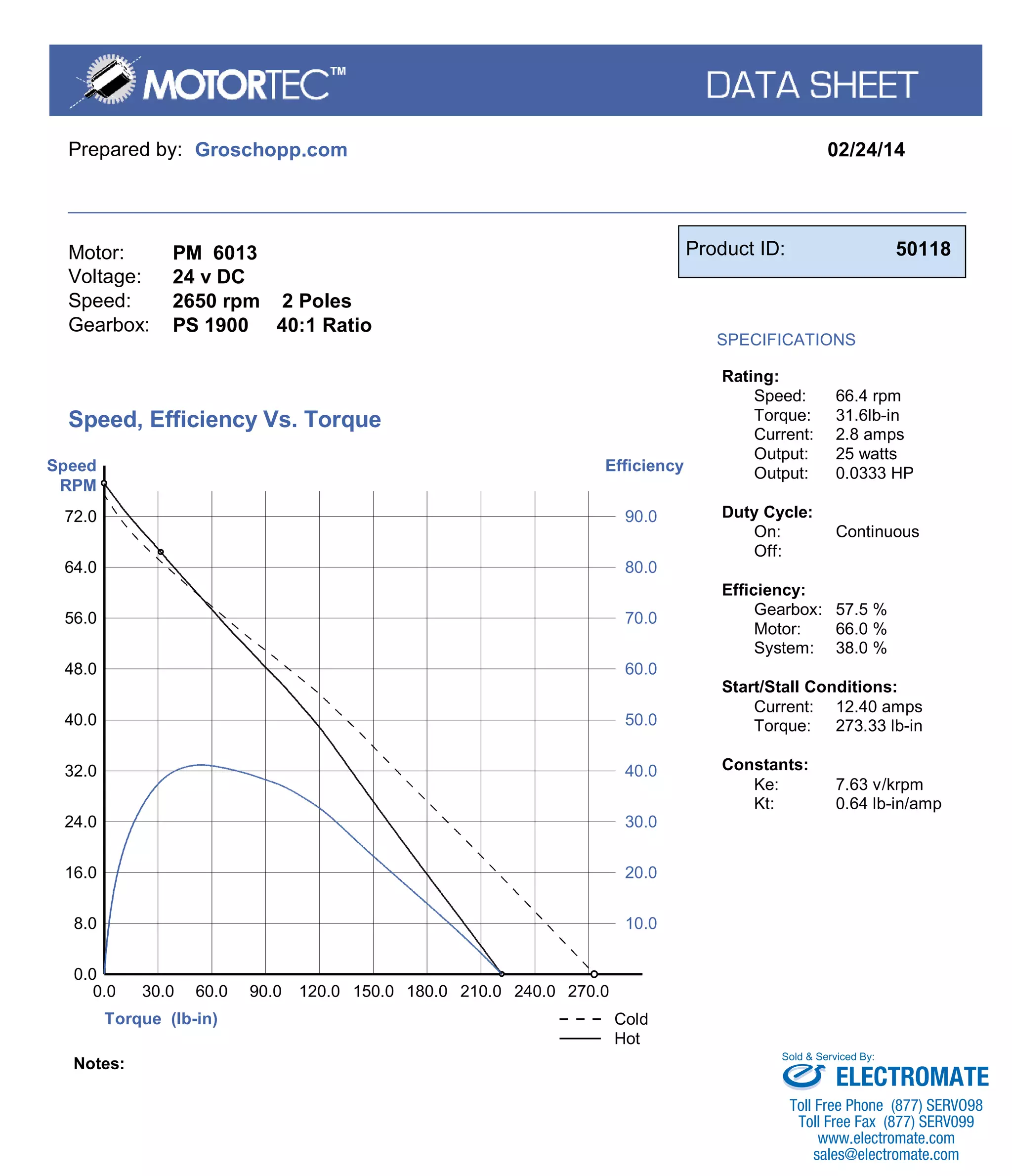

This document provides specifications for a PM 6013 motor with a 24V DC voltage and 2650 RPM speed, paired with a PS 1900 40:1 ratio gearbox. The motor has a rating of 66.4 RPM speed and 31.6 lb-in of torque at 2.8 amps of current. Start/stall conditions are 12.4 amps of current and 273.3 lb-in of torque. Performance curves are provided showing torque, speed, and efficiency at varying RPMs.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
24 v DC
2650 rpm 2 Poles
PS 1900 40:1 Ratio
Product ID: 50118
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
66.4 rpm
31.6lb-in
2.8 amps
25 watts
0.0333 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
57.5 %
66.0 %
38.0 %
Start/Stall Conditions:
Current:
Torque:
12.40 amps
273.33 lb-in
Constants:
Ke: 7.63 v/krpm
Kt: 0.64 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
8.0
0.0
0.0
30.0
16.0
60.0
24.0
90.0
32.0
120.0
40.0
150.0
48.0
180.0
56.0
210.0
64.0
240.0
72.0
270.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
