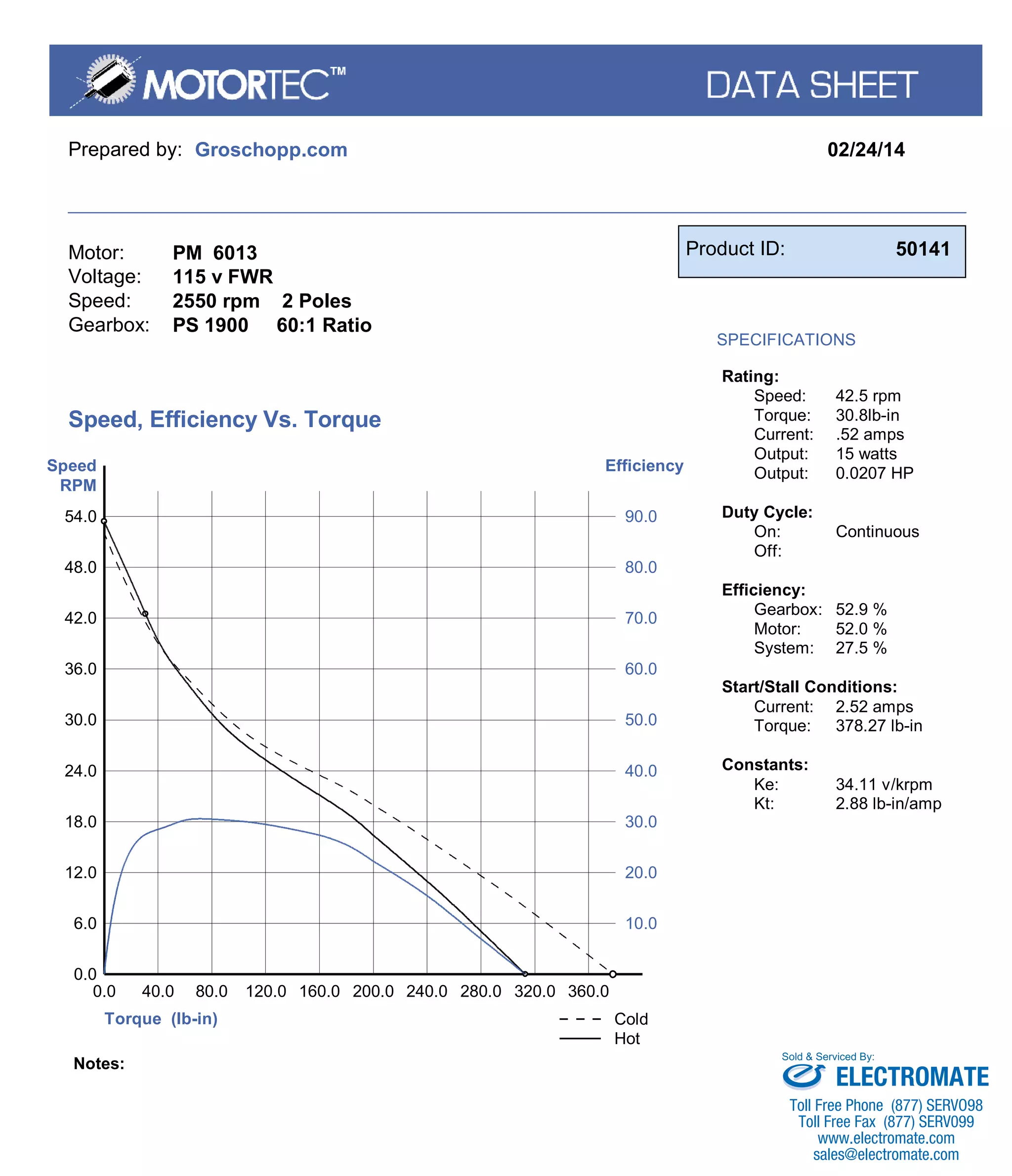

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
115 v FWR
2550 rpm 2 Poles
PS 1900 60:1 Ratio
Product ID: 50141
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
42.5 rpm
30.8lb-in
.52 amps
15 watts
0.0207 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
52.9 %
52.0 %
27.5 %
Start/Stall Conditions:
Current:
Torque:
2.52 amps
378.27 lb-in
Constants:
Ke: 34.11 v/krpm
Kt: 2.88 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
6.0
0.0
0.0
40.0
12.0
80.0
18.0
120.0
24.0
160.0
30.0
200.0
36.0
240.0
42.0
280.0
48.0
320.0
54.0
360.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
