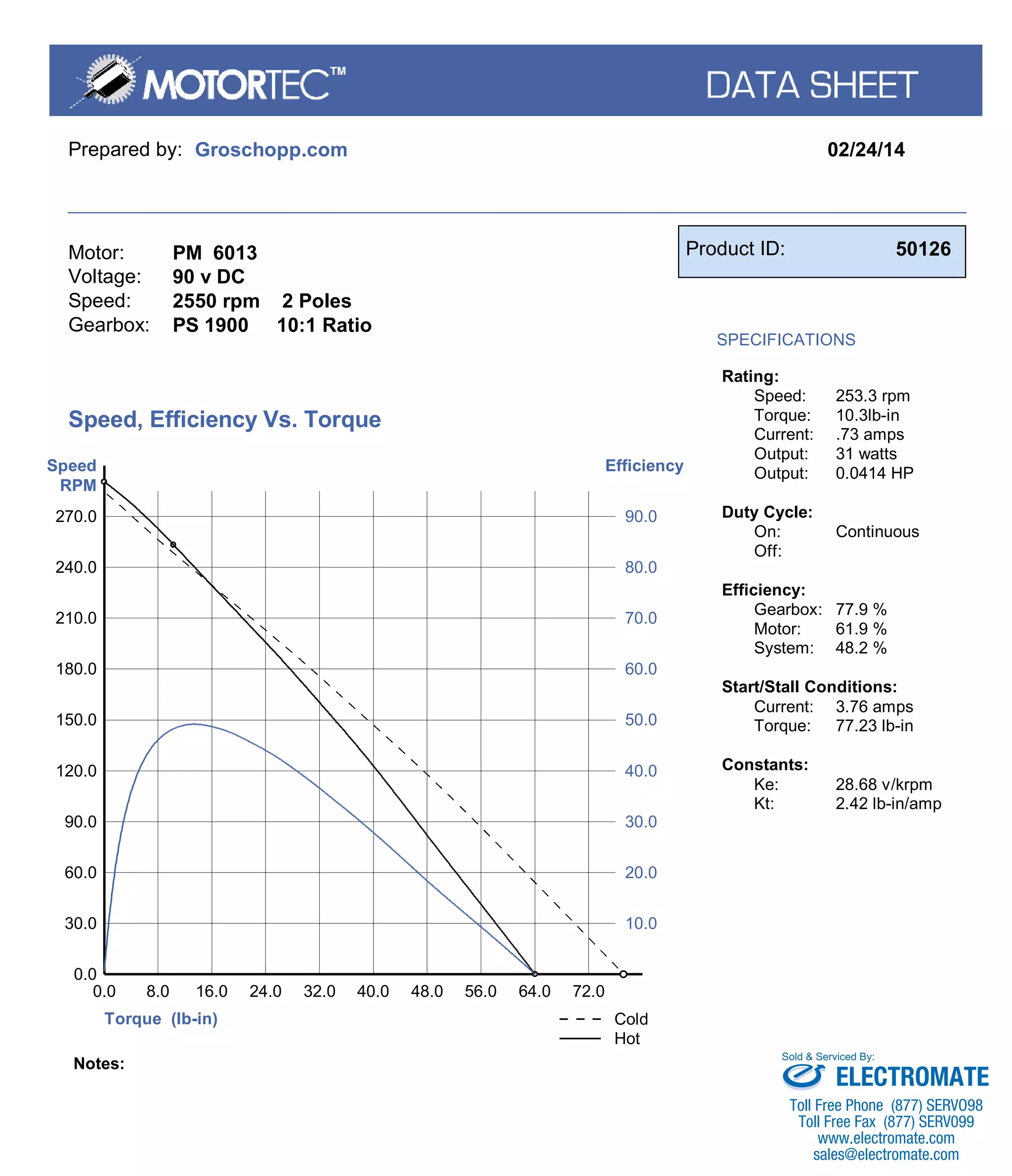

This document provides specifications for a PM 6013 motor with a 10:1 ratio gearbox. The motor runs at 90V DC and 2550 rpm, powering the gearbox to output 253.3 rpm. It can provide continuous torque of 10.3 lb-in at 0.73 amps of current. System efficiency is rated at 48.2%. Start conditions require 3.76 amps and 77.23 lb-in of torque. Performance curves show speed, torque, efficiency and rpm relationships. The motor and gearbox system is sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6013
90 v DC
2550 rpm 2 Poles
PS 1900 10:1 Ratio
Product ID: 50126
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
253.3 rpm
10.3lb-in
.73 amps
31 watts
0.0414 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
77.9 %
61.9 %
48.2 %
Start/Stall Conditions:
Current:
Torque:
3.76 amps
77.23 lb-in
Constants:
Ke: 28.68 v/krpm
Kt: 2.42 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
30.0
0.0
0.0
8.0
60.0
16.0
90.0
24.0
120.0
32.0
150.0
40.0
180.0
48.0
210.0
56.0
240.0
64.0
270.0
72.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
