The document discusses the design of a 38-story, 580-unit residential apartment tower in New York that aims for sustainability. Some key green features include a green roof, high-performance windows, energy efficient HVAC systems, on-site water treatment, renewable energy systems, and green materials. The design was validated through LEED gold certification and design awards, though no post-occupancy studies have evaluated its actual performance.

1. DR.YASSER MAHGOUB T.A JAWAD AL TABTABAIE T.A ANAS AL OMAIM NAEIMAH ALKHURAFI

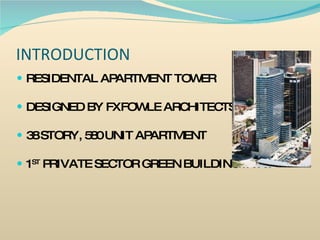

2. INTRODUCTION RESIDENTAL APARTMENT TOWER DESIGNED BY FXFOWLE ARCHITECTS 38 STORY, 580 UNIT APARTMENT 1 ST PRIVATE SECTOR GREEN BUILDING IN NY

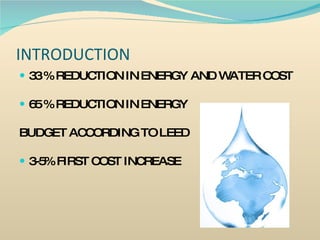

3. INTRODUCTION 33 % REDUCTION IN ENERGY AND WATER COST 65 % REDUCTION IN ENERGY BUDGET ACCORDING TO LEED 3-5% FIRST COST INCREASE

4. INTRODUCTION TYPE OF UNITS AFFORDABLE HOUSING UNITS MARKET RATE UNITS - 20 % - Funded via tax bonds

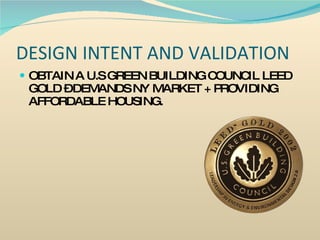

5. DESIGN INTENT AND VALIDATION OBTAIN A U.S GREEN BUILDING COUNCIL LEED GOLD – DEMANDS NY MARKET + PROVIDING AFFORDABLE HOUSING.

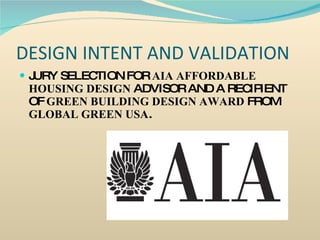

6. DESIGN INTENT AND VALIDATION JURY SELECTION FOR AIA AFFORDABLE HOUSING DESIGN ADVISOR AND A RECIPIENT OF GREEN BUILDING DESIGN AWARD FROM GLOBAL GREEN USA .

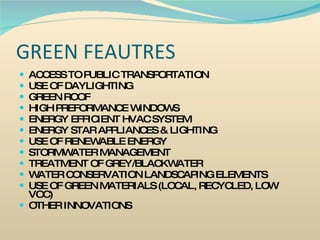

7. GREEN FEAUTRES ACCESS TO PUBLIC TRANSPORTATION USE OF DAYLIGHTING GREEN ROOF HIGH PREFORMANCE WINDOWS ENERGY EFFICIENT HVAC SYSTEM ENERGY STAR APPLIANCES & LIGHTING USE OF RENEWABLE ENERGY STORMWATER MANAGEMENT TREATMENT OF GREY/BLACKWATER WATER CONSERVATION LANDSCAPING ELEMENTS USE OF GREEN MATERIALS (LOCAL, RECYCLED, LOW VOC) OTHER INNOVATIONS

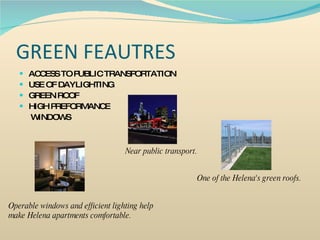

8. GREEN FEAUTRES ACCESS TO PUBLIC TRANSPORTATION USE OF DAYLIGHTING GREEN ROOF HIGH PREFORMANCE WINDOWS One of the Helena's green roofs. Operable windows and efficient lighting help make Helena apartments comfortable. Near public transport.

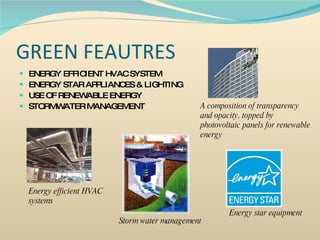

9. GREEN FEAUTRES ENERGY EFFICIENT HVAC SYSTEM ENERGY STAR APPLIANCES & LIGHTING USE OF RENEWABLE ENERGY STORMWATER MANAGEMENT Energy efficient HVAC systems Storm water management Energy star equipment A composition of transparency and opacity, topped by photovoltaic panels for renewable energy

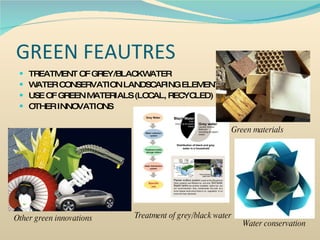

10. GREEN FEAUTRES TREATMENT OF GREY/BLACKWATER WATER CONSERVATION LANDSCAPING ELEMENT USE OF GREEN MATERIALS (LOCAL, RECYCLED) OTHER INNOVATIONS Treatment of grey/black water Green materials Other green innovations Water conservation

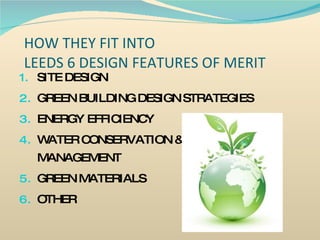

11. HOW THEY FIT INTO LEEDS 6 DESIGN FEATURES OF MERIT SITE DESIGN GREEN BUILDING DESIGN STRATEGIES ENERGY EFFICIENCY WATER CONSERVATION & MANAGEMENT GREEN MATERIALS OTHER

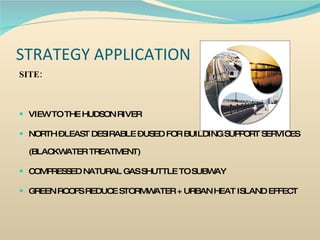

12. STRATEGY APPLICATION SITE: VIEW TO THE HUDSON RIVER NORTH – LEAST DESIRABLE – USED FOR BUILDING SUPPORT SERVICES (BLACKWATER TREATMENT) COMPRESSED NATURAL GAS SHUTTLE TO SUBWAY GREEN ROOFS REDUCE STORMWATER + URBAN HEAT ISLAND EFFECT

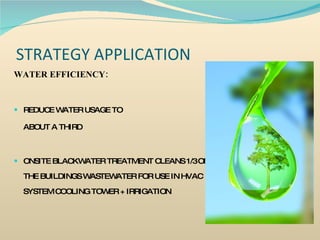

13. STRATEGY APPLICATION WATER EFFICIENCY: REDUCE WATER USAGE TO ABOUT A THIRD ONSITE BLACKWATER TREATMENT CLEANS 1/3 OF THE BUILDINGS WASTEWATER FOR USE IN HVAC SYSTEM COOLING TOWER + IRRIGATION

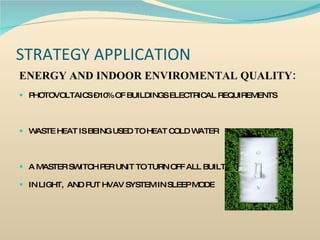

14. STRATEGY APPLICATION ENERGY AND INDOOR ENVIROMENTAL QUALITY: PHOTOVOLTAICS – 10% OF BUILDINGS ELECTRICAL REQUIREMENTS WASTE HEAT IS BEING USED TO HEAT COLD WATER A MASTER SWITCH PER UNIT TO TURN OFF ALL BUILT IN LIGHT, AND PUT HVAV SYSTEM IN SLEEP MODE

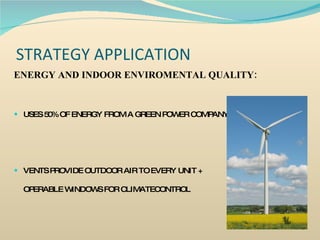

15. STRATEGY APPLICATION ENERGY AND INDOOR ENVIROMENTAL QUALITY: USES 50% OF ENERGY FROM A GREEN POWER COMPANY VENTS PROVIDE OUTDOOR AIR TO EVERY UNIT + OPERABLE WINDOWS FOR CLIMATECONTROL

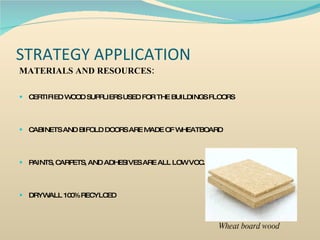

16. STRATEGY APPLICATION MATERIALS AND RESOURCES: CERTIFIED WOOD SUPPLIERS USED FOR THE BUILDINGS FLOORS CABINETS AND BIFOLD DOORS ARE MADE OF WHEATBOARD PAINTS, CARPETS, AND ADHESIVES ARE ALL LOW VOC. DRYWALL 100% RECYLCED Wheat board wood

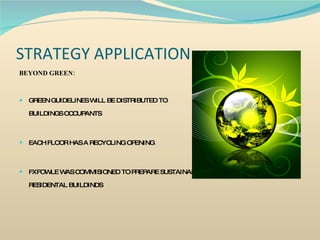

17. STRATEGY APPLICATION BEYOND GREEN: GREEN GUIDELINES WILL BE DISTRIBUTED TO BUILDINGS OCCUPANTS EACH FLOOR HAS A RECYCLING OPENING FXFOWLE WAS COMMISIONED TO PREPARE SUSTAINABLE DESIGN GUIDELINES FOR RESIDENTAL BUILDINDS

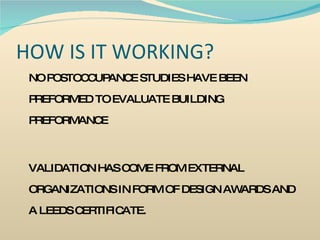

18. HOW IS IT WORKING? NO POSTOCCUPANCE STUDIES HAVE BEEN PREFORMED TO EVALUATE BUILDING PREFORMANCE VALIDATION HAS COME FROM EXTERNAL ORGANIZATIONS IN FORM OF DESIGN AWARDS AND A LEEDS CERTIFICATE.
