Gimme shelter: Tips on
protecting proprietary
and open source code
Rod Cope, CTO
ESC Minneapolis 2016

Rod Cope, CTO
Rogue Wave Software
Presenter

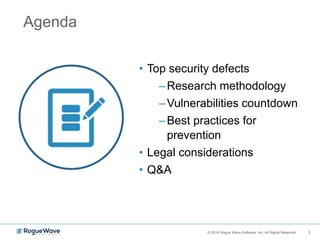

Agenda
• Top security defects
–Research methodology
–Vulnerabilities countdown
–Best practices for
prevention
• Legal considerations
• Q&A

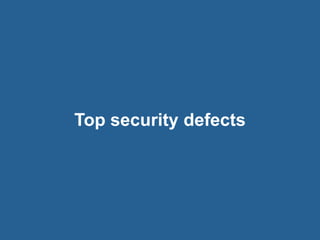

Top security defects

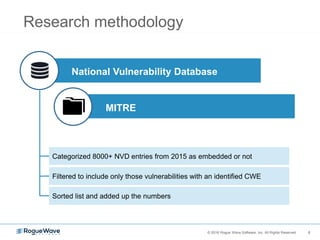

Research methodology

National Vulnerability Database
MITRE
Categorized 8000+ NVD entries from 2015 as embedded or not
Filtered to include only those vulnerabilities with an identified CWE
Sorted list and added up the numbers
Research methodology

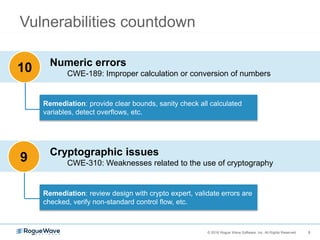

Vulnerabilities countdown

Cryptographic issues
CWE-310: Weaknesses related to the use of cryptography
Numeric errors
CWE-189: Improper calculation or conversion of numbers
10
Remediation: provide clear bounds, sanity check all calculated
variables, detect overflows, etc.
Remediation: review design with crypto expert, validate errors are
checked, verify non-standard control flow, etc.
9

Number eight:
Code injection

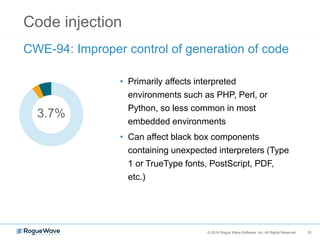

Code injection
CWE-94: Improper control of generation of code
• Primarily affects interpreted
environments such as PHP, Perl, or
Python, so less common in most
embedded environments
• Can affect black box components
containing unexpected interpreters (Type
1 or TrueType fonts, PostScript, PDF,
etc.)
3.7%

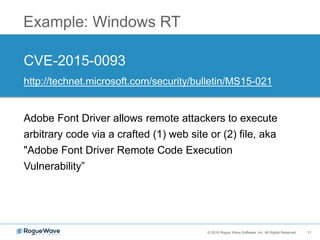

Example: Windows RT
CVE-2015-0093
http://technet.microsoft.com/security/bulletin/MS15-021
Adobe Font Driver allows remote attackers to execute
arbitrary code via a crafted (1) web site or (2) file, aka
"Adobe Font Driver Remote Code Execution
Vulnerability”

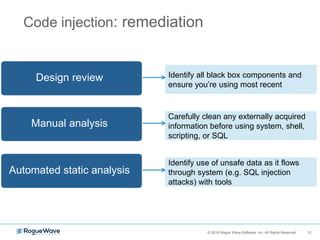

Code injection: remediation
Identify all black box components and
ensure you’re using most recent
Identify use of unsafe data as it flows
through system (e.g. SQL injection
attacks) with tools
Carefully clean any externally acquired
information before using system, shell,
scripting, or SQL
Design review
Automated static analysis
Manual analysis

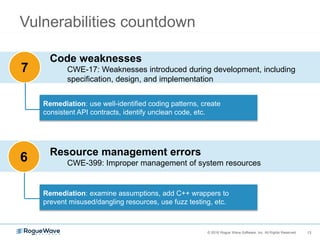

Resource management errors
CWE-399: Improper management of system resources
Code weaknesses
CWE-17: Weaknesses introduced during development, including
specification, design, and implementation
7
Remediation: use well-identified coding patterns, create
consistent API contracts, identify unclean code, etc.
Remediation: examine assumptions, add C++ wrappers to
prevent misused/dangling resources, use fuzz testing, etc.
6

Number five:
Improper access control

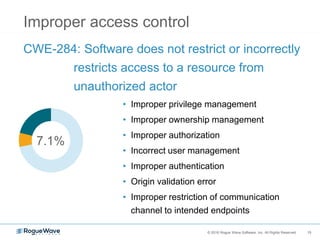

Improper access control
CWE-284: Software does not restrict or incorrectly
restricts access to a resource from
unauthorized actor
7.1%
• Improper privilege management
• Improper ownership management
• Improper authorization
• Incorrect user management
• Improper authentication
• Origin validation error
• Improper restriction of communication
channel to intended endpoints

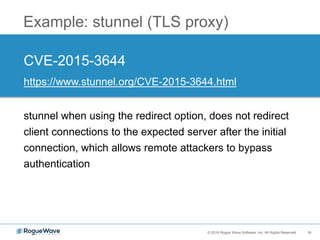

Example: stunnel (TLS proxy)
CVE-2015-3644
https://www.stunnel.org/CVE-2015-3644.html
stunnel when using the redirect option, does not redirect
client connections to the expected server after the initial
connection, which allows remote attackers to bypass
authentication

stunnel example: fail

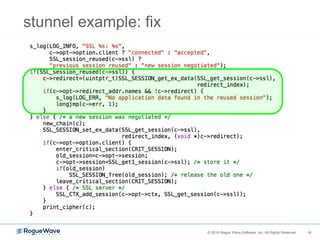

stunnel example: fix

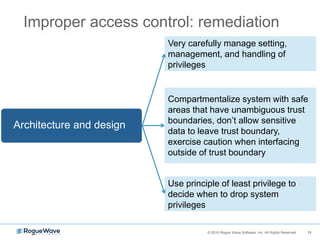

Improper access control: remediation
Very carefully manage setting,
management, and handling of
privileges
Architecture and design
Compartmentalize system with safe
areas that have unambiguous trust
boundaries, don’t allow sensitive
data to leave trust boundary,
exercise caution when interfacing
outside of trust boundary
Use principle of least privilege to
decide when to drop system
privileges

Information exposure
CWE-200: Intentional or unintentional disclosure of information to
an actor not explicitly authorized
Improper input validation
CWE-20: Incorrect or missing validation on input that can affect
program’s control flow or data flow
4
Remediation: assume all data is malicious, check data on both
client and server-side, use same character encodings, etc.
Remediation: perform weakness analysis, compartmentalize
system, perform fuzz testing, etc.
3
Access control
CWE-264: Weaknesses related to the management of permissions,
privileges, or other security features
Remediation: perform weakness analysis, examine the granting of
access controls, etc.
2

Number one:
Memory buffer problems

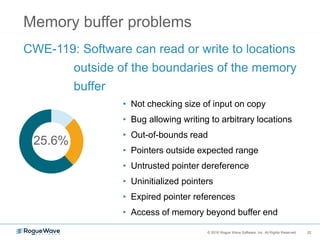

Memory buffer problems
CWE-119: Software can read or write to locations
outside of the boundaries of the memory
buffer
25.6%
• Not checking size of input on copy
• Bug allowing writing to arbitrary locations
• Out-of-bounds read
• Pointers outside expected range
• Untrusted pointer dereference
• Uninitialized pointers
• Expired pointer references
• Access of memory beyond buffer end

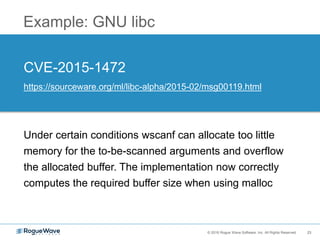

Example: GNU libc
CVE-2015-1472
https://sourceware.org/ml/libc-alpha/2015-02/msg00119.html
Under certain conditions wscanf can allocate too little
memory for the to-be-scanned arguments and overflow
the allocated buffer. The implementation now correctly
computes the required buffer size when using malloc

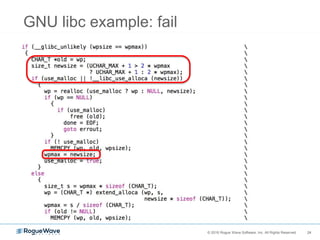

GNU libc example: fail

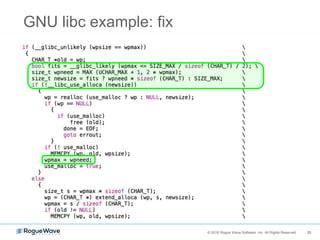

GNU libc example: fix

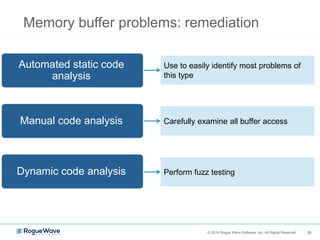

Memory buffer problems: remediation
Use to easily identify most problems of
this type
Perform fuzz testing
Carefully examine all buffer access
Automated static code
analysis
Dynamic code analysis
Manual code analysis

Best practices for prevention

Awareness
Awareness of these top
ten issues can help with
nearly 90% of all
vulnerabilities in
embedded software
87.5%

Top four best practices
• Numeric errors
• Code injection
• Resource management errors
• Improper input validation
• Information exposure
• Access control
• Memory buffer problems
• Numeric errors
• Cryptographic issues
• Code injection
• Code
• Information exposure
• Access control
• Memory buffer problems
• Numeric errors
• Cryptographic issues
• Code injection
• Code
• Improper input validation
•Numeric errors
•Resource management
errors
•Improper access control
•Improper input validation
•Information exposure
•Access control
Clean
design
Methodical
process
Good tools
Careful
analysis

Legal considerations

History of licensing
19911988 2001 2004 2007 2012
BSD & MIT
Licenses
GPLv2 Apache 2.0 GPLv3 MPL 2.0CPL
· Implied License
&/or Estoppel
· Implied License
&/or Estoppel
· Patent Disincentive
Clause
· Express Patent
License
· Patent
Retaliation
Clause
· Broad Express Patent
License
· Anti-Tivoization
clause
· Patent Non-Assert
· Patent Disincentive
Clause
· Express Patent
License
· Patent
Retaliation
Clause

Example: GPL/GPL license
compatibility
http://www.gnu.org/licenses/gpl-faq.html#v2v3Compatibility

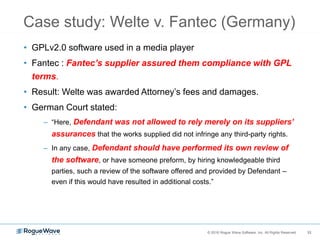

Case study: Welte v. Fantec (Germany)
• GPLv2.0 software used in a media player
• Fantec : Fantec’s supplier assured them compliance with GPL
terms.
• Result: Welte was awarded Attorney’s fees and damages.
• German Court stated:
– “Here, Defendant was not allowed to rely merely on its suppliers’
assurances that the works supplied did not infringe any third-party rights.
– In any case, Defendant should have performed its own review of
the software, or have someone preform, by hiring knowledgeable third
parties, such a review of the software offered and provided by Defendant –
even if this would have resulted in additional costs.”

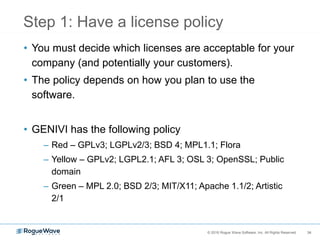

Step 1: Have a license policy
• You must decide which licenses are acceptable for your
company (and potentially your customers).
• The policy depends on how you plan to use the
software.
• GENIVI has the following policy
– Red – GPLv3; LGPLv2/3; BSD 4; MPL1.1; Flora
– Yellow – GPLv2; LGPL2.1; AFL 3; OSL 3; OpenSSL; Public
domain
– Green – MPL 2.0; BSD 2/3; MIT/X11; Apache 1.1/2; Artistic
2/1

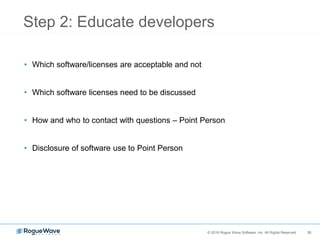

Step 2: Educate developers
• Which software/licenses are acceptable and not
• Which software licenses need to be discussed
• How and who to contact with questions – Point Person
• Disclosure of software use to Point Person

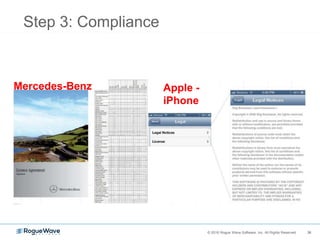

Step 3: Compliance
Apple -
iPhone
Mercedes-Benz

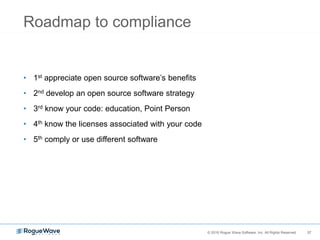

Roadmap to compliance
• 1st appreciate open source software’s benefits
• 2nd develop an open source software strategy
• 3rd know your code: education, Point Person
• 4th know the licenses associated with your code
• 5th comply or use different software

Q & A
