The forgotten route: Making Apache Camel work for you

1© 2018 Rogue Wave Software, Inc. All Rights Reserved. 1
Making Camel Work
for You
• Justin Reock
• Sr. Director and Lead Architect
• Rogue Wave OSS Support

Who’s speaking to me?

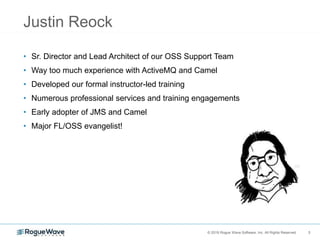

Justin Reock
• Sr. Director and Lead Architect of our OSS Support Team
• Way too much experience with ActiveMQ and Camel
• Developed our formal instructor-led training
• Numerous professional services and training engagements
• Early adopter of JMS and Camel
• Major FL/OSS evangelist!

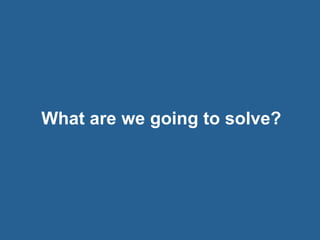

What are we going to solve?

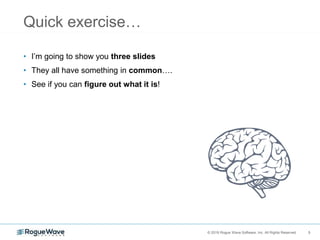

Quick exercise…
• I’m going to show you three slides
• They all have something in common….
• See if you can figure out what it is!

The Chupacabra…

A magical unicorn…

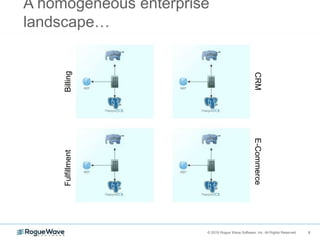

BillingFulfillment
CRME-Commerce
A homogeneous enterprise
landscape…

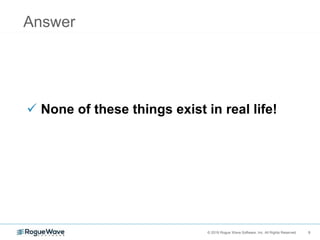

Answer
 None of these things exist in real life!

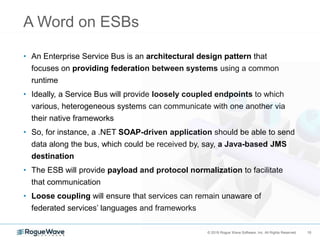

A Word on ESBs
• An Enterprise Service Bus is an architectural design pattern that
focuses on providing federation between systems using a common
runtime
• Ideally, a Service Bus will provide loosely coupled endpoints to which
various, heterogeneous systems can communicate with one another via
their native frameworks
• So, for instance, a .NET SOAP-driven application should be able to send
data along the bus, which could be received by, say, a Java-based JMS
destination
• The ESB will provide payload and protocol normalization to facilitate
that communication
• Loose coupling will ensure that services can remain unaware of
federated services’ languages and frameworks

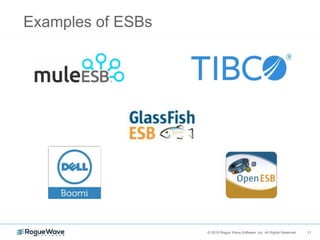

Examples of ESBs

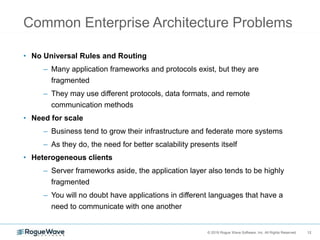

Common Enterprise Architecture Problems
• No Universal Rules and Routing
– Many application frameworks and protocols exist, but they are
fragmented
– They may use different protocols, data formats, and remote
communication methods
• Need for scale
– Business tend to grow their infrastructure and federate more systems
– As they do, the need for better scalability presents itself
• Heterogeneous clients
– Server frameworks aside, the application layer also tends to be highly
fragmented
– You will no doubt have applications in different languages that have a
need to communicate with one another

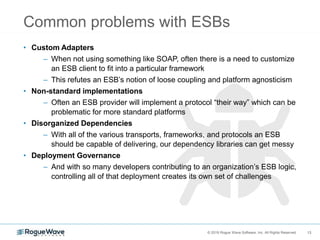

Common problems with ESBs
• Custom Adapters
– When not using something like SOAP, often there is a need to customize
an ESB client to fit into a particular framework
– This refutes an ESB’s notion of loose coupling and platform agnosticism
• Non-standard implementations
– Often an ESB provider will implement a protocol “their way” which can be
problematic for more standard platforms
• Disorganized Dependencies
– With all of the various transports, frameworks, and protocols an ESB
should be capable of delivering, our dependency libraries can get messy
• Deployment Governance
– And with so many developers contributing to an organization’s ESB logic,
controlling all of that deployment creates its own set of challenges

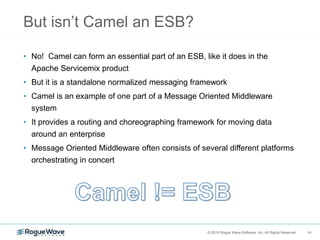

But isn’t Camel an ESB?
• No! Camel can form an essential part of an ESB, like it does in the
Apache Servicemix product
• But it is a standalone normalized messaging framework
• Camel is an example of one part of a Message Oriented Middleware
system
• It provides a routing and choreographing framework for moving data
around an enterprise
• Message Oriented Middleware often consists of several different platforms
orchestrating in concert

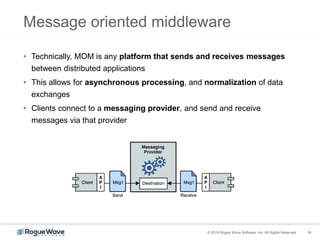

Message oriented middleware
• Technically, MOM is any platform that sends and receives messages
between distributed applications
• This allows for asynchronous processing, and normalization of data
exchanges
• Clients connect to a messaging provider, and send and receive
messages via that provider

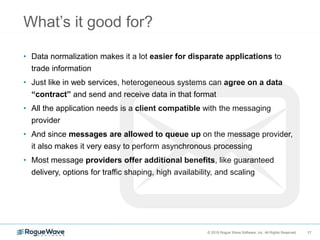

What’s it good for?
• Data normalization makes it a lot easier for disparate applications to
trade information
• Just like in web services, heterogeneous systems can agree on a data
“contract” and send and receive data in that format
• All the application needs is a client compatible with the messaging
provider
• And since messages are allowed to queue up on the message provider,
it also makes it very easy to perform asynchronous processing
• Most message providers offer additional benefits, like guaranteed
delivery, options for traffic shaping, high availability, and scaling

What is Camel?

The repetitive world of integration
• So, data routing and transformation in the Enterprise lends itself to a lot of what
you would call “boilerplate” code
• Boilerplate text, in publishing, is text that can be used and reused in many
places
• Boilerplate code is the same concept
• How many times have you written code to open up a web server, push a file to
an ftp site or drop a message into a message broker?
• Have you ever felt that you’re just writing different versions of the same thing
over and over again?
• You’re not alone
• Enter the concept of an Enterprise Integration Pattern…

What’s Camel?
• Camel is an open source MOM language developed by Apache and based
on Enterprise Integration Patterns
• Book by Gregor Hohpe and Bobby Woolf
• Centers around 60+ common patterns found
in Enterprise integration projects
• Defines these common patterns in a vendor
neutral way
• Camel aims to provide a language which
implements these patterns, in a style
modeled after the UNIX pipeline

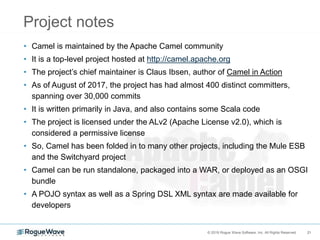

Project notes
• Camel is maintained by the Apache Camel community
• It is a top-level project hosted at http://camel.apache.org
• The project’s chief maintainer is Claus Ibsen, author of Camel in Action
• As of August of 2017, the project has had almost 400 distinct committers,
spanning over 30,000 commits
• It is written primarily in Java, and also contains some Scala code
• The project is licensed under the ALv2 (Apache License v2.0), which is
considered a permissive license
• So, Camel has been folded in to many other projects, including the Mule ESB
and the Switchyard project
• Camel can be run standalone, packaged into a WAR, or deployed as an OSGI
bundle
• A POJO syntax as well as a Spring DSL XML syntax are made available for
developers

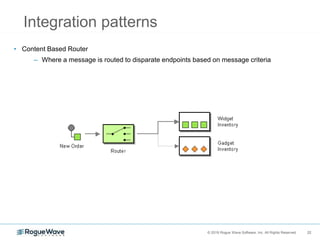

Integration patterns
• Content Based Router
– Where a message is routed to disparate endpoints based on message criteria

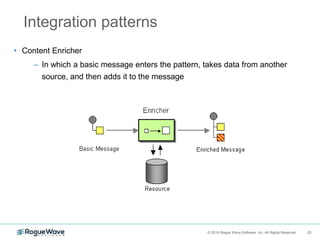

• Content Enricher
– In which a basic message enters the pattern, takes data from another
source, and then adds it to the message

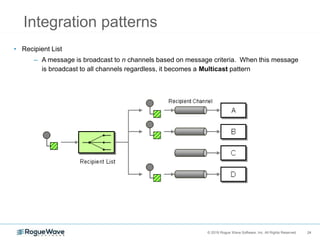

• Recipient List
– A message is broadcast to n channels based on message criteria. When this message
is broadcast to all channels regardless, it becomes a Multicast pattern

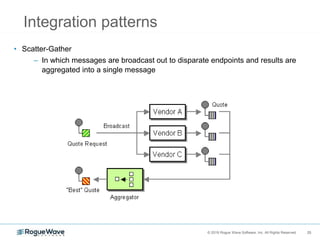

• Scatter-Gather
– In which messages are broadcast out to disparate endpoints and results are
aggregated into a single message

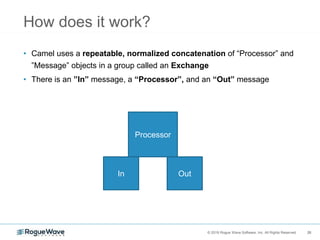

How does it work?
• Camel uses a repeatable, normalized concatenation of “Processor” and
”Message” objects in a group called an Exchange
• There is an ”In” message, a “Processor”, and an “Out” message
Processor
In Out

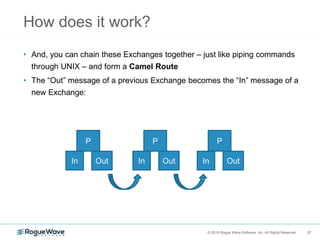

How does it work?
• And, you can chain these Exchanges together – just like piping commands
through UNIX – and form a Camel Route
• The “Out” message of a previous Exchange becomes the “In” message of a
new Exchange:
P
In Out
P
In Out
P
In Out

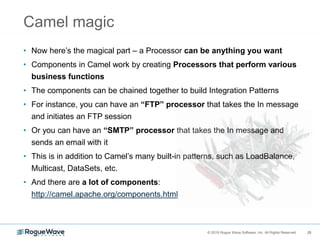

Camel magic
• Now here’s the magical part – a Processor can be anything you want
• Components in Camel work by creating Processors that perform various
business functions
• The components can be chained together to build Integration Patterns
• For instance, you can have an “FTP” processor that takes the In message
and initiates an FTP session
• Or you can have an “SMTP” processor that takes the In message and
sends an email with it
• This is in addition to Camel’s many built-in patterns, such as LoadBalance,
Multicast, DataSets, etc.
• And there are a lot of components:
http://camel.apache.org/components.html

Camel components
Uhm, yeah, the list isn’t gonna fit…
The point is there are a lot!

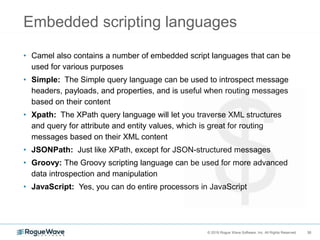

Embedded scripting languages
• Camel also contains a number of embedded script languages that can be
used for various purposes
• Simple: The Simple query language can be used to introspect message
headers, payloads, and properties, and is useful when routing messages
based on their content
• Xpath: The XPath query language will let you traverse XML structures
and query for attribute and entity values, which is great for routing
messages based on their XML content
• JSONPath: Just like XPath, except for JSON-structured messages
• Groovy: The Groovy scripting language can be used for more advanced
data introspection and manipulation
• JavaScript: Yes, you can do entire processors in JavaScript

Camel source
• Camel routes can be coded in Java POJO
• Or by using Camel Spring DSL XML files
from("activemq:foo").filter().
xquery("//foo").
to("activemq:bar")
<route xmlns="http://camel.apache.org/schema/spring" id="TimerClient">
<from uri=”activemq:topic:broadcastData"/>
<setBody>
<constant>This is a test JMS message.</constant>
</setBody>
<to uri="activemq:Test_ActiveMQ_Route.inQueue"/>
</route>

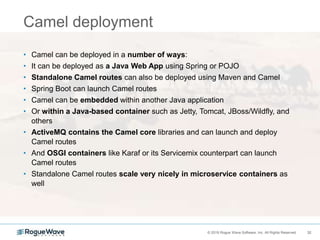

Camel deployment
• Camel can be deployed in a number of ways:
• It can be deployed as a Java Web App using Spring or POJO
• Standalone Camel routes can also be deployed using Maven and Camel
• Spring Boot can launch Camel routes
• Camel can be embedded within another Java application
• Or within a Java-based container such as Jetty, Tomcat, JBoss/Wildfly, and
others
• ActiveMQ contains the Camel core libraries and can launch and deploy
Camel routes
• And OSGI containers like Karaf or its Servicemix counterpart can launch
Camel routes
• Standalone Camel routes scale very nicely in microservice containers as
well

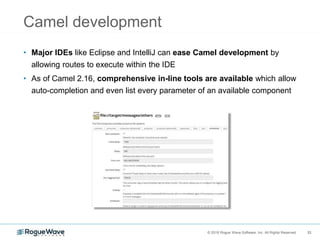

Camel development
• Major IDEs like Eclipse and IntelliJ can ease Camel development by
allowing routes to execute within the IDE
• As of Camel 2.16, comprehensive in-line tools are available which allow
auto-completion and even list every parameter of an available component

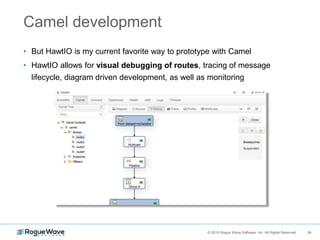

Camel development
• But HawtIO is my current favorite way to prototype with Camel
• HawtIO allows for visual debugging of routes, tracing of message
lifecycle, diagram driven development, as well as monitoring

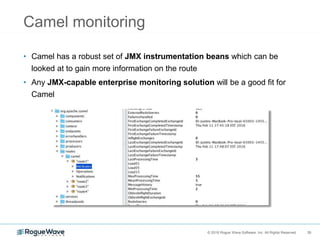

Camel monitoring
• Camel has a robust set of JMX instrumentation beans which can be
looked at to gain more information on the route
• Any JMX-capable enterprise monitoring solution will be a good fit for
Camel

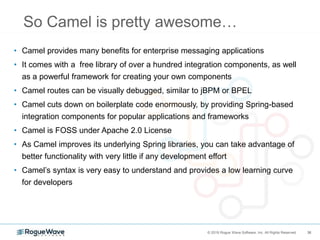

So Camel is pretty awesome…
• Camel provides many benefits for enterprise messaging applications
• It comes with a free library of over a hundred integration components, as well
as a powerful framework for creating your own components
• Camel routes can be visually debugged, similar to jBPM or BPEL
• Camel cuts down on boilerplate code enormously, by providing Spring-based
integration components for popular applications and frameworks
• Camel is FOSS under Apache 2.0 License
• As Camel improves its underlying Spring libraries, you can take advantage of
better functionality with very little if any development effort
• Camel’s syntax is very easy to understand and provides a low learning curve
for developers

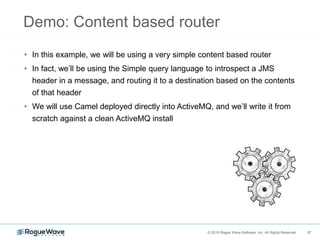

Demo: Content based router
• In this example, we will be using a very simple content based router
• In fact, we’ll be using the Simple query language to introspect a JMS
header in a message, and routing it to a destination based on the contents
of that header
• We will use Camel deployed directly into ActiveMQ, and we’ll write it from
scratch against a clean ActiveMQ install

Demo: File content translator
• Here we will read the contents of new files entering into a file directory, and
convert these files into JMS messages

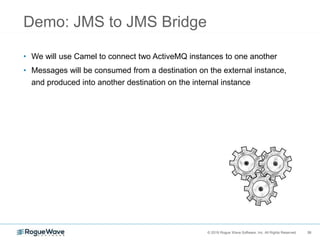

Demo: JMS to JMS Bridge
• We will use Camel to connect two ActiveMQ instances to one another
• Messages will be consumed from a destination on the external instance,
and produced into another destination on the internal instance

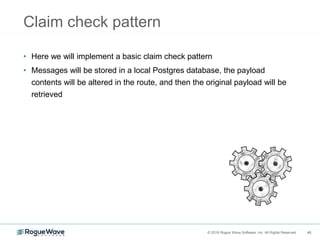

Claim check pattern
• Here we will implement a basic claim check pattern
• Messages will be stored in a local Postgres database, the payload
contents will be altered in the route, and then the original payload will be
retrieved

Questions?
Feel free to reach out after, too!
justin.reock@roguewave.com

The forgotten route: Making Apache Camel work for you

More Related Content

What's hot

Similar to The forgotten route: Making Apache Camel work for you

More from Rogue Wave Software

Recently uploaded

The forgotten route: Making Apache Camel work for you
