Presented at STPCon 2016. With the extensive amount of testing performed nightly on large software projects, test and verification teams often experience lengthy wait times for the availability of test results of the latest build. As we strive to identify and resolve issues as fast as possible, alternative methods of test execution have to be found. Learn how to use Jenkins to launch tests in parallel across a number of Virtual Machines, monitor execution health, and process results. Learn about various Jenkins plugins and how they contributed to the solution. Learn how to trigger downstream jobs, even if they are on separate Jenkins instances.

1. Test parallelization using Jenkins
Scott Mills - Rogue Wave Software

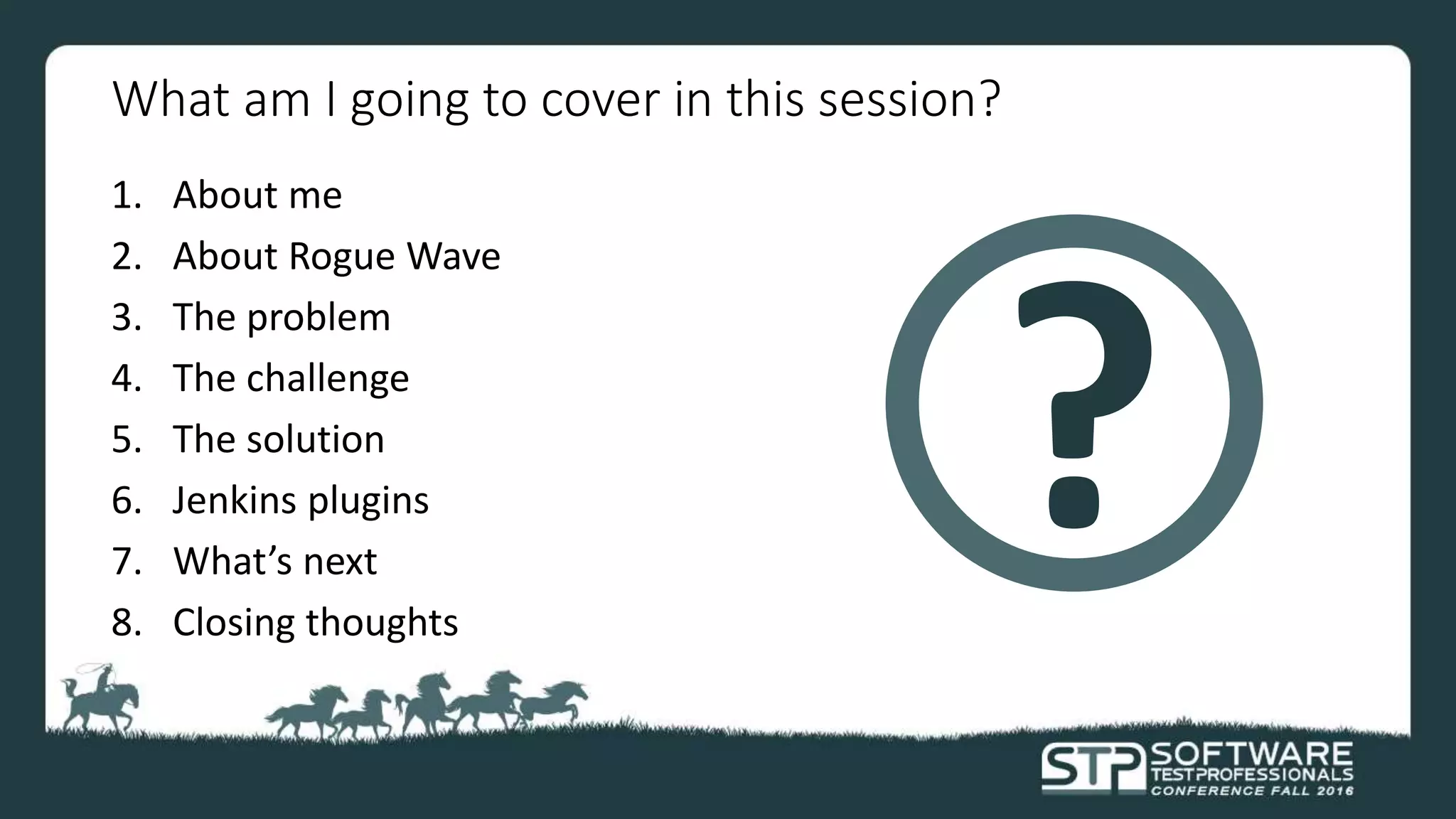

2. What am I going to cover in this session?
1. About me
2. About Rogue Wave
3. The problem
4. The challenge
5. The solution
6. Jenkins plugins
7. What’s next
8. Closing thoughts

3. What are you going to take away from this session?
1. Easy to get started with Jenkins
2. Monitor job health, process results
3. Parallelize your test suites
4. Plugins are your friends

4. About me

5. About Me
Dallas, TX
Ottawa, ON

6. My technical background
• Over 15 years designing, developing, maintaining and supporting
Automation systems
• Application Performance Testing
• Application Security testing (OWASP Top 10)
• Automated Web testing (Selenium, Silk Test, TestPartner)
• Test Automation framework development, maintenance and
evolution in Java, Python, Jenkins

7. No, I don’t test software in my spare time…

8. About Rogue Wave Software

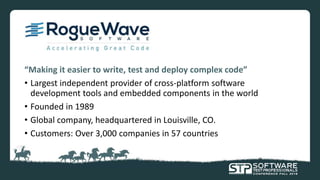

9. “Making it easier to write, test and deploy complex code”
• Largest independent provider of cross-platform software
development tools and embedded components in the world
• Founded in 1989
• Global company, headquartered in Louisville, CO.
• Customers: Over 3,000 companies in 57 countries

10. Tools Libraries
SourcePro OS, database, network, and analysis
abstraction for C++
Visualization Real-time data visualization at scale
IMSL Numerical Libraries Scalable math
and statistics algorithms
PV-WAVE Visual data analysis
HydraExpress SOA/C++ modernization
framework
HostAccess Terminal emulation for Windows
Stingray MFC GUI components
OpenLogic Audits Detailed open source
license and security risk guidance
OpenLogic Support Enterprise-grade SLA support
Klocwork On-the-fly static code analysis for app
security
TotalView for HPC Scalable parallel debugging
CodeDynamics Commercial dynamic analysis
Zend Server Enterprise PHP app server
Zend Studio PHP IDE
Zend Guard PHP encoding and obfuscation

11. Rogue Wave customers

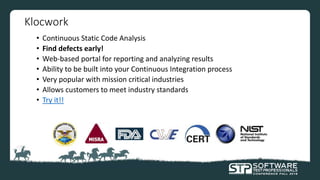

12. Klocwork
• Continuous Static Code Analysis
• Find defects early!
• Web-based portal for reporting and analyzing results
• Ability to be built into your Continuous Integration process
• Very popular with mission critical industries
• Allows customers to meet industry standards
• Try it!!

13. The problem

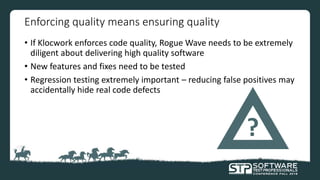

14. Enforcing quality means ensuring quality
• If Klocwork enforces code quality, Rogue Wave needs to be extremely
diligent about delivering high quality software
• New features and fixes need to be tested
• Regression testing extremely important – reducing false positives may
accidentally hide real code defects
?

15. Testing
• 6000+ test cases run against our nightly build
• Total execution time: 18+ hours
• Too long of a delay to get results (especially in an Agile environment!)
to determine the health of the build and identify potential regression
defects
• Problem goes downstream: QA waits for test results, developers wait
for QA to report bugs, bugs get fixed and issue repeats.

16. The challenge

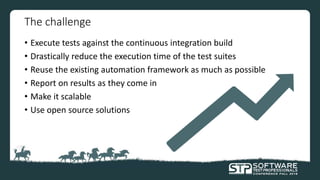

17. The challenge
• Execute tests against the continuous integration build
• Drastically reduce the execution time of the test suites
• Reuse the existing automation framework as much as possible
• Report on results as they come in
• Make it scalable
• Use open source solutions

18. The solution

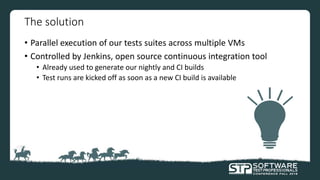

19. The solution
• Parallel execution of our tests suites across multiple VMs
• Controlled by Jenkins, open source continuous integration tool
• Already used to generate our nightly and CI builds
• Test runs are kicked off as soon as a new CI build is available

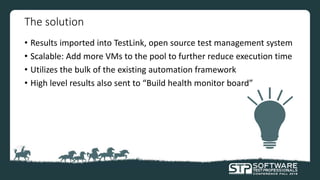

20. The solution
• Results imported into TestLink, open source test management system
• Scalable: Add more VMs to the pool to further reduce execution time
• Utilizes the bulk of the existing automation framework
• High level results also sent to “Build health monitor board”

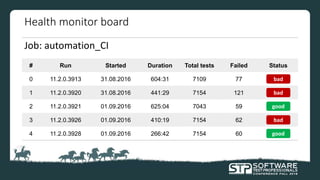

21. Health monitor board
Job: automation_CI
# Run Started Duration Total tests Failed Status
0 11.2.0.3913 31.08.2016 604:31 7109 77
1 11.2.0.3920 31.08.2016 441:29 7154 121
2 11.2.0.3921 01.09.2016 625:04 7043 59
3 11.2.0.3926 01.09.2016 410:19 7154 62
4 11.2.0.3928 01.09.2016 266:42 7154 60
bad
bad
good
bad
good

22. Health monitor board

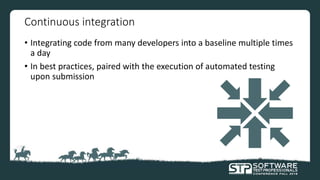

23. Continuous integration
• Integrating code from many developers into a baseline multiple times
a day
• In best practices, paired with the execution of automated testing
upon submission

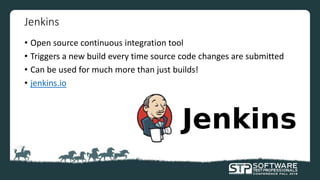

24. Jenkins
• Open source continuous integration tool
• Triggers a new build every time source code changes are submitted
• Can be used for much more than just builds!
• jenkins.io

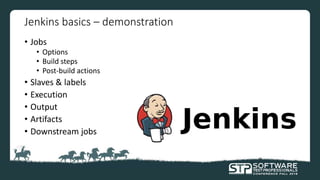

25. Jenkins basics – demonstration
• Jobs
• Options
• Build steps
• Post-build actions
• Slaves & labels
• Execution
• Output
• Artifacts
• Downstream jobs

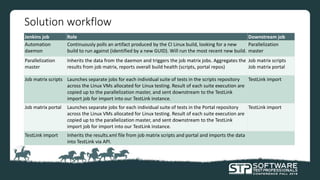

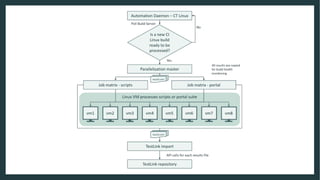

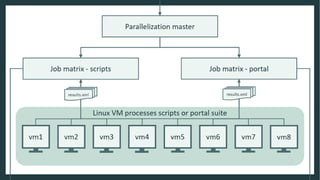

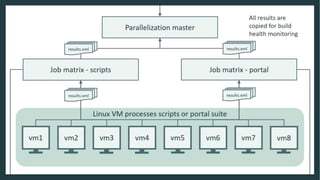

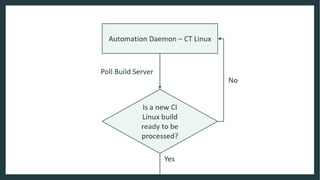

31. Solution workflow
Jenkins job Role Downstream job
Automation
daemon
Continuously polls an artifact produced by the CI Linux build, looking for a new
build to run against (identified by a new GUID). Will run the most recent new build.
Parallelization
master
Parallelization
master
Inherits the data from the daemon and triggers the job matrix jobs. Aggregates the
results from job matrix, reports overall build health (scripts, portal repos)
Job matrix scripts
Job matrix portal
Job matrix scripts Launches separate jobs for each individual suite of tests in the scripts repository
across the Linux VMs allocated for Linux testing. Result of each suite execution are
copied up to the parallelization master, and sent downstream to the TestLink
import job for import into our TestLink instance.
TestLink import
Job matrix portal Launches separate jobs for each individual suite of tests in the Portal repository
across the Linux VMs allocated for Linux testing. Result of each suite execution are
copied up to the parallelization master, and sent downstream to the TestLink
import job for import into our TestLink instance.
TestLink import
TestLink import Inherits the results.xml file from job matrix scripts and portal and imports the data
into TestLink via API.

32. THEN
python runAll.py
NOW
python parallel.py $SUITE_NAME

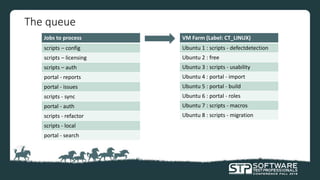

33. The queue
Jobs to process
scripts – config
scripts – licensing
scripts – auth
portal - reports
portal - issues
scripts - sync
portal - auth
scripts - refactor
scripts - local
portal - search
VM Farm (Label: CT_LINUX)
Ubuntu 1 : scripts - defectdetection
Ubuntu 2 : free
Ubuntu 3 : scripts - usability
Ubuntu 4 : portal - import
Ubuntu 5 : portal - build
Ubuntu 6 : portal - roles
Ubuntu 7 : scripts - macros
Ubuntu 8 : scripts - migration

34. Jenkins plugins

35. Jenkins plugins
• Many plugins available
• Written by the community
• Easy to install to your Jenkins instance
• “I wonder if there’s a plugin for that?”

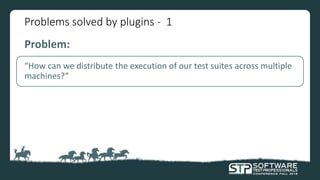

36. Problems solved by plugins - 1
Problem:
“How can we distribute the execution of our test suites across multiple
machines?”

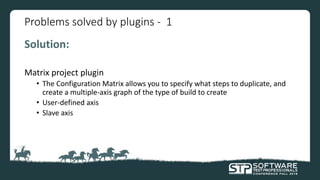

37. Problems solved by plugins - 1
Solution:
Matrix project plugin
• The Configuration Matrix allows you to specify what steps to duplicate, and
create a multiple-axis graph of the type of build to create
• User-defined axis
• Slave axis

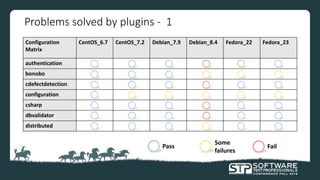

38. Configuration
Matrix
CentOS_6.7 CentOS_7.2 Debian_7.9 Debian_8.4 Fedora_22 Fedora_23
authentication
bonobo
cdefectdetection
configuration
csharp
dbvalidator
distributed
Problems solved by plugins - 1
Pass
Some
failures
Fail

39. Problems solved by plugins - 2
Problem:
“Build Steps can be written in either Windows batch or Linux shell. How
can we create platform independent jobs?”

40. Problems solved by plugins - 2
Solution:
Execute Python script plugin
• Our automation framework written in Python, so readily available across all
machines

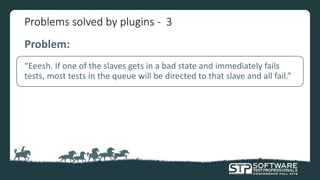

41. Problems solved by plugins - 3
Problem:
“Eeesh. If one of the slaves gets in a bad state and immediately fails
tests, most tests in the queue will be directed to that slave and all fail.”

42. Problems solved by plugins - 3
Solution:
Offline on failure plugin
• Allows you to take nodes offline immediately when a job reports FAILURE

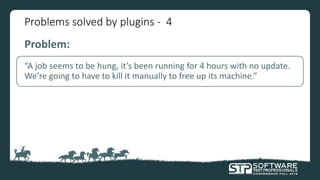

43. Problems solved by plugins - 4
Problem:
“A job seems to be hung, it’s been running for 4 hours with no update.
We’re going to have to kill it manually to free up its machine.”

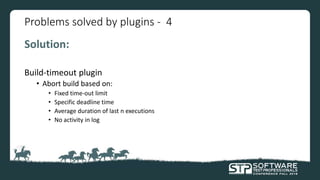

44. Problems solved by plugins - 4
Solution:
Build-timeout plugin
• Abort build based on:
• Fixed time-out limit
• Specific deadline time
• Average duration of last n executions
• No activity in log

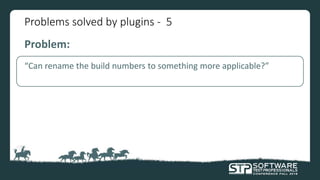

45. Problems solved by plugins - 5
Problem:
“Can rename the build numbers to something more applicable?”

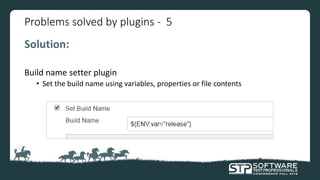

46. Problems solved by plugins - 5
Solution:
Build name setter plugin
• Set the build name using variables, properties or file contents

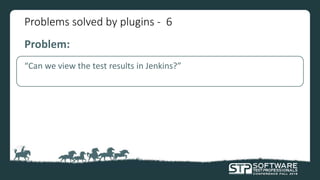

47. Problems solved by plugins - 6
Problem:
“Can we view the test results in Jenkins?”

48. Problems solved by plugins - 6
Solution (part 1):
Junit plugin
• Publish Junit test result report:
• Drill down into test suites to find individual test failures
• View stack traces

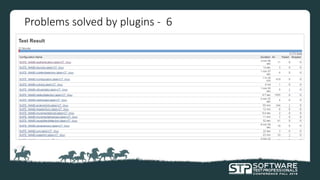

49. Problems solved by plugins - 6

50. Problems solved by plugins - 6

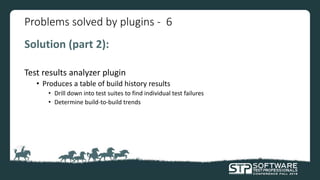

Solution (part 2):
Test results analyzer plugin
• Produces a table of build history results
• Drill down into test suites to find individual test failures
• Determine build-to-build trends

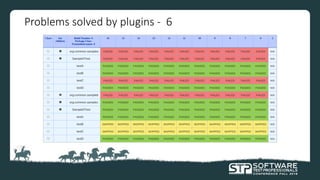

51. Problems solved by plugins - 6

52. What’s next?

54. Folks, we’re almost done…

55. I hope you are able to take away the following points:
1. Easy to get started with Jenkins
2. Monitor job health, process results
3. Parallelize your test suites
4. Plugins are your friends

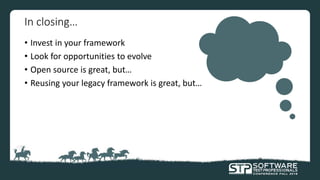

56. In closing…
• Invest in your framework
• Look for opportunities to evolve
• Open source is great, but…
• Reusing your legacy framework is great, but…
