Geotechnical Engineering–I [CE-221]
BSc Civil Engineering – 4th Semester
by
Dr. Muhammad Irfan
Assistant Professor
Civil Engg. Dept. – UET Lahore
Email: mirfan1@msn.com
Lecture Handouts: https://groups.google.com/forum/#!forum/geotech-i
Lecture # 7
14-Feb-2017

2. 2

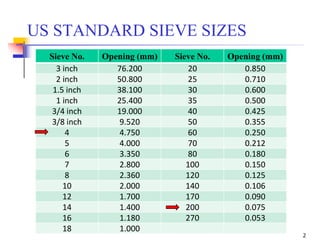

US STANDARD SIEVE SIZES
Sieve No. Opening (mm) Sieve No. Opening (mm)
3 inch 76.200 20 0.850
2 inch 50.800 25 0.710
1.5 inch 38.100 30 0.600
1 inch 25.400 35 0.500
3/4 inch 19.000 40 0.425
3/8 inch 9.520 50 0.355
4 4.750 60 0.250
5 4.000 70 0.212
6 3.350 80 0.180
7 2.800 100 0.150
8 2.360 120 0.125
10 2.000 140 0.106
12 1.700 170 0.090
14 1.400 200 0.075
16 1.180 270 0.053
18 1.000

3. 3
SIEVE ANALYSIS – Procedure
• Soil used in sieve analysis is oven-dried and all lumps are
broken.
• A stack of sieves (sieve nest), with sieve opening of
decreasing size from top to bottom, is arranged.
• A pan is placed below the stack.
• The soil is then shaken through this sieve nest.
• Mass retained on each sieve is determined.
Wet Sieving Technique
Breaking lumps in clayey soils may be difficult. If soils contain silts and
clays, the wet sieving is usually used to preserve the fine content.
In this case, the soil may be mixed with water to make a slurry and then
washed through sieves.
Portions retained on each sieve are collected separately and oven-dried.

4. 4
76.2 mm
4.75 mm
0.075 mm
Pan
100 %
Finer (Passing)
93 %
62 %
0 %
Gravel
Sand
Silt and Clay
100 – 93 = 7%
93 – 62 = 31%
62 – 0 = 62%
Gravel
Sand
Silt and Clay
SIEVE ANALYSIS – Procedure

5. 5
CumulativePercentagepassing
througheachsieve(%)
Grain Diameter (mm)
Log scale
SIEVE ANALYSIS – Results
(Gradation Curve)

6. 6
SIEVE ANALYSIS – Calculations
Sieve
No.
Diameter
(mm)
Wt. of soil
retained
(gm)
Cumulative
soil weight
retained on
each sieve
(gm)
Cumulative
percentage
retained (%)
Cumulative
percentage
passing (%)
(Col. 1) (Col. 2) (Col. 3) (Col. 4) (Col. 5) (Col. 6)
(Col. 4) = (Col. 3) + (Col. 4) of previous line
(Col. 5) = [(Col. 4)/Total wt.] x 100
(Col. 6) = 100 – (Col. 5)

7. 7
SIEVE ANALYSIS – Example

8. 8
SIEVE ANALYSIS – Example

9. 9
0
10
20
30
40
50
60
70
80
90
100
0.010.1110
PercentFiner%
Particle Size (mm)
SIEVE ANALYSIS – Example

10. 10
SOIL GRADATIONS
• Well graded soils
• Poorly graded soils
• Uniformly graded soils
• Gap graded soils

11. 11

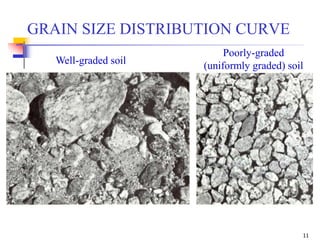

GRAIN SIZE DISTRIBUTION CURVE
Well-graded soil
Poorly-graded
(uniformly graded) soil

12. 12
D10, D30, and D60
10
Percentpassing
30
60
Grain Diameter
D60 D30 D10
D10= Diameter corresponding to 10% passing
D30= Diameter corresponding to 30% passing
D60= Diameter corresponding to 60% passing
D50= Diameter corresponding to 50% passing
= Mean diameter of soil sample

13. 13
COEFFICIENTS OF GRADATION
Coefficient of Uniformity
Coefficient of Curvature
10
60
D
D
Cu 
 1060
2
30
DD
D
Cc


)(6
)(4
31
sandsforC
gravelsforC
and
C
u
u
c



For a well-graded soils

14. 14
What is the Cu for a soil with only one
grain size?
POINT TO PONDER!!!

15. 15

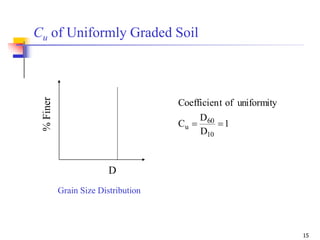

D
%Finer
1
D
D
C
uniformityoftCoefficien
10
60
u 
Grain Size Distribution
Cu of Uniformly Graded Soil

16. 16
GRAIN SIZE DISTRIBUTION CURVE
100 10 1 0.1 0.01 0.001
A
D
C
E
B
#200#43”
A: fine-grained soils
B: coarse-grained soils
Cu = 5
Cc = 0.8
Cu = 13
Cc = 0.83

17. 17
100 10 1 0.1 0.01 0.001
A
D
C
E
B
#200#43”
C: poorly graded or
uniformly graded
Cu = 1.63
Cc = 0.96
GRAIN SIZE DISTRIBUTION CURVE

18. 18
100 10 1 0.1 0.01 0.001
A
D
C
E
B
#200#43”

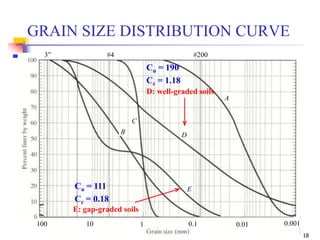

D: well-graded soils
E: gap-graded soils
Cu = 190
Cc = 1.18
Cu = 111
Cc = 0.18
GRAIN SIZE DISTRIBUTION CURVE

19. 19
SIEVE ANALYSIS – Calculations
Sieve
No.
Diameter
(mm)
Wt. of soil
retained
(gm)
Cumulative
soil weight
retained on
each sieve
(gm)
Cumulative
percentage
retained (%)
Cumulative
percentage
passing (%)
(Col. 1) (Col. 2) (Col. 3) (Col. 4) (Col. 5) (Col. 6)
(Col. 4) = (Col. 3) + (Col. 4) of previous line
(Col. 5) = [(Col. 4)/Total wt.] x 100
(Col. 6) = 100 – (Col. 5)

20. 20
SIEVE ANALYSIS

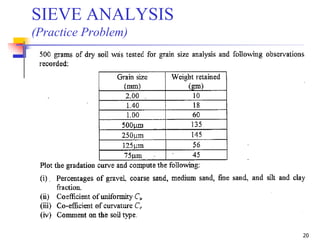

(Practice Problem)

21. 21
SIEVE ANALYSIS
(Practice Problem)

22. 22
SIEVE ANALYSIS
(Practice Problem)
0
10
20
30
40
50
60
70
80
90
100
0.010.1110
%Finer
Grain size (mm)
D10=0.09 mm
D30=0.27 mm
D60=0.58 mm
Cu = 6.44
Cc = 1.40

23. 23
SIEVE ANALYSIS
(Practice Problem)
0
10
20
30
40
50
60
70
80
90
100
0.010.1110
%Finer
Grain size (mm)
98%
49%
Medium sand → (2.0 mm – 0.425 mm)
%age of medium sand = 98-49 = 49%
%age of gravel (75 - 4.75 mm)
%age of coarse sand (4.75 - 2.0 mm)
%age of medium sand (2.0 – 0.425 mm)
%age of fine sand (0.425 – 0.075 mm)
%age of silt and clay (passing sieve #200)
= nil
= 2
= 49
= 43
= 6

24. 24
0
20
40
60
80
100
0.0010.010.1110
Percentpassing
Grain diameter (mm)

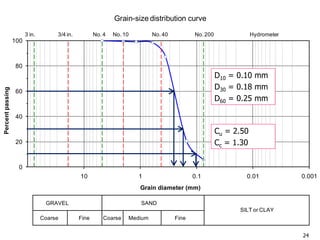

Grain-size distribution curve
GRAVEL SAND
SILT or CLAY
Coarse Fine Coarse Medium Fine
3/4 in. No.4 No.10 No.40 No.200 Hydrometer3 in.
D10 = 0.10 mm
D30 = 0.18 mm
D60 = 0.25 mm
Cu = 2.50
Cc = 1.30

25. 25
Coarse-grained soils:
Gravel Sand
Fine-grained soils:
Silt Clay
0.075 mm (USCS)
0.06 mm (BS)
Sieve Analysis Hydrometer Analysis

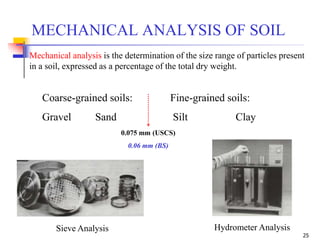

MECHANICAL ANALYSIS OF SOIL
Mechanical analysis is the determination of the size range of particles present
in a soil, expressed as a percentage of the total dry weight.

26. 26
HYDROMETER ANALYSIS –
Stoke’s Law

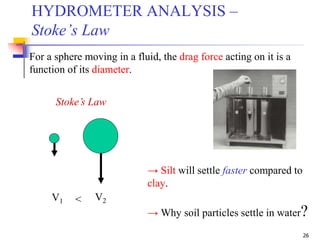

For a sphere moving in a fluid, the drag force acting on it is a
function of its diameter.
Stoke’s Law
V1 V2<
→ Silt will settle faster compared to
clay.
→ Why soil particles settle in water?

27. 27
HYDROMETER ANALYSIS –
Conceptual Basis
→ Soil settles down
→ Gs of the solution decreases
→ Hydrometer settles in water

28. 28

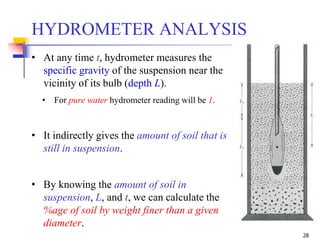

• At any time t, hydrometer measures the
specific gravity of the suspension near the
vicinity of its bulb (depth L).
• For pure water hydrometer reading will be 1.
• It indirectly gives the amount of soil that is
still in suspension.
• By knowing the amount of soil in
suspension, L, and t, we can calculate the
%age of soil by weight finer than a given
diameter.
HYDROMETER ANALYSIS

29. 29

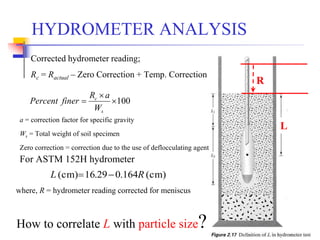

R
L
HYDROMETER ANALYSIS
(cm)164.029.16(cm) RL 
where, R = hydrometer reading corrected for meniscus
For ASTM 152H hydrometer
How to correlate L with particle size?
Corrected hydrometer reading;
Rc = Ractual – Zero Correction + Temp. Correction
100


s
c
W
aR
finerPercent
a = correction factor for specific gravity
Ws = Total weight of soil specimen
Zero correction = correction due to the use of deflocculating agent

30. 30
CONCLUDED

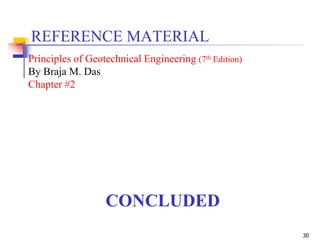

REFERENCE MATERIAL
Principles of Geotechnical Engineering (7th Edition)
By Braja M. Das
Chapter #2
