GeoServer is an open source geospatial data server. Version 2.1 includes improvements to its user interface, security, administration, and OGC services. It supports many raster and vector formats and can serve data through WMS, WFS, WCS and other standards. GeoSolutions focuses on open source geospatial projects like GeoServer and provides consultancy services.

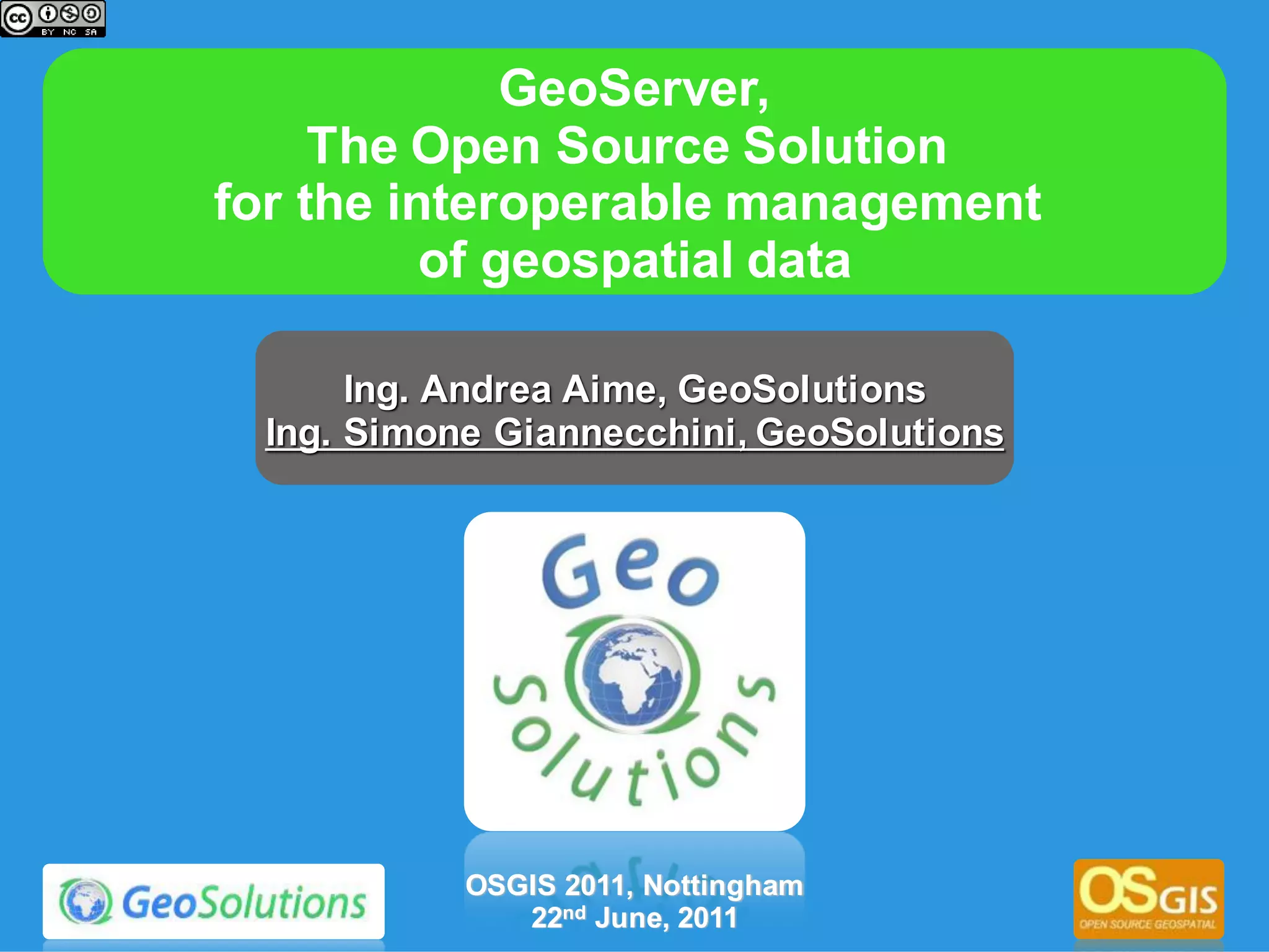

1. GeoServer,
The Open Source Solution
for the interoperable management
of geospatial data
Ing. Andrea Aime, GeoSolutions
Ing. Simone Giannecchini, GeoSolutions
OSGIS 2011, Nottingham
22nd June, 2011

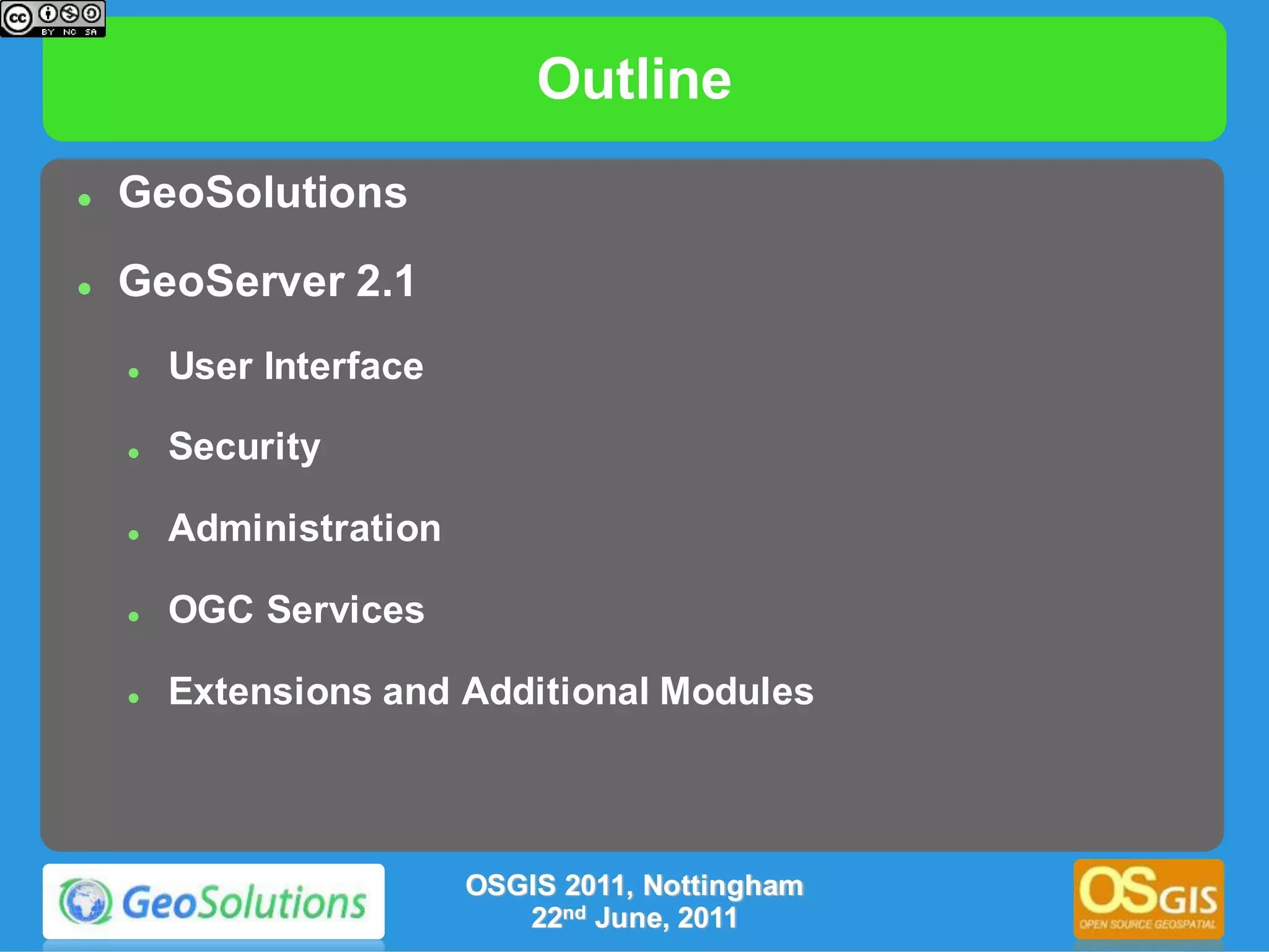

2. Outline
 GeoSolutions
 GeoServer 2.1
 User Interface
 Security
 Administration
 OGC Services
 Extensions and Additional Modules
OSGIS 2011, Nottingham
22nd June, 2011

3. GeoSolutions
 Founded in Italy in late 2006
 Expertise
• Image Processing, GeoSpatial Data Fusion
• Java, Java Enterprise, C++, Python
• JPEG2000, JPIP, Advanced 2D visualization
 Supporting/Developing FOSS4G projects
 GeoTools, GeoServer
 GeoNetwork, GeoBatch
 ImageIO-Ext
 Focus on Consultancy
 agencies, large private companies, etc…
OSGIS 2011, Nottingham
22nd June, 2011

4. GeoServer
 GeoSpatial enterprise gateway
 Java Enterprise
 Management of raster and vector data
 Standards compliant
 OGC WCS 1.0 - 1.1.1 (RI)
 OGC WFS 1.0 - 1.1 (RI), 2.0 ongoing
 OGC WMS 1.1.1, 1.3
 OGC WPS 1.0.0
 Google Earth/Maps support
 KML, GeoSearch, etc..
OSGIS 2011, Nottingham
22nd June, 2011

5. ----------
----------
----------
---------
PNG, GIF
----------
Shapefile ----------
--------- WMS JPEG
---------- 1.1.1 TIFF,
1.3.0 GeoTIFF
Formats and Protocols
Vector files
PostGIS SVG, PDF
Oracle Styled KML/KMZ
Google* maps
H2
DB2
SQL Server Shapefile
MySql WFSv* GML2
GeoServer
Spatialite GML3
DBMS
GeoCouch GeoRSS
WFS Raw vector GeoJSON
1.0 e 1.1 data
CSV/XLS
ArcSDE
WFS WPS
1.0.0 GeoTIFF
Servers WCS ArcGrid
GeoTIFF 1.0 GTopo30
WMS 1.1.1 Raw raster
Img+World
ArcGrid data
GTopo30 GWC
Img+world (WMTS, KML superoverlays
Mosaic Raster files TMS, Google maps tiles
MrSID WMS-C) OGC tiles
JPEG 2000
ECW,Pyramid, Oracle GeoRaster, … OSGEO tiles
OSGIS 2011, Nottingham
22nd June, 2011

6. Architecture
WCS WMS WFS WFSv REST Google GWC
GeoTools
ImageIO JAI JTS
GDAL Kakadu JAITools
Vector Style Raster
OSGIS 2011, Nottingham
22nd June, 2011

7. Integrated Security
 Spring Security
 RBAC on layers and services
 Built-in version with simplified rules
namespace.layer.mode=role1,role2,...
A name, or * to r: read The roles that will
mean “any” w: write be authorized to
access the data
under this rule
OSGIS 2011, Nottingham
22nd June, 2011

8. Integrated Security
*.*.r=*
RDONLY
*.*.w=NO_ONE lock down
private.*.r=TRUSTED_ROLE
private.*.w=TRUSTED_ROLE Per-layer
override
topp.districts.w=LEGISLATORS
topp. Other
private.* topp.* districts layers
TRUSTED_ROLE r/w r r r
LEGISLATORS (no access) r r/w r
(all other users) (no access) r r r
OSGIS 2011, Nottingham
22nd June, 2011

9. Security Developments in 2.1
 Security Management at the feature level (record
in DBMS)  read and write filtering
 Hide sensible attributes
 Discriminate visible areas on a per-user basis
 Rules for services and layers
 Server side framework available, open source
implementation needed!
OSGIS 2011, Nottingham
22nd June, 2011

10. Security Developments in 2.1
GeoRepository
OSGIS 2011, Nottingham
22nd June, 2011

11. RESTful Configuration
 Programmatic configuration of layers via REST
calls
 Workspaces
 DataStores/CoverageStores
 Layers and Styles
 Exposing internal configuration to remote clients
 Ajax-JavaScript friendly
 “Core” Module since 2.1
 Integrated Security
 Admin credentials required for modifications
OSGIS 2011, Nottingham
22nd June, 2011

12. WFS
 Dissemination and filtering of vector data
 WFS 1.0 and 1.1 support with transactions
 Formats:
 GML 2, 3.1 e 3.2
 GeoRSS, GeoJSON
 Shapefile (zipped)
 OGR (configurable)
 Extensions
 CQL
 WFS 1.0 with on-the-fly reprojection
 WFS 2.0 Ongoing!
OSGIS 2011, Nottingham
22nd June, 2011

13. WCS*
 Raster data dissemination
 Raw raster data useful for analysis, no maps!
 Support for TIME and ELEVATION (via ImageMosaic plugin)
 WCS 1.0 e 1.1
 Output formats
 GeoTiff, ArcGrid
 GDAL based formats*
 Extensions
 ELEVATION as band management*
 Refactor Ongoing!
OSGIS 2011, Nottingham
22nd June, 2011

14. WMS
 Dissemination of Maps
 Fusing raster and vector data seamlessly
 With styling!
 WMS 1.1.1 and 1.3 support
 INSPIRE!
 SLD
 Basic support for SLD 1.1 and SE 1.1
 Full support for SLD 1.0
 Many rendering extensions available!
 Integration with GeoWebCache
OSGIS 2011, Nottingham
22nd June, 2011

15. KML/KMZ
TEMPORAL SERIES
KML EXTRUDE KML SUPEROVERLAY
OSGIS 2011, Nottingham
22nd June, 2011

16. Advanced Projection Handling
Management of dateline
Change and
map-wrapping
Cutting un-reprojectable
geometries
OSGIS 2011, Nottingham
22nd June, 2011

17. Raster Symbolizer
Raw 256
Data Colors
65536
Colors
OSGIS 2011, Nottingham
22nd June, 2011

18. Rendering transformations
 On-the-fly data transformations
 Calling WPS processes from SLD docs
 Optimized for performance
OSGIS 2011, Nottingham
22nd June, 2011

19. Rendering transformations
 Point feature extraction from two band raster data
(e.g. Wind(u,v))
 Computation of direction and module from SLD
OSGIS 2011, Nottingham
22nd June, 2011

20. ImageIO-Ext Support
 JAI ImageIO Extension
 Plugins:
 BigTiff
 netCDF-CF, GriB1
 MatFile 5
 HDF4
 JP2000 (Kakadu)
 GDAL 1.7.3
 GDAL integration via ImageIO-ext
 JPEG2000,MrSID, ECW
 BigTIFF, ERDAS Image, HDF4
OSGIS 2011, Nottingham
22nd June, 2011

21. GeoWebCache Integration
 Direct calls to GeoServer
GeoServer rendering engine
 Support for layers modified
through WFT-T
GeoWebCache  Support for various tile
protocols
 GMap, Gearth
 OpenLayers, VEarth,
Bing
 Speed-up factor 10/100
 Disk quota support
Persistent raster/KML
tile cache
OSGIS 2011, Nottingham
22nd June, 2011

22. Improved Raster Reprojection
 Raster reprojection  complex
process
 Idea:
 try to approximate the overall
transformation with a simpler
one, either a single affine
transformation or a piecewise
composition of them (grid warp)
 Ability to specify threshold for error
acceptance
 Iterative approach (local optimization)
 Trade off between speed and
precision
OSGIS 2011, Nottingham
22nd June, 2011

23. SQL Parametric Views
 SQL View as a GeoServer Layer
 No need to actually creating a view in the database
 View can be parametric
 WMS and WFS allow parameter substitution
 ….&request=GetMap&viewparams=low:2000000;high:5000000
 Default values for parameters
 Validation with regular expressions
OSGIS 2011, Nottingham
22nd June, 2011

24. Improved Clustering
 New parameters to allow multiple GeoServers to work
against the same network shared data directory
 Per server log file location
 Disabling GWC meta store
 Disabling GWC disk quota management
 GeoWebCache Enhancements
 disable the embedded GWC completely,
 hide the embedded GWC to the public
 keep the embedded GWC only for fast layer seeding
 only one GWC at a time is allowed to write on disk
OSGIS 2011, Nottingham
22nd June, 2011

25. Virtual Services
 Expose multiple OGC service endpoints per installation
 One virtual service per workspace
 Expose only layers defined in such workspace
 Use cases:
 Provide clients with focused/theme centered data sets
 Provide each department of a single organization with its own set
of services
 Limitations:
 Single administrator for the whole server
 Service metadata (point of contacts and the like) still configured
centrally
OSGIS 2011, Nottingham
22nd June, 2011

26. WMS* Cascading
 GetMap and GetFeatureInfo
Cascading
 Support for reprojection
on-the-fly
 GUI based mass import of
remote layers
 TODO: Securing unsecure
WMS Services
OSGIS 2011, Nottingham
22nd June, 2011

27. WPS*
 WPS 1.0
 Official Extension
 Raster and Vector data support
 High performance processes development (raster/vector
statistics, raster/vector format conversions and more)
 Integrated WPS
 Automatic publishing of results
 Embedding processes into SLD styles
 Reuse processes as rendering transformations
OSGIS 2011, Nottingham
22nd June, 2011

28. WPS*
 Deficiencies
 No support for asynchronous requests
 Missing request limits enforcements (e.g. input/output
maximum dimensions)
 Wish list:
 Scripting (Jython, GeoScript)
 Sextante, IDL, JGrass (Grass?) integration
 Improved robustness
 Jiffle (jai-tools) based raster algebra
 Create new layers as dynamic WPS processes
(computing data on the fly as requested)
OSGIS 2011, Nottingham
22nd June, 2011

29. Image Server*
 Turning GeoServer into an Image Server
 Serving pure Imagery
 No geo-reference need/available/(would make sense!)
 Special Coordinate Reference Systems defined
 Interoperability with WMS clients
 Respecting EPSG conventions
 EPSG:404000
 See here
 Improved support for data with
bad/missing geo-reference!
OSGIS 2011, Nottingham
22nd June, 2011

30. GeoServer in da Cloud
 Standing Cloud
 Admin-Free Cloud Infrastructure
 Paas from Amazon, GoGrid, Linode, etc…
 Pay per use
 Elastic resources at hand
 GeoServer SaaS
 Deploy and admin with UI
 No sysadmin skills
 Shell available for braves!
OSGIS 2011, Nottingham
22nd June, 2011

31. The End
Questions?
simone.giannecchini@geo-solutions.it
http://demo.geo-solutions.it/share/osgis2011/
OSGIS 2011, Nottingham
22nd June, 2011

32. Administration GUI
OSGIS 2011, Nottingham
22nd June, 2011

33. GUI: security configuration
OSGIS 2011, Nottingham
22nd June, 2011

34. Security Developments in 2.1
 GSIP 57  extended authorization management
 GeoRepository
 Role Base Access Control
 Services
 Operations
 Layers
 Attributes (alphanumeric and geospatial)
 External Web Application
 Web Services + UI
 Rule-based
 IPTables-like
OSGIS 2011, Nottingham
22nd June, 2011

35. RESTful Configuration
Automatic Configuration Styles
of recurring flows of data Javascript
client
GeoBatch
GeoServer
Server side Desktop
scripts Mass
app
publishing of
Layers Layers
Publishing
OSGIS 2011, Nottingham
22nd June, 2011

36. Complex Feature*
 Application/community schemas
 Complex Features
 Attributes as sub-features
 Attributes as list of features
 Tree-like structure
 Heterogeneous data sources
 INSPIRE!
OSGIS 2011, Nottingham
22nd June, 2011

37. Dynamic symbolizers
OSGIS 2011, Nottingham
22nd June, 2011

38. Advanced Styling
Advanced Labeling
OSGIS 2011, Nottingham
22nd June, 2011

39. Advanced Styling
Geometry
Filter Functions Transformations
Drop
Number Shadow
Formatting
OSGIS 2011, Nottingham
22nd June, 2011

40. Advanced Styling
Continuous Maps
CSS Styling
<PolygonSymbolizer>
<Fill> <!-- CssParameters allowed are fill (the color) and fill-opacity -->
<CssParameter name="fill">#4DFF4D</CssParameter>
<CssParameter name="fill-opacity">0.7</CssParameter>
</Fill>
</PolygonSymbolizer>
OSGIS 2011, Nottingham
22nd June, 2011

41. WMS - CQL
 GeoServer WMS – CQL Examples
 STATE_NAME = 'Montana'
 MALE > FEMALE
 LAND_KM > 300000
OSGIS 2011, Nottingham
22nd June, 2011

42. WMS TIME and ELEVATION
TIME = 20100512T0000000Z
ELEVATION = 0.0
FeatureType Editor
WMS GetCapabilities
OSGIS 2011, Nottingham
22nd June, 2011

43. Raster Pyramids
 Preprocessing raster data for performance
 Multiple resolutions levels
 Scale decide best resolution level
 Multiple file (tiles) per resolutions level
 File Based Pyramids Support
 DBMS-based Pyramids
 Postgis
 DB2
 Oracle (GeoRaster)
 MySQL
OSGIS 2011, Nottingham
22nd June, 2011

44. WMS TIME and ELEVATION
TIME = 20100512T0000000Z
ELEVATION = 0.0
FeatureType Editor
WMS GetCapabilities
OSGIS 2011, Nottingham
22nd June, 2011

45. WPS: demo builder
OSGIS 2011, Nottingham
22nd June, 2011

46. Cross-Layer filtering
 “querylayer” community module
 “Find all sites within 100 meters from roads”
 Single CQL filter with WMS:
DWITHIN(
the_geom,
collectGeometries(
queryCollection('roads',
'the_geom',
'INCLUDE')
),
200, meters)
OSGIS 2011, Nottingham
22nd June, 2011
