1. The AVM and OVM in IP Core
Verification – Experiences and
Observations
Gareth Edwards
IP Solutions
April 22, 2009

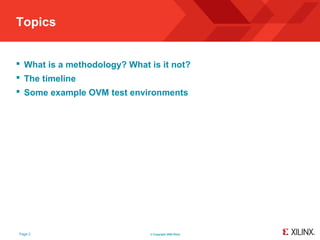

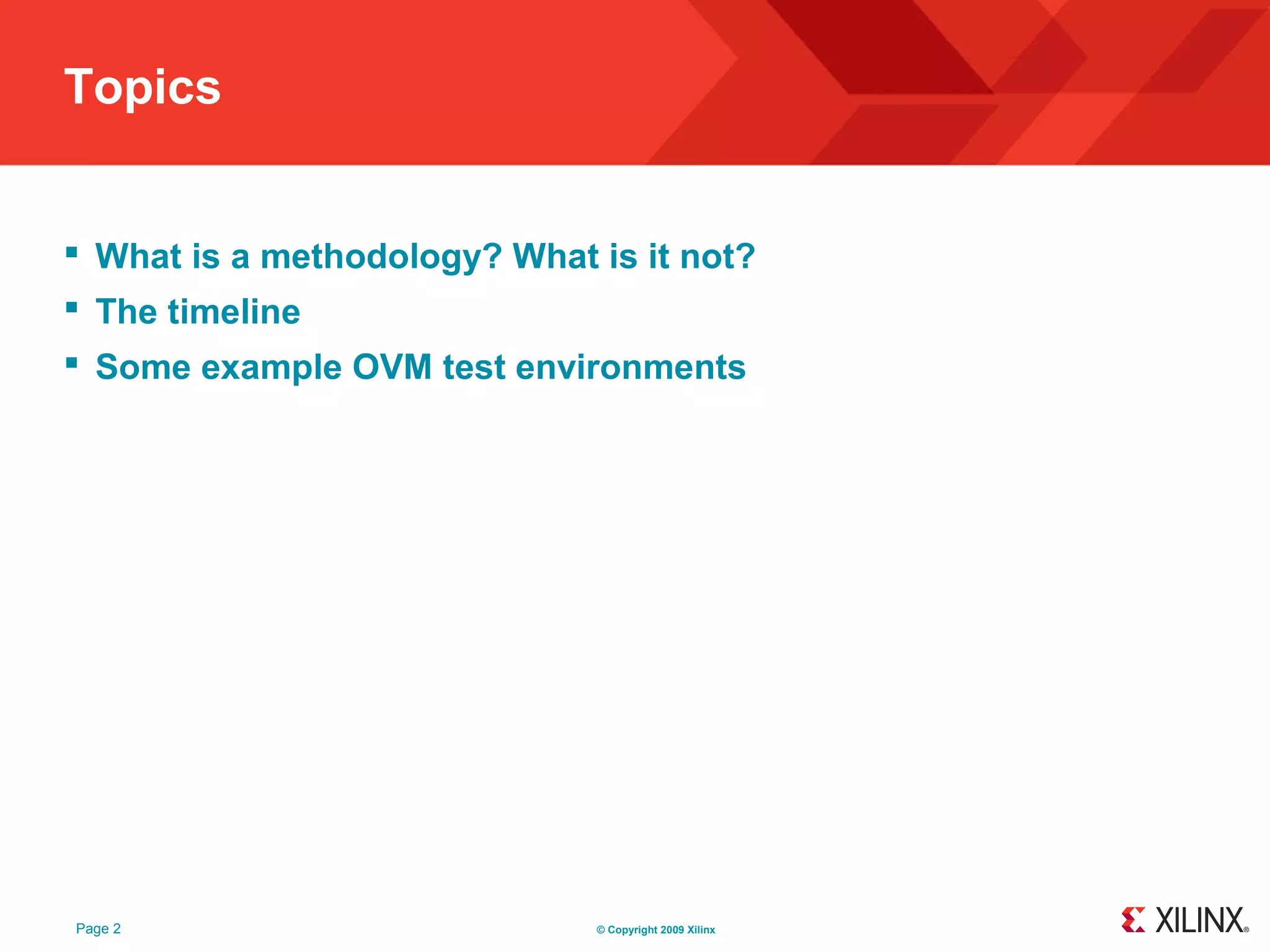

2. Topics
 What is a methodology? What is it not?
 The timeline
 Some example OVM test environments
Page 2 © Copyright 2009 Xilinx

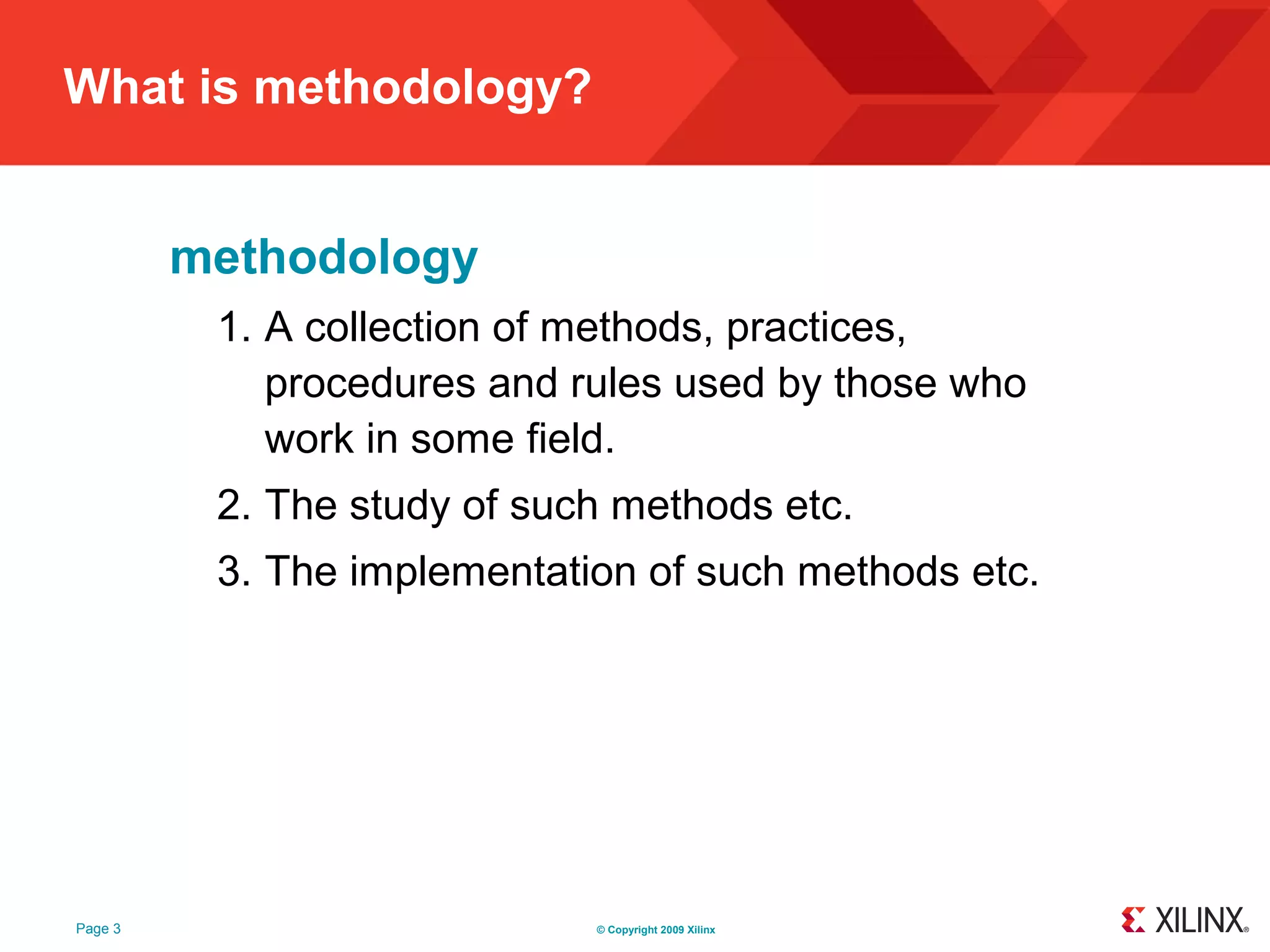

3. What is methodology?
methodology
1. A collection of methods, practices,
procedures and rules used by those who
work in some field.
2. The study of such methods etc.
3. The implementation of such methods etc.
Page 3 © Copyright 2009 Xilinx

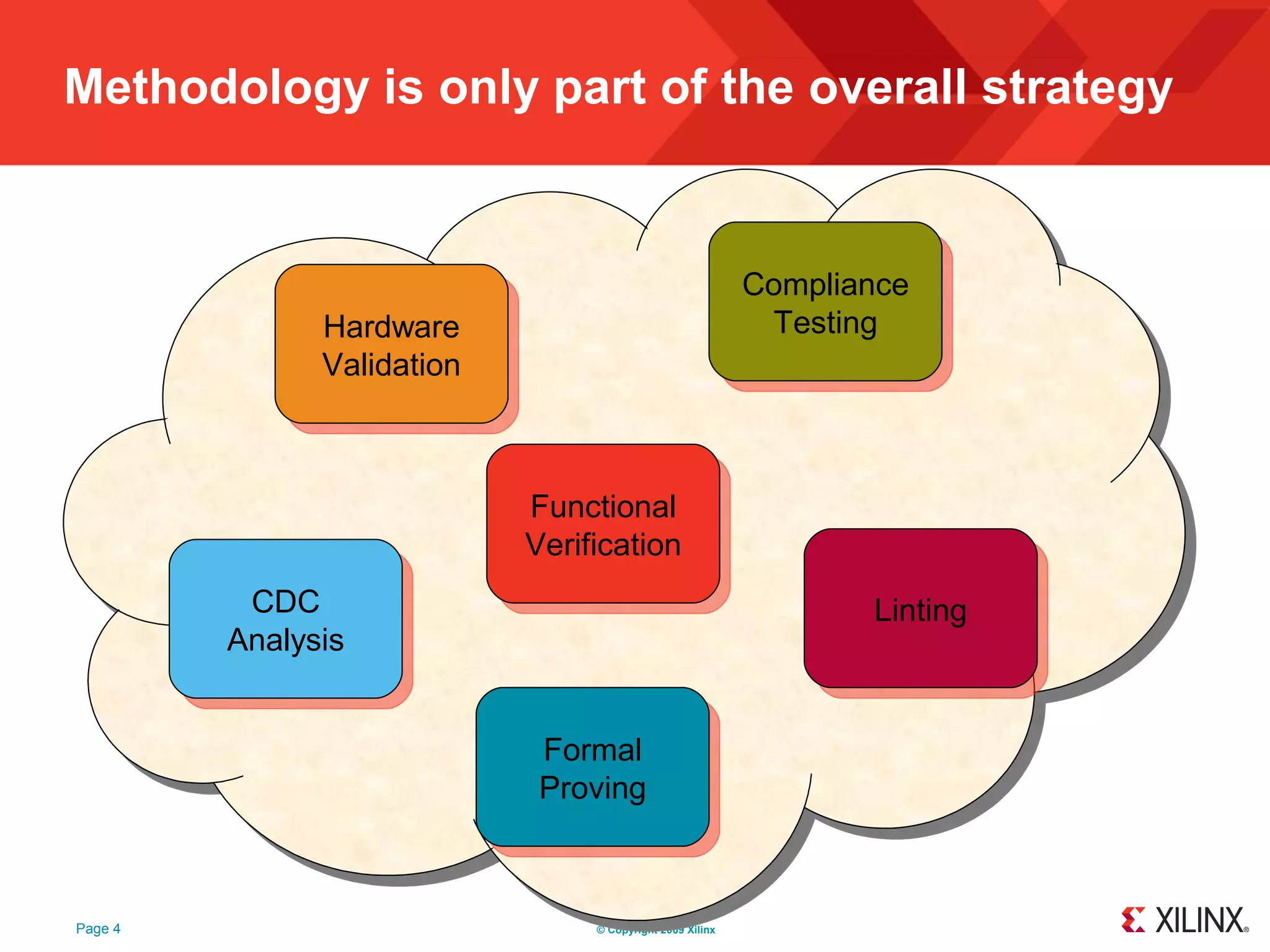

4. Methodology is only part of the overall strategy
Compliance
Hardware Testing
Validation
Functional
Verification
CDC Linting
Analysis
Formal
Proving
Page 4 © Copyright 2009 Xilinx

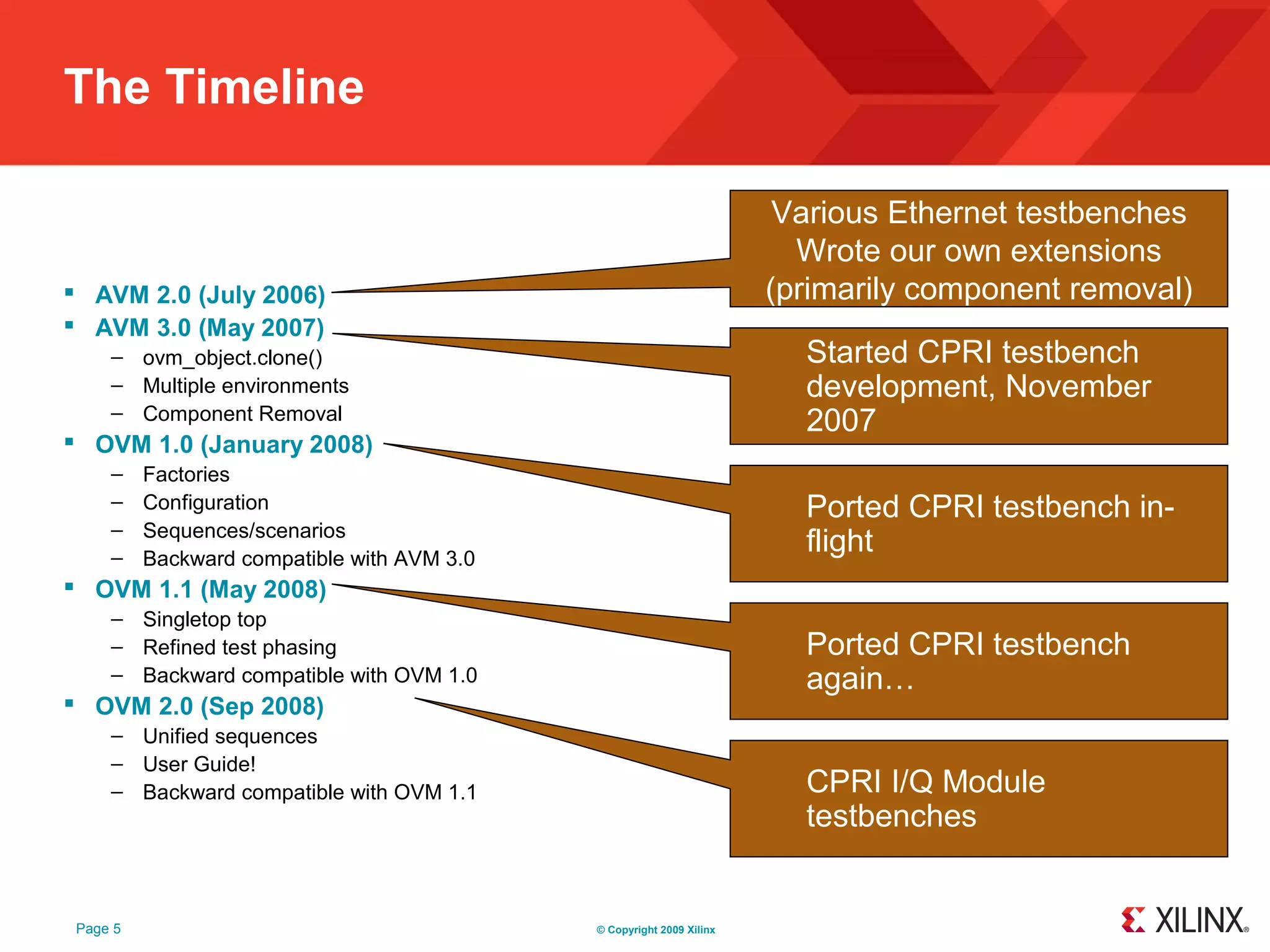

5. The Timeline
Various Ethernet testbenches
Wrote our own extensions
 AVM 2.0 (July 2006) (primarily component removal)
 AVM 3.0 (May 2007)
– ovm_object.clone() Started CPRI testbench
– Multiple environments development, November
– Component Removal
2007
 OVM 1.0 (January 2008)
– Factories
– Configuration Ported CPRI testbench in-
– Sequences/scenarios
– Backward compatible with AVM 3.0
flight
 OVM 1.1 (May 2008)
– Singletop top
– Refined test phasing Ported CPRI testbench
– Backward compatible with OVM 1.0 again…
 OVM 2.0 (Sep 2008)
– Unified sequences
– User Guide!
– Backward compatible with OVM 1.1 CPRI I/Q Module
testbenches
Page 5 © Copyright 2009 Xilinx

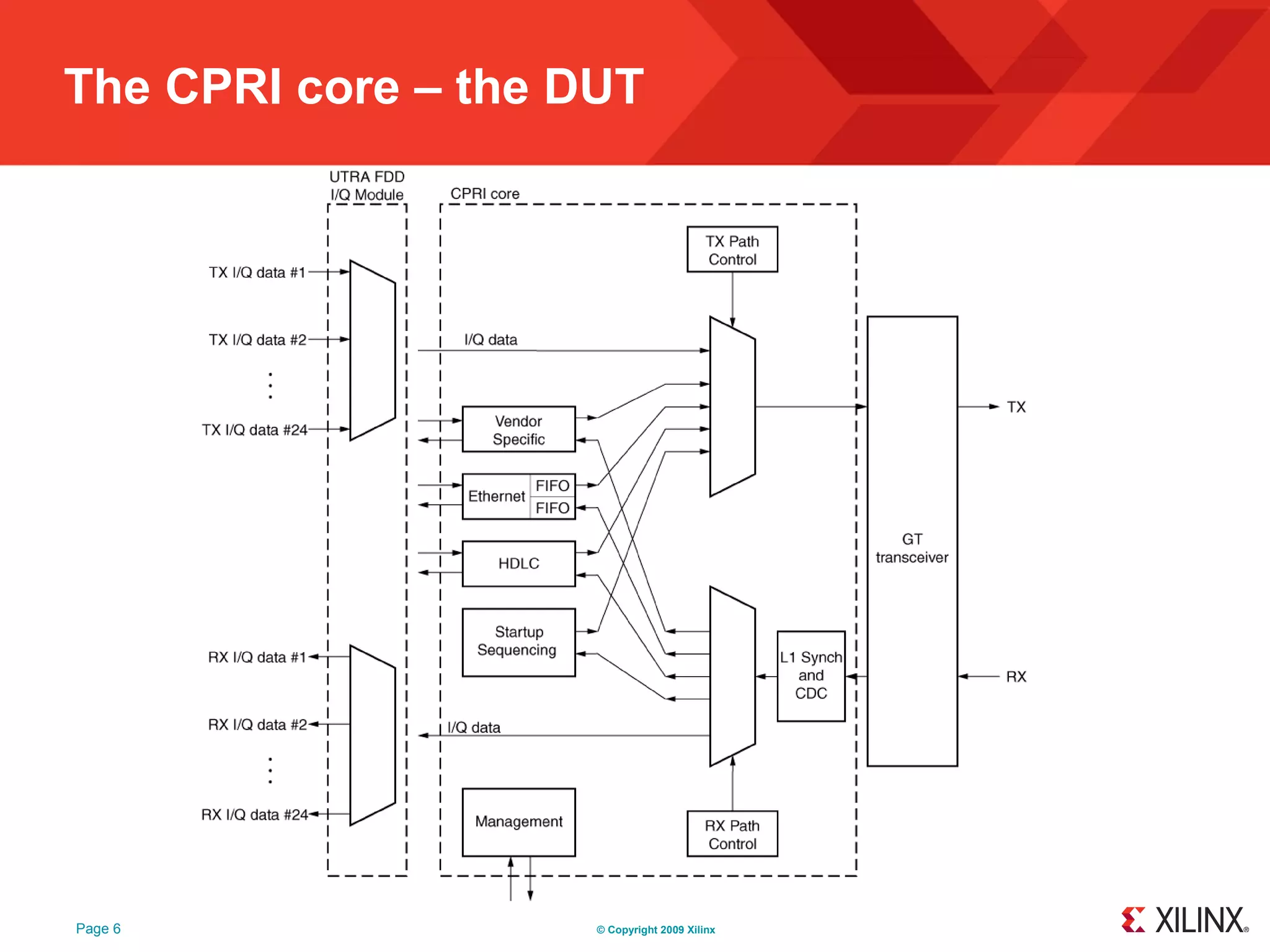

6. The CPRI core – the DUT
Page 6 © Copyright 2009 Xilinx

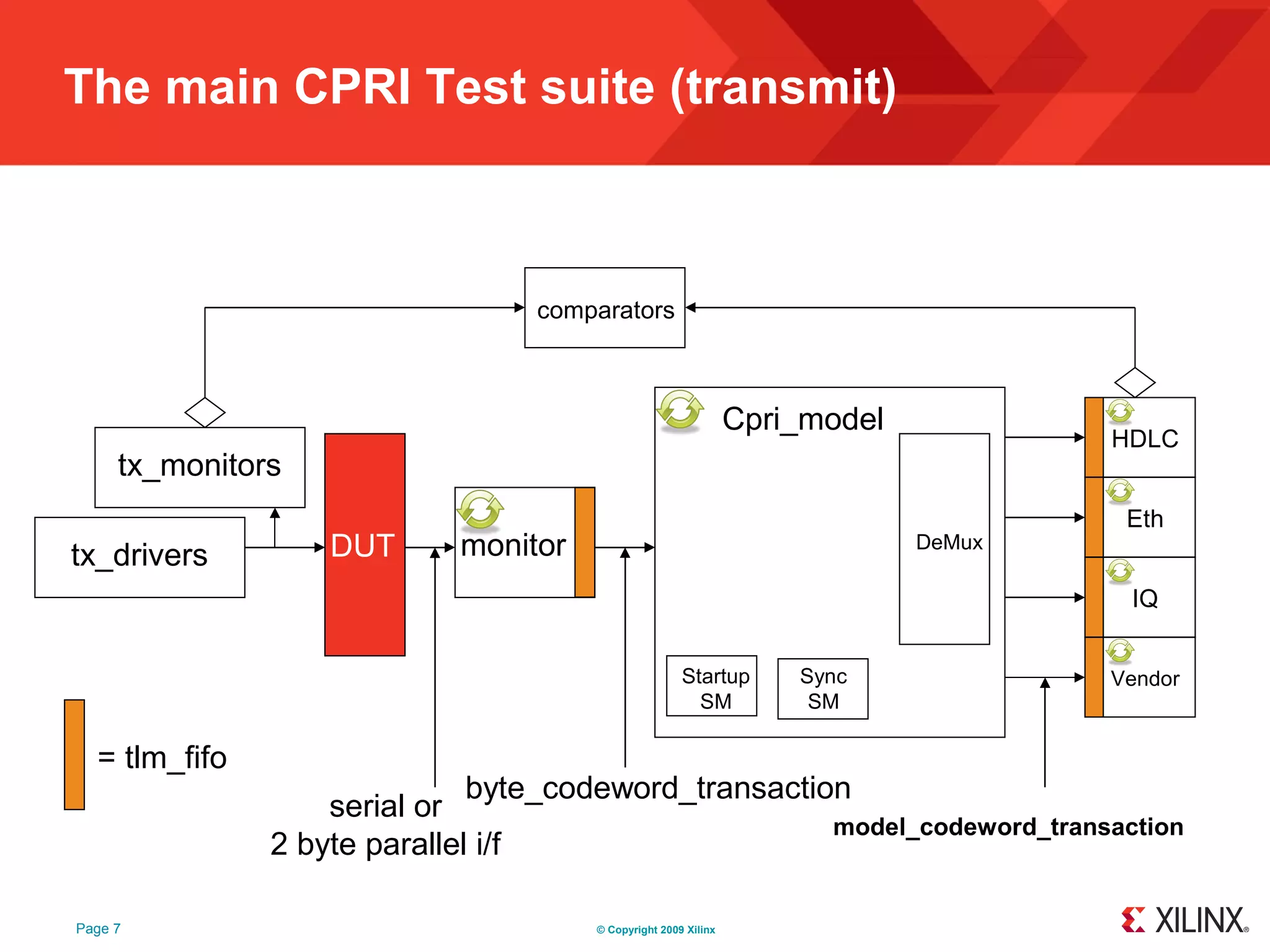

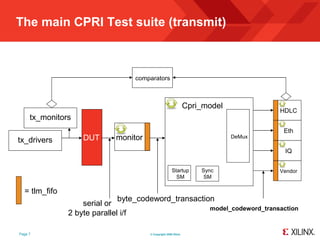

7. The main CPRI Test suite (transmit)
comparators
Cpri_model
HDLC
tx_monitors
Eth
tx_drivers DUT monitor DeMux
IQ
Startup Sync Vendor
SM SM
= tlm_fifo
byte_codeword_transaction
serial or
model_codeword_transaction
2 byte parallel i/f
Page 7 © Copyright 2009 Xilinx

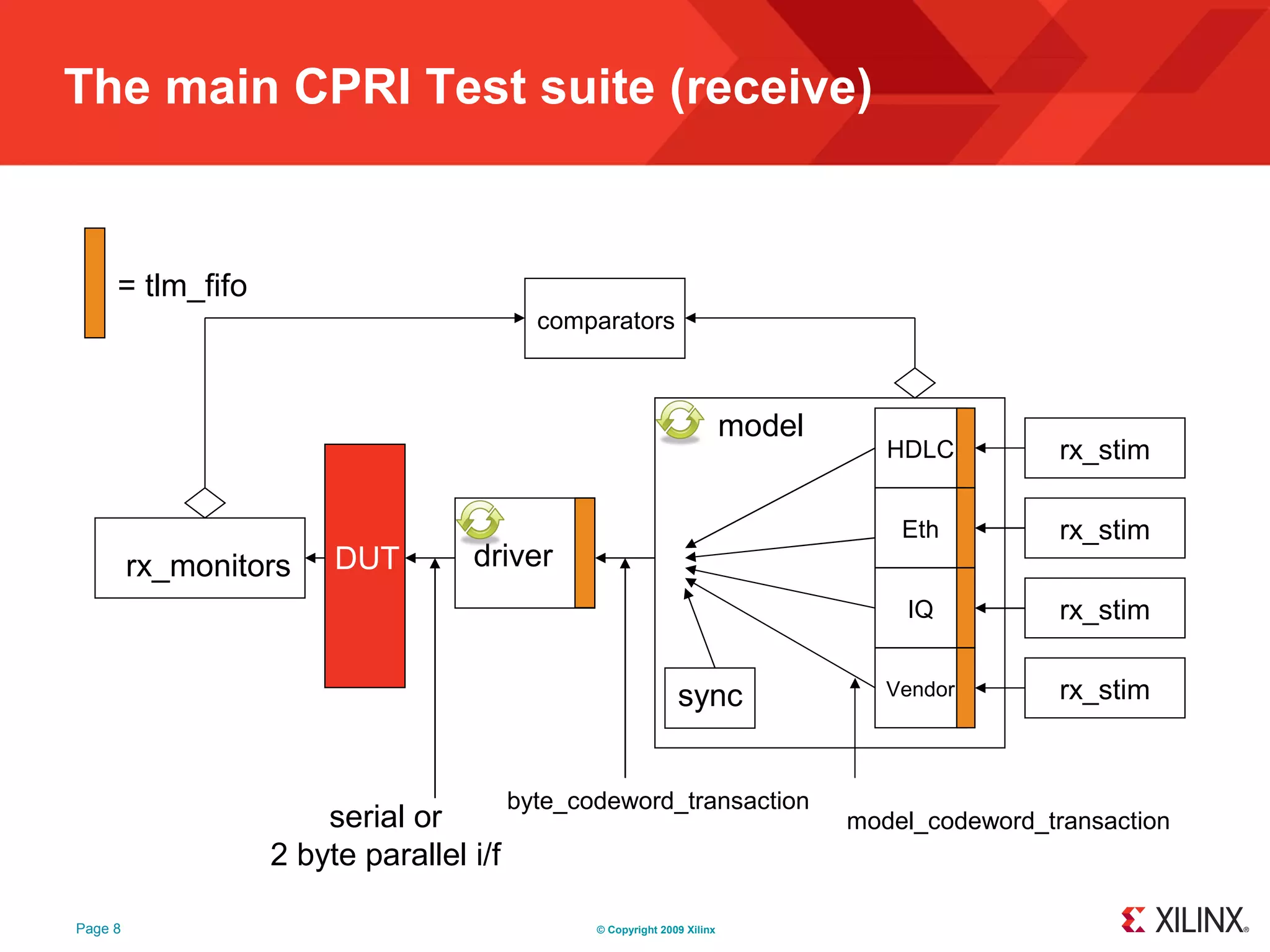

8. The main CPRI Test suite (receive)
= tlm_fifo
comparators
model
HDLC rx_stim
Eth rx_stim
rx_monitors DUT driver
IQ rx_stim
sync Vendor rx_stim
byte_codeword_transaction
serial or model_codeword_transaction
2 byte parallel i/f
Page 8 © Copyright 2009 Xilinx

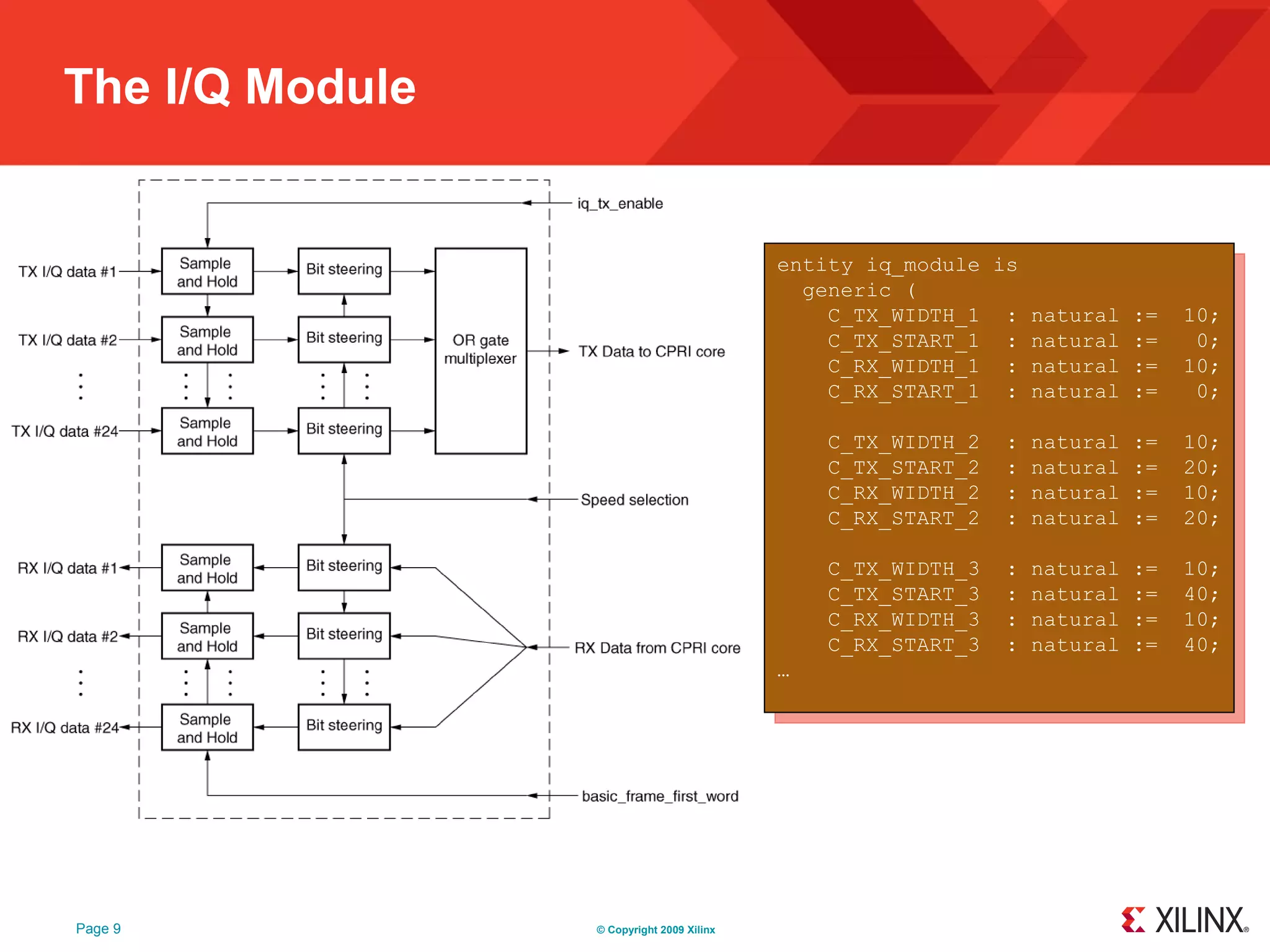

9. The I/Q Module
entity iq_module is
generic (
C_TX_WIDTH_1 : natural := 10;
C_TX_START_1 : natural := 0;
C_RX_WIDTH_1 : natural := 10;
C_RX_START_1 : natural := 0;
C_TX_WIDTH_2 : natural := 10;
C_TX_START_2 : natural := 20;
C_RX_WIDTH_2 : natural := 10;
C_RX_START_2 : natural := 20;
C_TX_WIDTH_3 : natural := 10;
C_TX_START_3 : natural := 40;
C_RX_WIDTH_3 : natural := 10;
C_RX_START_3 : natural := 40;
…
Page 9 © Copyright 2009 Xilinx

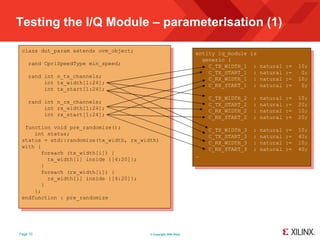

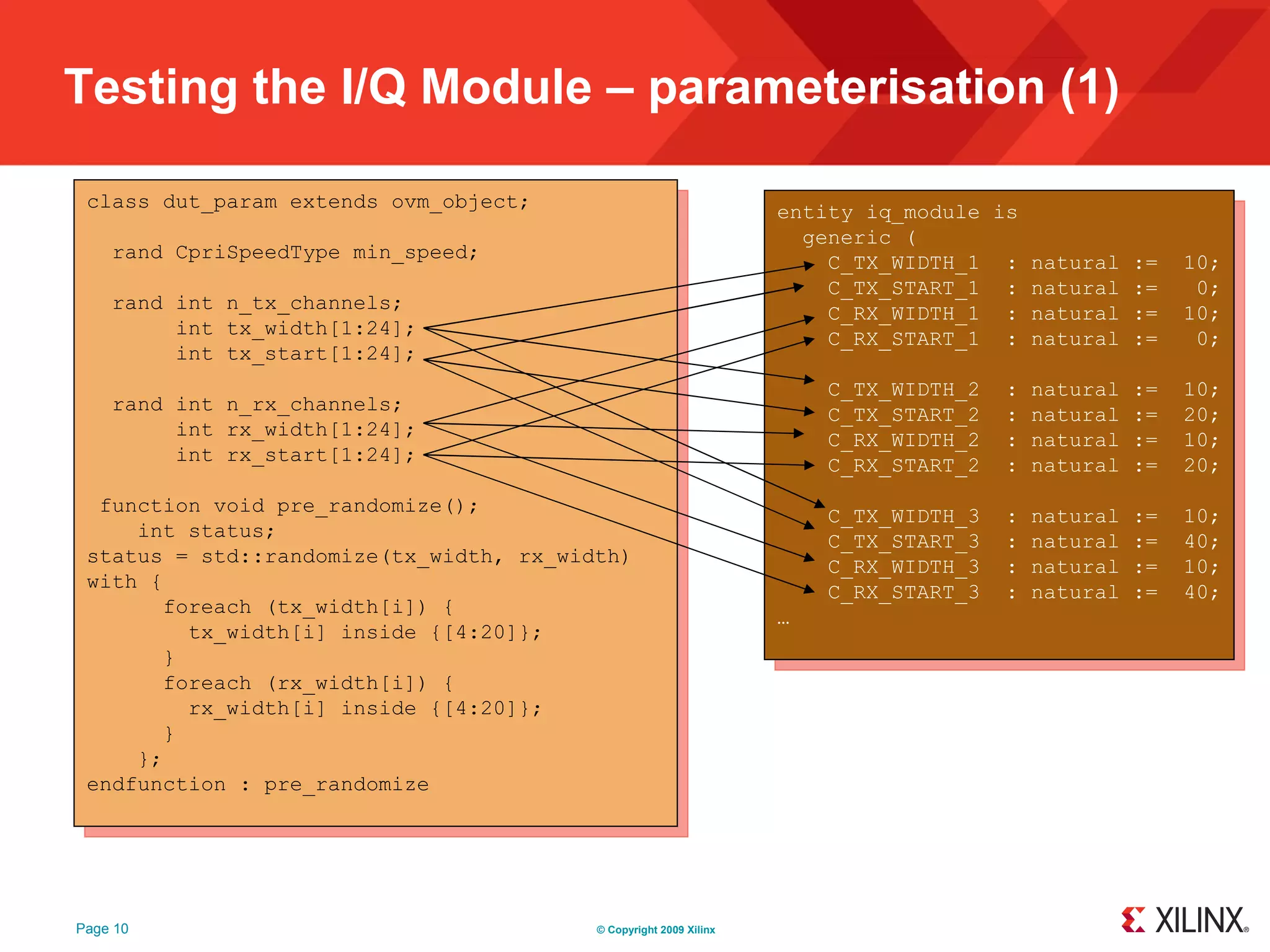

10. Testing the I/Q Module – parameterisation (1)
class dut_param extends ovm_object; entity iq_module is
generic (
rand CpriSpeedType min_speed; C_TX_WIDTH_1 : natural := 10;
C_TX_START_1 : natural := 0;
rand int n_tx_channels; C_RX_WIDTH_1 : natural := 10;
int tx_width[1:24]; C_RX_START_1 : natural := 0;
int tx_start[1:24];
C_TX_WIDTH_2 : natural := 10;
rand int n_rx_channels; C_TX_START_2 : natural := 20;
int rx_width[1:24]; C_RX_WIDTH_2 : natural := 10;
int rx_start[1:24]; C_RX_START_2 : natural := 20;
function void pre_randomize(); C_TX_WIDTH_3 : natural := 10;
int status; C_TX_START_3 : natural := 40;
status = std::randomize(tx_width, rx_width) C_RX_WIDTH_3 : natural := 10;
with { C_RX_START_3 : natural := 40;
foreach (tx_width[i]) {
…
tx_width[i] inside {[4:20]};
}
foreach (rx_width[i]) {
rx_width[i] inside {[4:20]};
}
};
endfunction : pre_randomize
Page 10 © Copyright 2009 Xilinx

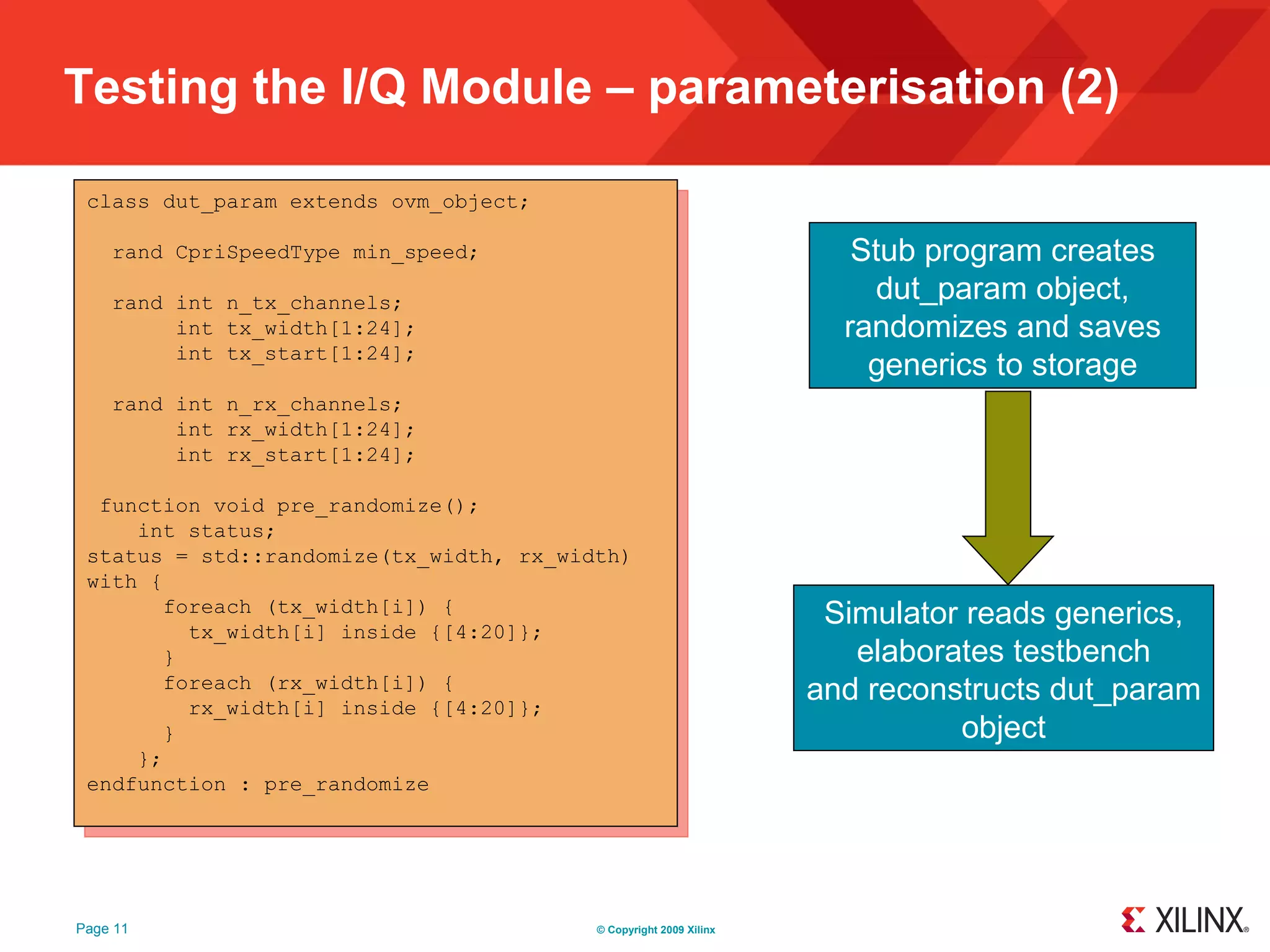

11. Testing the I/Q Module – parameterisation (2)
class dut_param extends ovm_object;
rand CpriSpeedType min_speed; Stub program creates
rand int n_tx_channels; dut_param object,
int tx_width[1:24]; randomizes and saves
int tx_start[1:24];
generics to storage
rand int n_rx_channels;
int rx_width[1:24];
int rx_start[1:24];
function void pre_randomize();
int status;
status = std::randomize(tx_width, rx_width)
with {
foreach (tx_width[i]) {
tx_width[i] inside {[4:20]};
Simulator reads generics,
} elaborates testbench
foreach (rx_width[i]) {
rx_width[i] inside {[4:20]};
and reconstructs dut_param
} object
};
endfunction : pre_randomize
Page 11 © Copyright 2009 Xilinx

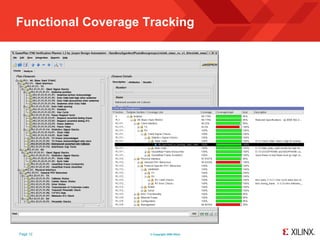

12. Functional Coverage Tracking
Page 12 © Copyright 2009 Xilinx

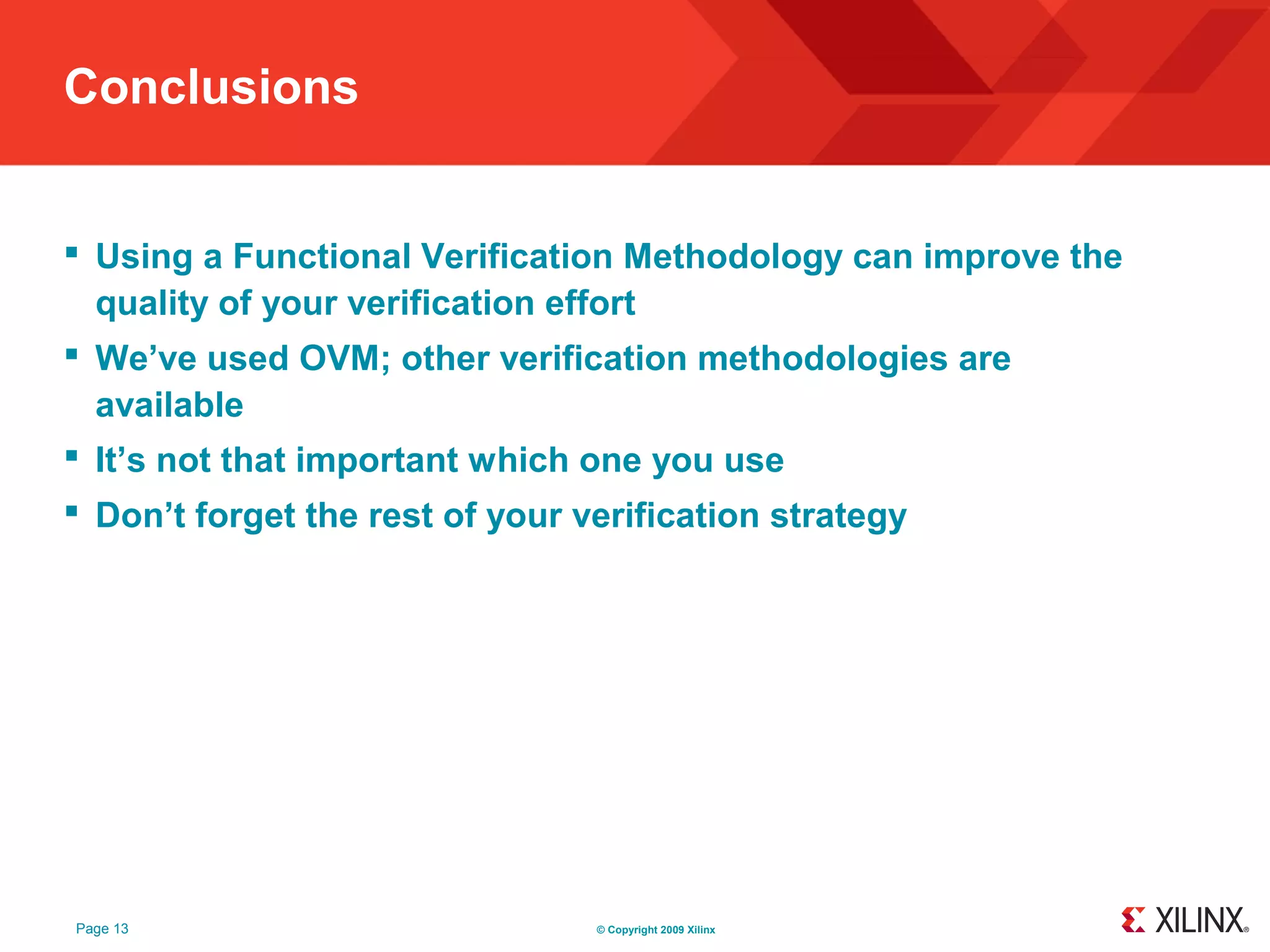

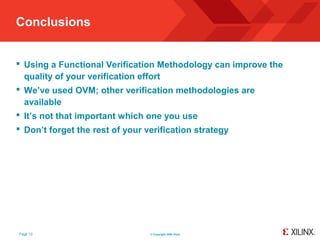

13. Conclusions
 Using a Functional Verification Methodology can improve the
quality of your verification effort
 We’ve used OVM; other verification methodologies are
available
 It’s not that important which one you use
 Don’t forget the rest of your verification strategy
Page 13 © Copyright 2009 Xilinx

14. Questions?
?
Page 14 © Copyright 2009 Xilinx
