Fuzzing is a method of discovering software faults by providing unexpected input and monitoring for exceptions. There are two main types of fuzzers: mutation-based fuzzers which mutate valid samples, and generation-based fuzzers which require samples to be defined. Fuzzing discovers bugs by providing invalid input to any software, so it should always be considered as a testing method. A fuzzer contains an input generator, history of generated inputs, and a process monitor.

1. FUZZING
UNDERESTIMATED METHOD OF FINDING
HIDDEN BUGS
by Pawel Rzepa

2. AGENDA
• What is fuzzing?
• Mutation based (dumb) fuzzing
• Instrumented fuzzing
• Generation based (smart) fuzzing
• Fuzzing web application
• What is the future of fuzzing?

3. BEFORE WE START…
WHO AM I?
• Security engineer in Intive (Wroclaw)
• Former developer of advanced fuzzing module in
Spirent’s CyberFlood device
• Contributor in OWASP MSTG (Mobile Security
Testing Guide)
• Supporter of Wroclaw OWASP meetings

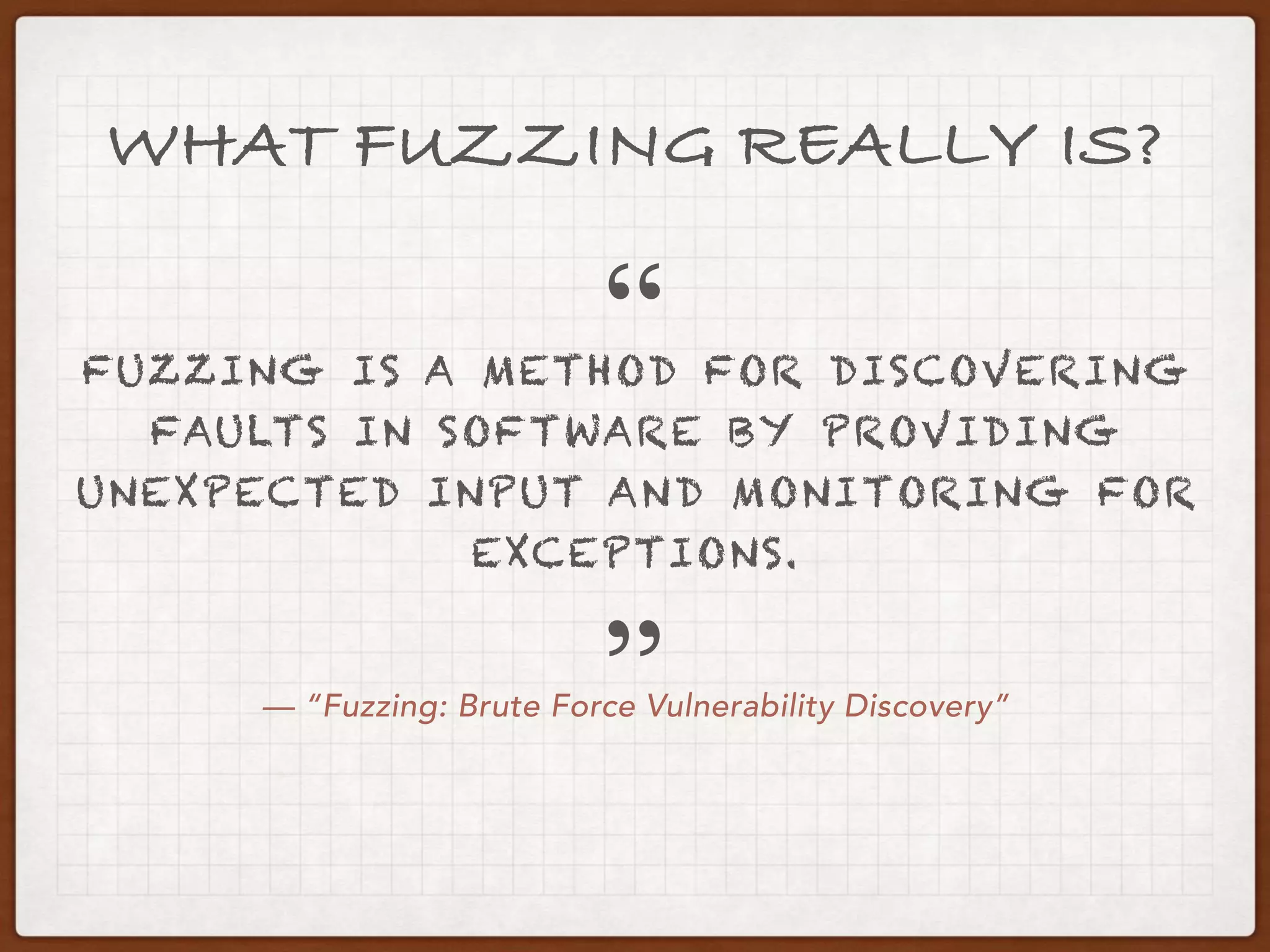

4. — “Fuzzing: Brute Force Vulnerability Discovery”
FUZZING IS A METHOD FOR DISCOVERING
FAULTS IN SOFTWARE BY PROVIDING
UNEXPECTED INPUT AND MONITORING FOR
EXCEPTIONS.
”
“
WHAT FUZZING REALLY IS?

5. IN OTHER WORDS…
A child noticed
unwatched dad’s phone…
A child has found a
chain of instructions
to crash a phone.

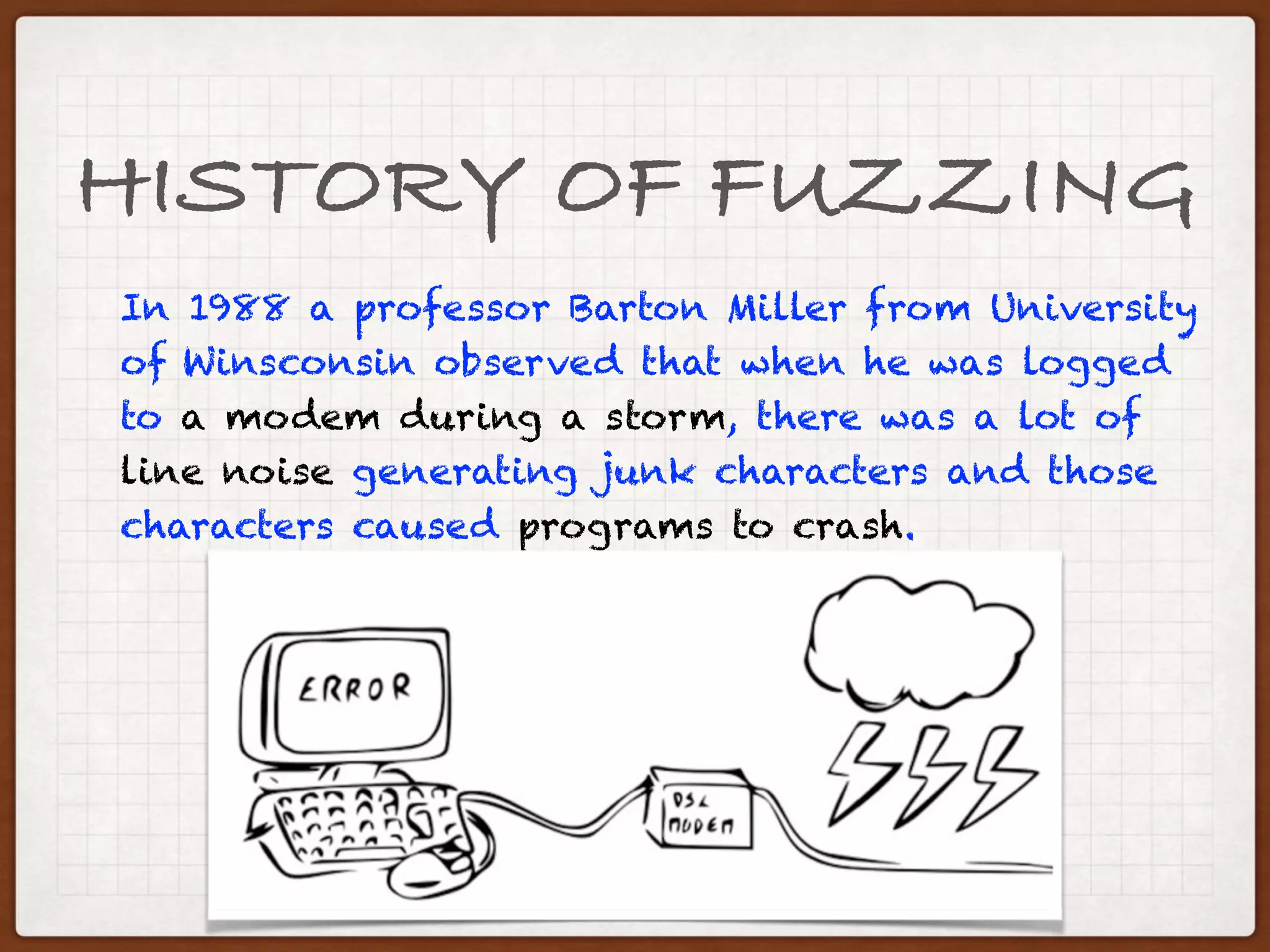

6. HISTORY OF FUZZING
In 1988 a professor Barton Miller from University
of Winsconsin observed that when he was logged
to a modem during a storm, there was a lot of
line noise generating junk characters and those
characters caused programs to crash.

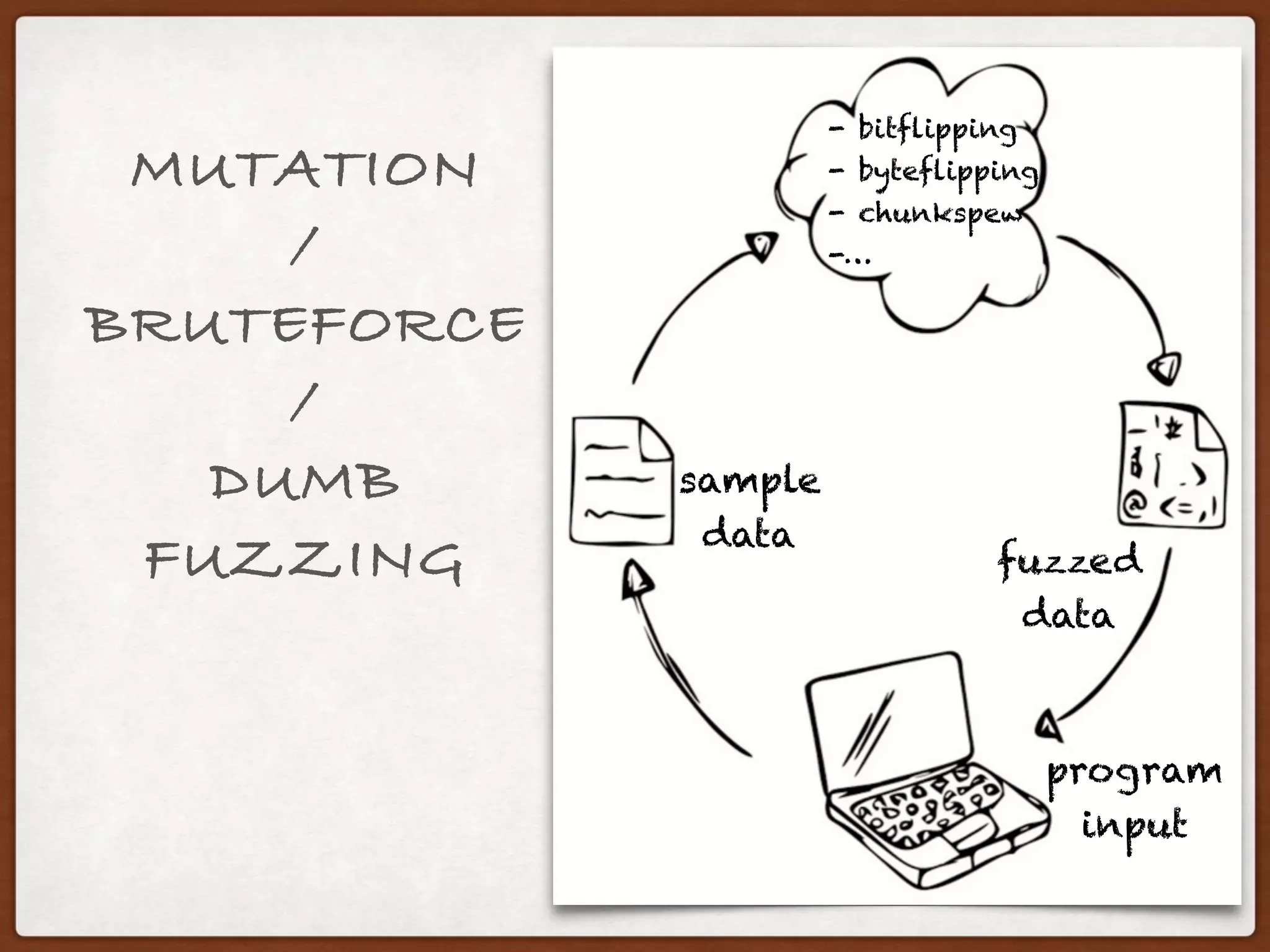

7. MUTATION
/
BRUTEFORCE
/
DUMB
FUZZING
sample
data
fuzzed
data
- bitflipping
- byteflipping
- chunkspew
-…
program
input

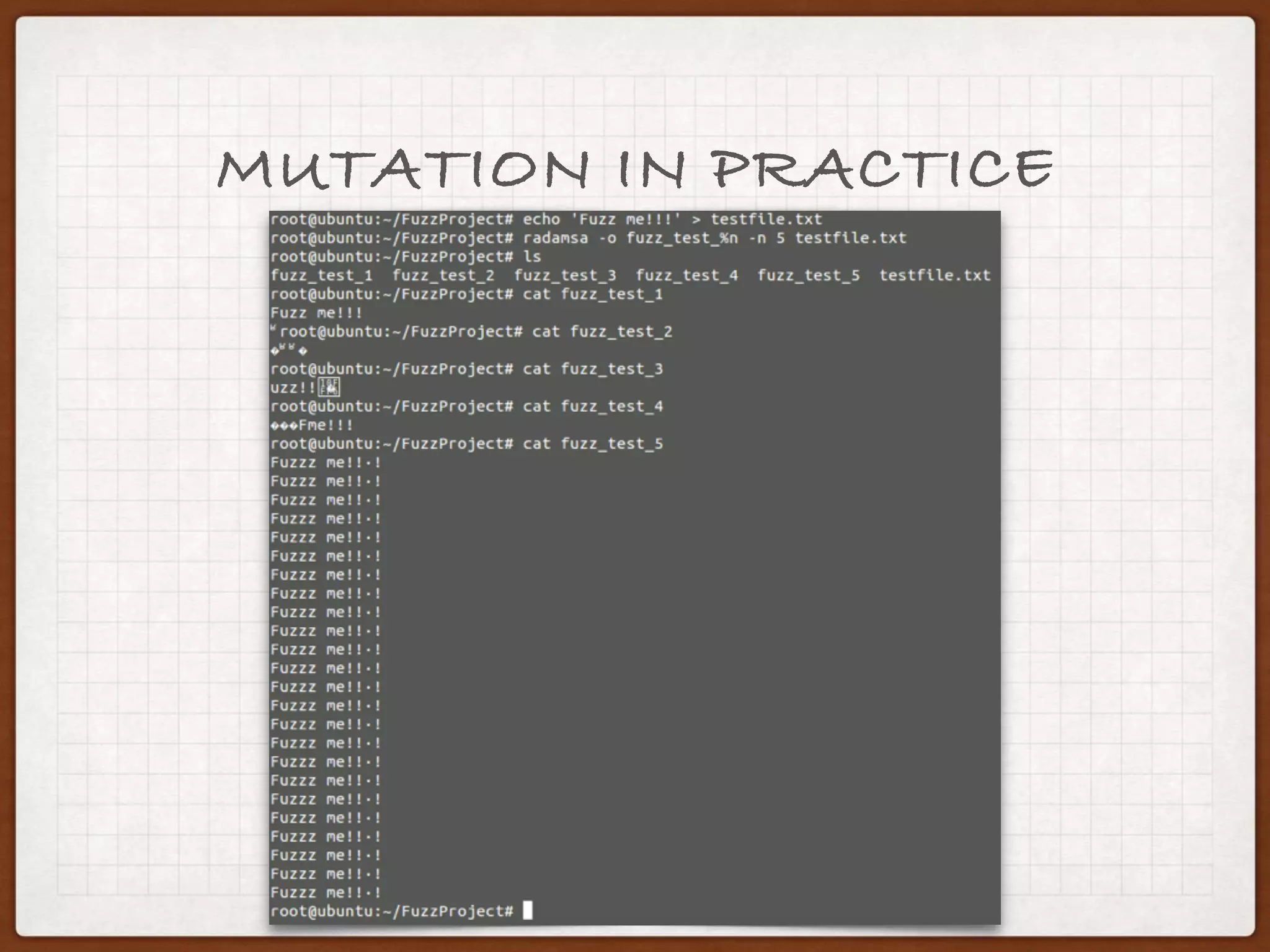

8. MUTATION IN PRACTICE
more about Radamsa: https://github.com/aoh/radamsa

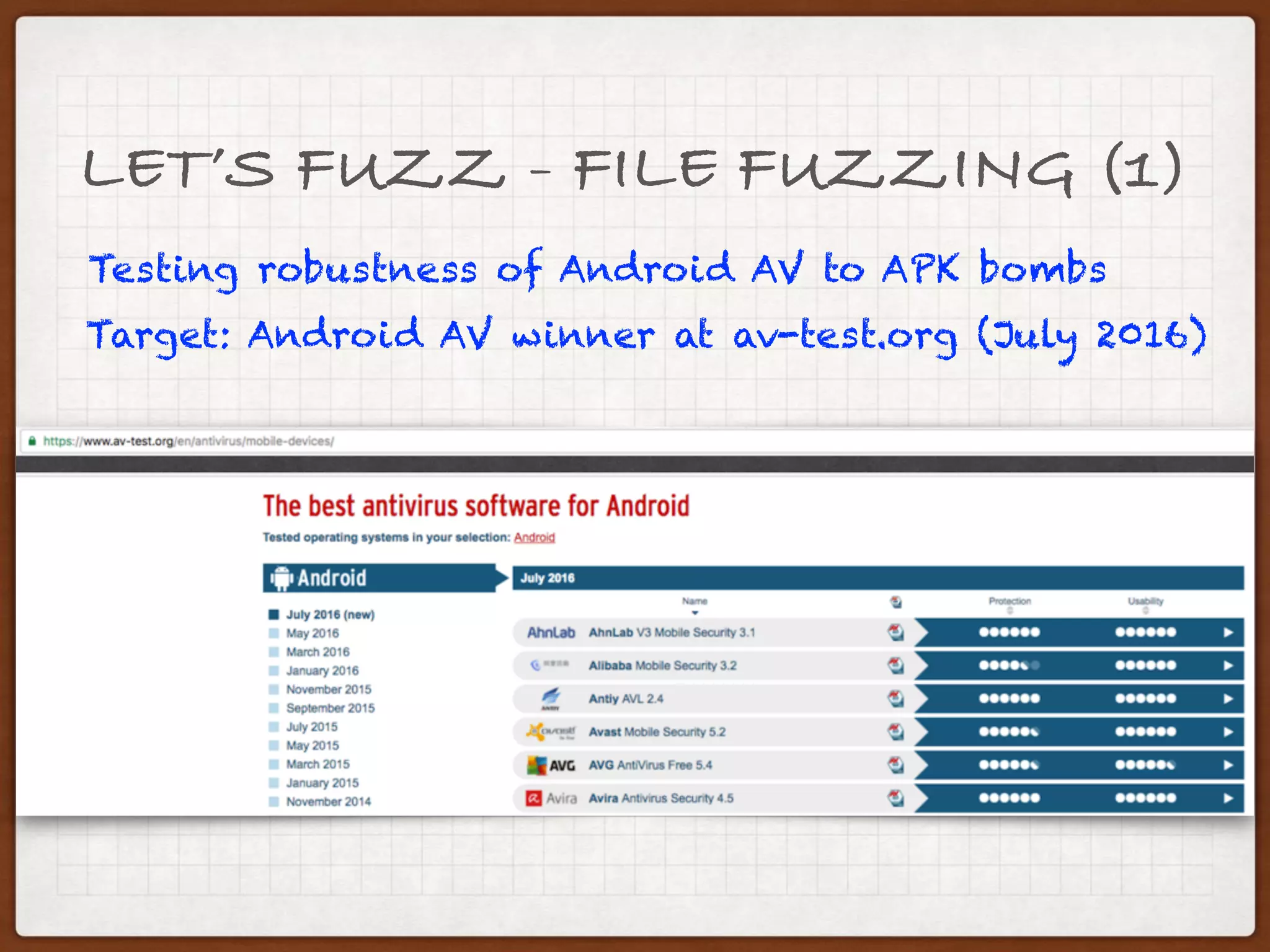

9. LET’S FUZZ - DUMB FUZZING
Testing robustness of Android AV to APK bombs
Target: Android AV winner at av-test.org (July 2016)

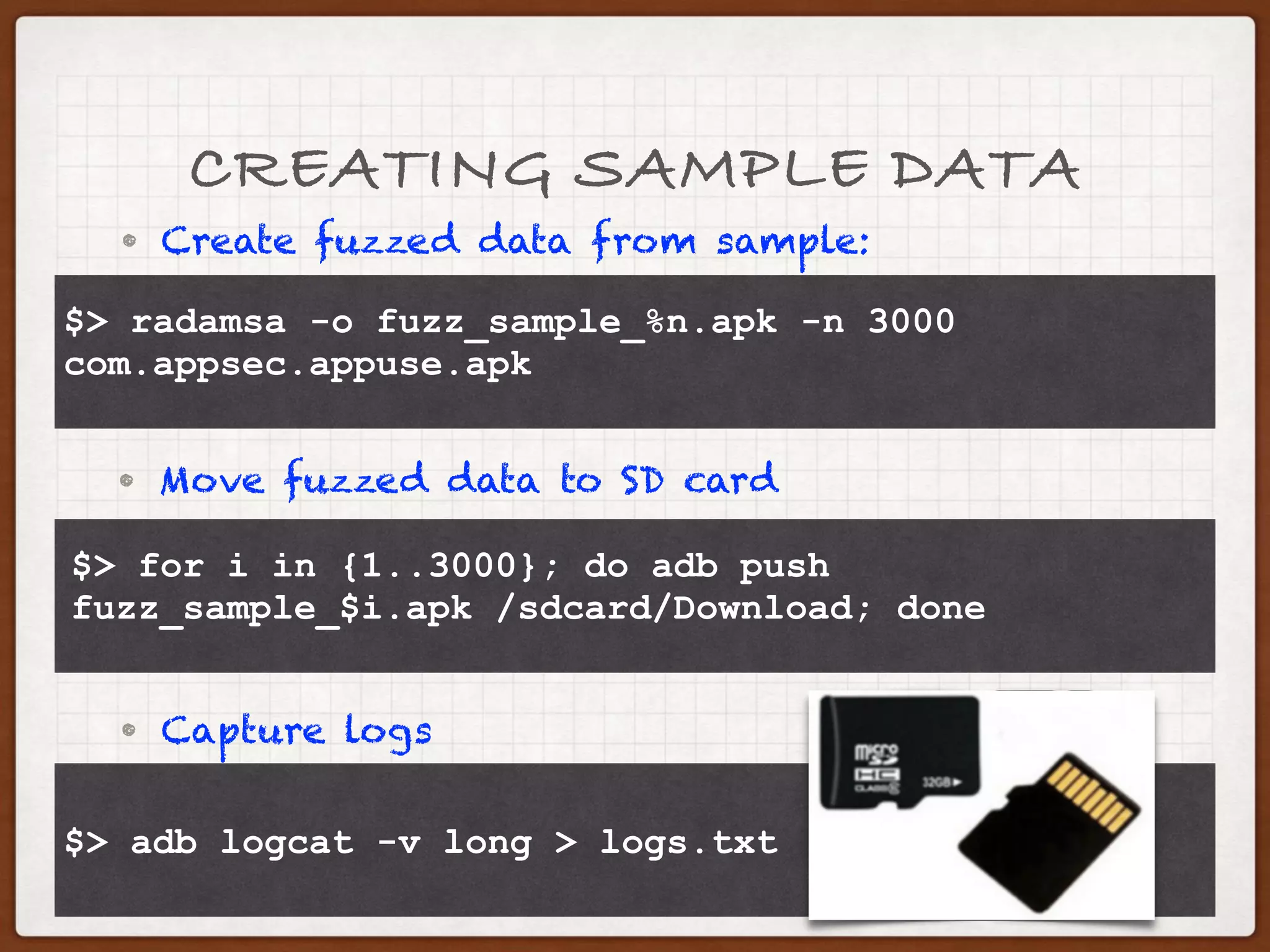

10. CREATING SAMPLE DATA
• Create fuzzed data from sample:
$> radamsa -o fuzz_sample_%n.apk -n 3000
> com.appsec.appuse.apk
• Move fuzzed data to SD card
$> for i in {1..3000}; do adb push
> fuzz_sample_$i.apk /sdcard/Download; done
• Capture logs
$> adb logcat -v long > logs.txt

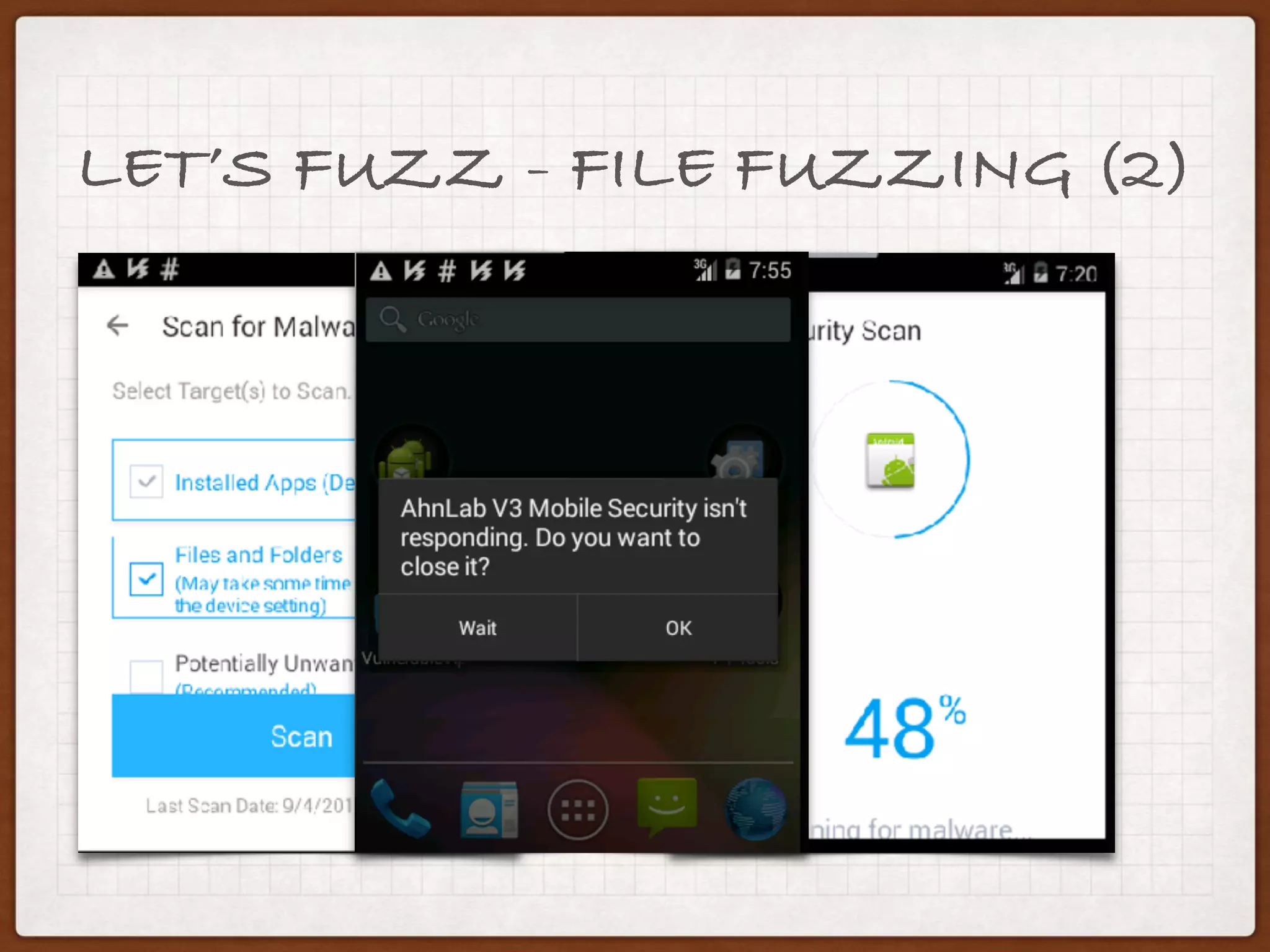

11. DUMB FUZZING - V3 AV

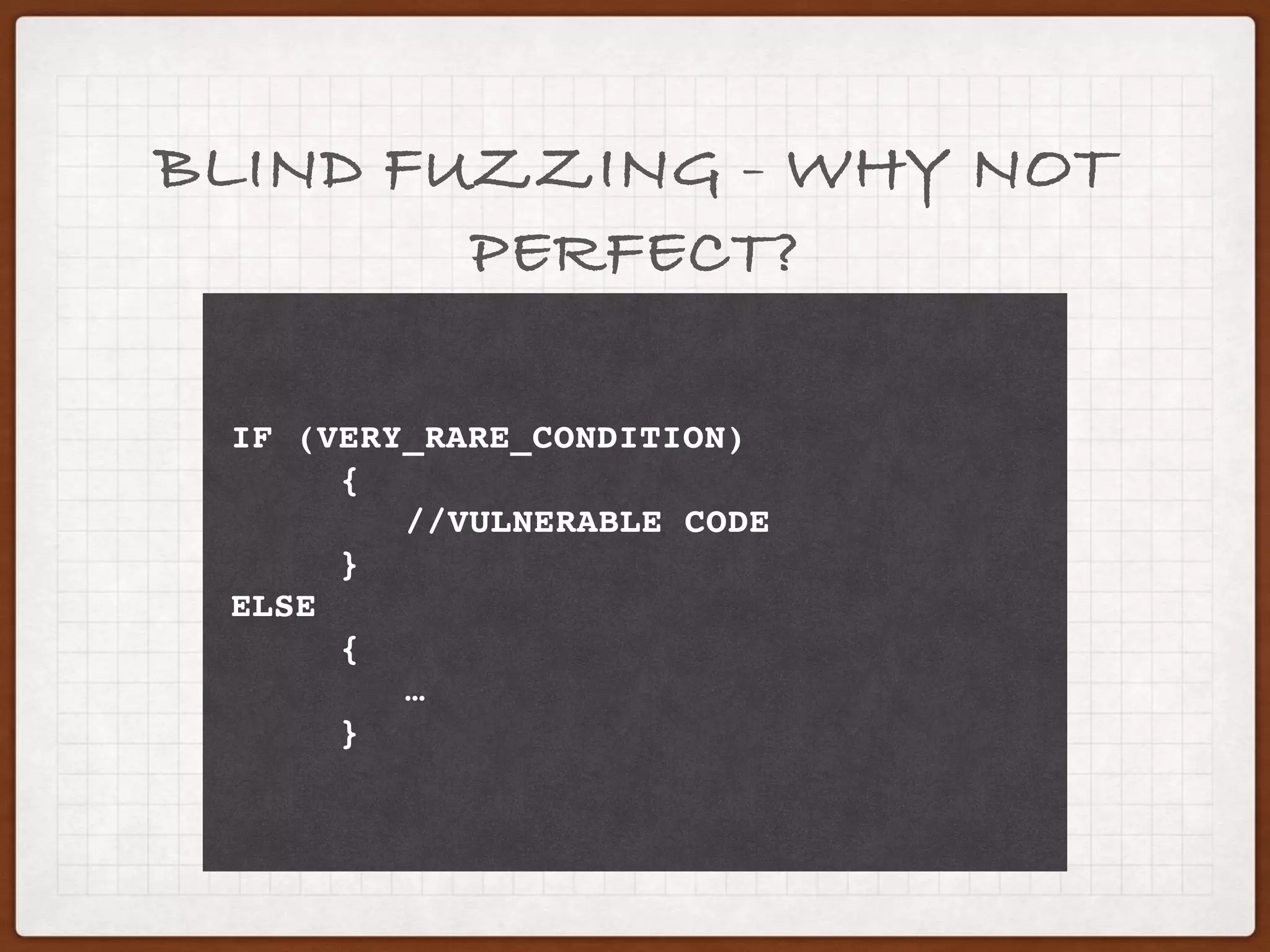

12. DUMB FUZZING - WHY NOT
PERFECT?
IF (VERY_RARE_CONDITION)
{
//VULNERABLE CODE
}
ELSE
{
…
}

13. DUMB FUZZING - WHY NOT
PERFECT?
IF (VERY_RARE_CONDITION)
{
//VULNERABLE CODE
}
ELSE
{
…
}

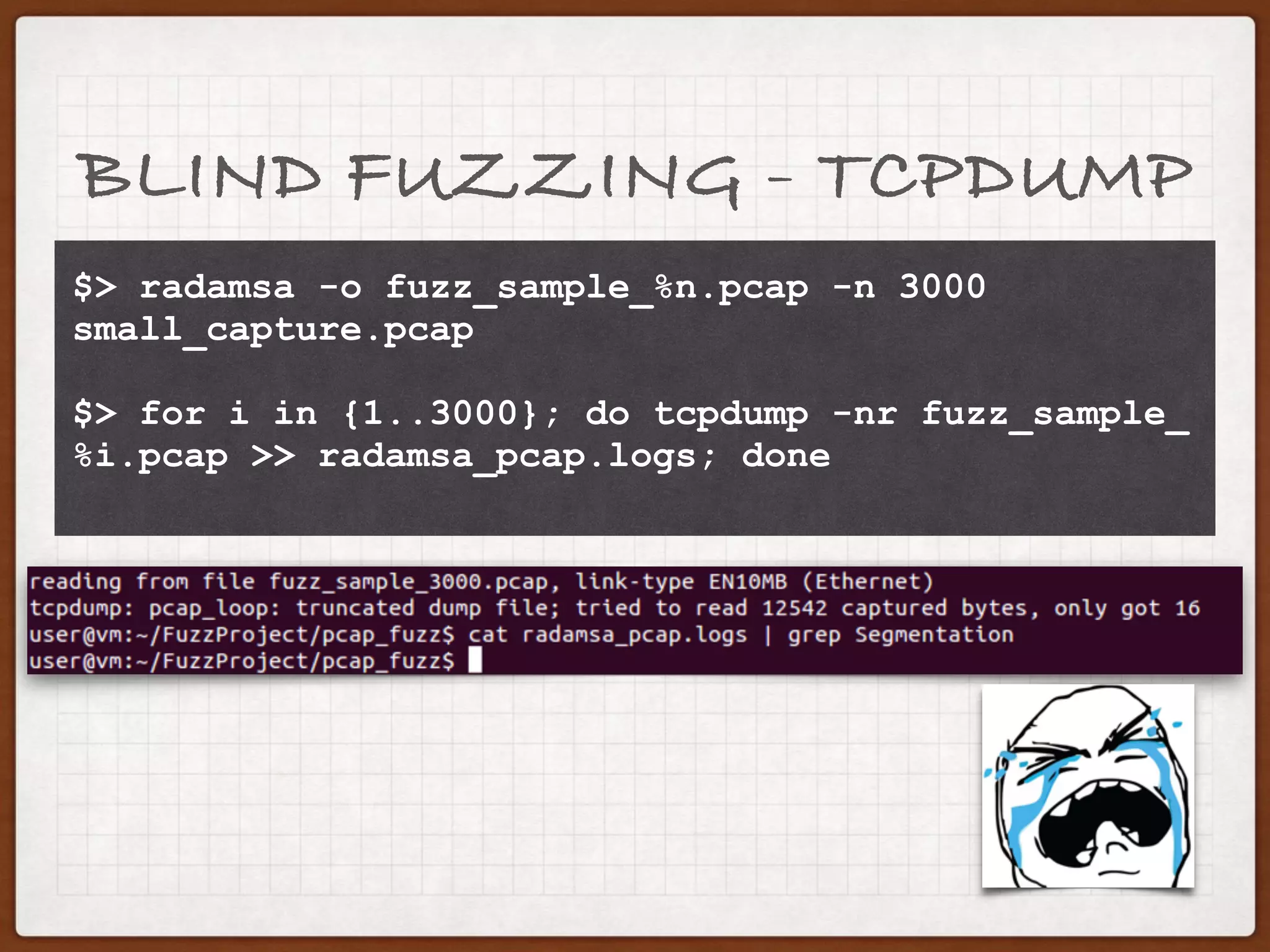

14. DUMB FUZZING - TCPDUMP
$> radamsa -o fuzz_sample_%n.pcap -n 3000
> small_capture.pcap
$> for i in {1..3000}; do tcpdump -nr
> fuzz_sample_%i.pcap >> radamsa_pcap.logs; done

15. LET’S FUZZ - INSTRUMENTED
FUZZING
• Generates samples, which cover subsets of all
code paths
• Requires a dedicated compiler, which detects
possible code paths
• Much more effective
• Let’s take a closer look on American Fuzzy Lop
(http://lcamtuf.coredump.cx/afl/)

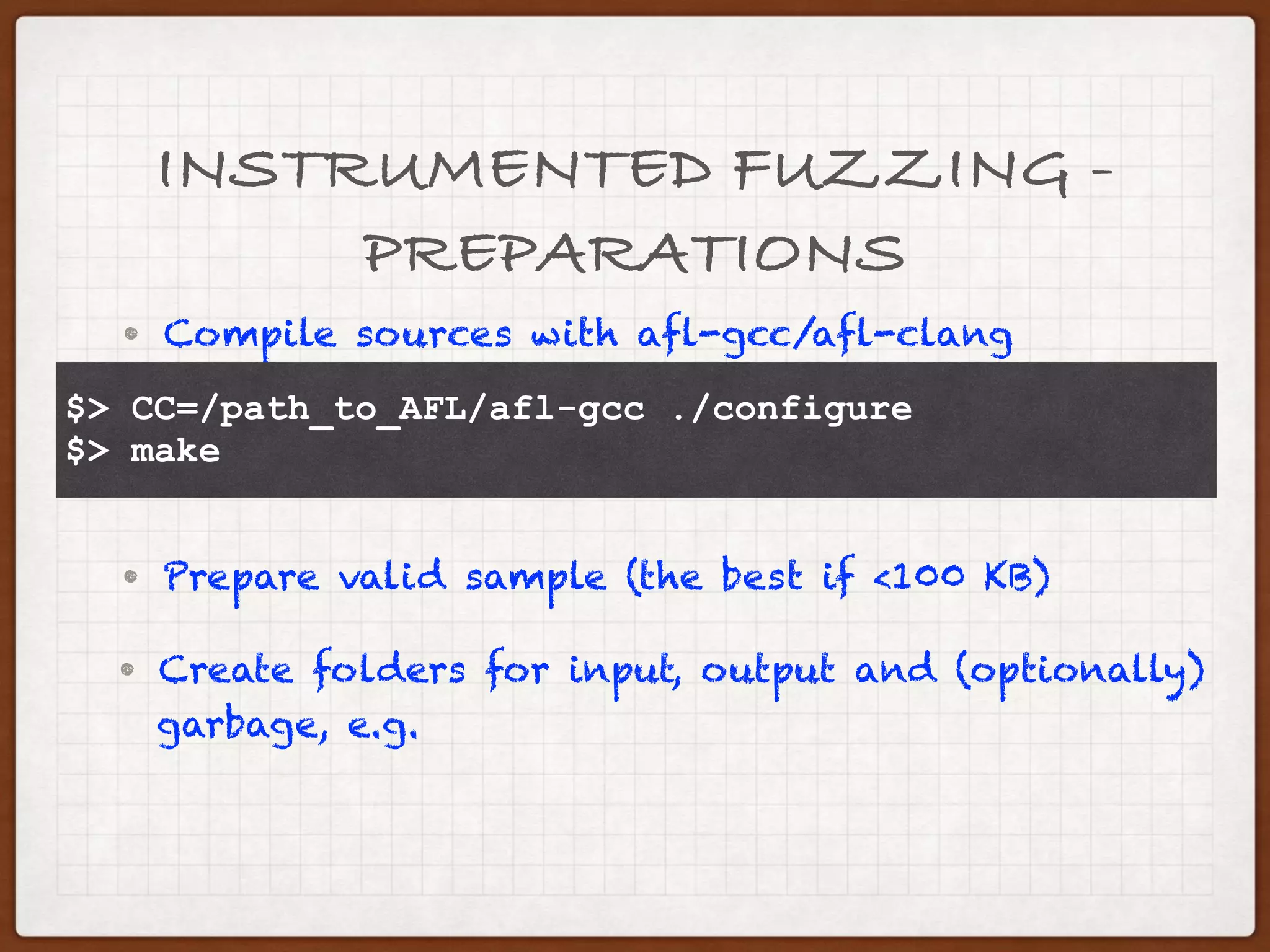

16. INSTRUMENTED FUZZING -
PREPARATIONS
• Compile sources with afl-gcc/afl-g++
$> CC=/path_to_AFL/afl-gcc ./configure
$> make
• Prepare valid sample (the best if <100 KB)
• Create folders for input, output and (optionally)
garbage, e.g.

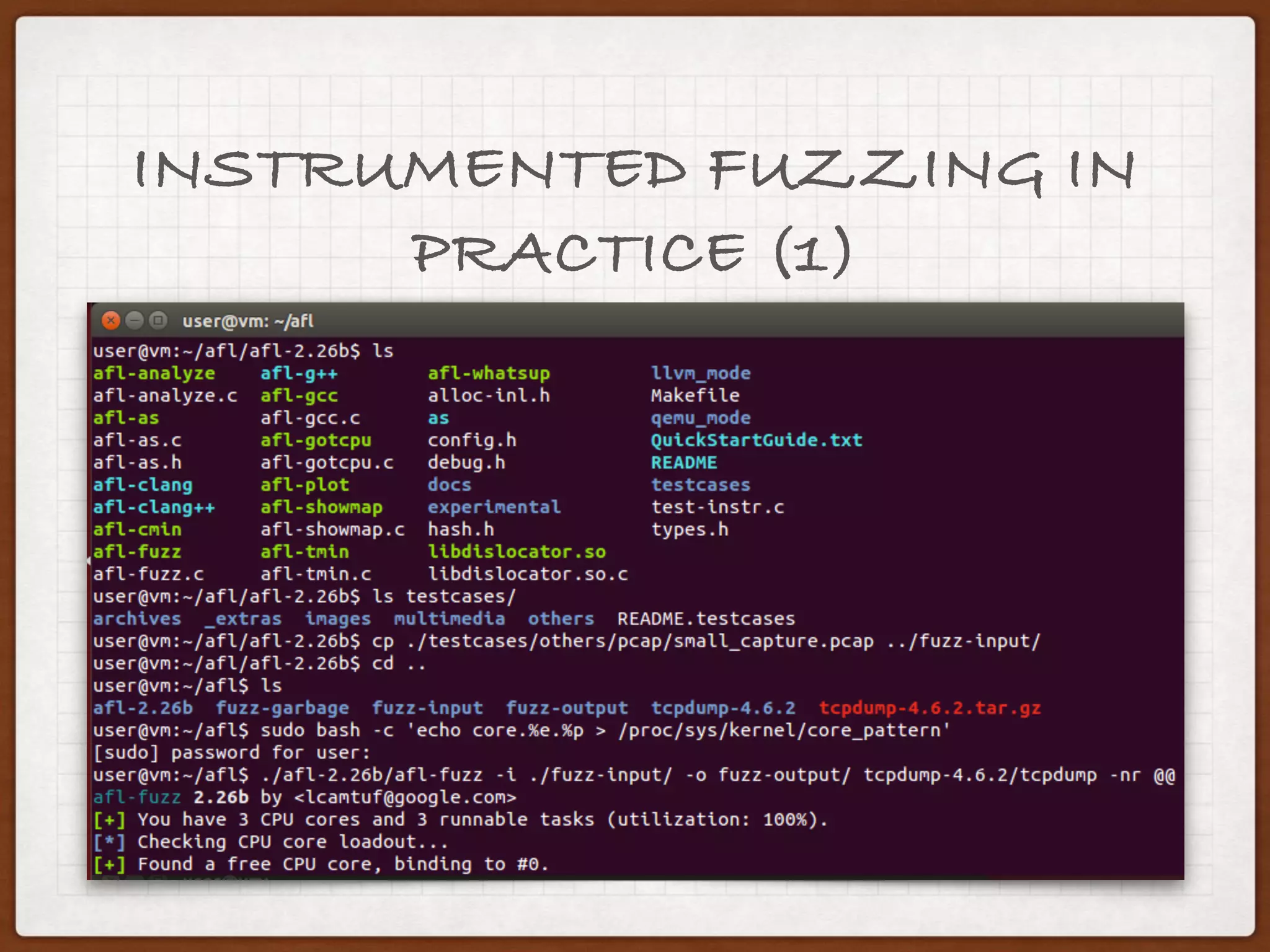

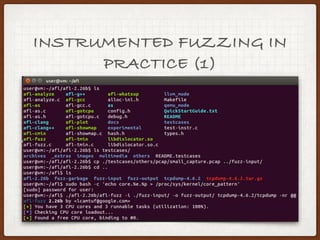

17. INSTRUMENTED FUZZING IN
PRACTICE
$> /path_to_AFL/afl-fuzz -i ./fuzz-input/ -o
>./fuzz-output/ tcpdump-4.6.2/tcpdump -nr @@

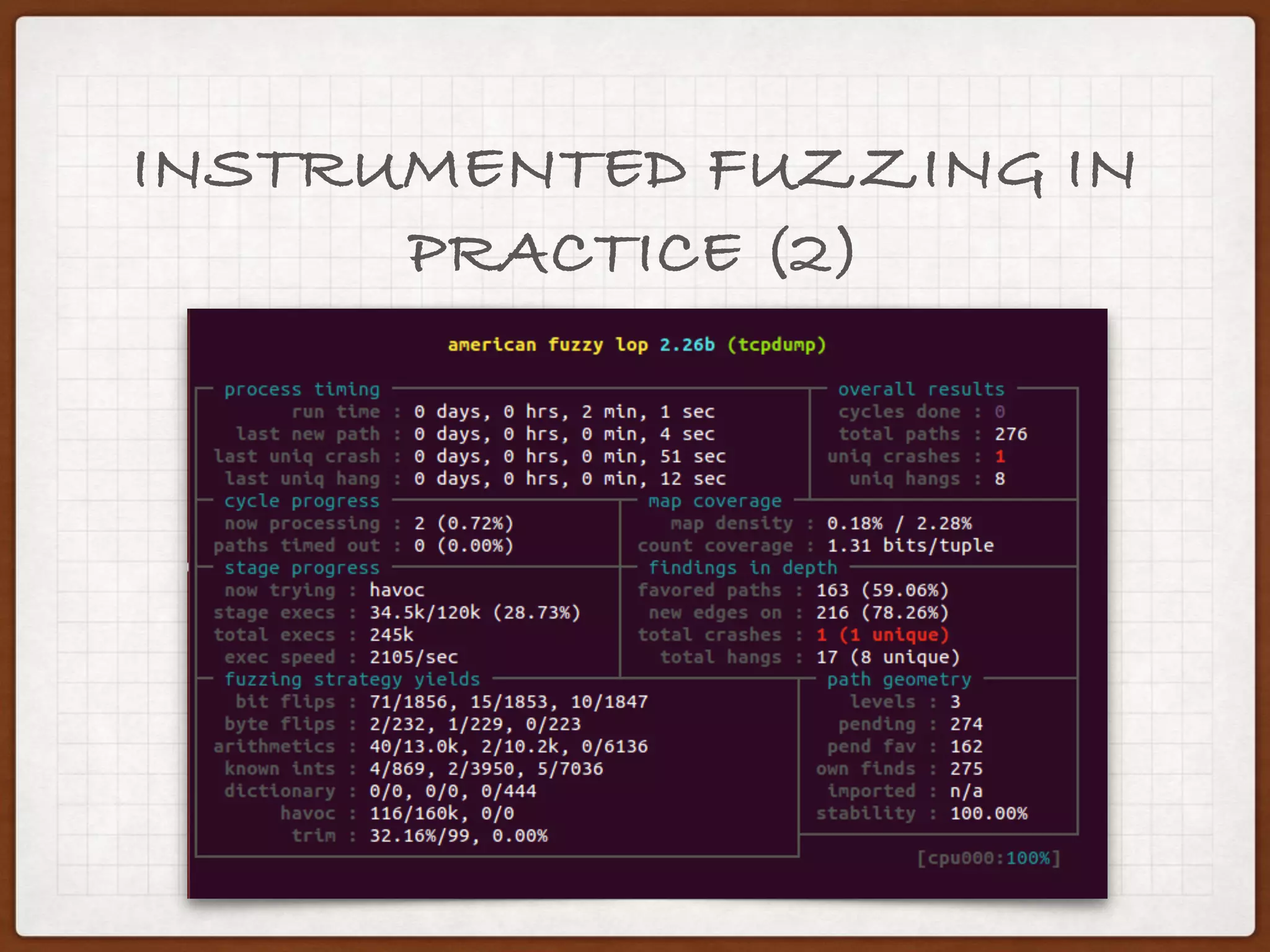

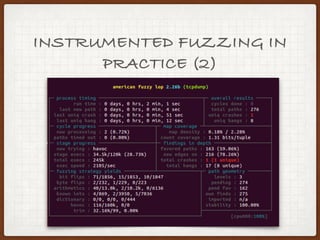

18. INSTRUMENTED FUZZING IN
PRACTICE

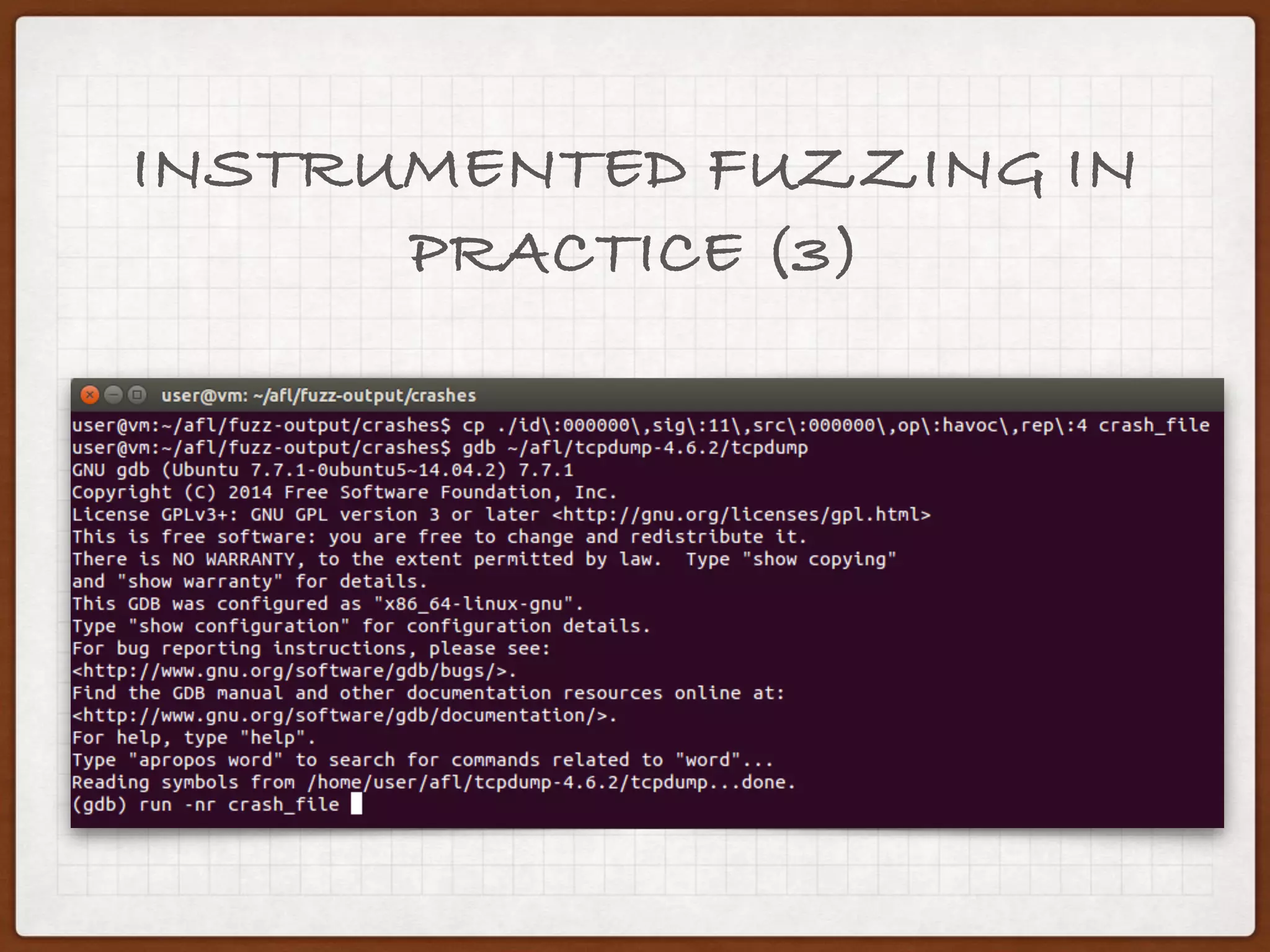

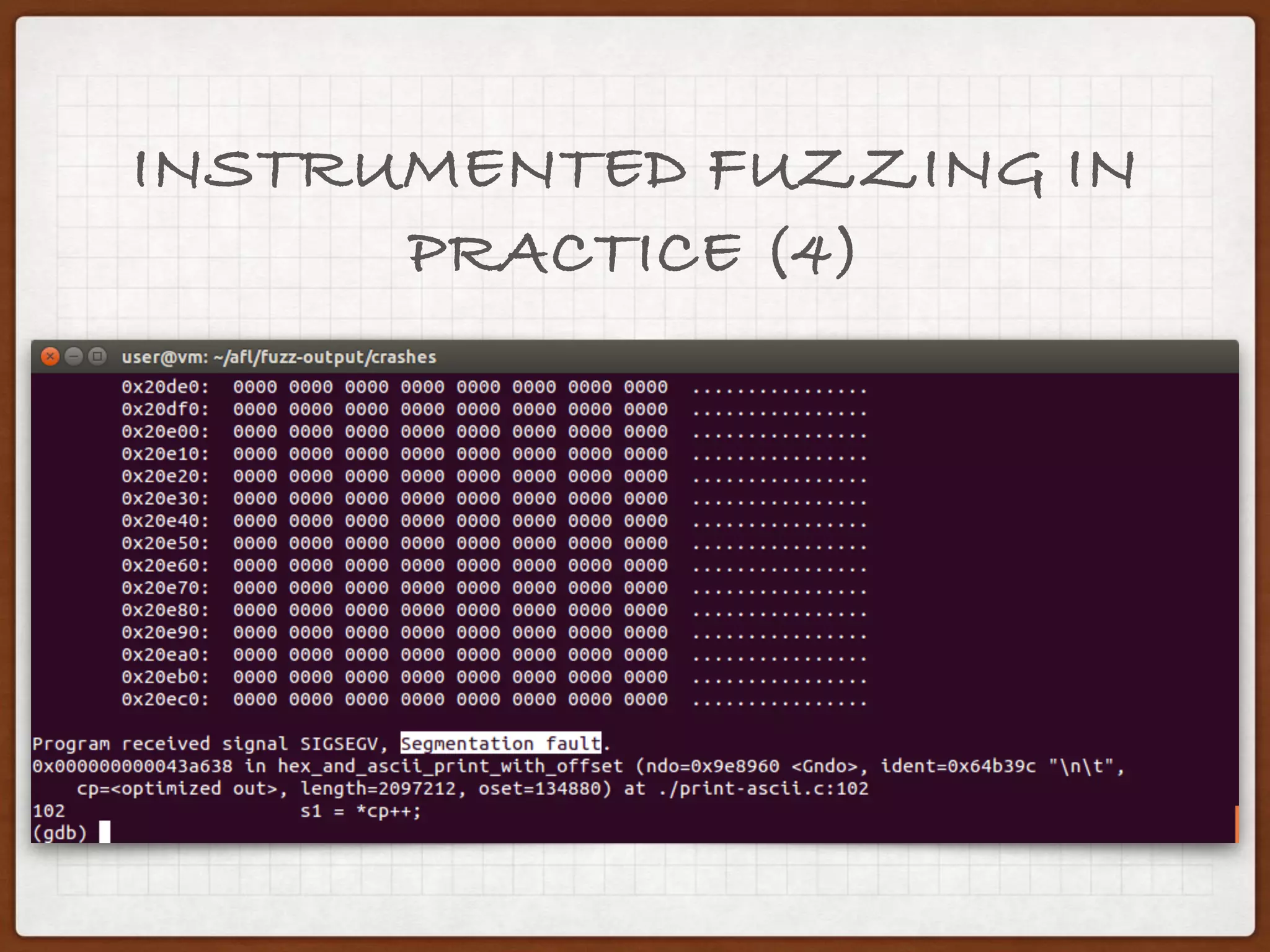

19. INSTRUMENTED FUZZING IN
PRACTICE

20. COOL STORY BRO, BUT MY
PROGRAM ISN’T WRITTEN IN C…
• AFL is so good that the community has created
many implementations of AFL supporting other
languages/environments. Just check it out here:
https://github.com/mirrorer/afl/blob/master/docs/
sister_projects.txt
• Still doesn’t suit your needs?
Then write your
own fuzzer!

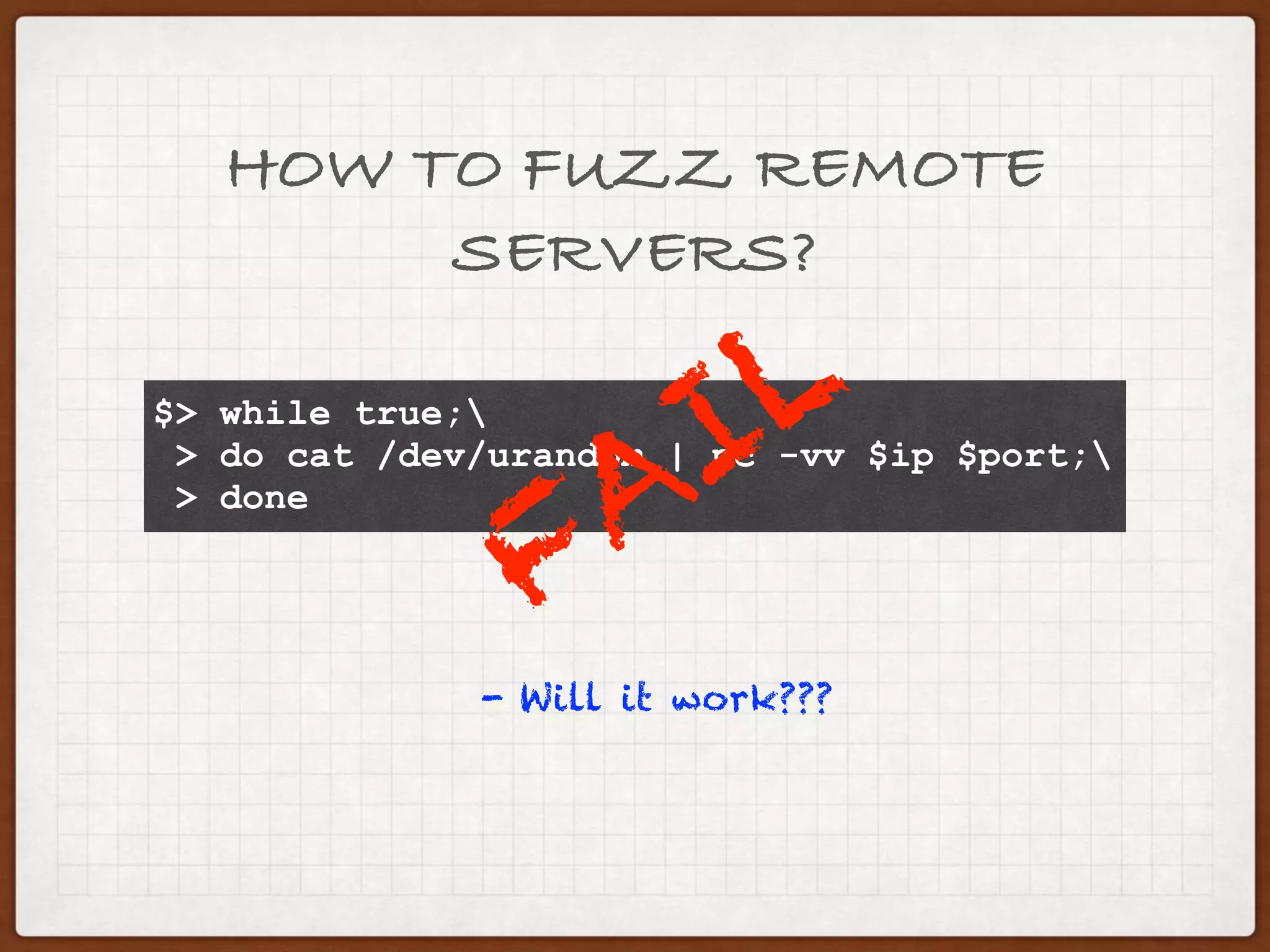

21. HOW TO FUZZ NETWORK
PROTOCOLS?
- Will it work???
$> while true;
> do cat /dev/urandom | nc -vv ftp.hq.nasa.gov 21;
> done
FAIL

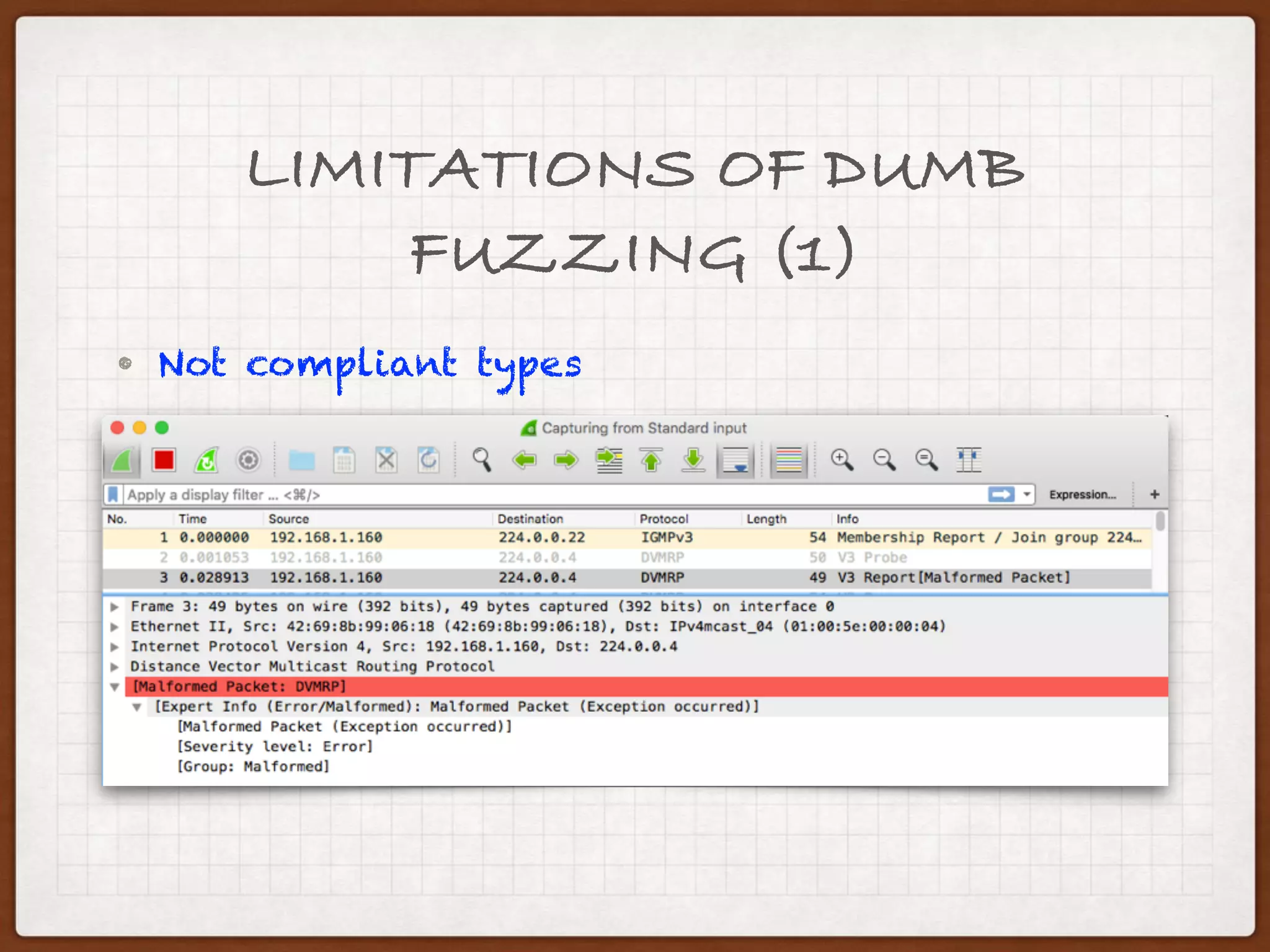

22. LIMITATIONS OF DUMB
FUZZING (1)
• Not compliant types

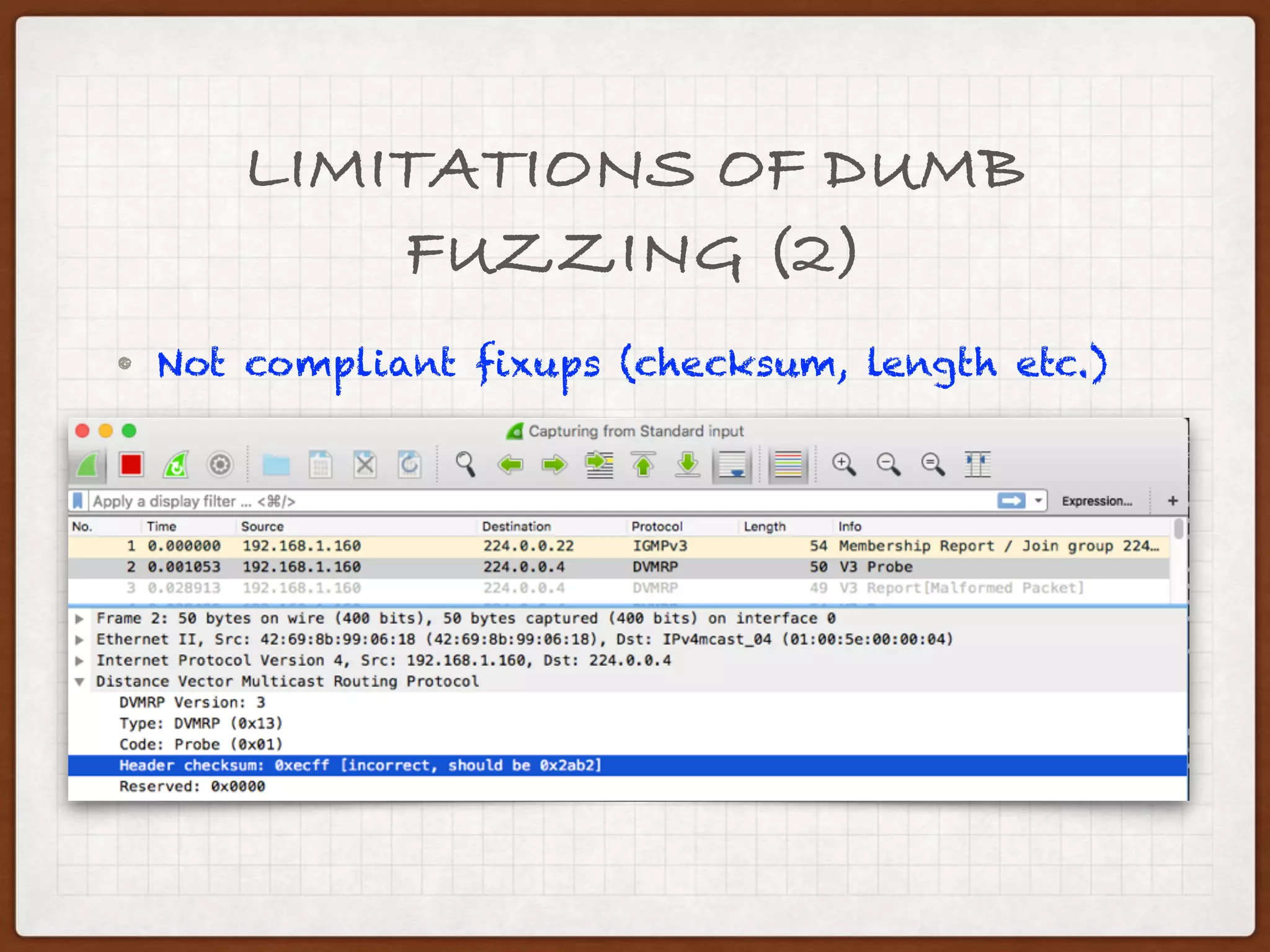

23. LIMITATIONS OF DUMB
FUZZING (2)
• Not compliant fixups (checksum, length etc.)

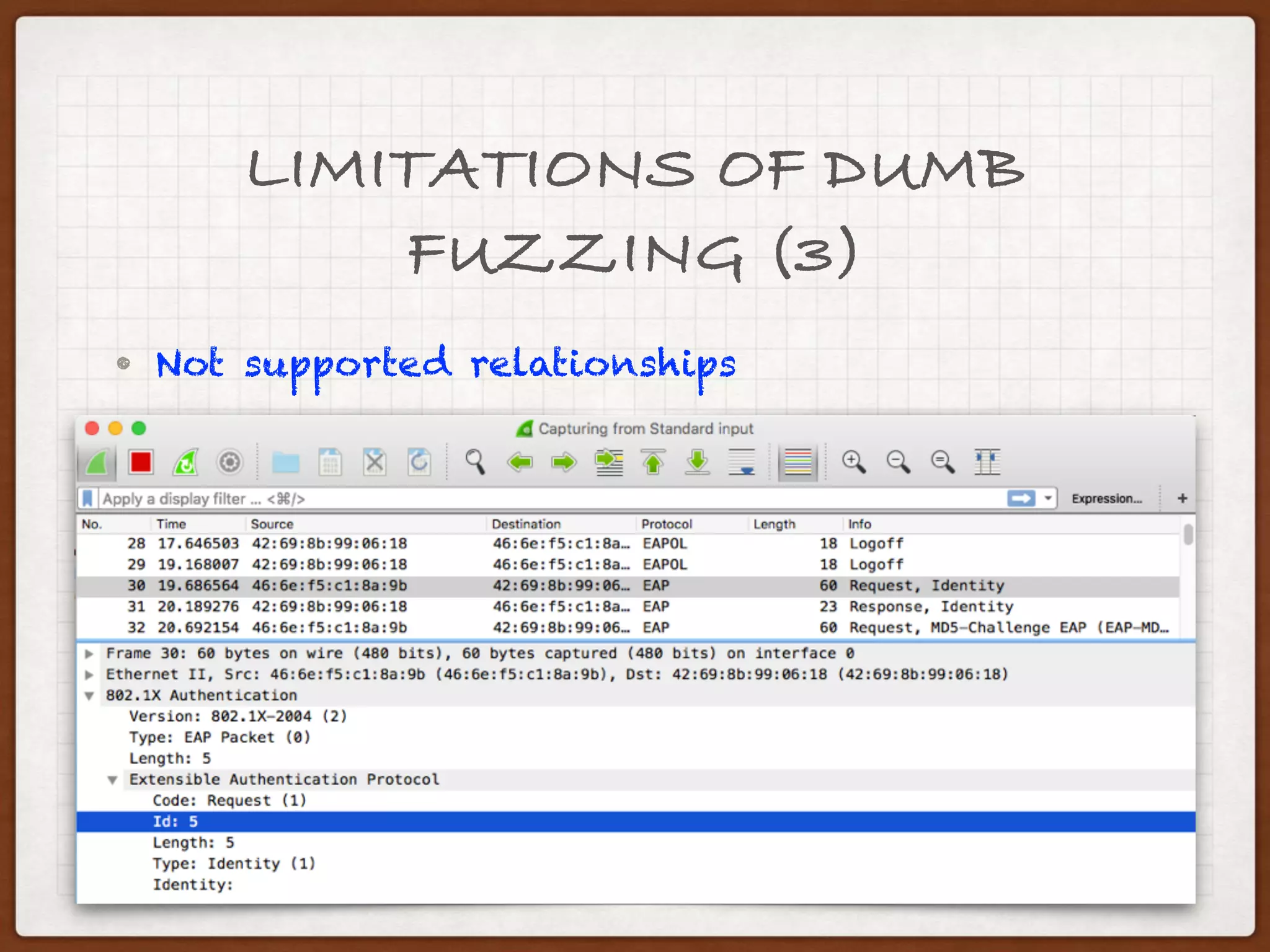

24. LIMITATIONS OF DUMB
FUZZING (3)
• Not supported relationships

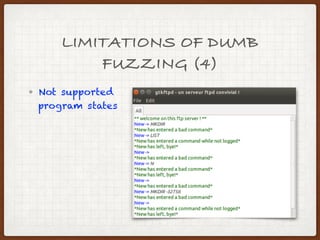

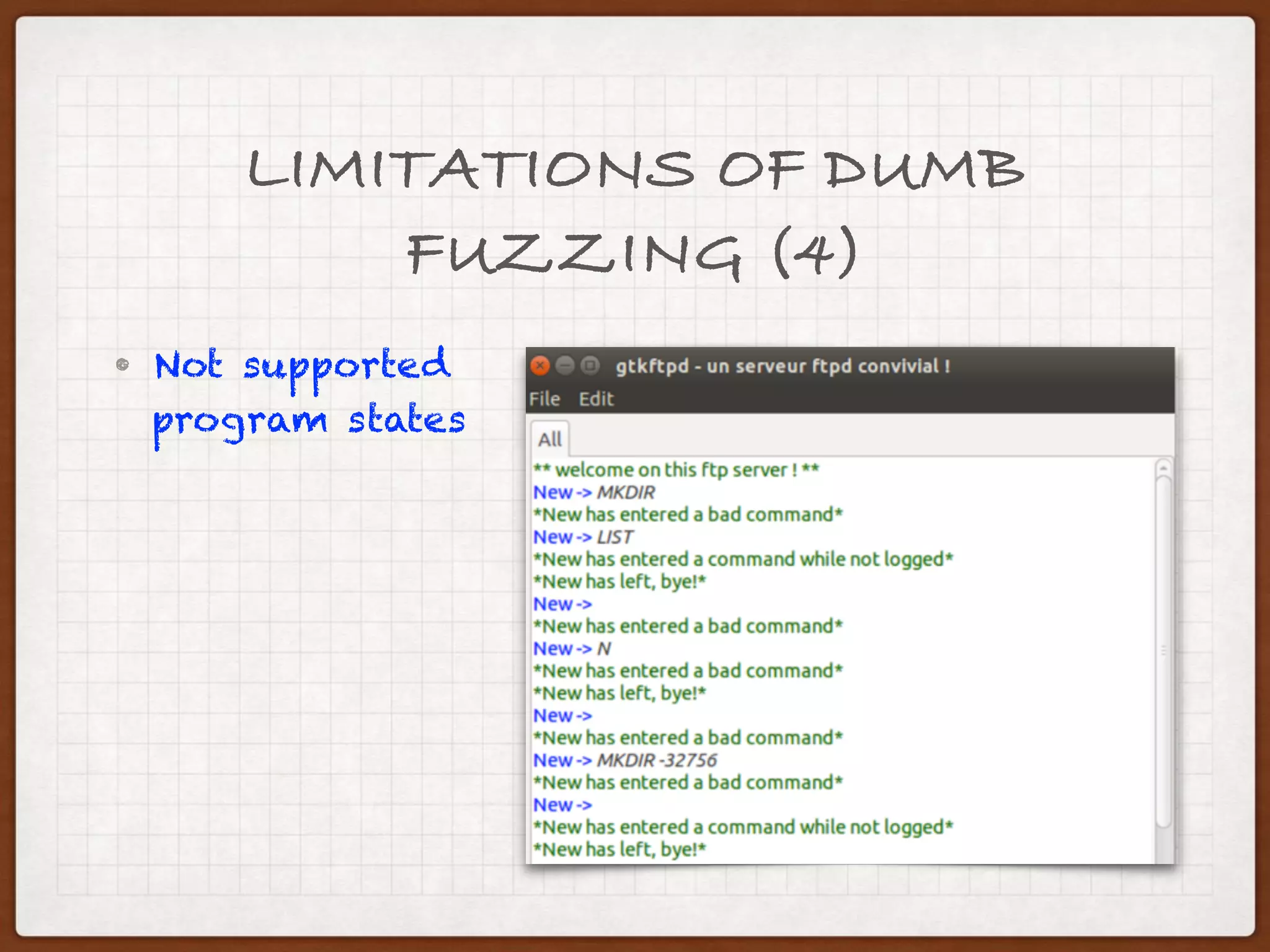

25. LIMITATIONS OF DUMB
FUZZING (4)
• Not supported
program states

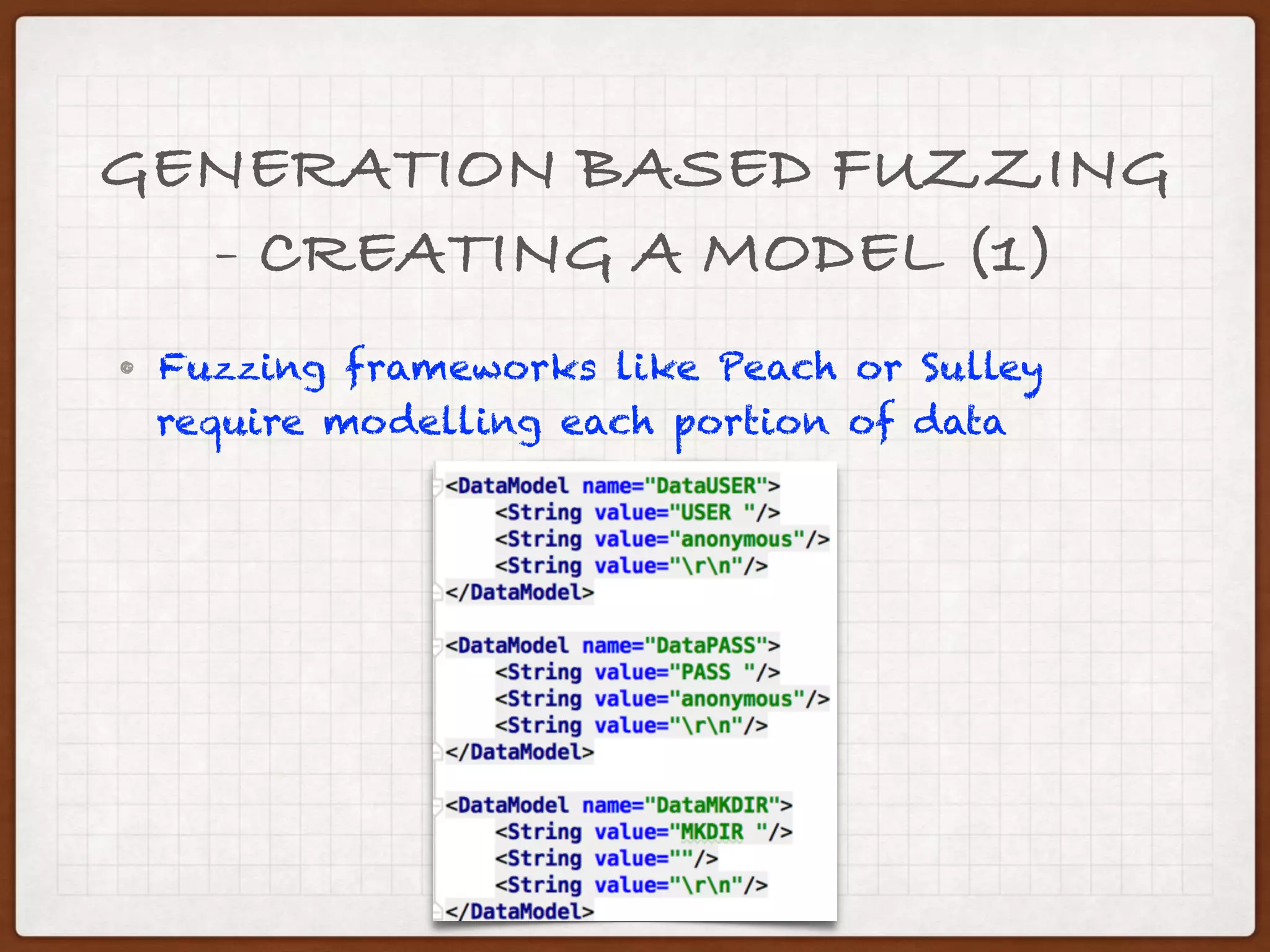

26. GENERATION BASED FUZZING
- CREATING A MODEL (1)
• Fuzzing frameworks like Peach or Sulley
require modelling each portion of data
Peach: http://peachfuzzer.com/resources/peachcommunity

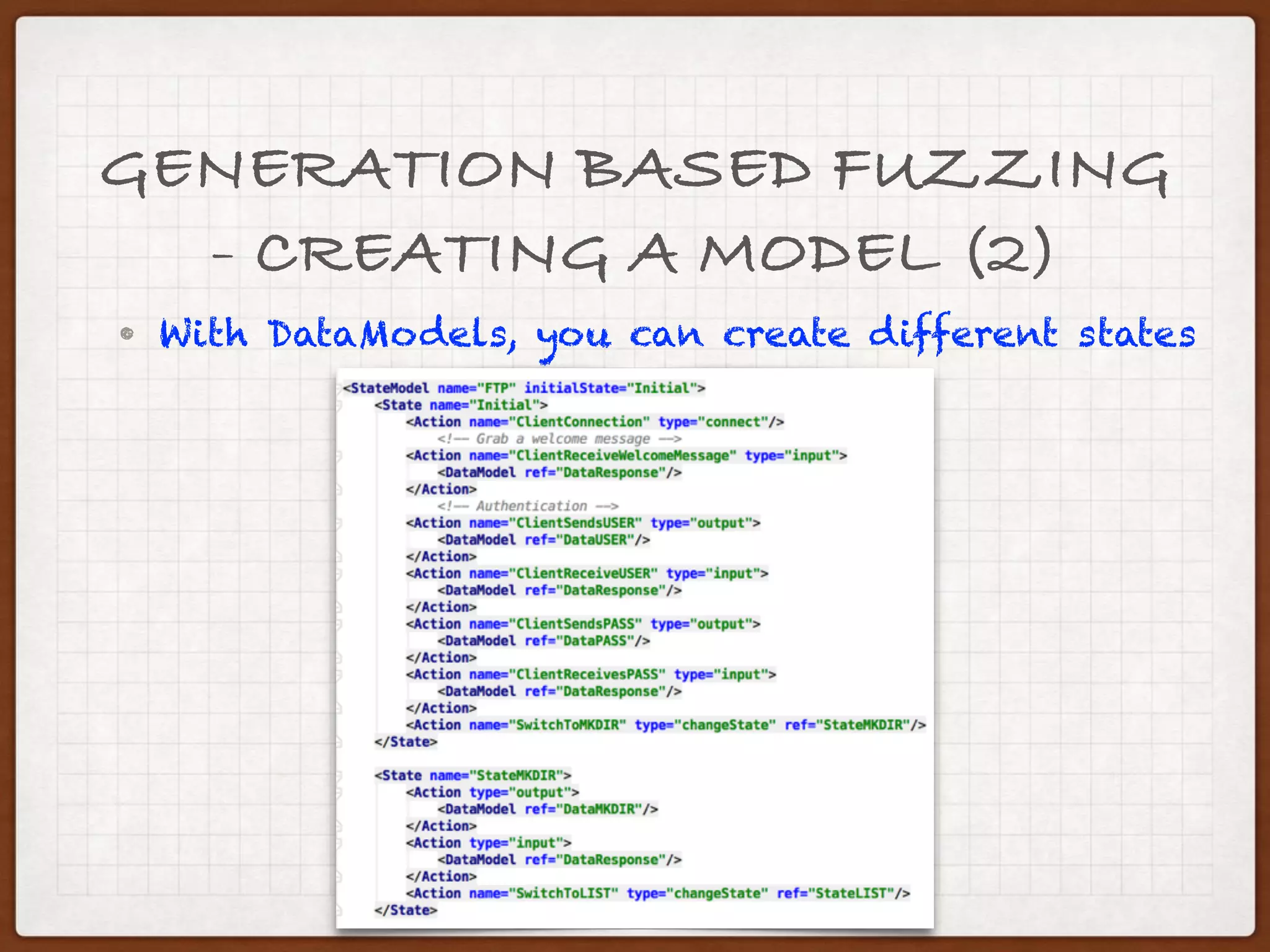

27. • With DataModels, you can create different states

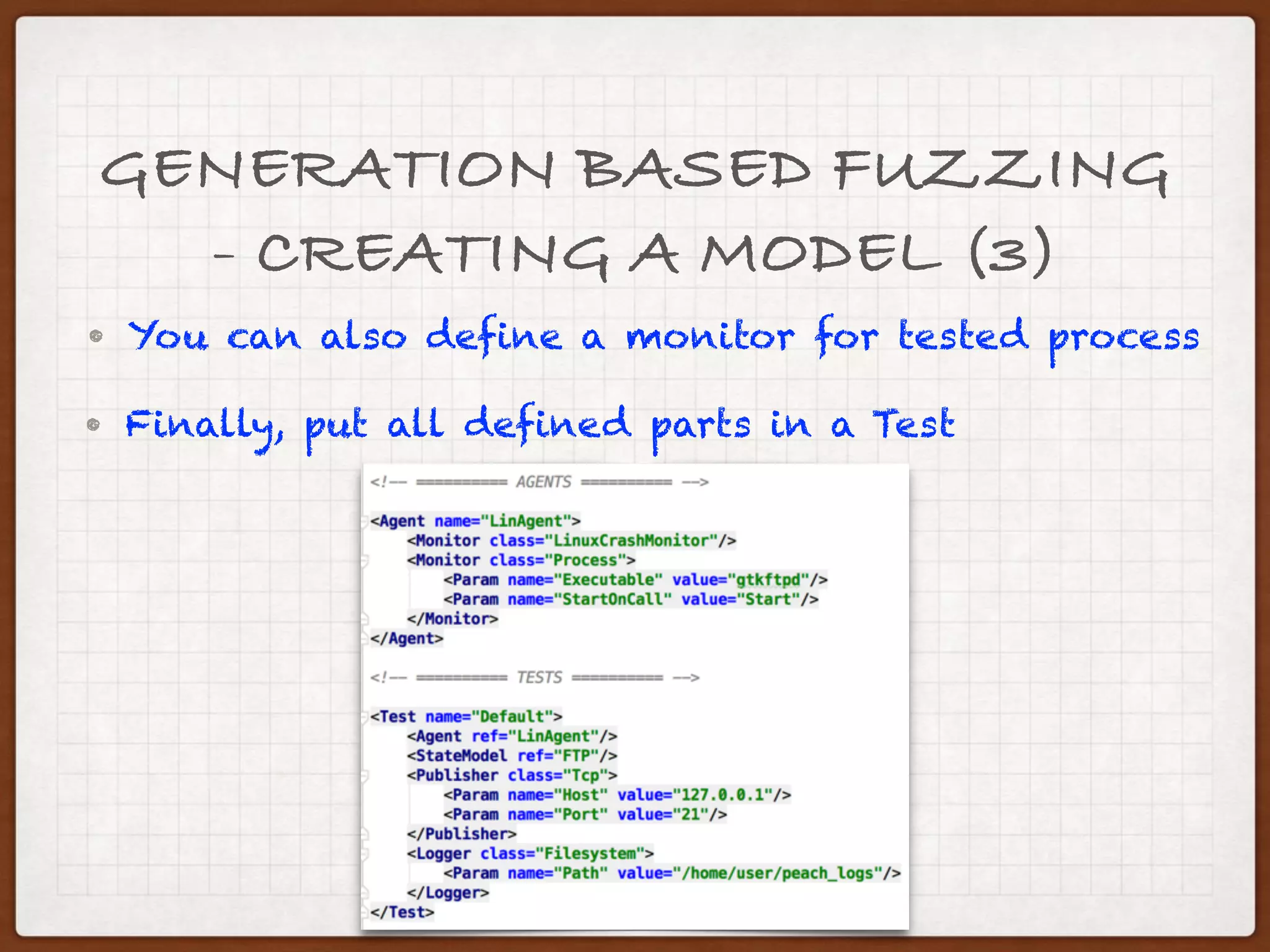

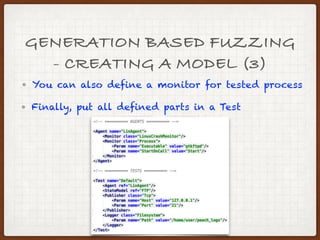

28. • You can also define a monitor for tested process
• Finally, put all defined parts in a Test

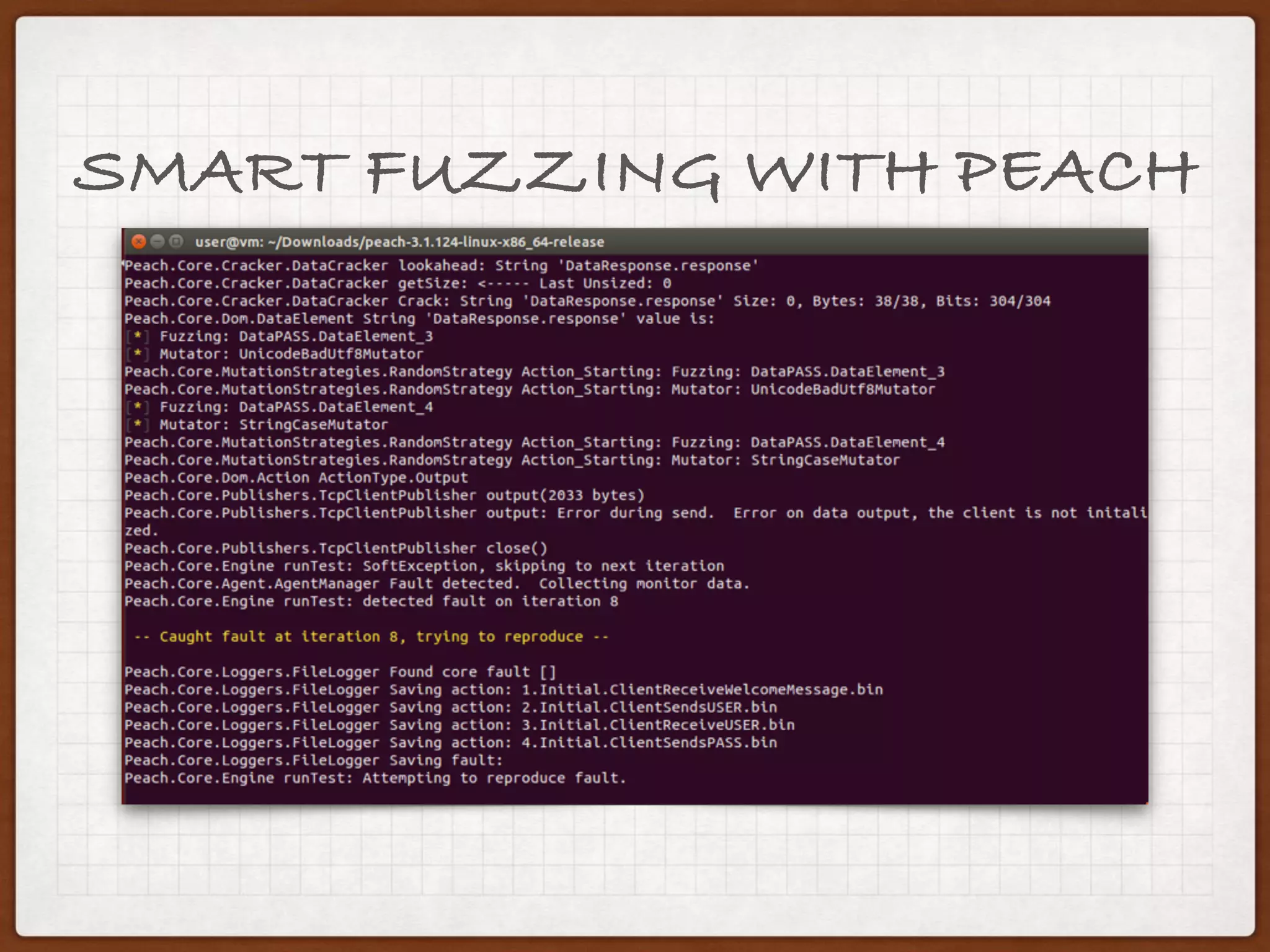

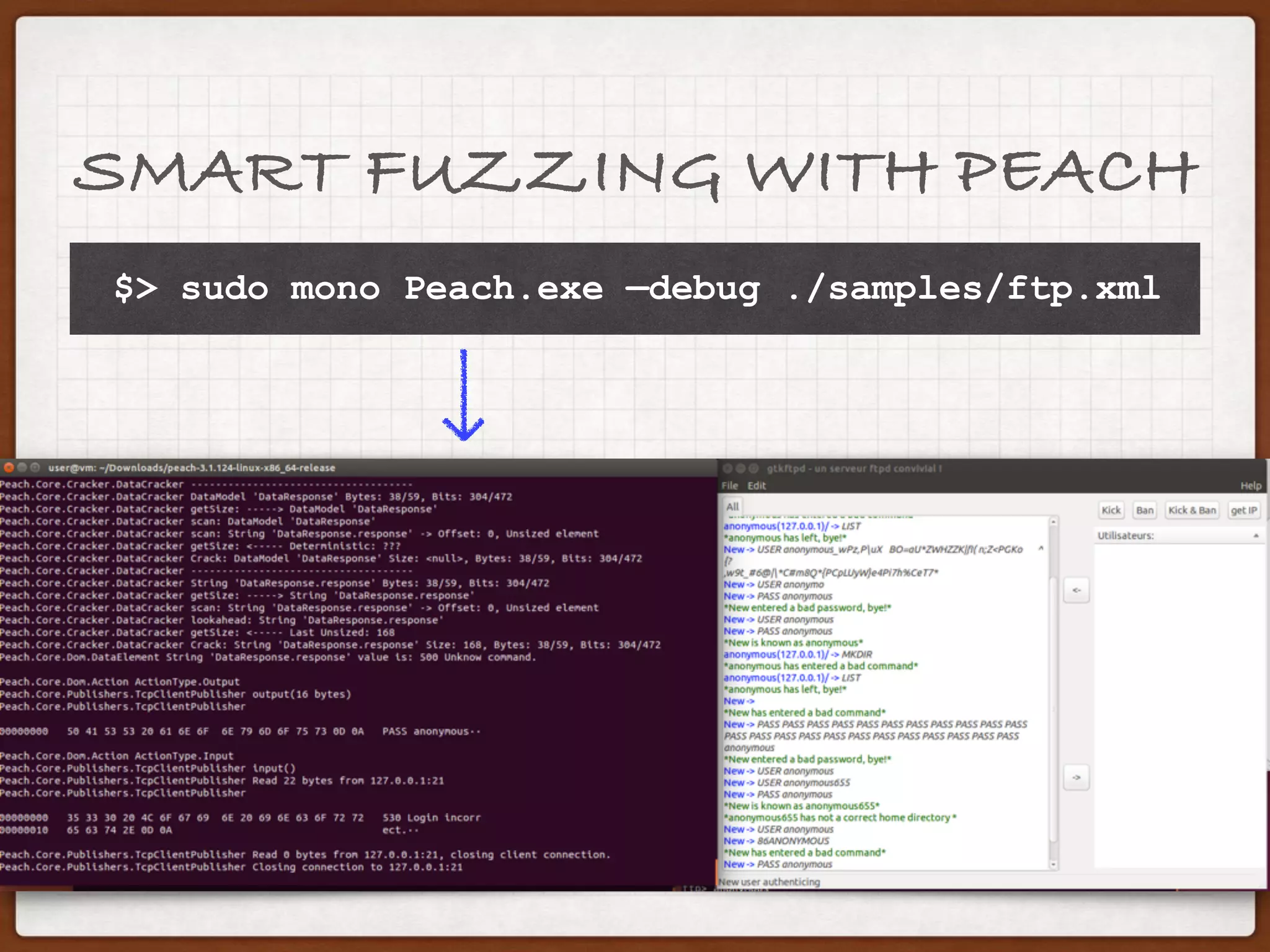

29. SMART FUZZING WITH PEACH
$> sudo mono Peach.exe --debug ./samples/ftp.xml

30. SMART FUZZING WITH PEACH

31. SMART FUZZING WITH PEACH

32. HOMEWORK
• Fuzz a “Vulnserver”. Download from:
http://sites.google.com/site/lupingreycorner/
vulnserver.zip
• Write a Peach model. Refer to this tutorial:
http://resources.infosecinstitute.com/fuzzing-
vulnserver-with-peach-part-2/

33. FUZZING WEB APPLICATION
• Locate an input you want fuzz

34. • Intercept request (e.g. Burp Suite/OWASP Zap)

35. • Define which parameter should be fuzzed

36. • Select a dictionary with invalid input
More sample dictionaries:
https://github.com/fuzzdb-
project/fuzzdb

37. • Find errors!

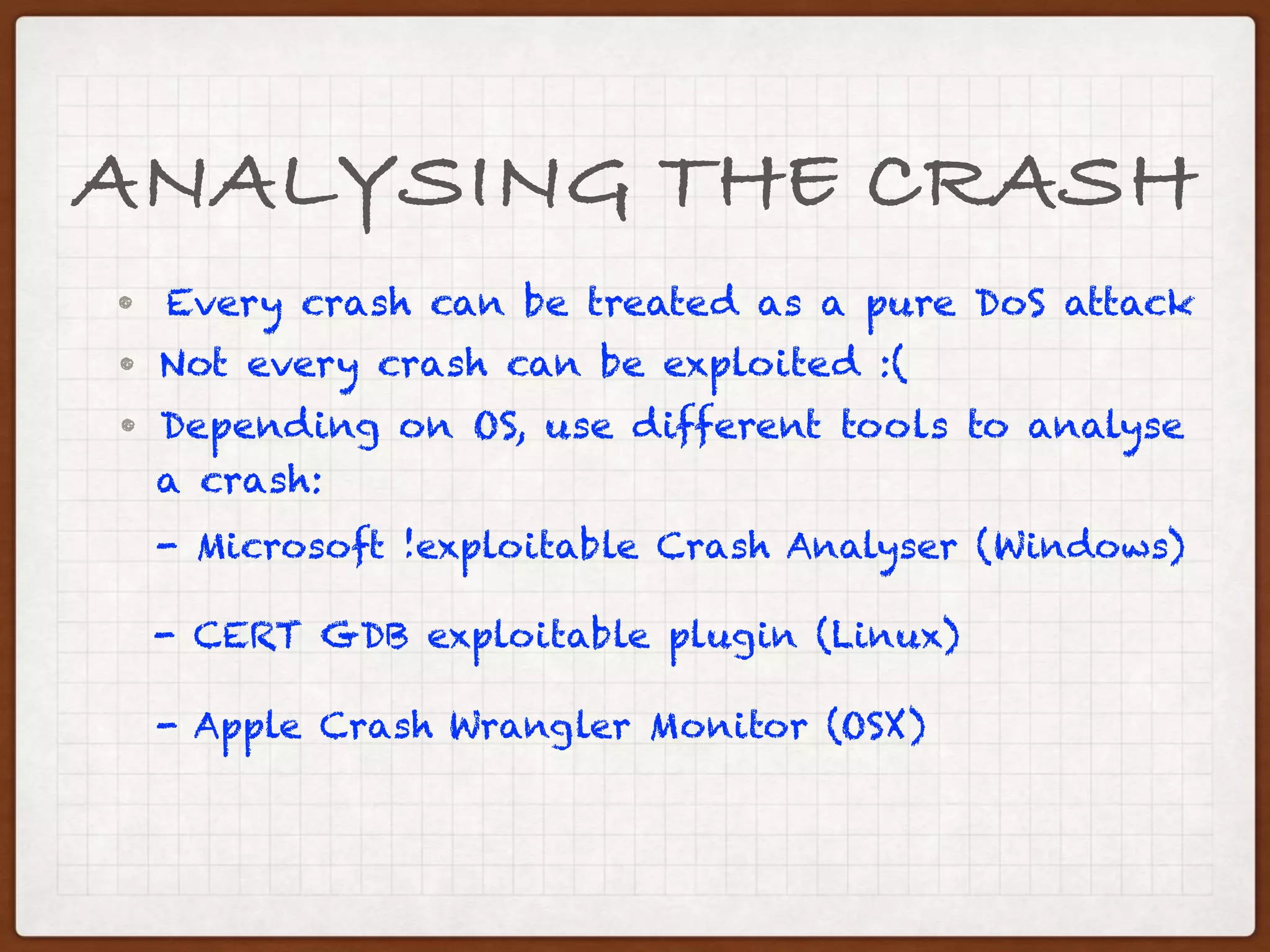

38. ANALYSING THE CRASH
• Every crash can be treated as a pure DoS attack
• Not every crash can be exploited :(
• Depending on OS, use different tools to analyse
a crash:
- Microsoft !exploitable Crash Analyser (Windows)
- CERT GDB exploitable plugin (Linux)
- Apple Crash Wrangler Monitor (OSX)

39. WHY IT’S WORTH FUZZING?
• High return on investment - machine time is
cheap and human time is expensive
• Human role is just to customize a fuzzer to your
needs and… profit!

40. WHAT YOU CAN FUZZ?
• Literally - every piece of software which accepts
user input
• All kinds of apps (mobile, desktop, web, etc.)
• OS -> https://vimeo.com/129701495
• Online games -> http://bit.ly/2e0w2YO
• Bluetooth -> http://bit.ly/2dQfPqM
• HDMI -> http://bit.ly/2e0ynmA
• Fonts -> http://bit.ly/293DKE0
• Virtualization systems -> http://bit.ly/2ernSfs
…and much more!

41. WHAT FUZZERS CAN FIND?
• Buffer overruns (remote code execution),
• Deadlocks, thread hangs, unhandled exceptions
(denial-of-service)
• Memory leaks (Heartbleed)

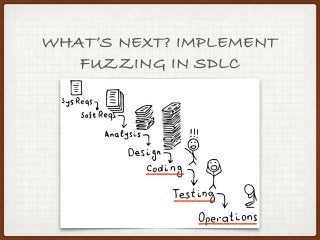

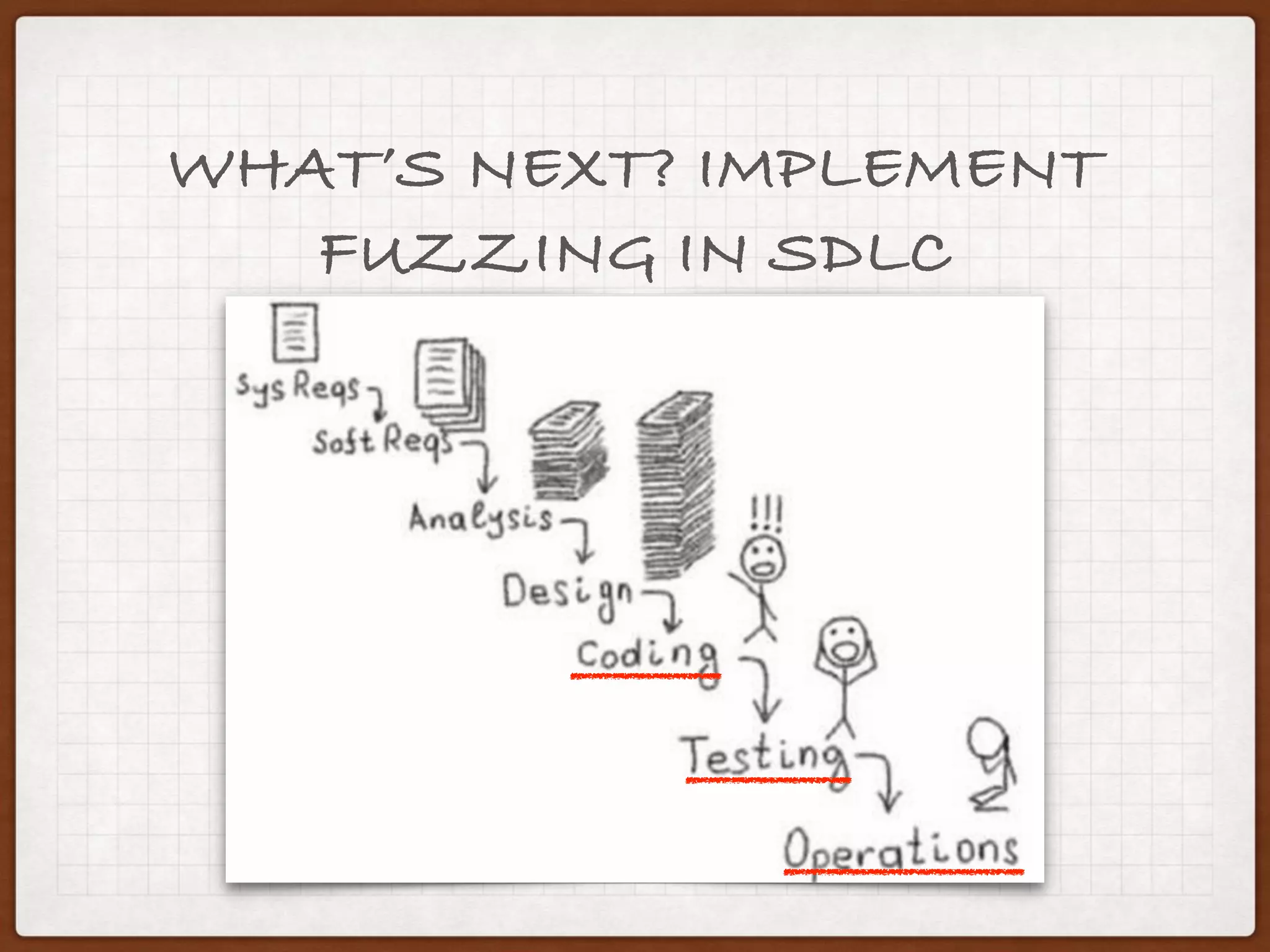

42. WHAT’S NEXT? IMPLEMENT
FUZZING IN SDLC

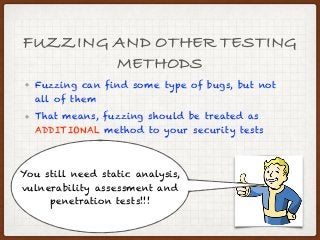

43. FUZZING AND OTHER TESTING
METHODS
• Fuzzing can find some type of bugs, but not
all of them
• That means, fuzzing should be treated as
ADDITIONAL method to your security tests
You still need static analysis,
vulnerability assessment and
penetration tests!!!

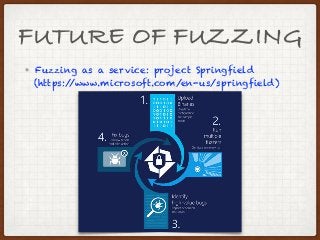

44. FUTURE OF FUZZING
• Fuzzing as a service: project Springfield
(https://www.microsoft.com/en-us/springfield)

45. FUTURE OF FUZZING
• That reminds me DARPA Cyber Grand Challenge
bots: symbolic execution (e.g. angr) + directed
fuzzing (e.g. AFL)

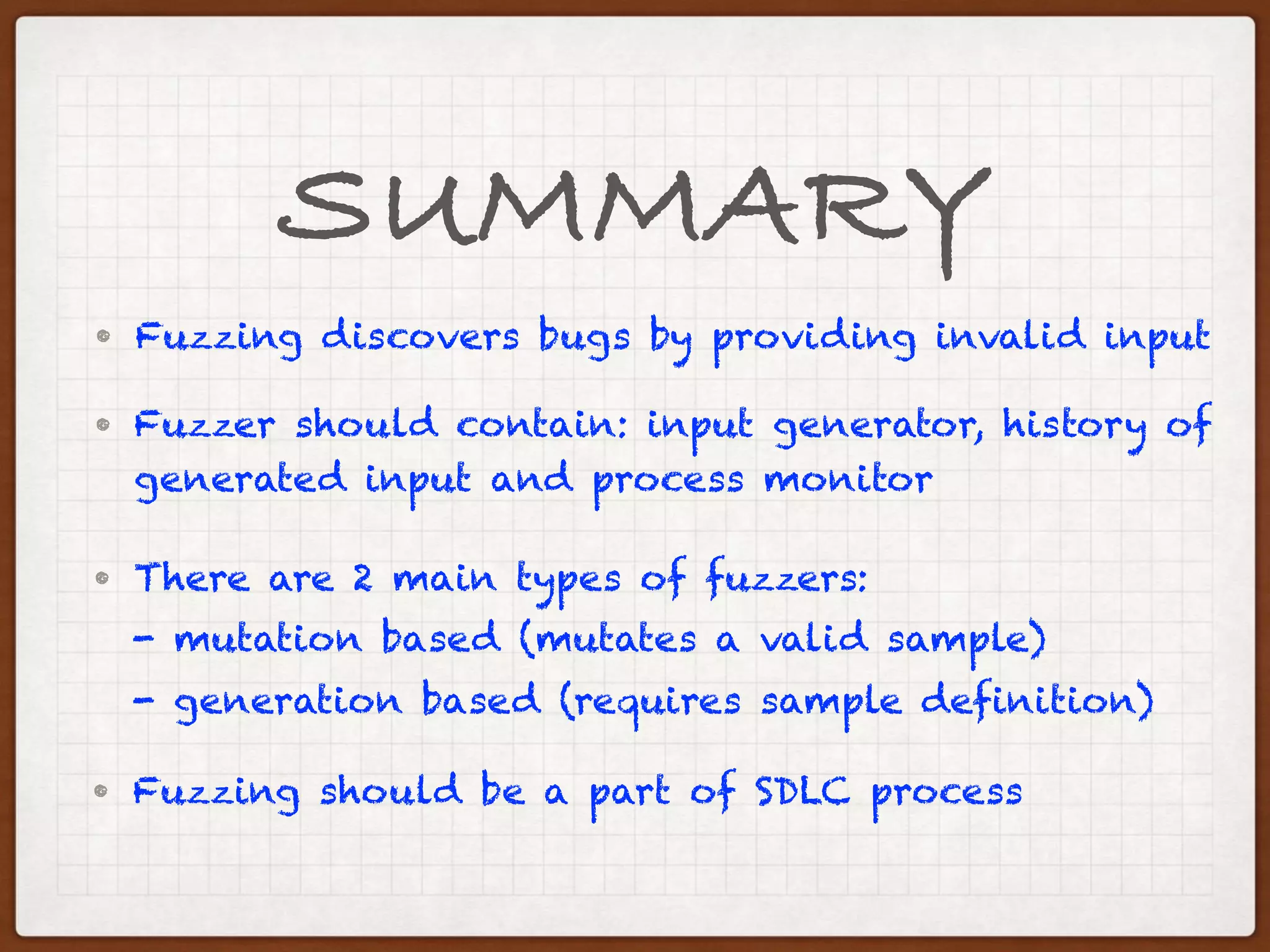

46. SUMMARY
• Fuzzer should contain: input generator, history of
generated input and process monitor
• Fuzzing discovers bugs by providing invalid input
• There are 2 main types of fuzzers:
• Any software can be fuzzed, so always remember
about this method!
- generation based (requires sample definition)
- mutation based (mutates a valid sample)
