FPGA-enhanced Bioinformatics
@NECST
06/08/2017
Xilinx, San Jose, CA
Lorenzo Di Tucci & co.
lorenzo.ditucci@polimi.it
NECST Lab, Politecnico di Milano

2. 2

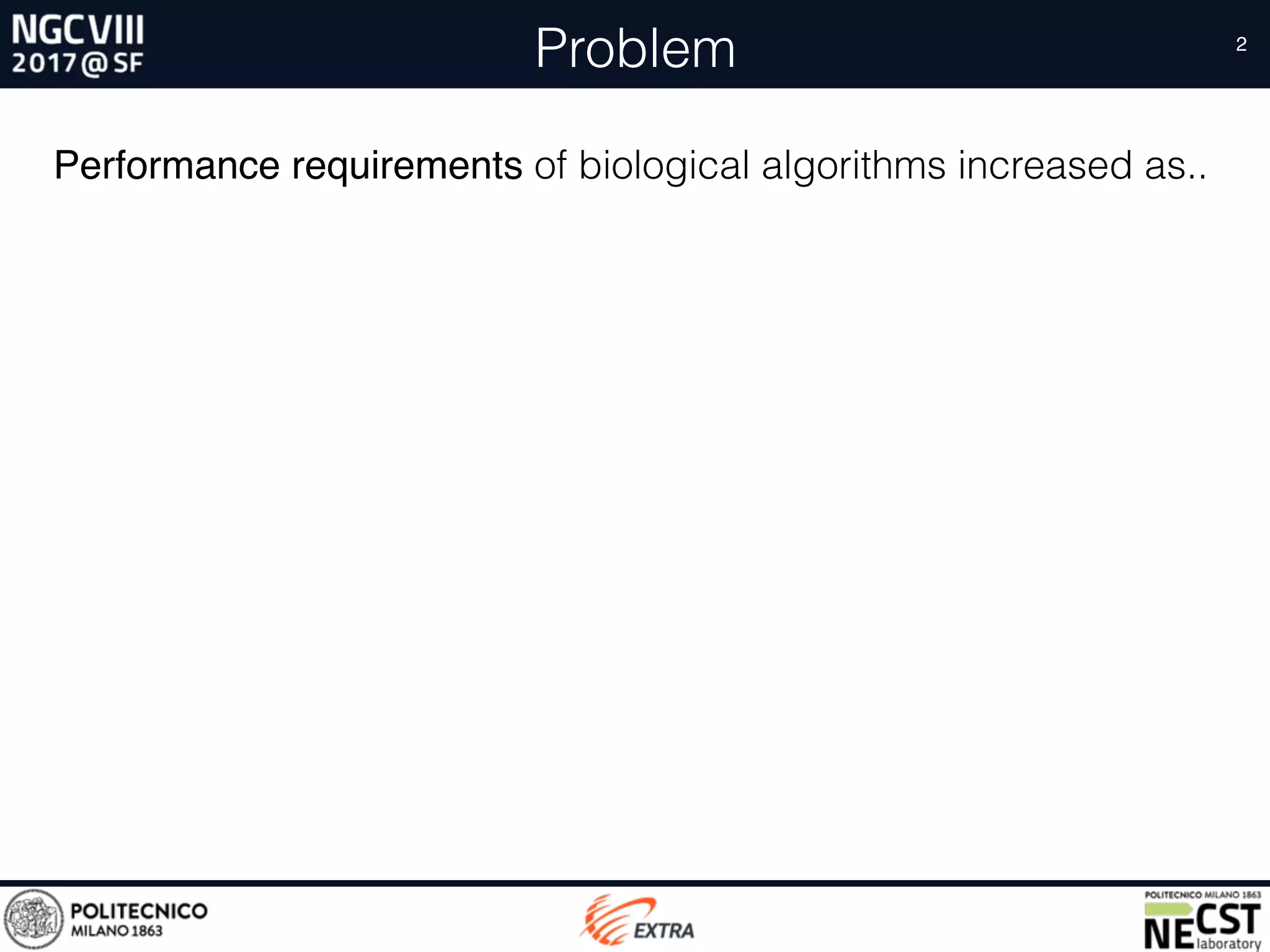

Problem
Performance requirements of biological algorithms increased as..

3. 2
Problem
Performance requirements of biological algorithms increased as..
Large amount of data

4. 2
Problem
Performance requirements of biological algorithms increased as..
Large amount of data

5. 2
Problem
Performance requirements of biological algorithms increased as..
Large amount of data Algorithm complexity

6. 2
Problem
Performance requirements of biological algorithms increased as..
Large amount of data Algorithm complexity
HIGH
COMPUTATIONAL
NEEDS

7. 3
Hardware solution
In such scenario, hardware accelerators proved to be effective
in optimizing the Performance/Power Consumption ratio

8. 3
Hardware solution
In such scenario, hardware accelerators proved to be effective
in optimizing the Performance/Power Consumption ratio
High parallelism

9. 3
Hardware solution
In such scenario, hardware accelerators proved to be effective
in optimizing the Performance/Power Consumption ratio
High parallelism Low power consumption

10. 4
Traditional medicine

11. 4
Traditional medicine

12. 4
Traditional medicine

13. 5
Personalized medicine

14. 5
Personalized medicine

15. 5
Personalized medicine

16. 5
Personalized medicine

17. 6
Issues

18. 6
Issues
Further biological research is needed

19. 6
Issues
Further biological research is needed
Each individual DNA provides huge amount of data

20. 6
Issues
Further biological research is needed
Each individual DNA provides huge amount of data
To produce a tailor-made drug, for each DNA:

21. 6
Issues
Further biological research is needed
Each individual DNA provides huge amount of data
To produce a tailor-made drug, for each DNA:

22. 6
Issues
Further biological research is needed
Each individual DNA provides huge amount of data
To produce a tailor-made drug, for each DNA:

23. 6
Issues
Further biological research is needed
Each individual DNA provides huge amount of data
To produce a tailor-made drug, for each DNA:

24. 6
Issues
Further biological research is needed
Each individual DNA provides huge amount of data
To produce a tailor-made drug, for each DNA:

25. 7
Issues

26. 7
Issues

27. 7
Issues

28. 7
Issues

29. 7
Issues

30. 7
Issues

31. 7
Issues

32. 7
Issues

33. 7
Issues

34. 7
Issues

35. 7
Issues

36. 8
Proposed solution

37. 8
Proposed solution
Advanced support for
bioinformatics

38. 8
Proposed solution
Efficient algorithm
execution
Advanced support for
bioinformatics

39. 9
Proposed solution

40. 10
Proposed solution

41. 11
Proposed solution

42. 12
Proposed solution

43. 13
Proposed solution

44. 14
Implementation

45. 15
Implementation

46. 16
Implementation

47. 17
Implementation

48. 18
Proposed solution
Heterogeneity of competences to create efficient data visualization,
focusing on biological meanings

49. 19
Proposed solution
Efficient algorithm
execution
Advanced support for
bioinformatics

50. 19
Proposed solution
Efficient algorithm
execution
Advanced support for
bioinformatics
Efficient visualization
of results

51. 20
Proposed solution

52. 21
Timeline

53. 21
Timeline
Nov 2015
HP implementation of Smith-Waterman algorithm

54. 22
Smith-Waterman
• Dynamic programming algorithm
• Perform local sequence alignment between two nucleotides or protein
• Guaranteed to find the optimal local alignment with regards to the scoring
system used

55. 22
Smith-Waterman
• Dynamic programming algorithm
• Perform local sequence alignment between two nucleotides or protein
• Guaranteed to find the optimal local alignment with regards to the scoring
system used
• Highly compute intensive

56. 22
Smith-Waterman
• Dynamic programming algorithm
• Perform local sequence alignment between two nucleotides or protein
• Guaranteed to find the optimal local alignment with regards to the scoring
system used
• In order to increase system performance, the state of the art is full of
implementation based on heuristics
• Highly compute intensive

57. 22
Smith-Waterman
• Dynamic programming algorithm
• Perform local sequence alignment between two nucleotides or protein
• Guaranteed to find the optimal local alignment with regards to the scoring
system used
• In order to increase system performance, the state of the art is full of
implementation based on heuristics
• Highly compute intensive
Speedup
in computation

58. 22
Smith-Waterman
• Dynamic programming algorithm
• Perform local sequence alignment between two nucleotides or protein
• Guaranteed to find the optimal local alignment with regards to the scoring
system used
• In order to increase system performance, the state of the art is full of
implementation based on heuristics
• Highly compute intensive
Speedup
in computation
Decrease in algorithm
precision

59. 23
Smith-Waterman
Platform Performance
[GCUPS]
Power Efficiency
[GCUPS/Watt]
ADM-PCIE-KU3 42.5 1.699
Altera Stratix V on Nallatech
PCIe-385
24.7 0.988
ADM-PCIE-7V3 14.8 0.594
Xtreme Data XD1000 25.6 0.430
Tesla K20 45.0 0.200
Xtreme Data XD2000i 9.00 0.150
Nvidia GeForce GTX 295 30.0 0.104
Dual-core Nvidia 9800 GX2 14.5 0.074
Nvidia GeForce GTX 295 16.1 0.056
Nvidia GeForce GTX 280 9.66 0.0041
2XNvidia GeForce 8800 3.60 0.017
Di Tucci, Lorenzo, Kenneth O'Brien, Michaela Blott, and Marco D. Santambrogio. "Architectural optimizations for high performance and energy efficient Smith-
Waterman implementation on FPGAs using OpenCL." In 2017 Design, Automation & Test in Europe Conference & Exhibition (DATE), pp. 716-721. IEEE, 2017.

60. 24
Timeline
Nov 2015
Hardware acceleration of a protein folding algorithm
Mar 2016

61. 25
ProFAX
• Ab Initio modeling creates the 3D-structure from energetic
and geometrical features
ProFAX is a hardware acceleration of an Ab Initio Protein Folding
algorithm based on Monte Carlo Simulation (MCS)
Monte Carlo methodology:
• series of random steps in conformation space, each perturbing some
degrees of freedom of the molecule
• step is accepted with a probability, depending on an energy function

62. 26
ProFAX
Giulia Guidi, Lorenzo Di Tucci, and Marco D. Santambrogio. "ProFAX: A hardware acceleration of a protein folding algorithm." In Research and Technologies
for Society and Industry Leveraging a better tomorrow (RTSI), 2016 IEEE 2nd International Forum on, pp. 1-6. IEEE, 2016.

63. 27
Timeline
Mar 2016Nov 2015 TODAY

64. 28
Preliminary analysis

65. 28
Preliminary analysis

66. 28
Preliminary analysis

67. 29
Roofline model
Performance model that depicts the relation between attainable
performance and operational intensity

68. 30
Roofline models for FPGA
• Estimate performance before implementing the kernel
• Compare performance on different FPGA boards
• FPGAs have no fixed architecture
- It needs to be generated for each kernel
- and each target FPGA board

69. 30
Roofline models for FPGA
• Estimate performance before implementing the kernel
• Compare performance on different FPGA boards
• FPGAs have no fixed architecture
- It needs to be generated for each kernel
- and each target FPGA board
Proposed solution: automatic tool to generate Roofline models

70. 31
Rationale
Maximum performance are kernel and FPGA specific
• Maximum performance of a kernel are obtained once
- Code is fully optimized
- The FPGA provides sufficient resources

71. 32
Ceilings & Walls
Original Roofline
• ceiling represents optimizations
• The performance won’t increase
if the ceiling is not reached
Roofline for FPGA
• Ceilings are HLS optimizations
• Walls represents O.I.
optimizations

72. 33
Optimization Flow
• Intersection points between walls and ceilings represent possible HW implementations
•Navigate through the graph moving towards high performance solutions
• All generated points must be solutions not exceeding FPGA resource budget (legal
points)

73. 34
Automatic DSE
• Generation of legal point done automatically
- Start from initial source code, considers optimizations to generate
new points
• Space Exploration can be done automatically
- Taken a set of valid points, the tool calculates the set of
transformations to be performed to get the best performance
• Combining the two aspects
- Automatic DSE for High Level Synthesis on FPGAs

74. 35
SDAccel
• Based on the Vivado Design Suite
• Given High Level Code, it generates bitstream for the target board
• Resembles GPU design flow

75. 35
SDAccel
• Based on the Vivado Design Suite
• Given High Level Code, it generates bitstream for the target board
• Resembles GPU design flow
Host
OpenCL runtime & APIs

76. 35
SDAccel
• Based on the Vivado Design Suite
• Given High Level Code, it generates bitstream for the target board
• Resembles GPU design flow
Host
OpenCL runtime & APIs
Accelerator
C, C++, OpenCL
PCIe

77. 36
The Future: Timeline
As of now, multiple applications are being integrated
Nov 2015 Mar 2016

78. 37
Conclusions and Future Works
We presented
• HUG: a hardware/software systems that aims at becoming an
advanced support for the research for personalized medicine
• Roofline for FPGAs: an automatic tool for generating application
& target specific rooflines

79. 37
Conclusions and Future Works
We presented
• HUG: a hardware/software systems that aims at becoming an
advanced support for the research for personalized medicine
• Roofline for FPGAs: an automatic tool for generating application
& target specific rooflines
Future Works

80. 37
Conclusions and Future Works
• Research & Integrations of new visualization
methodologies
We presented
• HUG: a hardware/software systems that aims at becoming an
advanced support for the research for personalized medicine
• Roofline for FPGAs: an automatic tool for generating application
& target specific rooflines
Future Works

81. 37
Conclusions and Future Works
• Research & Integrations of new visualization
methodologies
•Integration of AWS F1 instances to exploit multi-FPGA
We presented
• HUG: a hardware/software systems that aims at becoming an
advanced support for the research for personalized medicine
• Roofline for FPGAs: an automatic tool for generating application
& target specific rooflines
Future Works

82. 38
Thanks for your attention
Questions?
Lorenzo Di Tucci & co.
lorenzo.ditucci@polimi.it
NECST Lab, Politecnico di Milano
