A Methodology for Automatic GPU Kernel Optimization
•
2 likes•236 views
In recent years Graphic Processing Units (GPUs) have seen widespread adoption in many scientific fields, from Machine Learning (ML) to Genomics. Their use makes it possible to achieve significant speedups and improvements in power efficiency over computationally intensive algorithms compared to General Purpose Central Processing Units (CPUs). However, algorithms require specific knowledge of the GPU architecture and expertise to achieve significant results. In this work, we describe a methodology for automatic GPU kernel optimization. Our methodology exploits the Berkeley Roofline Model to perform a performance analysis of the algorithm considered and aims to increase the accessibility of GPU programming automatizing the optimization process of the kernel. We provide an in-depth analysis of this methodology, an overview on the state of the art, and a description of a tool we developed that automatically applies our methodology to obtain a highly optimized GPU version of two of the most popular algorithms used in computational biology, the X-drop and Smith-Waterman algorithms. The Smith-Waterman algorithm is one of the most used algorithms in genomics pipelines. The algorithm finds the optimal local alignment between two genomic sequences, at the cost of being particularly compute-intensive. The popular X-drop algorithm reduces the time required by the alignment by searching only for high-quality alignments. The algorithms accelerated using our methodology achieve more than 6x and 3x speed-up, for the X-drop and Smith-Waterman algorithms respectively, with respect to the state of the art implementation of these algorithms.
Recommended
More Related Content
What's hot
Similar to A Methodology for Automatic GPU Kernel Optimization
Similar to A Methodology for Automatic GPU Kernel Optimization (20)
More from NECST Lab @ Politecnico di Milano
More from NECST Lab @ Politecnico di Milano (20)
Recently uploaded
Recently uploaded (20)
A Methodology for Automatic GPU Kernel Optimization

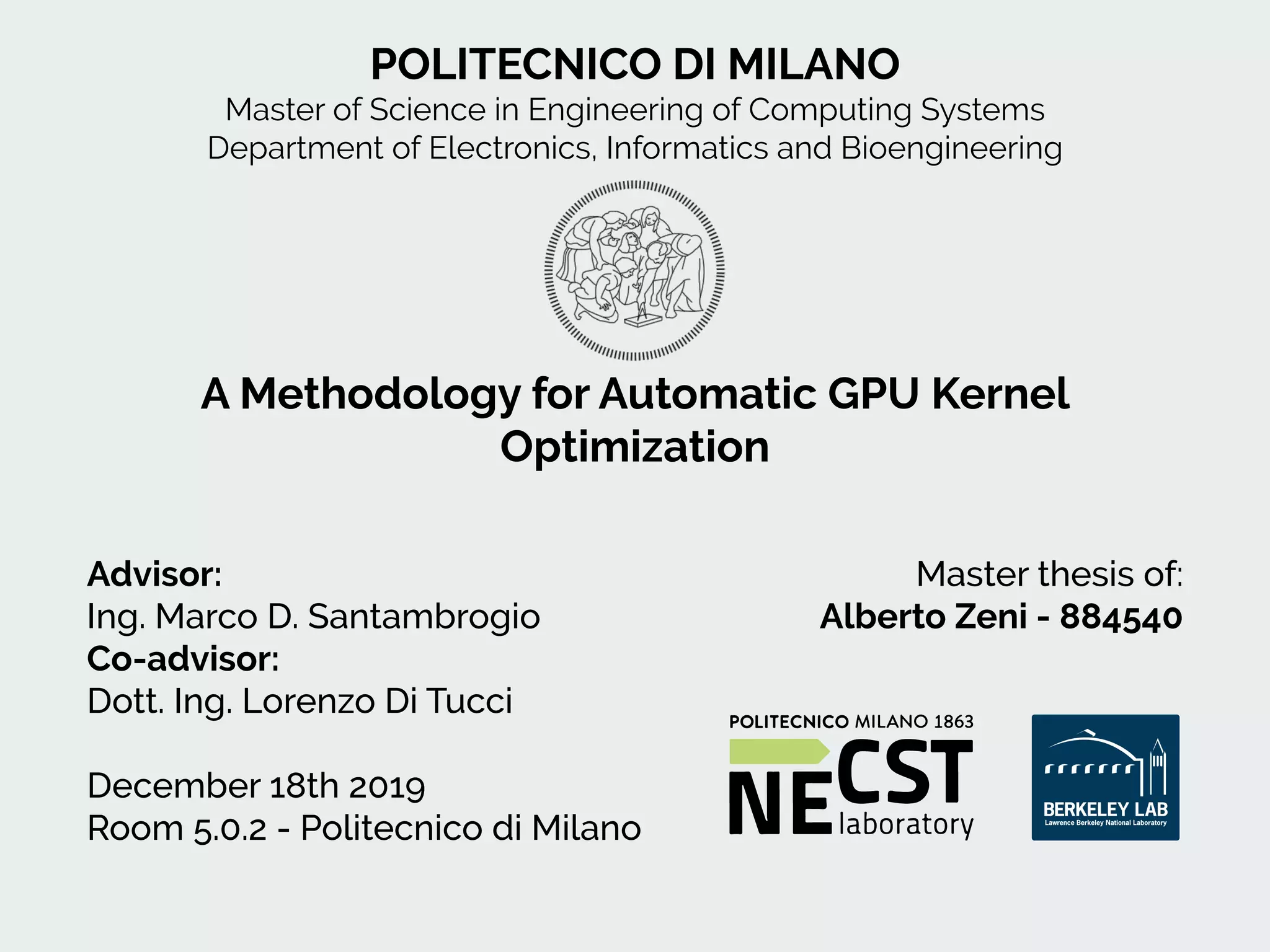

- 1. POLITECNICO DI MILANO Master of Science in Engineering of Computing Systems Department of Electronics, Informatics and Bioengineering Master thesis of: Alberto Zeni - 884540 A Methodology for Automatic GPU Kernel Optimization Advisor: Ing. Marco D. Santambrogio Co-advisor: Dott. Ing. Lorenzo Di Tucci December 18th 2019 Room 5.0.2 - Politecnico di Milano
- 2. Context Definition 2 1000x by 2025 40 Years of Microprocessor Trend Data ____________________________________________________ 1980 1990 2000 2010 2020 107 106 105 104 103 102
- 4. Thesis Contributions 4 ● We propose a methodology that guides the user to develop highly optimized GPU kernels ● We demonstrate the usefulness of our methodology by implementing it into a semi automatic tool for kernel optimization ● We show the results of the application of our methodology on two highly computationally intensive algorithms
- 5. Methodology application 5 Unoptimized source code Roofline Generator Roofline and Performance Analyzer Optimized source code Optimization Flow Compiler Optimizer Source Code Parser
- 6. Methodology application 6 Unoptimized source code Roofline Generator Roofline and Performance Analyzer Optimized source code Optimization Flow Compiler Optimizer Source Code Parser
- 8. Roofline Model Adaptation 8 ● Model built on the characteristics of the GPU and algorithm executed and independent to the algorithm implementation = number of iterations = gpu cores frequency = number of operations to be computed at iteration i = number of blocks = number of scheduled threads per block = number of integer cores = = number of streaming multiprocessors = maximum number of blocks per streaming multiprocessor =
- 9. Methodology application 9 Unoptimized source code Roofline Generator Roofline and Performance Analyzer Optimized source code Optimization Flow Compiler Optimizer Source Code Parser
- 10. Methodology application 10 Unoptimized source code Roofline Generator Roofline and Performance Analyzer Optimized source code Optimization Flow Compiler Optimizer Source Code Parser
- 11. Source Code Parser 11 ● Automatically unrolls loops if possible ● Automatically changes the memory hierarchy ● Automatically changes the number of scheduled threads ● Automatically changes the number of scheduled blocks ● Creates a report of the optimizations that can be applied manually
- 12. Methodology application 12 Unoptimized source code Roofline Generator Roofline and Performance Analyzer Optimized source code Optimization Flow Compiler Optimizer Source Code Parser
- 13. Methodology application 13 Unoptimized source code Roofline Generator Roofline and Performance Analyzer Optimized source code Optimization Flow Compiler Optimizer Source Code Parser
- 14. Smith-Waterman Algorithm 14 ● Optimal algorithm for local sequence alignment ● Execution times scale up to the length of the aligned sequences A G G G T C A A 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 1 0 0 0 0 0 0 2 1 0 0 0 0 0 0 0 1 3 1 0 0 0 0 0 0 1 2 2 0 0 0 0 1 0 0 0 1 0 0 1 1 0 0 0 0 0 0 1 0 0 0 1 0 0 1 0 1 0 0 0 1 0 0 1 A C C T A G G A
- 15. X-Drop Algorithm 15 X-Drop Algorithm 0 -1 -2 -∞ -1 1 -1 -∞ -2 -1 0 -∞ -∞ -∞ -∞ A C C T A G G A A G G G T C A A ● X-Drop termination offers a great tradeoff between speed and accuracy results ● Execution times scale up to the length of the sequences ● Very efficient if the two sequences do not align
- 16. GPU implemented optimizations 16 ● The two algorithms follow the same computational pattern ● We started with a simple implementation of the algorithms using a single thread and a single block ● We followed our methodology with the help of our tool to optimize the algorithms at different levels and introduce Inter and Intra Parallelism 1 -1 -3 -4 -1 0 -2 -3 A C G G A T T C A C G G A T T C
- 17. Intra Level Parallelism 17 ● Parallel computation of the anti-diagonals ● Each GPU thread is assigned to compute a single cell as our methodology suggested ● Anti-diagonals split in different segments to align sequences of any length
- 18. Inter Level parallelism 18 ● Parallel execution of the alignments with multiple blocks ● Each block has an alignment assigned
- 19. GPU memory optimizations 19 ● To ensure coalesced memory access one of the sequences is stored backwards on the GPU
- 20. 20 Evaluation Settings Benchmarked Applications: ● SeqAn: State of the art library that includes an highly optimized version of X-Drop), run on 176 threads ● ksw2: State of the art CPU SIMD implementation of Z-drop, run on 80 threads ● Bowtie2: State of the art Smith-Waterman implementation, run on 64 threads ● CUDASW++ 3.0: State of the art Smith-Waterman GPU + CPU SIMD implementation
- 21. Evaluation Settings 21 Platforms: ● Intel Haswell Nodes: 2 Intel® Xeon™ E5-2698 Processors (64 threads) with 128 GB of RAM ● Intel Skylake Nodes: 2 Intel® Xeon™ 6148 Gold Processors (80 threads) with 384 GB of RAM ● IBM Power 9 Nodes: 2 IBM Power 9 Processors (168 threads) with 512 GB of RAM ● GPU: NVIDIA V100 ‘Tesla’ GPUs with 16GB of HBM2 memory
- 27. X-drop GPU and SeqAn Comparison 27 2x 6x
- 28. X-drop GPU and ksw2 Comparison 28 1.5x 120x
- 29. Conclusions 29 A methodology for automatic GPU Kernel Optimization and its implementation inside a tool for automatic kernel optimization We applied our methodology to two highly computational intensive algorithms Optimized GPU X-drop Implementation with: ● More than 6.6x speed-up with respect to SeqAn ● More than 120x speed-up with respect to ksw2 Optimized GPU Smith-Waterman Implementation with: ● More than 34x speed-up with respect to Bowtie2 ● More than 3x speed-up with respect to CUDASW++ 3.0
- 30. Thank you for your attention Master thesis of: Alberto Zeni - 884540 A Methodology for Automatic GPU Kernel Optimization Advisor: Ing. Marco D. Santambrogio Co-advisor: Dott. Ing. Lorenzo Di Tucci December 18th 2019 Room - Politecnico di Milano
- 31. Algorithm Computation 31 ● Computation Flow of the Smith-Waterman and X-drop algorithms
- 32. Smith-Waterman Algorithm 32 ● Optimal algorithm for local sequence alignment ● Execution times scale up to the length of the aligned sequences A G G G T C A A A C C T A G G A
- 33. Intra Level Parallelism 33 ● Parallel reduction to find the max of the antidiagonal using warp instructions -1 2 5 0 -1 -2 3 1 -1 2 5 1 5 2 5
- 35. Methodology Overview 35 Unoptimized source code Plot Roofline and collect performance metrics Analyze Kernel Performance and generate optimizations Apply optimizations to the Kernel Optimized source code Analysis Flow
- 36. Methodology Overview 36 Unoptimized source code Plot Roofline and collect performance metrics Analyze Kernel Performance and generate optimizations Apply optimizations to the Kernel Optimized source code Analysis Flow
- 37. Methodology Overview 37 Unoptimized source code Plot Roofline and collect performance metrics Analyze Kernel Performance and generate optimizations Apply optimizations to the Kernel Optimized source code Analysis Flow
- 38. Methodology Overview 38 Unoptimized source code Plot Roofline and collect performance metrics Analyze Kernel Performance and generate optimizations Apply optimizations to the Kernel Optimized source code Analysis Flow
- 39. 39 GPU Architecture ● Thousands of cores that operate in a SIMD fashion, with respect to multiple sequential cores
- 41. X-Drop Algorithm 41 ● Optimized to follow the alignment of the two sequences and stop when the two do not align
