1. FOSDEM 2012
MariaDB 5.3 query optimizer
Taking the dolphin to where
he's never been before
Sergey Petrunya
MariaDB
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

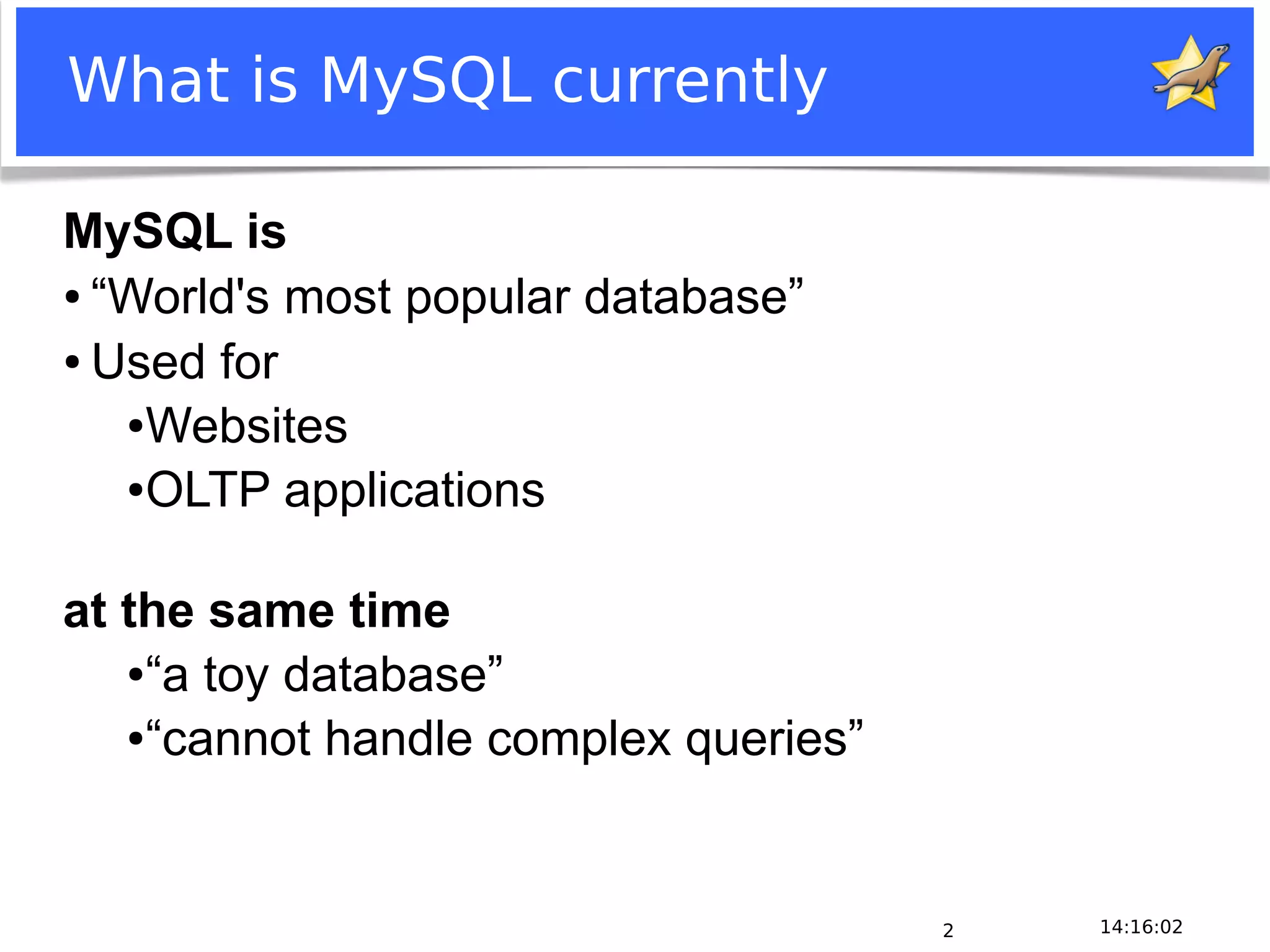

2. What is MySQL currently
MySQL is
● “World's most popular database”
● Used for
● Websites
● OLTP applications
at the same time
● “a toy database”
● “cannot handle complex queries”
2 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

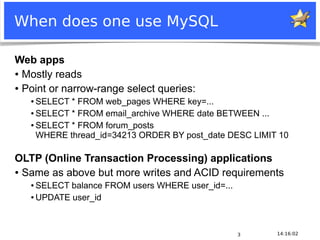

3. When does one use MySQL
Web apps
● Mostly reads
● Point or narrow-range select queries:
● SELECT * FROM web_pages WHERE key=...
● SELECT * FROM email_archive WHERE date BETWEEN ...
● SELECT * FROM forum_posts
WHERE thread_id=34213 ORDER BY post_date DESC LIMIT 10
OLTP (Online Transaction Processing) applications
● Same as above but more writes and ACID requirements
● SELECT balance FROM users WHERE user_id=...
● UPDATE user_id
3 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

4. When does one not use MySQL
Decision support / analytics / reporting
● Database is larger
● think “current state” data → “full history” data
● Queries shuffle through more data
● “get data for order X” → “get biggest orders in the last month”
● Queries are frequently complex
● “get last N posts” → “get distribution of posts by time of the day”
● “get orders for item X made today” → “which fraction of those who
ordered item X also ordered item Y” ?
4 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

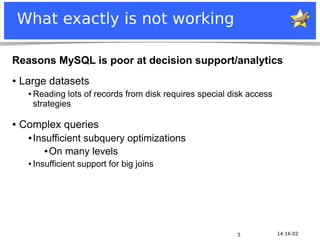

5. What exactly is not working
Reasons MySQL is poor at decision support/analytics
● Large datasets
● Reading lots of records from disk requires special disk access
strategies
● Complex queries
● Insufficient subquery optimizations
● On many levels
● Insufficient support for big joins
5 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

6. What exactly isn't working?
Let's try running an analytics-type query
● Take DBT-3 (ad-hoc, decision-support benchmark)
● Load the data for scale=30 (75 GB)
● And try some query:
“average price of item ordered in a certain month”
select avg(lineitem.l_extendedprice)
from orders, lineitem
where
lineitem.l_orderkey=orders.o_orderkey and
orders.o_orderdate between date '1992-07-01' and
date '1992-07-31';
6 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

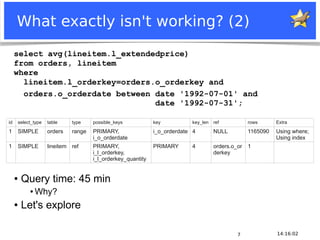

7. What exactly isn't working? (2)
select avg(lineitem.l_extendedprice)
from orders, lineitem
where
lineitem.l_orderkey=orders.o_orderkey and
orders.o_orderdate between date '1992-07-01' and
date '1992-07-31';
id select_type table type possible_keys key key_len ref rows Extra
1 SIMPLE orders range PRIMARY, i_o_orderdate 4 NULL 1165090 Using where;
i_o_orderdate Using index
1 SIMPLE lineitem ref PRIMARY, PRIMARY 4 orders.o_or 1
i_l_orderkey, derkey
i_l_orderkey_quantity
● Query time: 45 min
● Why?
● Let's explore
7 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

8. What is the problem?
● Check “iostat -x”
avg­cpu: %user %nice %system %iowait %steal %idle
2.01 0.00 2.26 23.62 0.00 72.11
Device: rrqm/s wrqm/s r/s w/s rkB/s wkB/s
sda 0.00 0.00 229.00 0.00 3952.00 0.00
avgrq­sz avgqu­sz await r_await w_await svctm %util
34.52 0.95 4.15 4.15 0.00 4.15 95.00
● IO-bound load
● 229 reqests/sec
● 4.15 msec average
● It's a 7200 RPM hdd, which gives 8 msec disk seek.
● Not random disk seeks but close.
8 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

9. What is the problem (2)
● Check “SHOW ENGINE INNODB STATUS”
...
--------
FILE I/O
--------
...
1 pending preads, 0 pending pwrites
206.36 reads/s, 16384 avg bytes/read, 0.00 writes/s, 0.00 fsyncs/s
● Possible solutions:
● Get more RAM
● Get an SSD
● These are ok to speedup OLTP workloads
● Speeding up analytics this way is going to be costly!
9 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

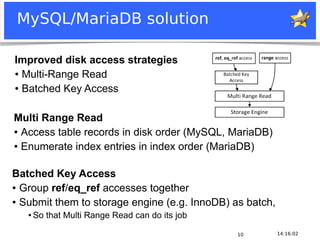

10. MySQL/MariaDB solution
Improved disk access strategies
● Multi-Range Read
● Batched Key Access
Multi Range Read
● Access table records in disk order (MySQL, MariaDB)
● Enumerate index entries in index order (MariaDB)
Batched Key Access
● Group ref/eq_ref accesses together
● Submit them to storage engine (e.g. InnoDB) as batch,
● So that Multi Range Read can do its job
10 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

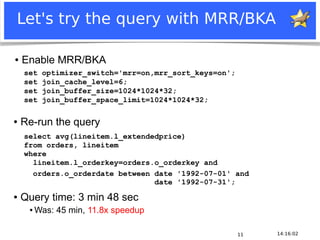

11. Let's try the query with MRR/BKA
● Enable MRR/BKA
set optimizer_switch='mrr=on,mrr_sort_keys=on';
set join_cache_level=6;
set join_buffer_size=1024*1024*32;
set join_buffer_space_limit=1024*1024*32;
● Re-run the query
select avg(lineitem.l_extendedprice)
from orders, lineitem
where
lineitem.l_orderkey=orders.o_orderkey and
orders.o_orderdate between date '1992-07-01' and
date '1992-07-31';
● Query time: 3 min 48 sec
● Was: 45 min, 11.8x speedup
11 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

12. Let's try the query with MRR/BKA
● Explain is almost as before
*************************** 1. row ***************************
id: 1
select_type: SIMPLE
table: orders
type: range
possible_keys: PRIMARY,i_o_orderdate
key: i_o_orderdate
key_len: 4
ref: NULL
rows: 1165090
Extra: Using where; Using index
*************************** 2. row ***************************
id: 1
select_type: SIMPLE
table: lineitem
type: ref
possible_keys: PRIMARY,i_l_orderkey,i_l_orderkey_quantity
key: i_l_orderkey
key_len: 4
ref: dbt3sf30.orders.o_orderkey
rows: 1
Extra: Using join buffer (flat, BKA join); Key-ordered Rowid-ordered scan
2 rows in set (0.00 sec)
12 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

13. Check what is doing
● Check “iostat -x”
avg-cpu: %user %nice %system %iowait %steal %idle
15.13 0.00 2.82 9.74 0.00 72.31
Device: rrqm/s wrqm/s r/s w/s rkB/s wkB/s avgrq-sz avgqu-sz
sda 0.00 0.00 1936.00 0.00 88112.00 0.00 91.02 0.45
await r_await w_await svctm %util
0.23 0.23 0.00 0.23 44.20
● Got some CPU load
● svctm down to 0.23 ms (random seeks are 8ms)
● SHOW ENGINE INNODB STATUS
...
0.00 inserts/s, 0.00 updates/s, 0.00 deletes/s, 10450.55 reads/s
13 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

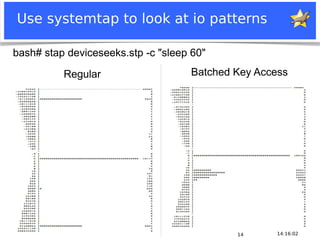

14. Use systemtap to look at io patterns
bash# stap deviceseeks.stp -c "sleep 60"
Regular Batched Key Access
14 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

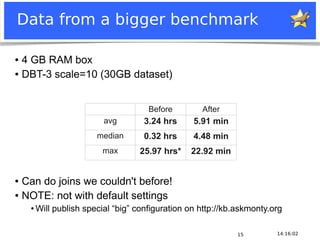

15. Data from a bigger benchmark
● 4 GB RAM box
● DBT-3 scale=10 (30GB dataset)
Before After
avg 3.24 hrs 5.91 min
median 0.32 hrs 4.48 min
max 25.97 hrs* 22.92 min
● Can do joins we couldn't before!
● NOTE: not with default settings
● Will publish special “big” configuration on http://kb.askmonty.org
15 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

16. What exactly is not working
Reasons MySQL is poor at decision support/analytics
● Large datasets
● Reading lots of records from disk requires special disk access
strategies
● Complex queries
● Insufficient subquery optimizations
● On many levels
● Insufficient support for big joins
16 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

17. Subquery optimizations
Status in MySQL 5.x, MariaDB 5.2
● One execution strategy for every kind of subquery
● If it is appropriate for your case – OK
● If it is not – query is too slow to be usable
● 10x, 100x, 1000x slower
● There are cases when even EXPLAIN is very slow
● FROM subuqeries
● .. and other less-obvious cases
● General public reaction
● “Don't use subqueries”
17 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

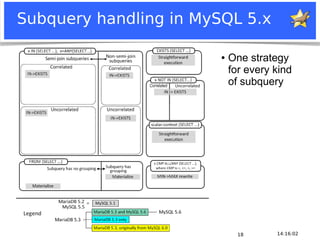

18. Subquery handling in MySQL 5.x
● One strategy
for every kind
of subquery
18 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

19. Subquery handling in MySQL 5.6
● Optimizations
for a couple of
cases
19 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

20. Subquery handling in MySQL 6.0
● But look, this is
what was in
MySQL 6.0
alpha
20 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

21. Subquery handling in MariaDB 5.3
● And we still
had to add this
to provide
enough
coverage
21 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

22. Subqueries in MariaDB 5.3
Outside view
● Execution can be 10x, 100x, 1000x faster than before
● EXPLAIN is always instant
A bit of detail
● Competitive amount of strategies
● Optimizer quality: can expect what you expect from join
optimizer
● There is @@optimizer_switch flag for every new
optimization
● Batched Key Access supported in important cases
22 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

23. Where to look for more detail
http://kb.askmonty.org
23 14:16:02
Notice: MySQL is a registered trademark of Sun Microsystems, Inc.

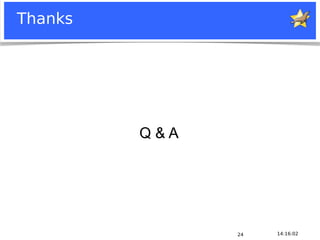

24. Thanks
Q&A
