1. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

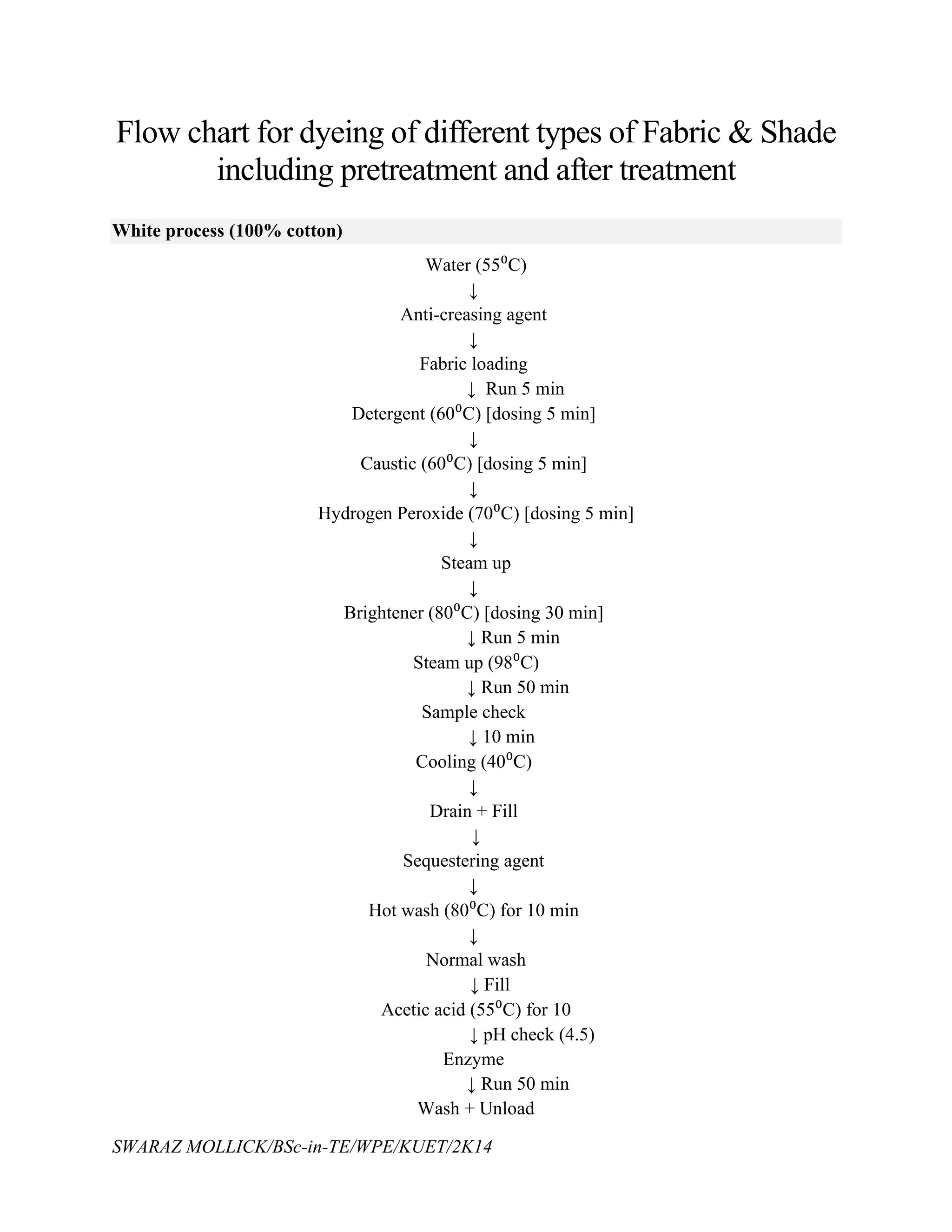

Flow chart for dyeing of different types of Fabric & Shade
including pretreatment and after treatment
White process (100% cotton)
Water (55⁰C)
↓
Anti-creasing agent
↓
Fabric loading
↓ Run 5 min
Detergent (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓
Steam up
↓
Brightener (80⁰C) [dosing 30 min]
↓ Run 5 min
Steam up (98⁰C)
↓ Run 50 min
Sample check
↓ 10 min
Cooling (40⁰C)
↓
Drain + Fill
↓
Sequestering agent
↓
Hot wash (80⁰C) for 10 min
↓
Normal wash
↓ Fill
Acetic acid (55⁰C) for 10
↓ pH check (4.5)
Enzyme
↓ Run 50 min
Wash + Unload

2. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

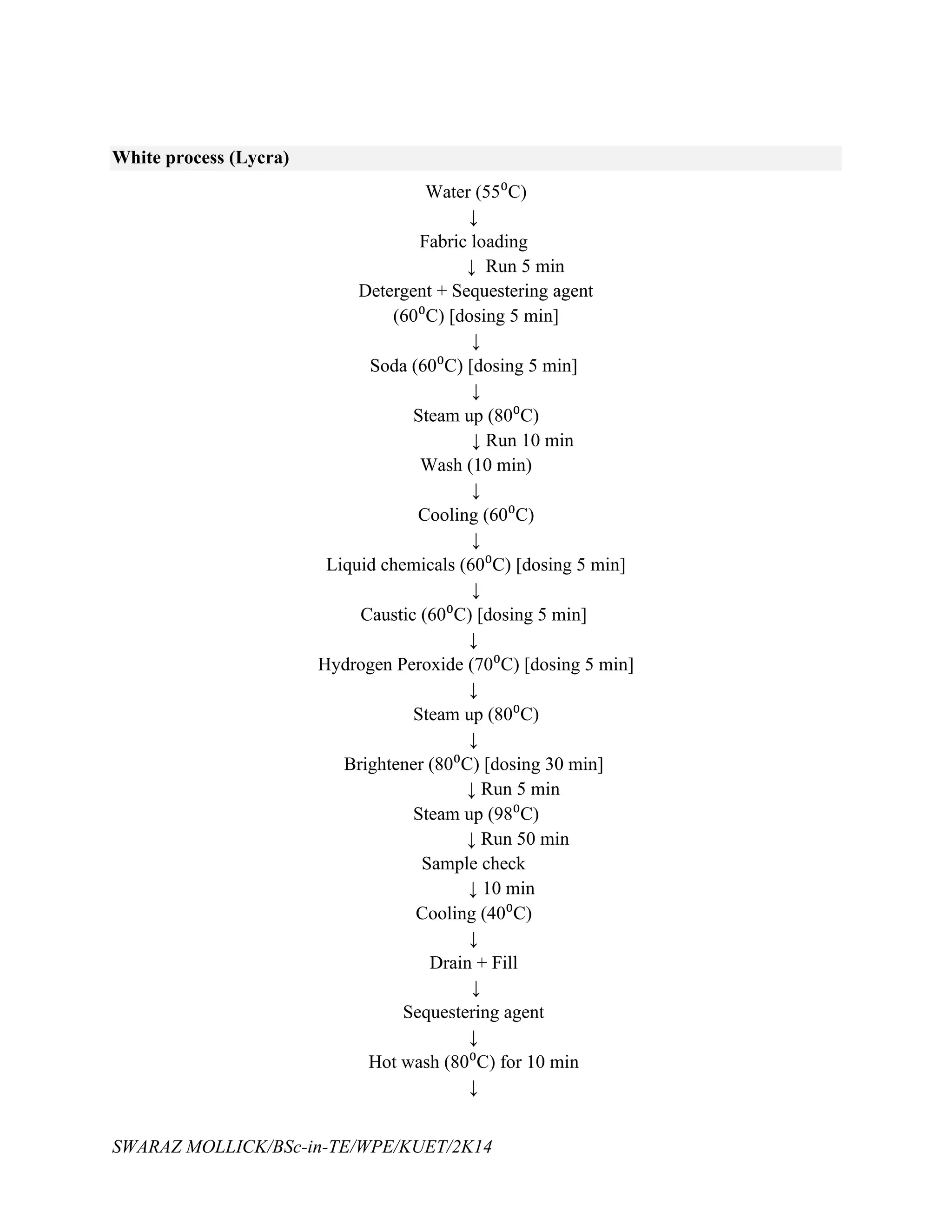

White process (Lycra)
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Detergent + Sequestering agent
(60⁰C) [dosing 5 min]
↓
Soda (60⁰C) [dosing 5 min]
↓
Steam up (80⁰C)
↓ Run 10 min
Wash (10 min)
↓
Cooling (60⁰C)
↓
Liquid chemicals (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓
Steam up (80⁰C)
↓
Brightener (80⁰C) [dosing 30 min]
↓ Run 5 min
Steam up (98⁰C)
↓ Run 50 min
Sample check
↓ 10 min
Cooling (40⁰C)
↓
Drain + Fill
↓
Sequestering agent
↓
Hot wash (80⁰C) for 10 min
↓

3. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

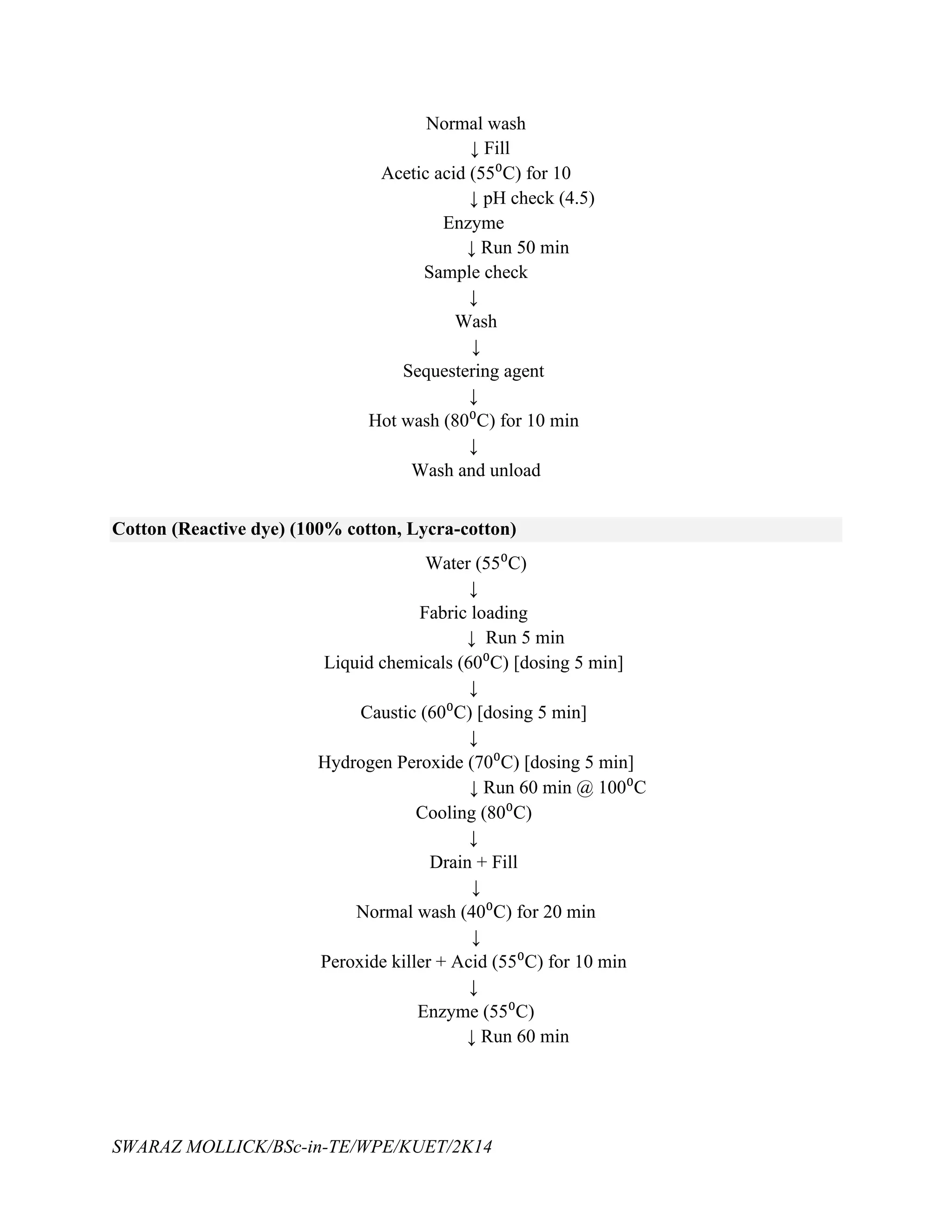

Normal wash
↓ Fill
Acetic acid (55⁰C) for 10
↓ pH check (4.5)
Enzyme
↓ Run 50 min
Sample check
↓
Wash
↓
Sequestering agent
↓
Hot wash (80⁰C) for 10 min
↓
Wash and unload
Cotton (Reactive dye) (100% cotton, Lycra-cotton)
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Liquid chemicals (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓ Run 60 min @ 100⁰C
Cooling (80⁰C)
↓
Drain + Fill
↓
Normal wash (40⁰C) for 20 min
↓
Peroxide killer + Acid (55⁰C) for 10 min
↓
Enzyme (55⁰C)
↓ Run 60 min

4. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

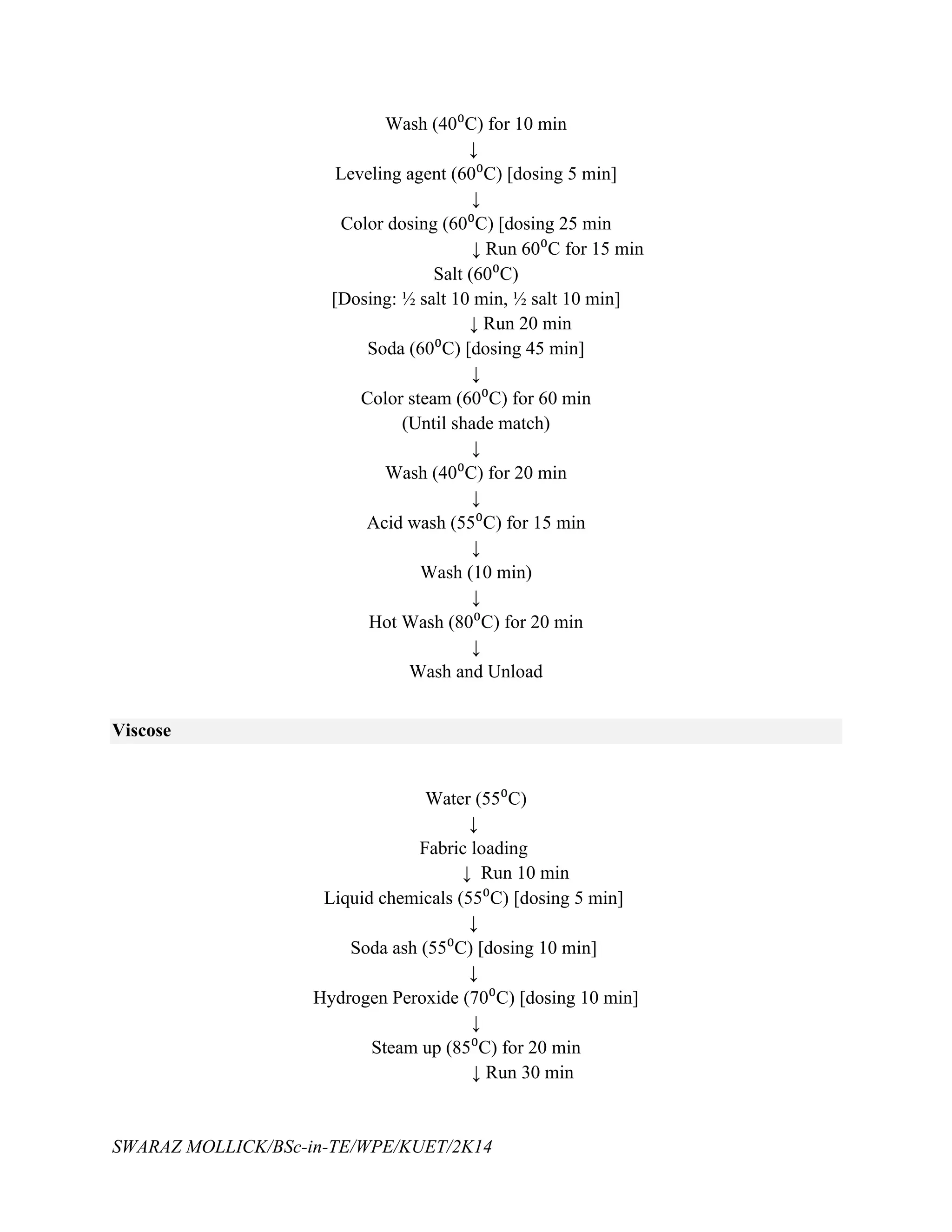

Wash (40⁰C) for 10 min
↓
Leveling agent (60⁰C) [dosing 5 min]
↓
Color dosing (60⁰C) [dosing 25 min
↓ Run 60⁰C for 15 min
Salt (60⁰C)
[Dosing: ½ salt 10 min, ½ salt 10 min]
↓ Run 20 min
Soda (60⁰C) [dosing 45 min]
↓
Color steam (60⁰C) for 60 min
(Until shade match)
↓
Wash (40⁰C) for 20 min
↓
Acid wash (55⁰C) for 15 min
↓
Wash (10 min)
↓
Hot Wash (80⁰C) for 20 min
↓
Wash and Unload
Viscose
Water (55⁰C)
↓
Fabric loading
↓ Run 10 min
Liquid chemicals (55⁰C) [dosing 5 min]
↓
Soda ash (55⁰C) [dosing 10 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 10 min]
↓
Steam up (85⁰C) for 20 min
↓ Run 30 min

5. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

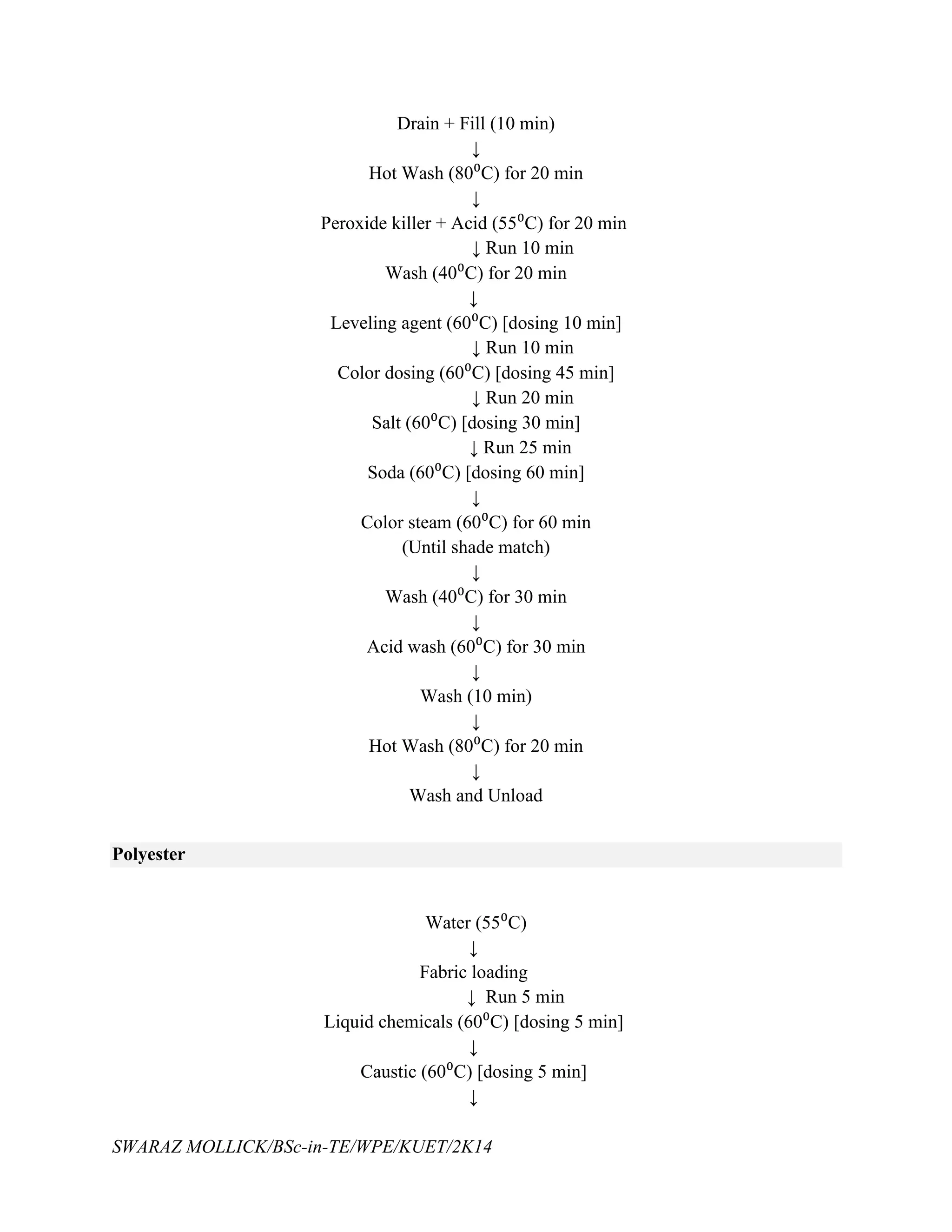

Drain + Fill (10 min)
↓
Hot Wash (80⁰C) for 20 min
↓
Peroxide killer + Acid (55⁰C) for 20 min
↓ Run 10 min
Wash (40⁰C) for 20 min
↓
Leveling agent (60⁰C) [dosing 10 min]
↓ Run 10 min
Color dosing (60⁰C) [dosing 45 min]
↓ Run 20 min
Salt (60⁰C) [dosing 30 min]
↓ Run 25 min
Soda (60⁰C) [dosing 60 min]
↓
Color steam (60⁰C) for 60 min
(Until shade match)
↓
Wash (40⁰C) for 30 min
↓
Acid wash (60⁰C) for 30 min
↓
Wash (10 min)
↓
Hot Wash (80⁰C) for 20 min
↓
Wash and Unload
Polyester
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Liquid chemicals (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓

6. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

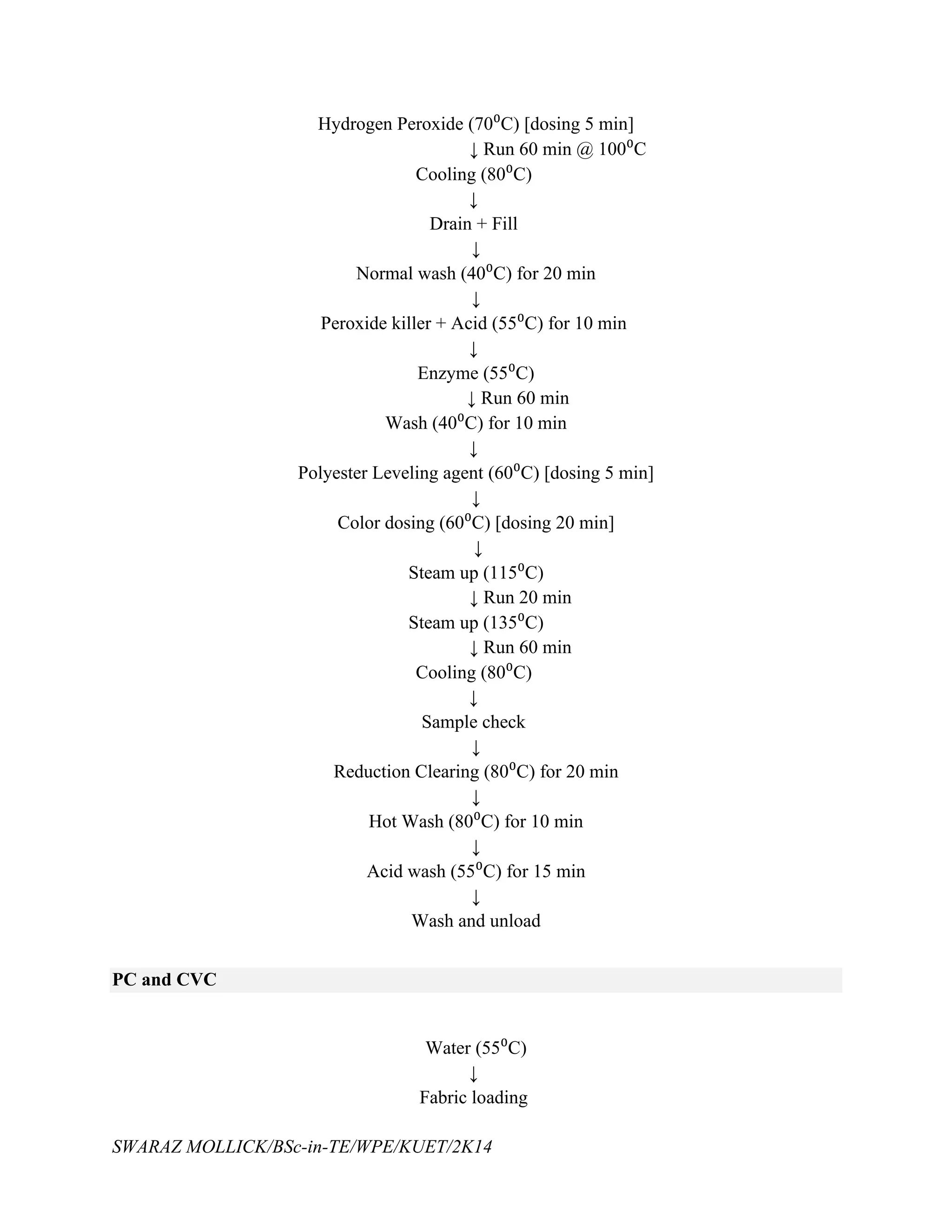

Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓ Run 60 min @ 100⁰C
Cooling (80⁰C)
↓
Drain + Fill
↓
Normal wash (40⁰C) for 20 min
↓
Peroxide killer + Acid (55⁰C) for 10 min
↓
Enzyme (55⁰C)
↓ Run 60 min
Wash (40⁰C) for 10 min
↓
Polyester Leveling agent (60⁰C) [dosing 5 min]
↓
Color dosing (60⁰C) [dosing 20 min]
↓
Steam up (115⁰C)
↓ Run 20 min
Steam up (135⁰C)
↓ Run 60 min
Cooling (80⁰C)
↓
Sample check
↓
Reduction Clearing (80⁰C) for 20 min
↓
Hot Wash (80⁰C) for 10 min
↓
Acid wash (55⁰C) for 15 min
↓
Wash and unload
PC and CVC
Water (55⁰C)
↓
Fabric loading

7. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

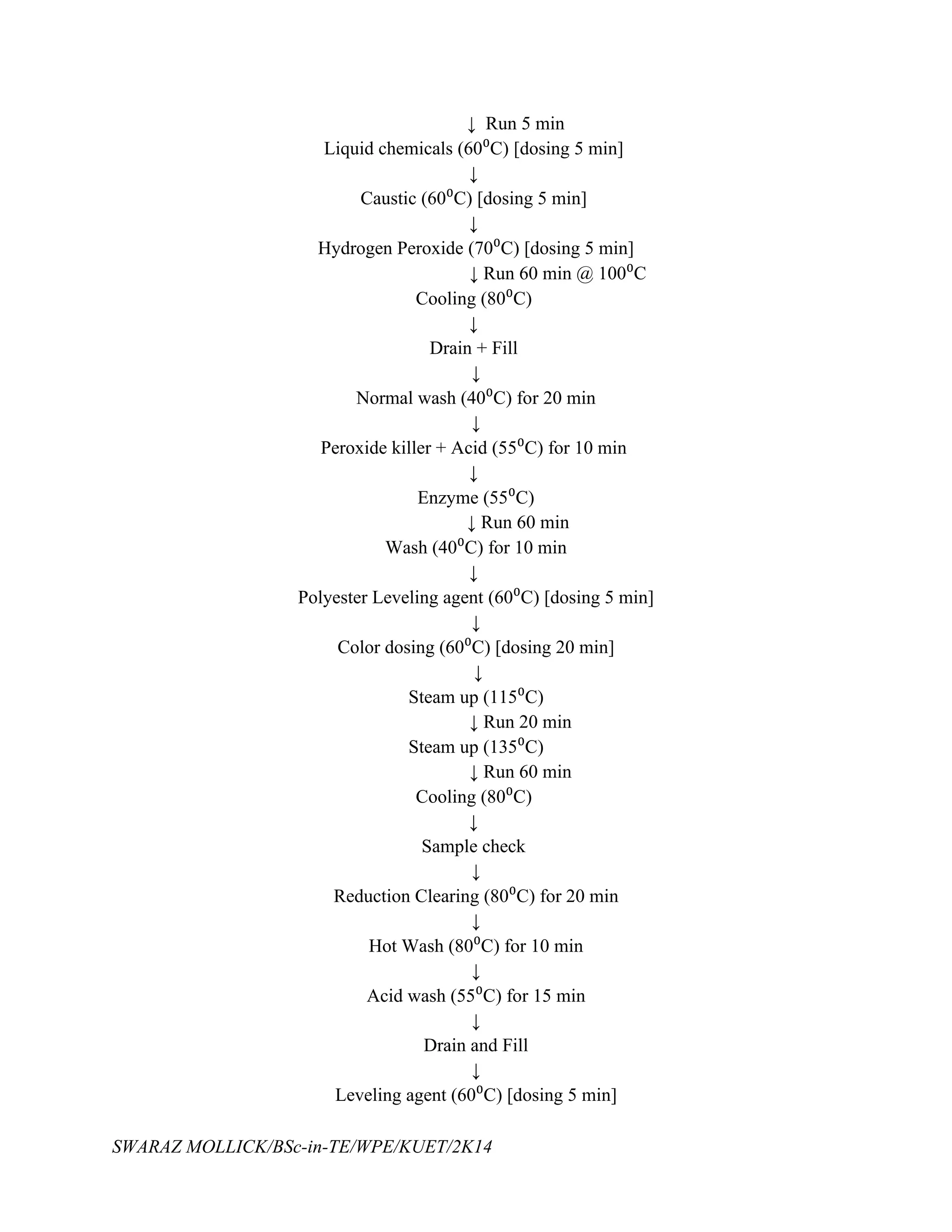

↓ Run 5 min
Liquid chemicals (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓ Run 60 min @ 100⁰C
Cooling (80⁰C)
↓
Drain + Fill
↓
Normal wash (40⁰C) for 20 min
↓
Peroxide killer + Acid (55⁰C) for 10 min
↓
Enzyme (55⁰C)
↓ Run 60 min
Wash (40⁰C) for 10 min
↓
Polyester Leveling agent (60⁰C) [dosing 5 min]
↓
Color dosing (60⁰C) [dosing 20 min]
↓
Steam up (115⁰C)
↓ Run 20 min
Steam up (135⁰C)
↓ Run 60 min
Cooling (80⁰C)
↓
Sample check
↓
Reduction Clearing (80⁰C) for 20 min
↓
Hot Wash (80⁰C) for 10 min
↓
Acid wash (55⁰C) for 15 min
↓
Drain and Fill
↓
Leveling agent (60⁰C) [dosing 5 min]

8. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14
↓

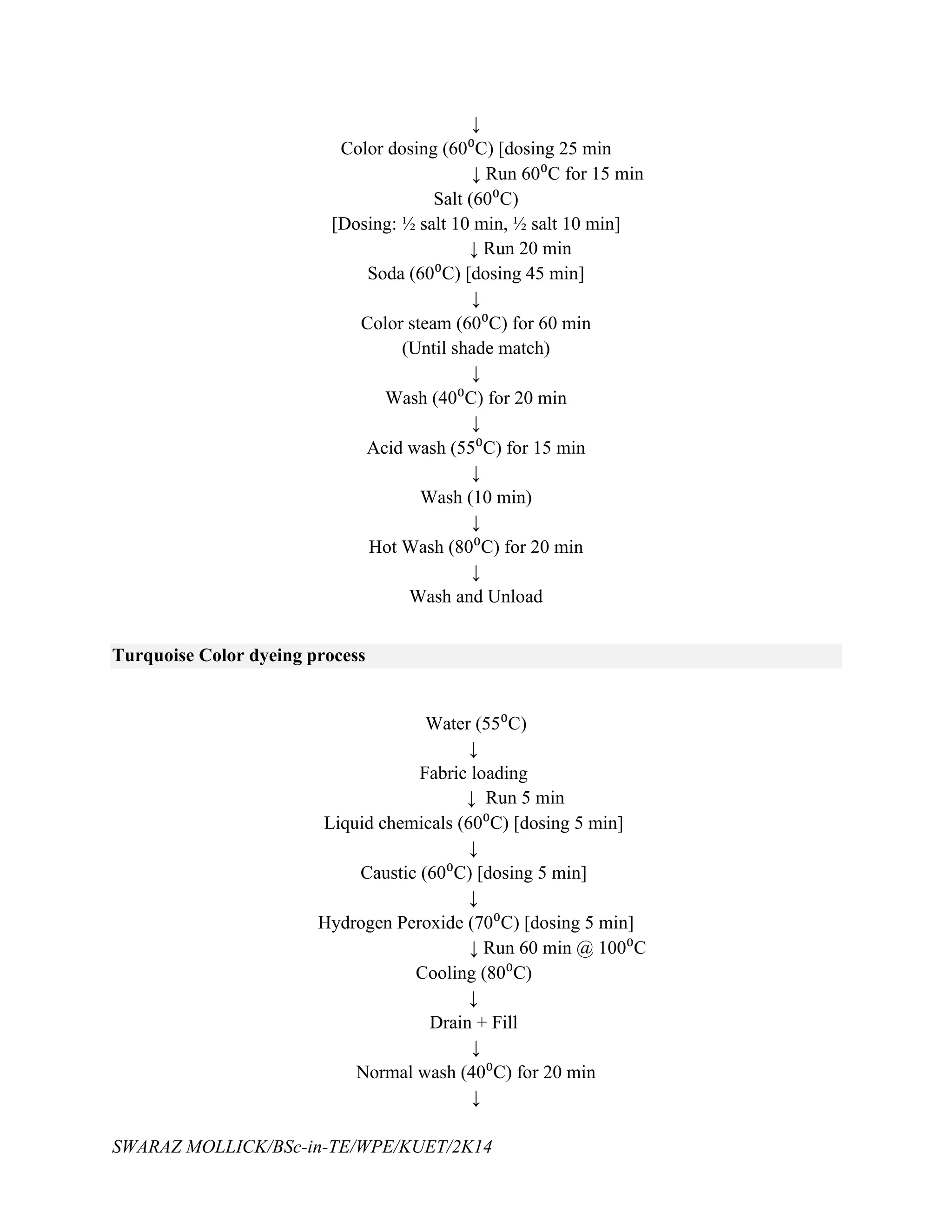

Color dosing (60⁰C) [dosing 25 min
↓ Run 60⁰C for 15 min
Salt (60⁰C)
[Dosing: ½ salt 10 min, ½ salt 10 min]
↓ Run 20 min
Soda (60⁰C) [dosing 45 min]
↓
Color steam (60⁰C) for 60 min
(Until shade match)
↓
Wash (40⁰C) for 20 min
↓
Acid wash (55⁰C) for 15 min
↓
Wash (10 min)
↓
Hot Wash (80⁰C) for 20 min
↓
Wash and Unload
Turquoise Color dyeing process
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Liquid chemicals (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓ Run 60 min @ 100⁰C
Cooling (80⁰C)
↓
Drain + Fill
↓
Normal wash (40⁰C) for 20 min
↓

9. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

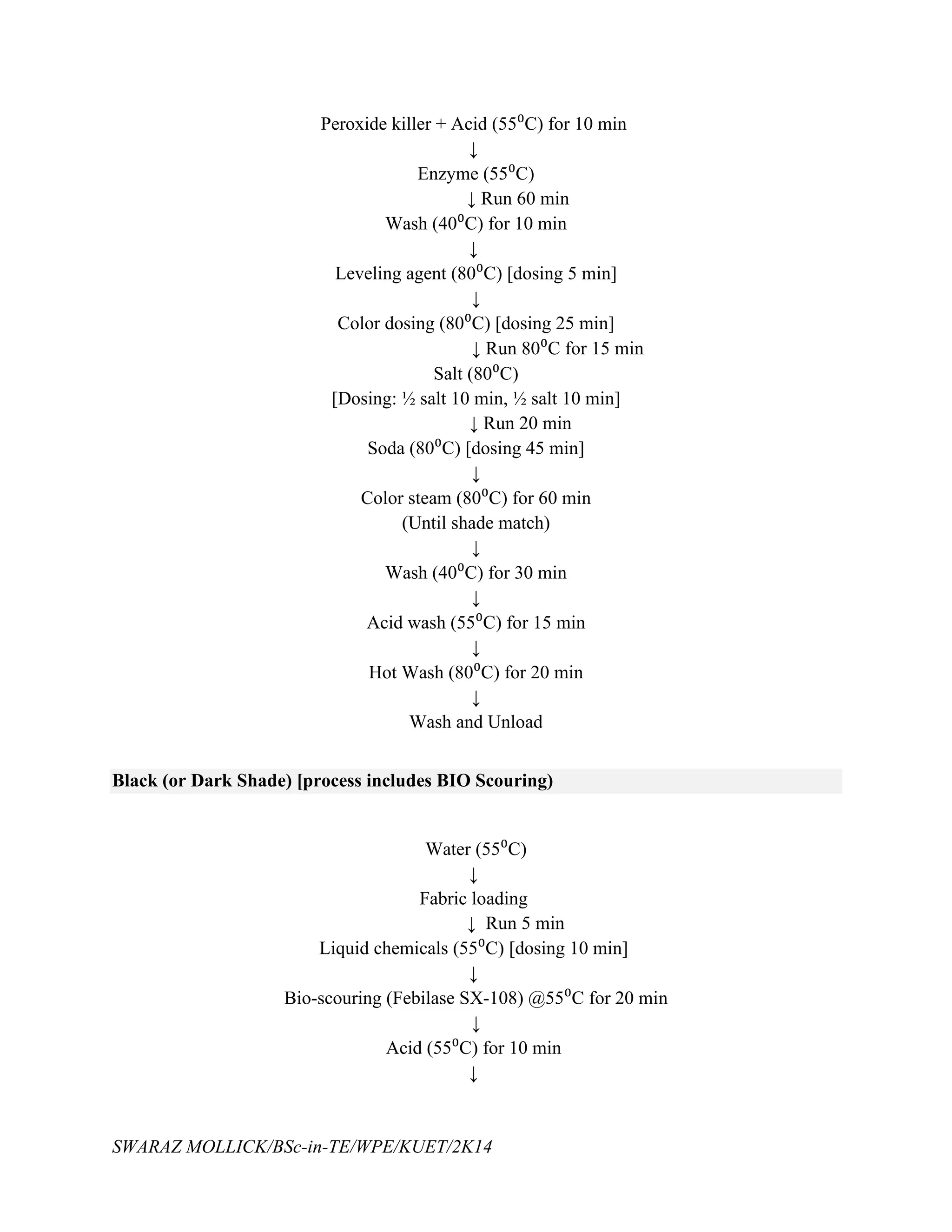

Peroxide killer + Acid (55⁰C) for 10 min
↓
Enzyme (55⁰C)
↓ Run 60 min
Wash (40⁰C) for 10 min
↓
Leveling agent (80⁰C) [dosing 5 min]
↓
Color dosing (80⁰C) [dosing 25 min]
↓ Run 80⁰C for 15 min
Salt (80⁰C)
[Dosing: ½ salt 10 min, ½ salt 10 min]
↓ Run 20 min
Soda (80⁰C) [dosing 45 min]
↓
Color steam (80⁰C) for 60 min
(Until shade match)
↓
Wash (40⁰C) for 30 min
↓
Acid wash (55⁰C) for 15 min
↓
Hot Wash (80⁰C) for 20 min
↓
Wash and Unload
Black (or Dark Shade) [process includes BIO Scouring)
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Liquid chemicals (55⁰C) [dosing 10 min]
↓
Bio-scouring (Febilase SX-108) @55⁰C for 20 min
↓
Acid (55⁰C) for 10 min
↓

10. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14
Enzyme (55⁰C)
↓ Run 60 min
Wash (40⁰C) for 10 min
↓
Leveling agent (60⁰C) [dosing 5 min]
↓
Color dosing (60⁰C) [dosing 25 min
↓ Run 60⁰C for 15 min
Salt (60⁰C)
[Dosing: ½ salt 10 min, ½ salt 10 min]
↓ Run 20 min
Soda (60⁰C) [dosing 45 min]
↓
Color steam (60⁰C) for 60 min
(Until shade match)
↓
Wash (40⁰C) for 20 min
↓
Acid wash (55⁰C) for 15 min
↓
Wash (10 min)
↓
Hot Wash (80⁰C) for 20 min
↓
Wash and Unload
Fluorescent dyeing process
Disperse fluorescent (for polyester)
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Liquid chemicals (60⁰C) [dosing 5 min]
↓
Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓ Run 60 min @ 100⁰C

11. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14

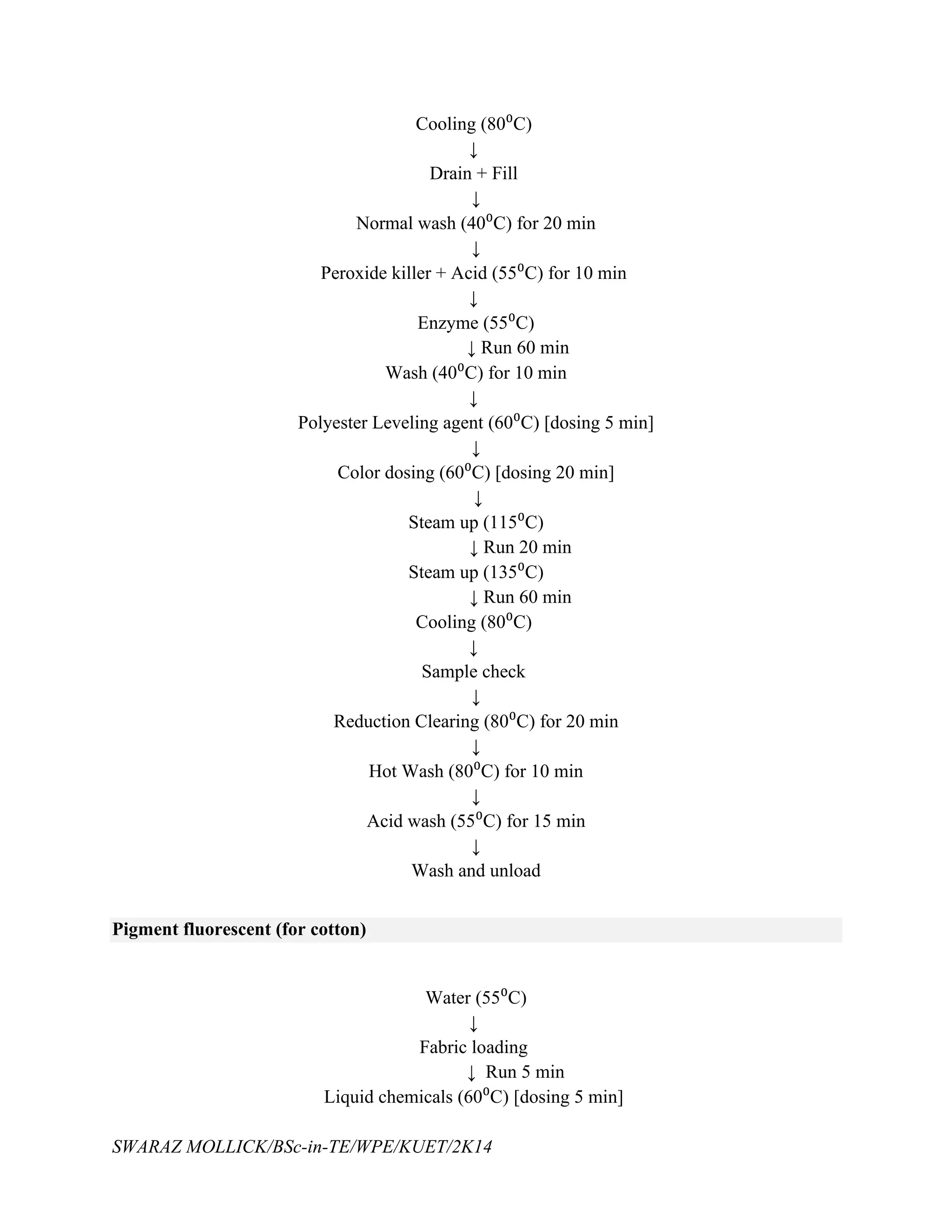

Cooling (80⁰C)
↓
Drain + Fill
↓
Normal wash (40⁰C) for 20 min
↓
Peroxide killer + Acid (55⁰C) for 10 min
↓
Enzyme (55⁰C)
↓ Run 60 min
Wash (40⁰C) for 10 min
↓
Polyester Leveling agent (60⁰C) [dosing 5 min]
↓
Color dosing (60⁰C) [dosing 20 min]
↓
Steam up (115⁰C)
↓ Run 20 min
Steam up (135⁰C)
↓ Run 60 min
Cooling (80⁰C)
↓
Sample check
↓
Reduction Clearing (80⁰C) for 20 min
↓
Hot Wash (80⁰C) for 10 min
↓
Acid wash (55⁰C) for 15 min
↓
Wash and unload
Pigment fluorescent (for cotton)
Water (55⁰C)
↓
Fabric loading
↓ Run 5 min
Liquid chemicals (60⁰C) [dosing 5 min]

12. SWARAZ MOLLICK/BSc-in-TE/WPE/KUET/2K14
↓

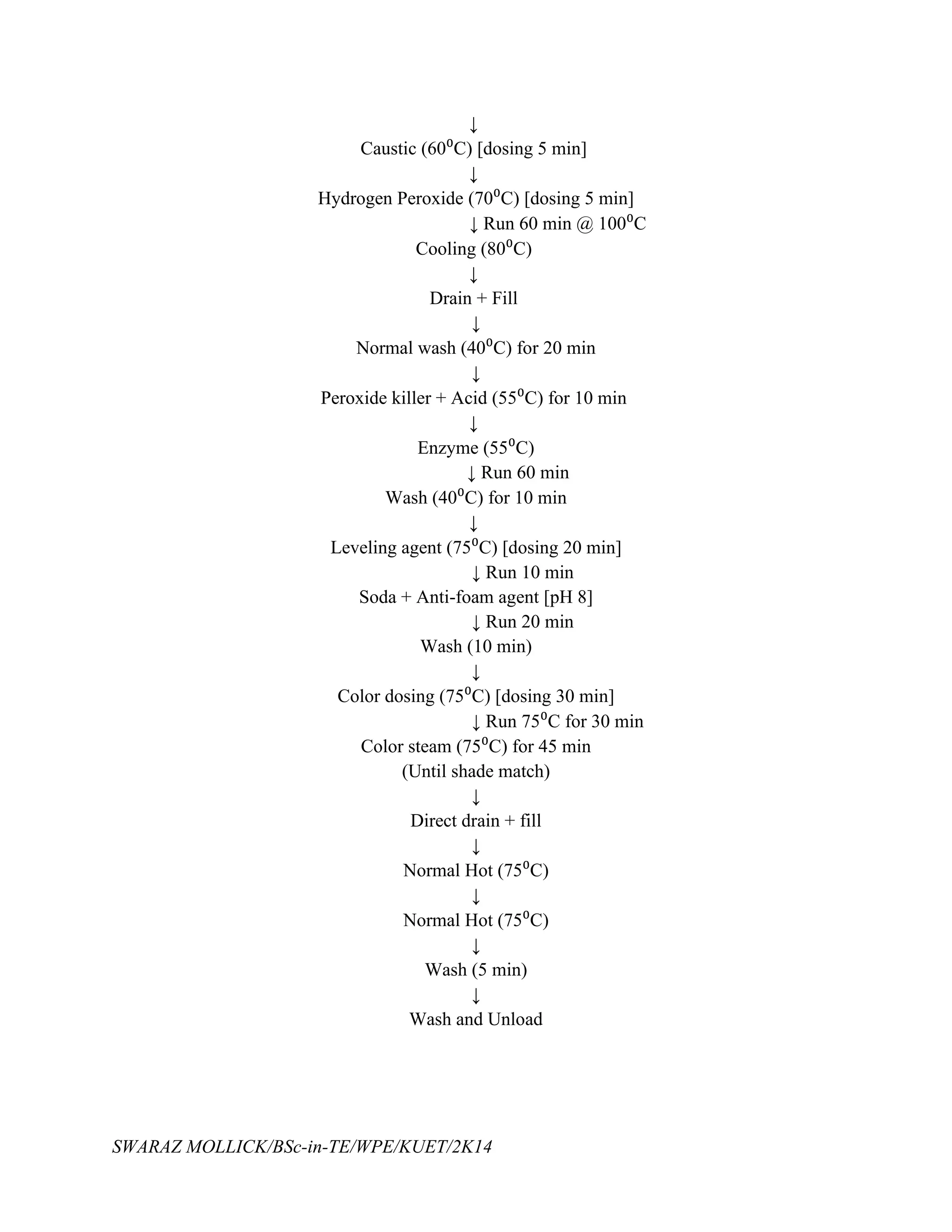

Caustic (60⁰C) [dosing 5 min]
↓
Hydrogen Peroxide (70⁰C) [dosing 5 min]
↓ Run 60 min @ 100⁰C
Cooling (80⁰C)
↓
Drain + Fill
↓
Normal wash (40⁰C) for 20 min
↓
Peroxide killer + Acid (55⁰C) for 10 min
↓
Enzyme (55⁰C)
↓ Run 60 min
Wash (40⁰C) for 10 min
↓
Leveling agent (75⁰C) [dosing 20 min]
↓ Run 10 min
Soda + Anti-foam agent [pH 8]
↓ Run 20 min
Wash (10 min)
↓
Color dosing (75⁰C) [dosing 30 min]
↓ Run 75⁰C for 30 min
Color steam (75⁰C) for 45 min
(Until shade match)
↓
Direct drain + fill
↓
Normal Hot (75⁰C)
↓
Normal Hot (75⁰C)
↓
Wash (5 min)
↓
Wash and Unload
