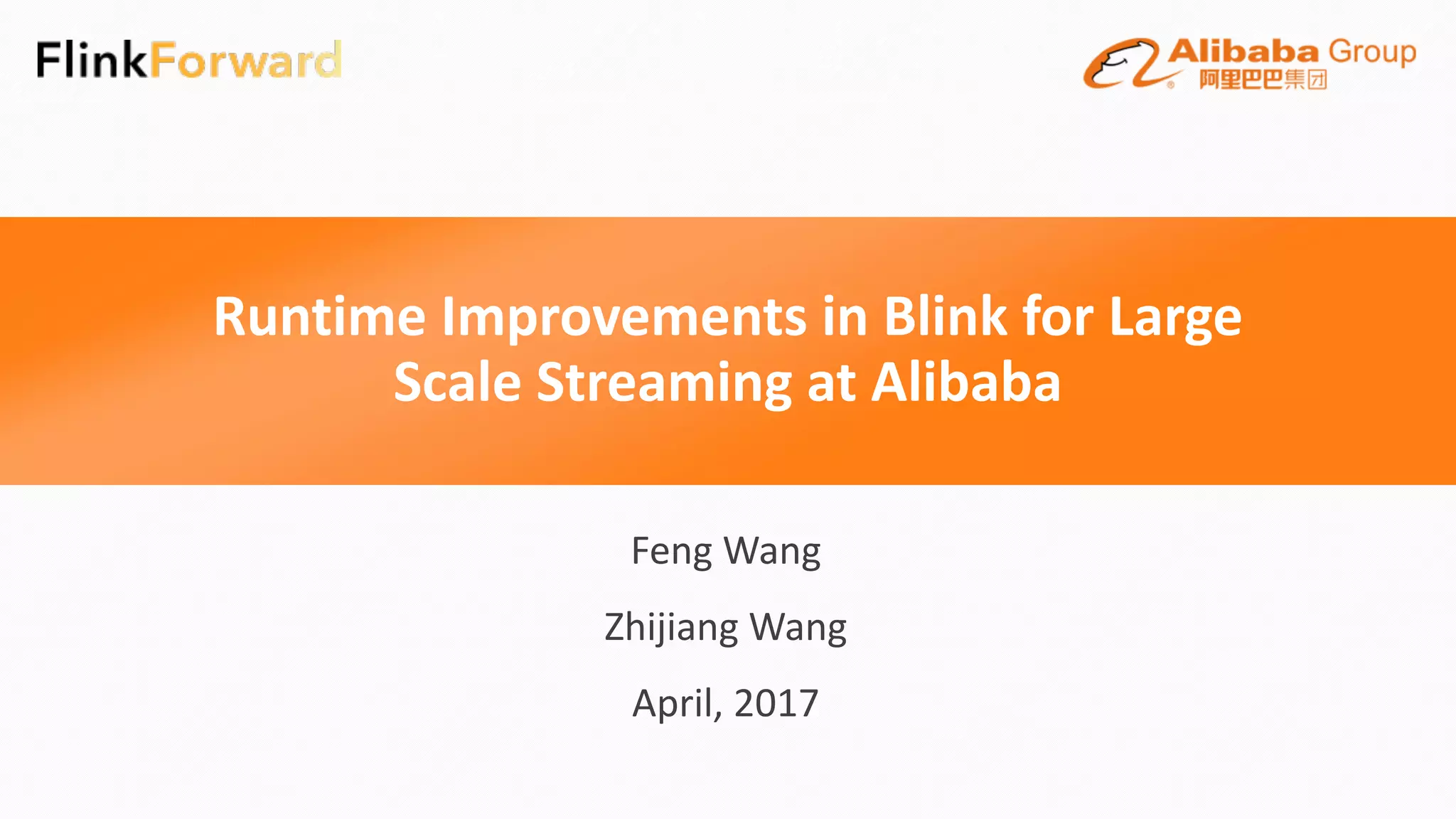

Flink Forward SF 2017: Feng Wang & Zhijiang Wang - Runtime Improvements in Blink for Large Scale Streaming at Alibaba
•
6 likes•908 views
In 2016, we introduced Alibaba’s compute engine Blink which was based on our private branch of flink. It enalbed many large scale applications in Alibaba’s core business, such as search, recommendation and ads. With the deep and close colaboration with the flink community, we are finally close to contribute our improvements back to the flink community. In this talk, we will present our key contributions to flink runtime recently, such as the new YARN cluster mode for Flip-6, fine-grained failover for Flip-1, async i/o for Flip-12, incremental checkpoint, and the further improvements plan from Alibaba in the near future. Moreover, we will show some production use cases to illustrate how flink works in Alibaba’s large scale online applications, which includes real-time ETL as well as online machine learning. This talk is presented by Alibaba.
Recommended
More Related Content
What's hot
What's hot (20)
Similar to Flink Forward SF 2017: Feng Wang & Zhijiang Wang - Runtime Improvements in Blink for Large Scale Streaming at Alibaba
Similar to Flink Forward SF 2017: Feng Wang & Zhijiang Wang - Runtime Improvements in Blink for Large Scale Streaming at Alibaba (20)
More from Flink Forward
More from Flink Forward (20)
Recently uploaded
Recently uploaded (20)
Flink Forward SF 2017: Feng Wang & Zhijiang Wang - Runtime Improvements in Blink for Large Scale Streaming at Alibaba

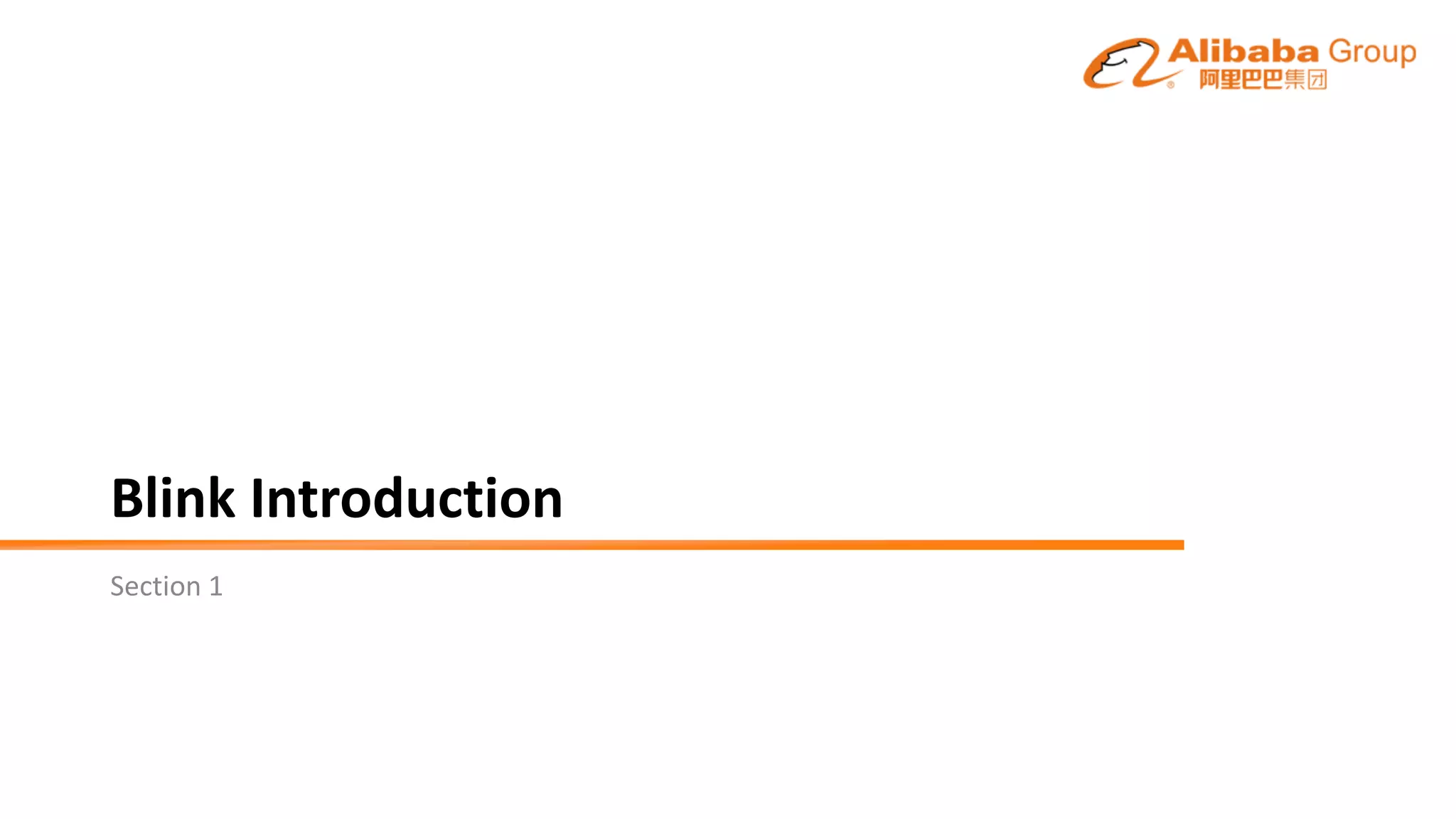

- 2. Outline 1 Blink Introduction 2 Improvements to Flink Runtime 3 Future Plans

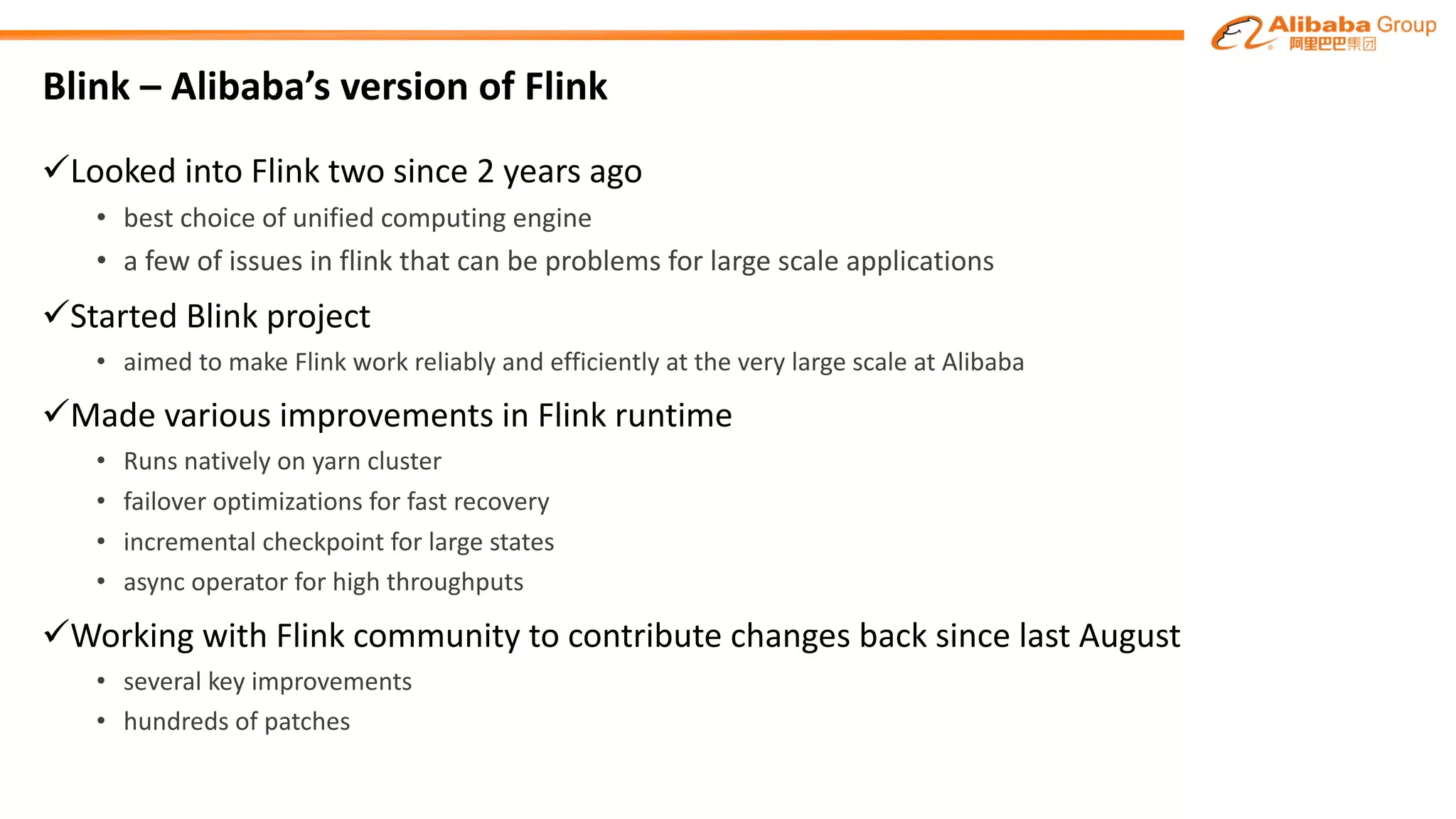

- 4. Blink – Alibaba’s version of Flink üLooked into Flink two since 2 years ago • best choice of unified computing engine • a few of issues in flink that can be problems for large scale applications üStarted Blink project • aimed to make Flink work reliably and efficiently at the very large scale at Alibaba üMade various improvements in Flink runtime • Runs natively on yarn cluster • failover optimizations for fast recovery • incremental checkpoint for large states • async operator for high throughputs üWorking with Flink community to contribute changes back since last August • several key improvements • hundreds of patches

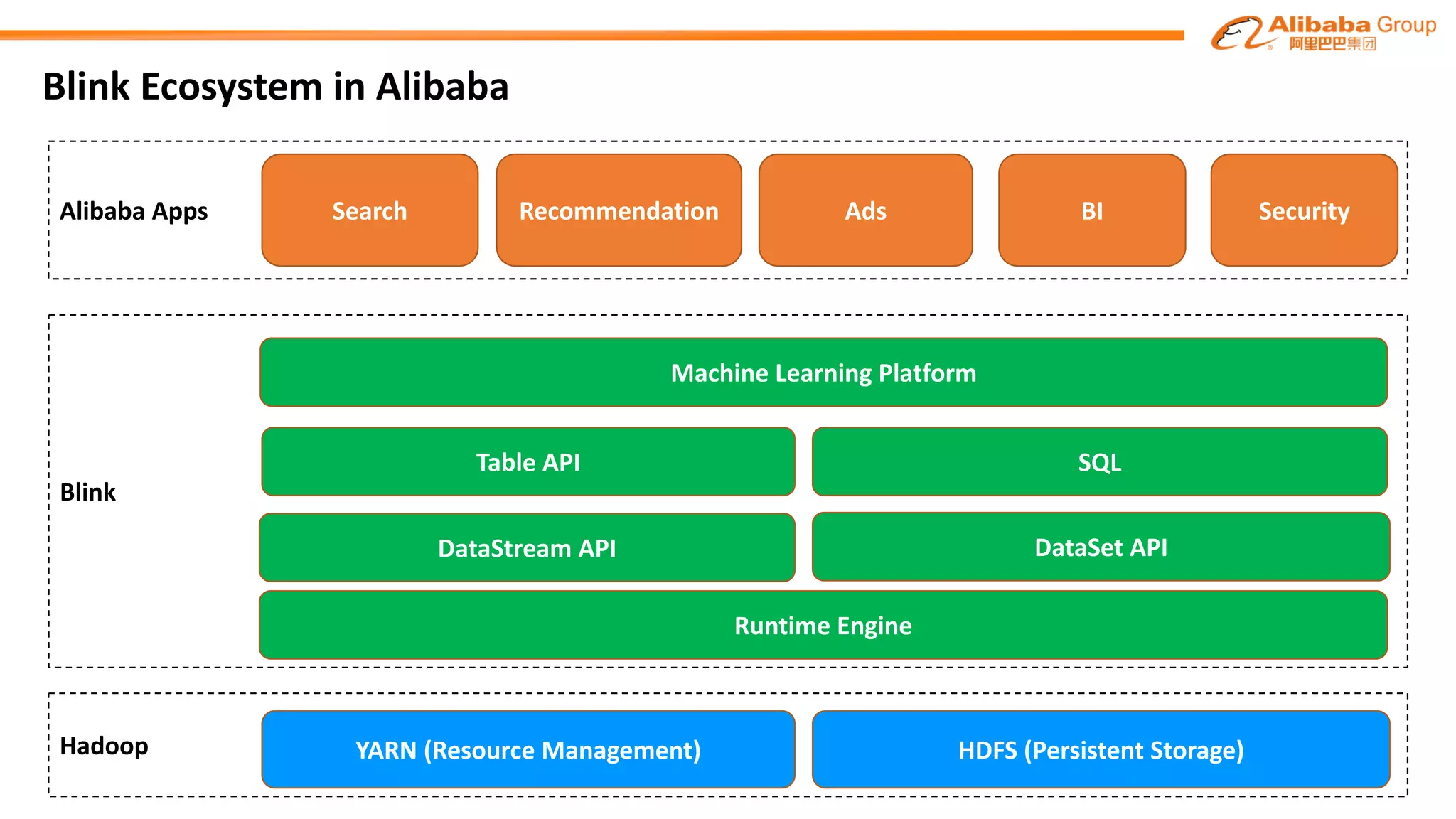

- 5. Blink Ecosystem in Alibaba Hadoop YARN (Resource Management) Search HDFS (Persistent Storage) Table API Blink Alibaba Apps Recommendation BI Security DataStream API Runtime Engine Ads DataSet API Machine Learning Platform SQL

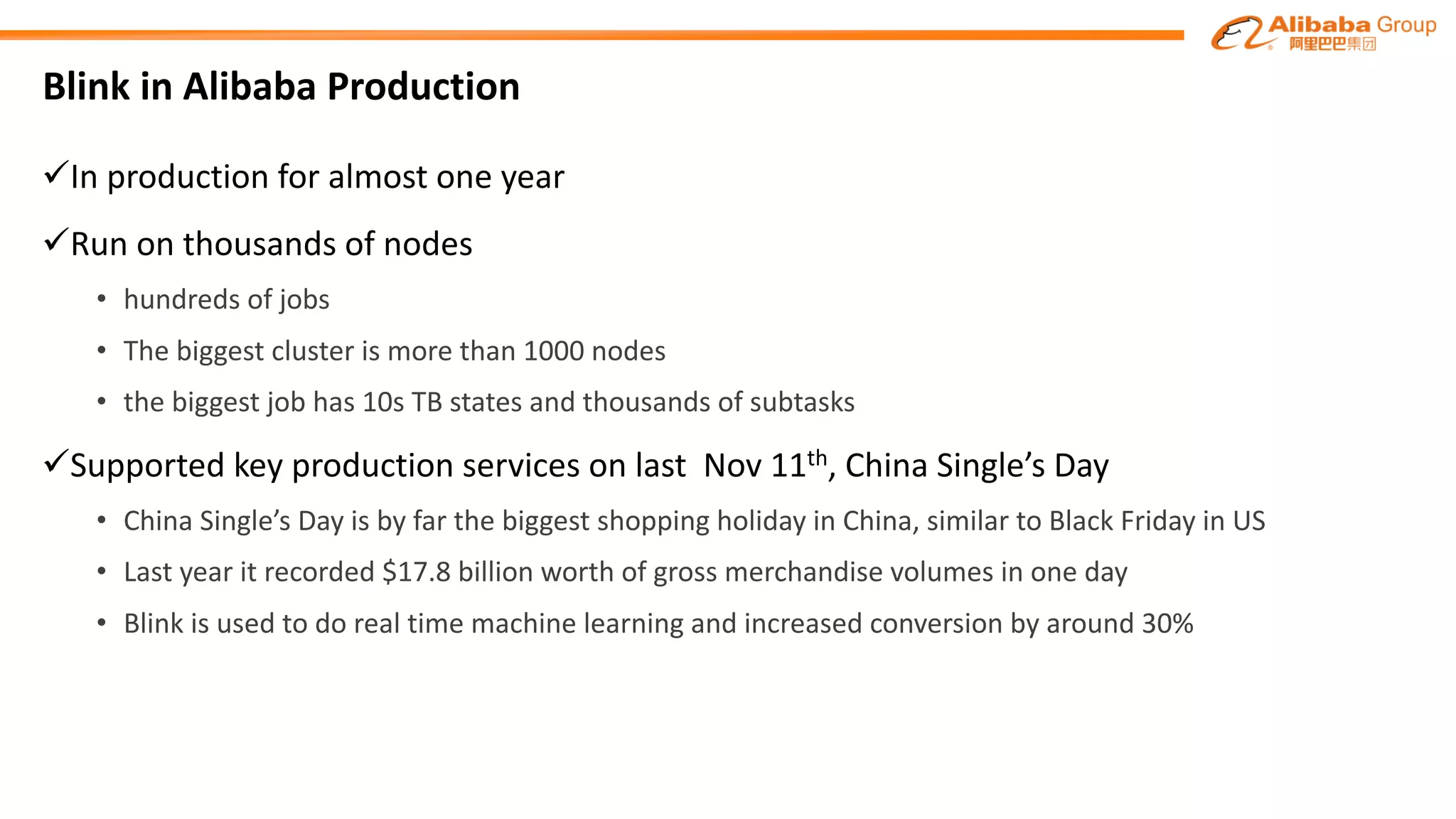

- 6. Blink in Alibaba Production üIn production for almost one year üRun on thousands of nodes • hundreds of jobs • The biggest cluster is more than 1000 nodes • the biggest job has 10s TB states and thousands of subtasks üSupported key production services on last Nov 11th, China Single’s Day • China Single’s Day is by far the biggest shopping holiday in China, similar to Black Friday in US • Last year it recorded $17.8 billion worth of gross merchandise volumes in one day • Blink is used to do real time machine learning and increased conversion by around 30%

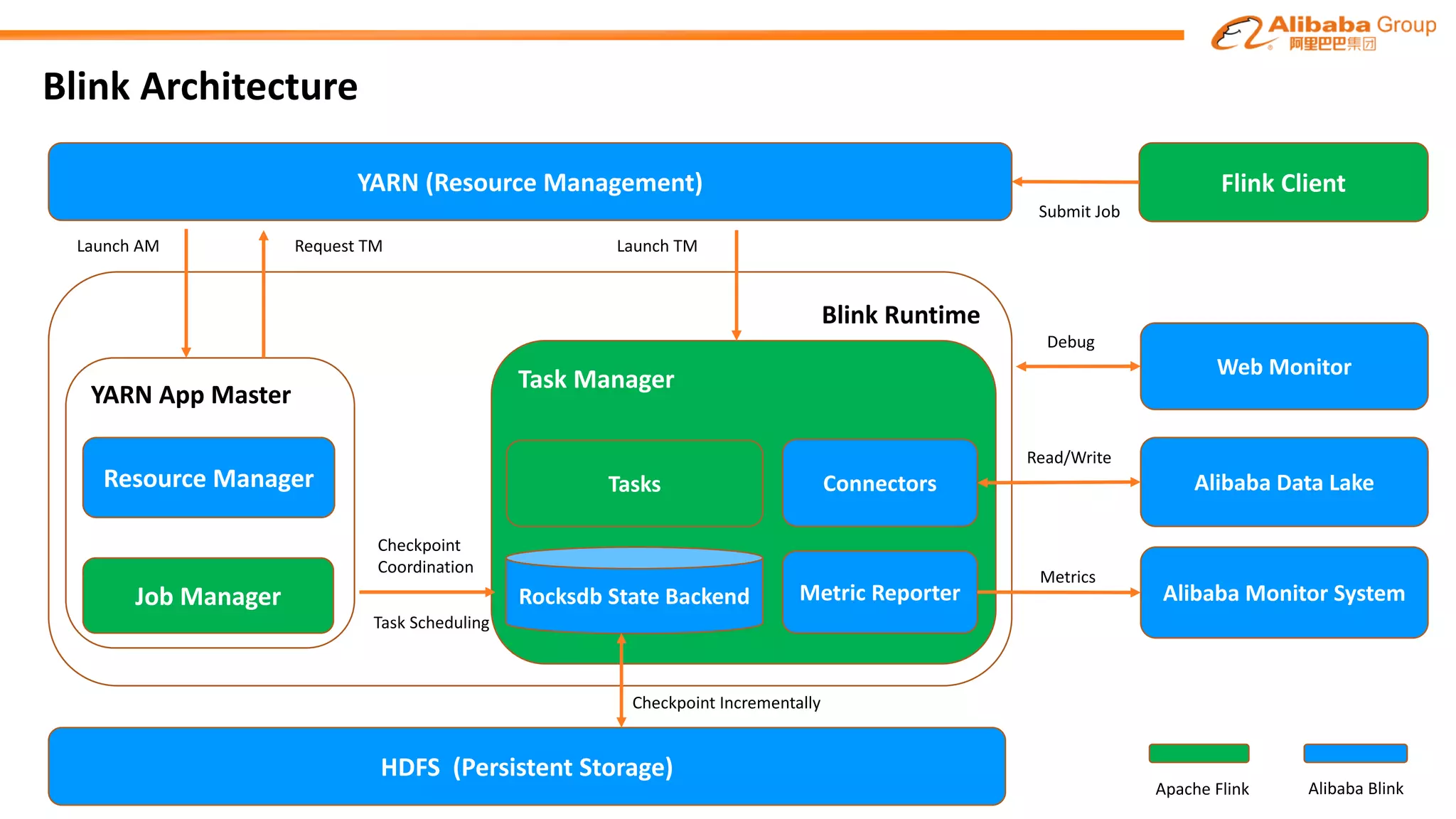

- 7. Blink Architecture YARN (Resource Management) HDFS (Persistent Storage) Blink Runtime YARN App Master Resource Manager Job Manager Task Manager Tasks Rocksdb State Backend Web Monitor Flink Client Alibaba Data Lake Submit Job Launch AM Request TM Launch TM Metrics Apache Flink Alibaba Blink Alibaba Monitor SystemMetric Reporter Connectors Read/Write Checkpoint Incrementally Debug Task Scheduling Checkpoint Coordination
- 8. Improvements to Flink Runtime Section 2
- 9. Improvements to Flink Runtime üNative integration with Resource Management • Take YARN for an Example üPerformance Improvements • Incremental Checkpoint • Asynchronous Operator üFailover Optimization • Fine-grained Recovery for Task Failures • Allocation Reuse for Task Recovery • Non-disruptive JobManager failure recovery

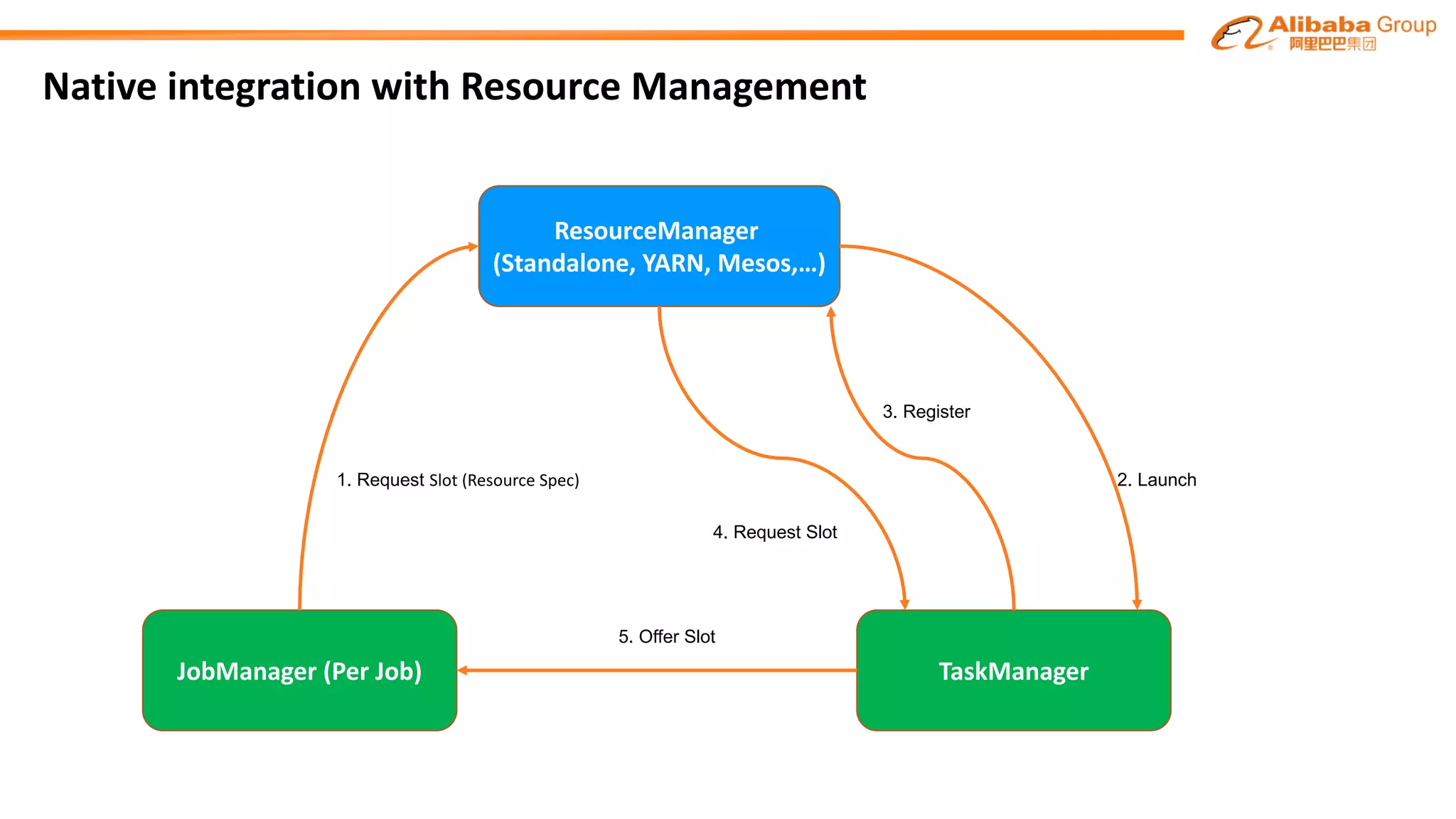

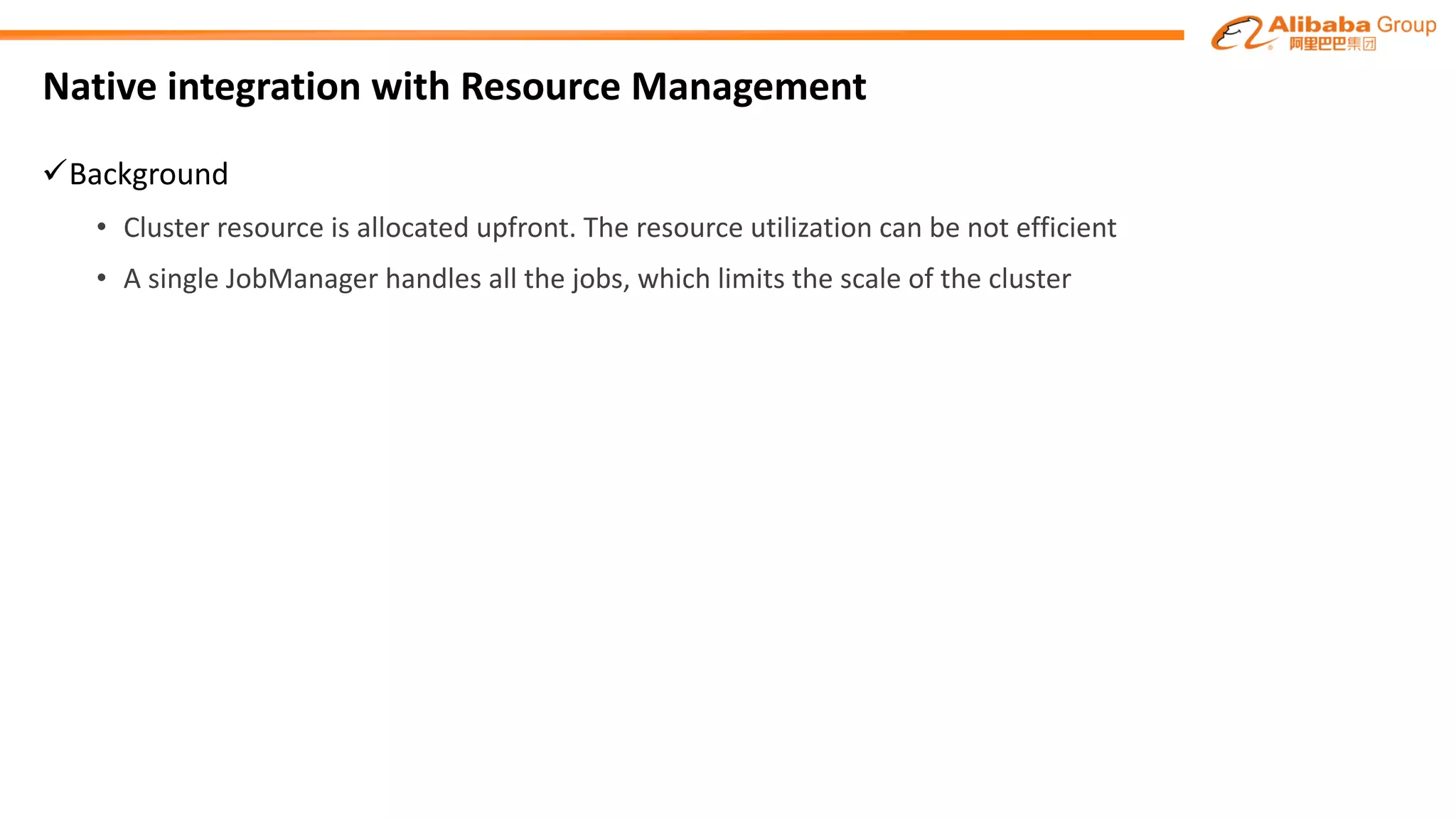

- 10. Native integration with Resource Management üBackground • Cluster resource is allocated upfront. The resource utilization can be not efficient • A single JobManager handles all the jobs, which limits the scale of the cluster
- 11. Native integration with Resource Management ResourceManager (Standalone, YARN, Mesos,…) JobManager (Per Job) TaskManager 1. Request Slot (Resource Spec) 2. Launch 3. Register 4. Request Slot 5. Offer Slot

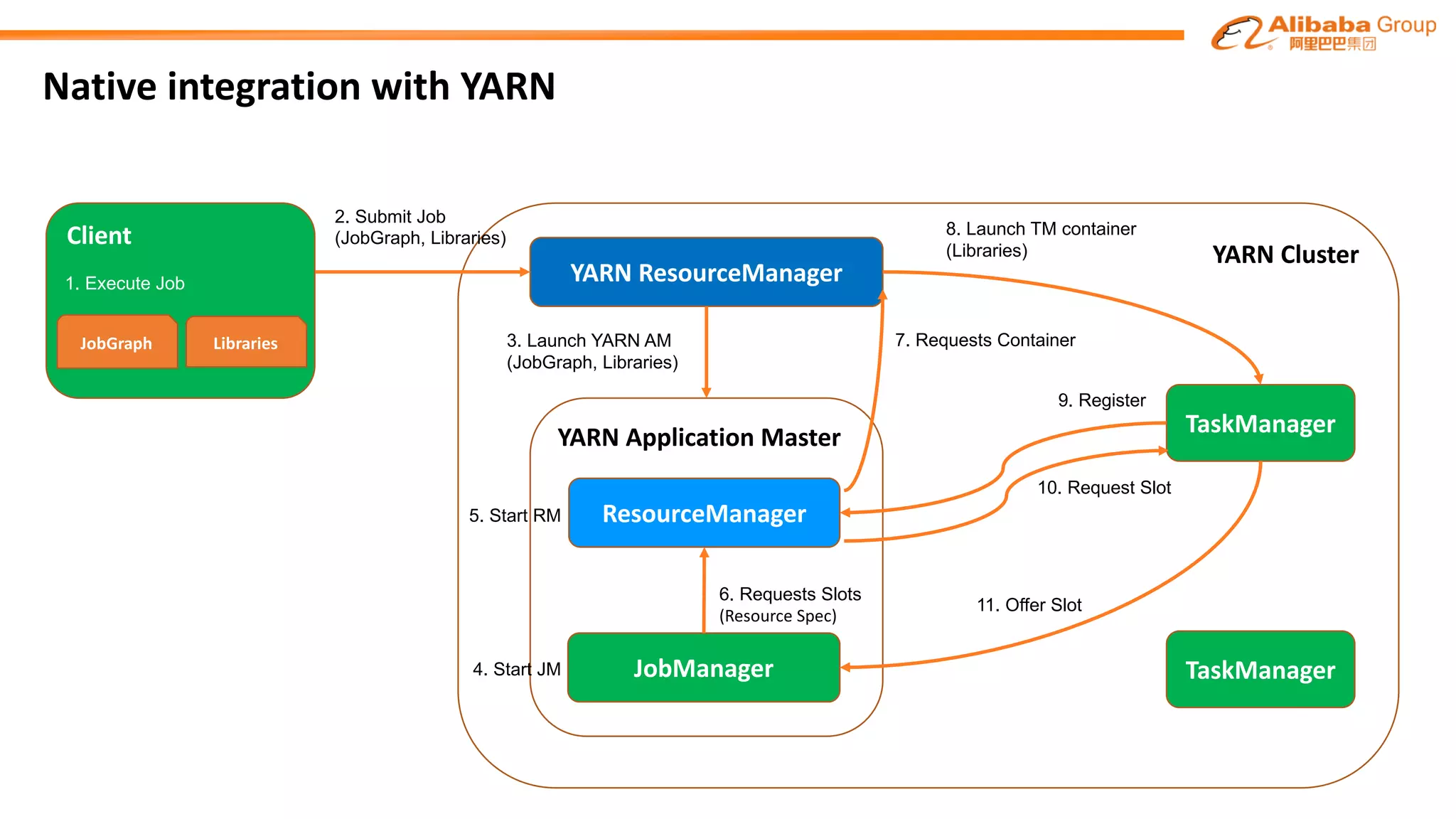

- 12. Native integration with YARN YARN Cluster YARN ResourceManager TaskManagerYARN Application Master ResourceManager JobManager TaskManager Client 2. Submit Job (JobGraph, Libraries) 3. Launch YARN AM (JobGraph, Libraries) 5. Start RM 4. Start JM 6. Requests Slots (Resource Spec) 7. Requests Container 8. Launch TM container (Libraries) 9. Register 10. Request Slot 11. Offer Slot 1. Execute Job JobGraph Libraries
- 13. Incremental Checkpoint üBackground • The job state could be very large (many TBs) • The state size of individual task can be many GBs üThe problems of Full Checkpoint • Materialize all the states to persistent store at each checkpoint • As the states get bigger, materialization may take too much time to finish • One of the biggest blocking issues in large scale production üBenefits of Incremental Checkpoint • Only the modified states since last checkpoint need to be materialized • The checkpoint will be faster and more efficient

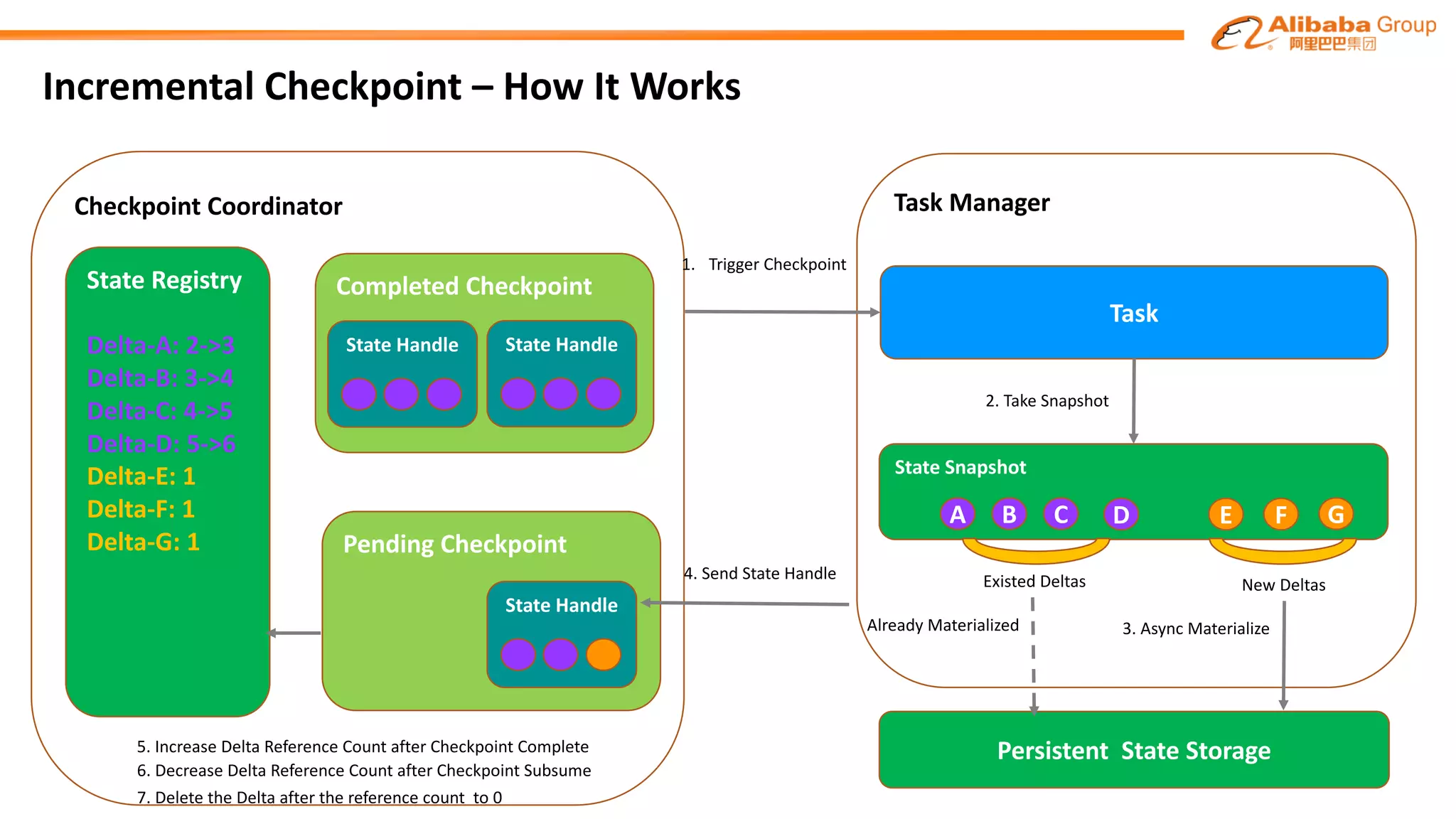

- 14. Task Manager Incremental Checkpoint – How It Works Checkpoint Coordinator State Registry Delta-A: 2->3 Delta-B: 3->4 Delta-C: 4->5 Delta-D: 5->6 Delta-E: 1 Delta-F: 1 Delta-G: 1 State Snapshot A B C D E F G Persistent State Storage Task 1. Trigger Checkpoint Pending Checkpoint 5. Increase Delta Reference Count after Checkpoint Complete 4. Send State Handle 3. Async Materialize 2. Take Snapshot Existed Deltas New Deltas Already Materialized Completed Checkpoint State Handle State Handle State Handle 6. Decrease Delta Reference Count after Checkpoint Subsume 7. Delete the Delta after the reference count to 0

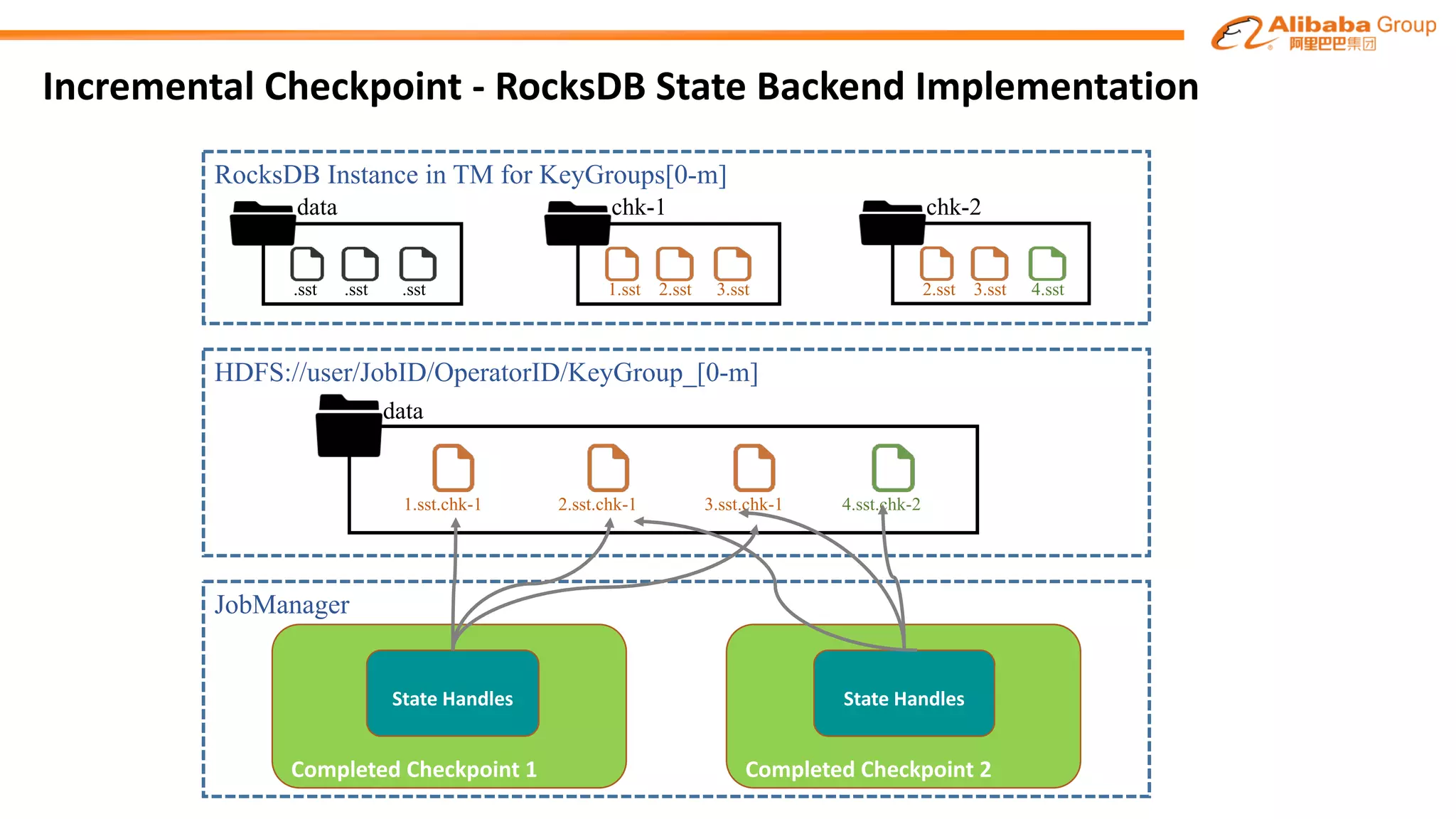

- 15. Incremental Checkpoint - RocksDB State Backend Implementation RocksDB Instance in TM for KeyGroups[0-m] .sst .sst .sst data 1.sst 2.sst 3.sst chk-1 2.sst 3.sst 4.sst chk-2 HDFS://user/JobID/OperatorID/KeyGroup_[0-m] data 3.sst.chk-1 4.sst.chk-21.sst.chk-1 2.sst.chk-1 JobManager Completed Checkpoint 1 State Handles Completed Checkpoint 2 State Handles

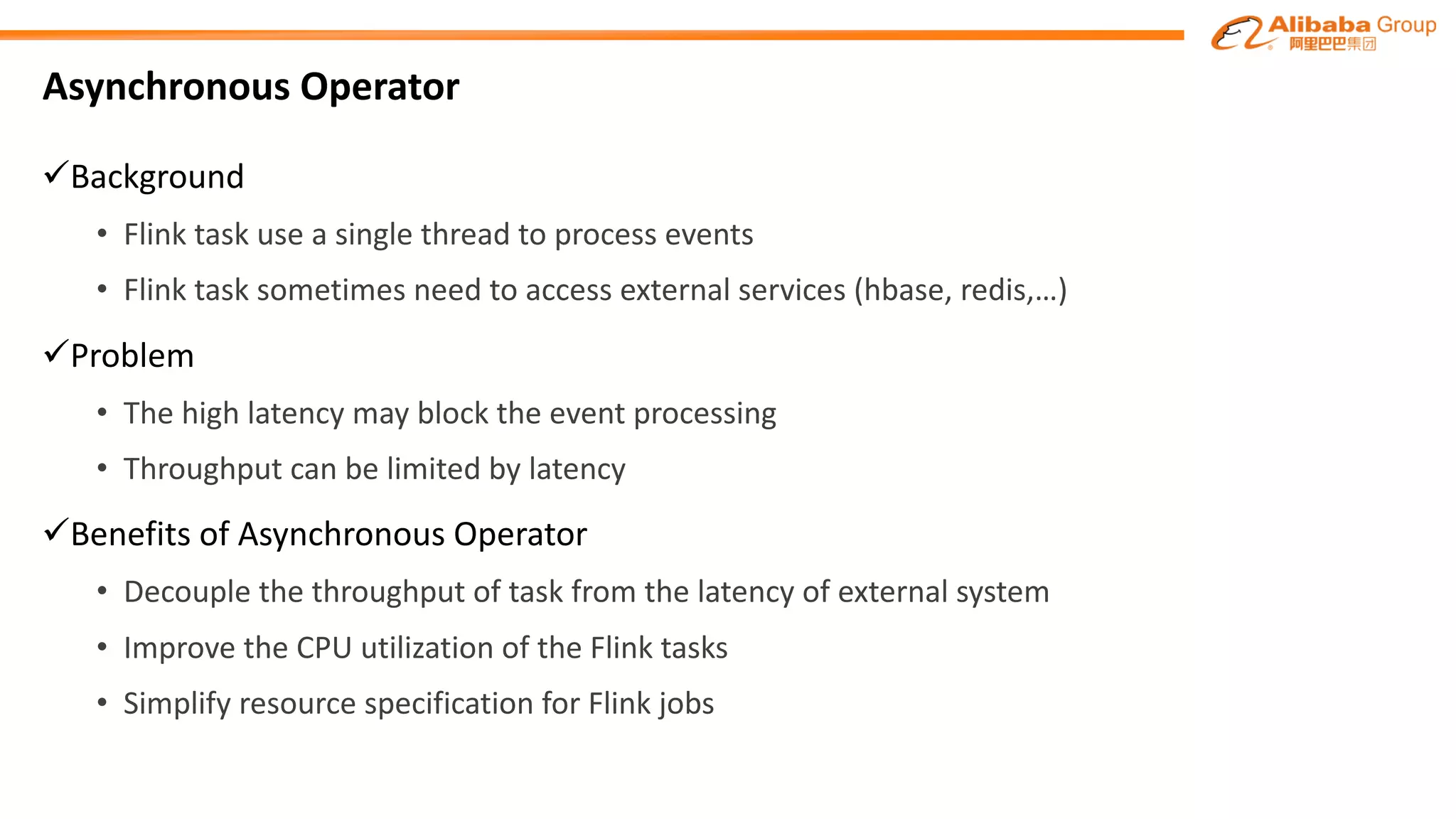

- 16. Asynchronous Operator üBackground • Flink task use a single thread to process events • Flink task sometimes need to access external services (hbase, redis,…) üProblem • The high latency may block the event processing • Throughput can be limited by latency üBenefits of Asynchronous Operator • Decouple the throughput of task from the latency of external system • Improve the CPU utilization of the Flink tasks • Simplify resource specification for Flink jobs

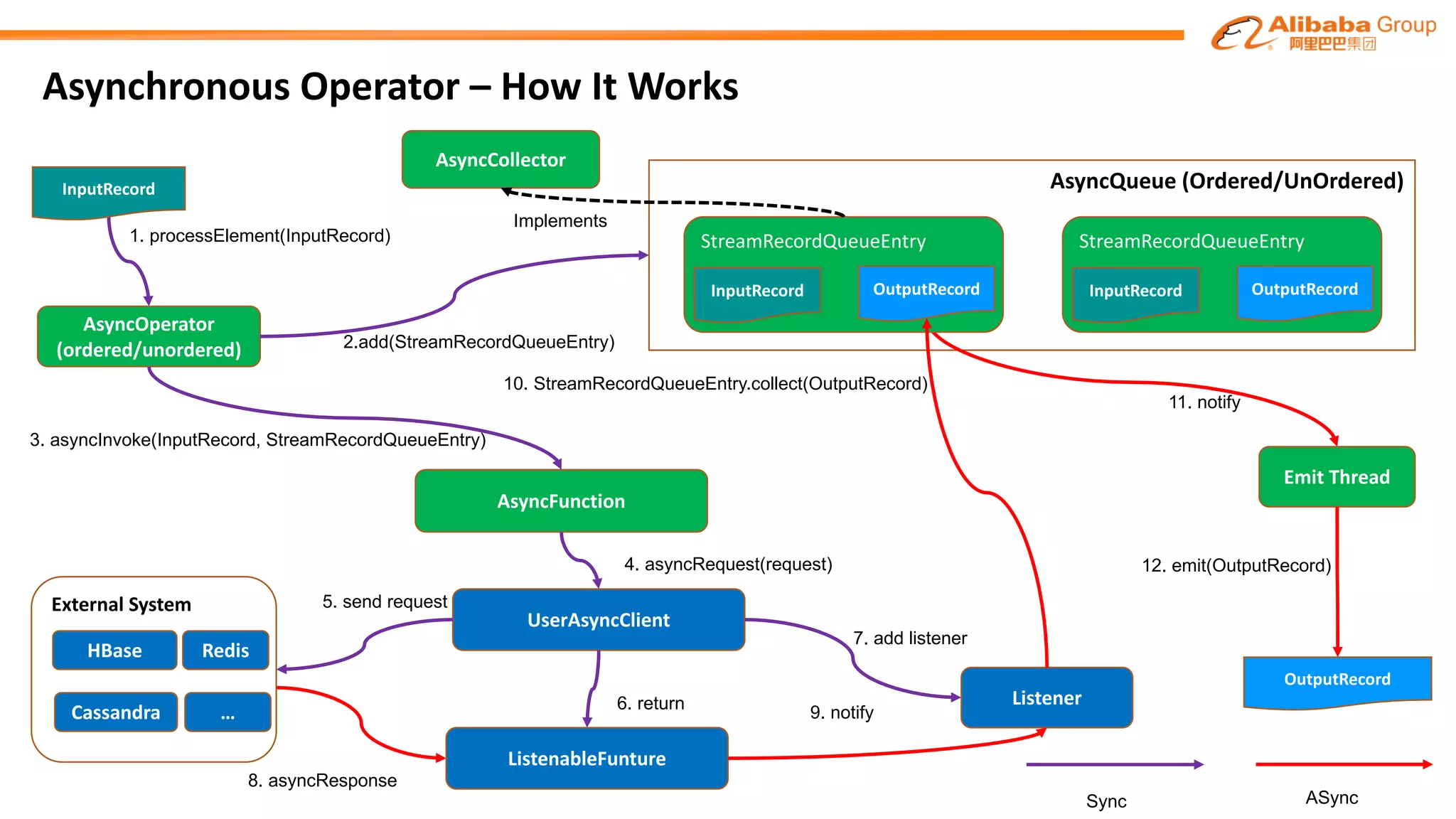

- 17. Asynchronous Operator – How It Works AsyncOperator (ordered/unordered) AsyncQueue (Ordered/UnOrdered) AsyncFunction 3. asyncInvoke(InputRecord, StreamRecordQueueEntry) ListenableFunture 1. processElement(InputRecord) Listener Emit Thread 11. notify InputRecord OutputRecord External System 4. asyncRequest(request) 9. notify UserAsyncClient 5. send request 8. asyncResponse 12. emit(OutputRecord) 10. StreamRecordQueueEntry.collect(OutputRecord) 2.add(StreamRecordQueueEntry) HBase Cassandra Redis … 6. return StreamRecordQueueEntry OutputRecordInputRecord Sync ASync AsyncCollector Implements 7. add listener StreamRecordQueueEntry OutputRecordInputRecord

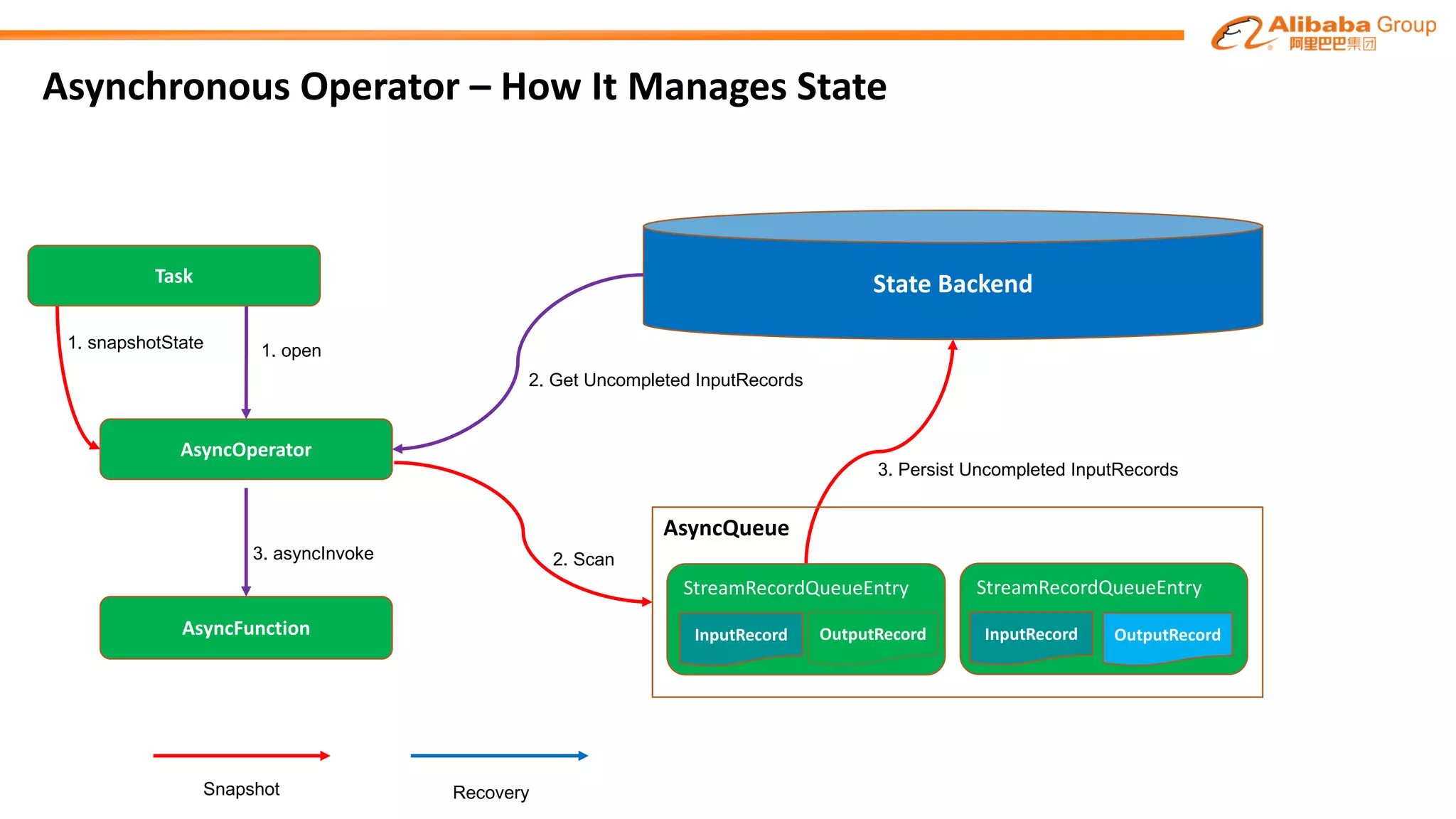

- 18. Asynchronous Operator – How It Manages State State Backend AsyncOperator AsyncFunction 1. open 2. Get Uncompleted InputRecords 3. asyncInvoke 1. snapshotState 2. Scan 3. Persist Uncompleted InputRecords AsyncQueue StreamRecordQueueEntry StreamRecordQueueEntry OutputRecordInputRecord InputRecordOutputRecord Task RecoverySnapshot

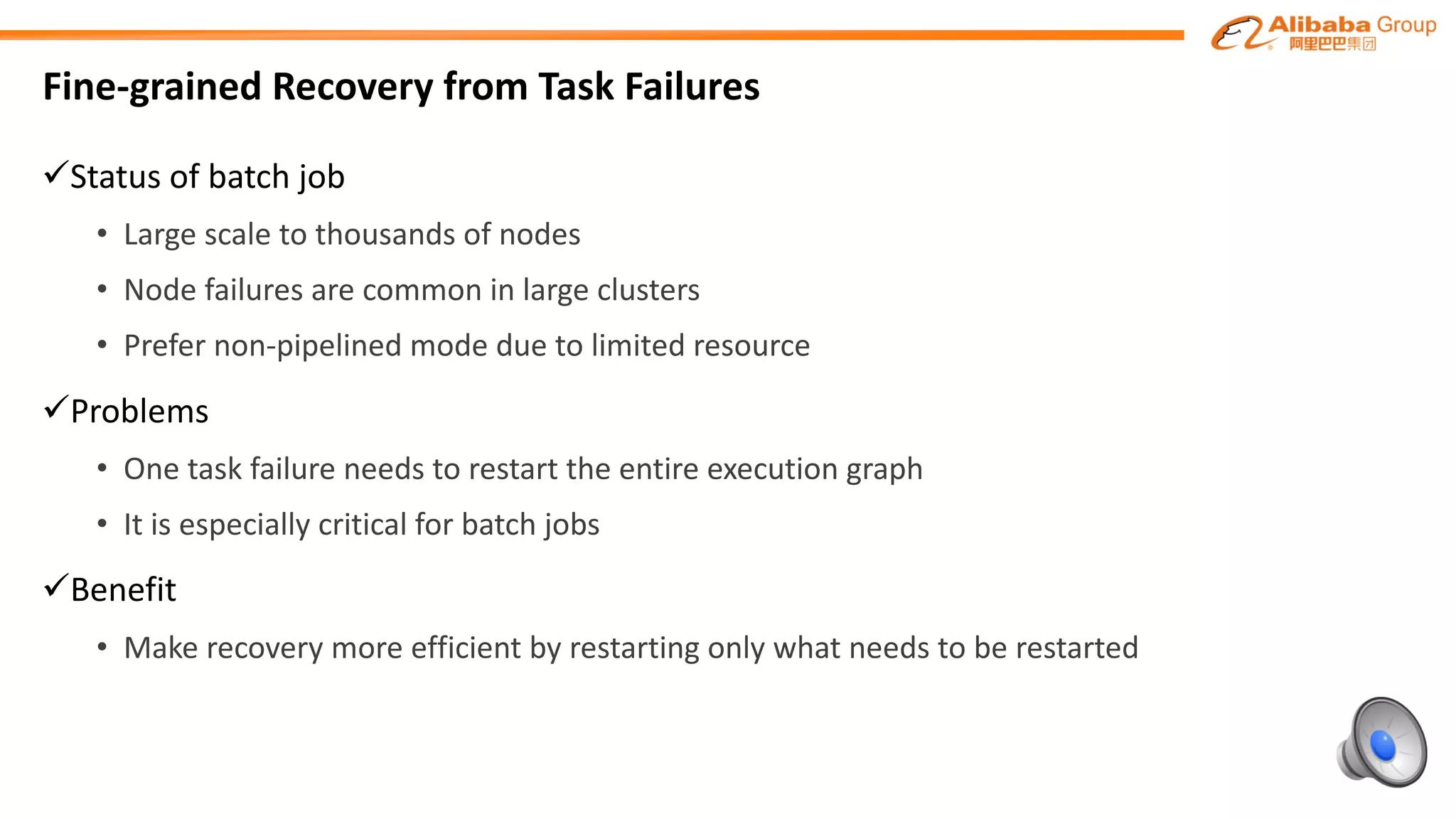

- 19. Fine-grained Recovery from Task Failures üStatus of batch job • Large scale to thousands of nodes • Node failures are common in large clusters • Prefer non-pipelined mode due to limited resource üProblems • One task failure needs to restart the entire execution graph • It is especially critical for batch jobs üBenefit • Make recovery more efficient by restarting only what needs to be restarted

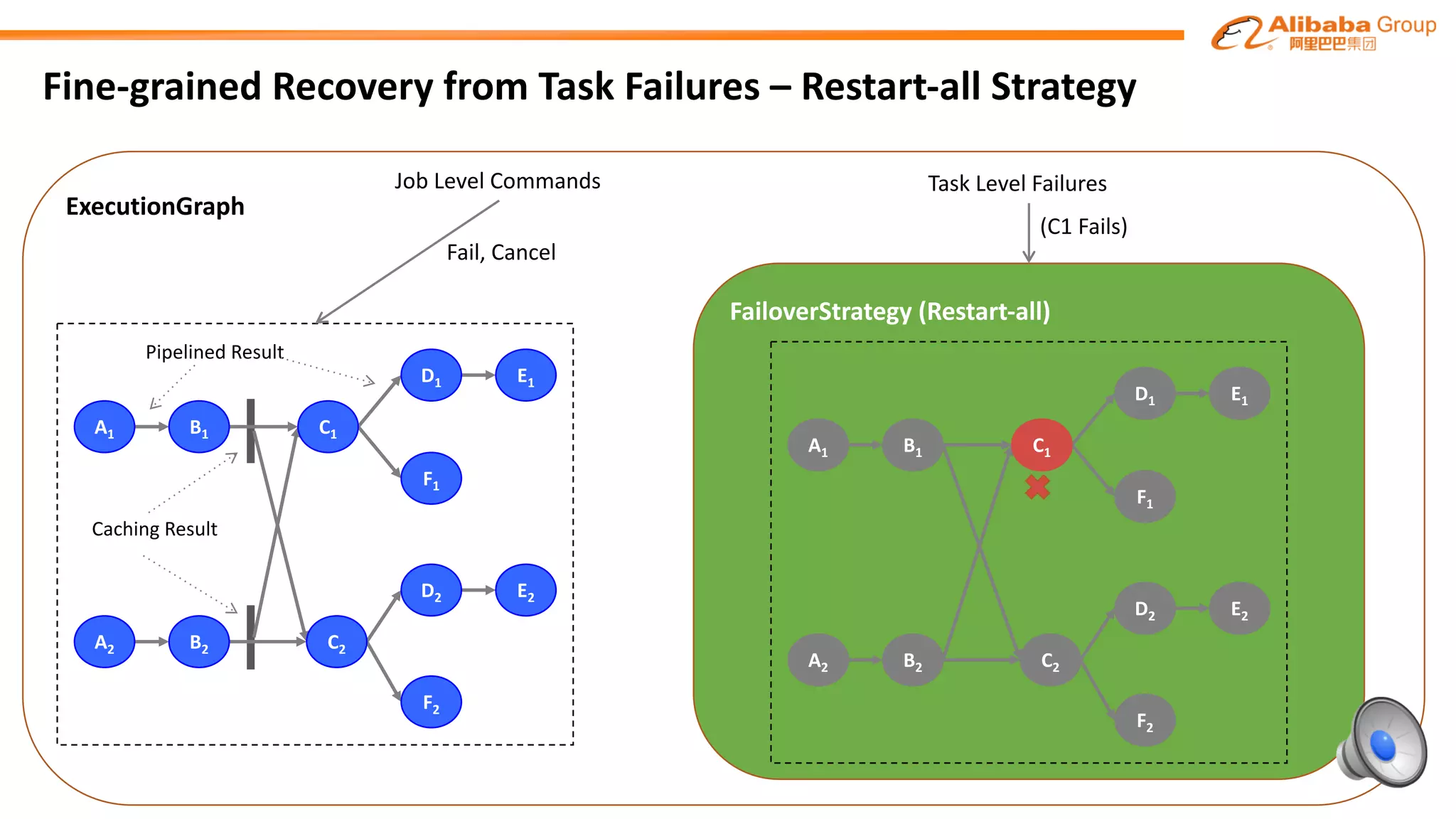

- 20. Fine-grained Recovery from Task Failures – Restart-all Strategy ExecutionGraph A1 B1 C1 D1 E1 F1 B2 C2 D2 E2 F2 A2 Caching Result Pipelined Result Job Level Commands FailoverStrategy (Restart-all) Task Level Failures A1 B1 C1 D1 E1 F1 B2 C2 D2 E2 F2 A2 (C1 Fails) Fail, Cancel

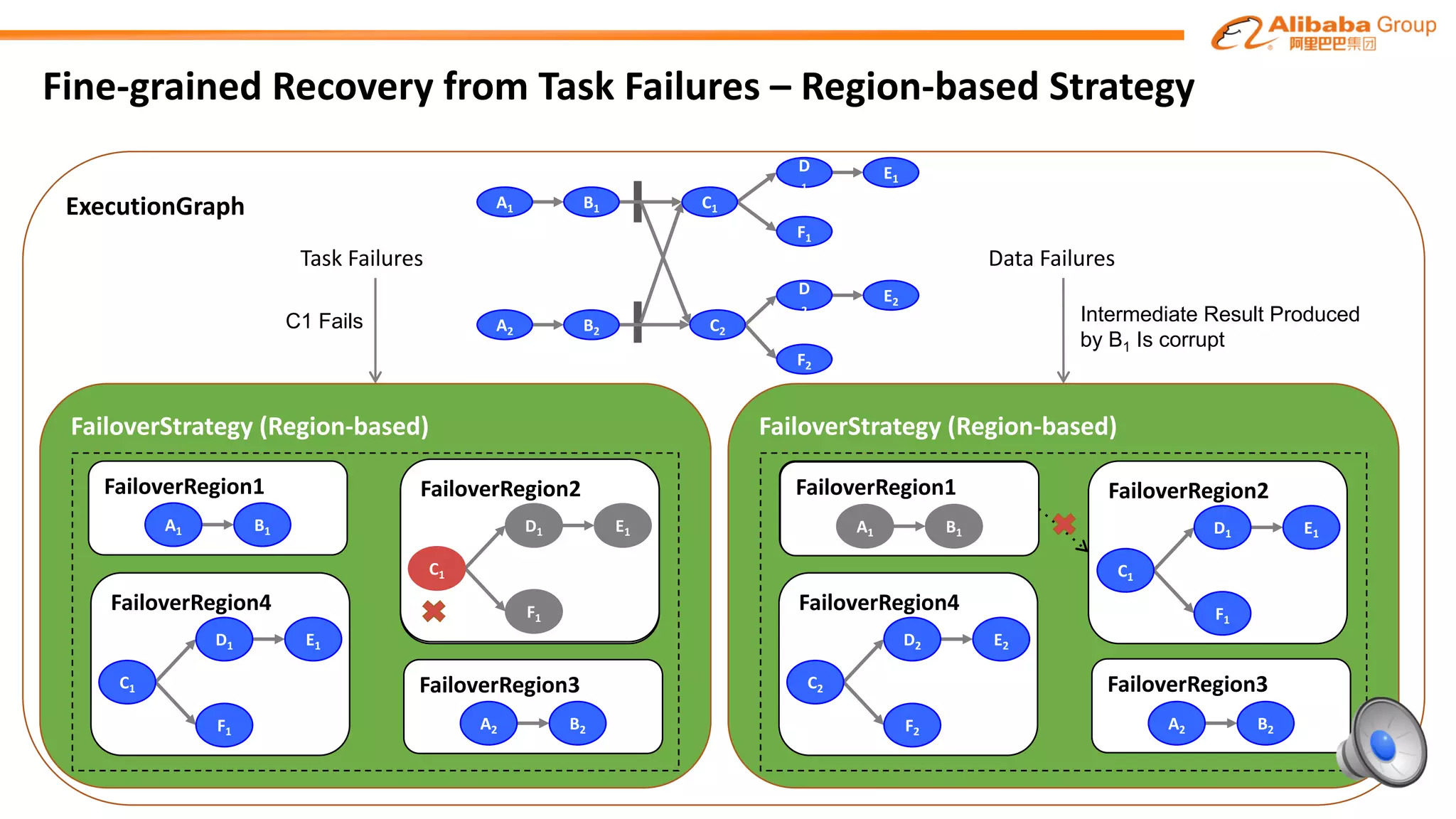

- 21. FailoverStrategy (Region-based) FailoverRegion4gion C2 D2 E2 F2 FailoverRegion3gion B2A2 FailoverRegion1n B1A1 FailoverRegion2gion C1 D1 E1 F1 Fine-grained Recovery from Task Failures – Region-based Strategy ExecutionGraph A1 B1 C1 D 1 E1 F1 B2 C2 D 2 E2 F2 A2 FailoverStrategy (Region-based) FailoverRegion3gion C2 D2 E2 F2 FailoverRegion1n B1A1 FailoverRegion3gion B2A2 FailoverRegion4ion C1 D1 E1 F1 Task Failures C1 Fails FailoverRegion2gion C1 D1 E1 F1 Data Failures Intermediate Result Produced by B1 Is corrupt FailoverRegion1n B1A1

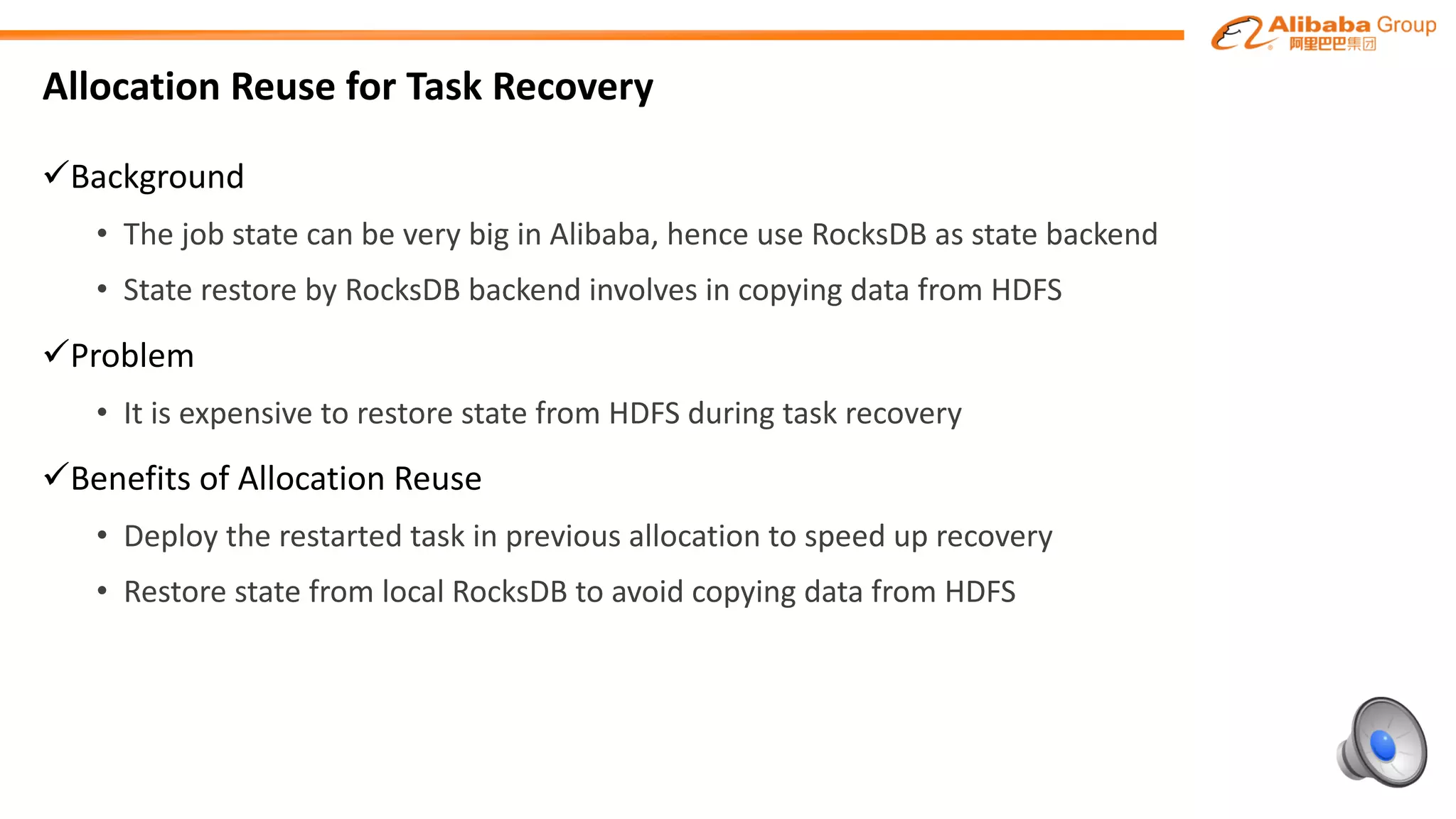

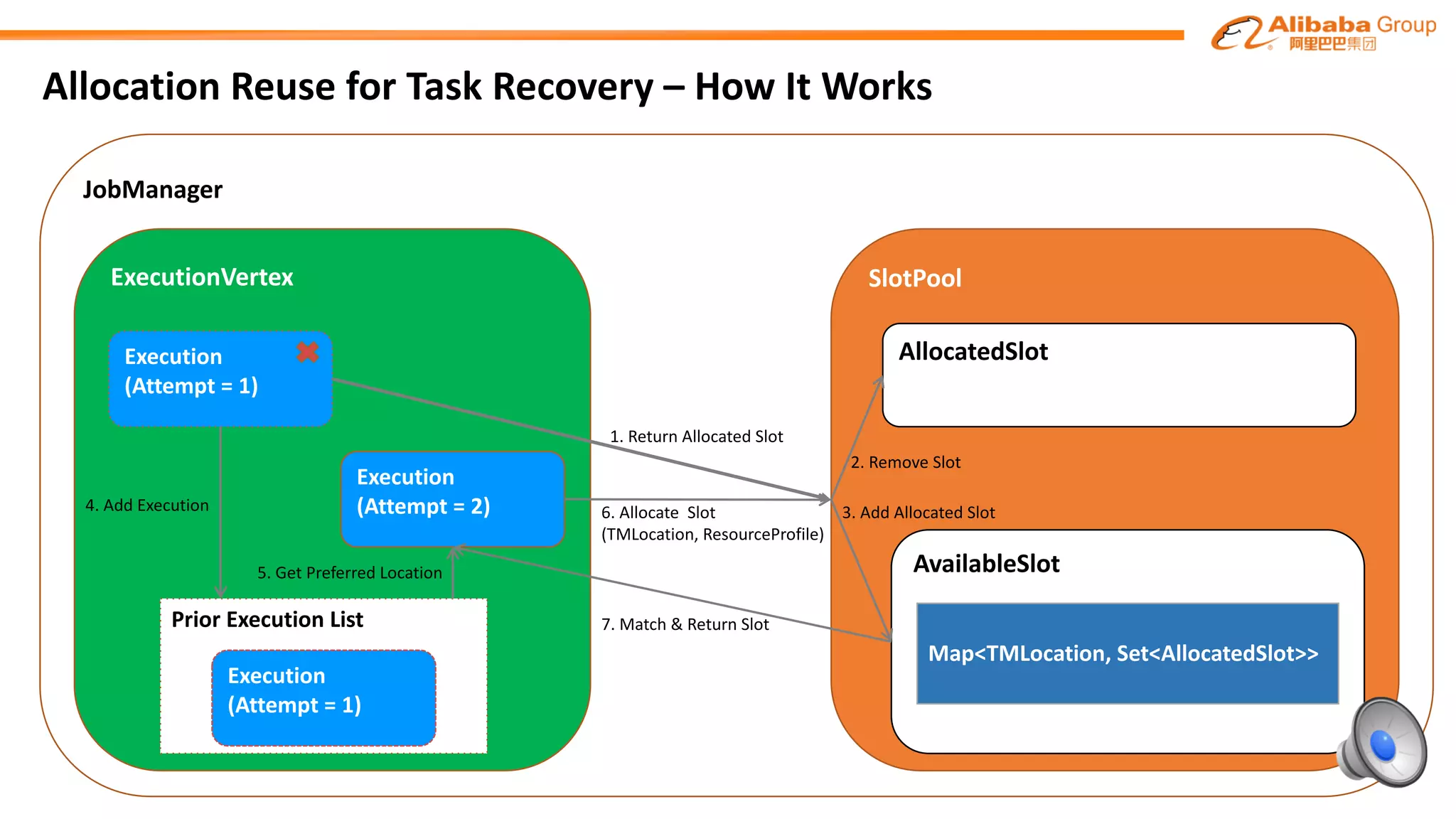

- 22. Allocation Reuse for Task Recovery üBackground • The job state can be very big in Alibaba, hence use RocksDB as state backend • State restore by RocksDB backend involves in copying data from HDFS üProblem • It is expensive to restore state from HDFS during task recovery üBenefits of Allocation Reuse • Deploy the restarted task in previous allocation to speed up recovery • Restore state from local RocksDB to avoid copying data from HDFS

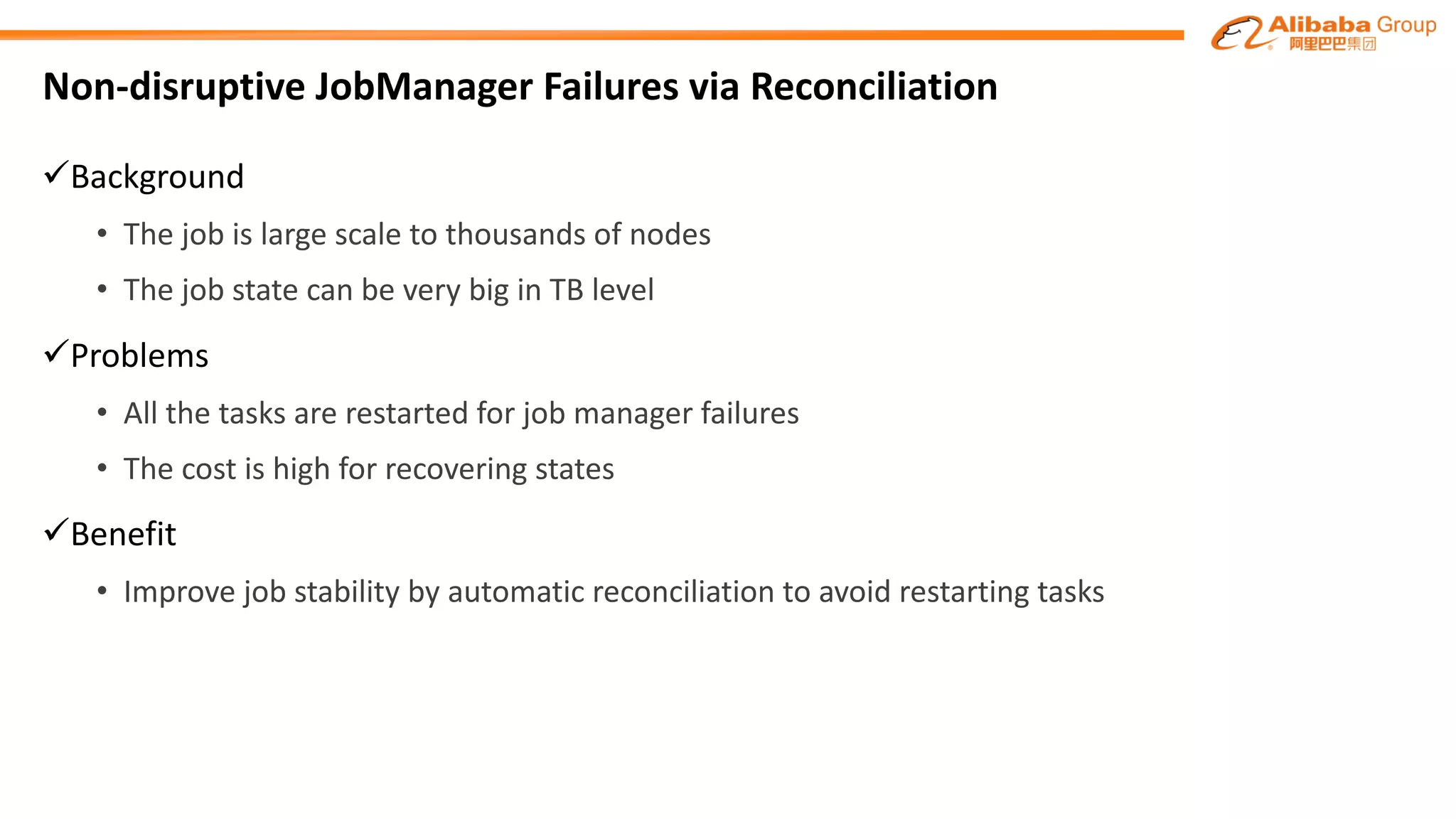

- 24. Non-disruptive JobManager Failures via Reconciliation üBackground • The job is large scale to thousands of nodes • The job state can be very big in TB level üProblems • All the tasks are restarted for job manager failures • The cost is high for recovering states üBenefit • Improve job stability by automatic reconciliation to avoid restarting tasks

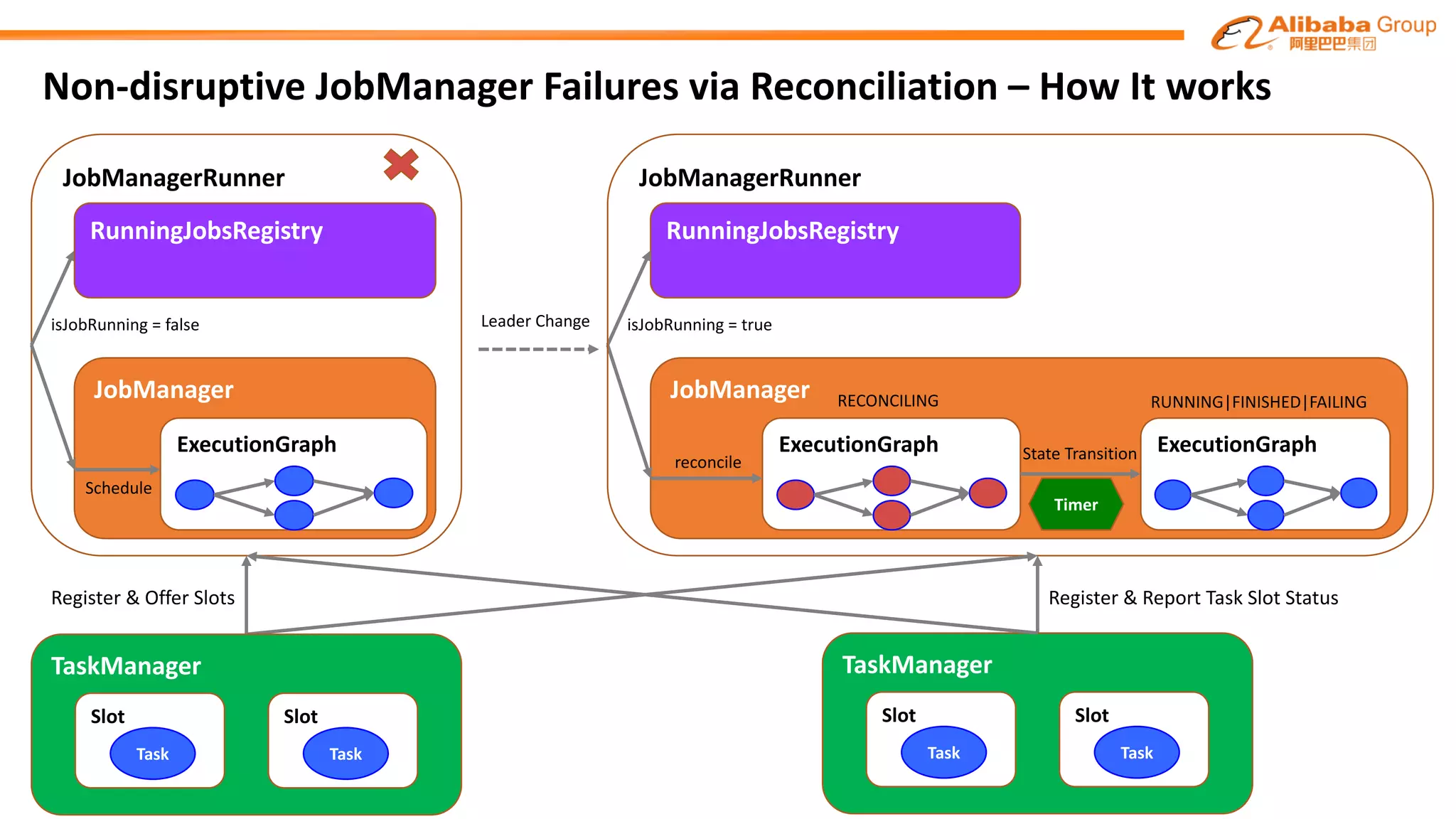

- 25. JobManager ExecutionGraph reconcile RECONCILING Non-disruptive JobManager Failures via Reconciliation – How It works RunningJobsRegistry isJobRunning = true RUNNING|FINISHED|FAILING State Transition ExecutionGraph Timer JobManagerRunner Leader Change Register & Report Task Slot StatusRegister & Offer Slots TaskManager Slot Task Slot Task TaskManager Slot Task Slot Task JobManager ExecutionGraph JobManagerRunner Schedule RunningJobsRegistry isJobRunning = false Schedule

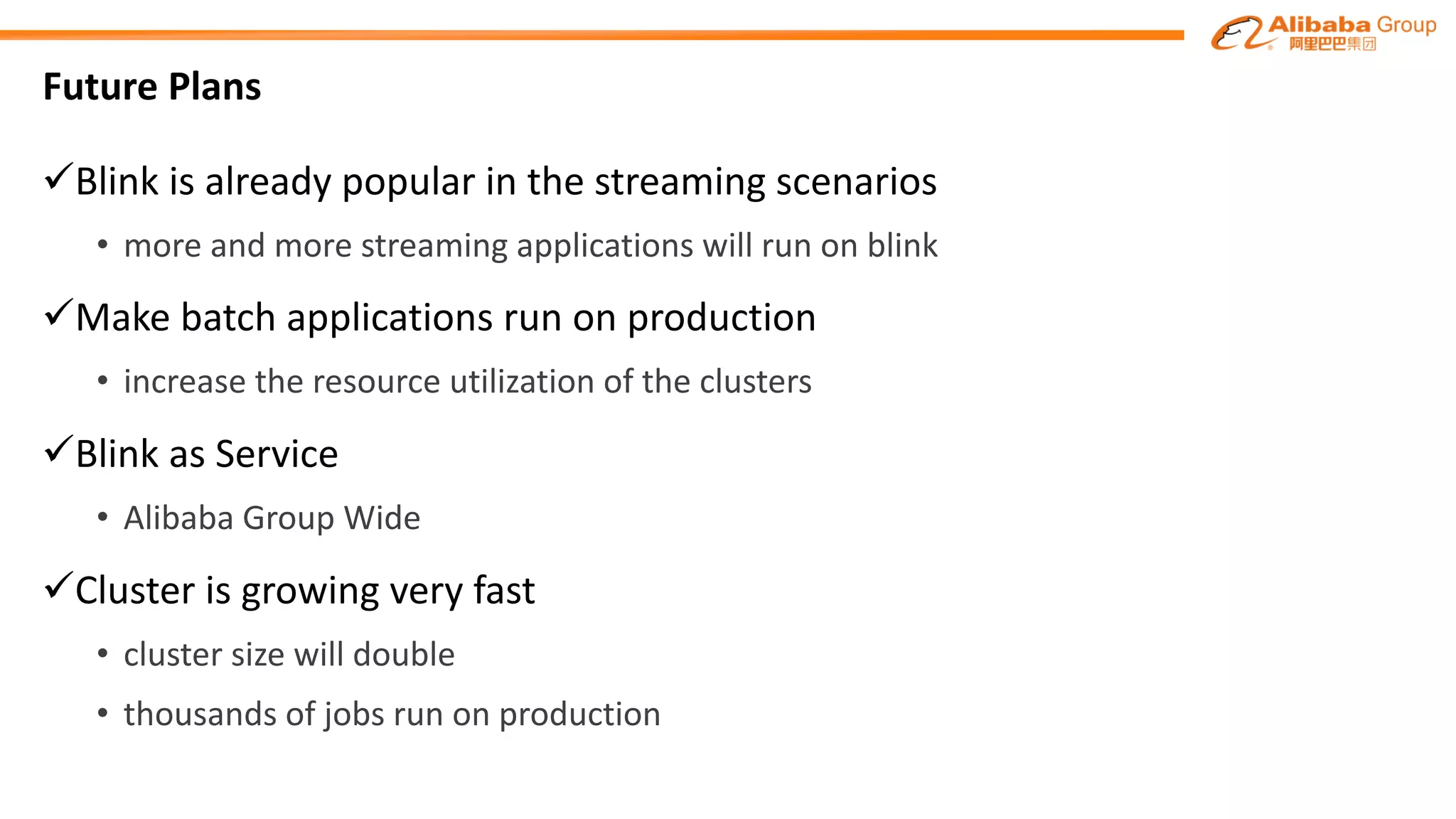

- 27. Future Plans üBlink is already popular in the streaming scenarios • more and more streaming applications will run on blink üMake batch applications run on production • increase the resource utilization of the clusters üBlink as Service • Alibaba Group Wide üCluster is growing very fast • cluster size will double • thousands of jobs run on production
