The document presents an overview of Knoldus Inc.'s approach to building future-ready businesses using robust systems and high-quality engineering practices, particularly focusing on Apache Flink application execution within Kubernetes. It details different Flink cluster types (session, job, application) and their respective use cases, advantages, and lifecycle management. Additionally, it includes references for further learning and a demo link on Flink applications.

1. Presented By: Piyush Rana
Technology Lead @ Knoldus Inc,
Canada

2. Keeping your business future-ready with extremely well-engineered systems through the
unwavering pursuit of high-quality engineers, processes, and practices

3. REACTIVE
PRODUCTS
Microservices & API
● Scala
● Functional Java
● Rust
● Elixir
● Haskell
ENTERPRISE
DATA PROGRAM
Data Lake
● Delta
ARTIFICIAL
INTELLIGENCE
Machine Learning
Data Science
Deep Learning
● Knime
● Tensorflow
● PyTorch
● Scikit
BLOCKCHAIN
● Hyperledger
● DAML
● ScoreX
Fast Data
● Spark
● FLink
● Hadoop
Agile
Transformation
Reactive UI/UX
Test Automation
Practice
Reactive DevOps
Product
Engineering

4. Agenda
Anatomy Of Flink Cluster
Flink Application Execution
Using Google Operator - Knoldus Contribution
Demo On Kubernetes
Task Slots and Resources

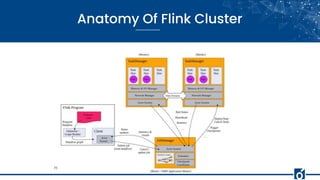

5. [1]

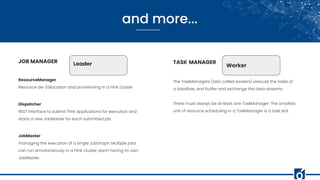

6. JOB MANAGER
ResourceManager
Dispatcher
JobMaster
TASK MANAGERLeader Worker

7. Why?
Used to send a
Dataflow to the
JobManager

8. [1]

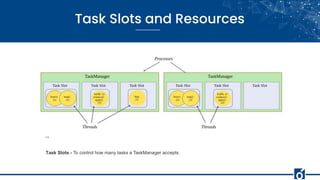

Task Slots - To control how many tasks a TaskManager accepts.

9. SESSION CLUSTER JOB CLUSTER APPLICATION CLUSTER

10. FLINK APPLICATION EXECUTION
Execution's Cluster Lifecycle Resource Isolation Other Considerations
Flink Session Cluster
Pre-existing, long-running cluster
that can accept multiple job
submissions.
Competition for cluster resources - like
network bandwidth in the submit-job
phase.
Suited for jobs having low
execution time and needs a low
startup time.
Flink Job Cluster
A new Cluster for each submitted
job and this cluster is available to
that job only.
Assign dedicated resources to each job
and a fatal error in the JobManager only
affects the one job running in that Flink
Job Cluster.
More suited to large jobs that are
long-running.
Flink Application
Cluster
A Dedicated Flink cluster that only
executes jobs from one Flink
Application and where the main()
method runs on the cluster rather
than the client.
The ResourceManager and Dispatcher
are scoped to a single Flink Application,
which provides a better separation of
concerns than the Flink Session Cluster.
A Flink Job Cluster can be seen as
a “run-on-client” alternative to
Flink Application Clusters.

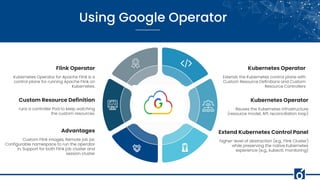

11. Flink Operator
Advantages
Custom Resource Definition
Kubernetes Operator
Kubernetes Operator
Extend Kubernetes Control Panel

12. # Install google-flink-operator
`kubectl apply -f flink-operator-crd.yaml`
OR
`helm install flink-op charts/flink-operator`
Components
CRD FlinkCluster
Controller
[2]

13. ❤

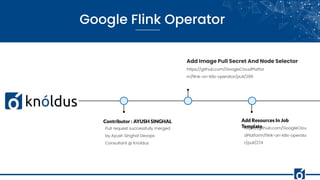

14. Contributor : AYUSH SINGHAL
Add Image Pull Secret And Node Selector
Add Resources In Job
Template

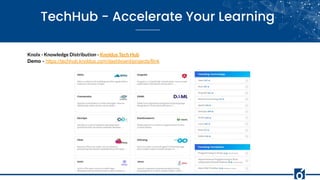

16. Knolx - Knowledge Distribution - Knoldus Tech Hub
Demo - https://techhub.knoldus.com/dashboard/projects/flink

17. [1] Apache Flink Documentation -
https://ci.apache.org/projects/flink/flink-docs-release-1.11/concepts/flink-architecture.ht
ml
[2] CNCF Webinar -
https://www.cncf.io/wp-content/uploads/2020/08/CNCF-Webinar_-Apache-Flink-on-Ku
bernetes-Operator-1.pdf
Knoldus Website - https://www.knoldus.com/home

18. Stay in Touch
