This session will introduce a new open-source project - Flink TensorFlow - that enables Flink programs to operate on data using TensorFlow machine learning models. Applications include real-time image processing, NLP, and anomaly detection. The session will: - Introduce TensorFlow and describe its component model which allows for model reuse across environments - Demonstrate how to use TensorFlow models in Flink ML and Flink Streaming environments - Present a roadmap and provide opportunities to contribute

1. Eron Wright
@eronwright
TensorFlow & Apache
FlinkTM
An early look at a community project
Apache®, Apache Flink™, Flink™, and the Apache feather logo are trademarks of The Apache Software Foundation.
TensorFlow, the TensorFlow logo and any related marks are trademarks of Google Inc.
https://github.com/cookieai/flink-tensorflow

2. Background
2

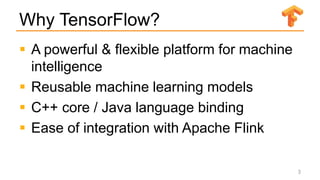

3. Why TensorFlow?
 A powerful & flexible platform for machine
intelligence
 Reusable machine learning models
 C++ core / Java language binding
 Ease of integration with Apache Flink
3

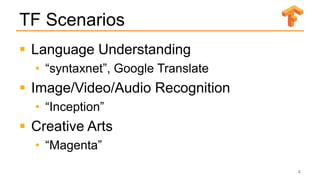

4. TF Scenarios
 Language Understanding
• “syntaxnet”, Google Translate
 Image/Video/Audio Recognition
• “Inception”
 Creative Arts
• “Magenta”
4

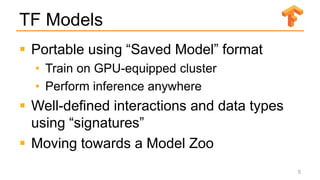

5. TF Models
 Portable using “Saved Model” format
• Train on GPU-equipped cluster
• Perform inference anywhere
 Well-defined interactions and data types
using “signatures”
 Moving towards a Model Zoo
5

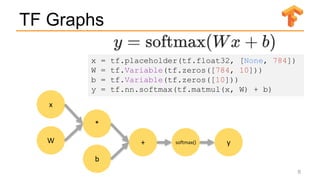

6. TF Graphs
6
x
W
*
b
+ softmax() y
x = tf.placeholder(tf.float32, [None, 784])
W = tf.Variable(tf.zeros([784, 10]))
b = tf.Variable(tf.zeros([10]))
y = tf.nn.softmax(tf.matmul(x, W) + b)

7. TF in Flink
7
Source map() window() sink
x
W
*
b
+ max() y

8. Introducing Flink-Tensorflow
8

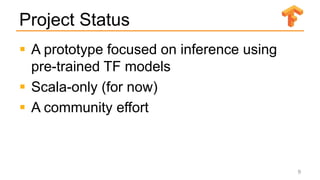

9. Project Status
 A prototype focused on inference using
pre-trained TF models
 Scala-only (for now)
 A community effort
9

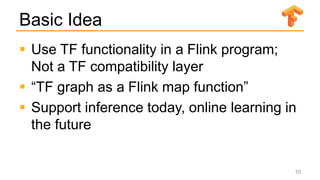

10. Basic Idea
 Use TF functionality in a Flink program;
Not a TF compatibility layer
 “TF graph as a Flink map function”
 Support inference today, online learning in
the future
10

11. Demo
11

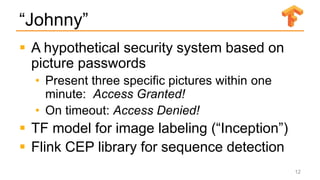

12. “Johnny”
 A hypothetical security system based on
picture passwords
• Present three specific pictures within one
minute: Access Granted!
• On timeout: Access Denied!
 TF model for image labeling (“Inception”)
 Flink CEP library for sequence detection
12

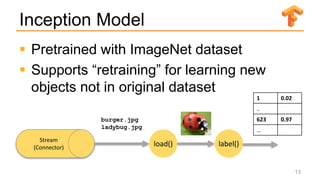

13. Inception Model
 Pretrained with ImageNet dataset
 Supports “retraining” for learning new
objects not in original dataset
13
load() label()
Stream
(Connector)
1 0.02
..
623 0.97
…

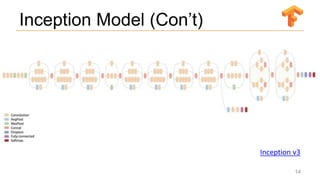

14. Inception Model (Con’t)
14
Inception v3

15. Using the Library
15

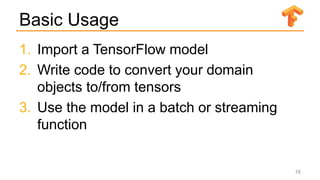

16. Basic Usage
1. Import a TensorFlow model
2. Write code to convert your domain
objects to/from tensors
3. Use the model in a batch or streaming
function
16

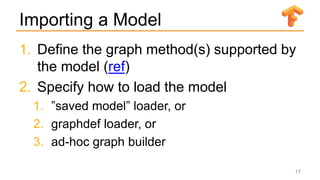

17. Importing a Model
1. Define the graph method(s) supported by
the model (ref)
2. Specify how to load the model
1. ”saved model” loader, or
2. graphdef loader, or
3. ad-hoc graph builder
17

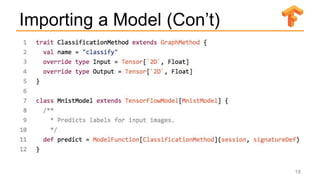

18. Importing a Model (Con’t)
18

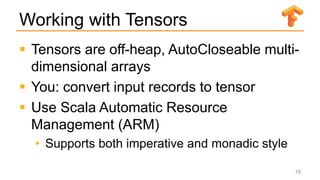

19. Working with Tensors
 Tensors are off-heap, AutoCloseable multi-
dimensional arrays
 You: convert input records to tensor
 Use Scala Automatic Resource
Management (ARM)
• Supports both imperative and monadic style
19

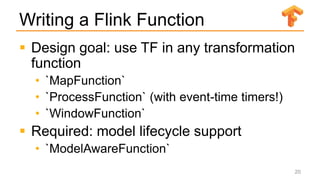

20. Writing a Flink Function
 Design goal: use TF in any transformation
function
• `MapFunction`
• `ProcessFunction` (with event-time timers!)
• `WindowFunction`
 Required: model lifecycle support
• `ModelAwareFunction`
20

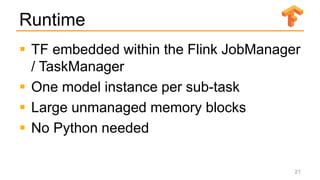

21. Runtime
 TF embedded within the Flink JobManager
/ TaskManager
 One model instance per sub-task
 Large unmanaged memory blocks
 No Python needed
21

22. Future Directions
22

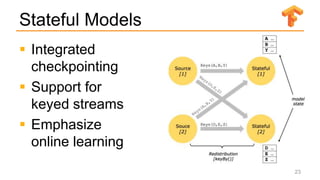

23. Stateful Models
23
 Integrated
checkpointing
 Support for
keyed streams
 Emphasize
online learning

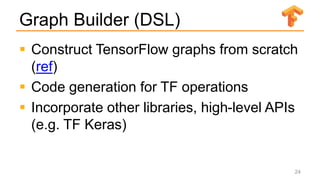

24. Graph Builder (DSL)
 Construct TensorFlow graphs from scratch
(ref)
 Code generation for TF operations
 Incorporate other libraries, high-level APIs
(e.g. TF Keras)
24

25. Other
 Instrumentation
• TF Summaries (for TensorBoard)
• Flink Metrics
 Model versioning
• Leverage Flink job versioning methods
• Treat models as side-input
25

26. Eron Wright
@eronwright
TensorFlow & Apache
FlinkTM
An early look at a community project
Apache®, Apache Flink™, Flink™, and the Apache feather logo are trademarks of The Apache Software Foundation.
TensorFlow, the TensorFlow logo and any related marks are trademarks of Google Inc.
https://github.com/cookieai/flink-tensorflow

27. Thanks!
27
