The document discusses efficient window aggregation techniques with a focus on stream slicing, presenting various examples and potential challenges such as memory consumption and overlapping windows. It outlines strategies for implementing dynamic windows and multi-window processing, alongside the necessary fault-tolerance and state management for production environments. Supported by European Union projects and German research initiatives, the talk emphasizes the importance of transitioning from research to practical applications.

1. Efficient Window Aggregation
with Stream Slicing
Berlin, September 3-5, 2018
Philipp M. Grulich
Research Assistant (DFKI)
Jonas Traub
Research Associate (TU Berlin)

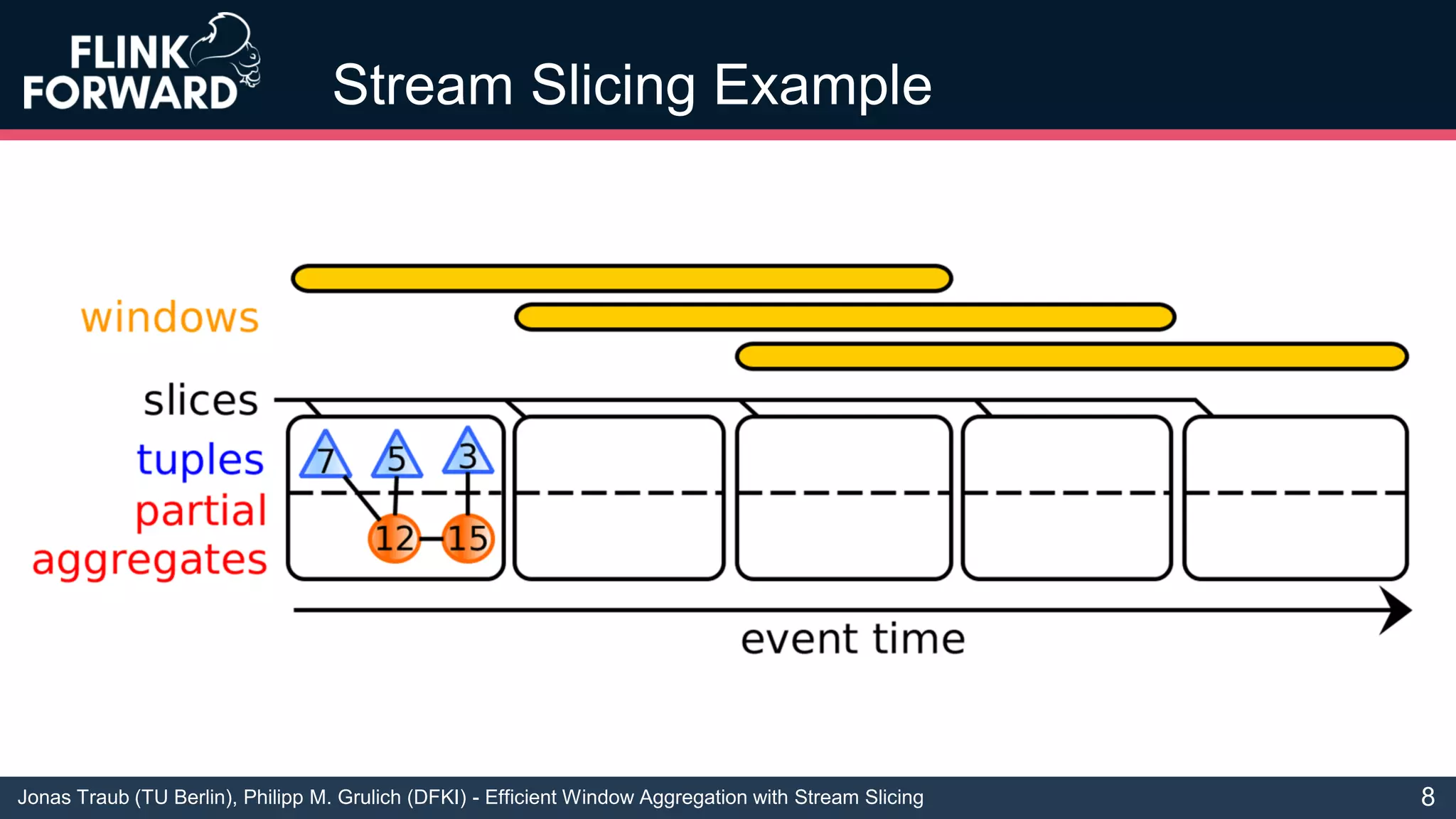

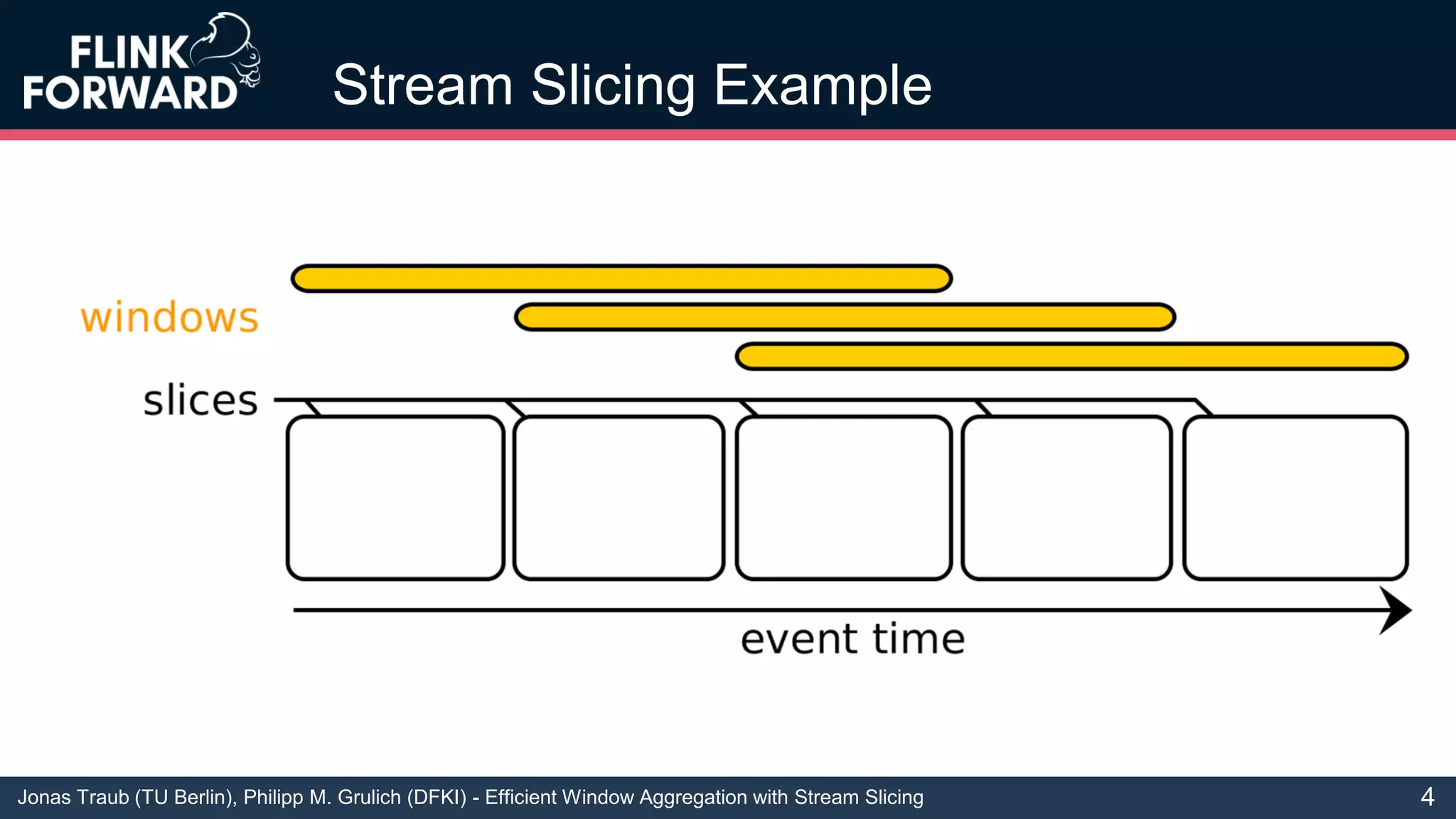

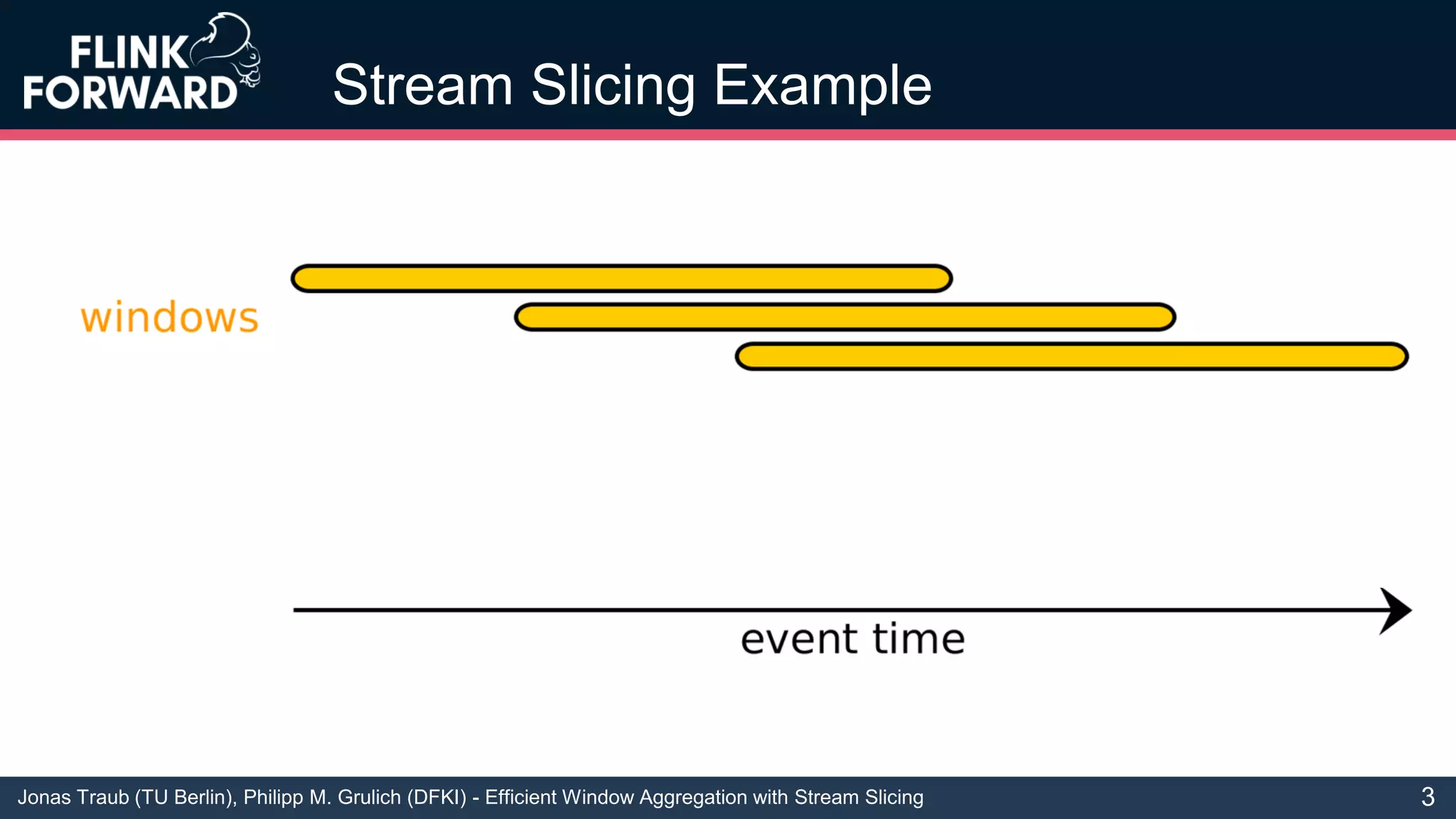

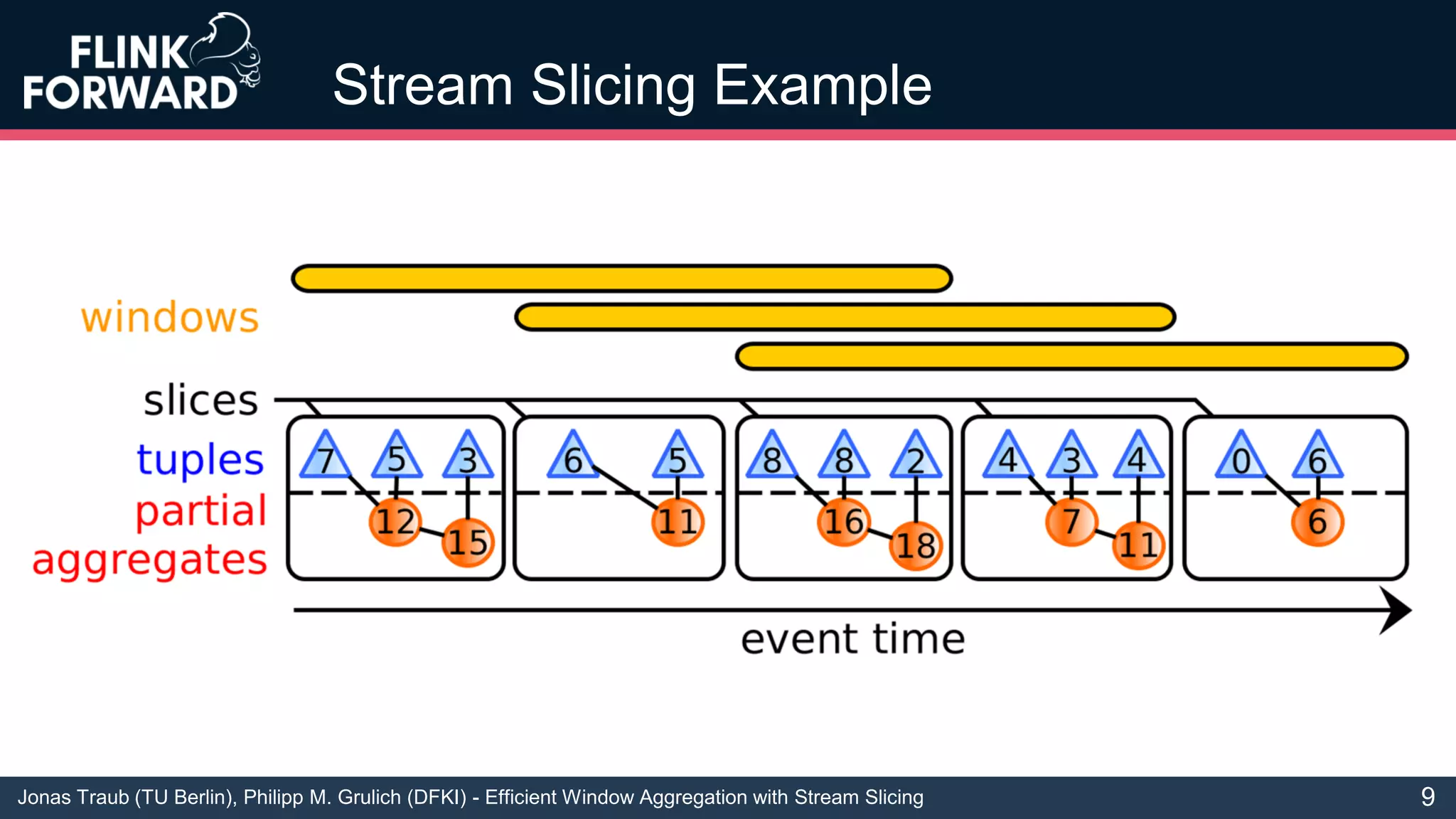

2. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
2

3. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
3

4. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
4

5. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
5

6. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
6

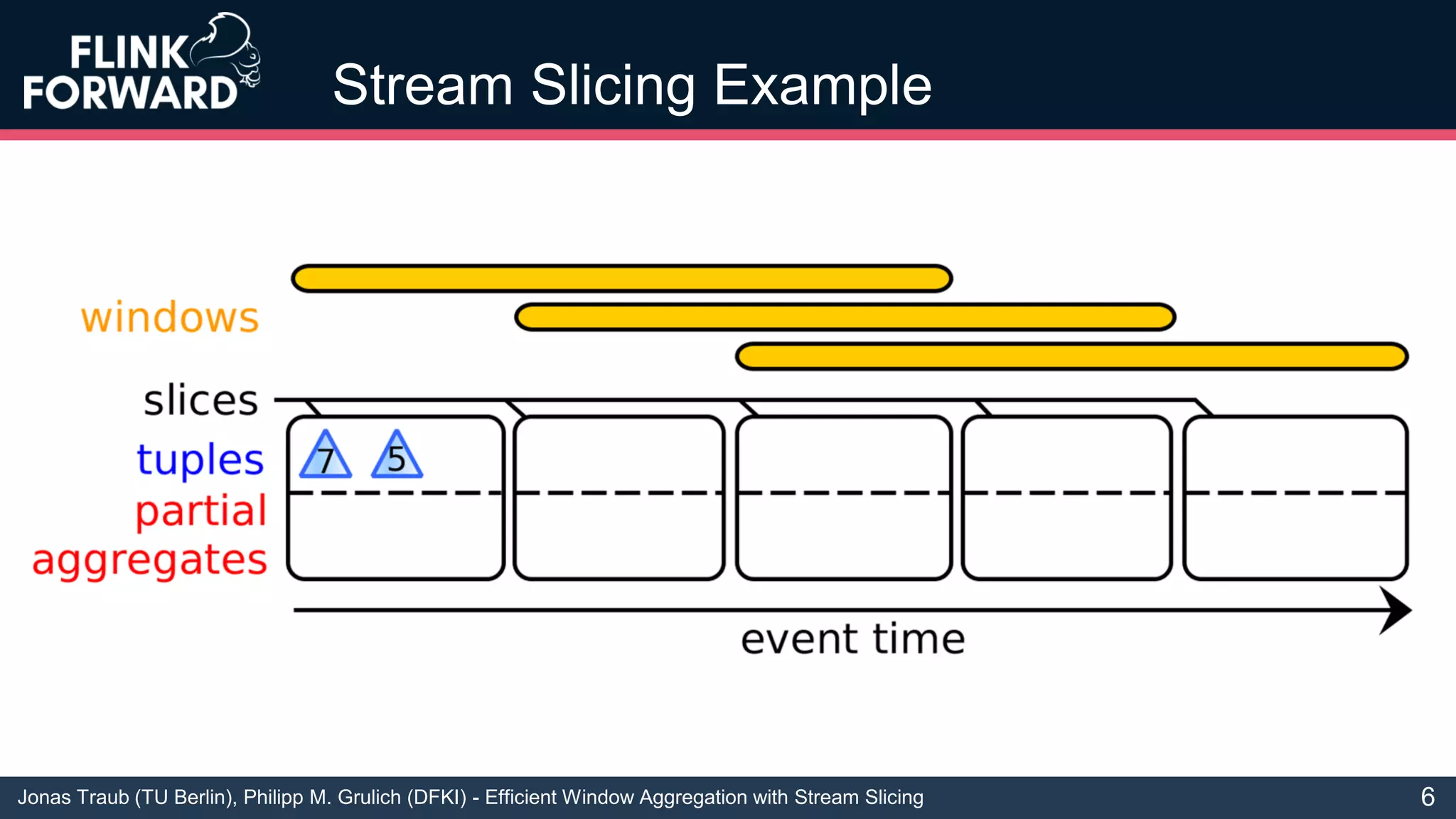

7. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
7

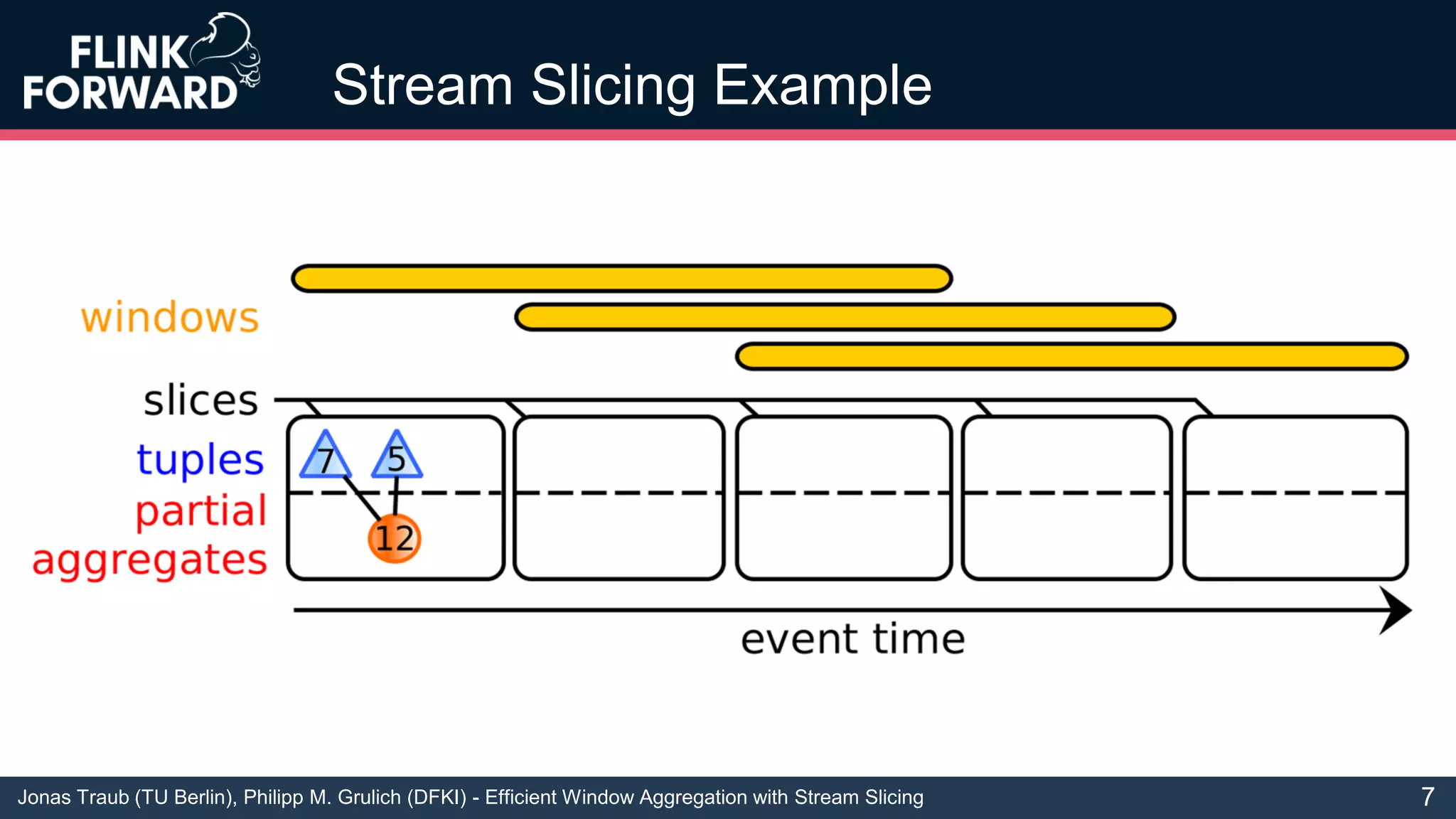

8. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
8

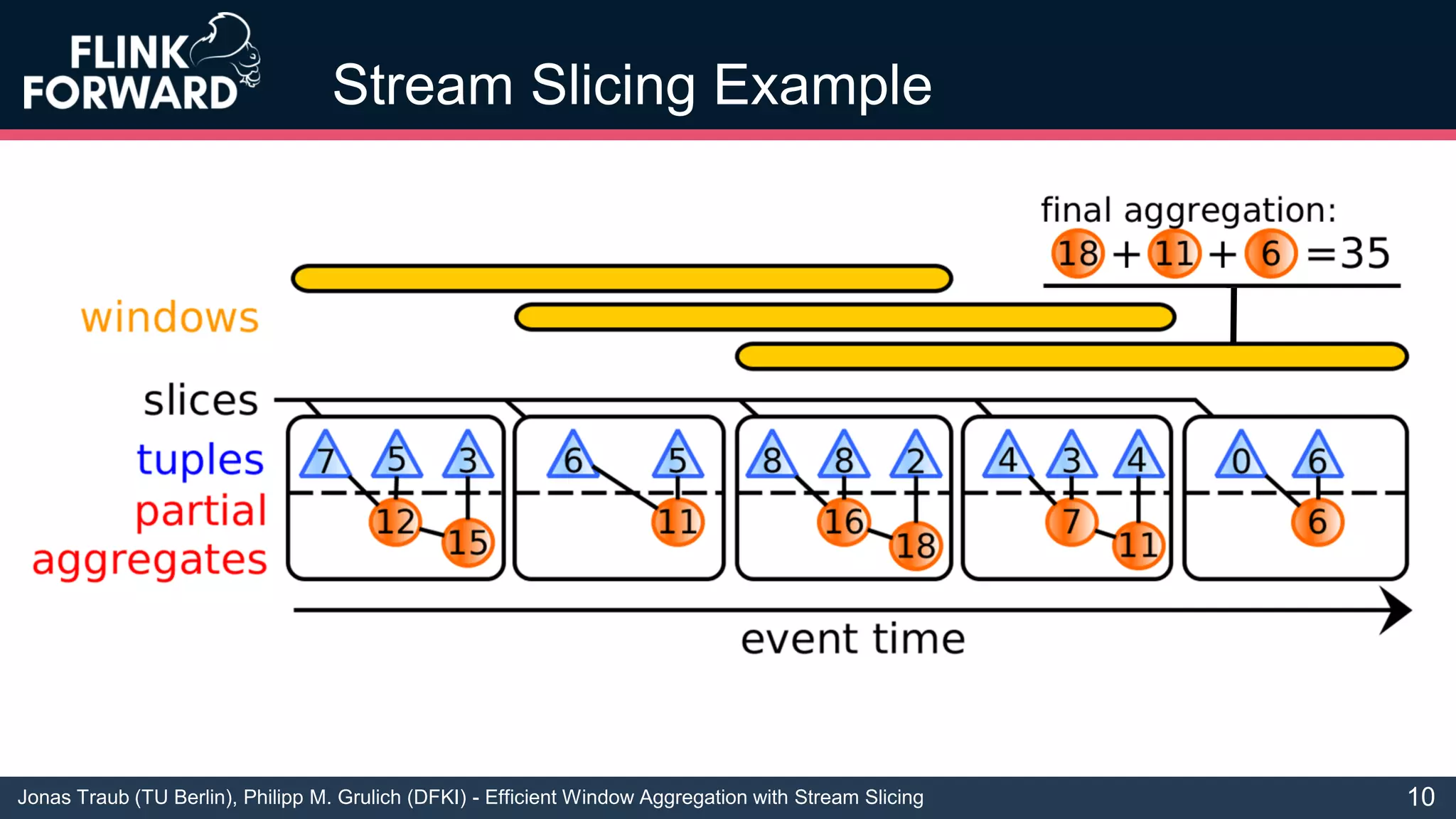

9. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
9

10. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
10

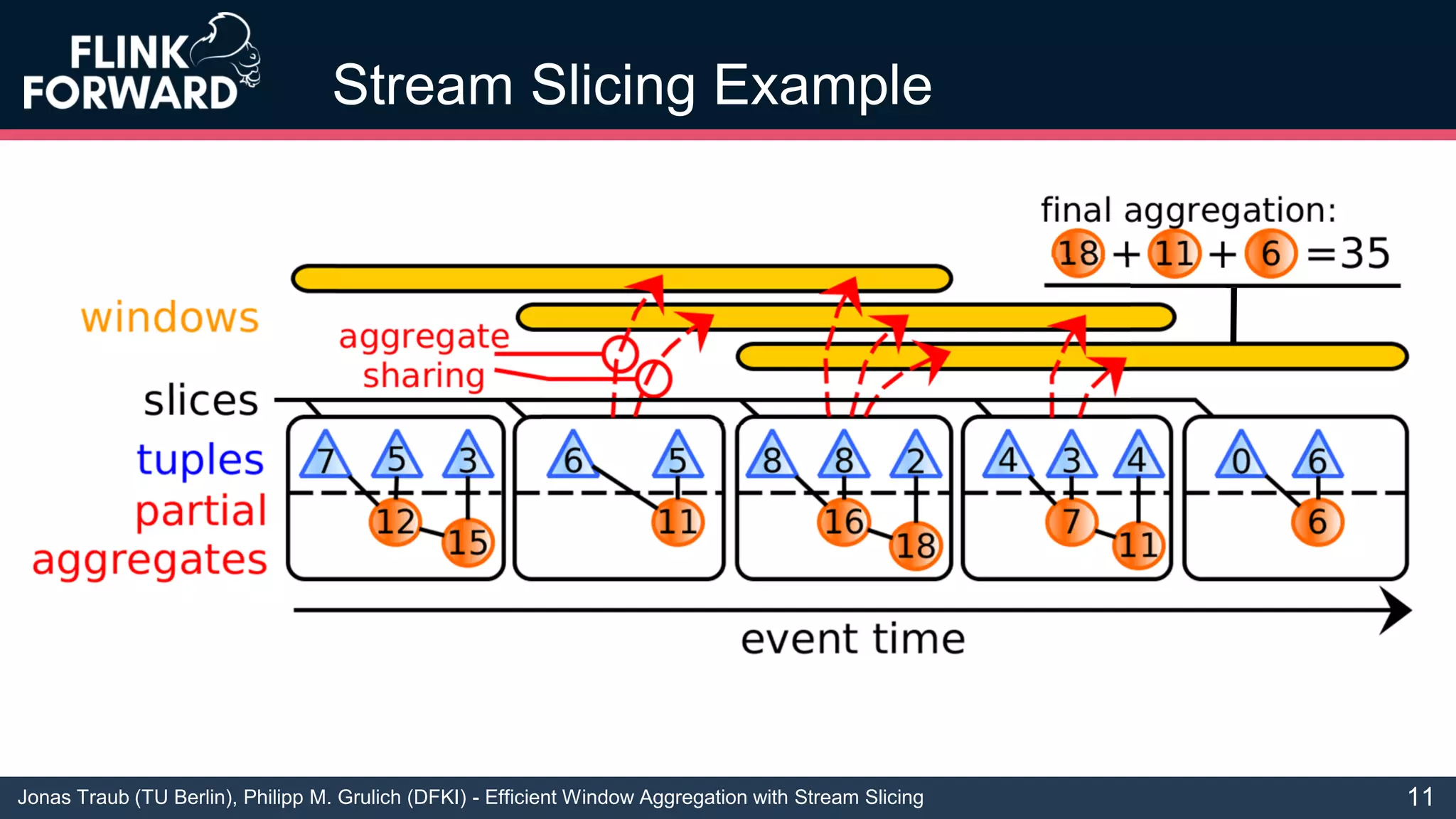

11. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Example
11

12. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

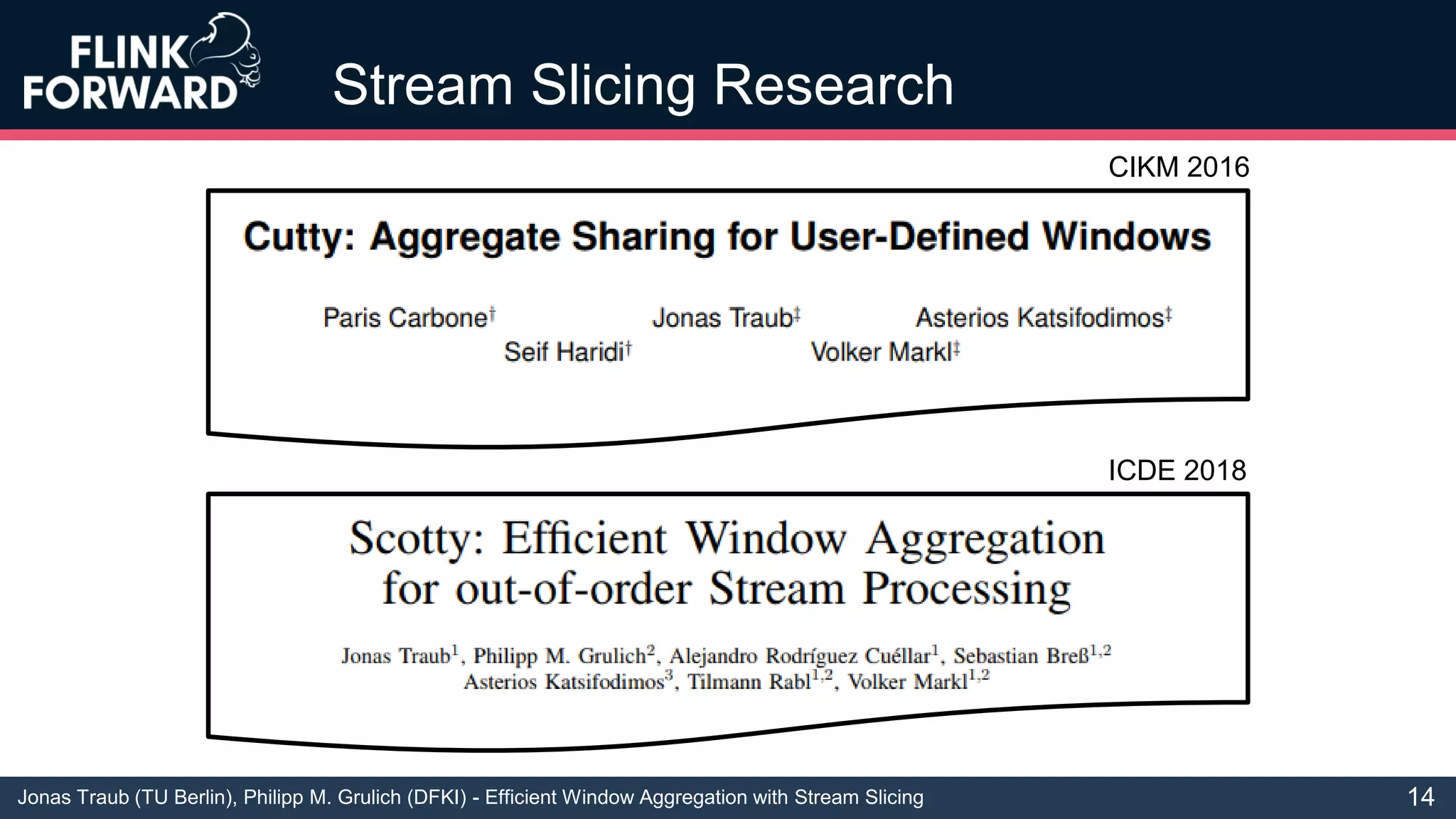

Stream Slicing Research
12

13. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Research
13

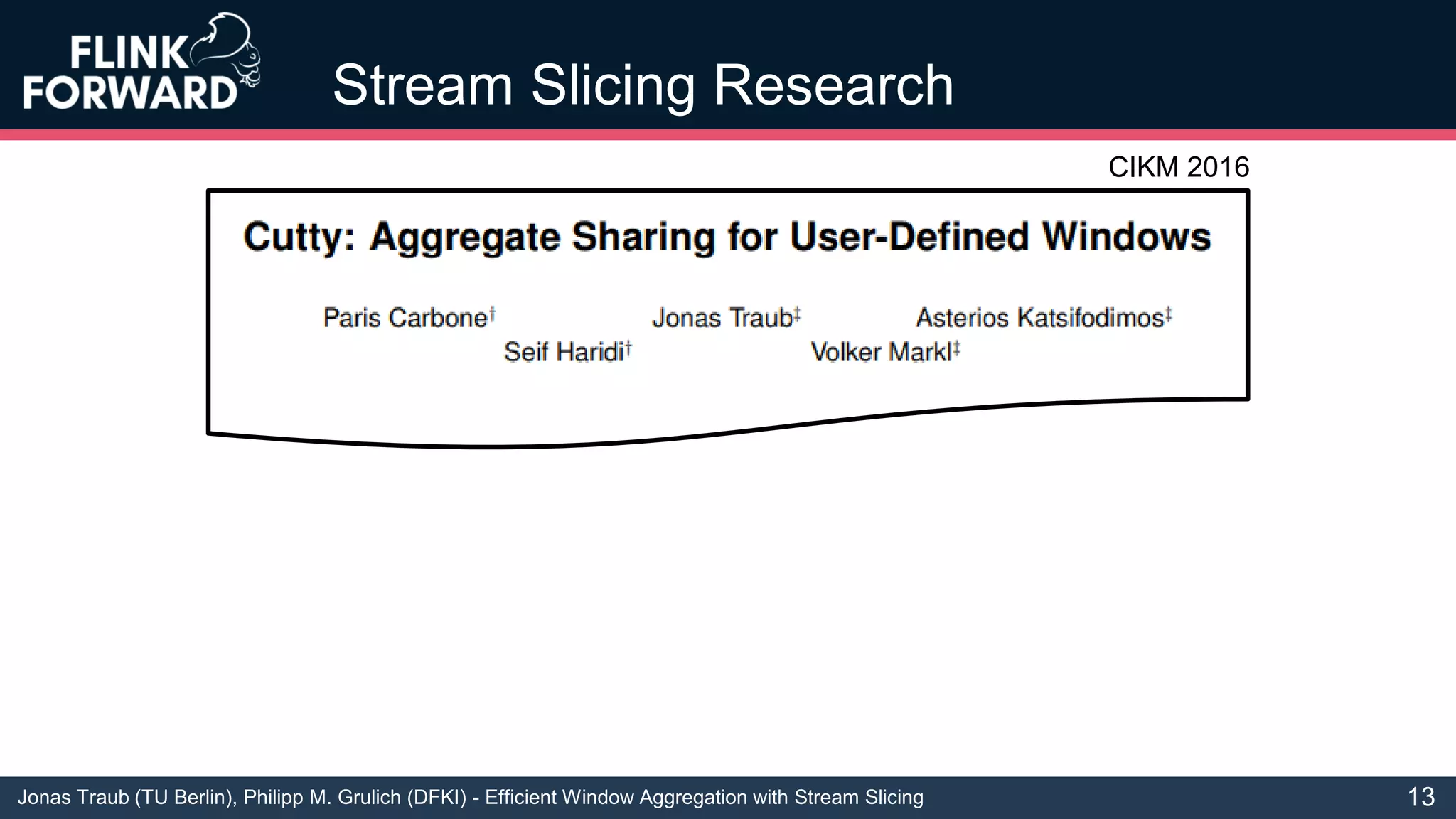

CIKM 2016

14. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Research
14
ICDE 2018
CIKM 2016

15. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

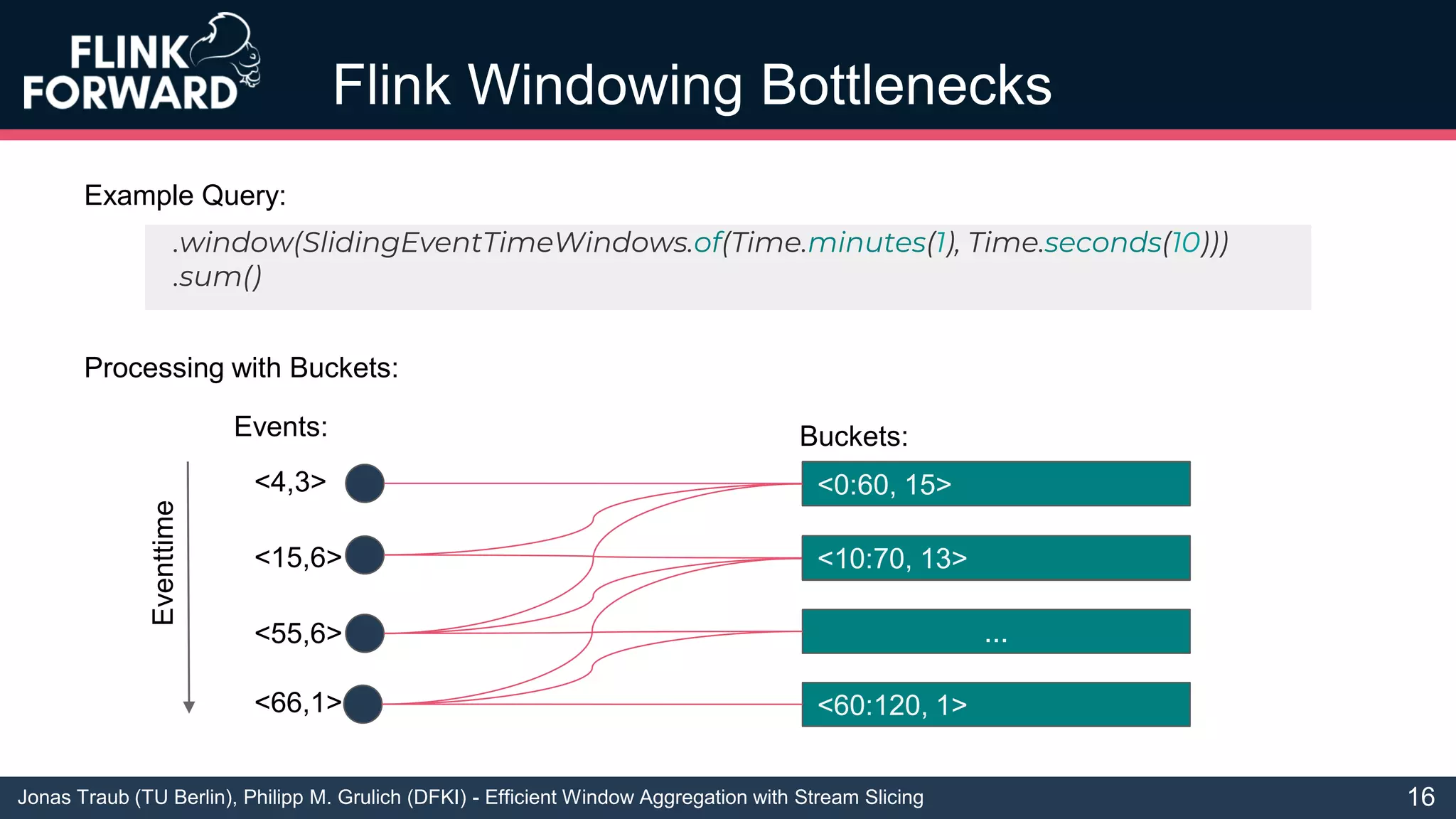

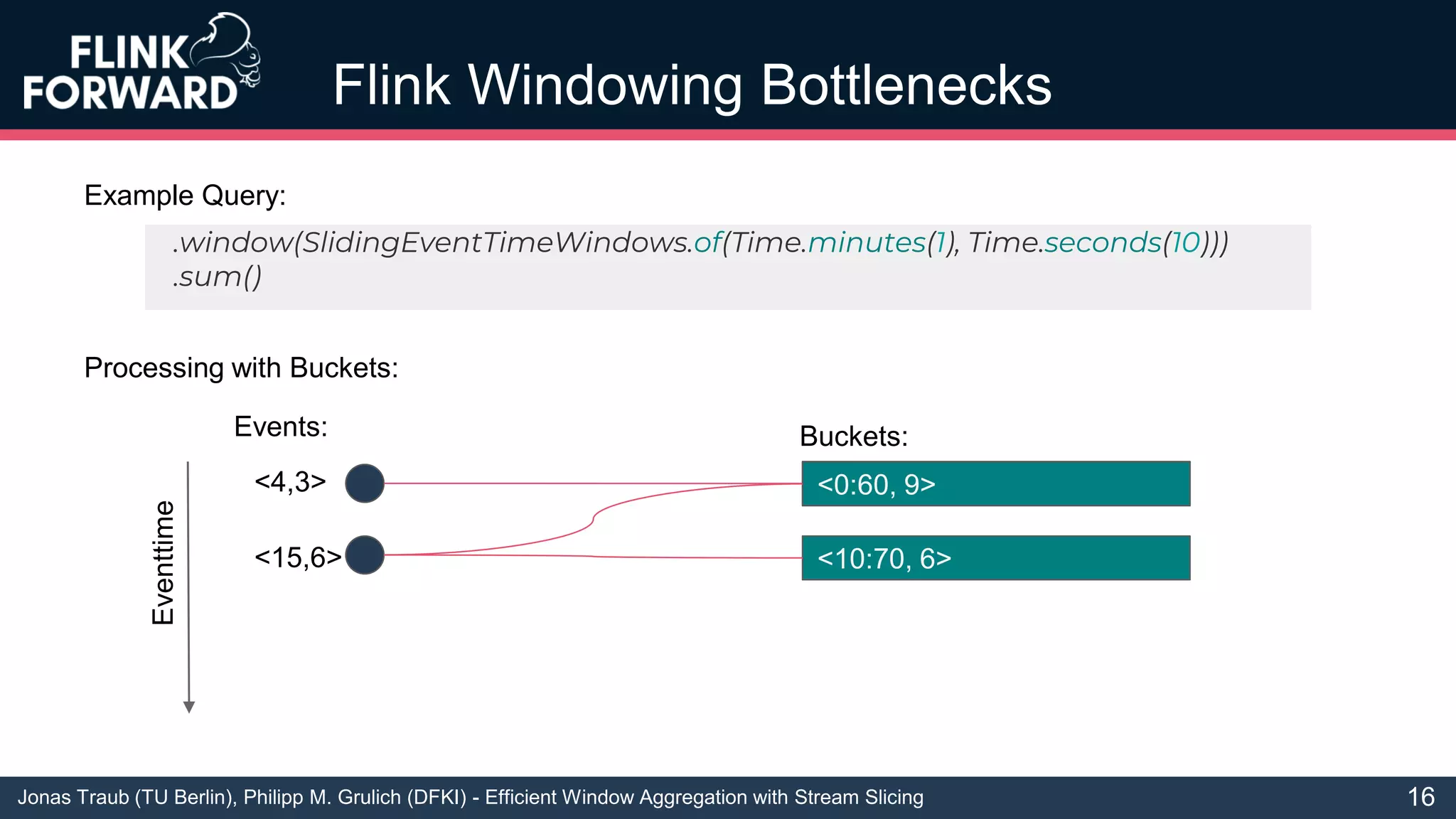

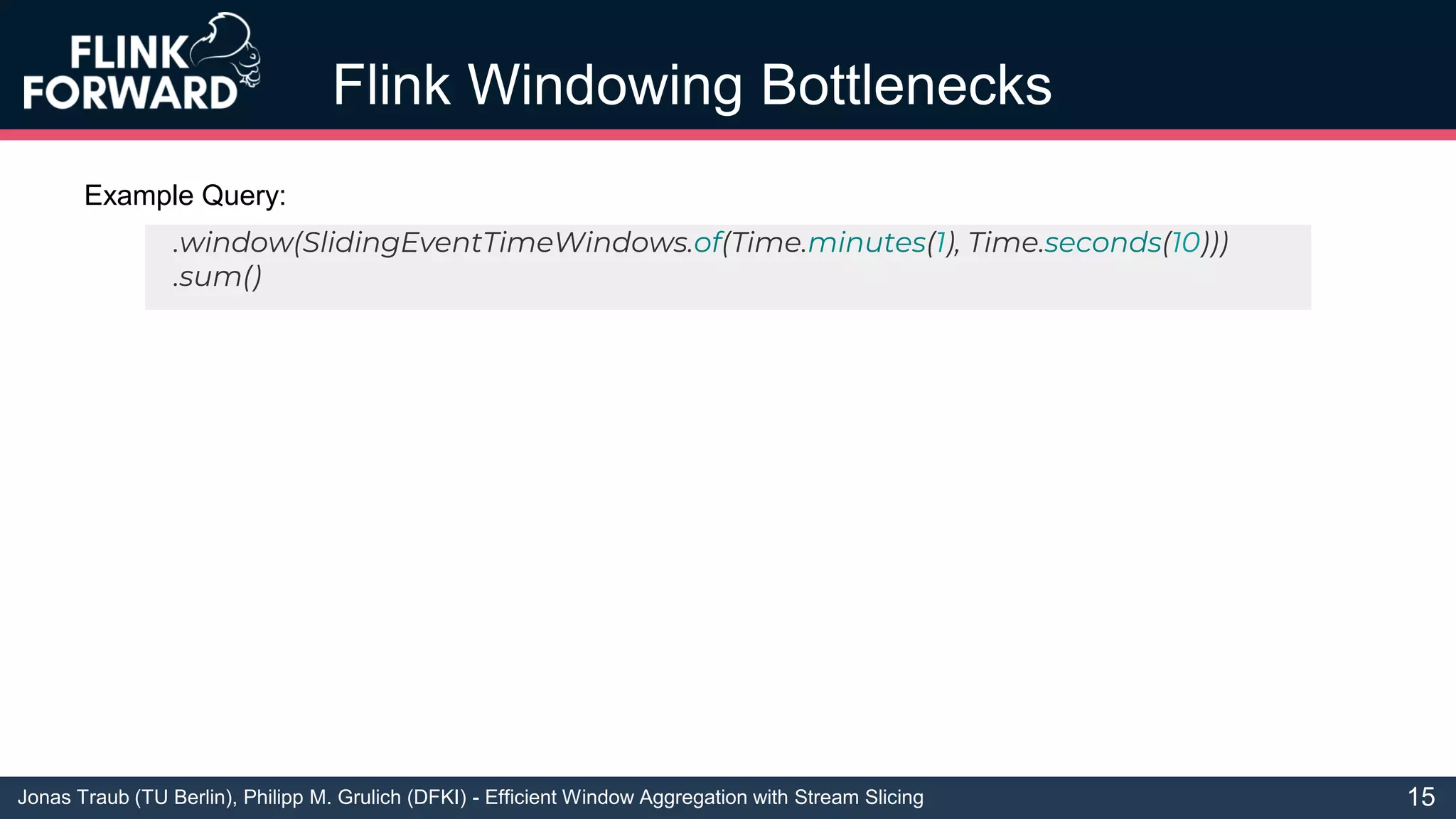

Flink Windowing Bottlenecks
15

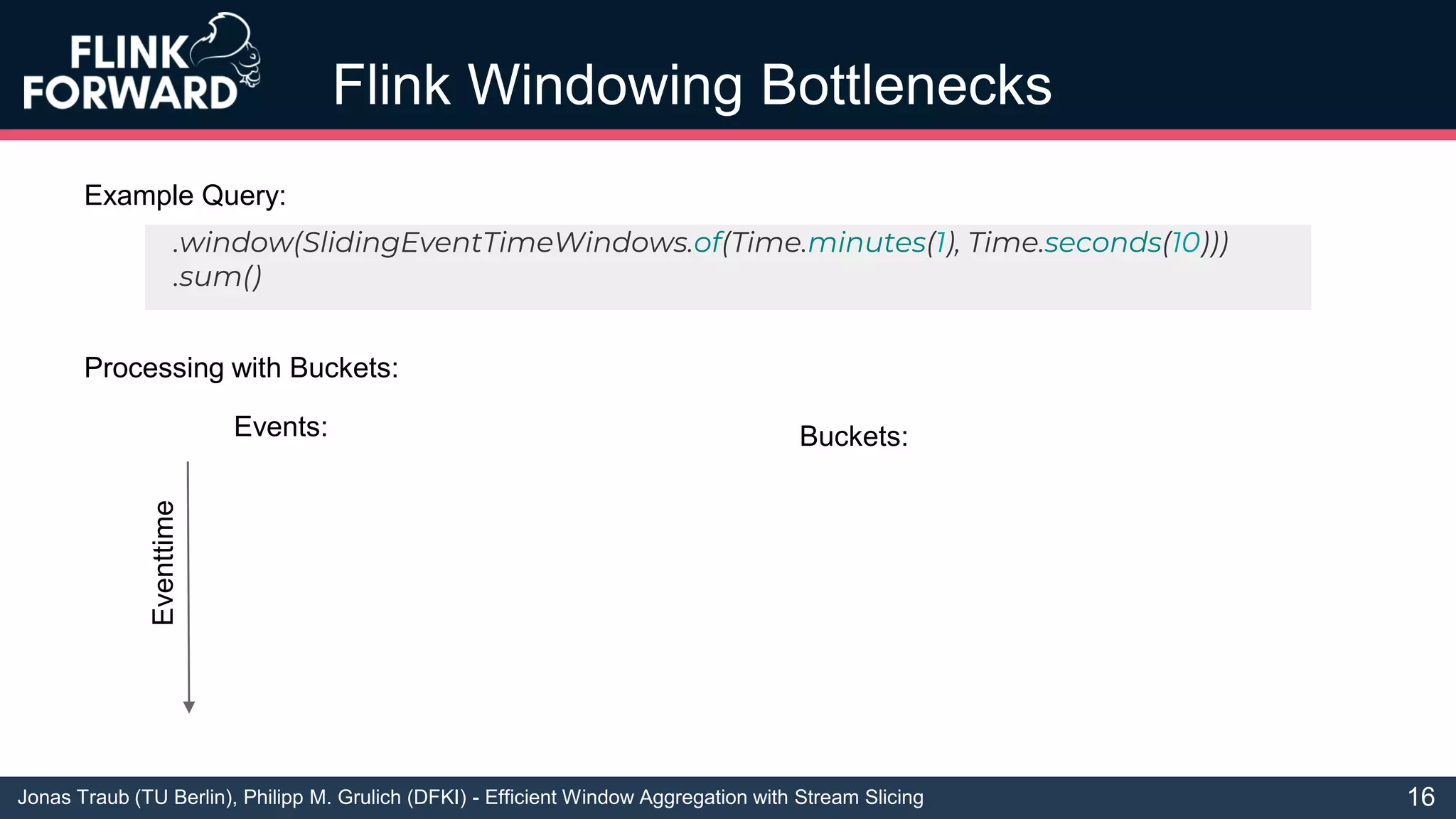

.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:

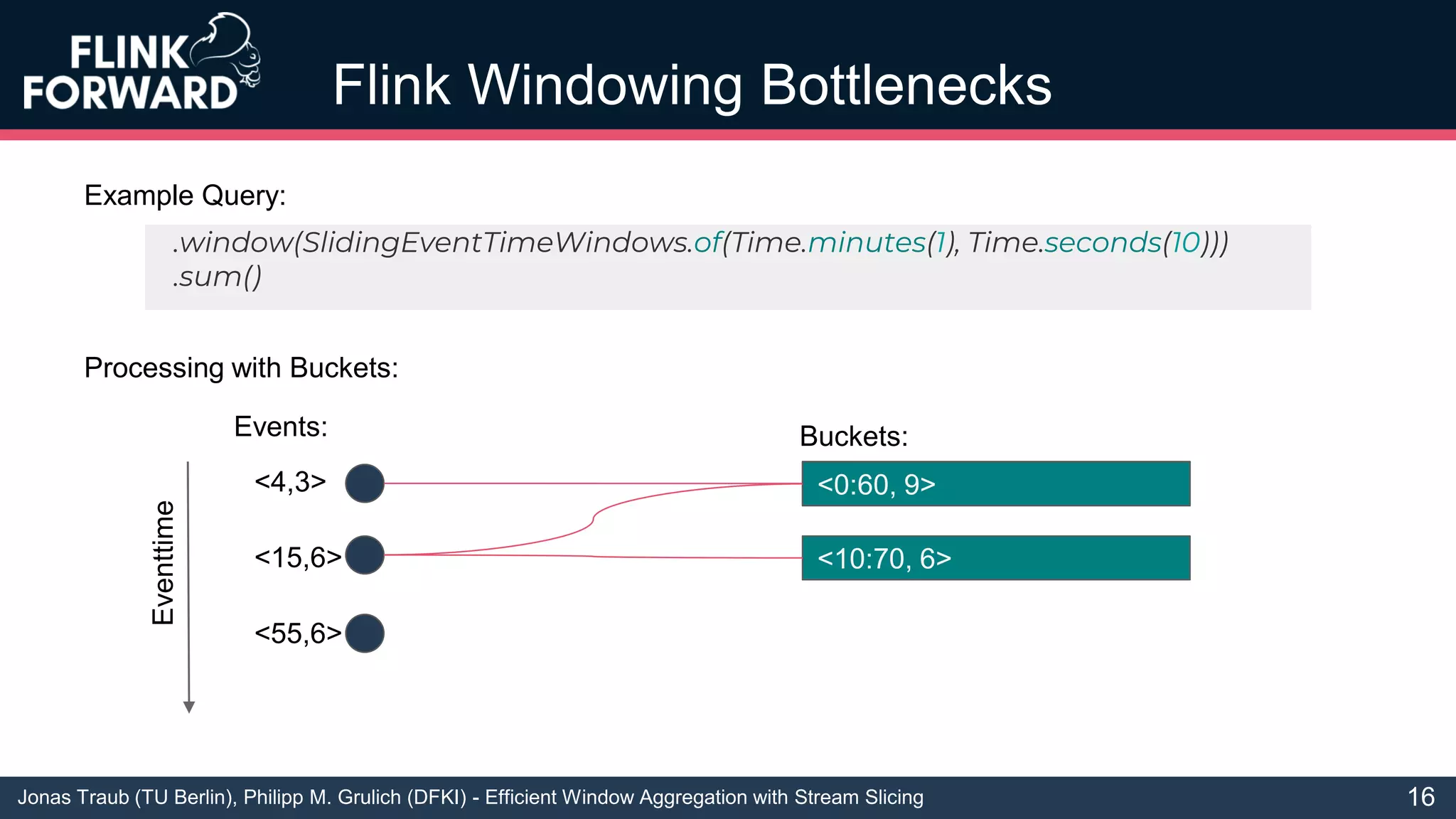

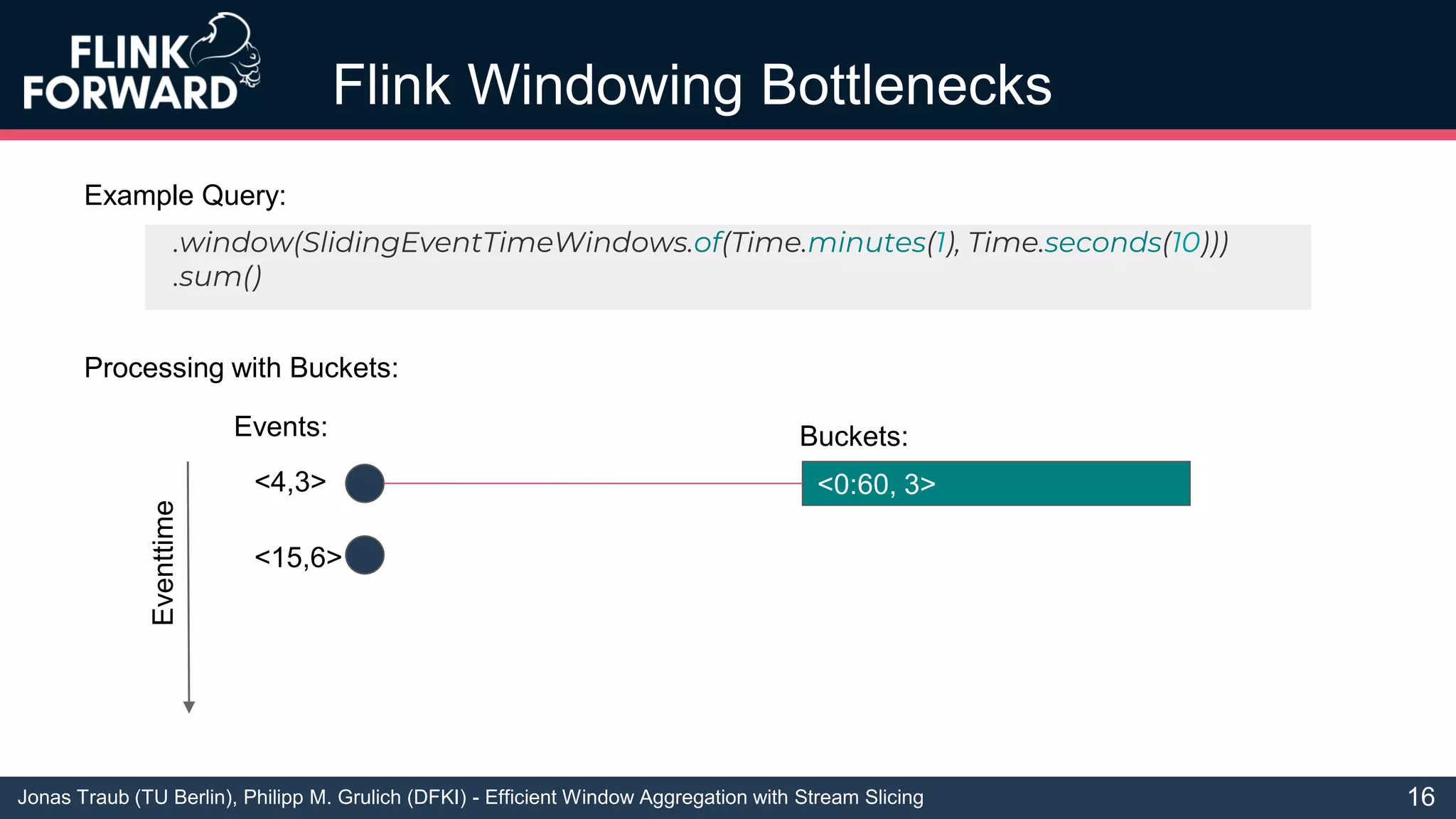

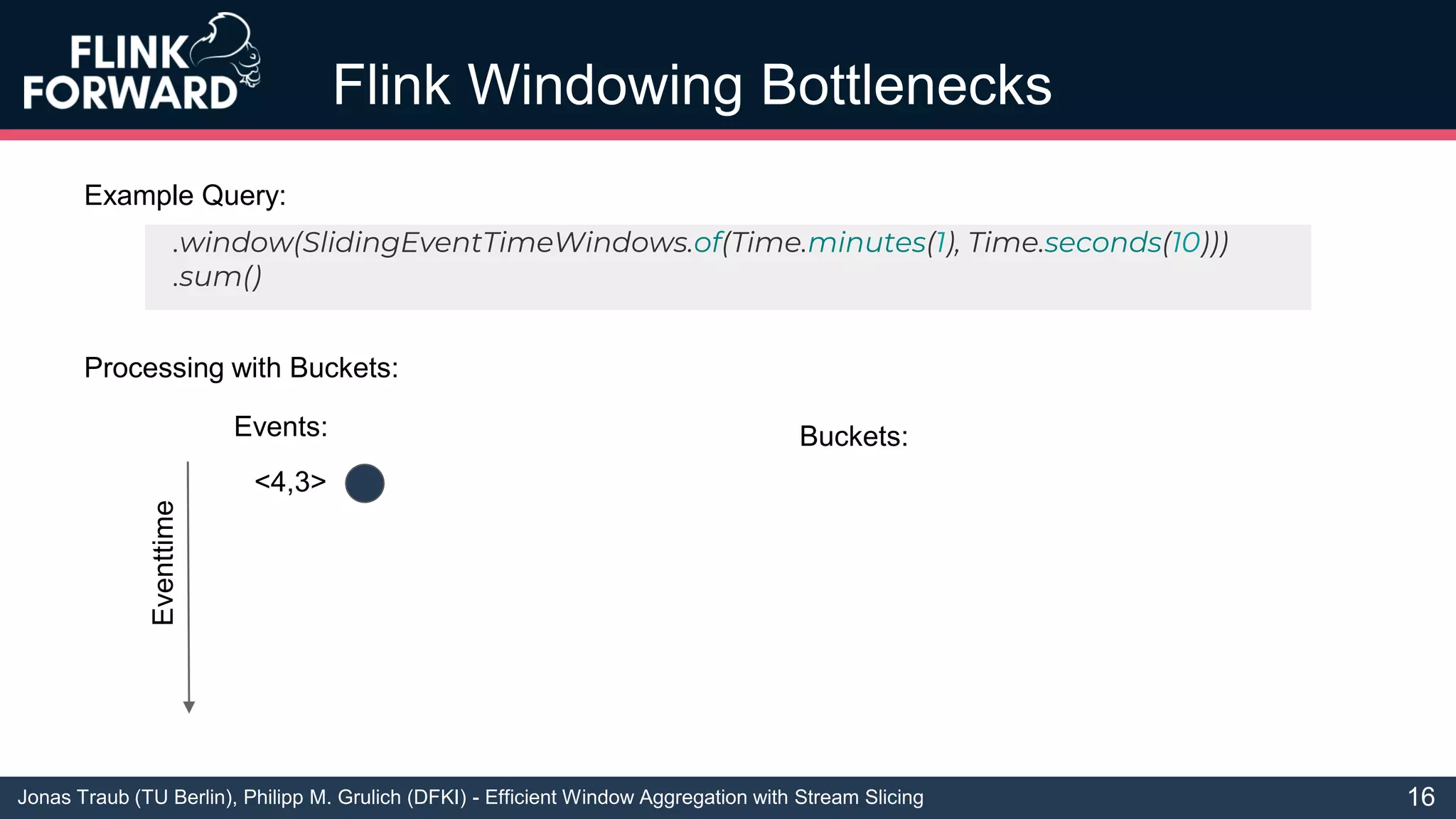

16. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:

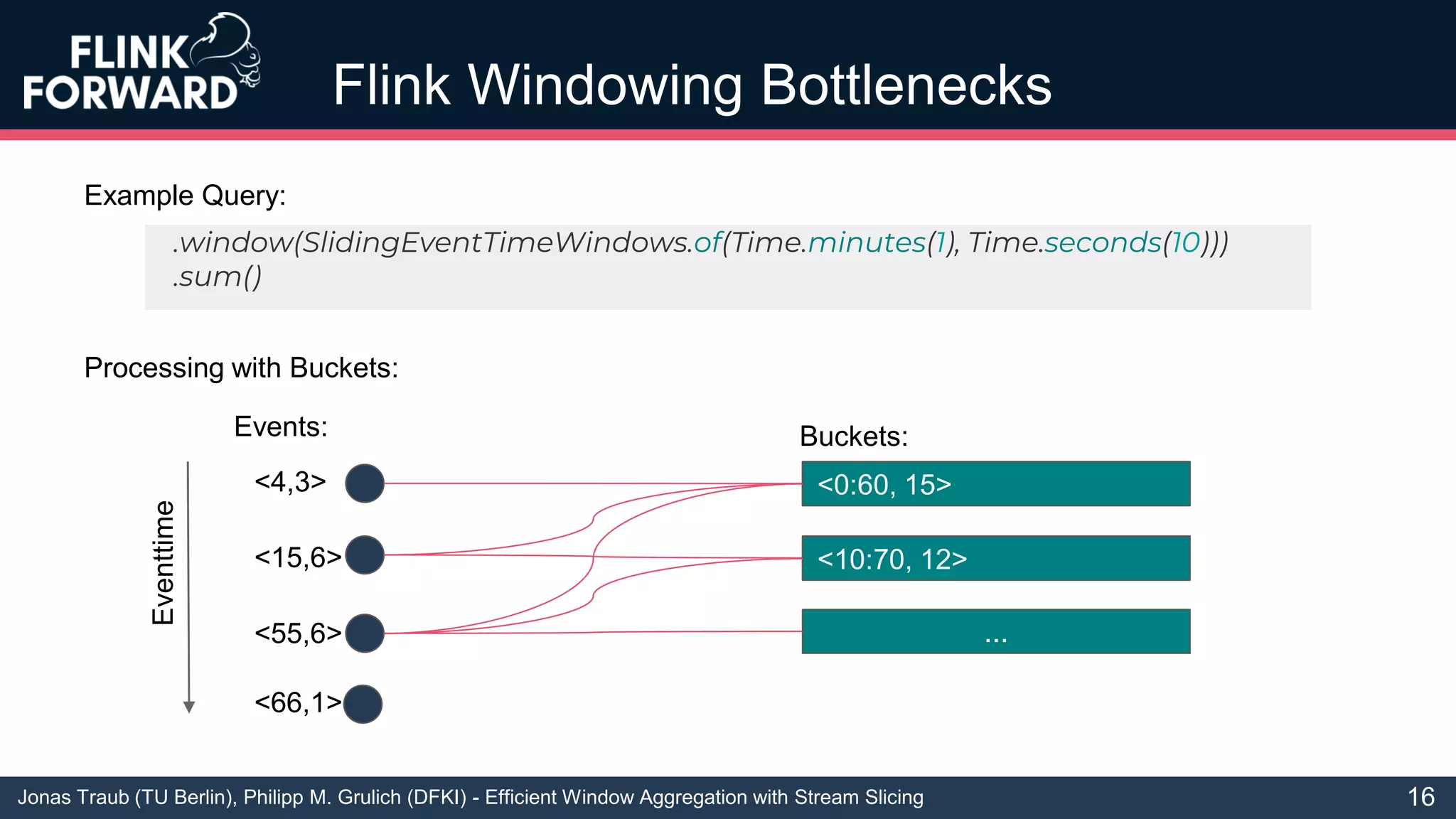

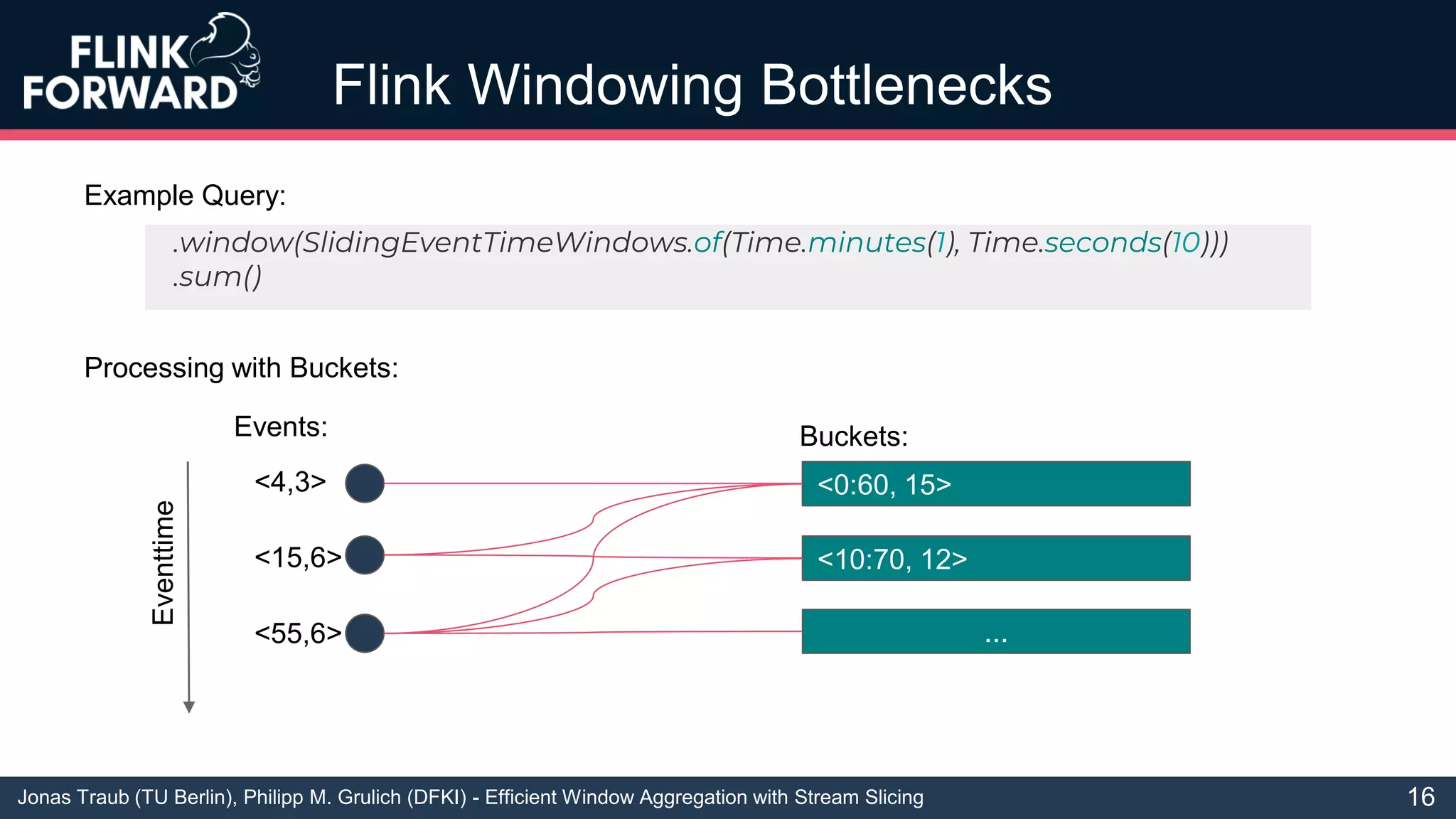

Processing with Buckets:
Events: Buckets:
Eventtime

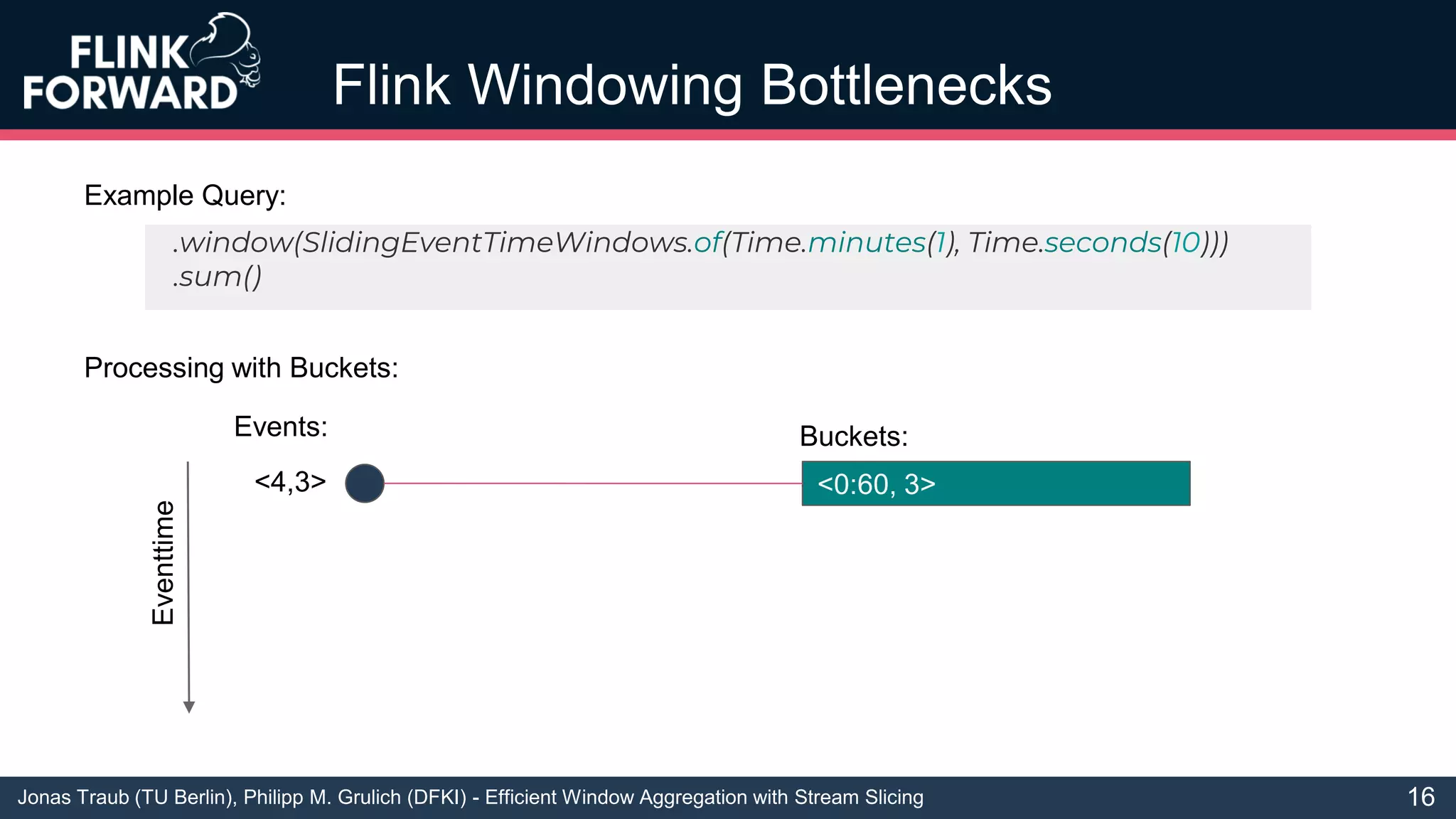

17. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<4,3>
Events: Buckets:
Eventtime

18. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3><4,3>
Events: Buckets:
Eventtime

19. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3><4,3>
<15,6>
Events: Buckets:
Eventtime

20. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
<4,3>
<15,6>
<0:60, 9>
Events: Buckets:
Eventtime

21. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
<4,3>
<15,6>
<0:60, 9>
<55,6>
Events: Buckets:
Eventtime

22. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
...
<4,3>
<15,6>
<0:60, 9>
<55,6>
<0:60, 15>
<10:70, 12>
Events: Buckets:
Eventtime

23. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
...
<4,3>
<15,6>
<0:60, 9>
<55,6>
<0:60, 15>
<10:70, 12>
<66,1>
Events: Buckets:
Eventtime

24. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
16
.window(SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)))
.sum()
Example Query:
Processing with Buckets:
<0:60, 3>
<10:70, 6>
...
<60:120, 1>
<4,3>
<15,6>
<0:60, 9>
<55,6>
<0:60, 15>
<10:70, 12>
<66,1>
<10:70, 13>
Events: Buckets:
Eventtime

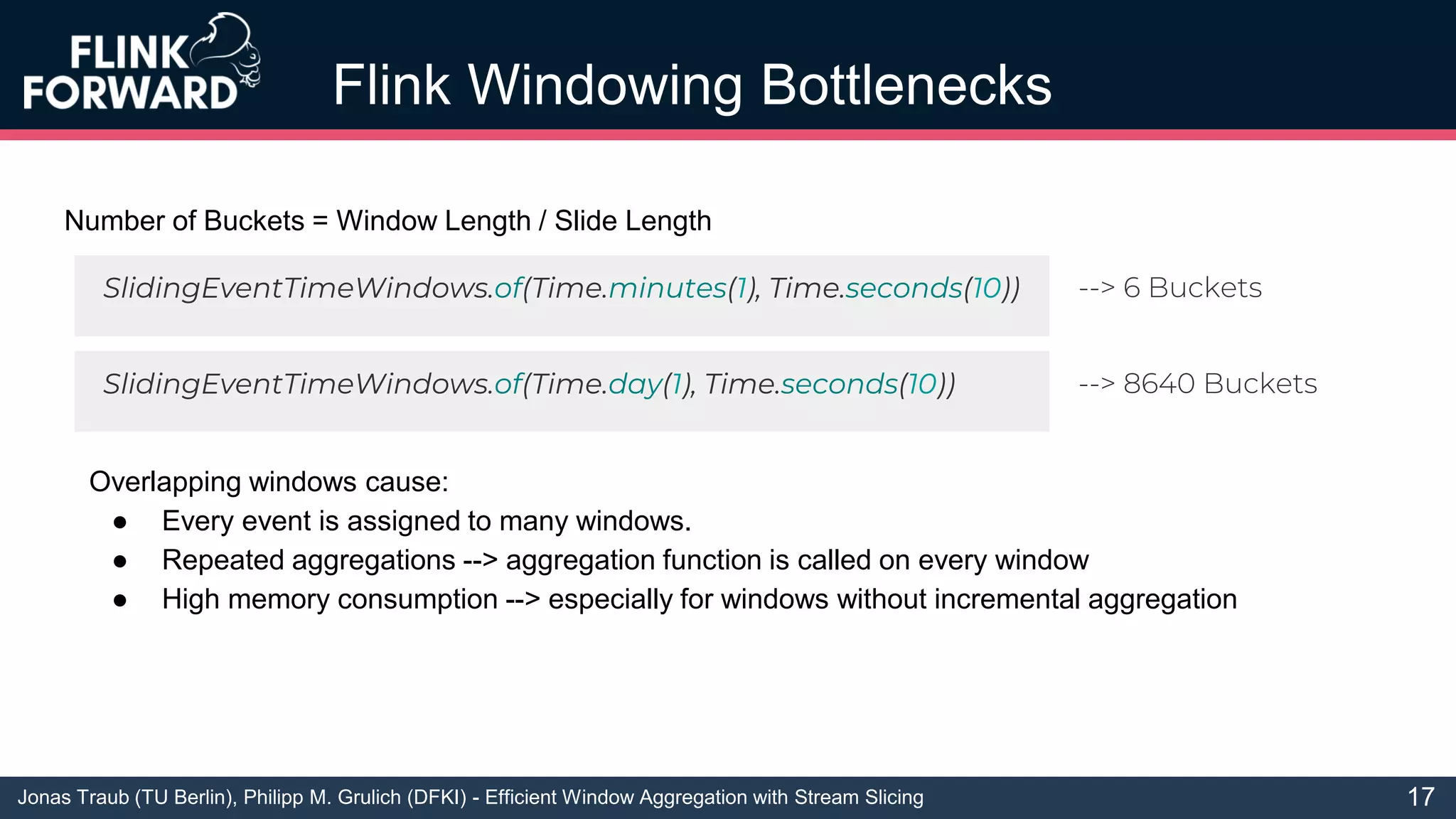

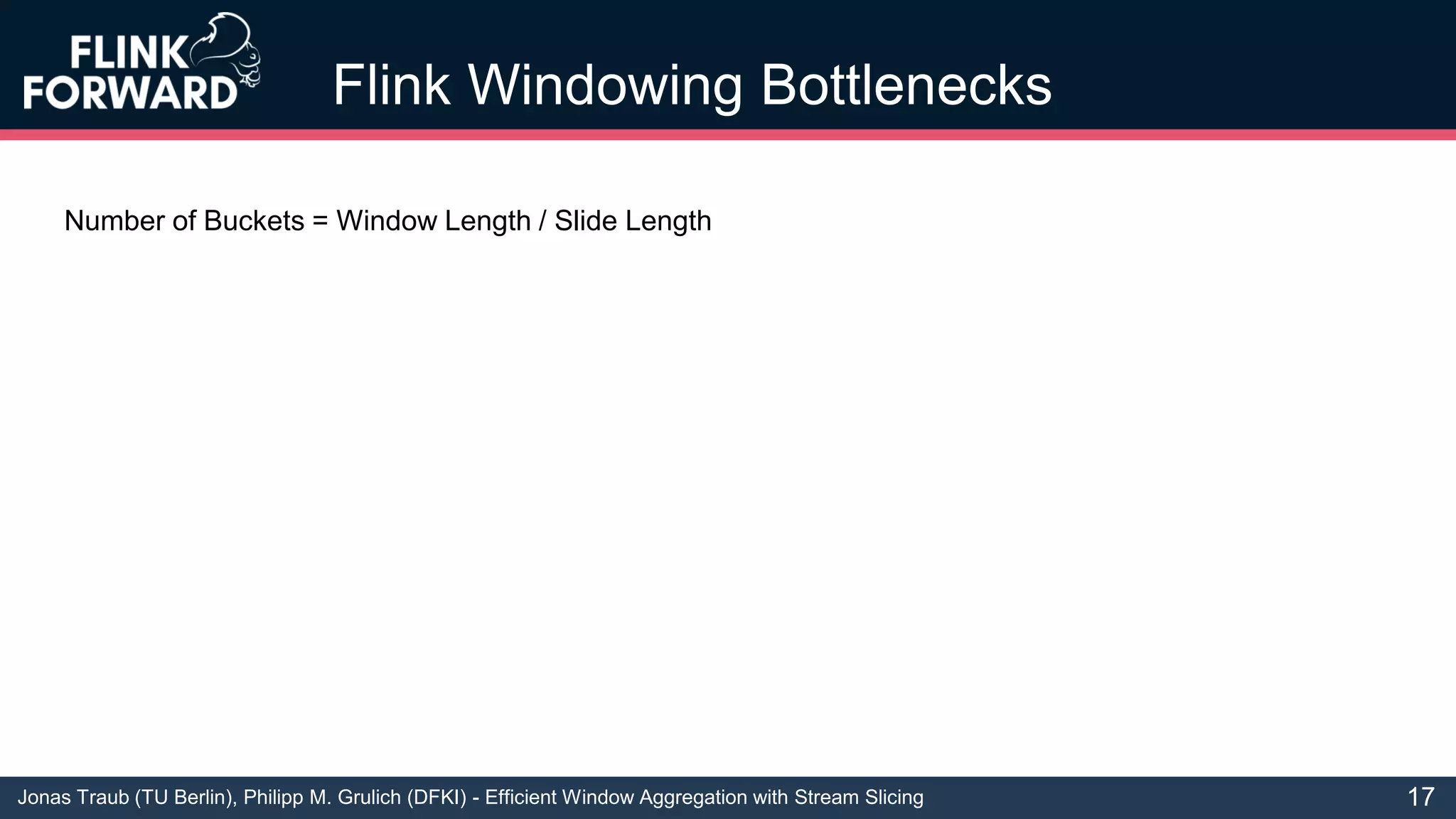

25. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

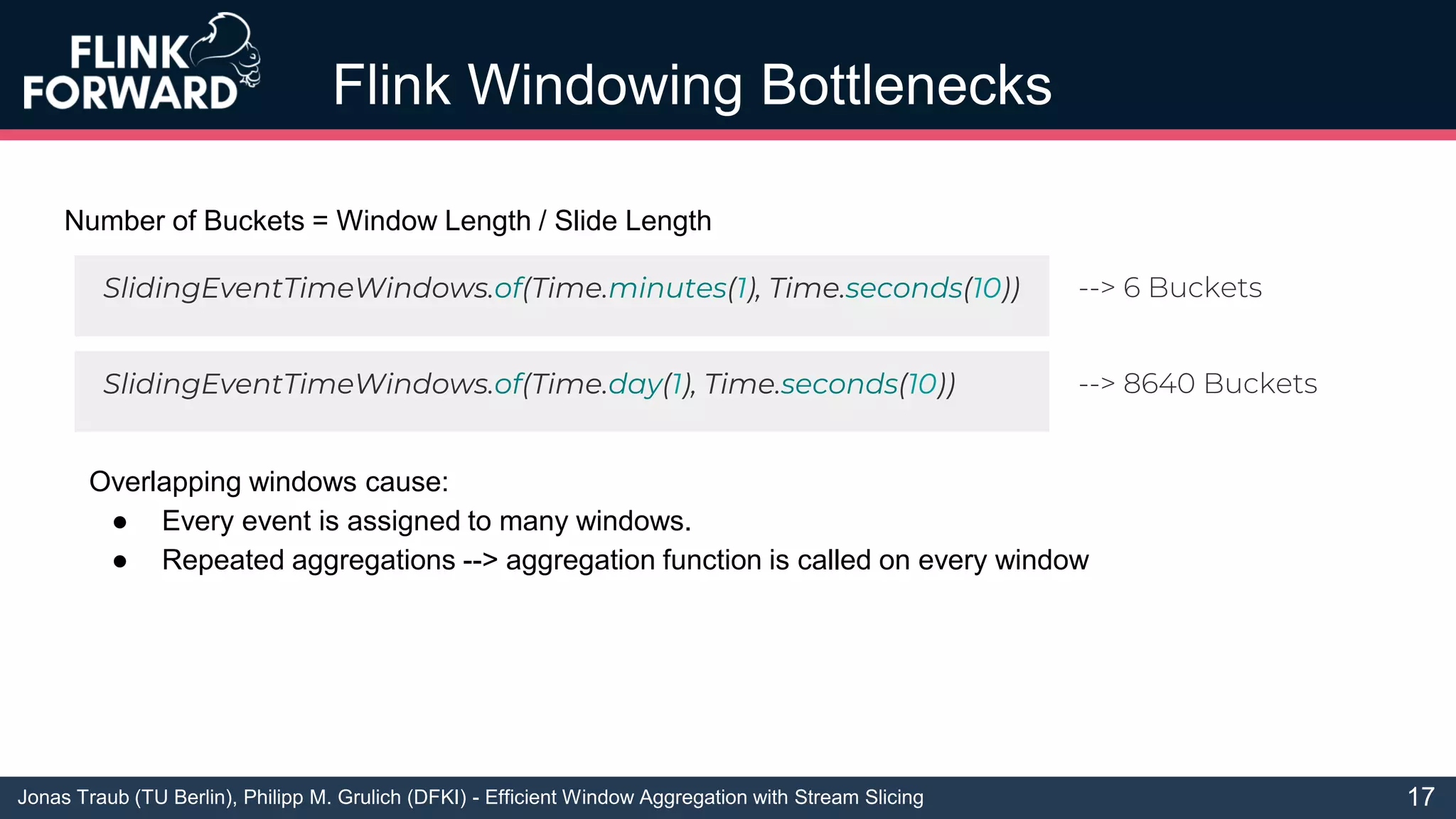

Flink Windowing Bottlenecks
17

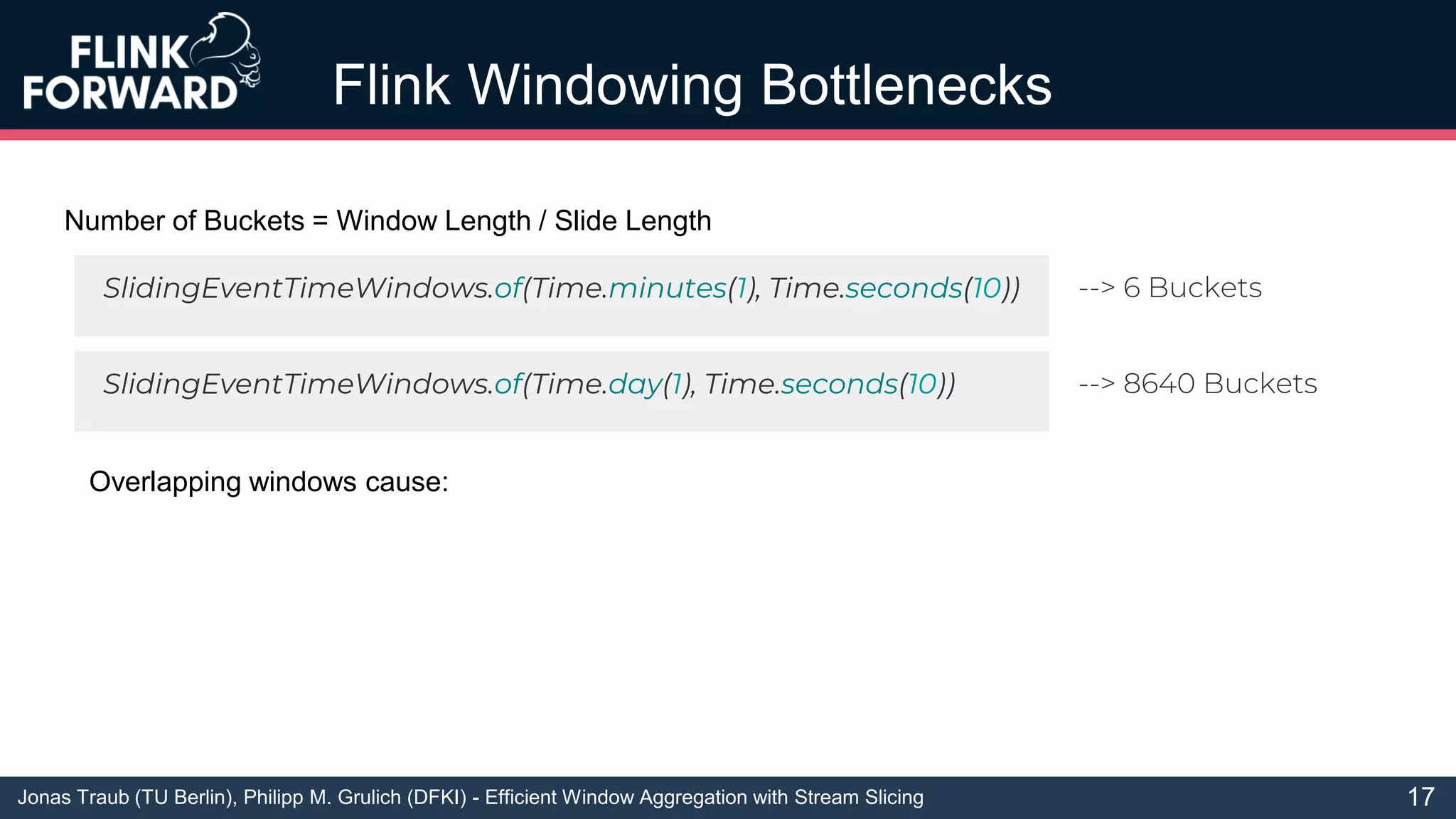

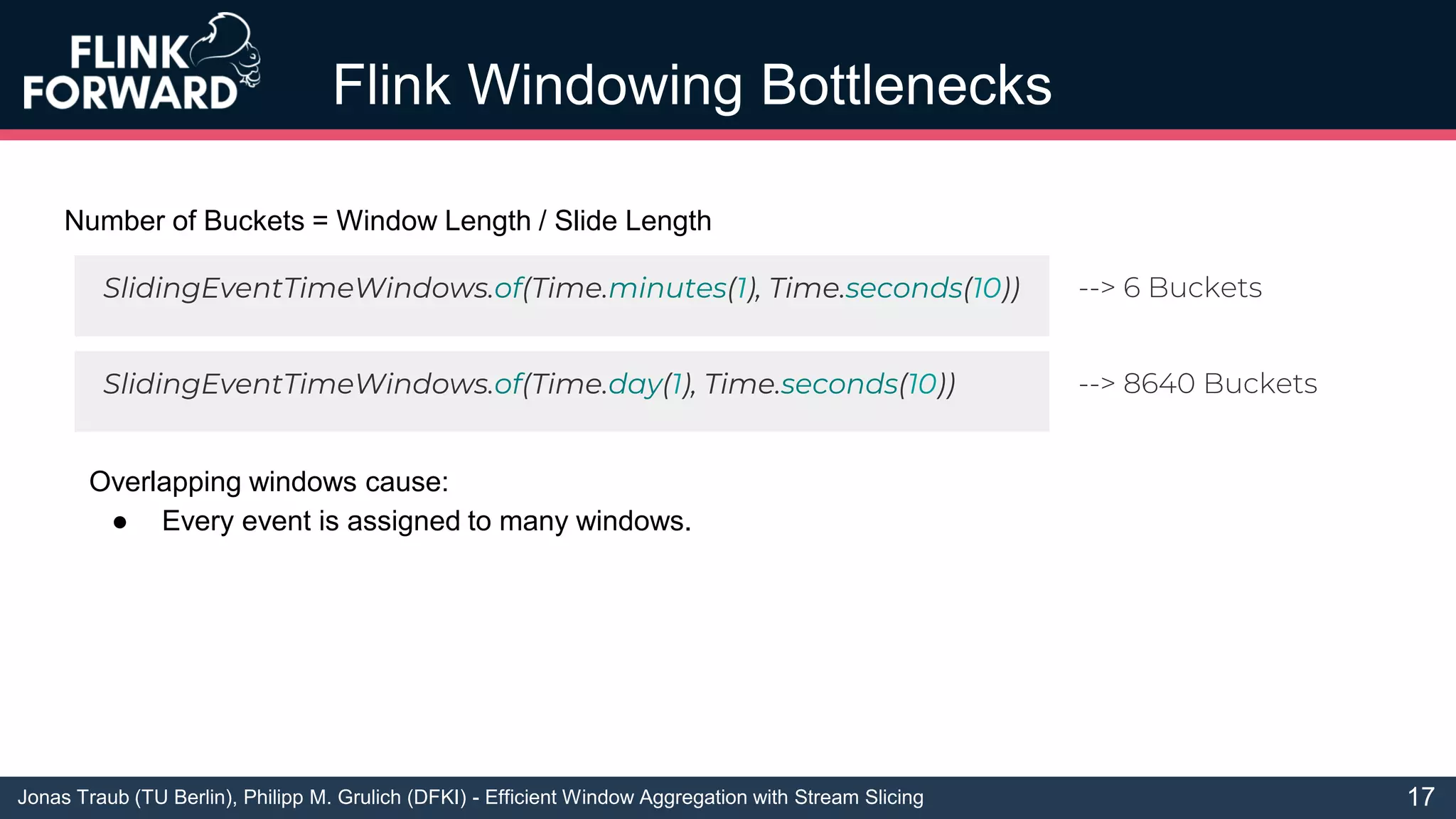

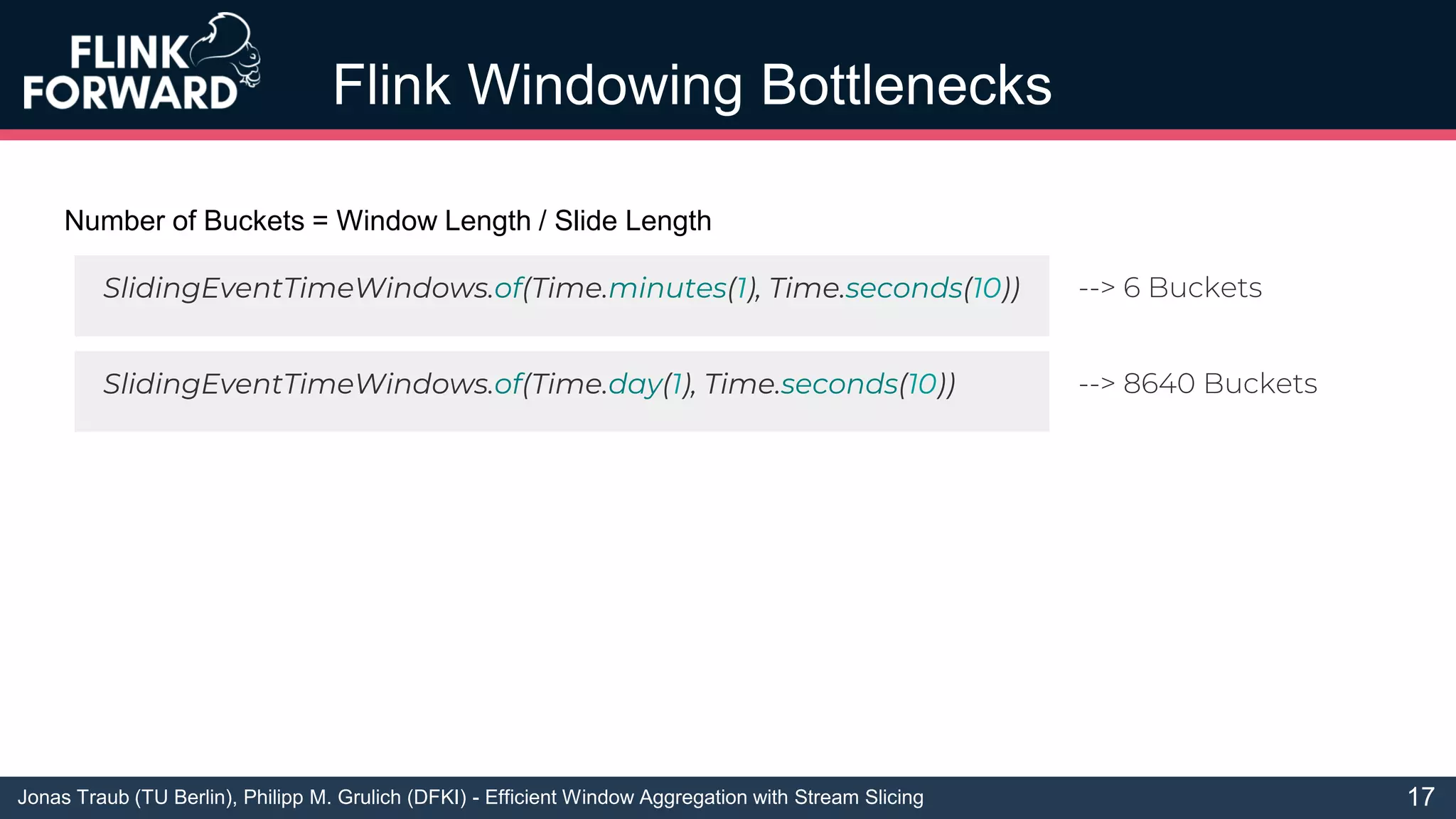

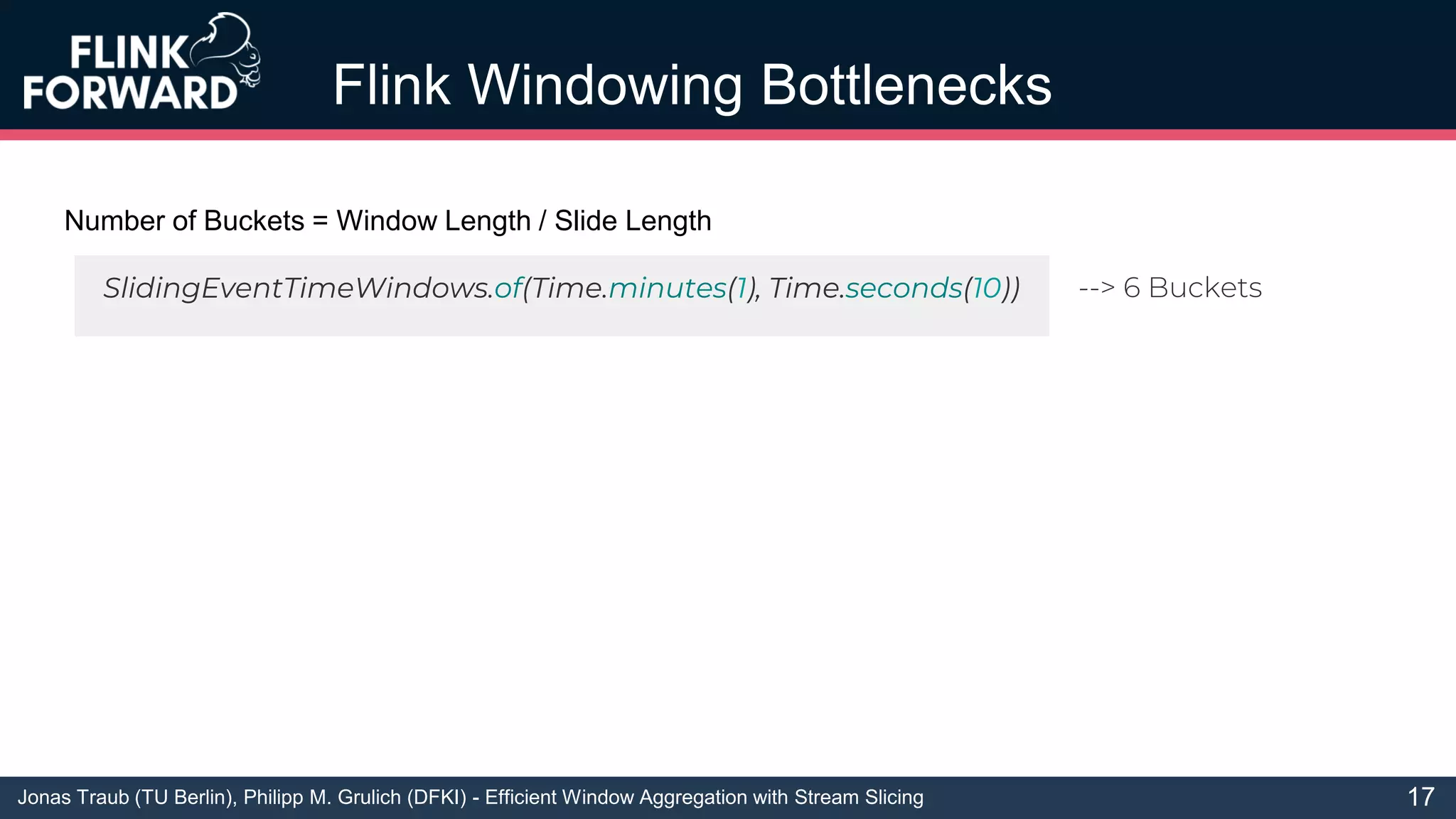

Number of Buckets = Window Length / Slide Length

26. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10)) --> 6 Buckets

27. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets

28. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:

29. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:

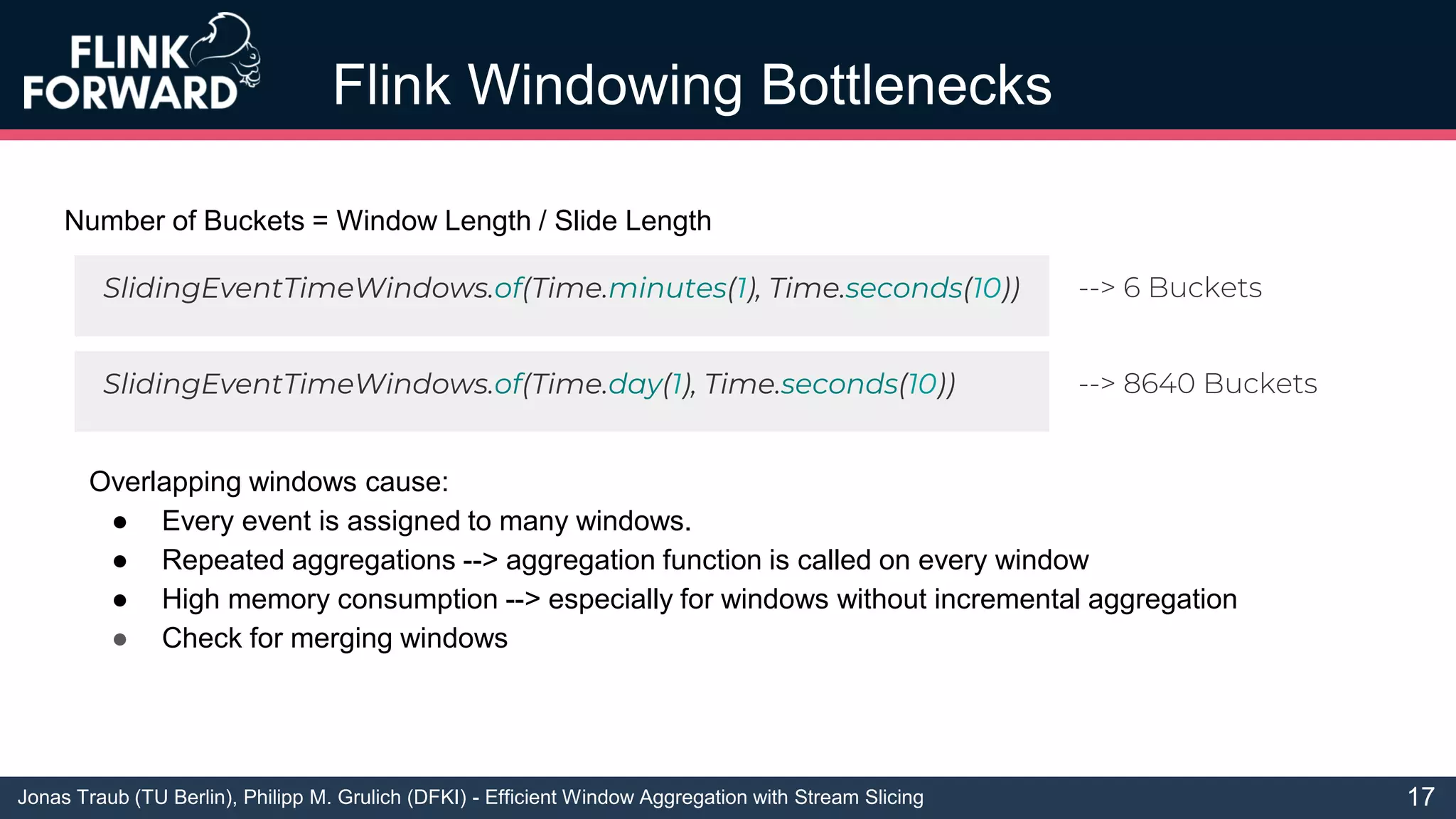

● Every event is assigned to many windows.

30. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
● Repeated aggregations --> aggregation function is called on every window

31. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
● Repeated aggregations --> aggregation function is called on every window
● High memory consumption --> especially for windows without incremental aggregation

32. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Flink Windowing Bottlenecks
17
Number of Buckets = Window Length / Slide Length
SlidingEventTimeWindows.of(Time.minutes(1), Time.seconds(10))
SlidingEventTimeWindows.of(Time.day(1), Time.seconds(10))
--> 6 Buckets
--> 8640 Buckets
Overlapping windows cause:
● Every event is assigned to many windows.
● Repeated aggregations --> aggregation function is called on every window
● High memory consumption --> especially for windows without incremental aggregation
● Check for merging windows

33. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

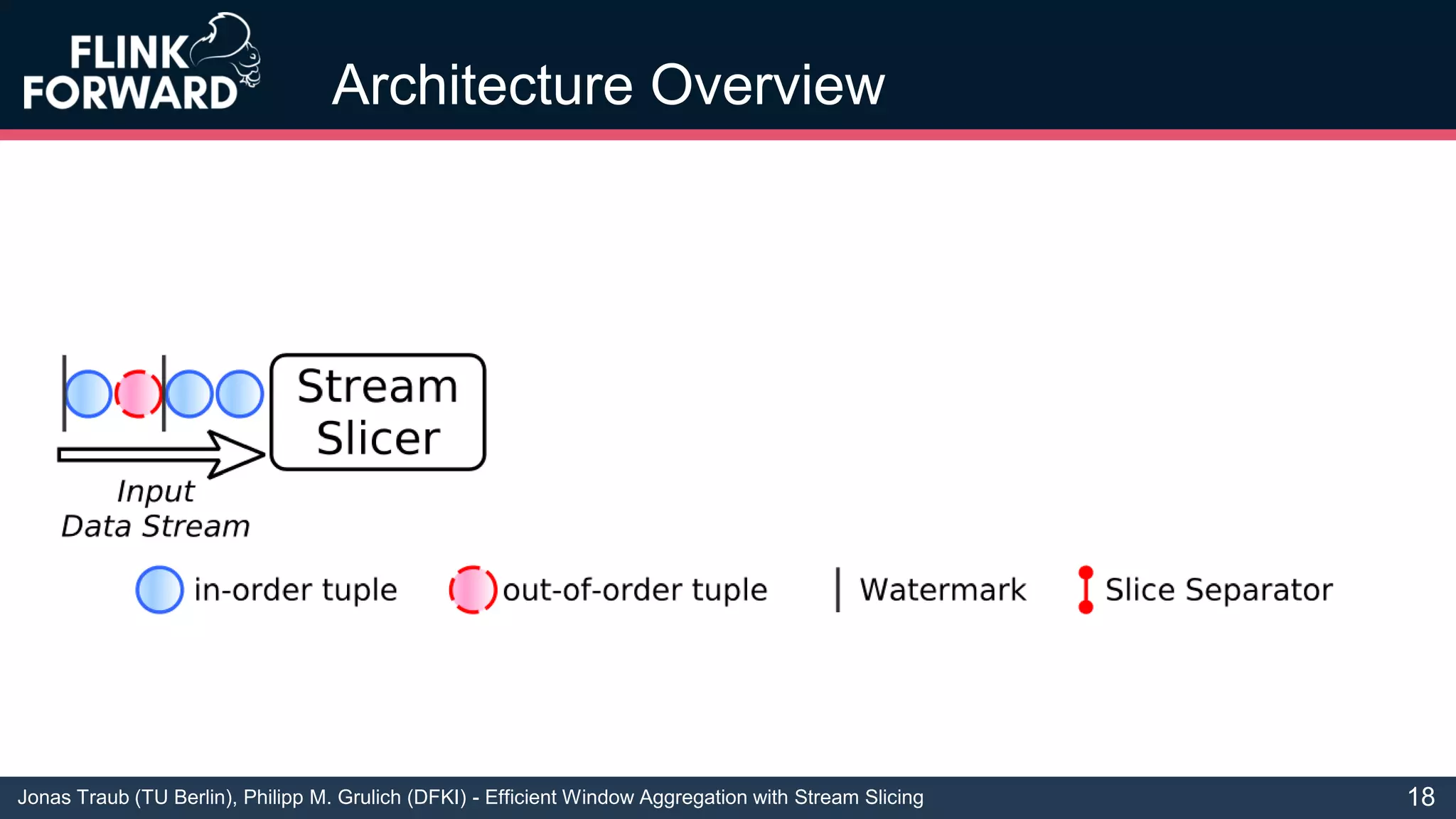

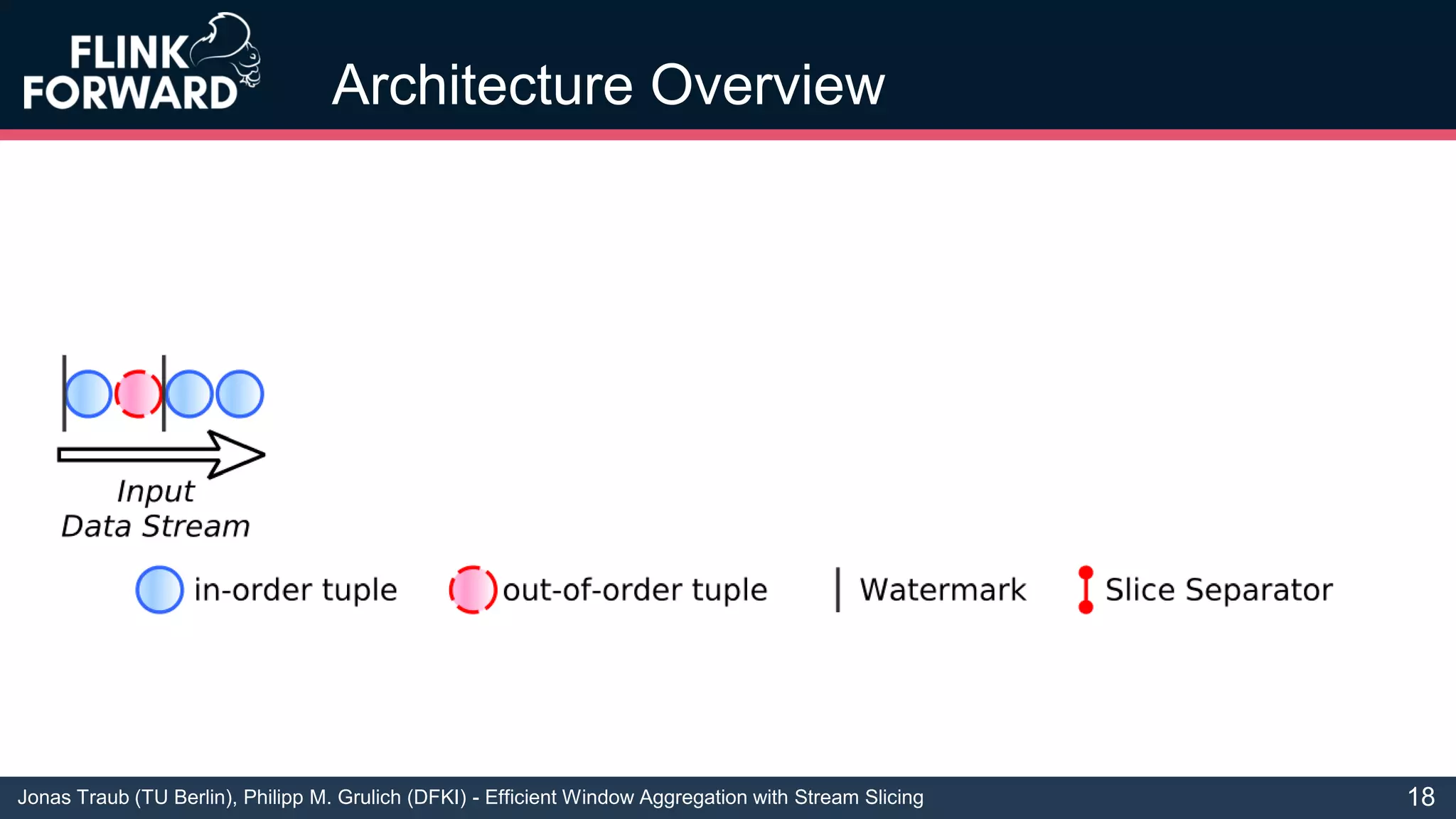

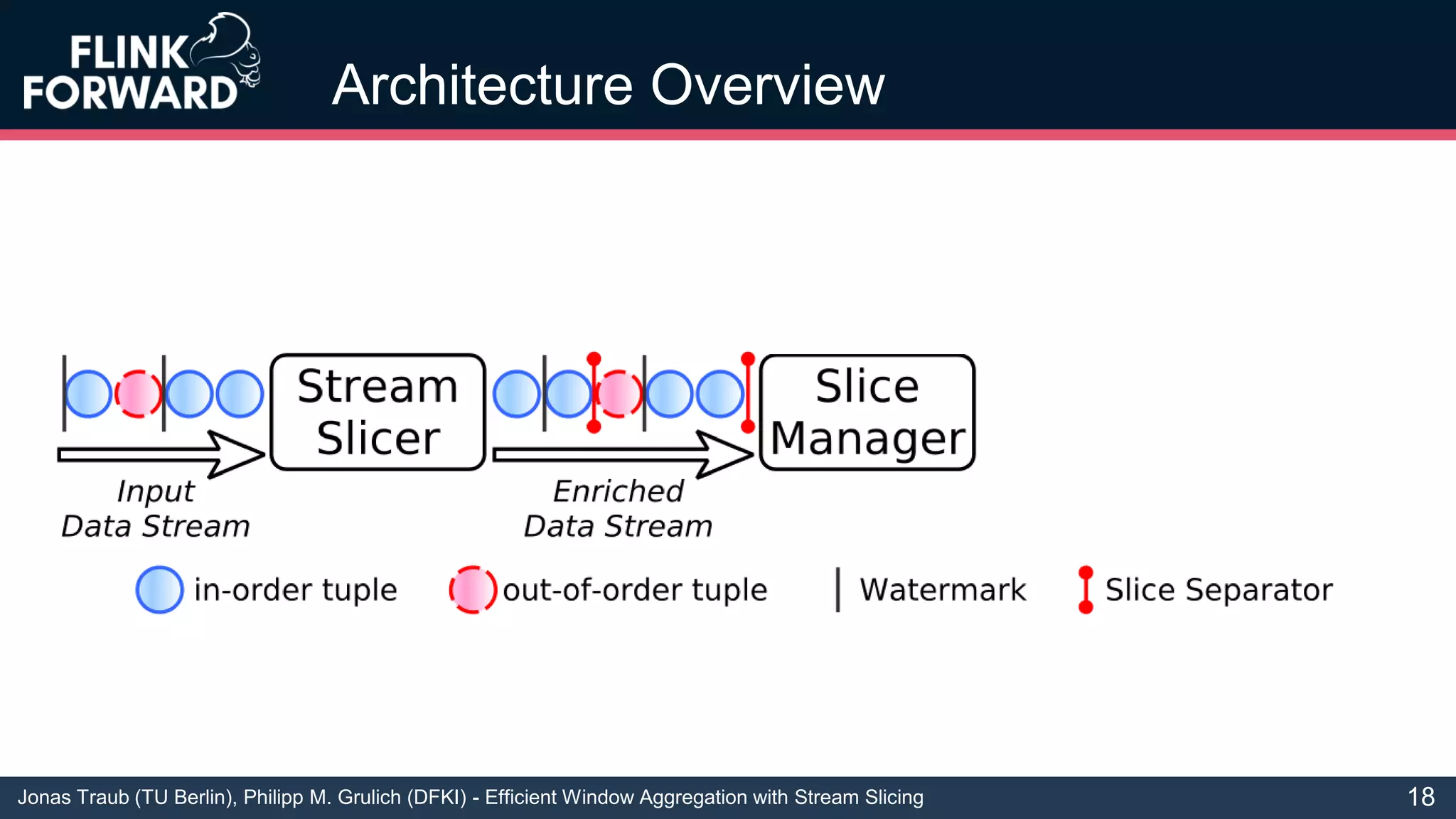

Architecture Overview

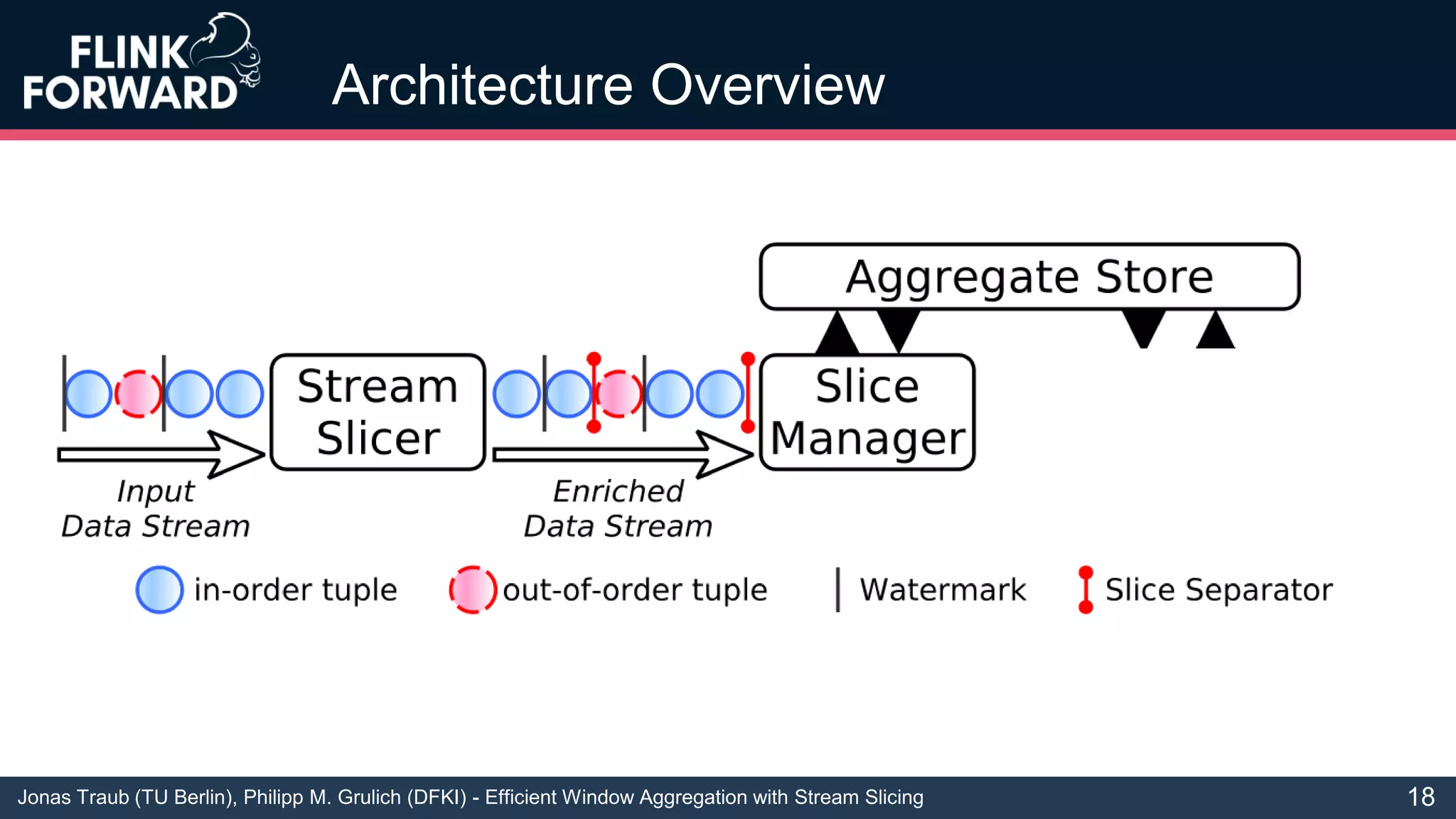

18

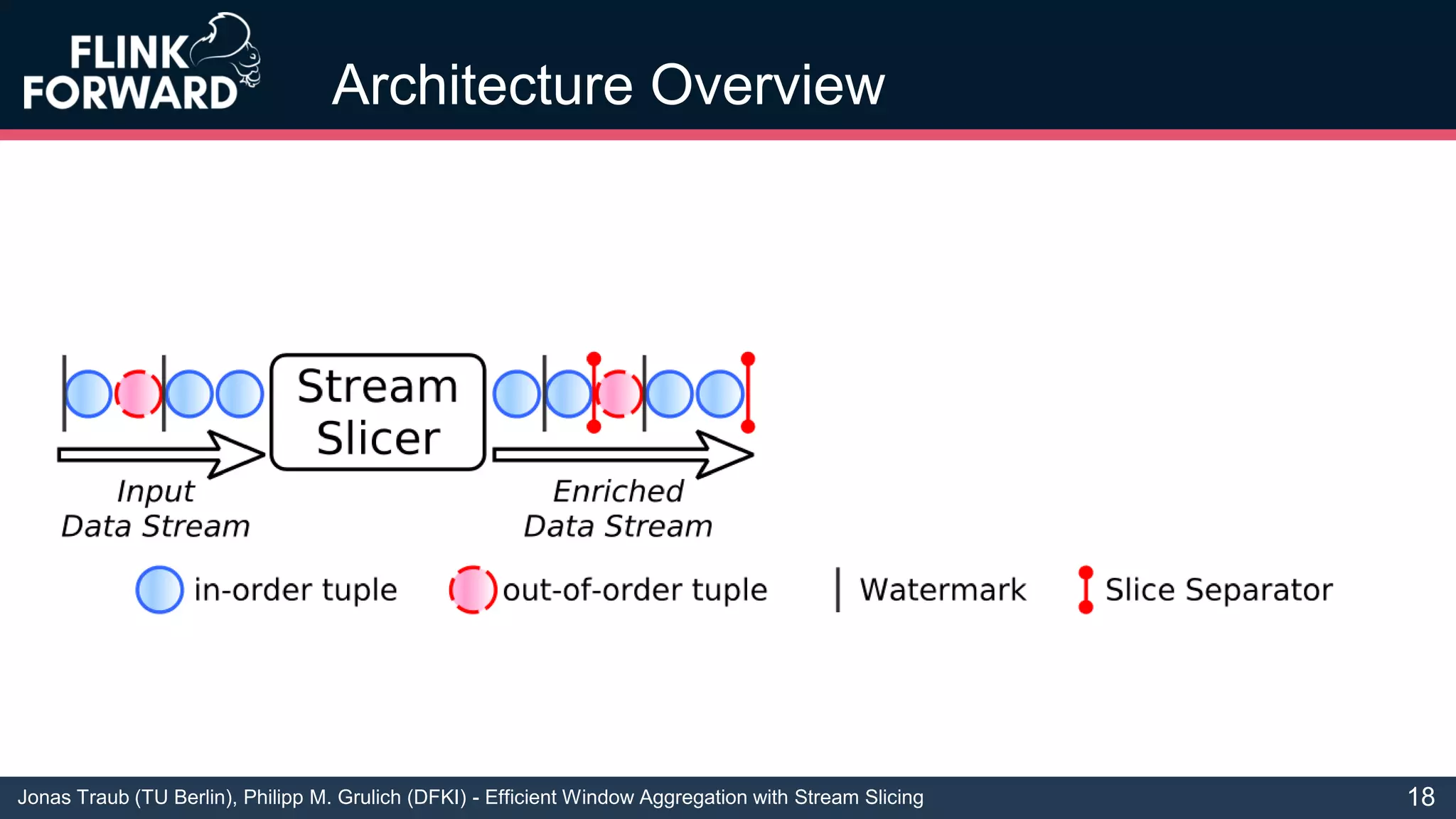

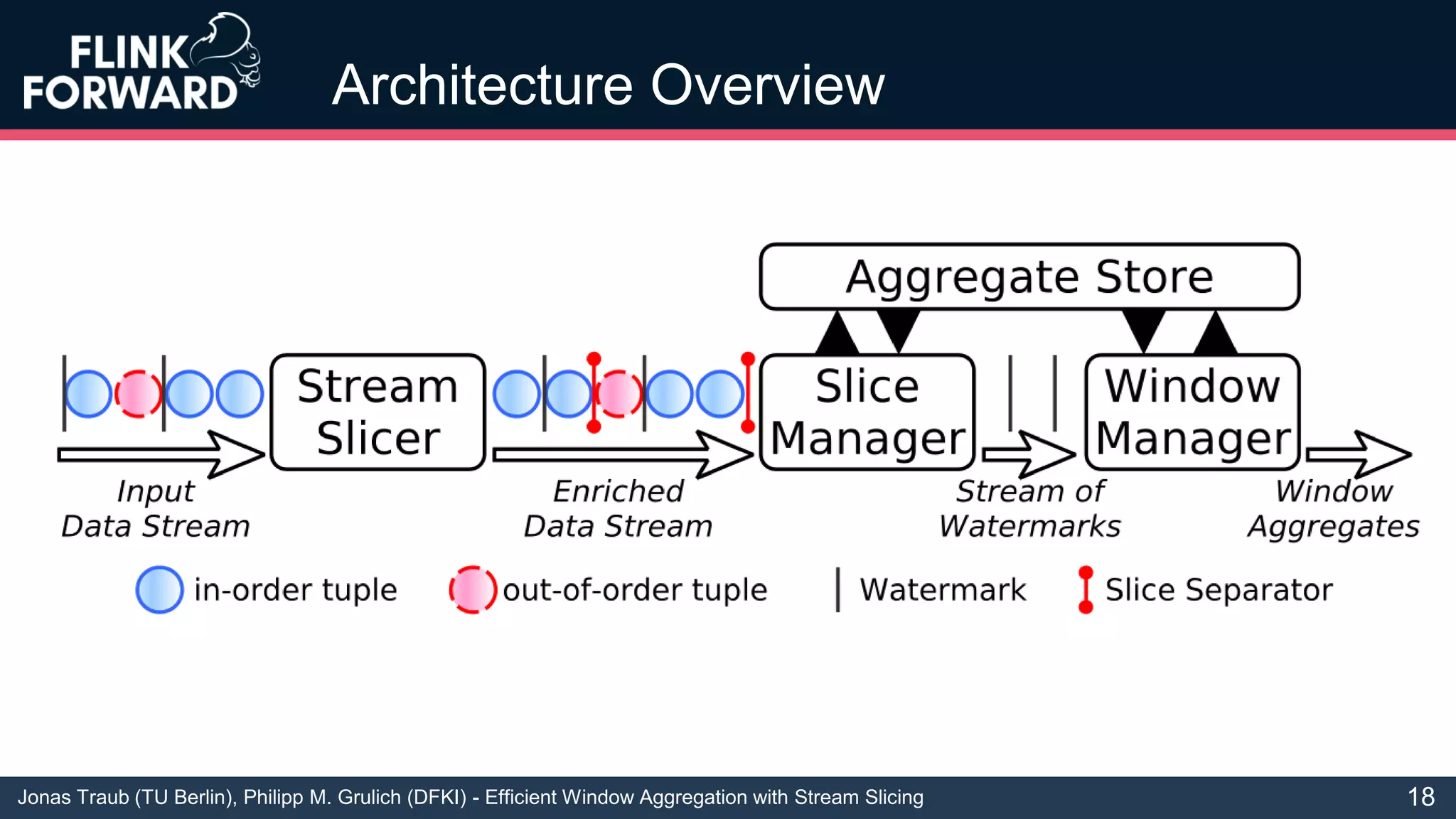

34. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18

35. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18

36. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18

37. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18

38. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Architecture Overview
18

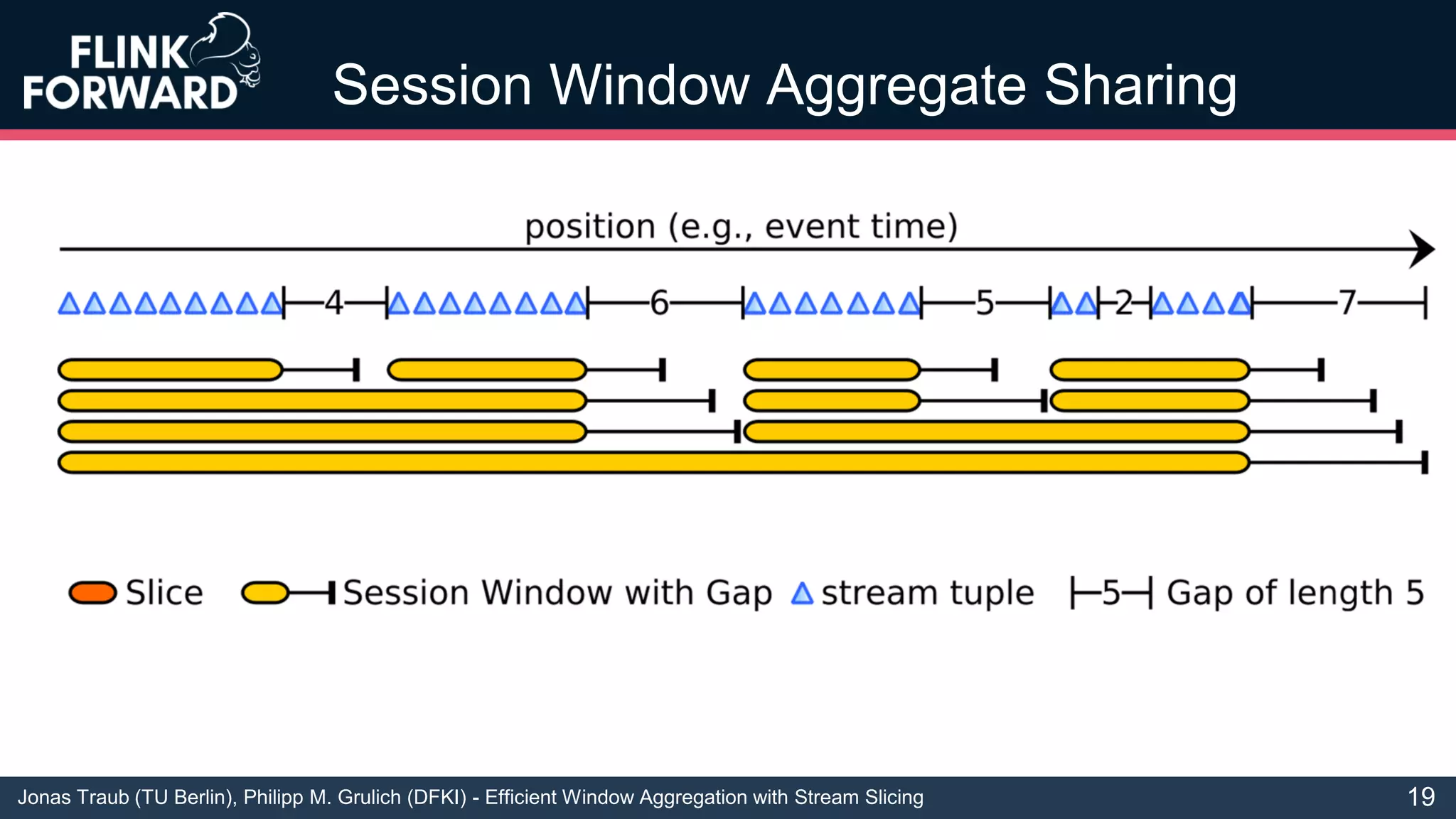

39. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

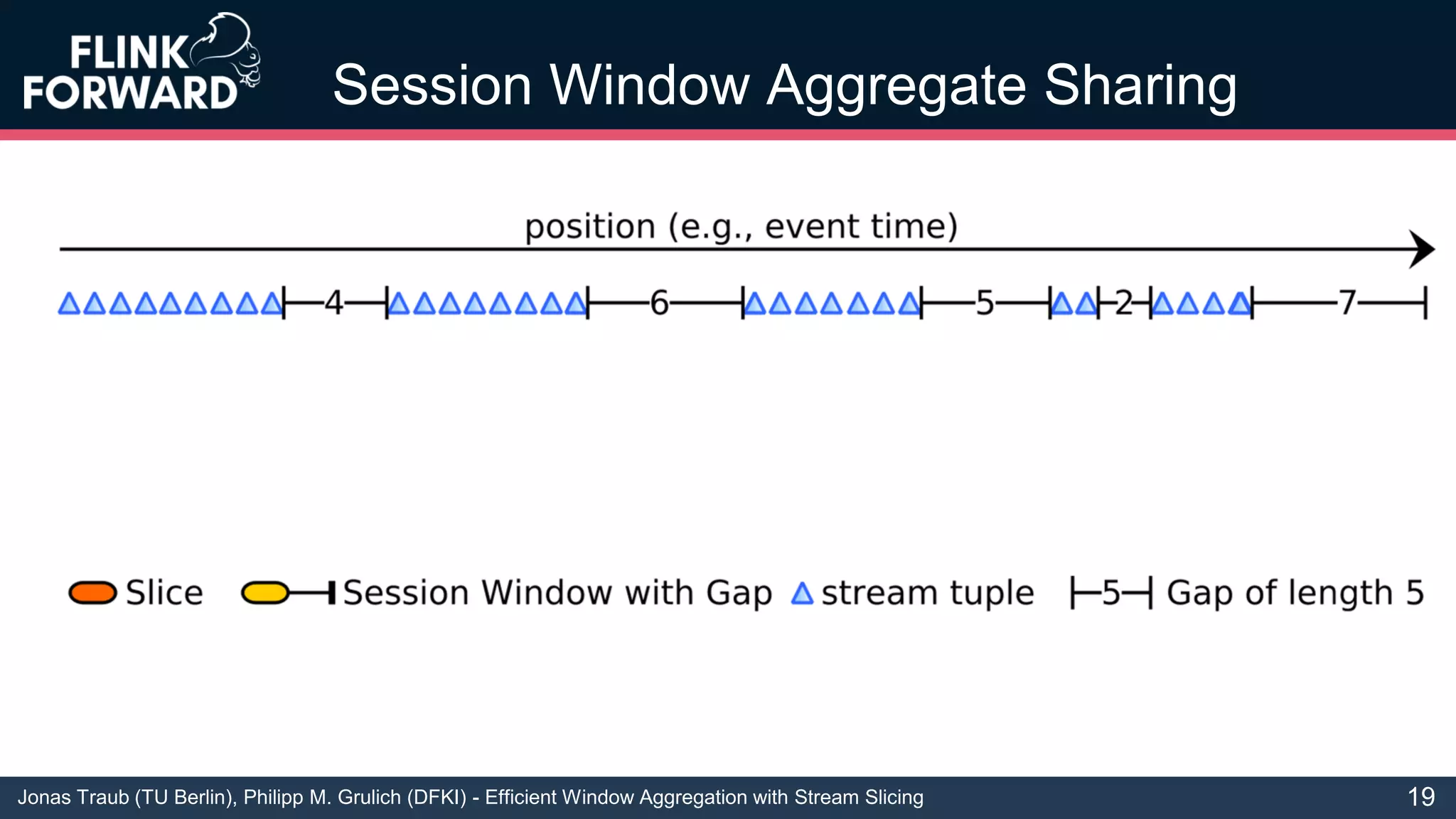

Session Window Aggregate Sharing
19

40. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Session Window Aggregate Sharing
19

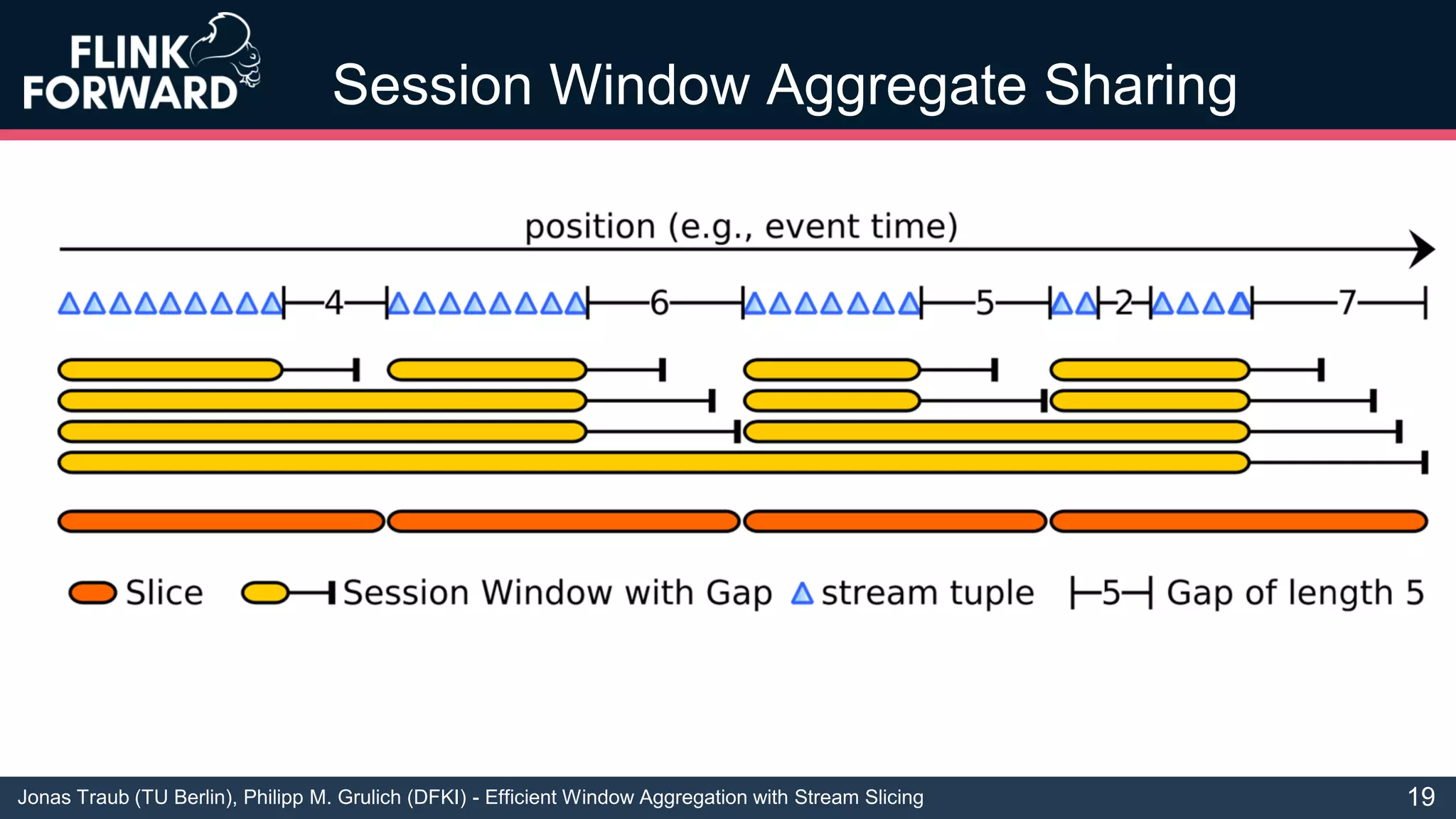

41. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Session Window Aggregate Sharing
19

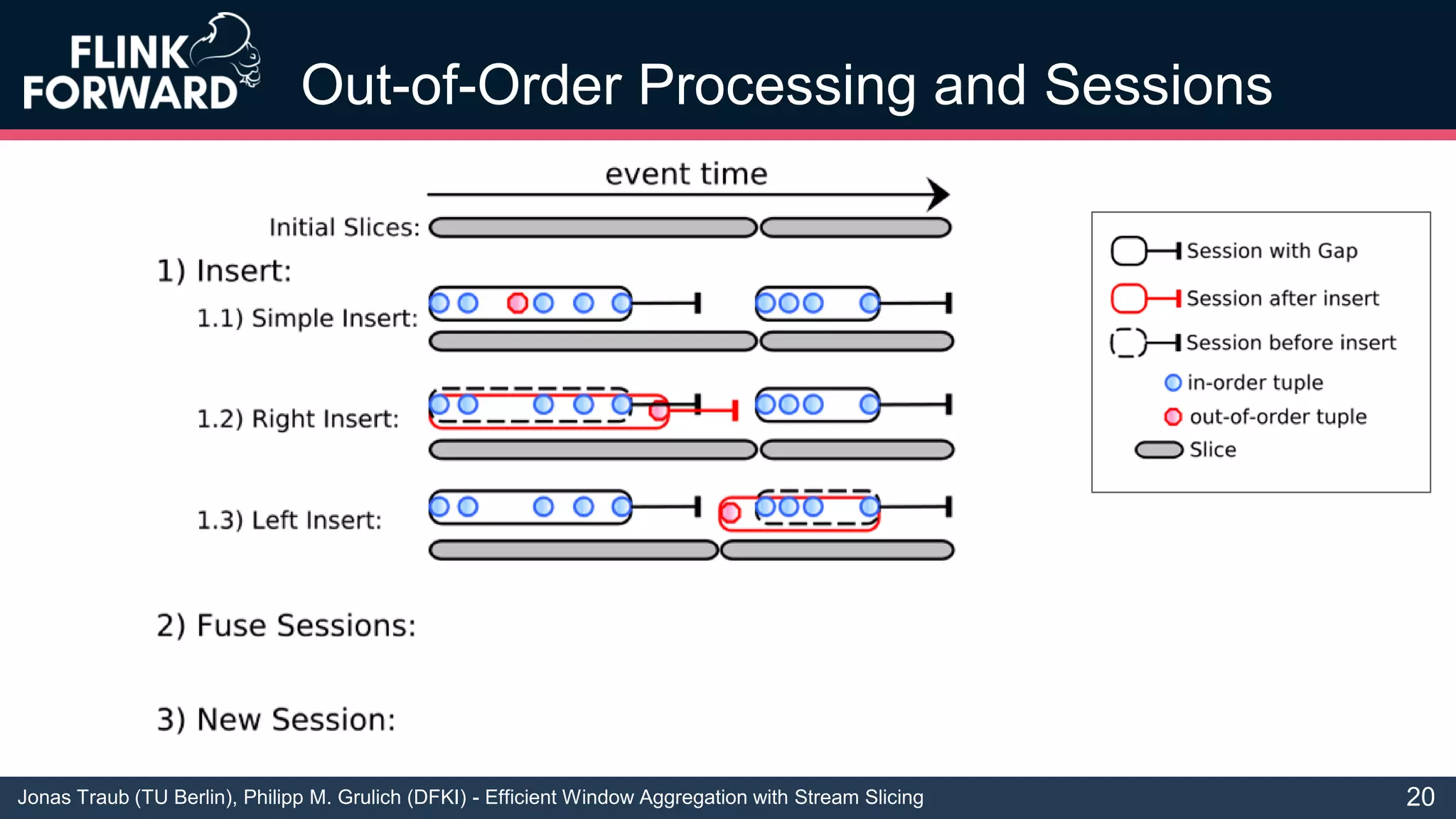

42. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

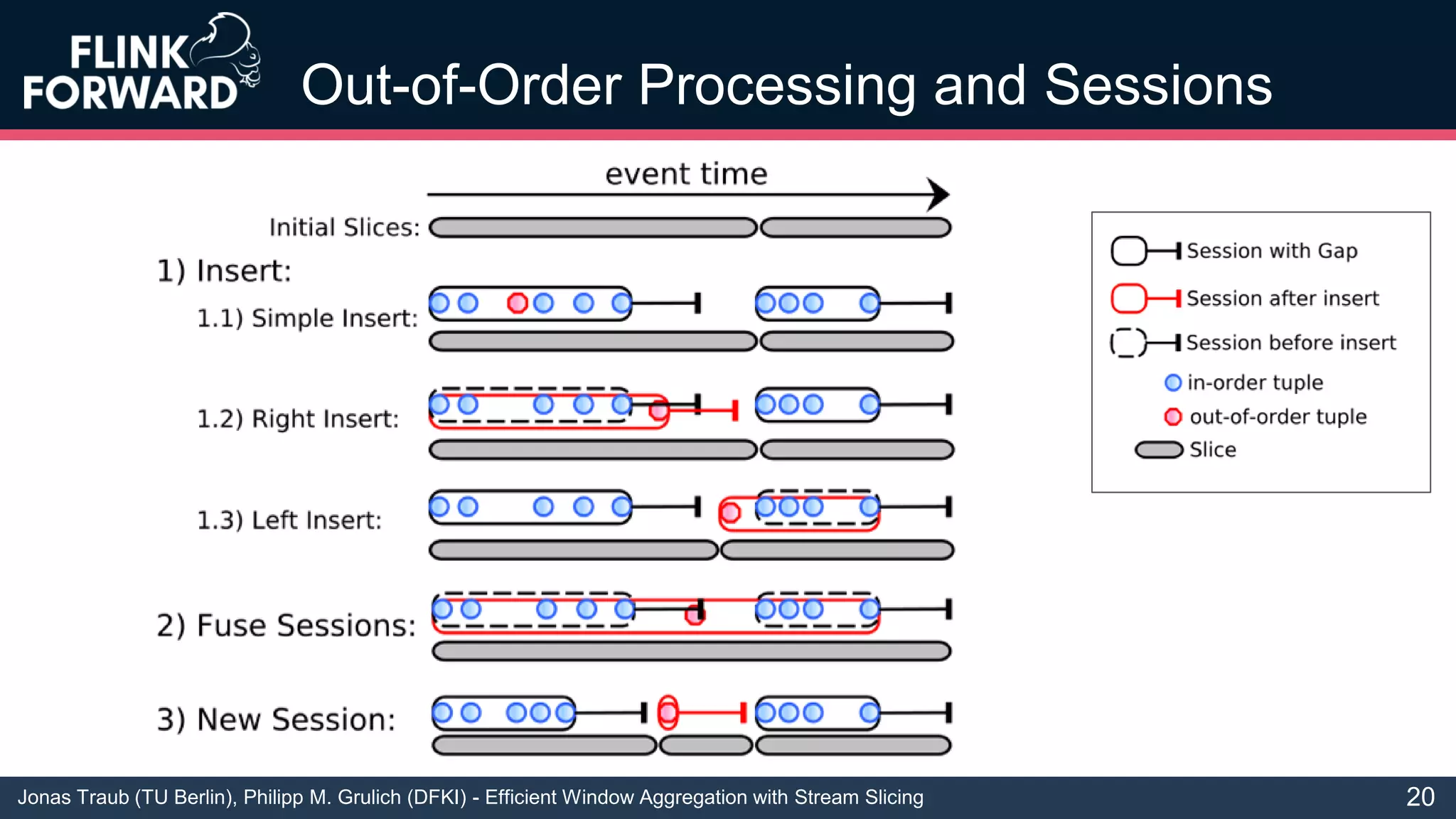

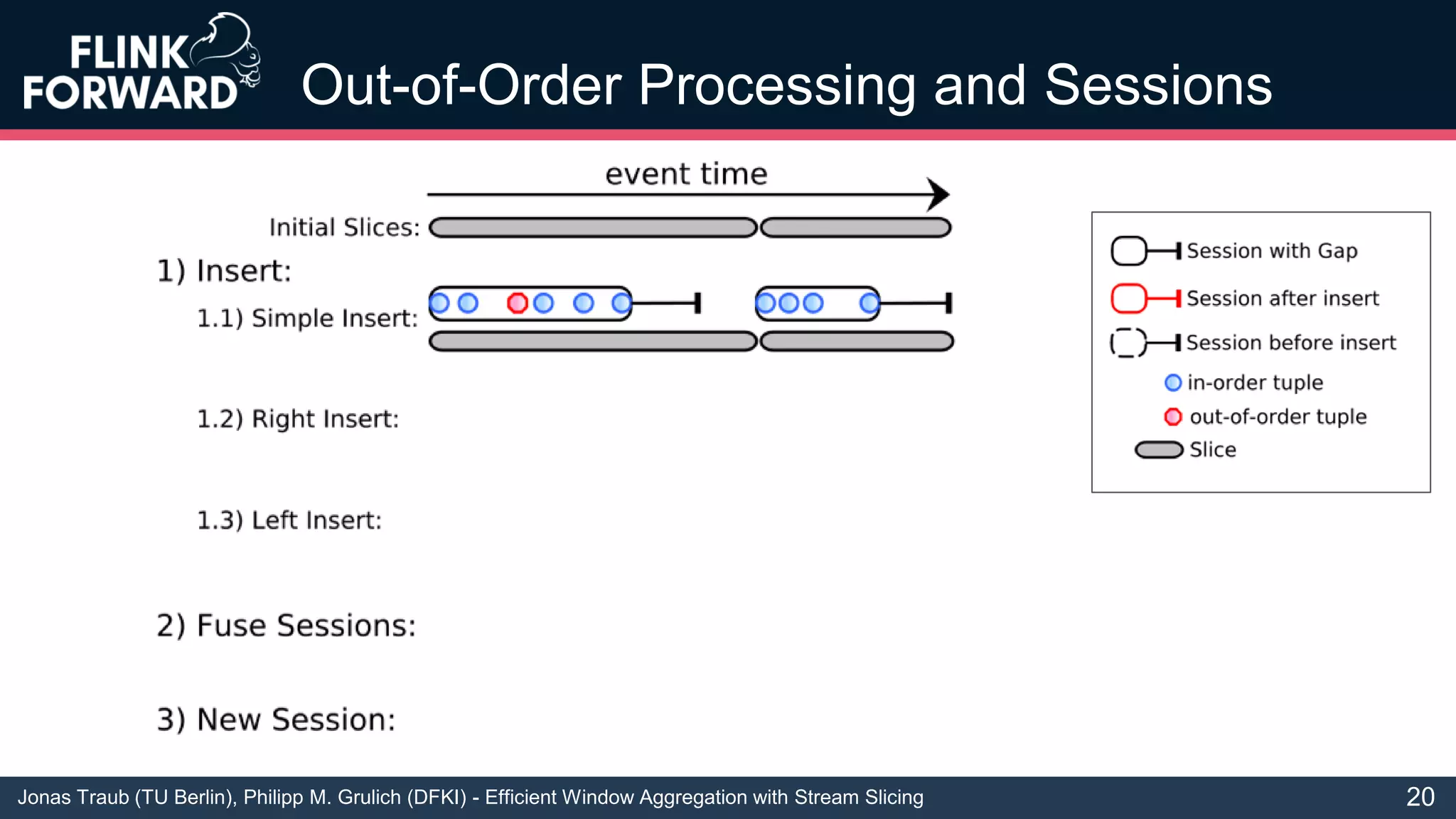

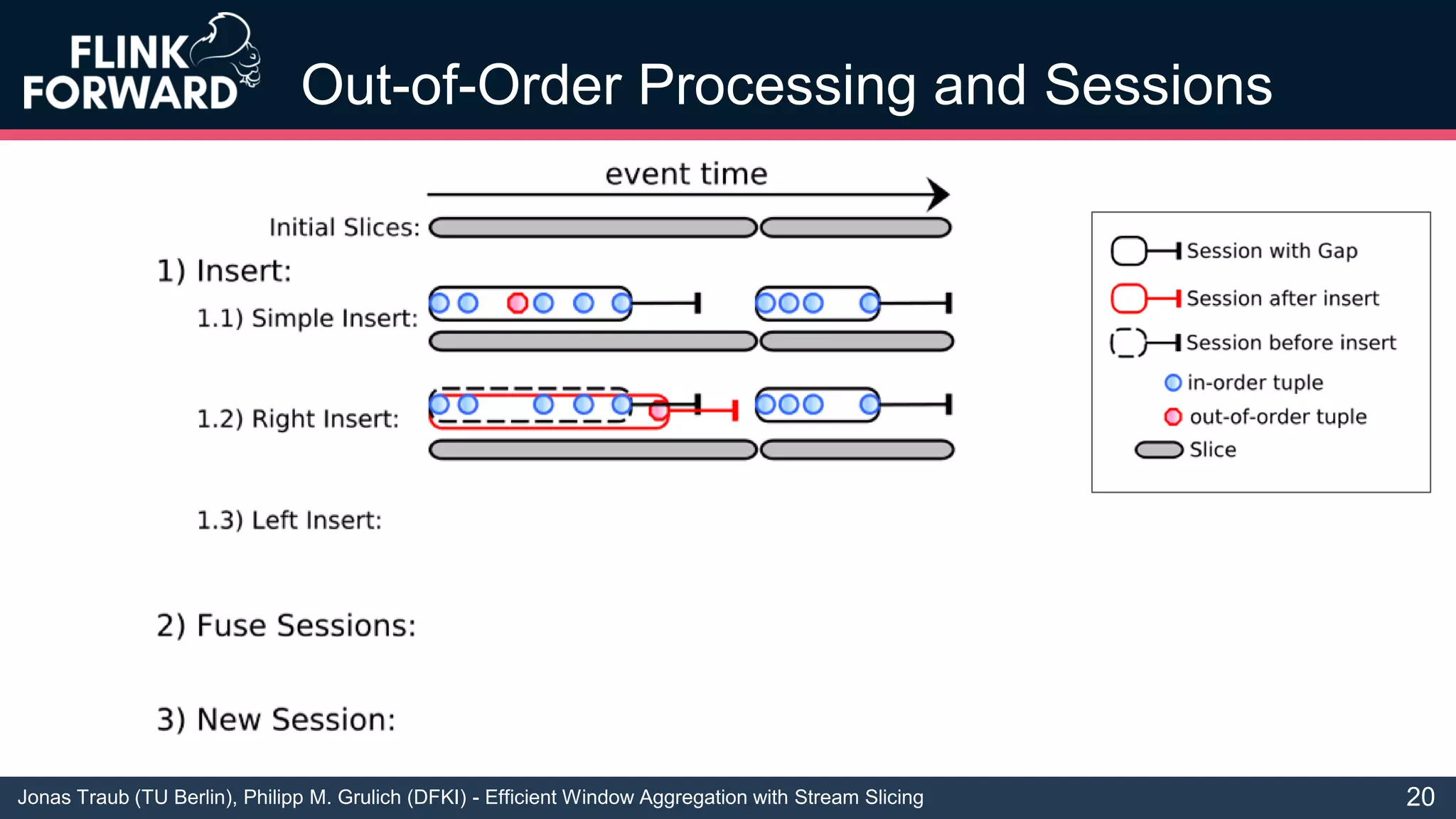

Out-of-Order Processing and Sessions

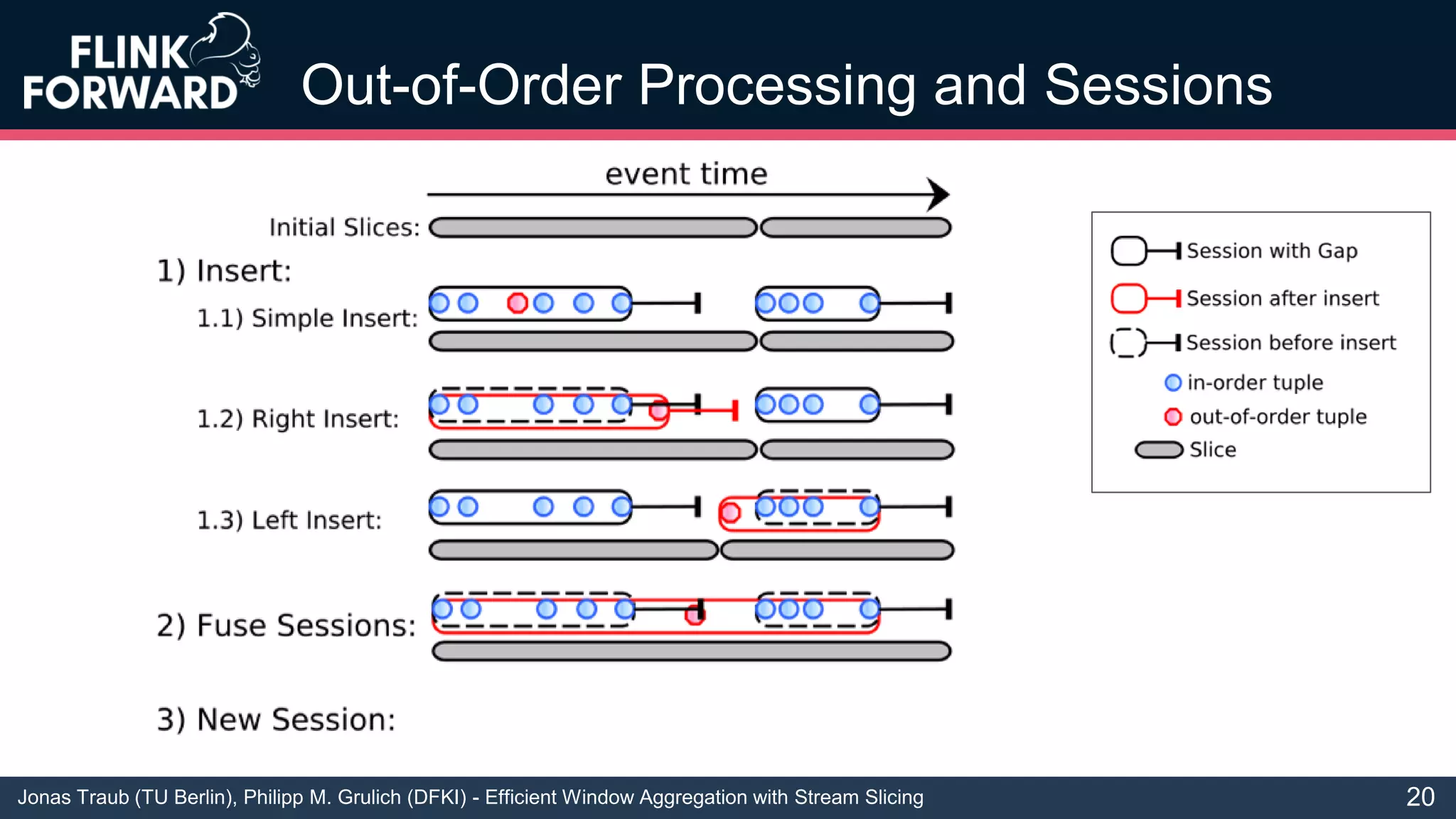

20

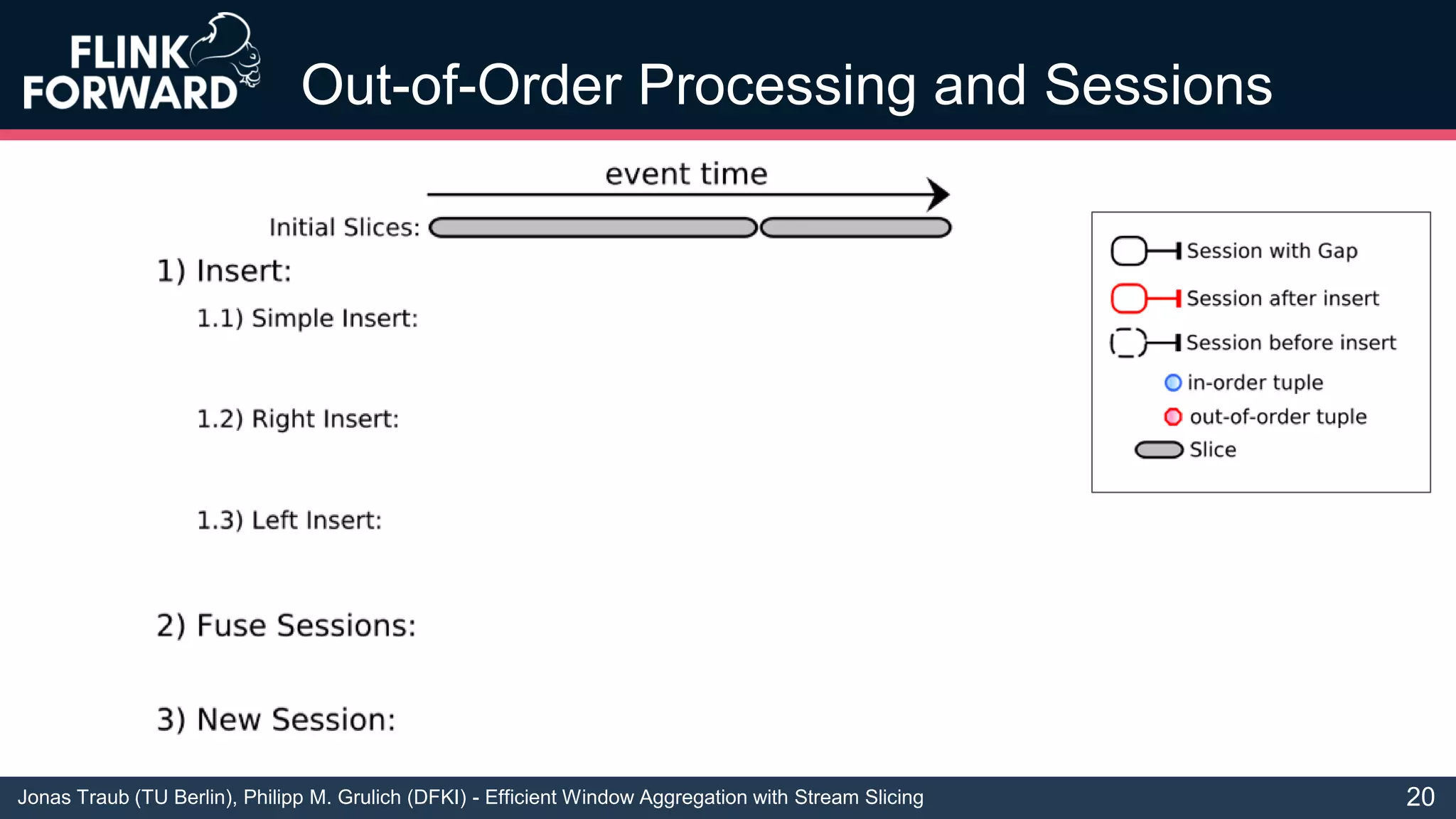

43. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20

44. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20

45. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20

46. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20

47. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Out-of-Order Processing and Sessions
20

48. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Multi-Window Processing (Example: Fitness Tracker)
21
[...].window(
// Daily report:
TumblingEventTimeWindows.of(Time.days(1)),
// Monitoring dashboard (last hour):
SlidingEventTimeWindows.of(Time.hours(1), Time.seconds(1)),
// Activity periods:
EventTimeSessionWindows.of(Time.minutes(1)))
.sum()
Multi-Window Processing

49. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

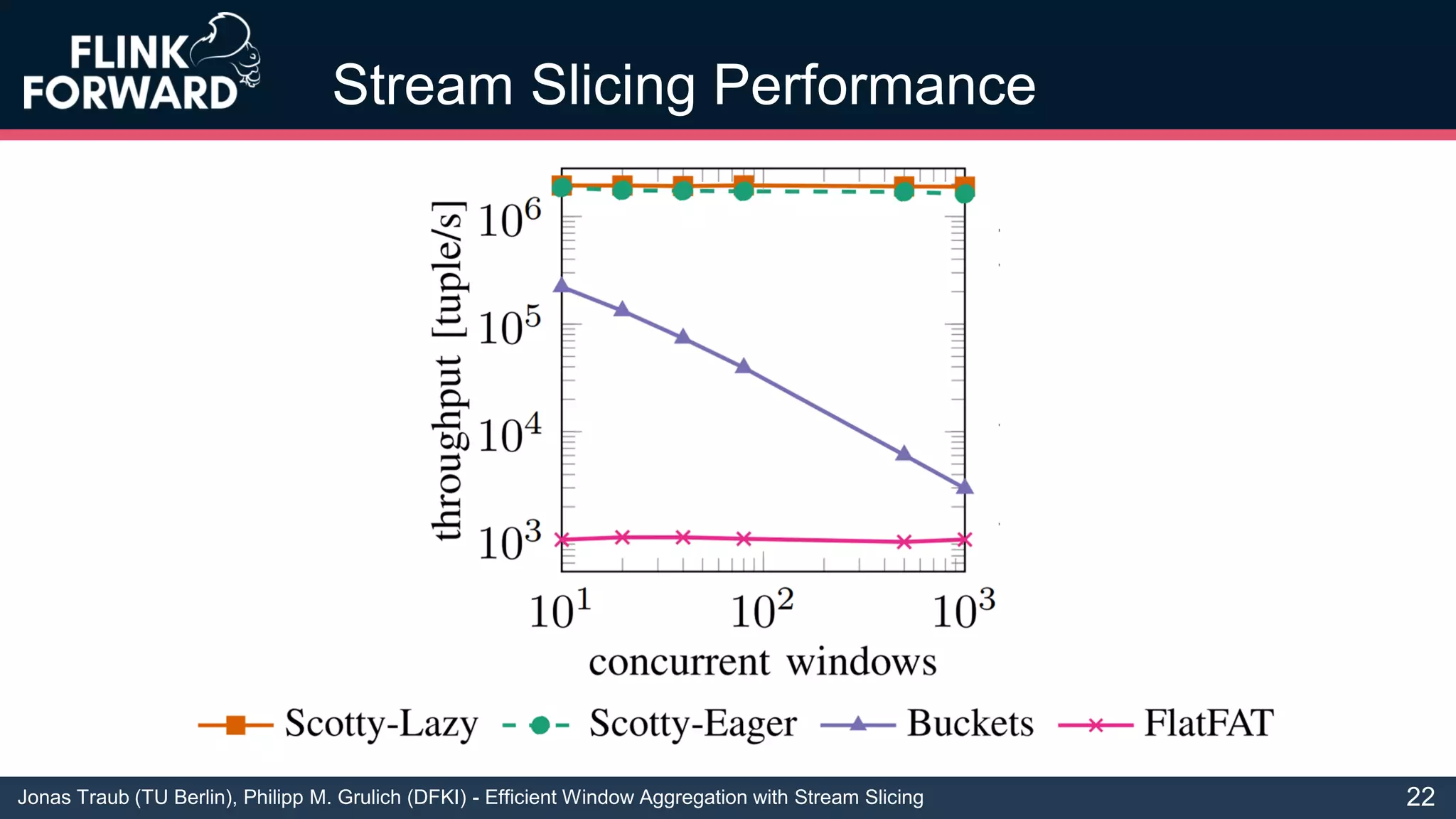

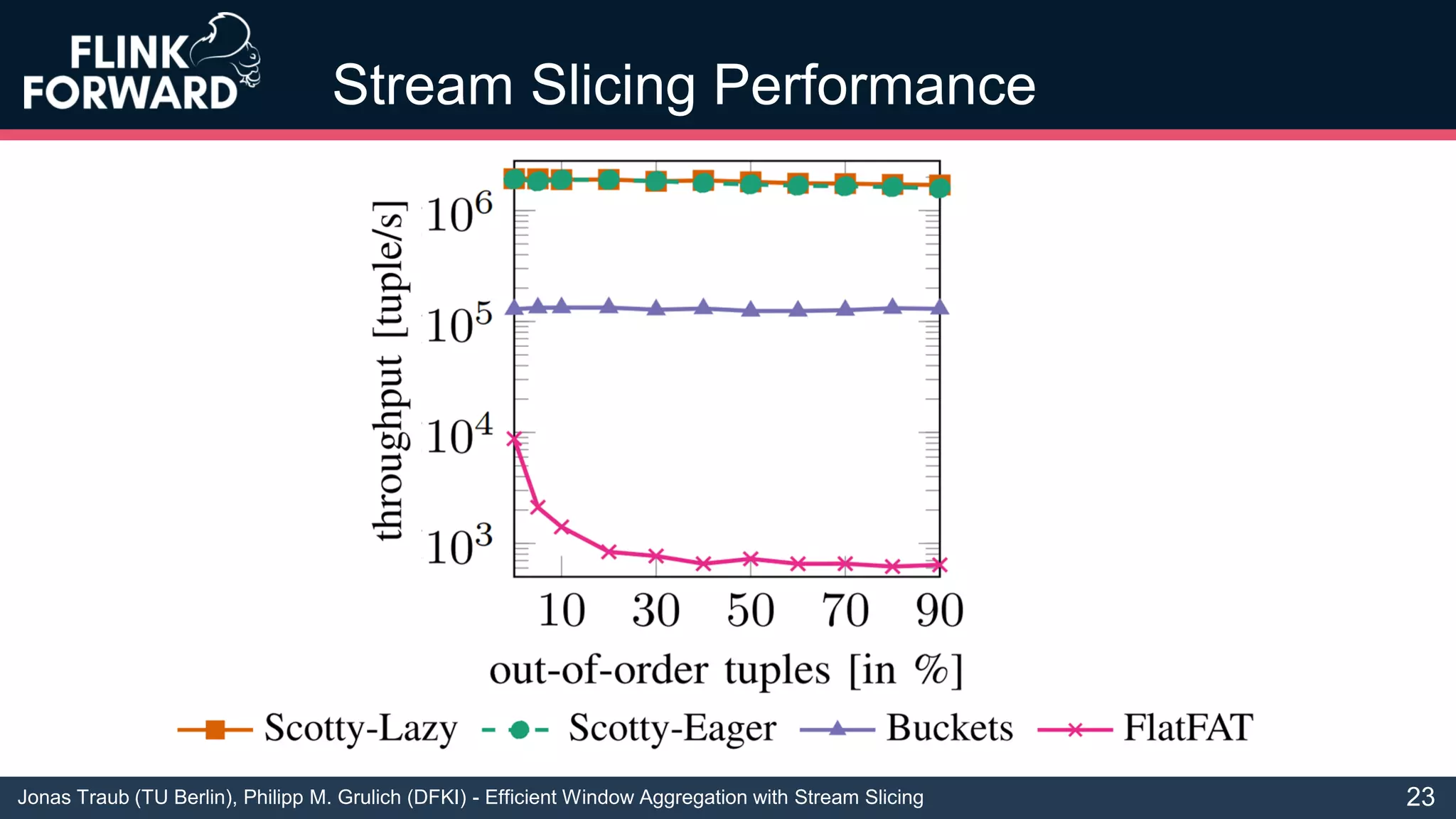

Stream Slicing Performance
22

50. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Stream Slicing Performance
23

51. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Runtime-Dynamic Windows
24

52. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

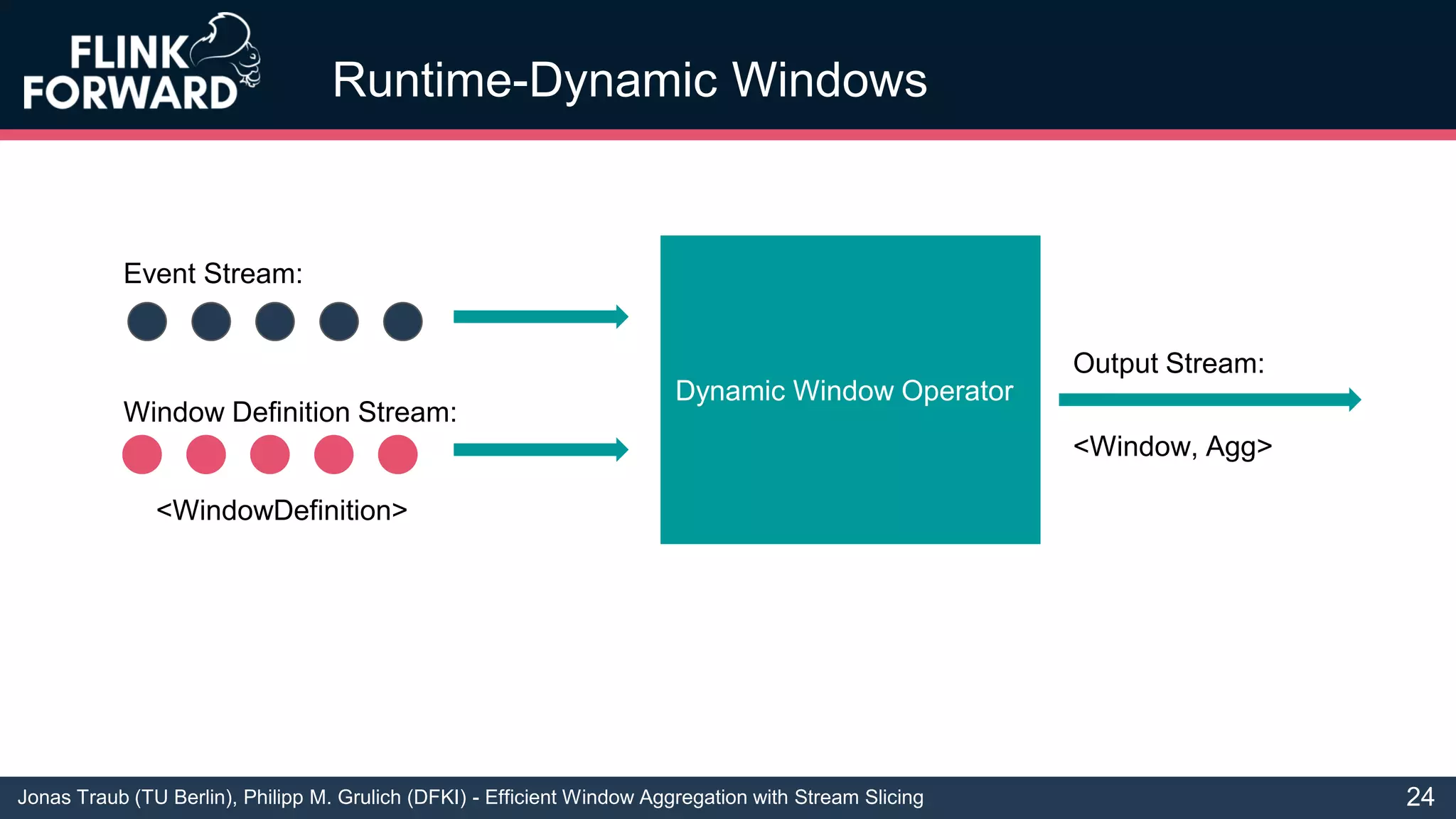

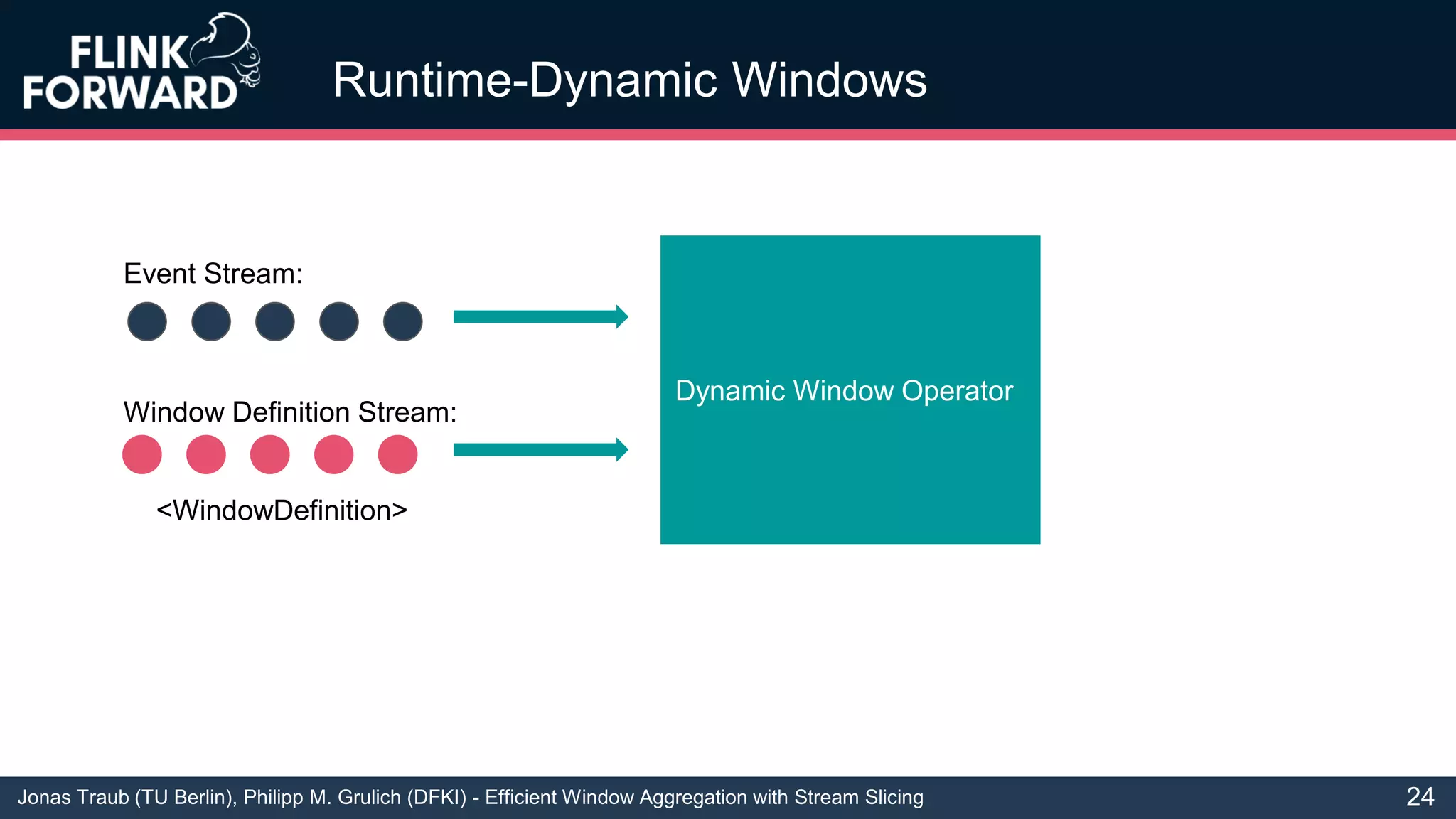

Runtime-Dynamic Windows
24

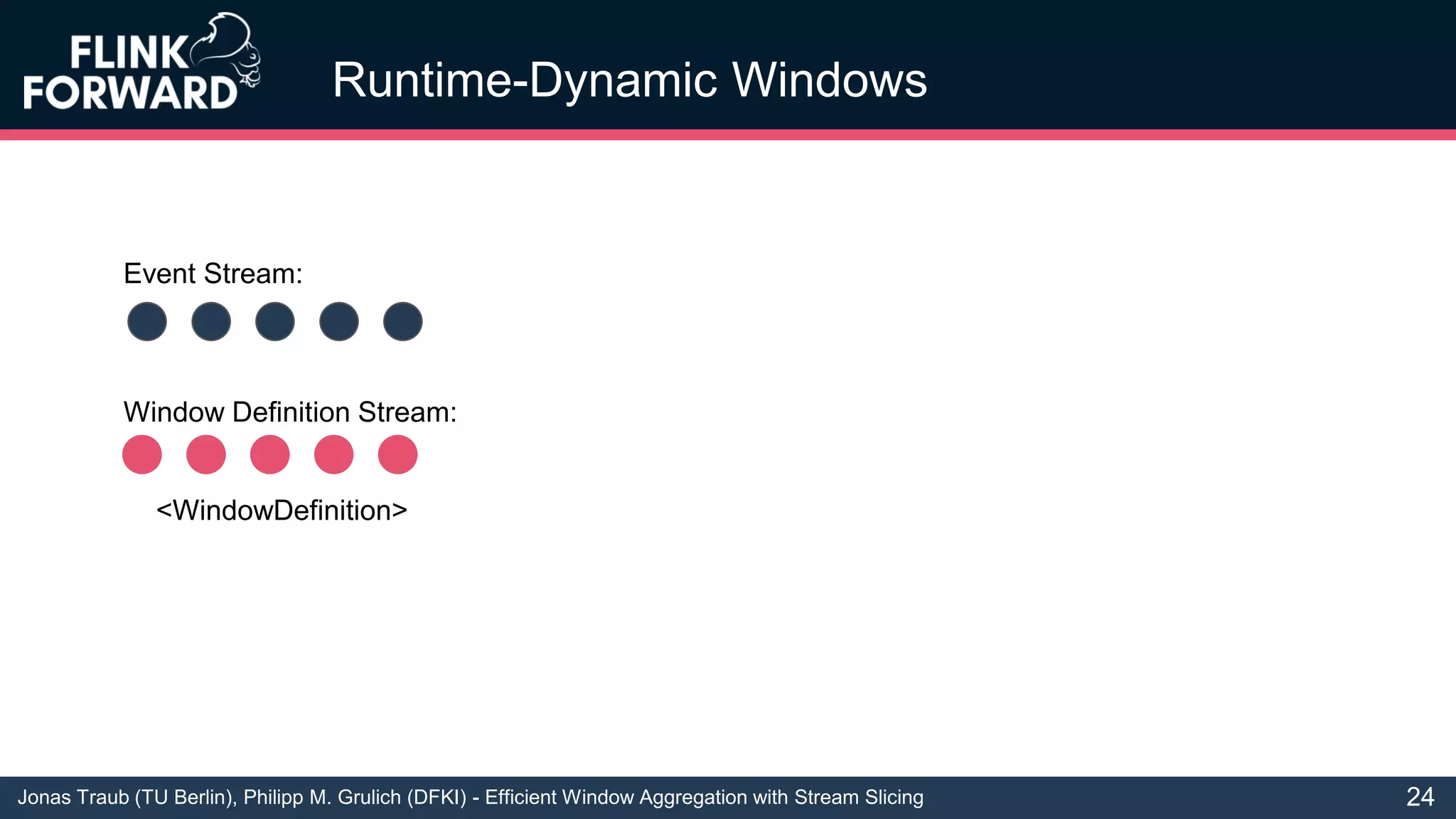

Event Stream:
Window Definition Stream:
<WindowDefinition>

53. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Runtime-Dynamic Windows
24
Event Stream:
Dynamic Window Operator
Window Definition Stream:
<WindowDefinition>

54. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Runtime-Dynamic Windows
24
Event Stream:
Dynamic Window Operator
Output Stream:
<Window, Agg>
Window Definition Stream:
<WindowDefinition>

55. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Runtime-Dynamic Windows
24

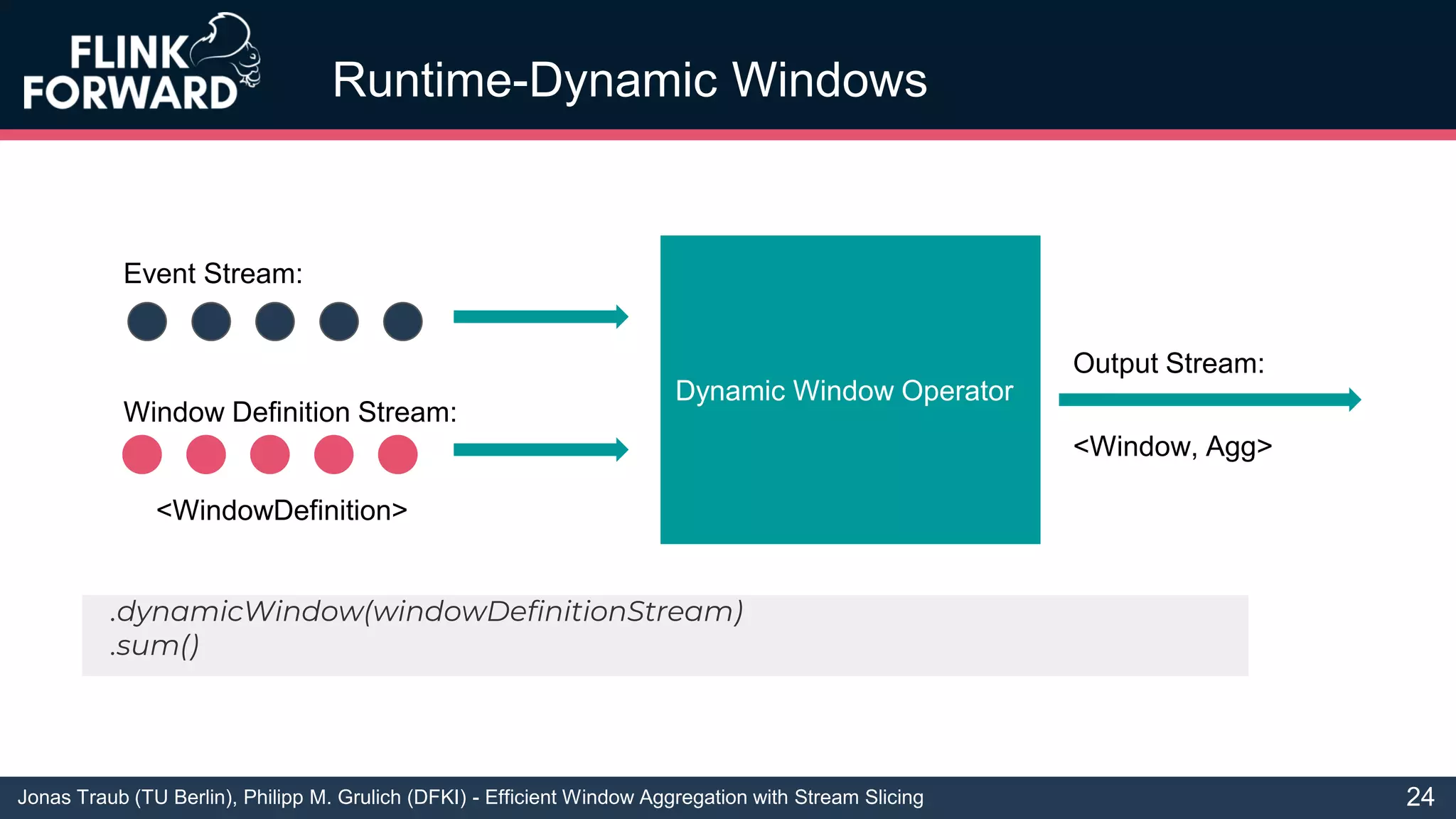

.dynamicWindow(windowDefinitionStream)
.sum()
Event Stream:
Dynamic Window Operator
Output Stream:
<Window, Agg>
Window Definition Stream:
<WindowDefinition>

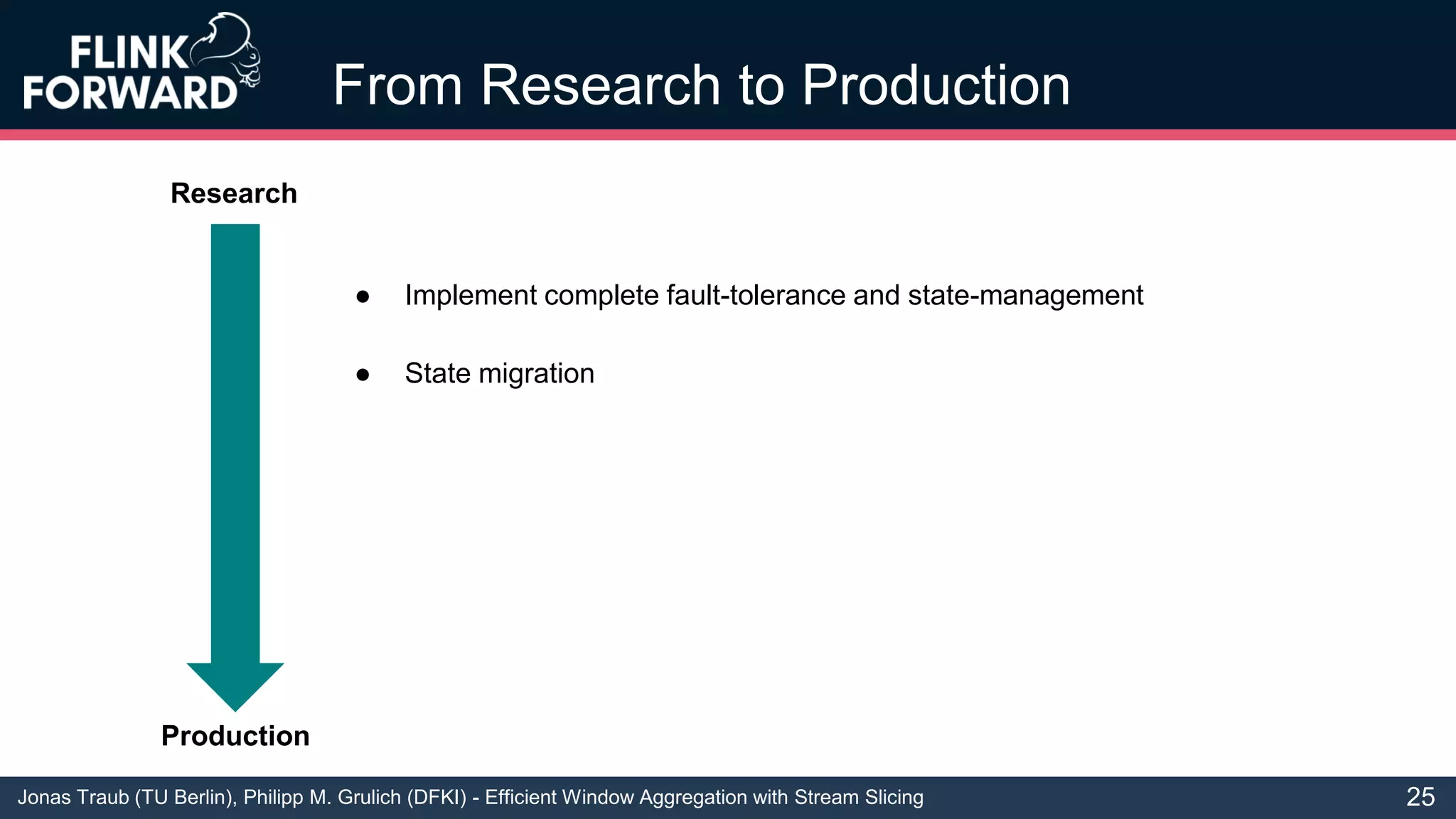

56. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing

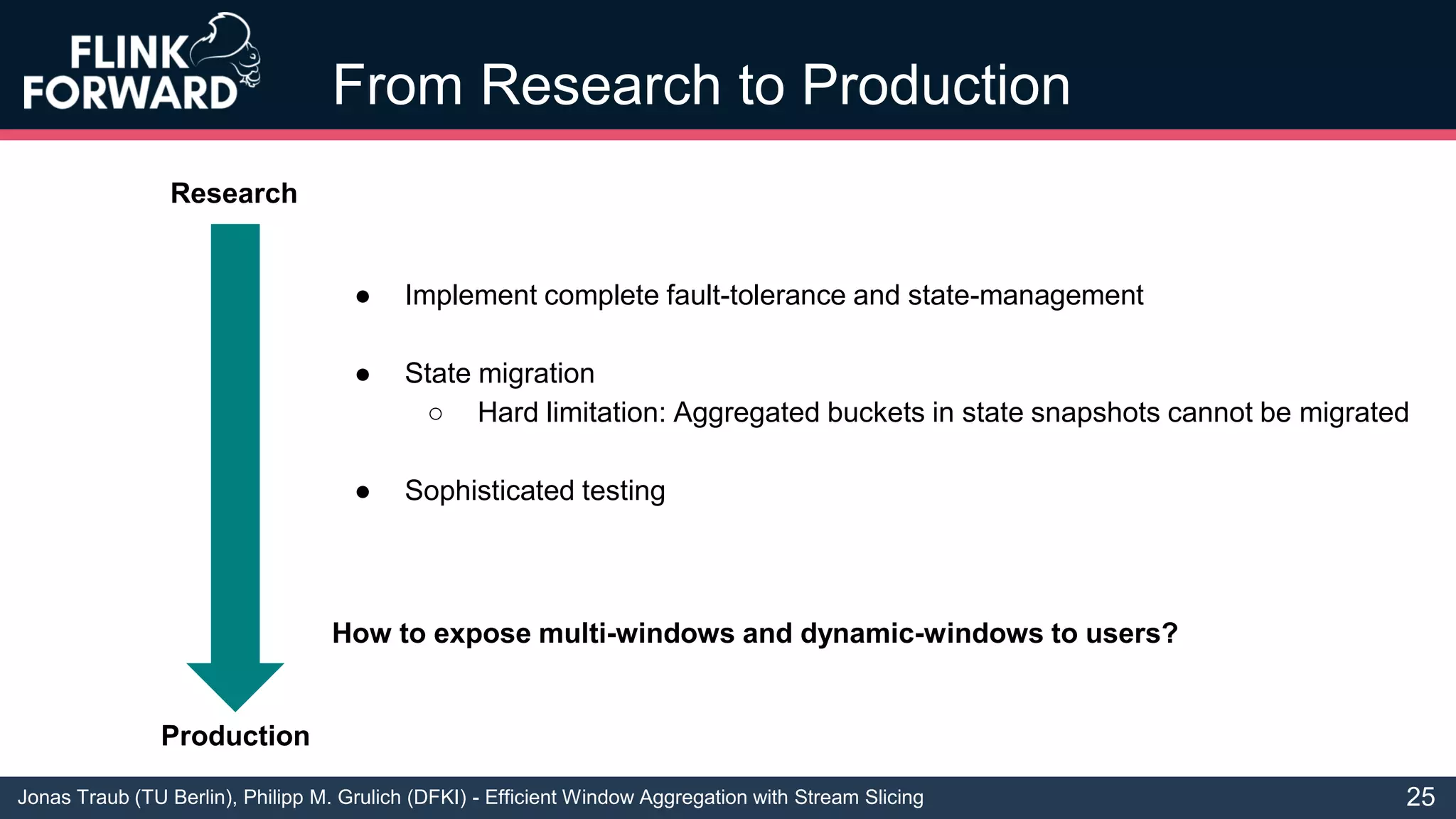

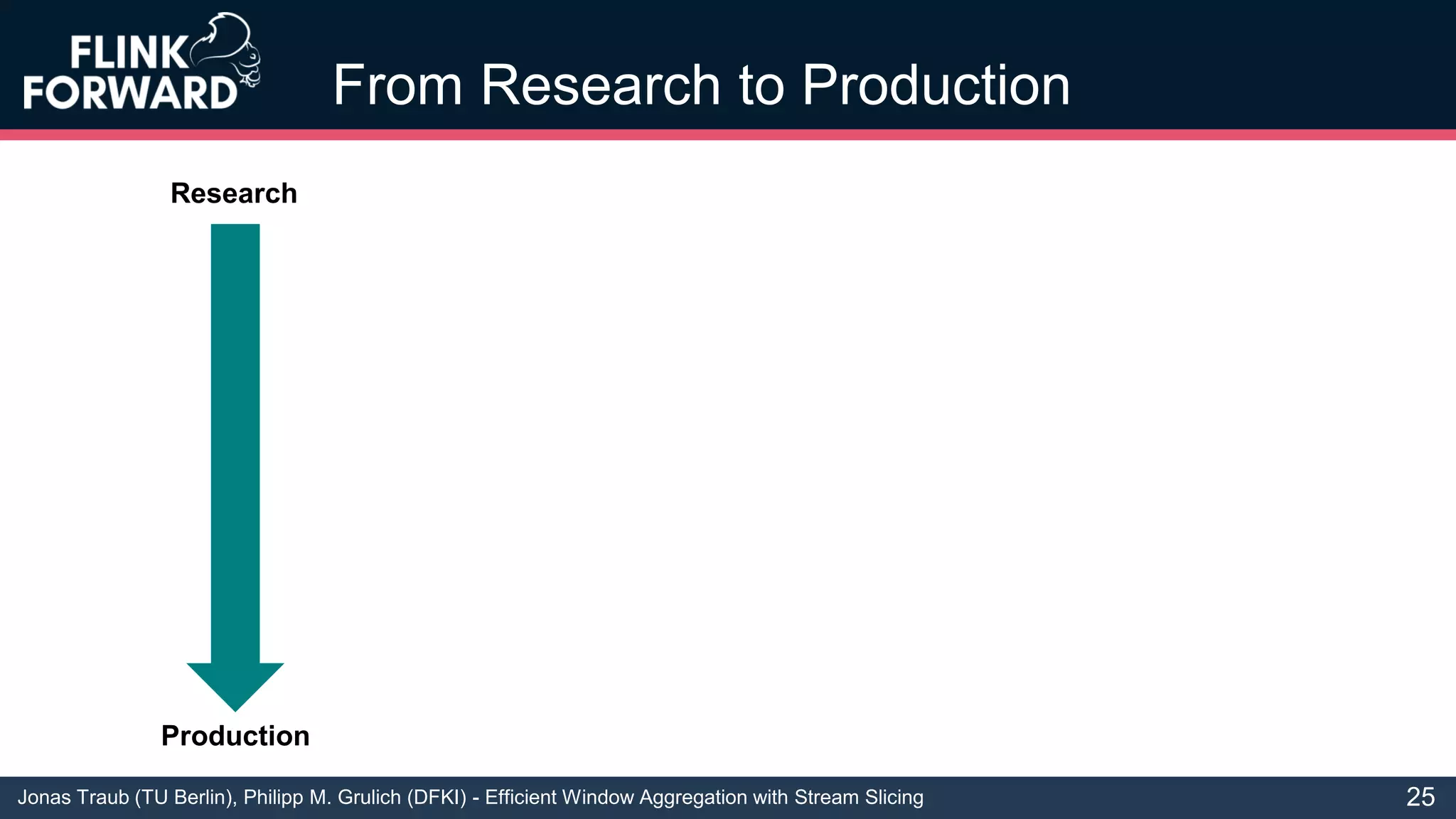

From Research to Production
25
Research
Production

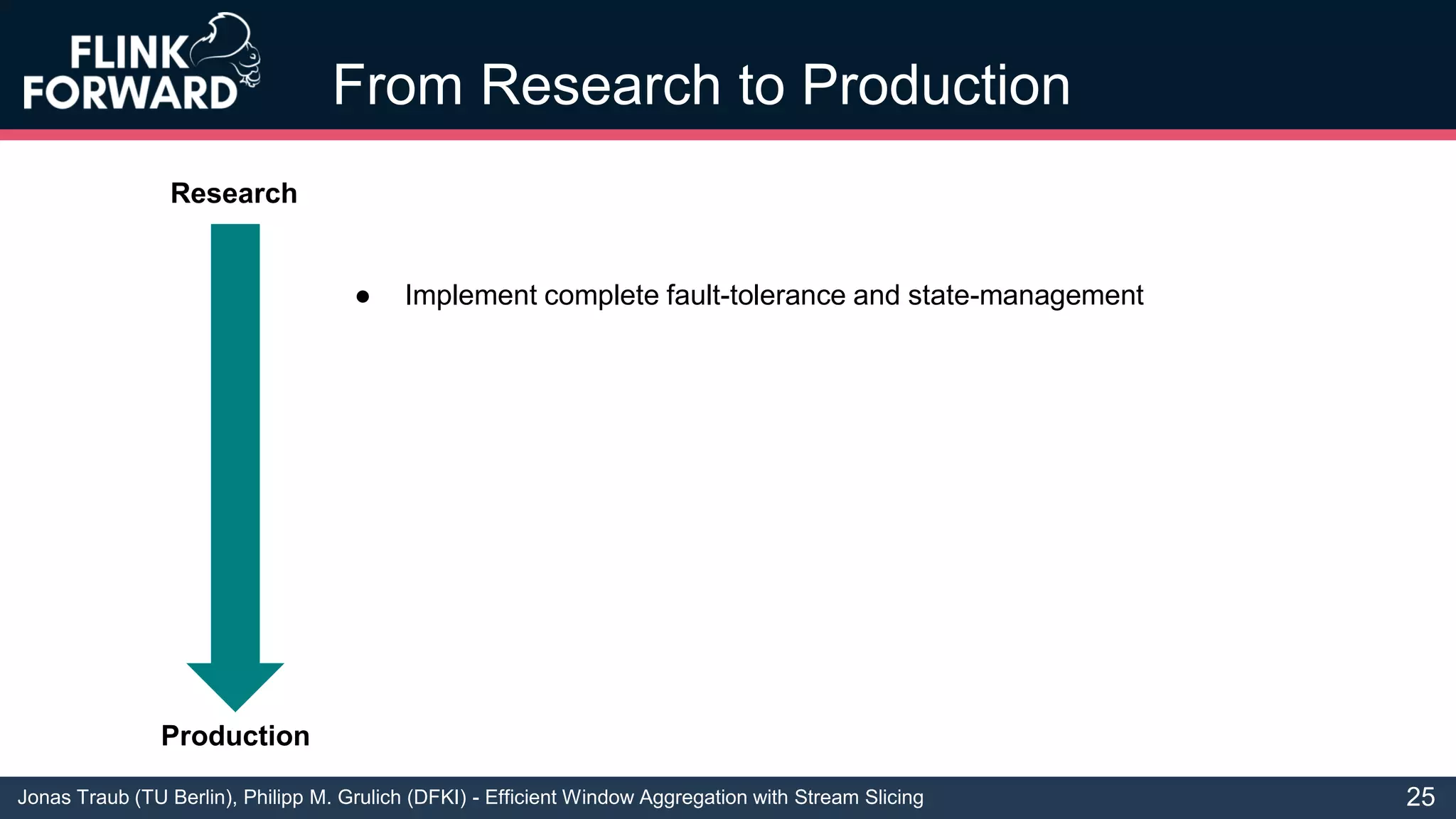

57. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
25
Research
Production

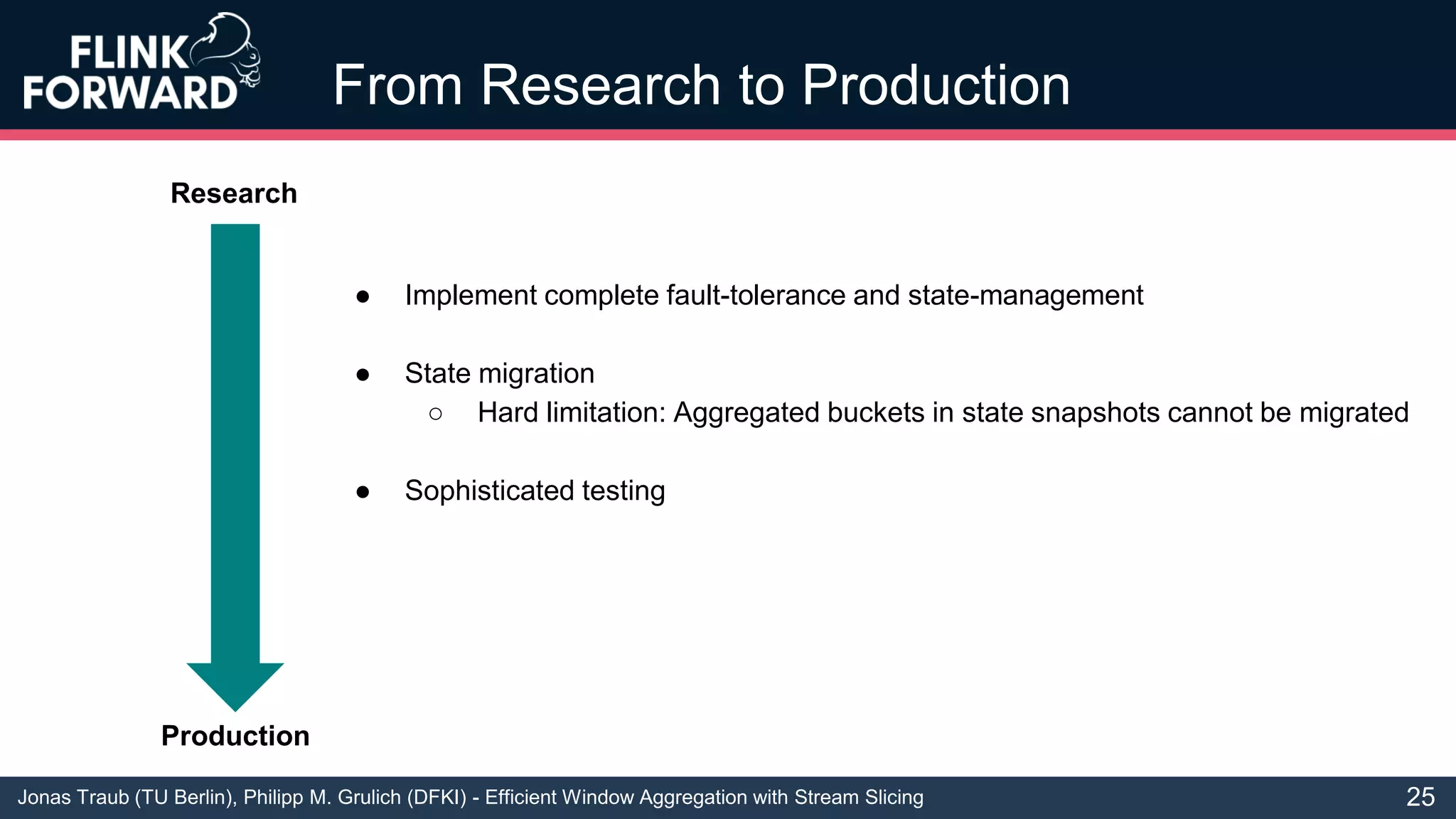

58. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
25
Research
Production

59. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated
25
Research
Production

60. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated
● Sophisticated testing
25
Research
Production

61. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
From Research to Production
● Implement complete fault-tolerance and state-management
● State migration
○ Hard limitation: Aggregated buckets in state snapshots cannot be migrated
● Sophisticated testing
How to expose multi-windows and dynamic-windows to users?
25
Research
Production

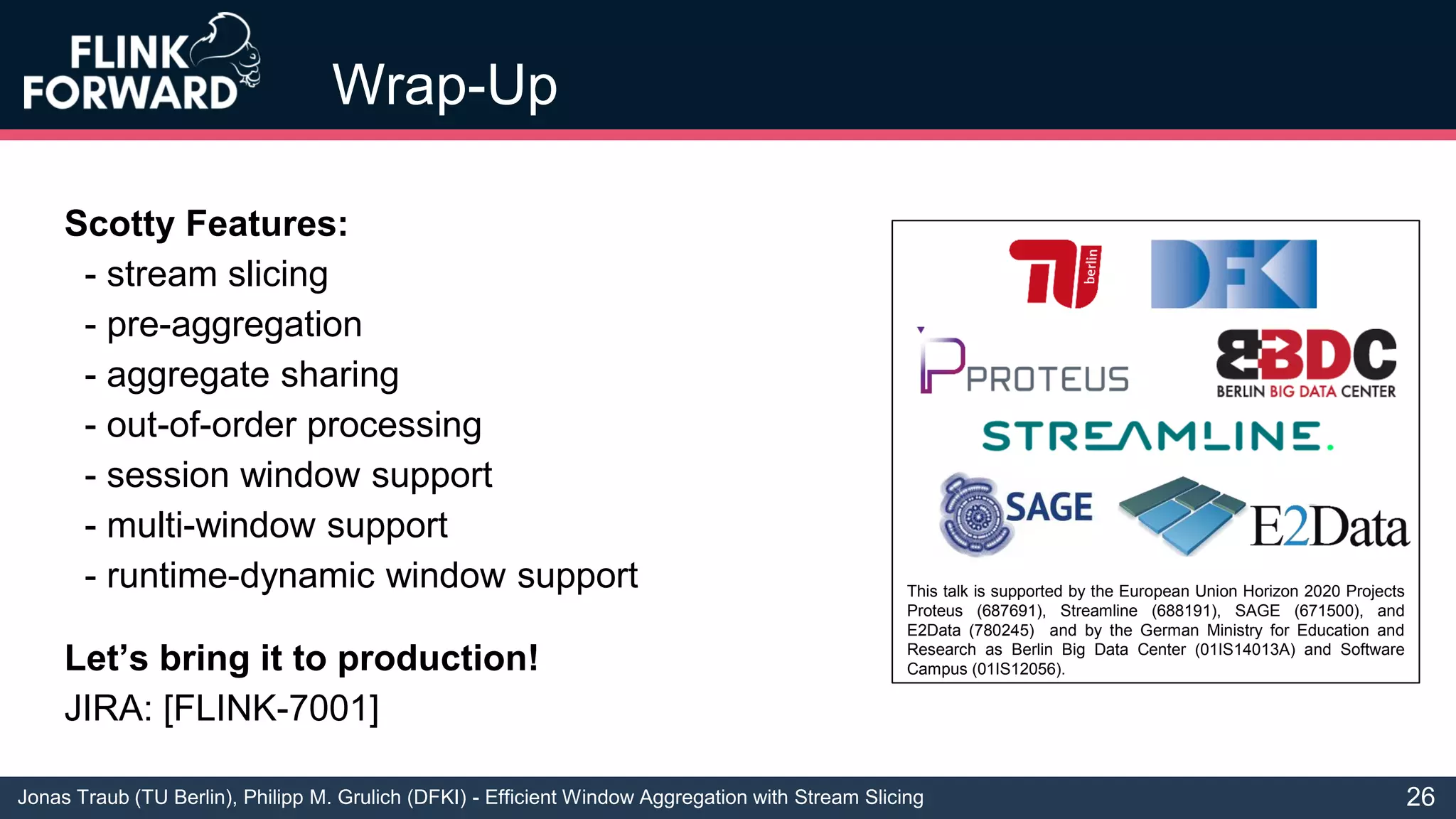

62. Jonas Traub (TU Berlin), Philipp M. Grulich (DFKI) - Efficient Window Aggregation with Stream Slicing
Wrap-Up
Scotty Features:
- stream slicing
- pre-aggregation
- aggregate sharing
- out-of-order processing
- session window support
- multi-window support
- runtime-dynamic window support
Let’s bring it to production!
JIRA: [FLINK-7001]
26
This talk is supported by the European Union Horizon 2020 Projects
Proteus (687691), Streamline (688191), SAGE (671500), and
E2Data (780245) and by the German Ministry for Education and
Research as Berlin Big Data Center (01IS14013A) and Software
Campus (01IS12056).
