The document presents a discussion on the lambda architecture and its comparison with streaming architectures, highlighting the importance of strong consistency and correct data processing. It covers various approaches to handling time in data streams, including time-agnostic processing, approximations, and different windowing techniques. The presentation emphasizes that while lambda is useful, streaming offers better low-latency and correct results along with tools for effective time reasoning.

1. Have Your Cake & Eat It Too
Further Dispelling the Myths of the Lambda Architecture
Tyler Akidau
Staff Software Engineer
Google Docs version of slides (with animations) available at: http://goo.gl/eX5kxa

2. InfoQ.com: News & Community Site
• 750,000 unique visitors/month
• Published in 4 languages (English, Chinese, Japanese and Brazilian
Portuguese)
• Post content from our QCon conferences
• News 15-20 / week
• Articles 3-4 / week
• Presentations (videos) 12-15 / week
• Interviews 2-3 / week
• Books 1 / month
Watch the video with slide
synchronization on InfoQ.com!
http://www.infoq.com/presentations
/millwheel

3. Purpose of QCon
- to empower software development by facilitating the spread of
knowledge and innovation
Strategy
- practitioner-driven conference designed for YOU: influencers of
change and innovation in your teams
- speakers and topics driving the evolution and innovation
- connecting and catalyzing the influencers and innovators
Highlights
- attended by more than 12,000 delegates since 2007
- held in 9 cities worldwide
Presented at QCon San Francisco
www.qconsf.com

4. MillWheel
Streaming Flume
Cloud Dataflow
- Stream Processing System
- High-level API
- Data Processing Service

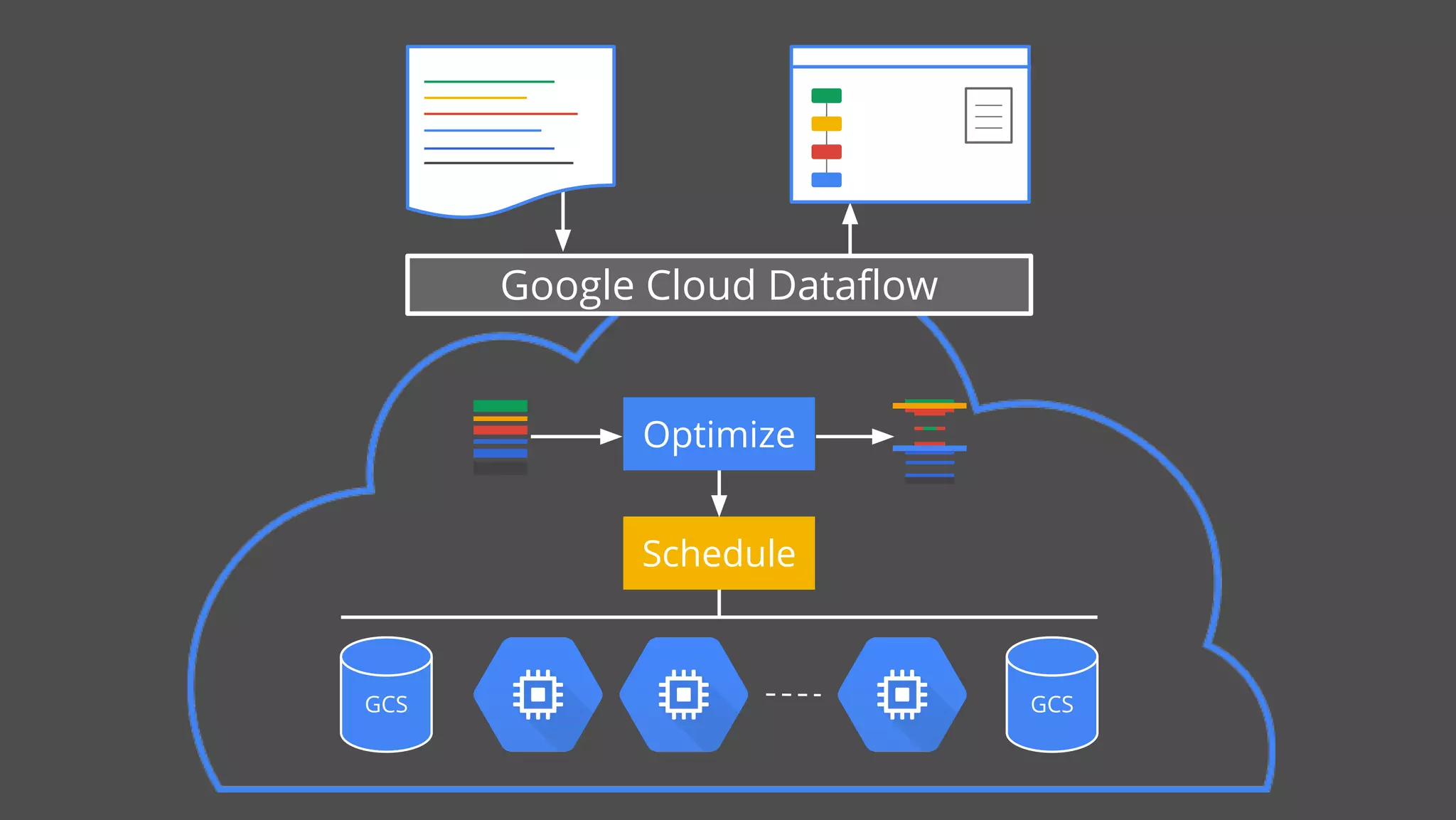

5. Google Cloud Dataflow
Optimize
Schedule
GCS GCS

6. - Slava Chernyak, Josh Haberman, Reuven Lax,
Daniel Mills, Paul Nordstrom, Sam McVeety,
Sam Whittle, and more...
- Robert Bradshaw, Daniel Mills,
and more...
- Robert Bradshaw, Craig Chambers, Reuven
Lax, Daniel Mills, Frances Perry, and
more...
MillWheel
Streaming Flume
Cloud Dataflow

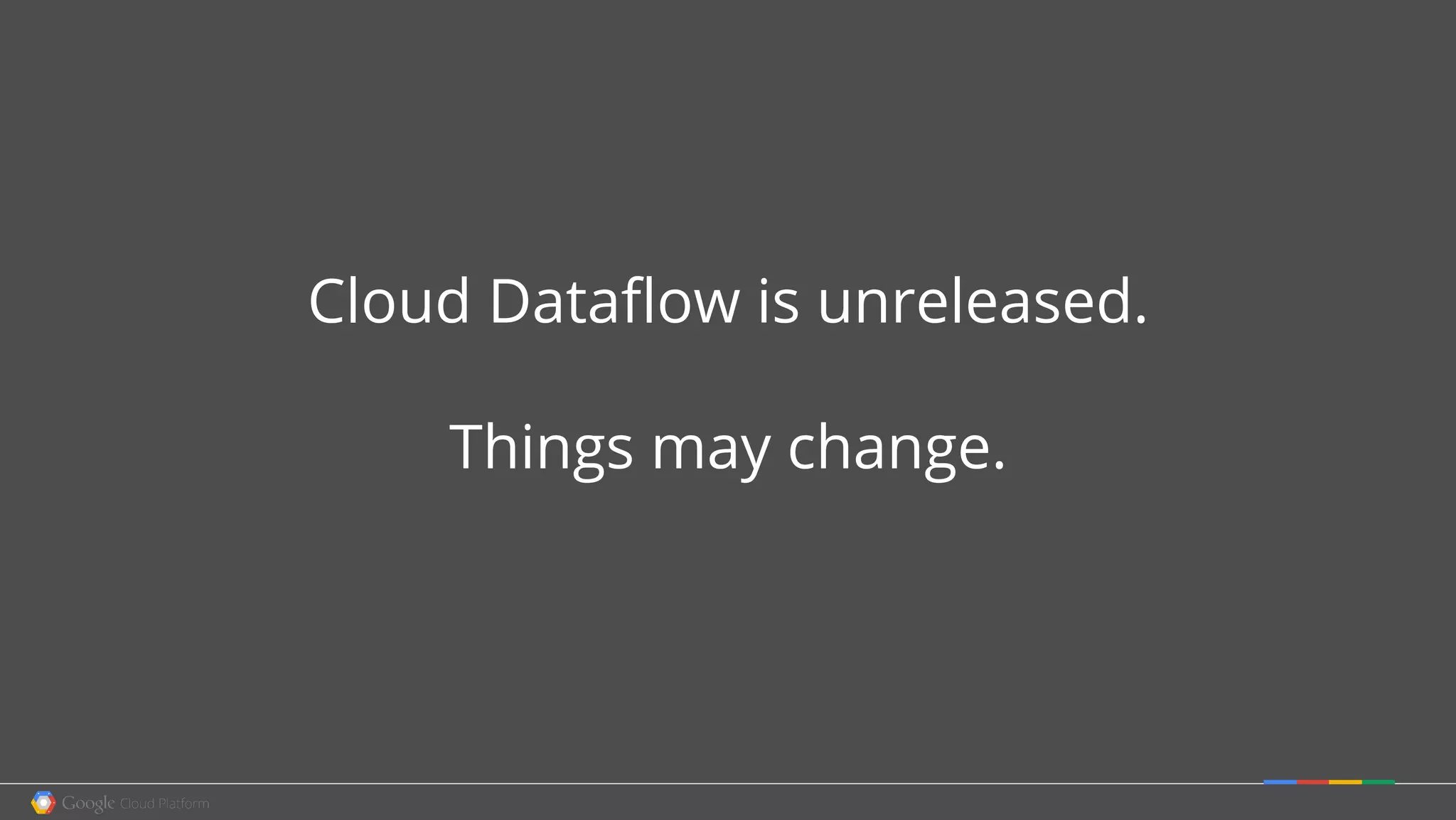

7. Cloud Dataflow is unreleased.
Things may change.

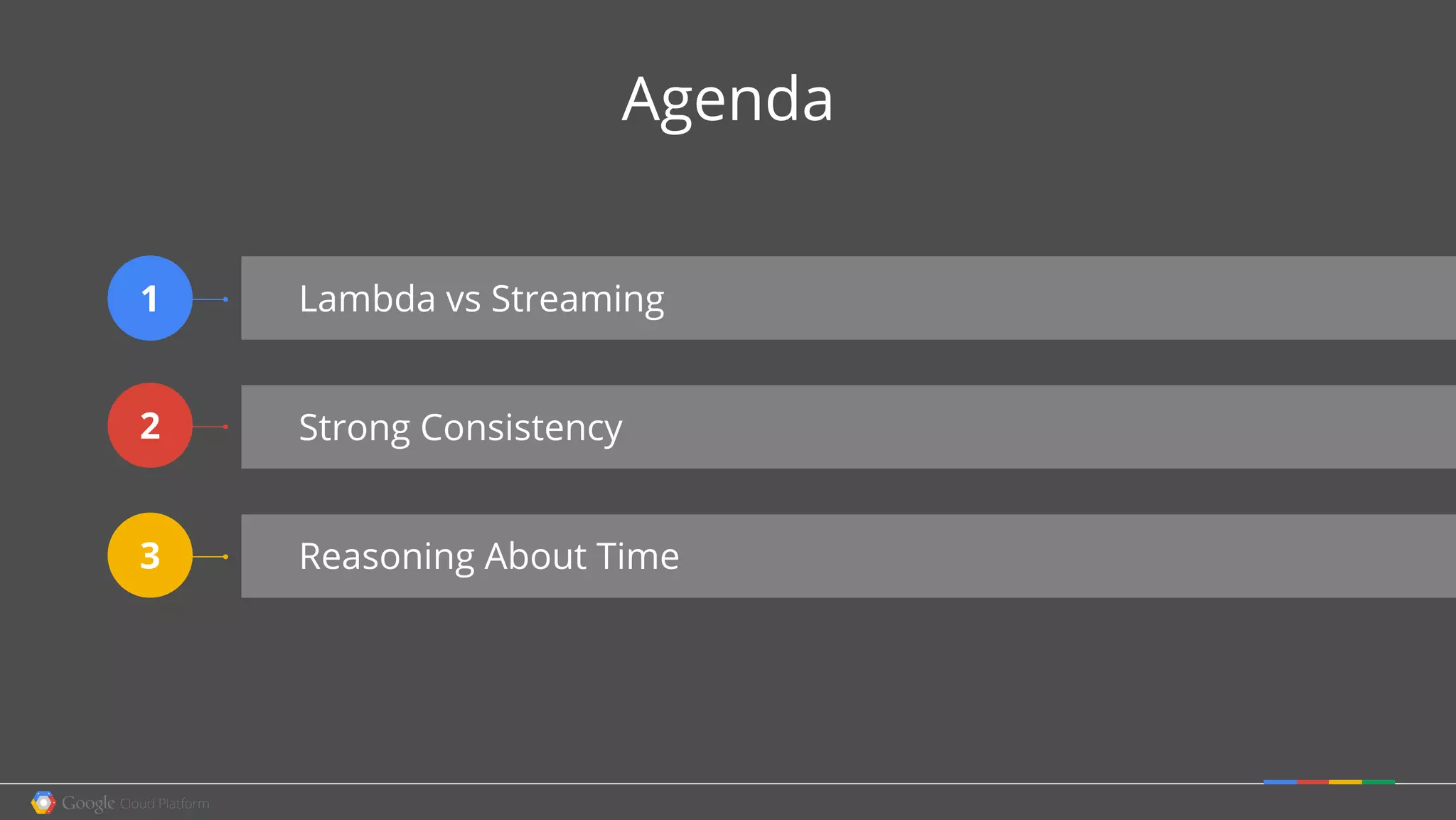

8. Lambda vs Streaming
Strong Consistency
Reasoning About Time
1
2
3
Agenda

9. Lambda vs Streaming1

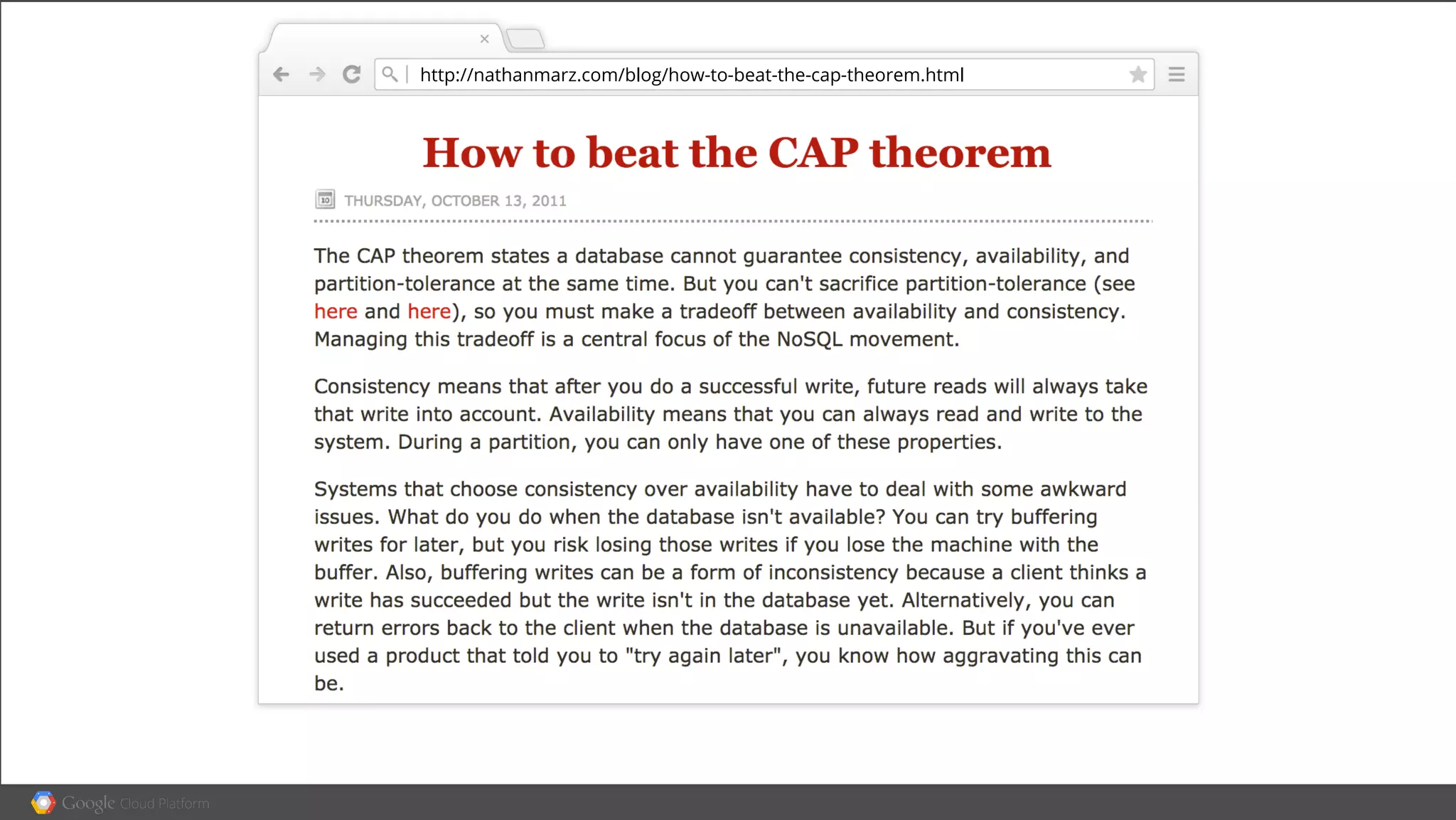

10. http://nathanmarz.com/blog/how-to-beat-the-cap-theorem.html

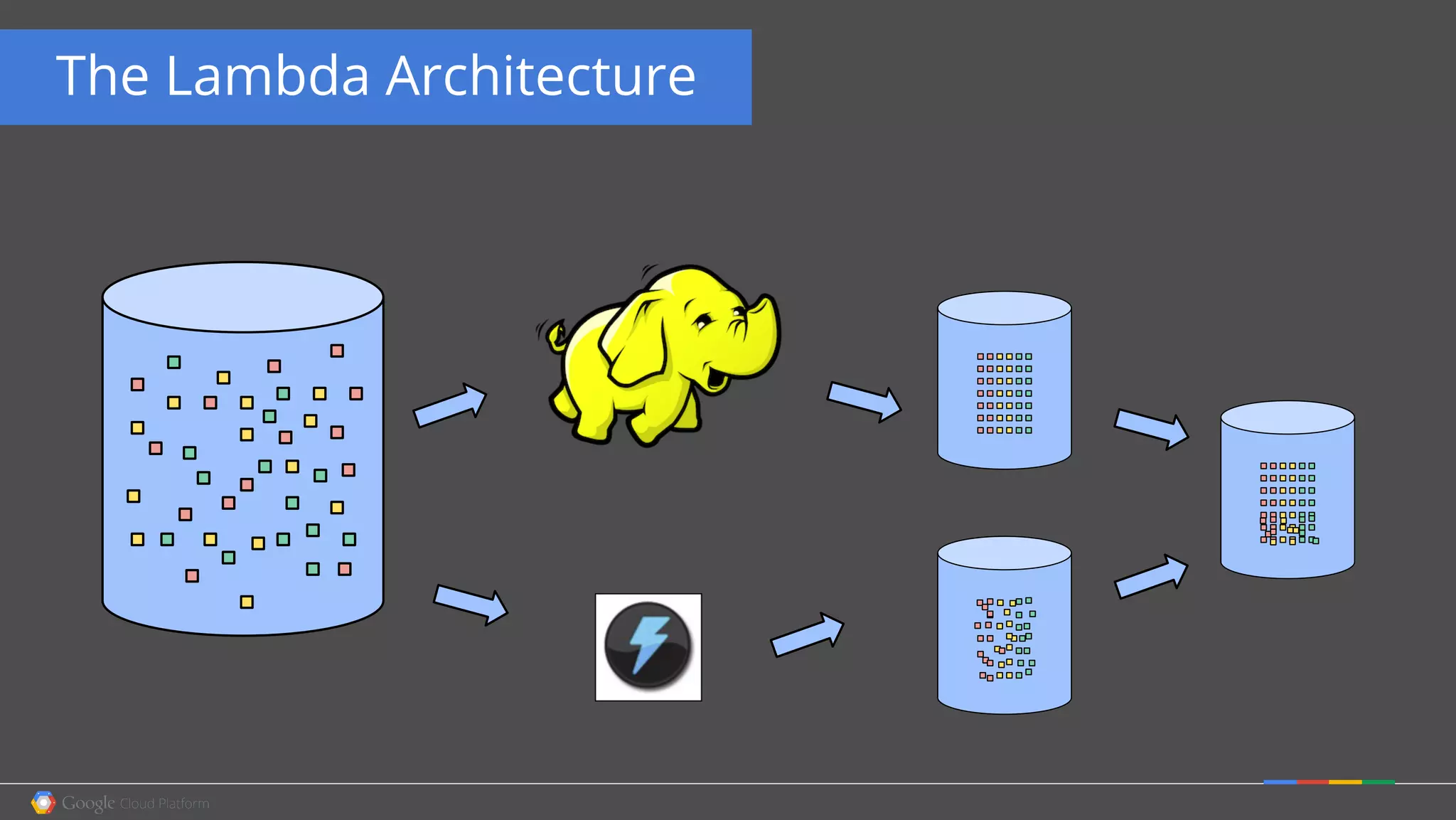

11. The Lambda Architecture

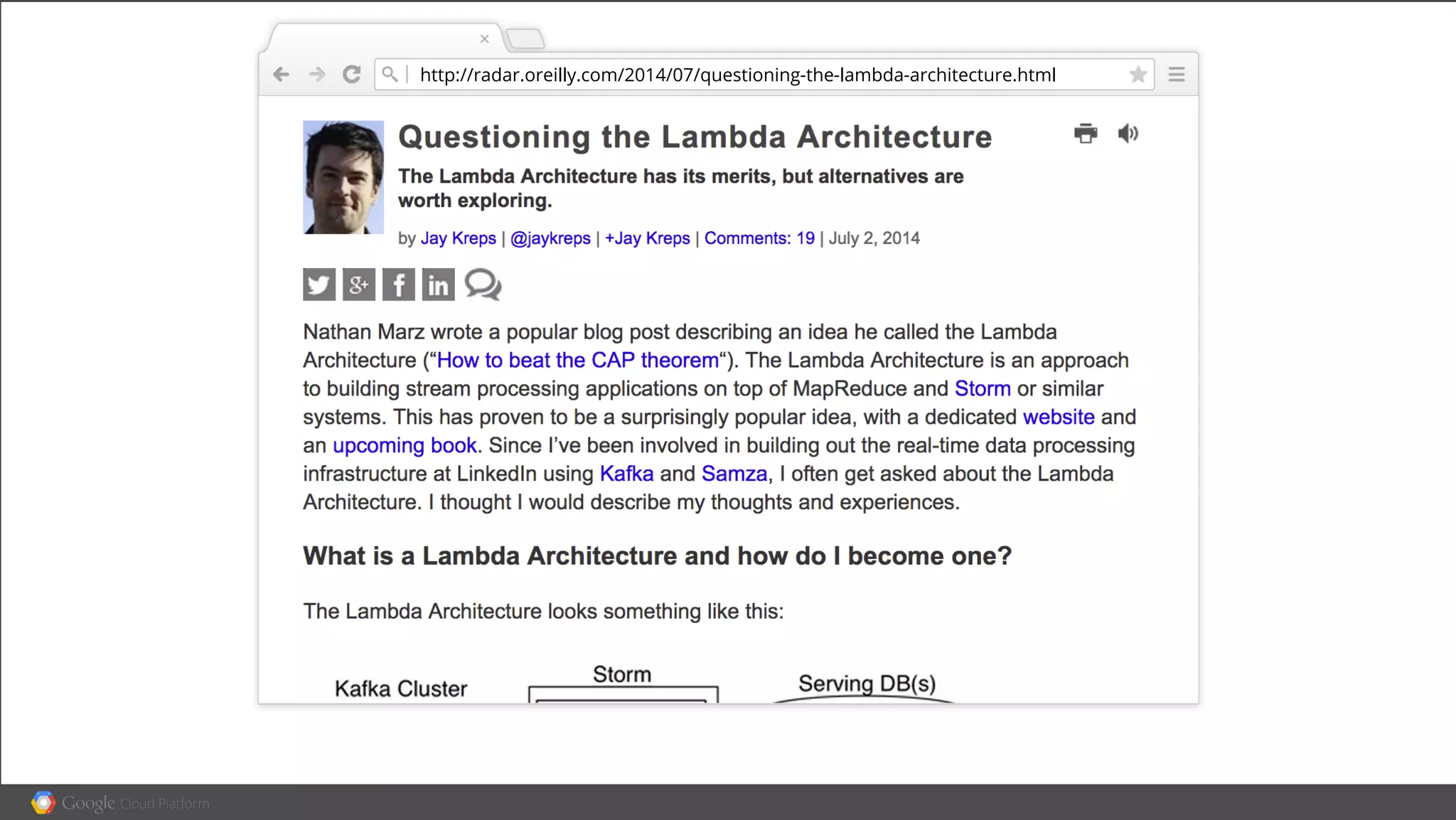

12. http://radar.oreilly.com/2014/07/questioning-the-lambda-architecture.html

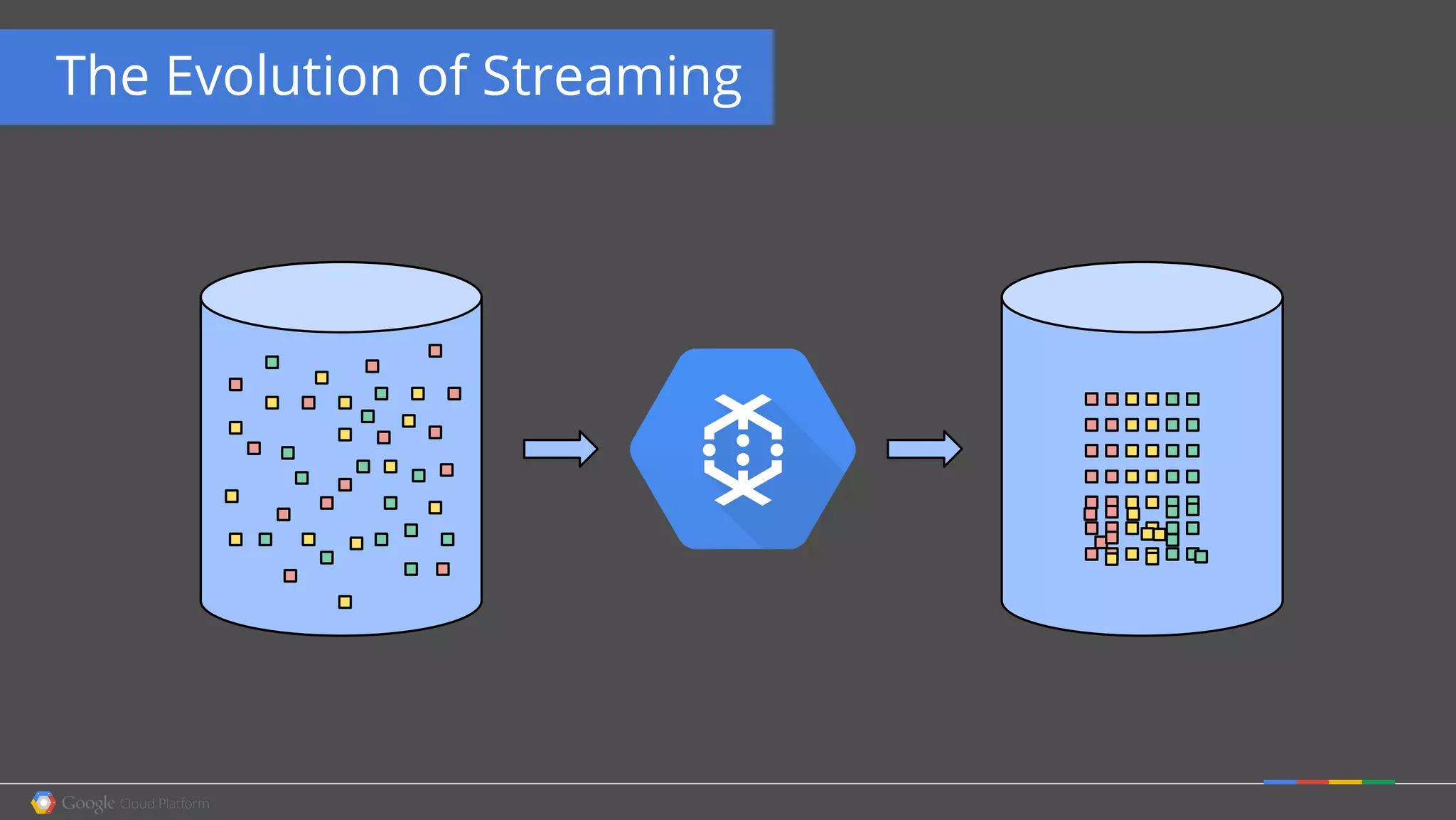

13. The Evolution of Streaming

14. Strong Consistency
Tools for Reasoning About Time
What does it take?

15. Strong Consistency2

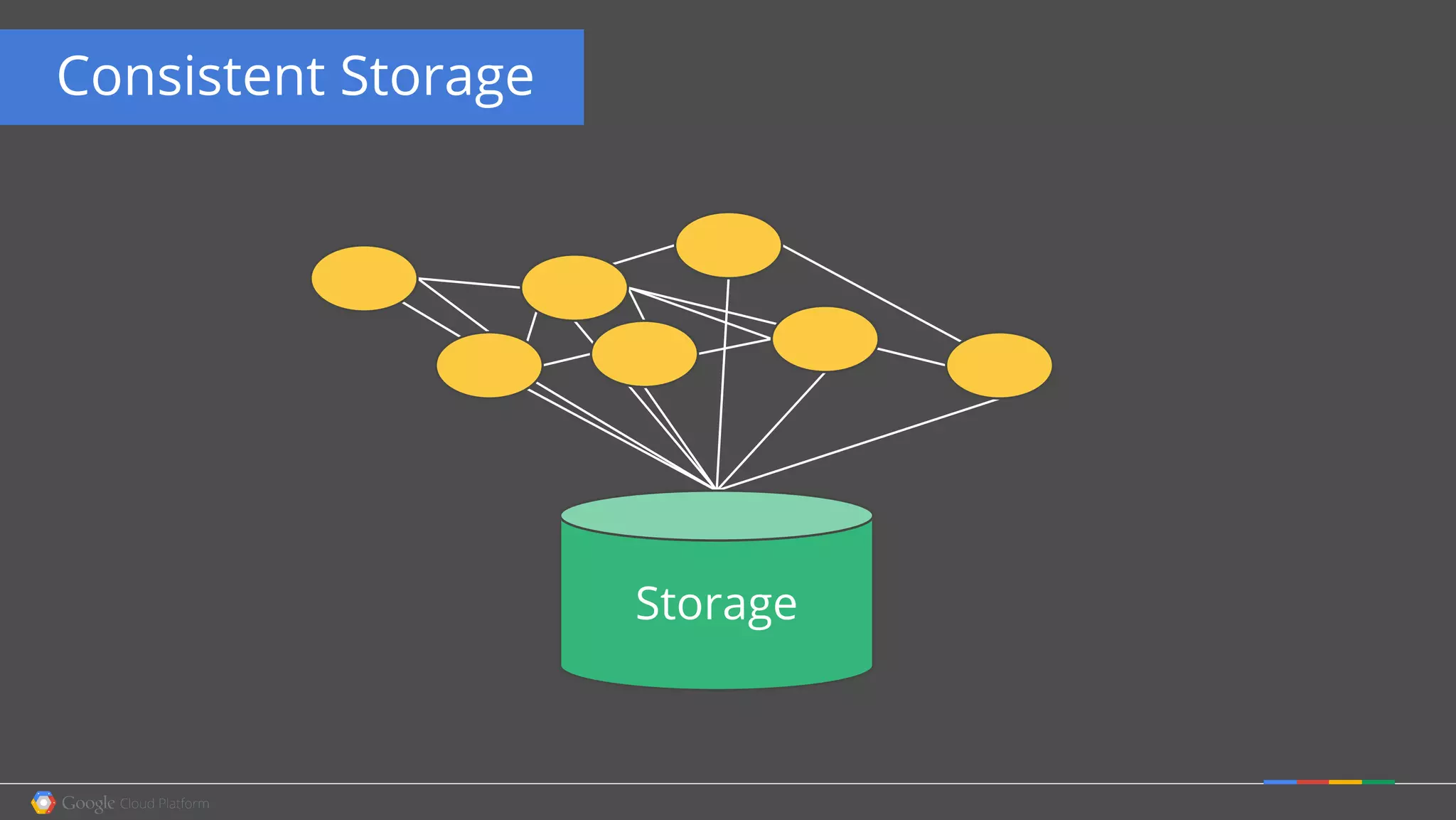

16. Consistent Storage
Storage

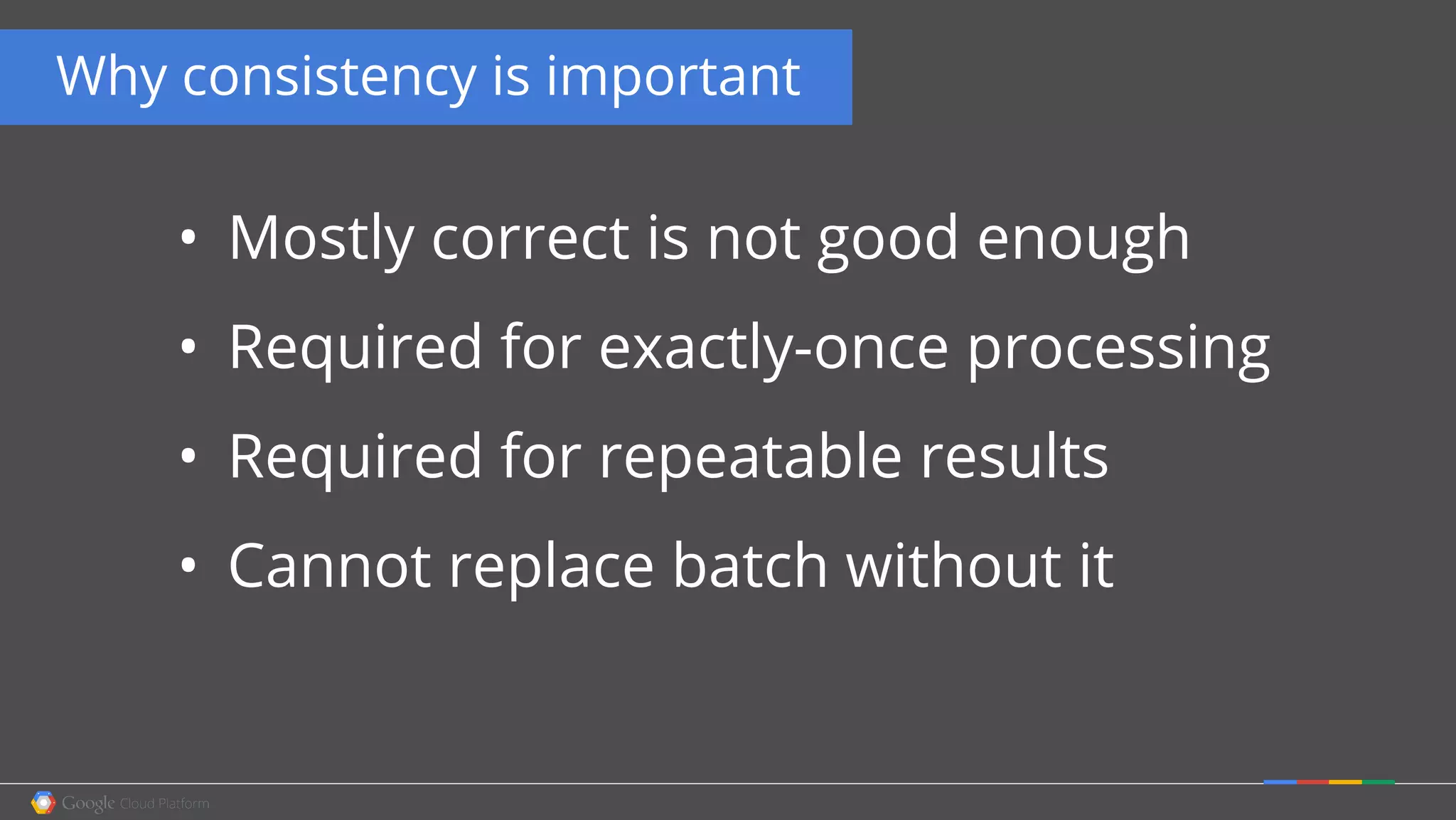

17. • Mostly correct is not good enough
• Required for exactly-once processing
• Required for repeatable results
• Cannot replace batch without it
Why consistency is important

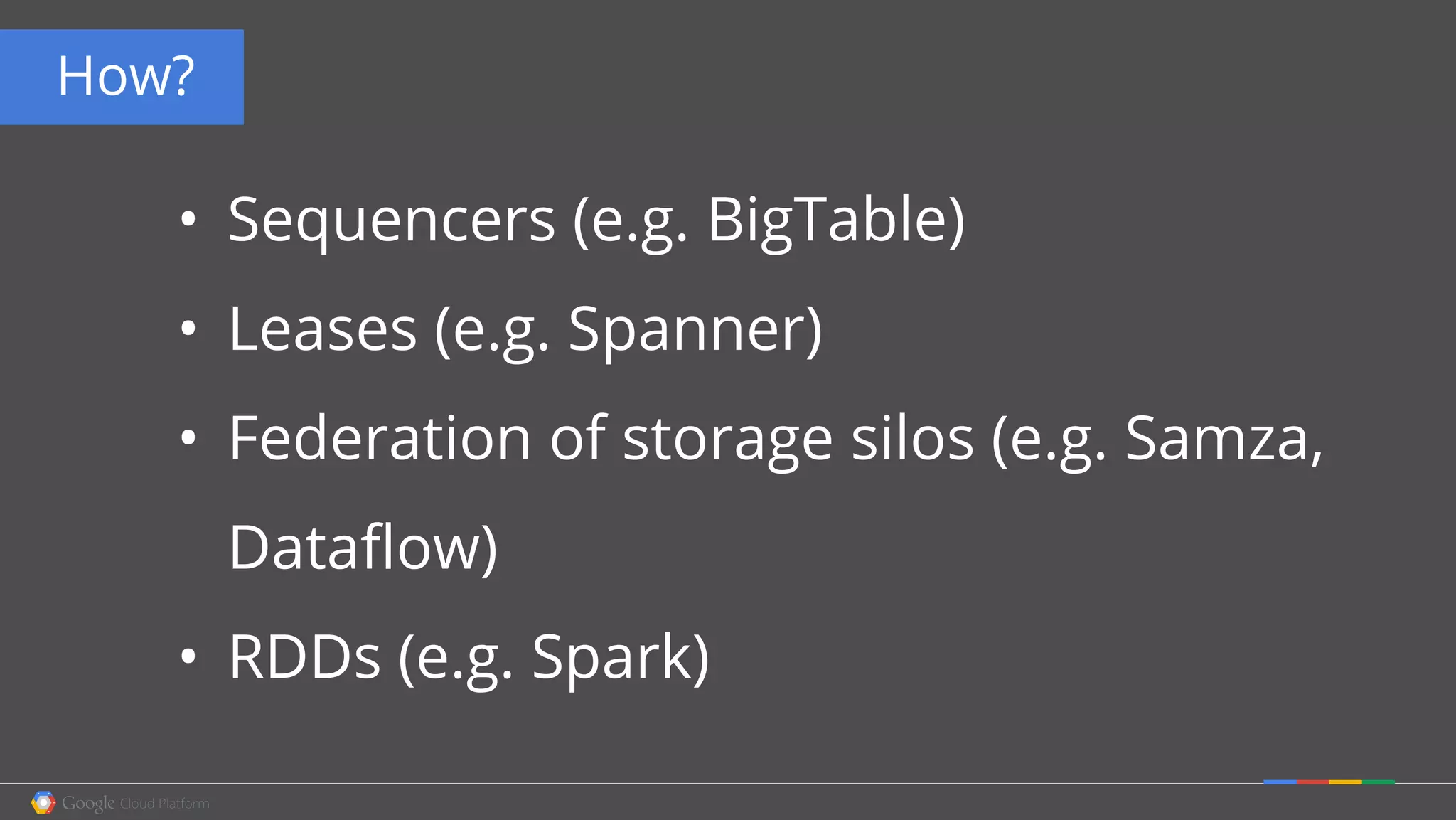

18. • Sequencers (e.g. BigTable)
• Leases (e.g. Spanner)
• Federation of storage silos (e.g. Samza,
Dataflow)
• RDDs (e.g. Spark)
How?

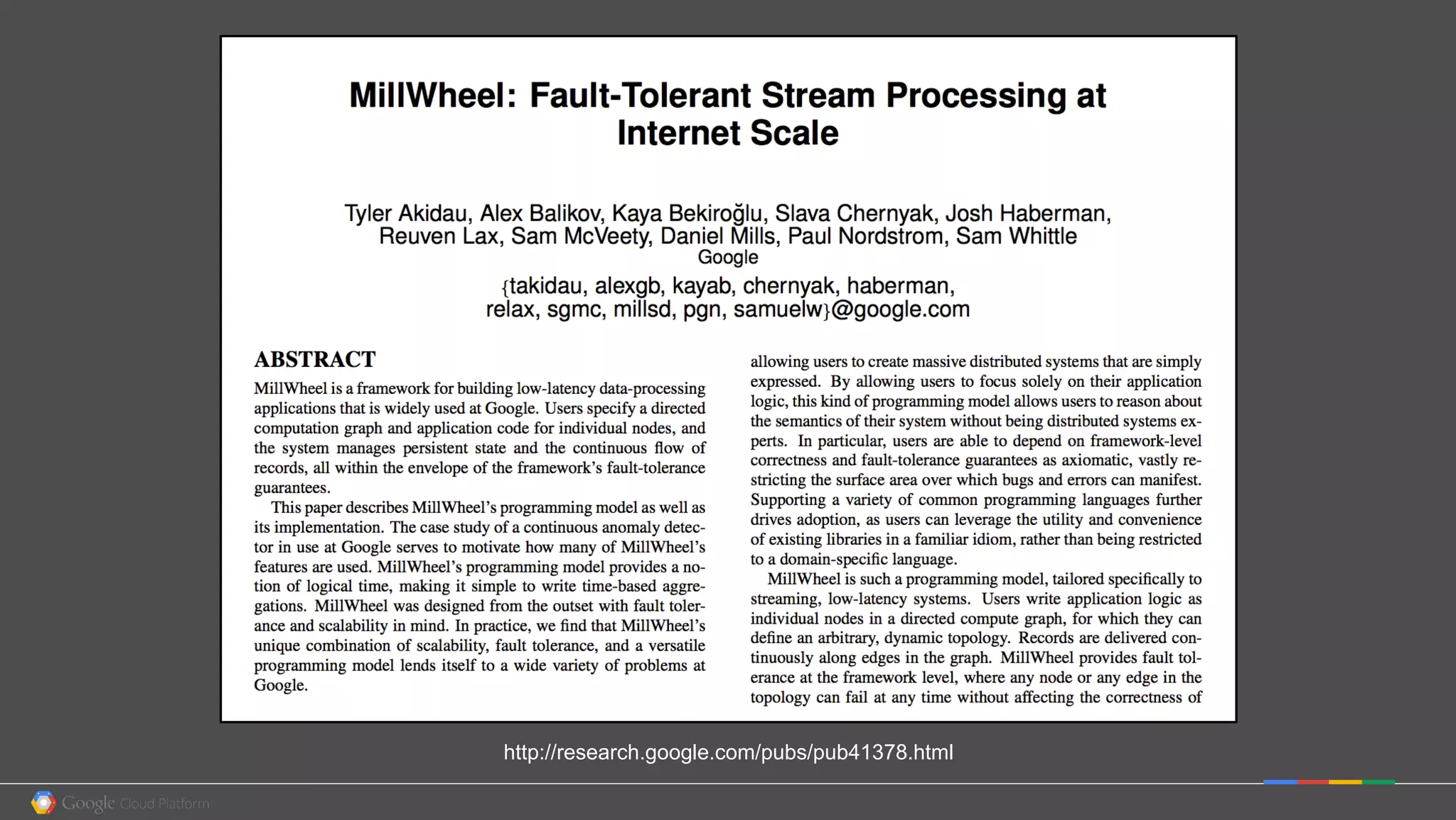

19. http://research.google.com/pubs/pub41378.html

20. Reasoning About Time3

21. Event Time vs Stream Time
Batch vs Streaming
Approaches
Dataflow API

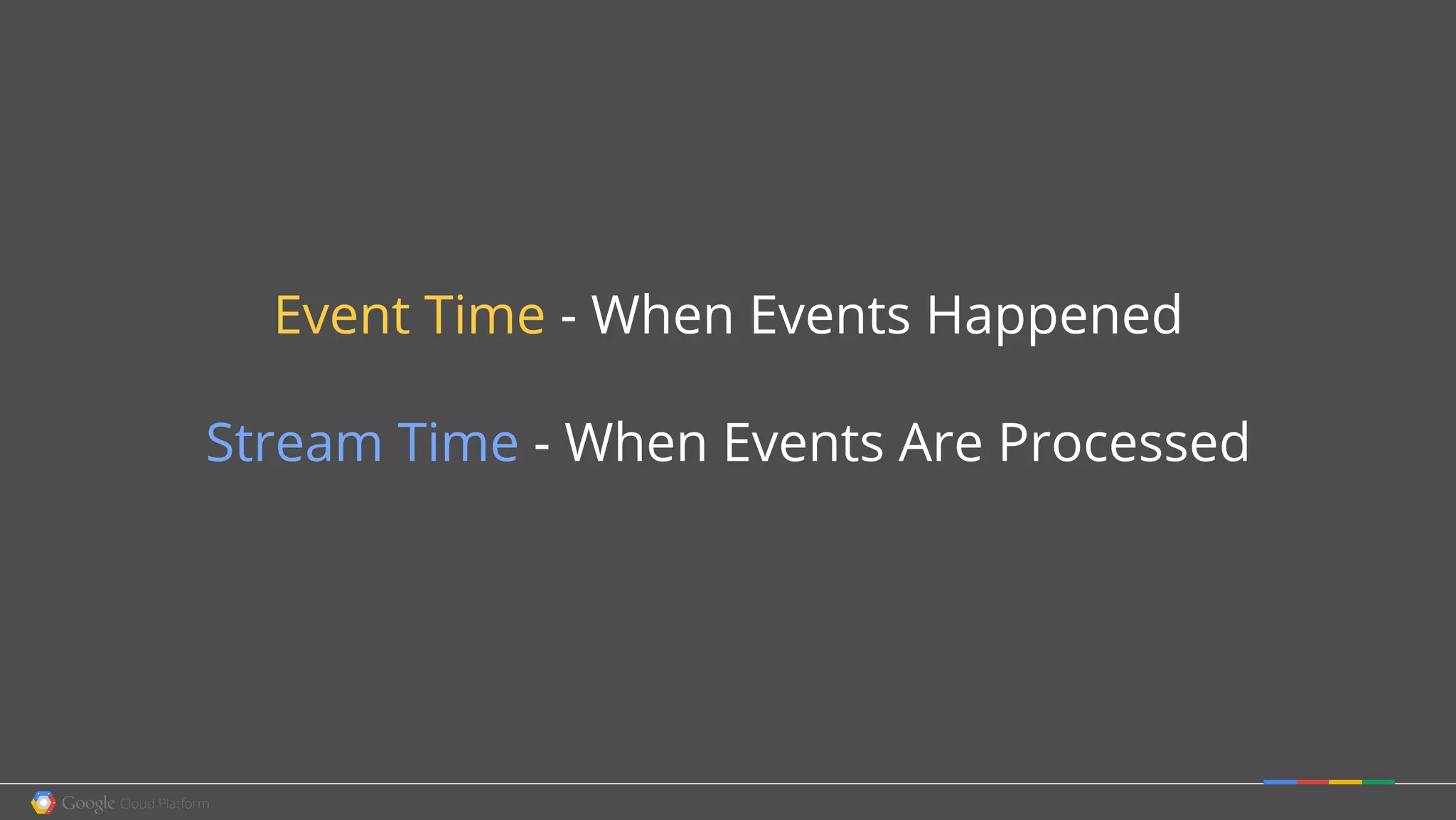

22. Event Time - When Events Happened
Stream Time - When Events Are Processed

23. Batch vs Streaming

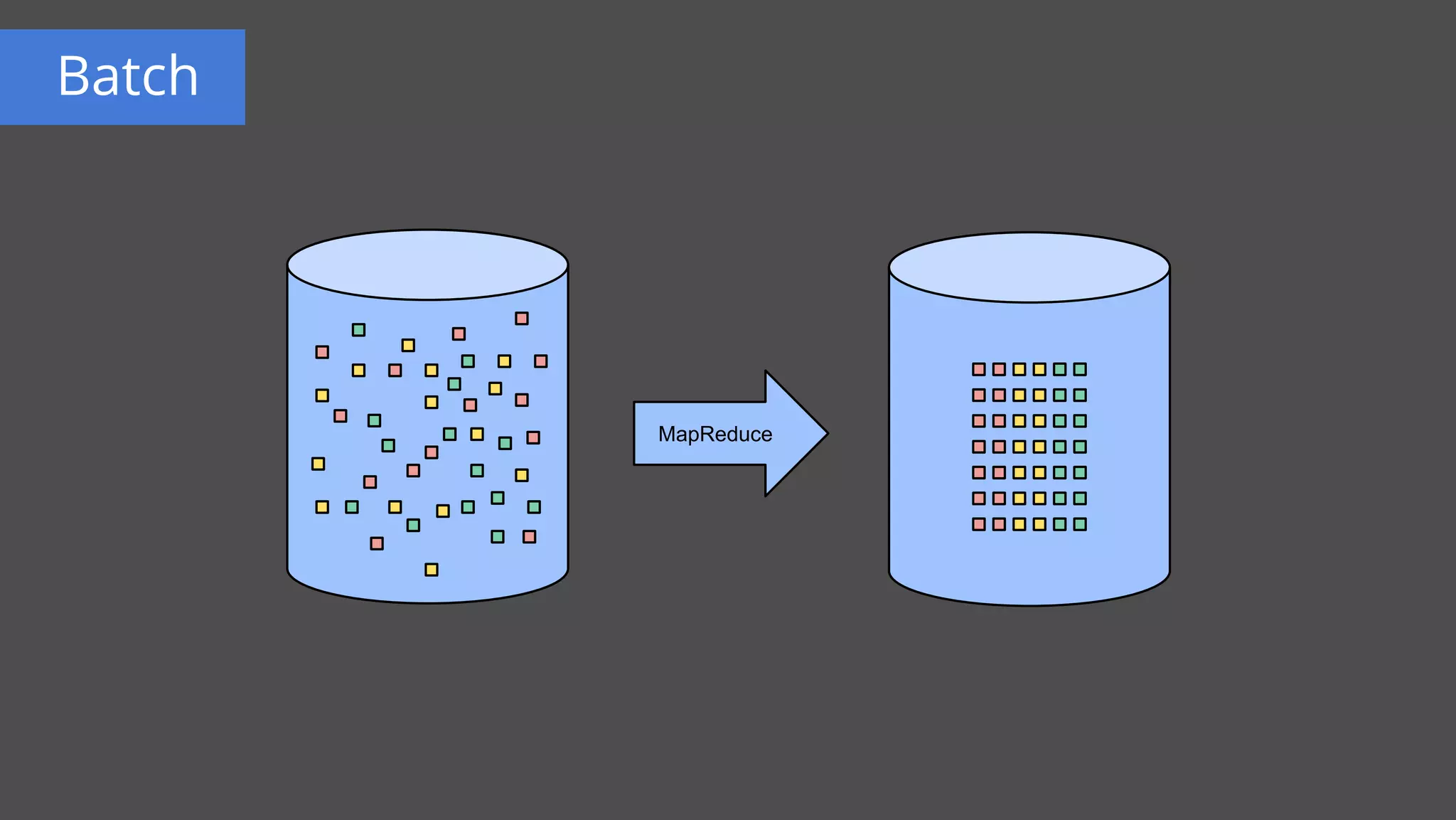

24. MapReduce
Batch

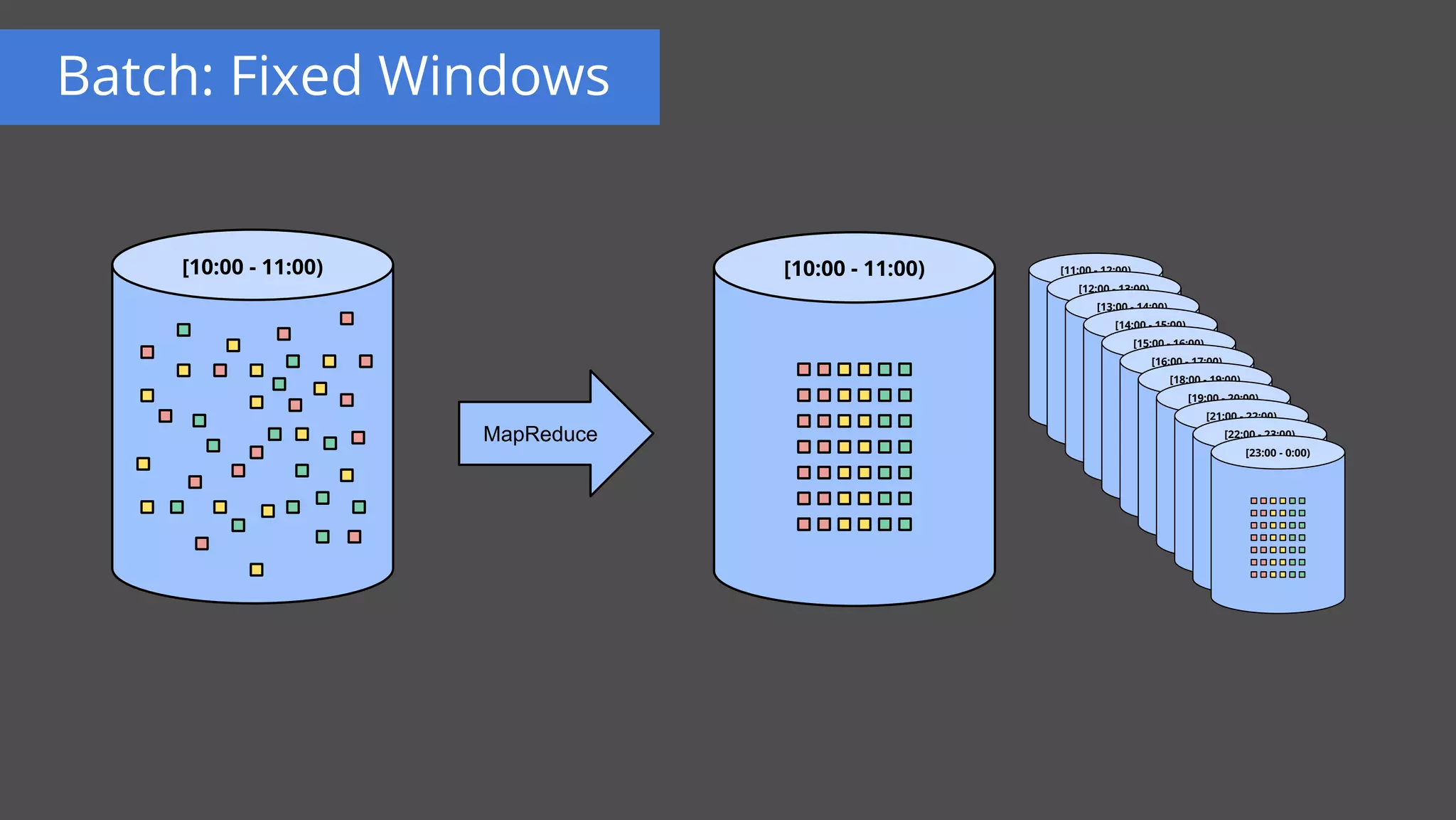

25. MapReduce
[10:00 - 11:00)[10:00 - 11:00) [11:00 - 12:00)
[12:00 - 13:00)
[13:00 - 14:00)
[14:00 - 15:00)
[15:00 - 16:00)
[16:00 - 17:00)
[18:00 - 19:00)
[19:00 - 20:00)
[21:00 - 22:00)
[22:00 - 23:00)
[23:00 - 0:00)
Batch: Fixed Windows

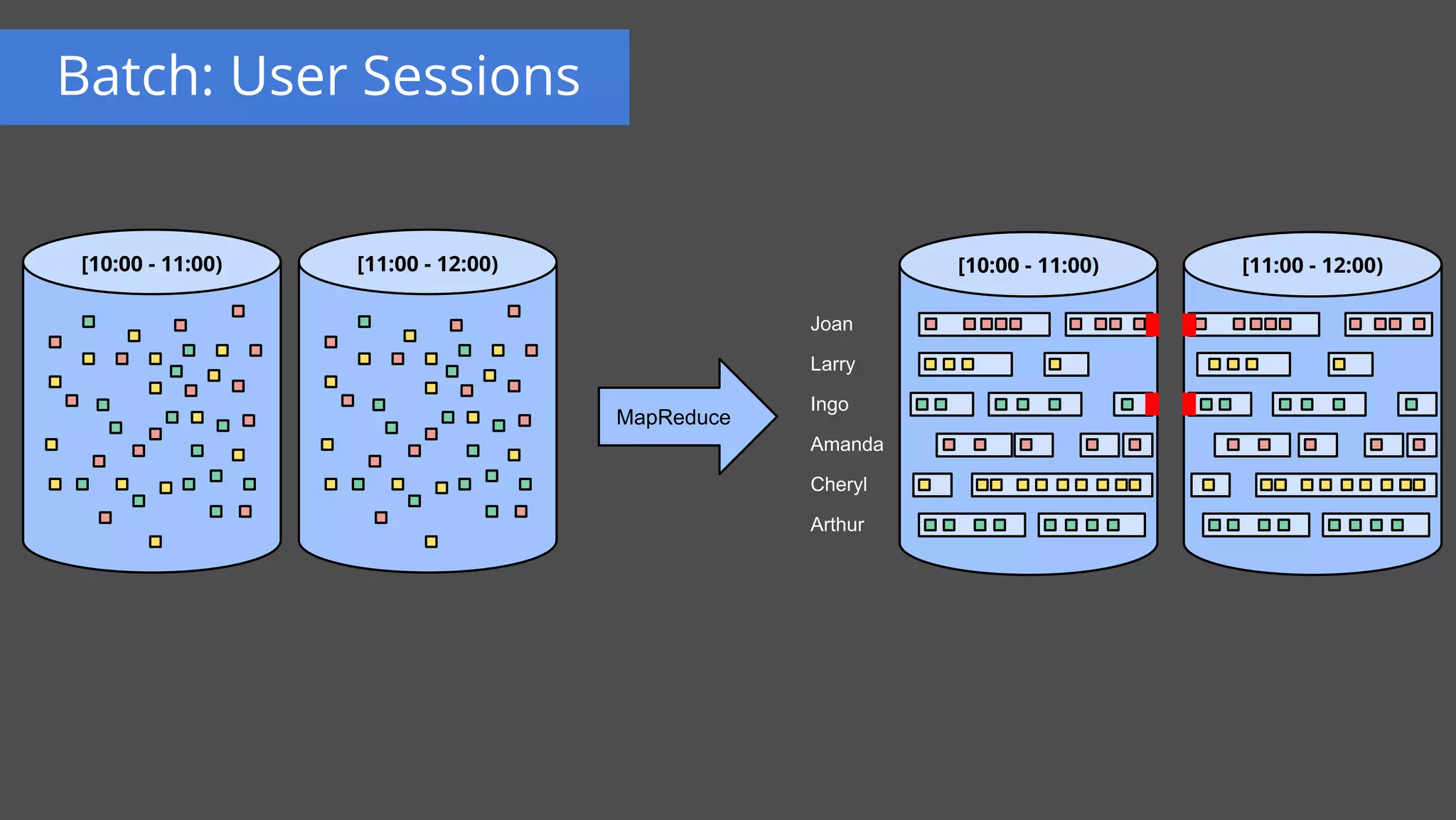

26. MapReduce
[10:00 - 11:00)[11:00 - 12:00)
Batch: User Sessions
Joan
Larry
Ingo
Amanda
Cheryl
Arthur
[11:00 - 12:00)[10:00 - 11:00)

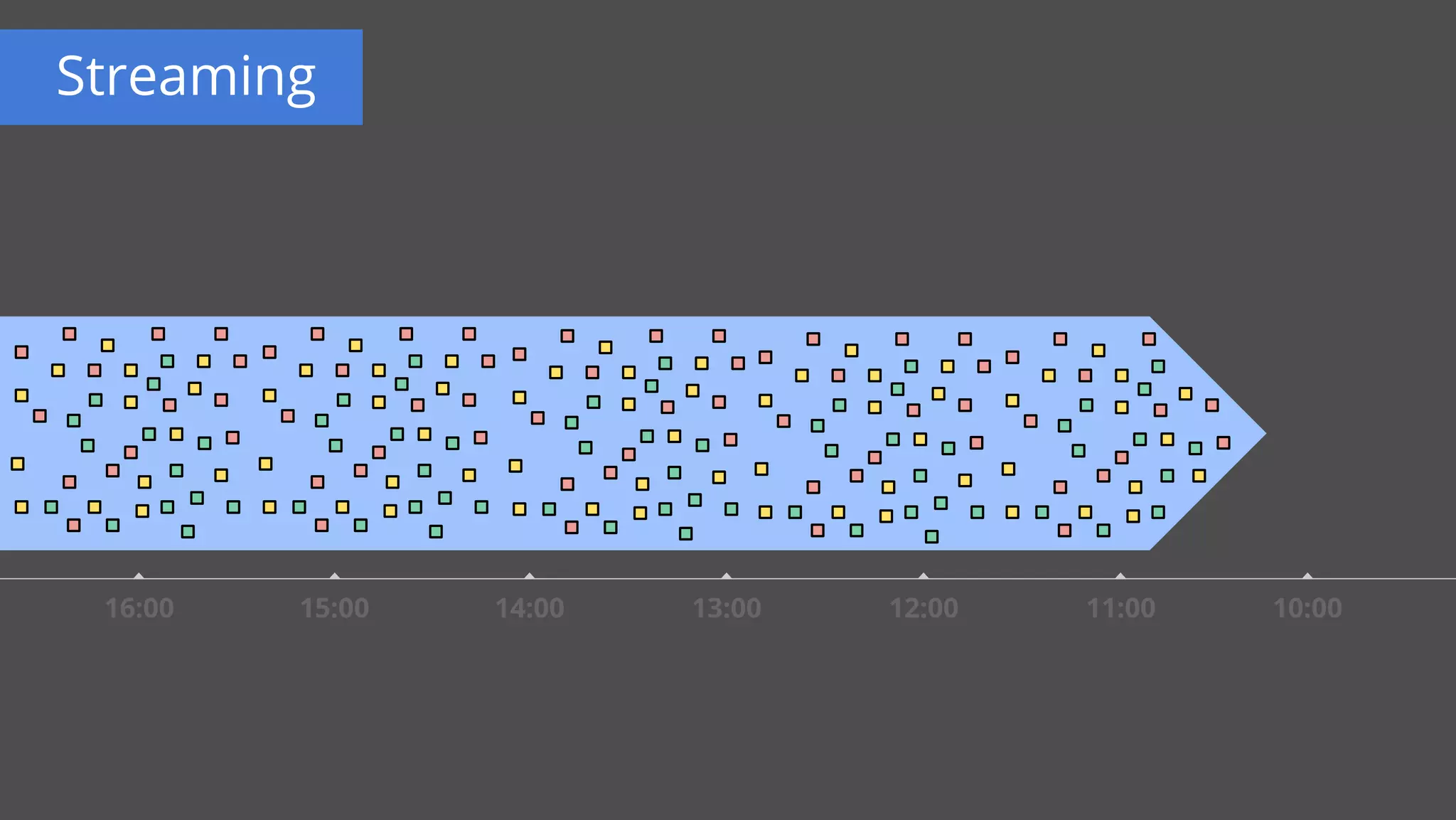

27. Streaming
11:00 10:0016:00 15:00 14:00 13:00 12:00

28. Unordered
Unbounded
Of Varying Event Time Skew
Confounding characteristics of data streams

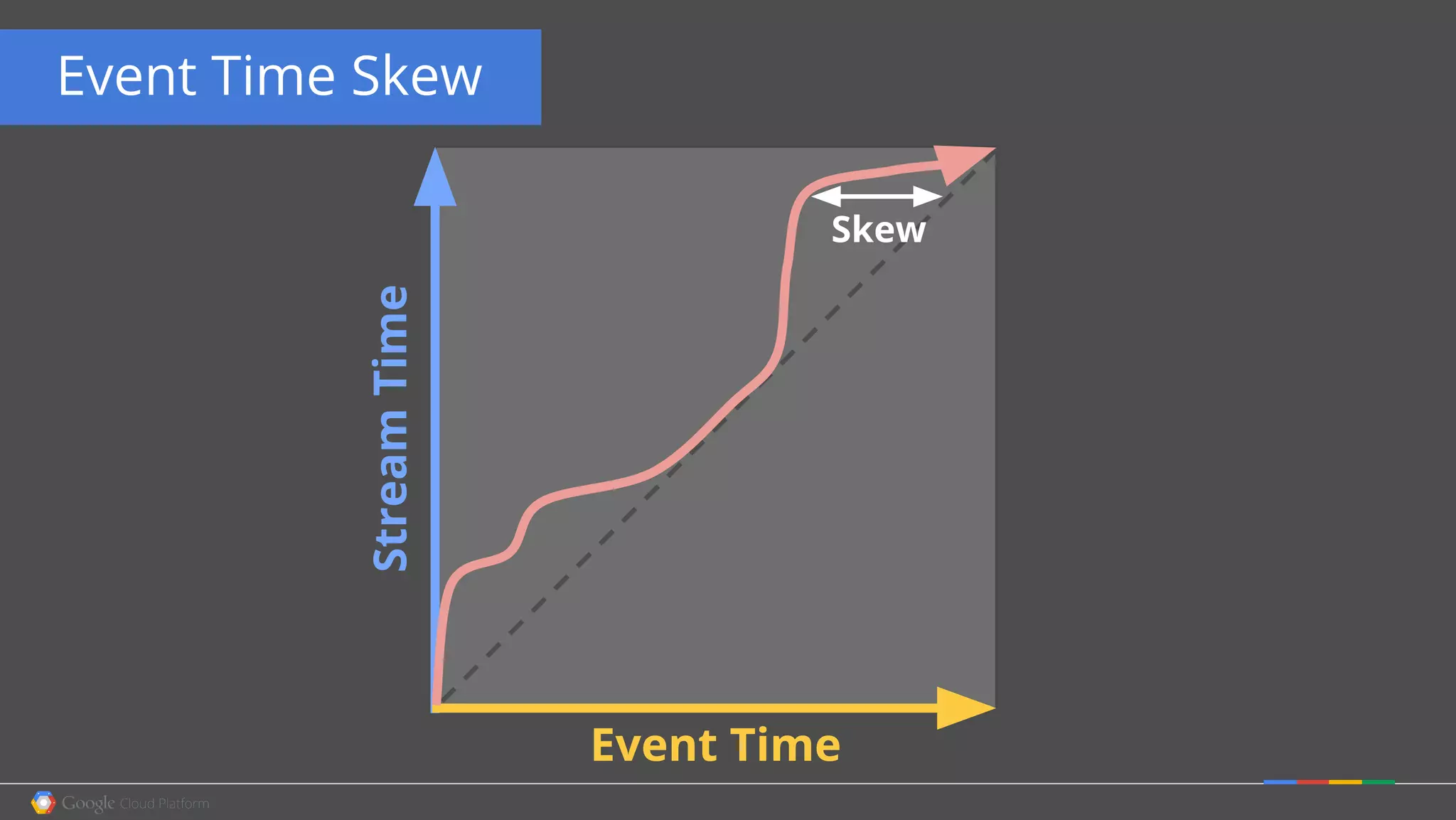

29. Event Time Skew
StreamTime
Event Time
Skew

30. Approaches

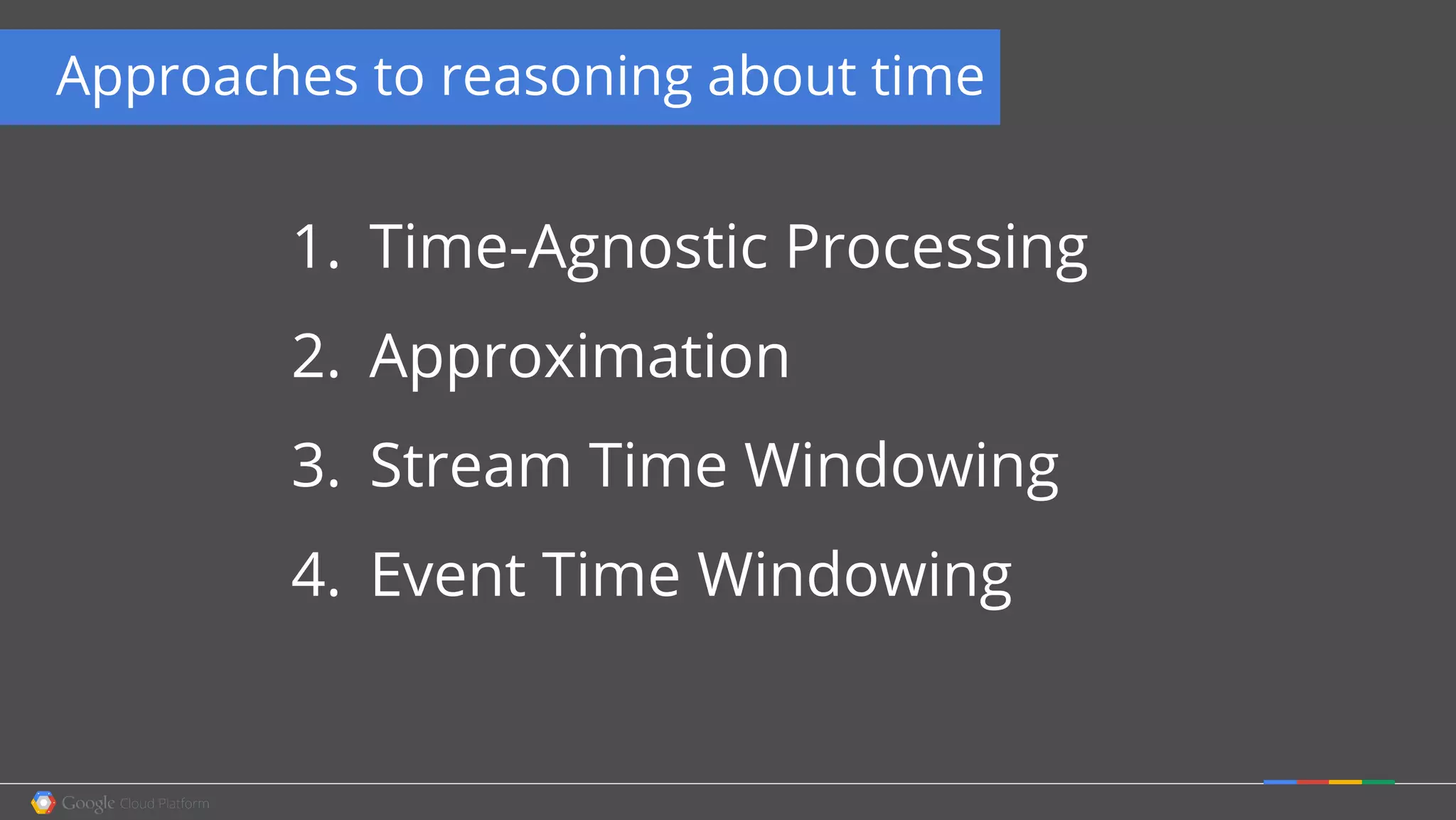

31. 1. Time-Agnostic Processing
2. Approximation
3. Stream Time Windowing
4. Event Time Windowing
Approaches to reasoning about time

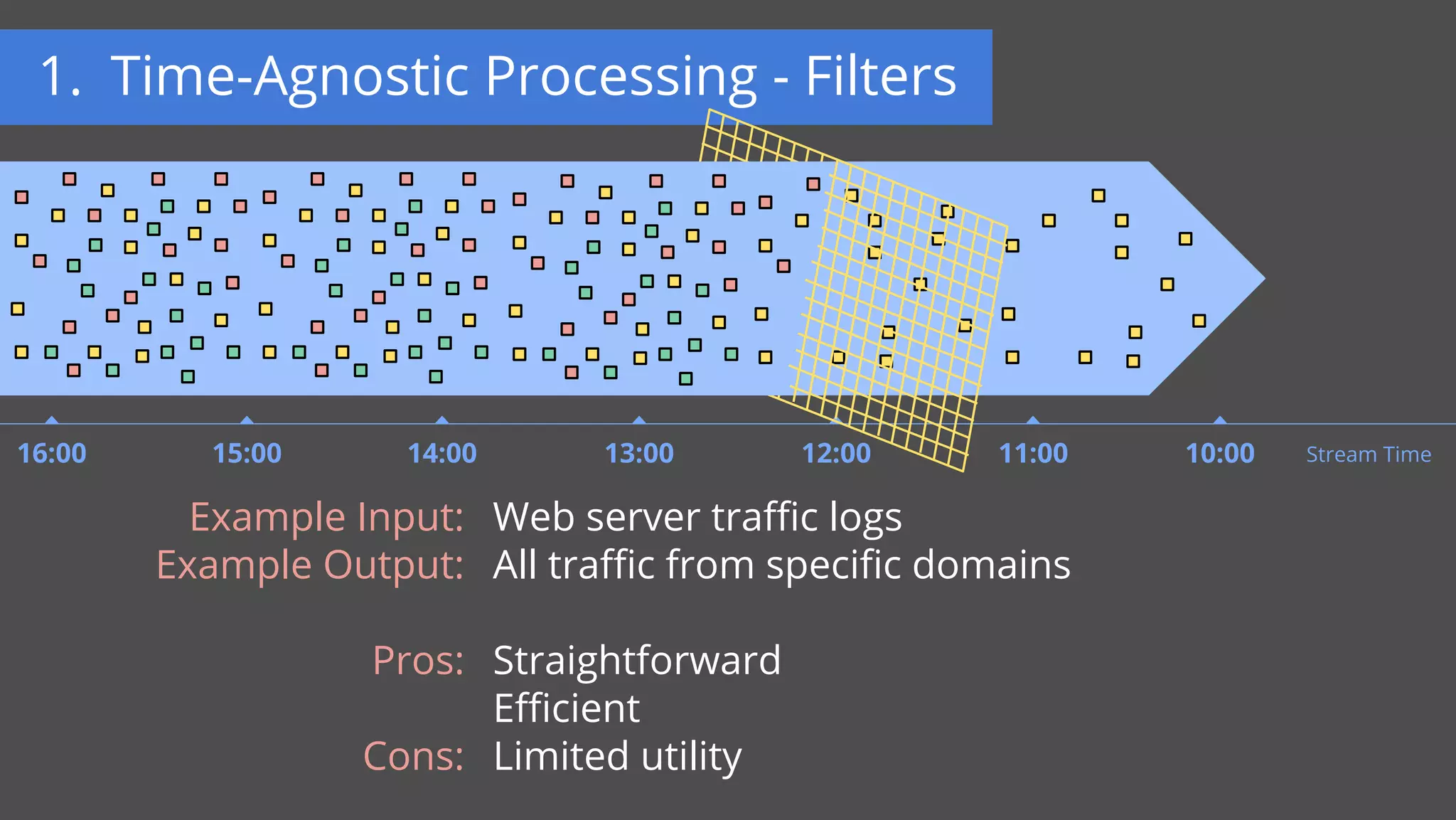

32. 1. Time-Agnostic Processing - Filters
11:00 10:0016:00 15:00 14:00 13:00 12:00 Stream Time
Example Input:
Example Output:
Pros:
Cons:
Web server traffic logs
All traffic from specific domains
Straightforward
Efficient
Limited utility

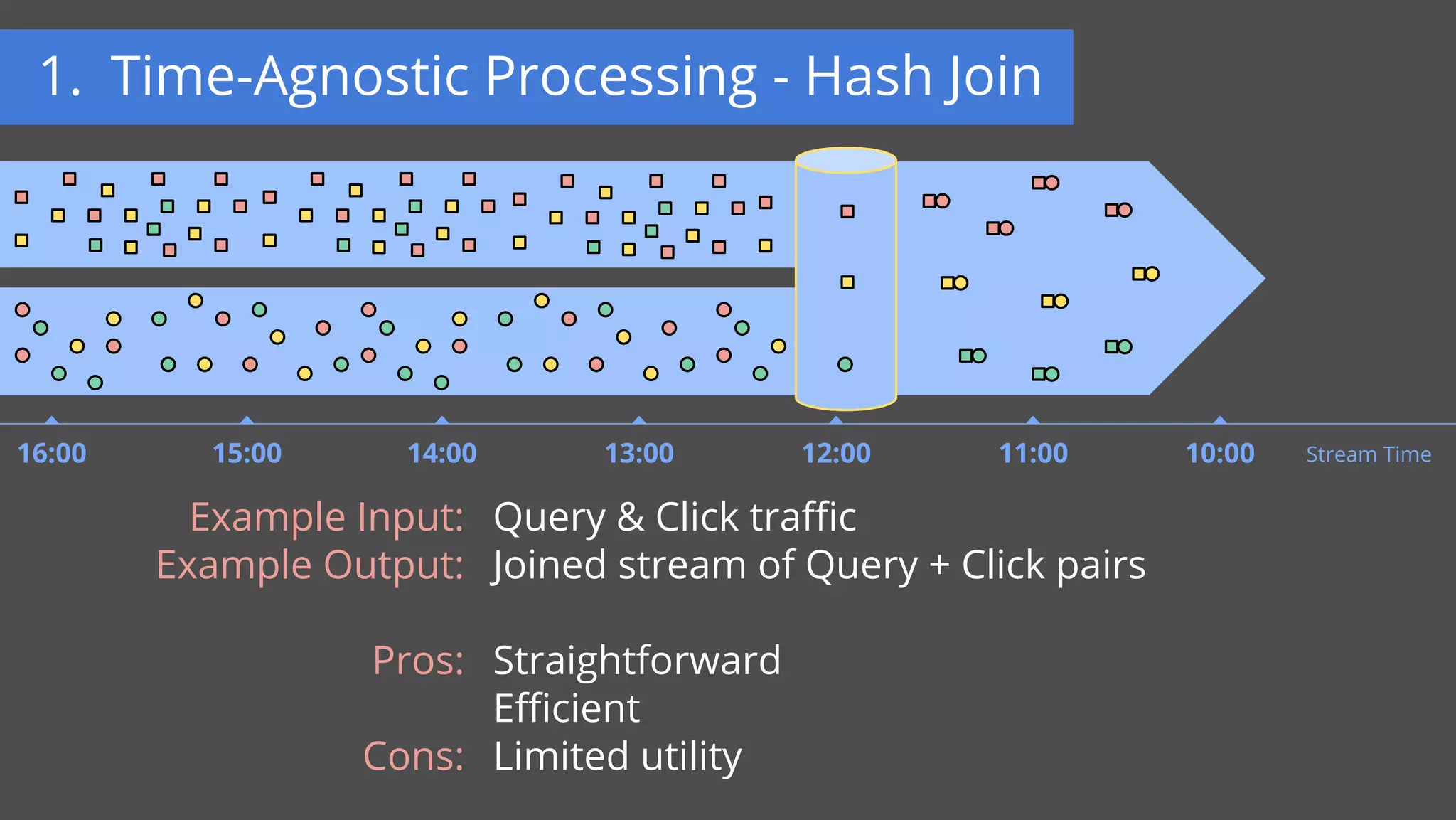

33. 1. Time-Agnostic Processing - Hash Join
11:00 10:0016:00 15:00 14:00 13:00 12:00 Stream Time
Example Input:
Example Output:
Pros:
Cons:
Query & Click traffic
Joined stream of Query + Click pairs
Straightforward
Efficient
Limited utility

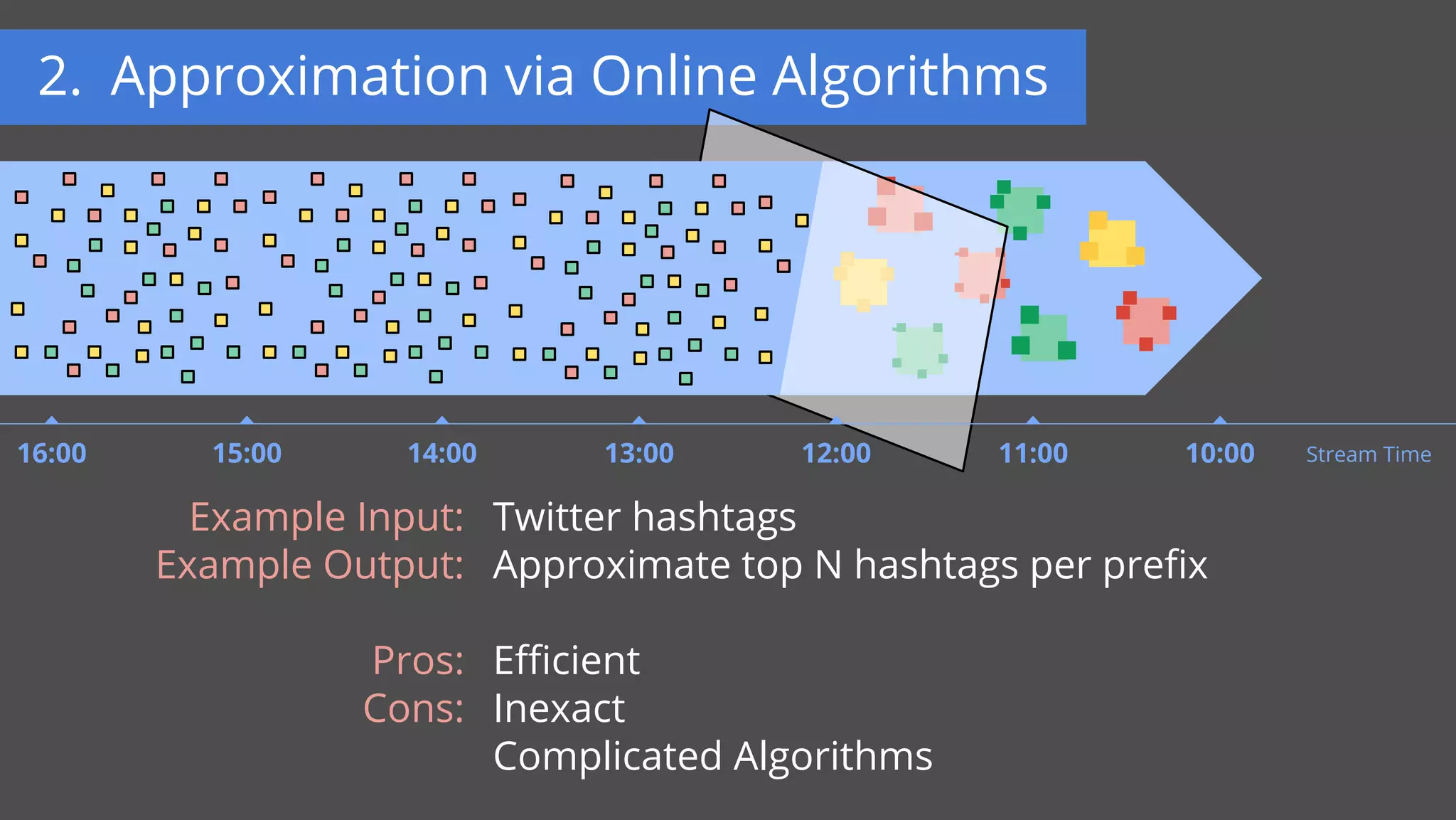

34. 2. Approximation via Online Algorithms
11:00 10:0016:00 15:00 14:00 13:00 12:00 Stream Time
Example Input:
Example Output:
Pros:
Cons:
Twitter hashtags
Approximate top N hashtags per prefix
Efficient
Inexact
Complicated Algorithms

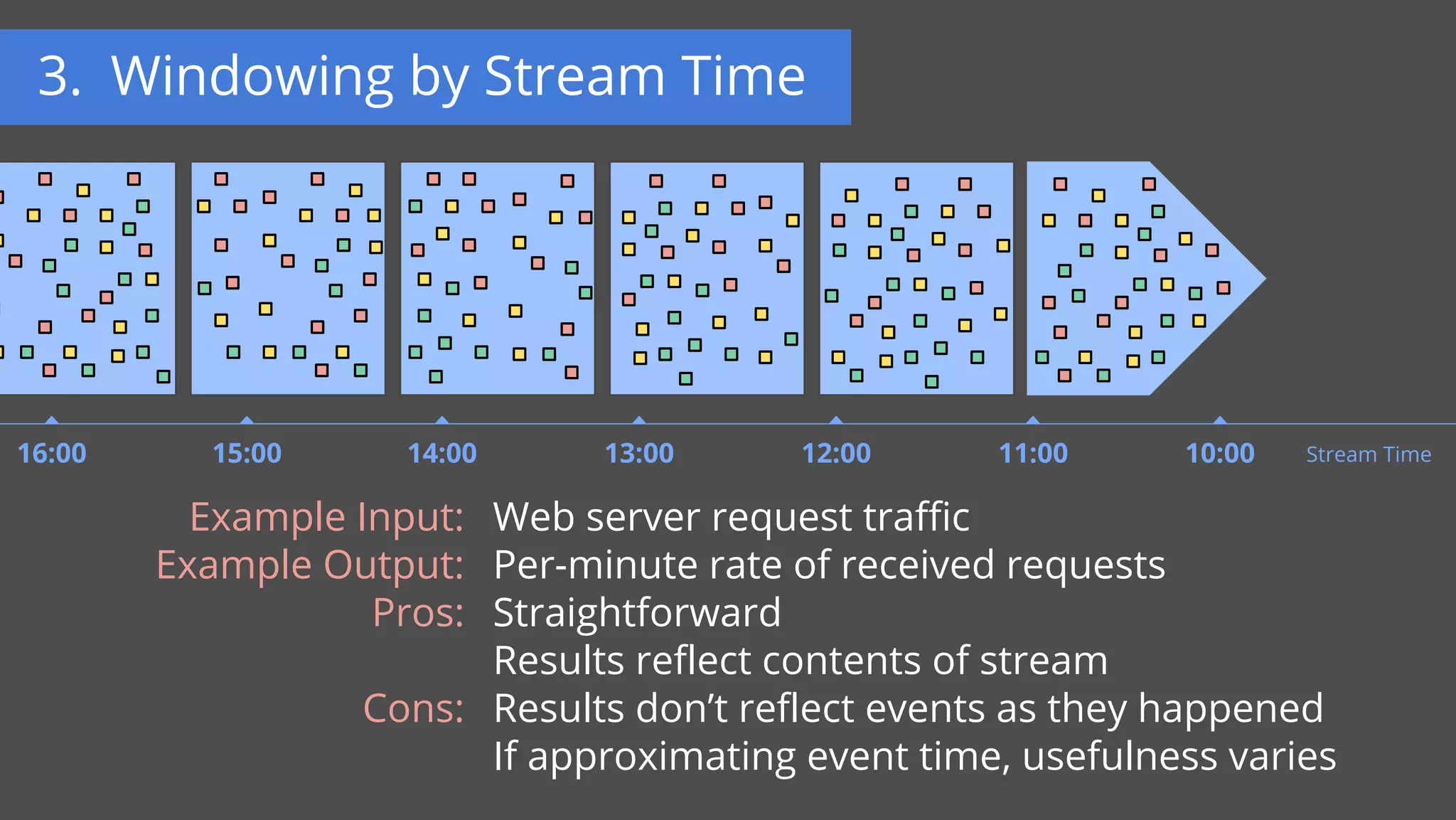

35. 11:00 10:0016:00 15:00 14:00 13:00 12:00 Stream Time
Web server request traffic
Per-minute rate of received requests
Straightforward
Results reflect contents of stream
Results don’t reflect events as they happened
If approximating event time, usefulness varies
Example Input:
Example Output:
Pros:
Cons:
3. Windowing by Stream Time

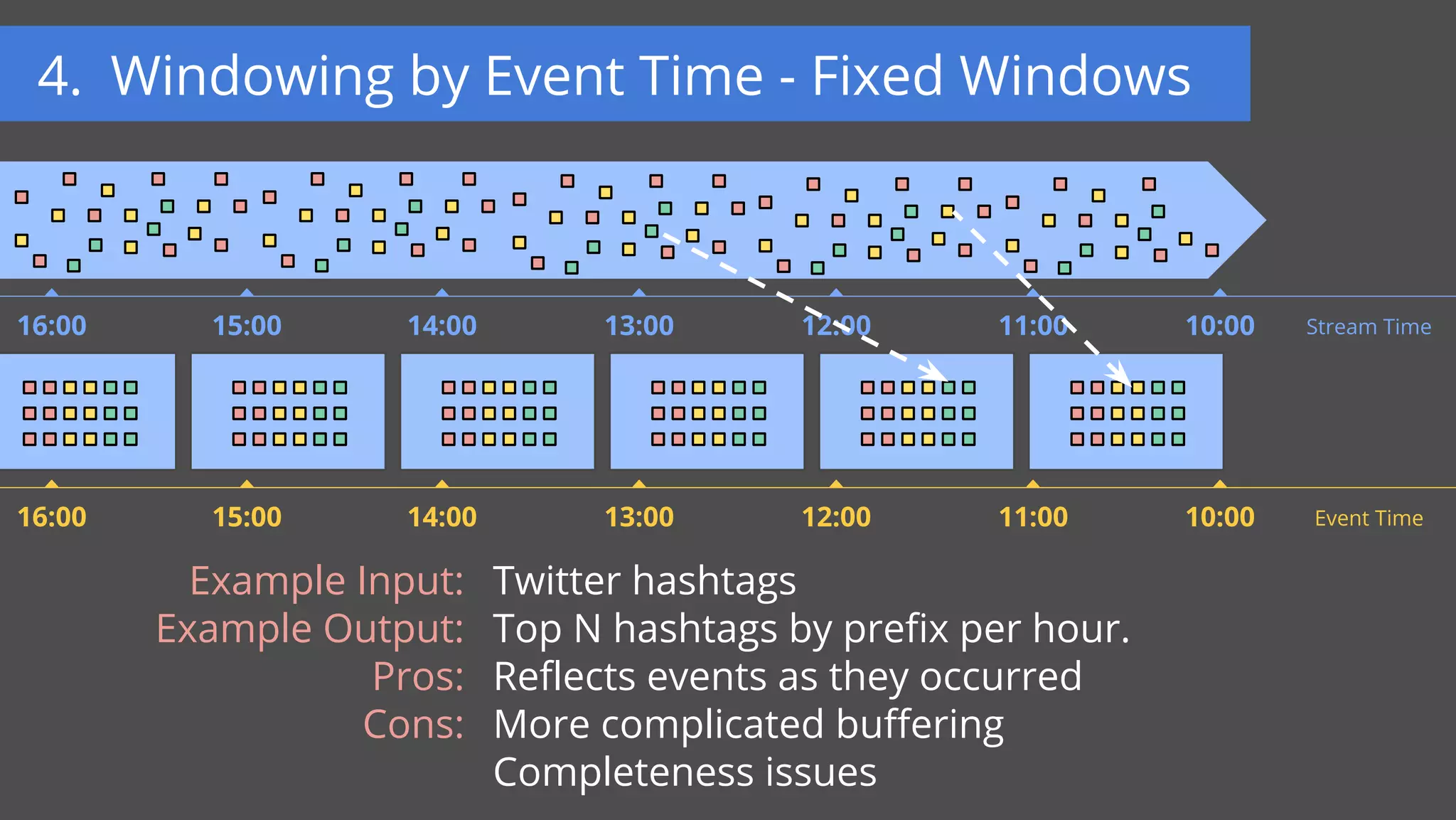

36. 11:00 10:0016:00 15:00 14:00 13:00 12:00 Event Time
Example Input:
Example Output:
Pros:
Cons:
Twitter hashtags
Top N hashtags by prefix per hour.
Reflects events as they occurred
More complicated buffering
Completeness issues
11:00 10:0016:00 15:00 14:00 13:00 12:00 Stream Time
4. Windowing by Event Time - Fixed Windows

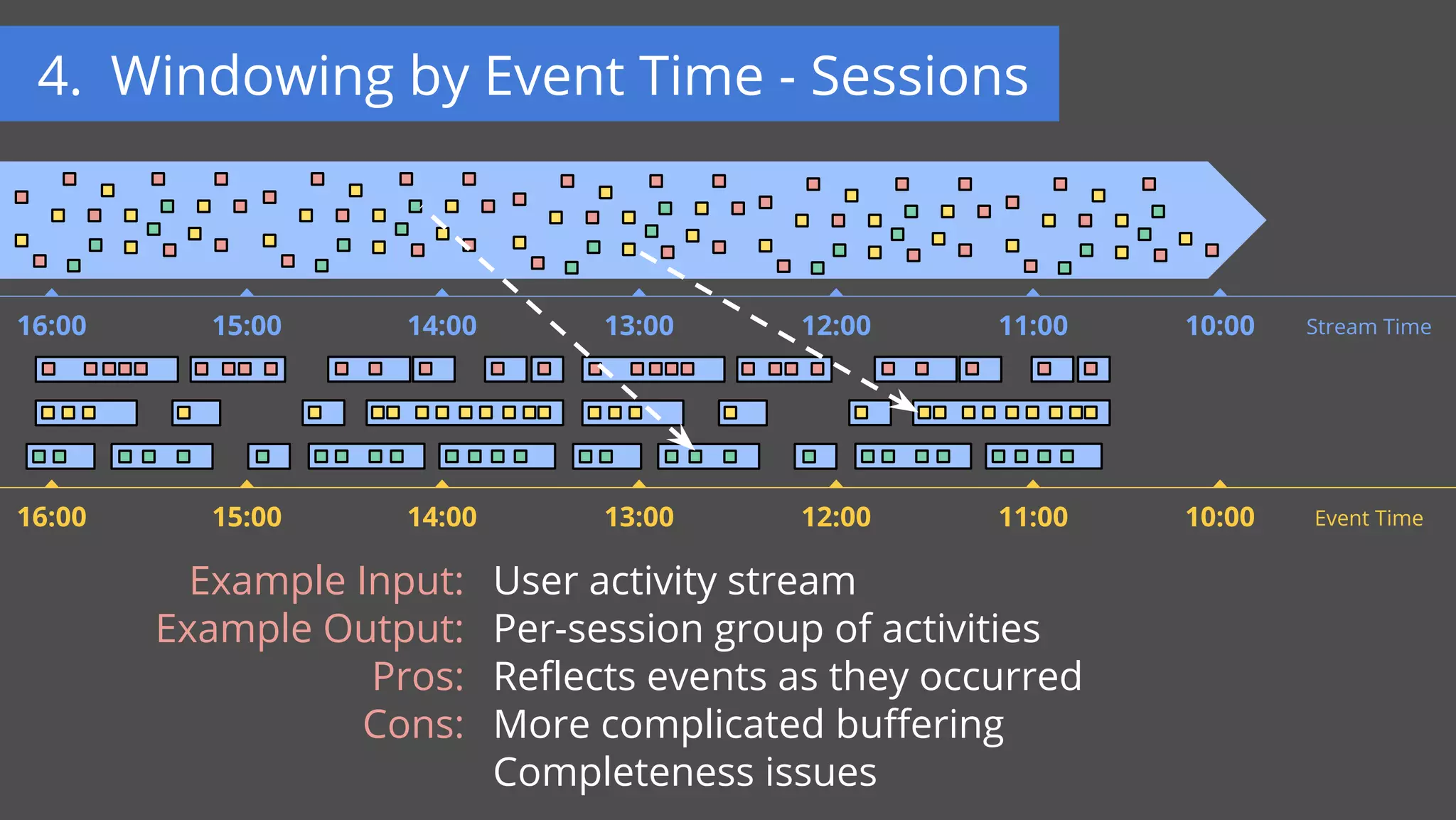

37. 11:00 10:0016:00 15:00 14:00 13:00 12:00 Event Time
Example Input:
Example Output:
Pros:
Cons:
User activity stream
Per-session group of activities
Reflects events as they occurred
More complicated buffering
Completeness issues
11:00 10:0016:00 15:00 14:00 13:00 12:00 Stream Time
4. Windowing by Event Time - Sessions

38. Dataflow API

39. What are you computing?
Where in event time?
When in stream time?

40. What = Aggregation API
Where = Windowing API
When = Watermarks + Triggers API

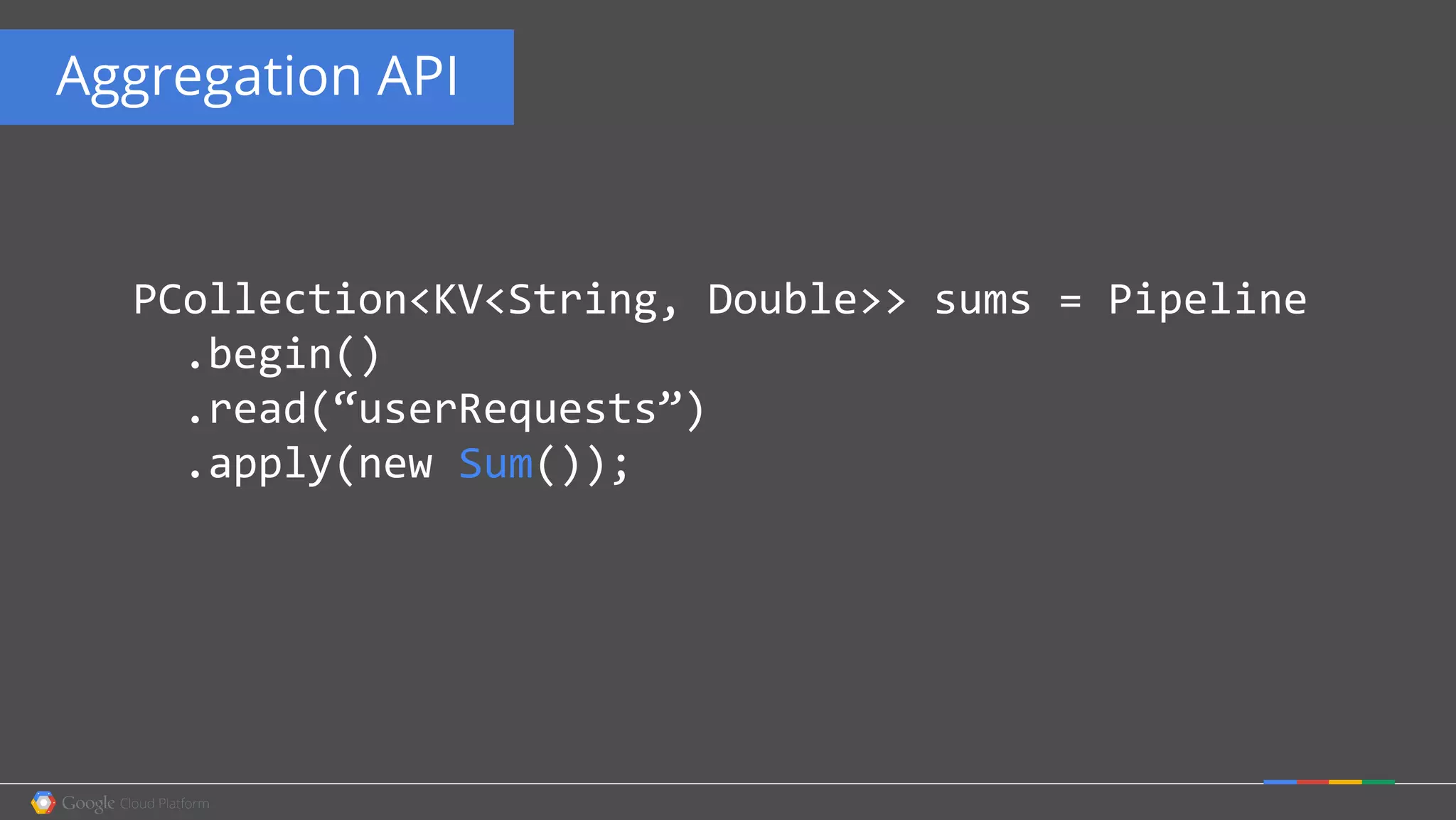

41. Aggregation API
PCollection<KV<String, Double>> sums = Pipeline
.begin()
.read(“userRequests”)
.apply(new Sum());

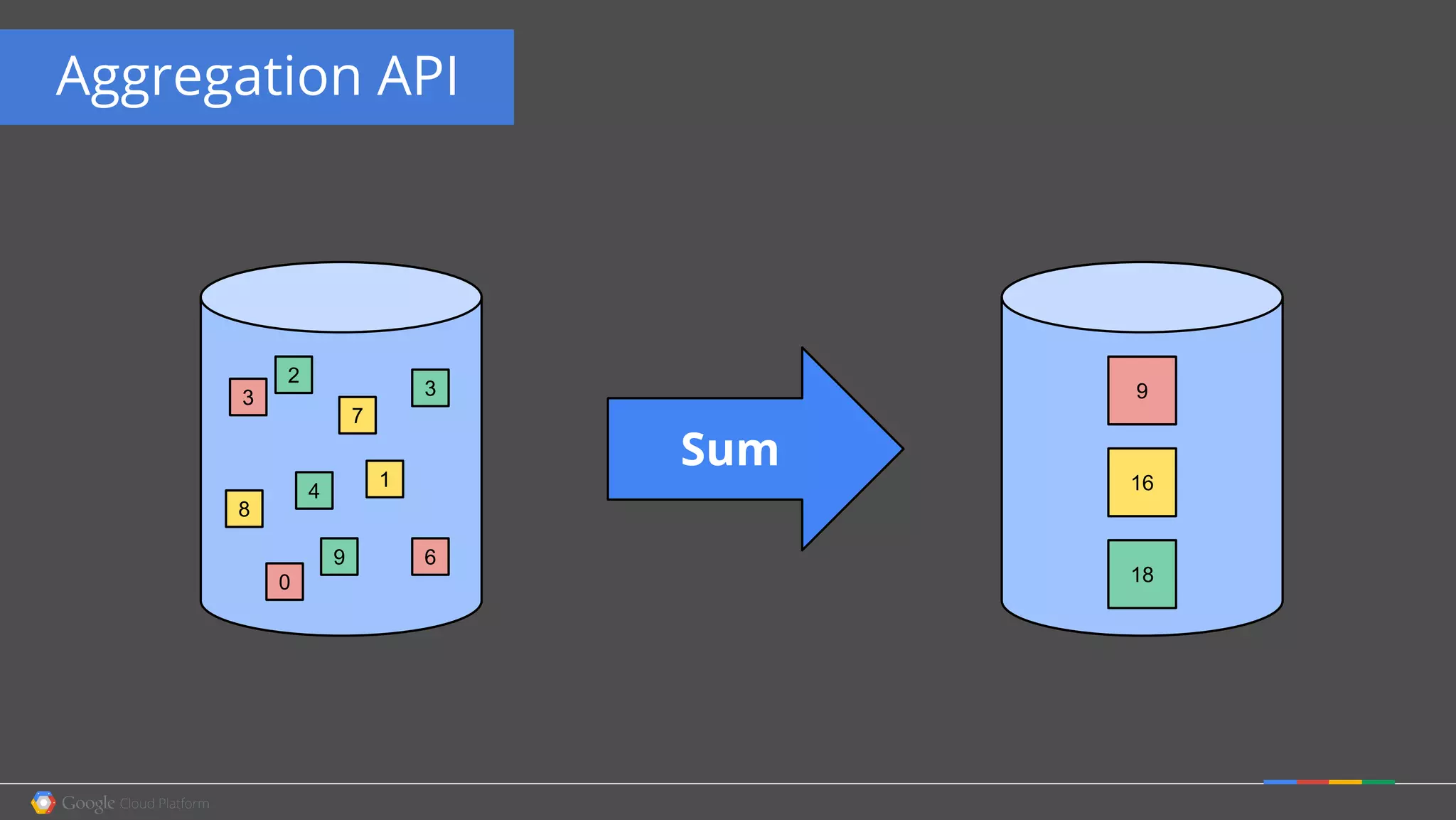

42. Aggregation API
2
4
7
0
1
6
33
8
9
18
9
16
Sum

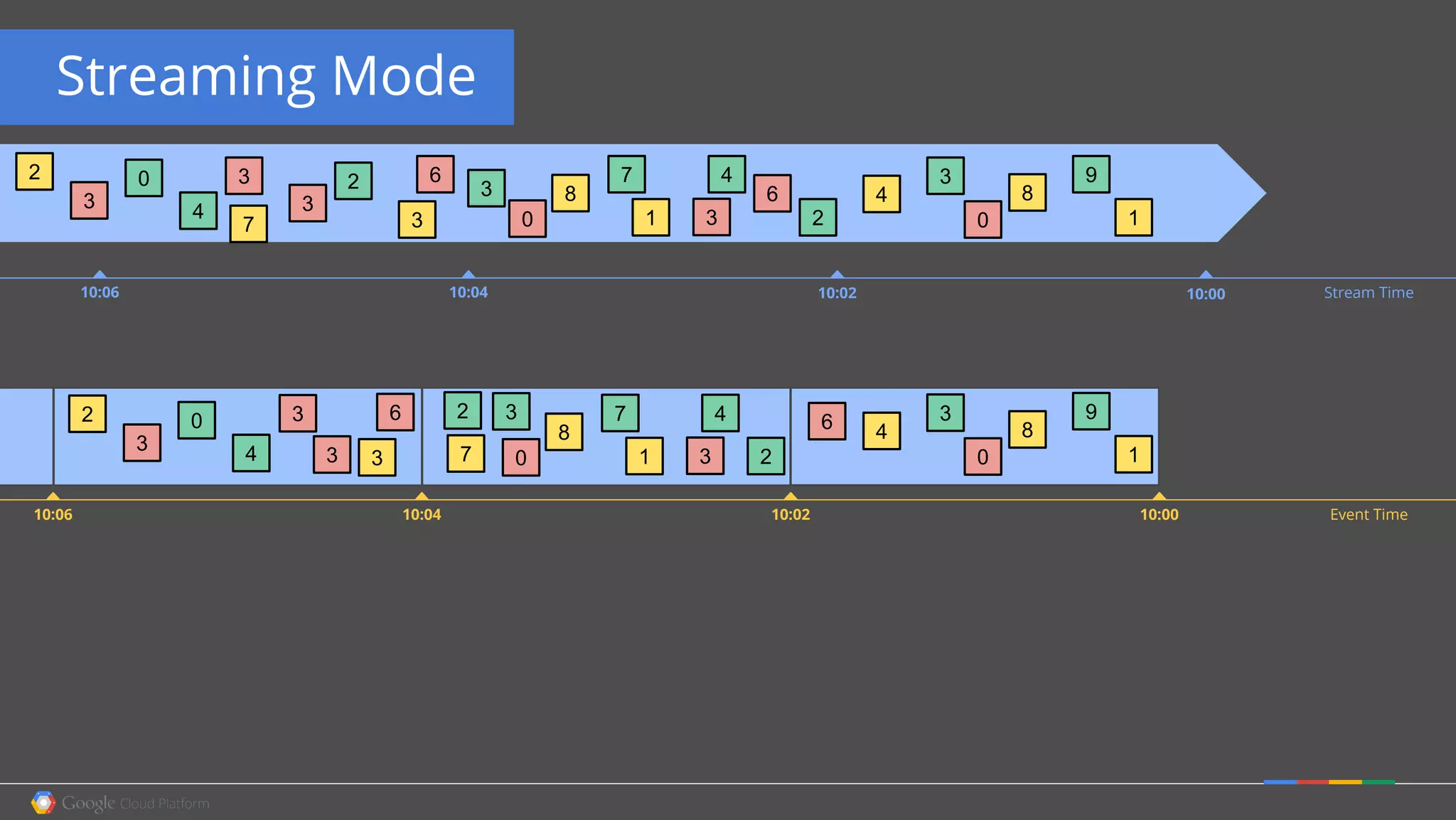

43. Streaming Mode
10:02 10:0010:06 10:04 Stream Time
2
4 3 1
6
3
3 8
7
0 2
4
1
6
3
3
8
9
0
4
7
0 3
3
2
10:02 10:0010:06 10:04 Event Time
1
3
8
9
0
46
1
8
7
0 23
432
74 3
6
3
0 3
3
2

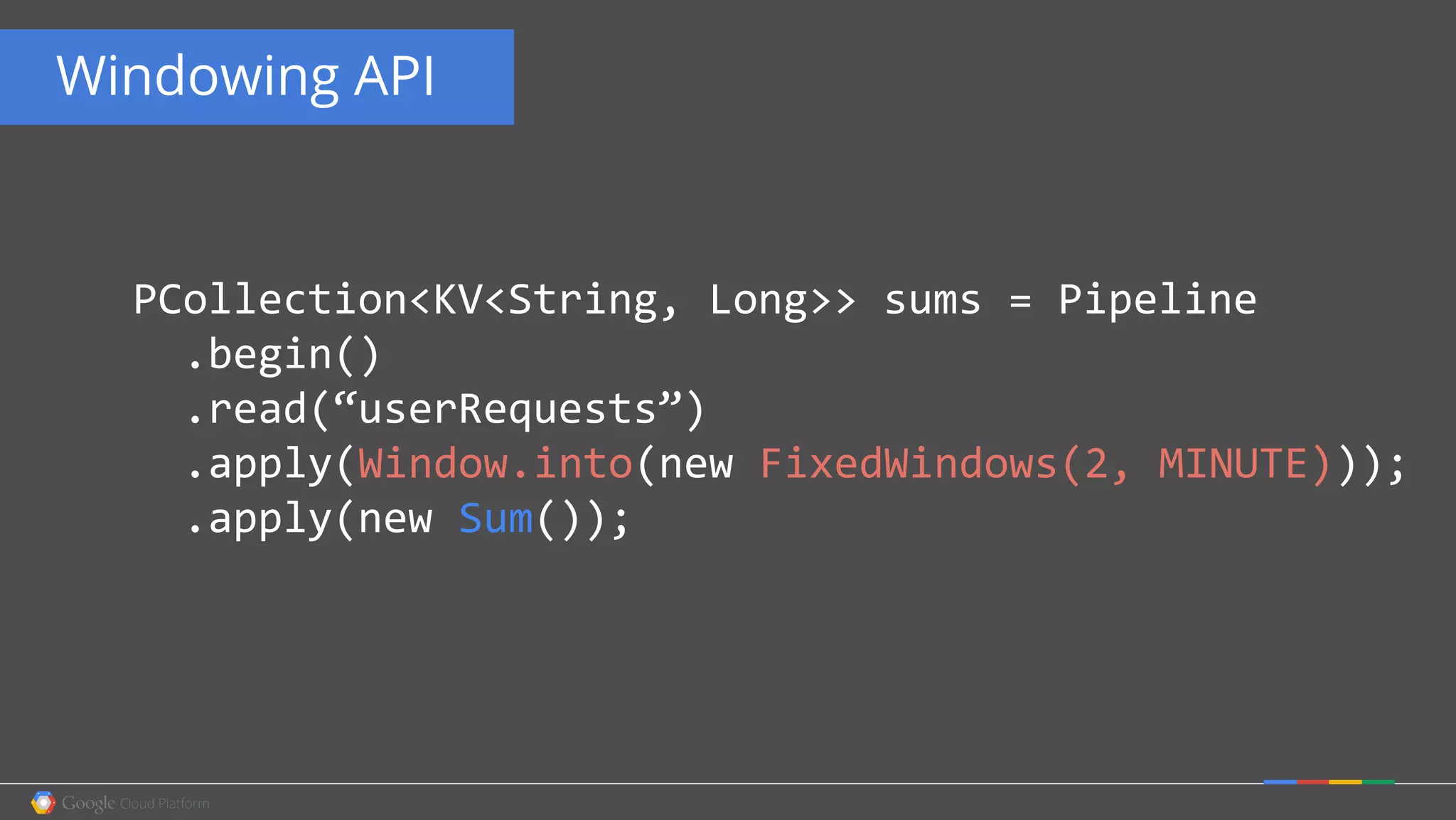

44. Windowing API
PCollection<KV<String, Long>> sums = Pipeline
.begin()
.read(“userRequests”)
.apply(Window.into(new FixedWindows(2, MINUTE)));
.apply(new Sum());

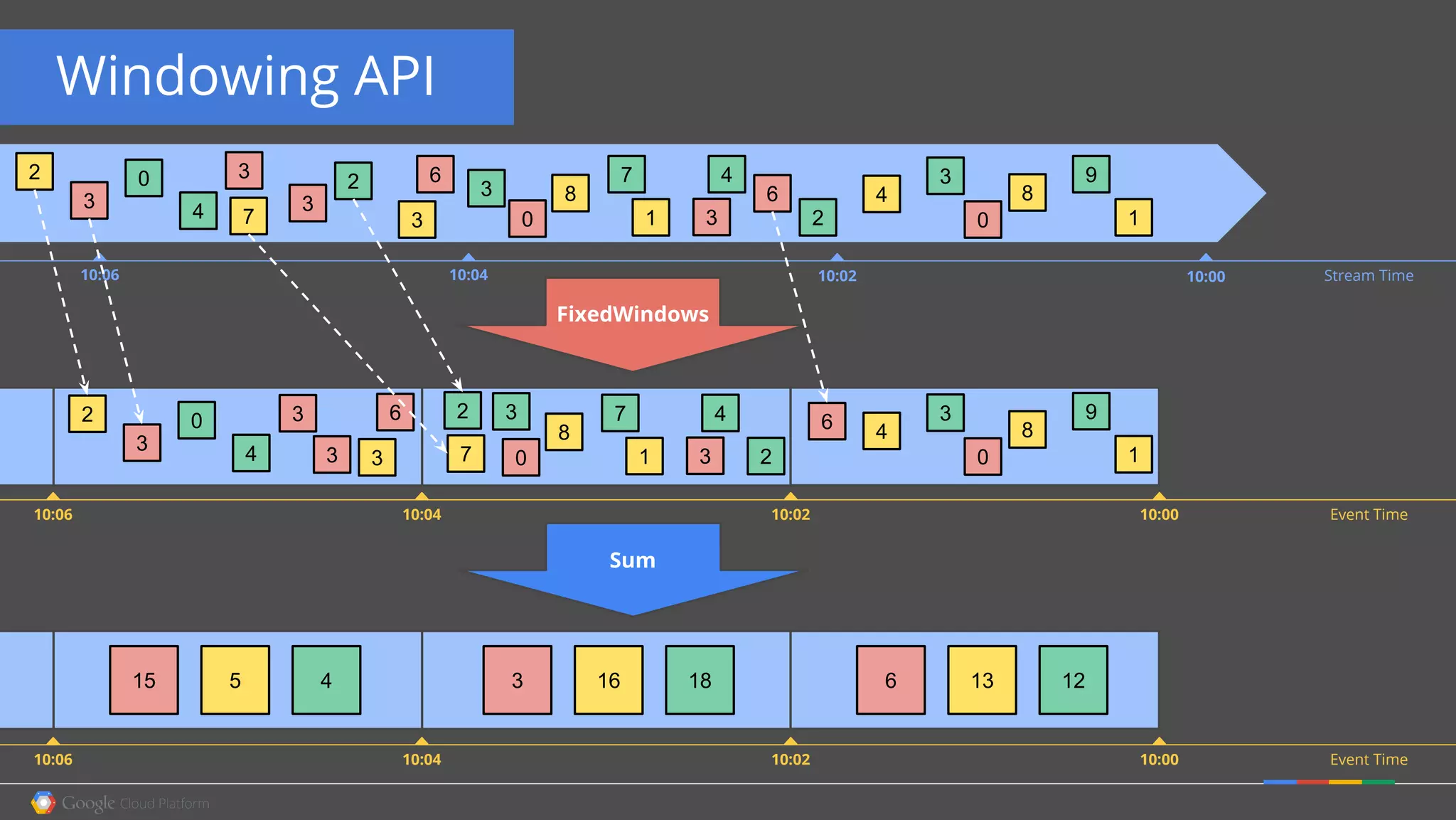

45. Windowing API
10:02 10:0010:06 10:04 Stream Time
2
4 3 1
6
3
3 8
7
0
10:02 10:0010:06 10:04 Event Time
10:02 10:0010:06 10:04 Event Time
2
4
1
6
3
3
8
9
0
4
7
0 3
3
2
FixedWindows
Sum
1
3
8
9
0
46
1
8
7
0 23
432
74 3
6
3
0 3
3
2
13 12616 1835 415

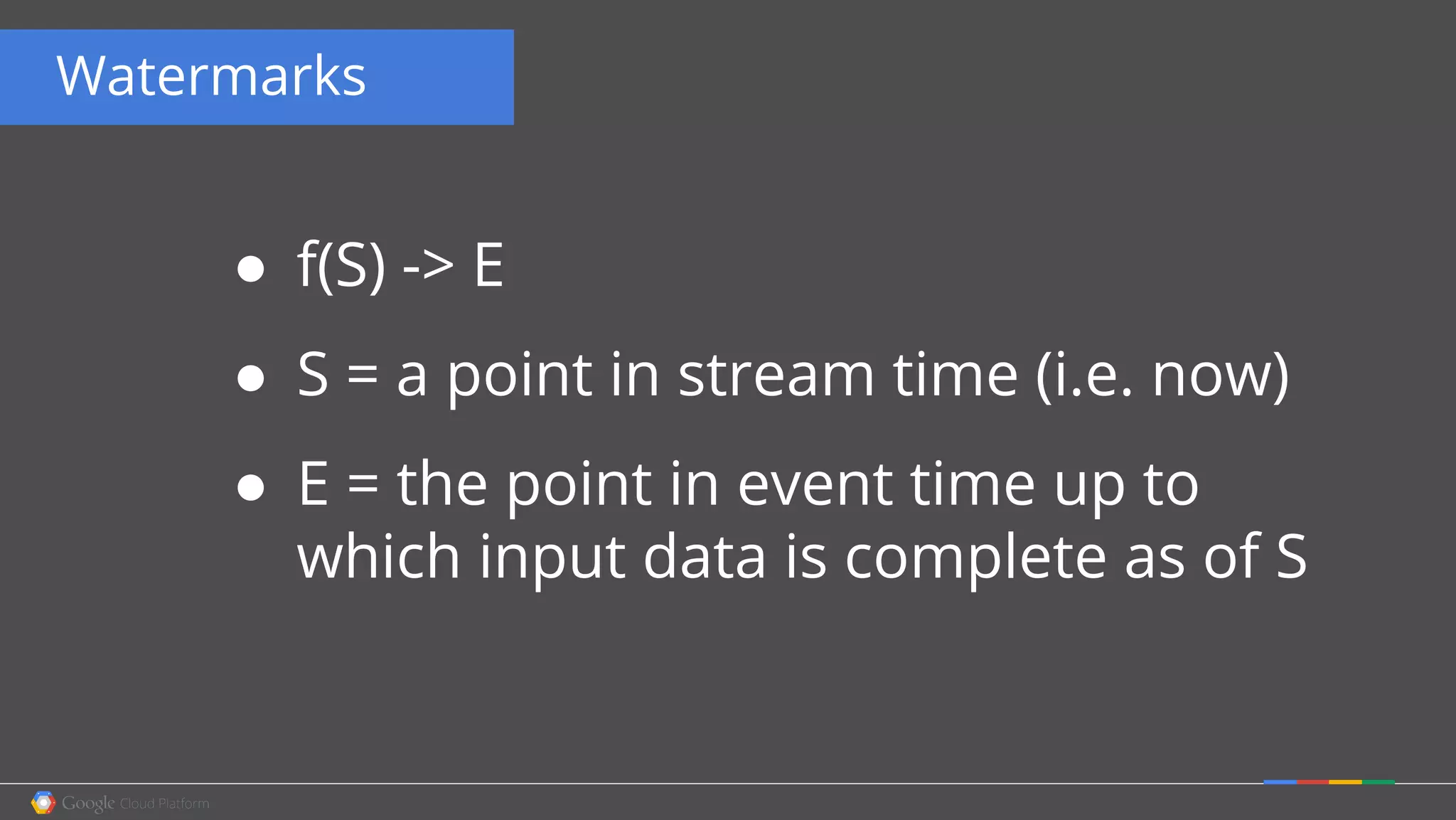

46. Watermarks
● f(S) -> E
● S = a point in stream time (i.e. now)
● E = the point in event time up to
which input data is complete as of S

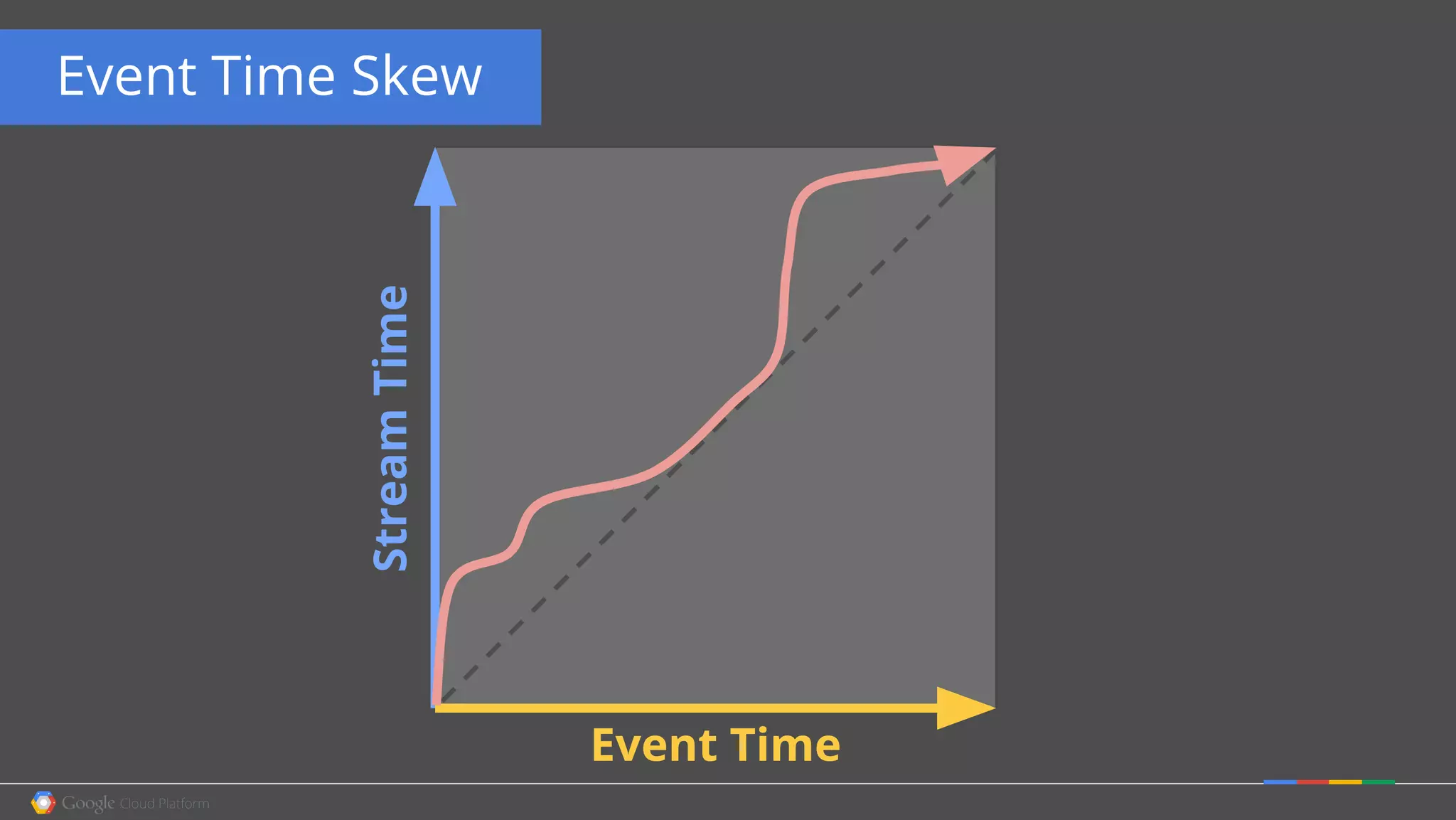

47. Event Time Skew
StreamTime
Event Time

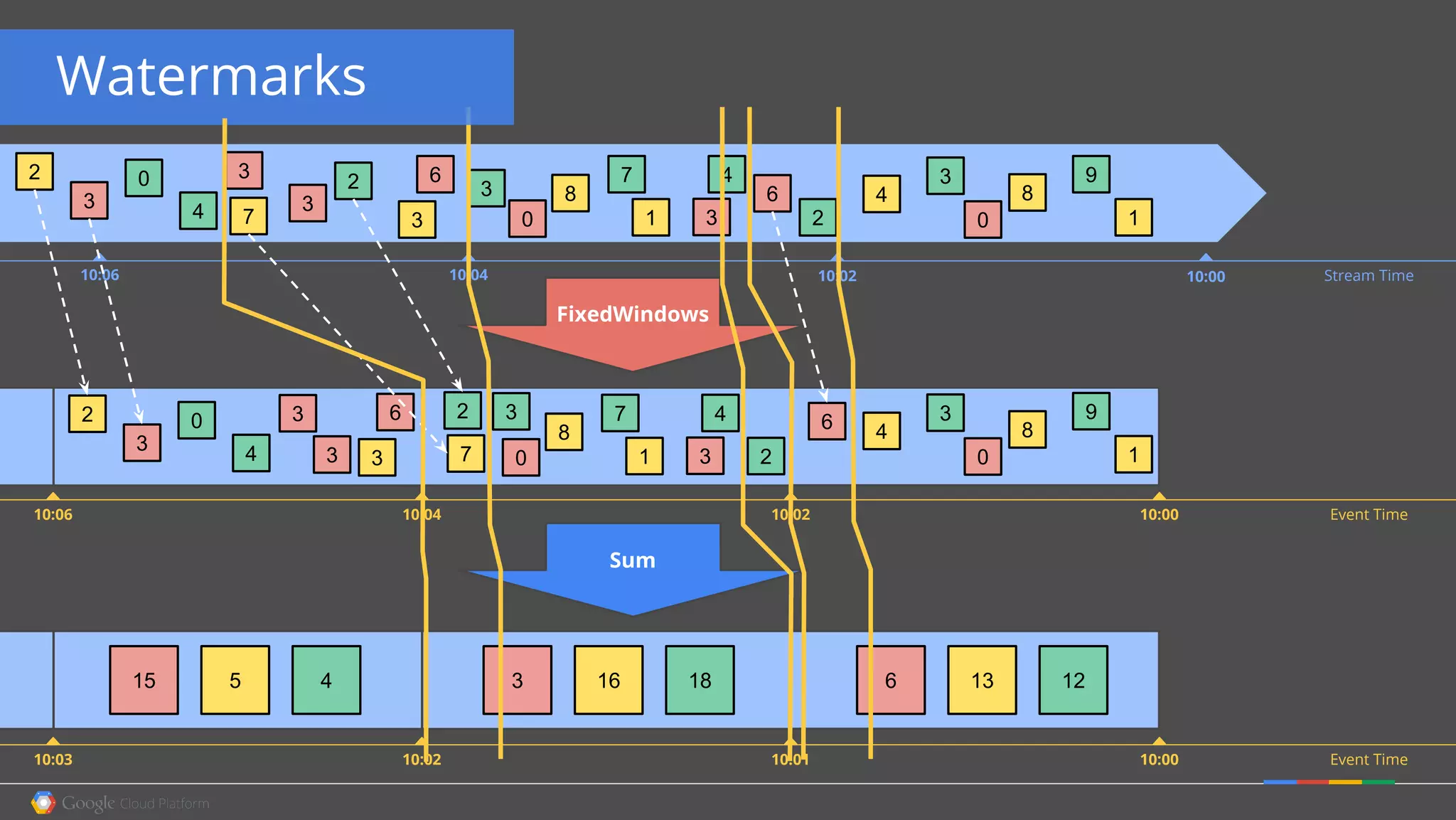

48. FixedWindows
Sum
10:02 10:00
13616 1835 415 12
10:06 10:04 Stream Time
2
4 3 1
6
3
3 8
7
0
10:02 10:0010:06 10:04 Event Time
10:01 10:0010:03 10:02 Event Time
2
4
1
6
3
3
8
9
0
4
7
0 3
3
2
1
3
8
9
0
46
1
8
7
0 23
432
74 3
6
3
0 3
3
2
Watermarks

49. Watermark Caveats
Too slow = more latency
Too fast = late data

50. Triggers
When in stream time to emit?

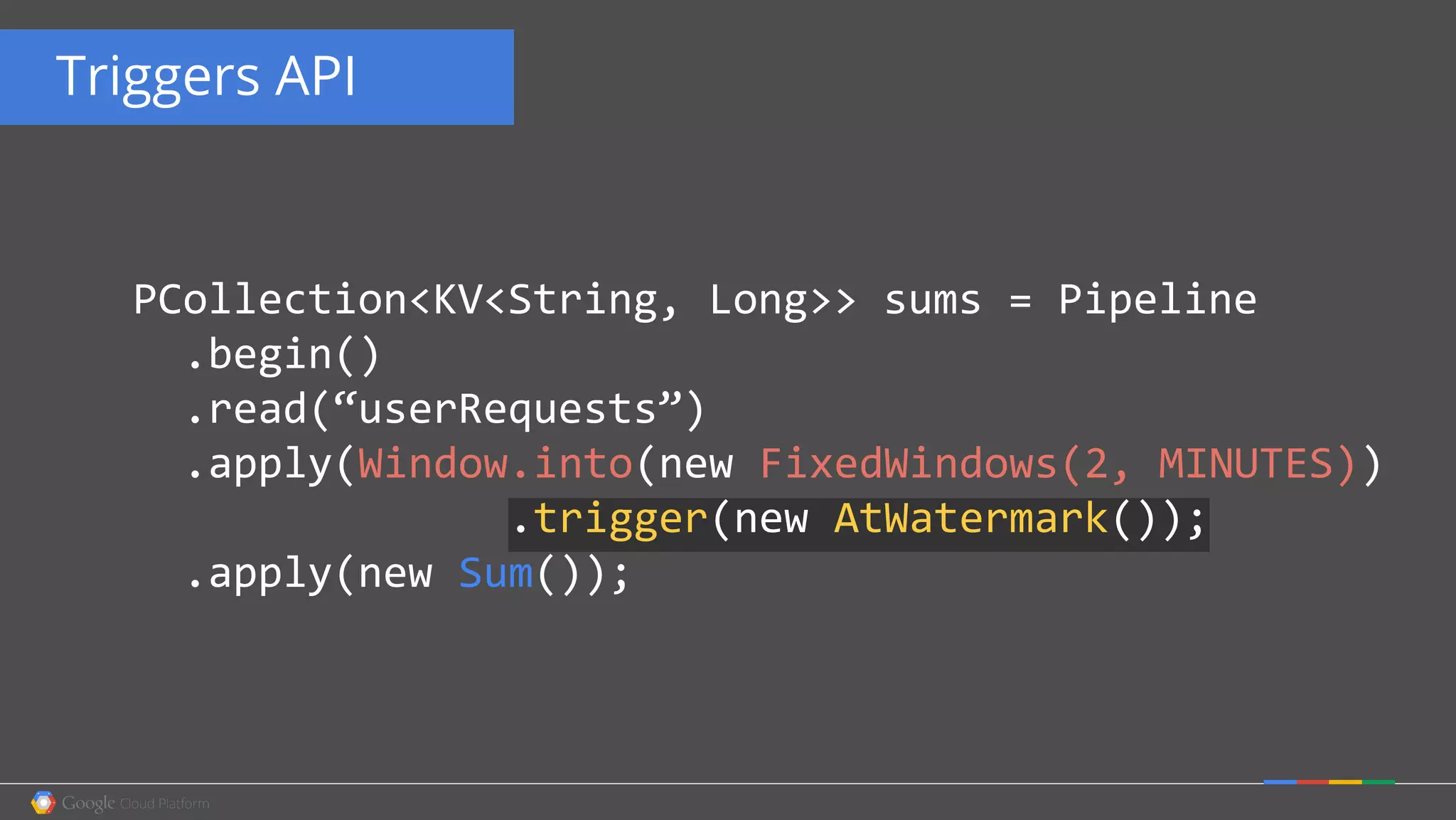

51. Triggers API
PCollection<KV<String, Long>> sums = Pipeline
.begin()
.read(“userRequests”)
.apply(Window.into(new FixedWindows(2, MINUTES))
.trigger(new AtWatermark());
.apply(new Sum());

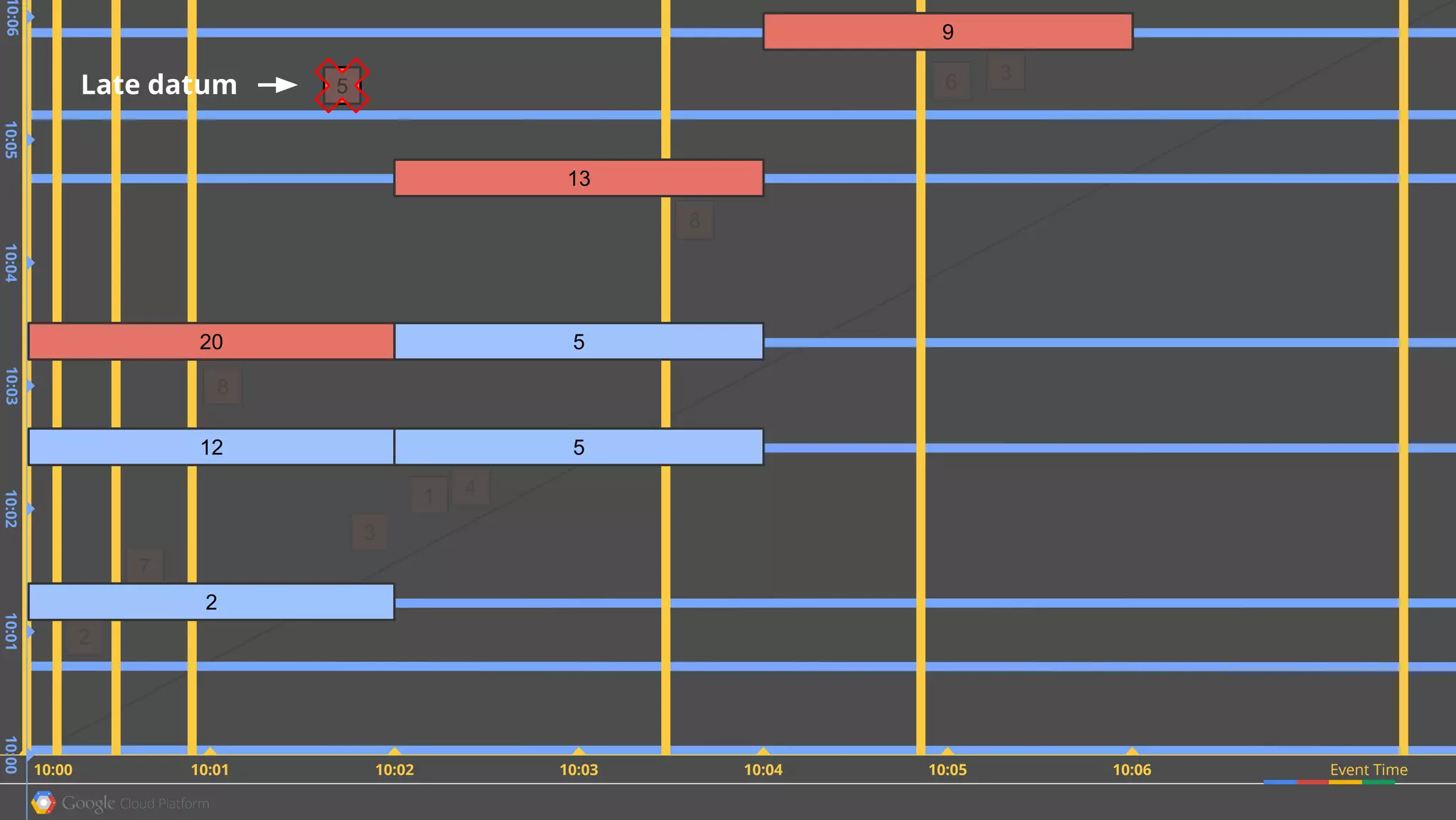

52. 2
3
1
8
4
8
7
6 3
1313
Event Time10:05 10:0610:0110:00
10:0310:0010:06
2
12 5
52020
99
10:0110:0210:0510:04
10:02 10:03 10:04
5Late datum

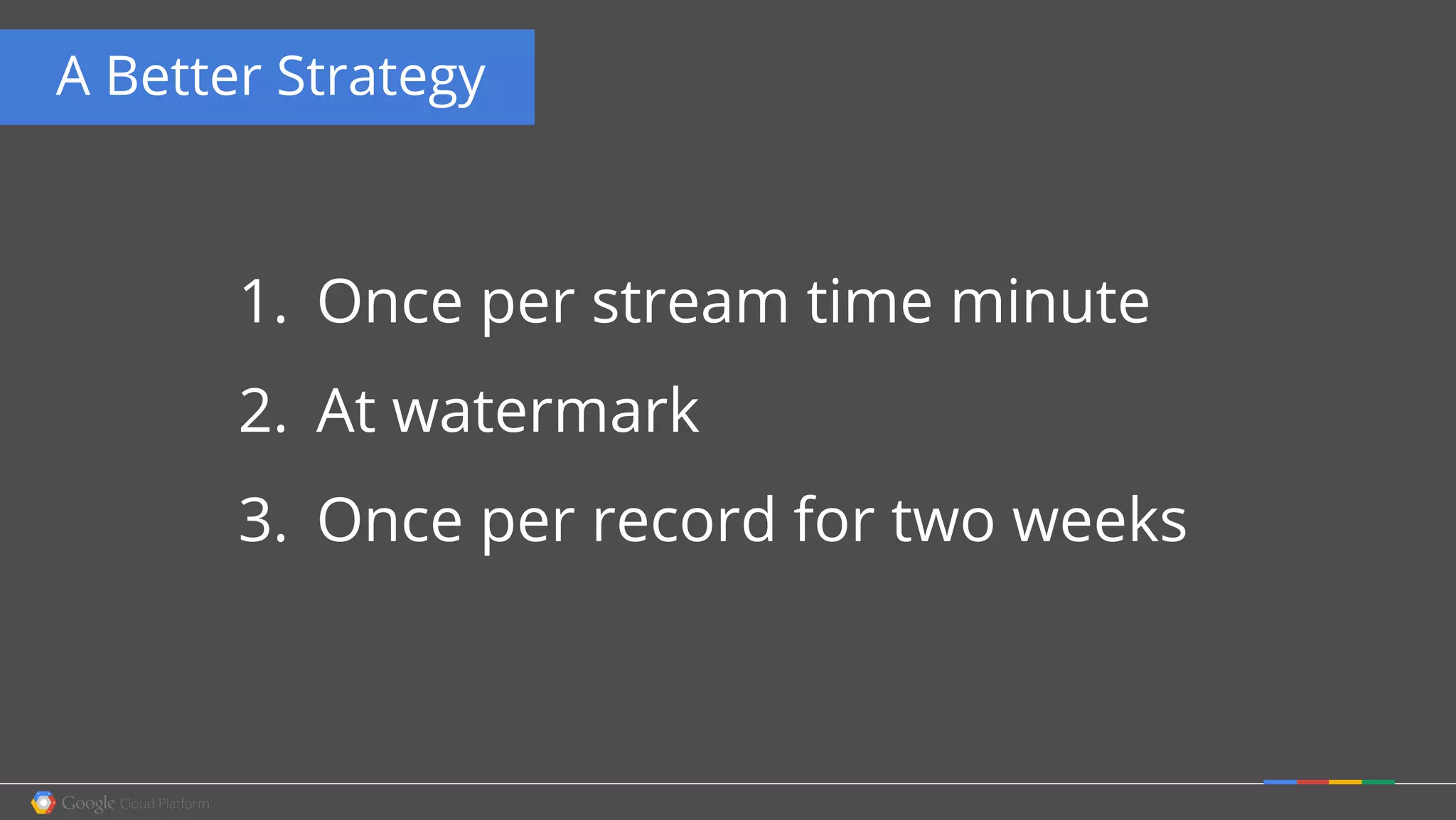

53. A Better Strategy
1. Once per stream time minute
2. At watermark
3. Once per record for two weeks

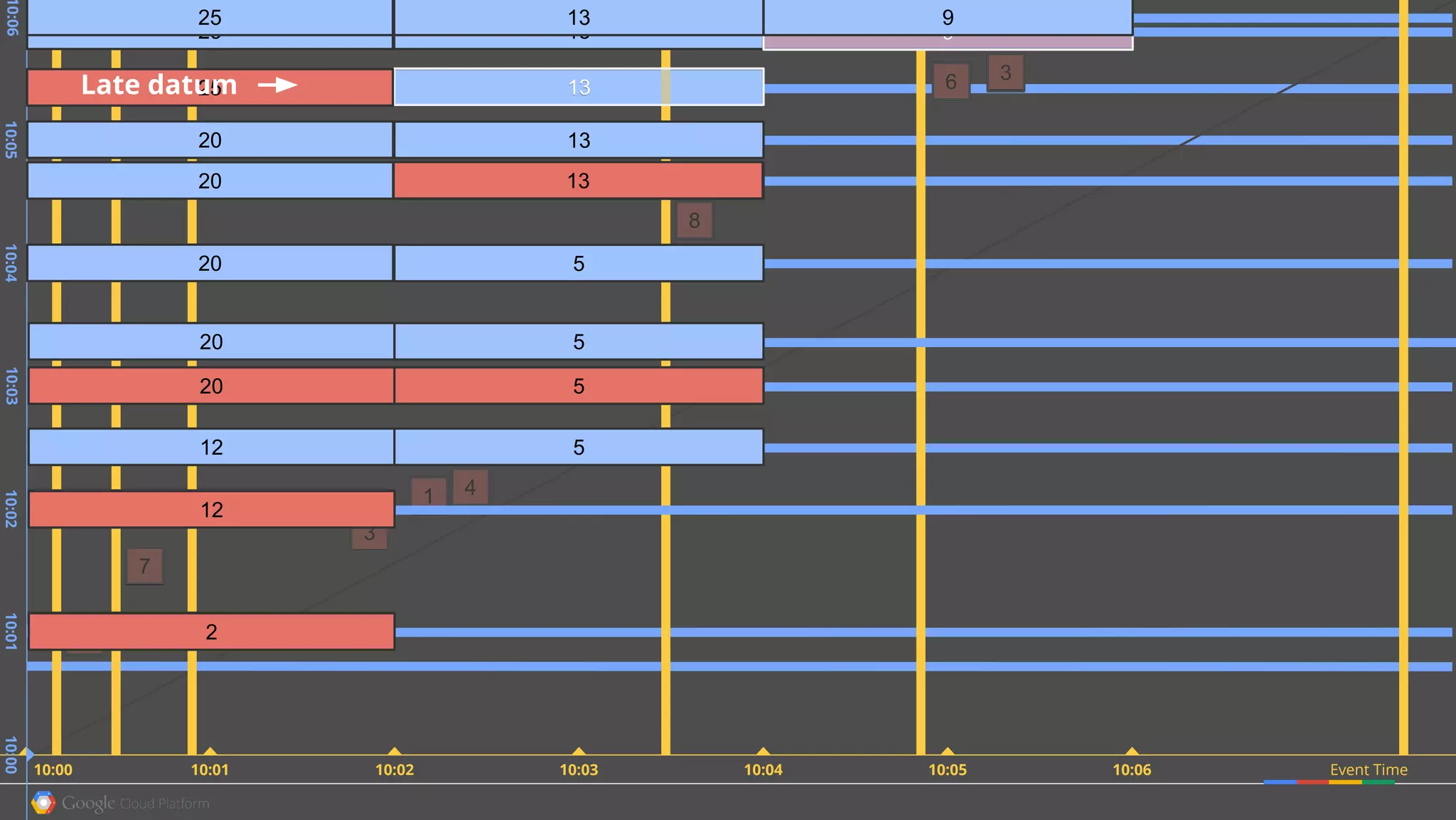

54. 1325 5
2
3
1
8
4
8
7
6 3
5
Event Time10:05 10:0610:0110:00
10:0310:0010:06
2
12 5
52020
99
10:0110:0210:0510:04
10:02 10:03 10:04
12
20
1320
5
1320
13
1325
2
12
13
9
20 520
25Late datum
91325

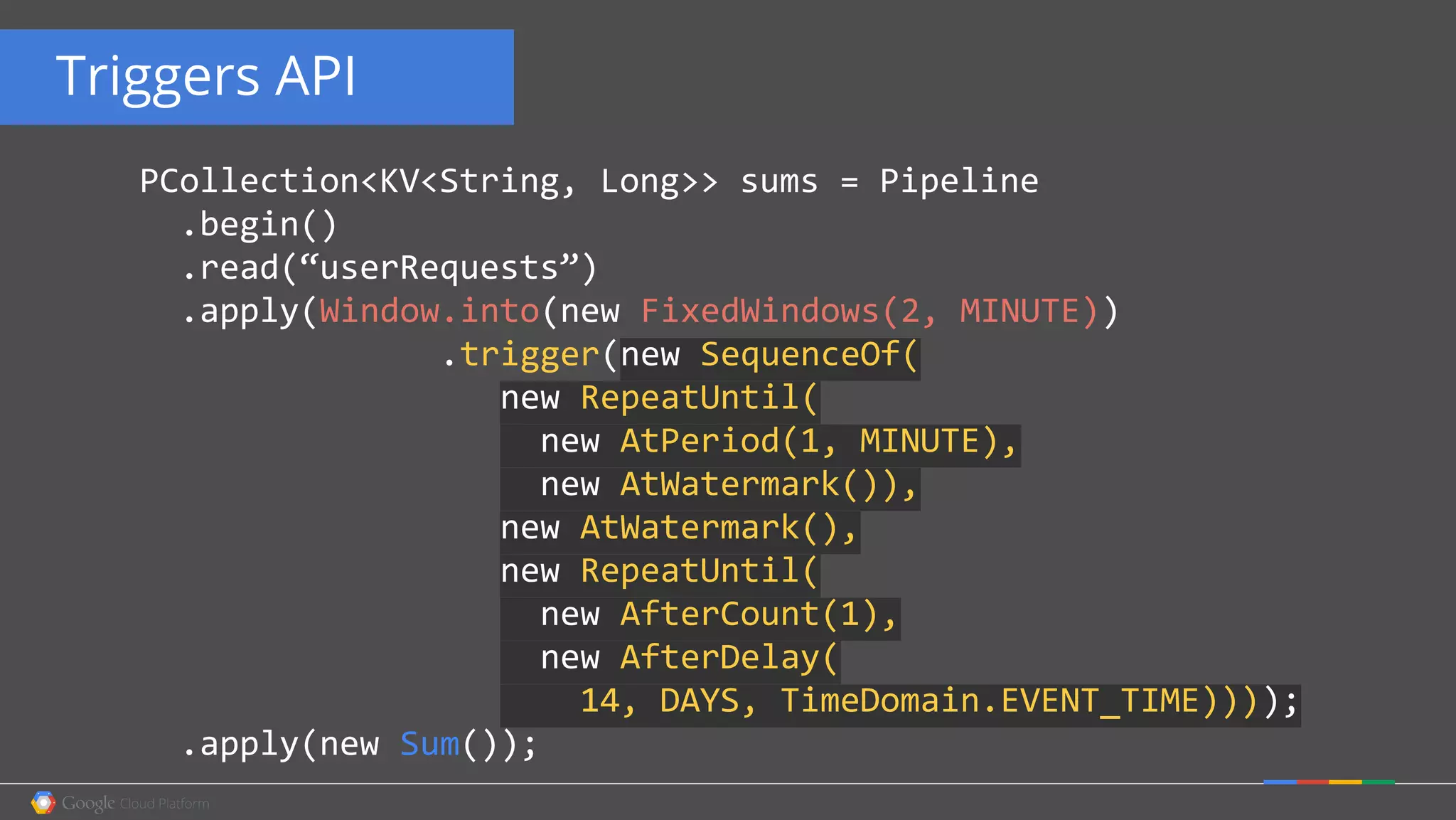

55. Triggers API
PCollection<KV<String, Long>> sums = Pipeline
.begin()
.read(“userRequests”)
.apply(Window.into(new FixedWindows(2, MINUTE))
.trigger(new SequenceOf(
new RepeatUntil(
new AtPeriod(1, MINUTE),
new AtWatermark()),
new AtWatermark(),
new RepeatUntil(
new AfterCount(1),
new AfterDelay(
14, DAYS, TimeDomain.EVENT_TIME))));
.apply(new Sum());

56. Lambda vs Streaming
Low-latency, approximate results
Complete, correct results as soon as possible
Ability to deal with changes upstream

57. One Last Thing...
What if I want sessions?

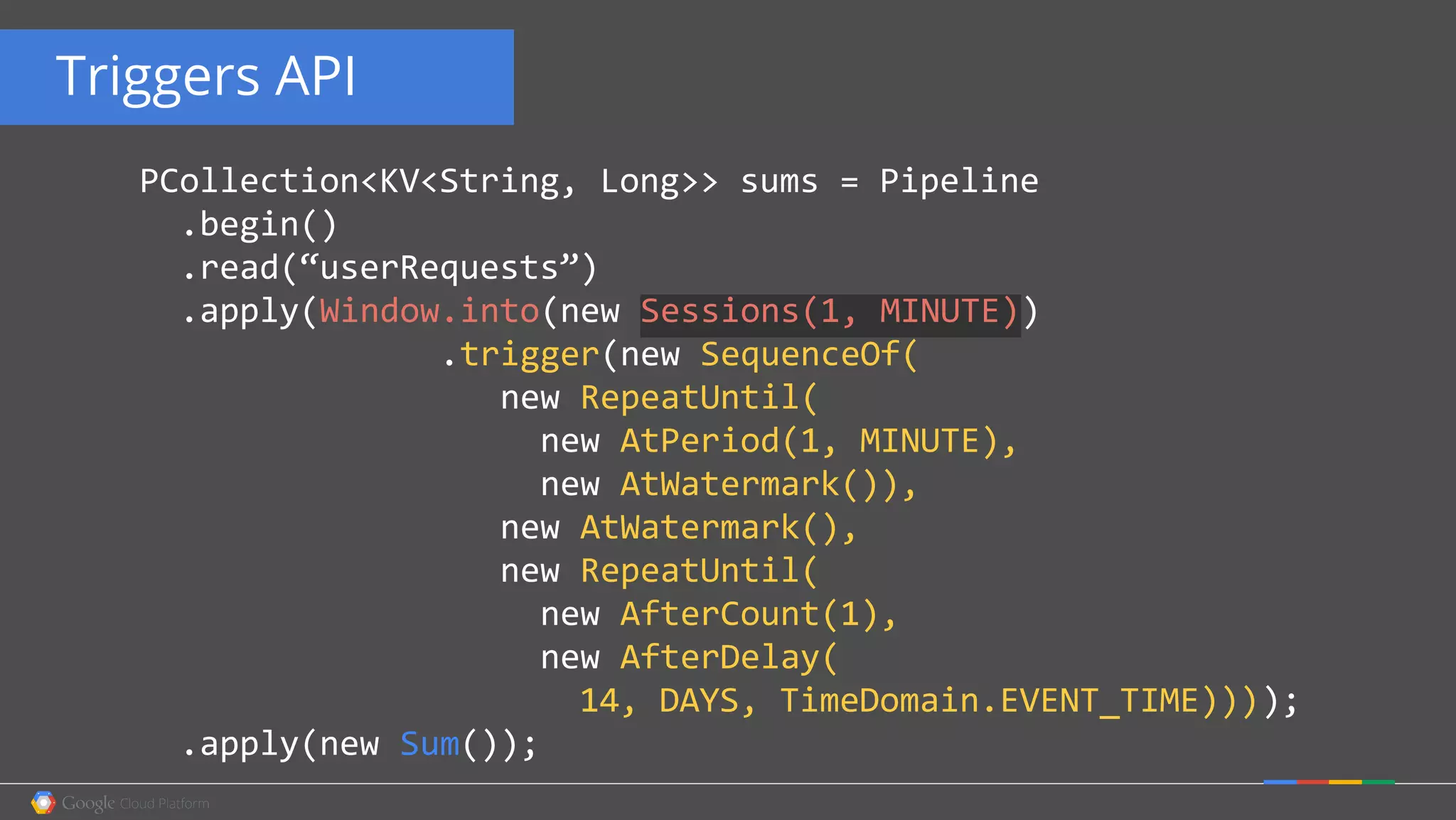

58. Triggers API
PCollection<KV<String, Long>> sums = Pipeline
.begin()
.read(“userRequests”)
.apply(Window.into(new Sessions(1, MINUTE))
.trigger(new SequenceOf(
new RepeatUntil(
new AtPeriod(1, MINUTE),
new AtWatermark()),
new AtWatermark(),
new RepeatUntil(
new AfterCount(1),
new AfterDelay(
14, DAYS, TimeDomain.EVENT_TIME))));
.apply(new Sum());

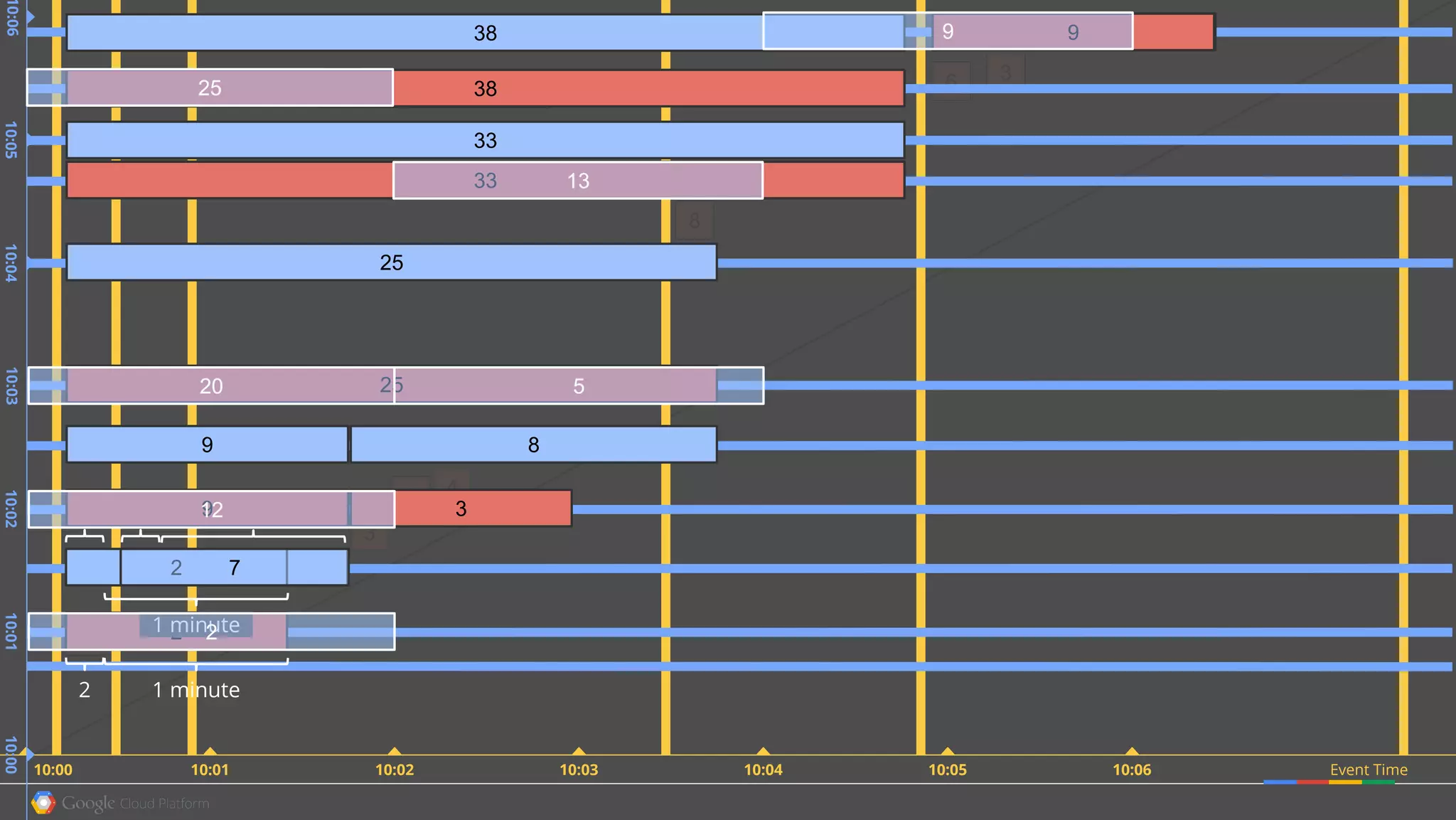

59. 2
8
4
8
7
6 3
Event Time10:05 10:0610:0110:00
10:0310:0010:0610:0110:0210:0510:04
10:02 10:03 10:04
22
3
1
9
1 minute2 7
1 minute2
2 7
1 minute
9 39 3
39 1 48
89 7 2525
25
5Late datum
25 83333
33
335 3838
6 3938 9
20 5
13
2
12
25
9

60. Summary
Lambda is great
Streaming by itself is better :-)
Strong Consistency = Correctness
Streaming = Aggregation + Windowing + Triggers
Tools For Reasoning About Time = Power + Flexibility

61. Thank you!
Questions?
Questions about this talk:
Questions about Cloud Dataflow:
takidau@google.com (Tyler Akidau)
cloude@google.com (Eric Schmidt)
