Efficient Window Aggregation with General Stream Slicing (EDBT 2019, Best Paper)

The document discusses efficient window aggregation with general stream slicing in stream processing pipelines, highlighting its advantages in memory efficiency, low latency, and reduced redundancy. It details how stream slicing adapts to workload characteristics and performs well across various aggregation functions, even in scenarios of out-of-order data. Key operations such as merging, splitting, and updating slices are examined to illustrate the technique's adaptability and effectiveness.

Embed presentation

Download as PDF, PPTX
Jonas Traub Philipp M. Grulich Alejandro Rodríguez Cuéllar Sebastian Breß Asterios Katsifodimos Tilmann Rabl Volker Markl Efficient Window Aggregation with General Stream Slicing 22nd International Conference on Extending Database Technology March 26-29, 2019, Lisbon, Portugal

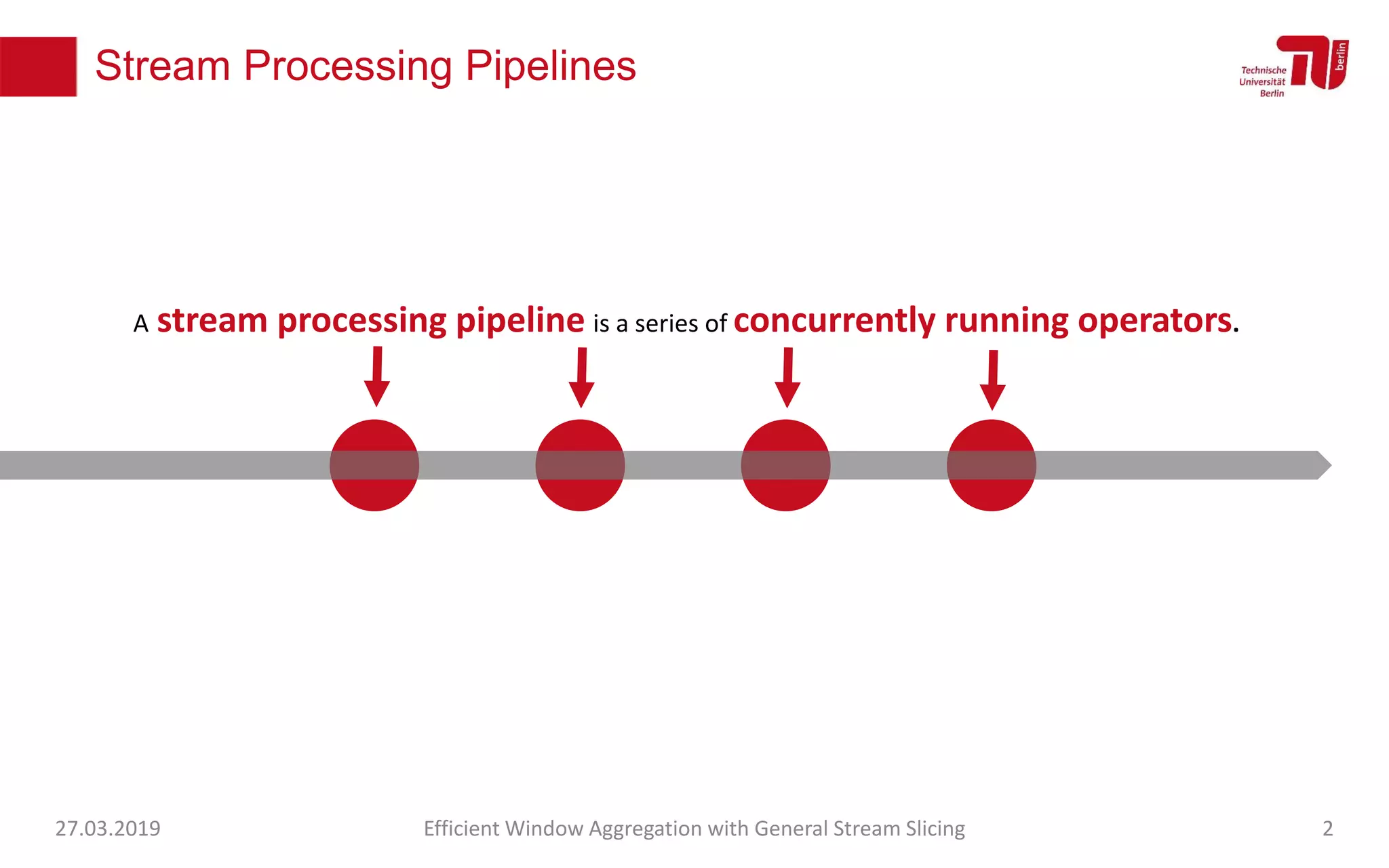

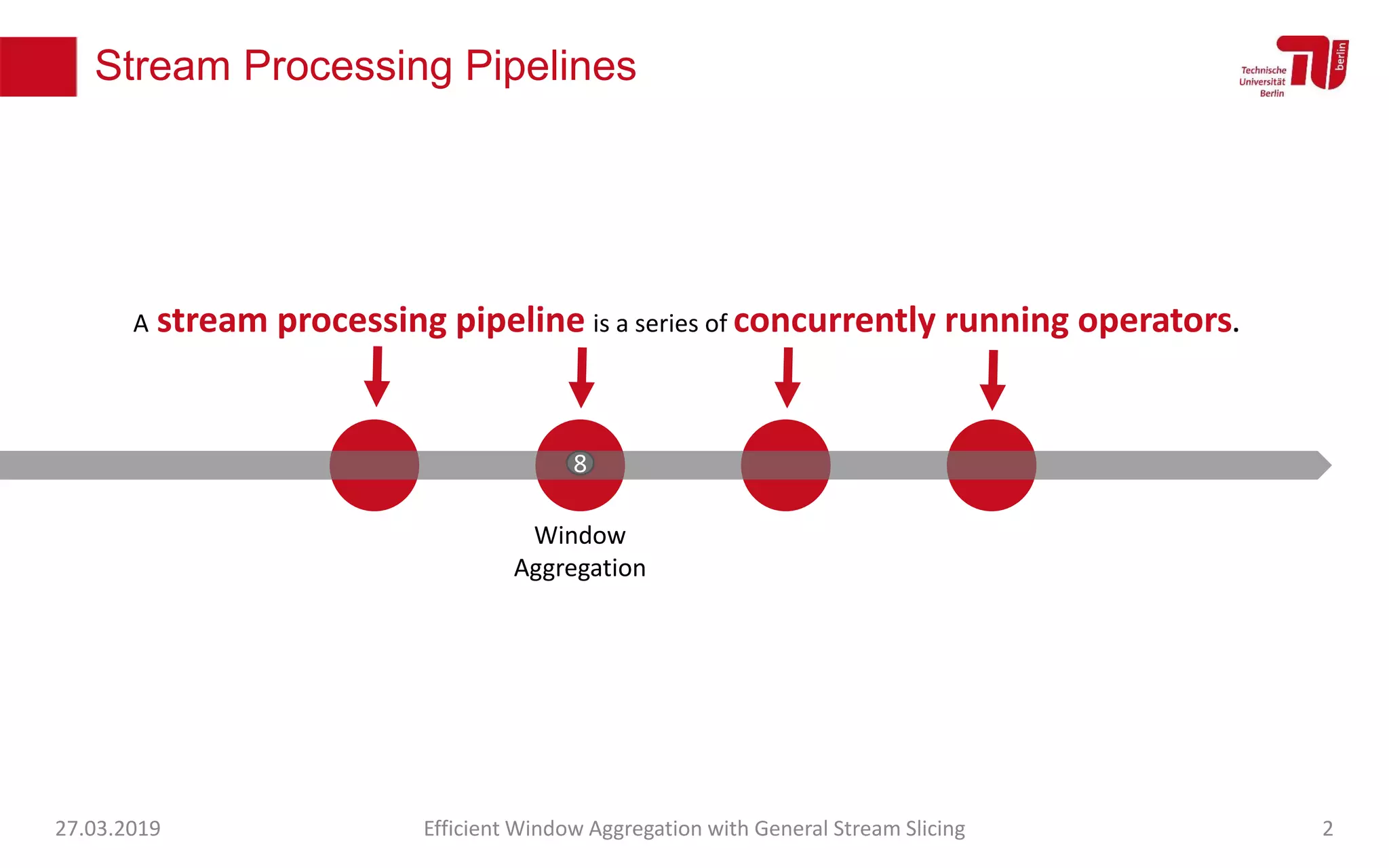

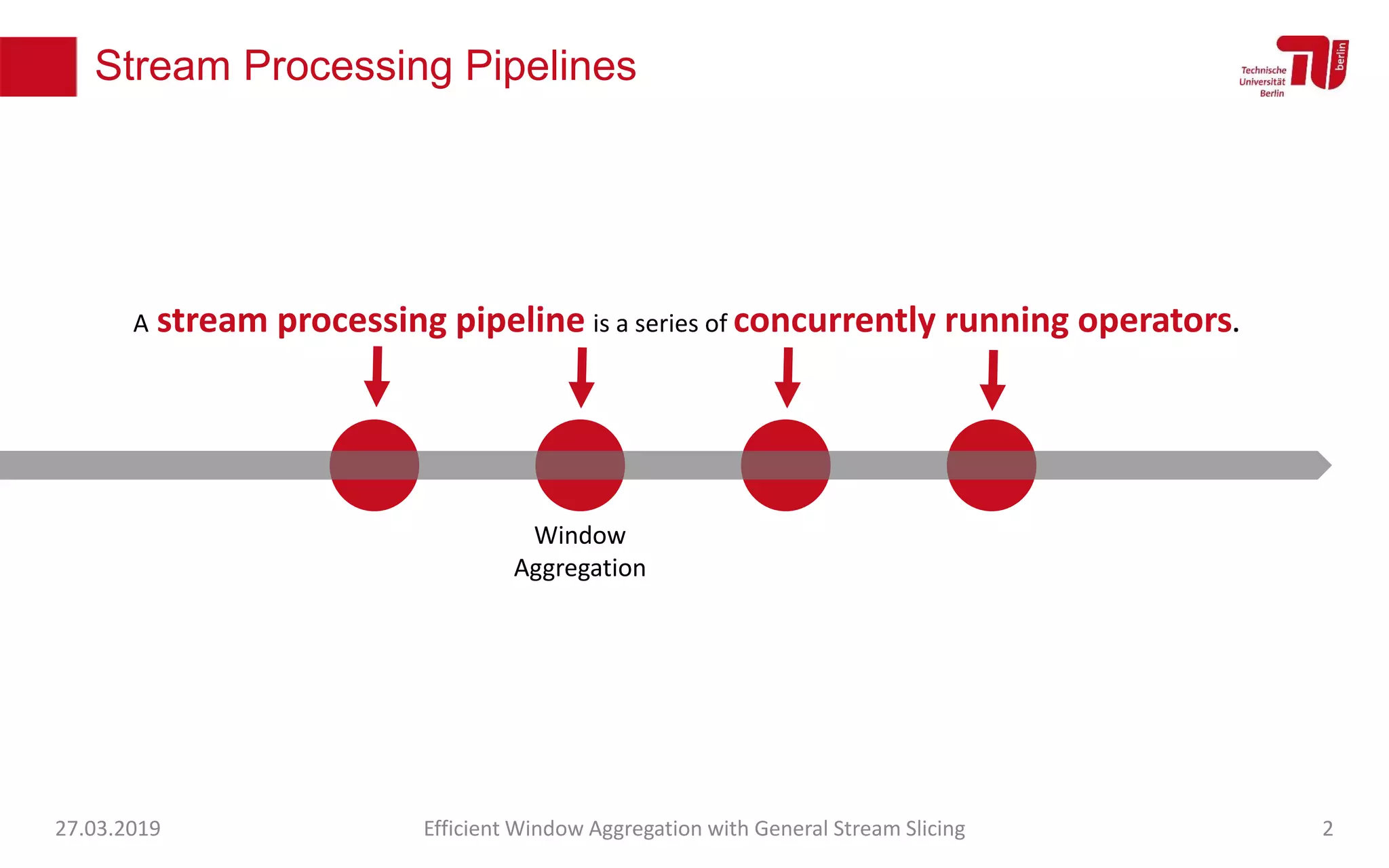

Stream Processing Pipelines 27.03.2019 Efficient Window Aggregation with General Stream Slicing 2 A stream processing pipeline is a series of concurrently running operators.
Stream Processing Pipelines 27.03.2019 Efficient Window Aggregation with General Stream Slicing 2 A stream processing pipeline is a series of concurrently running operators. Window Aggregation
Stream Processing Pipelines 27.03.2019 Efficient Window Aggregation with General Stream Slicing 2 A stream processing pipeline is a series of concurrently running operators. Window Aggregation 53
Stream Processing Pipelines 27.03.2019 Efficient Window Aggregation with General Stream Slicing 2 A stream processing pipeline is a series of concurrently running operators. Window Aggregation 8

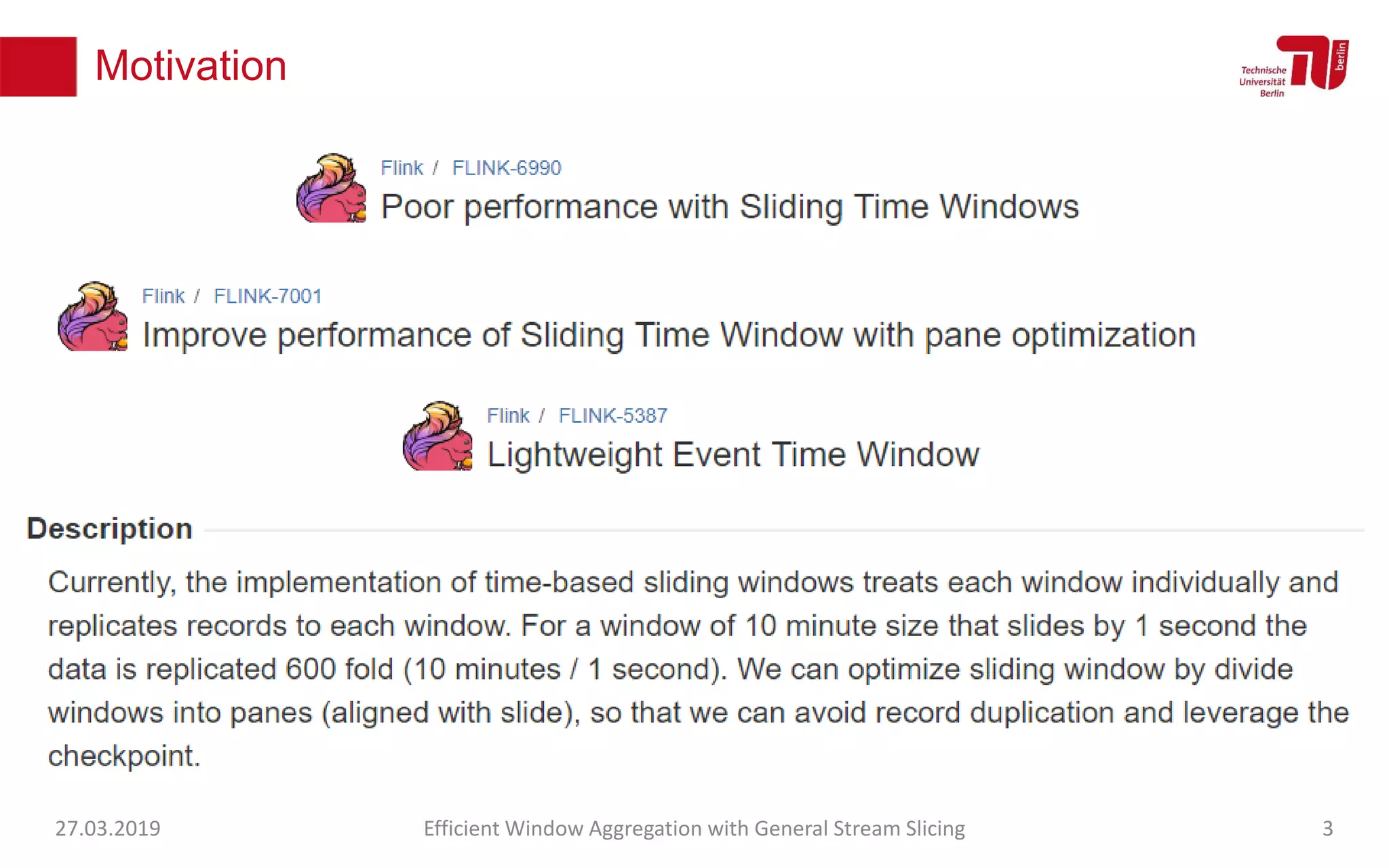

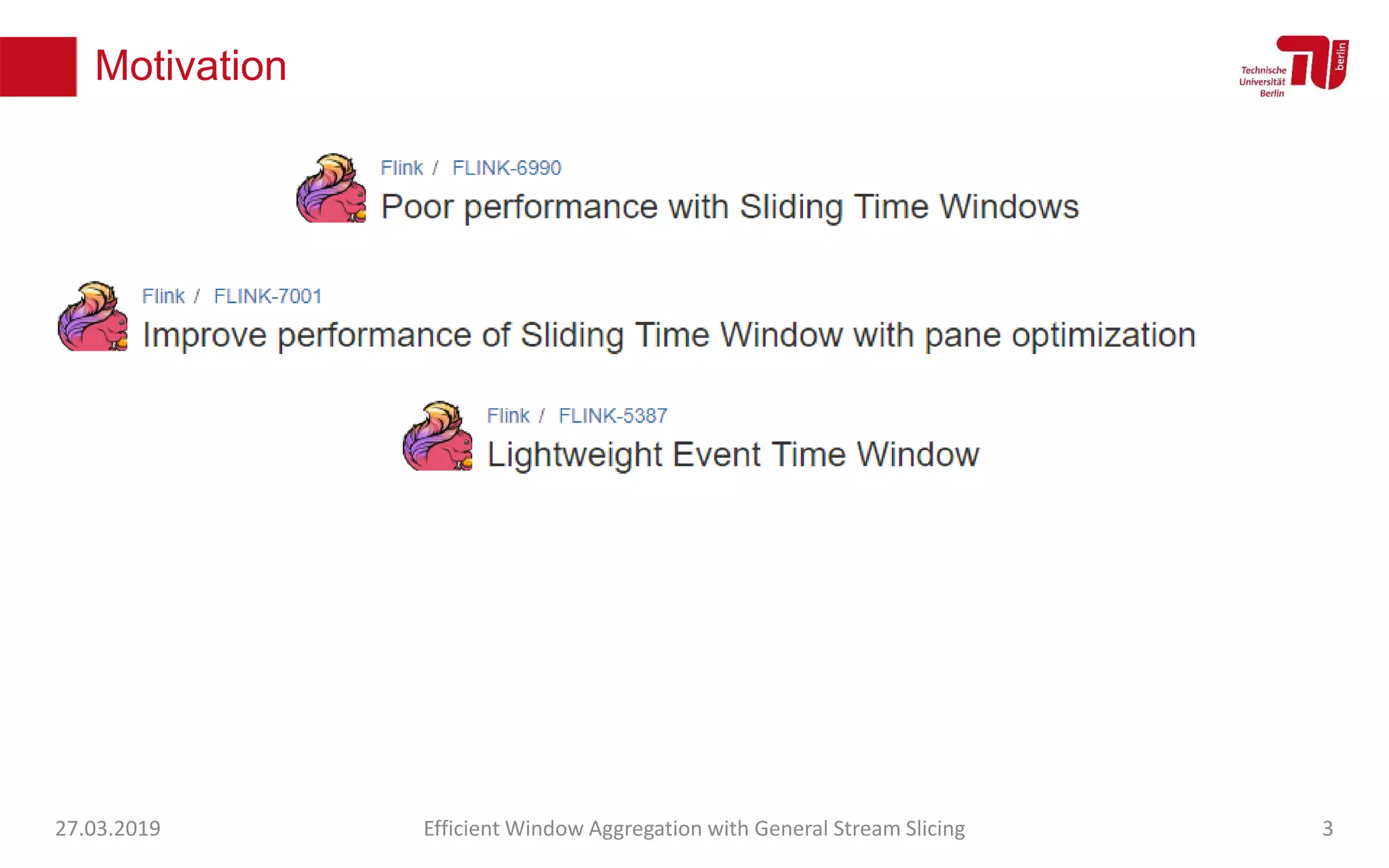

Motivation 27.03.2019 Efficient Window Aggregation with General Stream Slicing 3
Motivation 27.03.2019 Efficient Window Aggregation with General Stream Slicing 3

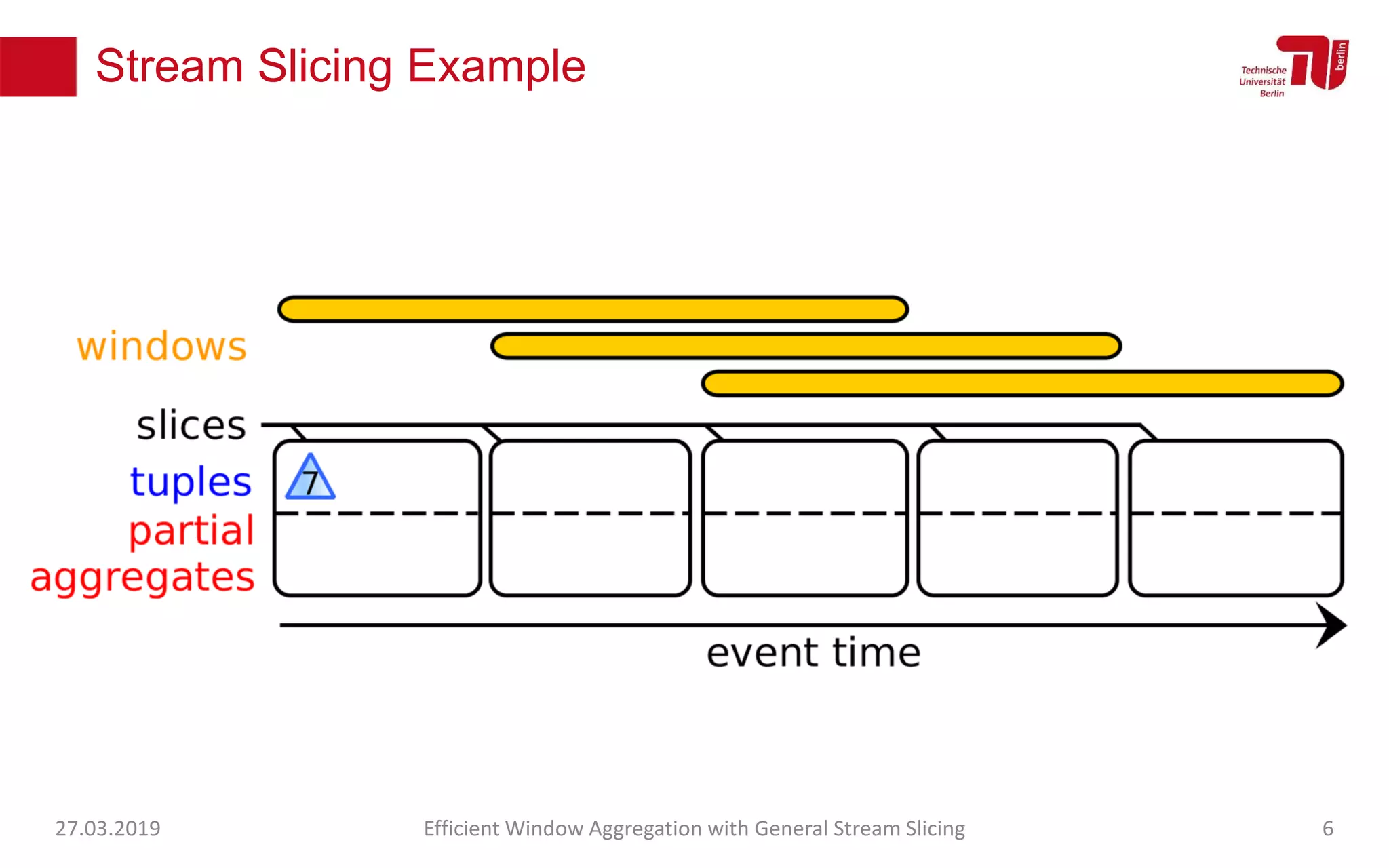

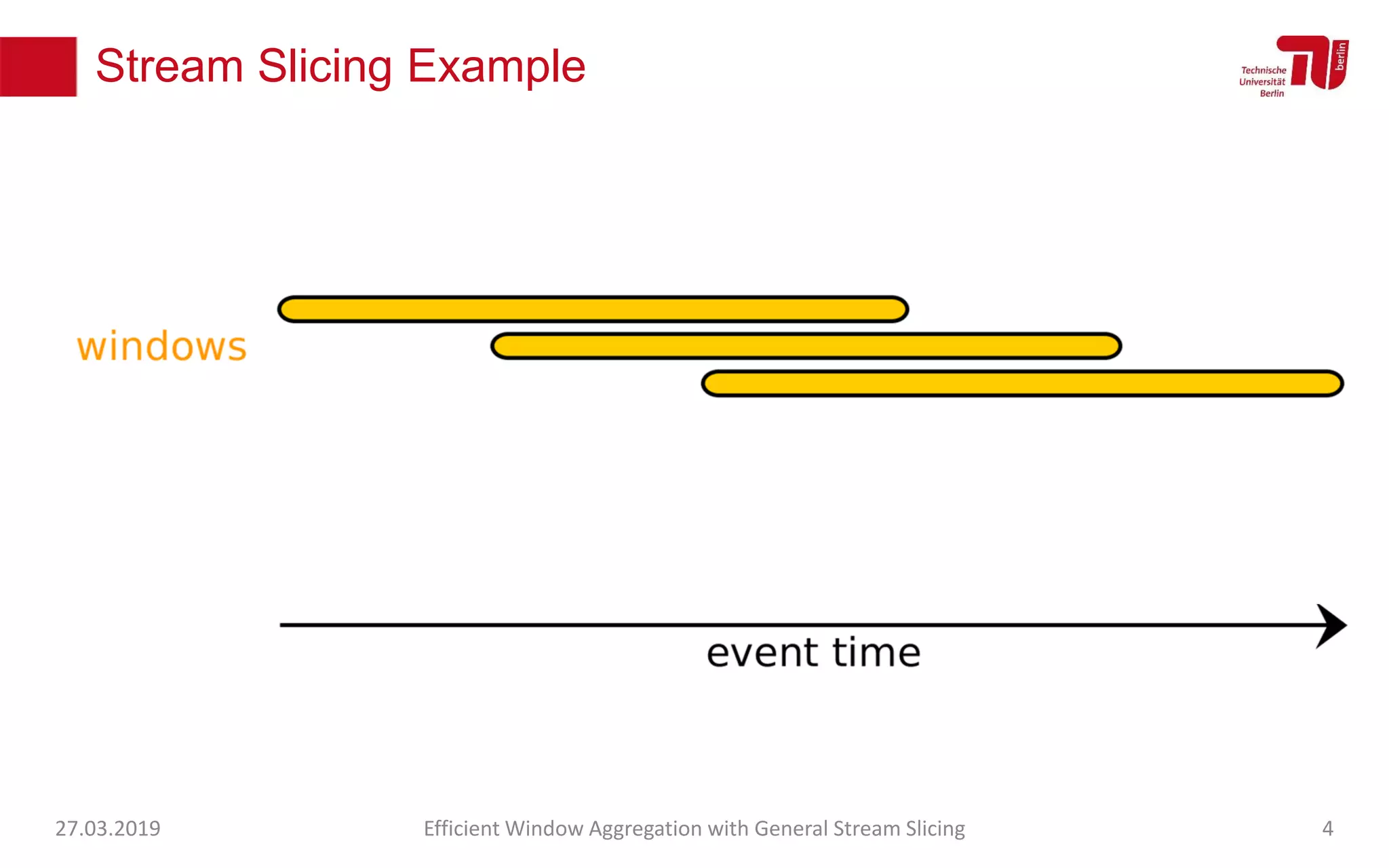

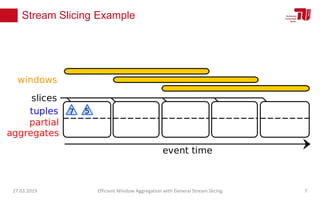

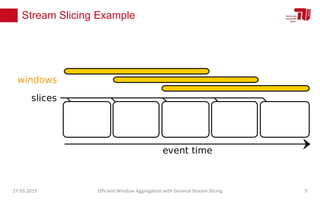

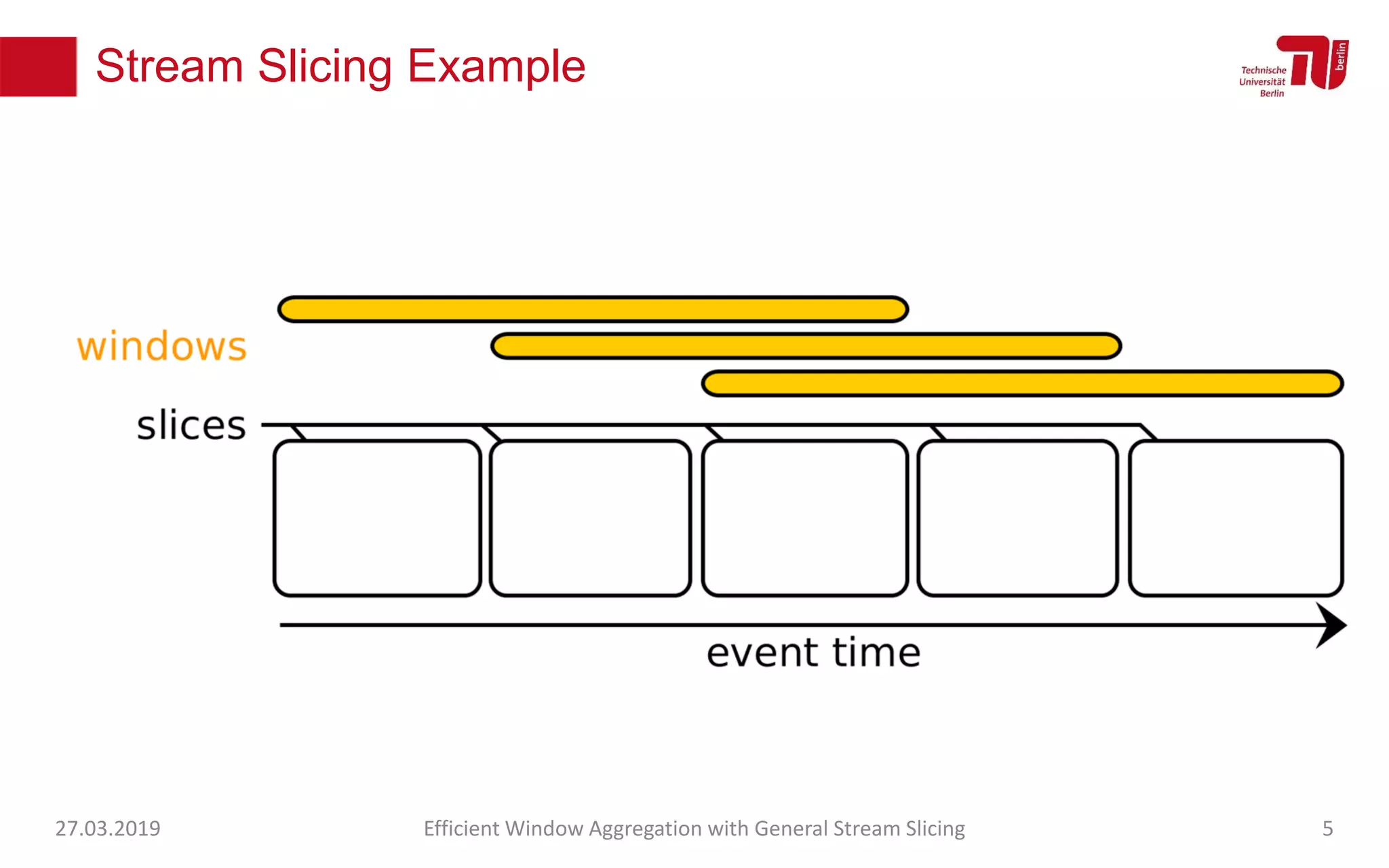

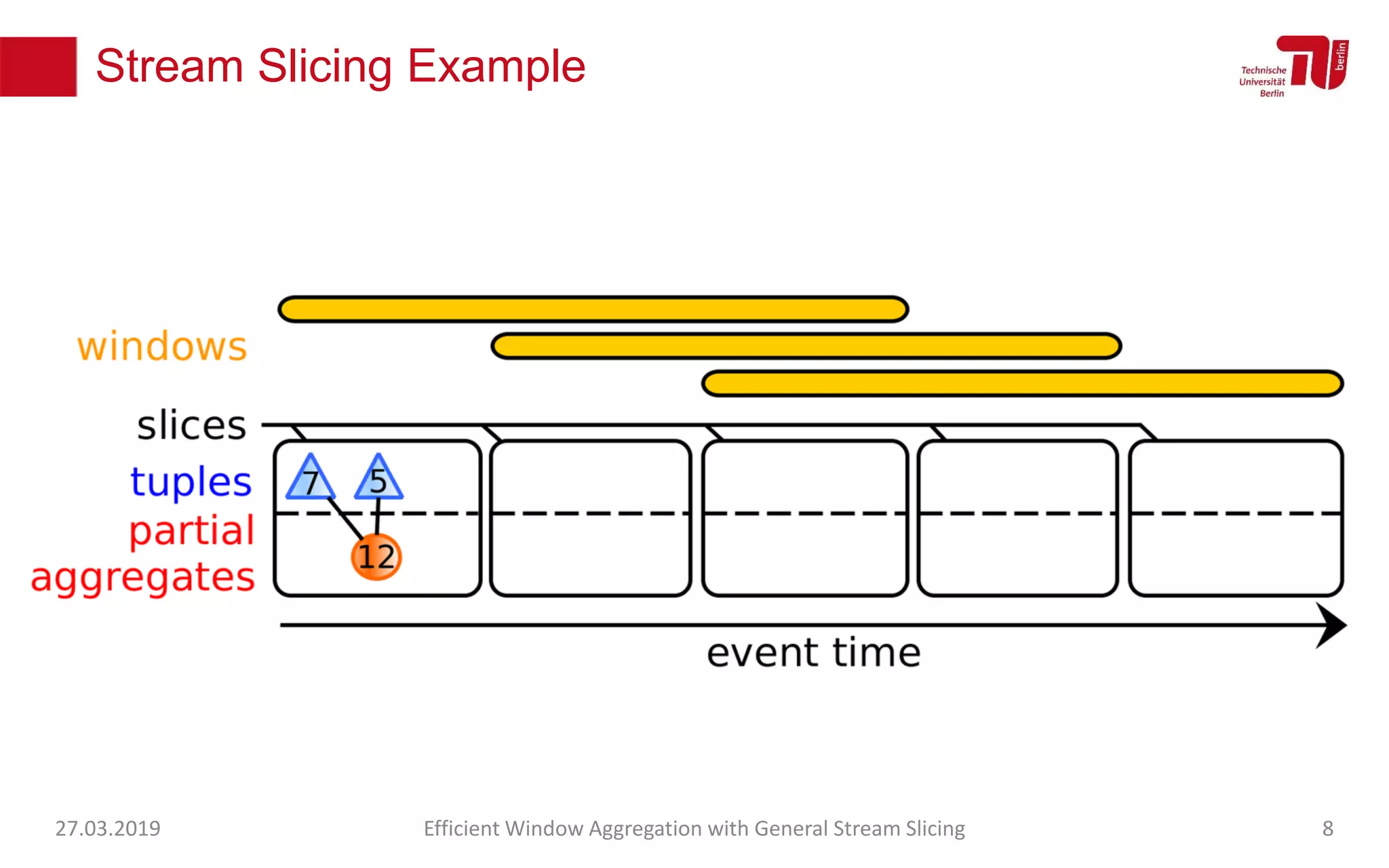

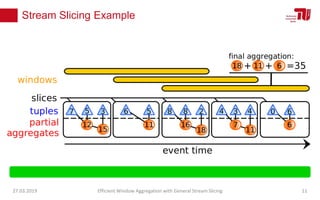

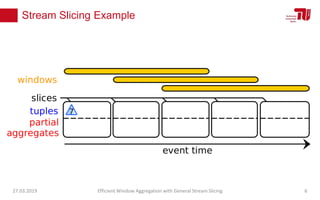

Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 4
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 5

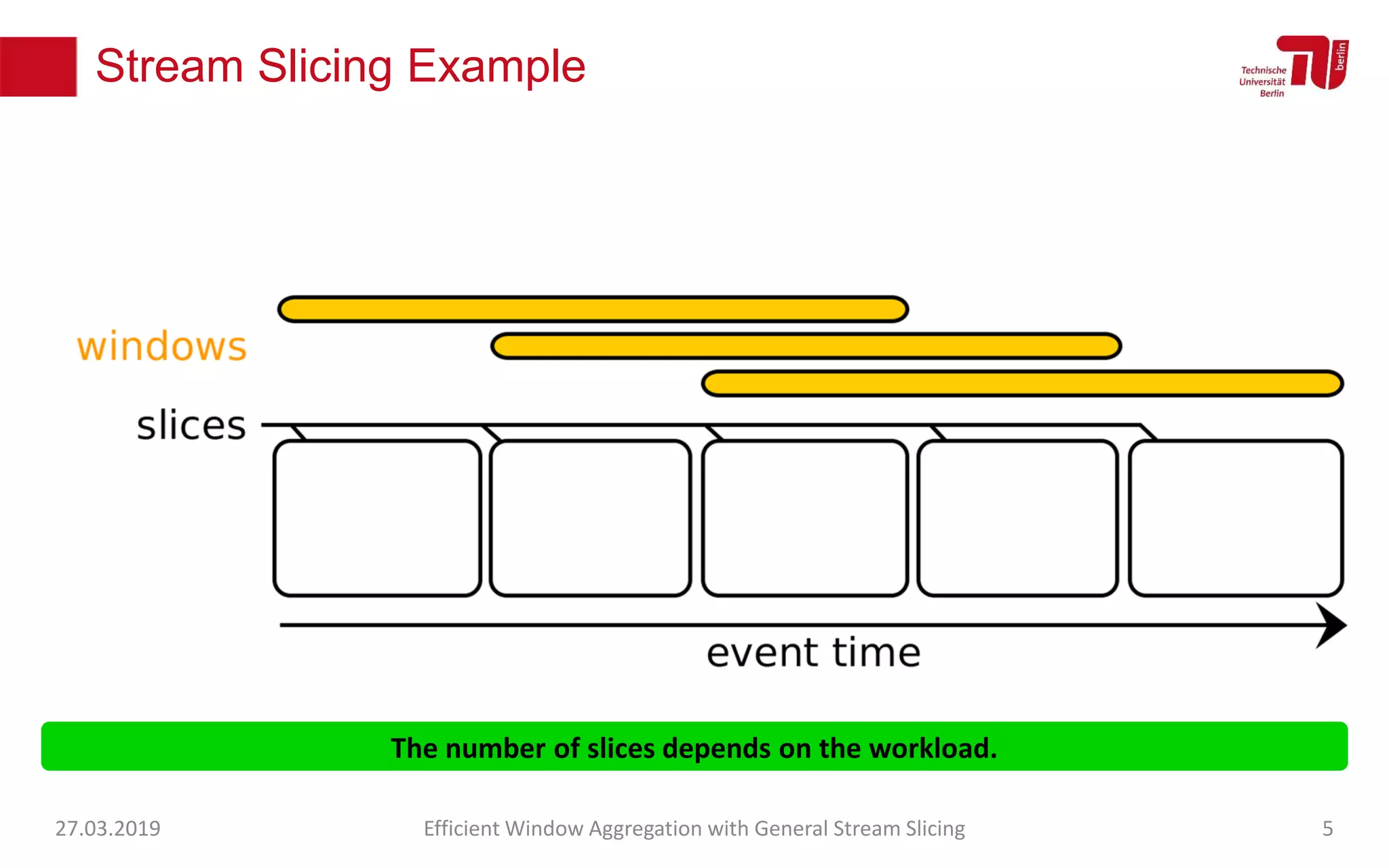

The number of slices depends on the workload. Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 5
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 6
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 7
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 8

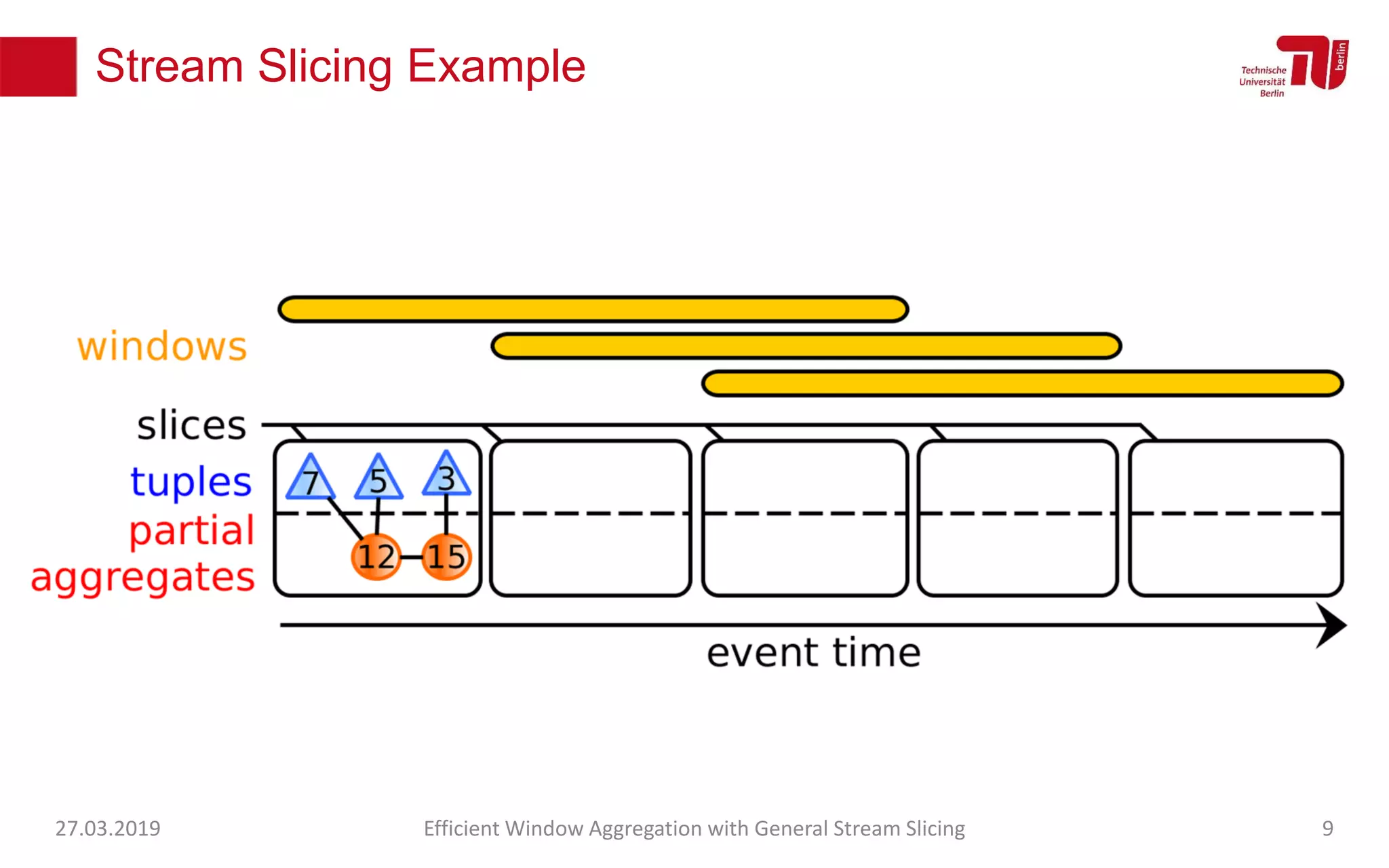

Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 9

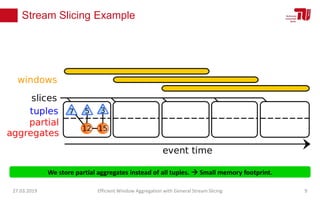

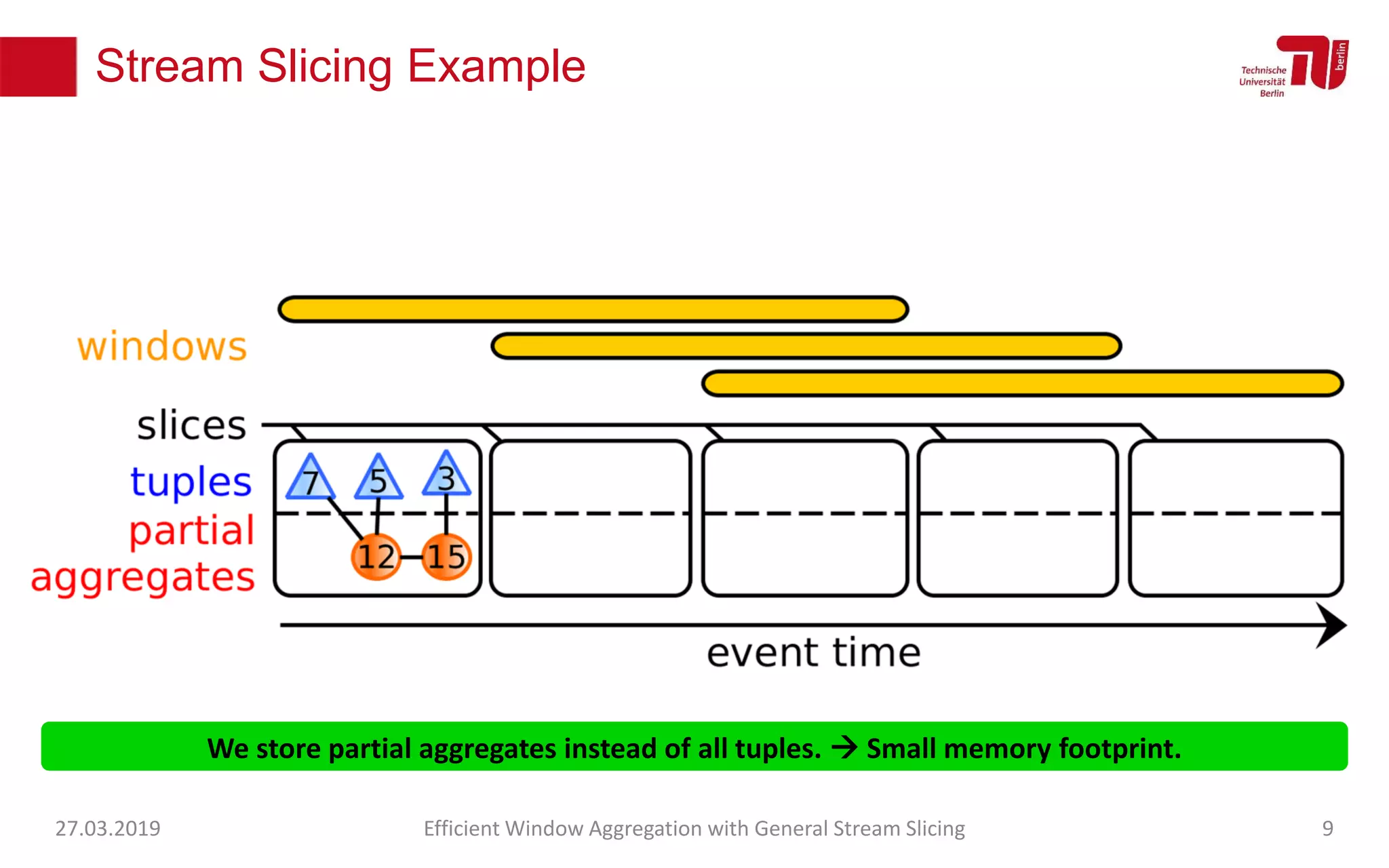

We store partial aggregates instead of all tuples.  Small memory footprint. Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 9
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 10

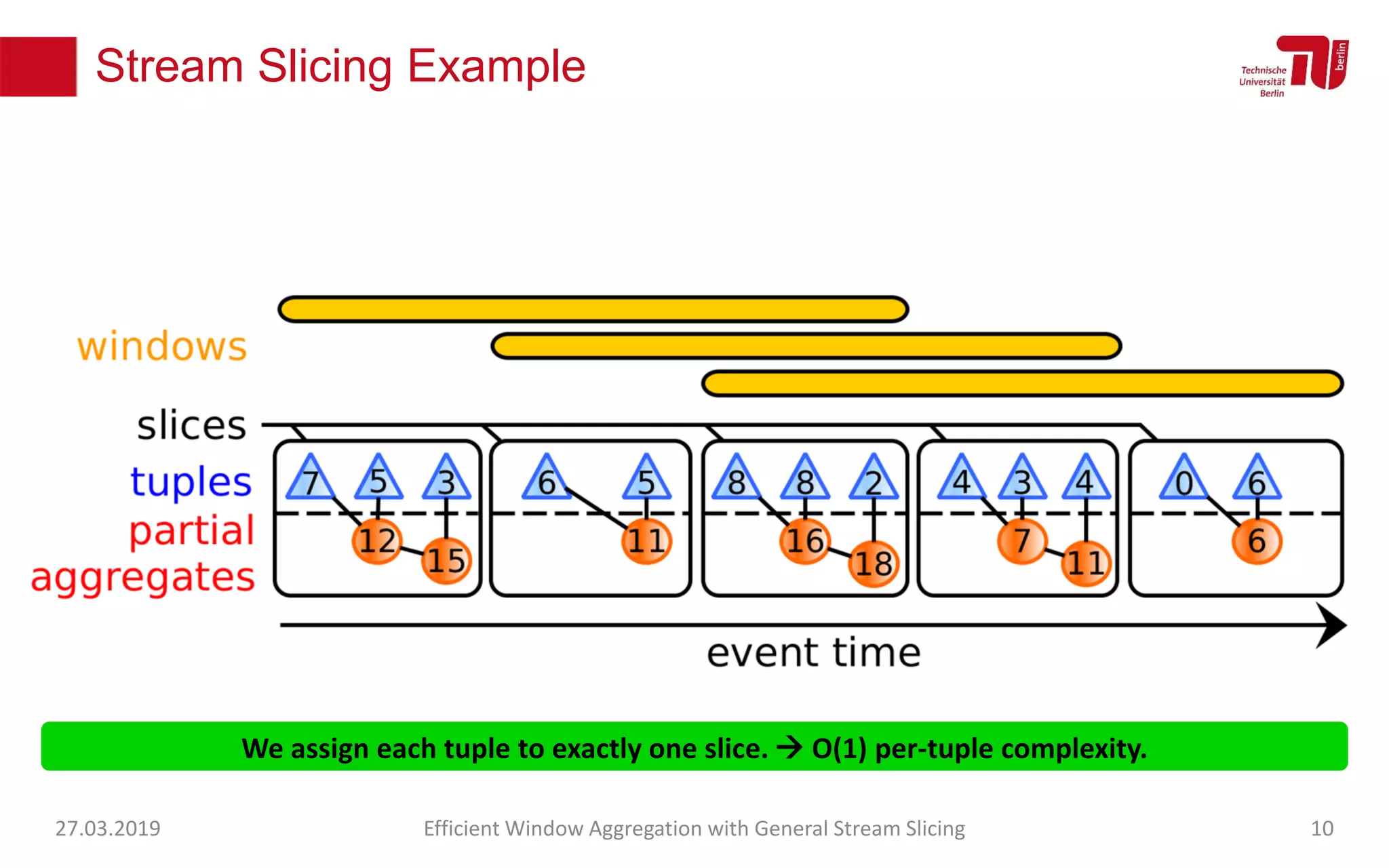

We assign each tuple to exactly one slice.  O(1) per-tuple complexity. Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 10
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 11

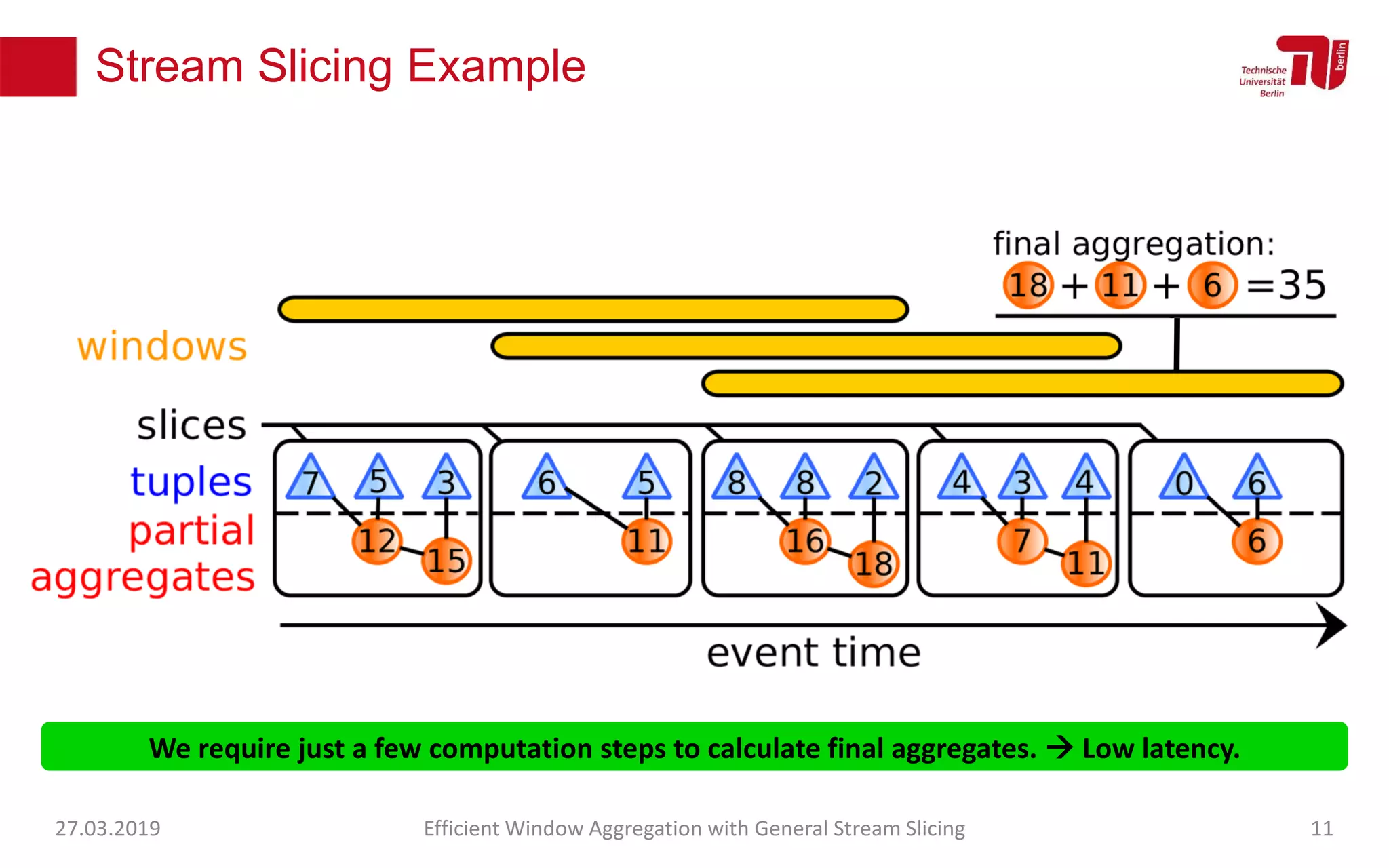

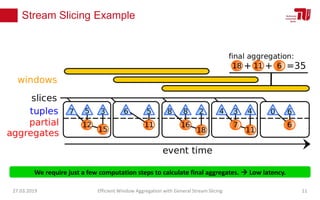

We require just a few computation steps to calculate final aggregates.  Low latency. Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 11
Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 12
We share partial aggregations among all users and queries.  Efficiency by preventing redundancy. Stream Slicing Example 27.03.2019 Efficient Window Aggregation with General Stream Slicing 12

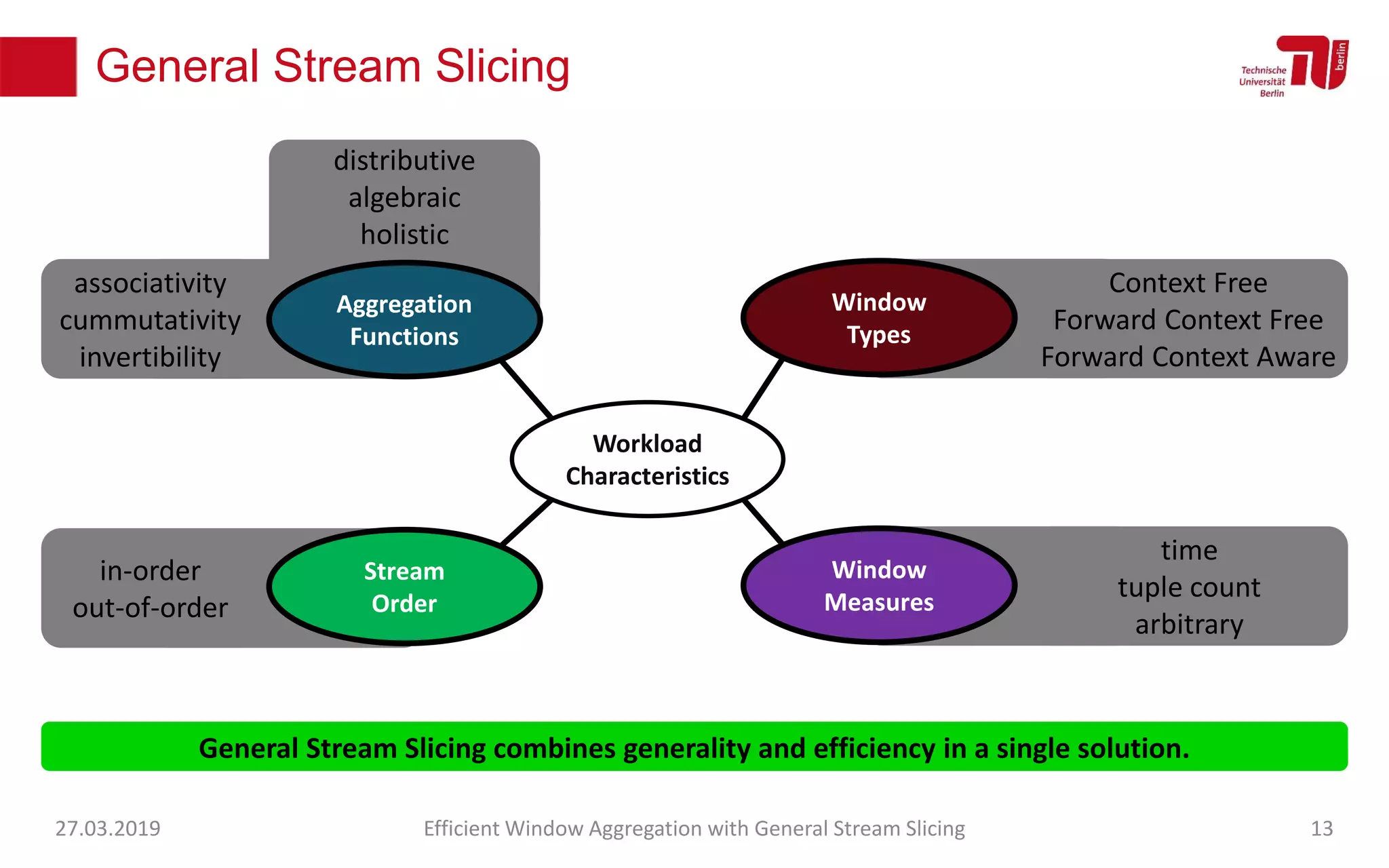

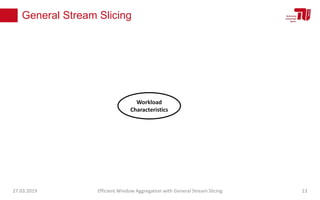

General Stream Slicing 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13

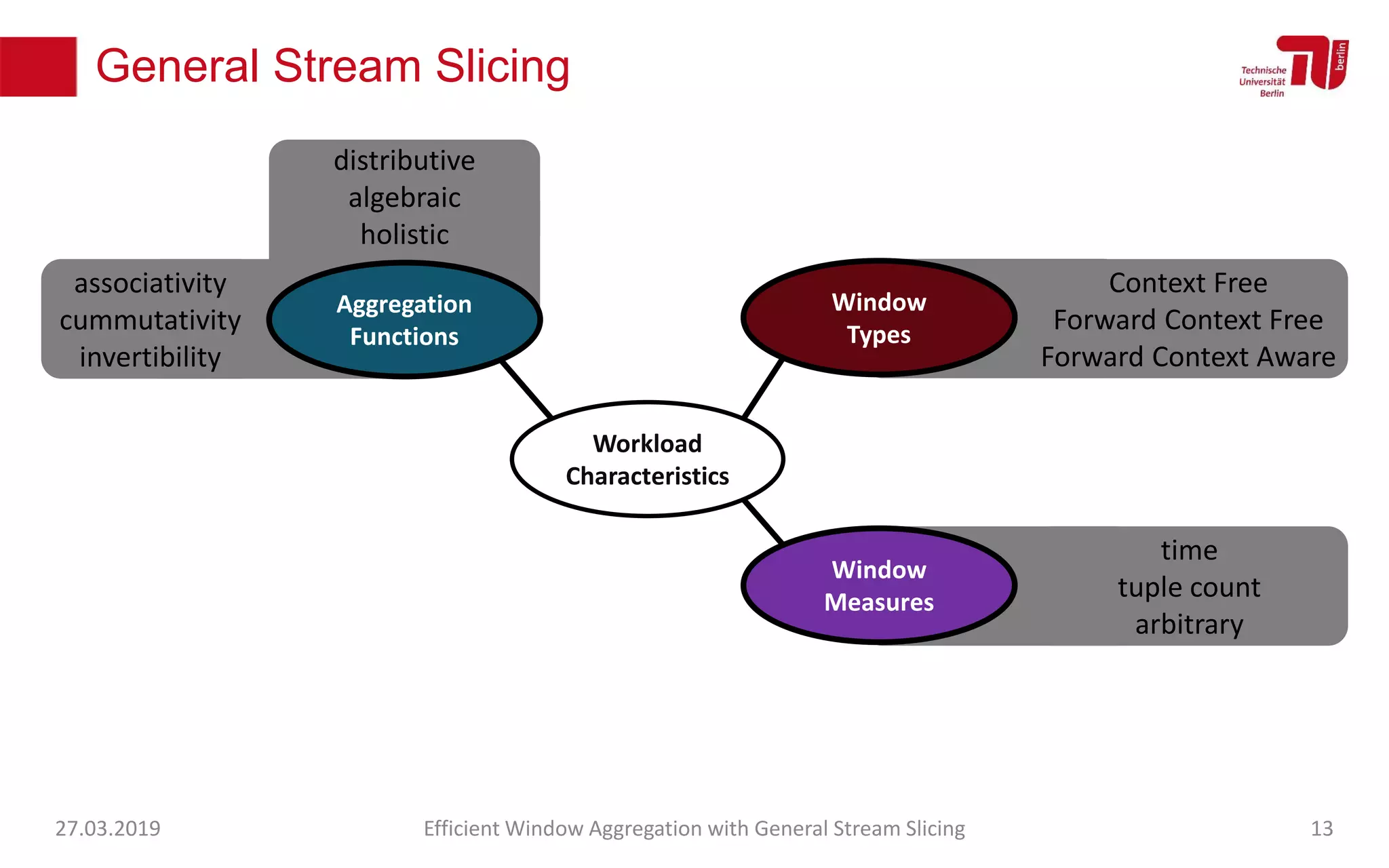

General Stream Slicing Workload Characteristics 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13

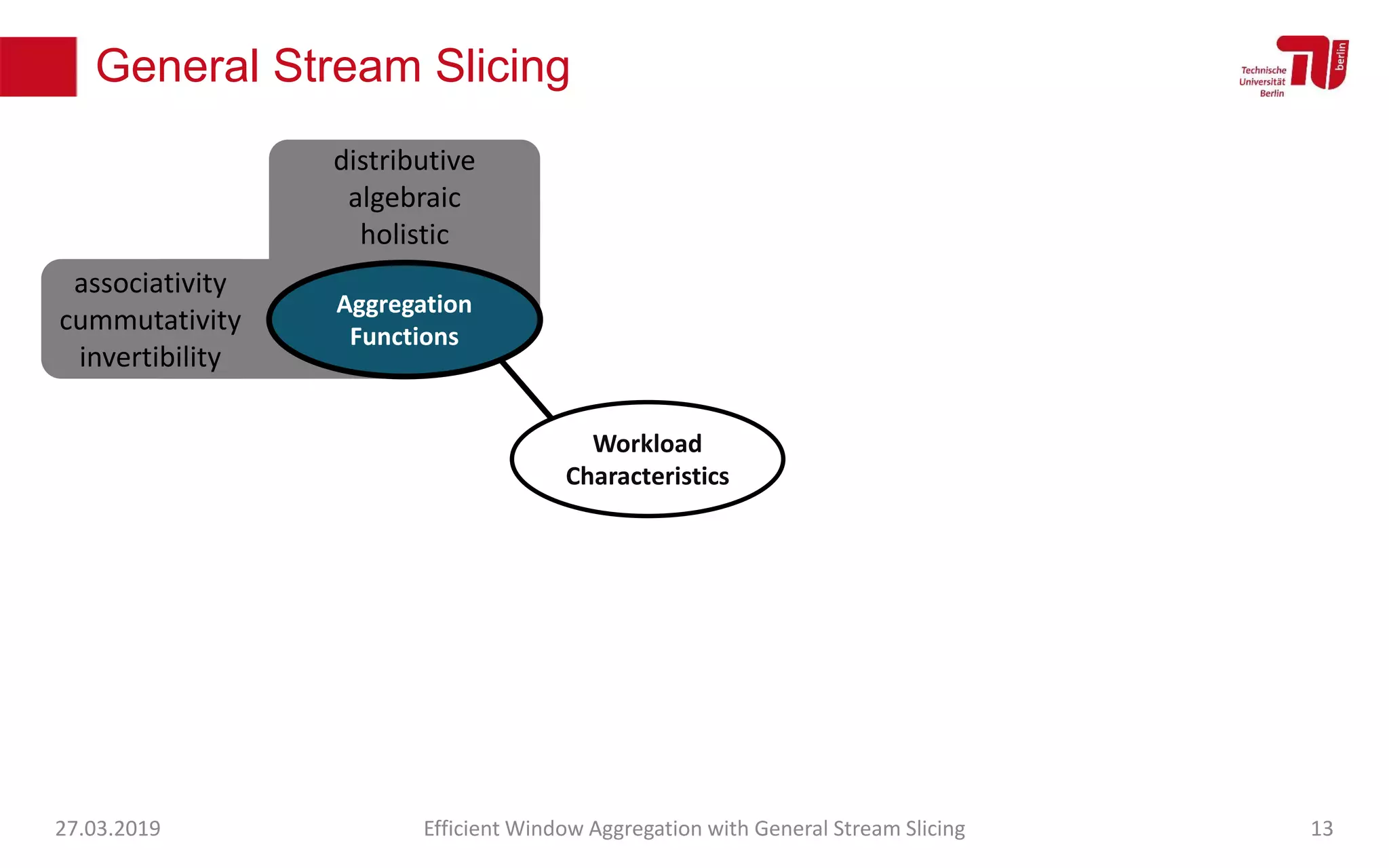

General Stream Slicing Workload Characteristics Aggregation Functions distributive algebraic holistic associativity cummutativity invertibility 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13

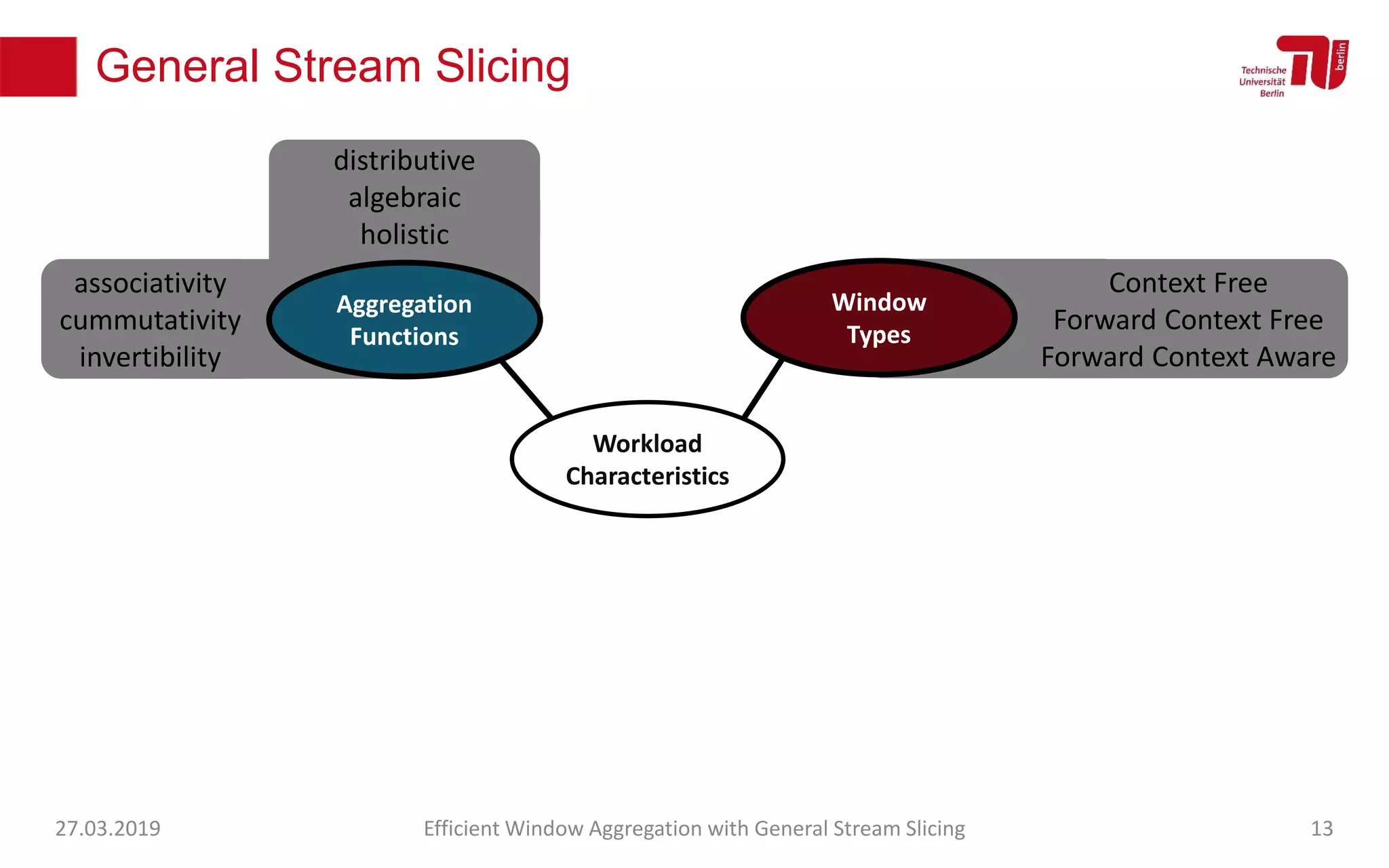

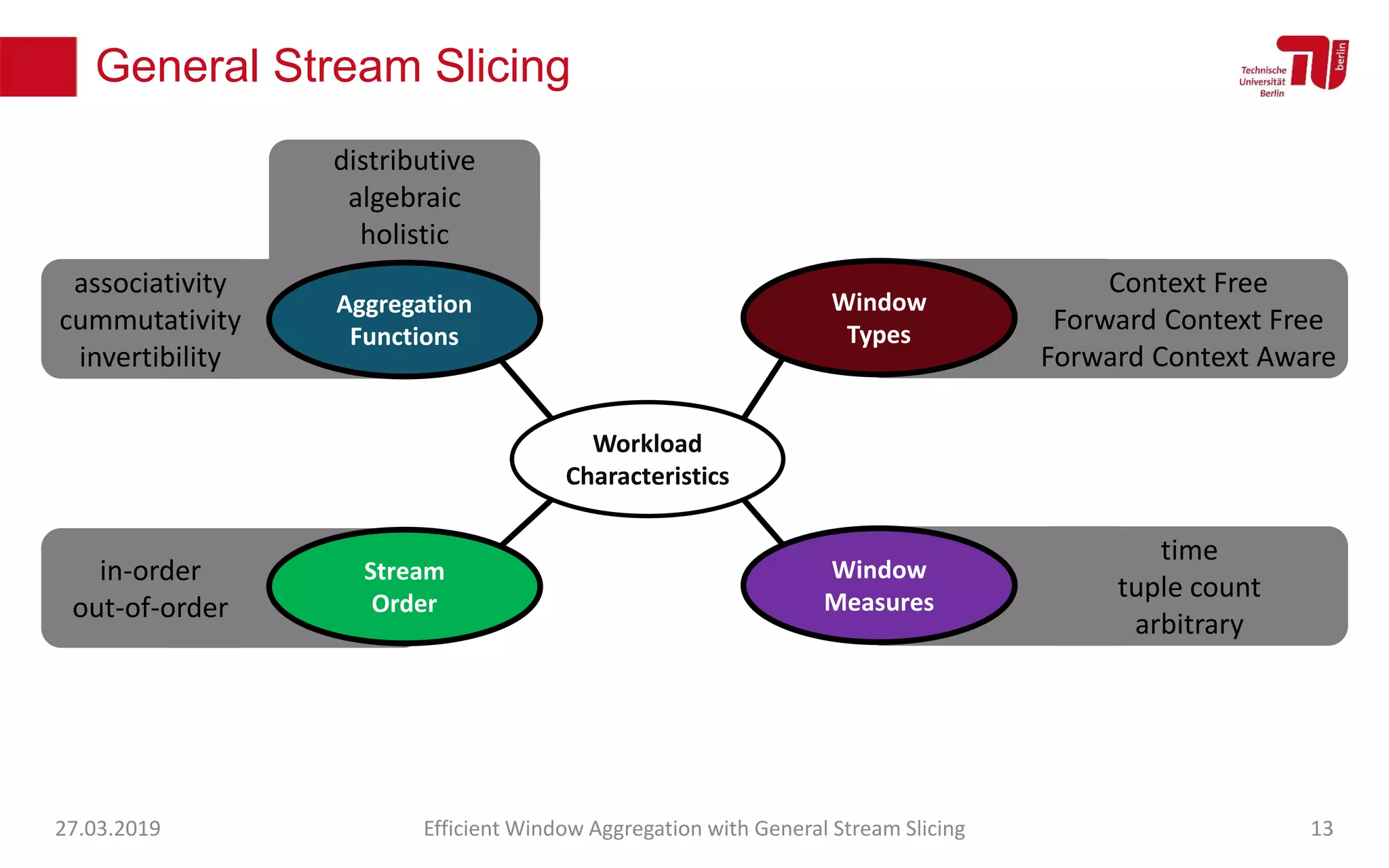

General Stream Slicing Workload Characteristics Window Types Context Free Forward Context Free Forward Context Aware Aggregation Functions distributive algebraic holistic associativity cummutativity invertibility 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13
General Stream Slicing Workload Characteristics Window Types Context Free Forward Context Free Forward Context Aware Window Measures time tuple count arbitrary Aggregation Functions distributive algebraic holistic associativity cummutativity invertibility 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13
General Stream Slicing Workload Characteristics Window Types Context Free Forward Context Free Forward Context Aware Stream Order in-order out-of-order Window Measures time tuple count arbitrary Aggregation Functions distributive algebraic holistic associativity cummutativity invertibility 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13
General Stream Slicing Workload Characteristics Window Types Context Free Forward Context Free Forward Context Aware Stream Order in-order out-of-order Window Measures time tuple count arbitrary Aggregation Functions distributive algebraic holistic associativity cummutativity invertibility 27.03.2019 Efficient Window Aggregation with General Stream Slicing 13 General Stream Slicing combines generality and efficiency in a single solution.

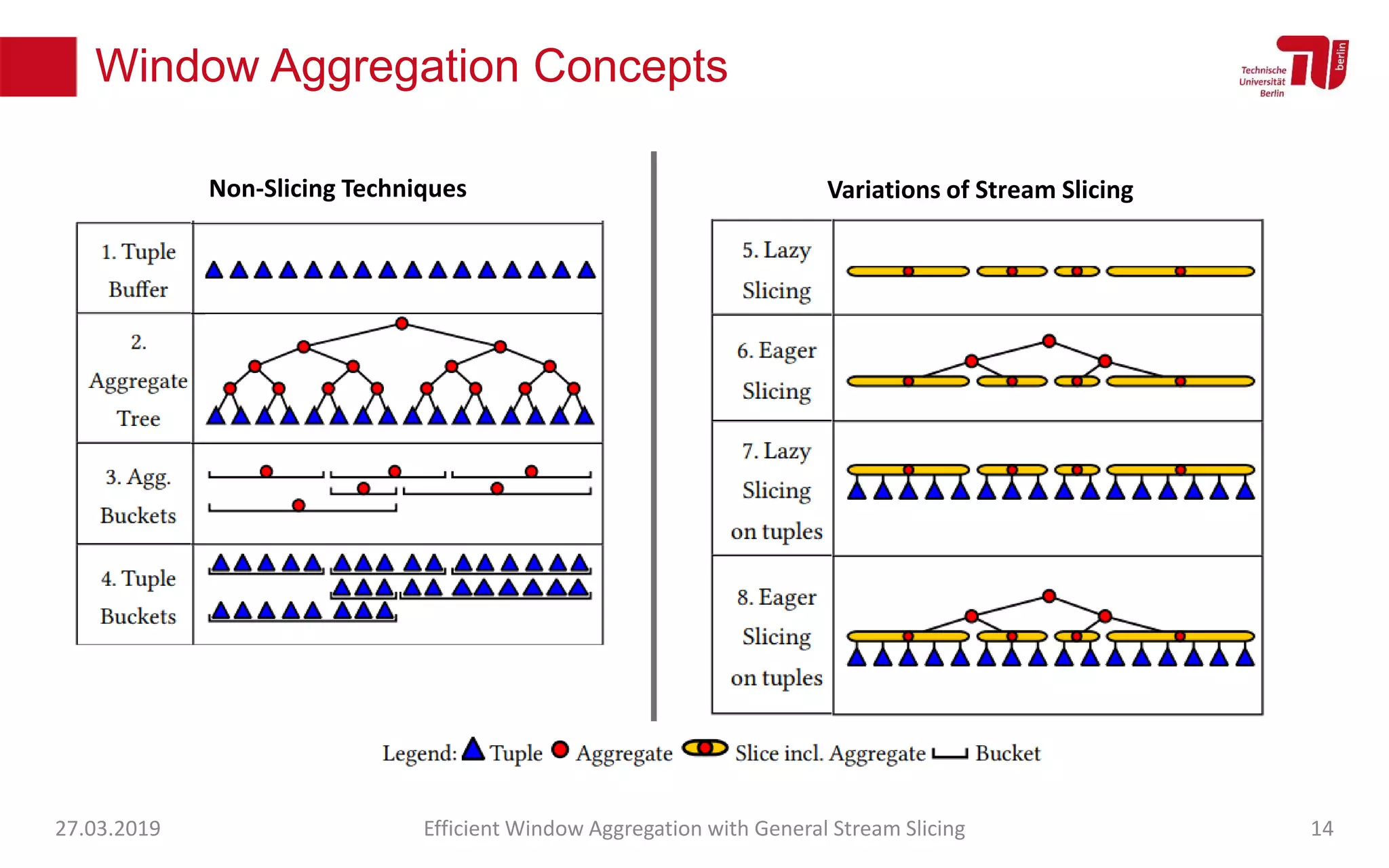

Window Aggregation Concepts 27.03.2019 Efficient Window Aggregation with General Stream Slicing 14 Variations of Stream SlicingNon-Slicing Techniques

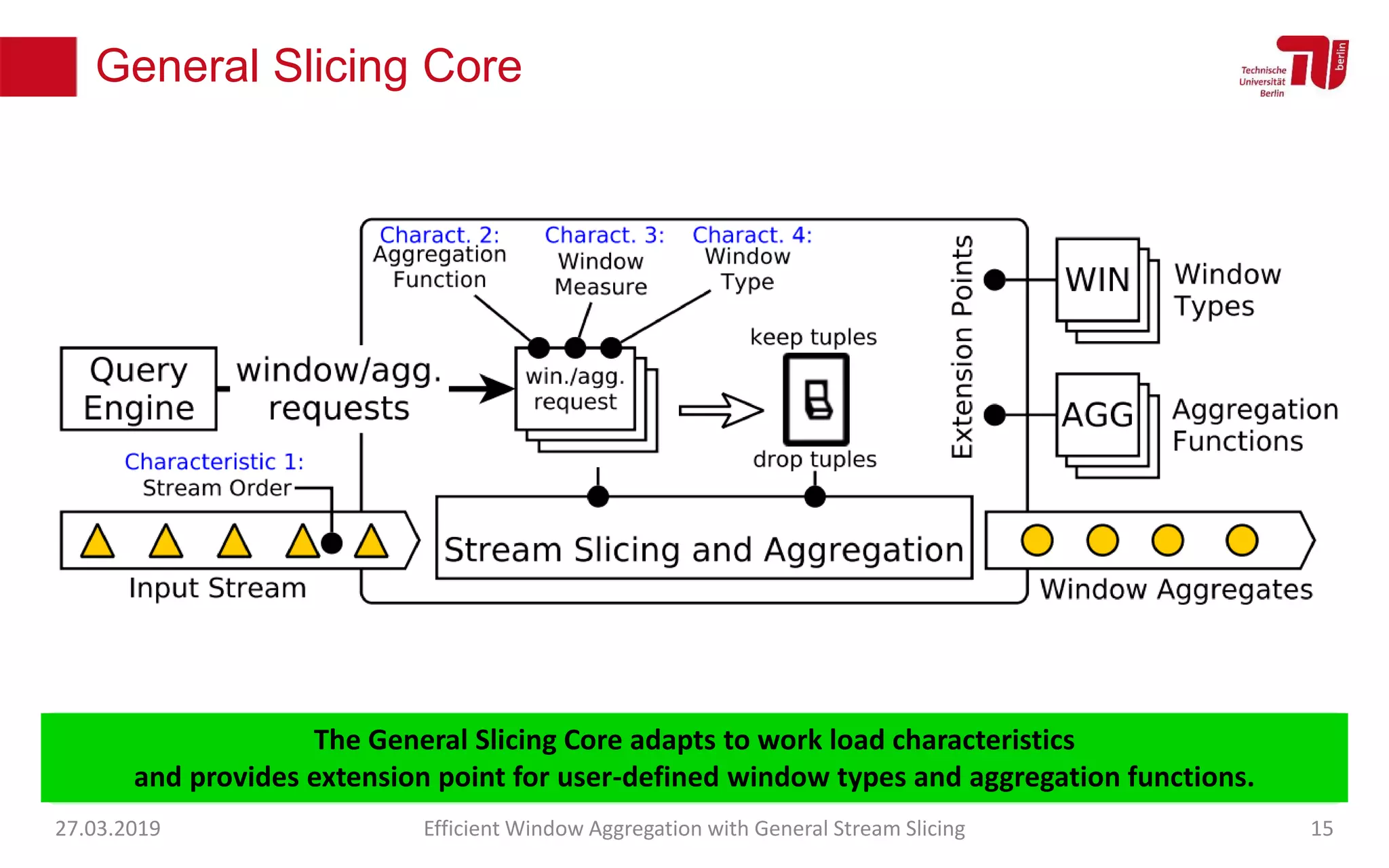

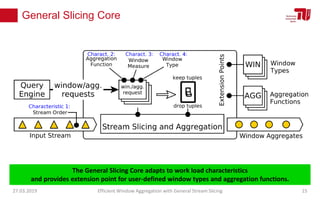

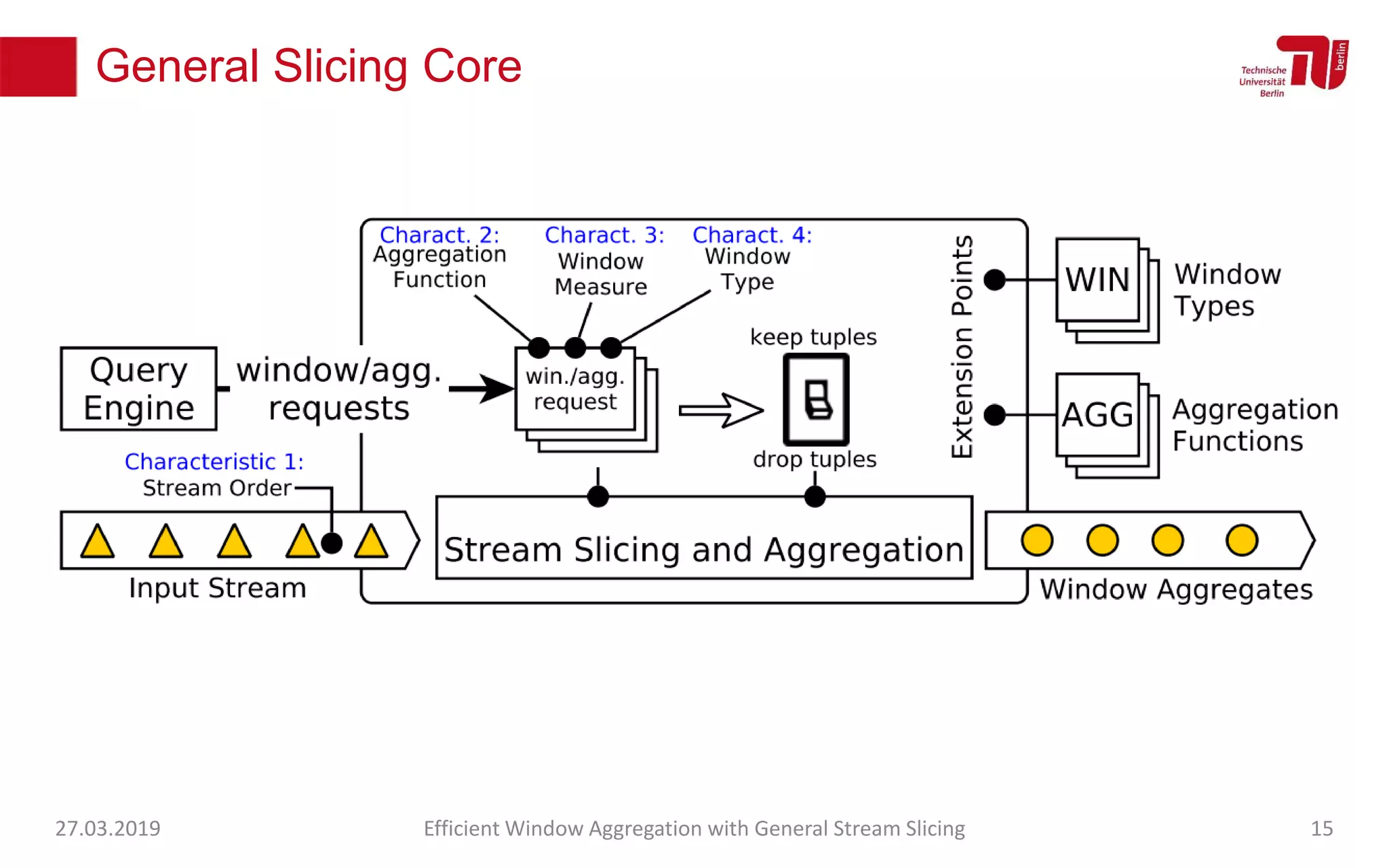

General Slicing Core 27.03.2019 Efficient Window Aggregation with General Stream Slicing 15
General Slicing Core The General Slicing Core adapts to work load characteristics and provides extension point for user-defined window types and aggregation functions. 27.03.2019 Efficient Window Aggregation with General Stream Slicing 15

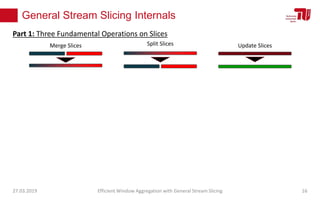

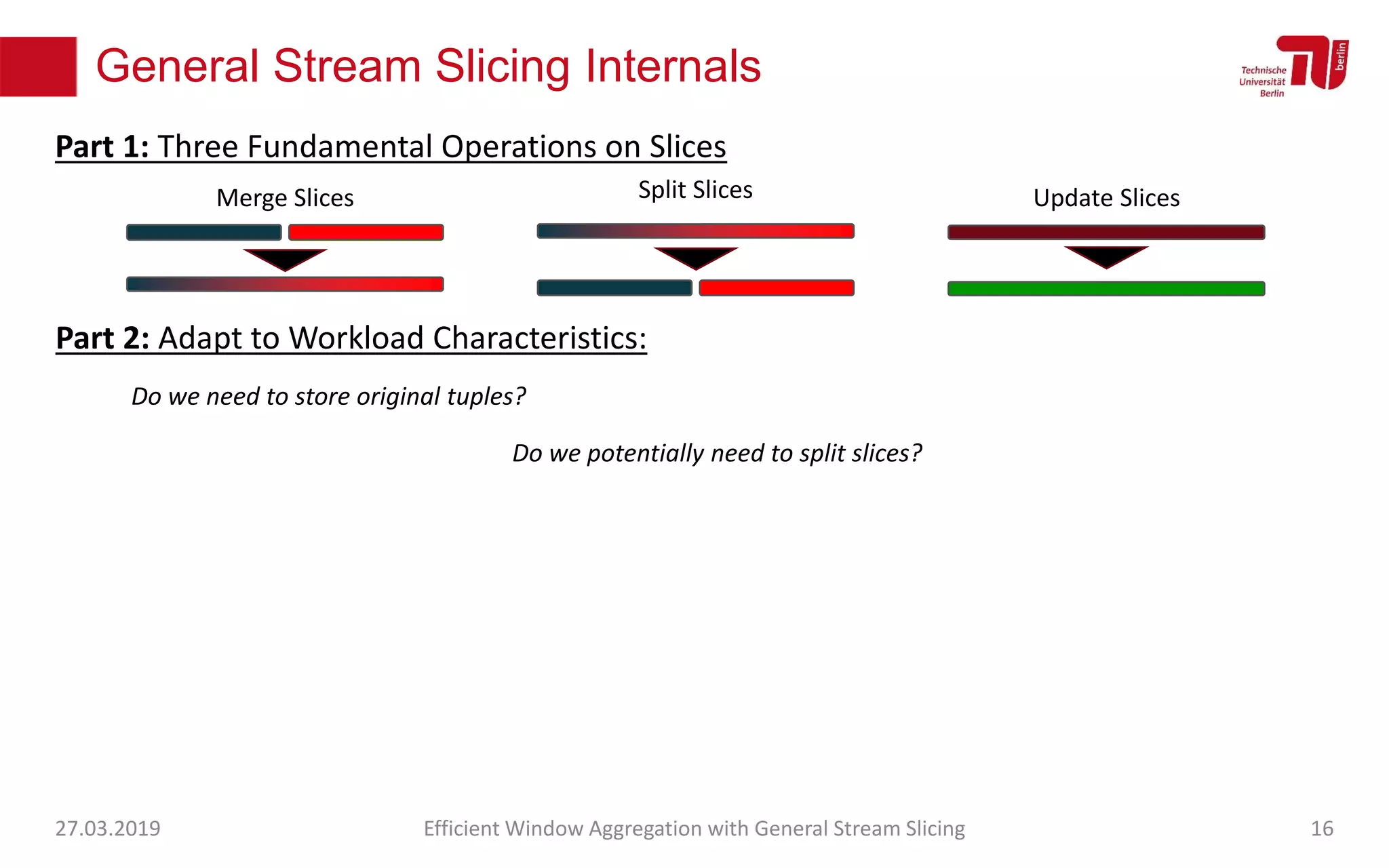

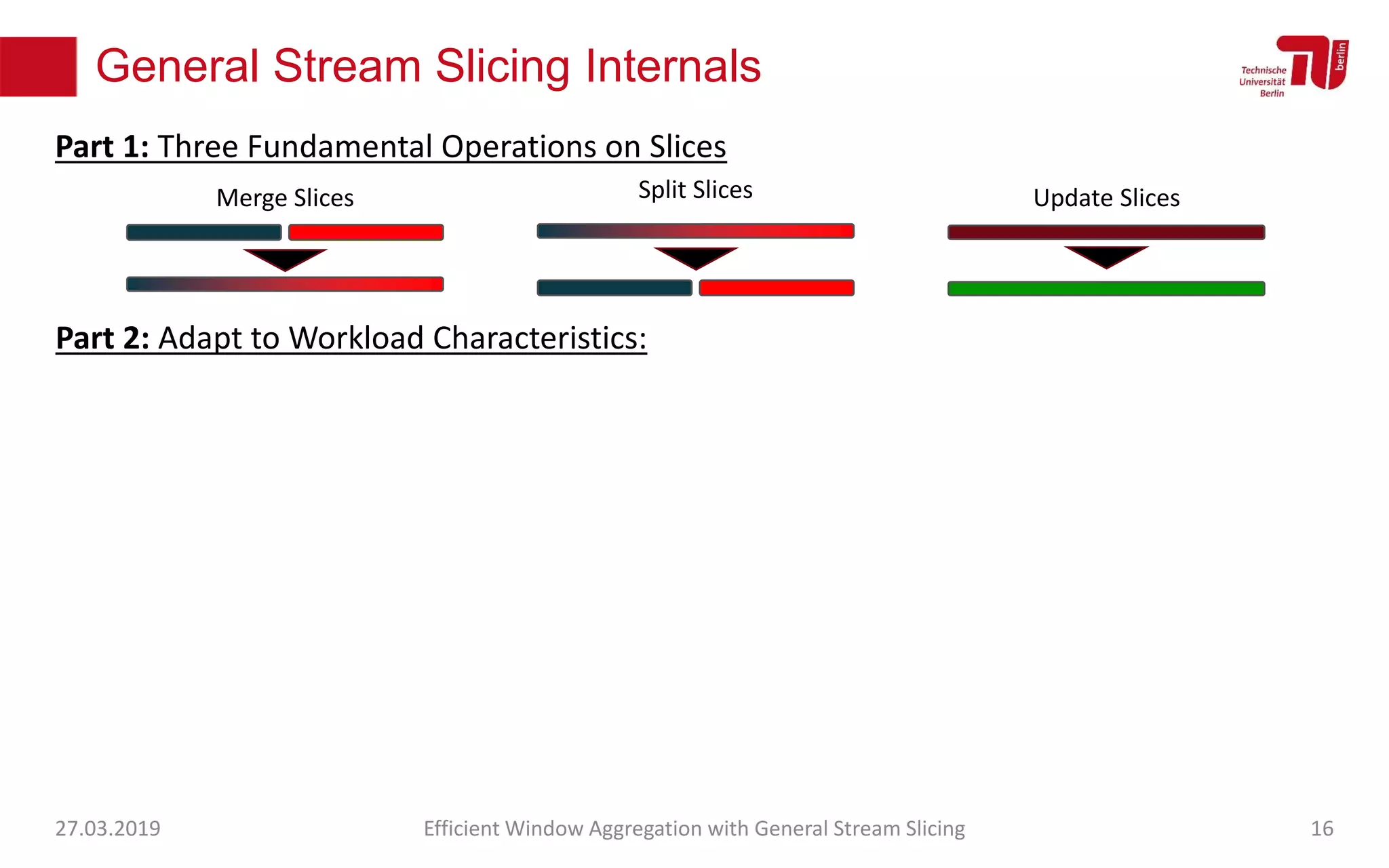

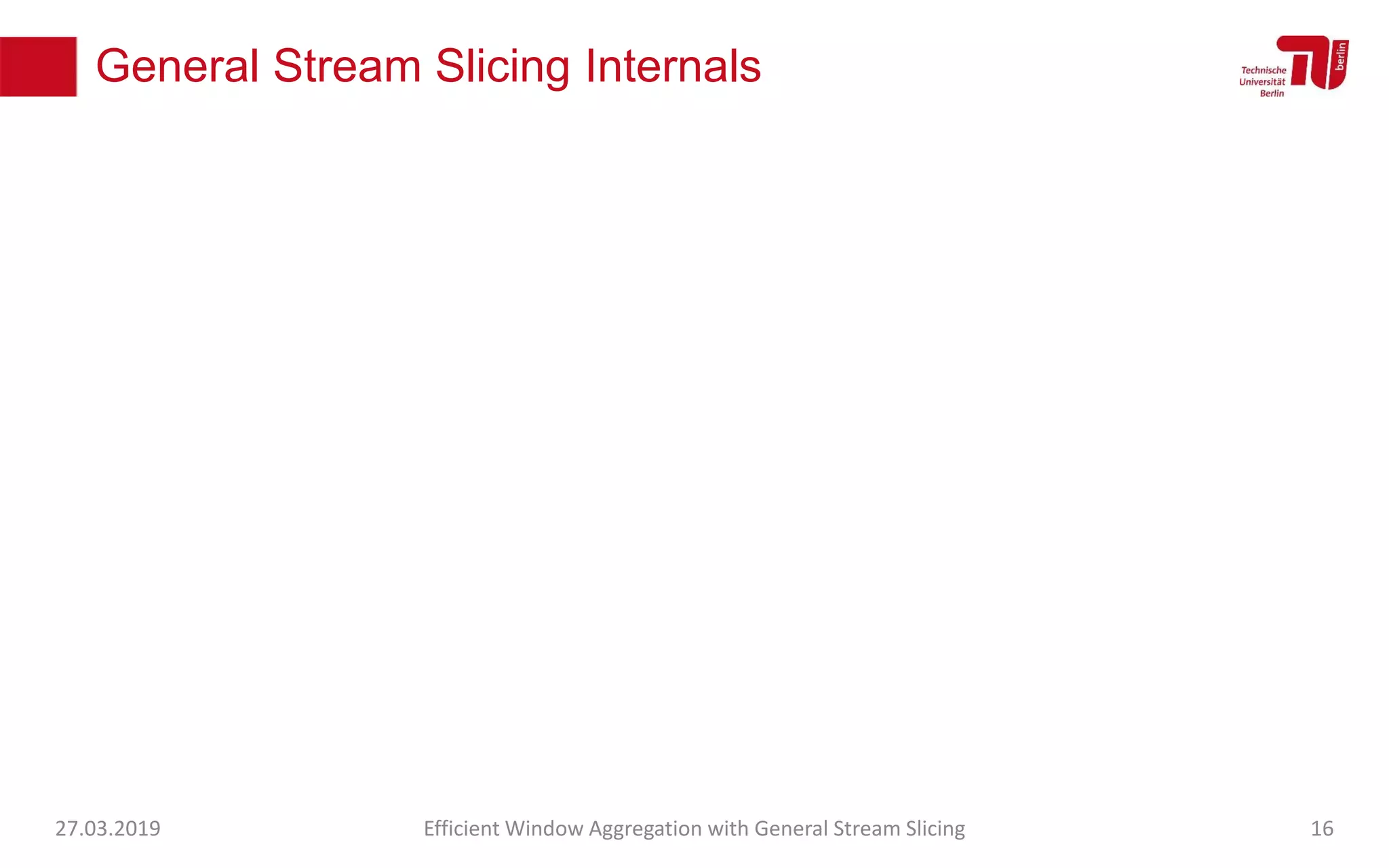

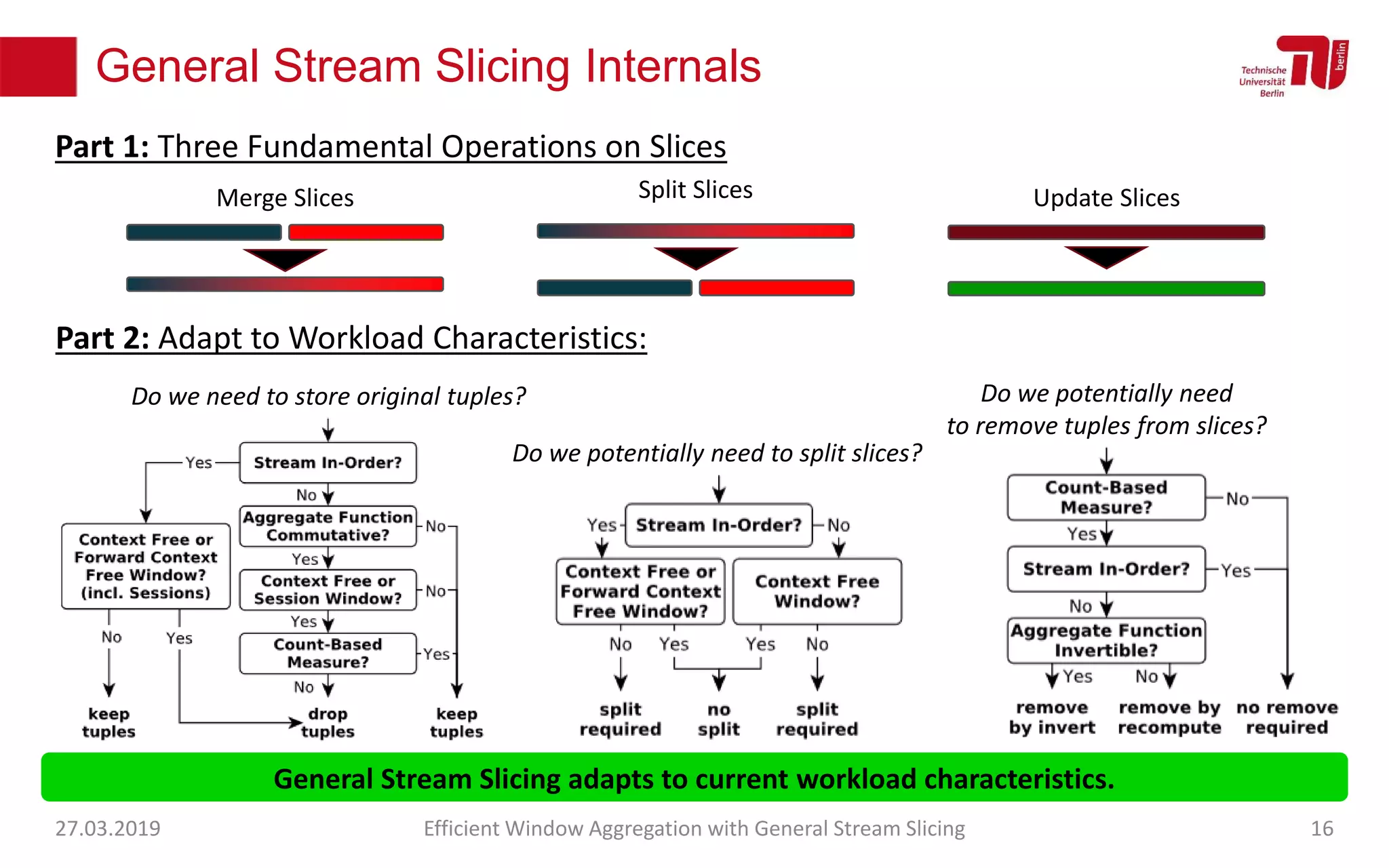

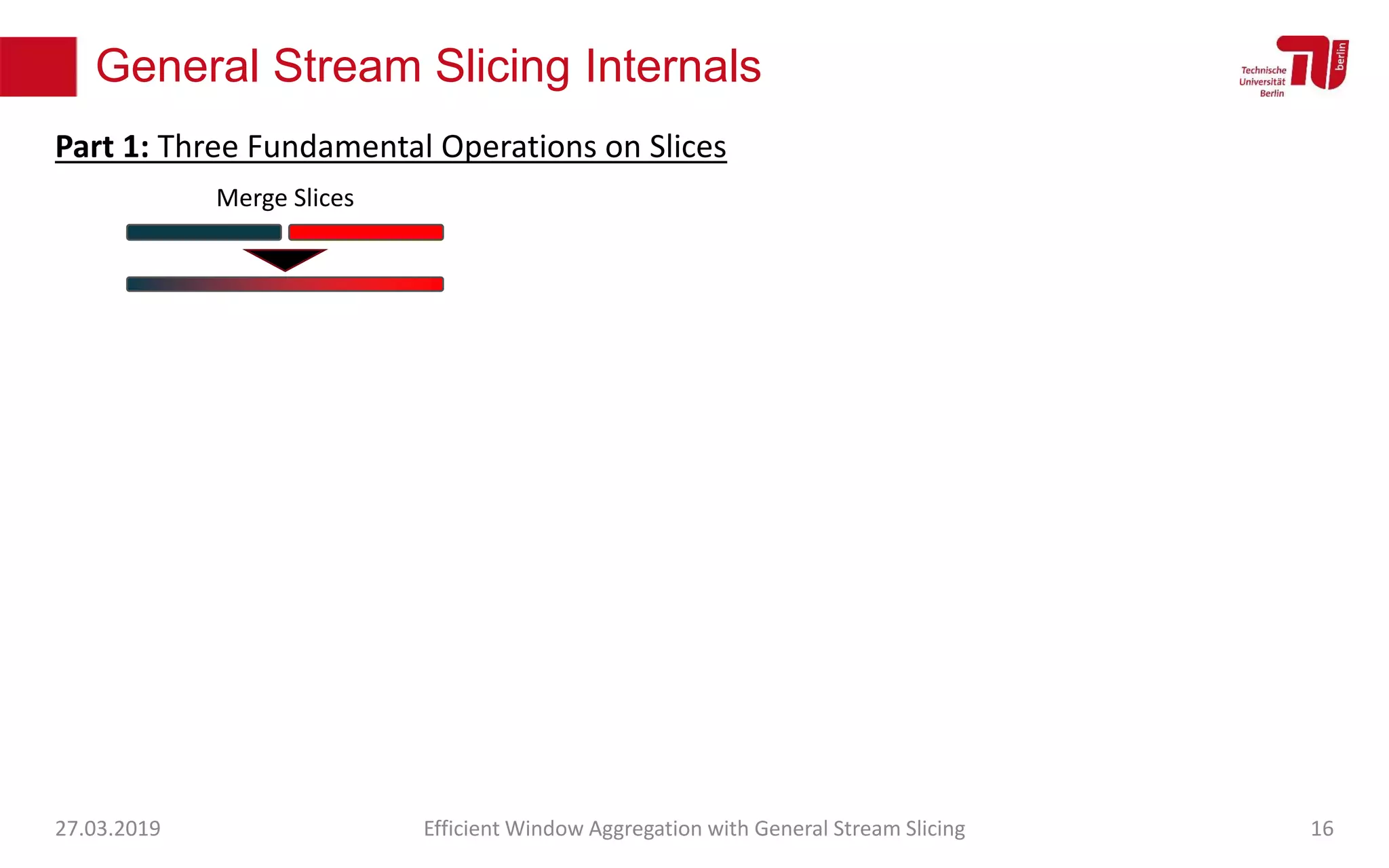

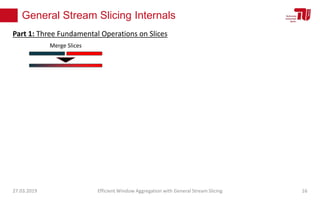

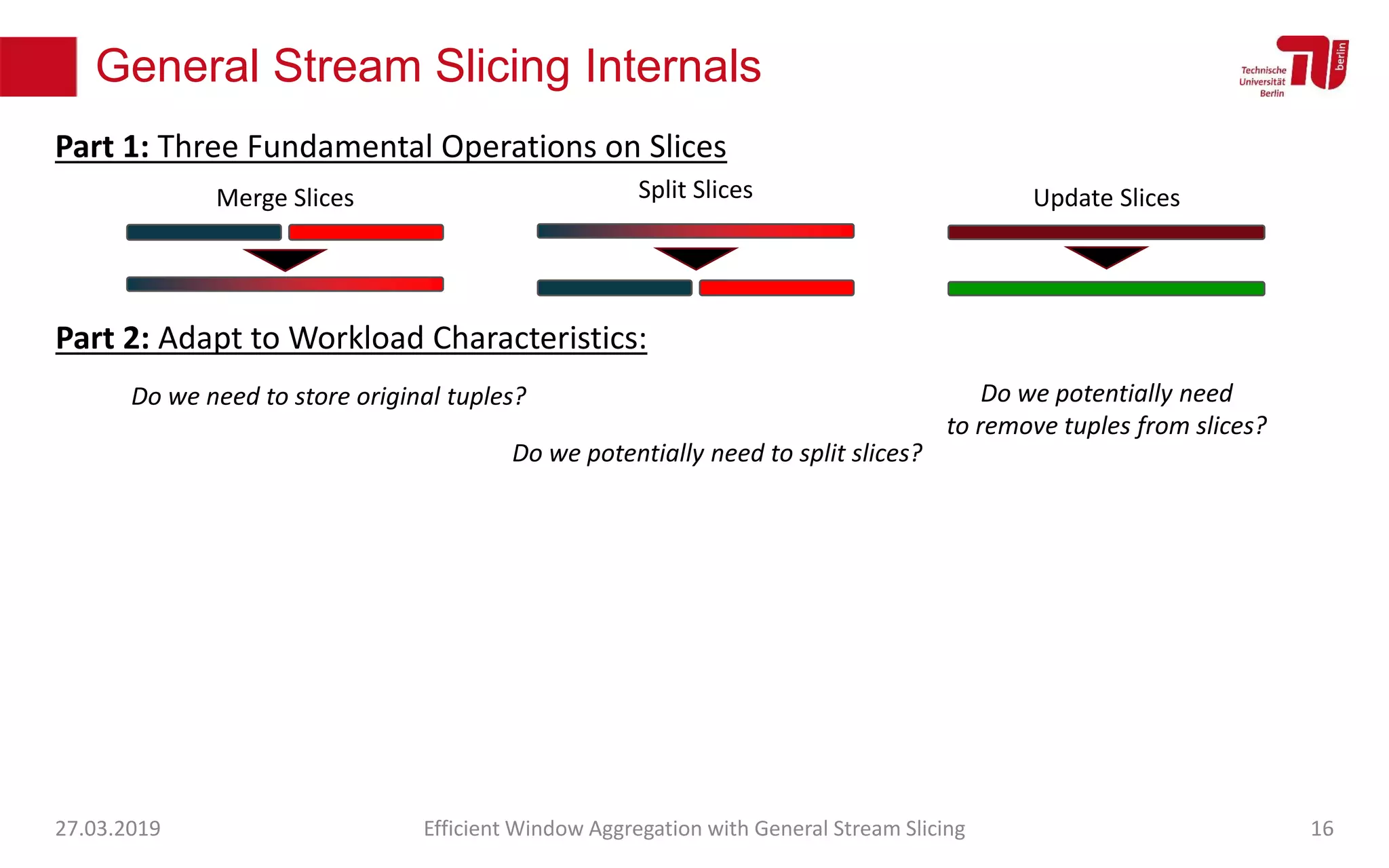

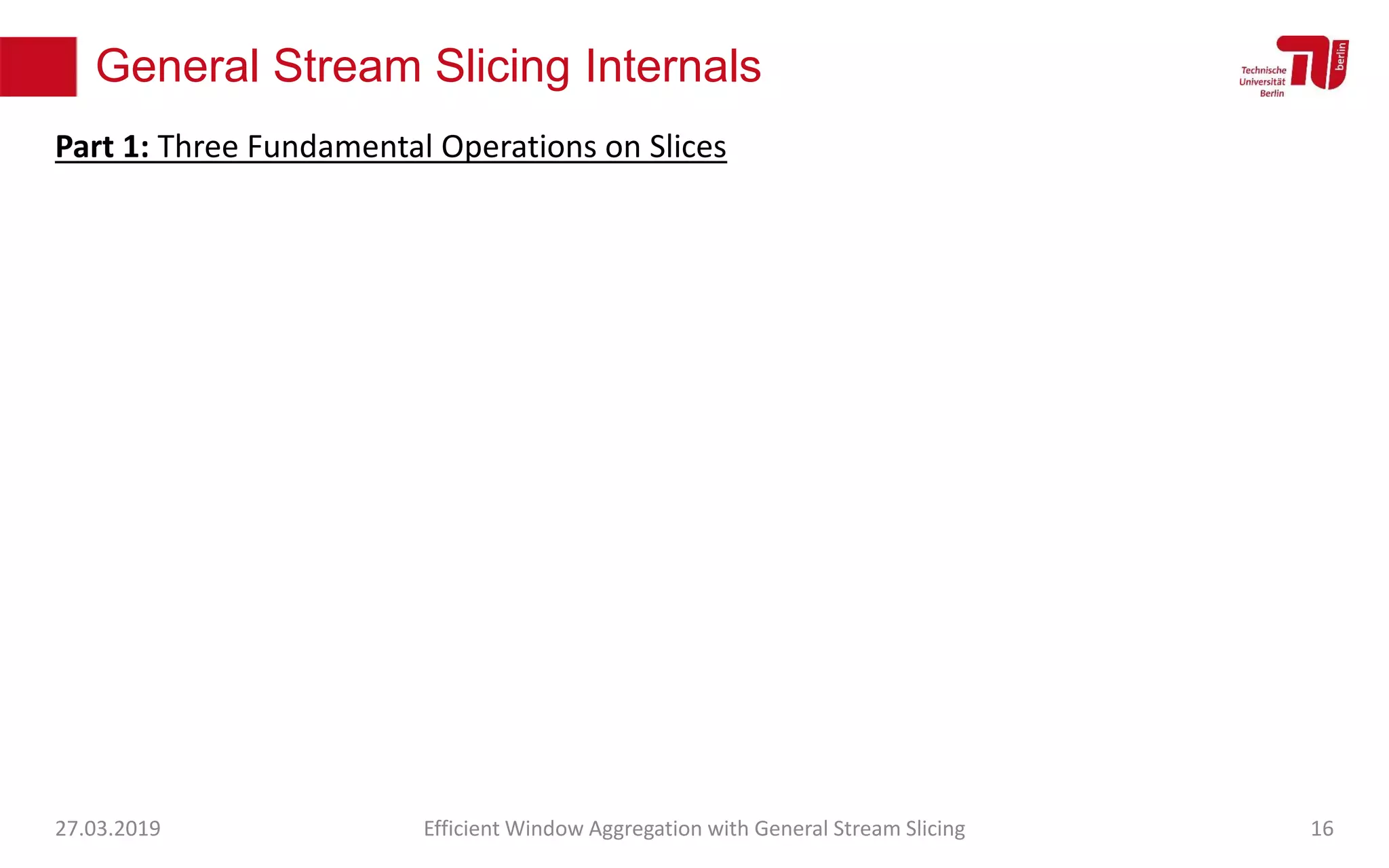

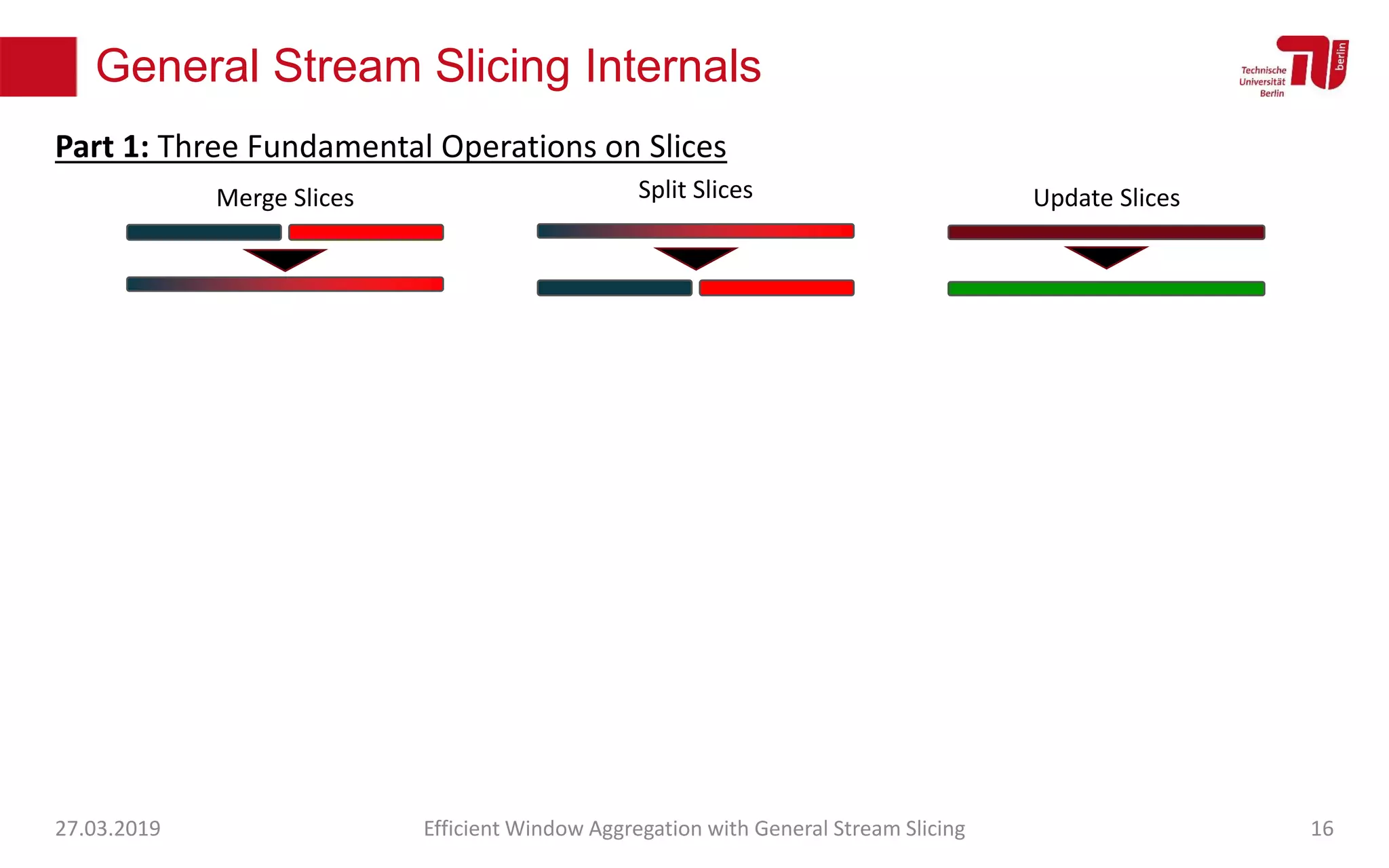

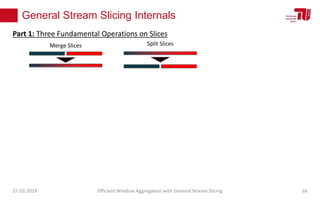

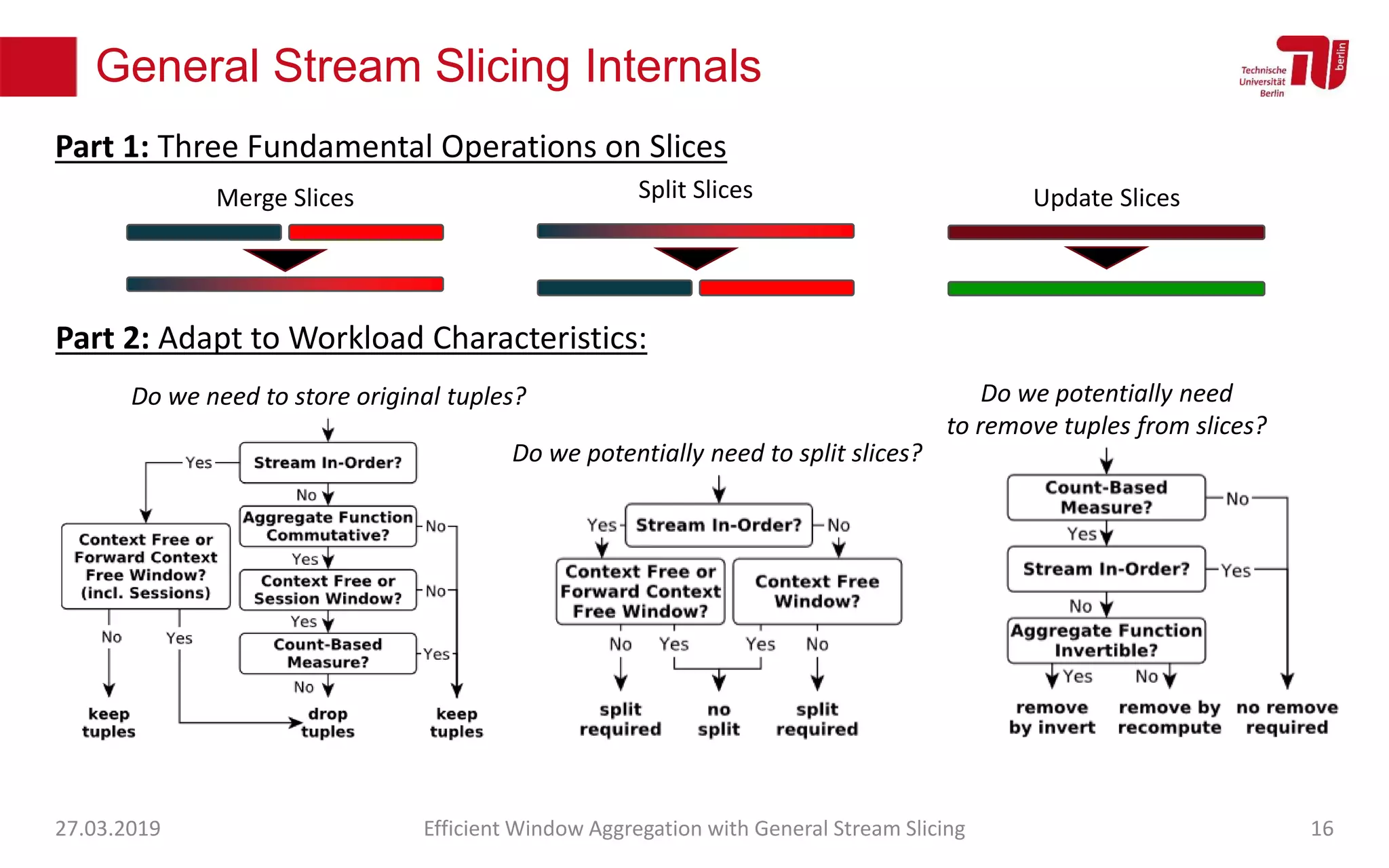

General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Part 1: Three Fundamental Operations on Slices
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Part 1: Three Fundamental Operations on Slices
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Part 1: Three Fundamental Operations on Slices
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices Part 2: Adapt to Workload Characteristics:
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices Part 2: Adapt to Workload Characteristics: Do we need to store original tuples?
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices Part 2: Adapt to Workload Characteristics: Do we need to store original tuples? Do we potentially need to split slices?
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices Part 2: Adapt to Workload Characteristics: Do we need to store original tuples? Do we potentially need to split slices? Do we potentially need to remove tuples from slices?
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices Part 2: Adapt to Workload Characteristics: Do we need to store original tuples? Do we potentially need to split slices? Do we potentially need to remove tuples from slices?
General Stream Slicing Internals 27.03.2019 Efficient Window Aggregation with General Stream Slicing 16 Merge Slices Split Slices Update Slices Part 1: Three Fundamental Operations on Slices Part 2: Adapt to Workload Characteristics: Do we need to store original tuples? Do we potentially need to split slices? Do we potentially need to remove tuples from slices? General Stream Slicing adapts to current workload characteristics.

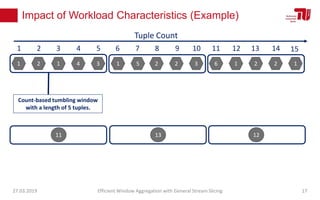

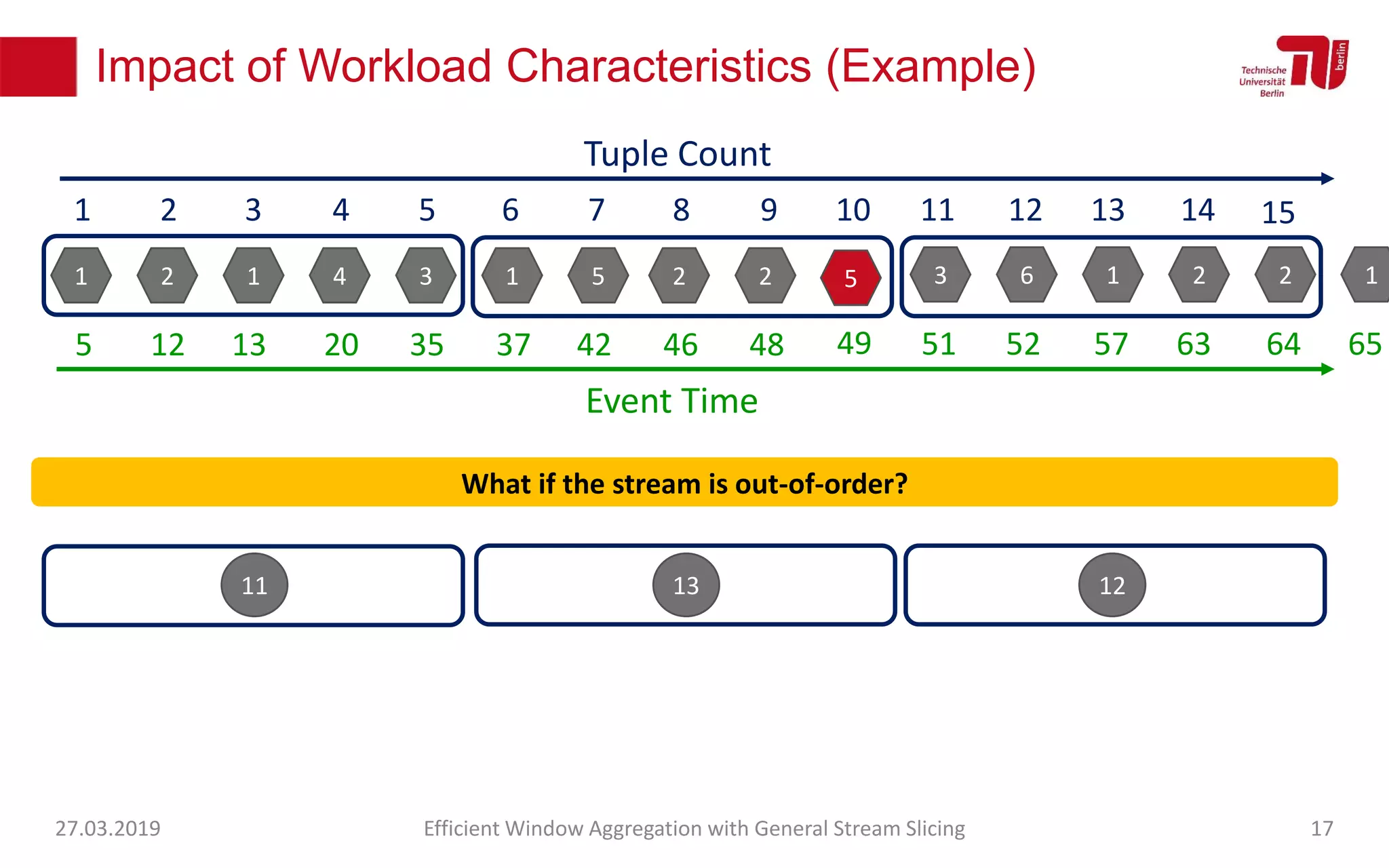

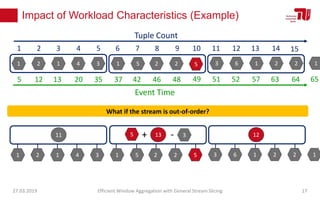

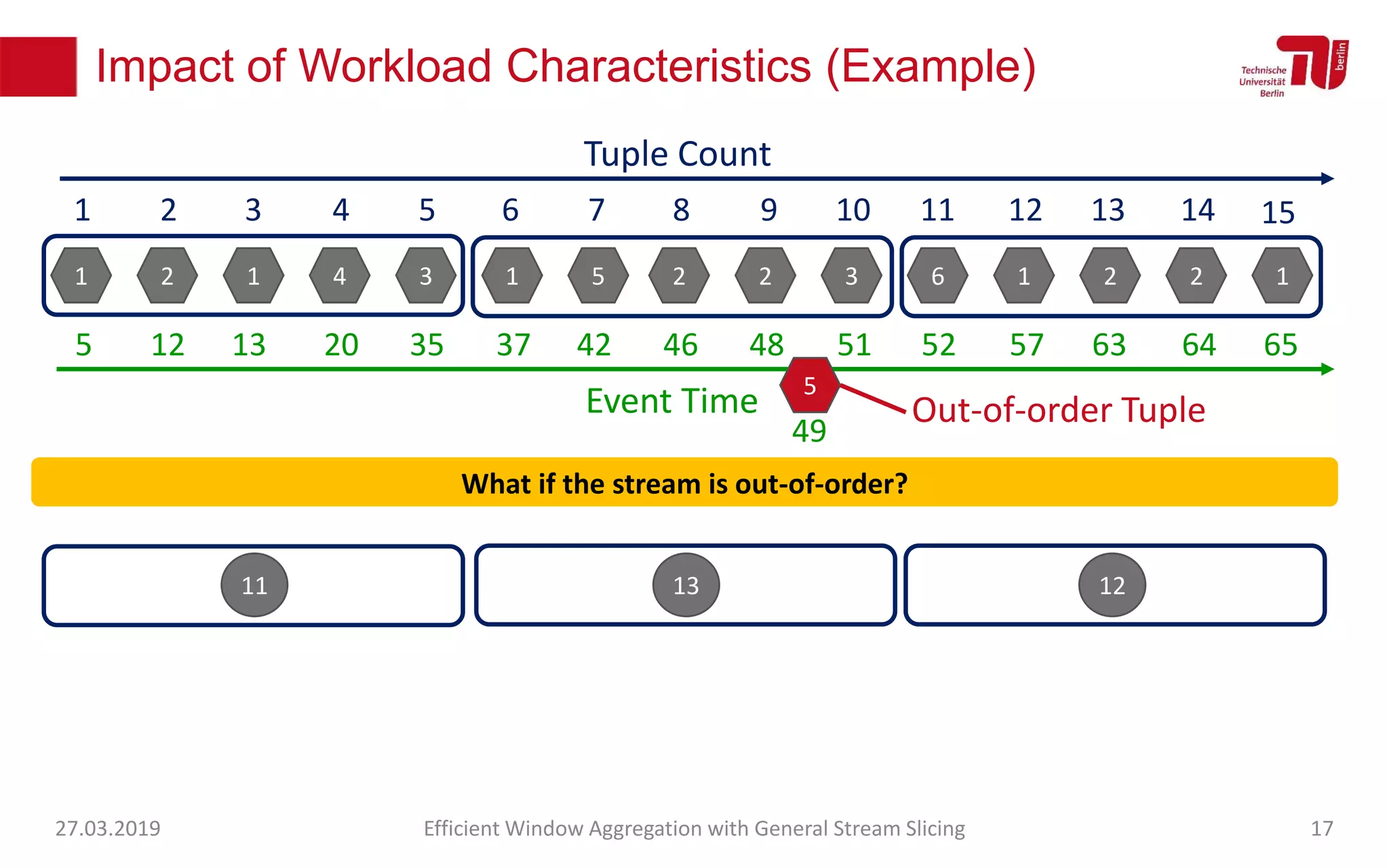

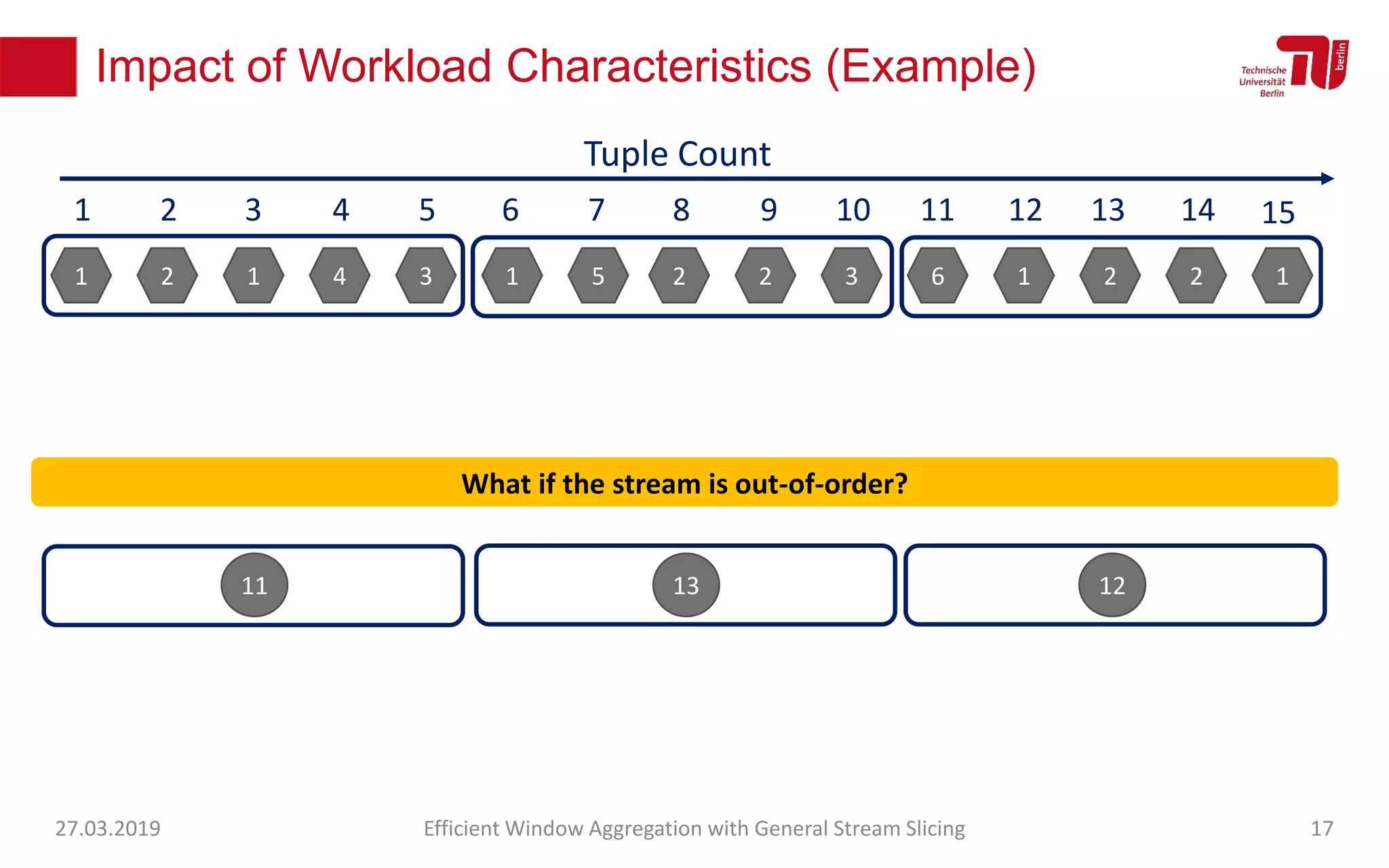

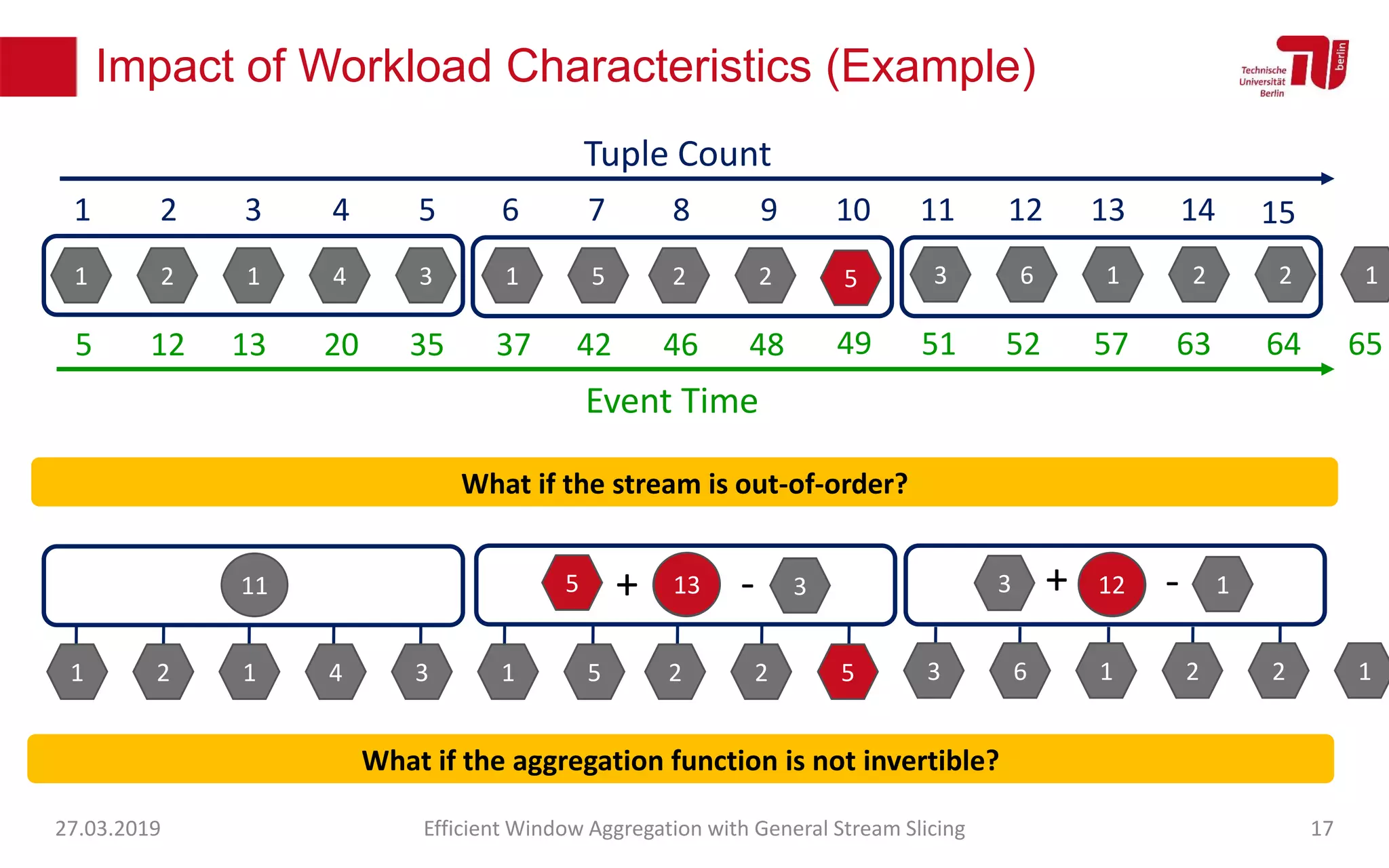

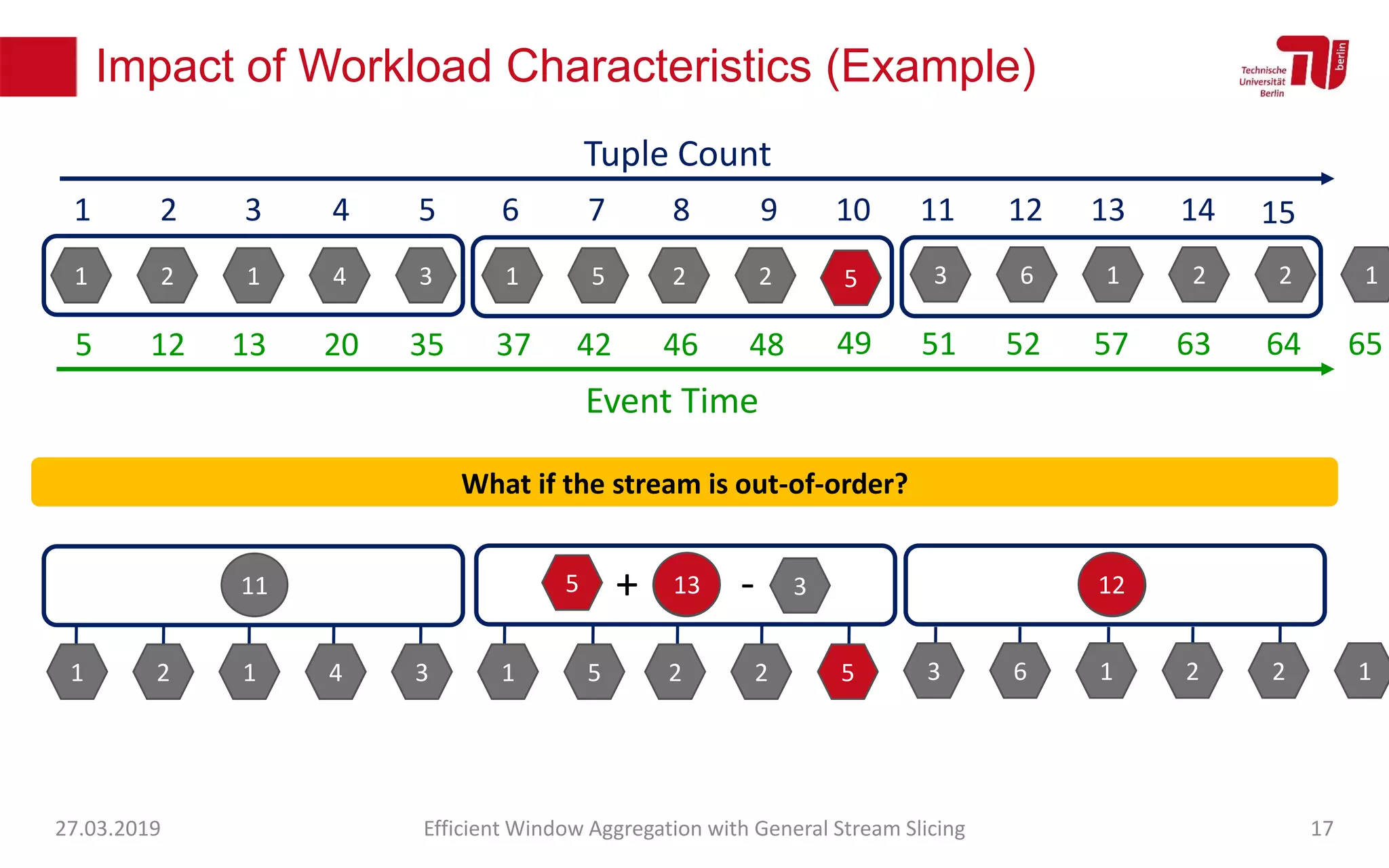

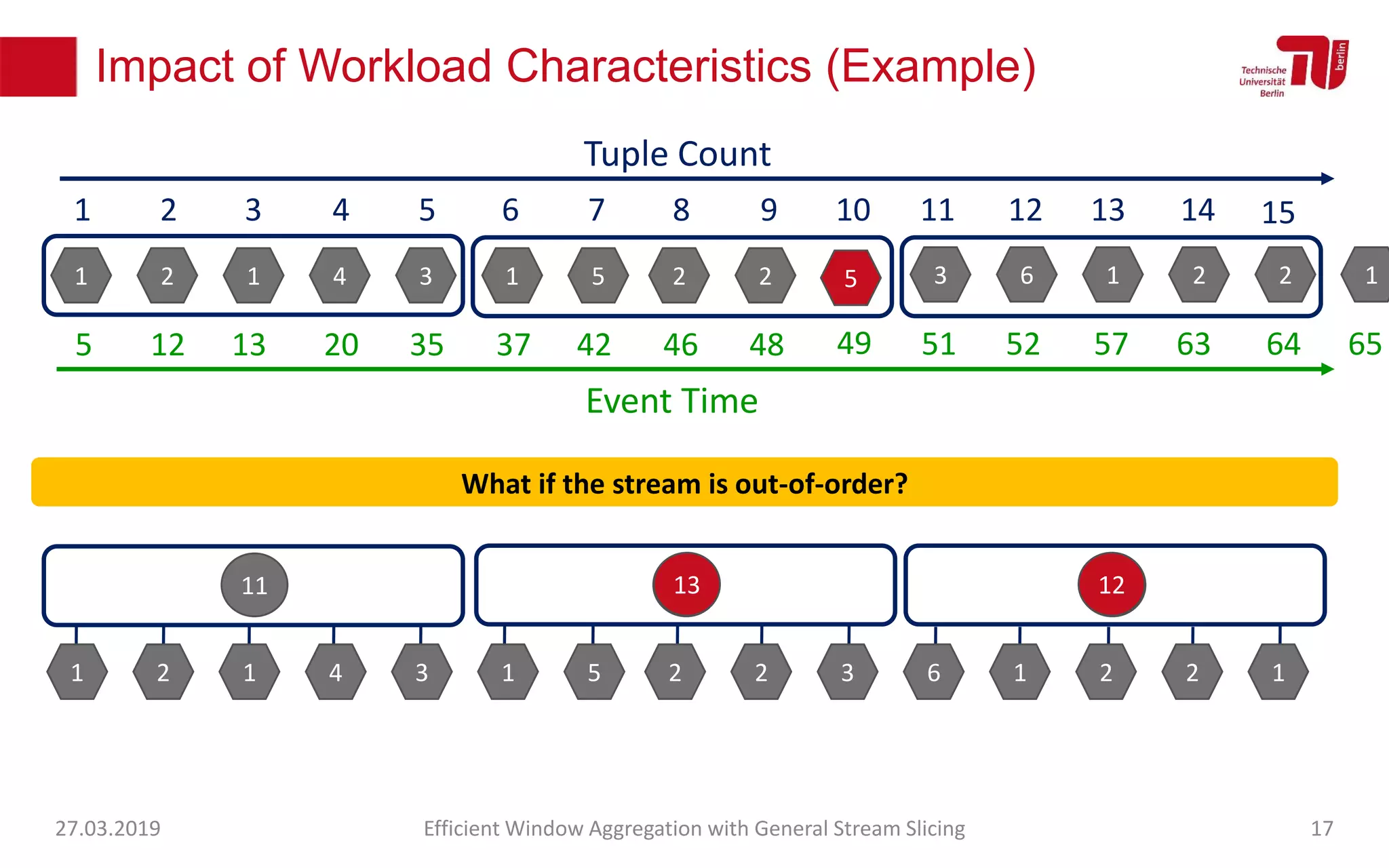

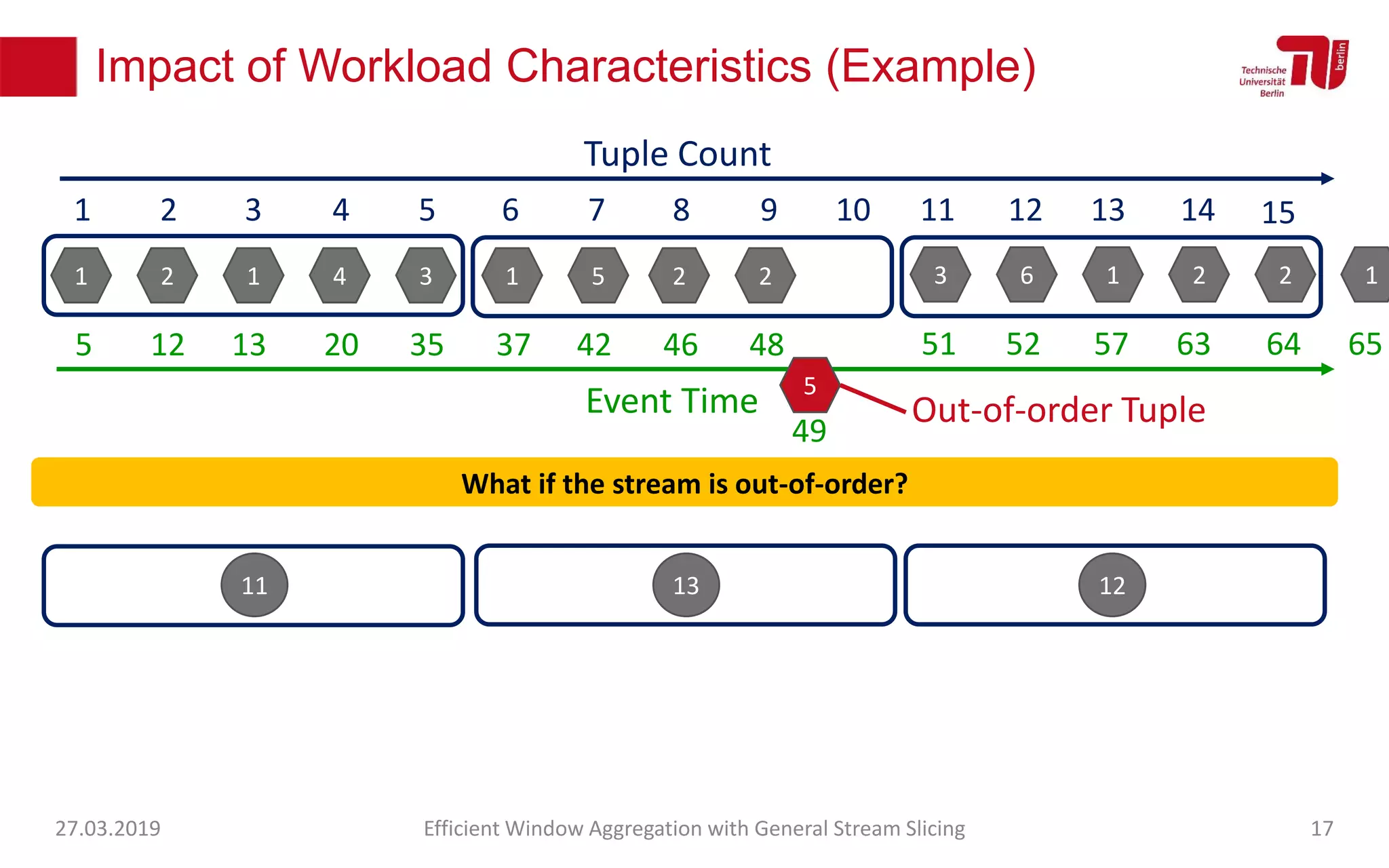

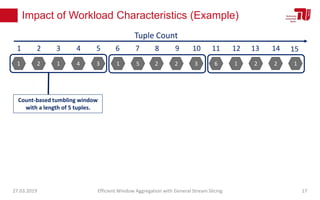

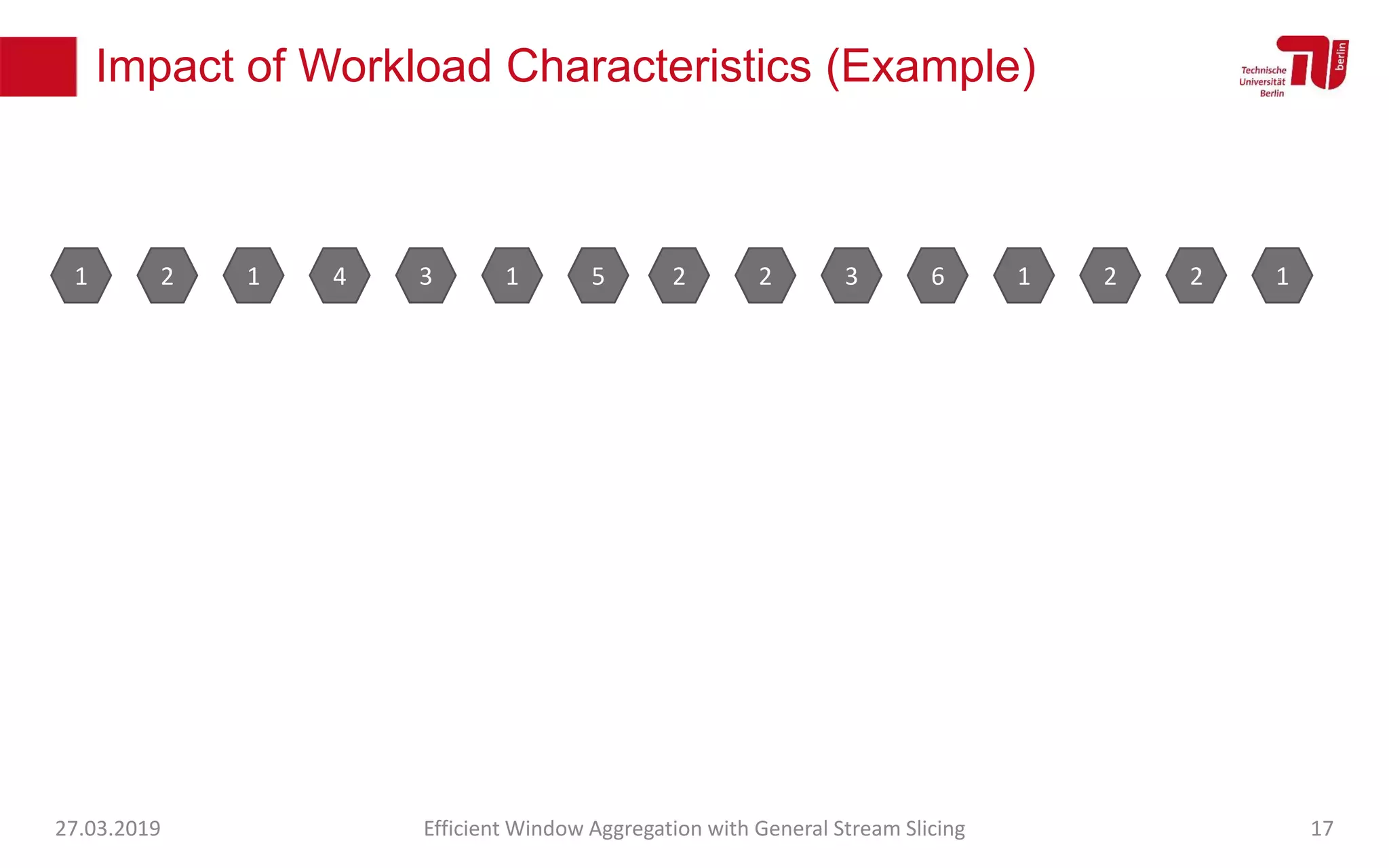

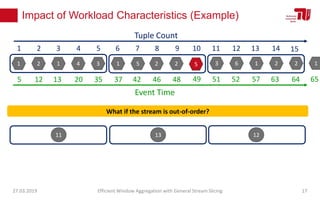

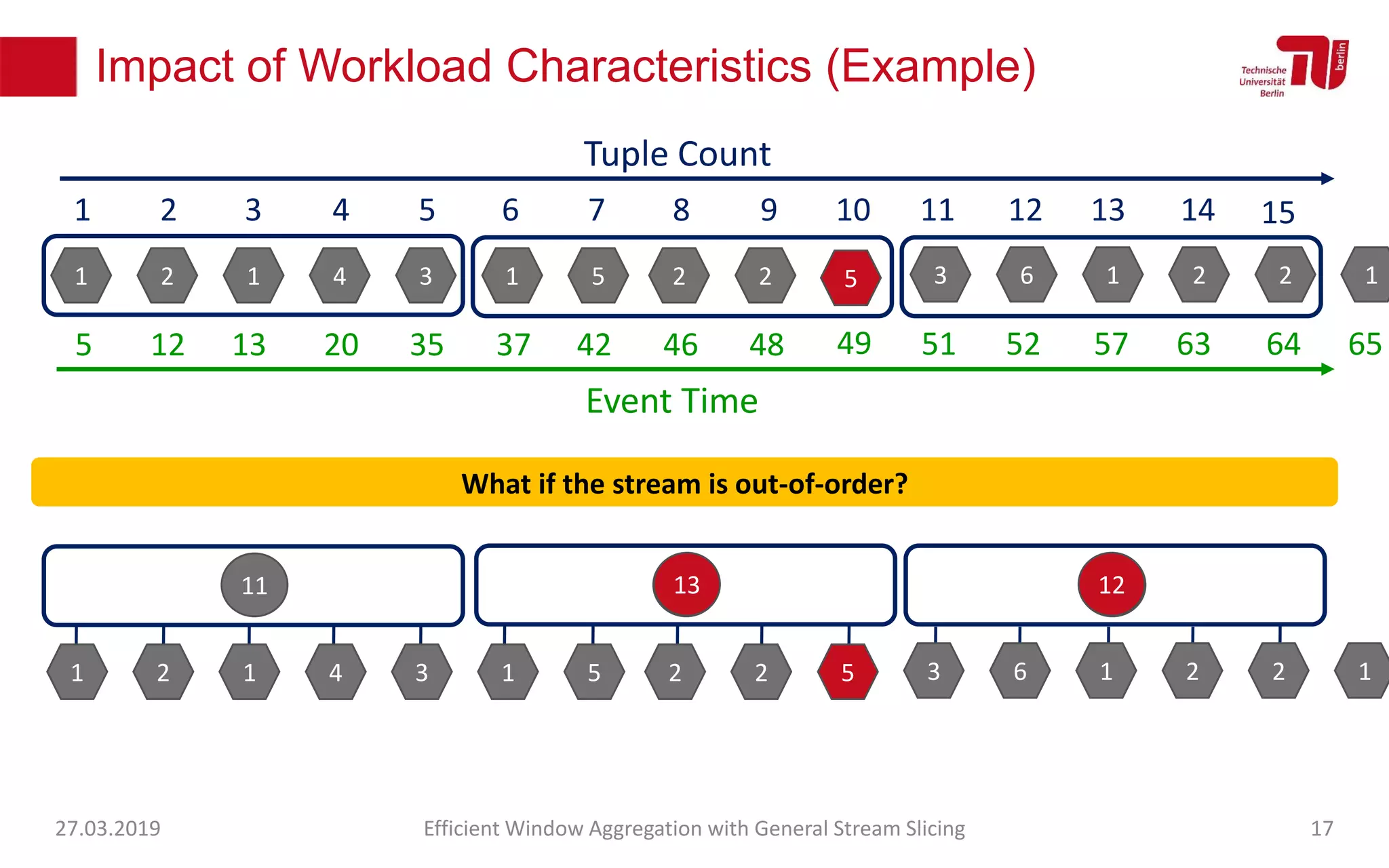

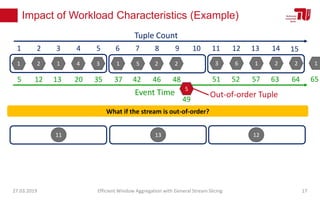

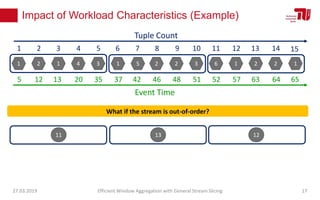

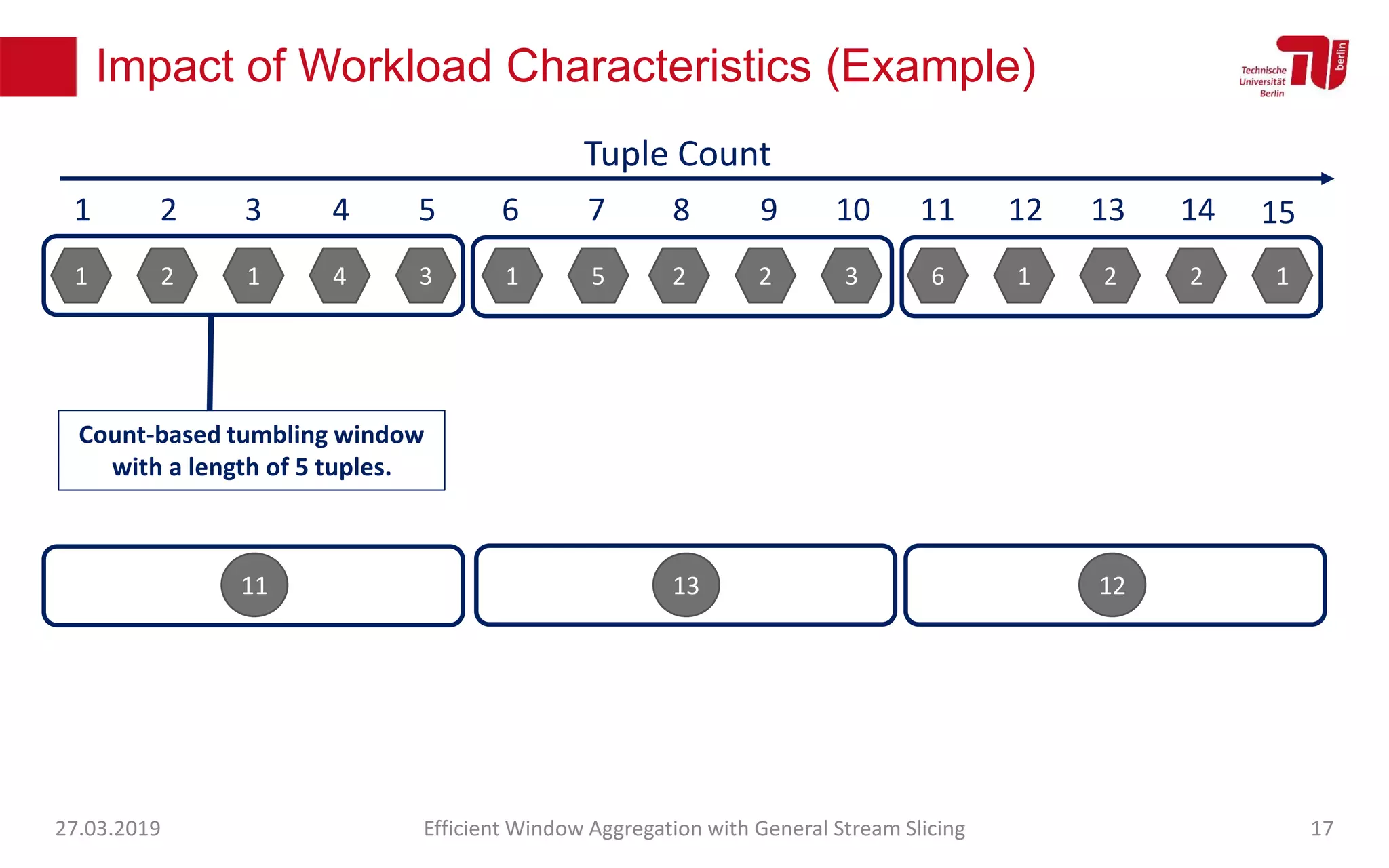

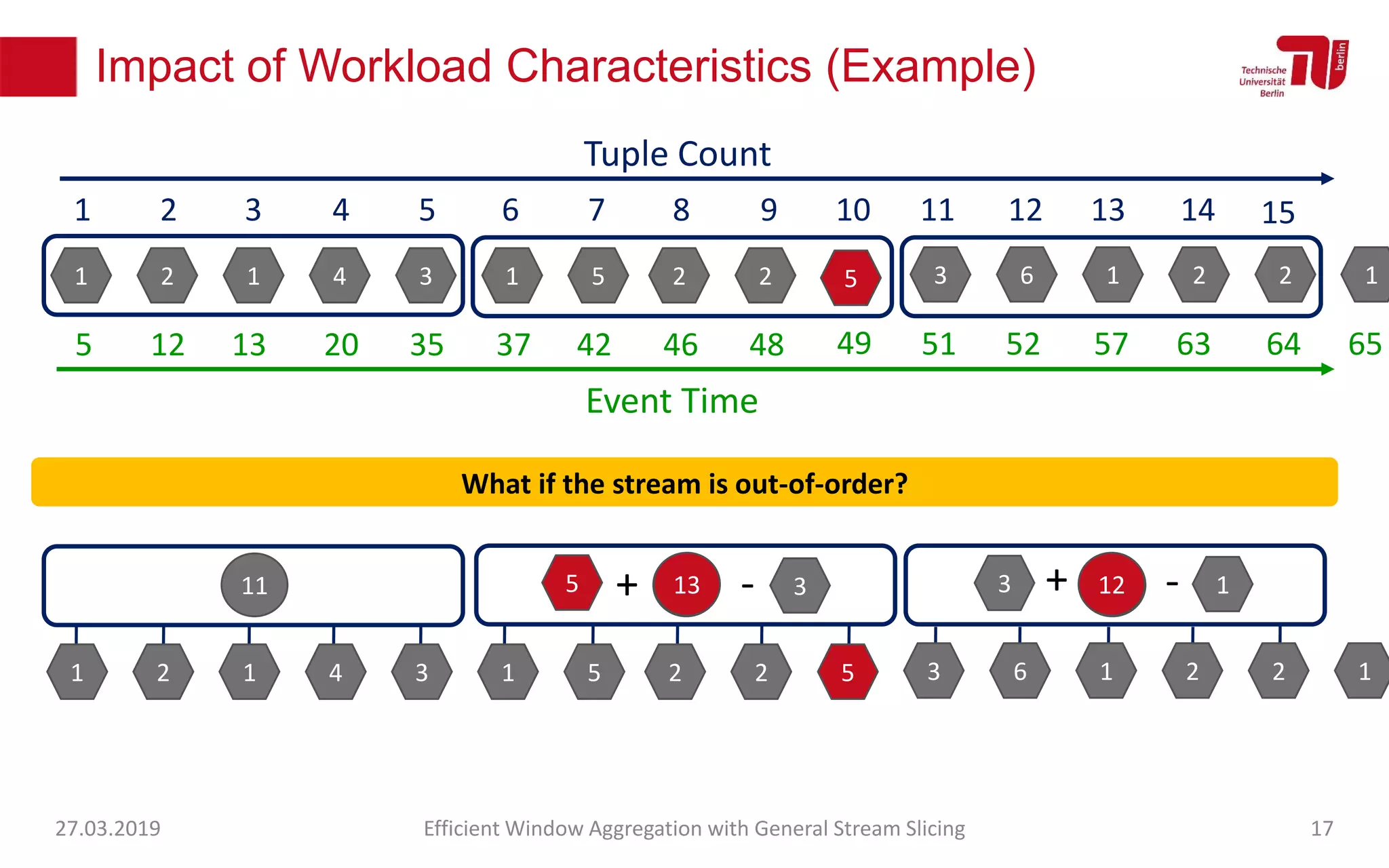

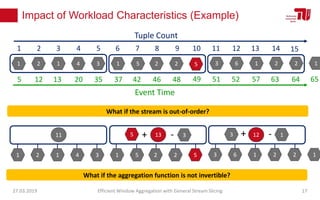

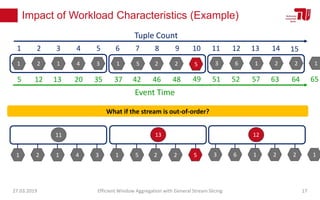

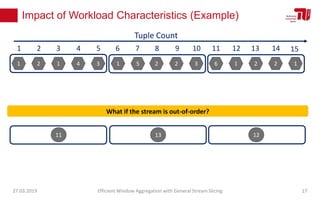

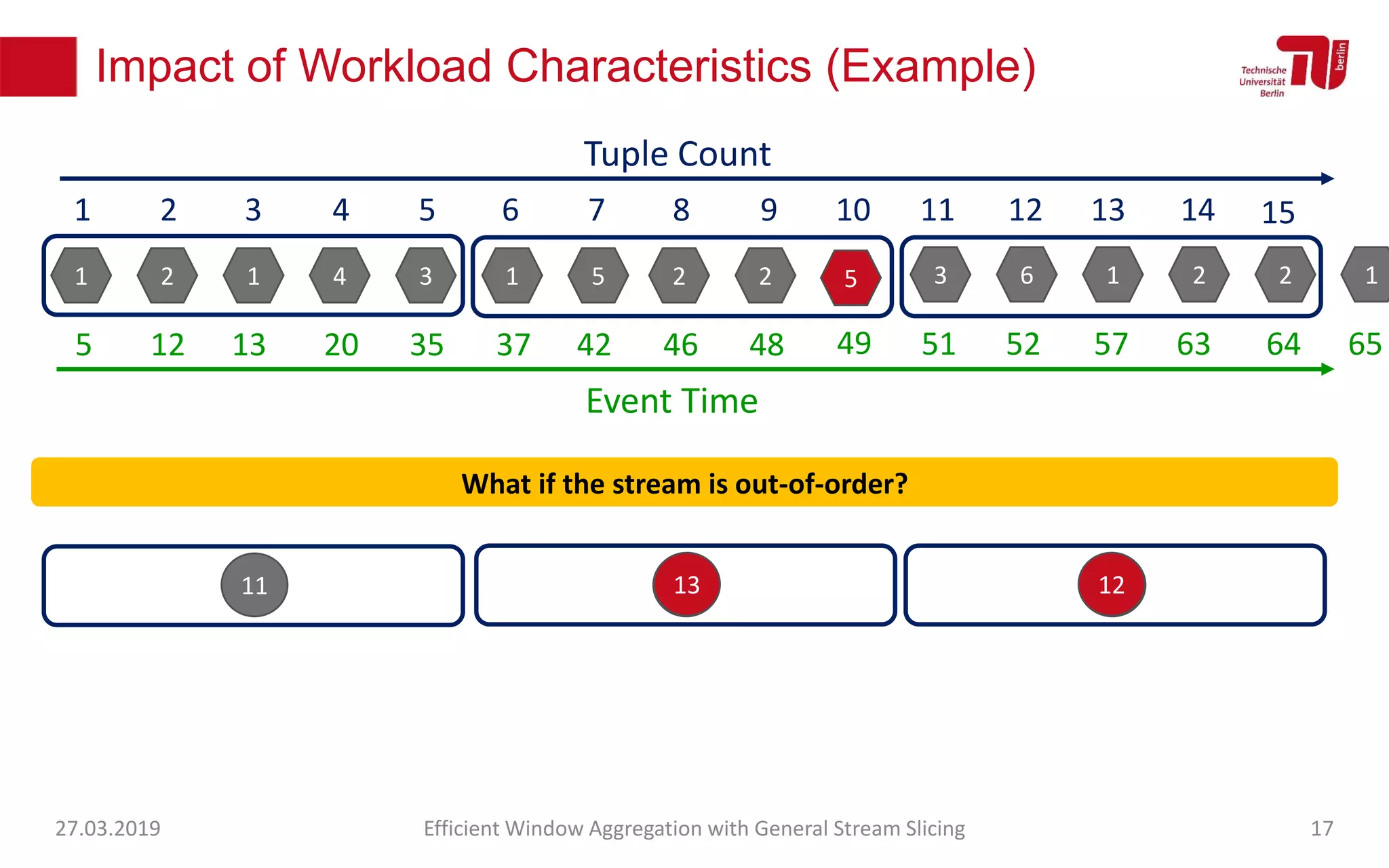

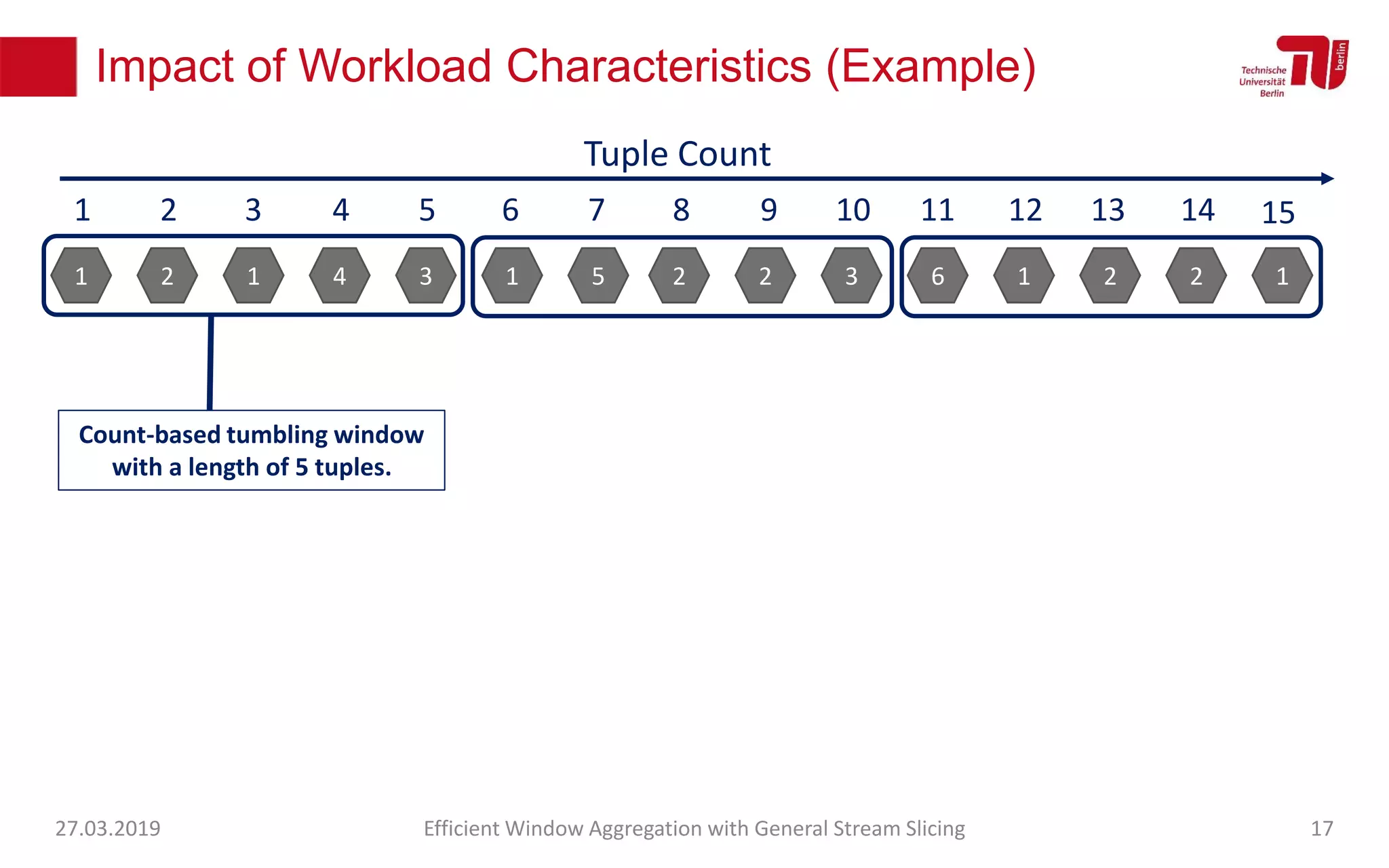

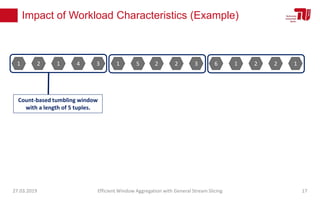

Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 Count-based tumbling window with a length of 5 tuples.
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Count-based tumbling window with a length of 5 tuples.
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Count-based tumbling window with a length of 5 tuples. 11 13 12
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 11 13 12 What if the stream is out-of-order?
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 What if the stream is out-of-order?
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 What if the stream is out-of-order? 5 49 Out-of-order Tuple
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 What if the stream is out-of-order? 5 49 Out-of-order Tuple
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 What if the stream is out-of-order? 5 49
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 What if the stream is out-of-order? 5 49 13 12
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 What if the stream is out-of-order? 5 49 13 12
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 What if the stream is out-of-order? 5 49 13 12 5
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 What if the stream is out-of-order? 5 49 13 125 + - 3 5
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 What if the stream is out-of-order? 5 49 13 123 1+ -5 + - 3 5
Impact of Workload Characteristics (Example) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 17 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Tuple Count 15 Event Time 5 12 13 20 35 37 42 46 48 51 52 57 63 64 65 11 13 12 1 2 1 4 3 1 5 2 2 3 6 1 2 2 1 What if the stream is out-of-order? 5 49 13 123 1+ -5 + - 3 5 What if the aggregation function is not invertible?

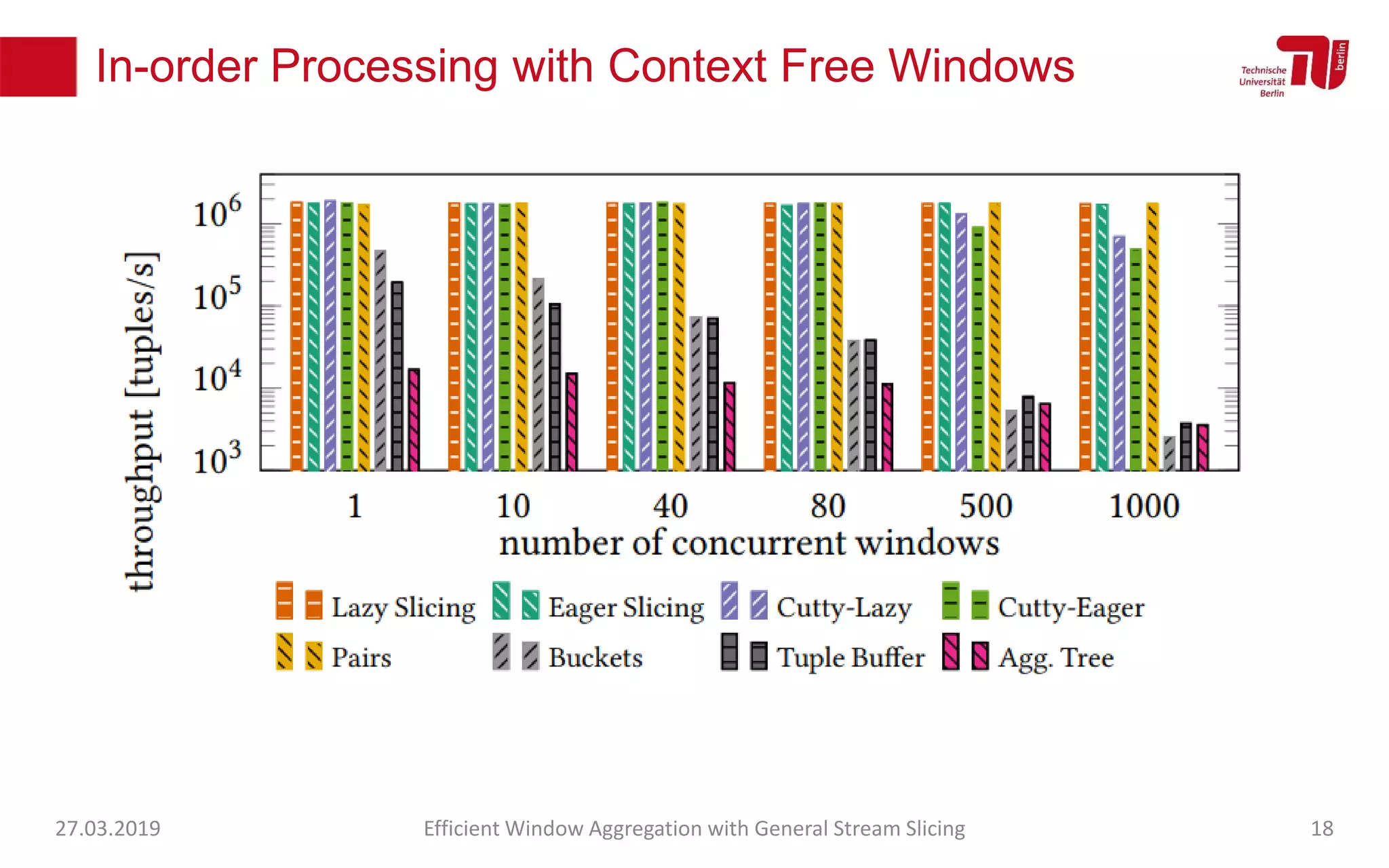

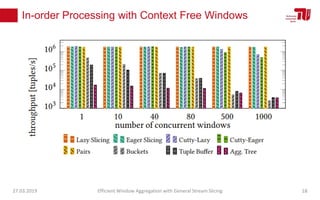

In-order Processing with Context Free Windows 27.03.2019 Efficient Window Aggregation with General Stream Slicing 18

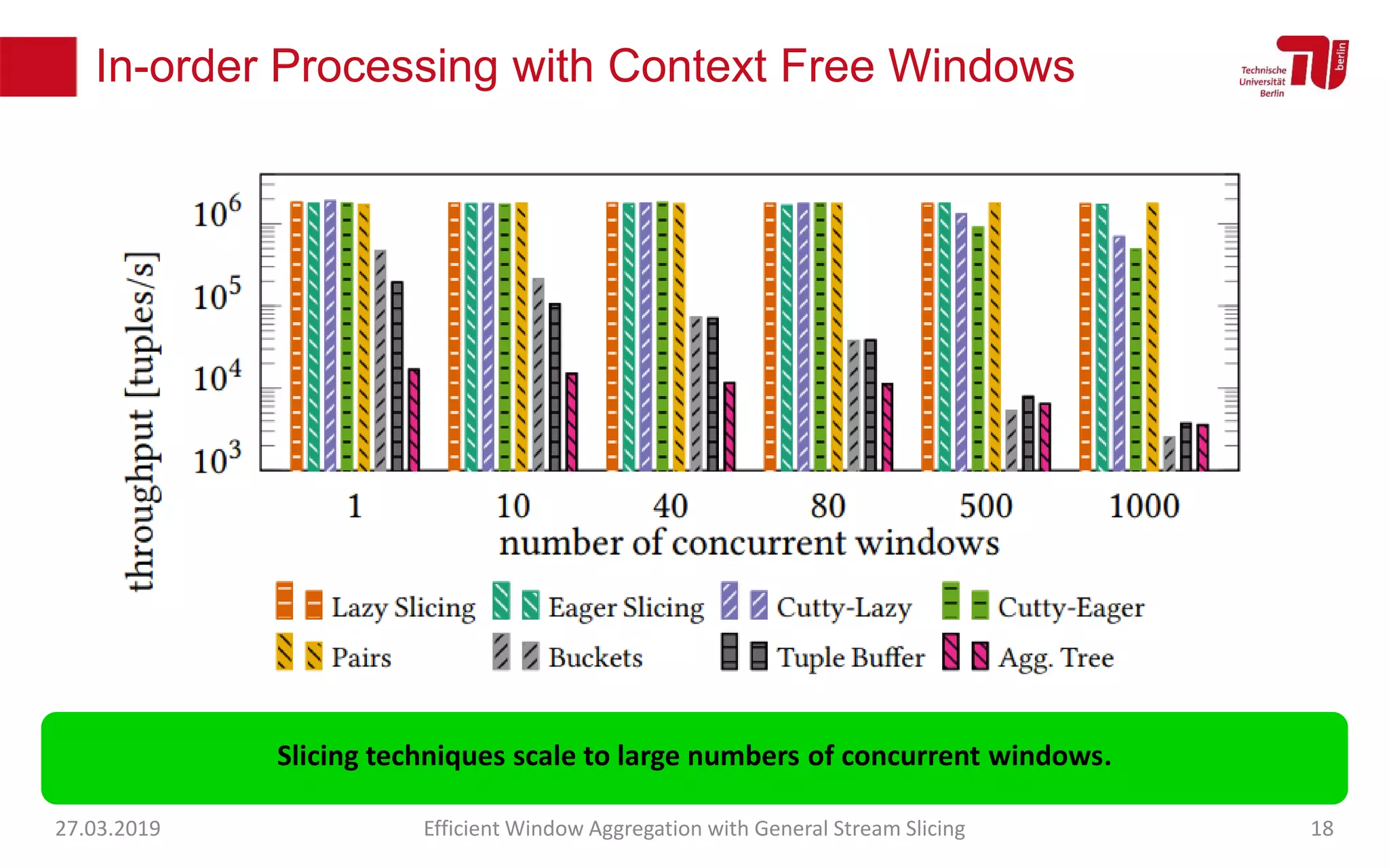

In-order Processing with Context Free Windows 27.03.2019 Efficient Window Aggregation with General Stream Slicing 18 Slicing techniques scale to large numbers of concurrent windows.

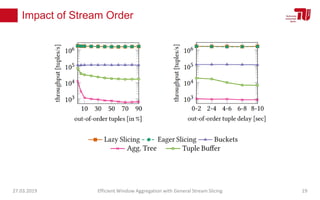

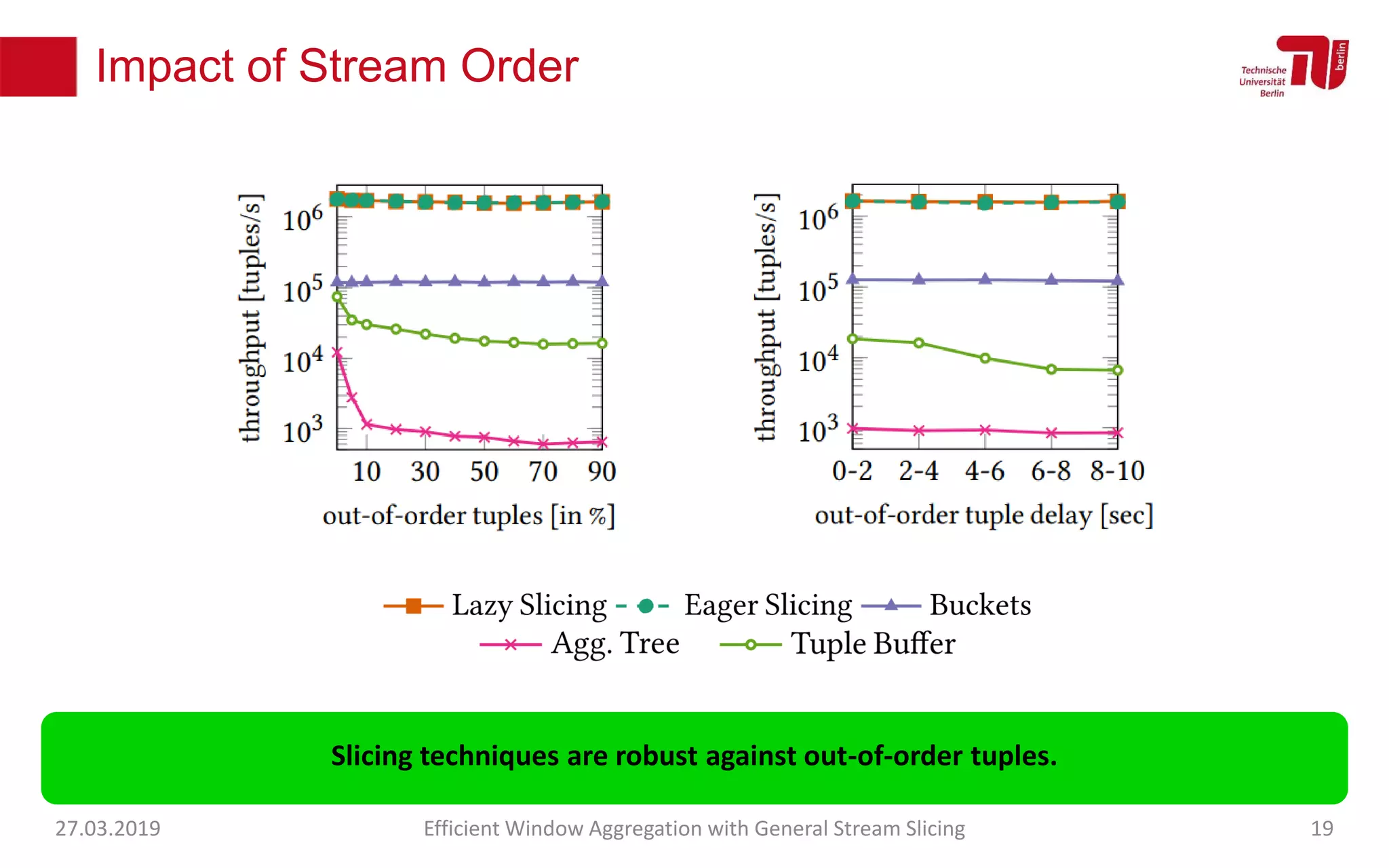

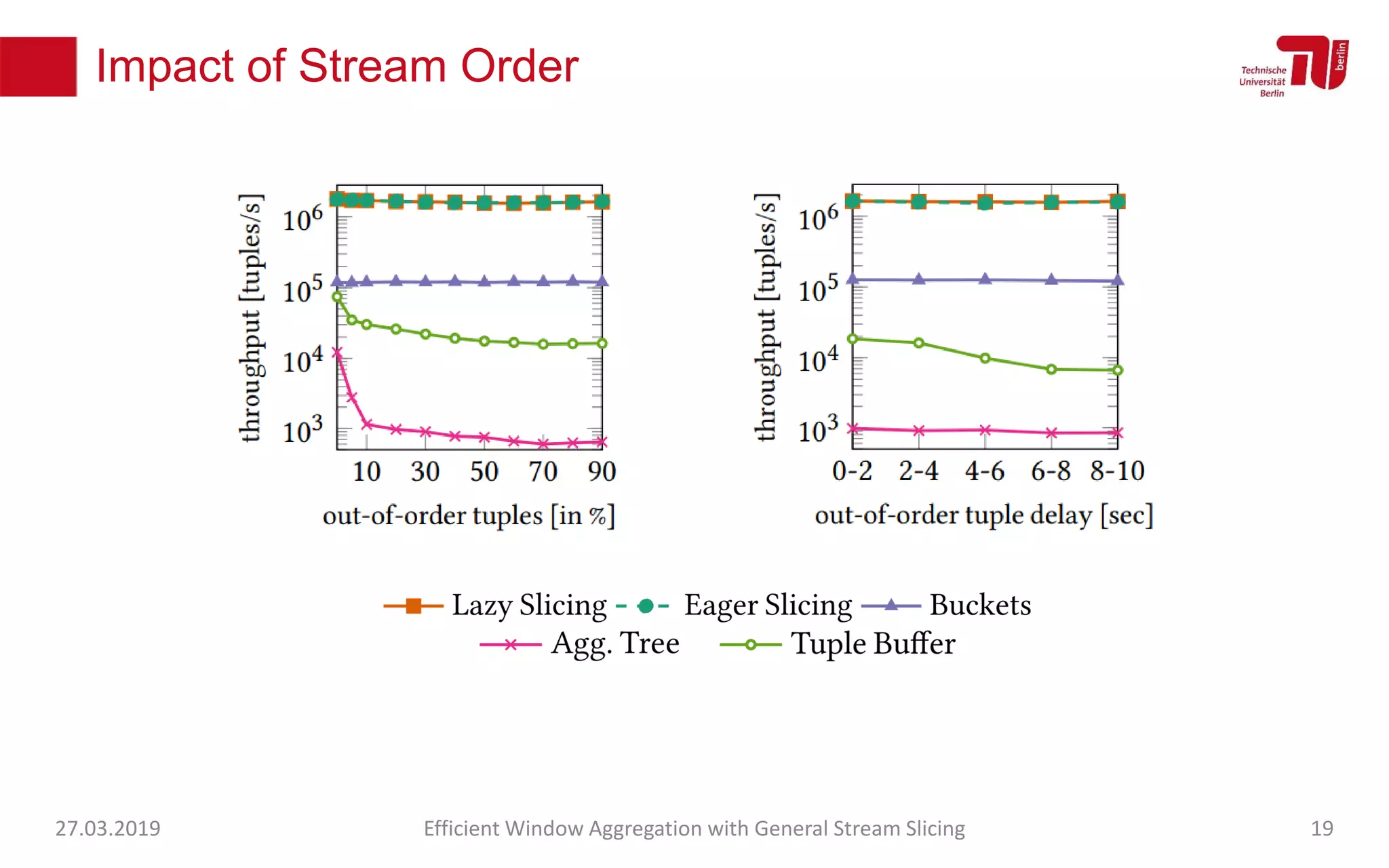

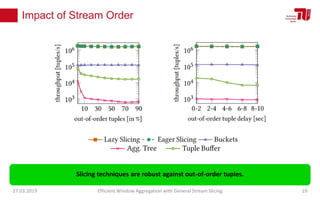

Impact of Stream Order 27.03.2019 Efficient Window Aggregation with General Stream Slicing 19
Impact of Stream Order 27.03.2019 Efficient Window Aggregation with General Stream Slicing 19 Slicing techniques are robust against out-of-order tuples.

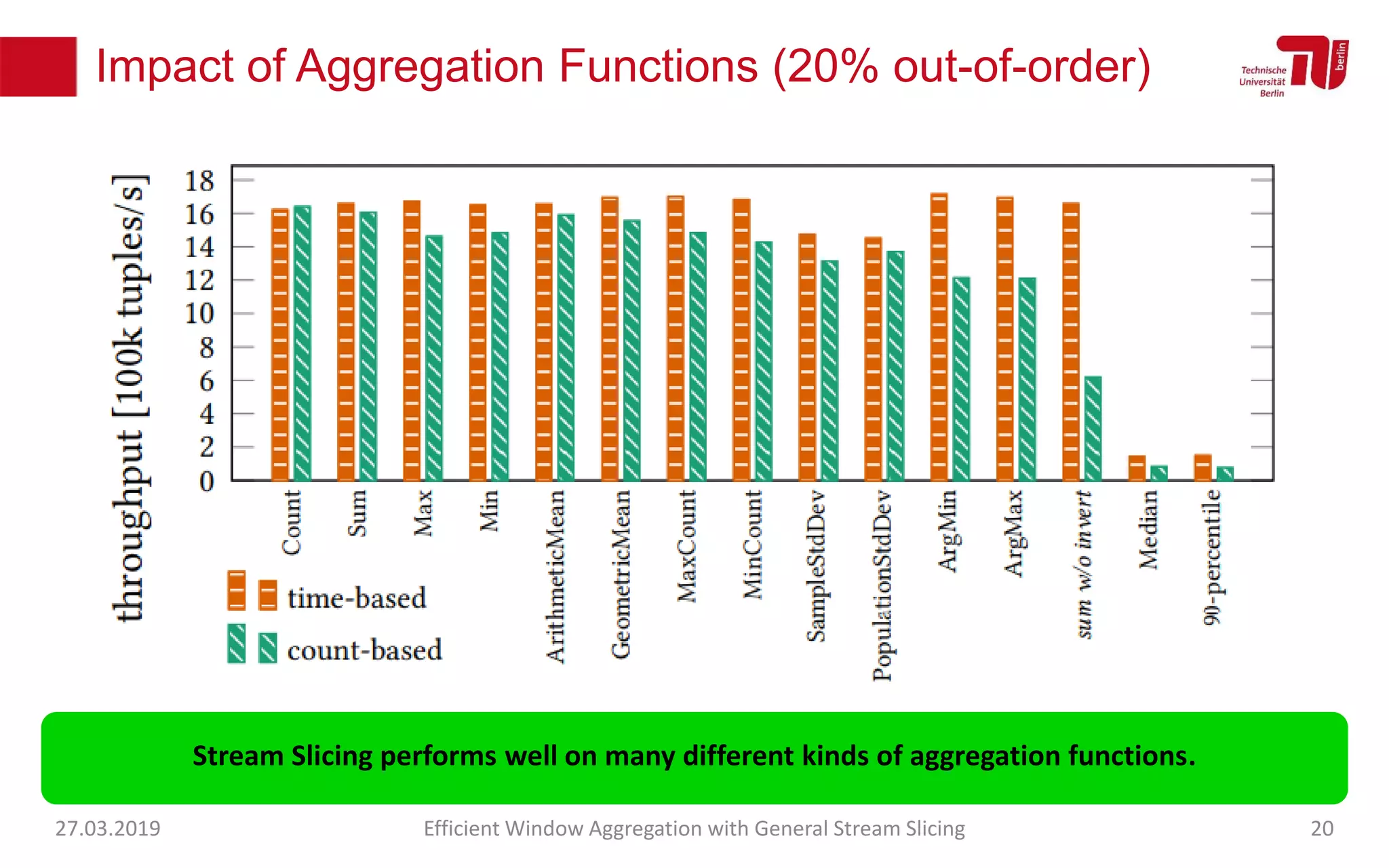

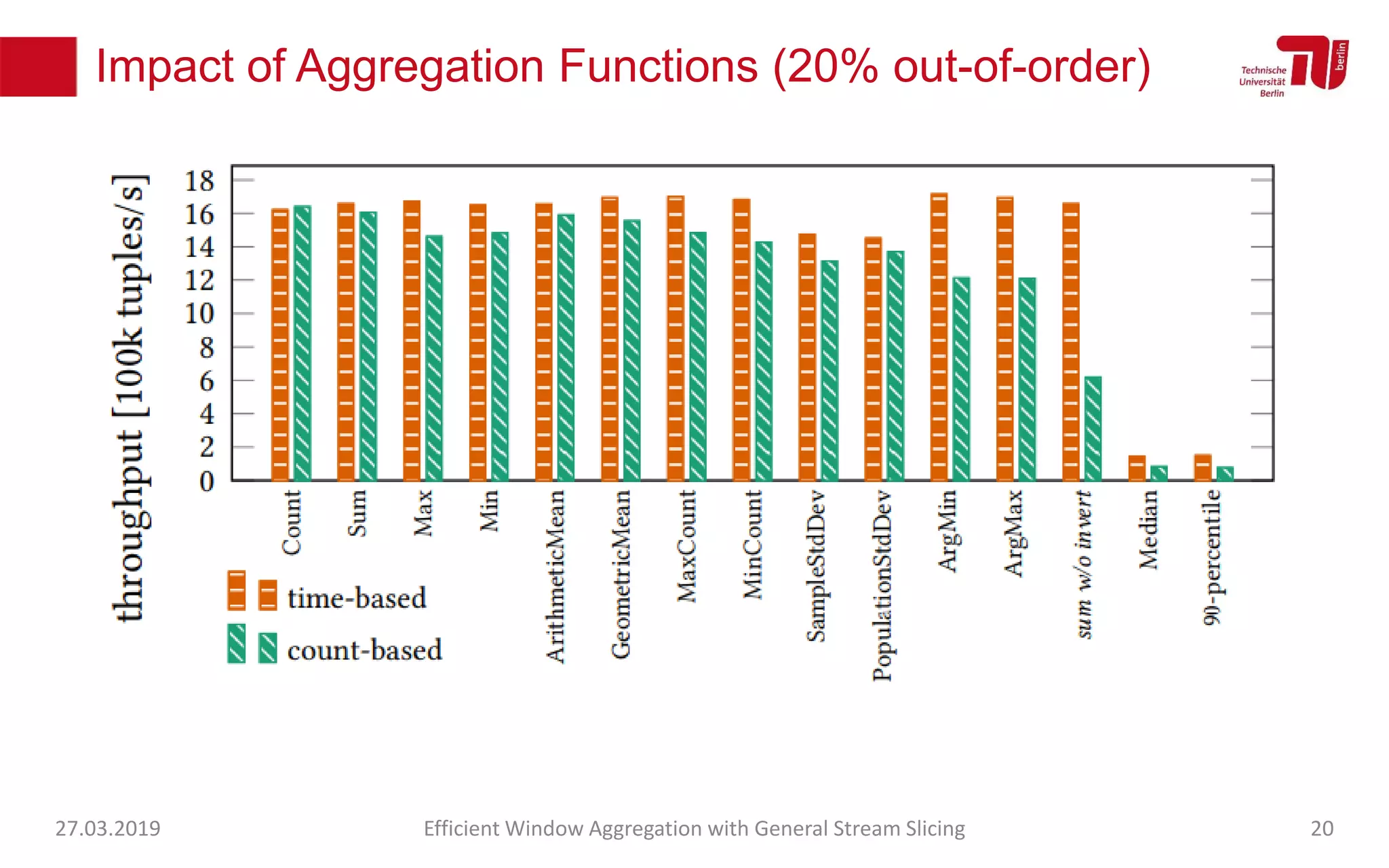

Impact of Aggregation Functions (20% out-of-order) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 20
Impact of Aggregation Functions (20% out-of-order) 27.03.2019 Efficient Window Aggregation with General Stream Slicing 20 Stream Slicing performs well on many different kinds of aggregation functions.

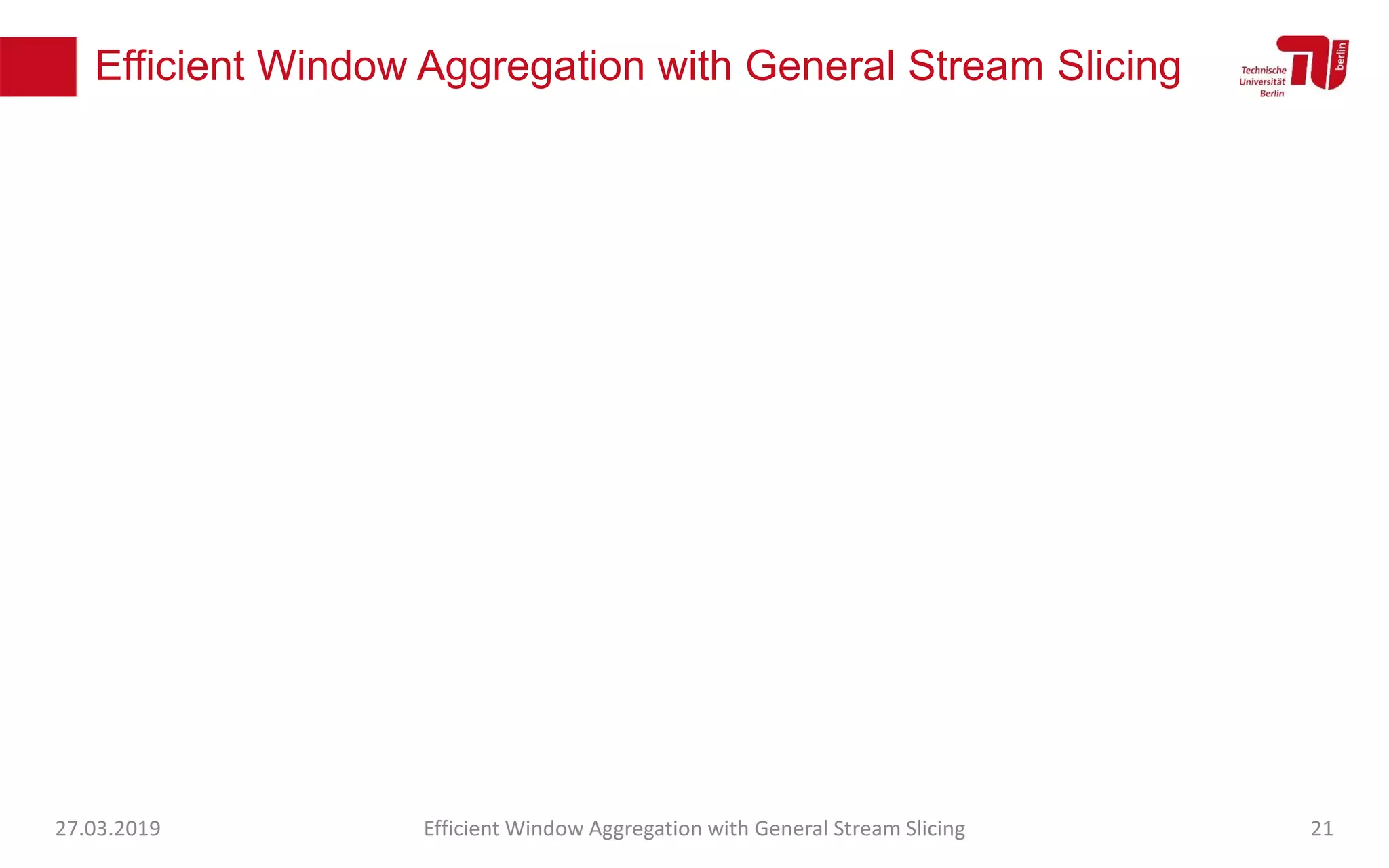

Efficient Window Aggregation with General Stream Slicing 27.03.2019 Efficient Window Aggregation with General Stream Slicing 21

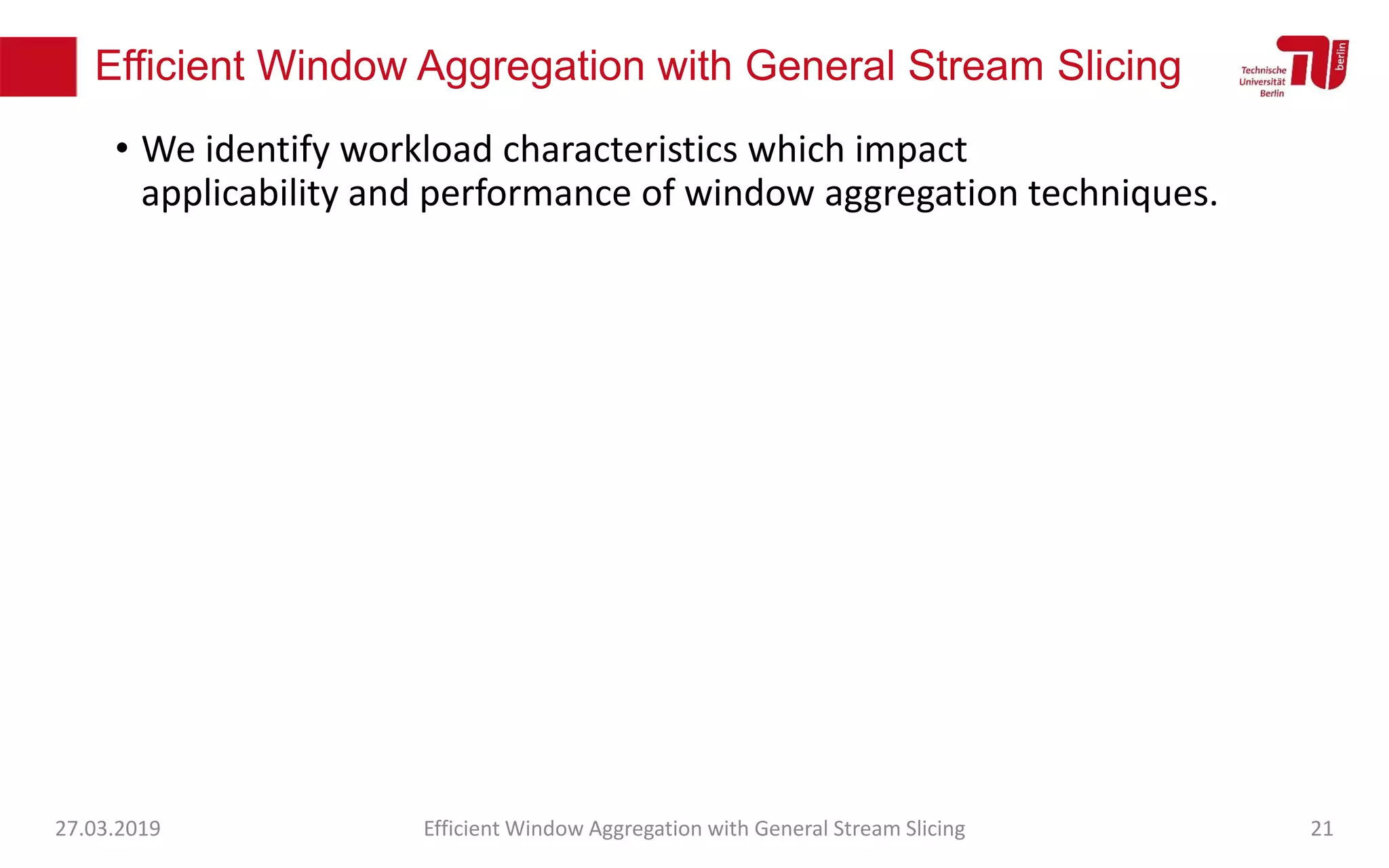

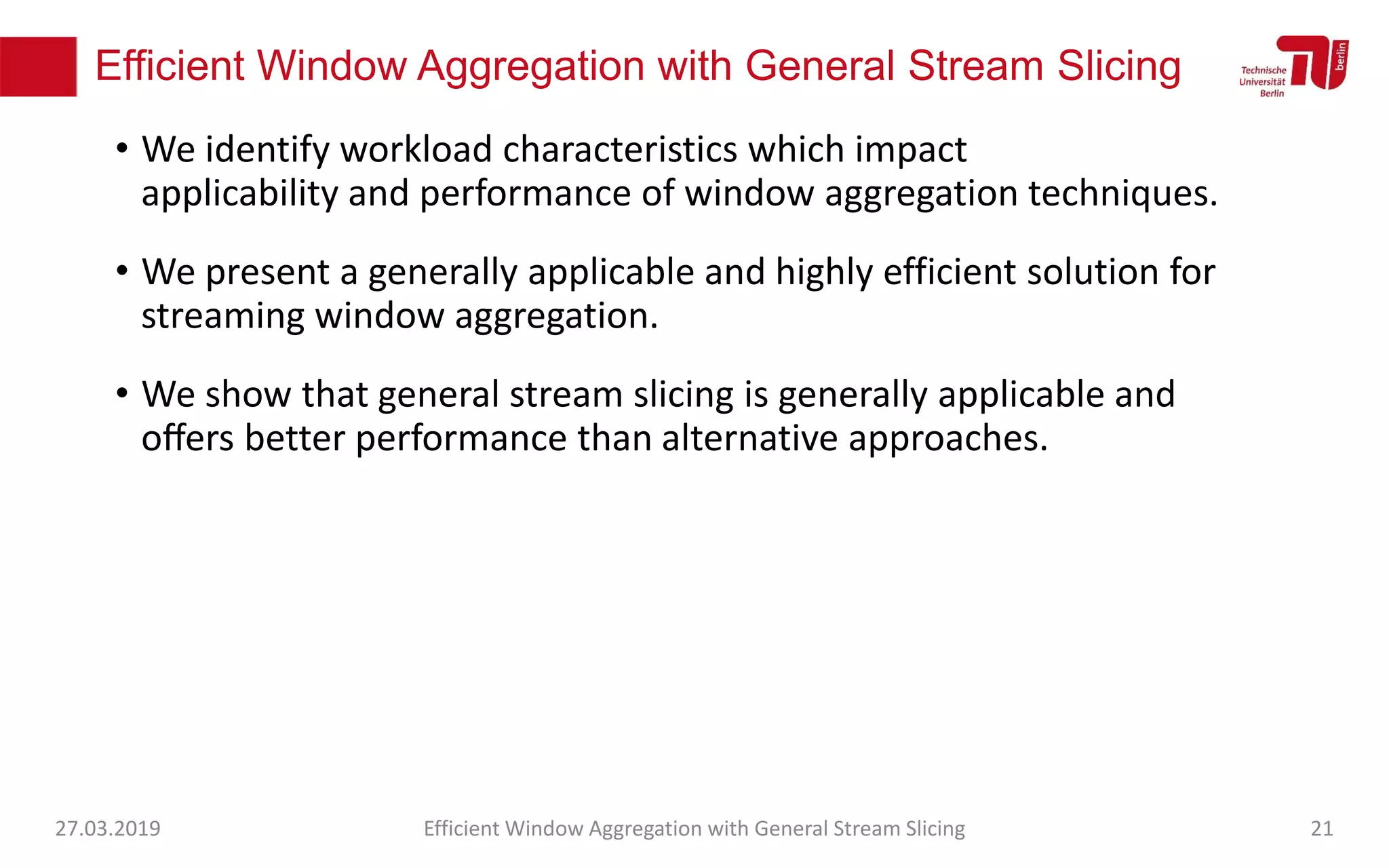

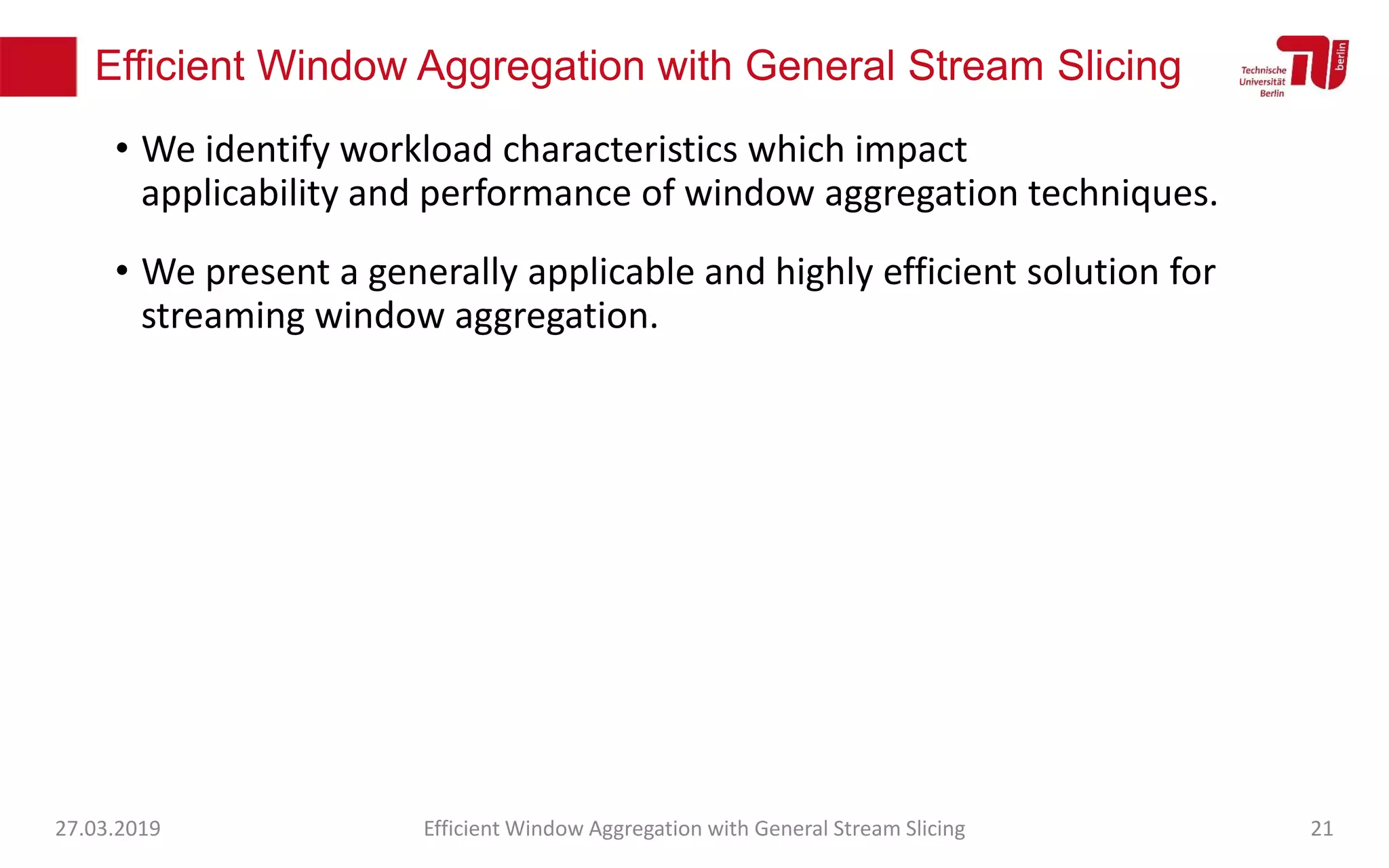

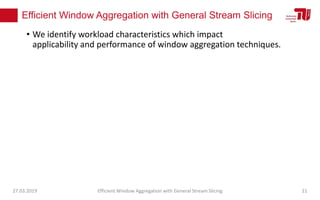

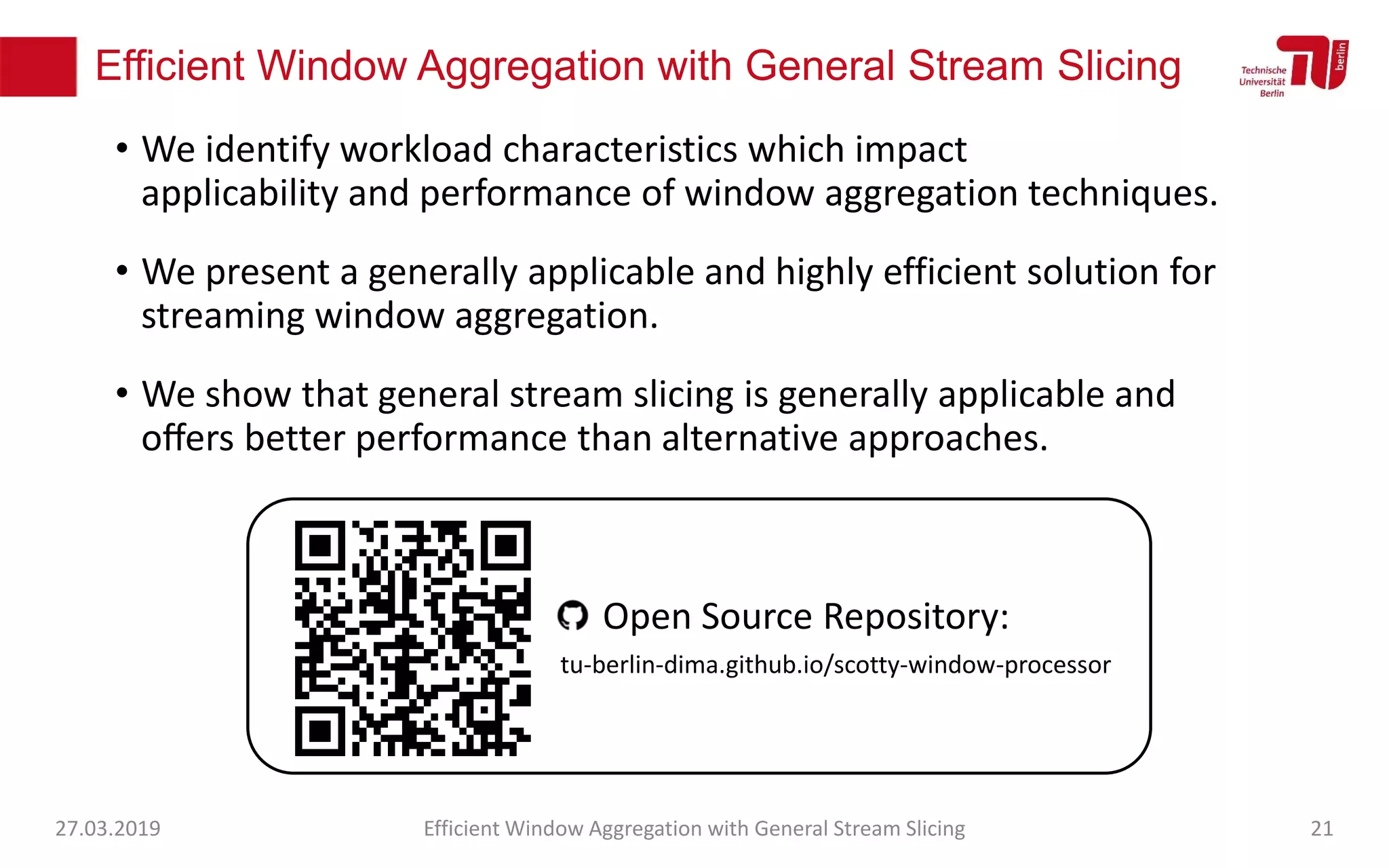

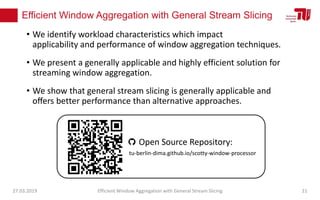

Efficient Window Aggregation with General Stream Slicing • We identify workload characteristics which impact applicability and performance of window aggregation techniques. 27.03.2019 Efficient Window Aggregation with General Stream Slicing 21
Efficient Window Aggregation with General Stream Slicing • We identify workload characteristics which impact applicability and performance of window aggregation techniques. • We present a generally applicable and highly efficient solution for streaming window aggregation. 27.03.2019 Efficient Window Aggregation with General Stream Slicing 21
Efficient Window Aggregation with General Stream Slicing • We identify workload characteristics which impact applicability and performance of window aggregation techniques. • We present a generally applicable and highly efficient solution for streaming window aggregation. • We show that general stream slicing is generally applicable and offers better performance than alternative approaches. 27.03.2019 Efficient Window Aggregation with General Stream Slicing 21
Efficient Window Aggregation with General Stream Slicing • We identify workload characteristics which impact applicability and performance of window aggregation techniques. • We present a generally applicable and highly efficient solution for streaming window aggregation. • We show that general stream slicing is generally applicable and offers better performance than alternative approaches. 27.03.2019 Efficient Window Aggregation with General Stream Slicing 21 tu-berlin-dima.github.io/scotty-window-processor Open Source Repository:
