1. Kafka Streams Windowing
Behind the Curtain
Neil Buesing
Principal Solutions Architect, Rill
Confluent Meetup
July 15th, 2021

2. • Operational intelligence for data in motion
• Easy In - Easy Up - Easy Out
• Work with customers to build & modernize their pipelines
What Does Rill Do?

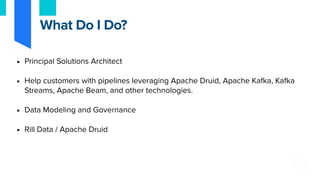

3. • Principal Solutions Architect
• Help customers with pipelines leveraging Apache Druid, Apache Kafka, Kafka
Streams, Apache Beam, and other technologies.
• Data Modeling and Governance
• Rill Data / Apache Druid
What Do I Do?

4. • Overview of the Windowing Options within Kafka Streams
• Windowing Use-Cases
• Examples of Aggregate Windowing
• What each windowing options does within RocksDB and the -changelog topics
• The key serialization of the -changeling topics
• Developer Tools & Ideas
Takeaways

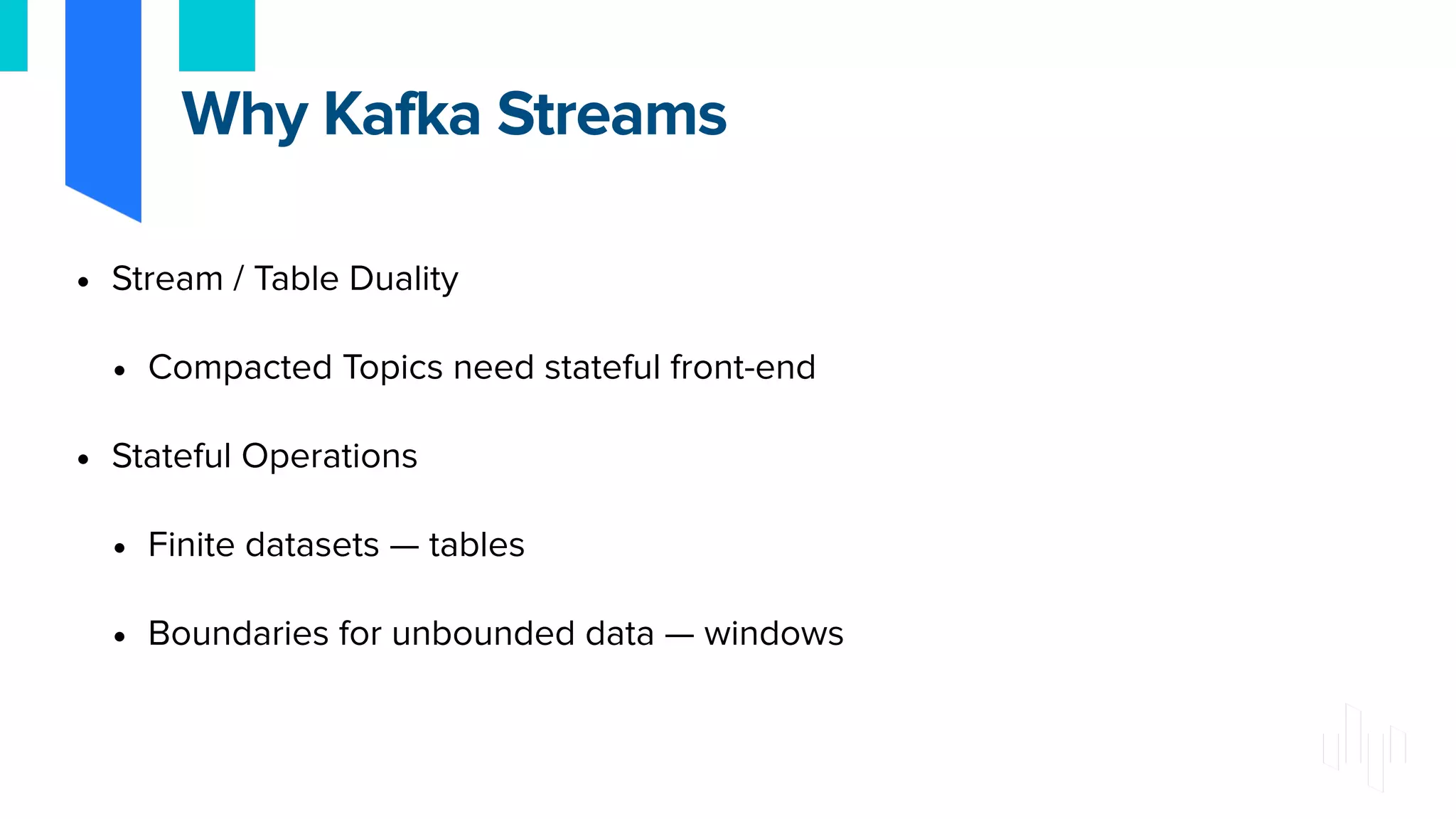

5. • Stream / Table Duality
• Compacted Topics need stateful front-end
• Stateful Operations
• Finite datasets — tables
• Boundaries for unbounded data — windows
Why Kafka Streams

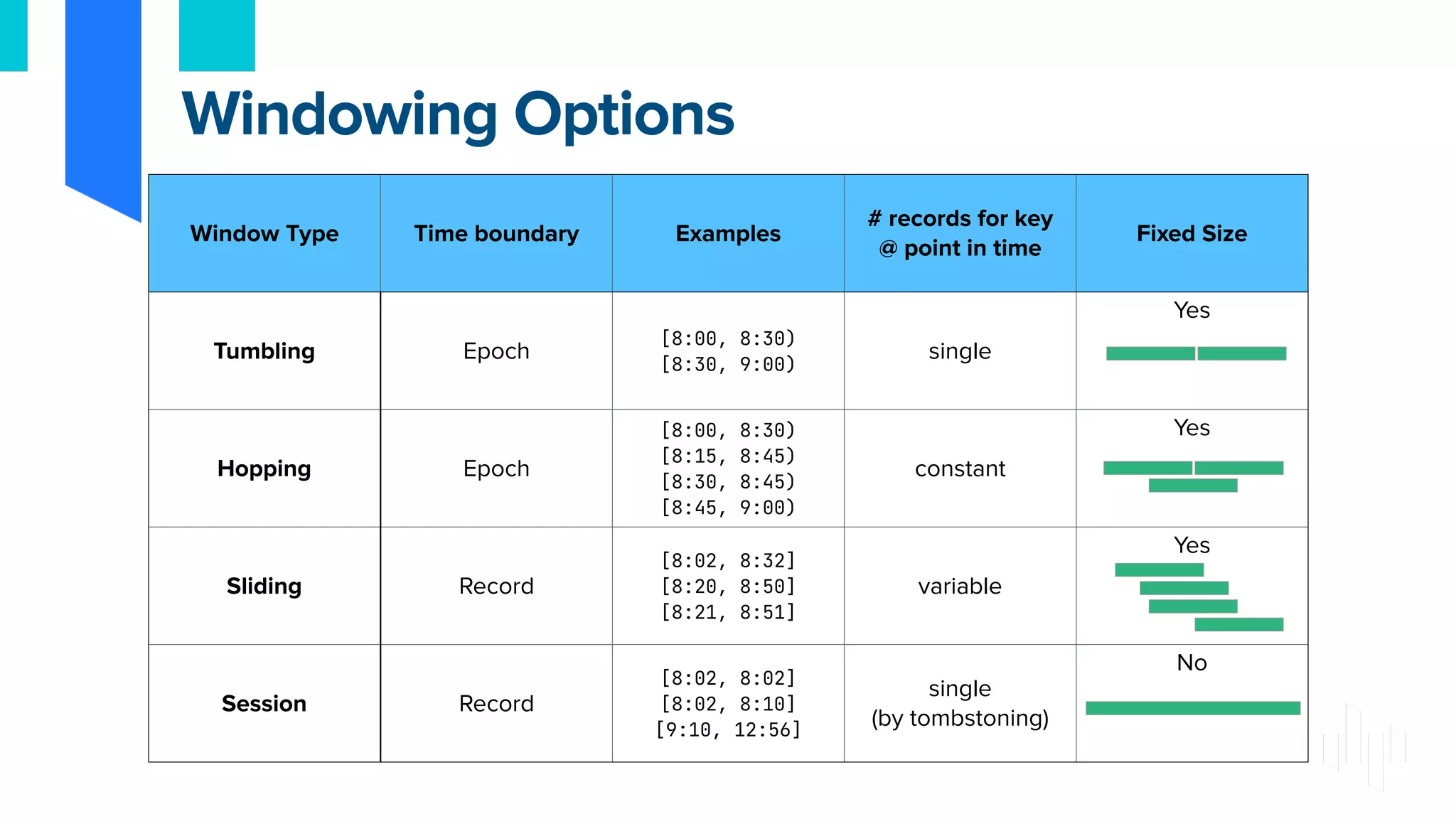

6. Windowing Options
Window Type Time boundary Examples
# records for key
@ point in time
Fixed Size
Tumbling Epoch
[8:00, 8:30)
[8:30, 9:00)
single
Yes
Hopping Epoch
[8:00, 8:30)
[8:15, 8:45)
[8:30, 8:45)
[8:45, 9:00)
constant
Yes
Sliding Record
[8:02, 8:32]
[8:20, 8:50]
[8:21, 8:51]
variable
Yes
Session Record
[8:02, 8:02]
[8:02, 8:10]
[9:10, 12:56]
single
(by tombstoning)
No

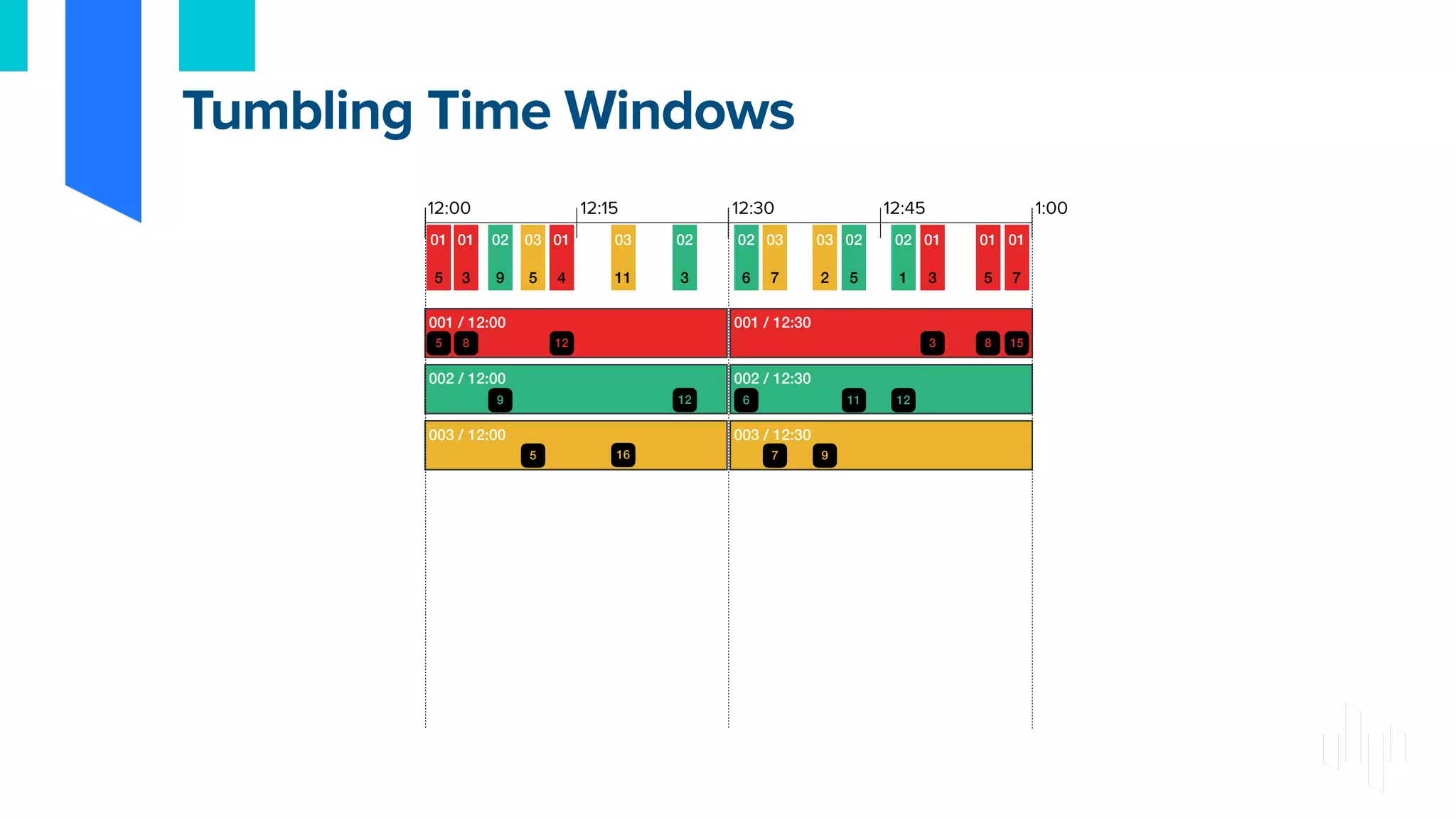

7. 001 / 12:00
002 / 12:00
003 / 12:00
001 / 12:30
002 / 12:30
003 / 12:30
12:00 12:15 12:30 12:45 1:00
01
5
Tumbling Time Windows
01
3
02
9
03
5
01
4
5 8 12
5
9
03
11
02
3
02
6
02
5
02
1
03
2
03
7
01
7
01
5
01
3
16 7 9
6 11 12
3 8 15
12

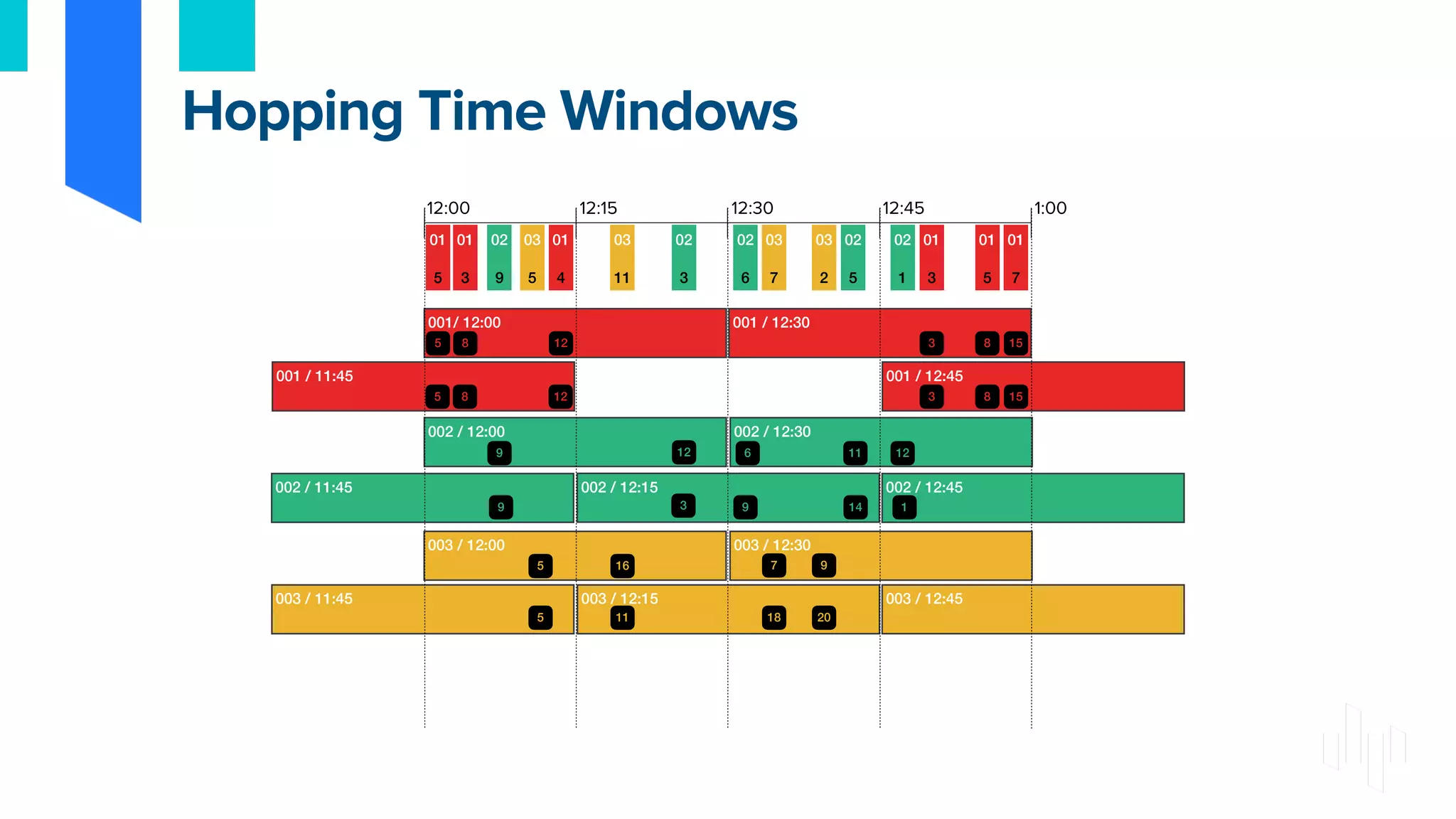

8. Hopping Time Windows
001/ 12:00
002 / 12:00
003 / 12:00
001 / 12:30
002 / 12:30
003 / 12:30
12:00 12:15 12:30 12:45 1:00
01
5
01
3
02
9
03
5
01
4
5 8 12
5
9
03
11
02
3
02
6
02
5
02
1
03
2
03
7
01
7
01
5
01
3
16 7 9
6 11 12
3 8 15
001 / 11:45
5 8 12
001 / 12:45
002 / 11:45 002 / 12:15 002 / 12:45
003 / 11:45 003 / 12:45
003 / 12:15
3 8 15
1
18 20
11
5
9
12
3 9 14

9. Sliding Time Windows
001 / 11:31:00.000
12:00 12:15 12:30 12:45 1:00
01
5
01
3
01
4
5
01
5
01
3
001 / 11:33:00.000
8
001 / 11:47.00.000
12
001 / 12:31:00.001
7
001 / 11:33.00:001
4
001 / 11:45:00.000
3
12:01
12:03
12:12
12:48
12:55
001 / 12:31:00.001
3
001 / 11:55:00.000
001 / 11:45:00.001
8
5

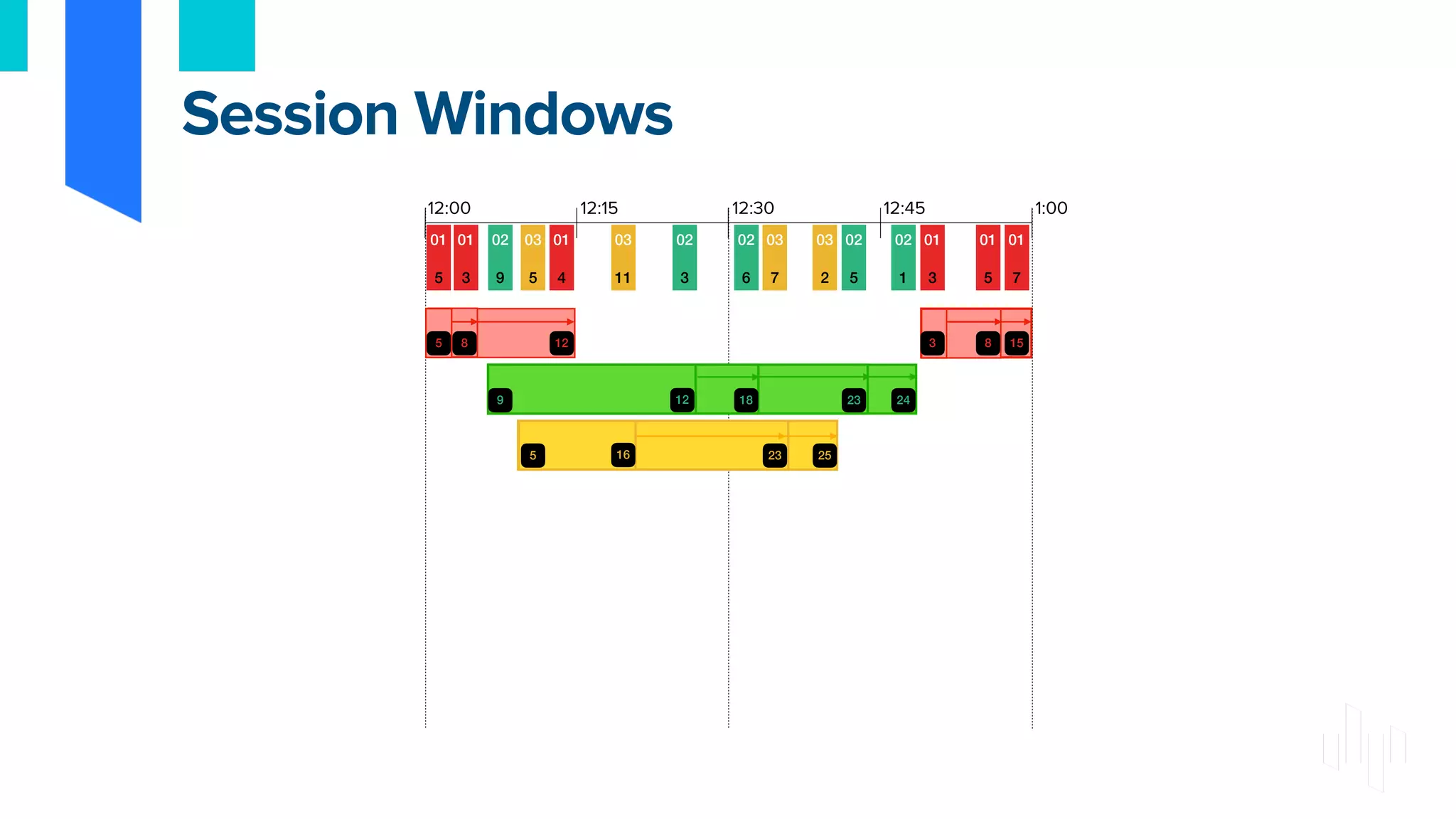

10. 12:00 12:15 12:30 12:45 1:00
01
5
Session Windows
01
3
02
9
03
5
01
4
03
11
02
3
02
6
02
5
02
1
03
2
03
7
01
7
01
5
01
3
5 8 12 3 8 15
5
9
16 23 25
18 23 24
12

11. Windowing Options
Window Type Time boundary Examples
# records for key
@ point in time
Fixed Size
Tumbling Epoch
[8:00, 8:30)
[8:30, 9:00)
single
Yes
Hopping Epoch
[8:00, 8:30)
[8:15, 8:45)
[8:30, 8:45)
[8:45, 9:00)
constant
Yes
Sliding Record
[8:02, 8:32]
[8:20, 8:50]
[8:21, 8:51]
variable
Yes
Session Record
[8:02, 8:02]
[8:02, 8:10]
[9:10, 12:56]
single
(by tombstoning)
No

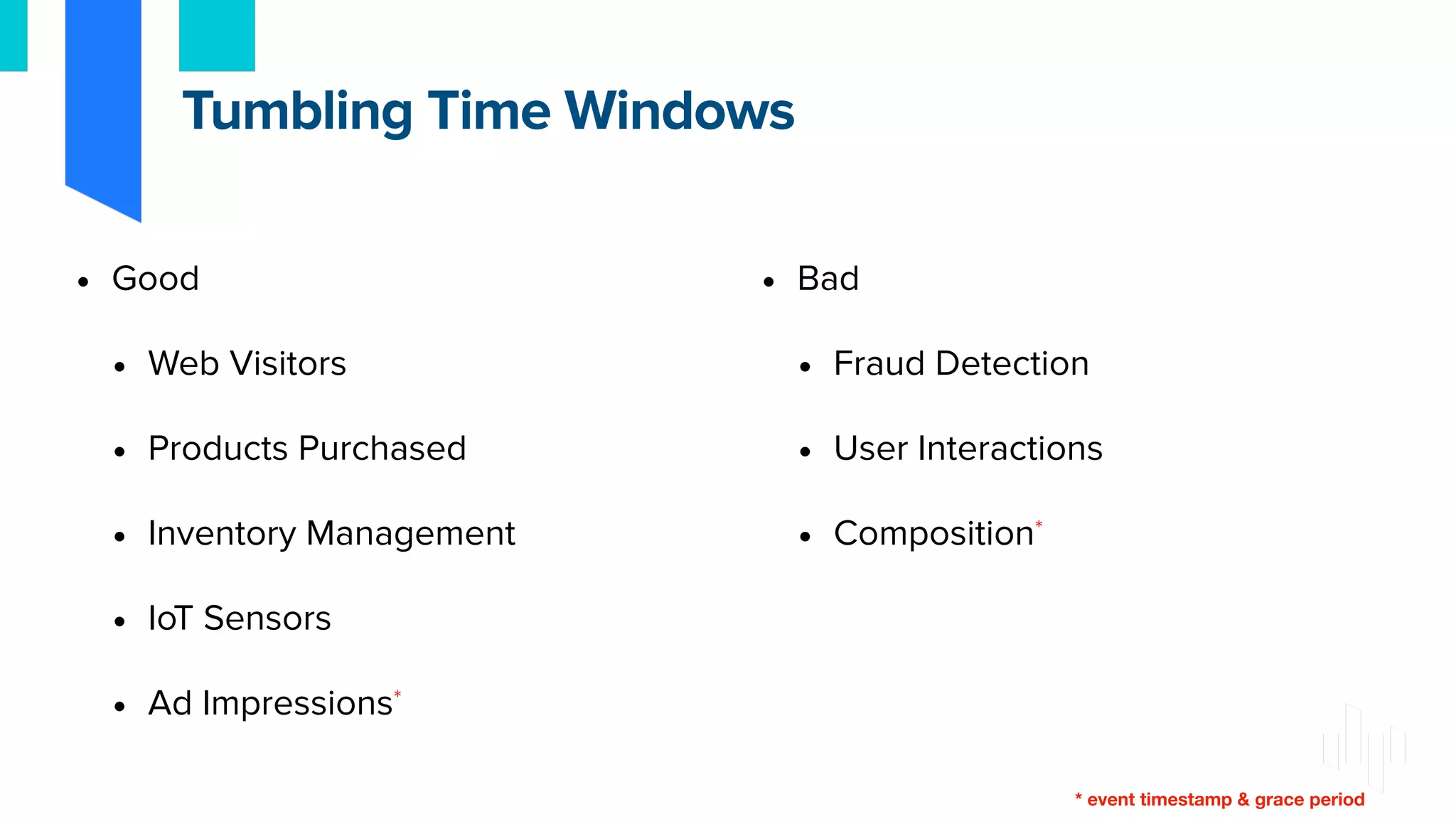

12. • Good
• Web Visitors
• Products Purchased
• Inventory Management
• IoT Sensors
• Ad Impressions*
• Bad
• Fraud Detection
• User Interactions
• Composition*
Tumbling Time Windows
* event timestamp & grace period

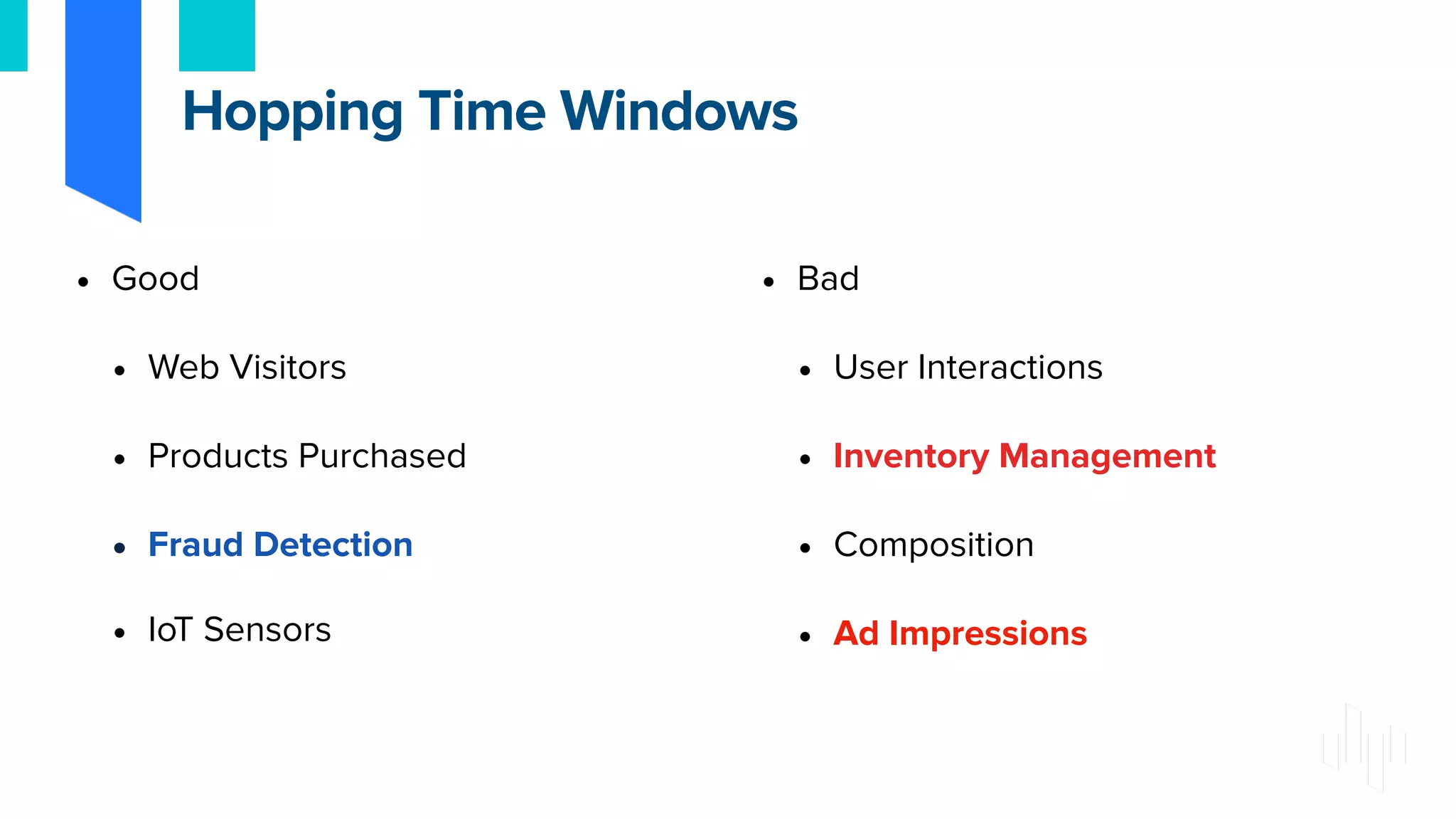

13. • Good
• Web Visitors
• Products Purchased
• Fraud Detection
• IoT Sensors
• Bad
• User Interactions
• Inventory Management
• Composition
• Ad Impressions
Hopping Time Windows

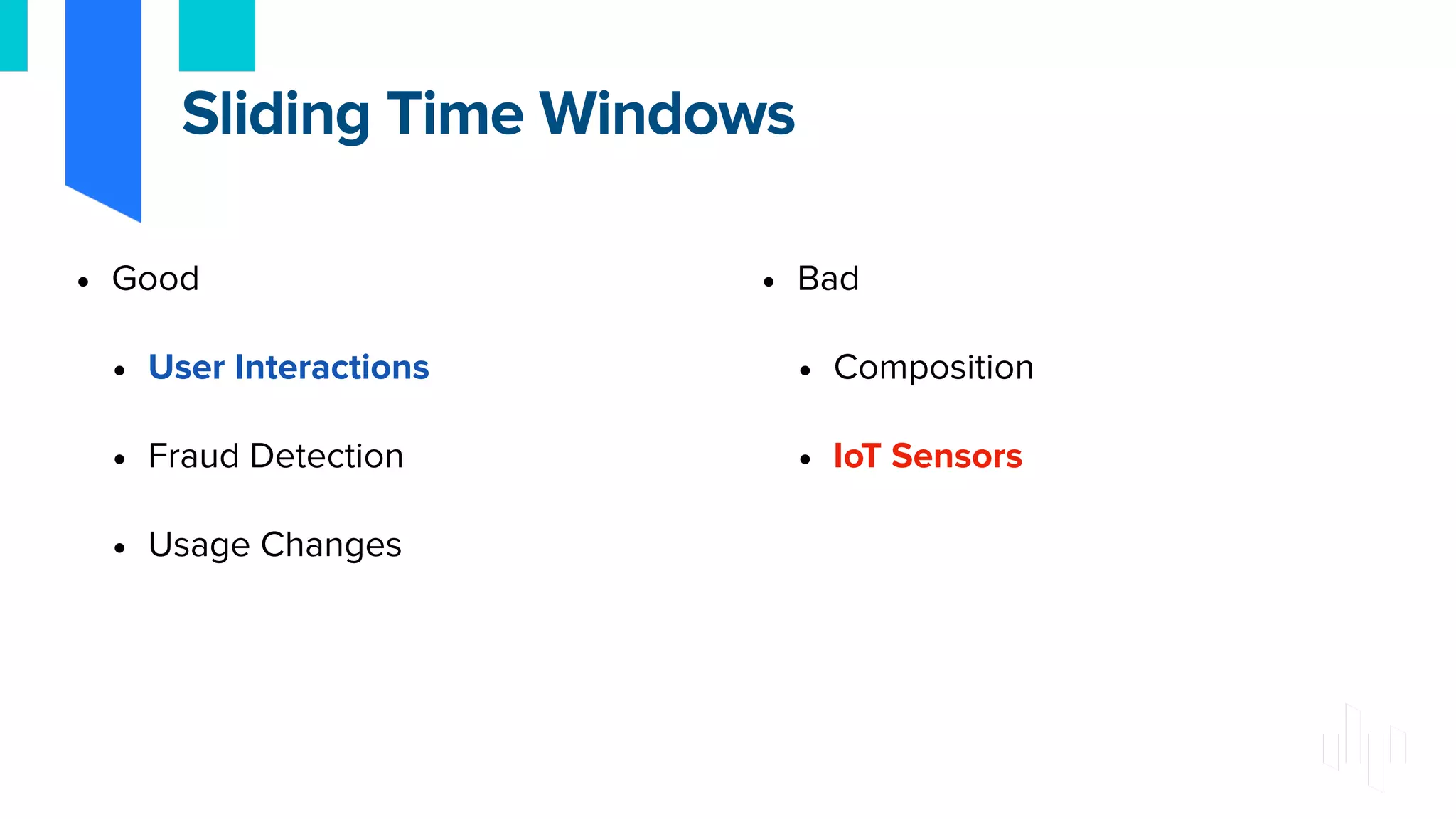

14. • Good
• User Interactions
• Fraud Detection
• Usage Changes
• Bad
• Composition
• IoT Sensors
Sliding Time Windows

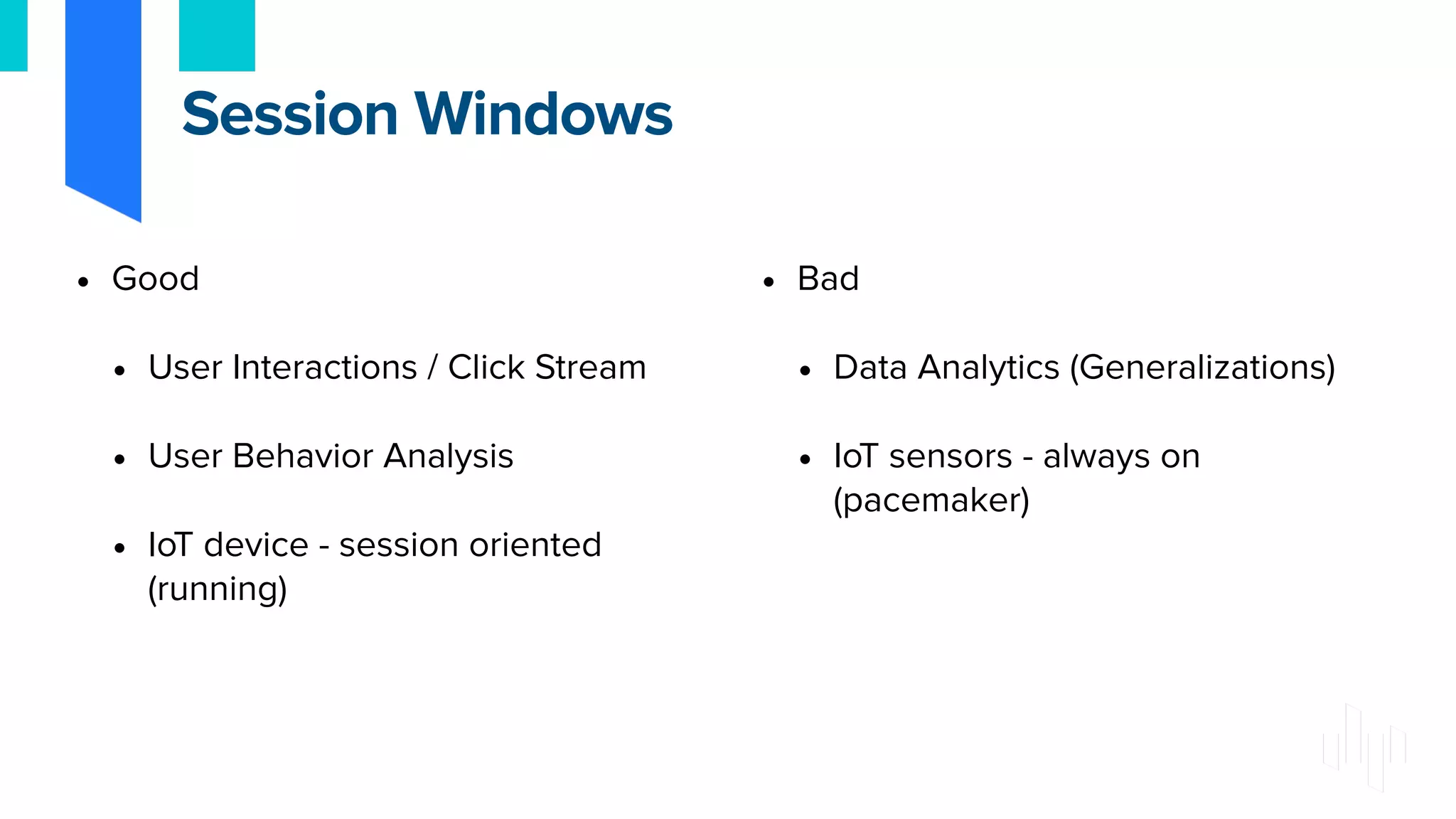

15. • Good
• User Interactions / Click Stream
• User Behavior Analysis
• IoT device - session oriented
(running)
• Bad
• Data Analytics (Generalizations)
• IoT sensors - always on
(pacemaker)
Session Windows

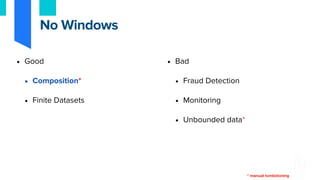

16. • Good
• Composition*
• Finite Datasets
• Bad
• Fraud Detection
• Monitoring
• Unbounded data*
No Windows
* manual tombstoning

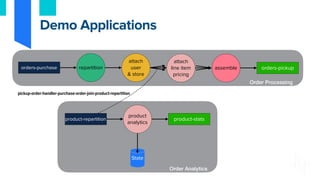

17. Order Processing
Order Analytics
Demo Applications
orders-purchase orders-pickup
repartition
attach
user
& store
attach
line item
pricing
assemble
product
analytics
pickup-order-handler-purchase-order-join-product-repartition
product-repartition product-stats
State

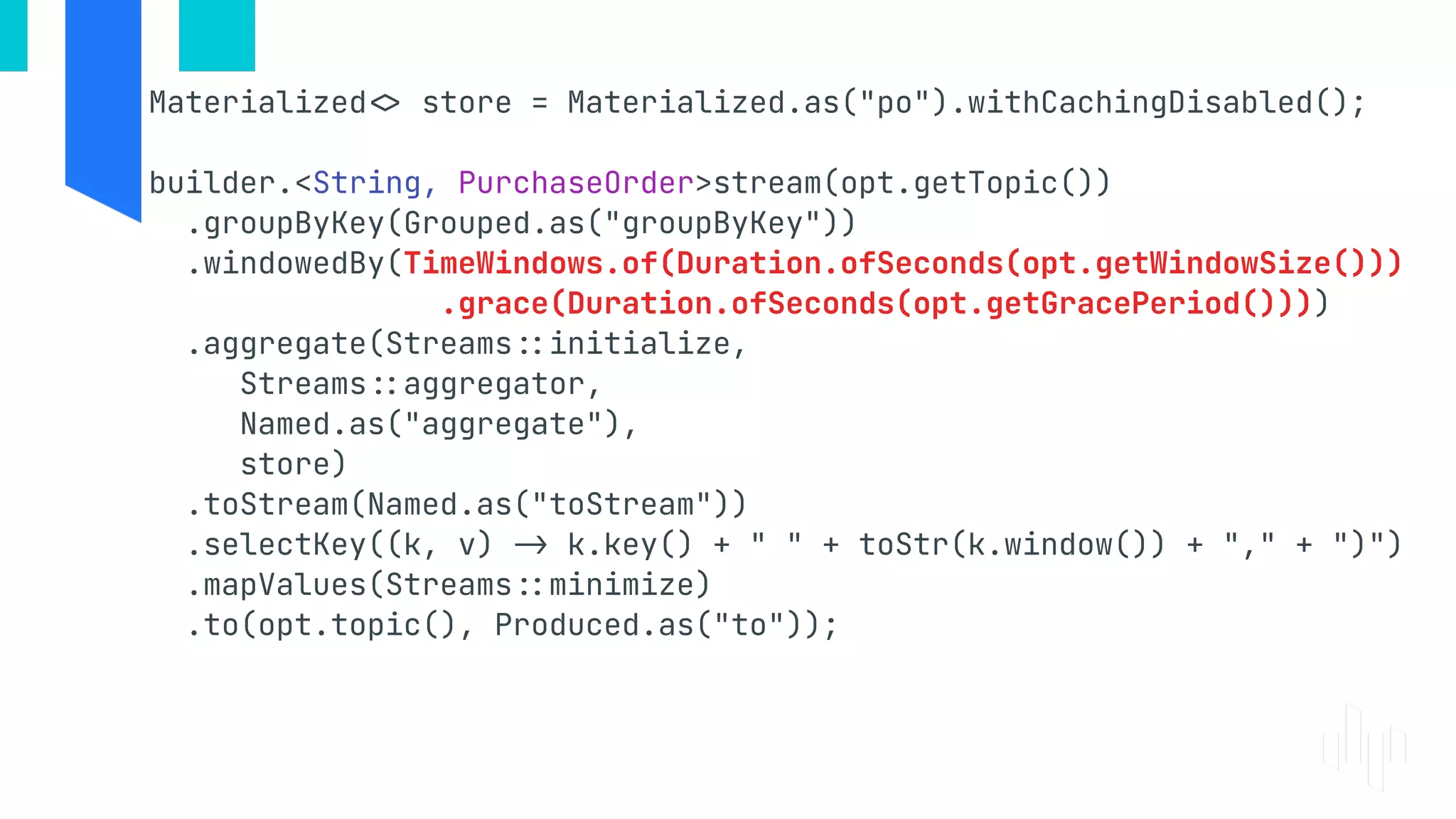

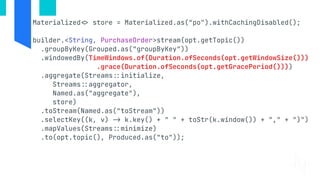

18. Materialized!<> store = Materialized.as("po").withCachingDisabled();
builder.<String, PurchaseOrder>stream(opt.getTopic())
.groupByKey(Grouped.as("groupByKey"))
.windowedBy(TimeWindows.of(Duration.ofSeconds(opt.getWindowSize()))
.grace(Duration.ofSeconds(opt.getGracePeriod())))
.aggregate(Streams!::initialize,
Streams!::aggregator,
Named.as("aggregate"),
store)
.toStream(Named.as("toStream"))
.selectKey((k, v) !-> k.key() + " " + toStr(k.window()) + "," + ")")
.mapValues(Streams!::minimize)
.to(opt.topic(), Produced.as("to"));

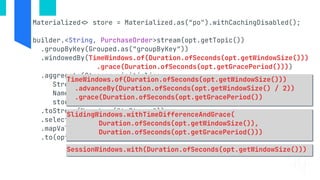

19. Materialized!<> store = Materialized.as("po").withCachingDisabled();
builder.<String, PurchaseOrder>stream(opt.getTopic())
.groupByKey(Grouped.as("groupByKey"))
.windowedBy(TimeWindows.of(Duration.ofSeconds(opt.getWindowSize()))
.grace(Duration.ofSeconds(opt.getGracePeriod())))
.aggregate(Streams!::initialize,
Streams!::aggregator,
Named.as("aggregate"),
store)
.toStream(Named.as("toStream"))
.selectKey((k, v) !-> k.key() + " " + toStr(k.window()) + "," + ")")
.mapValues(Streams!::minimize)
.to(opt.topic(), Produced.as("to"));
TimeWindows.of(Duration.ofSeconds(opt.getWindowSize()))
.advanceBy(Duration.ofSeconds(opt.getWindowSize() / 2))
.grace(Duration.ofSeconds(opt.getGracePeriod())
SlidingWindows.withTimeDifferenceAndGrace(
Duration.ofSeconds(opt.getWindowSize()),
Duration.ofSeconds(opt.getGracePeriod()))
SessionWindows.with(Duration.ofSeconds(opt.getWindowSize()))

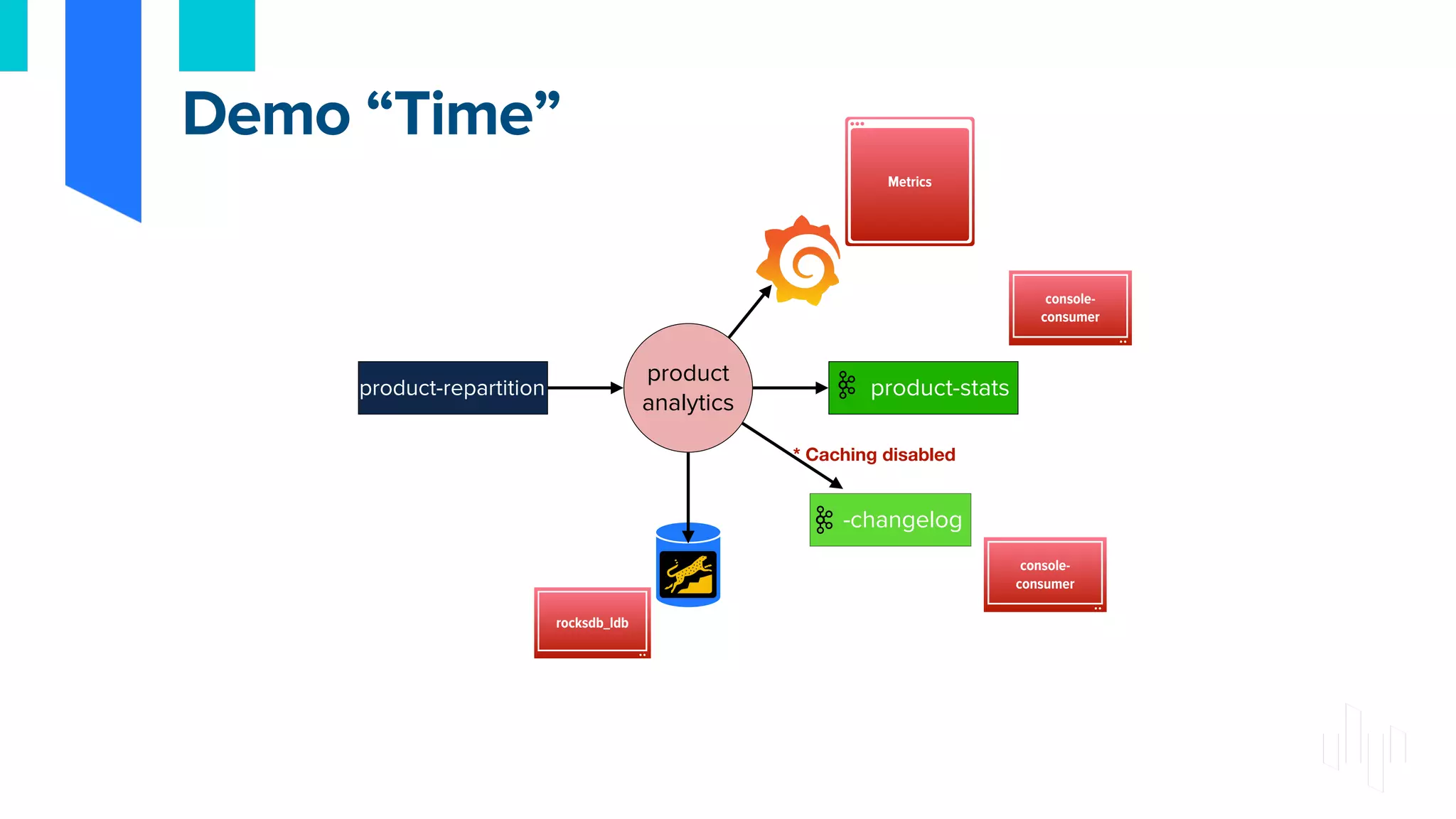

20. Demo “Time”
product
analytics
product-repartition product-stats
rocksdb_ldb
console-
consumer
console-
consumer
Metrics
-changelog
* Caching disabled

21. • Deserializers. % ln -s {jar} /usr/local/confluent/share/java/kafka
• WindowDeserializer
• SessionDeserializer
• RocksDB
• RocksDB’s rocksdb_ldb % brew install rocksdb
• Scripts
• rocksdb_key_parser
• rocksdb_window_parser
• rocksdb_session_parser
Demo Tools

22. DEMO

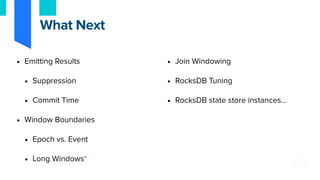

23. • Emitting Results
• Suppression
• Commit Time
• Window Boundaries
• Epoch vs. Event
• Long Windows*
• Join Windowing
• RocksDB Tuning
• RocksDB state store instances…
What Next

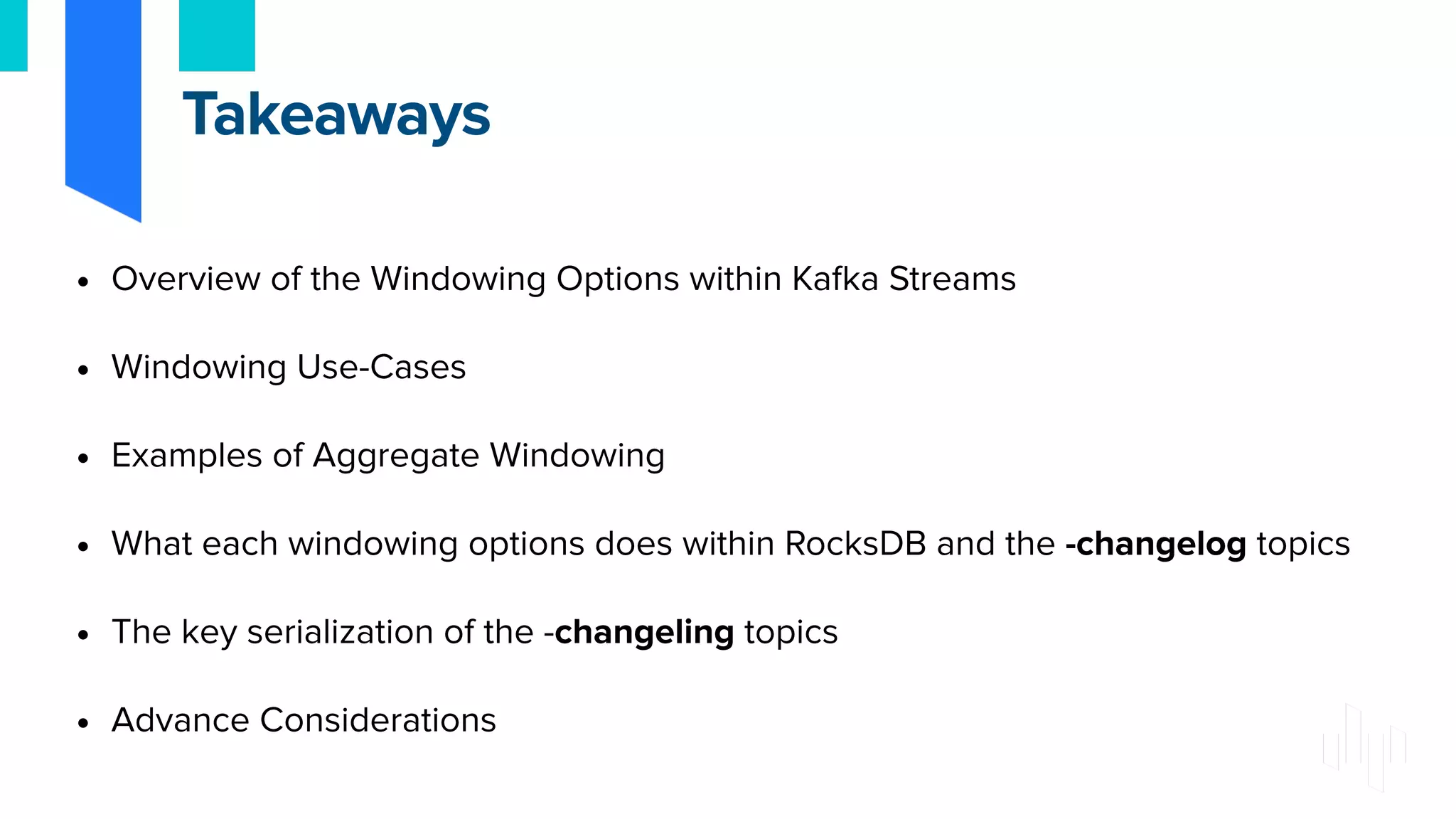

24. • Overview of the Windowing Options within Kafka Streams
• Windowing Use-Cases
• Examples of Aggregate Windowing
• What each windowing options does within RocksDB and the -changelog topics
• The key serialization of the -changeling topics
• Advance Considerations
Takeaways

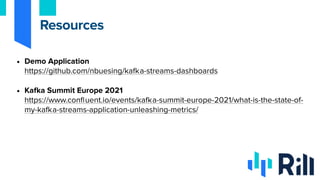

25. • Demo Application
https://github.com/nbuesing/kafka-streams-dashboards
• Kafka Summit Europe 2021
https://www.confluent.io/events/kafka-summit-europe-2021/what-is-the-state-of-
my-kafka-streams-application-unleashing-metrics/
Resources

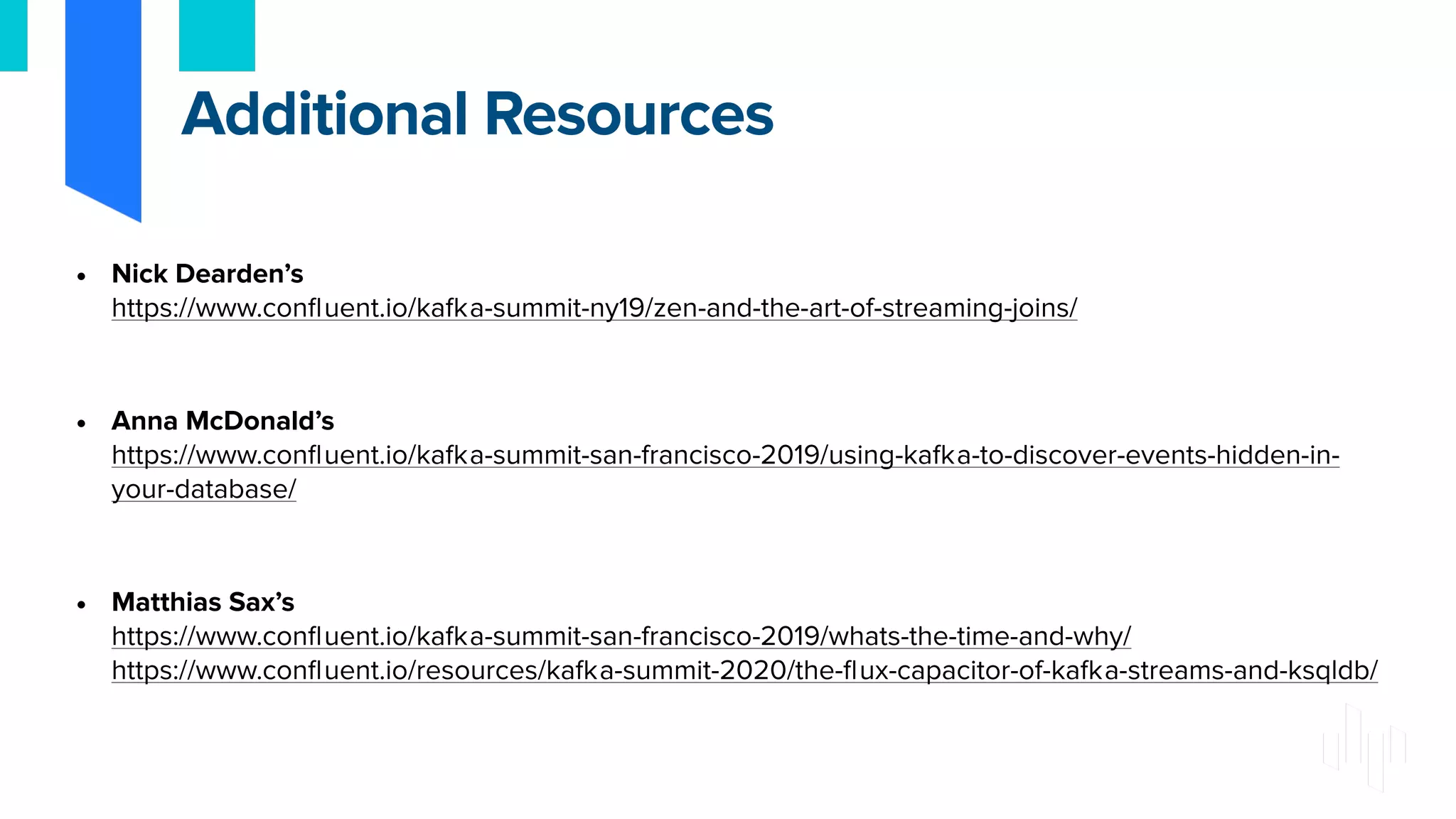

26. • Nick Dearden’s
https://www.confluent.io/kafka-summit-ny19/zen-and-the-art-of-streaming-joins/
• Anna McDonald’s
https://www.confluent.io/kafka-summit-san-francisco-2019/using-kafka-to-discover-events-hidden-in-
your-database/
• Matthias Sax’s
https://www.confluent.io/kafka-summit-san-francisco-2019/whats-the-time-and-why/
https://www.confluent.io/resources/kafka-summit-2020/the-flux-capacitor-of-kafka-streams-and-ksqldb/
Additional Resources

27. Blooper Reel
