FISL XIV - The ELF File Format and the Linux Loader

The document discusses the ELF (Executable and Linkable Format) file format used in Linux and several other systems for representing executable files, shared libraries, and relocatable files. It covers the structure of ELF headers, sections, and segments, as well as the process for loading these files into memory via the Linux loader, including symbol resolution and relocations. The document also mentions the use of ELF in various devices and programming environments, highlighting its importance in modern computing.

Embed presentation

Downloaded 75 times
The ELF File Format and the Linux Loader Divino C´esar S. Lucas Universidade de Campinas - Instituto de Computac¸ ˜ao Laborat´orio de Sistemas de Computac¸ ˜ao (www.lsc.ic.unicamp.br) XIV F´orum Internacional de Software Livre 05 de Julho de 2013
The ELF Format The Linux ELF Loader Questions Agenda 1 The ELF (Executable and Linkable Format) Format 2 The Linux ELF Loader 3 Questions Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The Pieces of a Program gcc -c -O3 bob.c -o bob.o // relocatable files gcc -c -O3 main.c -o main.o gcc bob.o main.o -o hello // executable file gcc -shared -fPIC bob.c -o libhello.so // shared library gcc main.c -lhello -L. -o hello // dynamically linked executable Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments What the file looks inside? The Matrix? Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments What the file looks inside? The Matrix? Not. An ELF! Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The Executable and Linkable Format (ELF) Specification for Executable and Linkable Files. Successor of a.out and COFF formats. Besides Linux, it’s also used in: FreeBSD, OpenBSD, Solaris, HP-UX, etc. Used in many devices: PlayStation 3, Dreamcast, Some Nokia Cellphones. Support for modern programming languages and code reutilization. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The ELF Header The ELF Header typedef struct elf32 hdr { unsigned char e ident [ EI NIDENT ] ; Elf32 Half e type ; Elf32 Half e machine ; Elf32 Word e version ; Elf32 Addr e entry ; Elf32 Off e phoff ; Elf32 Off e shoff ; Elf32 Word e flags ; Elf32 Half e ehsize ; Elf32 Half e phentsize ; Elf32 Half e phnum ; Elf32 Half e shentsize ; Elf32 Half e shnum ; Elf32 Half e shstrndx ; } Elf32 Ehdr ; Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The ELF Header - Example The ELF Header $ readelf -h executavel ELF Header: Magic: 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00 Class: ELF64 Data: 2’s complement, little endian Version: 1 (current) OS/ABI: UNIX - System V ABI Version: 0 Type: EXEC (Executable file) Machine: Advanced Micro Devices X86-64 Version: 0x1 Entry point address: 0x400410 Start of program headers: 64 (bytes into file) Start of section headers: 4440 (bytes into file) Flags: 0x0 Size of this header: 64 (bytes) Size of program headers: 56 (bytes) Number of program headers: 9 Size of section headers: 64 (bytes) Number of section headers: 30 Section header string table index: 27 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments Program Representation Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Sections Mainly used during static linking process. Used to group together program portions with are sematically related (eg: data / code / constructors / destructors). Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Sections - Example ELF Header Sections Table . . . .text .data .bss . . . Allice.o ELF Header Sections Table Segments Table . . . .text .text .data .data .bss .bss . . . Executable ELF Header Sections Table . . . .text .data .bss . . . Bob.o Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Sections - Example Section Table $ readelf -WS executavel [Nr] Name Type Address Off Size ES Flg Lk Inf Al [ 1] .interp PROGBITS 0000000000400238 000238 00001c 00 A 0 0 1 [11] .init PROGBITS 00000000004003c8 0003c8 000018 00 AX 0 0 4 [12] .plt PROGBITS 00000000004003e0 0003e0 000030 10 AX 0 0 16 [13] .text PROGBITS 0000000000400410 000410 000228 00 AX 0 0 16 [15] .rodata PROGBITS 0000000000400648 000648 000031 00 A 0 0 4 [22] .got PROGBITS 0000000000600fe0 000fe0 000008 08 WA 0 0 8 [24] .data PROGBITS 0000000000601010 001010 000020 00 WA 0 0 8 [25] .bss NOBITS 0000000000601030 001030 000010 00 WA 0 0 8 [28] .symtab SYMTAB 0000000000000000 0018d8 000690 18 29 48 8 [29] .strtab STRTAB 0000000000000000 001f68 00022b 00 0 0 1 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Segments Used mainly during process creation (by the dynamic loader). Used to group together sections with the same flags (all text, all data. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Segments - Example Program Headers $ readelf -Wl executavel Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align PHDR 0x000040 0x0000000000400040 0x0000000000400040 0x0001f8 0x0001f8 R E 0x8 INTERP 0x000238 0x0000000000400238 0x0000000000400238 0x00001c 0x00001c R 0x1 LOAD 0x000000 0x0000000000400000 0x0000000000400000 0x00079c 0x00079c R E 0x200000 LOAD 0x000e28 0x0000000000600e28 0x0000000000600e28 0x000208 0x000218 RW 0x200000 DYNAMIC 0x000e50 0x0000000000600e50 0x0000000000600e50 0x000190 0x000190 RW 0x8 NOTE 0x000254 0x0000000000400254 0x0000000000400254 0x000044 0x000044 R 0x4 GNU_EH_FRAME 0x00067c 0x000000000040067c 0x000000000040067c 0x00003c 0x00003c R 0x4 GNU_STACK 0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW 0x8 GNU_RELRO 0x000e28 0x0000000000600e28 0x0000000000600e28 0x0001d8 0x0001d8 R 0x1 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Segments - Sections to Segments Mapping from Sections to Segments $ readelf -Wl executavel 00 01 .interp 02 .interp .gnu.hash .dynsym .dynstr .rela.dyn .rela.plt .init .plt .text .fini .rodata 03 .ctors .dtors .jcr .dynamic .got .got.plt .data .bss 04 .dynamic 05 .note.ABI-tag .note.gnu.build-id 06 .eh_frame_hdr 07 08 .ctors .dtors .jcr .dynamic .got Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. How a Process Start? Function File Comment Shell/GUI user application Executes fork() to create a news process and execve() to replace the child. execve fs/exec.c Do some preprocessing stuff and calls search binary handler. search binary handler fs/exec.c Identify which type is the binary and calls the appropriate handler. load elf binary fs/binfmt elf.c Validate the binary file and do some preprocessing. start thread arch/x86/kernel/process.c Start a new thread of execution. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Loader - workflow 1 Load the main binary. 2 Load the main binary dependencies (shared libraries). 3 Create a symbol resolution map. 4 Apply data relocations (fill the GOT table). 5 Apply function relocations (fill the GOT.PLT table). 6 Call libraries initializers, registry finalizers and start the program. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Loading the main binary Loadable Segments $ readelf -Wl executavel Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align PHDR 0x000040 0x0000000000400040 0x0000000000400040 0x0001f8 0x0001f8 R E 0x8 INTERP 0x000238 0x0000000000400238 0x0000000000400238 0x00001c 0x00001c R 0x1 **** LOAD 0x000000 0x0000000000400000 0x0000000000400000 0x00079c 0x00079c R E 0x200000 **** LOAD 0x000e28 0x0000000000600e28 0x0000000000600e28 0x000208 0x000218 RW 0x200000 **** DYNAMIC 0x000e50 0x0000000000600e50 0x0000000000600e50 0x000190 0x000190 RW 0x8 NOTE 0x000254 0x0000000000400254 0x0000000000400254 0x000044 0x000044 R 0x4 GNU_EH_FRAME 0x00067c 0x000000000040067c 0x000000000040067c 0x00003c 0x00003c R 0x4 GNU_STACK 0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW 0x8 GNU_RELRO 0x000e28 0x0000000000600e28 0x0000000000600e28 0x0001d8 0x0001d8 R 0x1 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. The Dynamic Section/Segment Dynamic Information Block $ readelf -dW executavel Tag Type Name/Value 0x0000000000000001 (NEEDED) Shared library: [libc.so.6] 0x000000000000000c (INIT) 0x4003c8 0x000000000000000d (FINI) 0x400638 0x000000006ffffef5 (GNU_HASH) 0x400298 0x0000000000000005 (STRTAB) 0x400318 0x0000000000000006 (SYMTAB) 0x4002b8 0x000000000000000a (STRSZ) 63 (bytes) 0x000000000000000b (SYMENT) 24 (bytes) 0x0000000000000003 (PLTGOT) 0x600fe8 0x0000000000000002 (PLTRELSZ) 48 (bytes) 0x0000000000000014 (PLTREL) RELA 0x0000000000000017 (JMPREL) 0x400398 0x0000000000000007 (RELA) 0x400380 0x0000000000000008 (RELASZ) 24 (bytes) 0x0000000000000009 (RELAENT) 24 (bytes) Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Dependences from my dependences... Executable libz.so liby.so ... libc.so libb.so liba.so libb.so libe.so libd.so libc.so liby.so libg.so libf.so libe.so Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Shared Libraries: ldd and ldconfig ldconfig to find dynamic dependencies $ ldconfig -p ... libBrokenLocale.so.1 (libc6, OS ABI: Linux 2.6.24) => /lib/i386-linux-gnu/libBrokenLocale.so.1 ld-linux-x86-64.so.2 (libc6,x86-64) => /lib/x86_64-linux-gnu/ld-linux-x86-64.so.2 libQtXml.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtXml.so.4 libQtWebKit.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtWebKit.so.4 libQtSvg.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtSvg.so.4 libQtSql.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtSql.so.4 ... Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Process Address Space Executable (.text) Executable (.data) Executable ( .bss) HEAP Library-A (.text) Library-A (.data) Library-A ( .bss) Library-B (.text) Library-B (.data) Library-B ( .bss) STACK Lower Addresses Higher Addresses Process Address Space Fixed distance Fixed distance Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Symbol resolution scope and ordering Executable libz.so liby.so ... libc.so libb.so liba.so libb.so libe.so libd.so libc.so liby.so libg.so libf.so libe.so Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations Relocation is the process of connecting symbolic references with symbolic definitions. There are data relocations and function relocations. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Why do we need relocations (Part 1)? gcc -c -O3 bob.c -o bob.o // relocatable files gcc -c -O3 main.c -o main.o gcc bob.o main.o -o hello // executable file gcc -shared -fPIC bob.c -o libhello.so // shared library gcc main.c -lhello -L. -o hello // dynamically linked executable Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Why do we need relocations (Part 1)? gcc -c -O3 bob.c -o bob.o // relocatable files gcc -c -O3 main.c -o main.o gcc bob.o main.o -o hello // executable file gcc -shared -fPIC bob.c -o libhello.so // shared library gcc main.c -lhello -L. -o hello // dynamically linked executable Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Why do we need relocations (Part 2)? Executable (.text) Executable (.data) Executable ( .bss) HEAP Library-A (.text) Library-A (.data) Library-A ( .bss) Library-B (.text) Library-B (.data) Library-B ( .bss) STACK Process A . . . . . . Library-A (.text) Library-A (.data) Library-A ( .bss) Library-A (.data) Library-A ( .bss) Library-B (.text) Library-B (.data) Library-B ( .bss) Library-C (.text) Library-C (.data) Library-C ( .bss) . . . . . . Physical Memory Executable (.text) Executable (.data) Executable ( .bss) HEAP Library-A (.text) Library-A (.data) Library-A ( .bss) Library-C (.text) Library-C (.data) Library-C ( .bss) STACK Process B Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Where are them? Data and function relocations $ readelf -rW executavel Relocation section ’.rela.dyn’ at offset 0x380 contains 1 entries: Offset Info Type Symbol’s Value Symbol’s Name + Addend 0000000000600fe0 0000000300000006 R_X86_64_GLOB_DAT 0000000000000000 __gmon_start__ + 0 Relocation section ’.rela.plt’ at offset 0x398 contains 2 entries: Offset Info Type Symbol’s Value Symbol’s Name + Addend 0000000000601000 0000000100000007 R_X86_64_JUMP_SLOT 0000000000000000 printf + 0 0000000000601008 0000000200000007 R_X86_64_JUMP_SLOT 0000000000000000 __libc_start_main + 0 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Dynamic Symbol Table (dynsym) $ readelf -Ws libtest.so Num: Value Size Type Bind Vis Ndx Name 0: 0000000000000000 0 NOTYPE LOCAL DEFAULT UND 1: 0000000000000498 0 SECTION LOCAL DEFAULT 9 2: 0000000000000000 0 NOTYPE WEAK DEFAULT UND __gmon_start__ 3: 0000000000000000 0 NOTYPE GLOBAL DEFAULT UND foo 4: 0000000000000000 0 NOTYPE WEAK DEFAULT UND _Jv_RegisterClasses 5: 0000000000000000 0 FUNC WEAK DEFAULT UND __cxa_finalize@GLIBC_2.2.5 (2) 6: 0000000000201018 0 NOTYPE GLOBAL DEFAULT ABS _edata 7: 0000000000201028 0 NOTYPE GLOBAL DEFAULT ABS _end 8: 0000000000201018 0 NOTYPE GLOBAL DEFAULT ABS __bss_start 9: 00000000000005ac 11 FUNC GLOBAL DEFAULT 11 function 10: 0000000000000498 0 FUNC GLOBAL DEFAULT 9 _init 11: 00000000000005f8 0 FUNC GLOBAL DEFAULT 12 _fini Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Dynamic String Table (dynstr) $ readelf -p .dynstr executavel String dump of section ’.dynstr’: [ 1] libhello.so [ d] __gmon_start__ [ 1c] _Jv_RegisterClasses [ 30] bob_speak [ 3a] _init [ 40] _fini [ 46] libc.so.6 [ 50] __libc_start_main [ 62] _edata [ 69] __bss_start [ 75] _end [ 7a] GLIBC_2.2.5 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table gcc -shared -fPIC hello.c -o libhello.so #include <stdio . h> int valor1 ; int fun1 ( void ) { valor1 = 123; p r i n t f ( ” Valor de valor1 = %dn ” , valor1 ) ; return 0; } Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table objdump -d libhello.so 5f0 : mov 0x2009d9(% r i p ),% rax # 200fd0 < DYNAMIC+0x188> 5f7 : movl $0x7b ,(% rax ) Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table readelf -WS libhello.so [20] .got PROGBITS 0000000000200 fc8 000fc8 000020 08 WA 0 0 8 [21] . g o t . p l t PROGBITS 0000000000200fe8 000fe8 000028 08 WA 0 0 8 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table readelf -Wr libhello.so Relocation section ’.rela.dyn’ at offset 0x428 contains 5 entries: Offset Info Type Symbol’s Value Symbol’s Name + Addend ... 0000000000200fd0 0000000c00000006 R_X86_64_GLOB_DAT 0000000000201028 valor1 + 0 ... Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Procedure Linkage Table objdump -d exec 4005 fd : c a l l q 400500 <fun1@plt> 400500 <fun1@plt >: 400500: jmpq ∗0x200b02(% r i p ) # 601008 < GLOBAL OFFSET TABLE +0x20> 400506: pushq $0x1 40050b : jmpq 4004e0 < i n i t +0x20> 4004e0 < l i b c s t a r t m a i n @ p l t −0x10 >: 4004e0 : pushq 0x200b0a(% r i p ) # 600 f f 0 < GLOBAL OFFSET TABLE +0x8> 4004e6 : jmpq ∗0x200b0c(% r i p ) # 600 f f 8 < GLOBAL OFFSET TABLE +0x10> 4004ec : nopl 0x0(%rax ) Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Procedure Linkage Table readelf -Wr exec Offset Info Type Symbol’s Value Symbol’s Name + Addend 0000000000601000 0000000100000007 R_X86_64_JUMP_SLOT 0000000000000000 __libc_start_main + 0 0000000000601008 0000000300000007 R_X86_64_JUMP_SLOT 0000000000000000 fun1 + 0 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Program Initialization Flow Divino C´esar S. Lucas The ELF File Format and the Linux Loader
The ELF Format The Linux ELF Loader Questions Thank you! Questions? divcesar [at] gmail [dot] com http://johntortugo.wordpress.com Divino C´esar S. Lucas The ELF File Format and the Linux Loader

More Related Content

PPTX
Linker and loader upload
byBin Yang

PDF
Dynamic Linker
bySanjiv Malik

PDF
Something About Dynamic Linking
byWang Hsiangkai

PDF
WSL Reloaded
byAnthony LAOU-HINE TSUEI

PPT
A hands-on introduction to the ELF Object file format
byrety61

PDF
Play with FILE Structure - Yet Another Binary Exploit Technique
byAngel Boy

PDF
Advanced C - Part 1
byEmertxe Information Technologies Pvt Ltd

PDF
Linux Binary Exploitation - Heap Exploitation
byAngel Boy

Linker and loader upload
byBin Yang

Dynamic Linker
bySanjiv Malik

Something About Dynamic Linking
byWang Hsiangkai

WSL Reloaded
byAnthony LAOU-HINE TSUEI

A hands-on introduction to the ELF Object file format
byrety61

Play with FILE Structure - Yet Another Binary Exploit Technique
byAngel Boy

Advanced C - Part 1
byEmertxe Information Technologies Pvt Ltd

Linux Binary Exploitation - Heap Exploitation
byAngel Boy


What's hot

PDF
CSW2017 Peng qiu+shefang-zhong win32k -dark_composition_finnal_finnal_rm_mark
byCanSecWest

PDF
Virtualization Support in ARMv8+
byAananth C N

PDF
ROP 輕鬆談
byhackstuff

PDF
U boot-boot-flow
byBabuSubashChandar Chandra Mohan

PDF
Xvisor: embedded and lightweight hypervisor
byNational Cheng Kung University

PDF
Security Monitoring with eBPF
byAlex Maestretti

PDF
Linux basic commands with examples
byabclearnn

PPT
Soquetes de Processadores
byMarcelo Gonçalves

PDF
How A Compiler Works: GNU Toolchain
byNational Cheng Kung University

PDF
Docker Introduction
byMANAOUIL Karim

PDF
Function Level Analysis of Linux NVMe Driver
by인구 강

PDF
Unix v6 Internals
byNational Cheng Kung University

PPT
Shell Scripting
byGaurav Shinde

PDF
Building Network Functions with eBPF & BCC
byKernel TLV

PDF
Advanced heap exploitaion
byAngel Boy

PDF
Introduction to Docker
byAditya Konarde

PDF
Javascript Clean Code
byPetra Barus

PPTX
Linux PCI device driver
by艾思程式教育

PDF
Memory Mapping Implementation (mmap) in Linux Kernel
byAdrian Huang

PDF
Kernel Module Programming
bySaurabh Bangad

CSW2017 Peng qiu+shefang-zhong win32k -dark_composition_finnal_finnal_rm_mark
byCanSecWest

Virtualization Support in ARMv8+
byAananth C N

ROP 輕鬆談
byhackstuff

U boot-boot-flow
byBabuSubashChandar Chandra Mohan

Xvisor: embedded and lightweight hypervisor
byNational Cheng Kung University

Security Monitoring with eBPF
byAlex Maestretti

Linux basic commands with examples
byabclearnn

Soquetes de Processadores
byMarcelo Gonçalves

How A Compiler Works: GNU Toolchain
byNational Cheng Kung University

Docker Introduction
byMANAOUIL Karim

Function Level Analysis of Linux NVMe Driver
by인구 강

Unix v6 Internals
byNational Cheng Kung University

Shell Scripting
byGaurav Shinde

Building Network Functions with eBPF & BCC
byKernel TLV

Advanced heap exploitaion
byAngel Boy

Introduction to Docker
byAditya Konarde

Javascript Clean Code
byPetra Barus

Linux PCI device driver
by艾思程式教育

Memory Mapping Implementation (mmap) in Linux Kernel
byAdrian Huang

Kernel Module Programming
bySaurabh Bangad


Viewers also liked

ODP
LD_PRELOAD Exploitation - DC9723
byIftach Ian Amit

PDF
Program Structure in GNU/Linux (ELF Format)
byVarun Mahajan

PPTX
Ch 4 linker loader
byMalek Sumaiya

PDF
Kernel Recipes 2016 - Kernel documentation: what we have and where it’s going
byAnne Nicolas

PDF
Kernel Recipes 2016 - Would an ABI changes visualization tool be useful to Li...
byAnne Nicolas

PDF
Introduction to spartakus and how it can help fight linux kernel ABI breakages
bySamikshan Bairagya

PPT
Abi capabilities
byABI

PDF
ELF 101
byChia-Hao Tsai

PDF
HES2011 - James Oakley and Sergey bratus-Exploiting-the-Hard-Working-DWARF
byHackito Ergo Sum

PPT
Intro reverse engineering
byNitin kumar Gupta

PDF
Symbolic Debugging with DWARF
bySamy Bahra

PPTX
Load-time Hacking using LD_PRELOAD
byDharmalingam Ganesan

PDF
[2008 CodeEngn Conference 02] graylynx - 정적 링크된 Stripped ELF 바이너리 상에서의 함수 탐지 기법
byCode Engn

PDF
DWARF Data Representation
byWang Hsiangkai

PPTX
06 - ELF format, knowing your friend
byAlexandre Moneger

PDF
Controlling Memory Footprint at All Layers: Linux Kernel, Applications, Libra...
bypeknap

PPTX
Linux binary analysis and exploitation
byDharmalingam Ganesan

PDF
Compilation and Execution
byChong-Kuan Chen

PPTX
Sp chap2
bysushma sanisetty

PDF
Embedded Systems: Lecture 14: Introduction to GNU Toolchain (Binary Utilities)
byAhmed El-Arabawy

LD_PRELOAD Exploitation - DC9723
byIftach Ian Amit

Program Structure in GNU/Linux (ELF Format)
byVarun Mahajan

Ch 4 linker loader
byMalek Sumaiya

Kernel Recipes 2016 - Kernel documentation: what we have and where it’s going
byAnne Nicolas

Kernel Recipes 2016 - Would an ABI changes visualization tool be useful to Li...
byAnne Nicolas

Introduction to spartakus and how it can help fight linux kernel ABI breakages
bySamikshan Bairagya

Abi capabilities
byABI

ELF 101
byChia-Hao Tsai

HES2011 - James Oakley and Sergey bratus-Exploiting-the-Hard-Working-DWARF
byHackito Ergo Sum

Intro reverse engineering
byNitin kumar Gupta

Symbolic Debugging with DWARF
bySamy Bahra

Load-time Hacking using LD_PRELOAD
byDharmalingam Ganesan

[2008 CodeEngn Conference 02] graylynx - 정적 링크된 Stripped ELF 바이너리 상에서의 함수 탐지 기법
byCode Engn

DWARF Data Representation
byWang Hsiangkai

06 - ELF format, knowing your friend
byAlexandre Moneger

Controlling Memory Footprint at All Layers: Linux Kernel, Applications, Libra...
bypeknap

Linux binary analysis and exploitation
byDharmalingam Ganesan

Compilation and Execution
byChong-Kuan Chen

Sp chap2
bysushma sanisetty

Embedded Systems: Lecture 14: Introduction to GNU Toolchain (Binary Utilities)
byAhmed El-Arabawy


Similar to FISL XIV - The ELF File Format and the Linux Loader

PPT
ELF
byKoganti Ravikumar

ODP
Null
byBhashit Pandya

ODP
A Dive Into ELF Binaries
byBhashit Pandya

PPTX
ELF(executable and linkable format)
bySeungha Son

PDF
US-22-Snezhkov-ELF-Section-Docking-Revisiting-Stageless-Payload-Delivery.pdf
byssuser40ae37

PPTX
C++ shared libraries and loading
byRahul Jamwal

PDF
How to write shared libraries!
byStanley Ho

PDF
BH-ElfPack-Presentation.pdf
byDimitry Snezhkov

PDF
Whirlwind tour of the Runtime Dynamic Linker
byGonçalo Gomes

ODP
The forgotten art of assembly
byMarian Marinov

PPTX
Unit V.pptx
byYogapriyaJ1

PPT
Linkers And Loaders
bySatpal Parmar

PDF
Intra process memory protection for applications on ARM and x86
byPriyanka Aash

PPTX
In the lands of corrupted elves - Breaking ELF software with Melkor fuzzer
byAlejandro Hernández

PPT
Ppt project process migration
byjaya380

PPS
Jonathan - Reverse Engineering for exploit writers - ClubHack2008
byClubHack

PPS
Reverse Engineering for exploit writers
byamiable_indian

PDF
Linker Wisdom
bydmichelsen

PDF
The true story_of_hello_world
byfantasy zheng

PPTX
Linkers
byRahul Dhiman

ELF
byKoganti Ravikumar

Null
byBhashit Pandya

A Dive Into ELF Binaries
byBhashit Pandya

ELF(executable and linkable format)
bySeungha Son

US-22-Snezhkov-ELF-Section-Docking-Revisiting-Stageless-Payload-Delivery.pdf
byssuser40ae37

C++ shared libraries and loading
byRahul Jamwal

How to write shared libraries!
byStanley Ho

BH-ElfPack-Presentation.pdf
byDimitry Snezhkov

Whirlwind tour of the Runtime Dynamic Linker
byGonçalo Gomes

The forgotten art of assembly
byMarian Marinov

Unit V.pptx
byYogapriyaJ1

Linkers And Loaders
bySatpal Parmar

Intra process memory protection for applications on ARM and x86
byPriyanka Aash

In the lands of corrupted elves - Breaking ELF software with Melkor fuzzer
byAlejandro Hernández

Ppt project process migration
byjaya380

Jonathan - Reverse Engineering for exploit writers - ClubHack2008
byClubHack

Reverse Engineering for exploit writers
byamiable_indian

Linker Wisdom
bydmichelsen

The true story_of_hello_world
byfantasy zheng

Linkers
byRahul Dhiman


Recently uploaded

PDF
Explaining the flow of purpose-specific BOM
byakipii ogaoga

PDF
final.pdf
byomarbishtawi04

PPTX
Tech Trends 2026: AI Agents, Quantum Computing, Robotics & Cybersecurity
byridwansassman

PDF
The Emergence of Empathic XR: AWE Asia 2026 keynote
byMark Billinghurst

PDF
The new book “Marketing in the Metaverse” spotlights Scott M. Graffius’ research
byScott M. Graffius

PDF
final~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~.pdf
byomarbishtawi04

PDF
20260212 Security-JAWS activity results for 2025 and activity goals for 2026
byTyphon 666

PDF
Logical Optimal Actions – Towards Knowledge-based Reinforcement Learning with...
byMichiaki Tatsubori

PDF
How does MES(Manufacturing Execution System) work?
byakipii ogaoga

PDF
February 2026 Patch Tuesday hosted by Chris Goettl and Todd Schell
byIvanti

PDF
UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

PPTX
TravelTech Paris 2025 | Beyond the pipes: Why Channel Management isn’t really...
byapidays

PDF
NTG -Company Profile_Software_Vendor_Company_in_MENA
byMustafa Kuğu

PDF
Session 1/5: Enhancing Automation with Screenplay & Business Rules
bysuhanisingh58689

PDF
From Artificial Intelligence to African Intelligence: Transforming Research &...
byMoses Kemibaro

PDF
Poročilo odbora CIS (CH08873) za leto 2025 na letni skupščini IEEE Slovenija ...
byUniversity of Maribor

PDF
Digital Twin in IBM for Accelerated Discovery of Climate & Sustainability, K...
byMichiaki Tatsubori

PDF
Automated Governance for FME Flow: Smarter Admin at Scale
bySafe Software

PDF
Security-Fails-in-the-Gaps-Between-Systems.pptx.pdf
byOhhproJunction

PPTX
Automation Without Apprentices: How AI Challenges the Open Source Way
byIcinga

Explaining the flow of purpose-specific BOM
byakipii ogaoga

final.pdf
byomarbishtawi04

Tech Trends 2026: AI Agents, Quantum Computing, Robotics & Cybersecurity
byridwansassman

The Emergence of Empathic XR: AWE Asia 2026 keynote
byMark Billinghurst

The new book “Marketing in the Metaverse” spotlights Scott M. Graffius’ research
byScott M. Graffius

final~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~.pdf
byomarbishtawi04

20260212 Security-JAWS activity results for 2025 and activity goals for 2026
byTyphon 666

Logical Optimal Actions – Towards Knowledge-based Reinforcement Learning with...
byMichiaki Tatsubori

How does MES(Manufacturing Execution System) work?
byakipii ogaoga

February 2026 Patch Tuesday hosted by Chris Goettl and Todd Schell
byIvanti

UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

TravelTech Paris 2025 | Beyond the pipes: Why Channel Management isn’t really...
byapidays

NTG -Company Profile_Software_Vendor_Company_in_MENA
byMustafa Kuğu

Session 1/5: Enhancing Automation with Screenplay & Business Rules
bysuhanisingh58689

From Artificial Intelligence to African Intelligence: Transforming Research &...
byMoses Kemibaro

Poročilo odbora CIS (CH08873) za leto 2025 na letni skupščini IEEE Slovenija ...
byUniversity of Maribor

Digital Twin in IBM for Accelerated Discovery of Climate & Sustainability, K...
byMichiaki Tatsubori

Automated Governance for FME Flow: Smarter Admin at Scale
bySafe Software

Security-Fails-in-the-Gaps-Between-Systems.pptx.pdf
byOhhproJunction

Automation Without Apprentices: How AI Challenges the Open Source Way
byIcinga


FISL XIV - The ELF File Format and the Linux Loader

  • 1.
    The ELF FileFormat and the Linux Loader Divino C´esar S. Lucas Universidade de Campinas - Instituto de Computac¸ ˜ao Laborat´orio de Sistemas de Computac¸ ˜ao (www.lsc.ic.unicamp.br) XIV F´orum Internacional de Software Livre 05 de Julho de 2013
  • 2.
    The ELF Format TheLinux ELF Loader Questions Agenda 1 The ELF (Executable and Linkable Format) Format 2 The Linux ELF Loader 3 Questions Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 3.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The Pieces of a Program gcc -c -O3 bob.c -o bob.o // relocatable files gcc -c -O3 main.c -o main.o gcc bob.o main.o -o hello // executable file gcc -shared -fPIC bob.c -o libhello.so // shared library gcc main.c -lhello -L. -o hello // dynamically linked executable Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 4.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments What the file looks inside? The Matrix? Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 5.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments What the file looks inside? The Matrix? Not. An ELF! Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 6.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The Executable and Linkable Format (ELF) Specification for Executable and Linkable Files. Successor of a.out and COFF formats. Besides Linux, it’s also used in: FreeBSD, OpenBSD, Solaris, HP-UX, etc. Used in many devices: PlayStation 3, Dreamcast, Some Nokia Cellphones. Support for modern programming languages and code reutilization. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 7.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The ELF Header The ELF Header typedef struct elf32 hdr { unsigned char e ident [ EI NIDENT ] ; Elf32 Half e type ; Elf32 Half e machine ; Elf32 Word e version ; Elf32 Addr e entry ; Elf32 Off e phoff ; Elf32 Off e shoff ; Elf32 Word e flags ; Elf32 Half e ehsize ; Elf32 Half e phentsize ; Elf32 Half e phnum ; Elf32 Half e shentsize ; Elf32 Half e shnum ; Elf32 Half e shstrndx ; } Elf32 Ehdr ; Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 8.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments The ELF Header - Example The ELF Header $ readelf -h executavel ELF Header: Magic: 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00 Class: ELF64 Data: 2’s complement, little endian Version: 1 (current) OS/ABI: UNIX - System V ABI Version: 0 Type: EXEC (Executable file) Machine: Advanced Micro Devices X86-64 Version: 0x1 Entry point address: 0x400410 Start of program headers: 64 (bytes into file) Start of section headers: 4440 (bytes into file) Flags: 0x0 Size of this header: 64 (bytes) Size of program headers: 56 (bytes) Number of program headers: 9 Size of section headers: 64 (bytes) Number of section headers: 30 Section header string table index: 27 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 9.

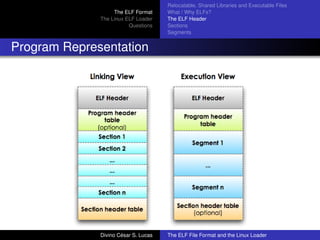

    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments Program Representation Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 10.

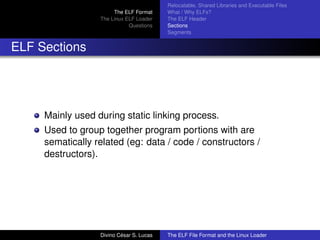

    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Sections Mainly used during static linking process. Used to group together program portions with are sematically related (eg: data / code / constructors / destructors). Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 11.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Sections - Example ELF Header Sections Table . . . .text .data .bss . . . Allice.o ELF Header Sections Table Segments Table . . . .text .text .data .data .bss .bss . . . Executable ELF Header Sections Table . . . .text .data .bss . . . Bob.o Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 12.

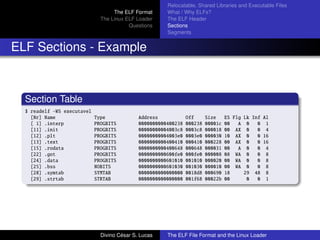

    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Sections - Example Section Table $ readelf -WS executavel [Nr] Name Type Address Off Size ES Flg Lk Inf Al [ 1] .interp PROGBITS 0000000000400238 000238 00001c 00 A 0 0 1 [11] .init PROGBITS 00000000004003c8 0003c8 000018 00 AX 0 0 4 [12] .plt PROGBITS 00000000004003e0 0003e0 000030 10 AX 0 0 16 [13] .text PROGBITS 0000000000400410 000410 000228 00 AX 0 0 16 [15] .rodata PROGBITS 0000000000400648 000648 000031 00 A 0 0 4 [22] .got PROGBITS 0000000000600fe0 000fe0 000008 08 WA 0 0 8 [24] .data PROGBITS 0000000000601010 001010 000020 00 WA 0 0 8 [25] .bss NOBITS 0000000000601030 001030 000010 00 WA 0 0 8 [28] .symtab SYMTAB 0000000000000000 0018d8 000690 18 29 48 8 [29] .strtab STRTAB 0000000000000000 001f68 00022b 00 0 0 1 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 13.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Segments Used mainly during process creation (by the dynamic loader). Used to group together sections with the same flags (all text, all data. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 14.

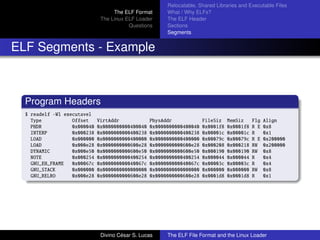

    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Segments - Example Program Headers $ readelf -Wl executavel Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align PHDR 0x000040 0x0000000000400040 0x0000000000400040 0x0001f8 0x0001f8 R E 0x8 INTERP 0x000238 0x0000000000400238 0x0000000000400238 0x00001c 0x00001c R 0x1 LOAD 0x000000 0x0000000000400000 0x0000000000400000 0x00079c 0x00079c R E 0x200000 LOAD 0x000e28 0x0000000000600e28 0x0000000000600e28 0x000208 0x000218 RW 0x200000 DYNAMIC 0x000e50 0x0000000000600e50 0x0000000000600e50 0x000190 0x000190 RW 0x8 NOTE 0x000254 0x0000000000400254 0x0000000000400254 0x000044 0x000044 R 0x4 GNU_EH_FRAME 0x00067c 0x000000000040067c 0x000000000040067c 0x00003c 0x00003c R 0x4 GNU_STACK 0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW 0x8 GNU_RELRO 0x000e28 0x0000000000600e28 0x0000000000600e28 0x0001d8 0x0001d8 R 0x1 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 15.
    The ELF Format TheLinux ELF Loader Questions Relocatable, Shared Libraries and Executable Files What / Why ELFs? The ELF Header Sections Segments ELF Segments - Sections to Segments Mapping from Sections to Segments $ readelf -Wl executavel 00 01 .interp 02 .interp .gnu.hash .dynsym .dynstr .rela.dyn .rela.plt .init .plt .text .fini .rodata 03 .ctors .dtors .jcr .dynamic .got .got.plt .data .bss 04 .dynamic 05 .note.ABI-tag .note.gnu.build-id 06 .eh_frame_hdr 07 08 .ctors .dtors .jcr .dynamic .got Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 16.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. How a Process Start? Function File Comment Shell/GUI user application Executes fork() to create a news process and execve() to replace the child. execve fs/exec.c Do some preprocessing stuff and calls search binary handler. search binary handler fs/exec.c Identify which type is the binary and calls the appropriate handler. load elf binary fs/binfmt elf.c Validate the binary file and do some preprocessing. start thread arch/x86/kernel/process.c Start a new thread of execution. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 17.

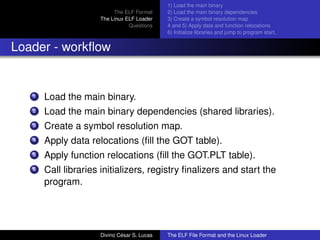

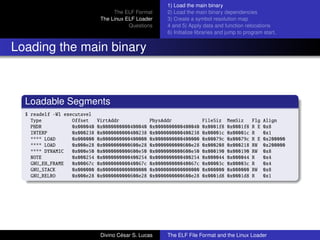

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Loader - workflow 1 Load the main binary. 2 Load the main binary dependencies (shared libraries). 3 Create a symbol resolution map. 4 Apply data relocations (fill the GOT table). 5 Apply function relocations (fill the GOT.PLT table). 6 Call libraries initializers, registry finalizers and start the program. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 18.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Loading the main binary Loadable Segments $ readelf -Wl executavel Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align PHDR 0x000040 0x0000000000400040 0x0000000000400040 0x0001f8 0x0001f8 R E 0x8 INTERP 0x000238 0x0000000000400238 0x0000000000400238 0x00001c 0x00001c R 0x1 **** LOAD 0x000000 0x0000000000400000 0x0000000000400000 0x00079c 0x00079c R E 0x200000 **** LOAD 0x000e28 0x0000000000600e28 0x0000000000600e28 0x000208 0x000218 RW 0x200000 **** DYNAMIC 0x000e50 0x0000000000600e50 0x0000000000600e50 0x000190 0x000190 RW 0x8 NOTE 0x000254 0x0000000000400254 0x0000000000400254 0x000044 0x000044 R 0x4 GNU_EH_FRAME 0x00067c 0x000000000040067c 0x000000000040067c 0x00003c 0x00003c R 0x4 GNU_STACK 0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW 0x8 GNU_RELRO 0x000e28 0x0000000000600e28 0x0000000000600e28 0x0001d8 0x0001d8 R 0x1 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 19.

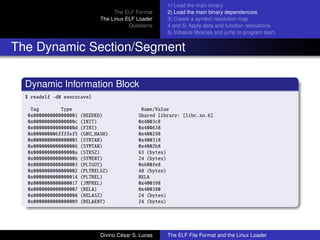

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. The Dynamic Section/Segment Dynamic Information Block $ readelf -dW executavel Tag Type Name/Value 0x0000000000000001 (NEEDED) Shared library: [libc.so.6] 0x000000000000000c (INIT) 0x4003c8 0x000000000000000d (FINI) 0x400638 0x000000006ffffef5 (GNU_HASH) 0x400298 0x0000000000000005 (STRTAB) 0x400318 0x0000000000000006 (SYMTAB) 0x4002b8 0x000000000000000a (STRSZ) 63 (bytes) 0x000000000000000b (SYMENT) 24 (bytes) 0x0000000000000003 (PLTGOT) 0x600fe8 0x0000000000000002 (PLTRELSZ) 48 (bytes) 0x0000000000000014 (PLTREL) RELA 0x0000000000000017 (JMPREL) 0x400398 0x0000000000000007 (RELA) 0x400380 0x0000000000000008 (RELASZ) 24 (bytes) 0x0000000000000009 (RELAENT) 24 (bytes) Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 20.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Dependences from my dependences... Executable libz.so liby.so ... libc.so libb.so liba.so libb.so libe.so libd.so libc.so liby.so libg.so libf.so libe.so Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 21.

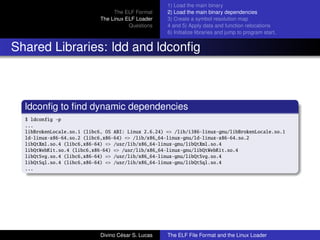

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Shared Libraries: ldd and ldconfig ldconfig to find dynamic dependencies $ ldconfig -p ... libBrokenLocale.so.1 (libc6, OS ABI: Linux 2.6.24) => /lib/i386-linux-gnu/libBrokenLocale.so.1 ld-linux-x86-64.so.2 (libc6,x86-64) => /lib/x86_64-linux-gnu/ld-linux-x86-64.so.2 libQtXml.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtXml.so.4 libQtWebKit.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtWebKit.so.4 libQtSvg.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtSvg.so.4 libQtSql.so.4 (libc6,x86-64) => /usr/lib/x86_64-linux-gnu/libQtSql.so.4 ... Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 22.

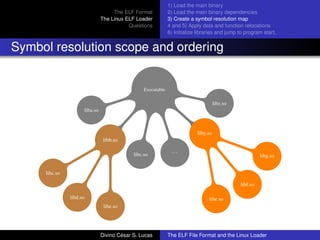

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Process Address Space Executable (.text) Executable (.data) Executable ( .bss) HEAP Library-A (.text) Library-A (.data) Library-A ( .bss) Library-B (.text) Library-B (.data) Library-B ( .bss) STACK Lower Addresses Higher Addresses Process Address Space Fixed distance Fixed distance Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 23.

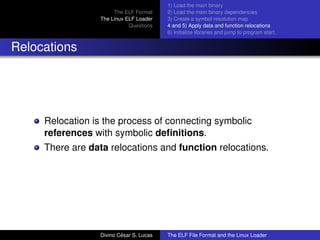

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Symbol resolution scope and ordering Executable libz.so liby.so ... libc.so libb.so liba.so libb.so libe.so libd.so libc.so liby.so libg.so libf.so libe.so Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 24.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations Relocation is the process of connecting symbolic references with symbolic definitions. There are data relocations and function relocations. Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 25.

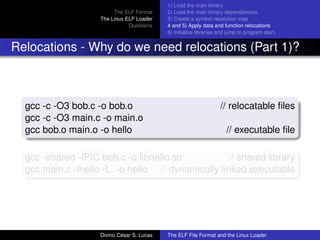

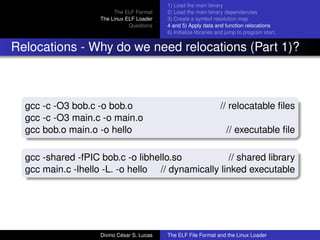

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Why do we need relocations (Part 1)? gcc -c -O3 bob.c -o bob.o // relocatable files gcc -c -O3 main.c -o main.o gcc bob.o main.o -o hello // executable file gcc -shared -fPIC bob.c -o libhello.so // shared library gcc main.c -lhello -L. -o hello // dynamically linked executable Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 26.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Why do we need relocations (Part 1)? gcc -c -O3 bob.c -o bob.o // relocatable files gcc -c -O3 main.c -o main.o gcc bob.o main.o -o hello // executable file gcc -shared -fPIC bob.c -o libhello.so // shared library gcc main.c -lhello -L. -o hello // dynamically linked executable Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 27.

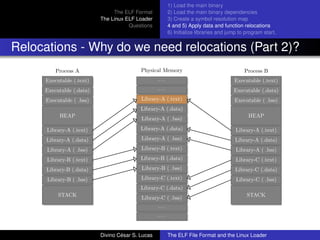

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Why do we need relocations (Part 2)? Executable (.text) Executable (.data) Executable ( .bss) HEAP Library-A (.text) Library-A (.data) Library-A ( .bss) Library-B (.text) Library-B (.data) Library-B ( .bss) STACK Process A . . . . . . Library-A (.text) Library-A (.data) Library-A ( .bss) Library-A (.data) Library-A ( .bss) Library-B (.text) Library-B (.data) Library-B ( .bss) Library-C (.text) Library-C (.data) Library-C ( .bss) . . . . . . Physical Memory Executable (.text) Executable (.data) Executable ( .bss) HEAP Library-A (.text) Library-A (.data) Library-A ( .bss) Library-C (.text) Library-C (.data) Library-C ( .bss) STACK Process B Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 28.

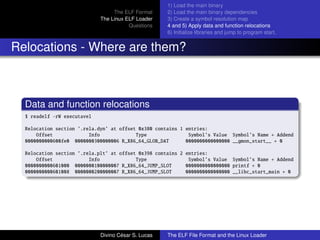

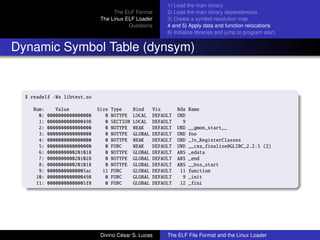

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Relocations - Where are them? Data and function relocations $ readelf -rW executavel Relocation section ’.rela.dyn’ at offset 0x380 contains 1 entries: Offset Info Type Symbol’s Value Symbol’s Name + Addend 0000000000600fe0 0000000300000006 R_X86_64_GLOB_DAT 0000000000000000 __gmon_start__ + 0 Relocation section ’.rela.plt’ at offset 0x398 contains 2 entries: Offset Info Type Symbol’s Value Symbol’s Name + Addend 0000000000601000 0000000100000007 R_X86_64_JUMP_SLOT 0000000000000000 printf + 0 0000000000601008 0000000200000007 R_X86_64_JUMP_SLOT 0000000000000000 __libc_start_main + 0 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 29.

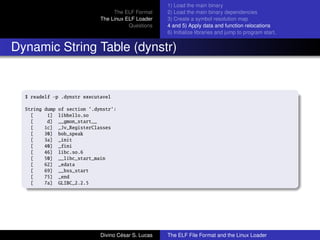

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Dynamic Symbol Table (dynsym) $ readelf -Ws libtest.so Num: Value Size Type Bind Vis Ndx Name 0: 0000000000000000 0 NOTYPE LOCAL DEFAULT UND 1: 0000000000000498 0 SECTION LOCAL DEFAULT 9 2: 0000000000000000 0 NOTYPE WEAK DEFAULT UND __gmon_start__ 3: 0000000000000000 0 NOTYPE GLOBAL DEFAULT UND foo 4: 0000000000000000 0 NOTYPE WEAK DEFAULT UND _Jv_RegisterClasses 5: 0000000000000000 0 FUNC WEAK DEFAULT UND __cxa_finalize@GLIBC_2.2.5 (2) 6: 0000000000201018 0 NOTYPE GLOBAL DEFAULT ABS _edata 7: 0000000000201028 0 NOTYPE GLOBAL DEFAULT ABS _end 8: 0000000000201018 0 NOTYPE GLOBAL DEFAULT ABS __bss_start 9: 00000000000005ac 11 FUNC GLOBAL DEFAULT 11 function 10: 0000000000000498 0 FUNC GLOBAL DEFAULT 9 _init 11: 00000000000005f8 0 FUNC GLOBAL DEFAULT 12 _fini Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 30.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Dynamic String Table (dynstr) $ readelf -p .dynstr executavel String dump of section ’.dynstr’: [ 1] libhello.so [ d] __gmon_start__ [ 1c] _Jv_RegisterClasses [ 30] bob_speak [ 3a] _init [ 40] _fini [ 46] libc.so.6 [ 50] __libc_start_main [ 62] _edata [ 69] __bss_start [ 75] _end [ 7a] GLIBC_2.2.5 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 31.

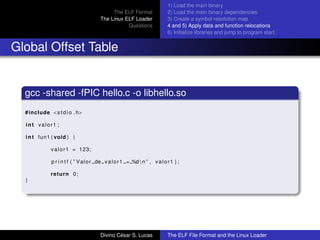

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table gcc -shared -fPIC hello.c -o libhello.so #include <stdio . h> int valor1 ; int fun1 ( void ) { valor1 = 123; p r i n t f ( ” Valor de valor1 = %dn ” , valor1 ) ; return 0; } Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 32.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table objdump -d libhello.so 5f0 : mov 0x2009d9(% r i p ),% rax # 200fd0 < DYNAMIC+0x188> 5f7 : movl $0x7b ,(% rax ) Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 33.

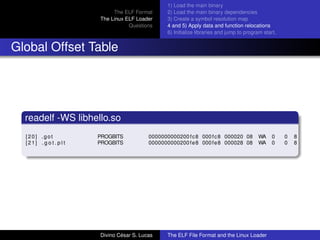

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table readelf -WS libhello.so [20] .got PROGBITS 0000000000200 fc8 000fc8 000020 08 WA 0 0 8 [21] . g o t . p l t PROGBITS 0000000000200fe8 000fe8 000028 08 WA 0 0 8 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 34.

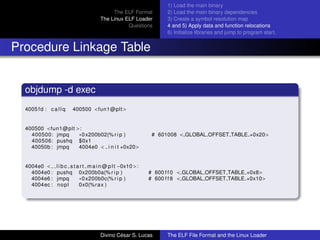

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Global Offset Table readelf -Wr libhello.so Relocation section ’.rela.dyn’ at offset 0x428 contains 5 entries: Offset Info Type Symbol’s Value Symbol’s Name + Addend ... 0000000000200fd0 0000000c00000006 R_X86_64_GLOB_DAT 0000000000201028 valor1 + 0 ... Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 35.

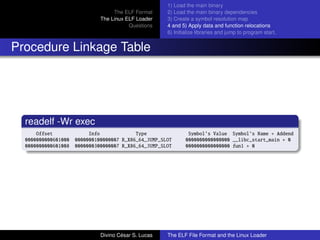

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Procedure Linkage Table objdump -d exec 4005 fd : c a l l q 400500 <fun1@plt> 400500 <fun1@plt >: 400500: jmpq ∗0x200b02(% r i p ) # 601008 < GLOBAL OFFSET TABLE +0x20> 400506: pushq $0x1 40050b : jmpq 4004e0 < i n i t +0x20> 4004e0 < l i b c s t a r t m a i n @ p l t −0x10 >: 4004e0 : pushq 0x200b0a(% r i p ) # 600 f f 0 < GLOBAL OFFSET TABLE +0x8> 4004e6 : jmpq ∗0x200b0c(% r i p ) # 600 f f 8 < GLOBAL OFFSET TABLE +0x10> 4004ec : nopl 0x0(%rax ) Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 36.
    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Procedure Linkage Table readelf -Wr exec Offset Info Type Symbol’s Value Symbol’s Name + Addend 0000000000601000 0000000100000007 R_X86_64_JUMP_SLOT 0000000000000000 __libc_start_main + 0 0000000000601008 0000000300000007 R_X86_64_JUMP_SLOT 0000000000000000 fun1 + 0 Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 37.

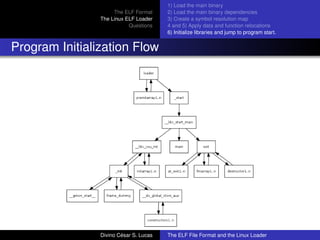

    The ELF Format TheLinux ELF Loader Questions 1) Load the main binary 2) Load the main binary dependencies 3) Create a symbol resolution map 4 and 5) Apply data and function relocations 6) Initialize libraries and jump to program start. Program Initialization Flow Divino C´esar S. Lucas The ELF File Format and the Linux Loader
  • 38.
    The ELF Format TheLinux ELF Loader Questions Thank you! Questions? divcesar [at] gmail [dot] com http://johntortugo.wordpress.com Divino C´esar S. Lucas The ELF File Format and the Linux Loader
