ELF Binary format 101

1. ELF 101
cmj
1

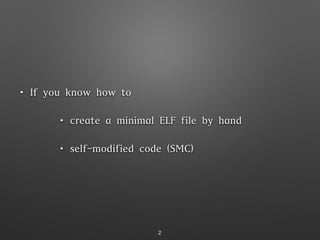

2. • If you know how to
• create a minimal ELF file by hand
• self-modified code (SMC)
2

3. You can pass this slides !
3

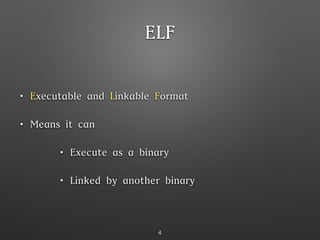

4. ELF
• Executable and Linkable Format
• Means it can
• Execute as a binary
• Linked by another binary
4

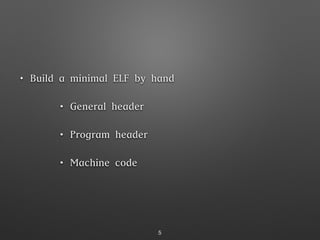

5. • Build a minimal ELF by hand
• General header
• Program header
• Machine code
5

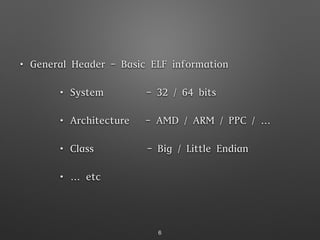

6. • General Header - Basic ELF information
• System - 32 / 64 bits
• Architecture - AMD / ARM / PPC / …
• Class - Big / Little Endian
• … etc
6

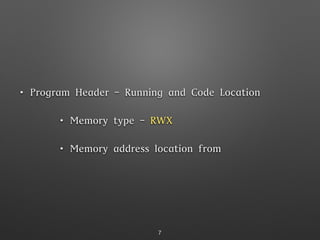

7. • Program Header - Running and Code Location
• Memory type - RWX
• Memory address location from
7

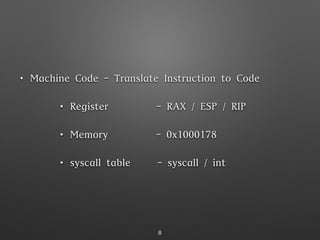

8. • Machine Code - Translate Instruction to Code
• Register - RAX / ESP / RIP
• Memory - 0x1000178
• syscall table - syscall / int
8

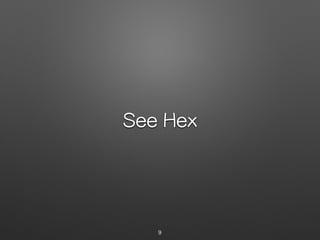

9. See Hex
9

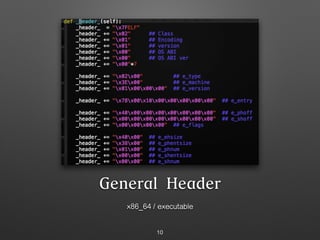

10. General Header
x86_64 / executable
10

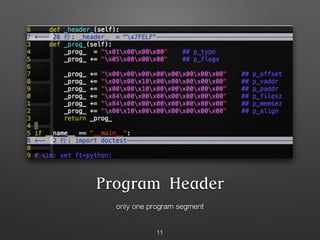

11. Program Header
only one program segment
11

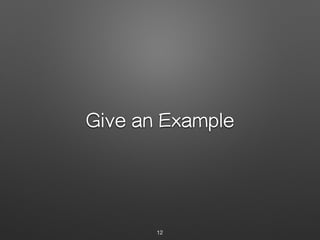

12. Give an Example
12

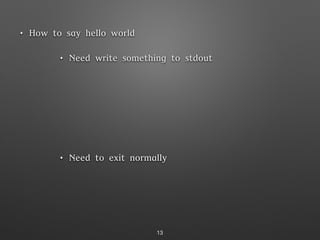

13. • How to say hello world
• Need write something to stdout
• Write string into men
• Setup register
• Call syscall
• Need to exit normally
• Setup register
• Call syscall
13

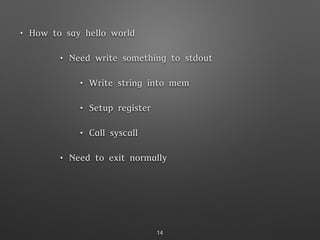

14. • How to say hello world
• Need write something to stdout
• Write string into mem
• Setup register
• Call syscall
• Need to exit normally
• Setup register
• Call syscall
14

15. • How to say hello world
• Need write something to stdout
• Write string into mem
• Setup register
• Call syscall
• Need to exit normally
• Setup register
• Call syscall
15

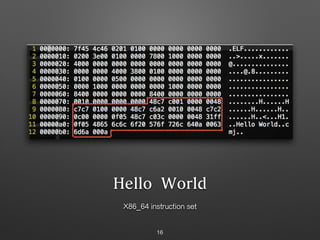

16. Hello World
X86_64 instruction set
16

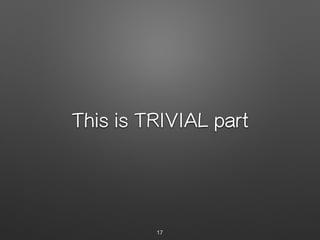

17. This is TRIVIAL part
17

18. Next Part
~ Self-Modify ~
18

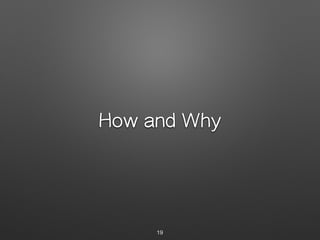

19. How and Why
19

20. • How
• The normal way - Write something into men
• The abnormal way - Write something into mem
20

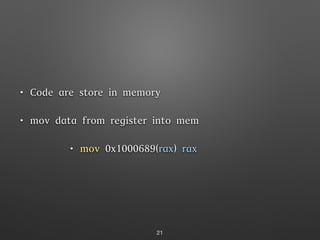

21. • Code are store in memory
• mov data from register into mem
• mov 0x1000689(rax) rax
21

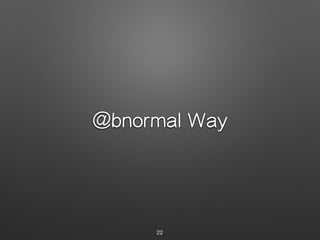

22. @bnormal Way
22

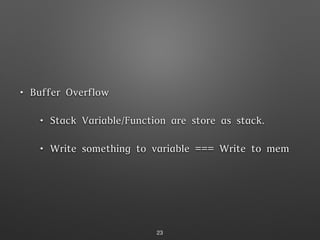

23. • Buffer Overflow
• Stack Variable/Function are store as stack.
• Write something to variable === Write to mem
23

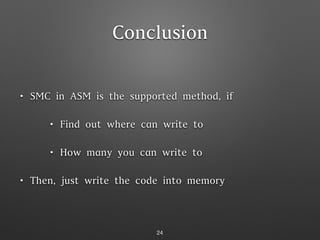

24. Conclusion
• SMC in ASM is the supported method, if
• Find out where can write to
• How many you can write to
• Then, just write the code into memory
24

25. Thanks for your attention ~
25
