ELF(executable and linkable format)

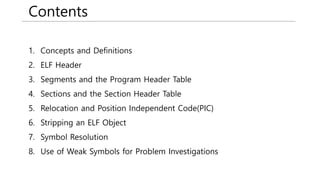

Contents
1. Concepts and Definitions
2. ELF Header
3. Segments and the Program Header Table
4. Sections and the Section Header Table
5. Relocation and Position Independent Code(PIC)

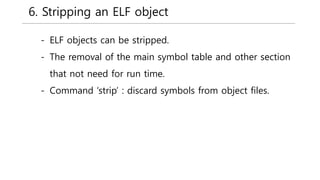

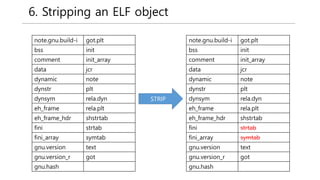

6. Stripping an ELF Object

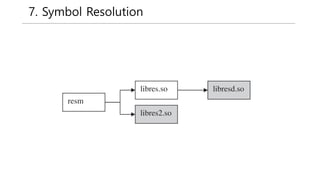

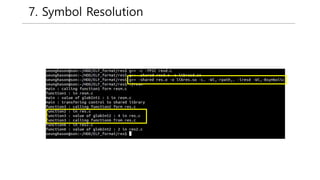

7. Symbol Resolution

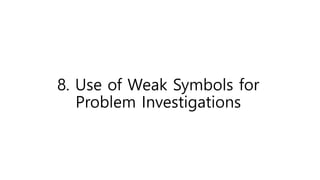

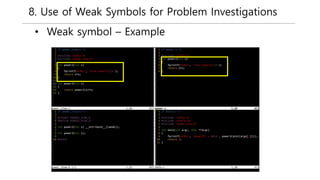

8. Use of Weak Symbols for Problem Investigations

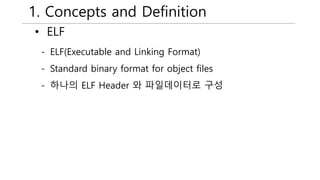

1. Concepts and Definition
• ELF
- ELF(Executable and Linking Format)
- Standard binary format for object files
- 하나의 ELF Header 와 파일데이터로 구성

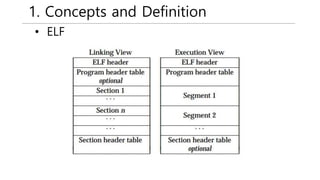

• ELF

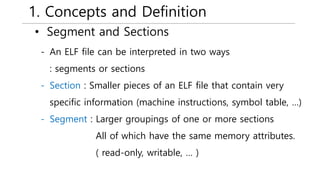

• Segment and Sections
- An ELF file can be interpreted in two ways
: segments or sections
- Section : Smaller pieces of an ELF file that contain very
specific information (machine instructions, symbol table, …)
- Segment : Larger groupings of one or more sections
All of which have the same memory attributes.
( read-only, writable, … )

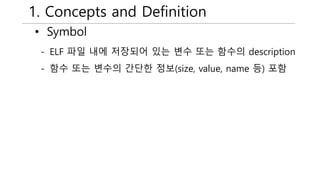

• Symbol
- ELF 파일 내에 저장되어 있는 변수 또는 함수의 description
- 함수 또는 변수의 간단한 정보(size, value, name 등) 포함

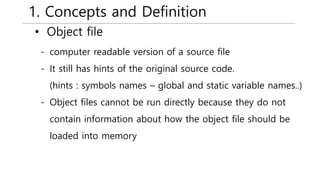

• Object file
- computer readable version of a source file
- It still has hints of the original source code.
(hints : symbols names – global and static variable names..)
- Object files cannot be run directly because they do not
contain information about how the object file should be
loaded into memory

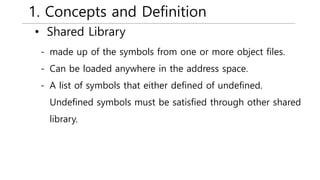

• Shared Library
- made up of the symbols from one or more object files.
- Can be loaded anywhere in the address space.
- A list of symbols that either defined of undefined.
Undefined symbols must be satisfied through other shared
library.

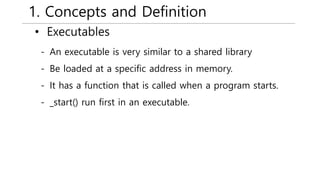

• Executables
- An executable is very similar to a shared library
- Be loaded at a specific address in memory.
- It has a function that is called when a program starts.
- _start() run first in an executable.

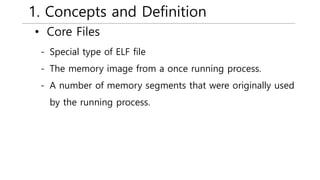

• Core Files
- Special type of ELF file
- The memory image from a once running process.
- A number of memory segments that were originally used
by the running process.

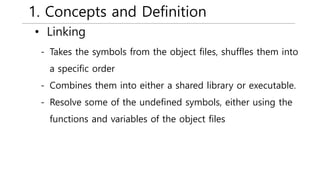

• Linking
- Takes the symbols from the object files, shuffles them into
a specific order
- Combines them into either a shared library or executable.
- Resolve some of the undefined symbols, either using the
functions and variables of the object files

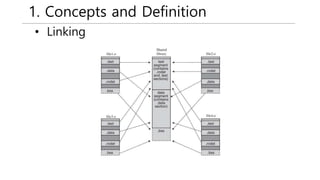

• Linking

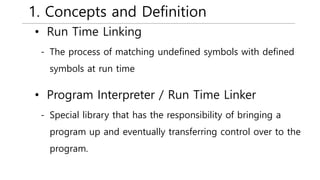

• Run Time Linking
- The process of matching undefined symbols with defined
symbols at run time
• Program Interpreter / Run Time Linker
- Special library that has the responsibility of bringing a
program up and eventually transferring control over to the
program.

2. ELF Header

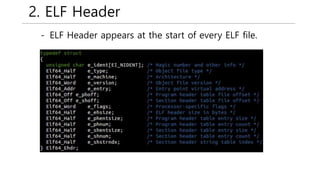

- ELF Header appears at the start of every ELF file.

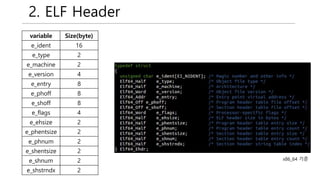

2. ELF Header
variable Size(byte)
e_ident 16
e_type 2
e_machine 2
e_version 4
e_entry 8
e_phoff 8
e_shoff 8
e_flags 4
e_ehsize 2
e_phentsize 2
e_phnum 2
e_shentsize 2
e_shnum 2
e_shstrndx 2
x86_64 기준

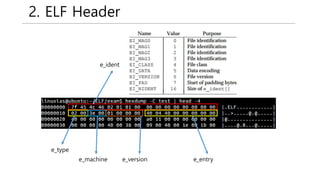

2. ELF Header
e_ident
e_type
e_machine e_version e_entry

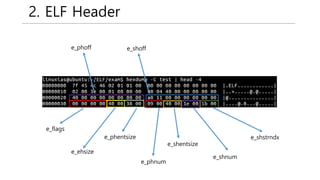

2. ELF Header
e_phoff e_shoff
e_flags
e_ehsize
e_phentsize
e_phnum
e_shentsize
e_shnum
e_shstrndx

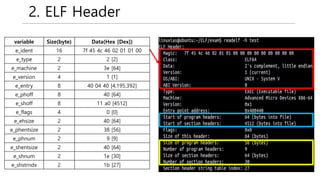

2. ELF Header
variable Size(byte) Data(Hex [Dex])
e_ident 16 7f 45 4c 46 02 01 01 00
e_type 2 2 [2]
e_machine 2 3e [64]
e_version 4 1 [1]
e_entry 8 40 04 40 [4,195,392]
e_phoff 8 40 [64]
e_shoff 8 11 a0 [4512]
e_flags 4 0 [0]
e_ehsize 2 40 [64]
e_phentsize 2 38 [56]
e_phnum 2 9 [9]
e_shentsize 2 40 [64]
e_shnum 2 1e [30]
e_shstrndx 2 1b [27]

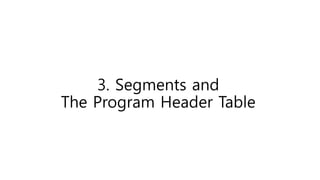

3. Segments and
The Program Header Table

3. Segments and The Program Header Table
- Program Header Table contains information about the
segments in an ELF file and how to load them into memory
(segments : contiguous ranges of an ELF file that have the
same memory attribution.)

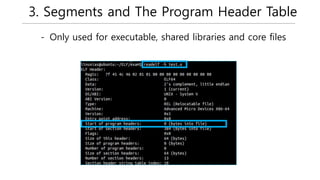

- Only used for executable, shared libraries and core files

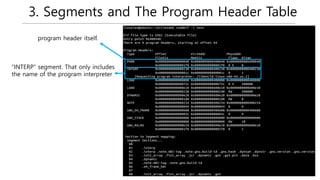

• Element in the 64-bit program header table

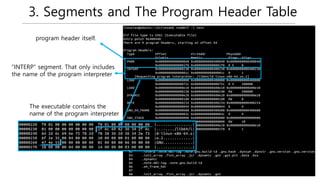

program header itself.
“INTERP” segment. That only includes
the name of the program interpreter

program header itself.
“INTERP” segment. That only includes
the name of the program interpreter
The executable contains the
name of the program interpreter

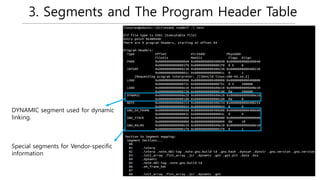

DYNAMIC segment used for dynamic
linking.
Special segments for Vendor-specific
information

LOAD segment
: Loadable program segment
Note Segment
: The array element specifies the location
and size of auxiliary infomation

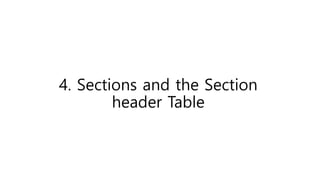

4. Sections and the Section
header Table

- Information about every part of an ELF file
(except the ELF Header, Program H.T , Section H.T itself)
- List of section header structures, each defining a different
section in the ELF file.
• Section header Table

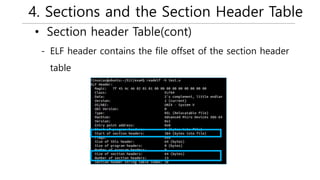

- ELF header contains the file offset of the section header
table
• Section header Table(cont)

• String Table Format
- A list of all strings that are used by the ELF file.
- A number of string tables in an ELF file
(dynamic symbol table, main symbol table, section header names)
<string1>0<string2>0<string3>0…<string>00

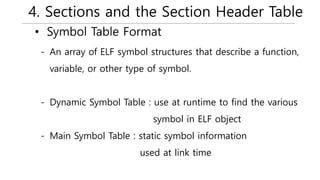

• Symbol Table Format
- An array of ELF symbol structures that describe a function,
variable, or other type of symbol.
- Dynamic Symbol Table : use at runtime to find the various
symbol in ELF object
- Main Symbol Table : static symbol information
used at link time

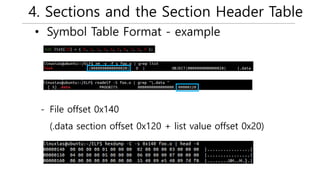

• Symbol Table Format - example
- File offset 0x140
(.data section offset 0x120 + list value offset 0x20)

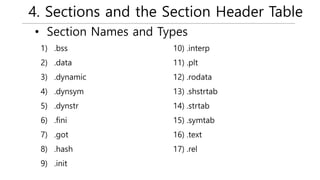

• Section Names and Types
1) .bss
2) .data
3) .dynamic
4) .dynsym
5) .dynstr
6) .fini
7) .got
8) .hash
9) .init
10) .interp
11) .plt
12) .rodata
13) .shstrtab
14) .strtab
15) .symtab
16) .text
17) .rel

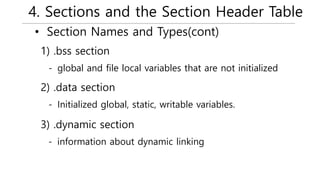

• Section Names and Types(cont)
- global and file local variables that are not initialized
1) .bss section
- Initialized global, static, writable variables.
2) .data section
- information about dynamic linking
3) .dynamic section

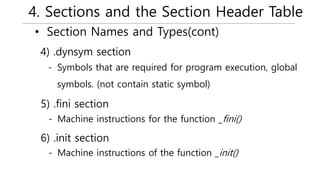

- Symbols that are required for program execution, global
symbols. (not contain static symbol)
4) .dynsym section
- Machine instructions for the function _fini()
5) .fini section
- Machine instructions of the function _init()
6) .init section

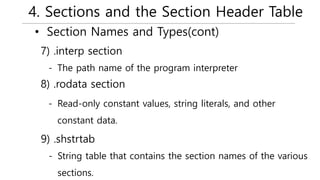

- The path name of the program interpreter
7) .interp section
- Read-only constant values, string literals, and other
constant data.
8) .rodata section
- String table that contains the section names of the various
sections.
9) .shstrtab

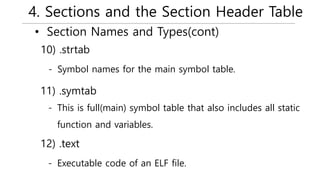

- Symbol names for the main symbol table.
10) .strtab
- This is full(main) symbol table that also includes all static
function and variables.
11) .symtab
- Executable code of an ELF file.
12) .text

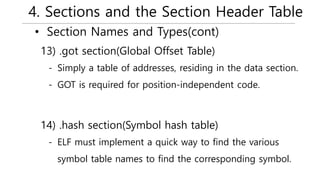

- Simply a table of addresses, residing in the data section.
- GOT is required for position-independent code.
13) .got section(Global Offset Table)
- ELF must implement a quick way to find the various
symbol table names to find the corresponding symbol.

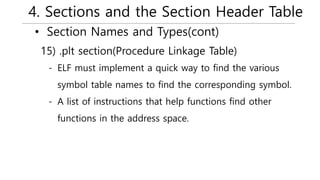

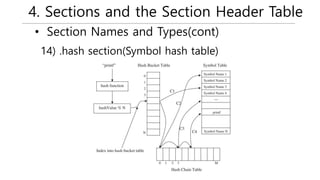

14) .hash section(Symbol hash table)

14) .hash section(Symbol hash table)

- ELF must implement a quick way to find the various
symbol table names to find the corresponding symbol.
- A list of instructions that help functions find other
functions in the address space.
15) .plt section(Procedure Linkage Table)

- Prefixed by the section name that they will be
operation on.
- Relocation is a critical part of ELF
: it allows shared libraries to be loaded anywhere in the
address space.

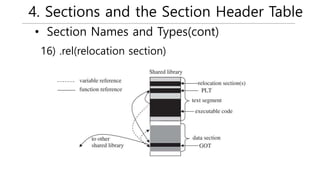

16) .rel(relocation section)

16) .rel(relocation section)

5. Relocation and Position
Independent Code(PIC)

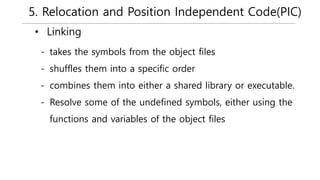

• Linking
- takes the symbols from the object files
- shuffles them into a specific order
- combines them into either a shared library or executable.
- Resolve some of the undefined symbols, either using the
functions and variables of the object files

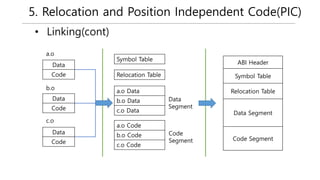

• Linking(cont)
Data
Code
Data
Code
Data
Code
a.o
b.o
c.o
a.o Data
b.o Data
c.o Data
a.o Code
b.o Code
c.o Code
Symbol Table
Relocation Table
Data
Segment
Code
Segment
ABI Header
Symbol Table
Relocation Table
Data Segment
Code Segment

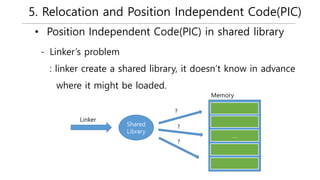

• Position Independent Code(PIC) in shared library
- Linker’s problem
: linker create a shared library, it doesn’t know in advance
where it might be loaded.
Linker
….
Shared
Library
?
?
?
Memory

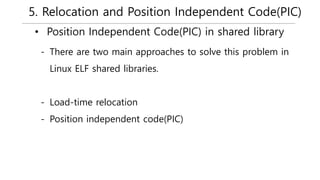

• Position Independent Code(PIC) in shared library
- There are two main approaches to solve this problem in
Linux ELF shared libraries.
- Load-time relocation
- Position independent code(PIC)

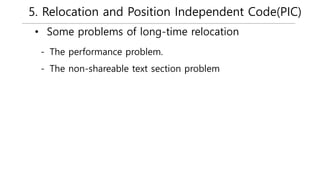

• Some problems of long-time relocation
- The performance problem.
- The non-shareable text section problem

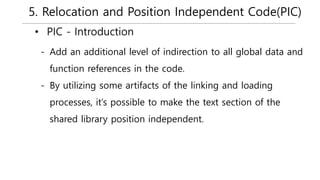

• PIC - Introduction
- Add an additional level of indirection to all global data and
function references in the code.
- By utilizing some artifacts of the linking and loading
processes, it’s possible to make the text section of the
shared library position independent.

• PIC – Introduction(cont)
- The linker knows both about the sizes of the sections and
about their relative locations.

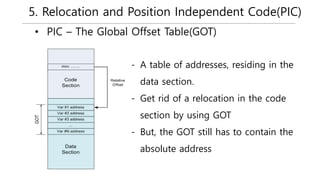

• PIC – The Global Offset Table(GOT)
- A table of addresses, residing in the
data section.
- Get rid of a relocation in the code
section by using GOT
- But, the GOT still has to contain the
absolute address

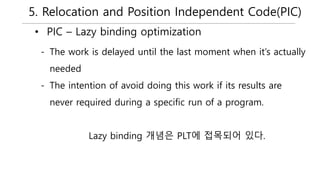

• PIC – Lazy binding optimization
- The work is delayed until the last moment when it’s actually
needed
- The intention of avoid doing this work if its results are
never required during a specific run of a program.
Lazy binding 개념은 PLT에 접목되어 있다.

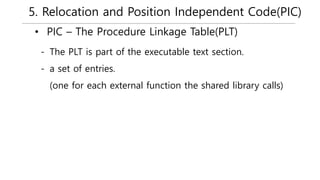

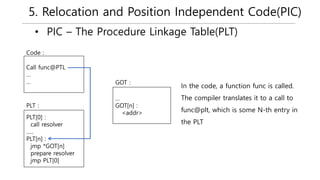

• PIC – The Procedure Linkage Table(PLT)
- The PLT is part of the executable text section.
- a set of entries.
(one for each external function the shared library calls)

Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :
…
GOT[n] :
<addr>
GOT :
In the code, a function func is called.
The compiler translates it to a call to
func@plt, which is some N-th entry in
the PLT

Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :
…
GOT[n] :
<addr>
GOT :

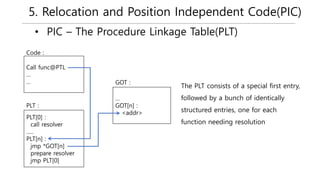

The PLT consists of a special first entry,
followed by a bunch of identically
structured entries, one for each
function needing resolution

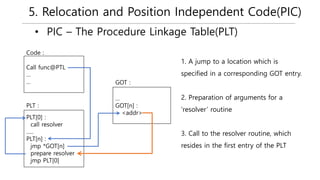

Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :
…
GOT[n] :
<addr>
GOT :
1. A jump to a location which is
specified in a corresponding GOT entry.
2. Preparation of arguments for a
‘resolver’ routine
3. Call to the resolver routine, which
resides in the first entry of the PLT

Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :
…
GOT[n] :
<addr>
GOT :

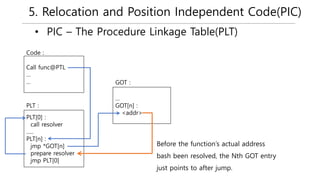

Before the function’s actual address
bash been resolved, the Nth GOT entry
just points to after jump.

Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :
…
GOT[n] :
<addr>
GOT :

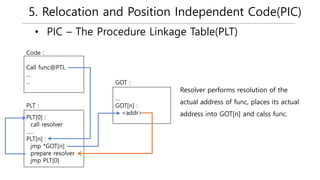

Resolver performs resolution of the
actual address of func, places its actual
address into GOT[n] and calss func.

Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :
…
GOT[n] :
<addr>
GOT :

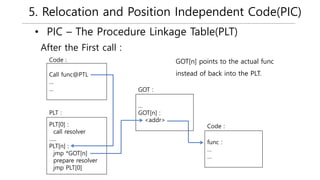

After the First call :
func :
…
…
Code :
GOT[n] points to the actual func
instead of back into the PLT.

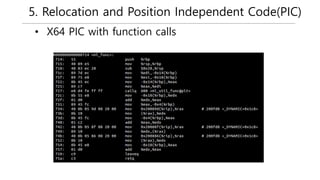

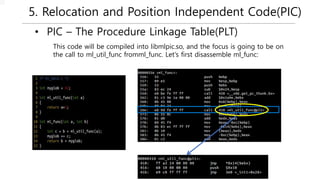

This code will be compiled into libmlpic.so, and the focus is going to be on
the call to ml_util_func fromml_func. Let's first disassemble ml_func:

- A jump to an address specified in GOT
- Preparation of arguments for the resolver
- Call to the resolver
Call func@PTL
…
…
PLT[0] :
call resolver
…..
PLT[n] :
jmp *GOT[n]
prepare resolver
jmp PLT[0]
Code :
PLT :

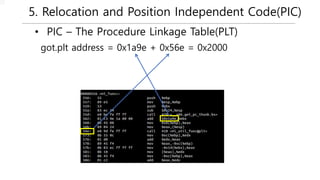

got.plt address = 0x1a9e + 0x56e = 0x2000

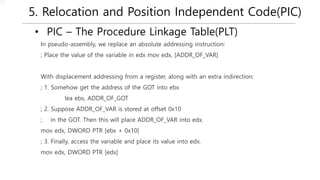

In pseudo-assembly, we replace an absolute addressing instruction:
; Place the value of the variable in edx mov edx, [ADDR_OF_VAR]
With displacement addressing from a register, along with an extra indirection:
; 1. Somehow get the address of the GOT into ebx
lea ebx, ADDR_OF_GOT
; 2. Suppose ADDR_OF_VAR is stored at offset 0x10
; in the GOT. Then this will place ADDR_OF_VAR into edx.
mov edx, DWORD PTR [ebx + 0x10]
; 3. Finally, access the variable and place its value into edx.
mov edx, DWORD PTR [edx]

got.plt address = 0x1a9e + 0x56e = 0x2000
got.plt address of ml_func_util
= 0x1a9e + 0x56e + offset = 0x2014

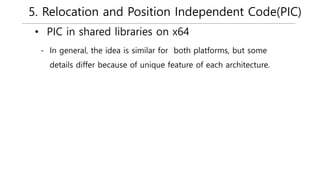

• PIC in shared libraries on x64
- In general, the idea is similar for both platforms, but some
details differ because of unique feature of each architecture.

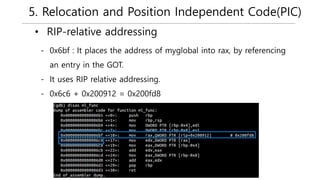

• RIP-relative addressing
- 0x6bf : It places the address of myglobal into rax, by referencing
an entry in the GOT.
- It uses RIP relative addressing.
- 0x6c6 + 0x200912 = 0x200fd8

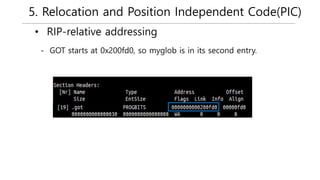

- GOT starts at 0x200fd0, so myglob is in its second entry.

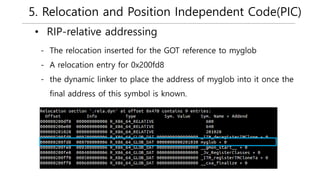

- The relocation inserted for the GOT reference to myglob
- A relocation entry for 0x200fd8
- the dynamic linker to place the address of myglob into it once the
final address of this symbol is known.

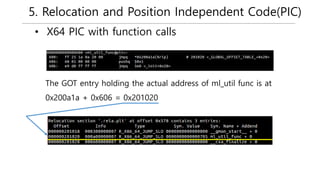

• X64 PIC with function calls

• X64 PIC with function calls
The GOT entry holding the actual address of ml_util func is at
0x200a1a + 0x606 = 0x201020

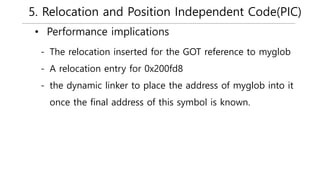

• Performance implications
- The relocation inserted for the GOT reference to myglob
- A relocation entry for 0x200fd8
- the dynamic linker to place the address of myglob into it
once the final address of this symbol is known.

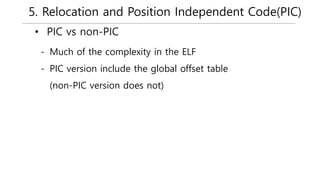

• PIC vs non-PIC
- Much of the complexity in the ELF
- PIC version include the global offset table
(non-PIC version does not)

• PIC in shared libraries on x64
- In general, the idea is similar for both platforms,
but some details differ because of unique feature
of each architecture.
- RIP-relative addressing mode

6. Stripping an ELF object
- ELF objects can be stripped.
- The removal of the main symbol table and other section
that not need for run time.
- Command ‘strip’ : discard symbols from object files.

Strip

note.gnu.build-i got.plt
bss init
comment init_array
data jcr
dynamic note
dynstr plt
dynsym rela.dyn
eh_frame rela.plt
eh_frame_hdr shstrtab
fini strtab
fini_array symtab
gnu.version text
gnu.version_r got
gnu.hash
note.gnu.build-i got.plt
bss init
comment init_array
data jcr
dynamic note
dynstr plt
dynsym rela.dyn
eh_frame rela.plt
eh_frame_hdr shstrtab
fini strtab
fini_array symtab
gnu.version text
gnu.version_r got
gnu.hash
STRIP

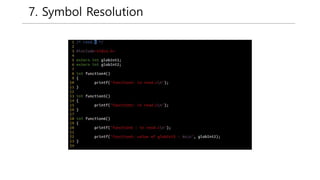

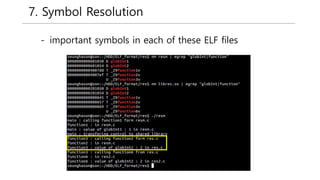

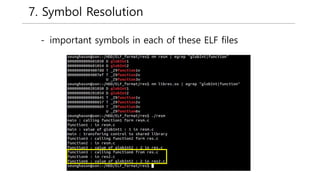

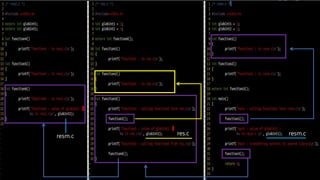

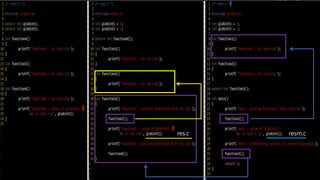

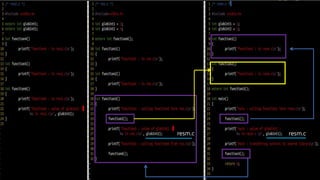

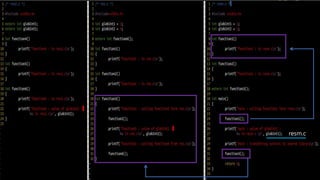

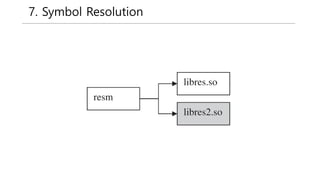

- important symbols in each of these ELF files

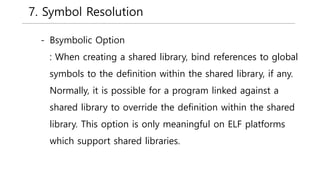

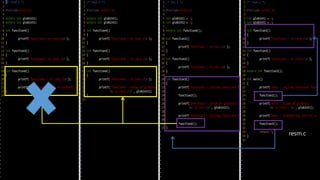

- Bsymbolic Option
: When creating a shared library, bind references to global
symbols to the definition within the shared library, if any.
Normally, it is possible for a program linked against a
shared library to override the definition within the shared
library. This option is only meaningful on ELF platforms
which support shared libraries.

8. Use of Weak Symbols for
Problem Investigations

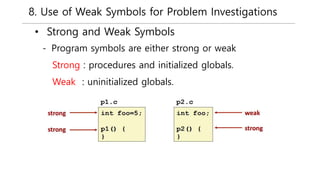

• Strong and Weak Symbols
- Program symbols are either strong or weak
Strong : procedures and initialized globals.
Weak : uninitialized globals.

• Linker’s Symbol Rules
Rule 1 : Multiple strong symbols are not allowd
- Each item can be defined only once.
- Otherwise : Linker error
Rule 2 : Given a strong symbol and multiple weak symbol,
choose the strong symbol
- References to the weak symbol resolve to the strong symbol
Rule 3 : If there are multiple weak symbols, pick an arbitrary one
- Can override this with gcc –fno-common

• Linker’s Puzzle

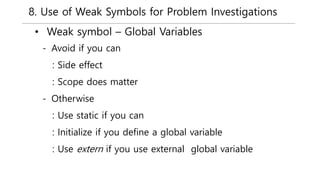

• Weak symbol – Global Variables
- Avoid if you can
: Side effect
: Scope does matter
- Otherwise
: Use static if you can
: Initialize if you define a global variable
: Use extern if you use external global variable

• Weak symbol - Syntax

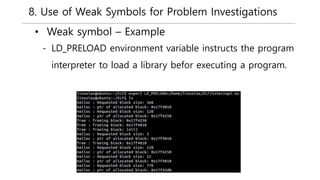

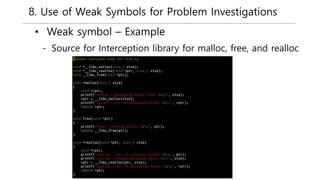

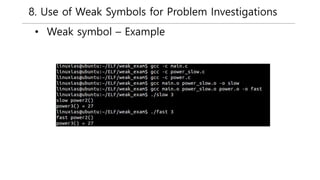

• Weak symbol – Example

slow fast

- Source for Interception library for malloc, free, and realloc

- LD_PRELOAD environment variable instructs the program
interpreter to load a library befor executing a program.

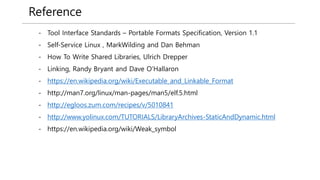

Reference
- Tool Interface Standards – Portable Formats Specification, Version 1.1
- Self-Service Linux , MarkWilding and Dan Behman
- How To Write Shared Libraries, Ulrich Drepper
- Linking, Randy Bryant and Dave O’Hallaron
- https://en.wikipedia.org/wiki/Executable_and_Linkable_Format
- http://man7.org/linux/man-pages/man5/elf.5.html
- http://egloos.zum.com/recipes/v/5010841
- http://www.yolinux.com/TUTORIALS/LibraryArchives-StaticAndDynamic.html
- https://en.wikipedia.org/wiki/Weak_symbol

ELF(executable and linkable format)

More Related Content

What's hot

Similar to ELF(executable and linkable format)

Recently uploaded

ELF(executable and linkable format)
