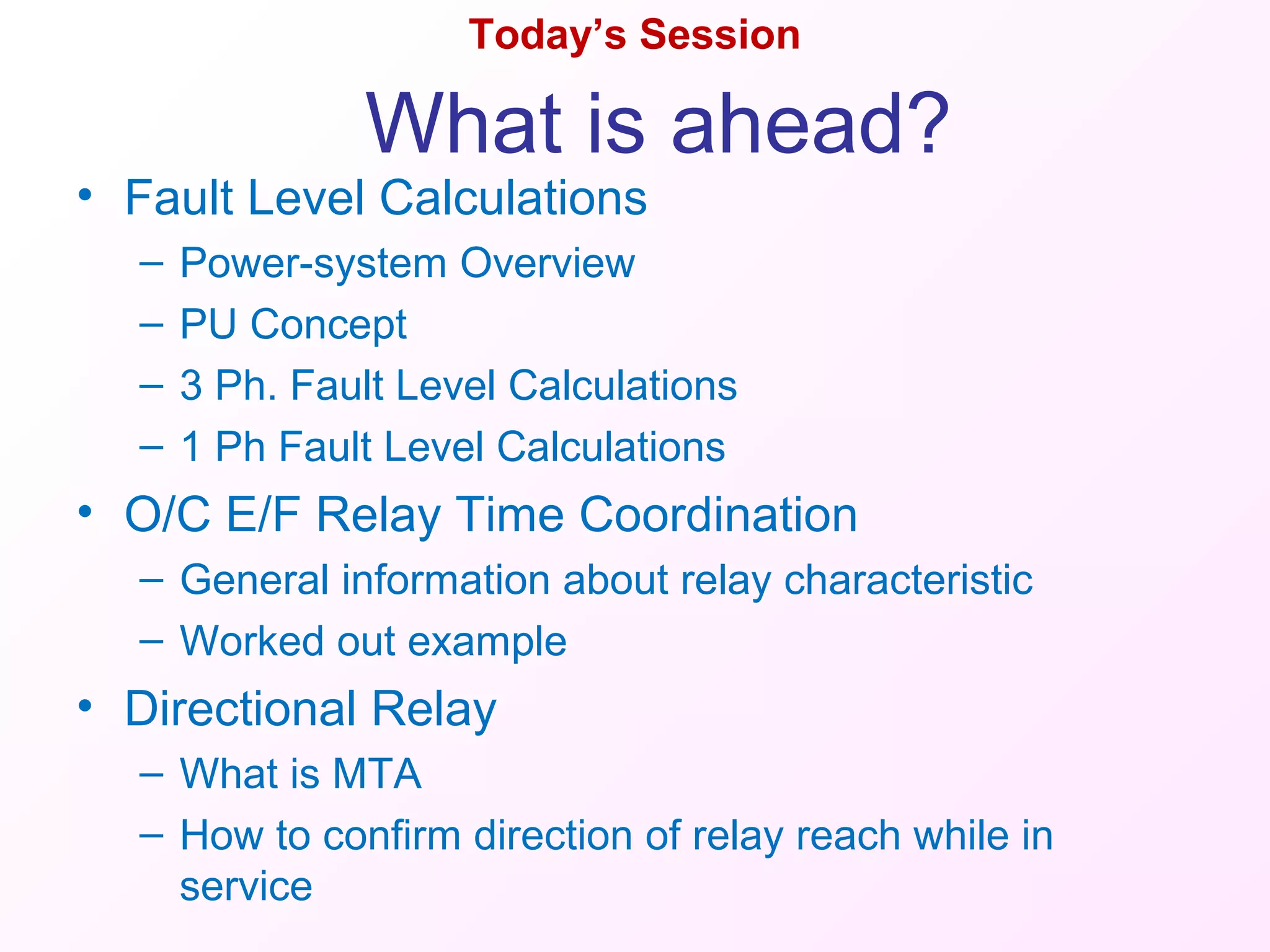

1. Today’s Session
• Fault Level Calculations
– Power-system Overview
– PU Concept
– 3 Ph. Fault Level Calculations
– 1 Ph Fault Level Calculations
• O/C E/F Relay Time Coordination
– General information about relay characteristic
– Worked out example
• Directional Relay
– What is MTA
– How to confirm direction of relay reach while in
service
What is ahead?
3. Fault Level Calculations 3
What is ahead?
• Overview of transmission network.
• What is mean by fault level
• PU Concept
• Network Modeling
• Fault Level Calculation & Worked out
example
– Three Phase Fault
– SLG Fault
7. Fault Level Calculations 7
400kV
220kV
220kV
132kV
33kV
33kV220kV
132kV
11kV33kV
S/S - A
S/S - F S/S - E
S/S - B
S/S - C
S/S - D
Local Network – or – Sub-Transmission System
12. Fault Level Calculations 12
PU Concept
• PU impedance values are calculated by
– For Transformers
– For Lines
%ImpedanceNew Base MVA = % ImpedanceName Plate
Base MVA
Capacity in MVA
%Impedance = Ohmic Value
Base MVA
kV 2
13. Fault Level Calculations 13

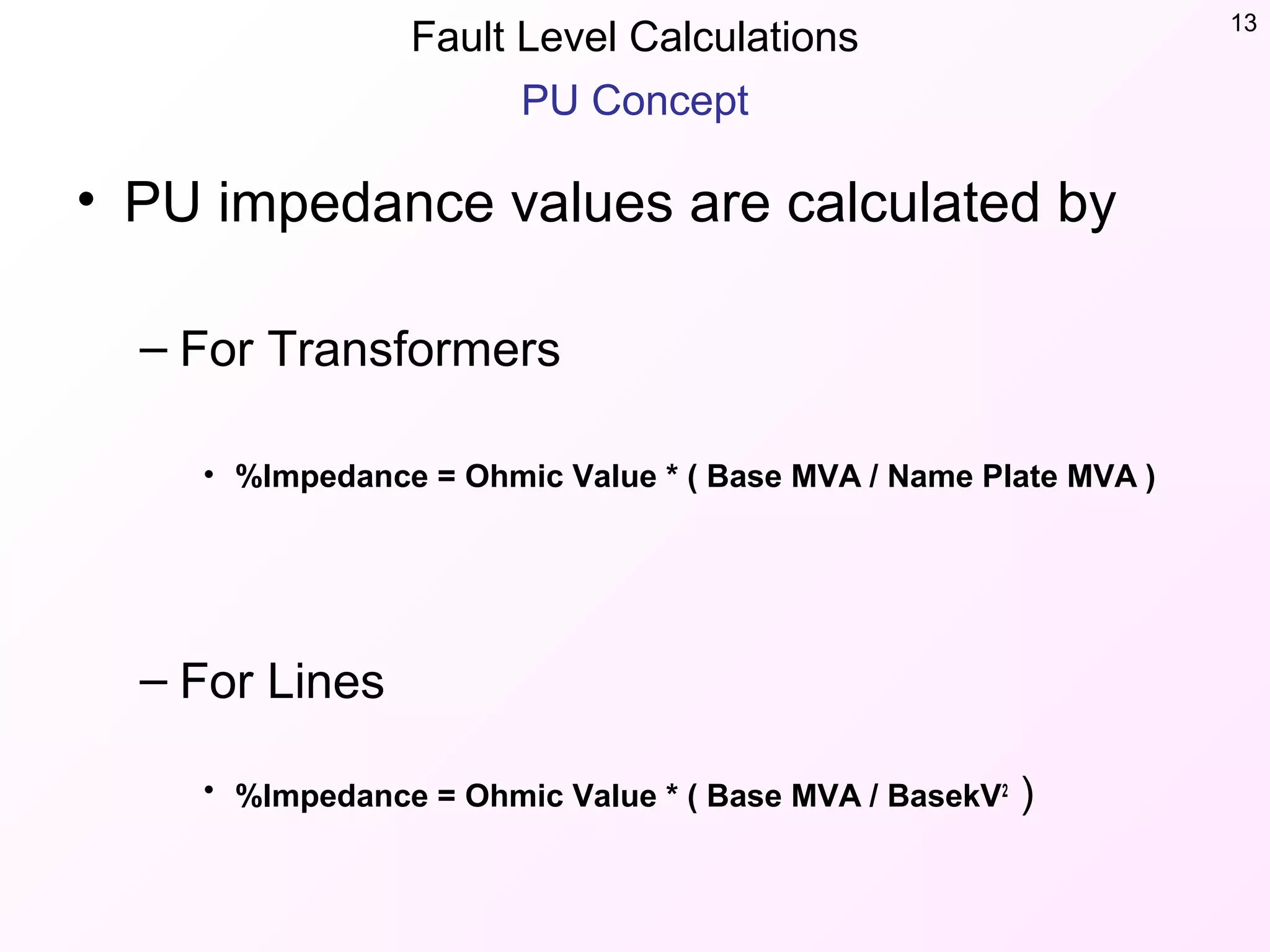

PU Concept
• PU impedance values are calculated by
– For Transformers
• %Impedance = Ohmic Value * ( Base MVA / Name Plate MVA )
– For Lines
• %Impedance = Ohmic Value * ( Base MVA / BasekV2
)
14. Fault Level Calculations 14

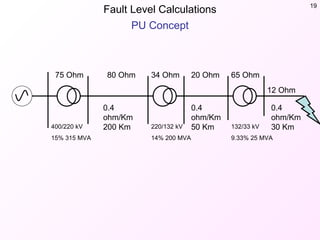

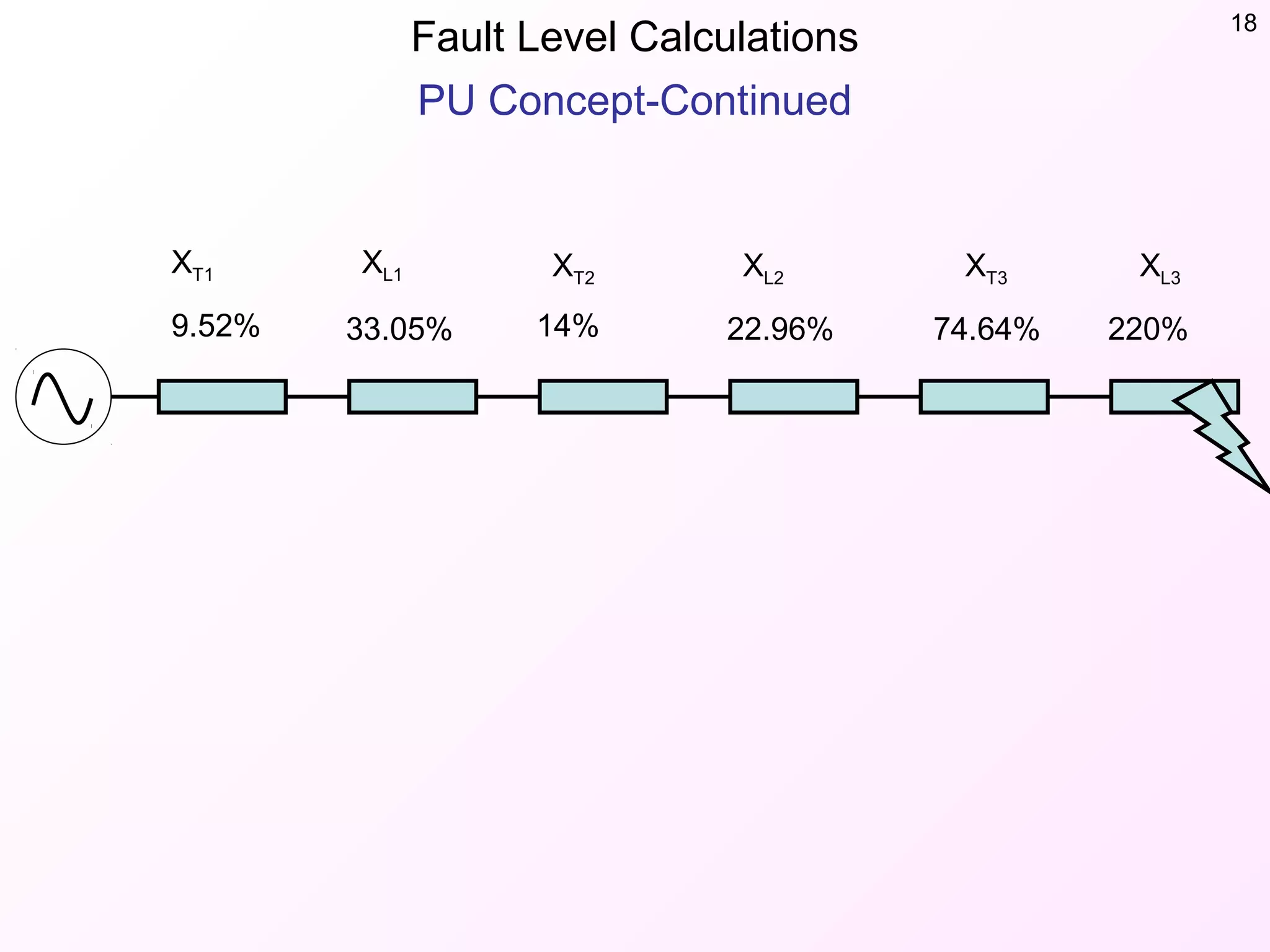

PU Concept
400/220 kV
15% 315 MVA
12 Ohm
Sec DSec CSec B
0.4
ohm/Km
200 Km
0.4
ohm/Km
50 Km220/132 kV
14% 200 MVA
132/33 kV
9.33% 25 MVA
0.4
ohm/Km
30 Km
Sec A
Base MVA = 200 MVA
400kV 33kV132kV220kV
T1 L1 T2 L2 T3 L3
17. Fault Level Calculations 17
Short Circuit Current
• 3 Phase Short Circuit MVA at fault point
Base MVA x 100
= ----------------------------------------------------
Percentage Impedance (from source to fault point)
21. Fault Level Calculations 21
Typical State Level Power System & our area of interest
4630
Base MVA=
Xs(pu)
MVA
100 Xs(pu)
4630
Xs (pu) = 0.0216
Or
Xs% = 2.16%
24. Fault Level Calculations 24
Unsymmetrical Faults-Sequence Network
• Up till now we have discussed 3 Phase
faults which are rear. Most of the fault in
power system are single line to ground
faults.
• To find out the short circuit MVA due to
single phase to ground fault it is necessary
to use Sequence Network
• Let us have a closer look of sequence
network
26. Fault Level Calculations 26
Single Line to Ground Fault-Sequence Network Connections
Xg1XT11XL1XT21
XM21XM11
F
Xg2XT12XL2
XT22
XM22XM12
F
Xg0XT10XL0XT20
XM20
F
X1
X2
X0
Ia = 3 / (X1 + X2 + X0)
Typical state level power system is shown here.
This power system is consists of Generator, EHV lines, ICTs, Transformer, Distribution Feeders etc,
Power generated get injected into the system either at 400kV or at 220kV.
We can say that major portion of the power system is of 400kV Grid. (Shown violate)
Some portion is of 220kV Grid (Shown brown)
Generally most of engineers deals with small portion of the network shown inside. Which we may call as Sub-Transmission network.
Majority portion of sub-transmission network is of radial nature.
While dealing with such limited portion of the system from fault level calculation point of view we can replace the entire external grid system with a source and a thevinians equivalent impedance.
Here grid is replaced by thevinans equivalent impedance.
Or to be more specific, while calculating fault levels we can neglect resistance of the elements
Thus this impedance is considered as reactance
Then next obvious question is how to determine this equivalent reactance. It is explained afterword.
But before to proceed further let us have a closer look at Sub-Transmission network
And it is necessary to recall our concepts about pu calculations
Here sub-transmission network enlarged ( and rotated clockwise 900)
Though following points are un-important or known it is necessary to have common language while discussing some issues/problems regarding power system. Hence such terminology is reviewed here.
S/S voltage levels means highest voltage level at that S/S Hence
400kV S/S – A
200kVS/S – B
S/S – C
132kVS/S – D
S/S – E
S/S – F
Sub-Stations are also recognized as 400/220kV or 220/33 kV or 220/132kV or 132/33kV or 132/33-11kV (S/S-F) etc.
400kV and one 220kV line of S/S-A is in grid.
S/S-B and S/S-C get supplied through parallel lines.
S/S-D and S/S-E are connected in local loop network (S/S-D is having LILO arrangement).
S/S-F is of radial nature
There may have standby lines too.
We may define fault level as -
Fault level at any location is that value of current which is expected to flow upon occurrence of fault considering all other elements in network are in service and all generations are in service and generating their maximum output.
FOR FAULT LEVEL STUDY SELECTED LOCATION IS BUS IN THE SYSTEM
Every year such calculations are done for the entire network of the company at corporate level using computer programs and results circulated to field offices. Generally these fault levels are expressed in MVA or KA. When expressed in MVA it is also called as Short Circuit MVA.
Such a sample result is shown here. Generally while calculating fault levels, two type of faults are considered at every bus in the network (Grid).
3 Phase Fault
Single Line to Ground Fault (SLG)
Here 3 Ph fault is considered. Fault levels for S/S connected to generation are more (S/S-A). Also fault levels having more lines are more (S/S-B). Fault levels of S/S having higher rating transformers are also more
Let us have a closer look of S/S-B
During fault level study not only bus fault levels are given but also contribution of this fault by various elements connected to that bus are also given.
Not that arrow marking is not necessary. It is only shown here to get the contribution more clear.
Such type of data can be given in SLD form as well as Table form too.
However if given in SLD form it is more understandable
================================================================================
Note :- we are using pu impedance and percentage impedance interchangeably throughout the discussion where
Percentage Impedance = Per-Unit Impedance * 100
================================================================================
While modeling a transmission network for fault level study following points are important.
Transmission system (or network) is made up of lines and transformers.
Line is characterized by inductance, resistance and line charging capacitance.
For small length lines, charging capacitance can be neglected while modeling the transmission system. Small length lines are generally of lower voltage. From transmission point of view that is 132kV and 220kV.
While modeling the 400kV line we have to consider line charging capacitance too.
For fault level calculations only it is necessary to consider reactive impedance of the line. We can exclude line charging and resistance.
Transformer impedances are always expressed in percentage (or PU ).
================================================================================
The per-unit impedance of the transformer is the same regardless of whether it is determined from ohmic values referred to high tension or low tension sides of the transformers.
For example consider a 132/33 kV 25 MVA transformer under short circuit test. That means about 3 phase 440 V (i.e. 440/1.732 = 254 V Ph-N) supply is given from 132kV side and 33kV side kept short circuited. This transformer short circuit current at 440 V will be about 3.9 amps. That is its leakage impedance is 254/3.9 = 65.12 Ohms
Its PU value (referred to 132kV side) is
65*25/(132*132) = 0.0933 ( or 9.33%)
If the leakage reactance had been measured on the low tension side, the value would be
65/16 = 4.0625 ( Where 16 is square of transformation ratio (132/33)2 )
Its PU value (referred to 33kV side) is
4.0625*25/(33*33) = 0.0933 (or 9.33%) same as before
Same case is about line modeling where base voltages for the lines connected on HV and LV sides of the transformers shall have same ratio as that of transformation ratio
In short while calculating per-unit impedance of the line it’s rated voltage is selected as base voltage and base MVA will be common for entire system.
The per-unit impedance of the transformer is the same regardless of whether it is determined from ohmic values referred to high tension or low tension sides of the transformers.
For example consider a 132/33 kV 25 MVA transformer under short circuit test. That means about 3 phase 440 V (i.e. 440/1.732 = 254 V Ph-N) supply is given from 132kV side and 33kV side kept short circuited. This transformer short circuit current at 440 V will be about 3.9 amps. That is its leakage impedance is 254/3.9 = 65.12 Ohms
Its PU value (referred to 132kV side) is
65*25/(132*132) = 0.0933 ( or 9.33%)
If the leakage reactance had been measured on the low tension side, the value would be
65/16 = 4.0625 ( Where 16 is square of transformation ratio (132/33)2 )
Its PU value (referred to 33kV side) is
4.0625*25/(33*33) = 0.0933 (or 9.33%) same as before
Same case is about line modeling where base voltages for the lines connected on HV and LV sides of the transformers shall have same ratio as that of transformation ratio
In short while calculating per-unit impedance of the line it’s rated voltage is selected as base voltage and base MVA will be common for entire system.
This will be clear by an example consider a simple system as shown above of 400/220kV T/F 220/132kV Transformer and 132/33kV Transformer.
Select base MVA of 200 MVA for entire system.
Sectionalize the system as per voltage levels
Section A is for 400kV
Transformer T1 will get included in this section as pu values of transformer whether referred to primary or secondary are same
Section B is for 220kV
Transformer T1 and also transformer T2 will get included in this section due to same reason as said above. That means all transformers get overlapped by two sections
Similarly section C is for 132kV and section D is for 33kV
Select 400kV as base voltage in section A
It will be converted into 220kV in section B, 132kV in section C and 33kV in section D
===========================================================================
By this way line rated voltage will be base voltage for that line
===========================================================================
Now it is possible to calculate per-unit values of transformer and lines with above said base mva and base kv
T1 Percentage Impedance = XT1% = 15*200/315 = 9.52%
L1 Percentage Impedance = XL1% = (X/Km)*L*( Base MVA / ( kV2 ) )*100
=0.4*200*(200/(220*220))*100 = 33.05%
T2 Percentage Impedance = XT2% = 14%
L2 Percentage Impedance = XL2% = 0.4*50*(200/(132*132))*100 = 22.96%
T3 Percentage Impedance = XT3% = 9.33 * 200/25 = 74.64%
L3 Percentage Impedance = XL3% = 0.4*30*(200/(33*33))*100 = 220.38%
Total percentage impedance up to source
220 + 74.64 + 22.96 + 14 + 33.05 + 9.52 = 374.17%
Short circuit MVA = 200*100/374.17 = 53.54 MVA
Short Circuit Current = 17.5*53.54 = 936 Amp
Same results we get by considering ohmic values. How ever every time it is necessary to take care of transformation ratio hence pu method is always preferable. More ever when we works with large transmission grid extensive use of matrix is required and there is no alternative to pu values. Still we will calculate same results by ohmic method just to realize simplicity of pu method.
12 ohm referred to 132kV = 12*(4*4) = 192 Ohms ( Where 4 is transformation ratio 132/33kV)
L3 + T3 + L2
65 + 192 + 20 = 277 ohms
This referred to 220kV = 277*(1.6666*1.6666) = 769 Ohms ( Where 1.6666 is transformation ratio 220/132kV)
(L3 + T3 + L2 + T2 + L1) Referred to 220kV =
769 + 34 + 80 = 883 Ohms
This referred to 400kV = 883*(1.8181*1.8181) = 2918 Ohms ( Where 1.8181 is transformation ratio 400/220kV)
(L3 + T3 + L2 + T2 + L1 + T1) = 2918 + 75 = 2993 Ohms
Current at 400kV level = (400000/1.732)/2993 = 77.16 Amp
Current at 33kV level = 77.16*400/33 = 935 Amp.
Let us again consider radial part of the part of the power system (Sub-Transmission Network) in which we are interested, Let we know the 3 phase short circuit MVA of the Root Bus. From this we can find out source impedance and from source MVA we can proceed further for calculating short circuit MVA of other busses in the radial Sub-Stations branched from Root Bus.
As we have just calculated
3 Phase Fault Level at a bus in the grid = Base MVA / Equivalent Per-Unit Impedance up to source
Hence
Equivalent Per-Unit Impedance up to source from a bus in the system = Base MVA / 3 Phase Fault Level at that bus
For the system under consideration its value is 2.16% which is considerable low as compared to other components pu impedances. Hence in such cases we may neglect it too without hampering further results much more

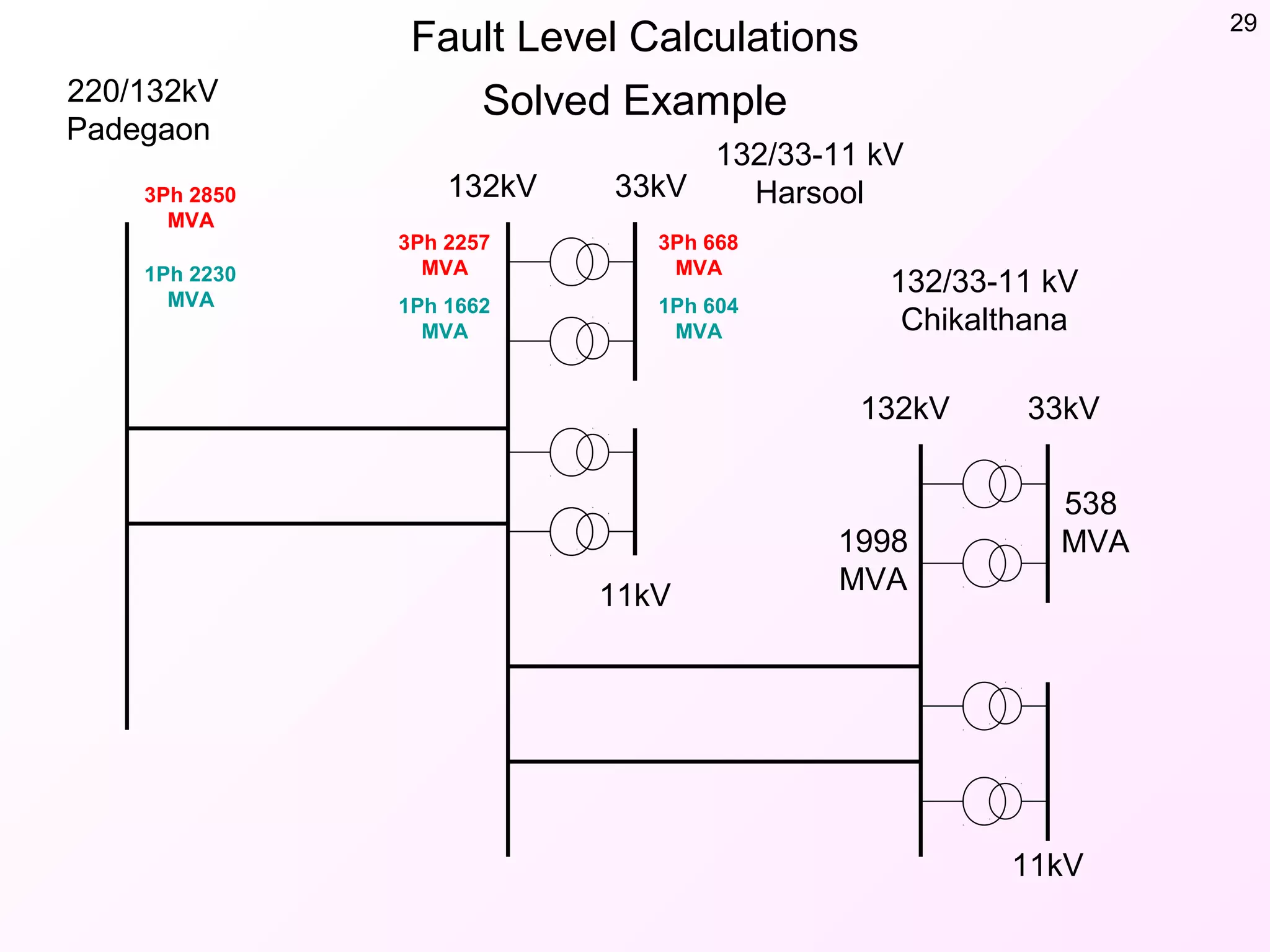

3 Ph Fault level calculations
Calculate source impedance for 132kV Bus Padegaon from given fault level
Consider Base MVA as 100
X1s = 100*100/2850 = 3.51%
b) Calculate % impedance of Padegaon-Harsool single circuit
XL1 = 0.4*8*(100*100)/(132*132) = 1.84% = XL2
c) Total impedance up to Harsool 132kV Bus
= 3.51 + ( 1.84 || 1.84 )
= 3.51 + 1.84/2
= 4.43%
d) 3 Phase Fault level at 132kV Harsool
= 100*100/4.43
= 2257 MVA
e) 132/33 kV 50 MVA Transformer percentage impedances at new base MVA
XT1 = 10.21*100/50 = 20.42%
XT2 = 10.88*100/50 = 21.76%
f) Total impedance from 132kV Harsool S/S up to source
X1s= 100*100/2257 = 4.43%
g) Total impedance up to Harsool 33kV Bus
= X1s + (XT1 || XT2)
= 4.43 + ( 20.42 || 21.76)
= 14.96%
h) Fault level at 33kV Harsool Bus
= 100*100/14.96 = 668 MVA
Fault level at 132kV Chikalthana Bus
XL1 = XL2 = 0.4*5*(100*100/(132*132)) = 1.15%
Xeq = 4.43 + 1.15/2 = 5.005
Fault level at 132kV Chikalthana = 100*100/5.005 = 1998 MVA
j) Fault level at 33 kV Chikalthana
XT1new = 10.03 * 100/50 = 20.06%
XT2new = 10.52*100/25 = 42.08
Xeq = 5.005 + ( 20.06 || 42.08 ) = 18.59%
Fault Level = 100*100/18.59 = 538 MVA
Like wise fault levels of other busses also can be calculated
Without going into much details of the sequence network concept studied in academic years now we will recall some of them.
Consider a SLD of stand alone system where a generator feeding 2 synchronous motor loads through a step up transformer, transmission line and a step down transformer.
Let there is a SLG fault at F
To find out the value of fault current first we will draw the equivalent sequence networks
+ Ve sequence network is with a source
If all values are expressed in pu this source voltage shall be obviously 1.0 pu
Subscript 1 in pu impedances of components stands for +Ve sequence impedances
-Ve sequence network is exactly like +Ve sequence network
Except there is no voltage source. As generated voltage (behind generator reactance Xg ) is always balance hence –Ve and zero sequence of supply voltage component is zero.
Subscript 2 in pu impedances of components stands for -Ve sequence impedances
NOTE THE REFERANCE BUS IN THE SEQUENCE NETWORK. It is referred to only that sequence network only.
While drawing Zero sequence network special care for earthing provided and transformer winding connections has to be taken.
Delta connected side get connected to Zero Bus directly. Where as star side get connected to component against it only if star point is earthed
If earthing is done through reactance X , then in zero sequence network it is replaced by 3X
For calculating single phase fault current we have to connect these three networks in series as shown in next slide.
After connecting sequence network in series ( with respect to fault point ). it is possible to reduce each sequence network into corresponding equivalent sequence impedance as shown above
Here +Ve sequence network caries +Ve sequence current –Ve sequence network caries –Ve sequence current and Zero sequence network caries zero sequence current.
Due to series configuration I1 = I2 = I0
And R Ph current involved in fault = I1 + I2 + I0 = 3I1
IR = 3/(X1+X2+X0)
Or
1 Phase Short Circuit MVA = 3 * ( Base MVA) / (X1 + X2 + X0) if X is expressed in pu
= 3*(BaseMVA)*100/(X1% + X2% + X0%)
Note : Positive and negative sequence reactance of network components are equal.
Zero sequence reactance for the transformer is same as that of +Ve sequence reactance
Zero sequence reactance for line are given in data sheet and it is about 2.5 to 3 times its +Ve sequence reactance
As said previously 3 Phase and 1 Phase fault levels of busses in grid are given by studying the system using computer.
With availability of this fault levels and formulae reviewed we can proceed further for calculation of single line to ground fault as below
1 Ph Fault level calculations
Calculate positive sequence source impedance for 132kV Bus Padegaon from given fault level as previous
Consider Base MVA as 100
X1s = 100*100/2850 = 3.51%
b) Now 1 Ph fault level = 3*BaseMVA*100/(X1 + X2 + X0)
But X1 = X2 = 3.51%
Hence 2230 = 3*100*100/(3.51+3.51+X0)
7.02 + X0 = 30000/2230
X0 = 13.45 – 7.02
X0 = 6.43%
As said previously 3 Phase and 1 Phase fault levels of busses in grid are given by studying the system using computer.
With availability of this fault levels and formulae reviewed we can proceed further for calculation of single line to ground fault as below
b) Calculate % impedance of Padegaon-Harsool single circuit
XL1 = 0.4*8*(100*100)/(132*132) = 1.84% = XL2
Let XL0 = 3*XL1 = 5.52%
d) 1 Phase Fault level at 132kV Harsool
= 3*100*100/(2*(XS1+(XL1||XL2)) + (XS0+XL0))
= 30000 / ( 2*(3.51 + ( 1.84 || 1.84 )) + ( 6.43 + ( 5.52 || 5.52 )) )
= 30000 / ( 8.86 + 9.19 )
= 30000 / 18.05
= 1662 MVA
e) 132/33 kV 50 MVA Transformer percentage impedances at new base MVA
XT1 = 10.21*100/50 = 20.42%
XT2 = 10.88*100/50 = 21.76%
h) 1 Phase Fault level at 33kV Harsool Bus
= 30000 / ( 2*( Xs1 + (XL11 || XL21) + ( XT11 || XT21) ) + (Xs0 + (XL10 || XL20) + ( XT10 || XT20) ) )
= 30000 / ( 2*(3.51 + 0.92 + 10.53) + (6.43 + 2.76 + 10.53) )
= 30000 / ( 2*14.96 + 19.72 )
= 30000 / 49.64
= 604MVA
Like wise you can proceed
Like wise fault levels of other busses also can be calculated
