FAAST SYSTEM

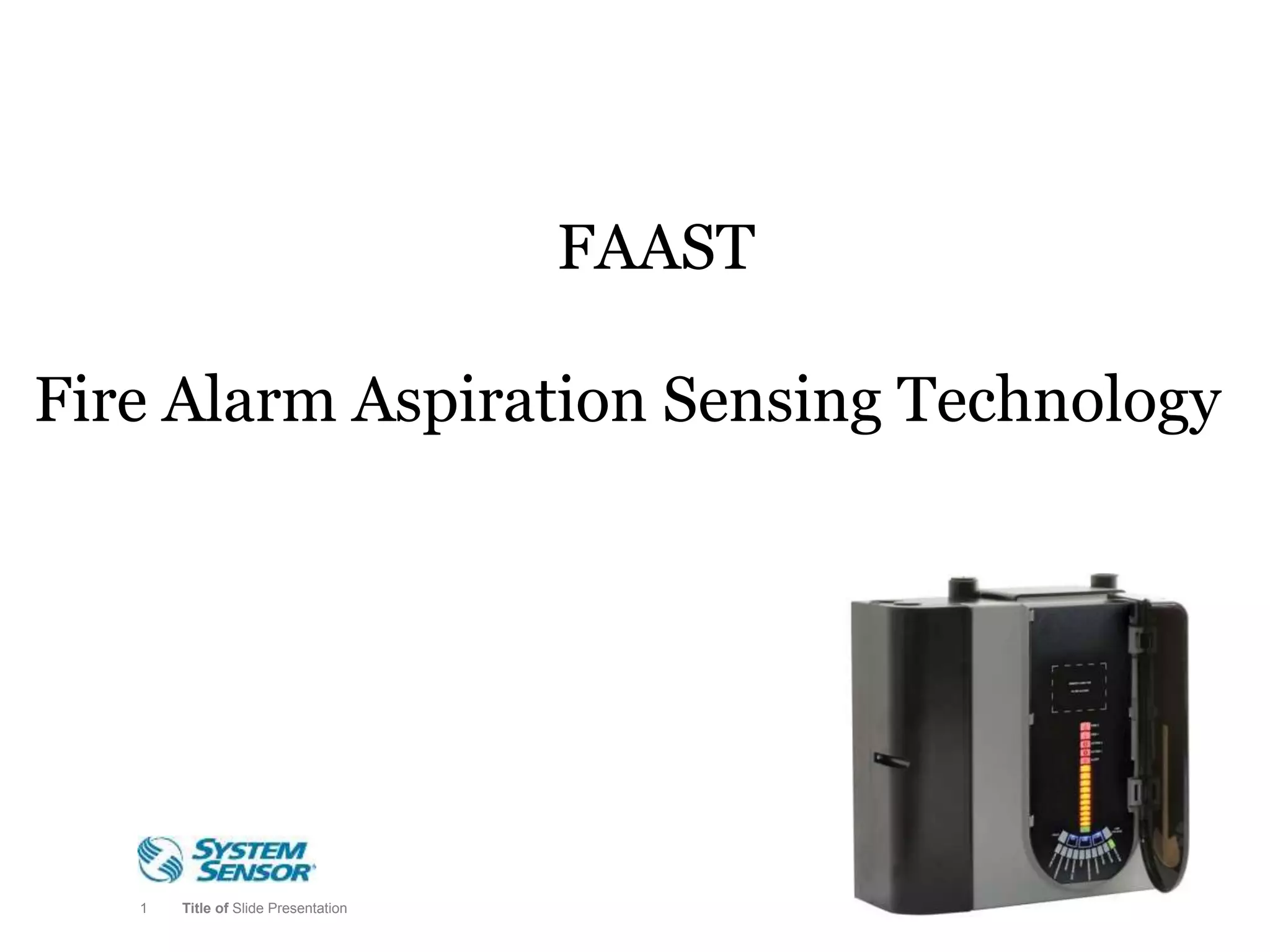

1. 1 Title of Slide Presentation
FAAST
Fire Alarm Aspiration Sensing Technology
2. 2 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
What do codes have to say about ASD?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for FAAST?
What’s the ROADMAP for FAAST?
3. 3 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
What do Codes have to say about ASD?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for ASD?
What’s the ROADMAP for FAAST?

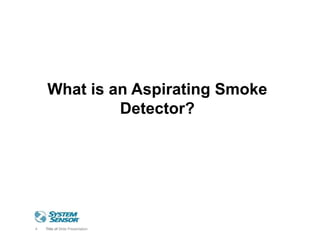

4. 4 Title of Slide Presentation
What is an Aspirating Smoke
Detector?
5. 5 Title of Slide Presentation
It’s a system that draws air from the area, via a pipe
network, back to a central detector, which continually
monitors for very small quantities of smoke. These
devices typically include:
1. Aspirator or fan
2. Piping and sampling points (Active vs. Passive)
3. Filter
4. Sensing chamber
5. High sensitivity sensor
6. 6 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for ASD?
What’s the ROADMAP for FAAST?
7. 7 Title of Slide Presentation
Why Aspirating Smoke
Detection?
8. 8 Title of Slide Presentation
What is Very Early Detection?
9. 9 Title of Slide Presentation
Why do we need Early Detection?
• Early detection allows time to investigate the alarm and
escalate if needed
• It gives time to resolve the situation before actual fire
starts.
• It gives people some extra / crucial time to take
decisions
• Provides extra time to take backup, switchover and
shutdown the systems
• Most importantly prevents catastrophic loss of life ,
assets or business continuity
10. 10 Title of Slide Presentation
What are applications of ASD?
Mission Critical
Computer and Data Processing
Historical/Aesthetics
Museums, Churches, and Mansions
Large Public Areas
Shopping Malls , Airports , Stadiums
Difficult Environments
Cold Food Storage and Tunnels
Security Concerns
Prisons and Hospitals
Costs Concerns
In Beam Pockets
Suppression Systems
In Cross Zone, and Multi-Stage Activation
11. 11 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for ASD?
What’s the ROADMAP for FAAST?
13. 13 Title of Slide Presentation
FAAST – Fire Alarm Aspiration
Sensing Technology
FAAST is an Aspirating Smoke Detector
which is Highly sensitive to smoke and
has above average resistance to
nuisance alarms.
14. 14 Title of Slide Presentation
Why FAAST?
Unique Dual Detection Technology
Dual Source Optical Analysis
• Blue LED covers the widest
ranges of fires
• Infrared Laser identifies non-
fire particulates
• Advanced Algorithms discriminate
between particulates and smoke
• Maximizes detection while
minimizing nuisance alarms
15. 15 Title of Slide Presentation
Why FAAST?
Three Stage Dust Discrimination
Stage 1: Particle Separator
• It removes larger contaminates before they
enter the detection chamber and filter
•Extends the life of the device
Stage 2: Field-Replaceable Filter
•30 micron
•Only 1 filter to easily change every 4 years instead of 2
•An initial warning is given to change the filter and a Minor
fault is generated
Stage 3: Unique Dual Detection Technology
• Combination of Blue LED and Infrared laser along with
advanced algorithms to ensure it detects wide range of
Smoke along with avoiding nuisance alarms
16. 16 Title of Slide Presentation
Why FAAST?
One of the best Sensitivity range in its Segment
• FAAST has got one of the widest
sensitivity range in its segment
ranging from 0.00046% obs/ft to
6.25% obs/ ft
• It has Five programmable Alarm
Thresholds : Alert, Action 1,
Action2, Fire1 and Fire 2
• 8 Programmable Form C Relay
contacts to integrate with any Fire
panel or Suppression panel or be
used as a stand alone system
17. 17 Title of Slide Presentation
Why FAAST?
Advanced Communication Interfaces
Each unit comes with an inbuilt Ethernet Port
for remote monitoring
Each unit comes with inbuilt Email support:
FAAST can send alerts to 6 pre configured Email
addresses
Each unit comes with an inbuilt ModBus
interface for integration with third party systems
Each unit has an inbuilt Web Server: No need
of software to remotely configure or monitor the
system
All this included in the basic product, without any EXTRA COST!!!!
18. 18 Title of Slide Presentation
Why FAAST?
Easy to use Software: Pipe IQ
• Single software that can be used to
design the pipe layout, Configure the
unit and monitor the unit after
installation
• Very easy to use Graphical User
Interface
• Can monitor up to 255 units connected
in a network.
• FM approved to give results as per
NFPA sensitivity and transport time
requirements
• Available Free of Cost on System
Sensor Website
19. 19 Title of Slide Presentation
Why FAAST?
A Product from System Sensor, a Honeywell Company
FAAST is manufactured in
System Sensor’s St. Charles Factory
in Illinois, USA
System Sensor is World’s largest
manufacturer by unit volume of
fire detection and notification
products.
It comes with a Three Year
Warranty from the manufacturer
20. 20 Title of Slide Presentation
Why FAAST?
Required Agency Approvals:
UL, ULC
FM
CSFM
VdS approval
Australian approvals
Korean approvals
China
Additional agencies to follow:
Singapore
21. 21 Title of Slide Presentation
Why FAAST?
At your Service…
Initial BOQ Support
Pipe layout design
Training for Partners,
Consultants and End
Customers
22. 22 Title of Slide Presentation
Why FAAST?
Unique Dual Detection Technology : Blue LED and
Infrared
3 Stage Dust Discrimination to reduce Nuisance
alarms
One of the best Sensitivity range in its segment
8 Inbuilt programmable relays
One of the most advanced communication
protocols: TCP/ IP, ModBus, Email support and
inbuilt Web Server
One in All Software and that too FREE OF COST!!!
A product from System Sensor …a Honeywell
Company
Manufactured in USA
Three Year Warranty Support
BOQ Support, Design Support and Trainings for
your Partners, Consultants and End Customers
23. 23 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
What do codes have to say about ASD?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for FAAST?
What’s the ROADMAP for FAAST?
24. 24 Title of Slide Presentation
What do Codes have to say about
ASD?
25. 25 Title of Slide Presentation
• Advises detector spacing
• Standard coverage area reduced in
high air flow
Codes and Aspiration: NFPA 72
26. 26 Title of Slide Presentation
• Prescriptive and performance-
based approach
• Requires automatic detection with
early warning of fire
Codes and Aspiration: NFPA 75
27. 27 Title of Slide Presentation
8.2* Automatic Detection Systems
Automatic detection equipment shall
be installed to provide early
warning of fire. The equipment
used shall be a listed smoke
detection-type system
NFPA 75: IT Equipment Rooms
28. 28 Title of Slide Presentation
8.2.1* Automatic detection systems
shall be installed in the following
locations:
1. At the ceiling level throughout the
IT equipment area
2. Below the raised floor of the IT
equipment area containing cables
3. Above the suspended ceiling and
below the raised floor in the IT
equipment area where these spaces
are used to recirculate air to other
parts of the building
NFPA 75: IT Equipment Rooms
29. 29 Title of Slide Presentation
• Prescriptive and performance-
based
• Defines detector/port spacing, area
coverage, and sensitivity
Codes and Aspiration: NFPA 76
30. 30 Title of Slide Presentation
Detection Systems Definitions
NFPA 76: Fire Protection of Telecom Facilities
3.5.1 Early Warning Fire Detection
(EWFD) Systems. Systems that use
smoke, heat, or flame detectors to
detect fires before high heat conditions
threaten human life or cause significant
damage to telecommunications service.
31. 31 Title of Slide Presentation
3.5.5 Standard Fire Detection (SFD)
Systems. Systems that use fire
detection initiating devices to achieve
certain life safety and property protection
in accordance with applicable standards.
Detection Systems Definitions
NFPA 76: Fire Protection of Telecom Facilities
32. 32 Title of Slide Presentation
3.5.6 Very Early Warning Fire
Detection (VEWFD) Systems. Systems
that detect low-energy fires before the
fire conditions threaten
telecommunications service.
Detection Systems Definitions
NFPA 76: Fire Protection of Telecom Facilities
33. 33 Title of Slide Presentation
Fire Detection
NFPA 76: Fire Protection of Telecom Facilities
6.8.6.1 General. In telecommunications
facilities containing greater than 232 m2
(2,500 ft2) of signal-processing
equipment areas, the signal-processing
equipment areas shall be provided with
a VEWFD system for detection and
alarm processing in accordance with
Chapter 8.
34. 34 Title of Slide Presentation
6.8.6.1.1 In telecommunications facilities
containing 232 m2 (2,500 ft2) or less of
signal-processing equipment areas, the
signal-processing equipment areas shall
be provided with an EWFD system for
detection and alarm processing in
accordance with Chapter 8.
Fire Detection
NFPA 76: Fire Protection of Telecom Facilities
35. 35 Title of Slide Presentation
8.4.1.2 Fire alarm, supervisory, and
trouble signals shall be annunciated at a
constantly attended location
8.4.1.3* Use of VEWFD systems with an
alert (pre-alarm) condition shall provide
for an initial response by authorized
personnel prior to fire dept. notification
8.4.1.4 Alarm monitoring centers
maintained by the telecom service
provider that have dedicated personnel
24 / 7 shall be permitted to be the
supervising station
Chapter 8.4
NFPA 76: Fire Protection of Telecom Facilities
36. 36 Title of Slide Presentation
Chapter 8.4
NFPA 76: Fire Protection of Telecom Facilities
8.4.2.1.3 Automatic fire alarm signals
shall be initiated by, but not be limited to,
the following:
1. Smoke detectors
2. Heat detectors
3. Flame detectors
4. Suppression system release
5. Water flow initiating devices
37. 37 Title of Slide Presentation
8.4.2.1.4 Fire alarm signals shall take
precedence in processing over all other
signals
8.4.2.1.5 The automatic or manual
initiation of alarm conditions shall cause
the building fire alarm notification
appliances to operate in accordance with
the requirements of NFPA 72
Chapter 8.4
NFPA 76: Fire Protection of Telecom Facilities

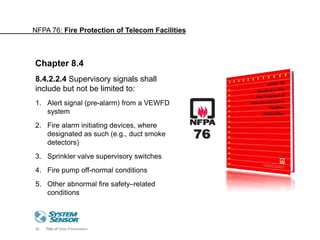

38. 38 Title of Slide Presentation
8.4.2.2.4 Supervisory signals shall
include but not be limited to:
1. Alert signal (pre-alarm) from a VEWFD
system
2. Fire alarm initiating devices, where
designated as such (e.g., duct smoke
detectors)
3. Sprinkler valve supervisory switches
4. Fire pump off-normal conditions
5. Other abnormal fire safety–related
conditions
Chapter 8.4
NFPA 76: Fire Protection of Telecom Facilities
39. 39 Title of Slide Presentation
8.4.2.2.7 The alert pre-alarm signal from
a VEWFD system shall be
distinguishable from all other fire alarm,
supervisory, and trouble signals.
Chapter 8.4
NFPA 76: Fire Protection of Telecom Facilities
40. 40 Title of Slide Presentation
Chapter 8.5.2 Detection Systems
NFPA 76: Fire Protection of Telecom Facilities
8.5.2.1 EWFD and VEWFD smoke
detection systems shall use sensors or
ports with spacing that is less than that
normally required by NFPA 72.
41. 41 Title of Slide Presentation
8.5.3.1.2 VEWFD Sensor and
Port Installation
NFPA 76: Fire Protection of Telecom Facilities
8.5.3.1.2.1* Every type of sensor and
port installed in an area shall be limited
to a maximum coverage area of 18.6 m2
(200 ft2)
42. 42 Title of Slide Presentation
8.5.3.1.2 VEWFD Sensor and
Port Installation
NFPA 76: Fire Protection of Telecom Facilities
8.5.3.1.2.2* Where two levels (high and
low) of ports or sensors are provided,
the following requirements shall be met:
1. Each level shall be limited to a
coverage of 400 ft2 or less per port
or sensor.
2. The coverage limitation between
high and low levels shall be limited
to 200 ft2 or less providing for
staggered port or sensor
arrangements between each level.
43. 43 Title of Slide Presentation
8.5.3.1.2 VEWFD Sensor and
Port Installation
NFPA 76: Fire Protection of Telecom Facilities
8.5.3.1.2.3* Sensors or ports shall be
installed to monitor return air from the
space.
44. 44 Title of Slide Presentation
Staggered Layout of Sample
Ports/Sensors
• High-level sensors or ports
at 37.2 m2 (400 ft2) or less
• Low-level sensors or ports
at 37.2 m2 (400 ft2) or less
• Effective net coverage per sensor
or port is 18.6 m2 (200 ft2) or less
NFPA 76: Fire Protection of Telecom Facilities
45. 45 Title of Slide Presentation
8.5.3.1.2.5* Minimum sensitivity settings
above ambient airborne levels for the
VEWFD systems installed shall be:
1. Alert condition:
a. Air-sampling systems: 0.2% per foot obs.
*(effective sensitivity at each port)
b. Spot-type sensors: 0.2% per foot obs.
2. Alarm condition:
a. Air-sampling systems: 1.0% per foot obs.
*(effective sensitivity at each port)
b. Spot-type sensors: 1.0% per foot obs.
Chapter 8: VEWFD Levels
NFPA 76: Fire Protection of Telecom Facilities
46. 46 Title of Slide Presentation
Chapter 8: VEWFD Levels
NFPA 76: Fire Protection of Telecom Facilities
8.5.3.1.2.6 Maximum transport time from
the most remote port to the detection
unit of an air-sampling system shall not
exceed 60 seconds.
47. 47 Title of Slide Presentation
Chapter 8: EWFD Levels
NFPA 76: Fire Protection of Telecom Facilities
Levels for the EWFD systems installed
shall be as follows:
• 8.5.3.2.1.3 The minimum alarm
sensitivity setting at the sensor or port
used for EWFD in telecommunications
equipment areas shall be 1.5% per foot
• 8.5.3.2.1.4 Maximum transport time
from the most remote port to the
detection unit of an air-sampling system
shall be a maximum of 90 seconds.
48. 48 Title of Slide Presentation
8.7.2* Design and Installation
NFPA 76: Fire Protection of Telecom Facilities
Where provided, smoke management
systems shall be designed, installed, and
acceptance tested in accordance with
accepted engineering practice
49. 49 Title of Slide Presentation
8.5.3.1.2.3* Sensors or ports shall be
installed to monitor return air from the
space.
a) Where stand-alone packaged HVAC units
are installed, sensors or ports shall be
installed where return air is brought back
to the unit.
b) Sensors or ports shall be installed such
that each covers no greater than 0.4 m2
(4 ft2) of the return air opening.
NFPA classifies air exchange area as:
• Medium – 6 air exchanges per hour
• High – 12 air exchanges per hour
NFPA 76: Fire Protection of Telecom Facilities
50. 50 Title of Slide Presentation
8.2* Automatic Detection
Systems. Automatic detection
equipment shall be installed to
provide early warning of fire. The
equipment used shall be a listed
smoke detection–type system and
shall be installed and maintained in
accordance with NFPA 72, National
Fire Alarm Code.
NFPA 75 Summary
Click icon for
Code Details.
51. 51 Title of Slide Presentation
200 sq ft required spacing in room
and sub-floor (VEWFD)
400 sq ft (EWFD)
4 sq ft spacing at return air registers
• 0.2% (Alert) & 1.0% (Alarm) Minimum
Sensitivity (VEWFD) 1.5% (Alarm)
Minimum Sensitivity (EWFD)
• 60 second maximum transport times
(VEWFD) 90 second (EWFD) / 120
second (SFD)
• Normal NFPA 72 requirements for
Standard Fire Detection (SFD)
NFPA 76 Summary
Click icon for
Code Details.
52. 52 Title of Slide Presentation
EN 54 – 20
Classification of Sensitivity
53. 53 Title of Slide Presentation
EN 54 – 20
VDE 0833 – 2: At least Class B
for High – ceiling Applications
54. 54 Title of Slide Presentation
EN 54 – 20
It is not the detector class that
is the critical factor, but the class
of the project design itself
55. 55 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
Is Multi Pipe ASD actually better than a Single
Pipe ASD?
Is it really difficult to design a BOQ for ASD?
What’s the ROADMAP for FAAST?
56. 56 Title of Slide Presentation
Is Multi Pipe ASD actually better
than Single Pipe ASD?
57. 57 Title of Slide Presentation
Is Multi pipe ASD better than Single Pipe?
Not Always!!!!
Single Pipe ASD total Maximum Pipe Length = 100 meters
Four Pipe ASD total Maximum Pipe Length = 200 m
Hence,
In terms of area covered
1 No. Four Pipe ASD = 2 No. Single Pipe ASDs
Let’s understand using a Scenario….
58. 58 Title of Slide Presentation
Is Multi pipe ASD better than Single Pipe?
70 meters
10 Meters
Dimensions: 10 X10 X 70 meters (H X W X L)
No. of Four pipe units required = 1
No. of One pipe units required = 2
Unit Cost of Four Pipe unit with pipe addressability = USD 13K
Unit Cost of one pipe unit = USD 5K
Hence total cost of units with one pipe System = 10K
59. 59 Title of Slide Presentation
Is Multi pipe ASD better than Single Pipe?
It does not END here:
Advantage of using a single pipe system Vs four pipe system
Incase if a four pipe system breaks down because of any reason, your
larger area goes down, as compared to a single pipe system in which
case smaller area is affected.
60. 60 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for ASD?
What’s the ROADMAP for FAAST?
61. 61 Title of Slide Presentation
Is it really difficult to design a
BOQ for FASST?
62. 62 Title of Slide Presentation
Is it really difficult to design a BOQ for FAAST?
Not Really!!!
• Less than 15 SKUs in the Price list
• Unit with inbuilt Filter, Ethernet port,
ModBus Interface, Display LEDs, etc, hence no
extra SKUs required.
• Lets create a BOQ and see for ourselves
63. 63 Title of Slide Presentation
Is it really difficult to design a BOQ for FAAST?
Not Really!!!
• Less than 15 SKUs in the Price list
• Unit with inbuilt Filter, Ethernet port,
ModBus Interface, Display LEDs, etc, hence no
extra SKUs required.
• Lets create a BOQ and see for ourselves
64. 64 Title of Slide Presentation
70 meters
10 Meters
Dimensions: 10 X10 X 70 meters (H X W X L)
Let’s consider the same old scenario.
Above are the dimensions of a work shop. Customer wants
aspiration detection at the ceiling level above cable trays.
Is it really difficult to design a BOQ for FAAST?
65. 65 Title of Slide Presentation
What is an Aspirating Smoke Detector (ASD)?
Why Aspirating Smoke Detection?
Why FAAST?
Is Multi Pipe ASD actually better than a Single Pipe
ASD?
Is it really difficult to design a BOQ for ASD?
What’s the ROADMAP for FAAST?
66. 66 Title of Slide Presentation
What is the ROADMAP for
FAAST?
67. 67 Title of Slide Presentation
Roadmap
2013
Intelligent/Modbus
FAAST
2012
FAAST LT
2014
FAAST XL
2015
FAAST XS
Continuous
Here we can see the typical progression of a fire event in four stages.
The first stage, the incipient stage, is when smoldering smoke is emitted before flames are present. The smoke level at this stage is typically very low and in some cases not visible to the eye.
In the second stage the smoke is clearly visible and conventional detection techniques are initiated.
Then flames are visible which accelerates the fire to the fourth stage where heat detection initiates (and suppression is released).
The entire principle of aspirating smoke detection is to get an alarm in the very first stage of fire to initiate response activity to ensure the fire does not progress to the later stages. ASD effectively “buys time”. ASD buys time for early response measures to arrest fire development.
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
Main Slide (corner image)
One code that applies to aspirating smoke detectors is NFPA 72, the National Fire Alarm and Signaling Code. This code advises smoke detector spacing in high air movement areas. At a basic level, the code recommends that the standard coverage area for fire detection devices has to be reduced when installed in areas with high air flow and movement.
Another code, NFPA 75, the Standard for Protection of Information Technology Equipment, offers a prescriptive and performance-based approach with aspirating smoke detection, and with smoke detection in general, that requires automatic detection for early warning of fire.
NFPA 76, Standard for Protection of Telecommunication Facilities, is another prescriptive and performance-based approach that actually defines the levels of protection required for Very Early Warning Fire Detection, Early Warning Fire Detection, and Standard Detection. In addition, it defines the detector or port spacing requirements, the average coverage, and also the recommended sensitivity or transport time from sensing points back to the actual sensing device.
For example, for Very Early Warning Fire Detection, the area of coverage is reduced to 200 square feet per sampling point or detector. Whereas for Early Warning Fire Detection, coverage is 400 square feet per sampling point or detector.
