- 1. Real-time Formaldehyde Monitoring System IGERTSensor Science, Engineering and Informatics (SSEI) Clint Eaton J.C. Whittier Stacy Doore Delia Massey Paul Smitherman
- 2. • Introduction • ProjectGoal and Objectives • Phase I – Device Testing – Network Testing – System Informatics • Phase II – Site Testing • Commercialization Applications • Conclusions and Future Work Formaldehyde Monitoring in Built Environments O C H H
- 3. Formaldehyde Monitoring inBuilt Environments Problem: • Formaldehyde emissions and toxic exposure concerns, • Formaldehyde Standards Act (2010) • EPA regulations: all wood based building materials meet new, lower emissions standards by 2013, • Can we detect formaldehyde emission levels in real time and provide a web-based user interface for facility managers?
- 4. Agency/Industry Group ExposureLimit (TWA-8hr average) Short-term Exposure Limit (15 minute maximum) Threshold Limit Value (Ceiling) NIOSH/CDC (2009) 0.016 ppm (REL) 0.10 ppm 0.10 ppm ACGIH (2009) ----- ----- 0.30 ppm (TLV) OSHA (2008) 0.75 ppm (PEL) 2.0 ppm 5.0 ppm FEMA (2008) 0.016 ppm 0.10 ----- HUD (1985) 0.40 ppm ---- ----- Formaldehyde Monitoring in Built Environments Effective Date Hardwood Plywood Particleboard Medium density fiberboard By 1/1/2011 0.05ppm (veneer) 0.09ppm 0.11ppm (MDF) By 7/1/2012 0.08ppm (composite) ----- 0.13ppm (Thin MDF) U.S. Agency Formaldehyde Exposure Limits Formaldehyde Standards Act (2010) based on CARB standards
- 5. Objectives: 1. Compare theperformance of commercially available sensors and their ability to detect formaldehyde within a dynamic range of 0.01 and 0.80 ppm. 2. Design and build wireless network architecture to transmit real-time formaldehyde concentration data. 3. Identify formaldehyde emission patterns in a real world environment. 4. Develop prototype model for assessing low-level formaldehyde environmental exposures in real-time. 5. Explore possible changes in existing engineering controls and exposure assessment processes to improve worker safety. Goal: Design and build wireless sensor network to detect/monitor formaldehyde emissions in industry setting. Formaldehyde Monitoring in Built Environments
- 6. Formaldehyde Monitoring inBuilt Environments Issues raised during alpha test… • Office question: Were the high readings result of power flux, lighting, cleaning products, etc.? • Device Calibration: Could personal exposure badges help? • Previous EHS testing at AEWC? • Formaldehyde emissions from human breath? • Could we use RFID badges to track the location of people?
- 7. •Phase I – DeviceTesting – Network Design – System Informatics Formaldehyde Monitoring in Built Environments
- 8. • Sensor interface– RSR-232 serial with USB adapter • Sampling method – 10 mL snatch-sample of air taken by internal pump • Programmable data collection scheduler • Supplied calibration standard • Temperature and humidity corrected • Response time < 10 sec • Cost range: $1,100-$3,700 • High sensitivity • Linear response • Stable sensitivity Formaldehyde Monitoring in Built Environments Formaldemeter htV-M
- 9. • Anode: whereoxidation occurs, positive polarity contact • Cathode: where reduction occurs, negative polarity contact • First experiments by Sir William Grove in 1839 • Electrons generated flow from anode to cathode Formaldemeter Electrochemical Sensor Operation Formaldehyde Monitoring in Built Environments
- 10. Formaldemeter System Blockdiagram PRECISION AMPLIFIER HIGH RESOLUTION A-D CONVERTER MICROPROCESSOR DISPLAY EXHAUST VANEPU MP FUEL CELL GAS INLET ELECTRICAL SIGNAL • Electrochemical technology • Snatch sampling via micro pump • Air drawn into sensor • Formaldehyde oxidizes to generate a small current • Three amplification stages • High resolution digital sampling system Formaldehyde Monitoring in Built Environments
- 11. Advantages •High sensitivity tolow vapor concentrations •Linear response over wide conc. range •Small, rugged and reliable •Stable sensitivity over long period of time •Long working life Disadvantages •High cost of production materials (e.g. precious metals) •Can be susceptible to interference effects from certain other compounds capable of oxidation •Different modes of calculating concentrations (peak, area, time) Formaldemeter Summary Formaldehyde Monitoring in Built Environments
- 12. Calibration Method The FormaldemeterhtV-M: • calibrated bi-weekly with calibration tool supplied by the manufacturer • exposed to formaldehyde using a permeation tube from Vici at 5 concentrations (.03, .05, .075, .10, .15 ppm) Formaldehyde Monitoring in Built Environments
- 13. Dart HCHO Sensor •11 mm two-electrode diffusion sensor • 250-300 nA/ppm output signal • Response time is 15 seconds at 20o C • Dynamic Range: 0-25 ppm • Cost: $30-$110 Commercialization Potential • Circuitry for current to voltage required • Combine with temperature/humidity sensors • Develop concentration curves that are temperature/humidity dependent • Algorithm development for marriage of output voltage to temperature and humidity data Formaldehyde Monitoring in Built Environments
- 14. ACS Badge: • Adsorptiontechnology consisting of 2,4 Dinitrophenylhydrazine • Lab analyzed with GC-MS • OSHA gold standard • provides 8 hour TWA, however... Scenario 1: .09, .09, .09, .09, .09, .09, .09, .09 = .09 ppm Scenario 2: .02, .02, .12, .2, .2, .13, .02, .02 = .09 ppm Mean ppm exposure statistics obscure the actual risk associated with shorter term exposure to higher level formaldehyde emissions. Formaldehyde Monitoring in Built Environments
- 15. Formaldehyde Monitoring inBuilt Environments Phase I: Device Calibration, Validation and Selection
- 16.
- 17. Network Design/Configuration • Thenetwork consists of 5 wireless sensor node network, a base station, a Sensor Observation Service (SOS), database system, and a web-based user interface. • Each Formaldemeter was connected to an XBee radio. Readings were output from the serial port to the XBee UART. • Base station (laptop) collected data from all nodes and pass it onto the SOS to be stored in a database. • Web-based user interface displayed latest readings and could be queried for historical analysis. Formaldehyde Monitoring in Built Environments
- 18. Node Radio Design PPMRS232 Voltage 11 V peak to peak Xbee Radio TTL Voltage 0-5 V To Base Station Voltage Conversion Max232a Voltage Conversion Max232a
- 19. Sensor nodes DetectReceive/TransmitProcess/AnalyzeKnowledge/Actio Base stationWeb-based User Interface ase I: Network Design and Testing Formaldehyde Monitoring in Built Environments SOS/SQL Server Database Raw Data = Package/StringProcessed Data = Dashboard
- 20.
- 21. Use case 1: Data Discovery Unitof Measurement Unit of Measurement Feature & Properties Feature & Properties ObservationsObservations Use case 2: Sensor Selection & Discovery Sensor typesSensor types Sensor capabilities/ restrictions Sensor capabilities/ restrictions Deployment Systems Deployment Systems Use case 3: Provenance & Diagnostics Use case 4: Tasking & Programming Operating Restrictions Operating Restrictions Process model Process model ensor Network Uses Cases and Concepts
- 22. Why an Ontology? Ontology:Provides standardized vocabulary and specification of concepts and relationships within or across domains. Expressed in Web Ontology Language (OWL) which is grounded in Description Logics (DLs). Defines concepts, properties (relationships), and logical combinations of concepts to support inference. Advantages: • Can use existing ontologies, languages, querying, and reasoning tools • W3C standards and guidelines in process • Need system to be able to store and query very large dynamic datasets • Semantic modeling of multiple domains allows for creation of reusable data and interoperability across domains Formaldehyde Monitoring in Built Environments
- 23. Ontology based LinkedData Approach Domain ontology Domain ontology Observation ontology Observation ontology Sensor Network ontology Sensor Network ontology Spatio- temporal ontology Spatio- temporal ontology Exposure ontology Exposure ontology System & sensors node capabilities Measurement units Sensor/Person location Properties of Entity Exposure events Units ontology Units ontology hase I: System Informatics Formaldehyde Monitoring in Built Environments
- 24. Database System • Recordsobservations from sensors at nodes • Simplified schema based on OGC sensor ontologies • Can store data for PPM, DART, badge, and location • Supports changes to the sensors deployed at a node and location of the node Formaldehyde Monitoring in Built Environments
- 25. User Interface Formaldehyde Monitoringin Built Environments
- 26. Phase I Accomplishments •Built wireless sensor network for formaldemeters • Calibrated the formaldemeters to Vici permeation device • Investigation into Dart sensor properties • Conceptual framework guided database development Formaldehyde Monitoring in Built Environments
- 27. Formaldehyde Monitoring inBuilt Environments Resin Blender • Phase II – Site Testing Resin blender

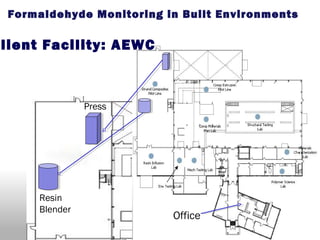

- 28. Resin Blender Press Office lient Facility: AEWC FormaldehydeMonitoring in Built Environments
- 29. Exploratory Questions forSite Tests: 1. Under what conditions is it safe to open the blender door during the resin application process? 2. Where/when are the highest HCHO concentrations occurring? 3. How do existing HVAC controls impact the HCHO emissions during typical processes? 4. Are sensors/badges accurately reflecting concentration measurements? 5. Is there evidence that other work areas are being impacted by HCHO emissions during manufacturing processes? 6. Can the system help to identify environmental events Formaldehyde Monitoring in Built Environments
- 30. ~8’ ~8’ N2 Breathing Zone= ~1ft ofnose/mouth N3 ~6’ N4 Side views 1 and 2 N1 N2 N3 N4 N5 Top View N5N4 Formaldehyde Monitoring in Built Environments esting Variables: Sensor Placement short, long, plume, break) Resin Type and Volume Wood Total Engineering Controls N1 Test 1,4 and 5 Test 2 and 3
- 31. Alpha Test April20-21 Mean = 0.0244 Median = .0103 Mode = .007 SD = .022 SEM = .0004 Variance = .00 Skew = .89 Range .068 Min = .005 Max = .073 “Dry Run” Test conducted during AEWC client testing. Formaldehyde resin used with all normal engineering controls in place. OSHA exceed PEL events (≥ 0.75 ppm) NIOSH exceed REL events (≥ 0.016 ppm) OSHA exceed STEL events (≥ 2.0 ppm) NIOSH > STEL/ceiling events (≥ 0.1 ppm) Event 1 (4/21 12:32am-8:32am)
- 32. Blender Tests April26 Tests used 5 node wireless system deployed inside/outside blender. Formaldehyde resin used both with/without normal engineering controls. Potential Event Thresholds OSHA exceed PEL events (≥ 0.75 ppm) NIOSH exceed REL events (≥ 0.016 ppm) OSHA exceed STEL events (≥ 2.0 ppm) NIOSH exceed STEL/ceiling events (≥ 0.1 ppm) Test Hood Fan Blender Fan Start Time Stop Time Sensor Height (ft) Fan on Hood (s) Time Door Open Resin Type 1 ON ON 903 907 5 15 910 PUF 2 ON ON 924 927 5 15 930 PUF 3 OFF OFF 951 954 5 0 956 PUF 4 OFF OFF 1044 1047 5 0 1050 PUF 5 OFF OFF 1144 (1147)* 1149 5 0 1151 PUF
- 33. Blender Tests (1-5) InsideBlender
- 34. Test 1 Door open 9:10 Test2 Door open 9:30 Test 3 Door open 9:56 Test 4 Door open 10:50 Test 5 Door open 11:51 Outside Blender
- 36. Blender Test 1 Event (4/26 9:02am-9:17am) Test1 Door open 9:10 Outside Blender (Nodes 2-5) Inside Blender (Node 1) Mean = .077 Median = .0688 Mode = .068 SD = .017 SEM = .0027 N = 40 Variance = .000 Skew = .863 Range .049 Min = .058 Max = .107 Descriptives Peak PPM (Nodes 2-5)
- 37. Event (4/26 9:20am-9:35am) Test 2 Dooropen 9:30 Blender Test 2 Outside Blender (Nodes 2-5) Inside Blender (Node 1) Mean = .071 Median = .065 Mode = .066 SD = .016 SEM = .002 N = 56 Variance = .000 Skew = 1.00 Range .048 Min = .055 Max = .103 Descriptives Peak PPM (Nodes 2-5)
- 38. Event (4/26 9:56am-10:18am) Test 3 Dooropen 9:56 Blender Test 3 Outside Blender (Nodes 2-5) Inside Blender (Node 1) Mean = .088 Median = .084 Mode = .085 SD = .026 SEM = .022 N = 116 Variance = .001 Skew = 1.486 Range .149 Min = .056 Max = .205 Descriptives Peak PPM (Nodes 2-5)
- 39. Event (4/26 10:50am-11:10am) Test 4 Dooropen 10:50 Blender Test 4 Outside Blender (Nodes 2-5)Inside Blender (Node 1) Mean = .087 Median = .0733 Mode = .073 SD = .038 SEM = .004 N = 72 Variance = .001 Skew = 2.228. Range .179 Min = .056 Max = .235 Descriptives Peak PPM (Nodes 2-5)
- 40. Event (4/26 11:51am-12:10am) Test 5 Dooropen 11:51 Blender Test 5 Outside Blender (Nodes 2-5)Inside Blender (Node 1) Mean = .086 Median = .079 Mode = .060 SD = .0311 SEM = .003 N = 88 Variance = .001 Skew = 1.708 Range .130 Min = .060 Max = .190 Descriptives Peak PPM (Nodes 2-5)
- 41. Outside Press/Inside Curtain(Nodes2-InsidePress (Node 1) Board Press Test 6 Mean = .182 Median = .094 Mode = .060 SD = .350 SEM = .035 N = 96 Variance = .123 Skew = 4.959 Range 2.00 Min = .057 Max = 2.057 Descriptives Peak PPM (Nodes 2-5)
- 42. Tues. April 26Wed. April 27 Board Emission Test Mean = .190 Median = .190 Mode = .15 SD = .036 SEM = .0006 N = 2960 Variance = .001 Skew = -0.388 Range .26 Min = .01 Max = .27 Descriptives Peak PPM (Nodes 2-5)
- 43. Office Test Conducted over8 days to assess ambient air quality in non-lab areas using only 1 node in data logging mode. No formaldehyde resin was directly introduced into the environment at any time. Event (≥ 2.0 ppm) on 4/26 Events (≥ 0.016 ppm) on 4/21, 4/23, 4/26, 4/27 Events (≥ 0.1 ppm) on 4/23, 4/24, 4/26, 4/27
- 44. Mean = 0.018Mean = 0.018 Mean = 0.016 Mean = 0.03 Mean = 0.094 Mean = 0.013 Mean = 0.188 Mean = 0.163
- 45. Office Test (April20-27)
- 46. Office Test MEANPPM by Day * sig. at .01 level * * * * One way ANOVA Post Hoc: Tukey HSD Bonferroni
- 47. Office Test HCHO,Temp, Humidity (Zscores)
- 48. Office Test HCHO,Temp, Humidity (Zscores) Pre-Weekend
- 49. No Maps? Insufficient Numberof Data Points!
- 50.
- 51. • Engineering controls(hood, fan, door) seem to be working well to protect lab area during blender process • Possible emission issues may arise once boards are pressed and left in lab to dry • Highest HCHO concentrations occurred during press processes • Unexplained HCHO events in office • System functioned with few node failures Formaldehyde Monitoring in Built Environments hase II Exploratory Findings
- 52. Next Steps • Workon new circuit board for DART to design implement, and test second sensor network • Concentration verification • Continue data analysis to identify events • Collect more data from AEWC offices • Submit proposals to NSF and EPA for additional R & D funding Formaldehyde Monitoring in Built Environments
- 53. Unique product tomeet identified industry need for indoor air quality/exposure assessment tools/methods: • wood product manufacturing • manufactured homes and RVs • furniture, carpet, wallboard, paint manufacturing • mortuary supplies • hair care products ommercialization Applications Formaldehyde Monitoring in Built Environments
- 54. So why isthis important? International Center for Toxicology and Medicine http://www.ictm.com/Investigation/Root-Cause.aspx Formaldehyde Monitoring in Built Environments
- 55. Conclusions • Identified immediateneed for wireless formaldehyde monitoring application, • Tested several commercially available sensors to deploy in network, • Designed and implemented wireless network to collect formaldehyde data in real world setting, and • Exploratory analysis and representation of formaldehyde emissions and exposure processes. Formaldehyde Monitoring in Built Environments
- 56. Acknowledgements • NSF IGERTSensor Science, Engineering and Informatics DGE Award number 0504494 • Dr. Kate Beard, SSEI Director • Dr. Brian Frederick, Project Advisor • Dr. Steven Shaler, Dr. Doug Gardner, Russell Edgar, and UMaine’s Advanced Structure & Composite Center Formaldehyde Monitoring in Built Environments
- 57.
- 58.
- 59. Calibration Calculations C(ppm) =(P * (24.46/MW))/Fc) C = the concentration in PPM by volume P = the permeation rate in ng/min MW = the molecular weight of the pollutant gas Fc = the total flow of the calibration mixture in cc/min The constant 24.46 is the molar volume at the reference conditions. P (ng/min) 29 MW (g/mol) 30 24.46 Fc (ppm) Fc (ppm) Fc (ppm) Fc (ppm) Fc (ppm) 0.03 0.05 0.075 0.1 0.15 23.6 23.6 23.6 23.6 23.6 788.2 472.9 315.3 236.4 157.6 mL/min mL/min mL/min mL/min mL/min
- 60. Calibration Calculations Log P1= log P0 + a (T1 - T0) P0 = Rate at temp T0 (°C) P1 = New rate at temp T1 (°C) a = 0.030 for high emission tubes estimate 1°C decrease in temperature decreases the rate by 10%. rate in ng/min P1 29 1.46 P0 60 1.46 T1 19.5 T0 30
- 61.
- 62. Sensitivity and Selectivityof Formaldemeter Formaldehyde Sensor Type Electrochemical, two noble metal electrodes and electrolyte (proprietary) Formaldehyde Sensor Dynamic Range 0.05 -10 ppm Formaldehyde Sensor Resolution 0.001 ppm Formaldehyde Sensor Precision 10% at 2ppm level Temperature/Humidity Interchangeable digital CMOSens® Temperature/Humidity Range -40 to 128 °C, 0-100% Temperature/Humidity Accuracy ±0.4°C, ±3% RH Temperature/Humidity Calibration Calibrated to ISO/IEC17025 by manufacturer
- 63. Interference Compound 1 ppminterference concentration Comments Acetone, Acetic Acid, Butanol -- -- Acetaldehyde 8-12 Linear Ammonia 71000 High Concentration Carbon Monoxide 100 Linear Ethylene 160 -- Ethanol, Methanol 12-20, 50 Linear Phenol, Resorcinol 5,5 Filterable
- 64.
- 65. Performance Characteristics ofSensors Technology Specification Chemisresistive Sensor Optical Sensor Biological Sensor Sensing Mechanism Metal Oxide Semiconductor Difference Frequency Generator Biological enzymatic reaction Transduction Process Resistivity change results in electrical output MCT Detector Photomultiplier Tube (PMT) Signal Processing Principal Component Analysis Spectral analysis Algorithms for photon counts Sensitivity 10’s of ppb (part per billion) 10’s of ppt (parts per trillion) 1’s of ppb Response/analysis time < 1 minute (ppm) >1 minute (ppb) 1 minute 2 minutes Sampling system Micro pump and tubing Multipass absorption cell fed with ambient air by vacuum pump Flow cell comprised of silicone tube and PMMA cell Selectivity constraints Poor selectivity Unaffected by humidity Highly selective with minimal interference
- 66. Formaldehyde detection competitors Sensor Company Real Time Data LCD Display Wireless Network Data storage/ analysis Compute r Interface PortableThreshol d Alarm OSHA certified List Price ($) Enmet PPM X X X X X X X 3800 CEA Instruments X X X X 2000 Advance Chemical Sensors X X 40 Interscan X X 2000 Environmental Sensor Company X X 1200
- 67. Dart Performance Characteristics DynamicRange 0.01-25 ppm Expected Life 5 years in non-corrosive environment Output signal 250-300 nA/ppm Temperature Range -10 to 40°C Pressure Range Up to 10 atmospheres pressure T90 response time 15 seconds at 20°C Relative humidity range 15%-90% non-condensing Typical baseline offset (20°C) 0.02 ppm formaldehyde equivalent Typical baseline offset (20°C-40°C) 0 to -0.30 ppm (Economy) Premium TBA Repeatability <+/-2% Output Linearity Linear Position Sensitivity None Storage Life 2 years at 20°C
- 68. Need Context for... •Entity of Interest: Object (Sensor) • Observation and Measurement • Entity of Interest: Object (Person) • Location Context • Intersection of Person-Location Event and Noteworthy O&M-Location Event = Exposure Event
- 70. o CHEMICAL ENERGY-> ELECTRICAL ENERGY o Typically consist of two electrodes in contact with an electrolyte o ANODE: where oxidation occurs o CATHODE: where reduction occurs o Electrons generated flow from anode to cathode o Similar to galvanic cell (battery): reactions occur spontaneously o Reactants are supplied from outside rather than forming an integral part of its construction Electrochemical Introduction Formaldehyde Monitoring in Built Environments
