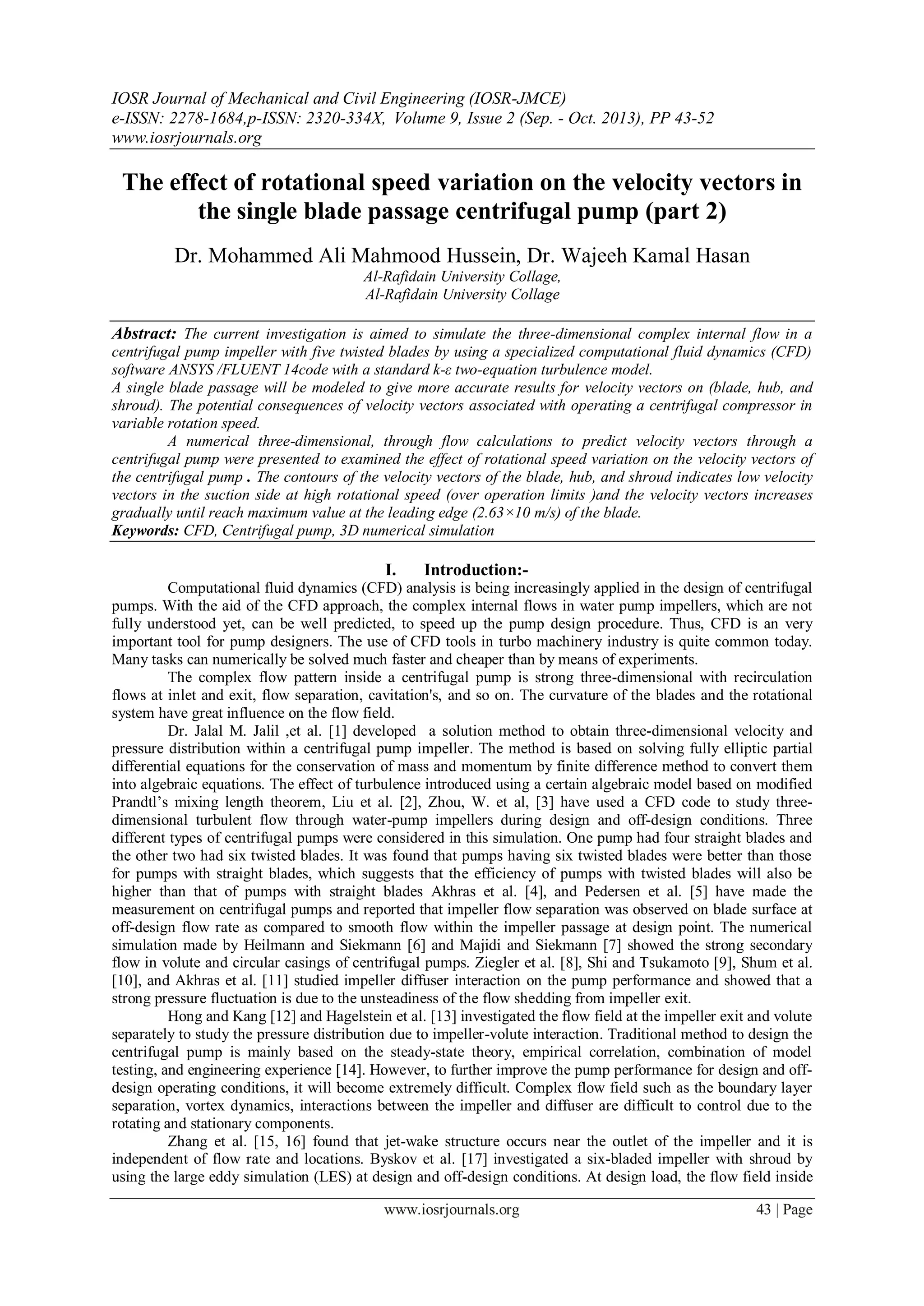

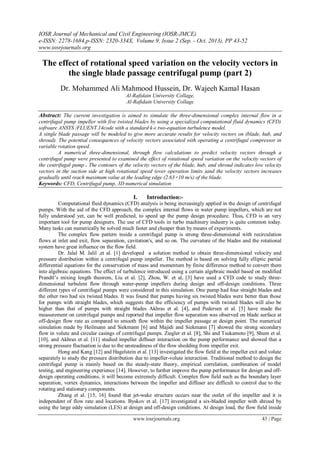

This document summarizes a study that uses computational fluid dynamics (CFD) to simulate the internal flow in a centrifugal pump with varying rotational speeds. The study models a single blade passage of a five-bladed centrifugal pump impeller to accurately predict velocity vectors on the blade, hub, and shroud. Results show that at higher rotational speeds above the design point, velocity vectors increase more gradually until reaching a maximum value at the leading edge of the blade. The analysis concludes that velocity vectors in the suction side remain approximately constant, but increase to a higher maximum at the leading edge as rotational speed increases, especially above the design point.
The effect of rotational speed variation on the static pressure in the centri...IOSR Journals
The current investigation is aimed to simulate the three-dimensional complex internal flow in a
centrifugal pump impeller with five twisted blades by using specialized computational fluid dynamics (CFD)
software ANSYS /FLUENT 14code with a standard k-ε two-equation turbulence model.
A single blade passage will be modeled to give more accurate results for static pressure contours on (blade,
hub, and shroud). The potential consequences of static pressure associated with operating a centrifugal
compressor in variable rotation speed.
A numerical three-dimensional, through flow calculations to predict static pressure through a
centrifugal pump were presented to examined the effect of rotational speed variation on the static pressure of
the centrifugal pump . The contours of the static pressure of the blade, hub, and shroud indicates negative low
static pressure in the suction side at high rotational speed (over operation limits )and the static pressure
increases gradually until reach maximum value at the leading edge (6×105 Pa) of the blade.
