This document describes a project to prevent vehicle accidents by detecting a driver's eye blinks using an IR sensor. If the sensor detects no eye blinks for a set time, indicating potential drowsiness, it will send a signal via RF to receivers in the vehicle to stop the motor and alert emergency services. The system uses a microcontroller, eye blink sensor, RF transmitter and receiver, motor driver, and other components. It aims to reduce accidents caused by drowsy or intoxicated driving. Possible extensions include adding alcohol detection to also stop the vehicle if the driver is intoxicated.

2. By :-
Ashwini
UttArwAr
GoUrAv BiBhor
KUnAl KUmAr
nAndlAl KUmAr
PUjA triPAthi
rishU GAndhi
deePAK sinGh

3.  Accidents are increasing at a large pace,
and various technologies are being
introduced to reduce the accidents.
 In this project we provide by means of
accident prevention using eye blink
where as the vehicle is stopped
immediately and intimated wherever
needed.

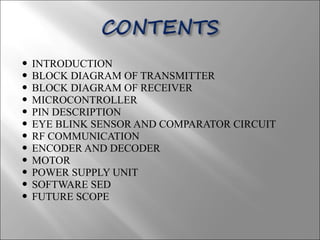

4.  INTRODUCTION
 BLOCK DIAGRAM OF TRANSMITTER
 BLOCK DIAGRAM OF RECEIVER
 MICROCONTROLLER
 PIN DESCRIPTION
 EYE BLINK SENSOR AND COMPARATOR CIRCUIT
 RF COMMUNICATION
 ENCODER AND DECODER
 MOTOR
 POWER SUPPLY UNIT
 SOFTWARE SED
 FUTURE SCOPE

5.  Vehicle accidents are most common if the
driving is inadequate.
 Driver drowsiness is recognized as an
important factor in the vehicle accidents.
 This project involves measure and controls
the eye blink using IR sensor. The IR
transmitter is used to transmit the infrared
rays in our eye.

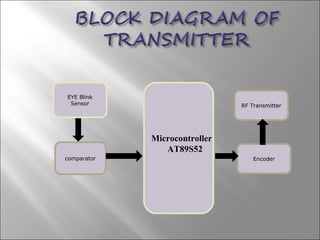

9. Microcontroller
AT89S52
EYE Blink
Sensor
comparator Encoder
RF Transmitter

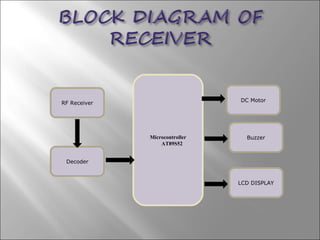

10. Microcontroller
AT89S52
Buzzer
DC Motor
RF Receiver
Decoder
LCD DISPLAY

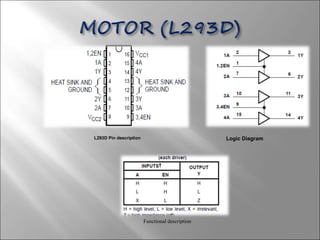

13. L293D Pin description Logic Diagram
Functional description

14. Pin Diagram

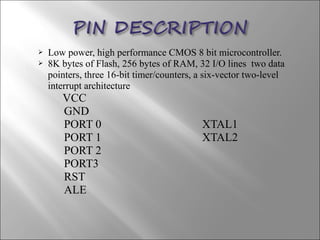

15.  Low power, high performance CMOS 8 bit microcontroller.
 8K bytes of Flash, 256 bytes of RAM, 32 I/O lines two data
pointers, three 16-bit timer/counters, a six-vector two-level
interrupt architecture
VCC
GND
PORT 0 XTAL1
PORT 1 XTAL2
PORT 2
PORT3
RST
ALE

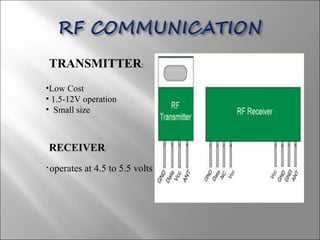

17. TRANSMITTER:
•Low Cost
• 1.5-12V operation
• Small size
• operates at 4.5 to 5.5 volts
RECEIVER:

19.  Keil compiler is the software used where the machine
language code is written and compiled.
 The machine source code is converted into hex code,
this hex code is dumped into the microcontroller for
further processing.

20.  This is extended with alcoholic detection
also.
 If the person took alcohol who is driving
then the vehicle will be stopped
immediately by giving alarm
