This document discusses extracting geospatial and asset data from GE Smallworld into a Common Information Model (CIM) XML format to populate a Distribution Management System (DMS). Smallworld data is first migrated to an Oracle database using SWSync and FME. FME is then used to transform the Oracle data into CIM XML and GML files representing the network connectivity and schematic geometry. The CIM XML files can then be imported into the DMS. FME simplifies the XML generation through the use of XML templates and transformers.

1. Extracting Data from GE
Smallworld into Common
Information Model (CIM XML)
Based on a true story…
Digital Energy's 2014 Americas Software Summit
Feb 2014
 ,  
Mark Stoakes, Safe Software Inc.

2. Agenda
Introduction
Populating a DMS via FME & CIM XML
Q&A

3. What we do.

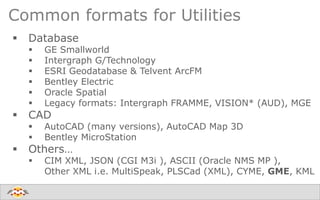

4. Common formats for Utilities
 Database
 GE Smallworld
 Intergraph G/Technology
 ESRI Geodatabase & Telvent ArcFM
 Bentley Electric
 Oracle Spatial
 Legacy formats: Intergraph FRAMME, VISION* (AUD), MGE
 CAD
 AutoCAD (many versions), AutoCAD Map 3D
 Bentley MicroStation
 Others…
 CIM XML, JSON (CGI M3i ), ASCII (Oracle NMS MP ),
Other XML i.e. MultiSpeak, PLSCad (XML), CYME, GME, KML

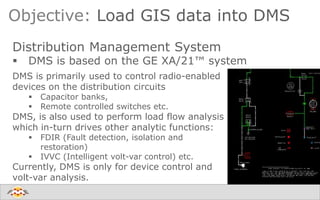

5. Objective: Load GIS data into DMS
Distribution Management System
 DMS is based on the GE XA/21™ system
DMS is primarily used to control radio-enabled
devices on the distribution circuits
 Capacitor banks,
 Remote controlled switches etc.
DMS, is also used to perform load flow analysis
which in-turn drives other analytic functions:
 FDIR (Fault detection, isolation and
restoration)
 IVVC (Intelligent volt-var control) etc.
Currently, DMS is only for device control and
volt-var analysis.

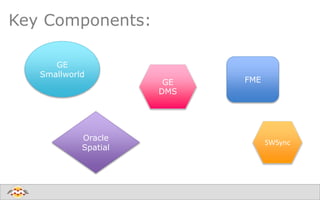

6. Key Components:
GE
Smallworld
FME
Oracle
Spatial
SWSync
GE
DMS

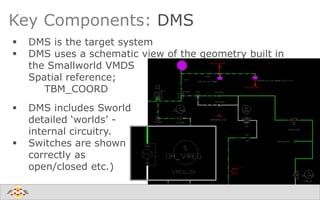

7. Key Components: DMS
 DMS is the target system
 DMS uses a schematic view of the geometry built in
the Smallworld VMDS
Spatial reference;
TBM_COORD
 DMS includes Sworld
detailed ‘worlds’ -
internal circuitry.
 Switches are shown
correctly as
open/closed etc.)

8. Key Components: Smallworld 4.2
Smallworld 4.2 VMDS
 Smallworld is the source system
 Physical Network
 Geometry:
 physical geometry (UTM83-11F)
 schematic geometry
 Source dataset for:
 Oracle 11g
 CGI M3i OMS

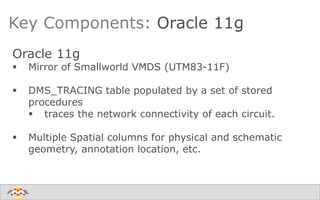

9. Key Components: Oracle 11g
Oracle 11g
 Mirror of Smallworld VMDS (UTM83-11F)
 DMS_TRACING table populated by a set of stored
procedures
 traces the network connectivity of each circuit.
 Multiple Spatial columns for physical and schematic
geometry, annotation location, etc.

10. Key Components: FME
Translate spatial
and non-spatial
data from one
format to
another
300+
supported
formats in FME
2014
Transform spatial
and non-spatial
data into the
precise data
model you
need

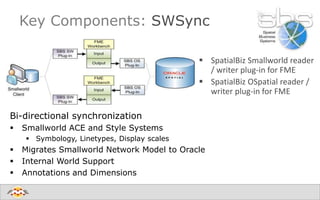

11.  SpatialBiz Smallworld reader
/ writer plug-in for FME
 SpatialBiz OSpatial reader /
writer plug-in for FME
Key Components: SWSync
Bi-directional synchronization
 Smallworld ACE and Style Systems
 Symbology, Linetypes, Display scales
 Migrates Smallworld Network Model to Oracle
 Internal World Support
 Annotations and Dimensions

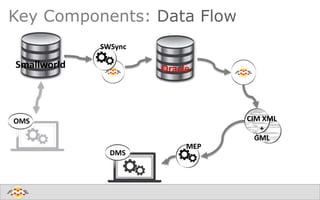

12. Key Components: Data Flow
OMS
DMS
Smallworld Oracle
CIM XML
+
GML
SWSync
MEP

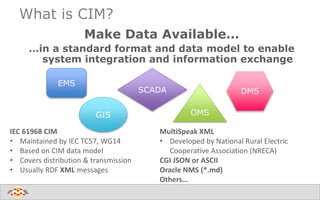

13. What is CIM?
Make Data Available…
…in a standard format and data model to enable
system integration and information exchange
MultiSpeak XML
• Developed by National Rural Electric
Cooperative Association (NRECA)
CGI JSON or ASCII
Oracle NMS (*.md)
Others…
IEC 61968 CIM
• Maintained by IEC TC57, WG14
• Based on CIM data model
• Covers distribution & transmission
• Usually RDF XML messages
GIS
EMS
OMS
SCADA DMS

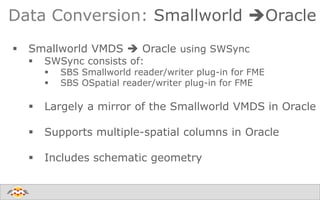

14. Data Conversion: Smallworld Oracle
 Smallworld VMDS  Oracle using SWSync
 SWSync consists of:
 SBS Smallworld reader/writer plug-in for FME
 SBS OSpatial reader/writer plug-in for FME
 Largely a mirror of the Smallworld VMDS in Oracle
 Supports multiple-spatial columns in Oracle
 Includes schematic geometry

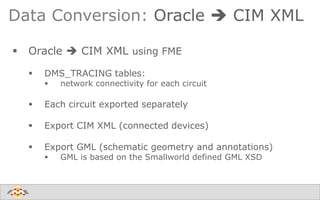

15. Data Conversion: Oracle  CIM XML
 Oracle  CIM XML using FME
 DMS_TRACING tables:
 network connectivity for each circuit
 Each circuit exported separately
 Export CIM XML (connected devices)
 Export GML (schematic geometry and annotations)
 GML is based on the Smallworld defined GML XSD

16. Data Conversion: CIM XML  DMS
 CIM XML  DMS
 a single gateway is used for all CIM based communications
with operational systems.
 Gateway validates the CIM files with the profile (OWL file)
 Gateway also performs additional validations:
 checking conductor lengths, phasing values etc.
 The elements of the CIM (conductors, capacitors etc.) are
submitted for DMS adapter for import into DMS.

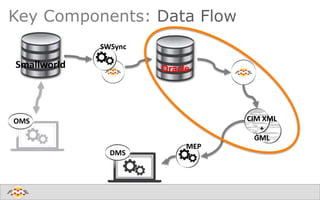

17. Key Components: Data Flow
OMS
DMS
Smallworld Oracle
CIM XML
+
GML
SWSync
MEP

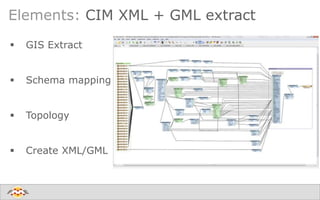

18. Elements: CIM XML + GML extract
 GIS Extract
 Schema mapping
 Topology
 Create XML/GML

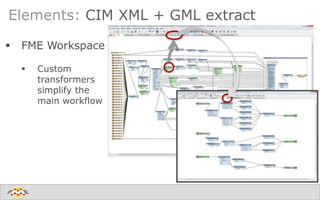

19. Elements: CIM XML + GML extract
 FME Workspace
 Custom
transformers
simplify the
main workflow

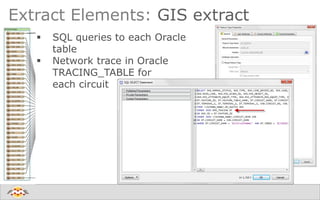

20. Extract Elements: GIS extract
 SQL queries to each Oracle
table
 Network trace in Oracle
TRACING_TABLE for
each circuit

21. Extract Elements: Schema Mapping
 Mapping from Oracle CIM XML:
 Rename Attributes
 Set Attribute Values
 enumerated lists
 expressions
 conditional filters
 Feature Type Names
(table names)
 Geometry Change
what we have

what we want

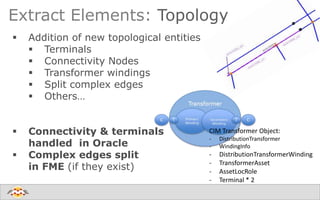

22.  Addition of new topological entities
 Terminals
 Connectivity Nodes
 Transformer windings
 Split complex edges
 Others…
 Connectivity & terminals
handled in Oracle
 Complex edges split
in FME (if they exist)
Extract Elements: Topology
CIM Transformer Object:
- DistributionTransformer
- WindingInfo
- DistributionTransformerWinding
- TransformerAsset
- AssetLocRole
- Terminal * 2

23. Extract Elements: XML Templates
 Steal an XML sample and reuse it
 Replace attribute values with Xquery statements
 …including composite attributes
…
…
<cim:DistributionTransformer rdf:ID="DT_SLFPMT2_SLFPMT2">
<cim:DistributionTransformer.TransformerBank rdf:resource="#TB_SLFPMT2_SLFPMT2"> </cim:DistributionTransformer.TransformerBank>
<cim:Equipment.EquipmentContainer rdf:resource="#Line_99999"></cim:Equipment.EquipmentContainer>
<cim:PowerSystemResource.circuit2>99999</cim:PowerSystemResource.circuit2>
<cim:PowerSystemResource.circuit>99999</cim:PowerSystemResource.circuit>
<cim:IdentifiedObject.name>SLFPMT2:SLFPMT2</cim:IdentifiedObject.name>
<cim:IdentifiedObject.mRID>SLFPMT2:SLFPMT2</cim:IdentifiedObject.mRID>
<cim:IdentifiedObject.description>DistributionTransformer</cim:IdentifiedObject.description>
<cim:IdentifiedObject.aliasName>DT_SLFPMT2_SLFPMT2</cim:IdentifiedObject.aliasName>
</cim:DistributionTransformer>
…
…
<cim:DistributionTransformer rdf:ID="DT_{fme:get-attribute("_DMS_OBJECT_ID")}">
<cim:DistributionTransformer.TransformerBank rdf:resource="#{fme:get-attribute("_DMS_DEVICE_ABBR")}{fme:get-attribute("_DMS_SCADA_ID")}"/>
<cim:Equipment.EquipmentContainer rdf:resource="#Line_{fme:get-attribute("CIRCUIT_NO")}"/>
<cim:PowerSystemResource.circuit2>{fme:get-attribute("CIRCUIT_NO_2")}</cim:PowerSystemResource.circuit2>
<cim:PowerSystemResource.circuit>{fme:get-attribute("CIRCUIT_NO")}</cim:PowerSystemResource.circuit>
<cim:IdentifiedObject.name>{fme:get-attribute("M3I_OBJECT_ID")}</cim:IdentifiedObject.name>
<cim:IdentifiedObject.mRID>{fme:get-attribute("M3I_OBJECT_ID")}</cim:IdentifiedObject.mRID>
<cim:IdentifiedObject.description>DistributionTransformer</cim:IdentifiedObject.description>
<cim:IdentifiedObject.aliasName>DT_{fme:get-attribute("_DMS_OBJECT_ID")}</cim:IdentifiedObject.aliasName>
</cim:DistributionTransformer>
<cim:DistributionTransformer.TransformerBank rdf:resource="#{fme:get-attribute("_DMS_DEVICE_ABBR")}{fme:get-attribute("_DMS_SCADA_ID")}"/>

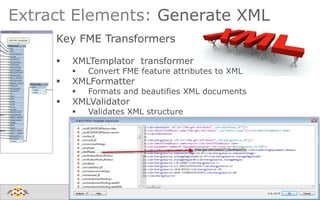

24. Key FME Transformers
 XMLTemplator transformer
 Convert FME feature attributes to XML
 XMLFormatter
 Formats and beautifies XML documents
 XMLValidator
 Validates XML structure
Extract Elements: Generate XML

25. Summary
Successfully exporting Smallworld
GIS to DMS
 Smallword to Oracle
 via SWSync / FME
 Oracle to CIM XML
 via FME
 CIM XML to DMS

26. Summary
Spatial ETL Tool can simplify your
XML woes
 FME’s template approach reduces
need to understand XML syntax and
structure
 Reduces on-going ETL maintenance
 Self-documenting workflows in
the FME Workbench GUI

27. Create harmony between data and applications
Q&A

28. Thank you!
 Mark Stoakes
 mark@safe.com
 Free FME Training
 www.safe.com/training
