Federated ECM Search with CMIS
1. Unleashing CMIS: From Federated
Search to Developer Tools
Paul Hampton
Alfresco
Laurence Hart
Washington Consulting, Inc.
2. Agenda
What are the issues
CMIS : Who, What and Why
Details of CMIS
AIIM CMIS Demo: Who, What and Why
AIIM CMIS Demo: Live Demo
CMIS: Further Resources
Questions and Answers
3. Challenges of Interoperability
?? ?? ?
?
● Potentially dozens of Content Management
Systems with huge sunk cost
● Each ECM system is a silo
● Substantial operational and compliance risk to
separate repositories
● System Integrators and Software Vendors need to
write to very different APIs
● Previous standards failed to get adopted
Imaging/ Project/
ECM WCM XML
Workflow Collaboration
● Yet there is a lot of commonality
Project/
● But there is “no adoptable standard”
ECM Collaboration
Project/
WCM
Imaging/
ECM Collaboration
Workflow
Project/
Collaboration
4. Goals of CMIS
The Solution:
Content Management Interoperability Services
Create a new ecosystem for ECM
Enable new classes of cross repo applications:
eDiscovery, Publishing, Collaboration…
Create a common understanding of ECM:
Query, Inheritance, Properties, CRUD Versions, etc.
To NOT expose ALL capabilities of a repository.
To NOT expose admin/management functions.

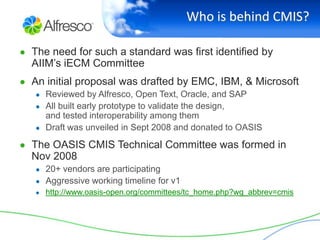

5. Who is behind CMIS?
● The need for such a standard was first identified by
AIIM’s iECM Committee
● An initial proposal was drafted by EMC, IBM, & Microsoft
● Reviewed by Alfresco, Open Text, Oracle, and SAP
● All built early prototype to validate the design,
and tested interoperability among them
● Draft was unveiled in Sept 2008 and donated to OASIS
● The OASIS CMIS Technical Committee was formed in
Nov 2008
● 20+ vendors are participating
● Aggressive working timeline for v1
● http://www.oasis-open.org/committees/tc_home.php?wg_abbrev=cmis

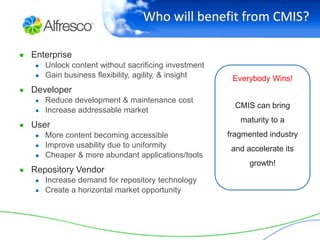

6. Who will benefit from CMIS?
● Enterprise
● Unlock content without sacrificing investment
● Gain business flexibility, agility, & insight
Everybody Wins!
● Developer
● Reduce development & maintenance cost
CMIS can bring
● Increase addressable market
maturity to a
● User
fragmented industry
● More content becoming accessible
● Improve usability due to uniformity
and accelerate its
● Cheaper & more abundant applications/tools
growth!
● Repository Vendor
● Increase demand for repository technology
● Create a horizontal market opportunity
8. What is CMIS?
Content Management Interoperability Services
SQL Standard but for Content Management
Language Independent
Target Content Applicatoins and Collaboration
New SQL-based query language
Basic Operations thru AtomPub and Web Services bindings
Simple Data Model
9. How does it work?
Application portability;
Interoperable Content Application
Content reuse/integration
(on any platform)
CMIS Request
Not all capabilities
A mapping of a repository are
interface; necessarily
CMIS
Not a federation exposed
(web-based, service-oriented
interface
interface)
CMIS CMIS CMIS
Implementation Implementation Implementation
Content Content Content
Repository Repository Repository
(on any platform) (on any platform) (on any platform)

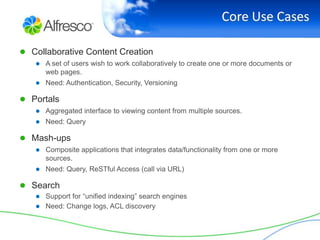

10. Core Use Cases
Collaborative Content Creation
A set of users wish to work collaboratively to create one or more documents or
web pages.
Need: Authentication, Security, Versioning
Portals
Aggregated interface to viewing content from multiple sources.
Need: Query
Mash-ups
Composite applications that integrates data/functionality from one or more
sources.
Need: Query, ReSTful Access (call via URL)
Search
Support for “unified indexing” search engines
Need: Change logs, ACL discovery
11. CMIS Protocol Bindings
● Web Services Binding:
● Service-oriented binding
● CMIS-specified XML schema
● Capable for system-to-system access
● Use MTOM to transfer content stream
● WS-Security 1.1, Username Token Profile 1.1
● Transactional Applications
● ReSTful AtomPub Binding:
● Resource-based binding
● Atom format with CMIS extensions
● Browse-able by standard Atom feed readers
● Suitable for ReSTful-style application-to-system access
● HTTP authentication
● Web-based Applications
12.

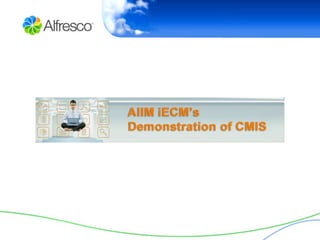

13. iECM Demo for AIIM ‘09
● Organized by the AIIM iECM Committee
● Thomas Pole, Chair
● Betsy Fanning, AIIM Director of Standards
● Project 2 months before the AIIM Conference
● Search Federator Application
● Development led by Laurence Hart (CMIS Federator) and Thomas Pole (User
Interface)
● Use CMIS (Web Services binding) to query/access disparate,
geographically distributed vendor repositories
● Content
● Several issues of AIIM E-DOC Magazine, Infonomics Magazine, and vendor
material
● Spread across repositories
● Participating vendors
● Alfresco
● EMC Corp
● Nuxeo

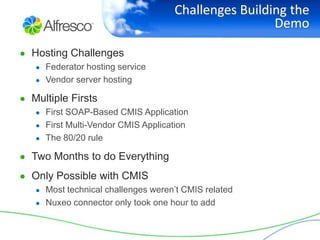

15. Challenges Building the
Demo
● Hosting Challenges
● Federator hosting service
● Vendor server hosting
● Multiple Firsts
● First SOAP-Based CMIS Application
● First Multi-Vendor CMIS Application
● The 80/20 rule
● Two Months to do Everything
● Only Possible with CMIS
Most technical challenges weren’t CMIS related
●
● Nuxeo connector only took one hour to add
17. Alfresco’s CMIS
First implementation based upon the 0.5 Specification
Supports both Web Services and AtomPub protocols
Basis for all future public APIs
Used in integration with Drupal and Joomla
Demonstrates Alfresco as a Content Services Platform as well as
App
