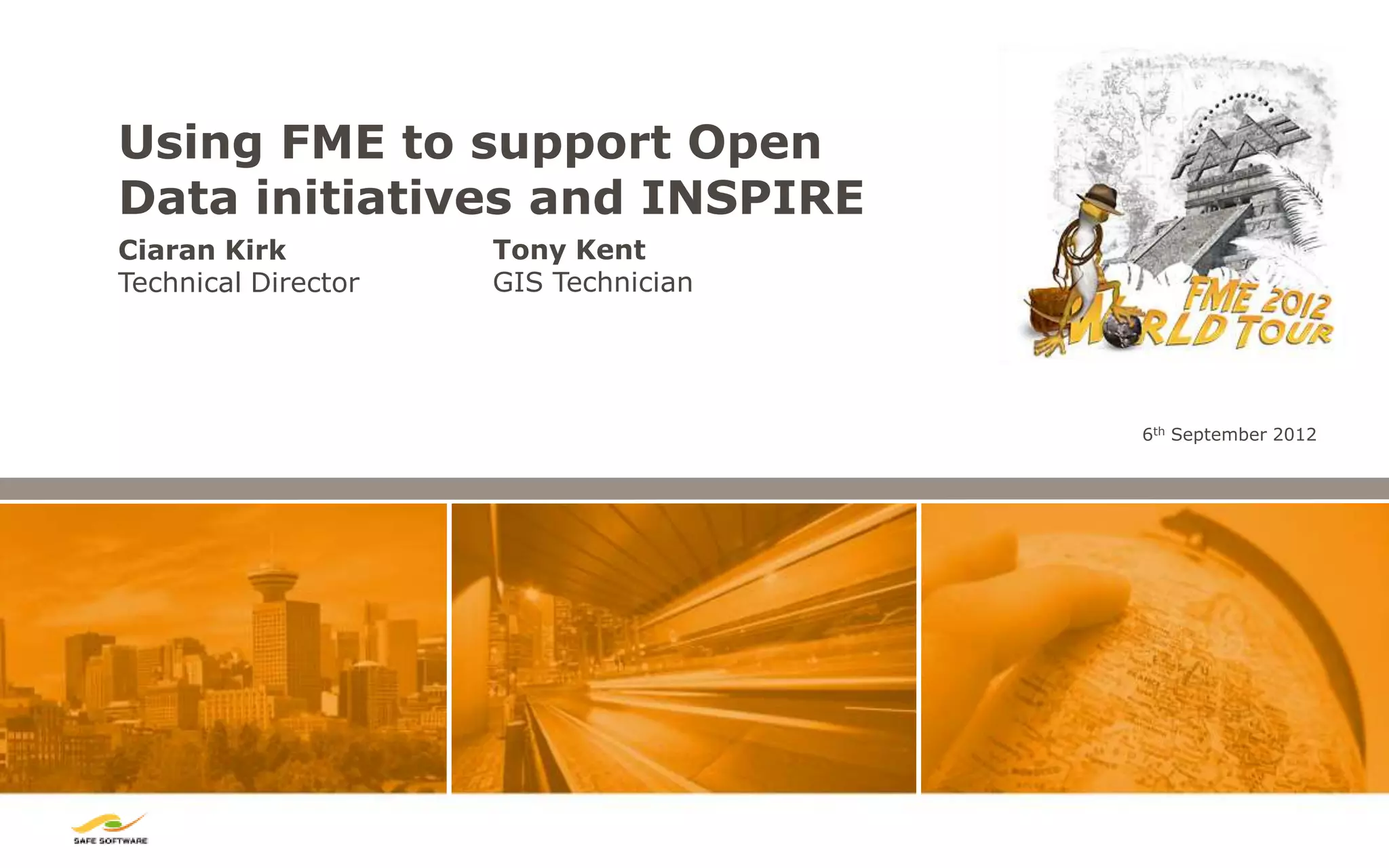

1. Using FME to support Open
Data initiatives and INSPIRE
Ciaran Kirk Tony Kent
Technical Director GIS Technician
6th September 2012

3. The Challenge
 You want to meet Open data requirements, but
your data is organized rather differently
?

4. What we do …
?
We build data bridges – to your SDI

5. Harmonization Core Concepts
 Harmonization: implied requirement for building an
SDI
 Disparate sources must be mapped to a common
destination data model
 Core to the harmonization workflow is a process called
schema mapping.
 Delivered by services based on open standards

6. INSPIRE Harmonization Principles
Typical stages:
1. Evaluation
2. Assembly
3. Transformation
4. Validation
5. Publication
Based on the Spatial ETL concept (Extract,
Transform and Load), as applied to INSPIRE SDI’s

7. Evaluation
 Assess destination schema and data requirements
 Assess source datasets and schema
 Consider fundamental differences in representation,
resolution
 Closely inspect actual representative datasets

8. Data Assembly
 Assess the diversity of source data types:
 vector, raster, CAD, GIS, database, text, XML, web,
3D, sensor and non-spatial
 Review format and semantic translation needs
 Decide how to perform necessary joins
 ID joins, spatial relates, nearest neighbor, one to
many relationships
Goal is to build a data structure that corresponds
with your published standard

9. Metadata – Data about data
Describes data structures
• tables
• geometry types
• data types
• fields
Describes data content
• coordinate system
• extent
• modification date
• quality, ownership, etc.

10. Metadata - Purpose

11. Key FME Metadata Capabilities
• Reading
• Writing
• Updating
• Harvesting
• Validating
• Integration with web services

12. CSW: Catalog Service for the Web
• Deegree
• GeoNetwork
• OpenGIS
• TerraCatalog

13. Metadata Services: CSW
• Reading
• Writing / Publishing
• Updating

14. Data Transformation - Schema
 Reshape source data to match required
destination schema
 Schema mapping
 feature type
 attribute name
 new attribute creation
 code lists
 conditional value
mappings

15. Schema Mapping in FME
Feature Type Mapping in FME Workbench
Attribute Mapping in FME Workbench

16. FME Data Model Restructuring:
Attribute Names & Values
 Value Mapping

17. FME SchemaMapper:
INSPIRE geographic names
FME Workspace
Name mapping
Name &
value mapping

18. Transformation: Geometry
 Non-spatial to spatial
 Geometry extraction (spatial to GML)
 Representation transform: CAD drawing lines with
labels to GIS polygonal features with attributes
 Coordinate System Reprojection (ED50 to ETRF89)
 Simple to complex geometry
 Source point and polygon data to multiple geometric
representations (city as point / area, river as line / area)
 Generalization and interpolation
 Highly granular national and regional datasets often require
thinning to be usable on pan-European scales

19. Validation
 Schema validation i.e. INSPIRE (xsds)
 Data integrity
 Unique IDs
 Geometric integrity (closed polygons)
 Null values (nullable?)
 Valid values: ranges and domain codes
 Data gaps
 Bounds
 Network integrity
 Custom validity rules specific to domain
 Validation automation via FME Server upload
Ensure data quality throughout the data transformation process.

20. Publication
 Produce INSPIRE compliant GML
 Provide discovery, view or download services, for
WxS, GML and other desired formats
 Publish with FME Server or integrate with your
geo web server of choice
 Spatial Data Services

21. Publication with FME Server
 Publish workspace to FME Server
 Store the workspace in a central repository
 Make your FME workspaces available to others –
over the web
 Register the workspace with one or more services
(Data Streaming, Data Download, etc.)
21

22. Open Data Demonstration

23. FME Tools for INSPIRE
 Format translation
 Schema mapping
 String and list manipulation
 Data validation
 Database load and extract
 XML,GML,WFS: reading, validation,
publication
 Web services: WFS, WMS, integration
with others
 Metadata support
 Enterprise services
with FME Server

24. Summary
 FME can provide all the tools to help you support
your data sharing needs:
 Integrate your data sources
 Manage your meta data catalogues
 Transform your data to standard schemas
 Publish the data in the required formats

25. Thank You!
 Questions?
 For more information:
 Ciaran Kirk – ckirk@imgs.ie
 Tony Kent – tkent@imgs.ie
 support@imgs.ie
