네트워크 가상화 보안현황 및 보안연관성
- 1.

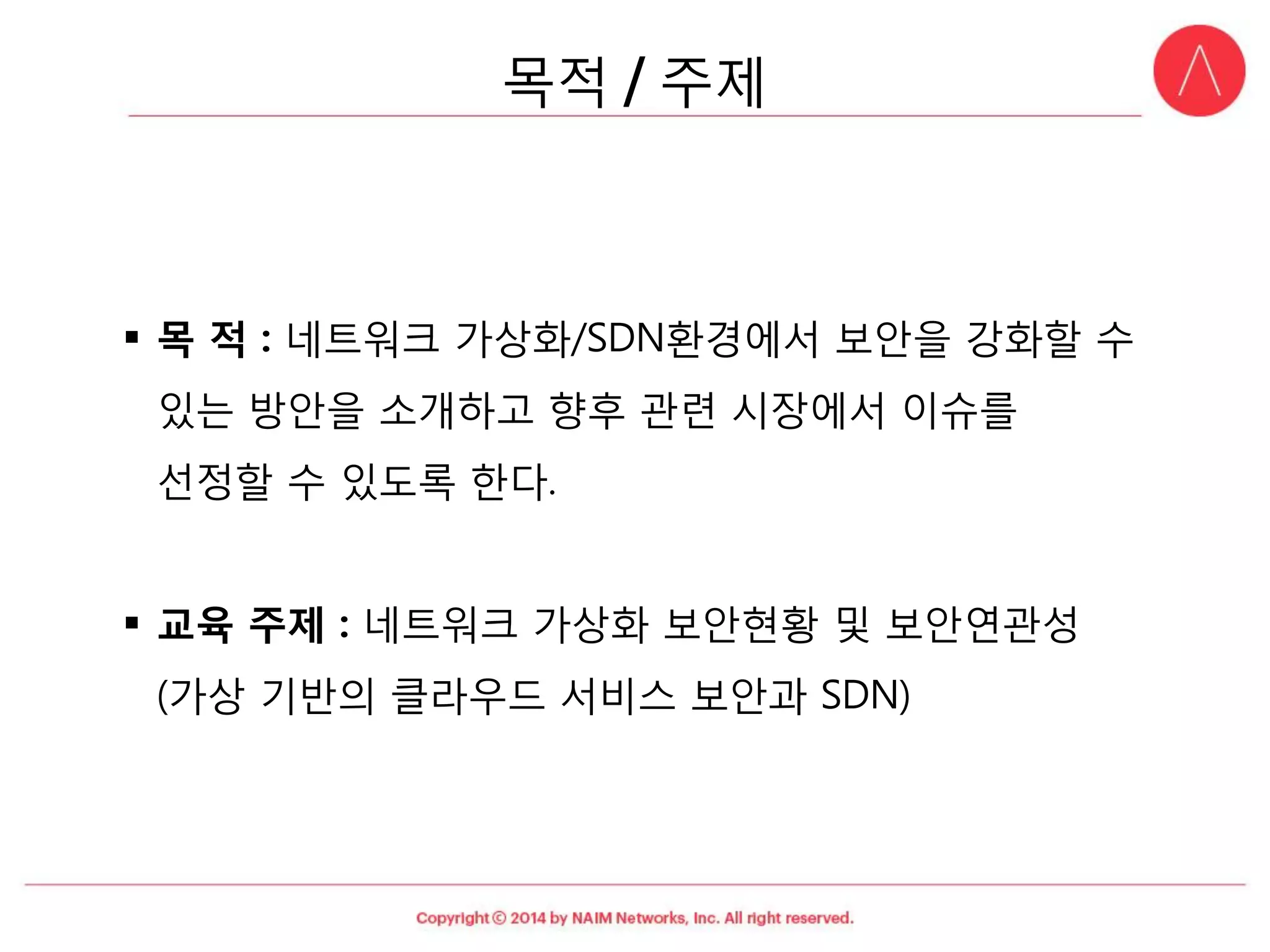

- 2. 목적: 네트워크가상화/SDN환경에서보안을강화할수있는방안을소개하고향후관련시장에서이슈를선정할수있도록한다. 교육주제:네트워크가상화보안현황및보안연관성(가상기반의클라우드서비스보안과SDN) 목적주제

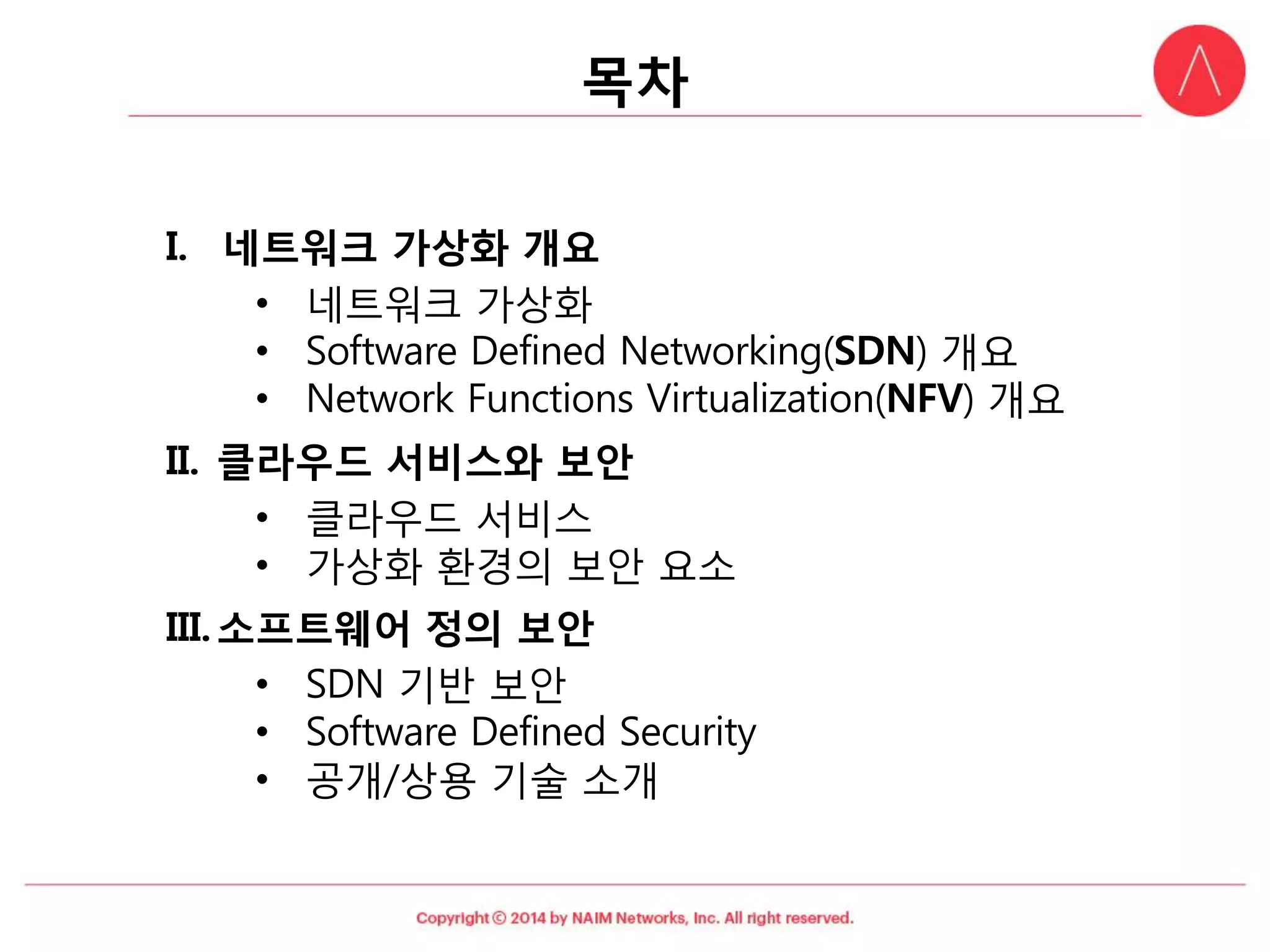

- 3. 목차 I.네트워크가상화개요 •네트워크가상화 •Software Defined Networking(SDN) 개요 •Network Functions Virtualization(NFV) 개요 II.클라우드서비스와보안 •클라우드서비스 •가상화환경의보안요소 III.소프트웨어정의보안 •SDN 기반보안 •Software Defined Security •공개/상용기술소개

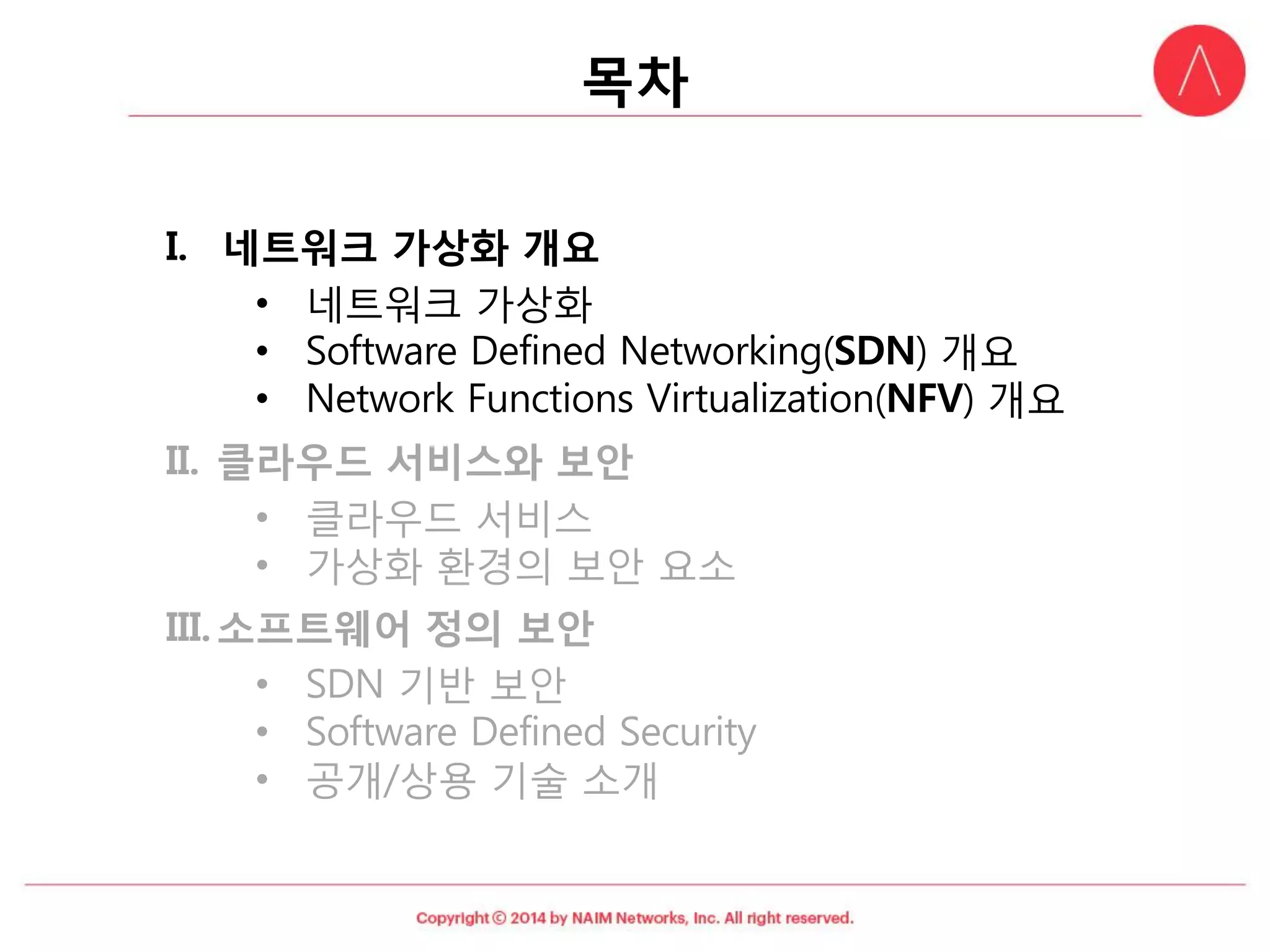

- 4. 목차 I.네트워크가상화개요 •네트워크가상화 •Software Defined Networking(SDN) 개요 •Network Functions Virtualization(NFV) 개요 II.클라우드서비스와보안 •클라우드서비스 •가상화환경의보안요소 III.소프트웨어정의보안 •SDN 기반보안 •Software Defined Security •공개/상용기술소개
- 5.

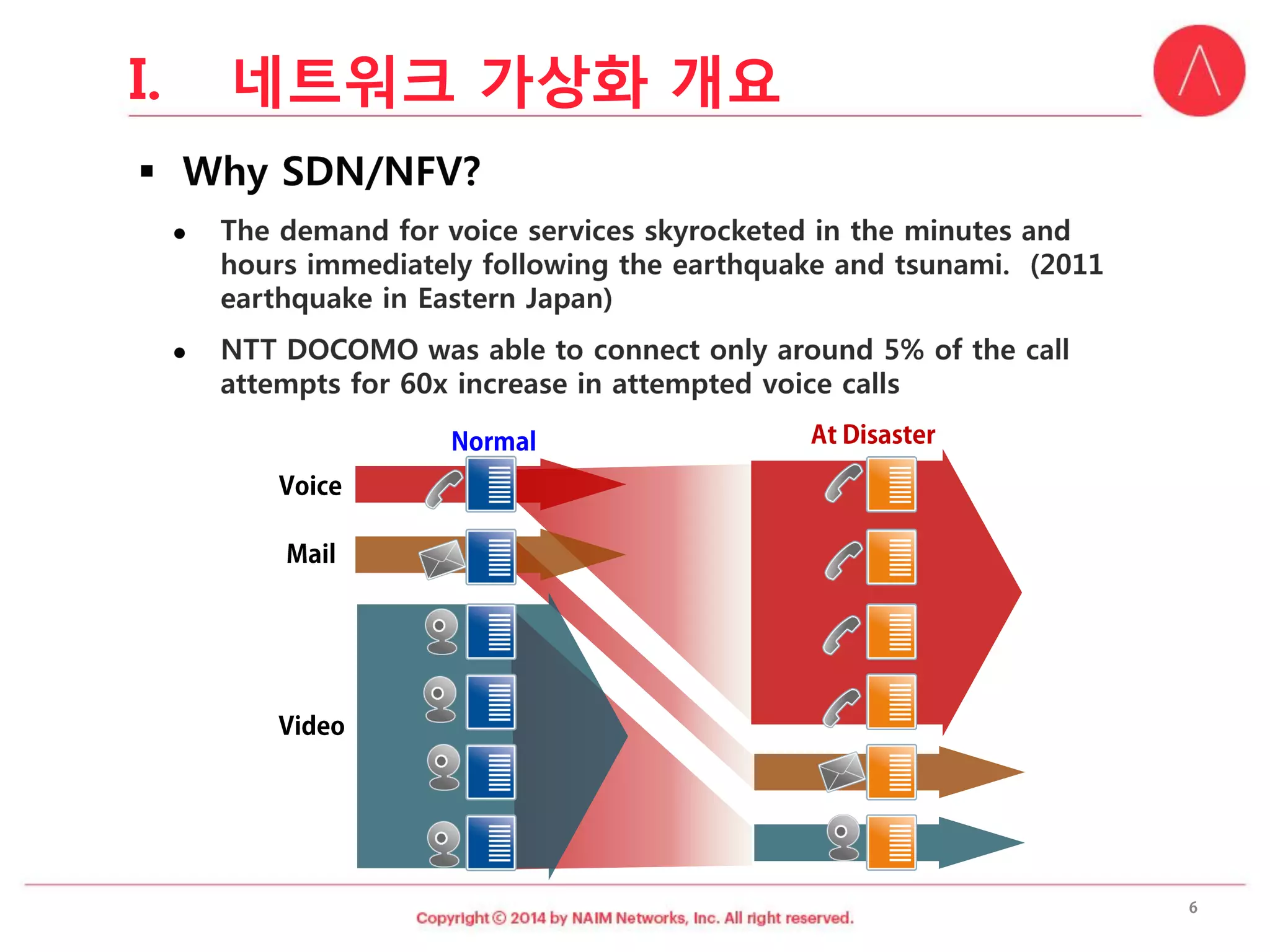

- 6.

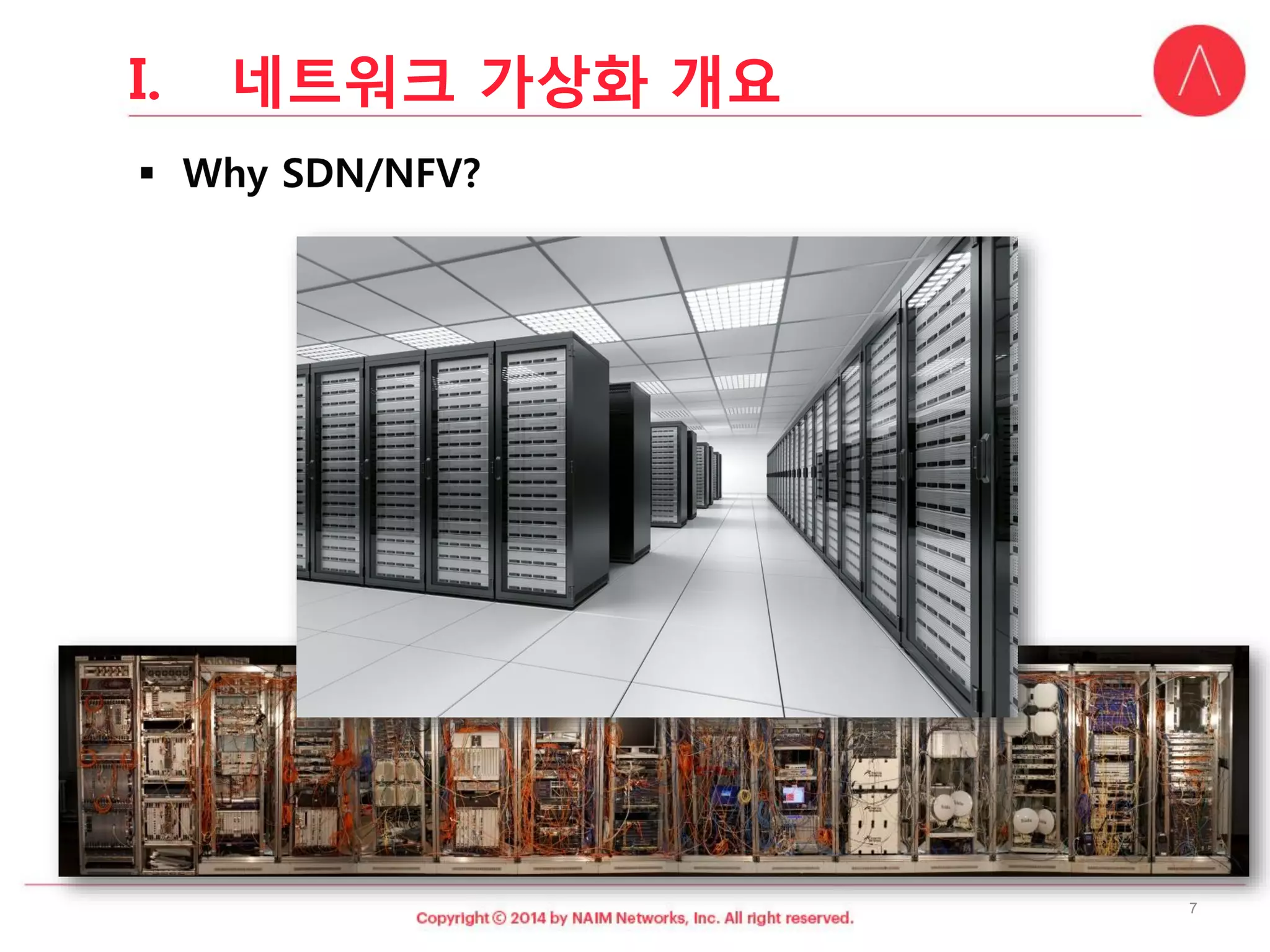

- 7. SDN NFV 7 I.네트워크가상화개요

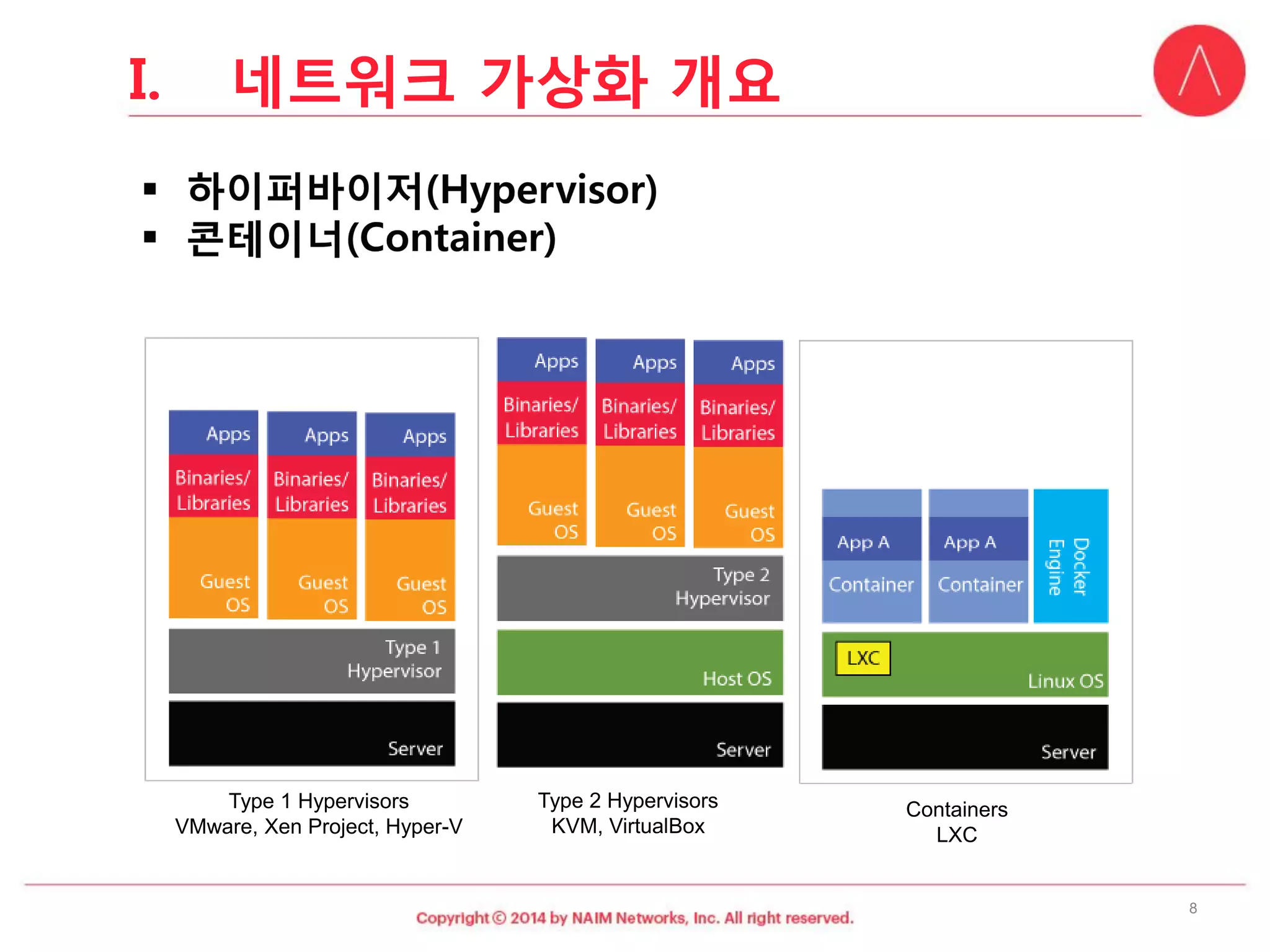

- 8. Type 1 Hypervisors VMware, Xen Project, Hyper-V Type 2 Hypervisors KVM, VirtualBox Containers LXC I.네트워크가상화개요 8
- 9.

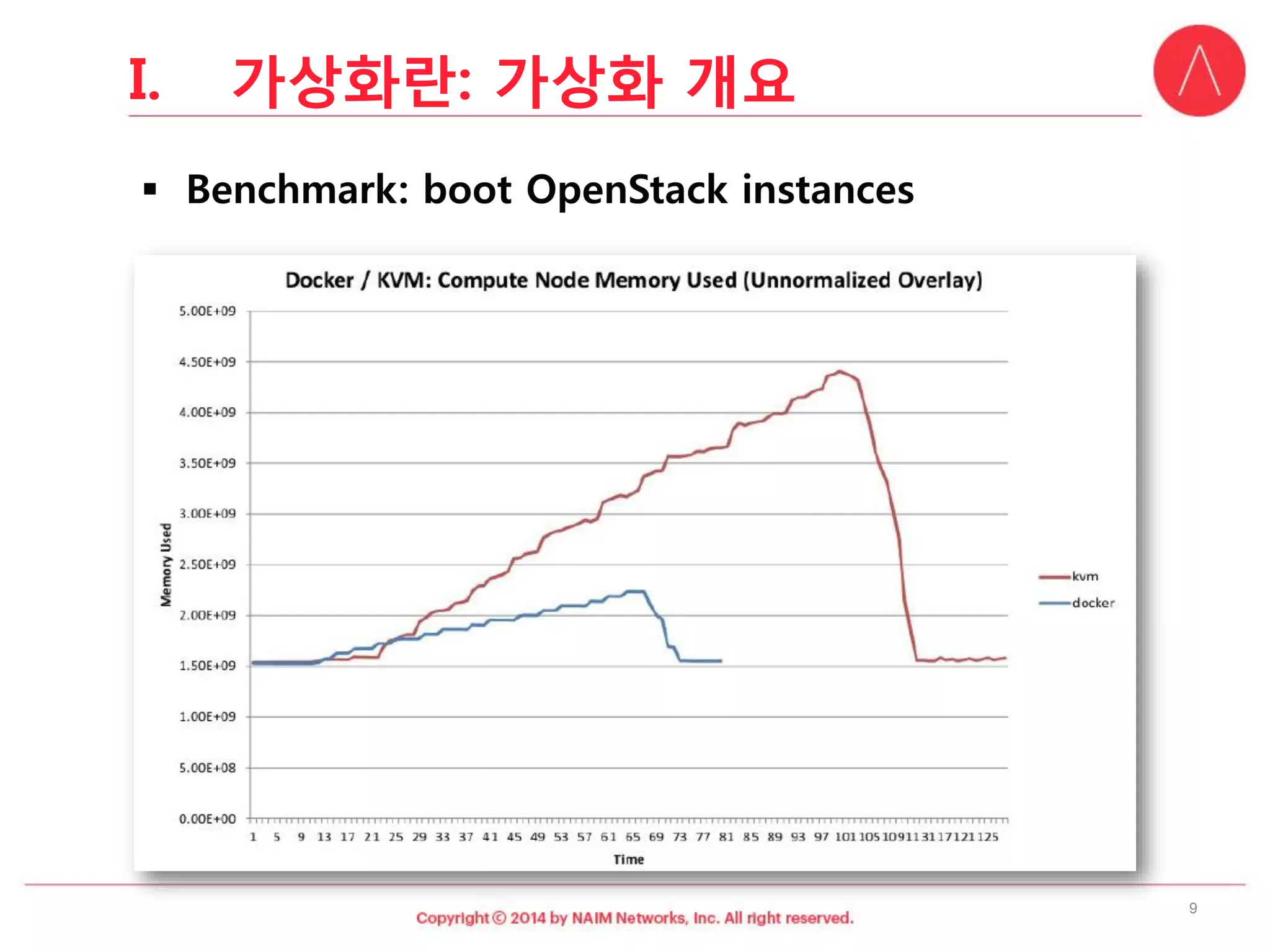

- 10.

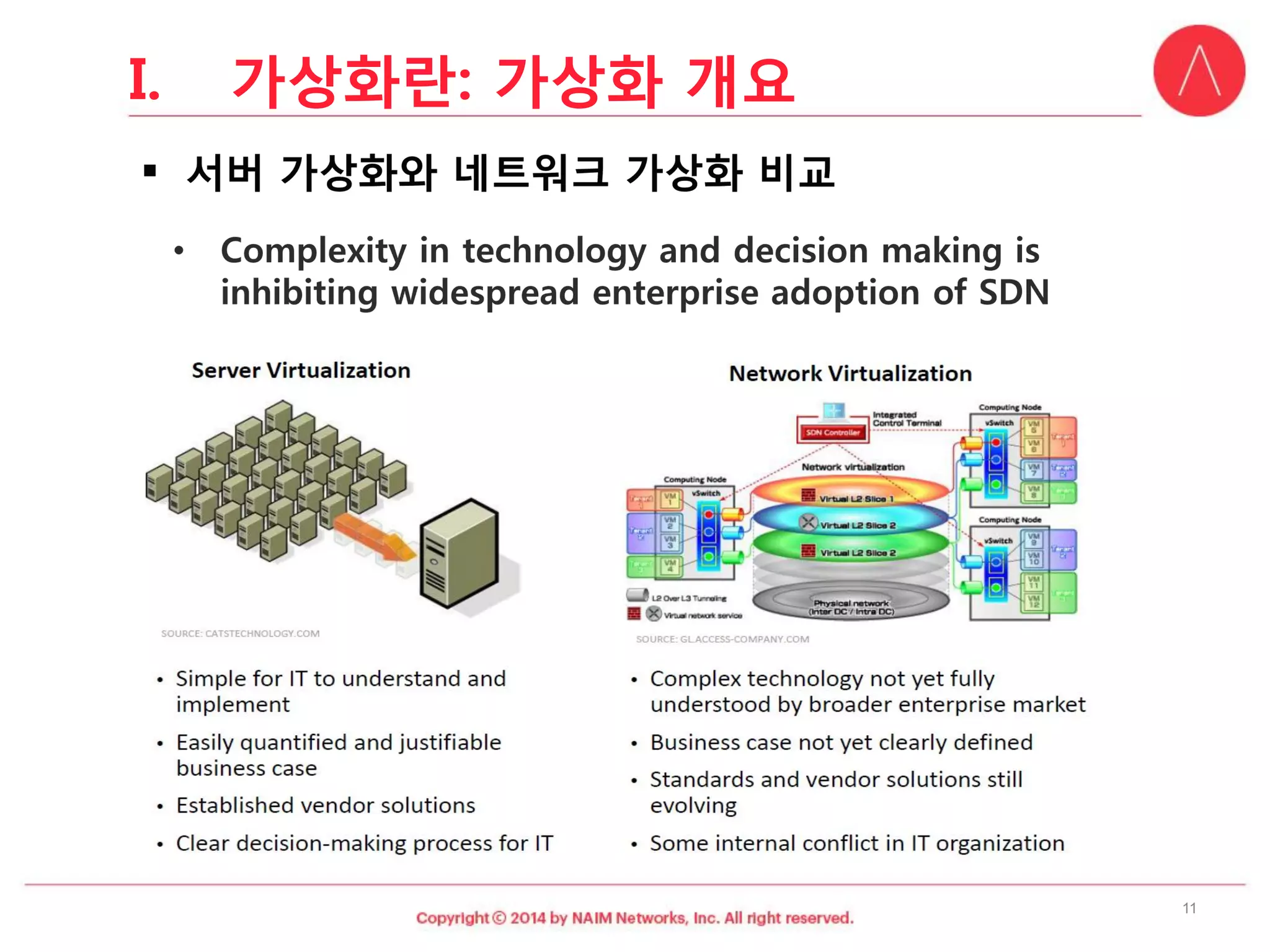

- 11.

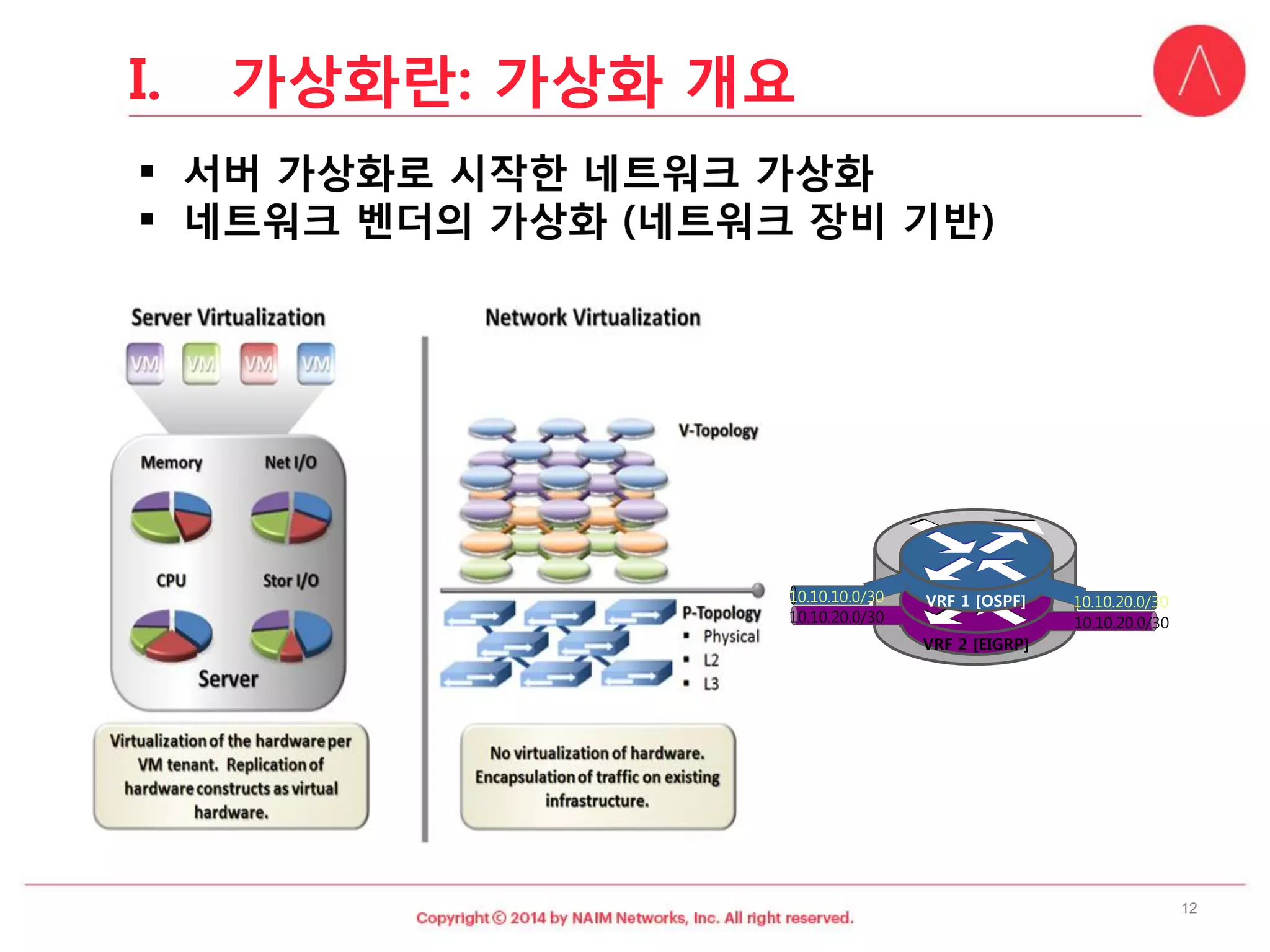

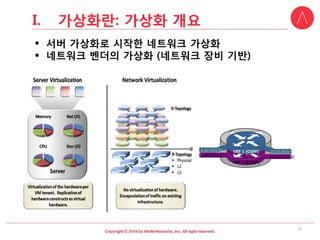

- 12. VRF 2 [EIGRP] VRF 1 [OSPF] 10.10.10.0/30 10.10.20.0/30 10.10.20.0/30 10.10.20.0/30 I.가상화란: 가상화개요 12

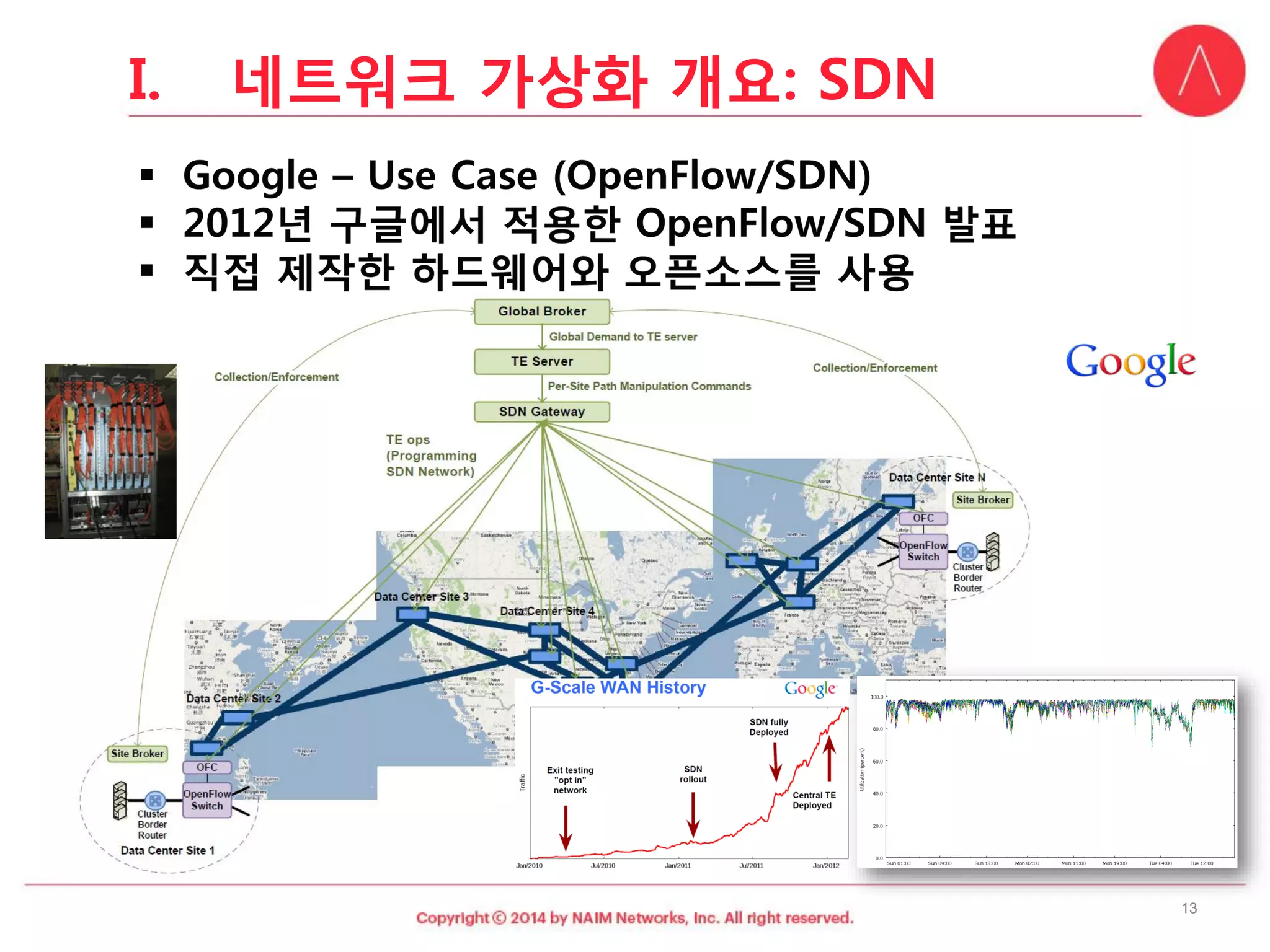

- 13.

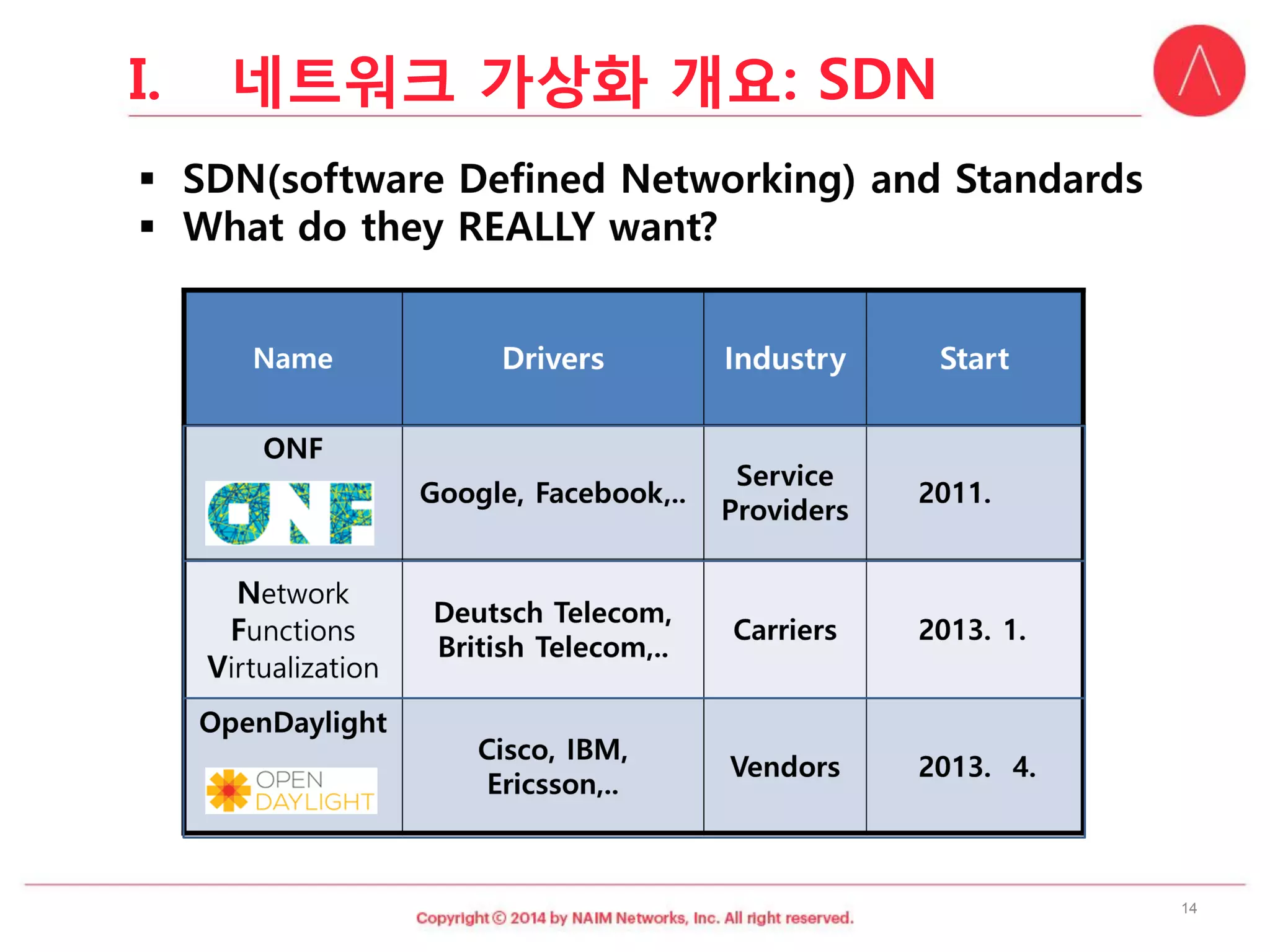

- 14.
- 15.

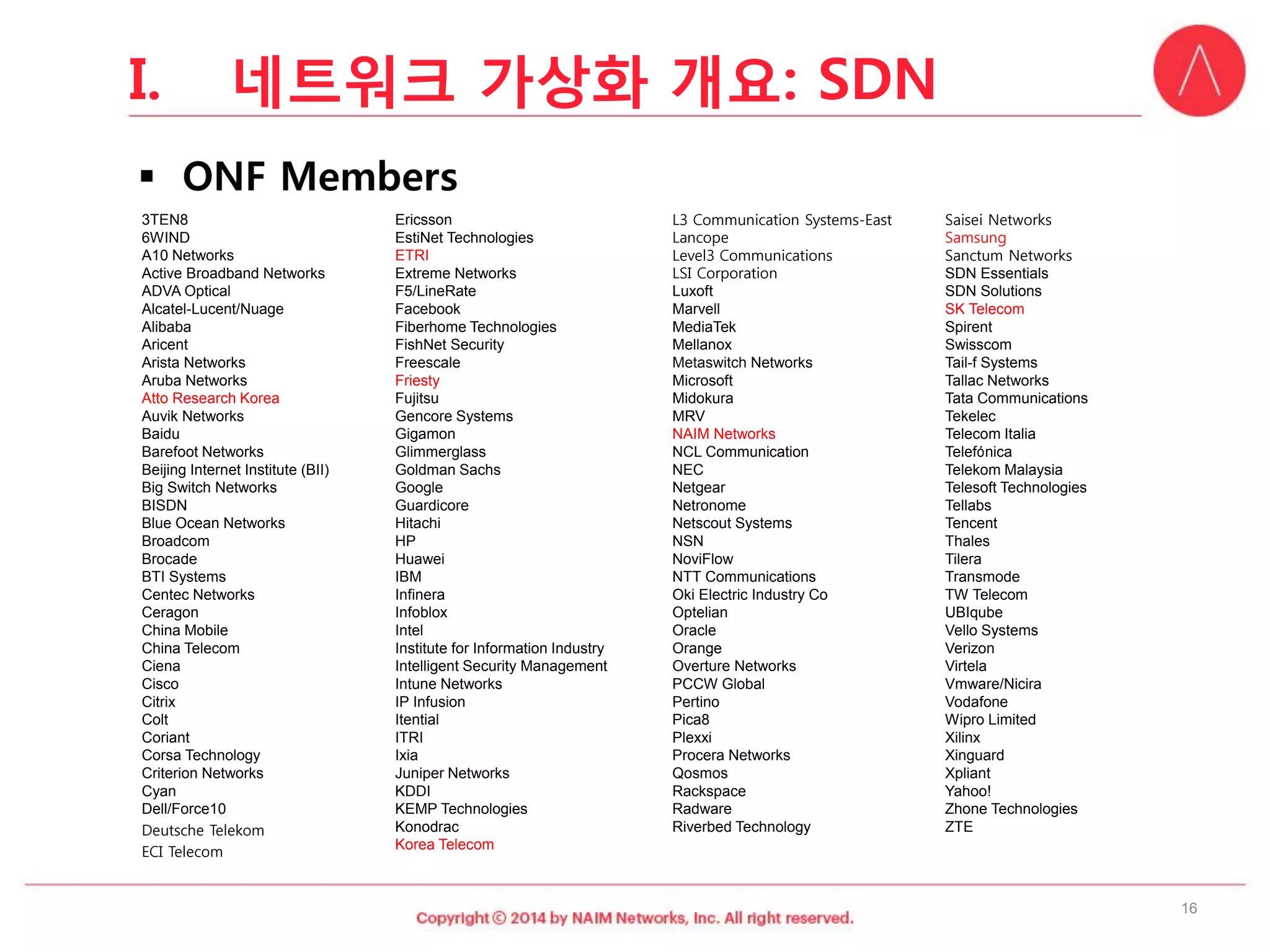

- 16. 16 I.네트워크가상화개요: SDN 3TEN8 6WIND A10 Networks Active Broadband Networks ADVA Optical Alcatel-Lucent/Nuage Alibaba Aricent Arista Networks Aruba Networks AttoResearch Korea AuvikNetworks Baidu Barefoot Networks Beijing Internet Institute (BII) Big Switch Networks BISDN Blue Ocean Networks Broadcom Brocade BTI Systems CentecNetworks Ceragon China Mobile China Telecom Ciena Cisco Citrix Colt Coriant CorsaTechnology Criterion Networks Cyan Dell/Force10 Deutsche Telekom ECI Telecom Ericsson EstiNetTechnologies ETRI Extreme Networks F5/LineRate Facebook FiberhomeTechnologies FishNetSecurity Freescale Friesty Fujitsu GencoreSystems Gigamon Glimmerglass Goldman Sachs Google Guardicore Hitachi HP Huawei IBM Infinera Infoblox Intel Institute for Information Industry Intelligent Security Management IntuneNetworks IP Infusion Itential ITRI Ixia Juniper Networks KDDI KEMP Technologies Konodrac Korea Telecom L3 Communication Systems-East Lancope Level3 Communications LSI Corporation Luxoft Marvell MediaTek Mellanox MetaswitchNetworks Microsoft Midokura MRV NAIM Networks NCL Communication NEC Netgear Netronome NetscoutSystems NSN NoviFlow NTT Communications Oki Electric Industry Co Optelian Oracle Orange Overture Networks PCCW Global Pertino Pica8 Plexxi ProceraNetworks Qosmos Rackspace Radware Riverbed Technology SaiseiNetworks Samsung Sanctum Networks SDN Essentials SDN Solutions SK Telecom Spirent Swisscom Tail-f Systems TallacNetworks Tata Communications Tekelec Telecom Italia Telefónica Telekom Malaysia TelesoftTechnologies Tellabs Tencent Thales Tilera Transmode TW Telecom UBIqube VelloSystems Verizon Virtela Vmware/Nicira Vodafone Wipro Limited Xilinx Xinguard Xpliant Yahoo! ZhoneTechnologies ZTE

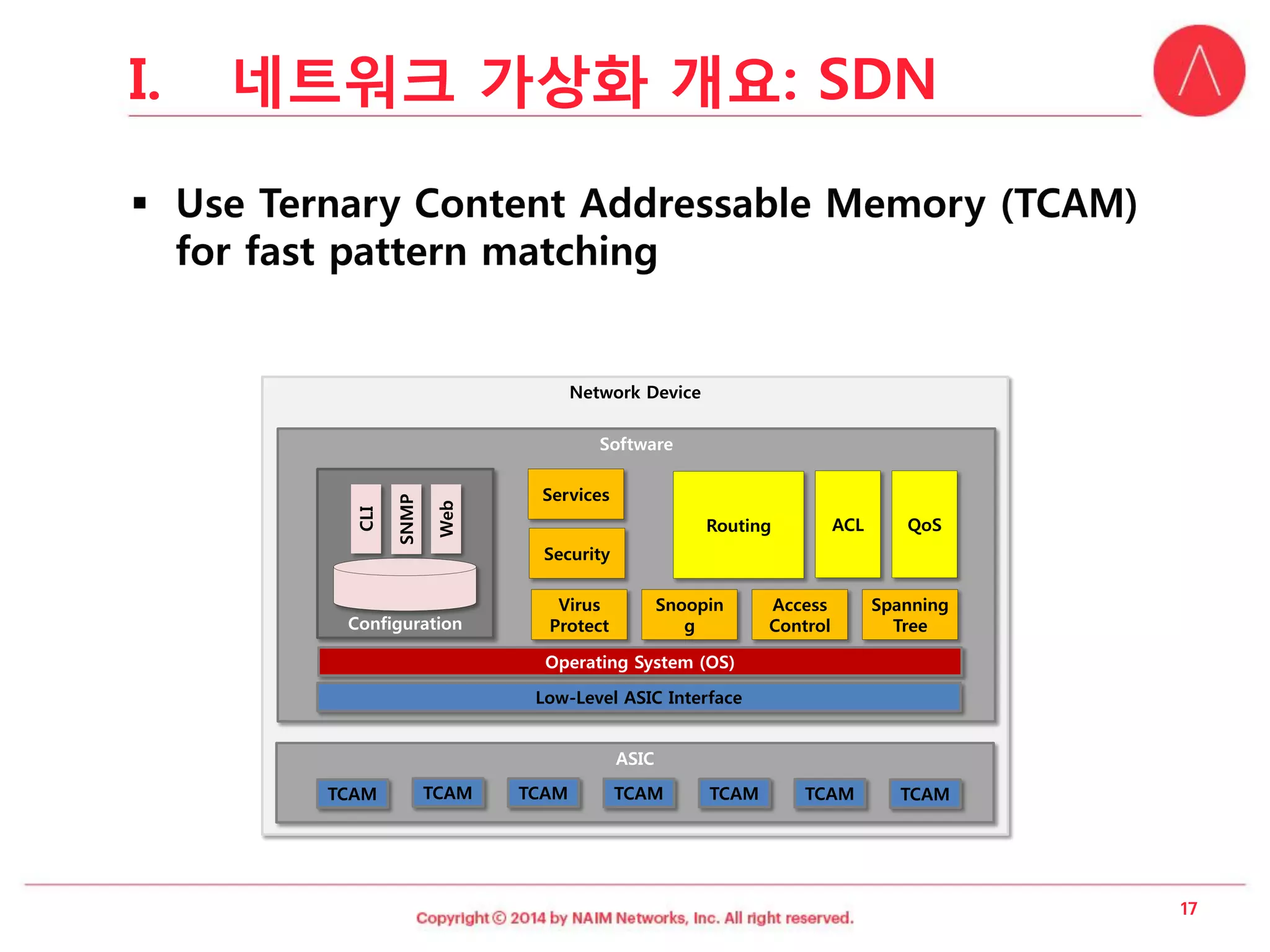

- 17. Network Device Software ASIC TCAM TCAM TCAM TCAM TCAM Low-Level ASIC Interface TCAM TCAM Configuration CLI Services Security Virus Protect Snooping Access Control Spanning Tree Routing ACL QoS Operating System (OS) SNMP Web I.네트워크가상화개요: SDN

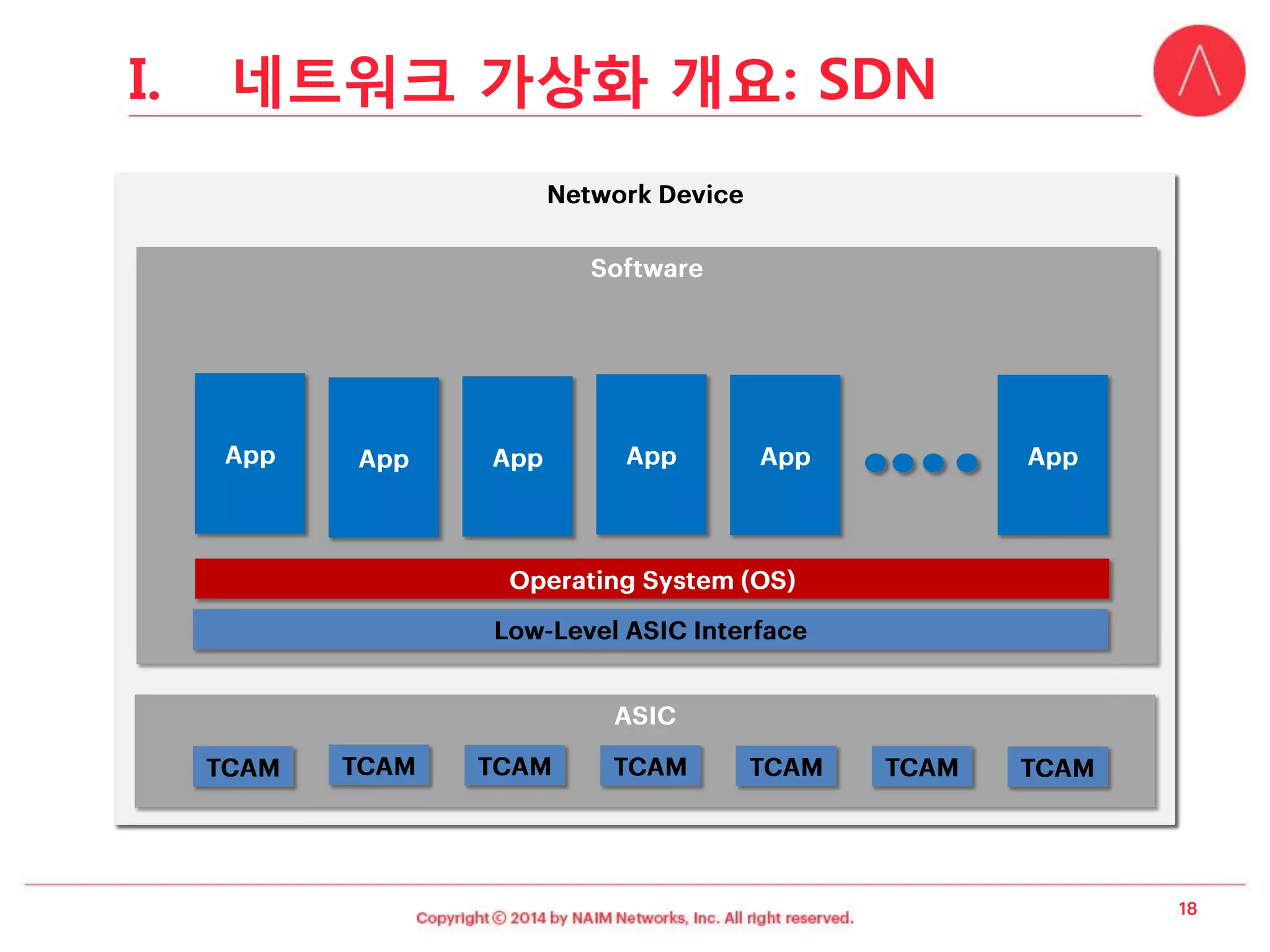

- 18.

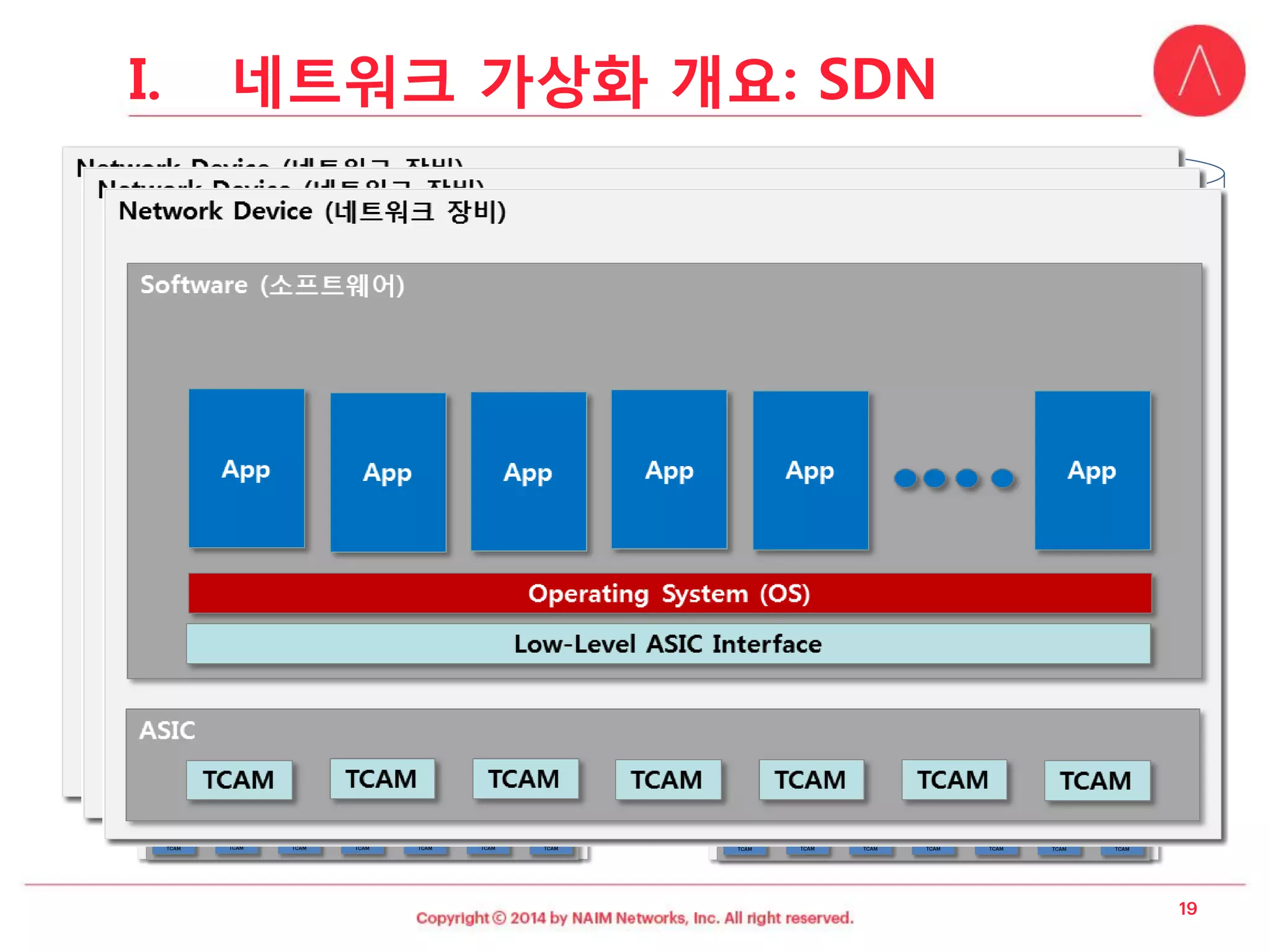

- 19. Enabling a shiftfrom protocols to applications콘트롤러콘트롤러콘트롤러네트워크장비소프트웨어네트워크장비소프트웨어네트워크장비소프트웨어 I.네트워크가상화개요: SDN

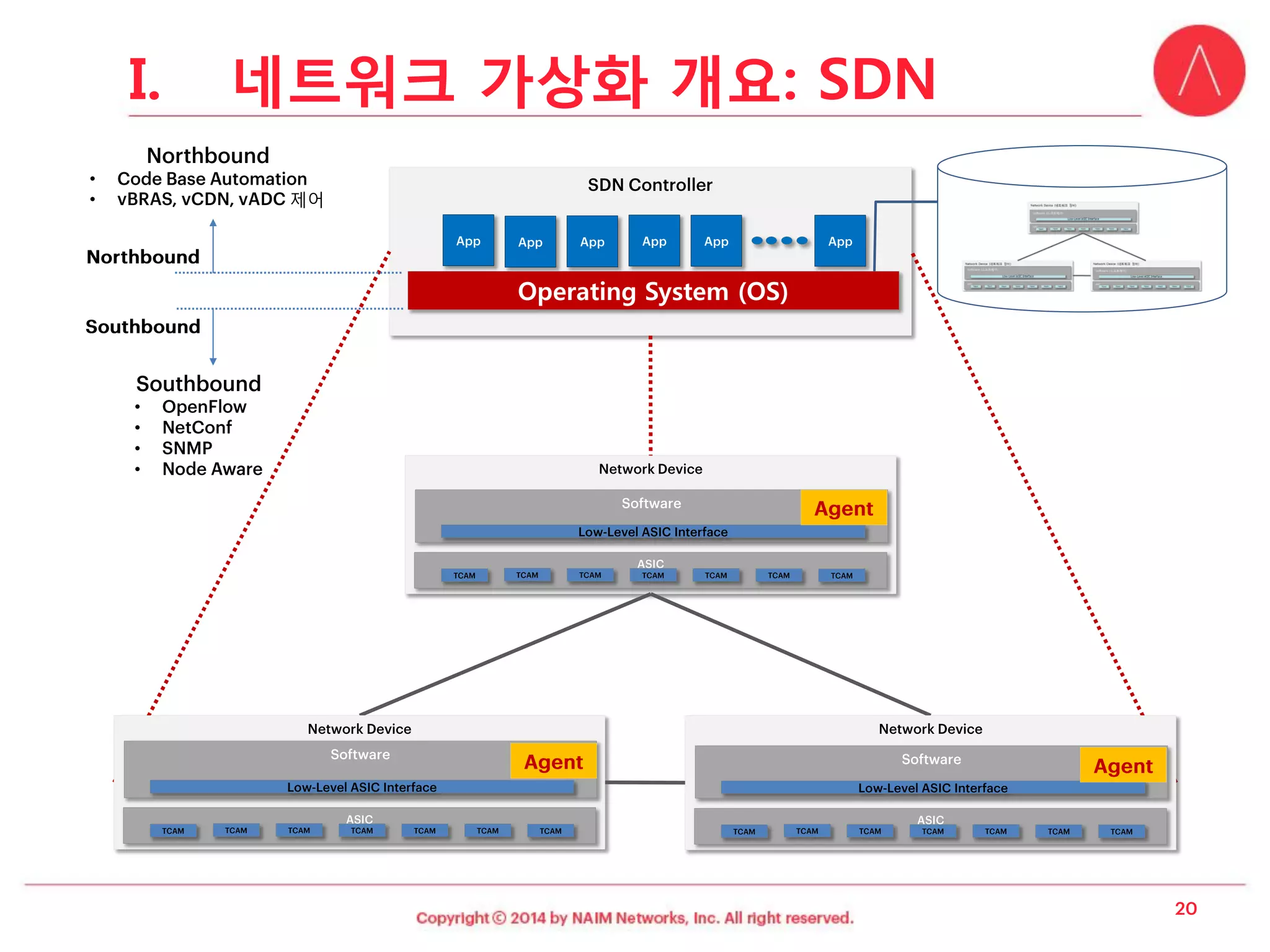

- 20. Operating System (OS) • • • • • •제어 I.네트워크가상화개요: SDN
- 21. Database Protocol Program 전지(全知) 전능(全能) •전지(全知) 하기위해필요한것은? SDN •전능(全能) 하기위해필요한것은? Coding LegacySDN I.네트워크가상화개요: SDN http://dtucker.co.uk/hack/building-a-router-with-openvswitch.html VMware NSX (DLR) Cisco ACI (DistributedD/G) Nuage(VRS) OpenStack ‘Juno’ (DVR) Juniper OpenContrail(vRouter) MidokuraMidonet(Logical L3 Routing)

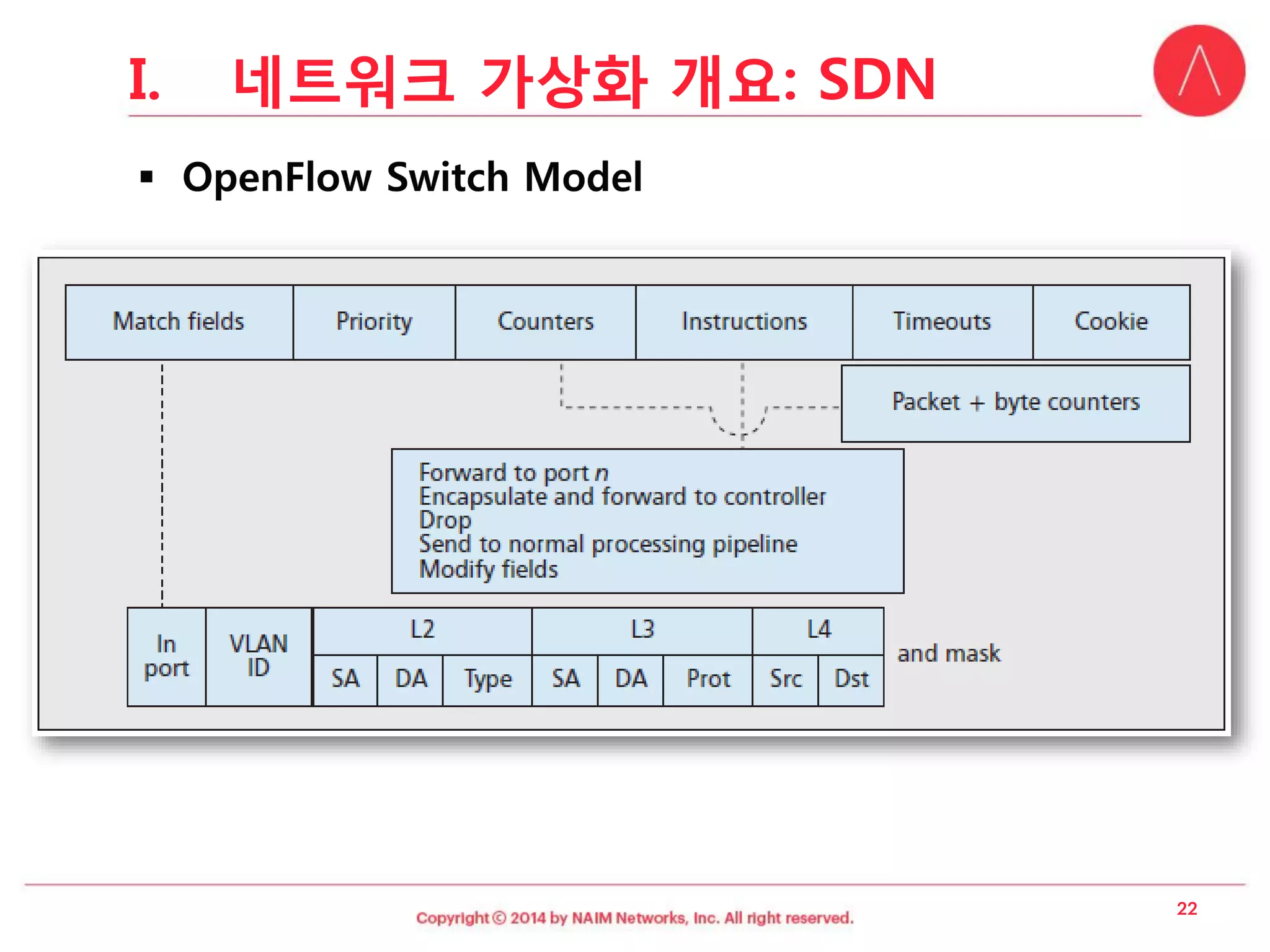

- 22.

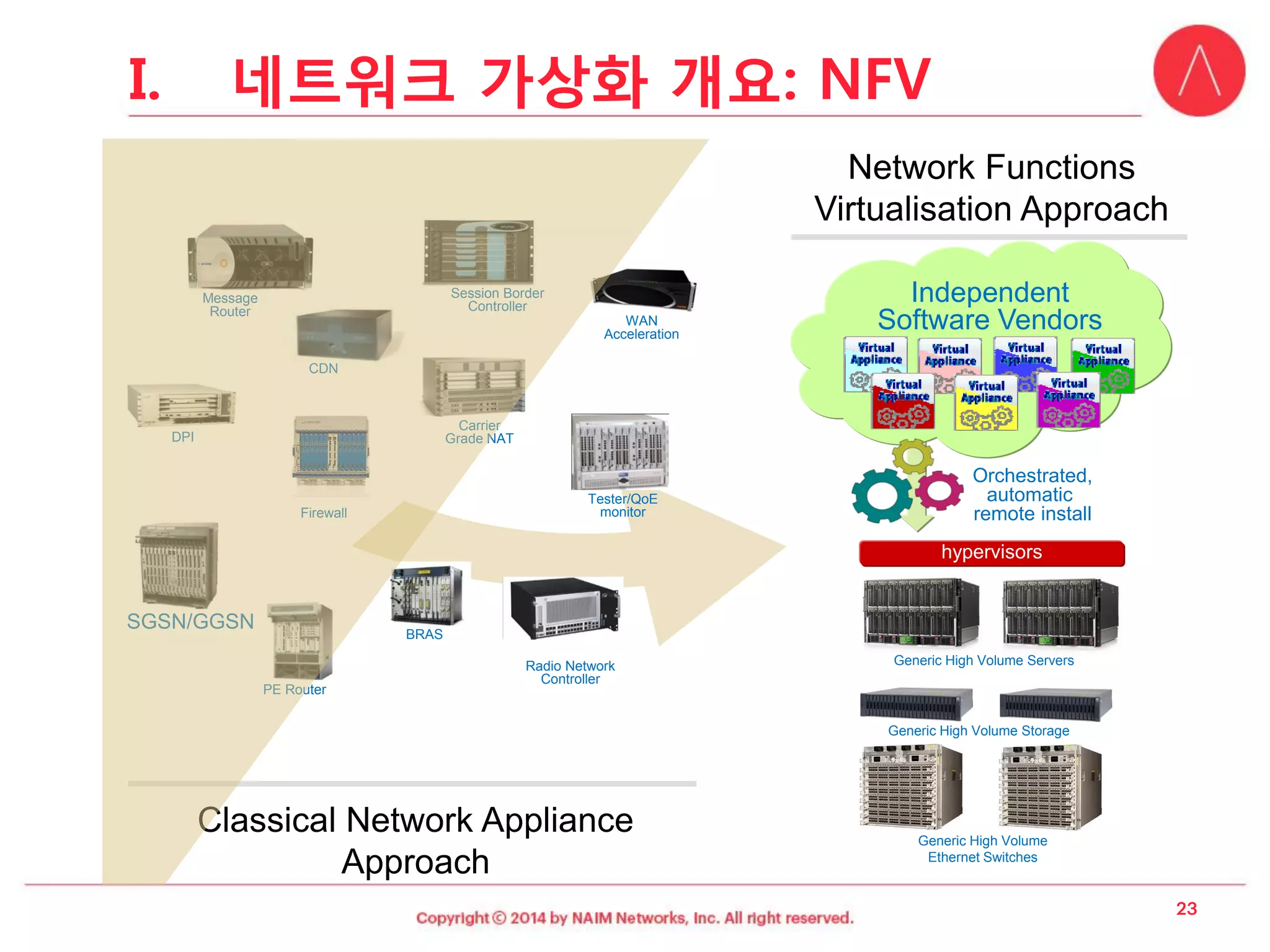

- 23. Independent Software Vendors BRAS Firewall DPI CDN Tester/QoE monitor WAN Acceleration Message Router Radio Network Controller CarrierGrade NAT Session Border Controller Classical Network ApplianceApproach PE Router SGSN/GGSN Generic High Volume Ethernet Switches Generic High Volume Servers Generic High Volume Storage Orchestrated, automatic remote install Network Functions Virtualisation Approach hypervisors I.네트워크가상화개요: NFV

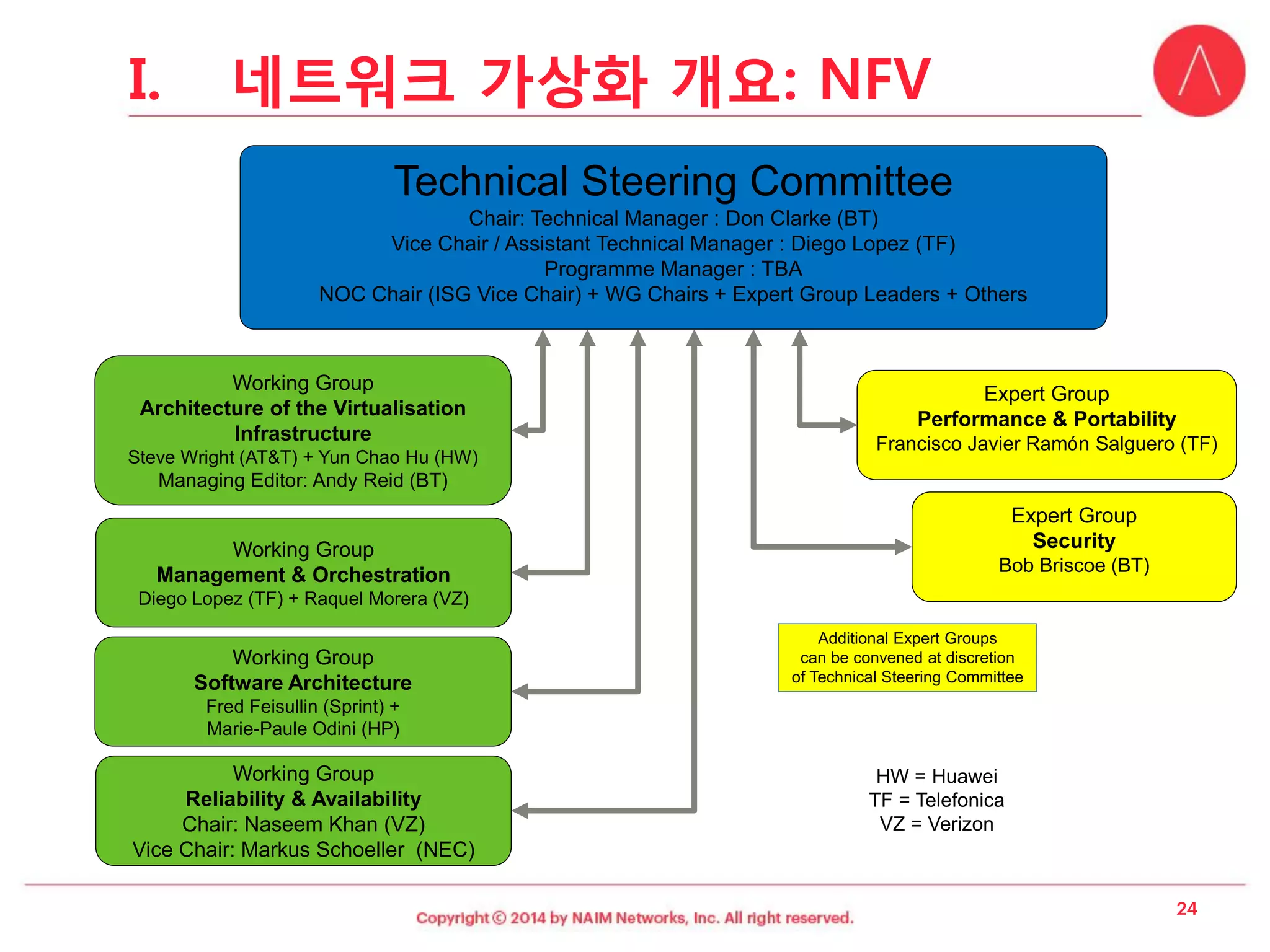

- 24. Working Group Architectureof the Virtualisation Infrastructure Steve Wright (AT&T) + Yun Chao Hu (HW) Managing Editor: Andy Reid (BT) Working Group Reliability & Availability Chair: NaseemKhan (VZ) Vice Chair: Markus Schoeller(NEC) Working Group Management & Orchestration Diego Lopez (TF) + Raquel Morera(VZ) Working Group Software Architecture Fred Feisullin(Sprint) + Marie-PauleOdini(HP) Expert Group Security Bob Briscoe (BT) Expert Group Performance & Portability Francisco Javier Ramón Salguero(TF) Technical Steering Committee Chair: Technical Manager : Don Clarke (BT) Vice Chair / Assistant Technical Manager : Diego Lopez (TF) Programme Manager : TBA NOC Chair (ISG Vice Chair) + WG Chairs + Expert Group Leaders + Others Additional Expert Groups can be convened at discretion of Technical Steering Committee HW = Huawei TF = Telefonica VZ = Verizon I.네트워크가상화개요: NFV

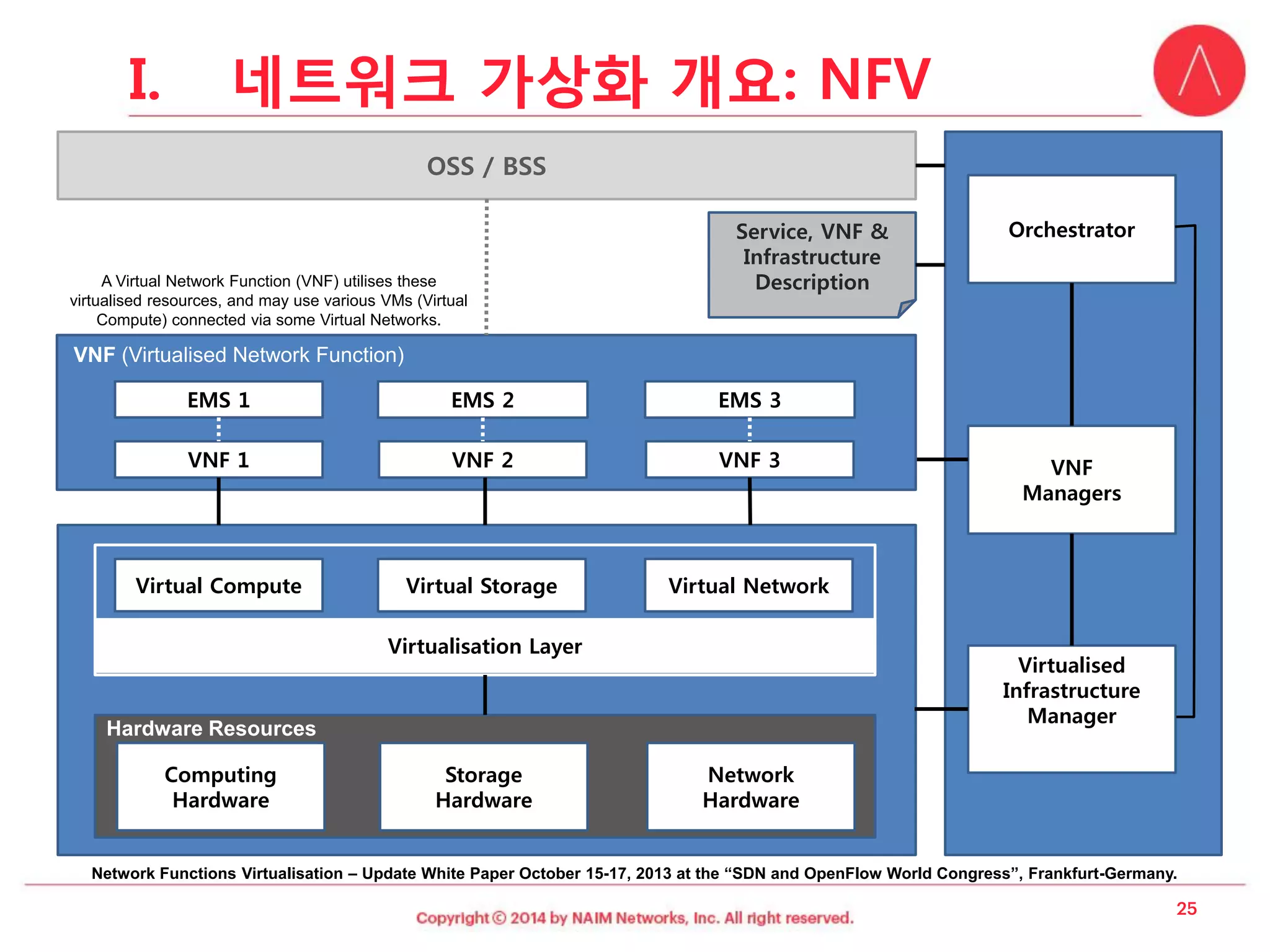

- 25. OSS / BSS EMS 2 VNF 2 EMS 3 VNF 3 EMS 1 VNF 1 VirtualisationLayer Virtual Storage Virtual Network Virtual Compute Storage Hardware Network Hardware Computing Hardware Service, VNF & Infrastructure Description VNF(VirtualisedNetwork Function) Hardware Resources Orchestrator VNF Managers VirtualisedInfrastructure Manager Network Functions Virtualisation–Update White Paper October 15-17, 2013 at the “SDN and OpenFlow World Congress”, Frankfurt-Germany. A Virtual Network Function (VNF) utilisesthese virtualisedresources, and may use various VMs (Virtual Compute) connected via some Virtual Networks. I.네트워크가상화개요: NFV

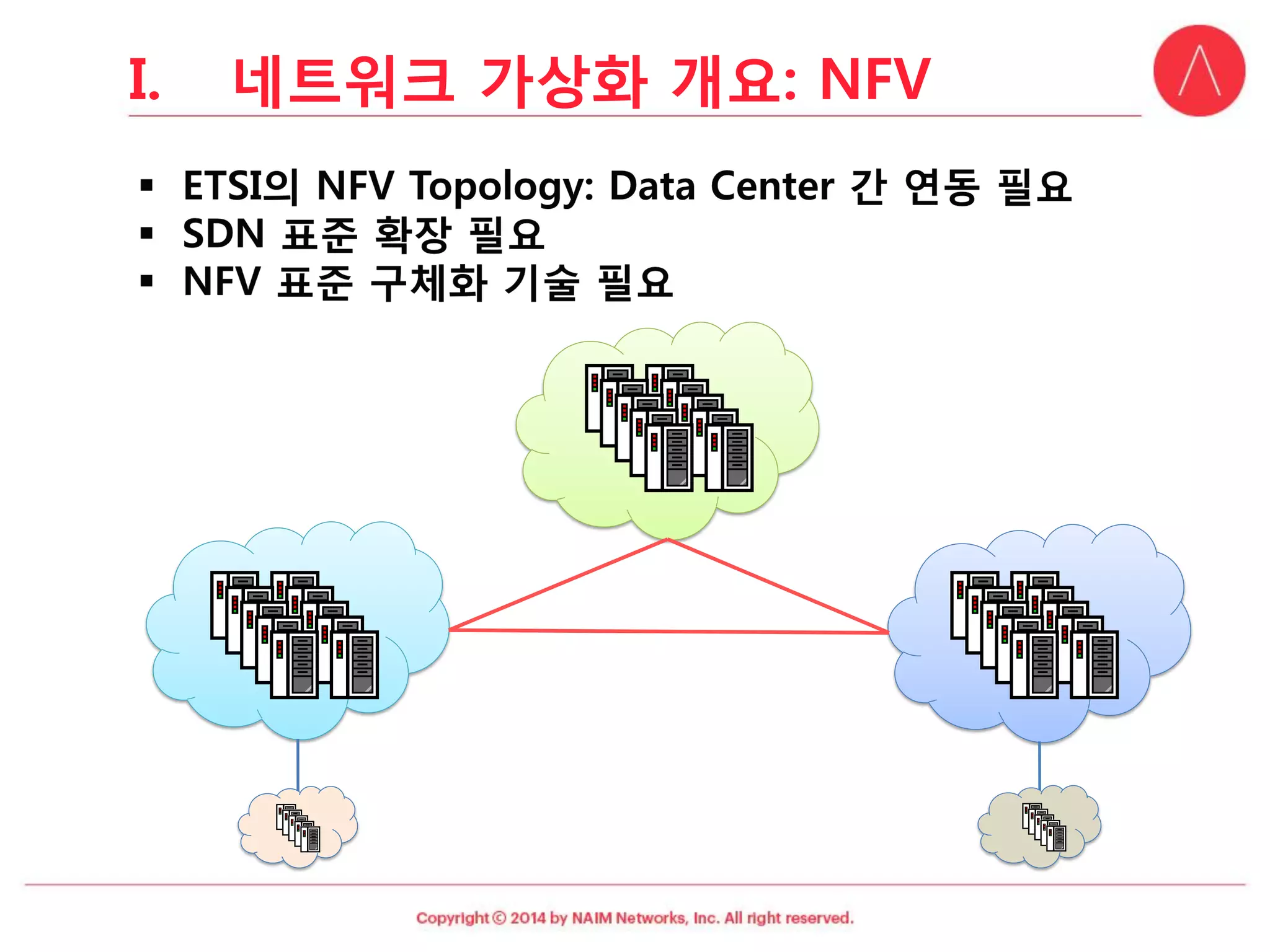

- 26. I. 네트워크 가상화개요: NFV

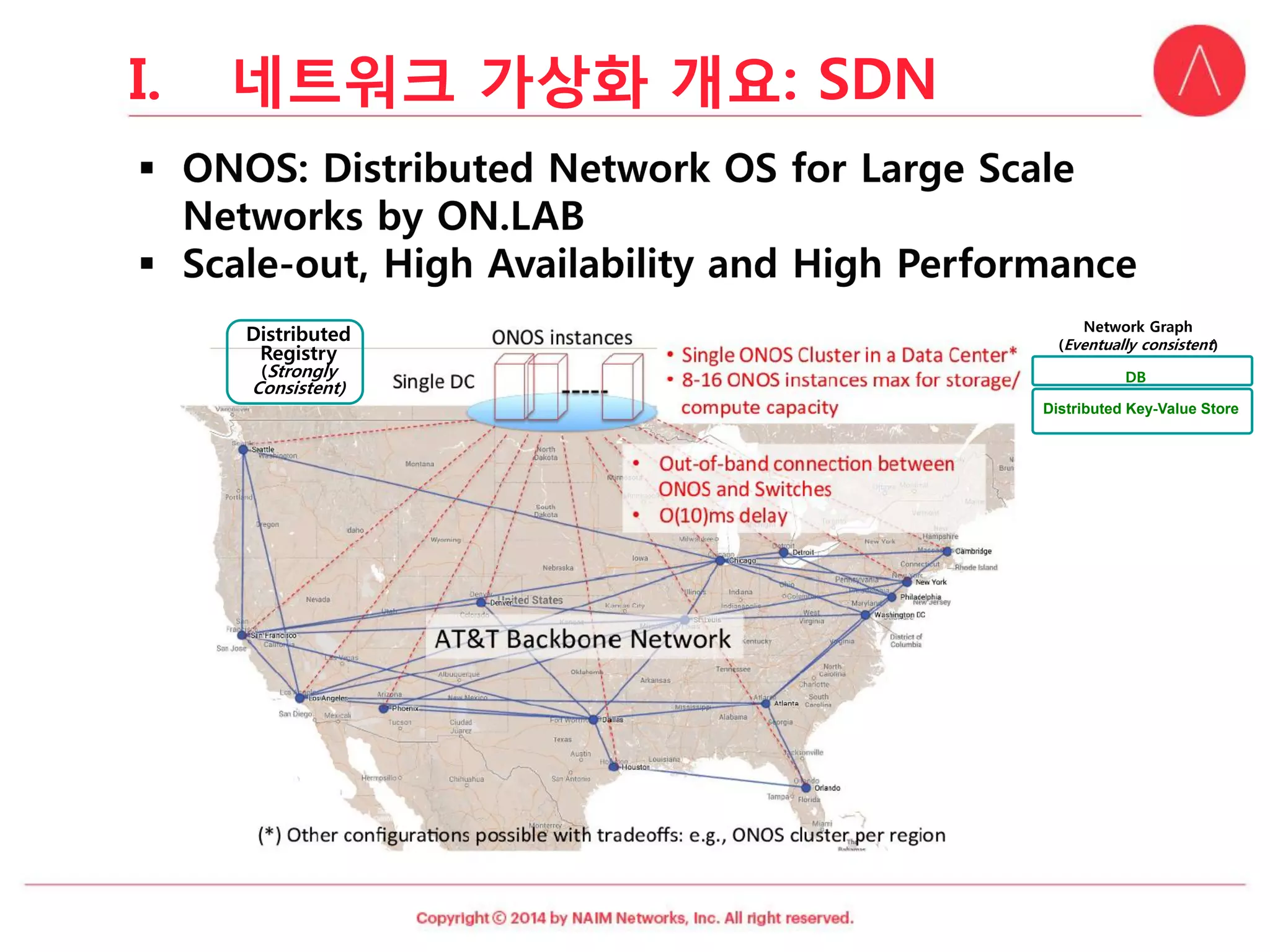

- 27. I.네트워크가상화개요: SDN DistributedRegistry(Strongly Consistent) Distributed Key-Value Store DB Network Graph (Eventually consistent)

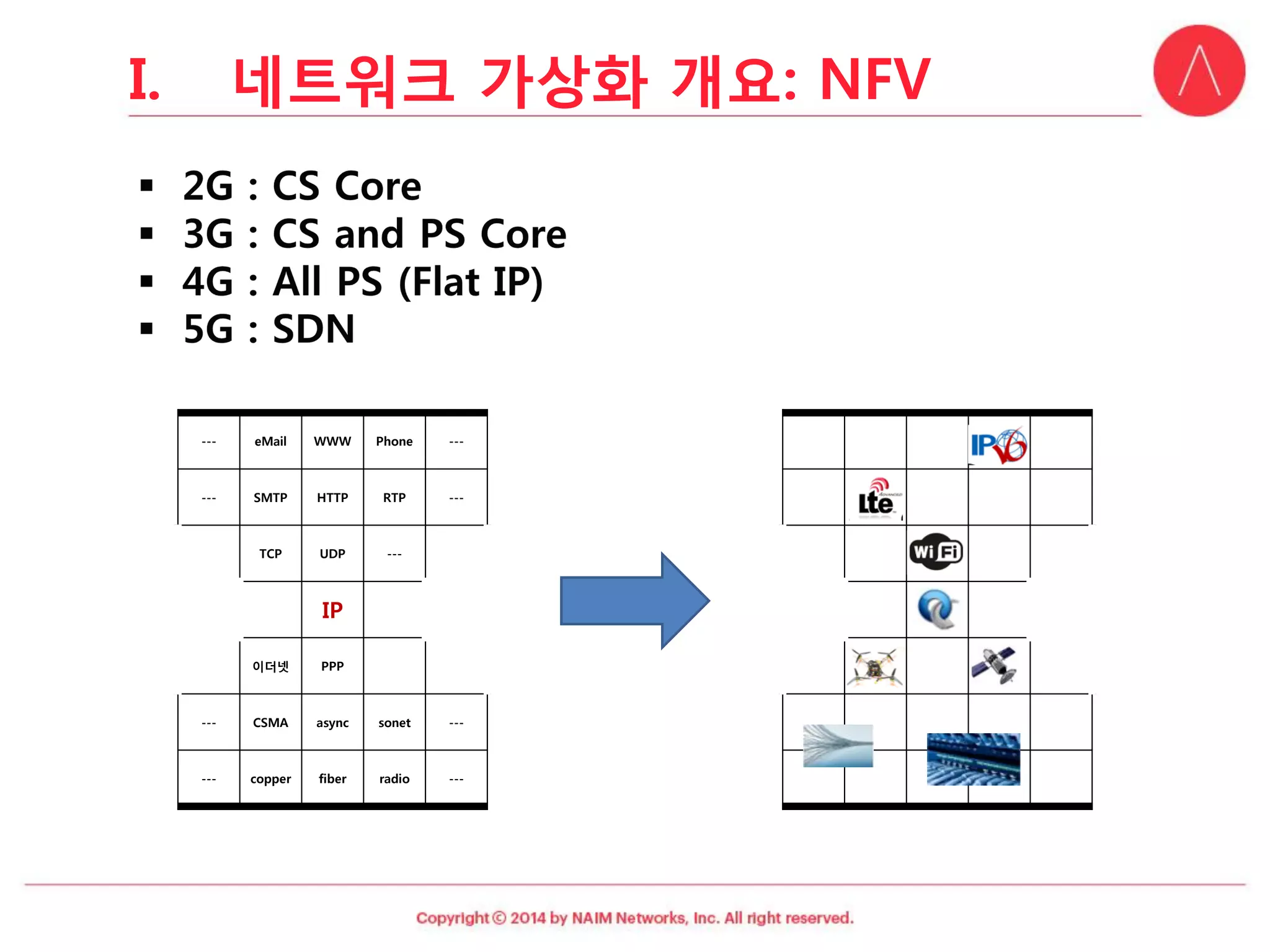

- 28. --- eMail WWW Phone --- --- SMTP HTTP RTP --- TCP UDP --- IP 이더넷 PPP --- CSMA async sonet --- --- copper fiber radio --- I.네트워크가상화개요: NFV

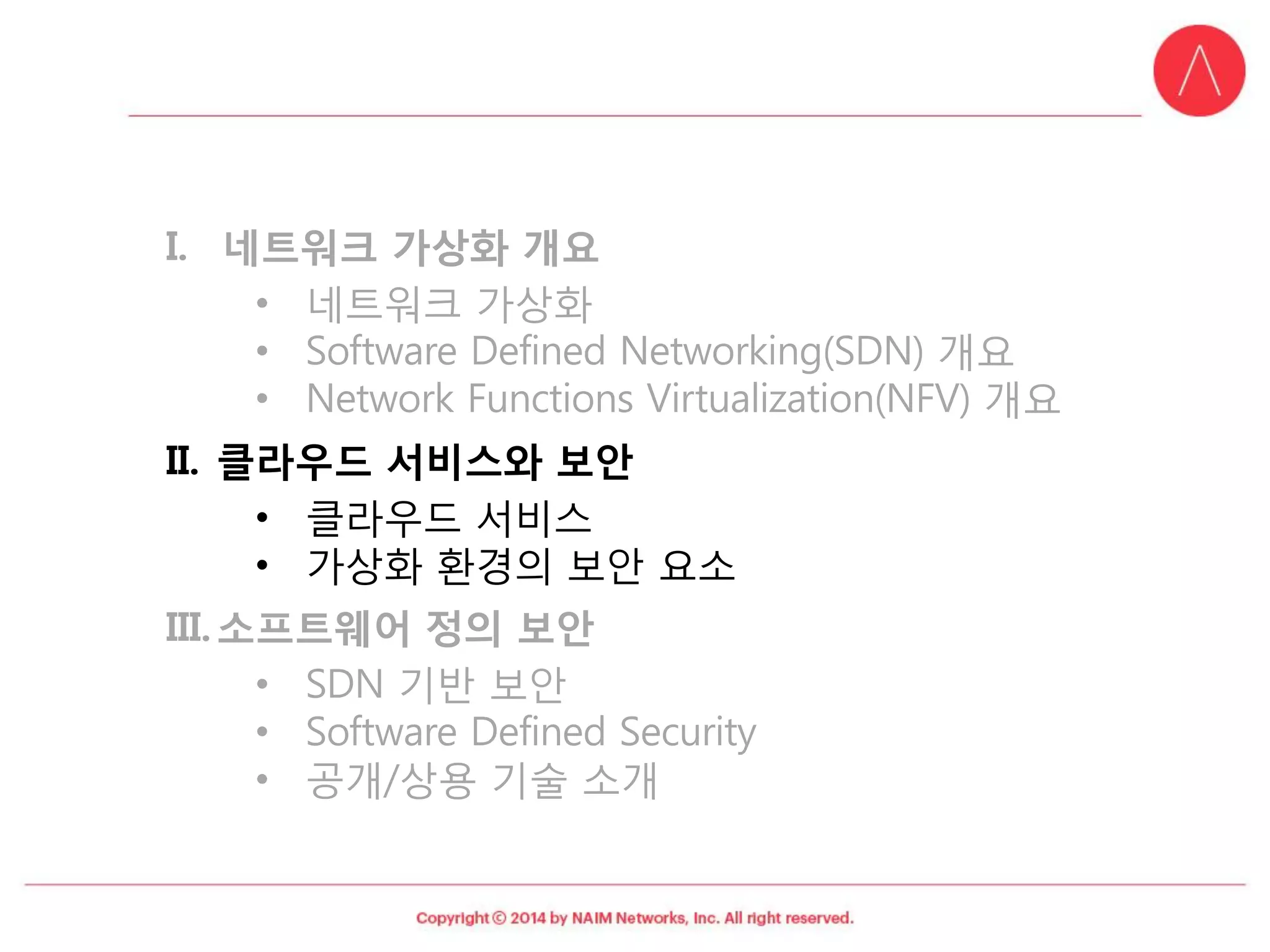

- 29. I.네트워크가상화개요 •네트워크가상화 •SoftwareDefined Networking(SDN) 개요 •Network Functions Virtualization(NFV) 개요 II.클라우드서비스와보안 •클라우드서비스 •가상화환경의보안요소 III.소프트웨어정의보안 •SDN 기반보안 •Software Defined Security •공개/상용기술소개

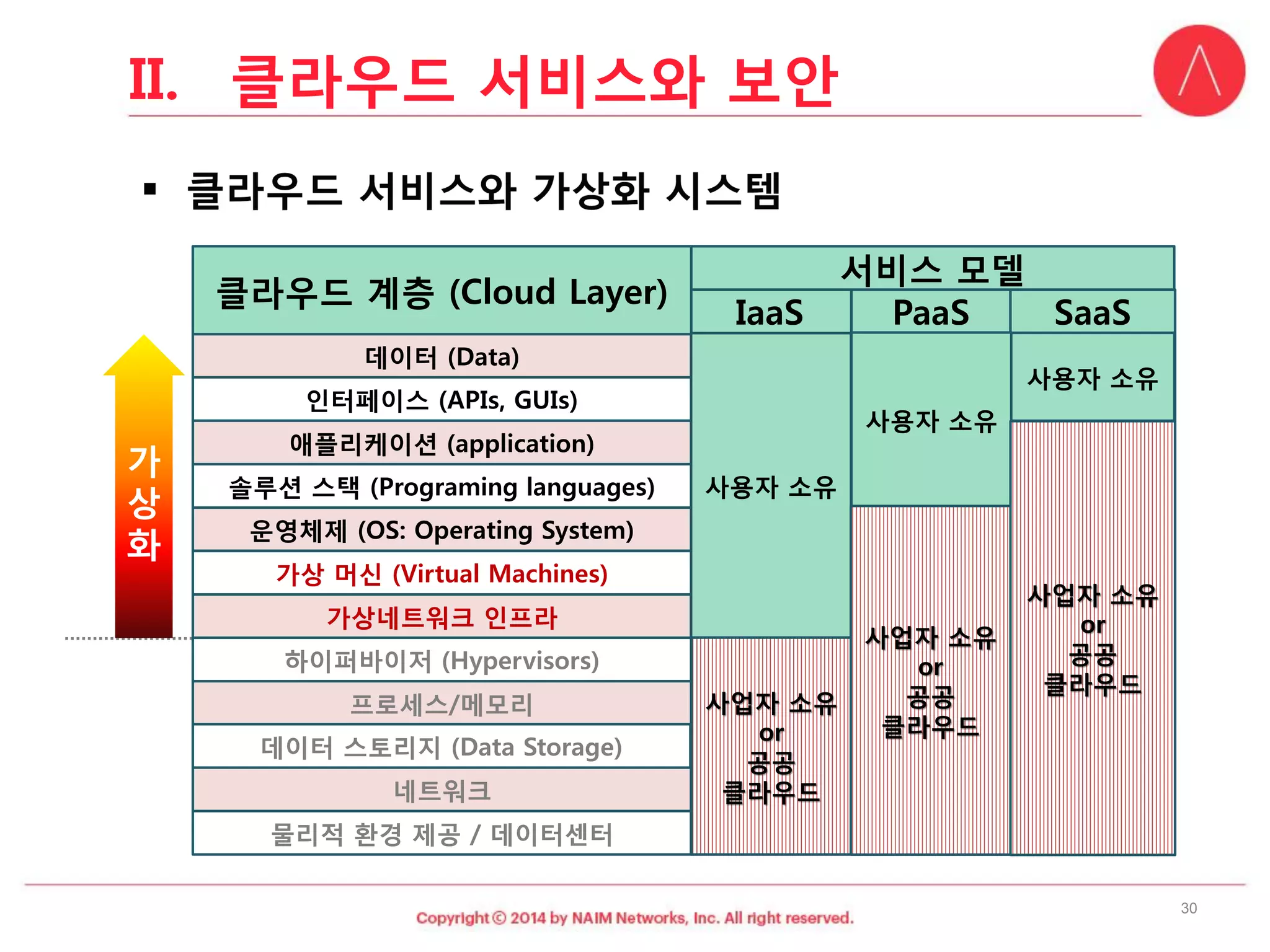

- 30. 사용자소유 사업자소유 Infrastructureas a Service Platform as a Service Software as a Service 서비스모델 SaaS IaaS PaaS 클라우드계층(Cloud Layer) 데이터(Data) 인터페이스(APIs, GUIs) 애플리케이션(application) 솔루션스택(Programing languages) 운영체제(OS: Operating System) 가상머신(Virtual Machines) 가상네트워크인프라 하이퍼바이저(Hypervisors) 프로세스/메모리 데이터스토리지(DataStorage) 네트워크 물리적환경제공/ 데이터센터 사용자소유 사용자소유 사용자소유사업자소유or 공공클라우드사업자소유or공공클라우드사업자소유or공공클라우드 가상화 II.클라우드서비스와보안 30

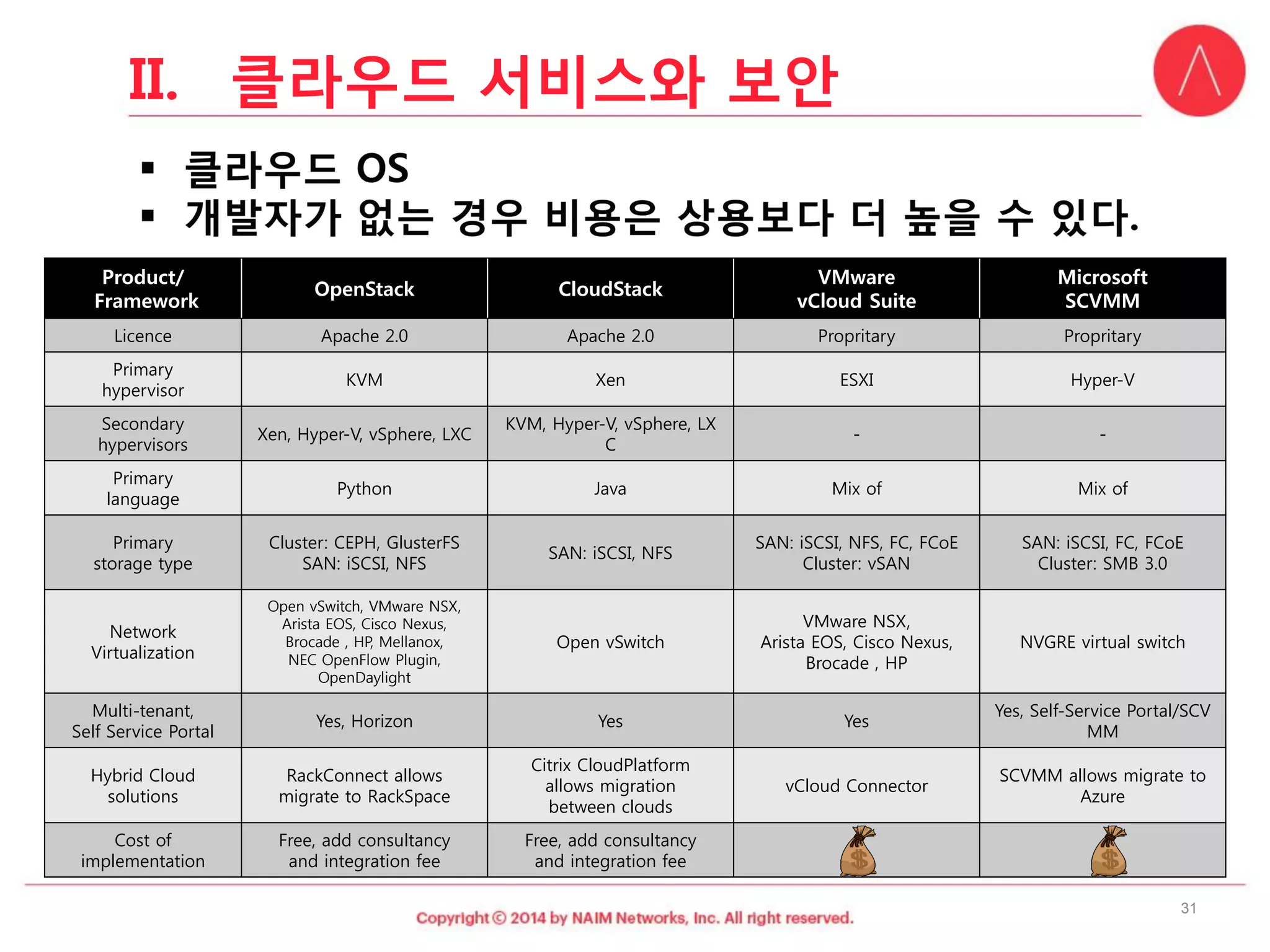

- 31. Product/ Framework OpenStack CloudStack VMware vCloud Suite Microsoft SCVMM Licence Apache 2.0 Apache 2.0 Propritary Propritary Primary hypervisor KVM Xen ESXI Hyper-V Secondary hypervisors Xen, Hyper-V, vSphere, LXC KVM, Hyper-V,vSphere, LXC - - Primary language Python Java Mix of Mix of Primary storage type Cluster: CEPH,GlusterFS SAN: iSCSI, NFS SAN:iSCSI, NFS SAN:iSCSI, NFS, FC, FCoE Cluster: vSAN SAN: iSCSI,FC, FCoE Cluster: SMB 3.0 Network Virtualization Open vSwitch, VMwareNSX, Arista EOS, Cisco Nexus, Brocade , HP, Mellanox, NEC OpenFlow Plugin, OpenDaylight Open vSwitch VMware NSX, Arista EOS, Cisco Nexus, Brocade , HP NVGRE virtualswitch Multi-tenant, Self Service Portal Yes, Horizon Yes Yes Yes, Self-Service Portal/SCVMM HybridCloud solutions RackConnect allows migrate to RackSpace CitrixCloudPlatform allows migration between clouds vCloudConnector SCVMM allowsmigrateto Azure Cost of implementation Free, add consultancy and integration fee Free, add consultancy and integration fee 31 II.클라우드서비스와보안

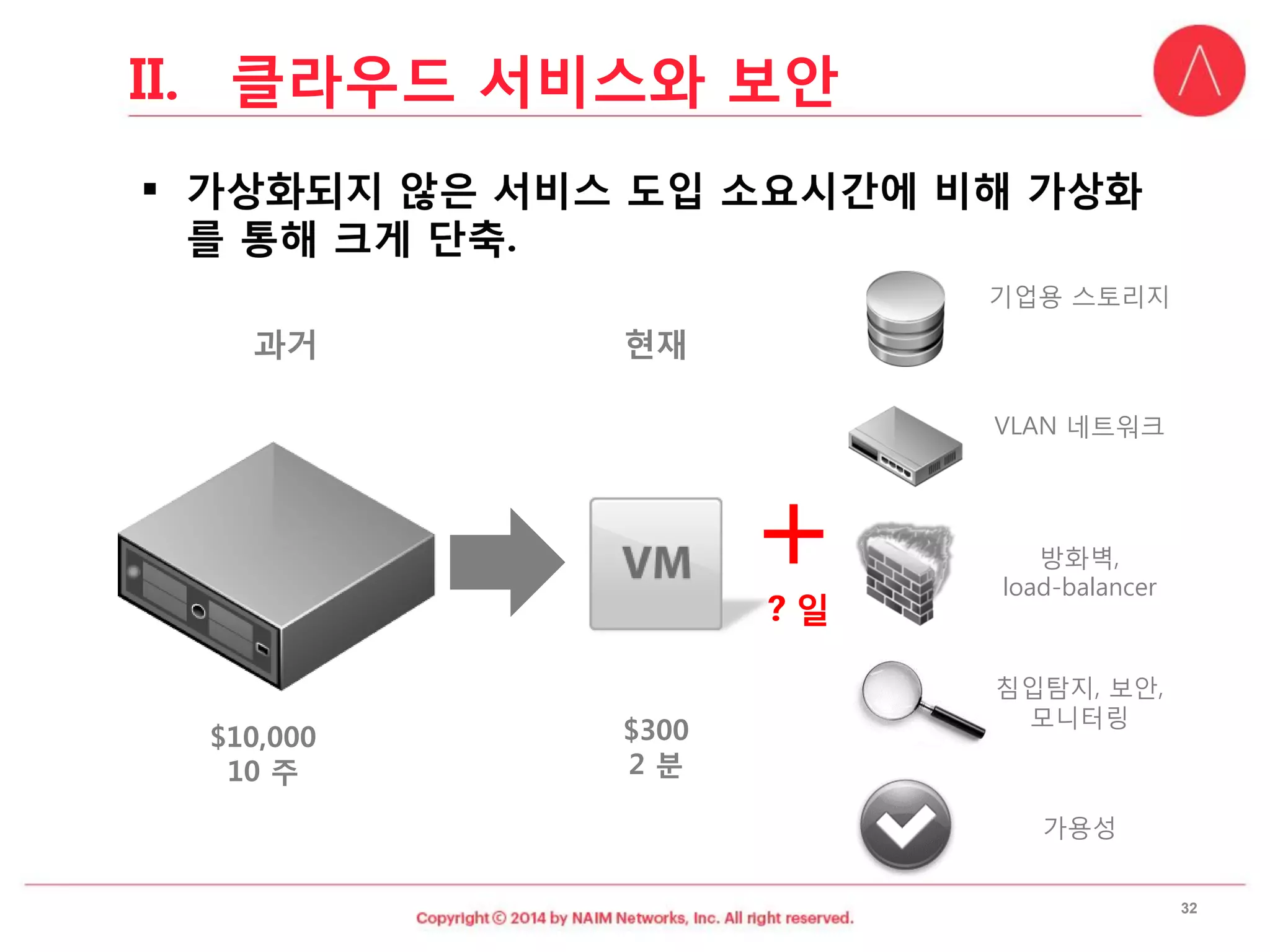

- 32. $3002 분 $10,00010주 기업용스토리지 VLAN 네트워크 방화벽, load-balancer 침입탐지, 보안, 모니터링 가용성 현재 과거 +일 32 II.클라우드서비스와보안

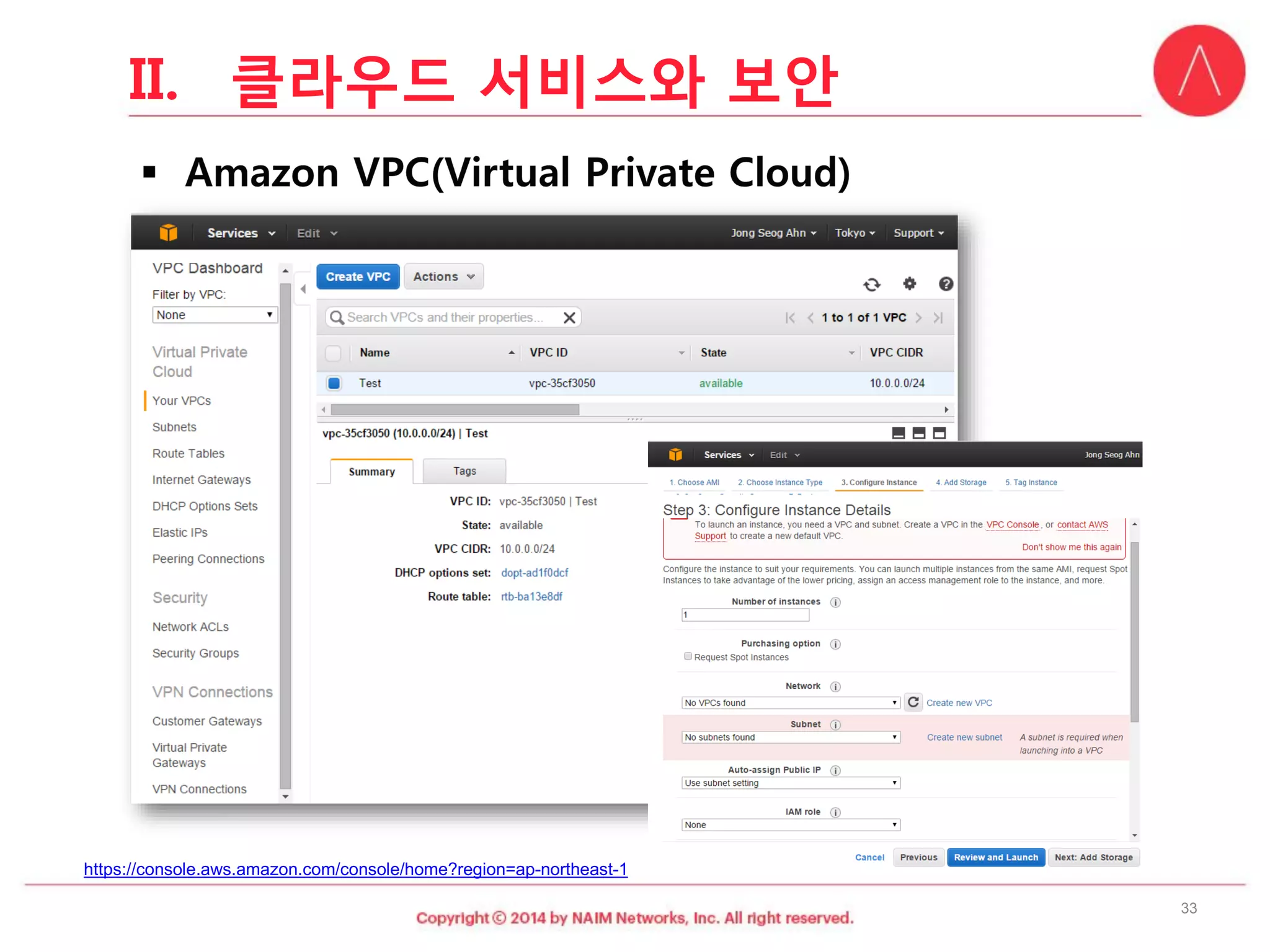

- 33.

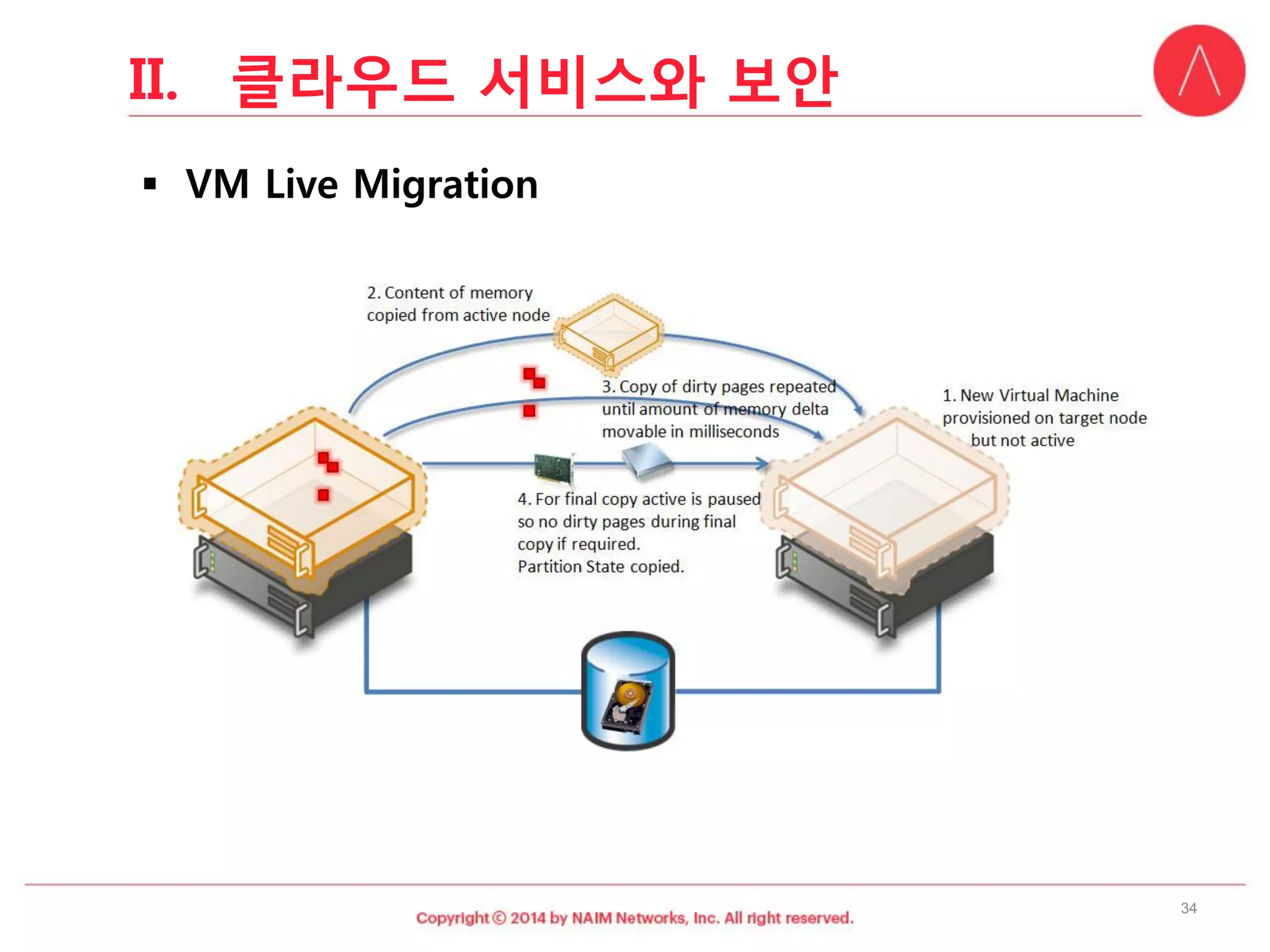

- 34.

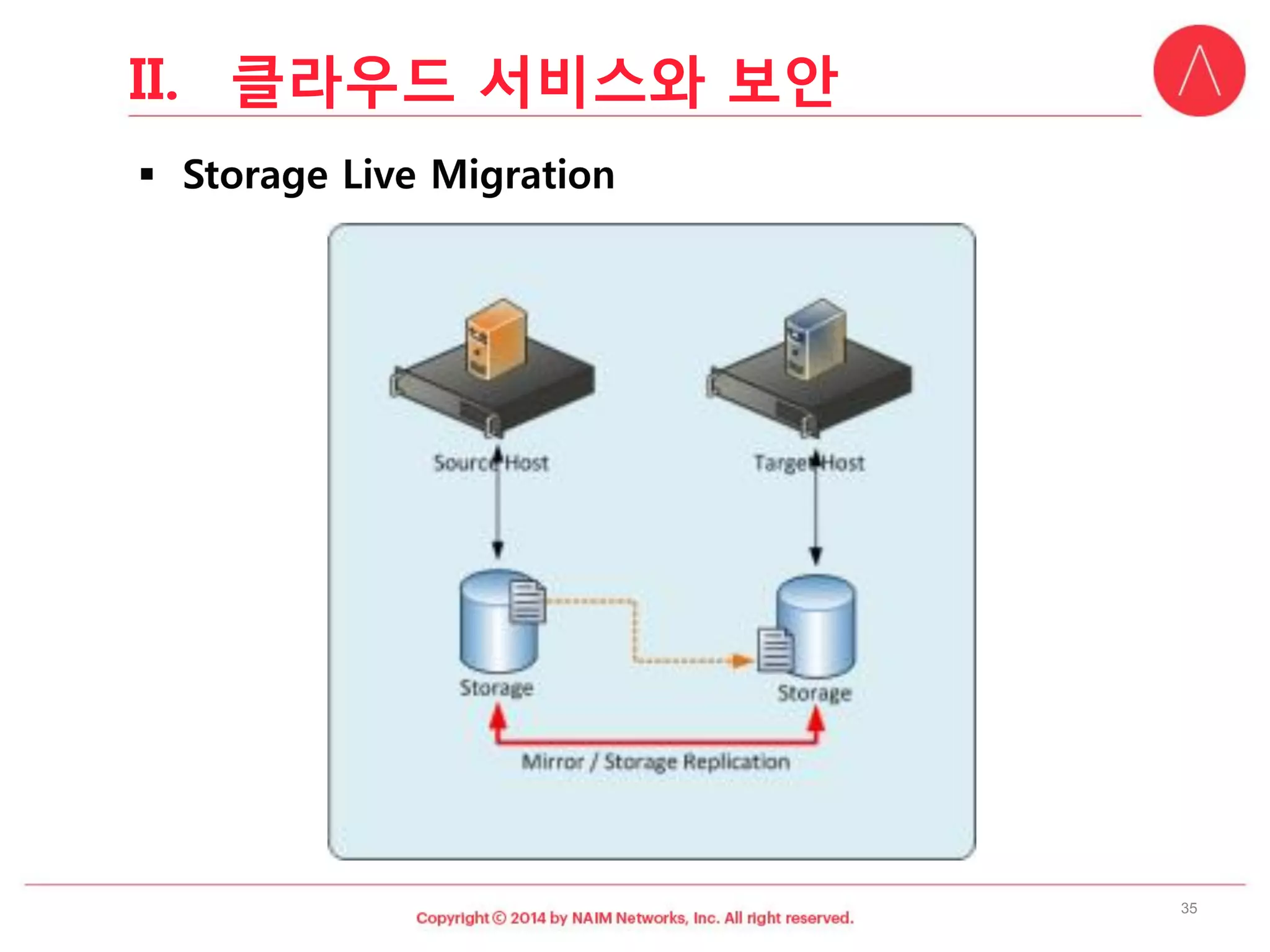

- 35.

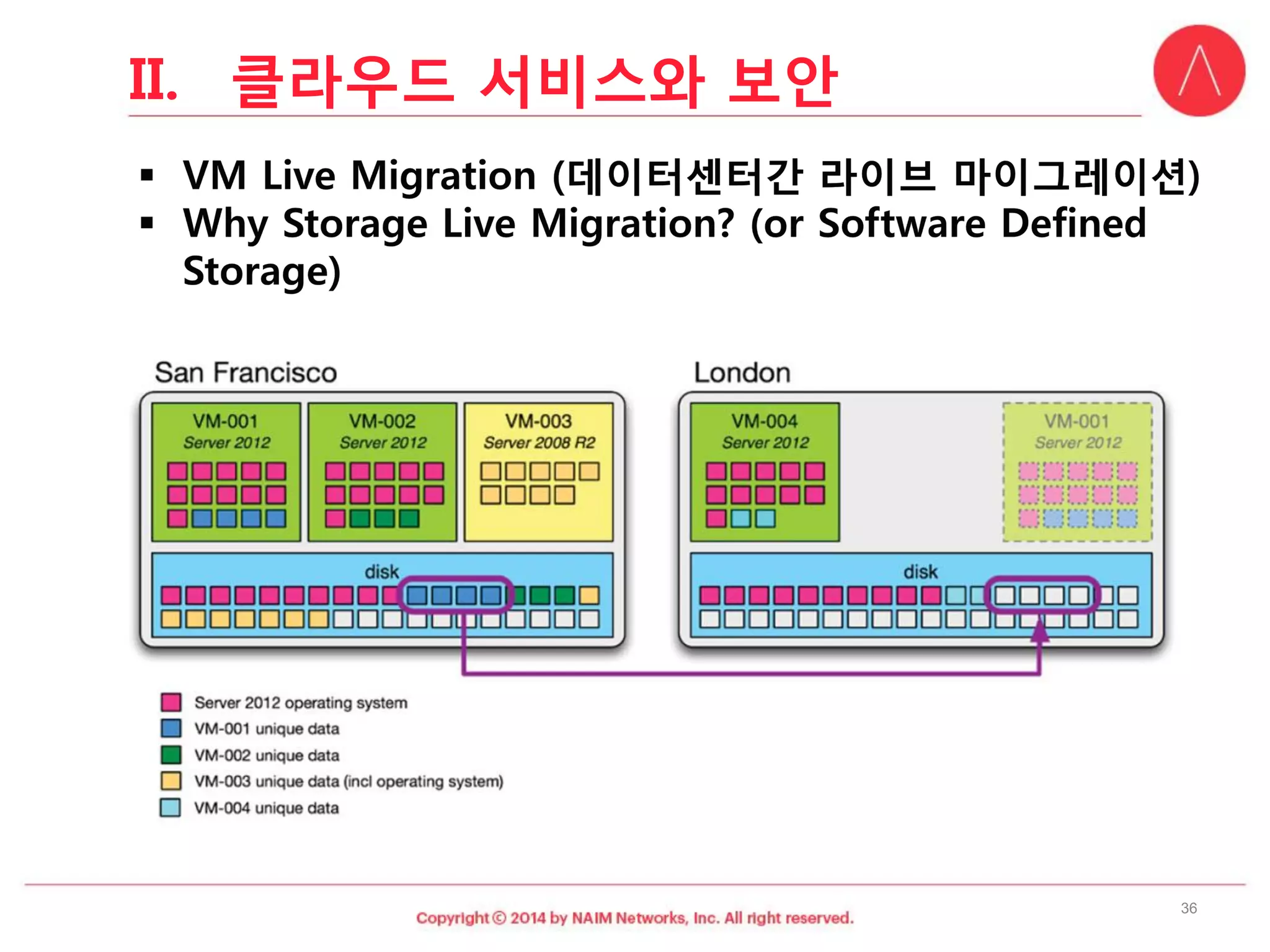

- 36.

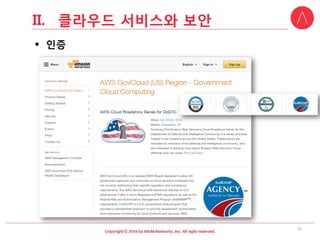

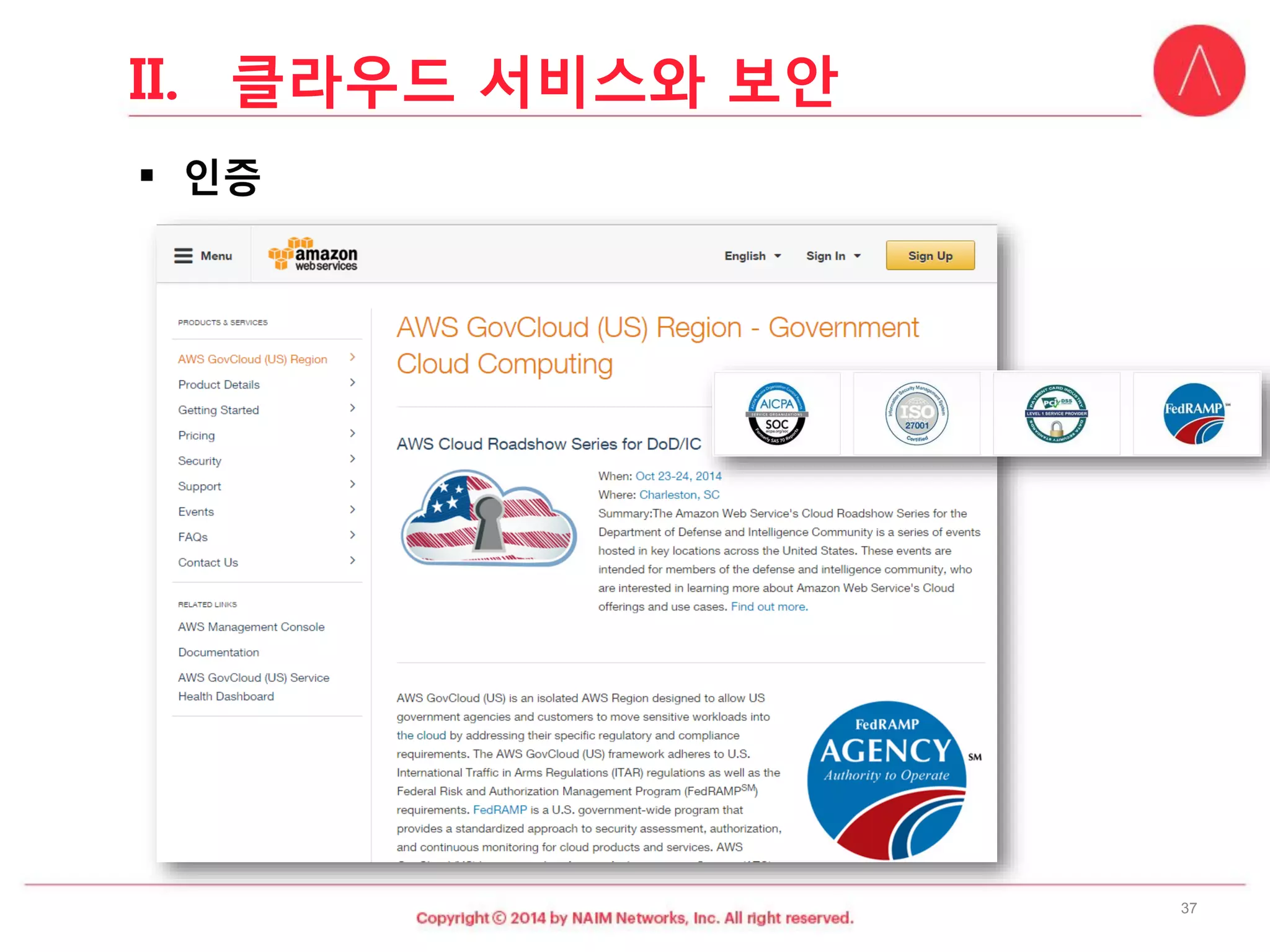

- 37.

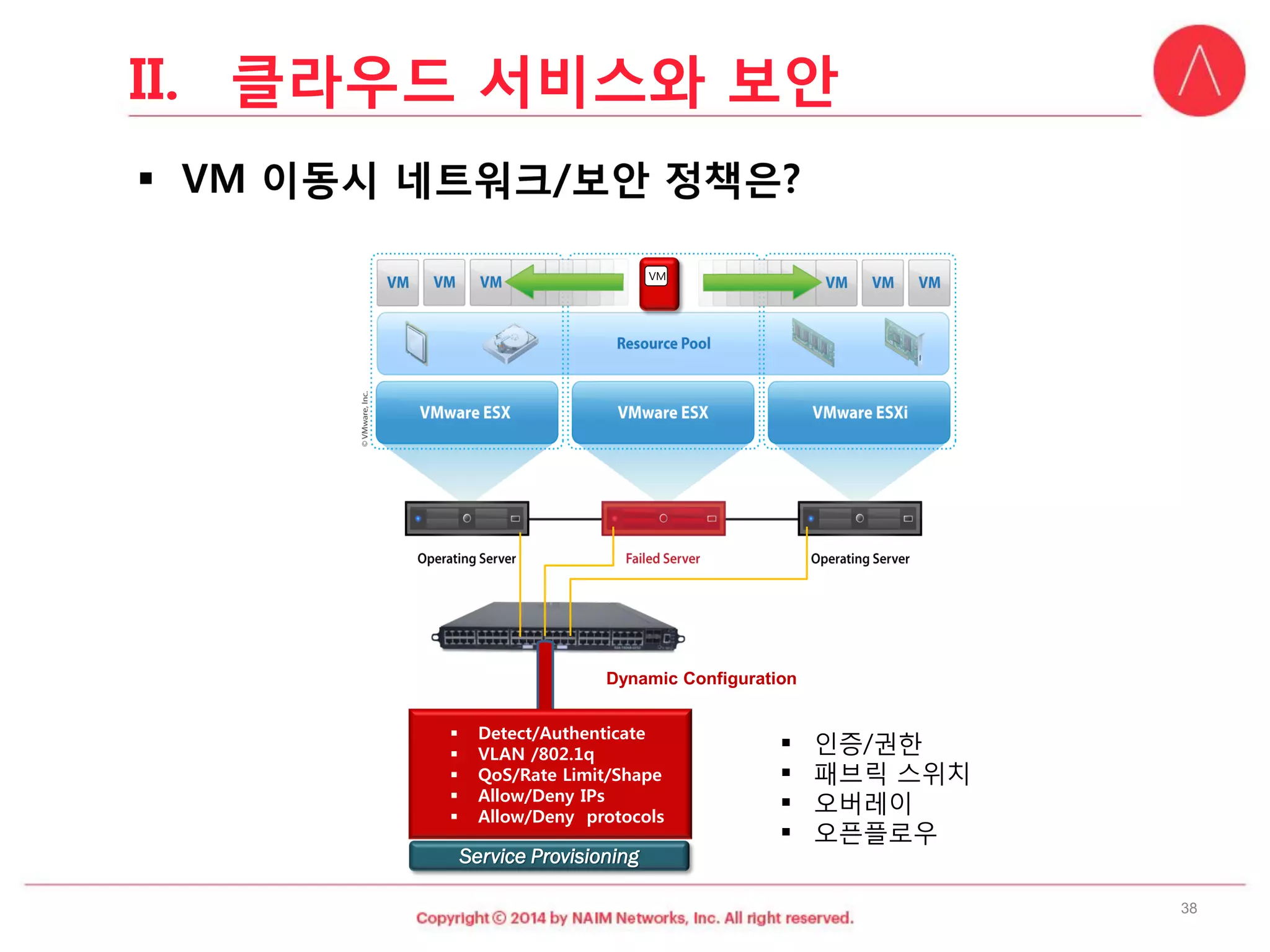

- 38. Dynamic Configuration Detect/Authenticate VLAN /802.1q QoS/Rate Limit/Shape Allow/Deny IPs Allow/Deny protocols VMService Provisioning 38 인증/권한 패브릭스위치 오버레이 오픈플로우 II.클라우드서비스와보안

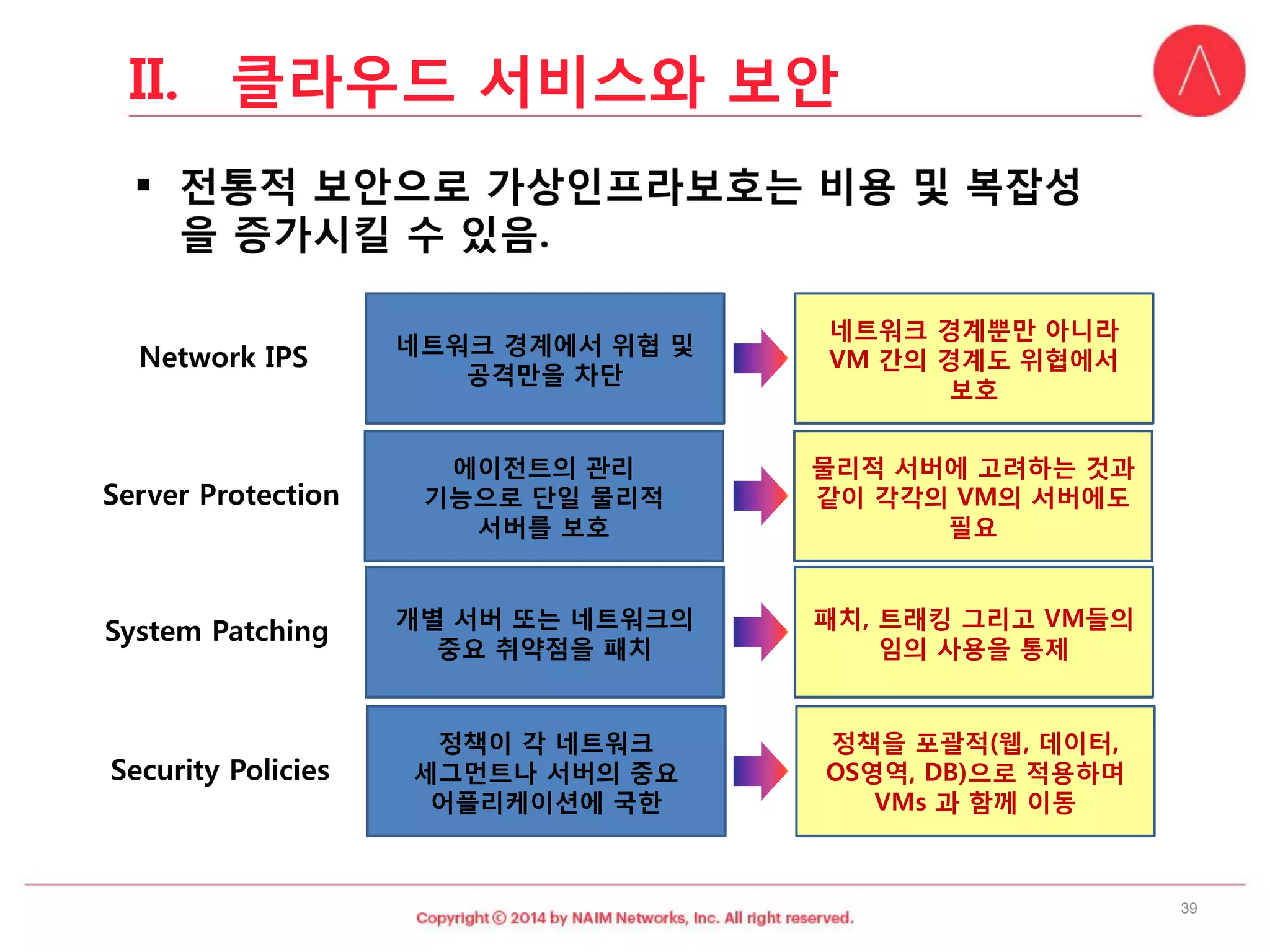

- 39. 네트워크경계에서위협및공격만을차단 정책이각네트워크 세그먼트나서버의중요 어플리케이션에국한 에이전트의관리 기능으로단일물리적 서버를보호 개별서버또는네트워크의 중요취약점을패치 네트워크경계뿐만아니라VM 간의경계도위협에서보호 정책을포괄적(웹, 데이터, OS영역, DB)으로적용하며VMs 과함께이동 물리적서버에고려하는것과같이각각의VM의서버에도필요 패치, 트래킹그리고VM들의임의사용을통제 Network IPS Server Protection System Patching Security Policies 39 II.클라우드서비스와보안

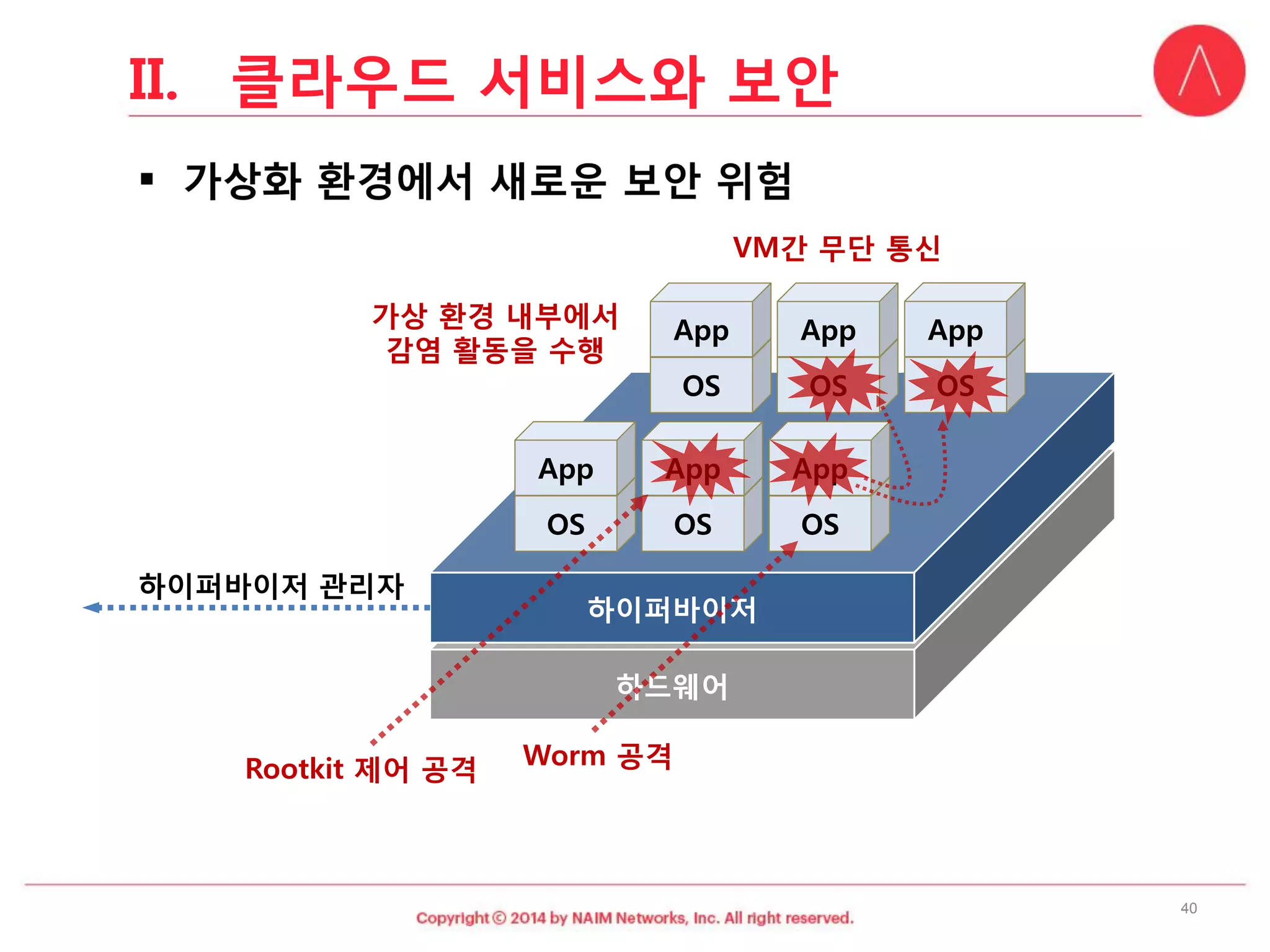

- 40. 하드웨어 하이퍼바이저 OS App OS App OS App OS App OS App OS App Worm공격 가상환경내부에서감염활동을수행 VM간무단통신 하이퍼바이저관리자 Rootkit 제어공격 40 II.클라우드서비스와보안

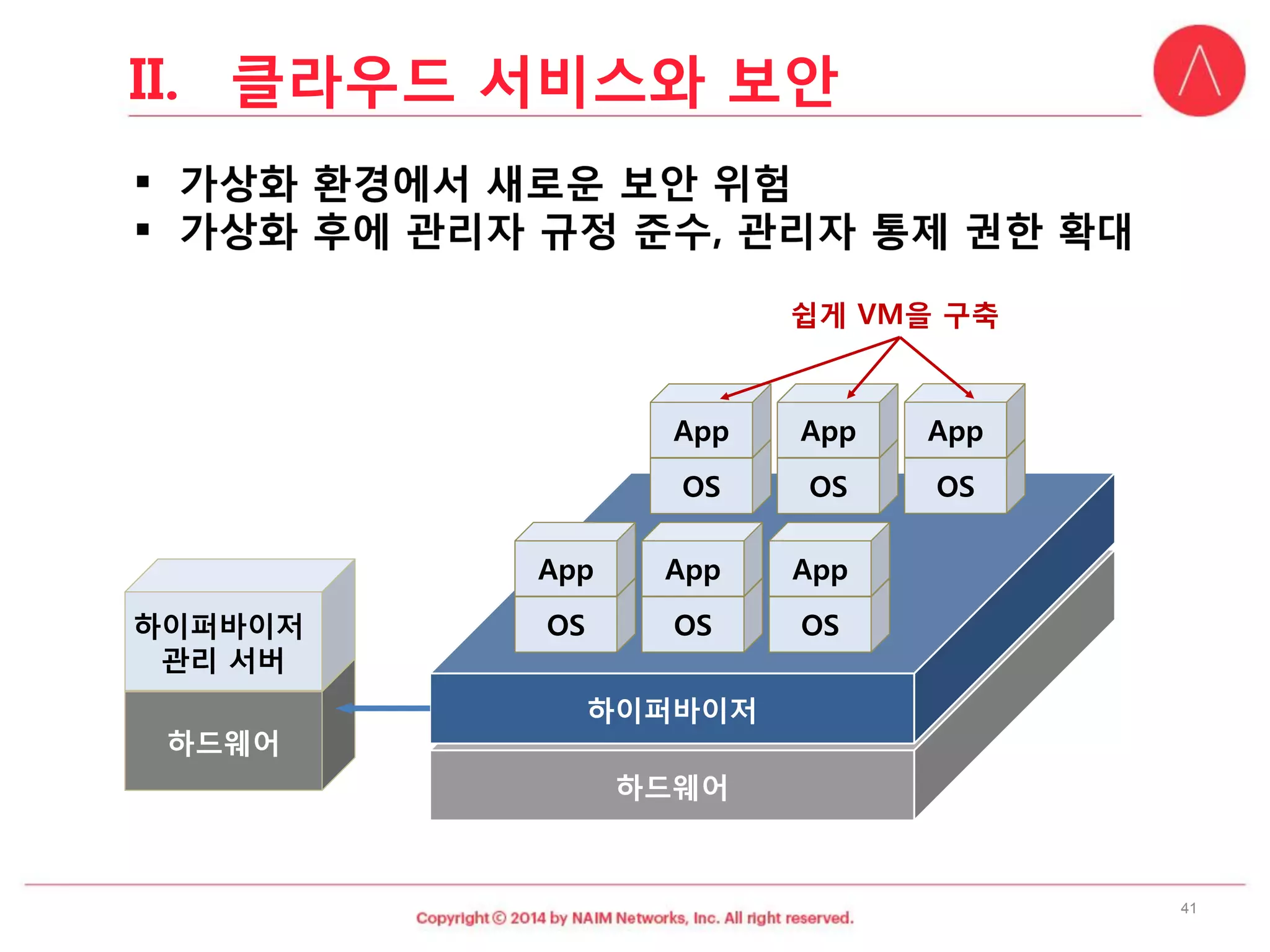

- 41. 하드웨어 하이퍼바이저 OS App OS App OS App OS App OS App OS App 하드웨어 하이퍼바이저 관리서버 쉽게VM을구축 41 II.클라우드서비스와보안

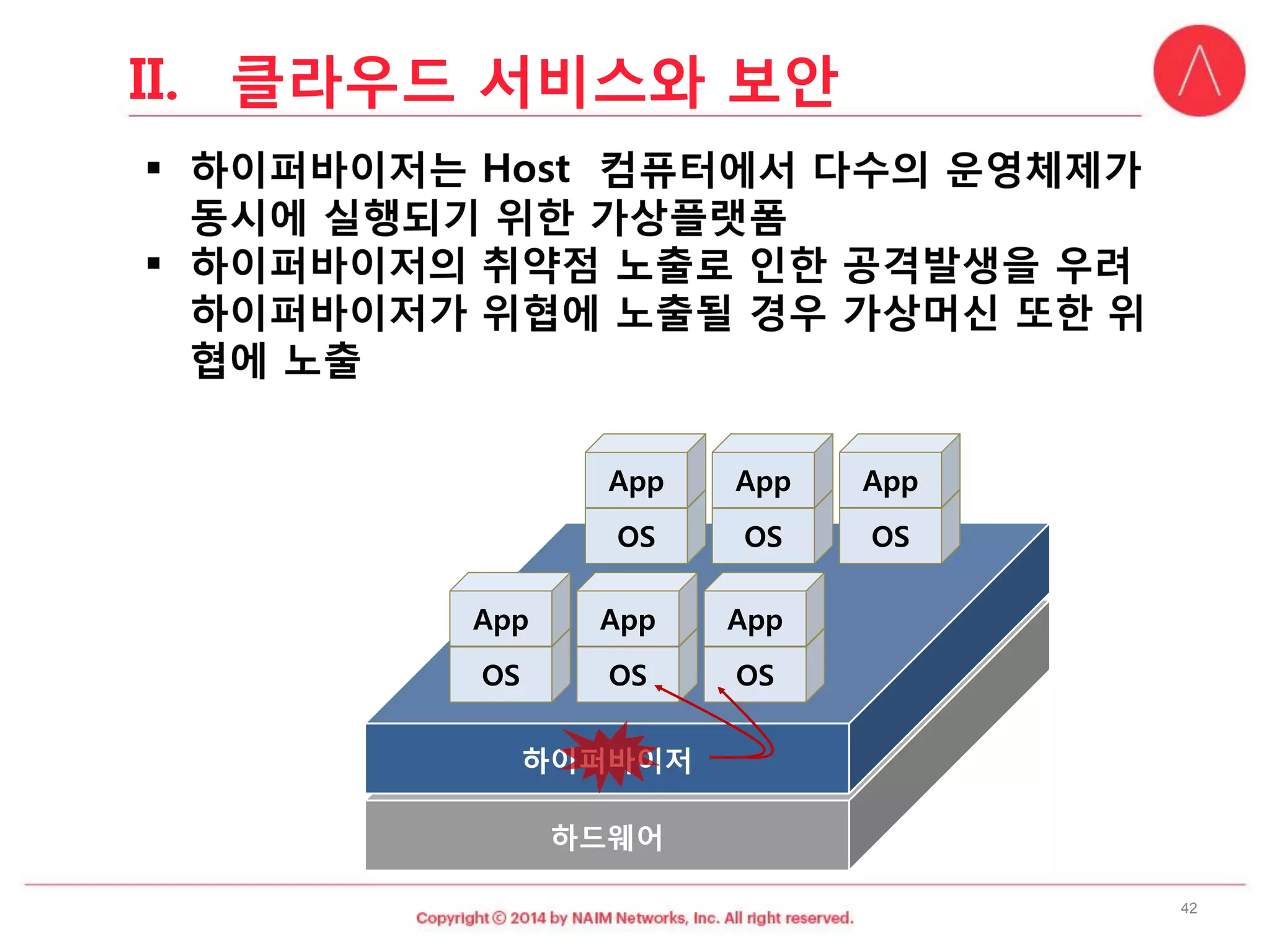

- 42. 하드웨어 하이퍼바이저 OS App OS App OS App OS App OS App OS App 42 II.클라우드서비스와보안

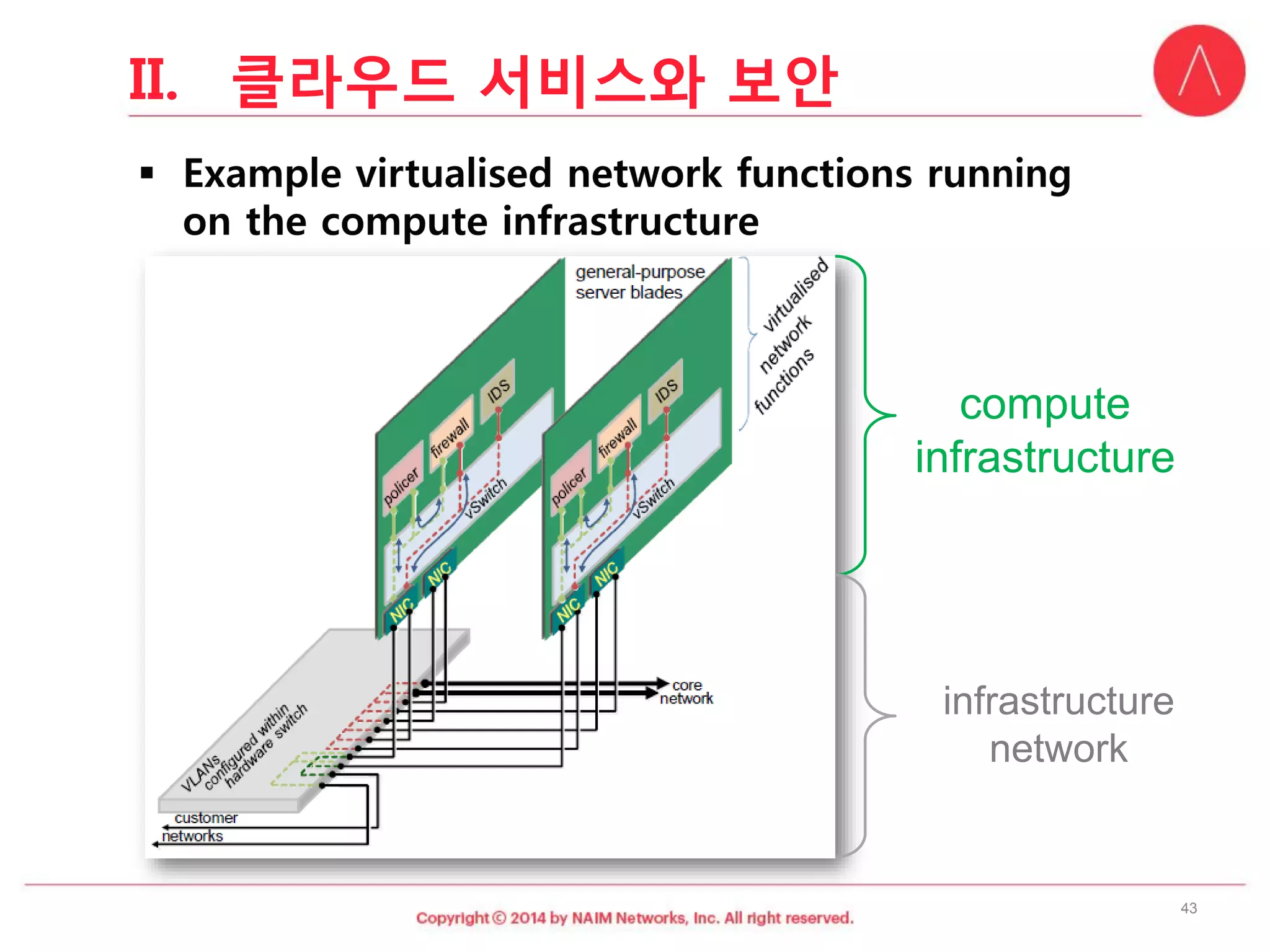

- 43. infrastructure network compute infrastructure 43 II.클라우드서비스와보안
- 44.

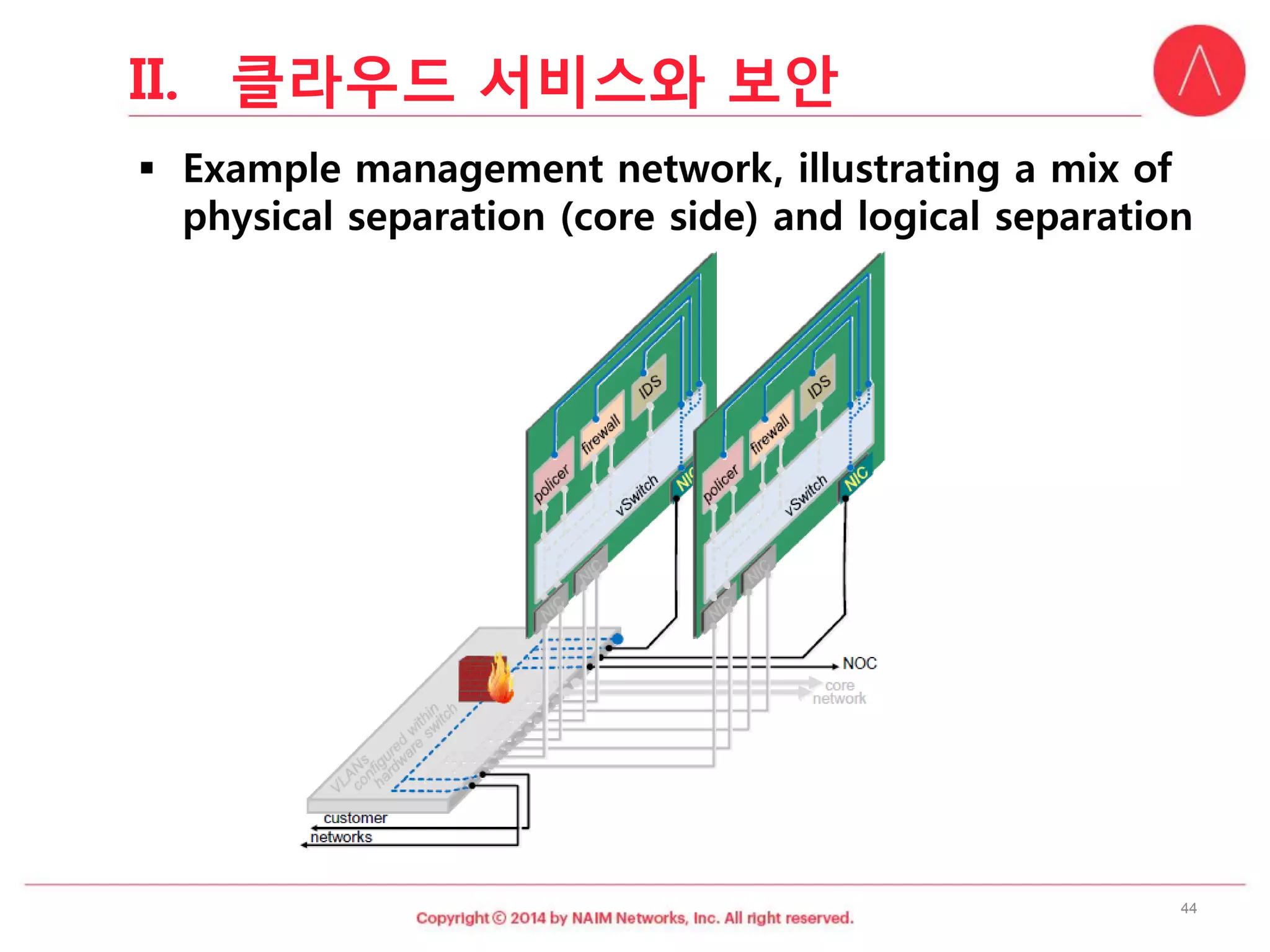

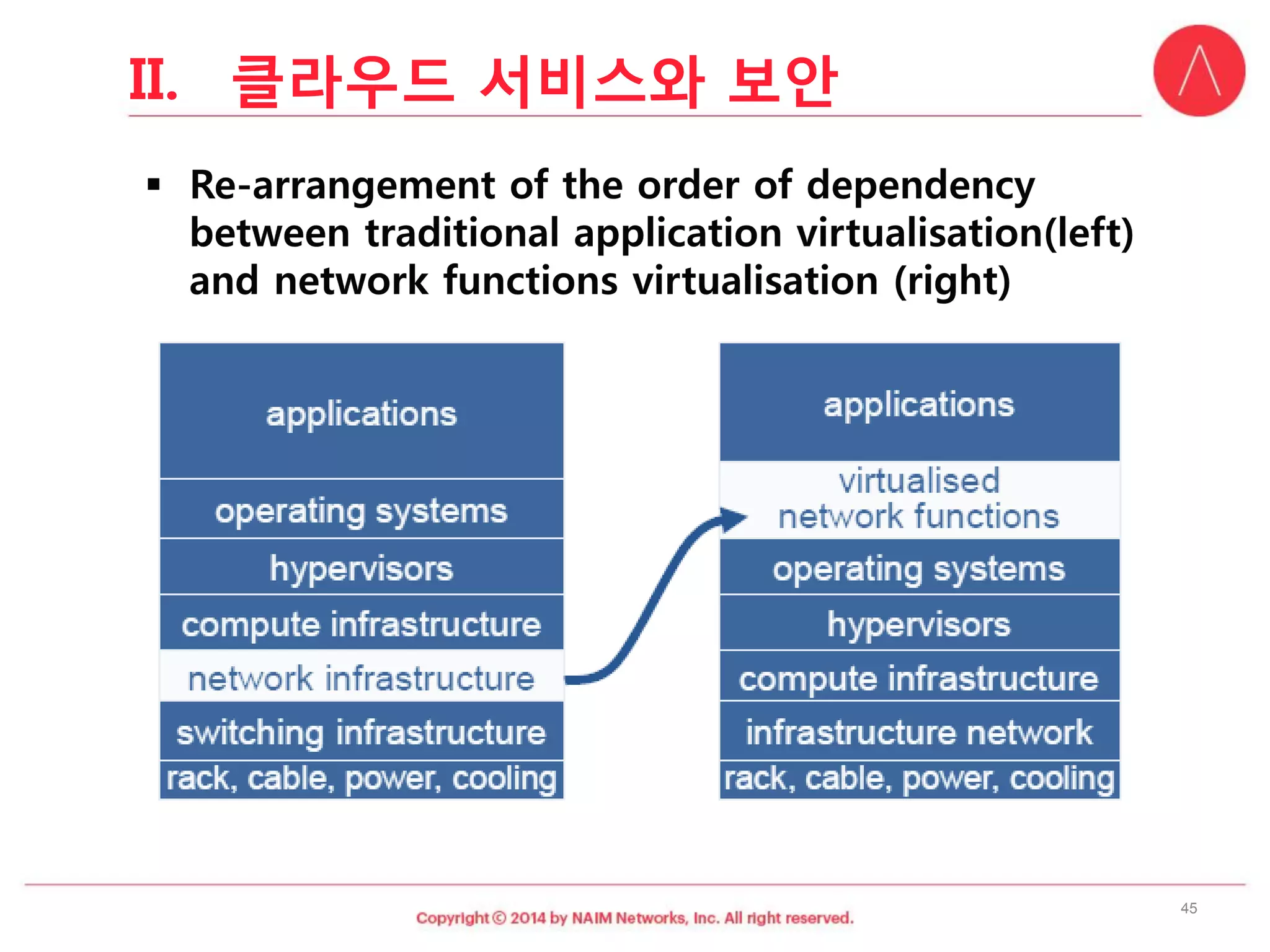

- 45.

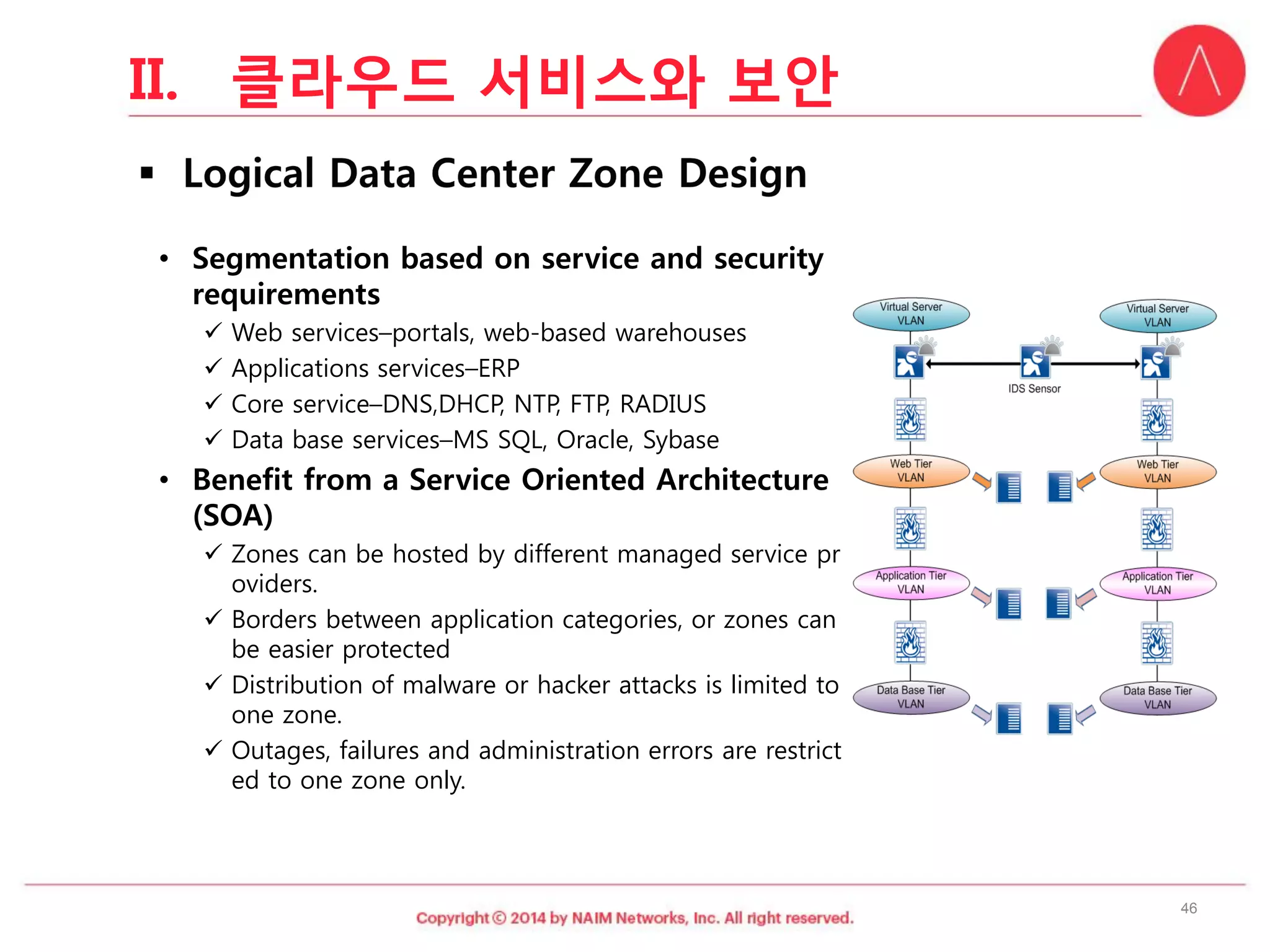

- 46. •Segmentation based onservice and security requirements Web services–portals, web-based warehouses Applications services–ERP Core service–DNS,DHCP, NTP, FTP, RADIUS Data base services–MS SQL, Oracle, Sybase •Benefit from a Service Oriented Architecture (SOA) Zones can be hosted by different managed service providers. Borders between application categories, or zones can be easier protected Distribution of malware or hacker attacks is limited to one zone. Outages, failures and administration errors are restricted to one zone only. 46 II.클라우드서비스와보안

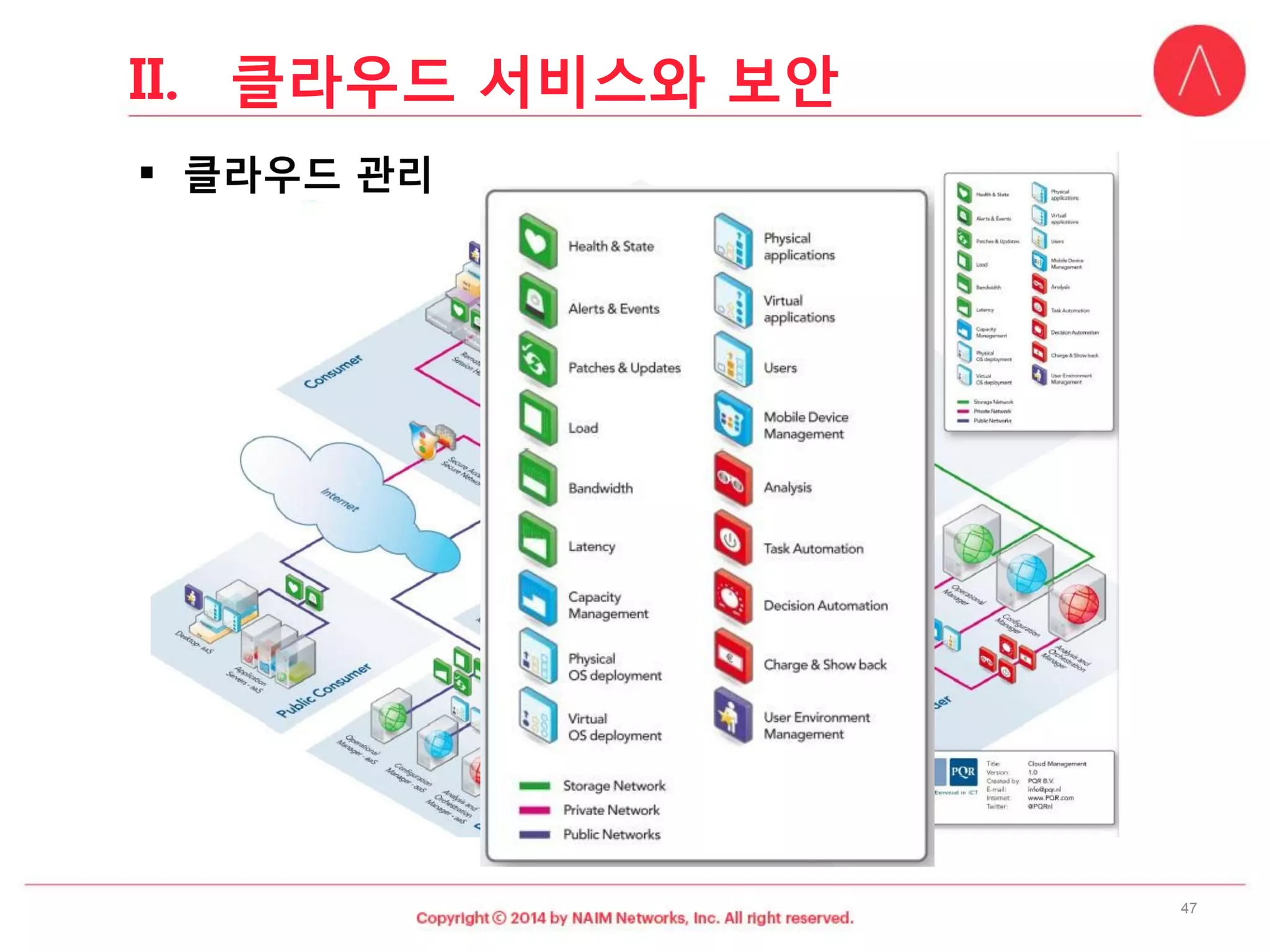

- 47.

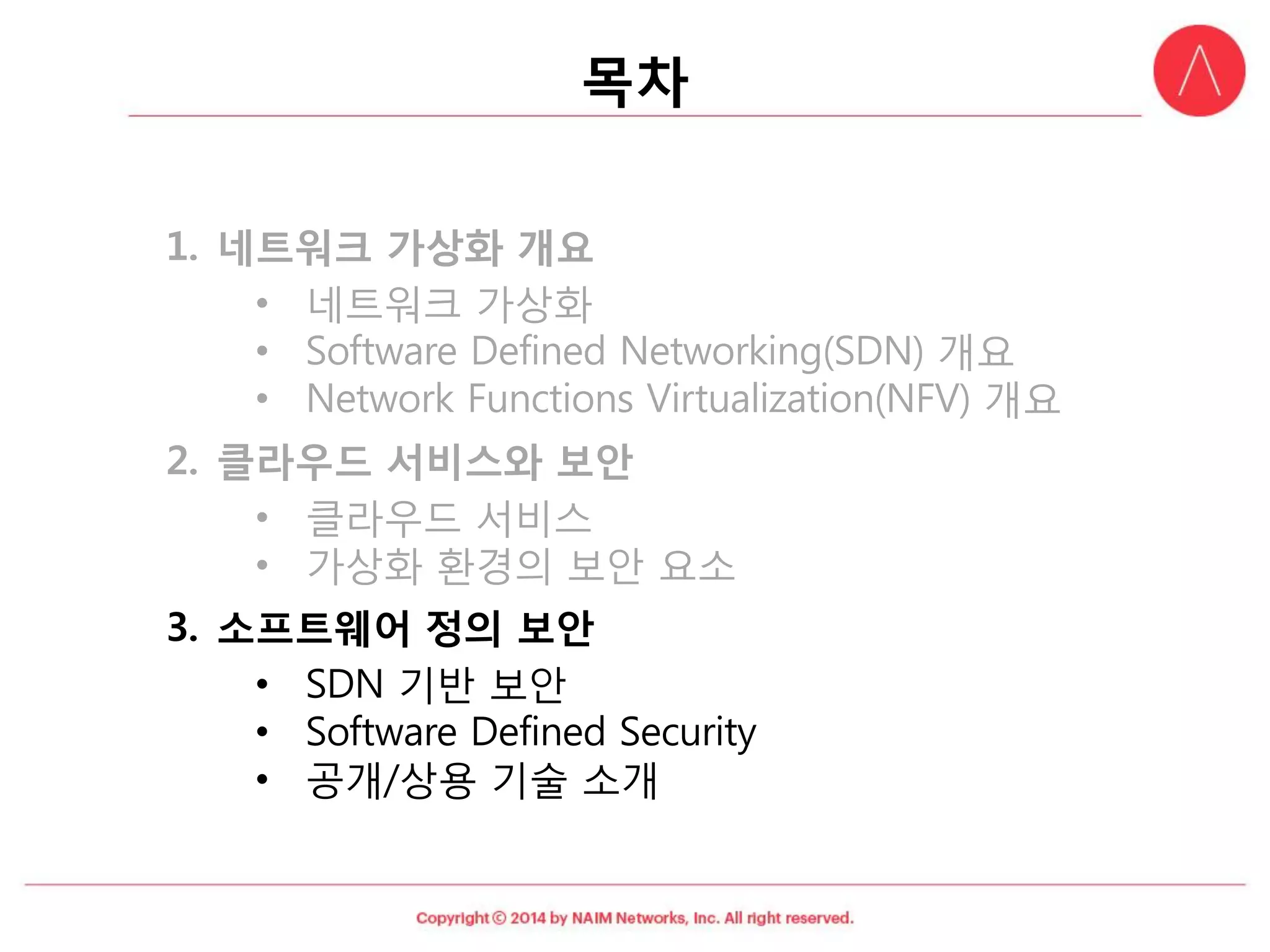

- 48. 목차 1.네트워크가상화개요 •네트워크가상화 •Software Defined Networking(SDN) 개요 •Network Functions Virtualization(NFV) 개요 2.클라우드서비스와보안 •클라우드서비스 •가상화환경의보안요소 3.소프트웨어정의보안 •SDN 기반보안 •Software Defined Security •공개/상용기술소개

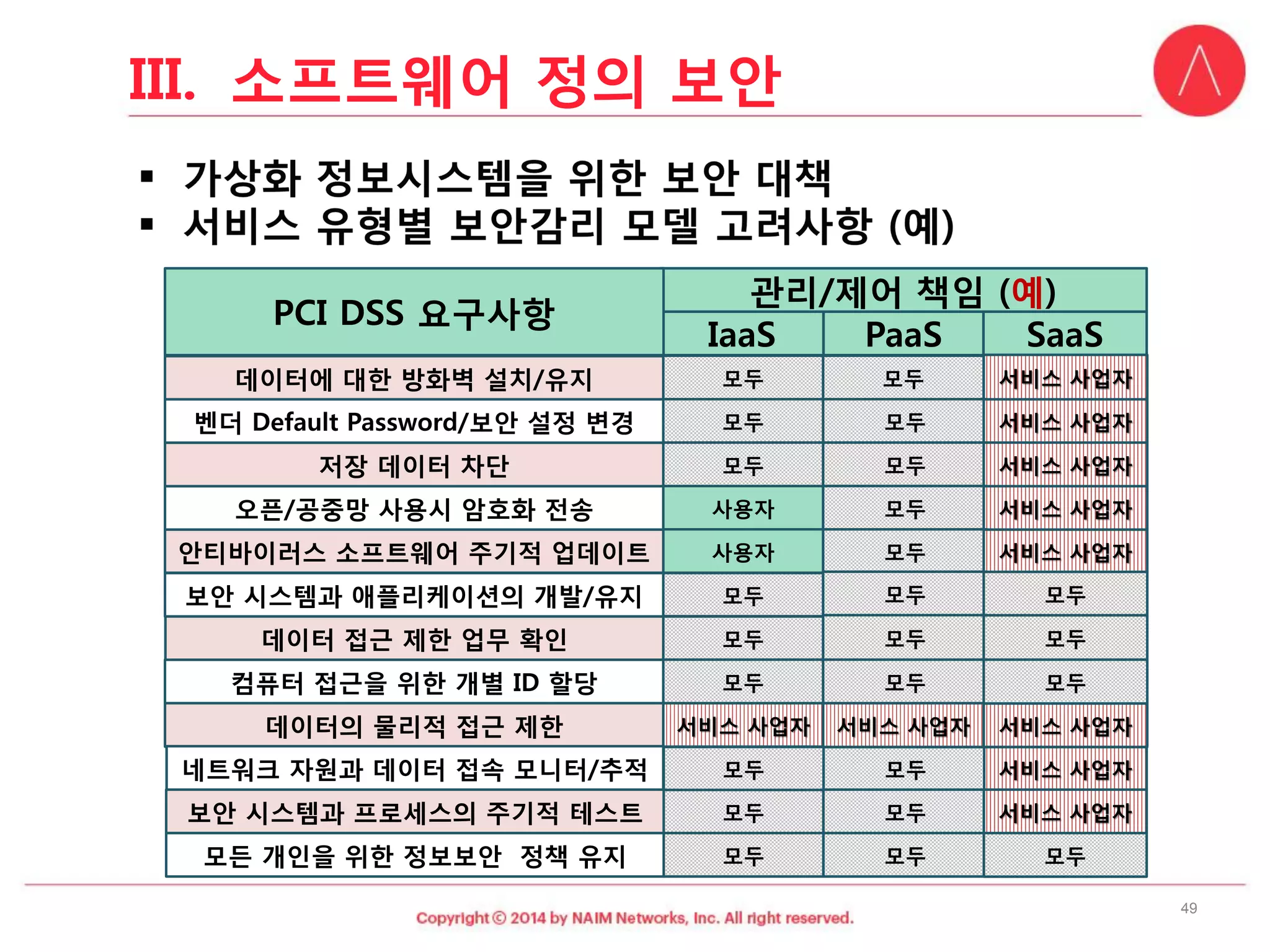

- 49. 관리/제어책임(예) SaaS IaaS PaaS PCI DSS 요구사항 데이터에대한방화벽설치/유지 모두 모두서비스사업자 벤더Default Password/보안설정변경 모두 모두서비스사업자 저장데이터차단 모두 모두서비스사업자 오픈/공중망사용시암호화전송 사용자 모두서비스사업자 안티바이러스소프트웨어주기적업데이트 사용자 모두서비스사업자 보안시스템과애플리케이션의개발/유지 모두 모두 모두 데이터접근제한업무확인 모두 모두 모두 컴퓨터접근을위한개별ID 할당 모두 모두 모두 데이터의물리적접근제한서비스사업자서비스사업자서비스사업자 네트워크자원과데이터접속모니터/추적 모두 모두서비스사업자 보안시스템과프로세스의주기적테스트 모두 모두서비스사업자 모든개인을위한정보보안정책유지 모두 모두 모두 III.소프트웨어정의보안 49

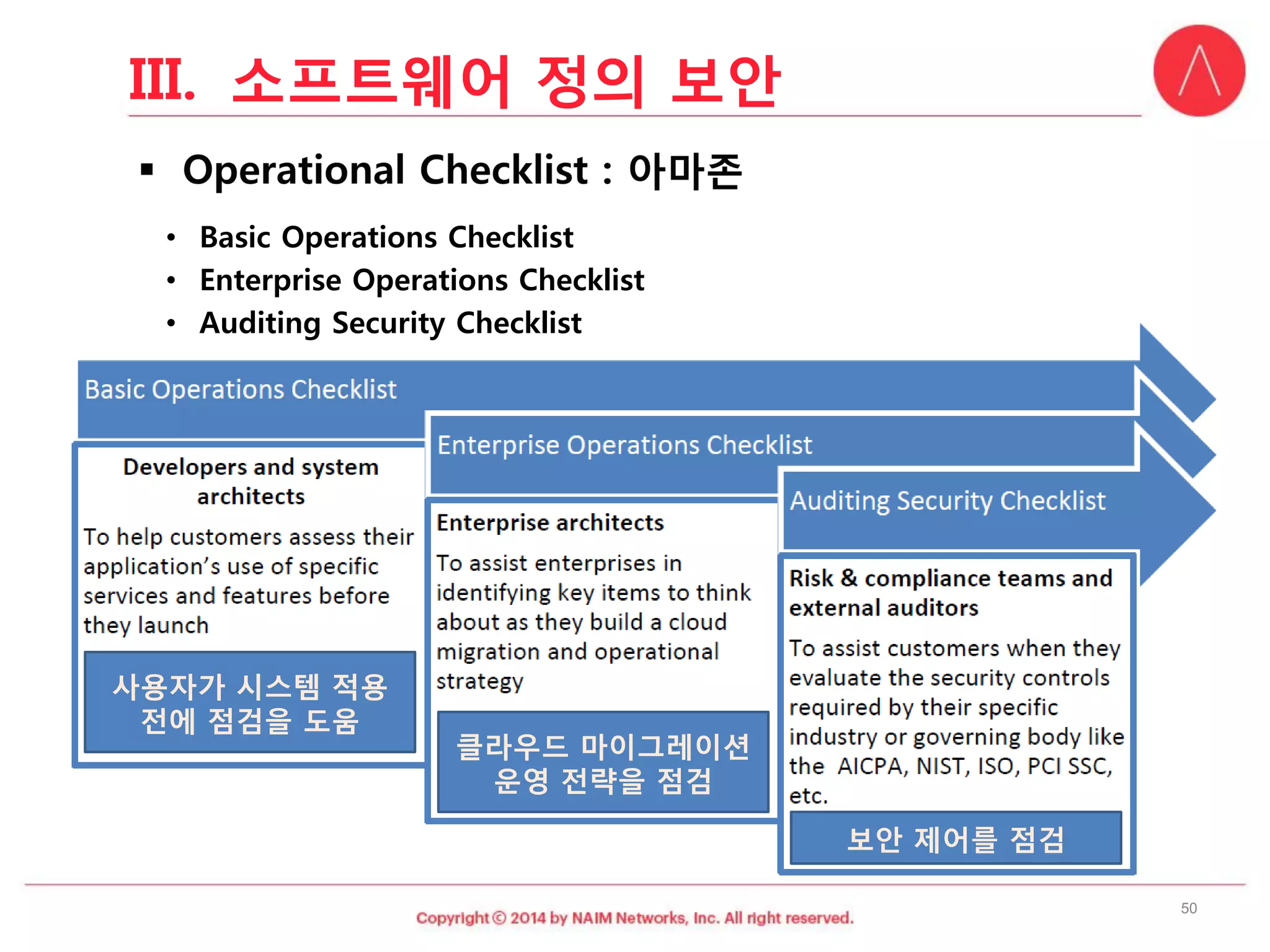

- 50. 사용자가시스템적용전에점검을도움 클라우드마이그레이션운영전략을점검 보안제어를점검 •BasicOperations Checklist •Enterprise Operations Checklist •Auditing Security Checklist 50 III.소프트웨어정의보안

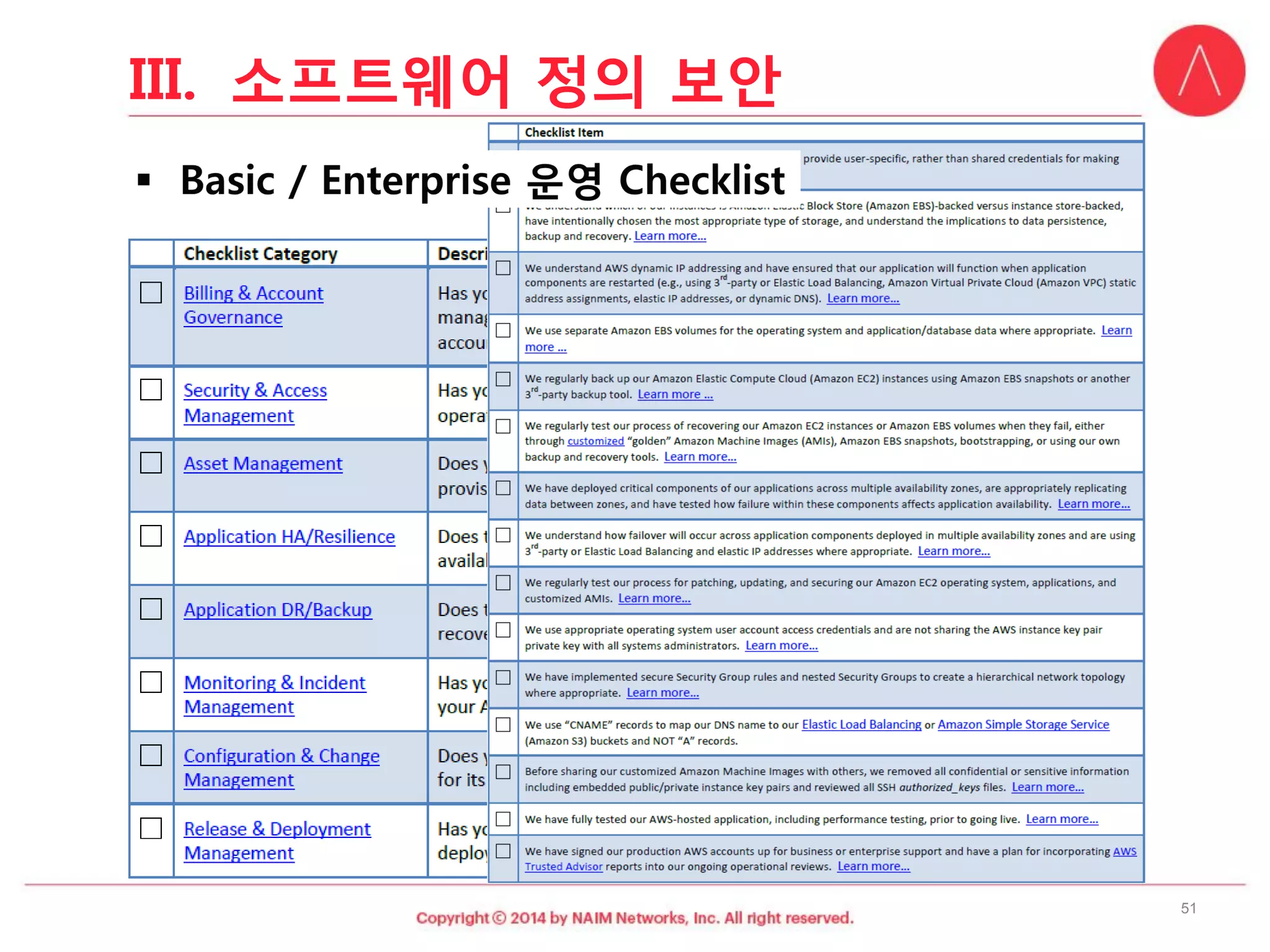

- 51.

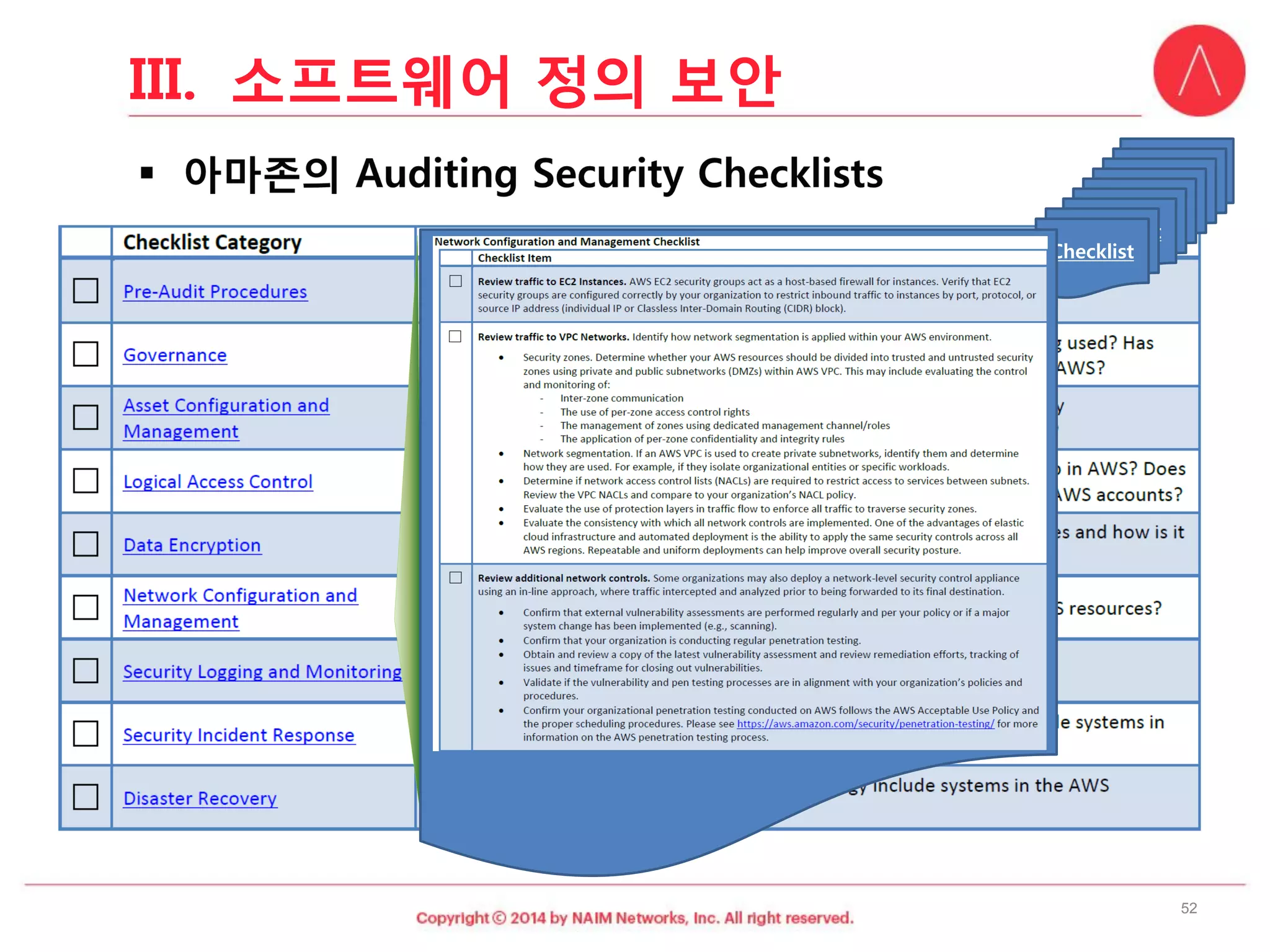

- 52. Checklist Checklist Checklist Checklist Checklist Checklist Checklist Checklist Checklist Checklist 52 III.소프트웨어정의보안

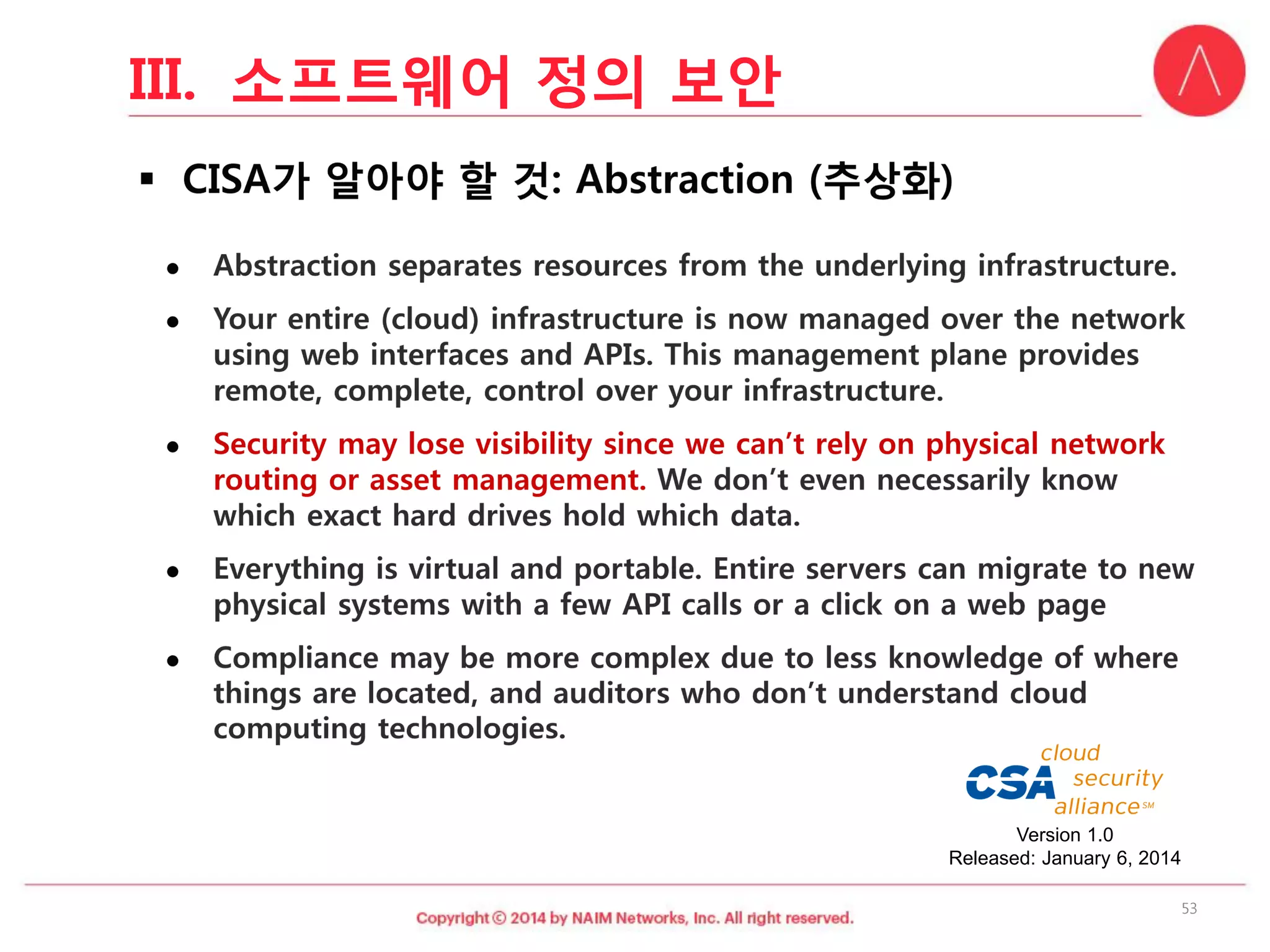

- 53. Version 1.0 Released:January 6, 2014 53 III. 소프트웨어 정의 보안

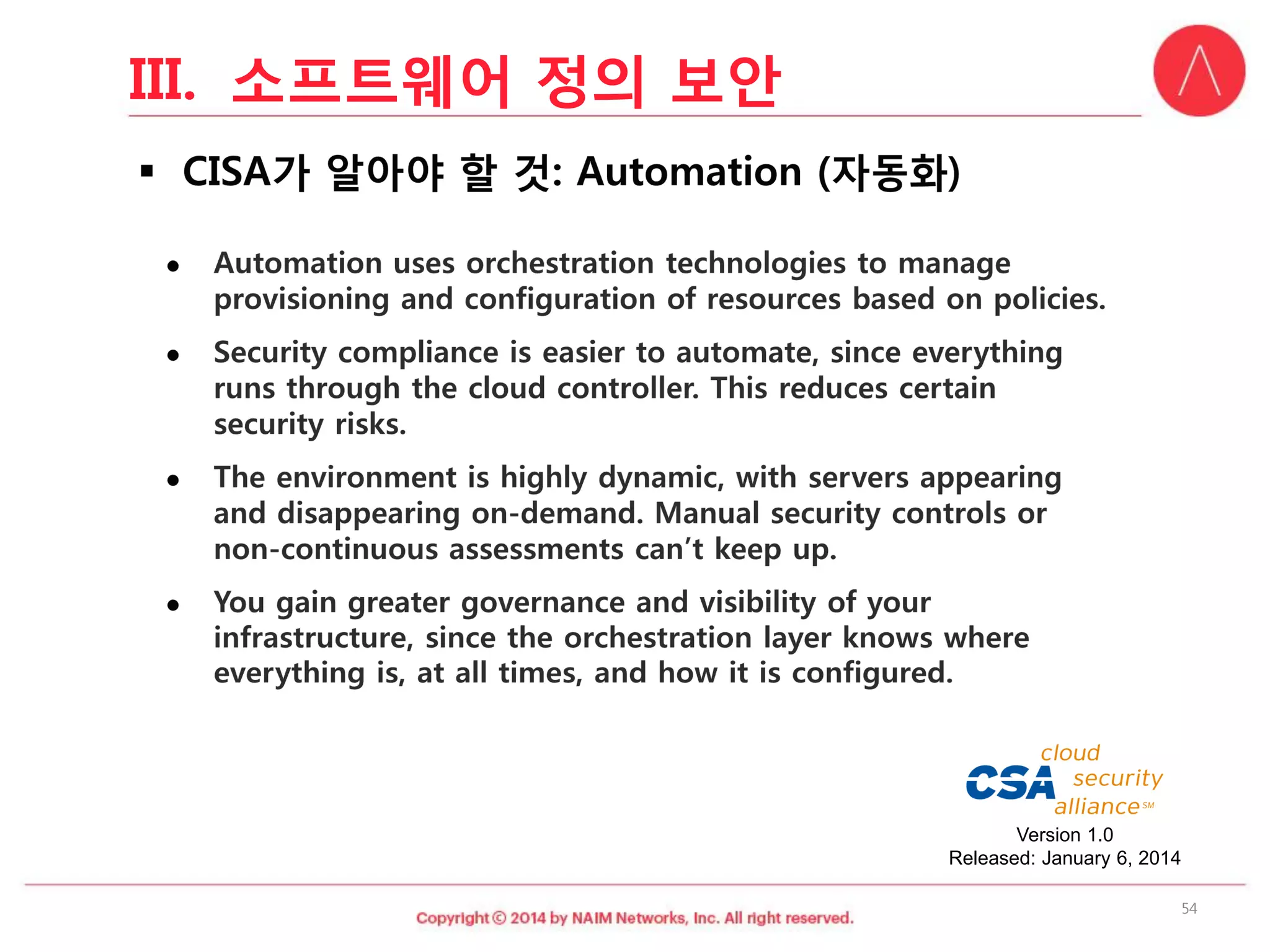

- 54. 54 Version 1.0 Released: January 6, 2014 III. 소프트웨어 정의 보안

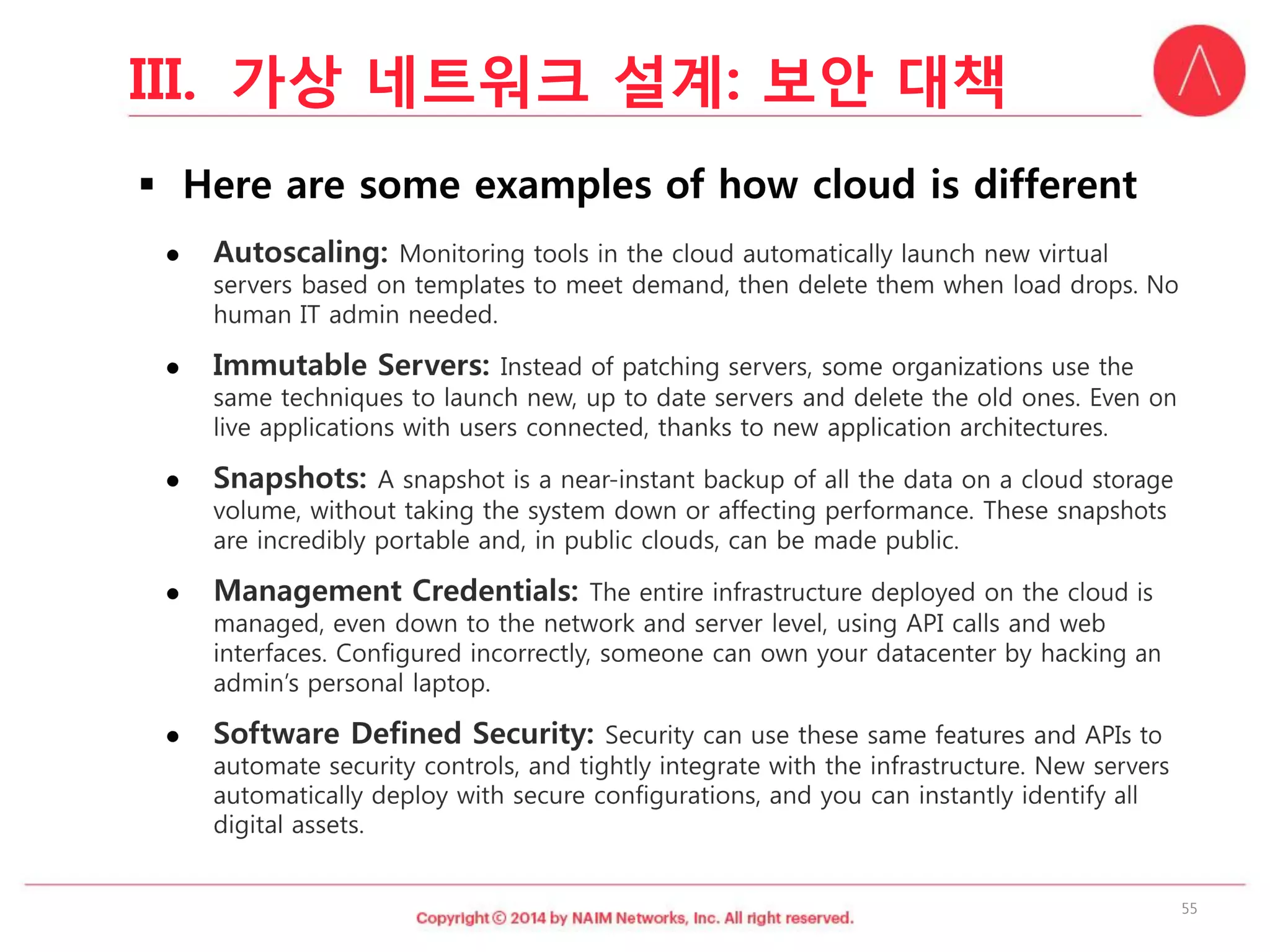

- 55.

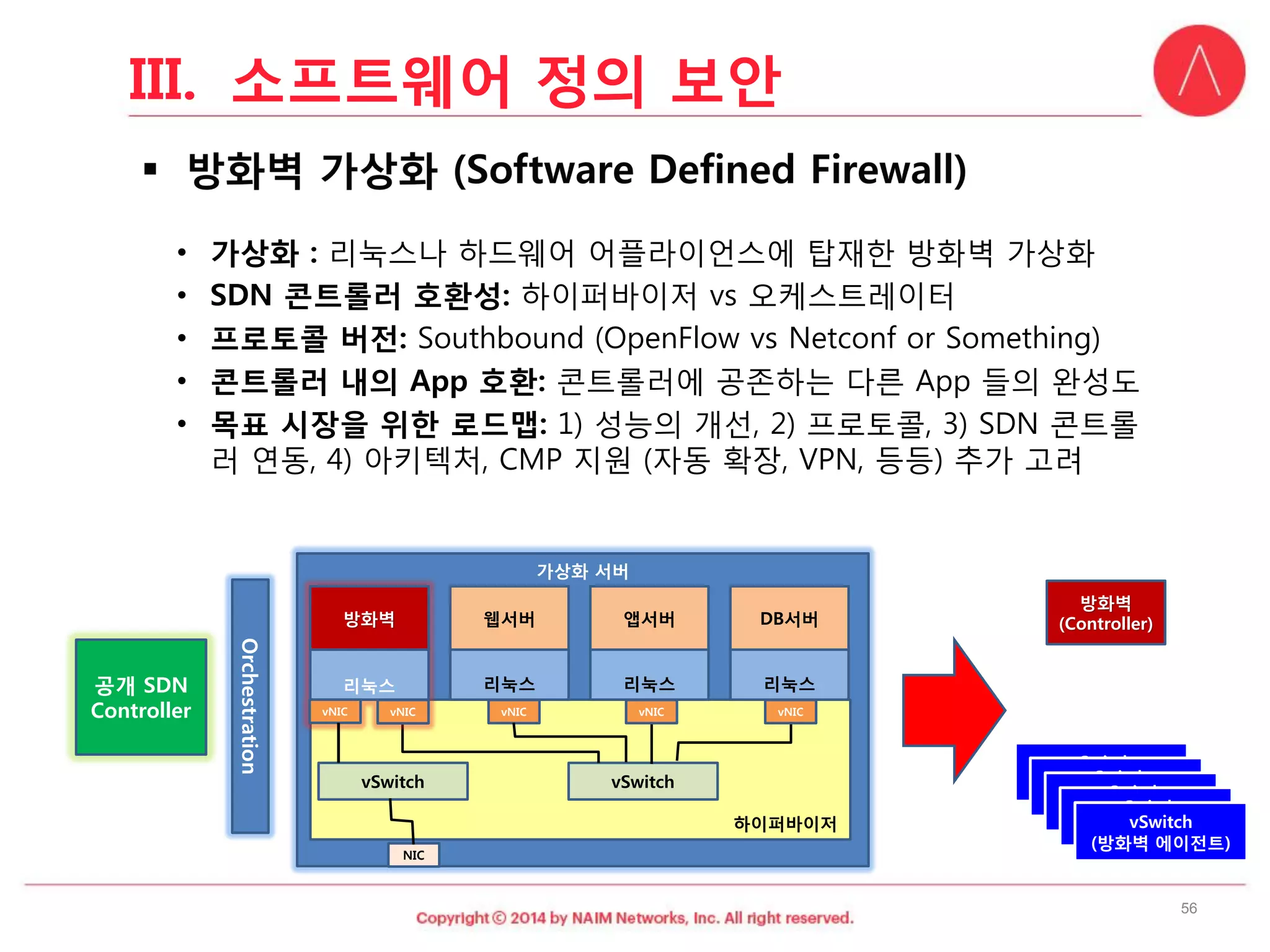

- 56. •가상화: 리눅스나하드웨어어플라이언스에탑재한방화벽가상화 •SDN콘트롤러호환성: 하이퍼바이저vs 오케스트레이터 •프로토콜버전: Southbound (OpenFlow vs Netconfor Something) •콘트롤러내의App 호환: 콘트롤러에공존하는다른App 들의완성도 •목표시장을위한로드맵:1) 성능의개선, 2) 프로토콜,3) SDN 콘트롤러연동, 4) 아키텍처, CMP지원(자동확장, VPN,등등) 추가고려 가상화서버 하이퍼바이저 vSwitch 리눅스 웹서버 vNIC 리눅스 앱서버 vNIC 리눅스 DB서버 vNIC 리눅스방화벽 vNIC vNIC vSwitch NIC 공개SDN Controller Orchestration 방화벽(Controller) vSwitch (방화벽에이전트) 56 III.소프트웨어정의보안 vSwitch (방화벽에이전트) vSwitch (방화벽에이전트) vSwitch (방화벽에이전트) vSwitch (방화벽에이전트)

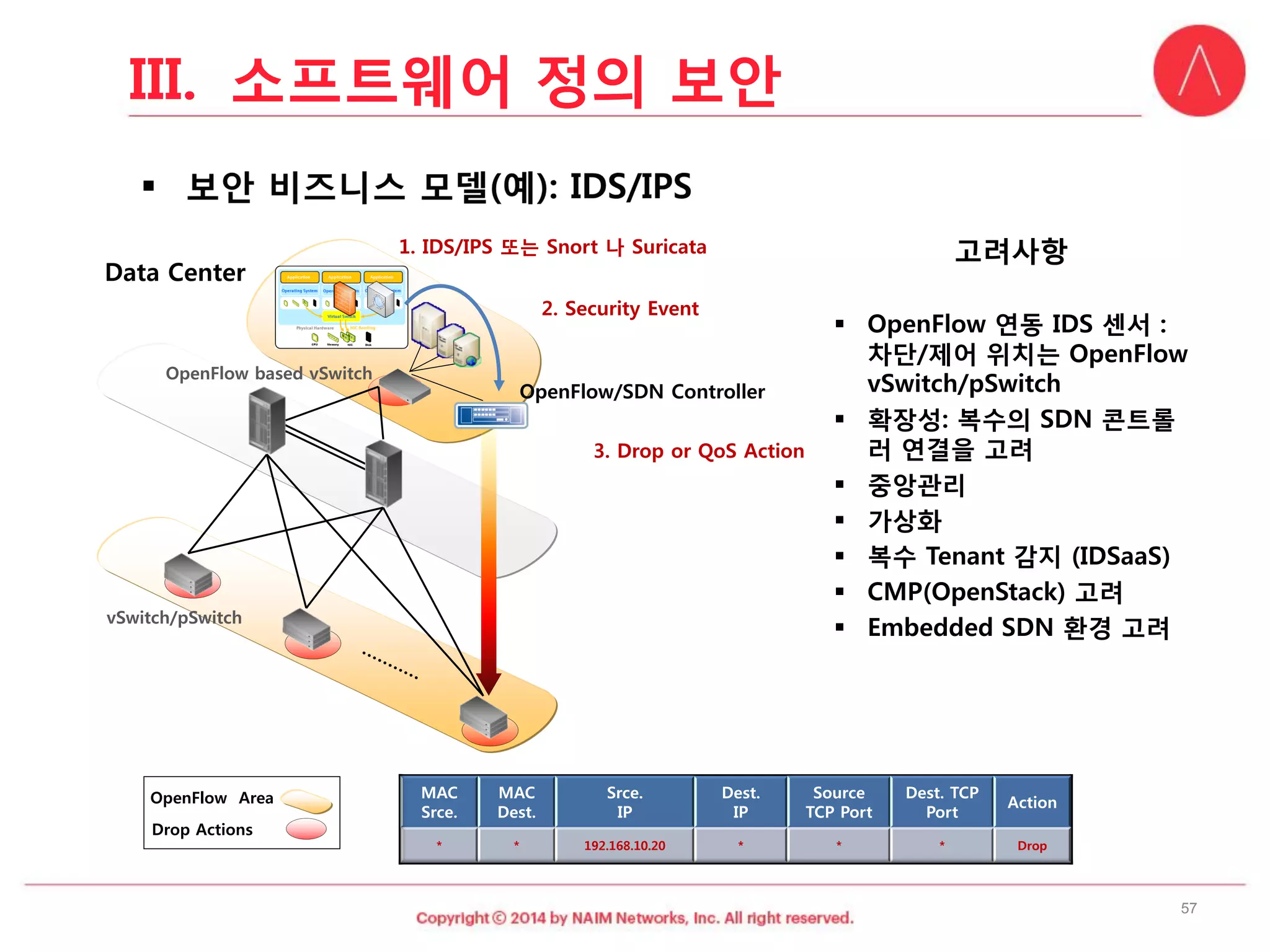

- 57. OpenFlow Area DropActions vSwitch/pSwitch Data Center 3. Drop or QoSAction 2. Security Event 1. IDS/IPS 또는Snort 나Suricata OpenFlow/SDN Controller 고려사항 OpenFlow 연동IDS 센서: 차단/제어위치는OpenFlow vSwitch/pSwitch 확장성: 복수의SDN콘트롤러연결을고려 중앙관리 가상화 복수Tenant 감지(IDSaaS) CMP(OpenStack) 고려 Embedded SDN 환경고려 OpenFlow basedvSwitch MAC Srce. MAC Dest. Srce. IP Dest. IP Source TCP Port Dest. TCP Port Action * * 192.168.10.20 * * * Drop 57 III.소프트웨어정의보안

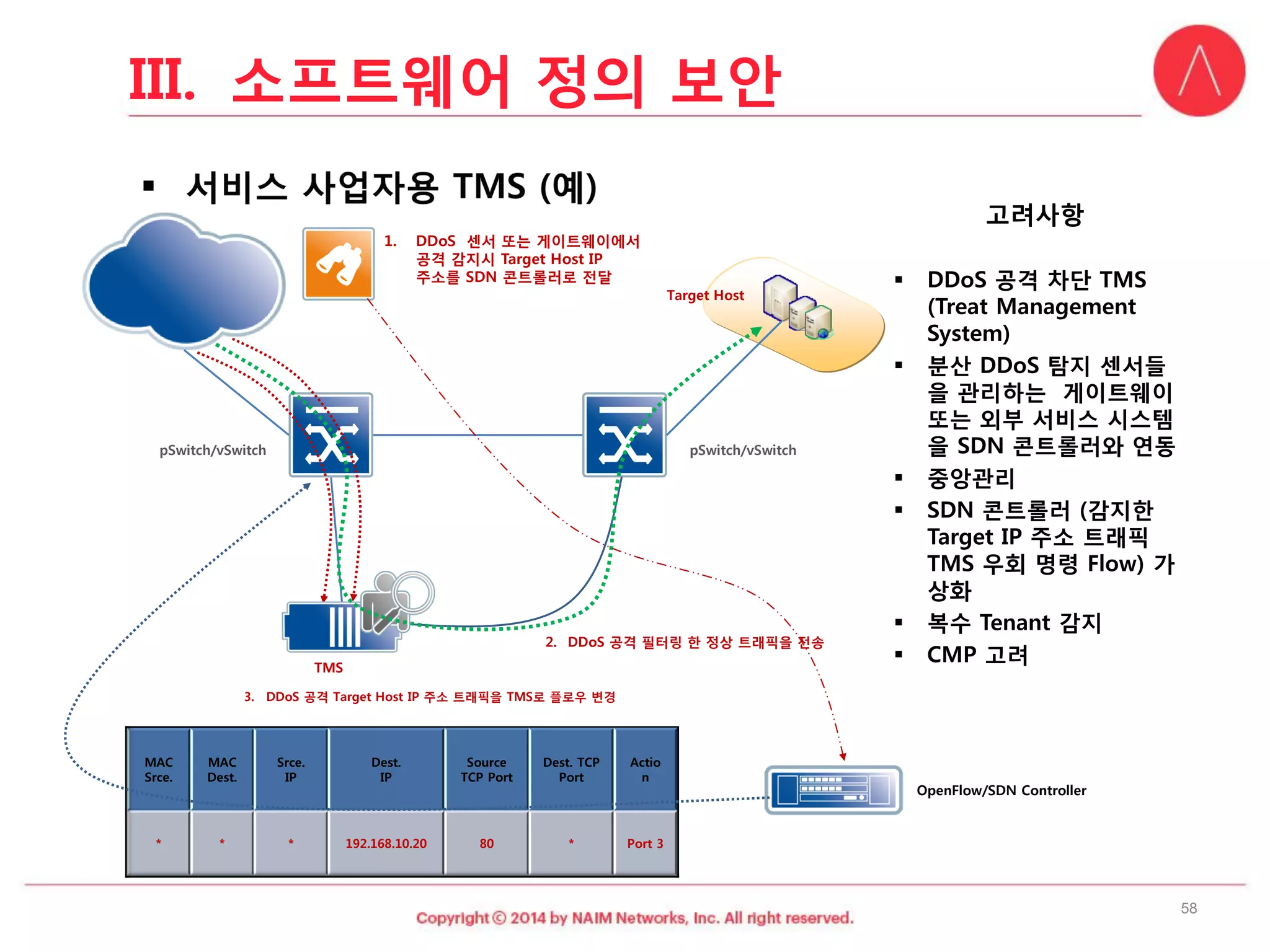

- 58. 고려사항 DDoS공격차단TMS (TreatManagementSystem) 분산DDoS탐지센서들을관리하는게이트웨이또는외부서비스시스템을SDN 콘트롤러와연동 중앙관리 SDN 콘트롤러(감지한Target IP 주소트래픽TMS 우회명령Flow) 가상화 복수Tenant 감지 CMP 고려 MAC Srce. MAC Dest. Srce. IP Dest. IP Source TCP Port Dest. TCP Port Action * * * 192.168.10.20 80 * Port 3 pSwitch/vSwitch pSwitch/vSwitch OpenFlow/SDN Controller TMS 3.DDoS공격Target Host IP주소트래픽을TMS로플로우변경 Target Host 1.DDoS센서또는게이트웨이에서공격감지시Target Host IP주소를SDN 콘트롤러로전달 2.DDoS공격필터링한정상트래픽을전송 58 III.소프트웨어정의보안

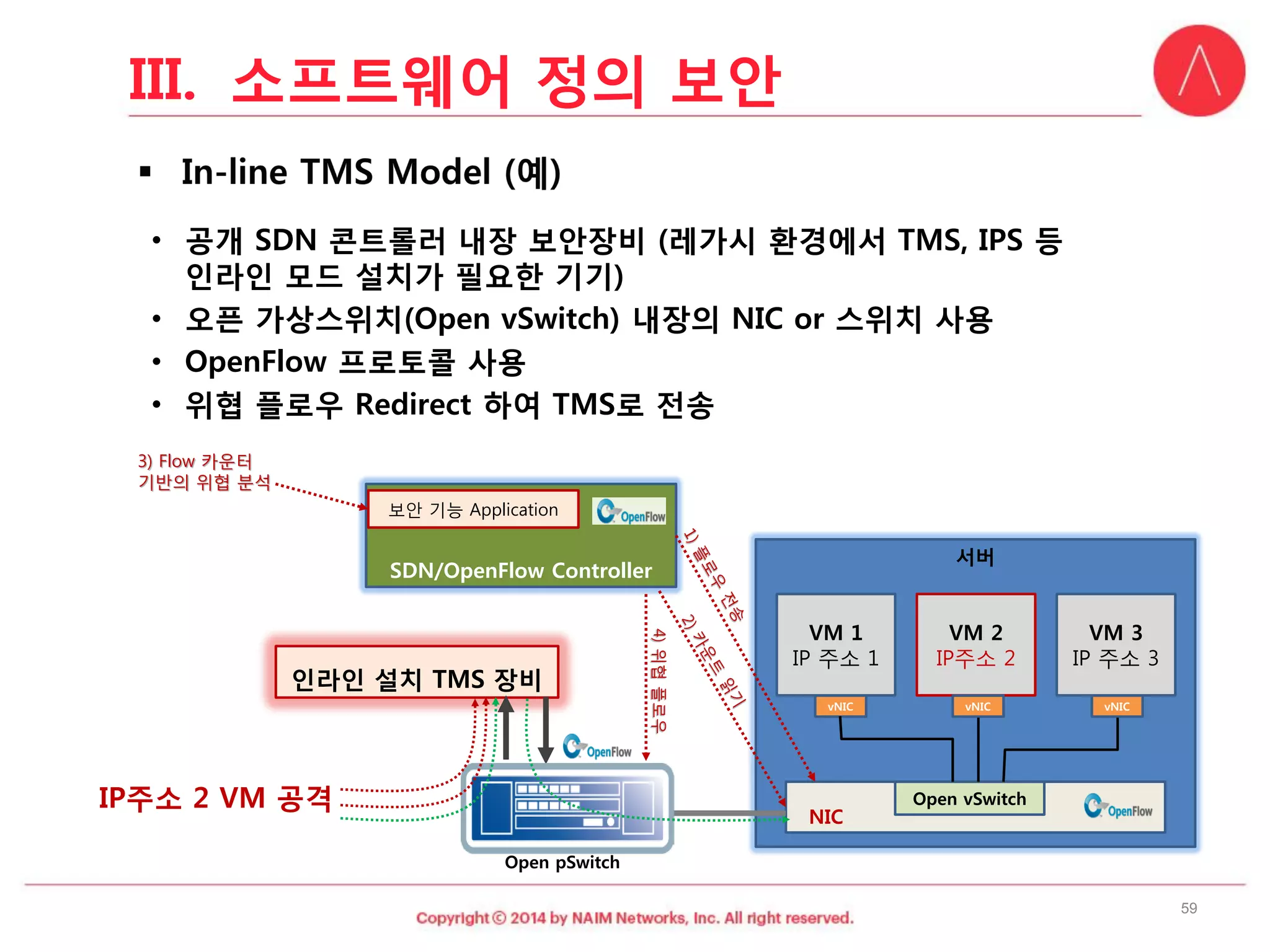

- 59. •공개SDN 콘트롤러내장보안장비(레가시환경에서TMS, IPS등인라인모드설치가필요한기기) •오픈가상스위치(Open vSwitch)내장의NIC or 스위치사용 •OpenFlow 프로토콜사용 •위협플로우Redirect 하여TMS로전송 서버 NIC Open vSwitch VM 1 IP 주소1 vNIC VM 2 IP주소2 vNIC VM 3 IP 주소3 vNIC SDN/OpenFlow Controller 보안기능Application 4) 위협플로우 3) Flow 카운터기반의위협분석 인라인설치TMS 장비 IP주소2 VM 공격 Open pSwitch 59 III.소프트웨어정의보안

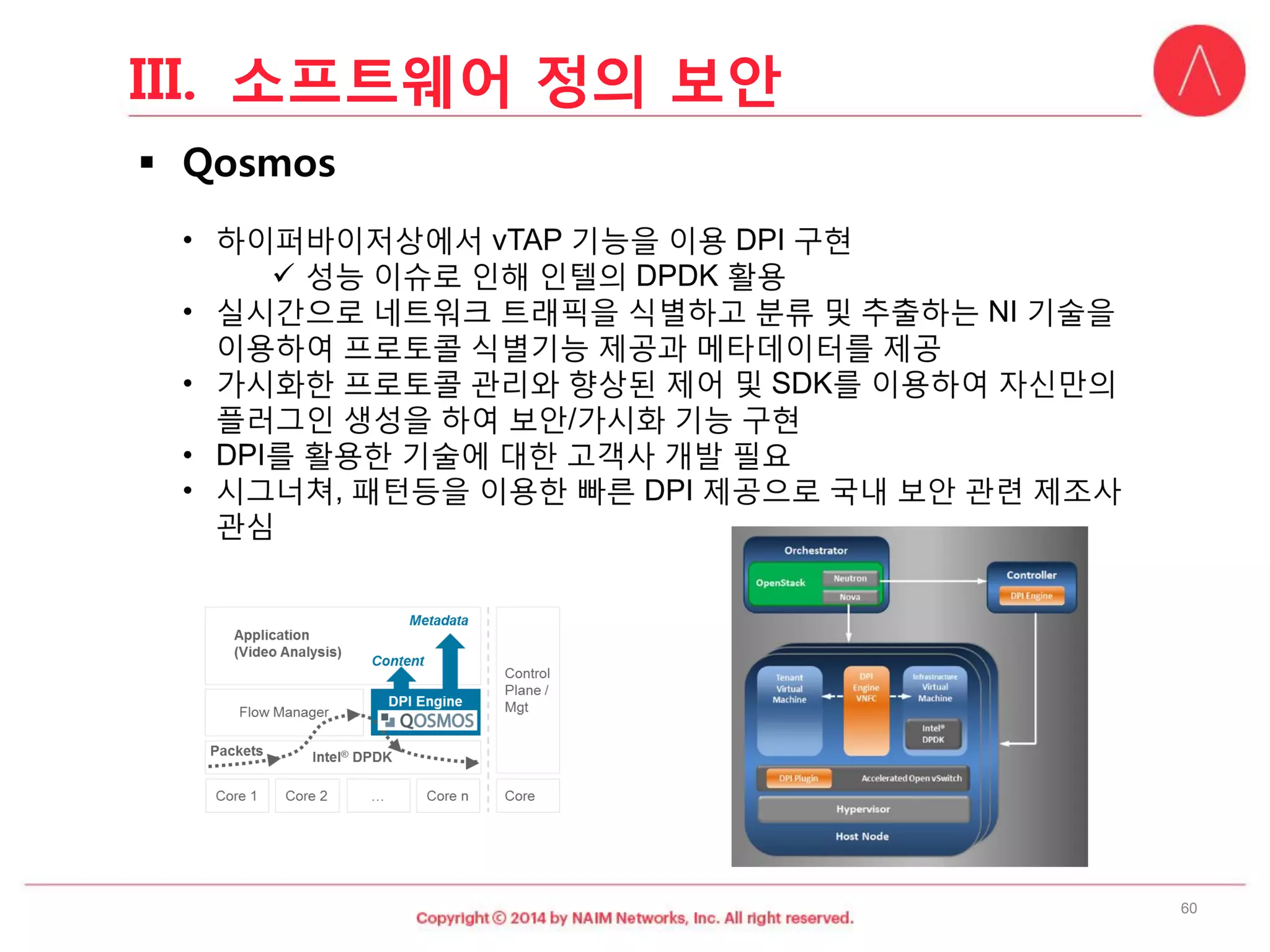

- 60.

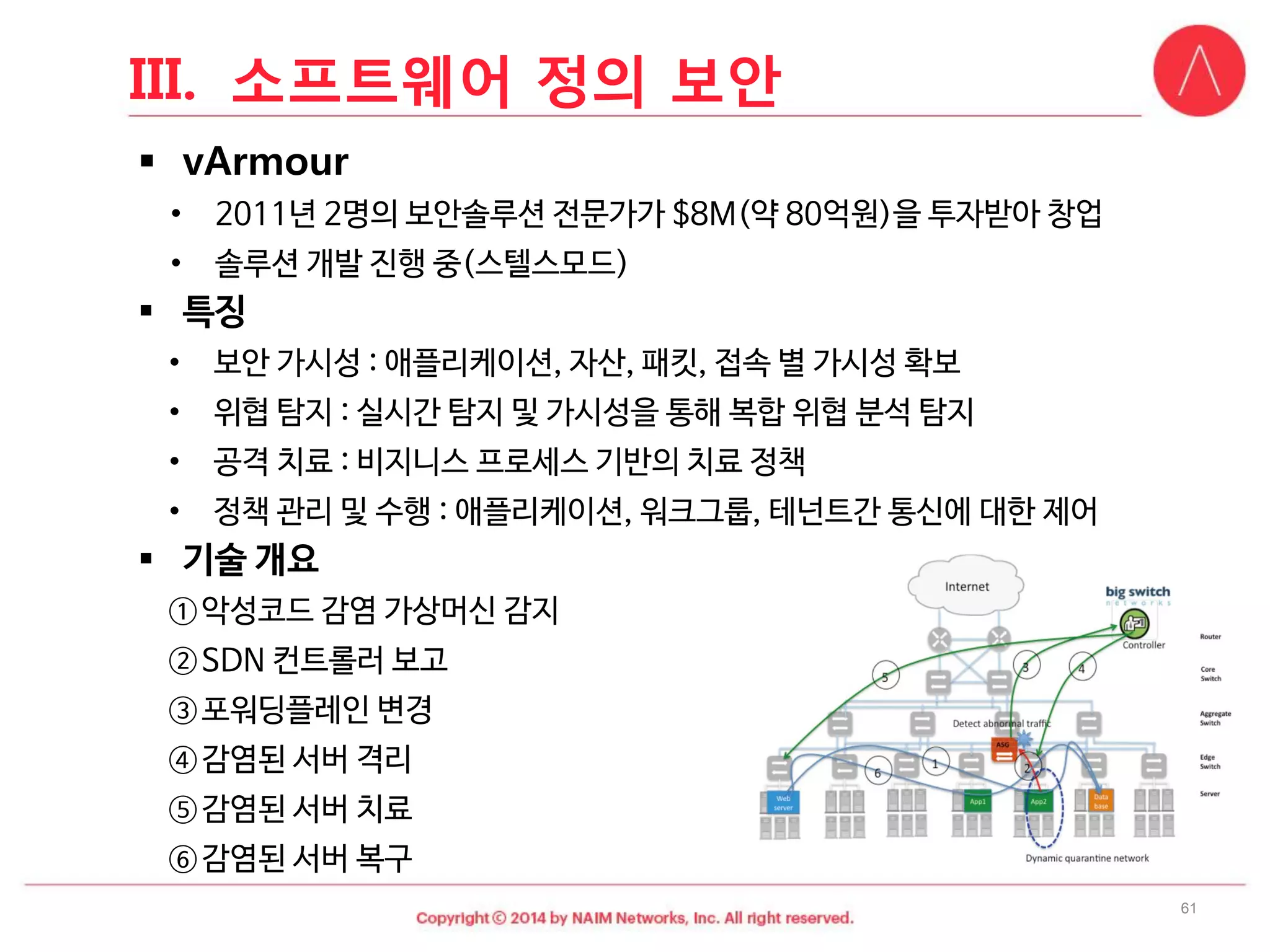

- 61. 61 vArmour •2011년2명의보안솔루션전문가가$8M(약80억원)을투자받아창업 •솔루션개발진행중(스텔스모드) 특징 •보안가시성: 애플리케이션, 자산, 패킷, 접속별가시성확보 •위협탐지: 실시간탐지및가시성을통해복합위협분석탐지 •공격치료: 비지니스프로세스기반의치료정책 •정책관리및수행: 애플리케이션, 워크그룹, 테넌트간통신에대한제어 기술개요 ①악성코드감염가상머신감지 ②SDN 컨트롤러보고 ③포워딩플레인변경 ④감염된서버격리 ⑤감염된서버치료 ⑥감염된서버복구 III.소프트웨어정의보안

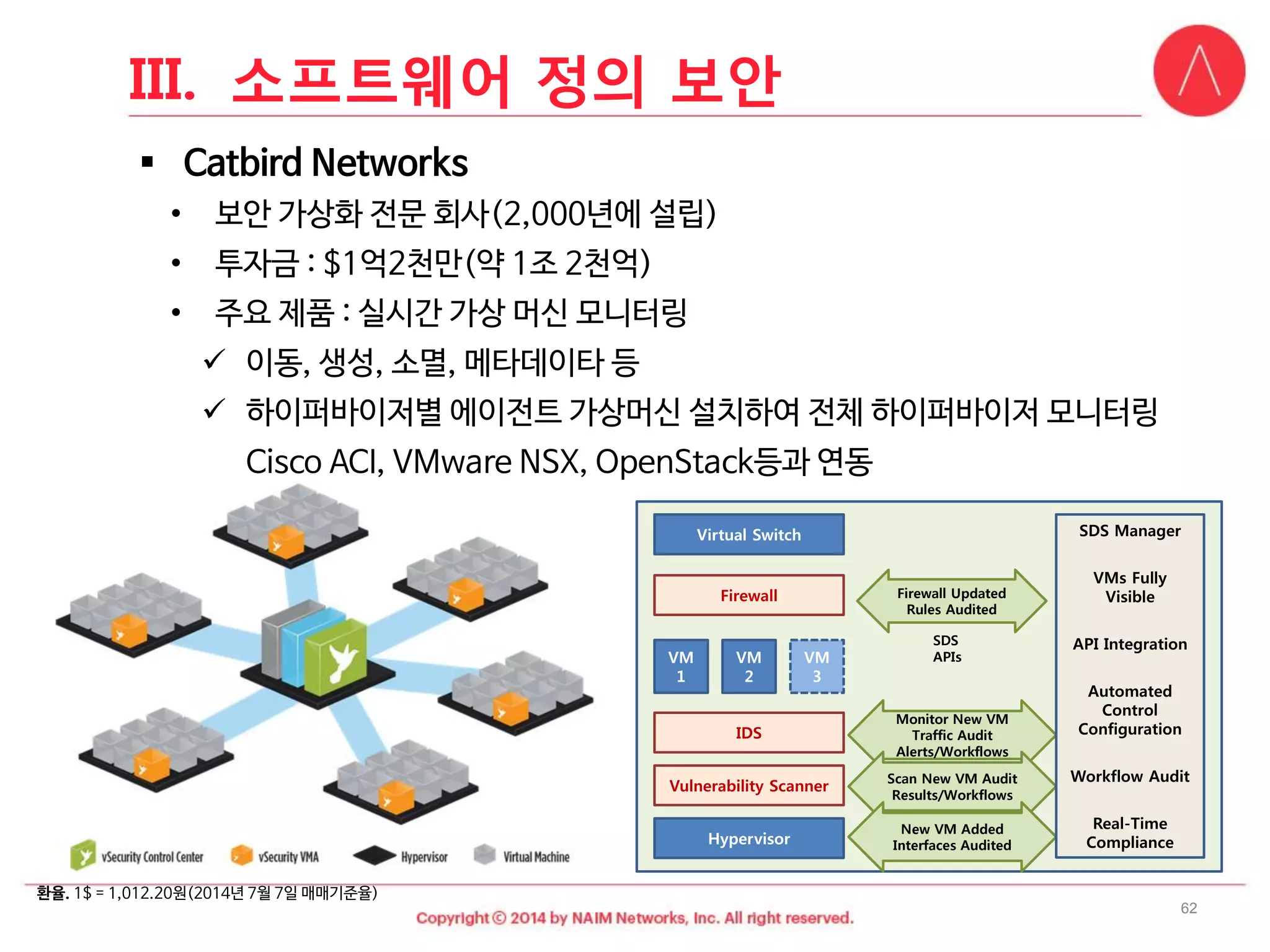

- 62. 62 Catbird Networks •보안가상화전문회사(2,000년에설립) •투자금: $1억2천만(약1조2천억) •주요제품: 실시간가상머신모니터링 이동, 생성, 소멸, 메타데이타등 하이퍼바이저별에이전트가상머신설치하여전체하이퍼바이저모니터링Cisco ACI, VMware NSX, OpenStack등과연동 Virtual Switch Firewall VM1 VM2 VM3 Hypervisor Vulnerability Scanner IDS Firewall Updated Rules Audited Monitor New VM Traffic Audit Alerts/Workflows Scan New VM Audit Results/Workflows New VM Added Interfaces Audited SDS APIs SDS Manager VMs Fully Visible API Integration Automated Control Configuration Workflow Audit Real-Time Compliance 환율.1$ = 1,012.20원(2014년7월7일매매기준율) III.소프트웨어정의보안

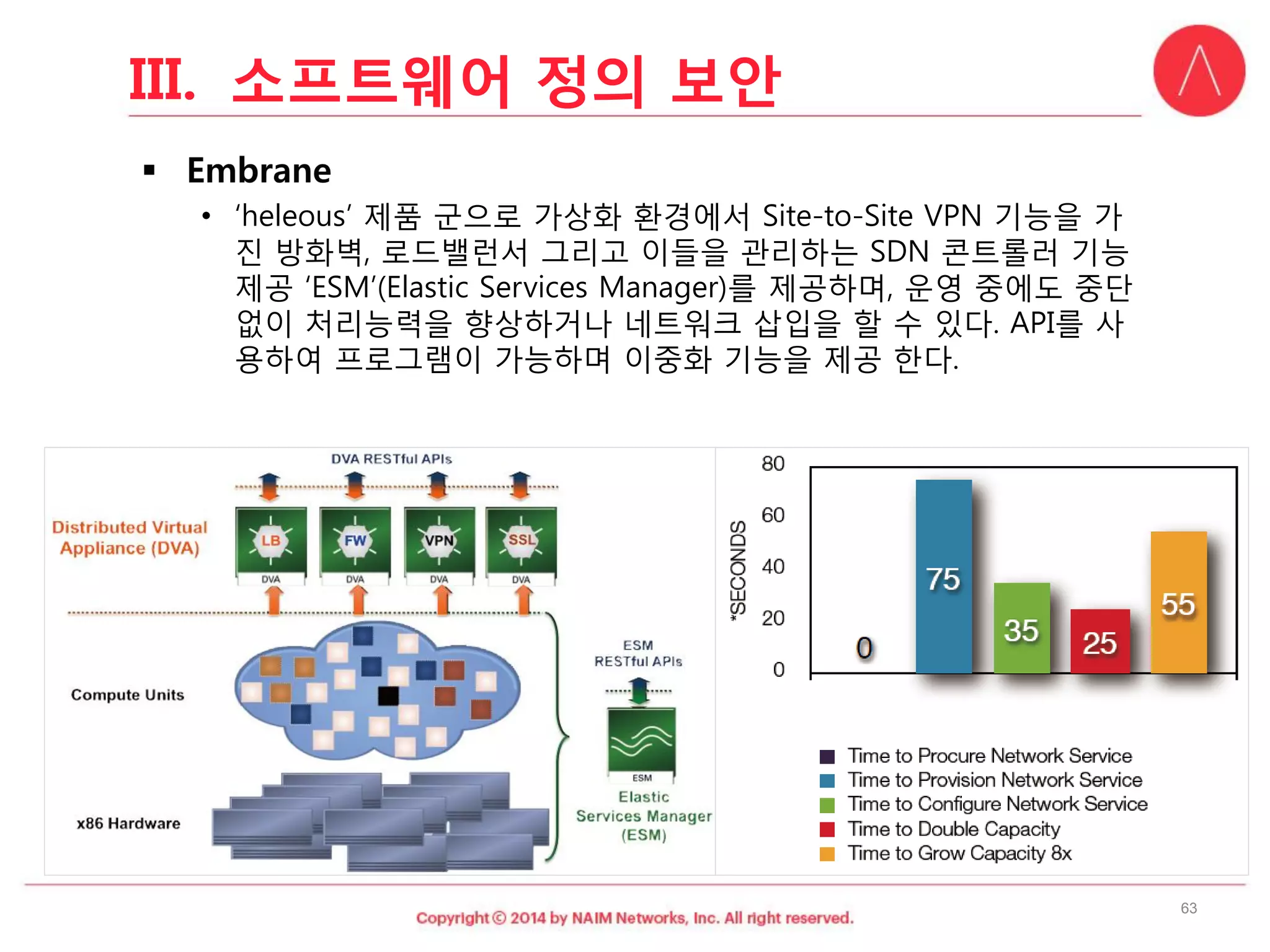

- 63. •‘heleous’ 제품군으로가상화환경에서Site-to-Site VPN기능을가진방화벽, 로드밸런서그리고이들을관리하는SDN 콘트롤러기능제공‘ESM’(Elastic Services Manager)를제공하며, 운영중에도중단없이처리능력을향상하거나네트워크삽입을할수있다. API를사용하여프로그램이가능하며이중화기능을제공한다. 63 III.소프트웨어정의보안

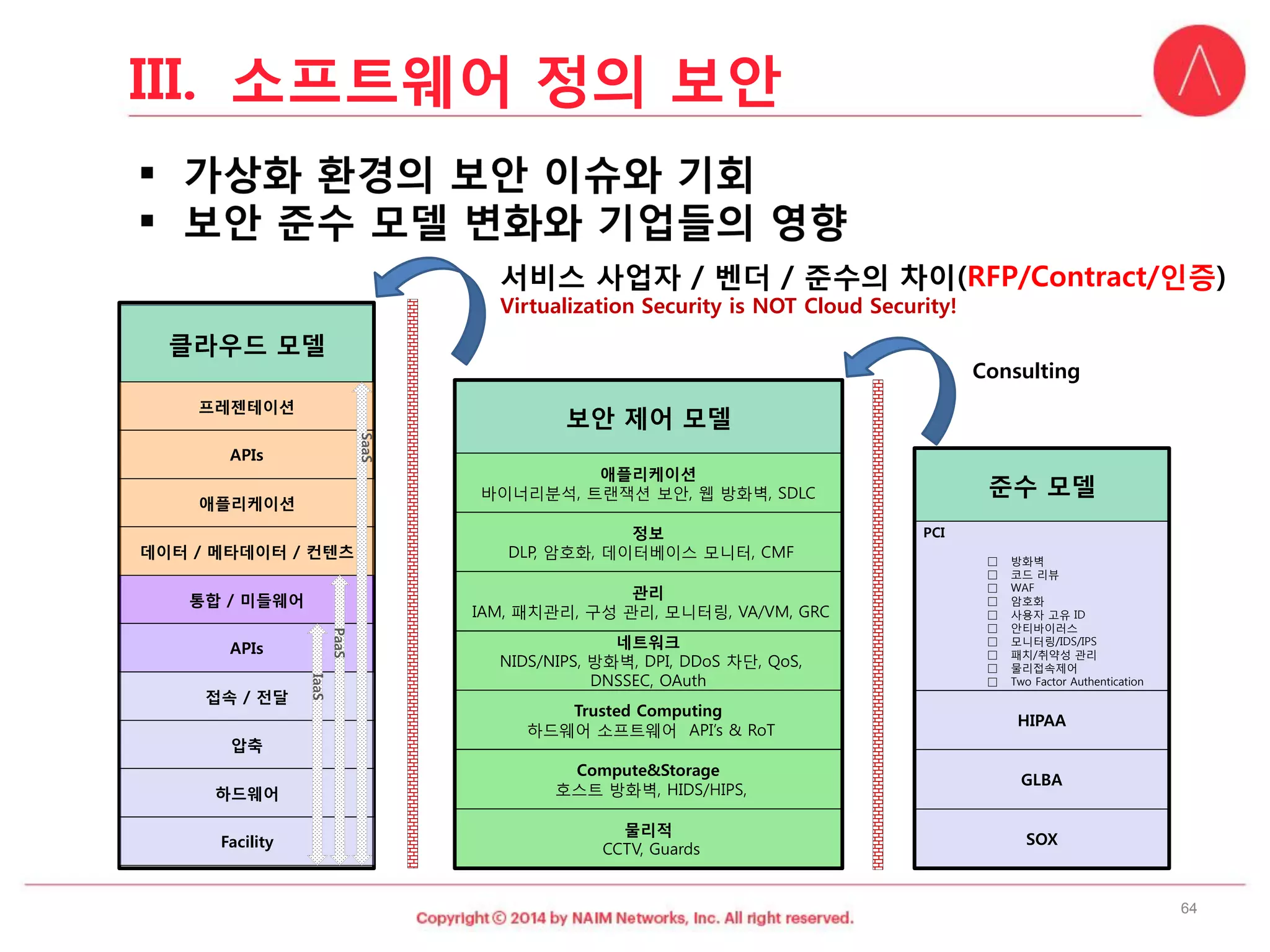

- 64. 보안제어모델 애플리케이션 바이너리분석,트랜잭션보안, 웹방화벽, SDLC 정보 DLP, 암호화, 데이터베이스모니터, CMF 관리 IAM, 패치관리, 구성관리, 모니터링, VA/VM, GRC 네트워크 NIDS/NIPS, 방화벽, DPI, DDoS차단, QoS, DNSSEC, OAuth TrustedComputing 하드웨어소프트웨어API’s & RoT Compute&Storage 호스트방화벽, HIDS/HIPS, 물리적 CCTV, Guards 준수모델 PCI □방화벽 □코드리뷰 □WAF □암호화 □사용자고유ID □안티바이러스 □모니터링/IDS/IPS □패치/취약성관리 □물리접속제어 □Two Factor Authentication HIPAA GLBA SOX 클라우드모델 압축 하드웨어 Facility 통합/ 미들웨어 APIs 접속/ 전달 애플리케이션 데이터/ 메타데이터/ 컨텐츠 프레젠테이션 APIs 서비스사업자/ 벤더/ 준수의차이(RFP/Contract/인증) Virtualization Security is NOT Cloud Security! PaaS SaaS IaaS Consulting 64 III.소프트웨어정의보안
