1. Siva Yarramaneni
Solution Engineering, Supermicro
Eco Willson
Engineer, MinIO
Matt Sarrel
Technical Marketing, MinIO
Bala Kyaw
Sr. System Engineer, Supermicro
Dec 2021
High Performance Object Storage in
30 Minutes with MinIO

2. Building Clouds
With Supermicro
Solutions, building
Cloud is very simple
!!!

3. Can you give me a total
solution (Hardware +
Software + Service) ???
How to build
1. Cloud Computing
2. Cloud Storage
Can you help me build compute solutions
such as
1. OpenStack
2. Kubernetes Containers
What kind of storage I need for these
solutions? Is object storage my best choice?

4. Supermicro Solutions
Cloud / Virtualization Software Defined Storage
Big Data
Other Solutions Analytics
AI / ML
Operating Systems

5. High Performance Object
Storage in 30 Minutes with
Supermicro and MinIO

6. Agenda
1. Meet the Software: MinIO object storage
2. Meet the Hardware: Supermicro Cloud DC
3. MinIO + Supermicro Cloud DC = Extreme Performance
4. Demonstration
5. Summary

7. What is MinIO
MinIO is a high performance,
Kubernetes-native object store. It is
designed for large-scale data
infrastructure.
It was built from scratch to be cloud
native.
It has become the storage standard for
hybrid cloud & multi-cloud
architectures.
TENANT 1 TENANT 2 TENANT n
Object Storage
CPU NETWORK DRIVE
APPLICATIONS

8. Guiding Principles
MinIO is focused on
performance.
MinIO’s benchmark’s have
established us as the fastest
object store in existence.
Kubernetes-native. Born in the
cloud with cloud native DNA.
MinIO is designed for
simplicity.
Simplicity scales.
Performant
Cloud Native Simple

9. A Global Growth Story

10. Every Imaginable Enterprise Feature + Then Some
S3 COMPATIBLE
Amazon S3 API is the de facto standard for object storage.
MinIO implements Amazon S3 v2/v4 API + S3 Select
FULL INTERACTION SUITE
MinIO offers a developer-driven command line interface in
addition to an IT-friendly graphical user interface.
LAMBDA COMPUTE
MinIO server triggers Lambda functions through event
notification service. OCR, audit compliance are good
examples of lambda computing.
ERASURE CODE & BITROT PROTECTION
You may lose up to half the number of drives and still recover
from it. Data protection code is accelerated using SIMD
instructions on x64 and ARM CPUs.
ACTIVE ACTIVE REPLICATION
A resilient and scalable architecture that can
withstand a complete DC failure.
MONITORING
API driven capabilities with a suite of web hooks to
your favorite apps.
ACCESS MANAGEMENT
MinIO Server integrates with Identity Providers such as
WSO2, Keycloak, Okta, Ping Identity to allow applications
or users to authenticate and use Object Storage.
ENCRYPTION & TAMPER-PROOF
MinIO provides confidentiality, integrity and authenticity
assurances for encrypted data with negligible performance
overhead.
IMMUTABILITY
Complete suite of object locking capabilities is Cohasset
certified - required by financial services and healthcare
customers.
KUBERNETES-NATIVE
MinIO was built natively for RESTful APIs - no connectors
needed. More than 62% of MinIO instances are
containerized with 43% of those managed via Kubernetes.

11. CloudDC Product Highlights
X12 CloudDC
Optimized Server
• Security is top priority
• TPM 1.2/2.0, signed firmware, Silicon
Root of Trust
• Secure Boot, System Erase
• Run time FW protection, FIPS
Compliance, Trusted Execution
Environment
Secure
• Compact system design makes no waste of
internal space
• < 650mm chassis depth
• Fully utilized system resource with 12 NVMe,
4 PCIe 4.0 x16 + 2 PCIe 4.0 x8 expansion
Compact
• All hybrid drive bays (NVMe/SAS/SATA) +
Flexible internal storage options (dual M.2 /
SATADOM)
• Up to 6 standard PCIe 4.0 expansion slots
• Up to 2 FHFL DW GPU or 6 LP GPU
Ultimate
Flexibility
• Tool-less mechanical design for rapid
deployment
• Hot-swap storage and PWS for easy
maintenance.
• IPMI, serial port and service tag for
easy management
Efficient
• Optimized thermal design
• High efficiency Platinum and
Titanium level PWS (AC/DC)
• Reduced waste with bulk packaging
and customizable accessories
We
Keep it
Green
• Balanced architecture between CPUs and optimized
for scalable compute, database, GPU, tiered storage
and I/O intensive applications
• Cost and performance optimized down to
component level
• Support OCP 3.0 standard
Application
Ready

12. CloudDC 1U Compact Compute Server
System Memory Power Management
Processors Drives I/O Security
• 1U Rackmount
• Chassis Depth 23.5”
• Tool-less Design
• 16 DIMM slots
• DDR4-3200 RDIMM /
LRDIMM
• Redundant 860W
Platinum Level (94%)
AC/DC Power Supplies
Open Industry Standard
IPMI, Redfish APIs, Rack
Scale Management
• Dual Socket
• Up to 270W TDP
• 10x 2.5-inch Hybrid Drive
Bays (NVMe / SAS /
SATA)
• 2x NVMe M.2
• 1x SATADOM
• 2x PCIe 4.0 x16 FHHL
• 2x AIOM (OCP 3.0 NIC)
• 1x Dedicated IPMI
• 1x VGA
• 1x Serial
• 4x USB (2x Rear, 2x Header)
• TPM 1.2/2.0
• Signed firmware
• Silicon Root of Trust
• Secure Boot
• System Erase
PRODUCT FEATURES
1U 16
860W
2S
SYS-120C-TN10R
This server offers great scalability and flexibility, dual AIOM slots plus 10 full hybrid drive bays ensures a
solution to most applications. OCP compatible networking adds on extra flexibility on hardware configuration
and also helps bring down the TCO.
Designed to have great serviceability with tool-less brackets and trays, redundant power supplies and hot-swap
drives also help make maintenance easier and quicker.
M.2 and SATADOM option can host OS installation with optional RAID feature.
10
PCIe 4.0 x16 - CPU 2 PCIe 4.0 x16 - CPU 1
AIOM - CPU 2 AIOM - CPU 1

13. CloudDC 2U I/O Optimized Server
System Memory Power Management
Processors Drives I/O Security
• 2U Rackmount
• Chassis Depth 25.5”
• Tool-less Design
• 16 DIMM slots
• DDR4-3200 RDIMM /
LRDIMM
Redundant 1200W
Titanium Level (96%)
AC/DC Power Supplies
Open Industry Standard
IPMI, Redfish APIs, Rack
Scale Management
• Dual Socket
• Up to 270W TDP
• 12x 3.5-inch Front Drive
Bays (NVMe/SAS/SATA)
• 2x 2.5-inch Rear Drive
Bays
• 2x NVMe M.2
• 1x SATADOM
• 4x PCIe 4.0 x16 FHHL
• 2x PCIe 4.0 x8 FHHL
(optional)
• 2x AIOM (OCP 3.0 NIC)
• 1x Dedicated IPMI
• 1x VGA, 1x Serial
• 4x USB (2x Rear, 2x Header)
• TPM 1.2/2.0
• Signed firmware
• Silicon Root of Trust
• Secure Boot
• System Erase
PRODUCT FEATURES
2U 16
1200W
2S
SYS-620C-TN12R
The CloudDC 2U optimized server offers ultimate flexibility on I/O and storage. Go beyond the limit
with 4x PCIe 4.0 x16, 2x PCIe 4.0 x8 FH slots for add on features like NIC, storage controller and
GPU.
12x fully hybrid front drive bays with PCIe 4.0 NVMe support makes SYS-620C-TN12R suitable for
high density, high performance applications.
14
AIOM - CPU 2 AIOM - CPU 1
PCIe 4.0 x16 FHHL - CPU 2
*PCIe 4.0 x16 FHFL - CPU 2
*PCIe 4.0 x8 FHHL - CPU 2
PCIe 4.0 x16 FHHL - CPU 1
*PCIe 4.0 x8 FHHL – CPU 1
*PCIe 4.0 x16 FHFL - CPU 1
* Configurable to x16 or two 2 x8

14. High Performance

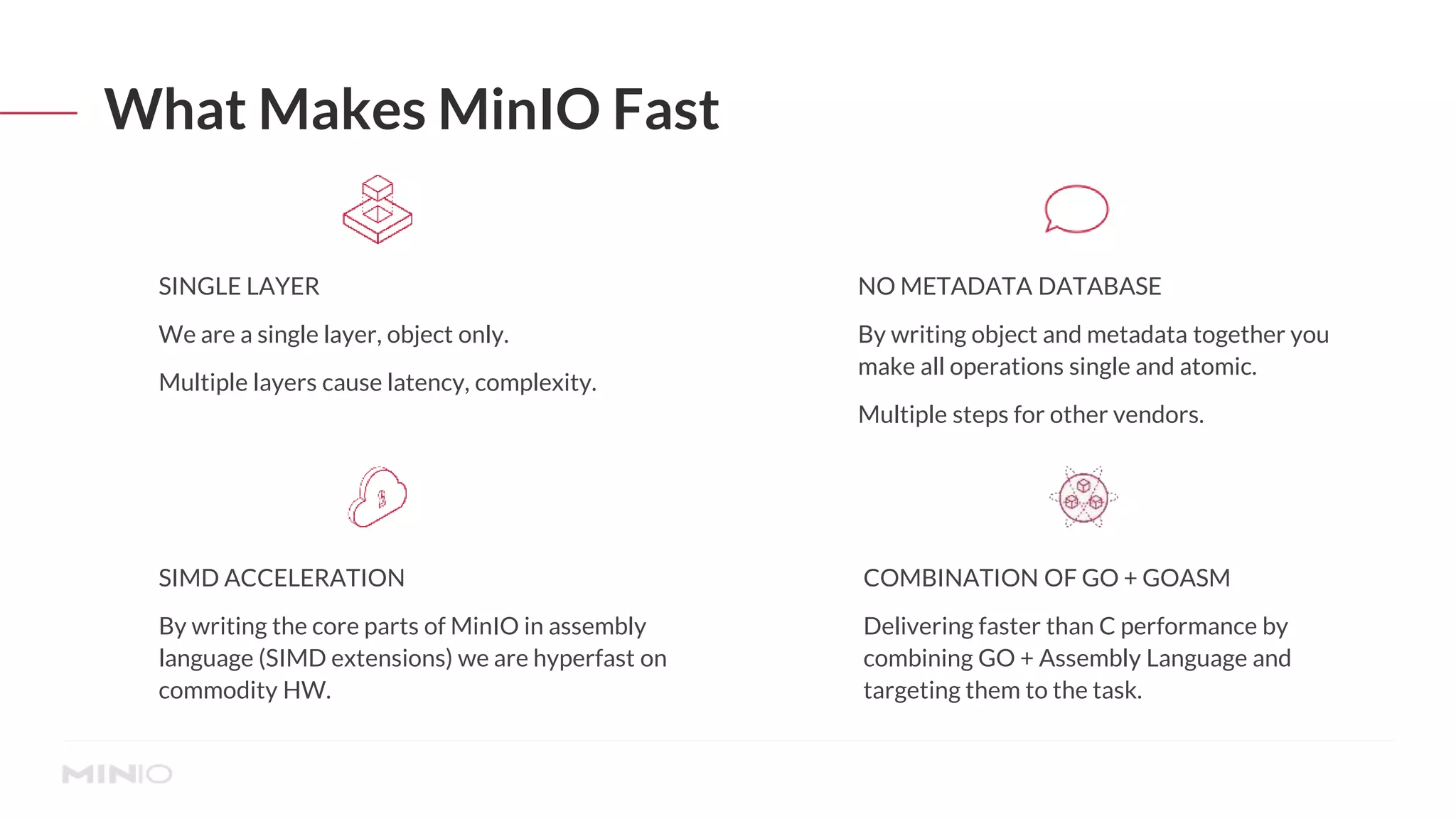

15. What Makes MinIO Fast
SINGLE LAYER
We are a single layer, object only.
Multiple layers cause latency, complexity.
SIMD ACCELERATION
By writing the core parts of MinIO in assembly
language (SIMD extensions) we are hyperfast on
commodity HW.
COMBINATION OF GO + GOASM
Delivering faster than C performance by
combining GO + Assembly Language and
targeting them to the task.
NO METADATA DATABASE
By writing object and metadata together you
make all operations single and atomic.
Multiple steps for other vendors.

16. 16
Supermicro Cloud DC Benchmark Results
4 Node NVMe
100 Gbe Network
Read/GET Write/PUT
Distributed 42.57 GB/s 24.69 GB/s
Distributed/Encrypted 42.54 GB/s 25.96 GB/s
Distributed/TLS 42.35 GB/s 24.42 GB/s
Distributed/TLS/Encr. 42.41 GB/s 23.88 GB/s
8 Node NVMe
100 Gbe Network
Read/GET Write/PUT
Distributed 46.54 GB/s 34.4 GB/s
Distributed/Encrypted 46.4 GB/s 34.6 GB/s
32 Node NVMe
100 Gbe Network
Read/GET Write/PUT
Distributed 183.2 GB/s 171.3 GB/s
Distributed/Encrypted 162 GB/s 114.7 GB/s
Source: https://blog.min.io/scaling-minio-more-hardware-for-higher-
scale/
Comparative results
Source: https://blog.min.io/supermicro-cloud-dc-benchmark/

17. https://github.com/minio/warp
Open source S3 performance benchmark tool
developed and maintained by MinIO.
Automated and coordinated testing of one or more
hosts with one or more clients.
Can be configured to run with different size objects,
number of threads, TLS, encryption to represent
your workload.

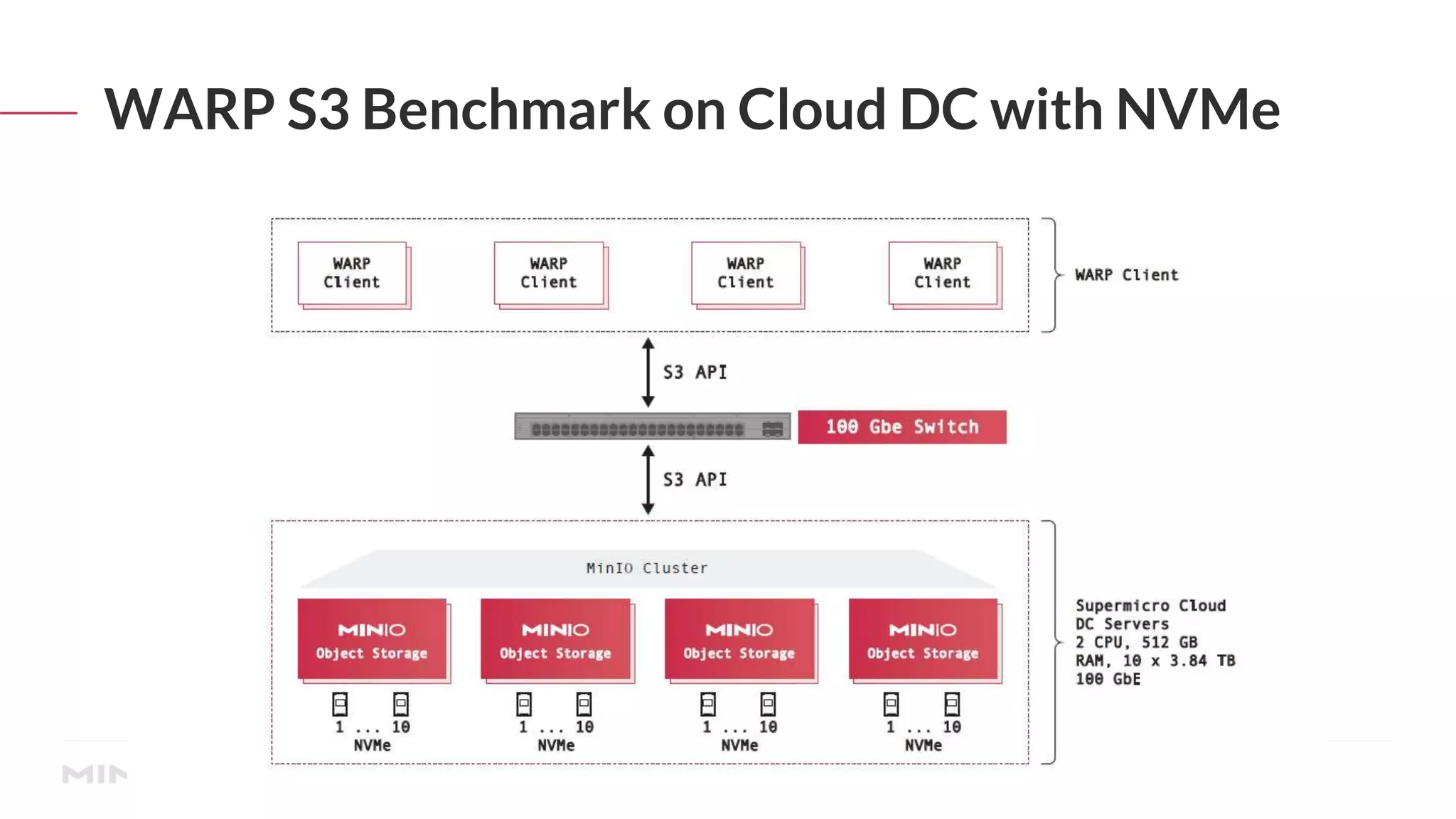

18. WARP S3 Benchmark on Cloud DC with NVMe

19. Video Demo

20. SuperMicro and
MinIO: A High-
Performance
Partnership

21. 7
Enterprise Cloud / Web Storage / HCI AI / ML / HPC
Form
Factor
Optimized
All-Flash
NVMe
Top-
Loading
Scale
Storage
Max
I/O
Rack-mount
Multi-node
SuperStorage
GPU SuperServers
WI
O
DCO
Blade
Edge Computing
MicroBlad
e™
JBO
F
NF1/EDS
FF
1U 20 Bay
TwinPr
o2®
BigTwi
n™
MicroCloud
FatTwi
n™
SuperBlade® GPU
SuperBlade®
1U 4GPU 10U 16GPU
2U 6GPU
4U 20 single-
width GPUs
Workload Optimized
Industry’s strongest server/storage product line
Cloud and Edge infrastructure building blocks

22. Q&A

23. DISCLAIMER
Super Micro Computer, Inc. may make changes to specifications and product descriptions at any time, without notice. The
information presented in this document is for informational purposes only and may contain technical inaccuracies, omissions
and typographical errors. Any performance tests and ratings are measured using systems that reflect the approximate
performance of Super Micro Computer, Inc. products as measured by those tests. Any differences in software or hardware
configuration may affect actual performance, and Super Micro Computer, Inc. does not control the design or implementation of
third party benchmarks or websites referenced in this document. The information contained herein is subject to change and may
be rendered inaccurate for many reasons, including but not limited to any changes in product and/or roadmap, component and
hardware revision changes, new model and/or product releases, software changes, firmware changes, or the like. Super Micro
Computer, Inc. assumes no obligation to update or otherwise correct or revise this information.
SUPER MICRO COMPUTER, INC. MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE
CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS OR OMISSIONS THAT
MAY APPEAR IN THIS INFORMATION.
SUPER MICRO COMPUTER, INC. SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE TO ANY
PERSON FOR ANY DIRECT, INDIRECT, SPECIAL OR OTHER CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OF ANY INFORMATION CONTAINED HEREIN, EVEN IF SUPER MICRO COMPUTER, Inc. IS EXPRESSLY ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
ATTRIBUTION
© 2020 Super Micro Computer, Inc. All rights reserved.

24. www.supermicro.com
Thank You
