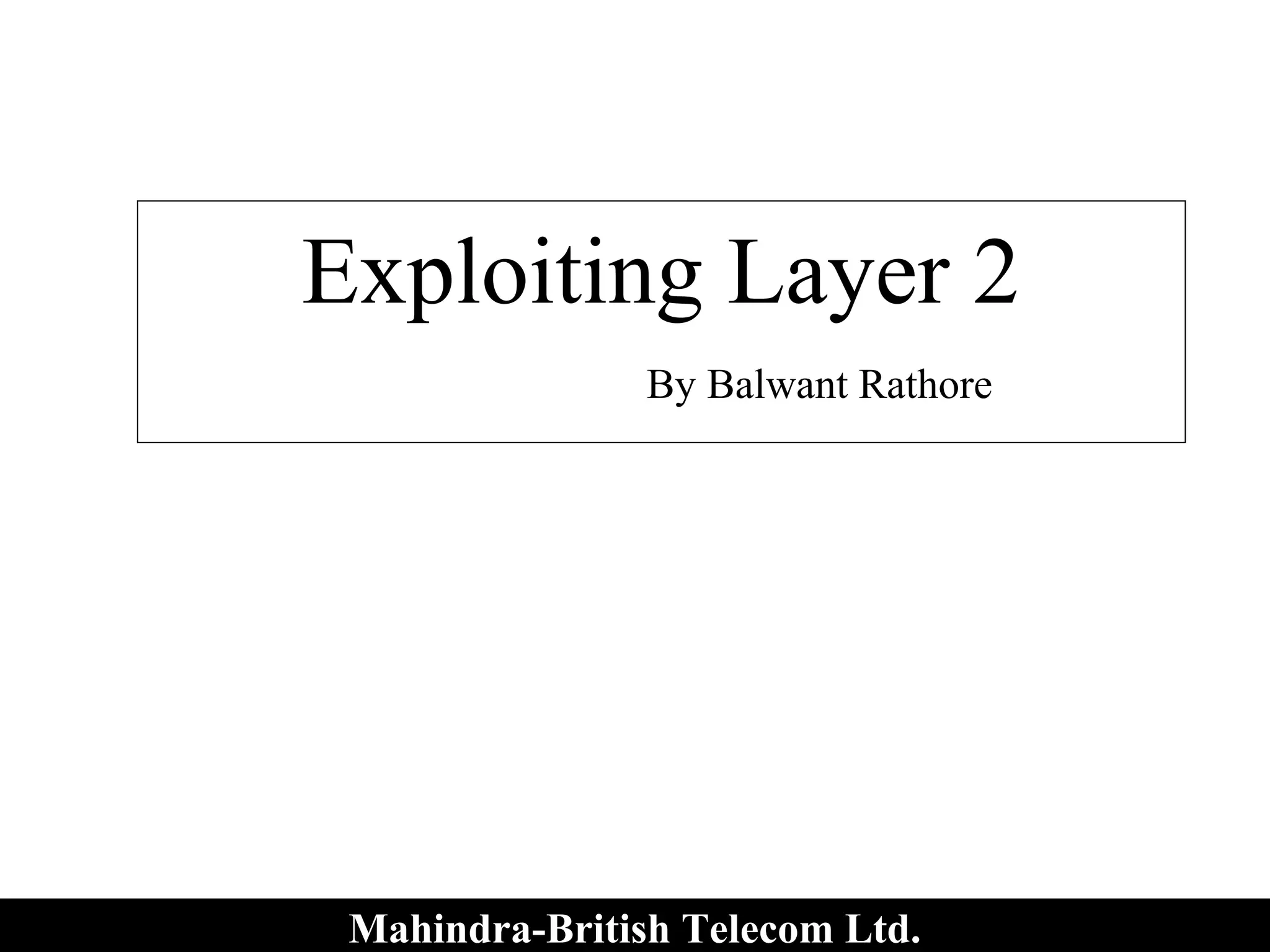

1. Exploiting Layer 2
By Balwant Rathore
Mahindra-British Telecom Ltd.

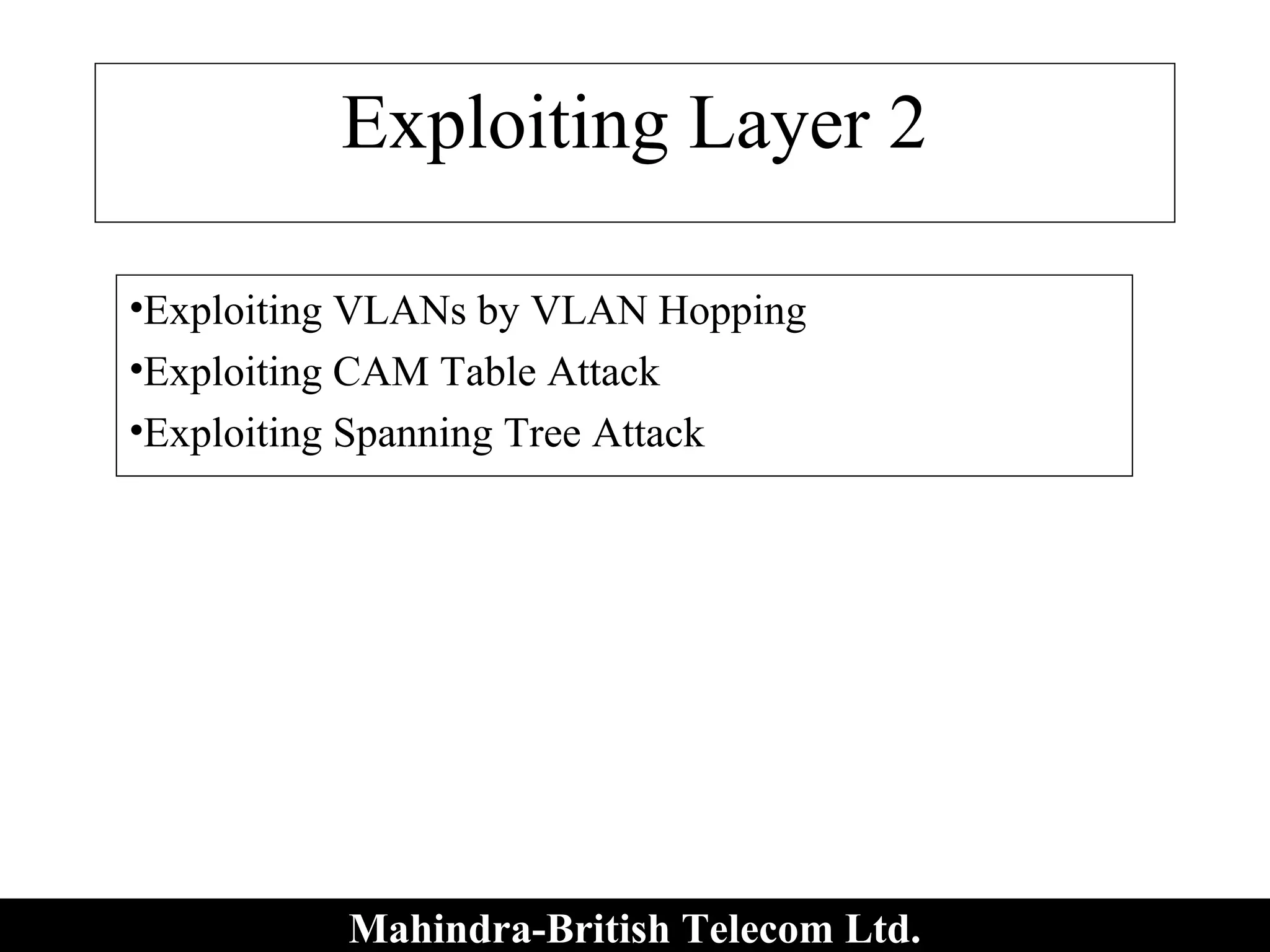

2. Exploiting Layer 2
•Exploiting VLANs by VLAN Hopping
•Exploiting CAM Table Attack
•Exploiting Spanning Tree Attack
Mahindra-British Telecom Ltd.

3. Exploiting VLANs by VLAN
Hopping
•Refreshing VLANs
•VLAN Hopping Attack
Mahindra-British Telecom Ltd.

4. Refreshing VLANs
What is VLAN?
A broadcast domain created by one or more switches.
Mahindra-British Telecom Ltd.

5. Why VLAN?
Used to separate LANs logically in one or more switches.
Mahindra-British Telecom Ltd.

6. Benefits of VLANs?
•Broadcast control
•Effective Bandwidth Utilisation
•CPU Utilisation
•Good Administrative Control with L3 device
•Access Control List
•Accounting
•Easy Movement
Mahindra-British Telecom Ltd.

7. MAC Address Table
•Dynamic Address: Added by normal bridge/switch
processing
•Permanent Address: Added via configuration, no time
out
•Restricted-Static Address: A MAC address would be
configured only with specific port.
Mahindra-British Telecom Ltd.

8. Some facts about VLAN
•Max VLAN limit depends on switch model.
•VLAN1 is also called management VLAN
•CDP and VTP Adviserment are sent on VLAN1
•Creation, Addition, or Deletion of VLANs is only
possible in VTP server mode
•A layer 3 device is required for Inter VLAN
communication
Mahindra-British Telecom Ltd.

9. Trunk Port
Mahindra-British Telecom Ltd.

10. Trunk Port...
•Trunk Ports has access to all VLAN by default
•Used to route traffic for multiple VLANs across switches
•It can use 802.1Q or ISL encapsulation
Mahindra-British Telecom Ltd.

11. VLAN Hopping Attack
•Sample Frame Capture
•Insert 802.1q tag
•802.1q Frames into non-trunk ports
Mahindra-British Telecom Ltd.

12. VLAN Hopping Attack
A host can spoof as a switch with ISL or 802.1Q tag
Mahindra-British Telecom Ltd.

13. Step1: Sample Frame Capture
•Connect two PCs in the same VLAN of one switch.
•Send ICMP echo message from PC1 to PC2
•Capture this with Sniffer Pro on PC 2
•View packets in raw hex
•Start Packet generation component of sniffer pro
•Enter above captured packet in step 3
•Send entered packet from PC1 to PC 2
Mahindra-British Telecom Ltd.

14. Step2: Insert 802.1q tag
•Shift PC2 on trunk port (port 24) of switch and start
Sniffer software
•Ping non-existent IP address from PC1
•Capture ARP lookup on PC2
•Shift PC1 on VLAN 2 port and repeat it
VLAN1 and VLAN2 will have 81 00 00 01 and 81 00 00
02 tag respectively
Mahindra-British Telecom Ltd.

15. Step3: 802.1q Frames into non-
trunk ports
•Put PC1 on VLAN 1 switch one
•Put PC2 on VLAN1 of second switch
•Connect trunk cable between them
•Crafted packet from VLAN1, VLAN2 and VLAN3 was
delivered to their destination VLAN
Mahindra-British Telecom Ltd.

16. Step4: VLAN Hopping
•Connect PCs in different VLANs and in different
switches
•Change VLAN IDs and send it to as many combinations
as possible
Mahindra-British Telecom Ltd.

17. In Different Switches
Src VLAN | Dst VLAN | Tag ID Success?
1 2 2 Yes
1 3 3 Yes
2 1 1 No
3 2 3 No
3 1 1 No
Mahindra-British Telecom Ltd.

18. In Same Switch
Src VLAN | Dst VLAN | Tag ID Success?
1 2 2 No
1 3 3 No
2 1 1 No
3 2 3 No
3 1 1 No
Mahindra-British Telecom Ltd.

19. Till today no proof of concept
Tool Available
•Attack is not easy, require followings:
•Access to native VLAN
•Target machine is in different switch
•Attacker knows MAC address of the target machine
•Some layer 3 device for traffic from targets VLAN to
back.
Mahindra-British Telecom Ltd.

20. Safeguard
•Never, Never use VLAN 1
•Always use a dedicated VLAN ID for all trunk ports
•Disable unused ports and put them in an unused
VLAN
•Shutdown DTP on all user ports
Mahindra-British Telecom Ltd.

21. Exploiting CAM Table
Mahindra-British Telecom Ltd.

22. CAM Table Review
•Content Addressable Memory
•Contain MAC Address, Port and associated VLAN
•Have limited size
•Normally broadcast is limited to device port itself if the
device entry is present in CAM table.
Mahindra-British Telecom Ltd.

23. macof
Use macof from Dsniff suit to overflow CAM Table
Syntax
Macof [-I interface] [-s src] [-d dst] [-e tha] [-x sport] [-y
dport] [-n times]
-n option is very important to perform exploit in control
environment
# sh cam count dynamic
# total matching CAM entries = 131052
As CAM table is full, traffic floods to other switch on
same VLAN
Mahindra-British Telecom Ltd.

24. macof...
Mahindra-British Telecom Ltd.

25. macof...
As you know dsniff is developed for BSD not for
linux
It’s Installation is a pain, refer following
document for Dsniff Installation over Linux 8.0
http://groups.yahoo.com/group/PenTest/messag
e/242
Mahindra-British Telecom Ltd.

26. Safeguard
Implement Port Security
•Port Security Limits MAC addresses to a port.
•port secure max-mac-count 3
•On detection of invalid MAC
•switch can be configured to block only invalid
MAC
•Switch can be configured to shutdown the port
Mahindra-British Telecom Ltd.

27. Port Security
•Restrict option may fail under macof load and disable
the port, shutdown option is more appropriate.
•Consider management puzzle and performance hit
•Visit this for more detail on Port Security…
www.cisco.com/univercd/cc/td/doc/product/
lan/cat6000/sw_7_3/confg_gd/sec_port.htm - 34k
Mahindra-British Telecom Ltd.

28. Exploiting Address Resolution
Protocol (ARP)
Mahindra-British Telecom Ltd.

29. Gratuitous ARP
Is used by host to announce their IP address
It's a broadcast packet like an ARP request
Mahindra-British Telecom Ltd.

30. Gratuitous ARP
Mahindra-British Telecom Ltd.

31. Safeguard
•Private VLANs provides protection against ARP attacks.
•ARPWatch is a freely available tool
•Consider static ARP for critical static routers and hosts
•Cisco is under development of an ARP firewall
Mahindra-British Telecom Ltd.

32. Exploiting Spanning Tree
Mahindra-British Telecom Ltd.

33. Exploiting Spanning Tree
Send BPDUs using brconfig and make yourself
new Root Bridge.
Mahindra-British Telecom Ltd.

34. Exploiting Spanning Tree
Mahindra-British Telecom Ltd.

35. Exploiting Spanning Tree
Mahindra-British Telecom Ltd.

36. Exploiting Spanning Tree
Mahindra-British Telecom Ltd.

37. References
.http://www.cisco.com/go/safe/
.http://www.cisco.com/warp/public/cc/pd/si/casi/ca6000/tech/stake_wp.pdf
.http://www.cisco.com/warp/public/473/103.html
.http://monkey.org/~dugsong/dsniff/
.http://www.sans.org/newlook/resources/IDFAQ/vlan.htm
.http://www.ietf.org/rfc/rfc0826.txt
.http://www.sans.org/newlook/resources/IDFAQ/switched_network.htm
.http://www.cisco.com/warp/public/cc/pd/si/casi/ca6000/tech/c65sp_wp.htm
.http://www.atstake.com/
Mahindra-British Telecom Ltd.
