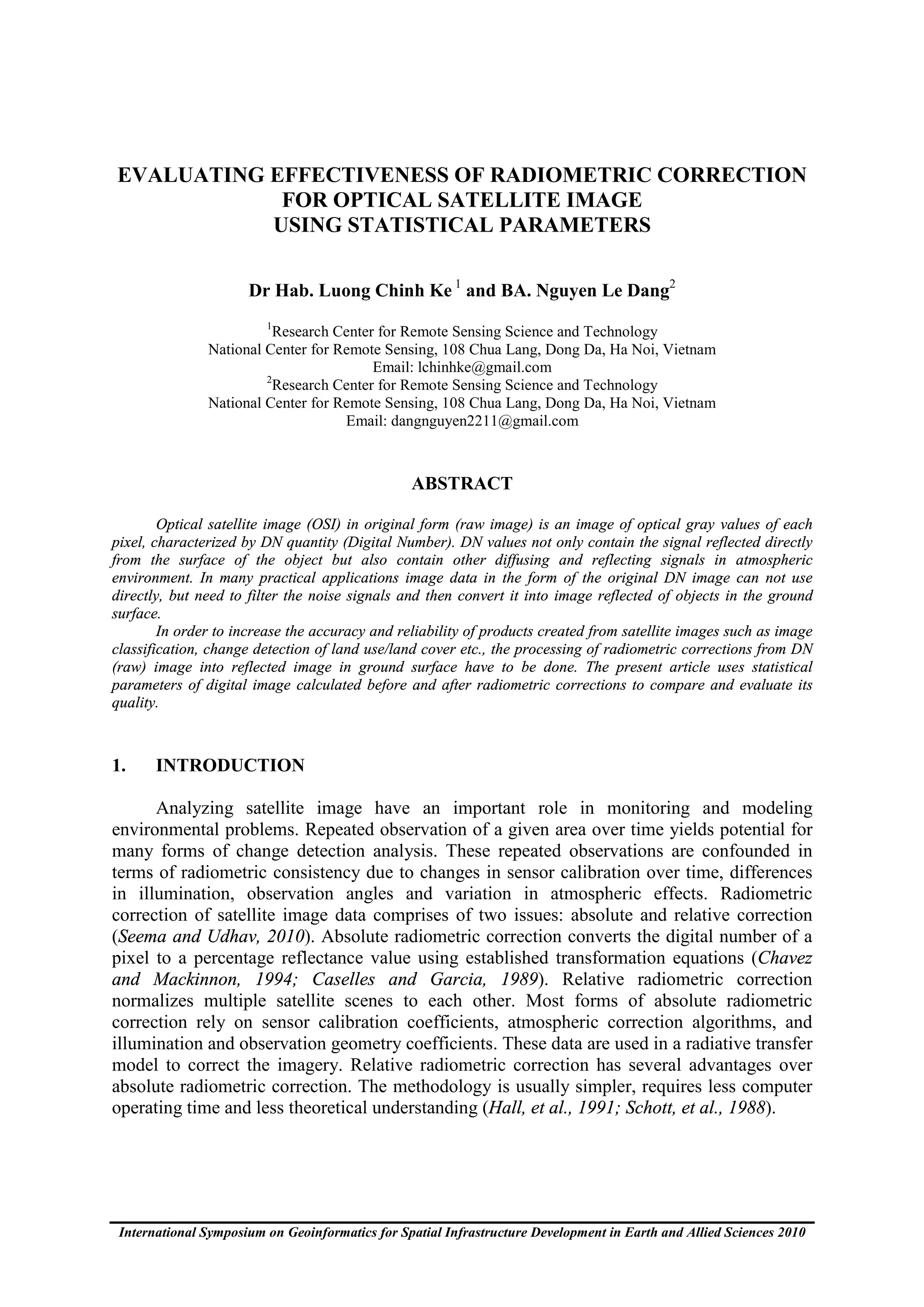

EVALUATING EFFECTIVENESS OF RADIOMETRIC CORRECTION
            FOR OPTICAL SATELLITE IMAGE
           USING STATISTICAL PARAMETERS

                      Dr Hab. Luong Chinh Ke 1 and BA. Nguyen Le Dang2
                         1
                         Research Center for Remote Sensing Science and Technology
               National Center for Remote Sensing, 108 Chua Lang, Dong Da, Ha Noi, Vietnam
                                        Email: lchinhke@gmail.com
                        2
                         Research Center for Remote Sensing Science and Technology
               National Center for Remote Sensing, 108 Chua Lang, Dong Da, Ha Noi, Vietnam
                                    Email: dangnguyen2211@gmail.com



                                                 ABSTRACT

        Optical satellite image (OSI) in original form (raw image) is an image of optical gray values of each
pixel, characterized by DN quantity (Digital Number). DN values not only contain the signal reflected directly
from the surface of the object but also contain other diffusing and reflecting signals in atmospheric
environment. In many practical applications image data in the form of the original DN image can not use
directly, but need to filter the noise signals and then convert it into image reflected of objects in the ground
surface.
        In order to increase the accuracy and reliability of products created from satellite images such as image
classification, change detection of land use/land cover etc., the processing of radiometric corrections from DN
(raw) image into reflected image in ground surface have to be done. The present article uses statistical
parameters of digital image calculated before and after radiometric corrections to compare and evaluate its
quality.



1.     INTRODUCTION

      Analyzing satellite image have an important role in monitoring and modeling
environmental problems. Repeated observation of a given area over time yields potential for
many forms of change detection analysis. These repeated observations are confounded in
terms of radiometric consistency due to changes in sensor calibration over time, differences
in illumination, observation angles and variation in atmospheric effects. Radiometric
correction of satellite image data comprises of two issues: absolute and relative correction
(Seema and Udhav, 2010). Absolute radiometric correction converts the digital number of a
pixel to a percentage reflectance value using established transformation equations (Chavez
and Mackinnon, 1994; Caselles and Garcia, 1989). Relative radiometric correction
normalizes multiple satellite scenes to each other. Most forms of absolute radiometric
correction rely on sensor calibration coefficients, atmospheric correction algorithms, and
illumination and observation geometry coefficients. These data are used in a radiative transfer
model to correct the imagery. Relative radiometric correction has several advantages over
absolute radiometric correction. The methodology is usually simpler, requires less computer
operating time and less theoretical understanding (Hall, et al., 1991; Schott, et al., 1988).




 International Symposium on Geoinformatics for Spatial Infrastructure Development in Earth and Allied Sciences 2010
Our purpose of this study describes how to calculate the reflectance at surface and
reflectance at the top of atmosphere by certain algorithms and assess data accuracy after
calculating.


2.    BACKGROUND

     The sun's rays carry energy with five different routes, finally going on the satellite’s
sensor. Figure 1 illustrates the paths of the sun's rays with the characteristic quantities back to
sensor (Jesen, 1996).




     Figure 1. The paths of sun's rays                        Figure 2. The process of transformation
               on the sensor.                                  from DN image → R → rTOA → r sur .

      Figure 1 clearly shows the DN values (Digital Number) of the scene with signal L
which were recorded by sensor will be the sum of "real" signal, Ls (direct reflection from
objects on ground surface to sensor) and the "noise" signal, Lp (the reflection, scattering by
the surrounding environment).
                                 L = Ls + Lp                  (1)

      The nature of the problem of radiometric correction of satellite image is to remove the
noise signal Lp. Assuming that the topography surface is Lambert surface (smooth surface,
height difference not significant), the radiometric correction should be done are:
      - Correction of spectrum sensor based on its calibrated parameters;
      - Atmosphere correction.

      Relationship between radiance spectrum of the four image positions in the space of the
same area is described in Figure 2. Four image positions are as follows:
      - Image No.1 is the original (raw) image with pixel DN values (past-sensor image).
      - Image No.2 is the result of sensor’s spectrum correction; actually converting DN
image (past-sensor image) into the radiance image R (at-sensor image).
      - Image No.3 is the conversion result of radiance image R into reflected image at the
top of atmosphere, (denote ρTOA image).
      - Image No.4 is the result of continuing a conversion of ρTOA image into the reflected
image of the surface topography (denote ρSUR image).

     Evaluating Effectiveness of Radiometric Correction for Optical Satellite Image using Statistical Parameters
3.     EXPERIMENTAL PART

3.1    Image data

     Input Data is a satellite image Landsat ETM+ taken on 29/9/2001 of Cam Pha - Quang
Ninh areas (Figure 2). Image parameters of useful Landsat scene in Cam Pha are presented in
Table 1.

                    Table 1. Scene of Landsat ETM+ satellite image of Cam Pha area
                            Parameters of Landsat ETM+ image
      Acquisition date                                    29/09/2001
      Datum grid                                             UTM
      Solar angle (degree)                                56.2178576
                                              band 1   band 2    band 3                             band 4
      Radiance values Lmax (W/m2*ster*µm)     191.60  196.50     152.90                             241.10
      Radiance values Lmin (W/m2*ster*µm)     -6.200   -6.400     -5.00                             -5.100
      Sun radiance value (W/m2*µm)           1969.00 1840.00 1551.00                               1044.00

      Experimental part has been conducted according to scheme in Figure 2. Two products
of image category also have been created:
       - True color (RBG) combined images;
       - NDVI vegetation index images.

3.2    Products of true color (RBG) combined image

      The number of color combined images are four images corresponding to the four
positions in space as introduced in Figure 2. Creating the image sequence is described as
written in paragraph 2.

       Output four color combined images corresponding to the four image positions in space
as DN (1), R (2) (Radiance), rTOA (3),         r sur (4) image is shown in Figure 3.

      The statistical parameter values of the four RBG color combined image were calculated
and recorded in Table 2; where "Mean" is the average value of images (image’s mathematical
expectation); "Var" is image variance and CV is image’s change variance index of image,
calculated by the formula.


                                         (CV =      var / Mean   )                      (2)




International Symposium on Geoinformatics for Spatial Infrastructure Development in Earth and Allied Sciences 2010
a. DN image (past-sensor)                          b. R image (at-sensor)




                  c. r TOA image (at TOA)                       d. r SUR image (in surface)

                            Figure 3. Four color combinations of images

                          Table 2. Statistical parameters of four color RBG combined
 Statistical
Parameters
                        DN (1)                       R (2)                   rTOA   (3)                r sur (4)
   Mean                  74.5                    53.339125              0.0363000625                 0.243616
    Var              107.316625                  67.944025             0.000416695625              0.001053128
    CV                 0.13905                    0.154536                 0.56234                   0.133209

      Through Figure 3 and Table 2 show: Although observed with eye we hardly detect the
difference between images (1), (2), (3) and (4), but the quantitative values in Table 1 reflects
the nature of these images very different. We have commented:
      - DN image or past-sensor image with No (1) has CV smaller than 1 but have largest
         variance with respect to others.
      - At-sensor image or radiance image, R, with No (2) (after correcting sensor spectrum)
         has CV approximate to CV of DN image (1), but its variance is nearly two times
         smaller than variance of DN image (1).
      - Image at the top of atmosphere, r Sur , with No (3) has CV larger than CV of DN (1),
         but still smaller than 1. Its variance is very small (considered equal to 0).
      - The reflected image on the topography surface, ( r Sur ), with No (4) has CV
         approximately equal to CV of DN image (1), but its variance value, Var, is 100
         thousand times smaller than DN image (1).



     Evaluating Effectiveness of Radiometric Correction for Optical Satellite Image using Statistical Parameters
Clearly, reflected image on the topography surface with r Sur (4) has the highest
quality. From evaluating of color (RBG) combined image, we concluded that by “feeling” in
the computer screen, our eyes may misunderstand the combination of color images without a
difference, but with statistical models of image, we see the nature of this type of images
completely different in quality.

3.3. Products of NDVI vegetation index image

       Going deeply in detail, we use images of vegetation index (VI) to analyze four types of
image such as DN, R, r TOA , and r SUR . Usually images of vegetation use only NDVI defined
as follows:
                                                  NIR - RED
                                       NDVI =                                   (3)
                                                  NIR + RED
        We have four types of vegetation index NDVI images such as (DN), NDVI (R), NDVI
( r TOA ) and NDVI ( r SUR ) that corresponding to 4 position in space (see Figure 2). It means
vegetation index images were created by pixel DN values, (past-sensor); R (at-sensor image);
reflected image at the top of atmosphere, r TOA and reflected image in the topography
surface, r SUR , respectively. Four DNVI images are shown in Figure 4.




                 a. Past-sensor NDVI image                      b. At-sensor NDVI images




                  c. NDVI from r TOA image                       d. NDVI from image r sur

                                      Figure 4. Four NDVI images

      The statistical parameter values of the four NDVI images were calculated and recorded
in Table 3 (see footnote of Table 2).




International Symposium on Geoinformatics for Spatial Infrastructure Development in Earth and Allied Sciences 2010
Table 3. Statistical parameters of four NDVI images
Parameters         NDVI (DN)                 NDVI (R)               NDVI ( r TOA )              NDVI ( r sur )
Mean                   0.25                0.1552877775              0.33104825                 -0.99847675
Var                10.9221465               0.04456275              0.037273225              0.0000004307545
CV                  13.21947                  1.359404                0.583186                   0.00065732

       Deeply analysis based on vegetation index images we see, by a “feeling” of the human
eye; we can recognize the difference between the NDVI images. By "quantitative values"
through image statistical parameters in Table 3, as confirmed differences in the nature of the
four types of NDVI images. NDVI images ( r sur ) is regarded as the variance of 0 with CV
variable is the smallest. This is the image of the highest quality. There should also be added
that the value of "Mean" of NDVI ( r sur ) approximately equal to -1 because this area is coal
mining, the vegetation factor is very low. Value "Mean" of the image NDVI (DN) is the
"virtual" value because the value of "Var" and the variable CV are very large compared to
other images. In fact, using NDVI (DN) to classify images in research of land cover/land use
change, as well as in some other tasks will have very low reliability.

      In short, radiometric correction for Lambert terrain from DN to image reflected image
in the topography surface is needed to practical applications in the thematic maps of
monitoring resources and environment in order to increase the accuracies and reliabilities of
useful products.


4.    REFERENCES

Chavez, P.S. and D.J. Mackinnon, 1994. Automatic detection of vegetation changes in the
     Southwestern United States using remotely sensed images. Photogramm. Eng. Remote Sens.,
     60: 571-583.
Conese C.; M. A. i l a b e r, 1993. Topographic Normalization of TM Scenes through the Use of an
     Atmospheric Correction end Digital Terrain Model. Photogrammetric Engineering & Remote
     Sensing, Vol. 59, No. 12, 1993, 1745-1753.
Caselles, V. and M.J.L. Garcia, 1989. An alternative simple approach to estimate atmospheric
      correction in multispectral studies. Int. J. Remote Sens., 10: 1127-1134.
Elvidge, C.D., D. Yuan, R.D. Werackoon, R.S. Lunetta, 1995. Relative radiometric normalization of
      landsat Multispectral Scanner (MSS) data using an automated scattergram controlled
      regression. Photogramm. Eng. Remote Sens., 61: 1255-1260.
Hall, F.G., D.E. Strebel, J.E. Nickeson and S.J. Goetz, 1991. Radiometric rectification toward a
      common radiometric response among multidate, multisensor images. Remote Sens. Environ.,
      35: 11-27.
Jesen J. R., 1996, Introduction Digital Image Orocessing, A Remote Sensing Perspective, Second
      Edition, Prentic Hall, New Jersey.
Schott, J.R., C. Salvaggio and W.J. Volchok, 1988. Radiometric scene normalization using
      pseudoinvariant features. Remote Sens. Environ., 26: 1-16.
Seema Gore Biday and Udhav Bhosle, 2010, Radiometric correction of multitemporal satellite
     imagery. Journal of Computer Science 6(9), 940-949.




     Evaluating Effectiveness of Radiometric Correction for Optical Satellite Image using Statistical Parameters

More Related Content

What's hot

Accuracy Assessment in Remote Sensing
Accuracy Assessment in Remote SensingAccuracy Assessment in Remote Sensing
Accuracy Assessment in Remote Sensing
ShacinChandraSaha

SBAS-DInSAR processing on the ESA Geohazards Exploitation Platform
SBAS-DInSAR processing on the ESA Geohazards Exploitation PlatformSBAS-DInSAR processing on the ESA Geohazards Exploitation Platform
SBAS-DInSAR processing on the ESA Geohazards Exploitation Platform
Emmanuel Mathot

Remote Sensing: Change Detection
Remote Sensing: Change DetectionRemote Sensing: Change Detection
Remote Sensing: Change Detection
Kamlesh Kumar

Spatial analysis & interpolation in ARC GIS
Spatial analysis & interpolation in ARC GISSpatial analysis & interpolation in ARC GIS
Spatial analysis & interpolation in ARC GIS
KU Leuven

Platforms of Remote sensing and GIS
Platforms of Remote sensing and GISPlatforms of Remote sensing and GIS
Platforms of Remote sensing and GIS
Mouna Guru

HYPERSPECTRAL.ppt
HYPERSPECTRAL.pptHYPERSPECTRAL.ppt
HYPERSPECTRAL.ppt
Manasutthasini2

Fundamentals of Remote Sensing- A training module
Fundamentals of Remote Sensing- A training moduleFundamentals of Remote Sensing- A training module
Fundamentals of Remote Sensing- A training module
Nishant Sinha

Object Based Image Analysis
Object Based Image Analysis Object Based Image Analysis
Object Based Image Analysis
Kabir Uddin

Chapter 3: Remote sensing Technology
Chapter 3: Remote sensing TechnologyChapter 3: Remote sensing Technology
Chapter 3: Remote sensing Technology
Shankar Gangaju

Iirs Remote sensing application in Urban Planning
Iirs Remote sensing application in Urban PlanningIirs Remote sensing application in Urban Planning
Iirs Remote sensing application in Urban Planning
Tushar Dholakia

Geometric correction
Geometric correctionGeometric correction
Geometric correctionDocumentStory

Spatial Autocorrelation
Spatial AutocorrelationSpatial Autocorrelation
Spatial Autocorrelation
Ehsan Hamzei

Image quality assessment and statistical evaluation
Image quality assessment and statistical evaluationImage quality assessment and statistical evaluation
Image quality assessment and statistical evaluationDocumentStory

Basic remote sensing and gis
Basic remote sensing and gisBasic remote sensing and gis
Basic remote sensing and gis
SatGur Masters Academy

SAR Interferometry Technique
SAR Interferometry TechniqueSAR Interferometry Technique
SAR Interferometry Technique
NopphawanTamkuan

Spatial enhancement
Spatial enhancement Spatial enhancement
Spatial enhancement abinarkt

Presentation on the background theory of InSAR
Presentation on the background theory of InSARPresentation on the background theory of InSAR
Presentation on the background theory of InSAR
SERC at Carleton College

Projection
ProjectionProjection
Projection
SUPARNA DEY

ENVI basic function overview
ENVI basic function overviewENVI basic function overview
ENVI basic function overviewspherix

Atmospheric correction albufera_web
Atmospheric correction albufera_webAtmospheric correction albufera_web
Atmospheric correction albufera_web
Gabriel Parodi


What's hot (20)

Accuracy Assessment in Remote Sensing
Accuracy Assessment in Remote SensingAccuracy Assessment in Remote Sensing
Accuracy Assessment in Remote Sensing

SBAS-DInSAR processing on the ESA Geohazards Exploitation Platform
SBAS-DInSAR processing on the ESA Geohazards Exploitation PlatformSBAS-DInSAR processing on the ESA Geohazards Exploitation Platform
SBAS-DInSAR processing on the ESA Geohazards Exploitation Platform

Remote Sensing: Change Detection
Remote Sensing: Change DetectionRemote Sensing: Change Detection
Remote Sensing: Change Detection

Spatial analysis & interpolation in ARC GIS
Spatial analysis & interpolation in ARC GISSpatial analysis & interpolation in ARC GIS
Spatial analysis & interpolation in ARC GIS

Platforms of Remote sensing and GIS
Platforms of Remote sensing and GISPlatforms of Remote sensing and GIS
Platforms of Remote sensing and GIS

HYPERSPECTRAL.ppt
HYPERSPECTRAL.pptHYPERSPECTRAL.ppt
HYPERSPECTRAL.ppt

Fundamentals of Remote Sensing- A training module
Fundamentals of Remote Sensing- A training moduleFundamentals of Remote Sensing- A training module
Fundamentals of Remote Sensing- A training module

Object Based Image Analysis
Object Based Image Analysis Object Based Image Analysis
Object Based Image Analysis

Chapter 3: Remote sensing Technology
Chapter 3: Remote sensing TechnologyChapter 3: Remote sensing Technology
Chapter 3: Remote sensing Technology

Iirs Remote sensing application in Urban Planning
Iirs Remote sensing application in Urban PlanningIirs Remote sensing application in Urban Planning
Iirs Remote sensing application in Urban Planning

Geometric correction
Geometric correctionGeometric correction
Geometric correction

Spatial Autocorrelation
Spatial AutocorrelationSpatial Autocorrelation
Spatial Autocorrelation

Image quality assessment and statistical evaluation
Image quality assessment and statistical evaluationImage quality assessment and statistical evaluation
Image quality assessment and statistical evaluation

Basic remote sensing and gis
Basic remote sensing and gisBasic remote sensing and gis
Basic remote sensing and gis

SAR Interferometry Technique
SAR Interferometry TechniqueSAR Interferometry Technique
SAR Interferometry Technique

Spatial enhancement
Spatial enhancement Spatial enhancement
Spatial enhancement

Presentation on the background theory of InSAR
Presentation on the background theory of InSARPresentation on the background theory of InSAR
Presentation on the background theory of InSAR

Projection
ProjectionProjection
Projection

ENVI basic function overview
ENVI basic function overviewENVI basic function overview
ENVI basic function overview

Atmospheric correction albufera_web
Atmospheric correction albufera_webAtmospheric correction albufera_web
Atmospheric correction albufera_web


Similar to Evaluating effectiveness of radiometric correction for optical satellite image using statistical parameters

Digital image processing
Digital image processingDigital image processing
Digital image processing
Chetan Hulsure

COMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHING
COMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHINGCOMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHING
COMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHING
ijfcstjournal

Digital image processing
Digital image processingDigital image processing
Digital image processing
kaushal gadariya

Basics of dip
Basics of dipBasics of dip
Basics of dip
Prateek Omer

Adaptive noise driven total variation filtering for magnitude mr image denosing
Adaptive noise driven total variation filtering for magnitude mr image denosingAdaptive noise driven total variation filtering for magnitude mr image denosing
Adaptive noise driven total variation filtering for magnitude mr image denosing
Indian Institute of Technology Bhubaneswar

IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...ijceronline

IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...
ijceronline

Digital image processing
Digital image processingDigital image processing
Digital image processing
Muheeb Awawdeh

Gx3612421246
Gx3612421246Gx3612421246
Gx3612421246
IJERA Editor

A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
ijistjournal

A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
ijistjournal

[IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha
[IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha [IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha
[IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha
IJET - International Journal of Engineering and Techniques

M.sc. m hassan
M.sc. m hassanM.sc. m hassan
M.sc. m hassan
Ashraf Aboshosha

Automatic Classification Satellite images for weather Monitoring
Automatic Classification Satellite images for weather MonitoringAutomatic Classification Satellite images for weather Monitoring
Automatic Classification Satellite images for weather Monitoring
guest7782414

Data-Driven Motion Estimation With Spatial Adaptation
Data-Driven Motion Estimation With Spatial AdaptationData-Driven Motion Estimation With Spatial Adaptation
Data-Driven Motion Estimation With Spatial Adaptation
CSCJournals

IRJET-Design and Implementation of Haze Removal System
IRJET-Design and Implementation of Haze Removal SystemIRJET-Design and Implementation of Haze Removal System
IRJET-Design and Implementation of Haze Removal System
IRJET Journal

Paper id 2420148
Paper id 2420148Paper id 2420148
Paper id 2420148IJRAT

Satellite image Processing Seminar Report
Satellite image Processing Seminar ReportSatellite image Processing Seminar Report
Satellite image Processing Seminar Report
alok ray


Similar to Evaluating effectiveness of radiometric correction for optical satellite image using statistical parameters (20)

Digital image processing
Digital image processingDigital image processing
Digital image processing

COMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHING
COMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHINGCOMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHING
COMPUTATIONALLY EFFICIENT TWO STAGE SEQUENTIAL FRAMEWORK FOR STEREO MATCHING

Digital image processing
Digital image processingDigital image processing
Digital image processing

Satellite Image
Satellite Image Satellite Image
Satellite Image

Basics of dip
Basics of dipBasics of dip
Basics of dip

Adaptive noise driven total variation filtering for magnitude mr image denosing
Adaptive noise driven total variation filtering for magnitude mr image denosingAdaptive noise driven total variation filtering for magnitude mr image denosing
Adaptive noise driven total variation filtering for magnitude mr image denosing

IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...

IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...IJCER (www.ijceronline.com) International Journal of computational Engineerin...
IJCER (www.ijceronline.com) International Journal of computational Engineerin...

Digital image processing
Digital image processingDigital image processing
Digital image processing

Gx3612421246
Gx3612421246Gx3612421246
Gx3612421246

A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...

A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...
A NOVEL APPROACH FOR SEGMENTATION OF SECTOR SCAN SONAR IMAGES USING ADAPTIVE ...

[IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha
[IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha [IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha
[IJET-V1I6P10] Authors: Mr.B.V.Sathish Kumar, M.Tech Scholar G.Sumalatha

M.sc. m hassan
M.sc. m hassanM.sc. m hassan
M.sc. m hassan

W6P3622650776P65
W6P3622650776P65W6P3622650776P65
W6P3622650776P65

Automatic Classification Satellite images for weather Monitoring
Automatic Classification Satellite images for weather MonitoringAutomatic Classification Satellite images for weather Monitoring
Automatic Classification Satellite images for weather Monitoring

Data-Driven Motion Estimation With Spatial Adaptation
Data-Driven Motion Estimation With Spatial AdaptationData-Driven Motion Estimation With Spatial Adaptation
Data-Driven Motion Estimation With Spatial Adaptation

IRJET-Design and Implementation of Haze Removal System
IRJET-Design and Implementation of Haze Removal SystemIRJET-Design and Implementation of Haze Removal System
IRJET-Design and Implementation of Haze Removal System

Paper id 2420148
Paper id 2420148Paper id 2420148
Paper id 2420148

Satellite image Processing Seminar Report
Satellite image Processing Seminar ReportSatellite image Processing Seminar Report
Satellite image Processing Seminar Report


Evaluating effectiveness of radiometric correction for optical satellite image using statistical parameters

  • 1. EVALUATING EFFECTIVENESS OF RADIOMETRIC CORRECTION FOR OPTICAL SATELLITE IMAGE USING STATISTICAL PARAMETERS Dr Hab. Luong Chinh Ke 1 and BA. Nguyen Le Dang2 1 Research Center for Remote Sensing Science and Technology National Center for Remote Sensing, 108 Chua Lang, Dong Da, Ha Noi, Vietnam Email: lchinhke@gmail.com 2 Research Center for Remote Sensing Science and Technology National Center for Remote Sensing, 108 Chua Lang, Dong Da, Ha Noi, Vietnam Email: dangnguyen2211@gmail.com ABSTRACT Optical satellite image (OSI) in original form (raw image) is an image of optical gray values of each pixel, characterized by DN quantity (Digital Number). DN values not only contain the signal reflected directly from the surface of the object but also contain other diffusing and reflecting signals in atmospheric environment. In many practical applications image data in the form of the original DN image can not use directly, but need to filter the noise signals and then convert it into image reflected of objects in the ground surface. In order to increase the accuracy and reliability of products created from satellite images such as image classification, change detection of land use/land cover etc., the processing of radiometric corrections from DN (raw) image into reflected image in ground surface have to be done. The present article uses statistical parameters of digital image calculated before and after radiometric corrections to compare and evaluate its quality. 1. INTRODUCTION Analyzing satellite image have an important role in monitoring and modeling environmental problems. Repeated observation of a given area over time yields potential for many forms of change detection analysis. These repeated observations are confounded in terms of radiometric consistency due to changes in sensor calibration over time, differences in illumination, observation angles and variation in atmospheric effects. Radiometric correction of satellite image data comprises of two issues: absolute and relative correction (Seema and Udhav, 2010). Absolute radiometric correction converts the digital number of a pixel to a percentage reflectance value using established transformation equations (Chavez and Mackinnon, 1994; Caselles and Garcia, 1989). Relative radiometric correction normalizes multiple satellite scenes to each other. Most forms of absolute radiometric correction rely on sensor calibration coefficients, atmospheric correction algorithms, and illumination and observation geometry coefficients. These data are used in a radiative transfer model to correct the imagery. Relative radiometric correction has several advantages over absolute radiometric correction. The methodology is usually simpler, requires less computer operating time and less theoretical understanding (Hall, et al., 1991; Schott, et al., 1988). International Symposium on Geoinformatics for Spatial Infrastructure Development in Earth and Allied Sciences 2010
  • 2. Our purpose of this study describes how to calculate the reflectance at surface and reflectance at the top of atmosphere by certain algorithms and assess data accuracy after calculating. 2. BACKGROUND The sun's rays carry energy with five different routes, finally going on the satellite’s sensor. Figure 1 illustrates the paths of the sun's rays with the characteristic quantities back to sensor (Jesen, 1996). Figure 1. The paths of sun's rays Figure 2. The process of transformation on the sensor. from DN image → R → rTOA → r sur . Figure 1 clearly shows the DN values (Digital Number) of the scene with signal L which were recorded by sensor will be the sum of "real" signal, Ls (direct reflection from objects on ground surface to sensor) and the "noise" signal, Lp (the reflection, scattering by the surrounding environment). L = Ls + Lp (1) The nature of the problem of radiometric correction of satellite image is to remove the noise signal Lp. Assuming that the topography surface is Lambert surface (smooth surface, height difference not significant), the radiometric correction should be done are: - Correction of spectrum sensor based on its calibrated parameters; - Atmosphere correction. Relationship between radiance spectrum of the four image positions in the space of the same area is described in Figure 2. Four image positions are as follows: - Image No.1 is the original (raw) image with pixel DN values (past-sensor image). - Image No.2 is the result of sensor’s spectrum correction; actually converting DN image (past-sensor image) into the radiance image R (at-sensor image). - Image No.3 is the conversion result of radiance image R into reflected image at the top of atmosphere, (denote ρTOA image). - Image No.4 is the result of continuing a conversion of ρTOA image into the reflected image of the surface topography (denote ρSUR image). Evaluating Effectiveness of Radiometric Correction for Optical Satellite Image using Statistical Parameters
  • 3. 3. EXPERIMENTAL PART 3.1 Image data Input Data is a satellite image Landsat ETM+ taken on 29/9/2001 of Cam Pha - Quang Ninh areas (Figure 2). Image parameters of useful Landsat scene in Cam Pha are presented in Table 1. Table 1. Scene of Landsat ETM+ satellite image of Cam Pha area Parameters of Landsat ETM+ image Acquisition date 29/09/2001 Datum grid UTM Solar angle (degree) 56.2178576 band 1 band 2 band 3 band 4 Radiance values Lmax (W/m2*ster*µm) 191.60 196.50 152.90 241.10 Radiance values Lmin (W/m2*ster*µm) -6.200 -6.400 -5.00 -5.100 Sun radiance value (W/m2*µm) 1969.00 1840.00 1551.00 1044.00 Experimental part has been conducted according to scheme in Figure 2. Two products of image category also have been created: - True color (RBG) combined images; - NDVI vegetation index images. 3.2 Products of true color (RBG) combined image The number of color combined images are four images corresponding to the four positions in space as introduced in Figure 2. Creating the image sequence is described as written in paragraph 2. Output four color combined images corresponding to the four image positions in space as DN (1), R (2) (Radiance), rTOA (3), r sur (4) image is shown in Figure 3. The statistical parameter values of the four RBG color combined image were calculated and recorded in Table 2; where "Mean" is the average value of images (image’s mathematical expectation); "Var" is image variance and CV is image’s change variance index of image, calculated by the formula. (CV = var / Mean ) (2) International Symposium on Geoinformatics for Spatial Infrastructure Development in Earth and Allied Sciences 2010
  • 4. a. DN image (past-sensor) b. R image (at-sensor) c. r TOA image (at TOA) d. r SUR image (in surface) Figure 3. Four color combinations of images Table 2. Statistical parameters of four color RBG combined Statistical Parameters DN (1) R (2) rTOA (3) r sur (4) Mean 74.5 53.339125 0.0363000625 0.243616 Var 107.316625 67.944025 0.000416695625 0.001053128 CV 0.13905 0.154536 0.56234 0.133209 Through Figure 3 and Table 2 show: Although observed with eye we hardly detect the difference between images (1), (2), (3) and (4), but the quantitative values in Table 1 reflects the nature of these images very different. We have commented: - DN image or past-sensor image with No (1) has CV smaller than 1 but have largest variance with respect to others. - At-sensor image or radiance image, R, with No (2) (after correcting sensor spectrum) has CV approximate to CV of DN image (1), but its variance is nearly two times smaller than variance of DN image (1). - Image at the top of atmosphere, r Sur , with No (3) has CV larger than CV of DN (1), but still smaller than 1. Its variance is very small (considered equal to 0). - The reflected image on the topography surface, ( r Sur ), with No (4) has CV approximately equal to CV of DN image (1), but its variance value, Var, is 100 thousand times smaller than DN image (1). Evaluating Effectiveness of Radiometric Correction for Optical Satellite Image using Statistical Parameters
  • 5. Clearly, reflected image on the topography surface with r Sur (4) has the highest quality. From evaluating of color (RBG) combined image, we concluded that by “feeling” in the computer screen, our eyes may misunderstand the combination of color images without a difference, but with statistical models of image, we see the nature of this type of images completely different in quality. 3.3. Products of NDVI vegetation index image Going deeply in detail, we use images of vegetation index (VI) to analyze four types of image such as DN, R, r TOA , and r SUR . Usually images of vegetation use only NDVI defined as follows: NIR - RED NDVI = (3) NIR + RED We have four types of vegetation index NDVI images such as (DN), NDVI (R), NDVI ( r TOA ) and NDVI ( r SUR ) that corresponding to 4 position in space (see Figure 2). It means vegetation index images were created by pixel DN values, (past-sensor); R (at-sensor image); reflected image at the top of atmosphere, r TOA and reflected image in the topography surface, r SUR , respectively. Four DNVI images are shown in Figure 4. a. Past-sensor NDVI image b. At-sensor NDVI images c. NDVI from r TOA image d. NDVI from image r sur Figure 4. Four NDVI images The statistical parameter values of the four NDVI images were calculated and recorded in Table 3 (see footnote of Table 2). International Symposium on Geoinformatics for Spatial Infrastructure Development in Earth and Allied Sciences 2010
  • 6. Table 3. Statistical parameters of four NDVI images Parameters NDVI (DN) NDVI (R) NDVI ( r TOA ) NDVI ( r sur ) Mean 0.25 0.1552877775 0.33104825 -0.99847675 Var 10.9221465 0.04456275 0.037273225 0.0000004307545 CV 13.21947 1.359404 0.583186 0.00065732 Deeply analysis based on vegetation index images we see, by a “feeling” of the human eye; we can recognize the difference between the NDVI images. By "quantitative values" through image statistical parameters in Table 3, as confirmed differences in the nature of the four types of NDVI images. NDVI images ( r sur ) is regarded as the variance of 0 with CV variable is the smallest. This is the image of the highest quality. There should also be added that the value of "Mean" of NDVI ( r sur ) approximately equal to -1 because this area is coal mining, the vegetation factor is very low. Value "Mean" of the image NDVI (DN) is the "virtual" value because the value of "Var" and the variable CV are very large compared to other images. In fact, using NDVI (DN) to classify images in research of land cover/land use change, as well as in some other tasks will have very low reliability. In short, radiometric correction for Lambert terrain from DN to image reflected image in the topography surface is needed to practical applications in the thematic maps of monitoring resources and environment in order to increase the accuracies and reliabilities of useful products. 4. REFERENCES Chavez, P.S. and D.J. Mackinnon, 1994. Automatic detection of vegetation changes in the Southwestern United States using remotely sensed images. Photogramm. Eng. Remote Sens., 60: 571-583. Conese C.; M. A. i l a b e r, 1993. Topographic Normalization of TM Scenes through the Use of an Atmospheric Correction end Digital Terrain Model. Photogrammetric Engineering & Remote Sensing, Vol. 59, No. 12, 1993, 1745-1753. Caselles, V. and M.J.L. Garcia, 1989. An alternative simple approach to estimate atmospheric correction in multispectral studies. Int. J. Remote Sens., 10: 1127-1134. Elvidge, C.D., D. Yuan, R.D. Werackoon, R.S. Lunetta, 1995. Relative radiometric normalization of landsat Multispectral Scanner (MSS) data using an automated scattergram controlled regression. Photogramm. Eng. Remote Sens., 61: 1255-1260. Hall, F.G., D.E. Strebel, J.E. Nickeson and S.J. Goetz, 1991. Radiometric rectification toward a common radiometric response among multidate, multisensor images. Remote Sens. Environ., 35: 11-27. Jesen J. R., 1996, Introduction Digital Image Orocessing, A Remote Sensing Perspective, Second Edition, Prentic Hall, New Jersey. Schott, J.R., C. Salvaggio and W.J. Volchok, 1988. Radiometric scene normalization using pseudoinvariant features. Remote Sens. Environ., 26: 1-16. Seema Gore Biday and Udhav Bhosle, 2010, Radiometric correction of multitemporal satellite imagery. Journal of Computer Science 6(9), 940-949. Evaluating Effectiveness of Radiometric Correction for Optical Satellite Image using Statistical Parameters
