The Emotiv EPOC is a 14 channel EEG system that detects brain signals through electroencephalography (EEG) and translates them into commands using brain-computer interface (BCI) technology. It measures facial expressions, emotions, and cognitive states to control applications. Current applications include virtual navigation, gaming, controlling wheelchairs. With improved detection techniques, it has potential for a wide range of uses including assisting people with disabilities and advancing artificial intelligence.

1. EMOTIVEPOC

2. What is Emotiv EPOC ?
A revolutionary brain computer interface
and scientific contextual EEG offering
high resolution 14 EEG channel + 2
references.

3. HISTORY -
 Found in 2003 by 4 scientists and
executives: Neuroscientist Professor
Allan Snyder, chip-designer Neil Weste,
technology entrepreneurs Tan Le and
Nam Do.●

4. SPECIFICATIONS-
Number of Channels 14 (plus CMS/DRL references)
Channel names (Int. 10-20 locations) AF3, AF4, F3, F4, F7, F8, FC5, FC6,
P7, P8, T7, T8, O1, O2
Sampling method Sequential sampling, Single ADC
Sampling rate ~128Hz (2048Hz internal)
Resolution 16 bits (14 bits effective) 1 LSB =
1.95μV
Bandwidth 0.2 - 45Hz, digital notch filters at 40Hz
and 60Hz
Dynamic range (input referred) 256mVpp
Coupling mode AC coupled
Connectivity Proprietary wireless, 2.4GHz band
Battery type Li-poly
Battery life (typical) 12 hours
Impedance measurement Contact quality using patented system

5. Emotive EPOC is a high resolution ,multi
channel EEG system having 14 EEG
channel and 2 references .

6. EPOC uses three suites to determine signal
inputs:-
 Emotions (Affectiv suite)
– Excitement
– Engagement
– Frustration

7. • Facial expression
(Expressiv suite)
– eyelid and eyebrow
positions,
– eye position in the horizontal
plane,
– smiling,
– laughing,
– clenching,
– smirking

8. • Cognitiv suite : 13 kinds
of movement
– 6 directions(left, right, up, down,
forward, and "pull/zoom")
– 6 rotations([anti-]clockwise rotation,
turn left and right, and sway
backward and forward)
– visualization ("disappear“).

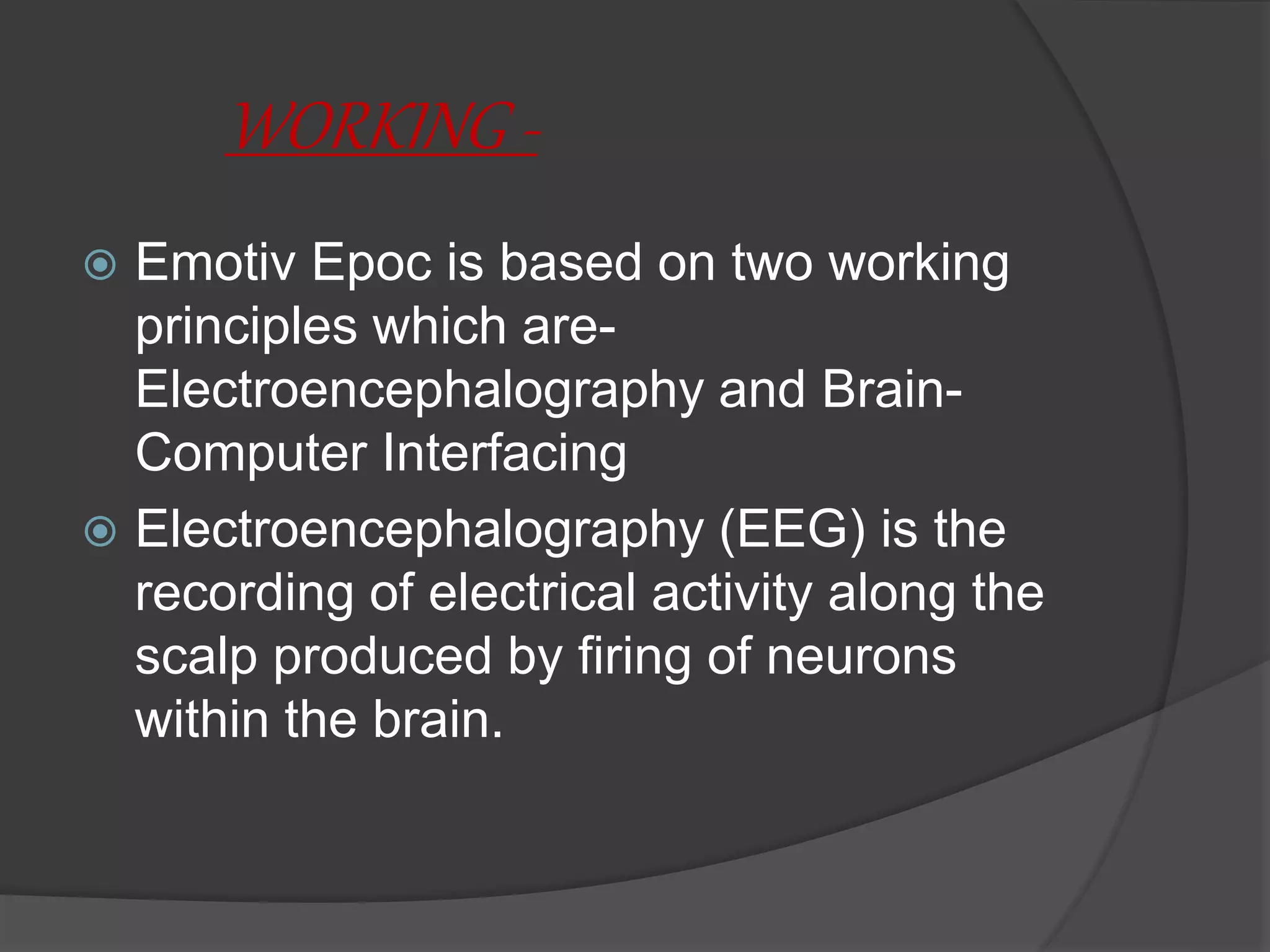

9. WORKING -
 Emotiv Epoc is based on two working
principles which are-
Electroencephalography and Brain-
Computer Interfacing
 Electroencephalography (EEG) is the
recording of electrical activity along the
scalp produced by firing of neurons
within the brain.

10.  A brain-computer interface (BCI),
sometimes called a direct neural
interface or a brain-machine interface, is
a direct communication pathway
between a human brain and an external
device.

11. APPLICATIONS -
• Currently this system is
being used in Virtual 3D
navigation and in
gaming applications .

12. Brain Driver Car Mind Controlled
Wheel Chair

13.  Potential for EEG
Research
 Helpful to Handicaps
 Faster than usual means
to manipulate objects
 More effective than
traditional ways

14. AWARDS:
 Red Dot Design Award
 Auto Vision Innovation Award
 Australian International
Design Award
 Australian Engineering
Award

15.  Many applications are in beta phases
 Most of the people are yet to be familiarized

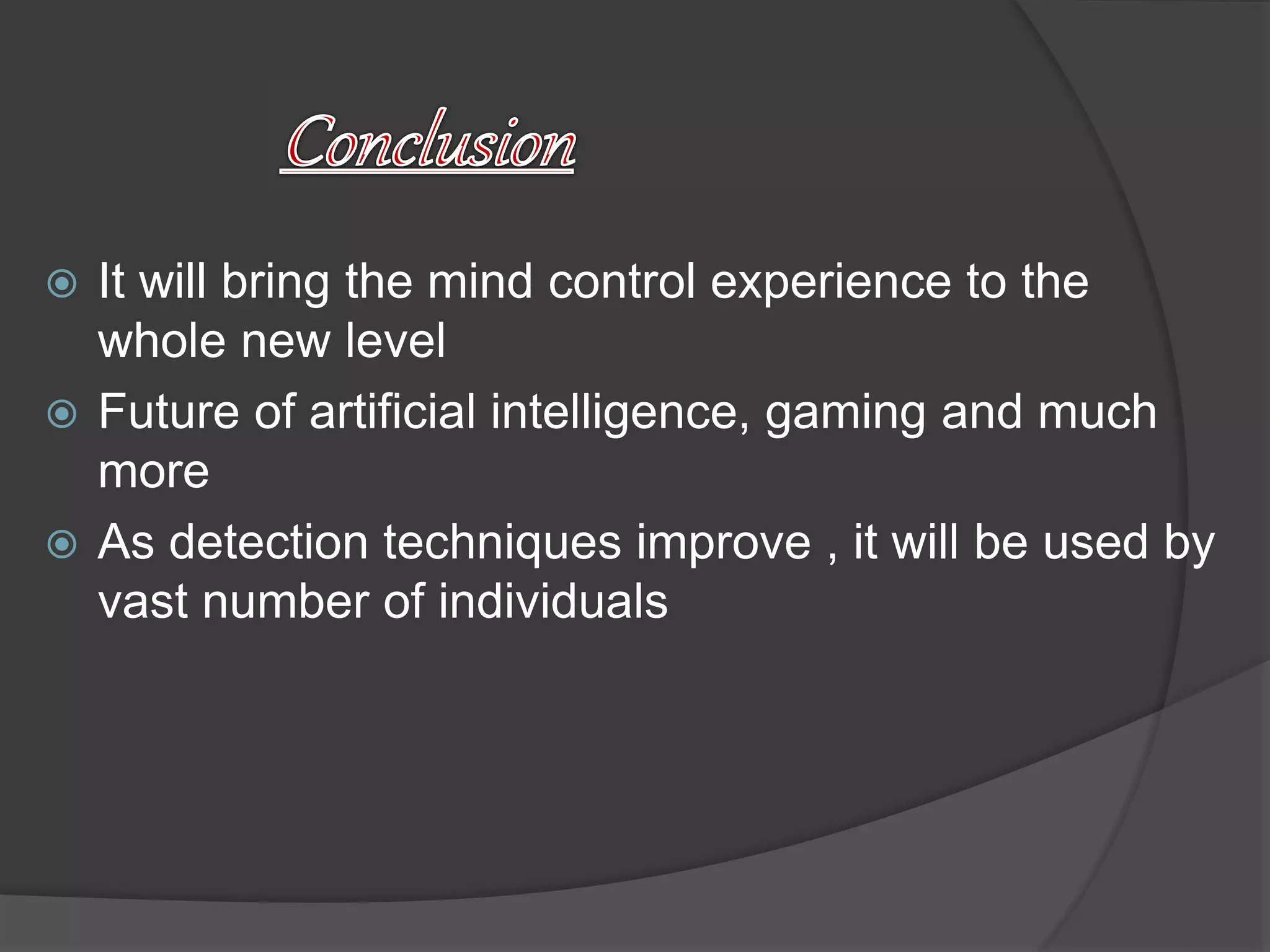

16.  It will bring the mind control experience to the
whole new level
 Future of artificial intelligence, gaming and much
more
 As detection techniques improve , it will be used by
vast number of individuals
