- 1. Why are wehere today ??? 1
- 2. W O W ! > 90,000,000,000,000 Greaterthan 90 TRILLION sheets of paper are produced by American business annually 2
- 3. EC Strategy Move From PaperIntensive Non - Integrated Automated Integrated Create Data Once - Use It Many Times! 3

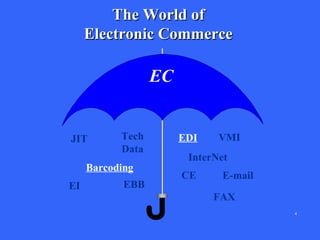

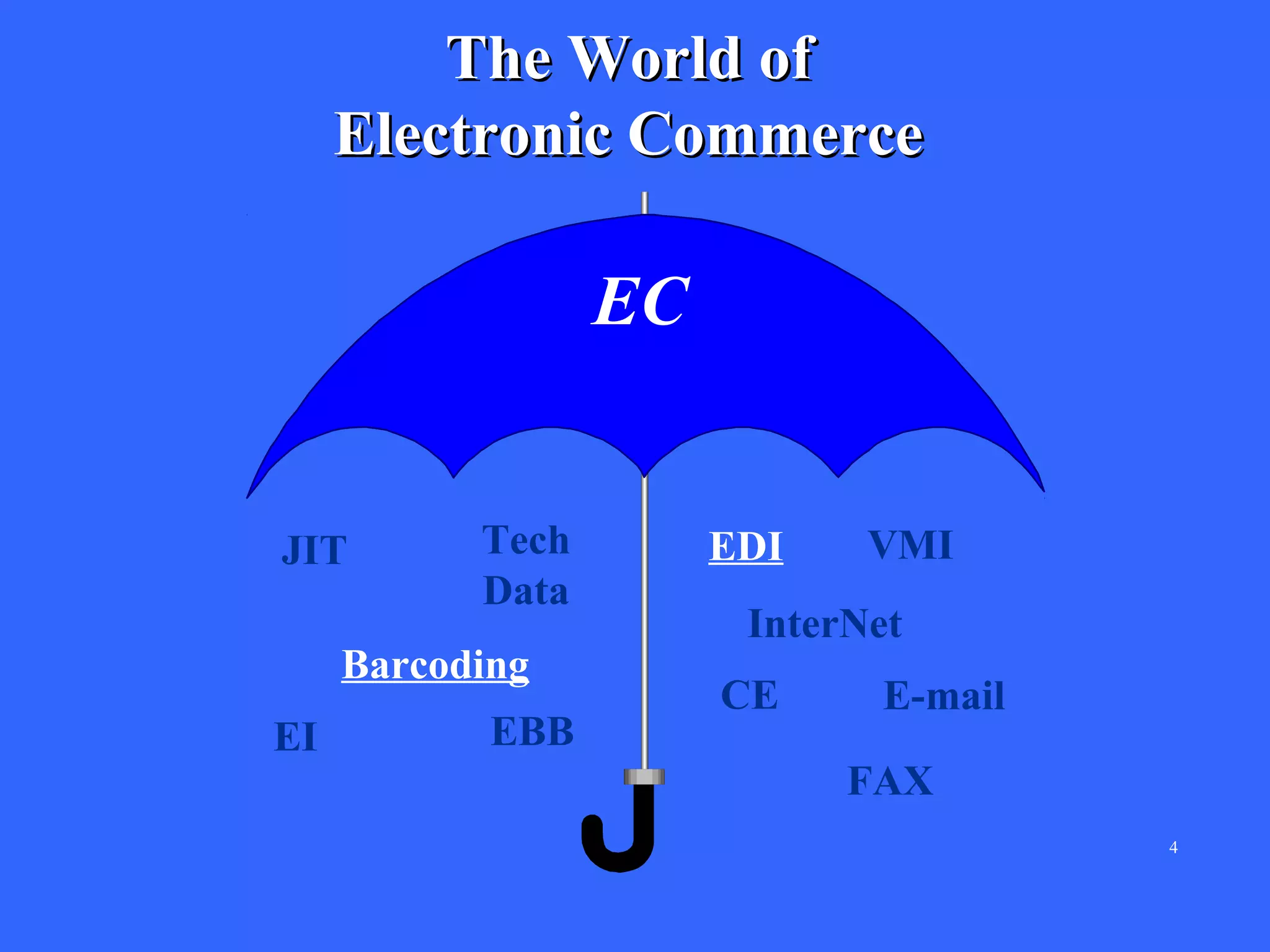

- 4. The World of ElectronicCommerce EC EC JIT Tech Data Barcoding EI EBB EDI VMI InterNet CE E-mail FAX 4

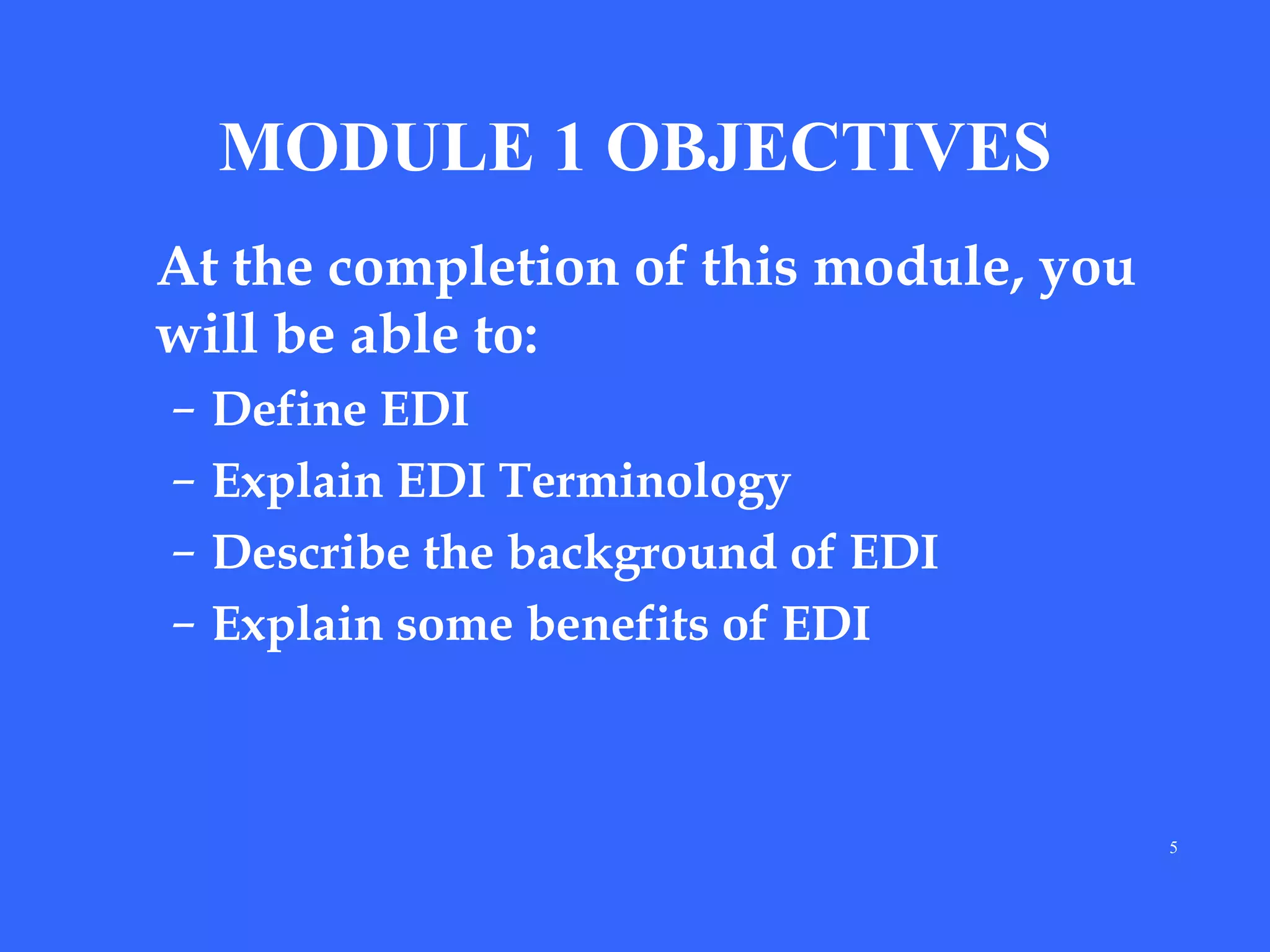

- 5. MODULE 1 OBJECTIVES Atthe completion of this module, you will be able to: – – – – Define EDI Explain EDI Terminology Describe the background of EDI Explain some benefits of EDI 5
- 6. ELECTRONIC DATA INTERCHANGE • Definitions •Background • Benefits Module 1 6

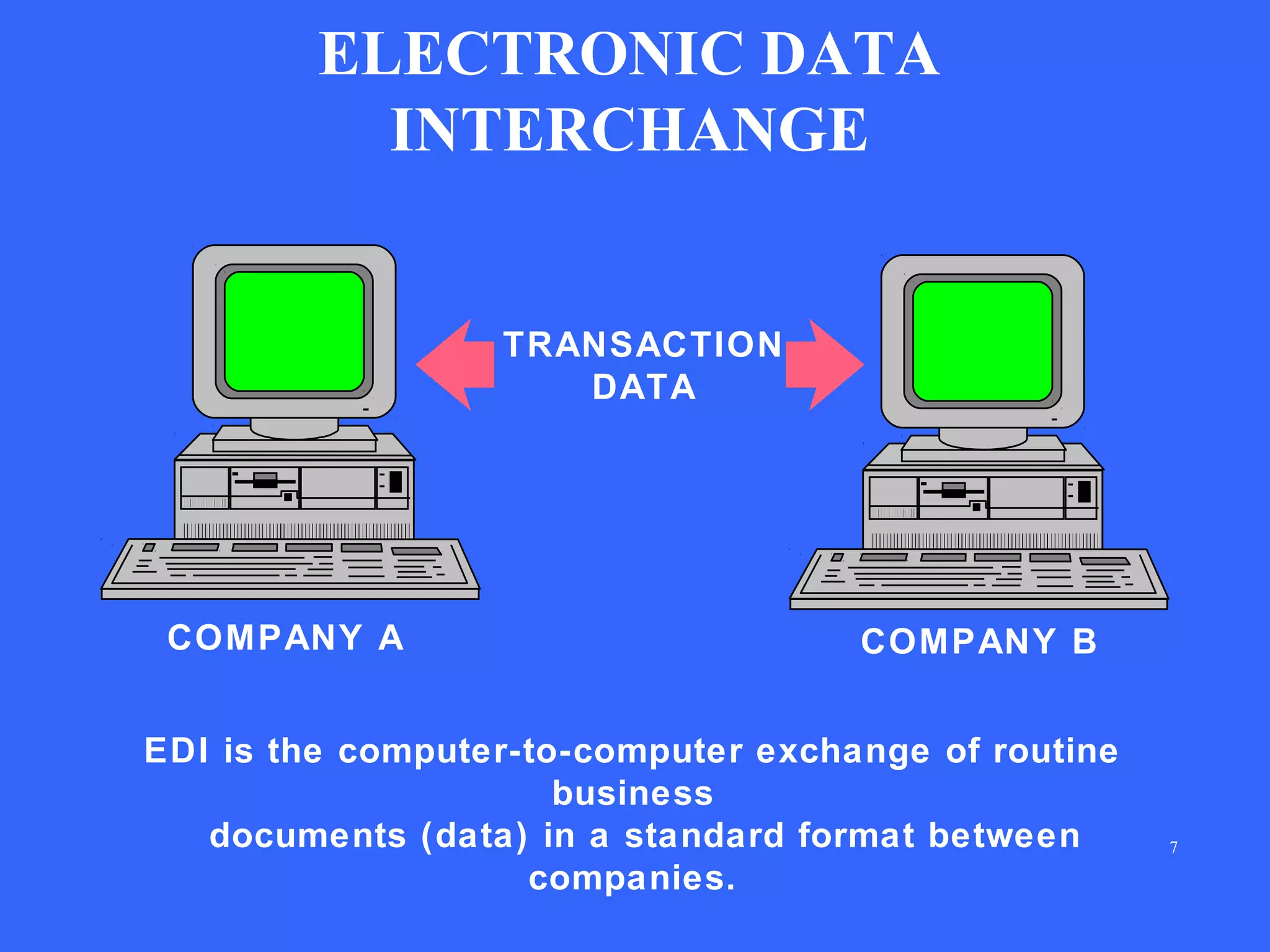

- 7. ELECTRONIC DATA INTERCHANGE TRANSACTION DATA COMPANY A COMPANYB EDI is the computer-to-computer exchange of routine business documents (data) in a standard format between companies. 7

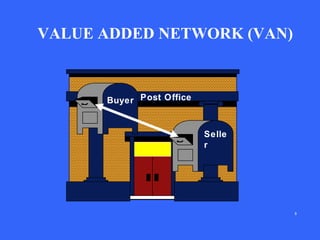

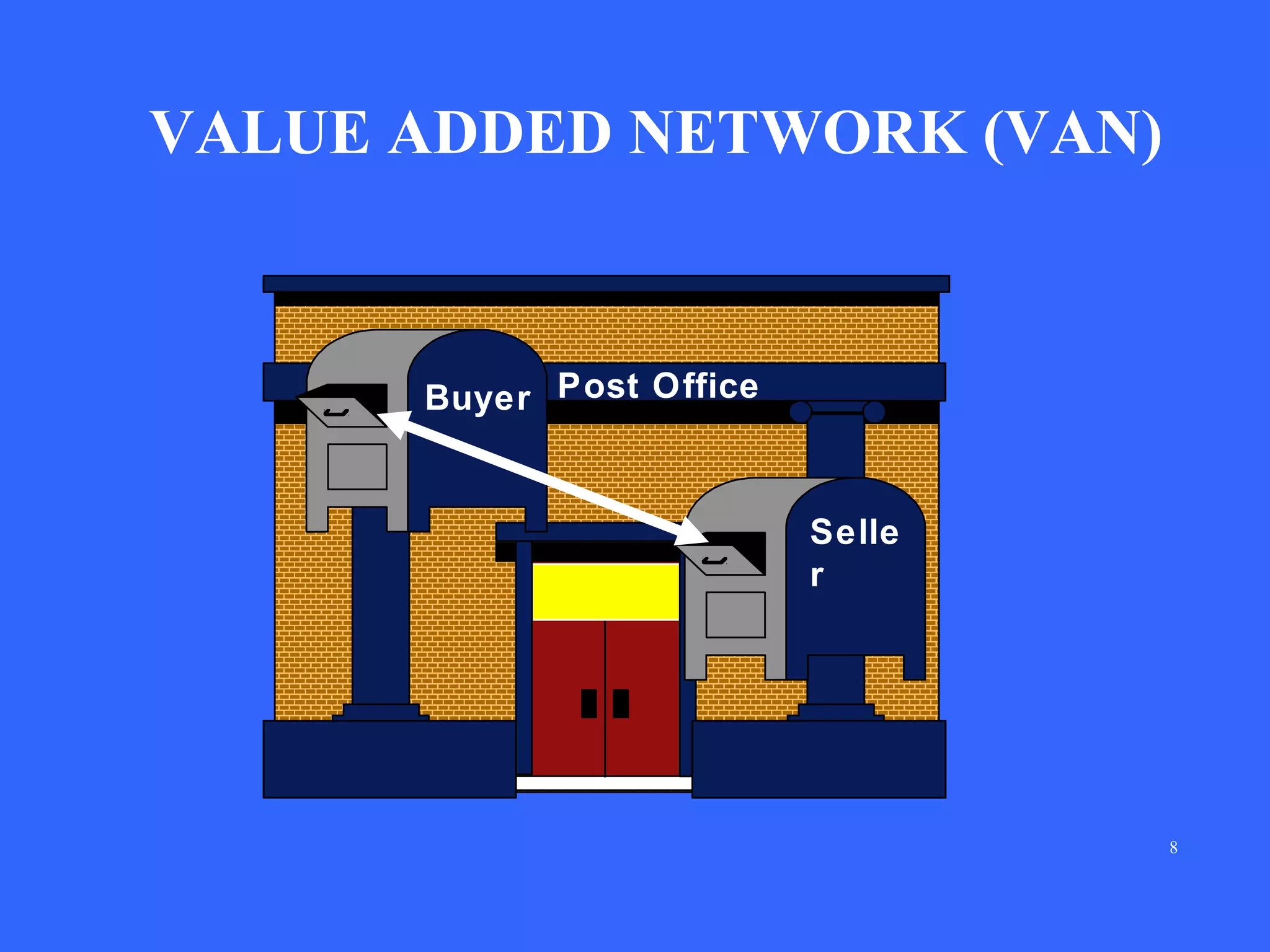

- 8. VALUE ADDED NETWORK(VAN) Buyer Post Office Selle r 8

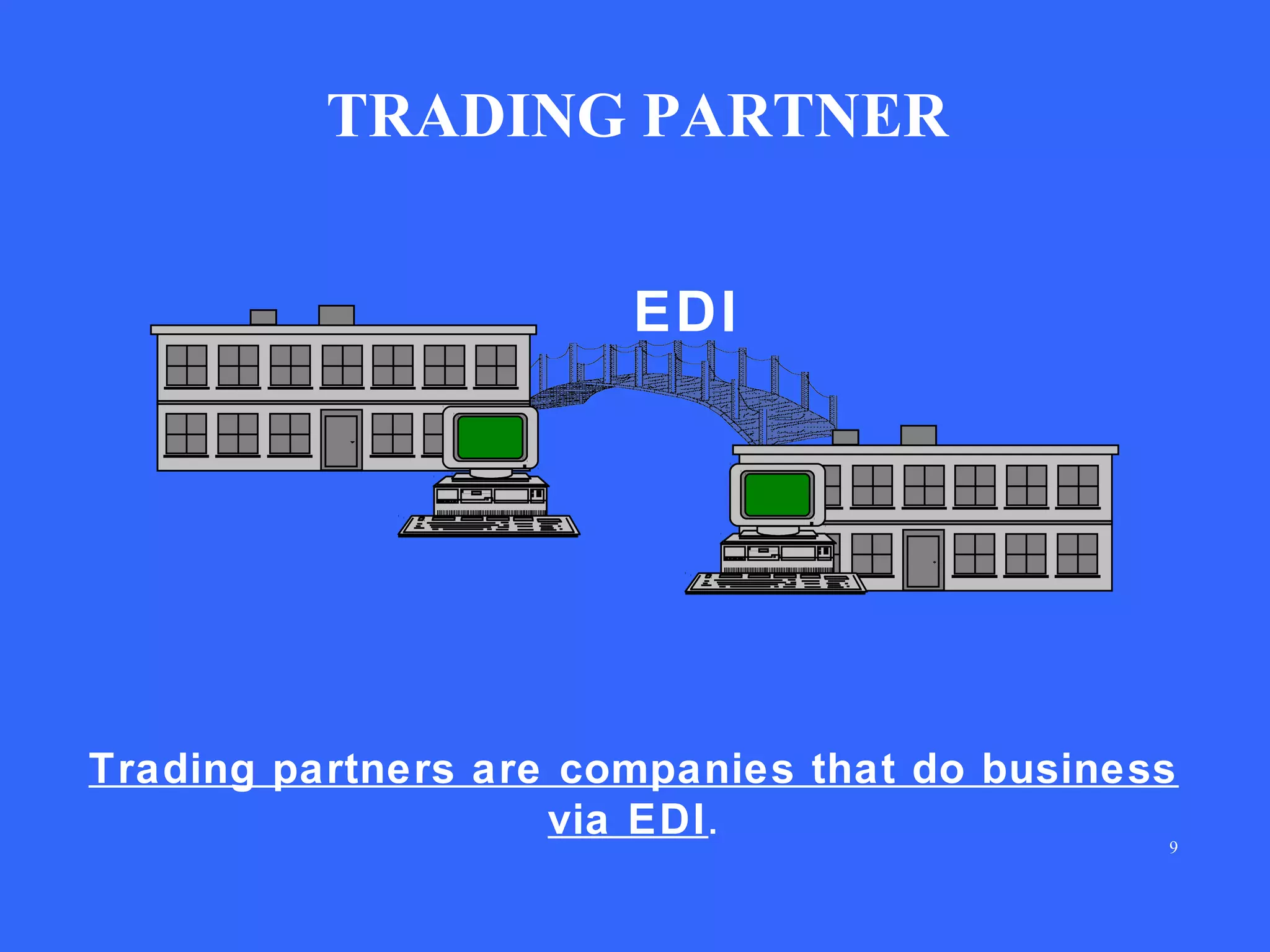

- 9. TRADING PARTNER EDI Trading partnersare companies that do business via EDI . 9

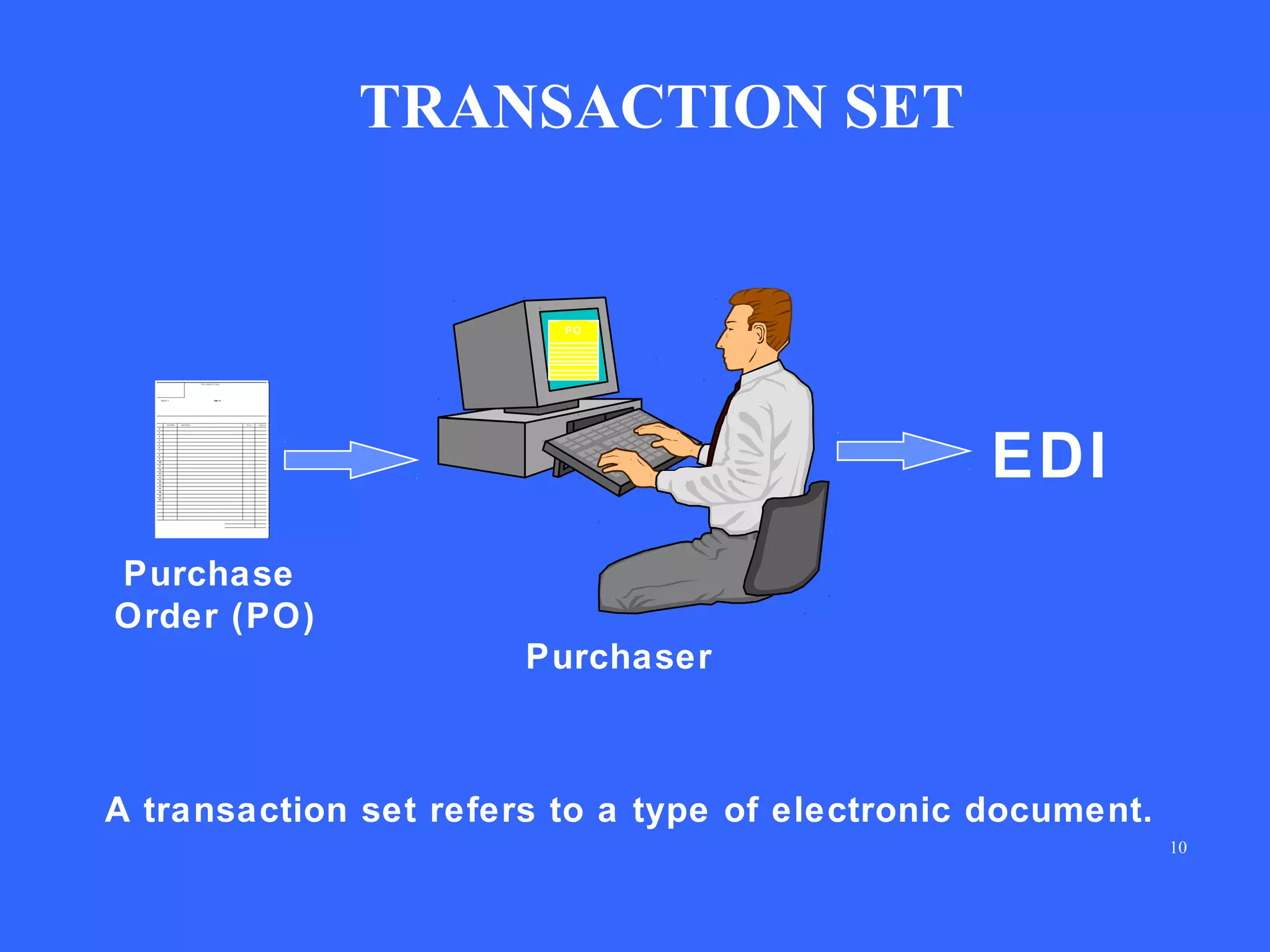

- 10. TRANSACTION SET PO EDI Purchase Order (PO) Purchaser Atransaction set refers to a type of electronic document. 10

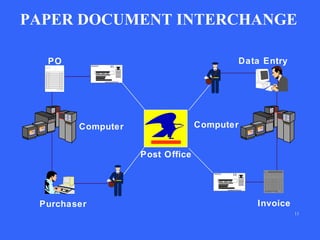

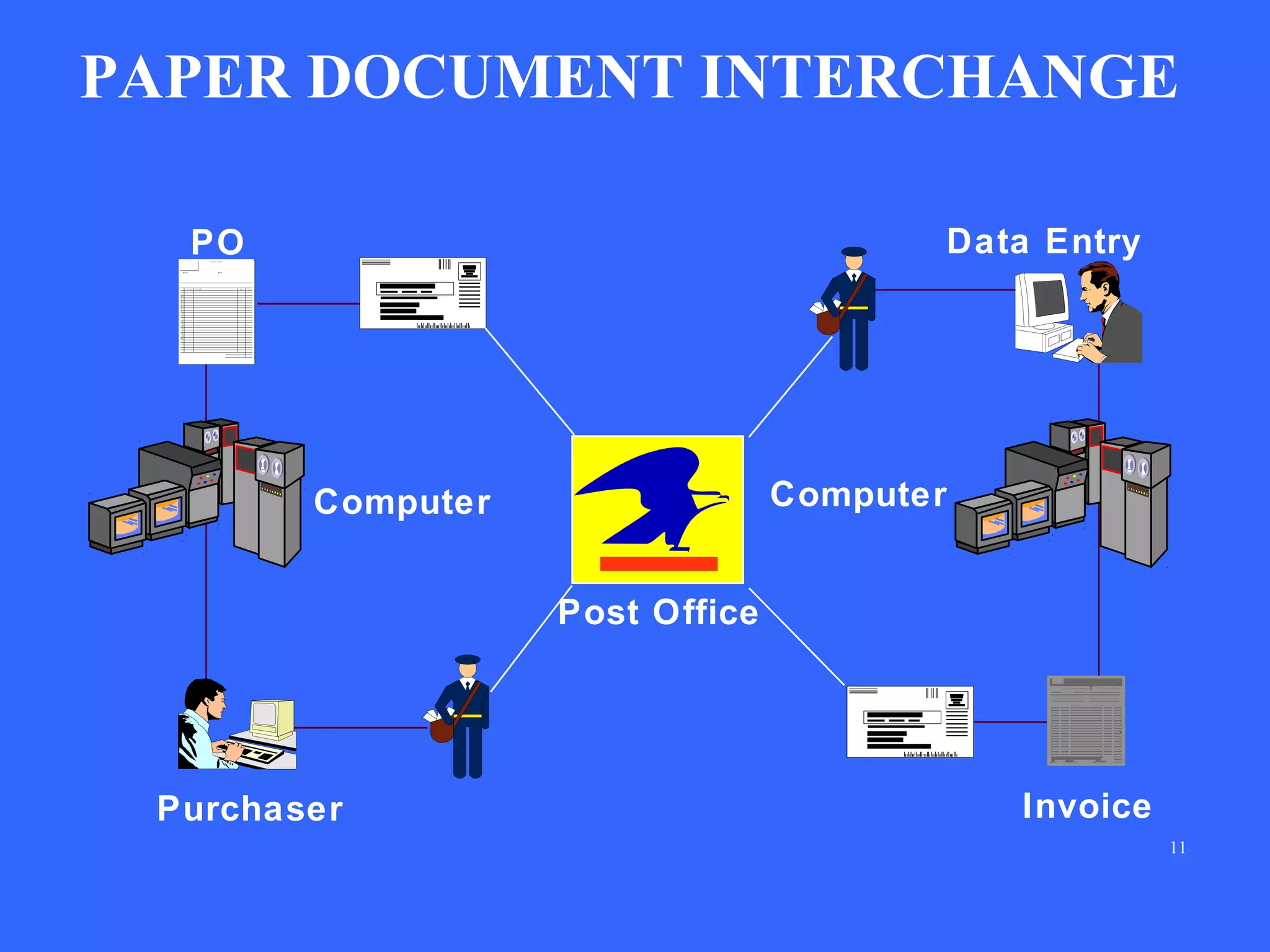

- 11. PAPER DOCUMENT INTERCHANGE DataEntry PO Computer Computer Post Office Purchaser Invoice 11

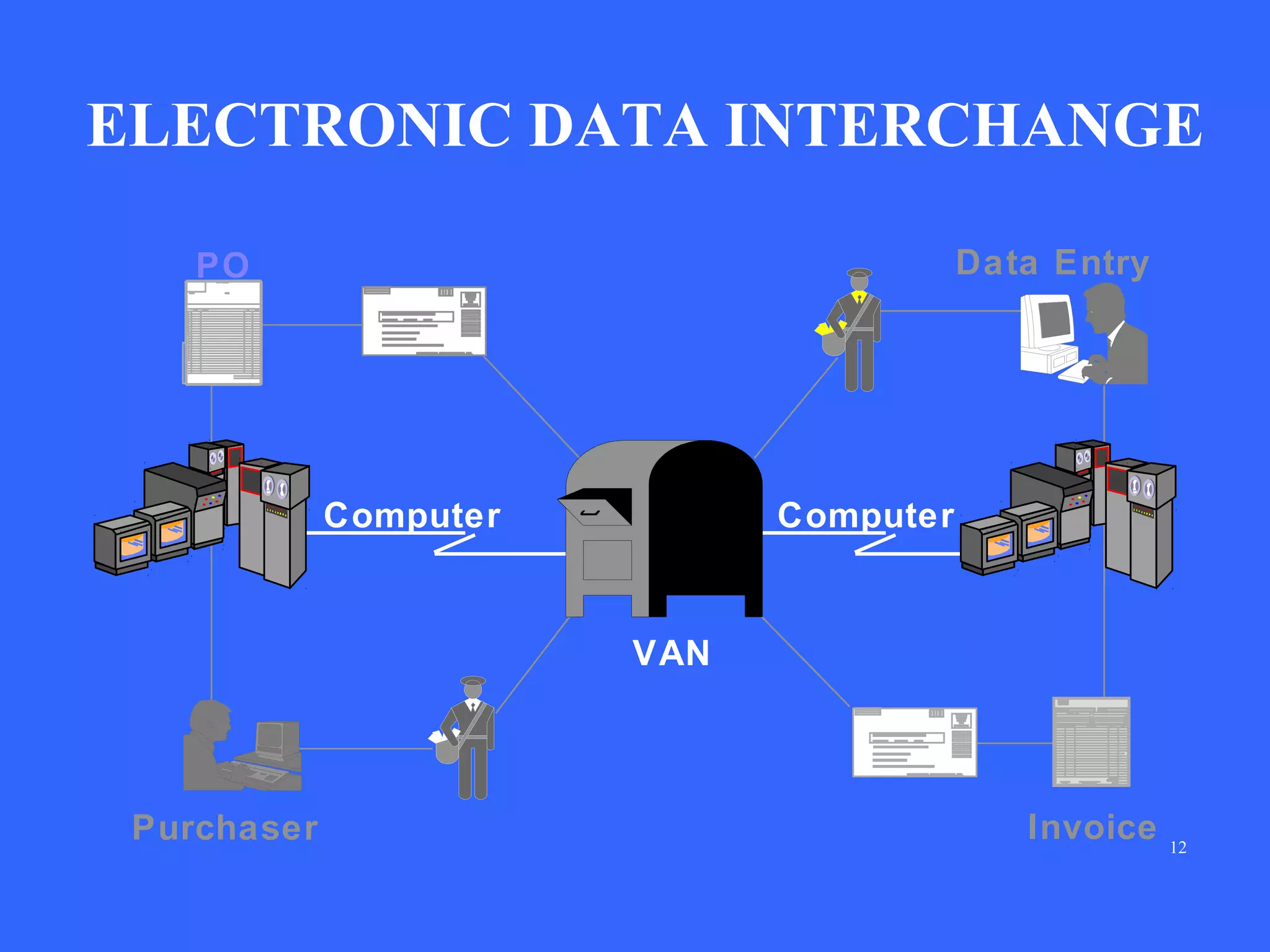

- 12. ELECTRONIC DATA INTERCHANGE DataEntry PO Computer Computer VAN Purchaser Invoice 12
- 13. Implementation EC is CrossFunctional Account Executives Accounting Shipping EDI has an impact on all departments Order Processing Infomation Systems 13

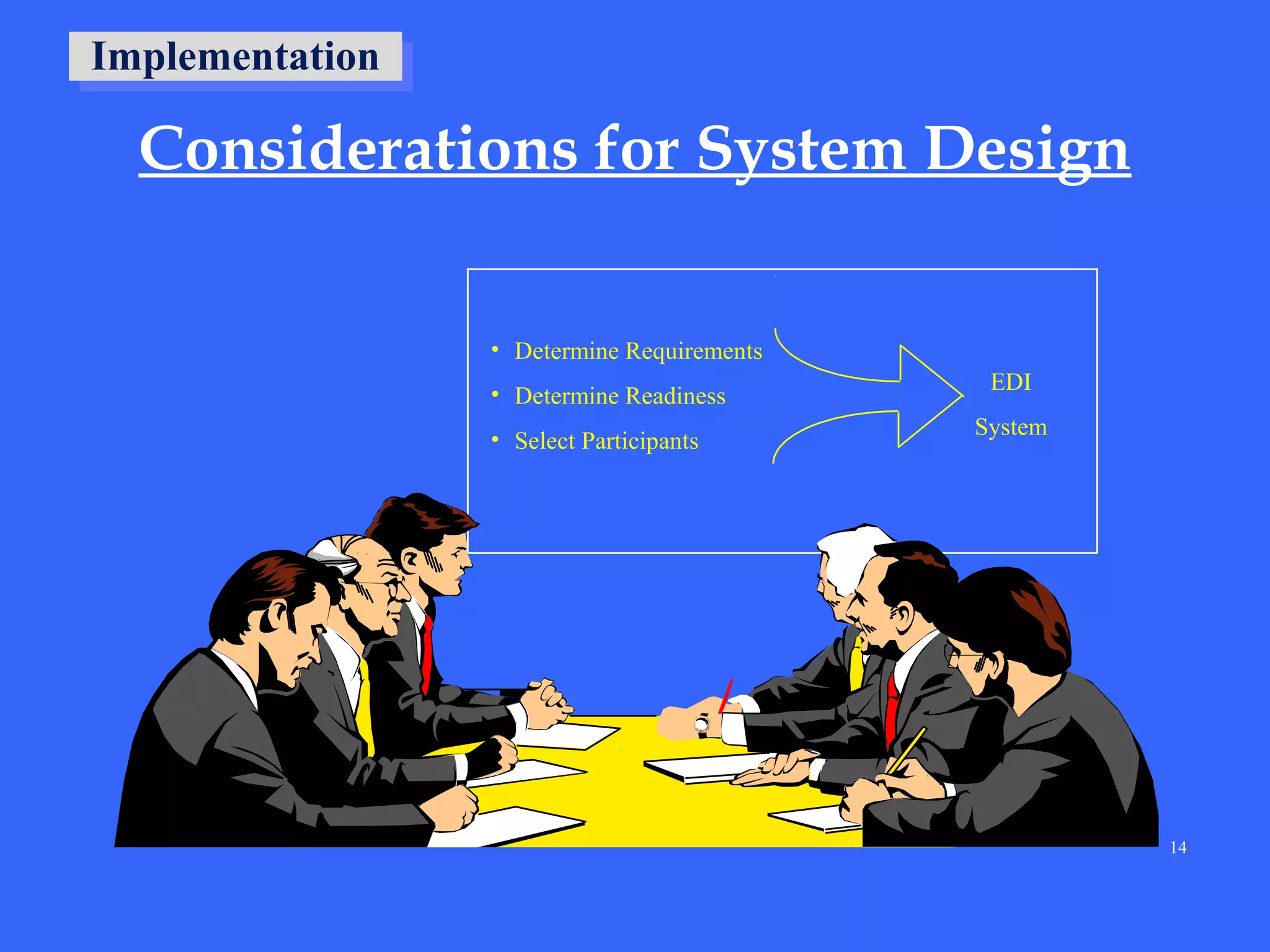

- 14. Implementation Considerations for SystemDesign • Determine Requirements • Determine Readiness • Select Participants EDI System 14

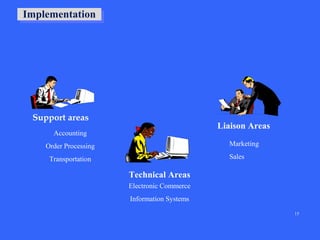

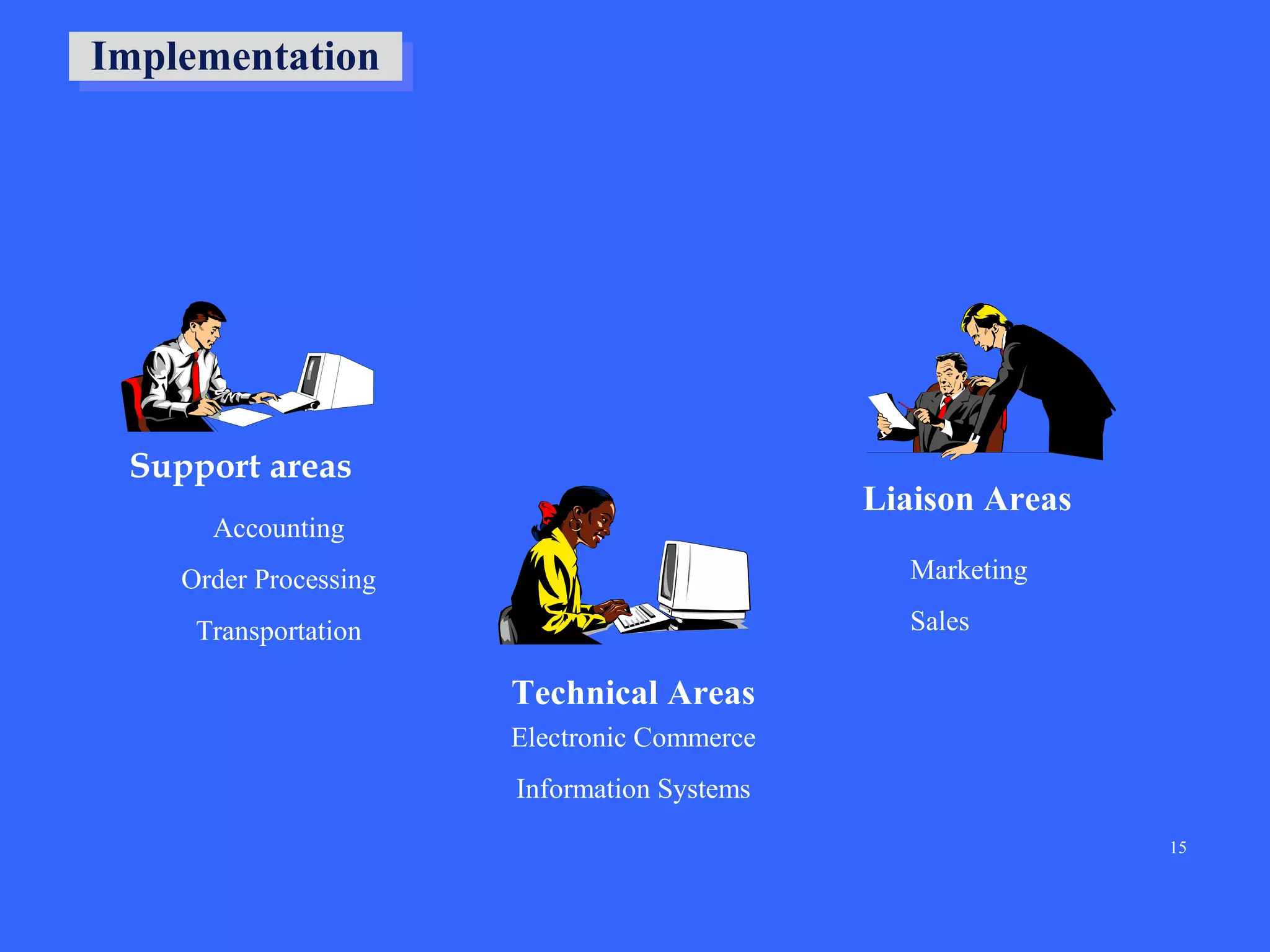

- 15. Implementation Support areas Liaison Areas Accounting Marketing OrderProcessing Sales Transportation Technical Areas Electronic Commerce Information Systems 15
- 16.
- 17.

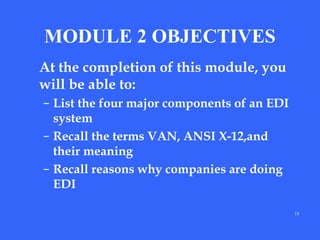

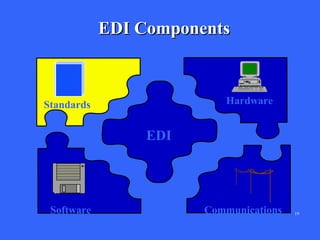

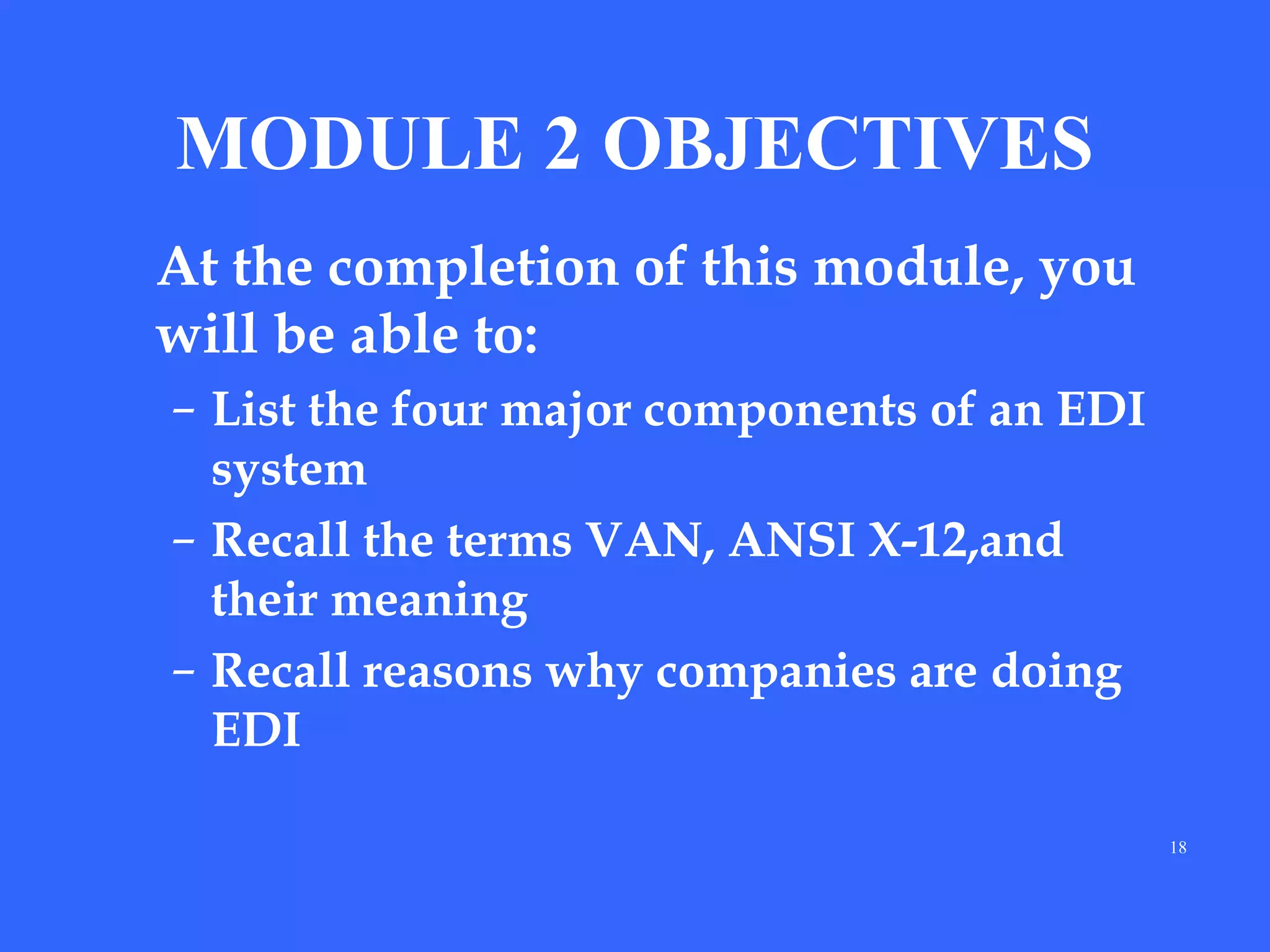

- 18. MODULE 2 OBJECTIVES Atthe completion of this module, you will be able to: – List the four major components of an EDI system – Recall the terms VAN, ANSI X-12,and their meaning – Recall reasons why companies are doing EDI 18

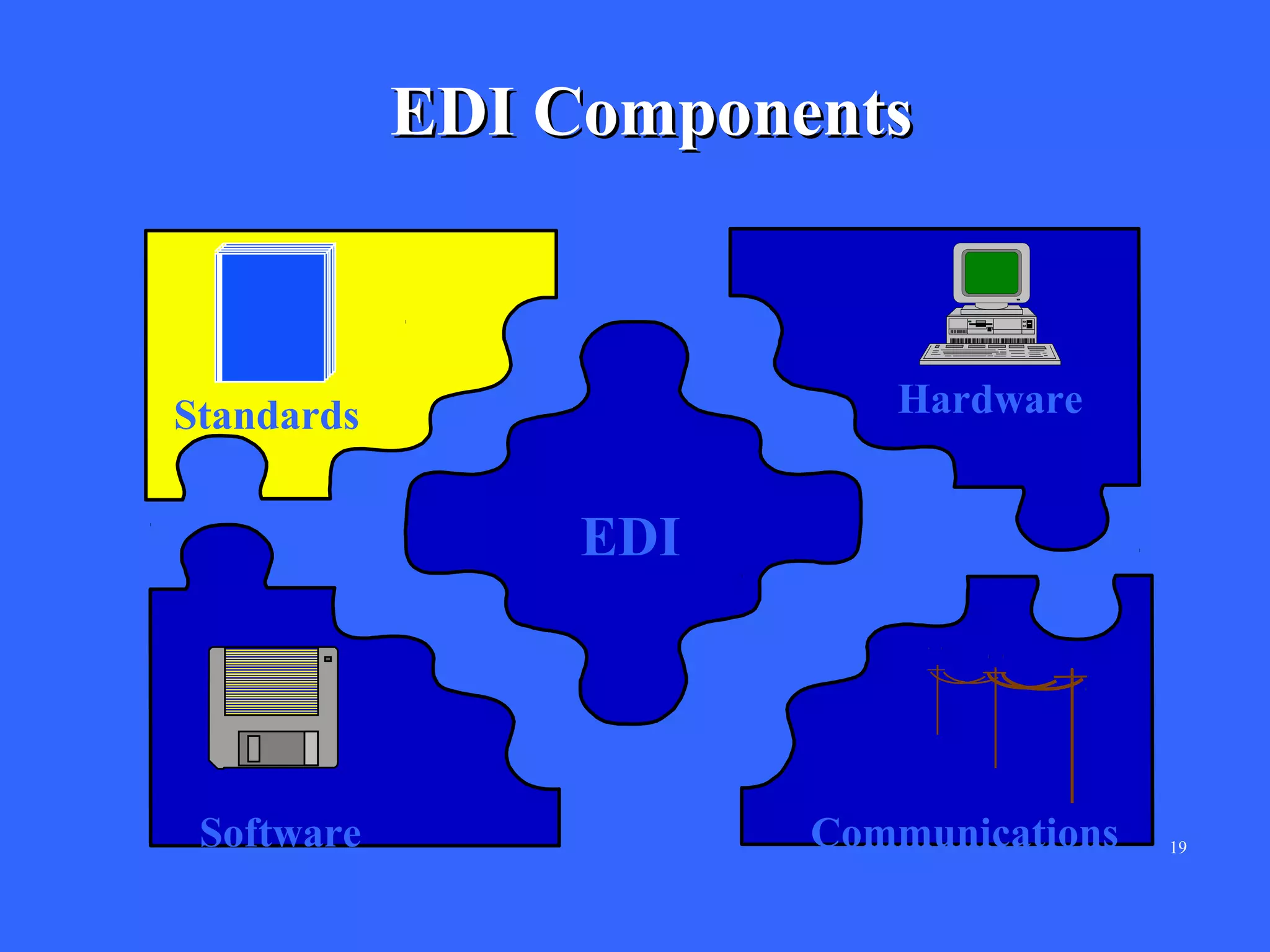

- 19.

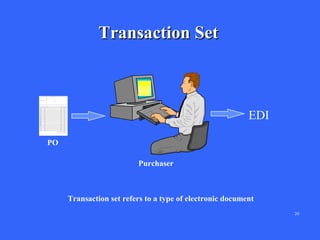

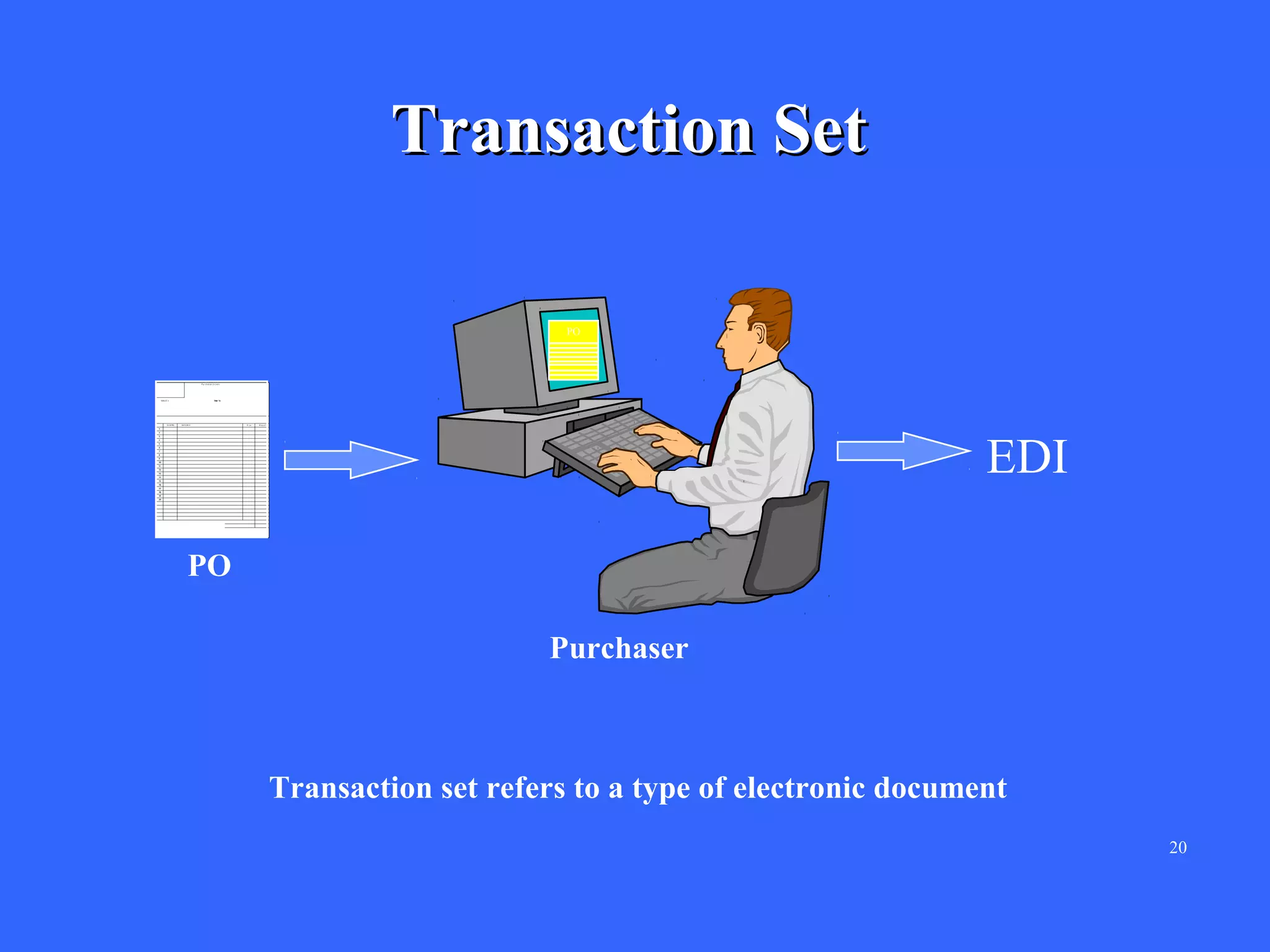

- 20. Transaction Set PO EDI PO Purchaser Transaction setrefers to a type of electronic document 20

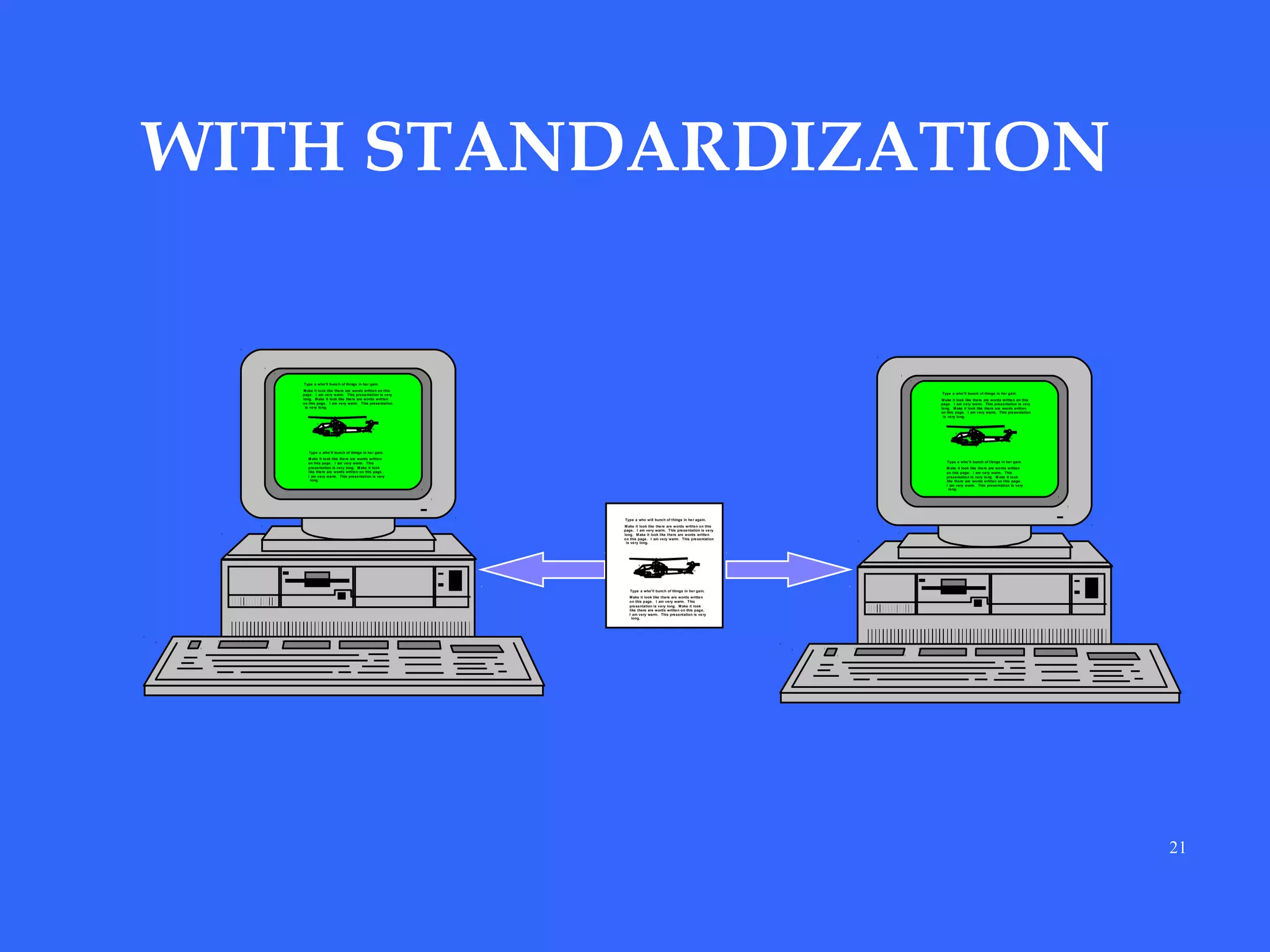

- 21. WITH STANDARDIZATION Type awho'll bunch of things in her gain. M ake it look like the re are words written on this page . I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This presentation is very long. Type a who'll bunch of things in her gain. M ake it look like there are words written on this page. I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This pre sentation is very long. Type a who'll bunch of things in he r gain. M ake it look like the re are words written on this page . I am very warm. This presentation is very long. M ake it look like the re are words written on this page . I am very warm. This presentation is very long. Type a who' ll bunch of things in her gain. M ake it look like there are words written on this page. I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This presentation is very long. Type a who will bunch of things in he r again. M ake it look like the re are words written on this page . I am very warm. This presentation is ve ry long. M ake it look like there are words written on this page . I am very warm. This presentation is very long. Type a who'll bunch of things in her gain. M ake it look like there are words written on this page . I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This presentation is ve ry long. 21

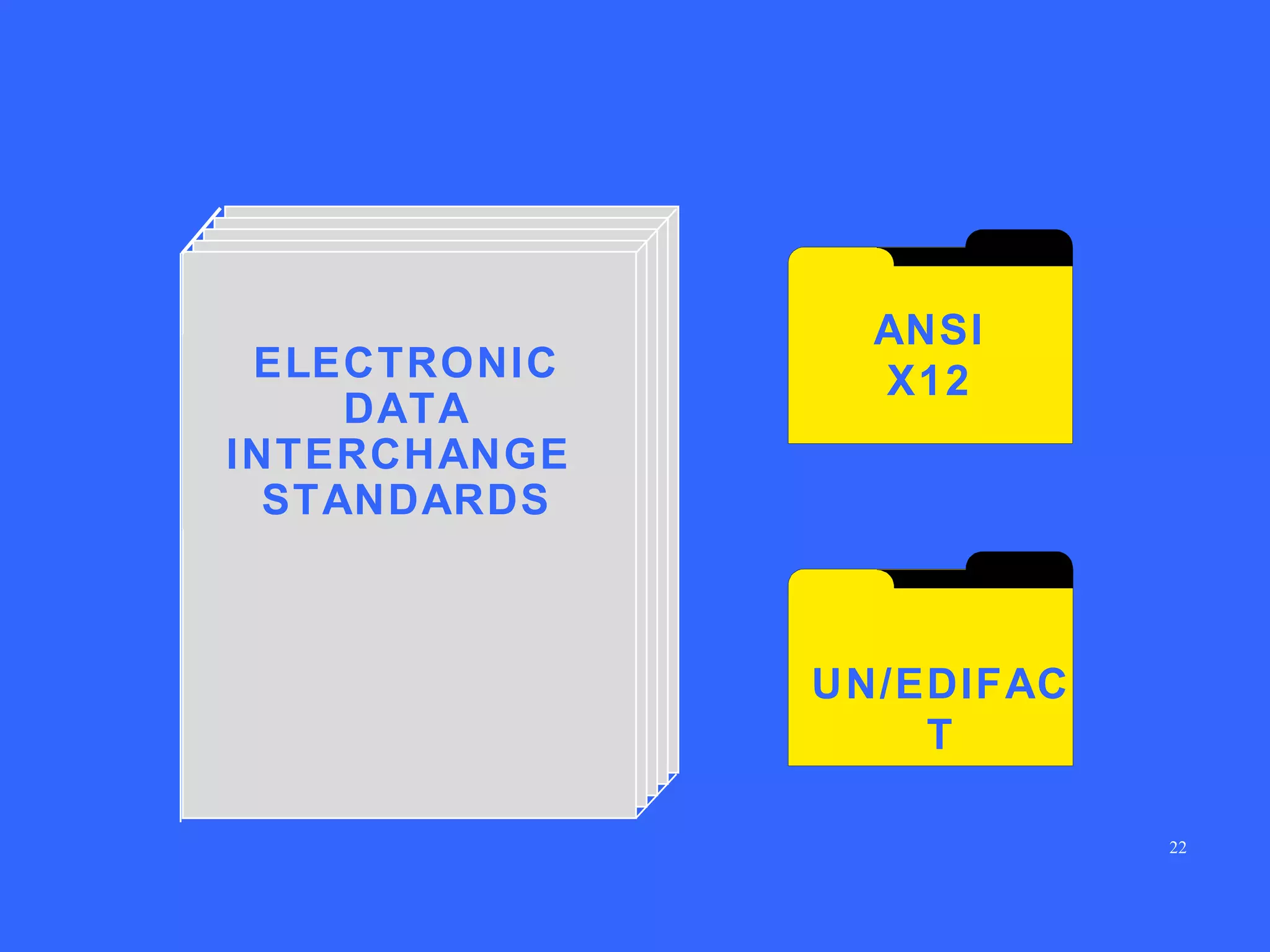

- 22.

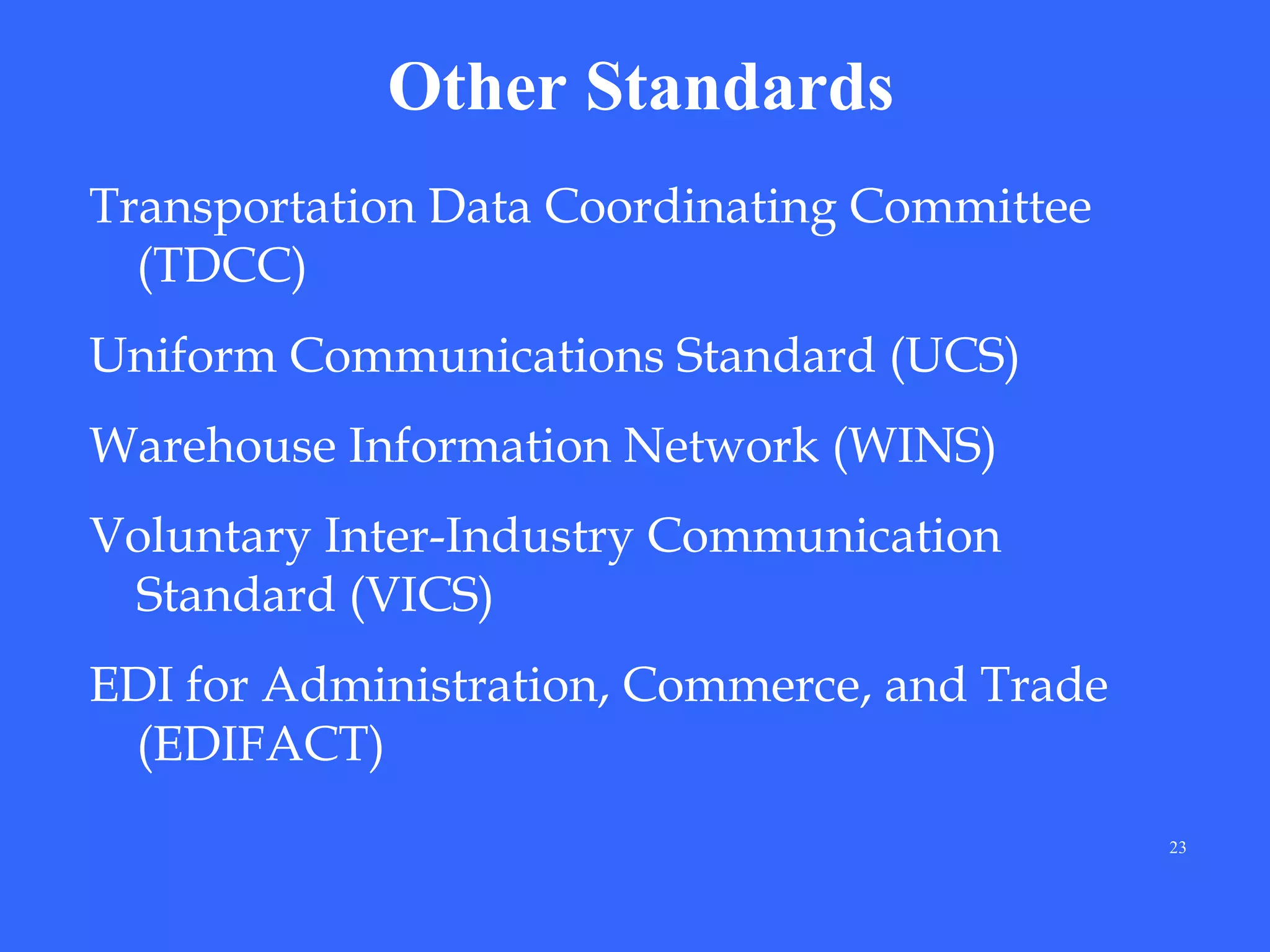

- 23. Other Standards Transportation DataCoordinating Committee (TDCC) Uniform Communications Standard (UCS) Warehouse Information Network (WINS) Voluntary Inter-Industry Communication Standard (VICS) EDI for Administration, Commerce, and Trade (EDIFACT) 23

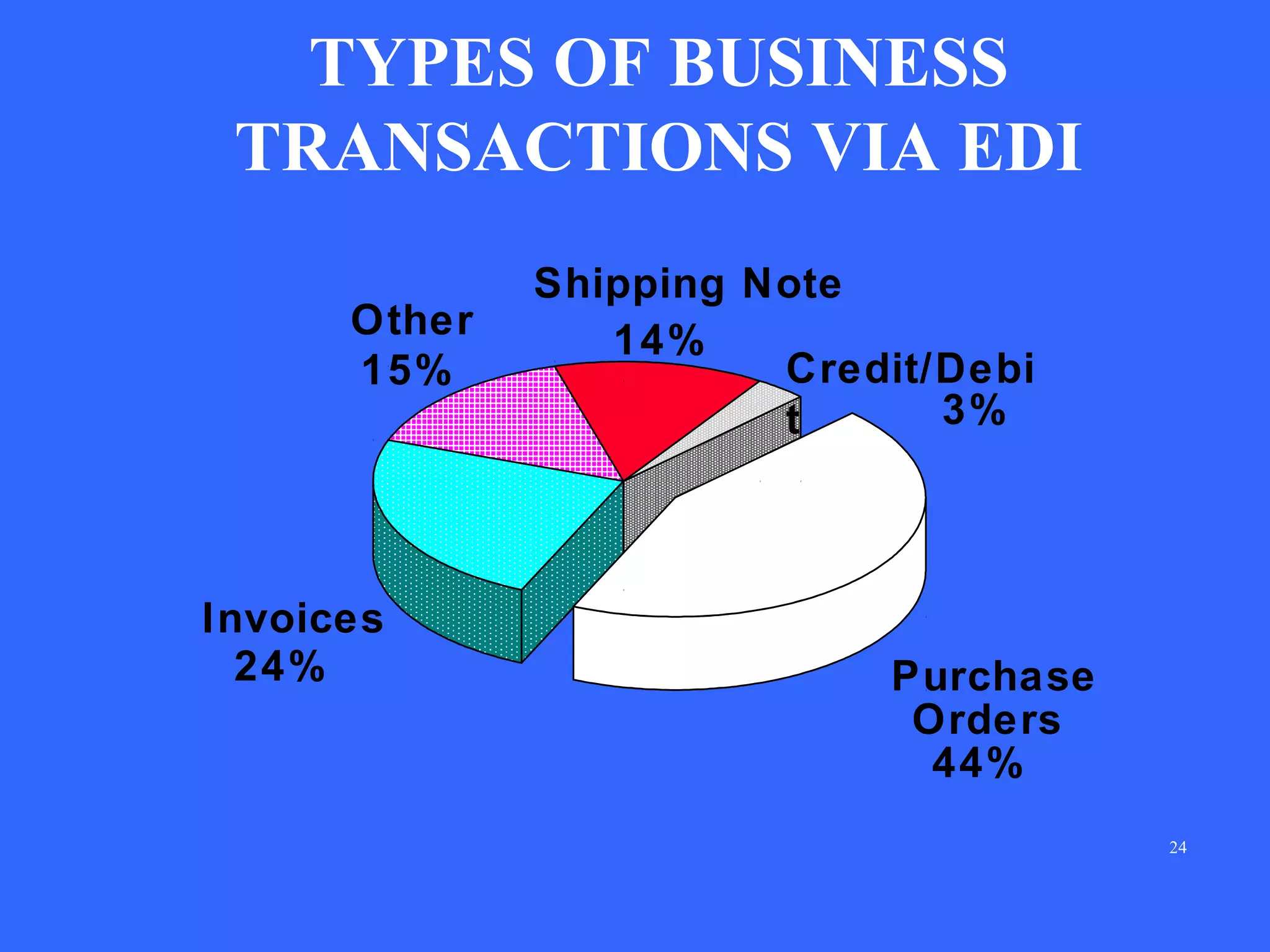

- 24. TYPES OF BUSINESS TRANSACTIONSVIA EDI Other 15% Invoices 24% Shipping Note 14% Credit/Debi 3% t Purchase Orders 44% 24

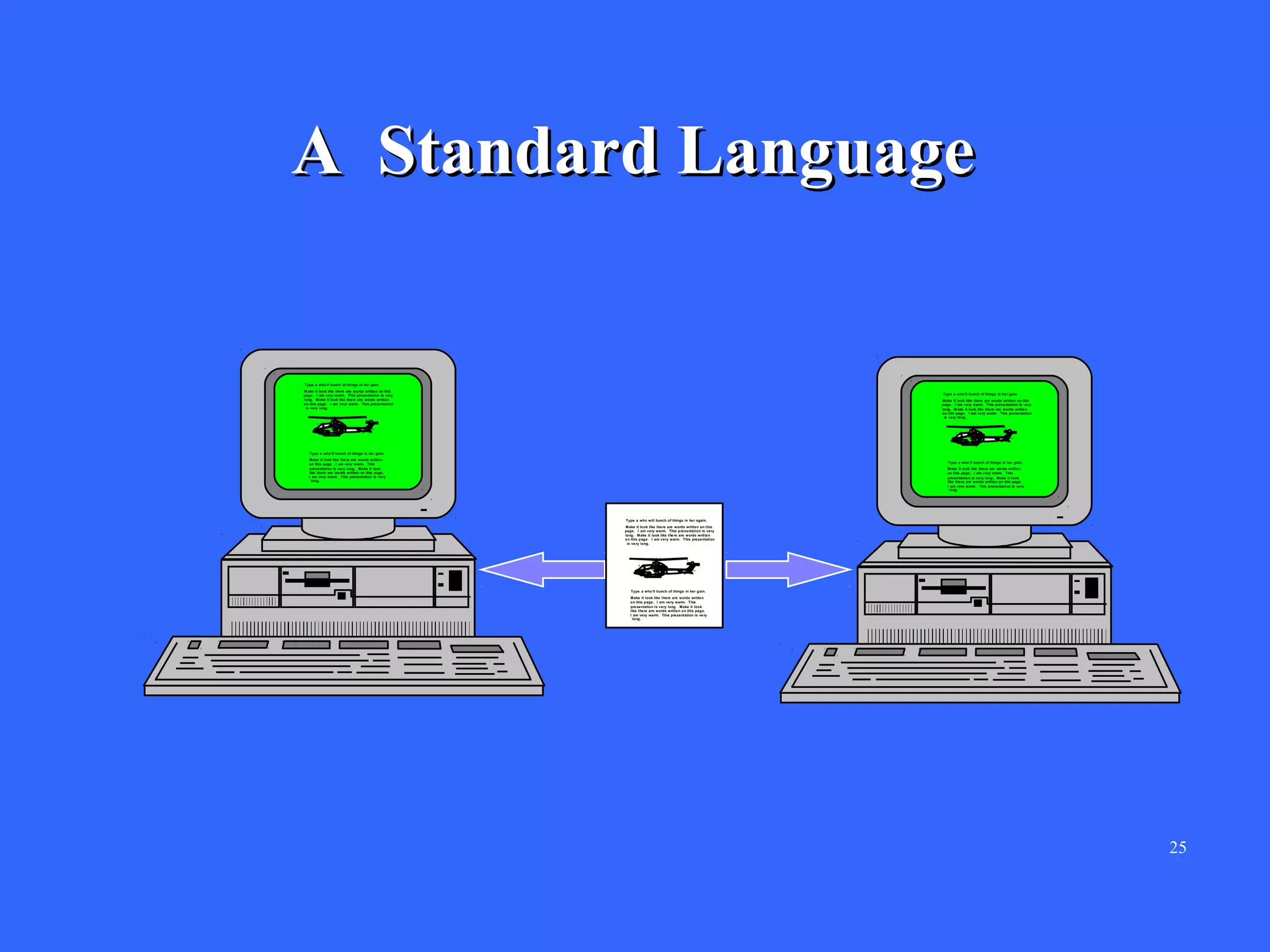

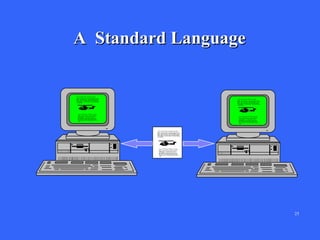

- 25. A Standard Language Typea who'll bunch of things in her gain. M ake it look like there are words writte n on this page. I am very warm. This presentation is very long. M ake it look like there are words written on this page . I am very warm. This presentation is very long. Type a who'll bunch of things in her gain. M ake it look like there are words written on this page. I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This presentation is very long. Type a who'll bunch of things in he r gain. M ake it look like the re are words written on this page . I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This presentation is ve ry long. Type a who' ll bunch of things in her gain. M ake it look like there are words written on this page. I am very warm. This presentation is very long. M ake it look like there are words written on this page. I am very warm. This presentation is very long. Type a who will bunch of things in he r again. M ake it look like the re are words written on this page . I am very warm. This presentation is very long. M ake it look like the re are words written on this page. I am very warm. This presentation is ve ry long. Type a who'll bunch of things in her gain. M ake it look like there are words written on this page. I am very warm. This pre sentation is very long. M ake it look like the re are words written on this page. I am very warm. This presentation is ve ry long. 25

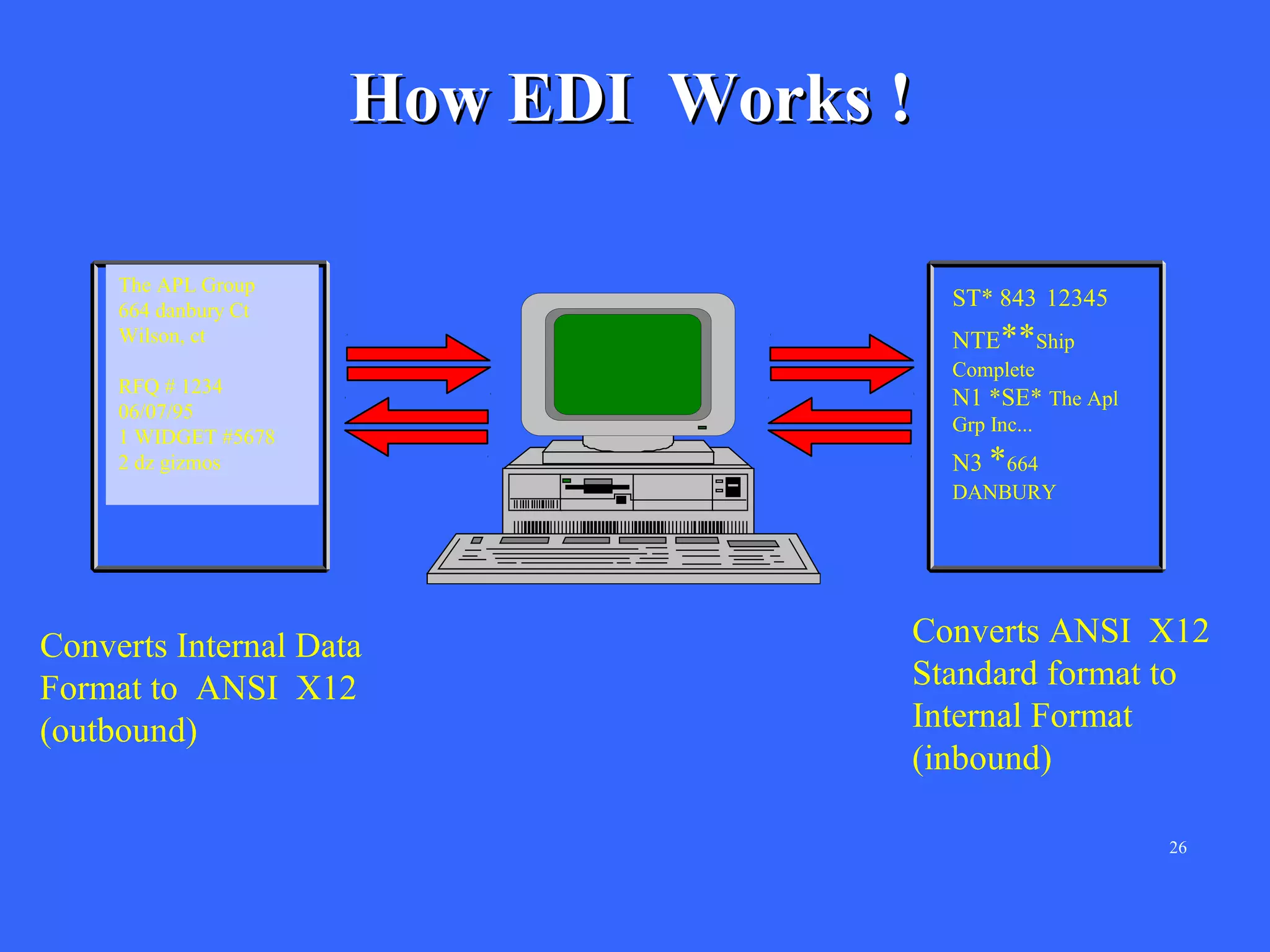

- 26. How EDI Works! The APL Group quote 664 danbury Ct Wilson, ct RFQ # 1234 06/07/95 1 WIDGET #5678 2 dz gizmos ST* 843 12345 NTE**Ship Complete N1 *SE* The Apl Grp Inc... N3 *664 DANBURY Converts Internal Data Format to ANSI X12 (outbound) Converts ANSI X12 Standard format to Internal Format (inbound) 26
- 27.

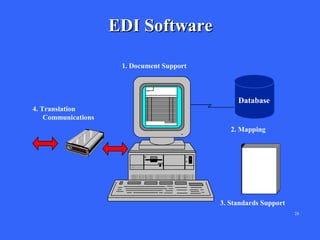

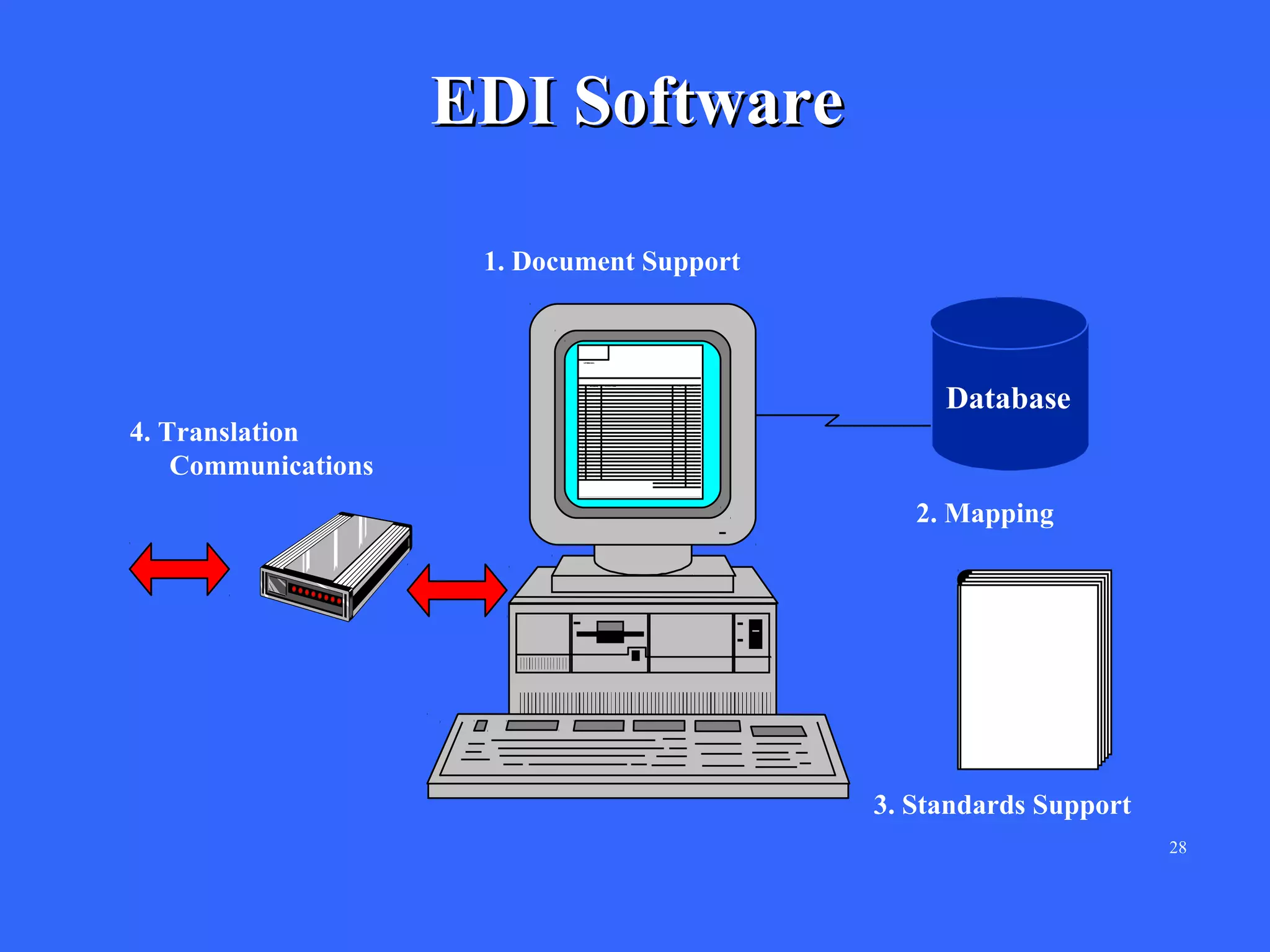

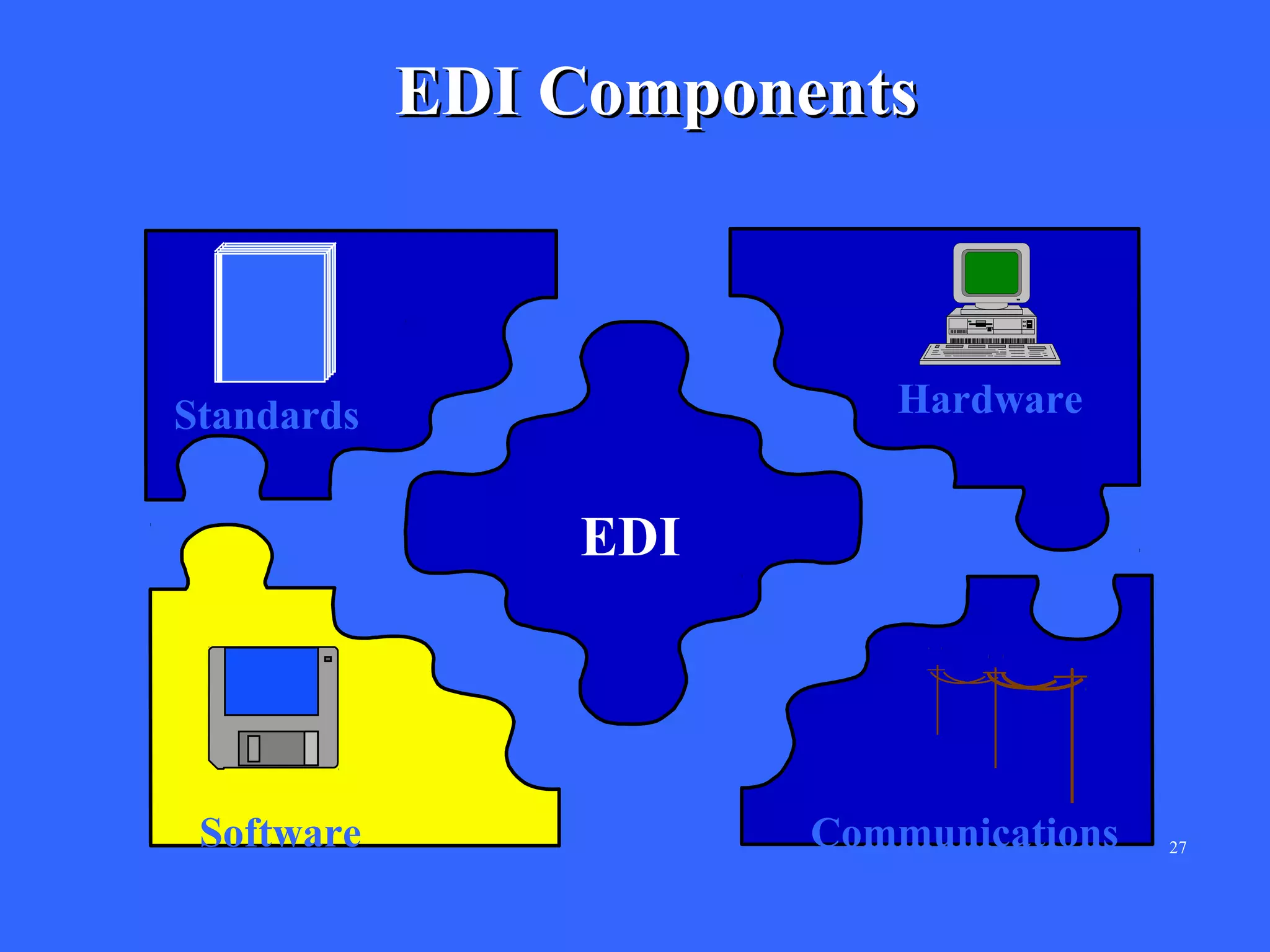

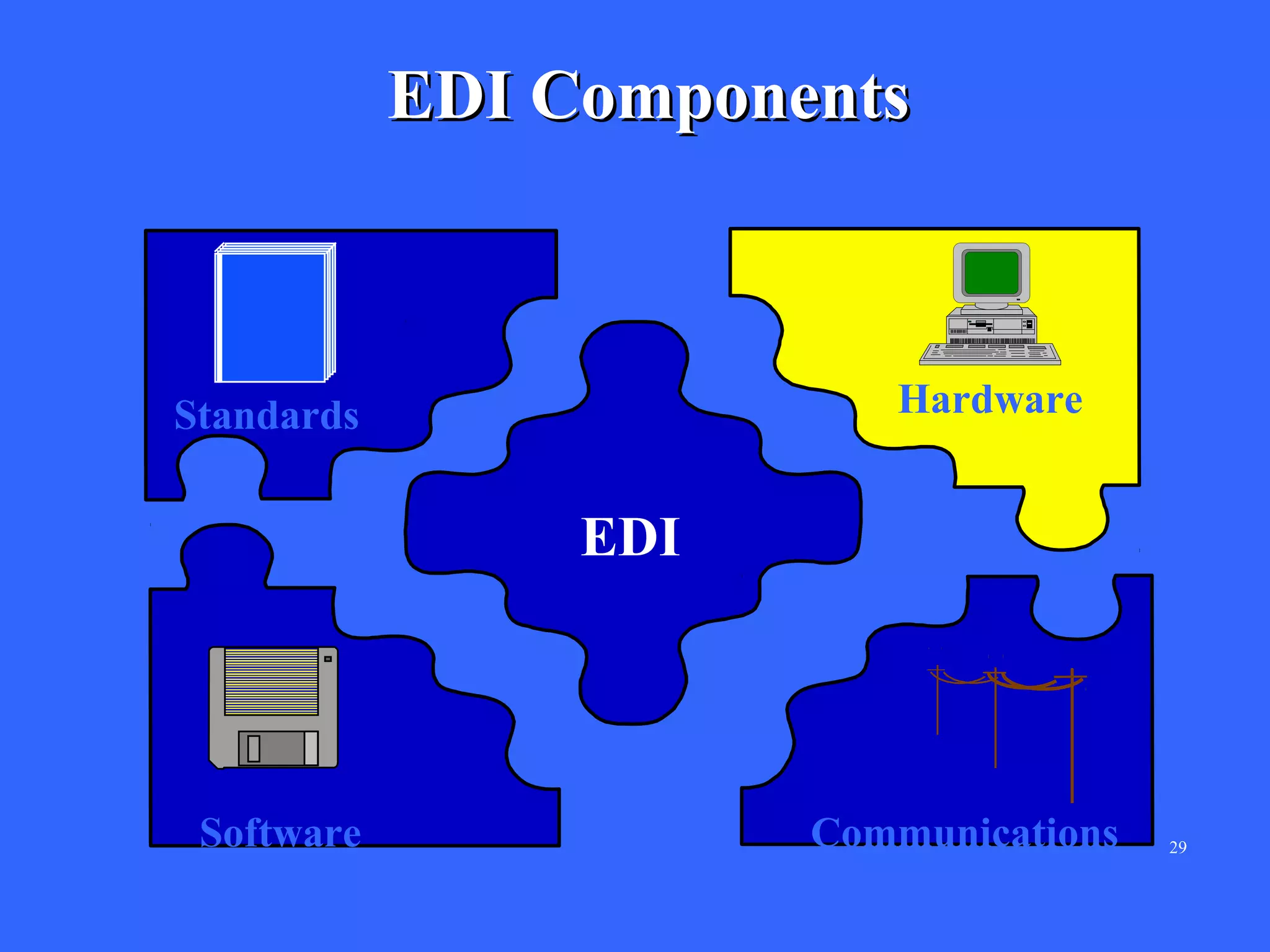

- 28. EDI Software 1. DocumentSupport Database 4. Translation Communications 2. Mapping X12 3. Standards Support 28
- 29.

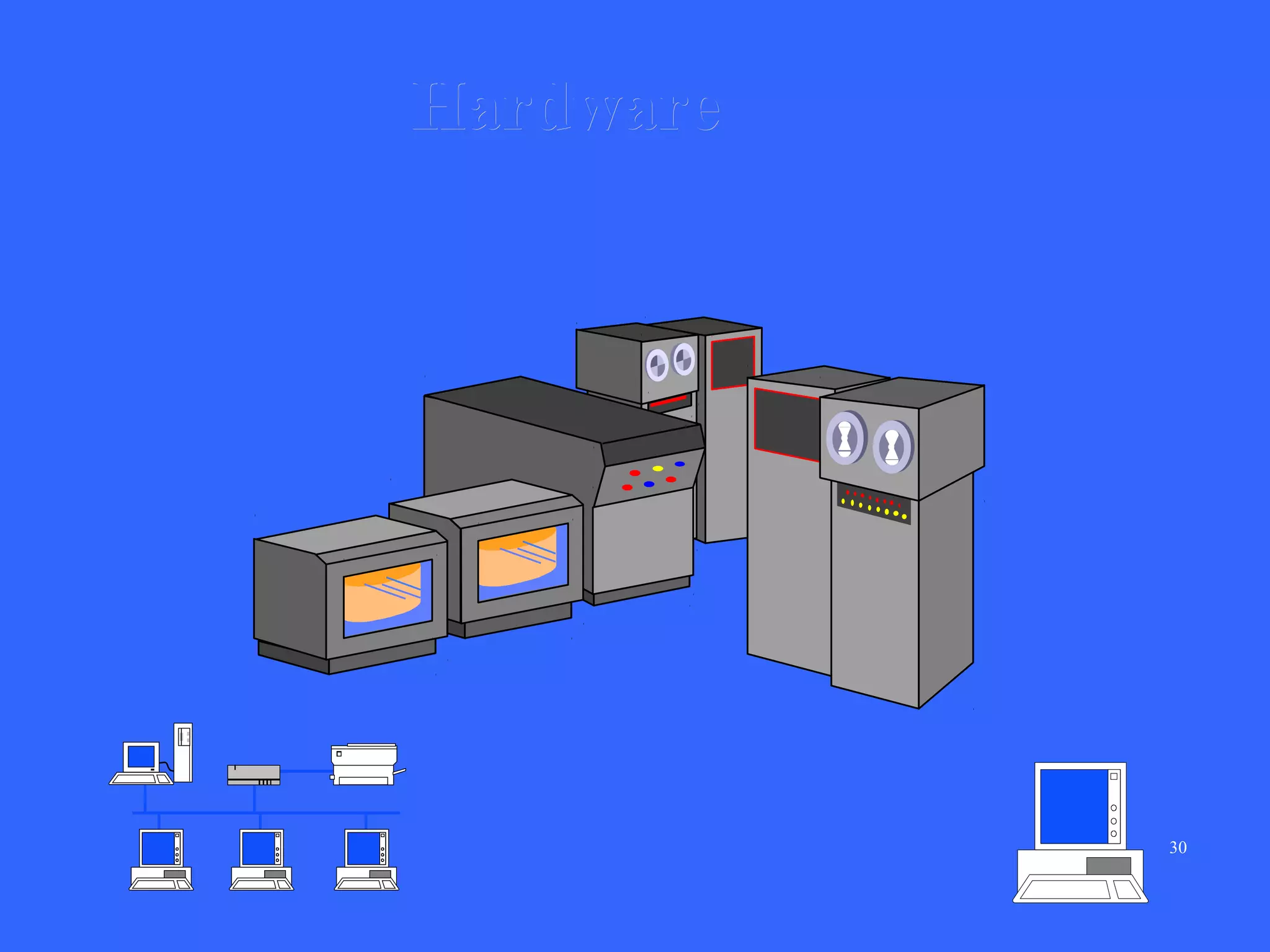

- 30.

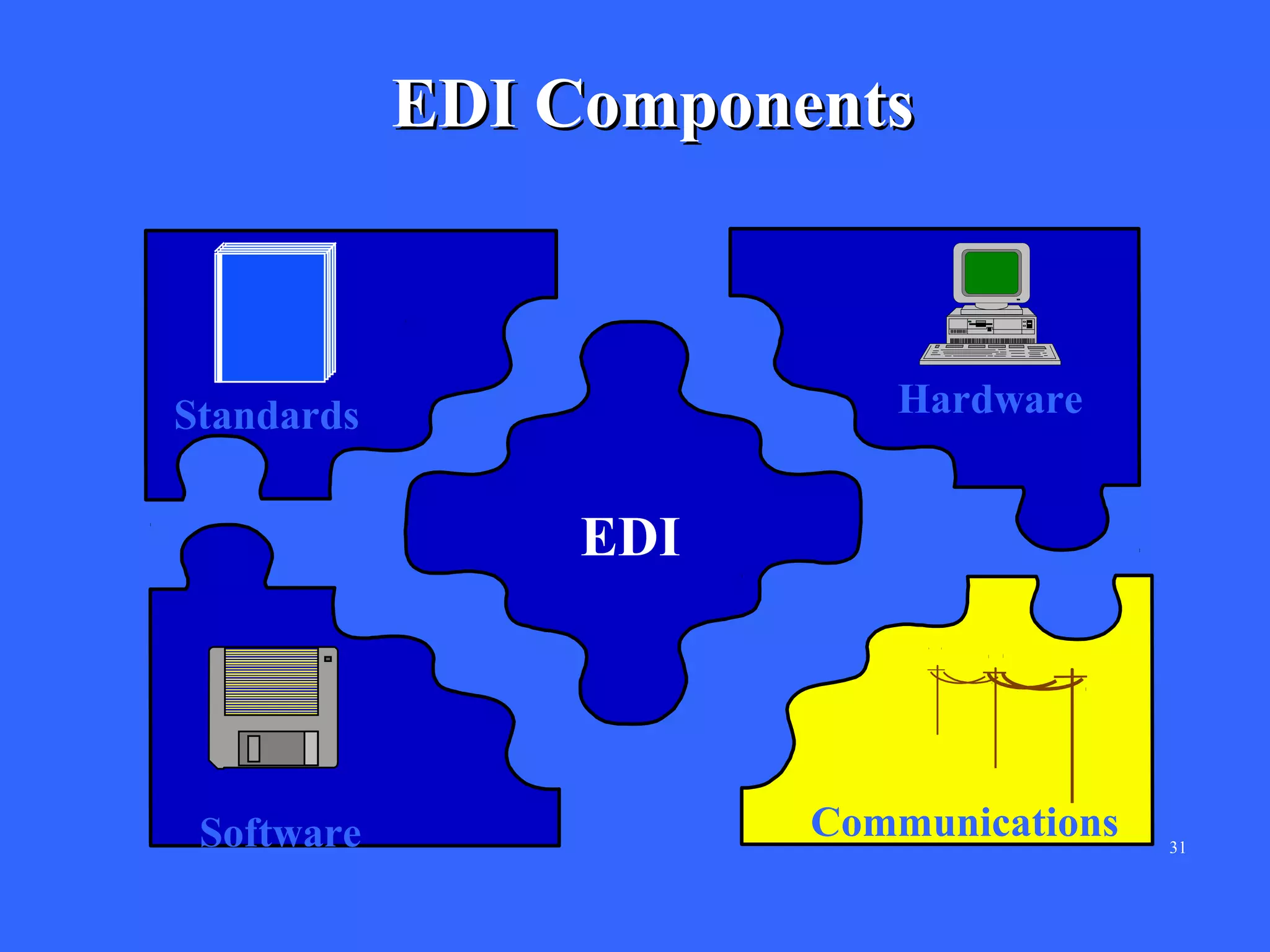

- 31.

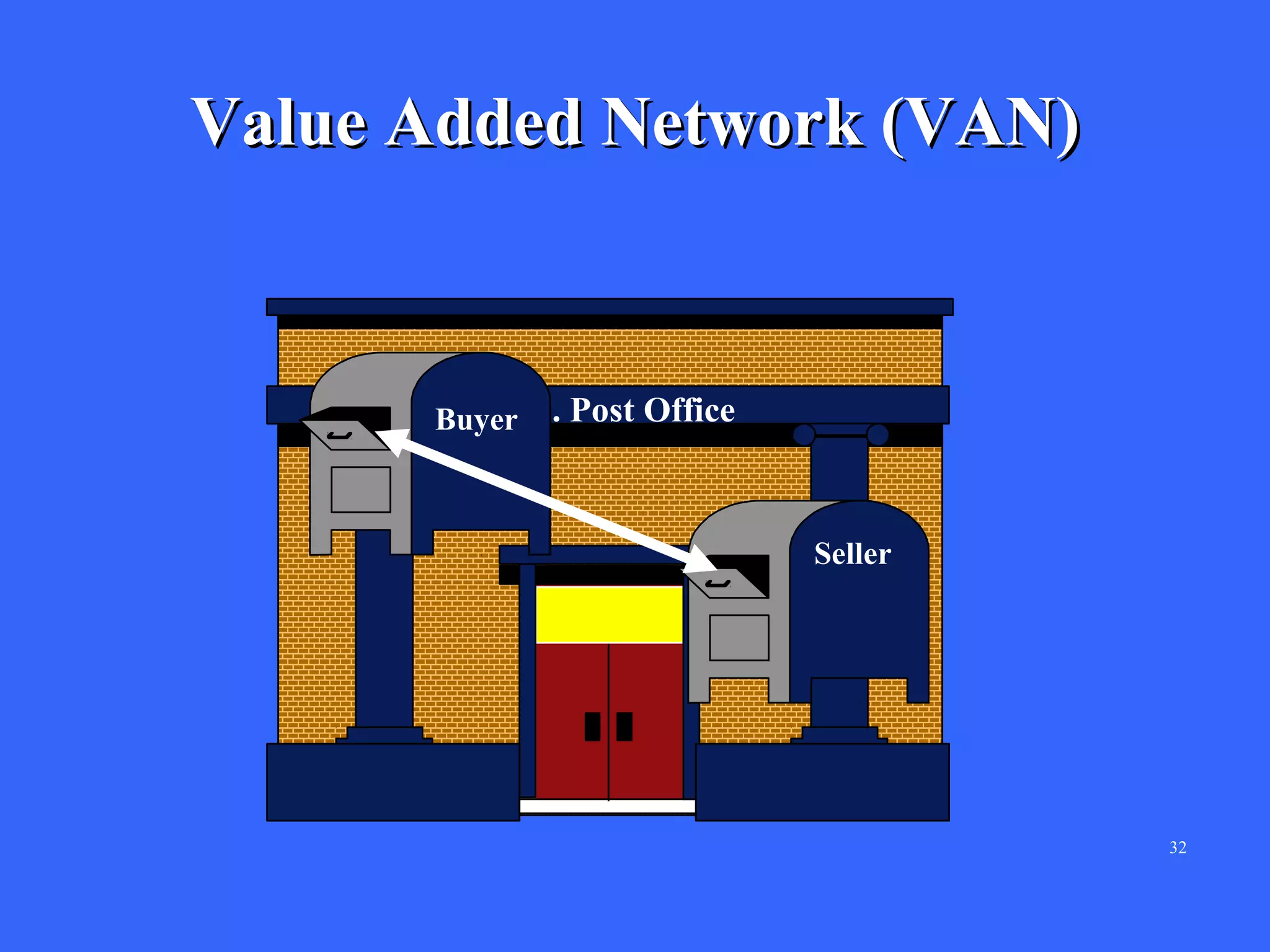

- 32. Value Added Network(VAN) U.S. Post Office Buyer Seller 32

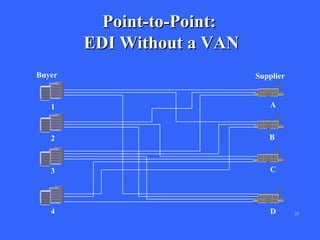

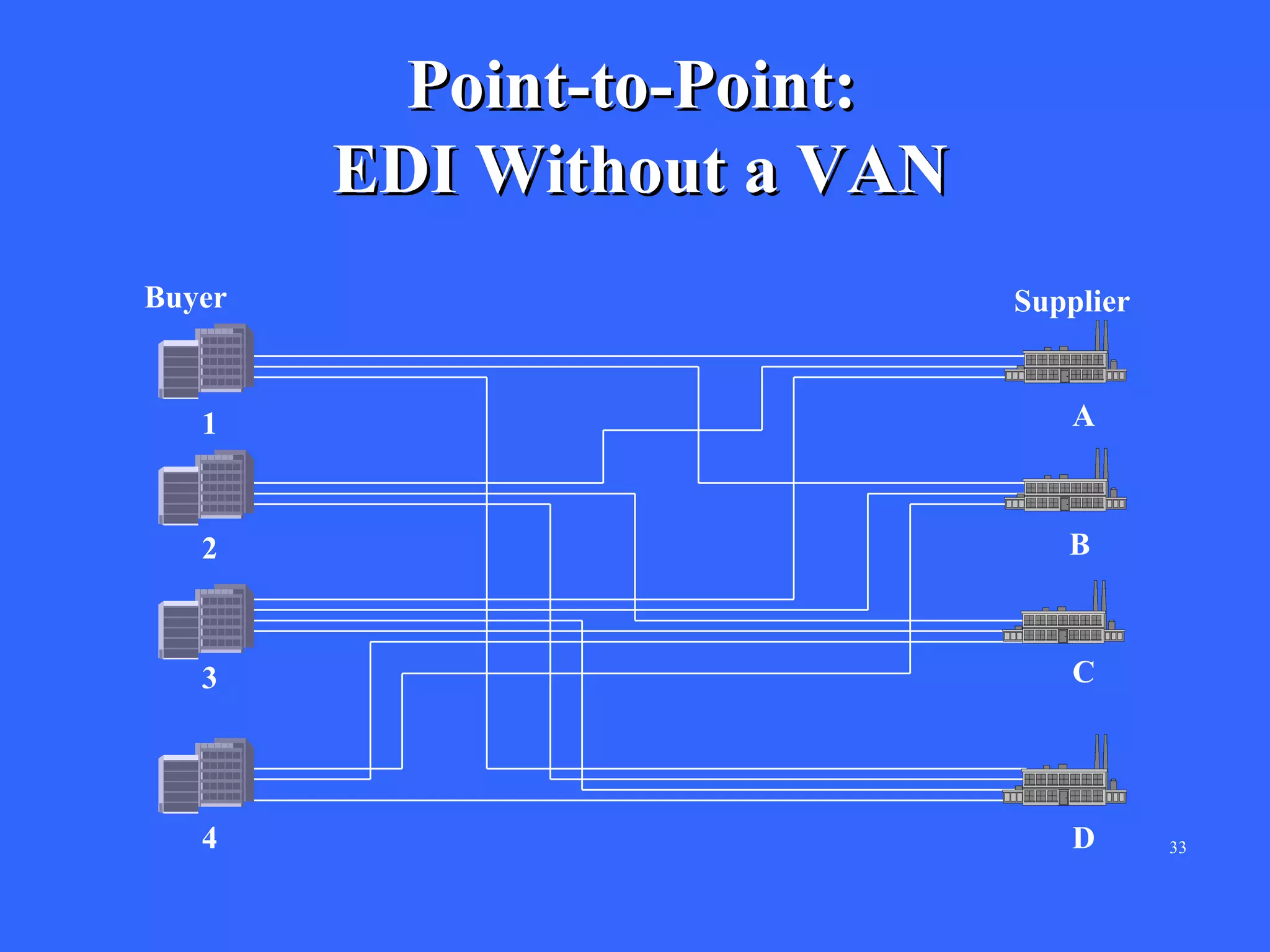

- 33. Point-to-Point: EDI Without aVAN Buyer Supplier 1 A 2 B 3 C 4 D 33

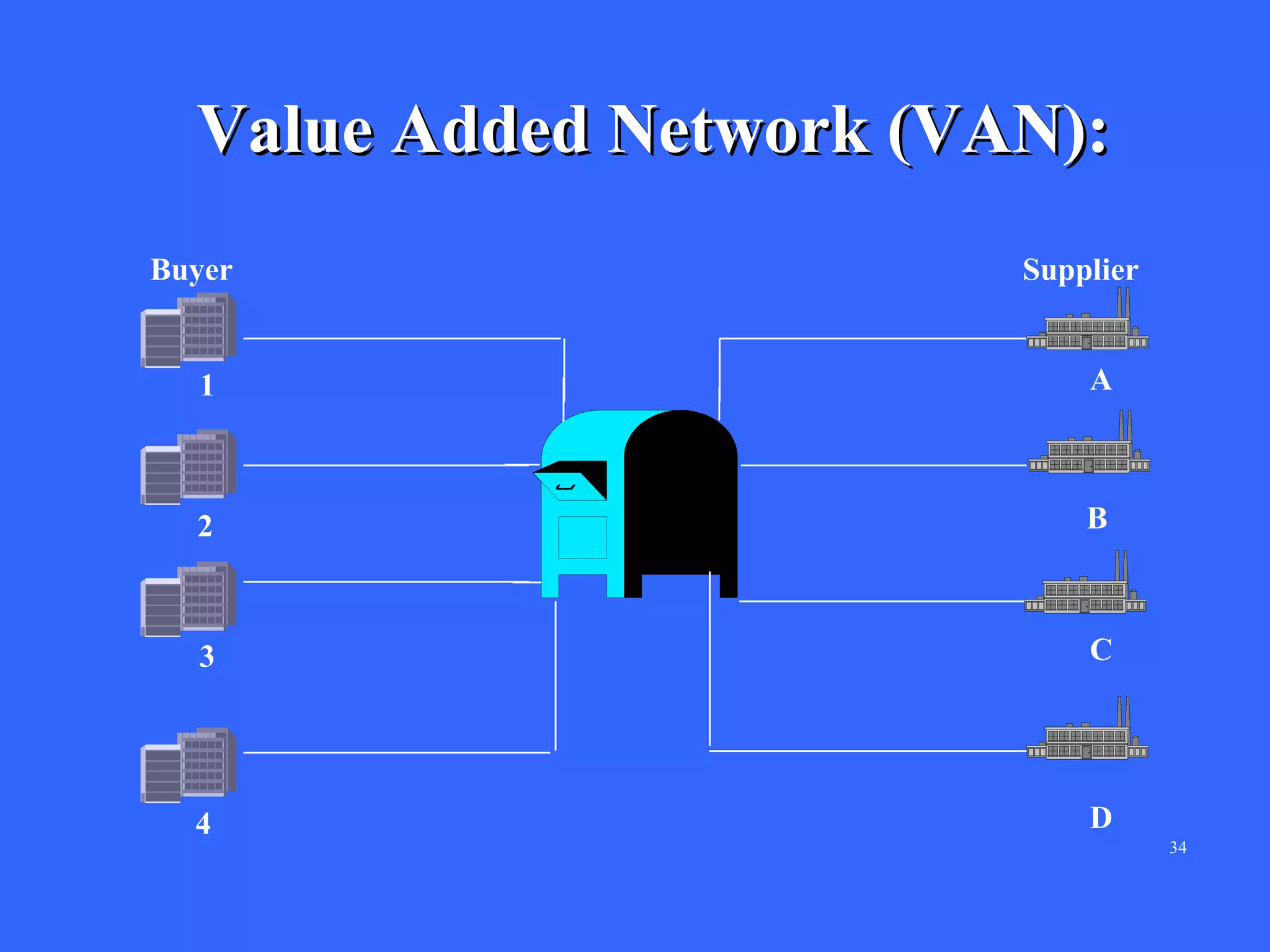

- 34. Value Added Network(VAN): Buyer Supplier 1 A 2 B 3 C 4 D 34

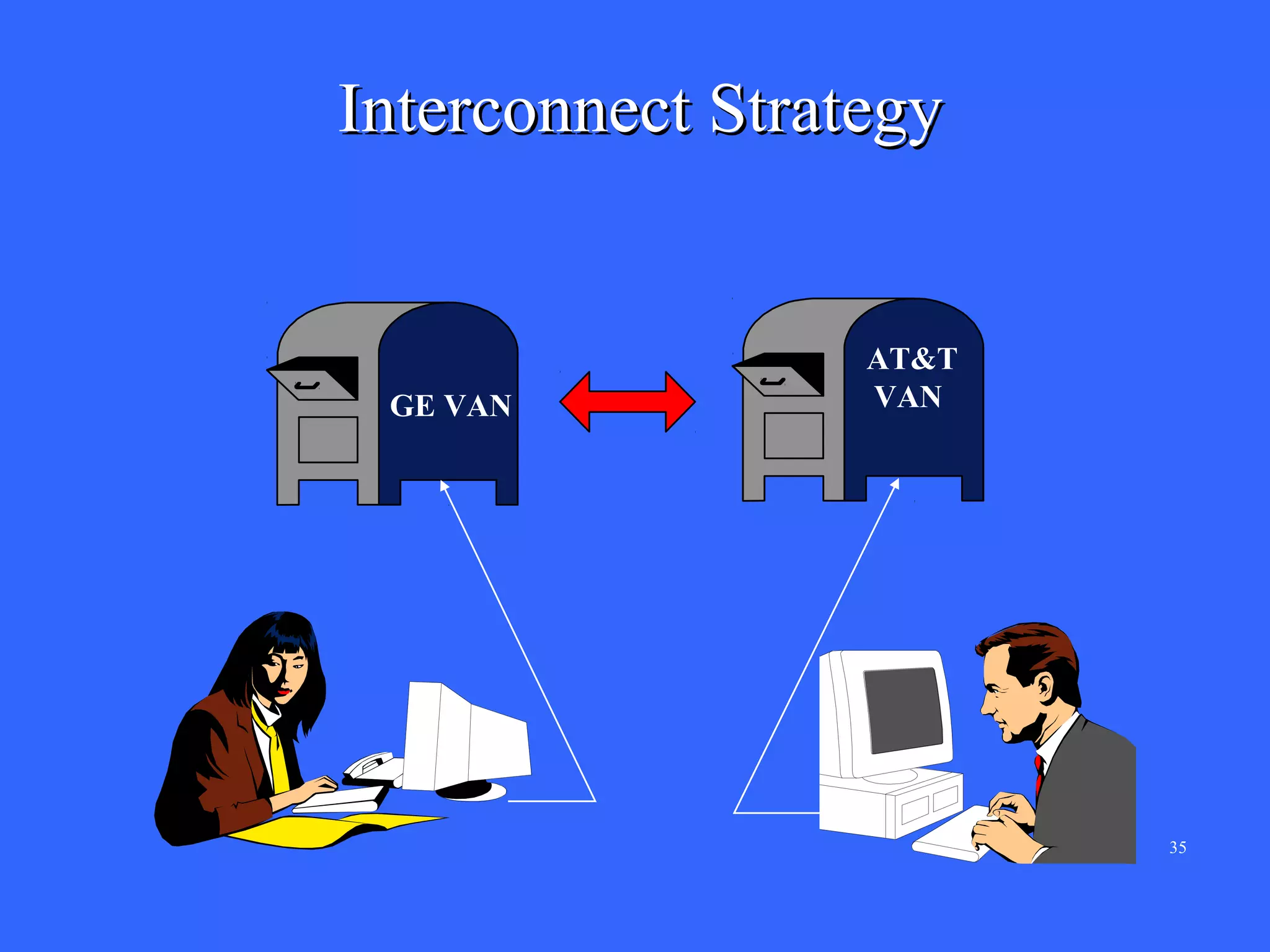

- 35.

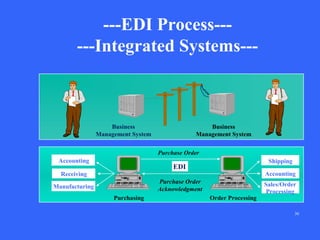

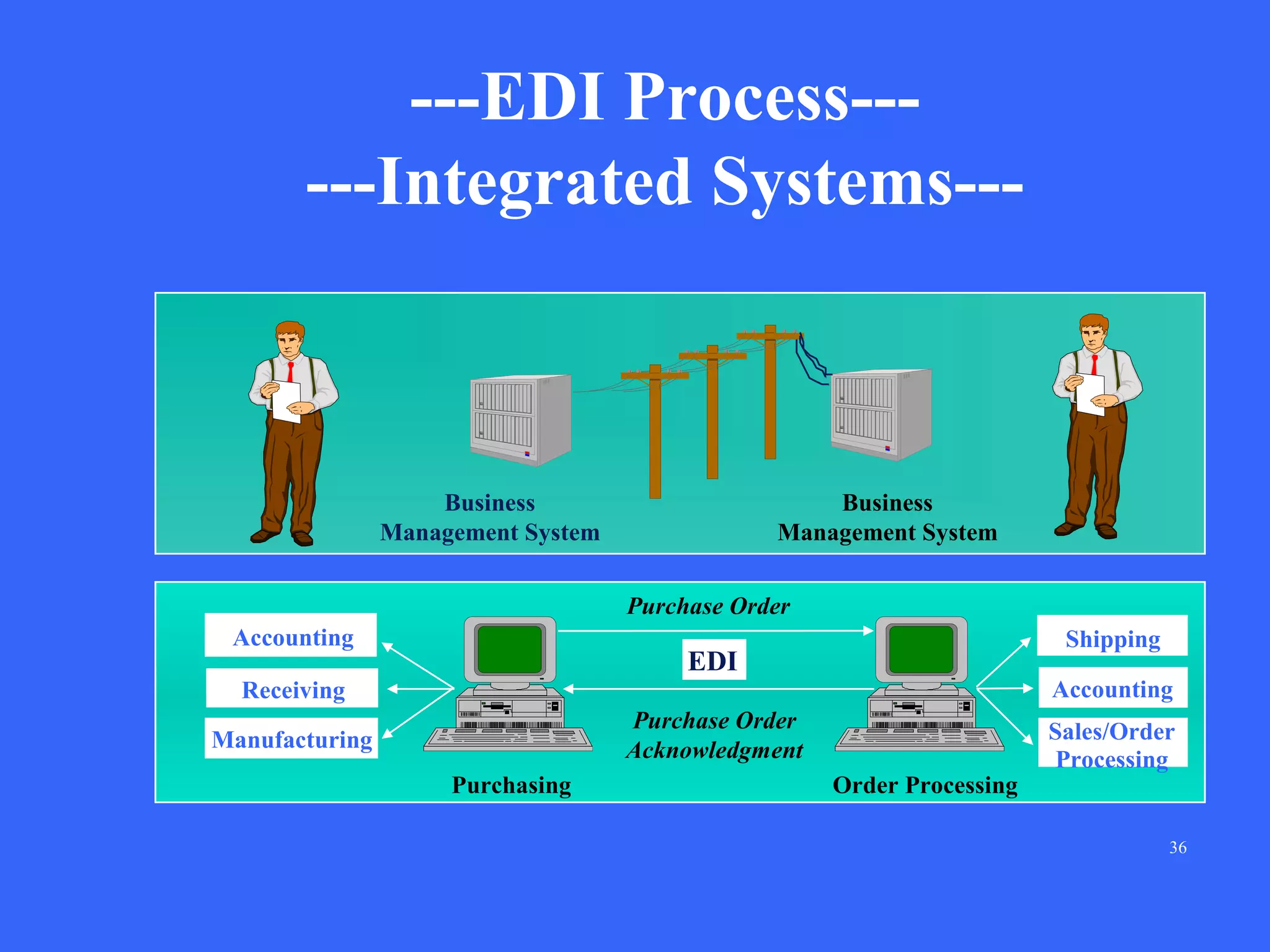

- 36. ---EDI Process-----Integrated Systems--- Business ManagementSystem Business Management System Purchase Order Accounting Shipping EDI Receiving Accounting Purchase Order Acknowledgment Manufacturing Purchasing Order Processing Sales/Order Processing 36

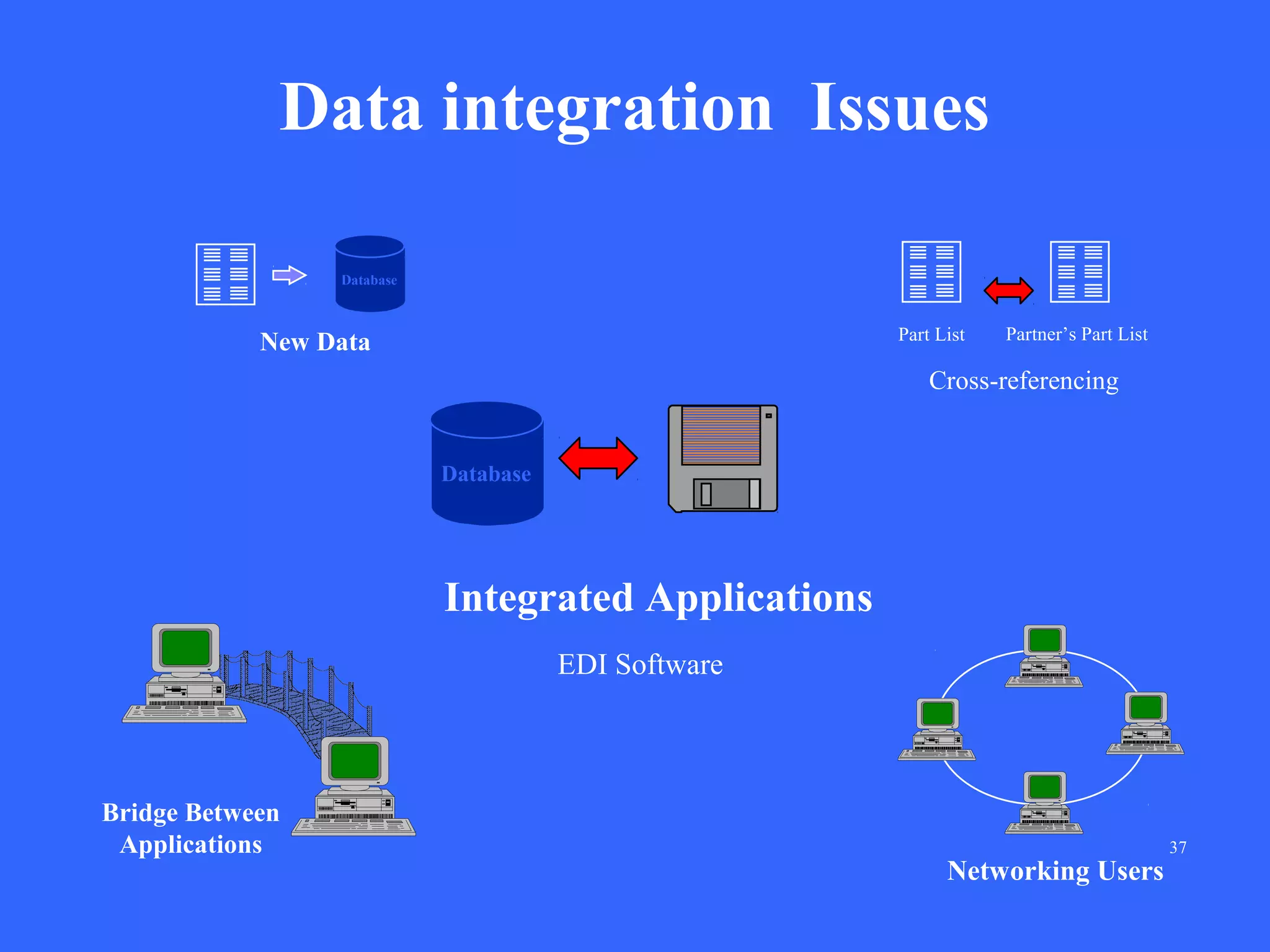

- 37. Data integration Issues Database PartList New Data Partner’s Part List Cross-referencing Database Integrated Applications EDI Software Bridge Between Applications Networking Users 37

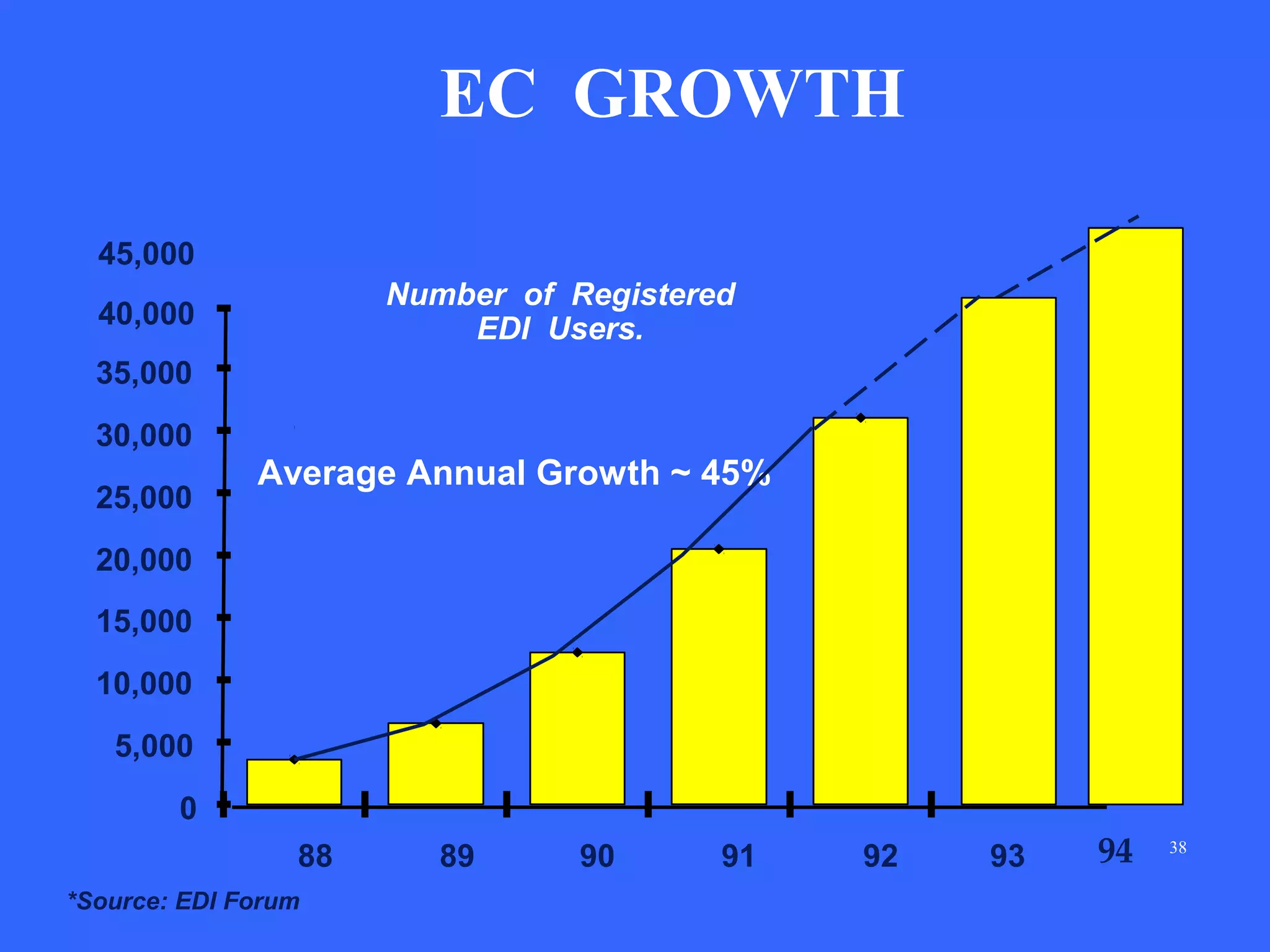

- 38. EC GROWTH 45,000 Number ofRegistered EDI Users. 40,000 . 35,000 30,000 25,000 Average Annual Growth ~ 45% 20,000 15,000 10,000 5,000 0 88 *Source: EDI Forum 89 90 91 92 93 94 38

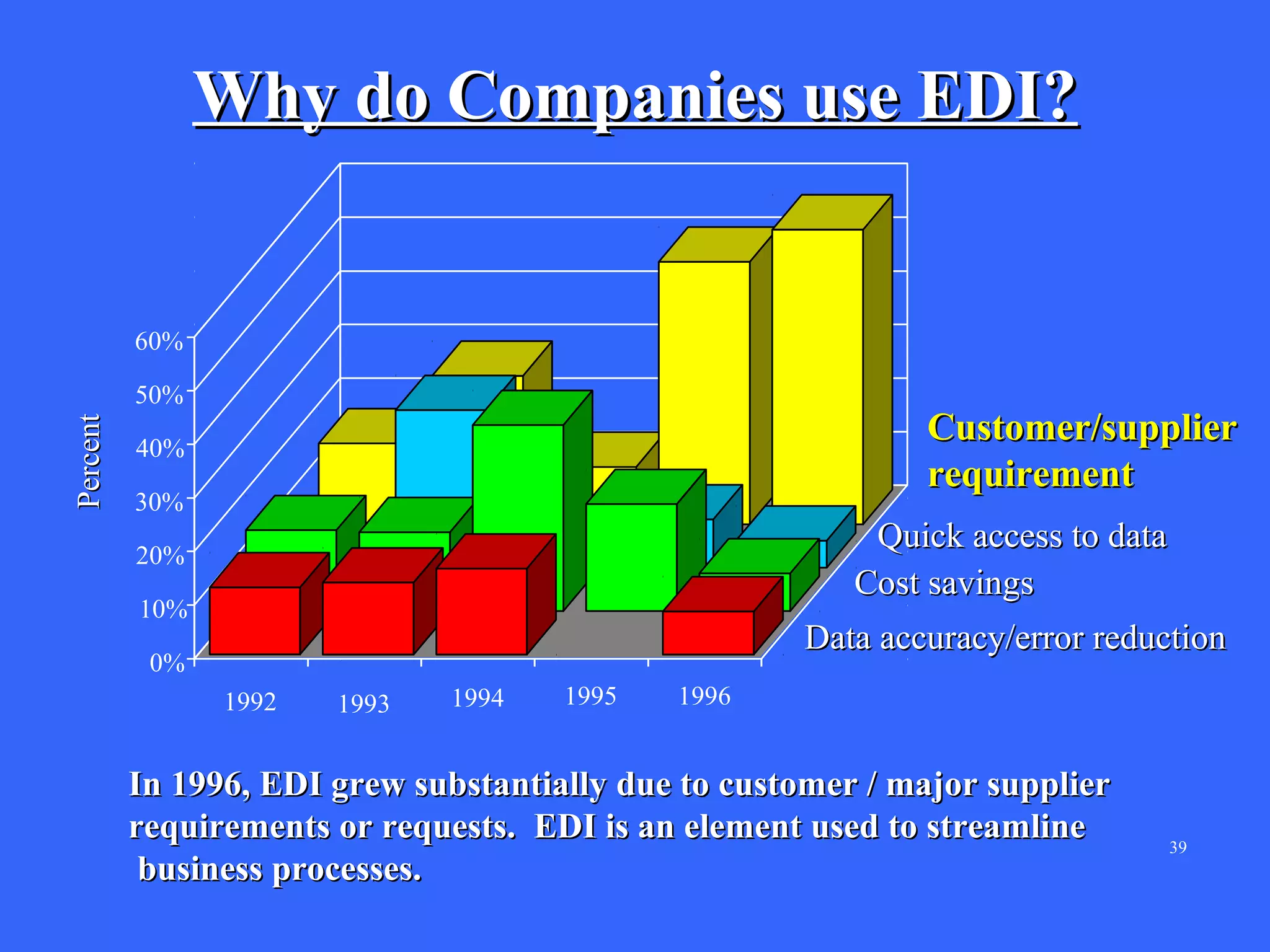

- 39. Why do Companiesuse EDI? 60% Percent 50% Customer/supplier requirement 40% 30% Quick access to data Cost savings 20% 10% Data accuracy/error reduction 0% 1992 1993 1994 1995 1996 In 1996, EDI grew substantially due to customer / major supplier requirements or requests. EDI is an element used to streamline business processes. 39

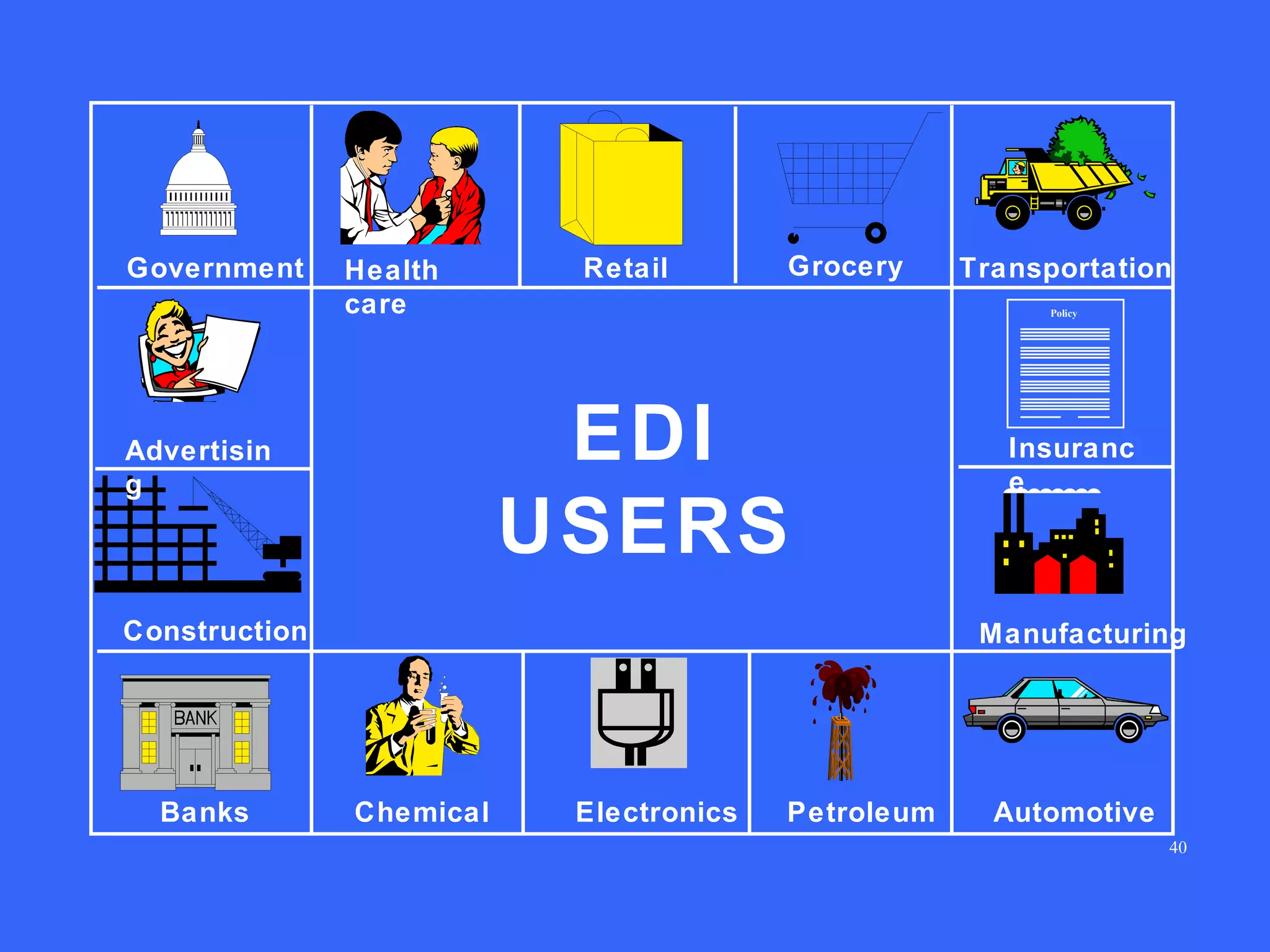

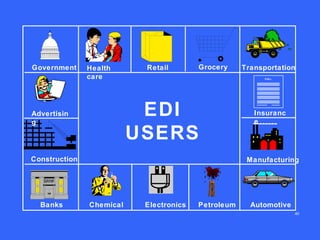

- 40.
- 41.

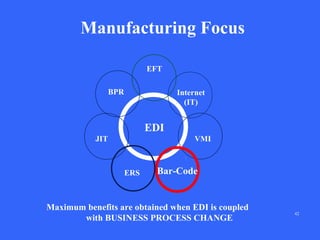

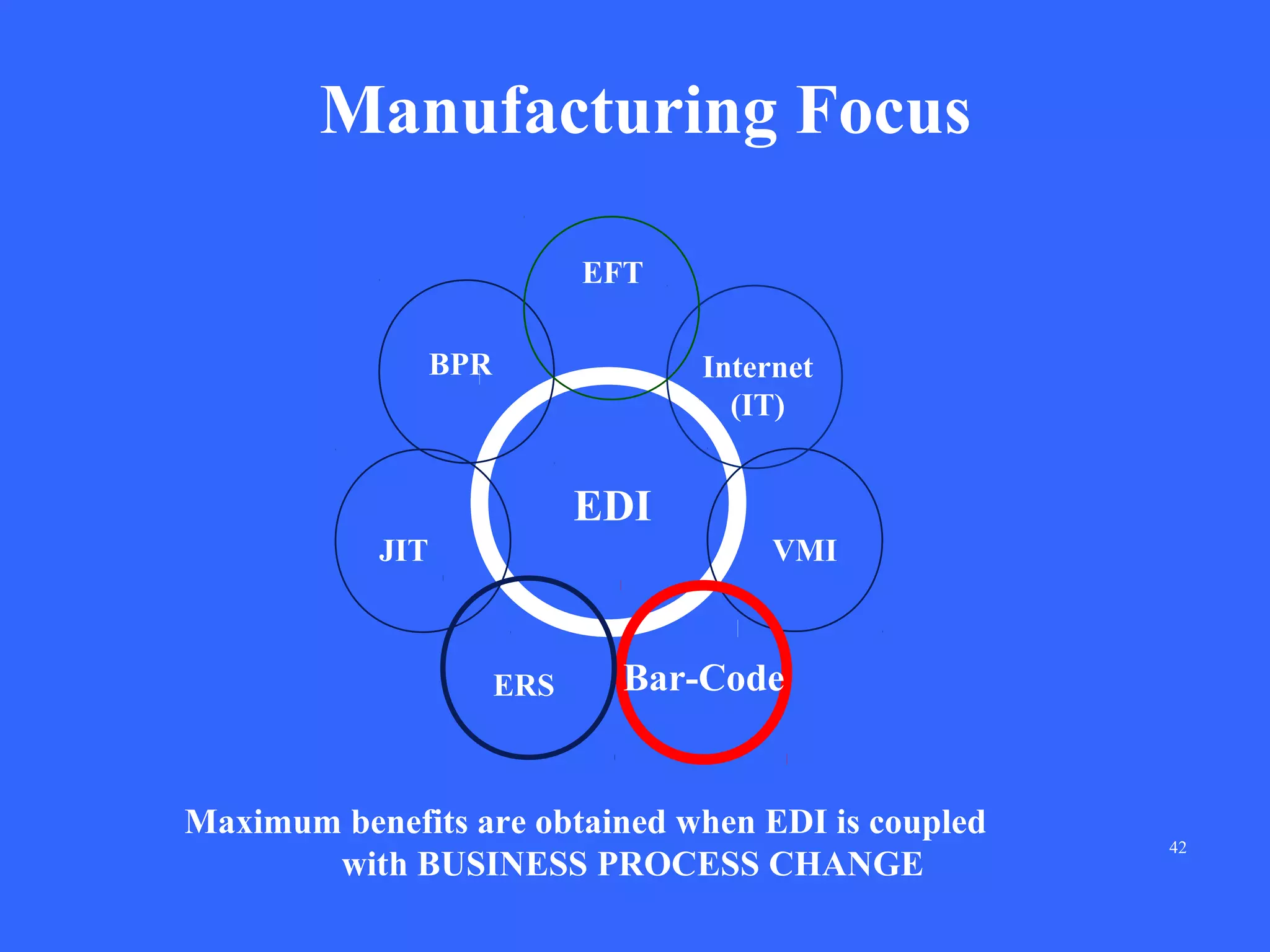

- 42. Manufacturing Focus EFT BPR Internet (IT) EDI JIT VMI ERS Bar-Code Maximum benefitsare obtained when EDI is coupled with BUSINESS PROCESS CHANGE 42

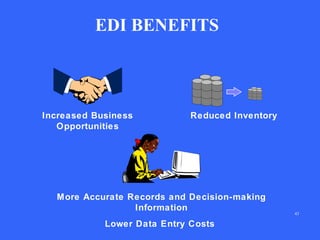

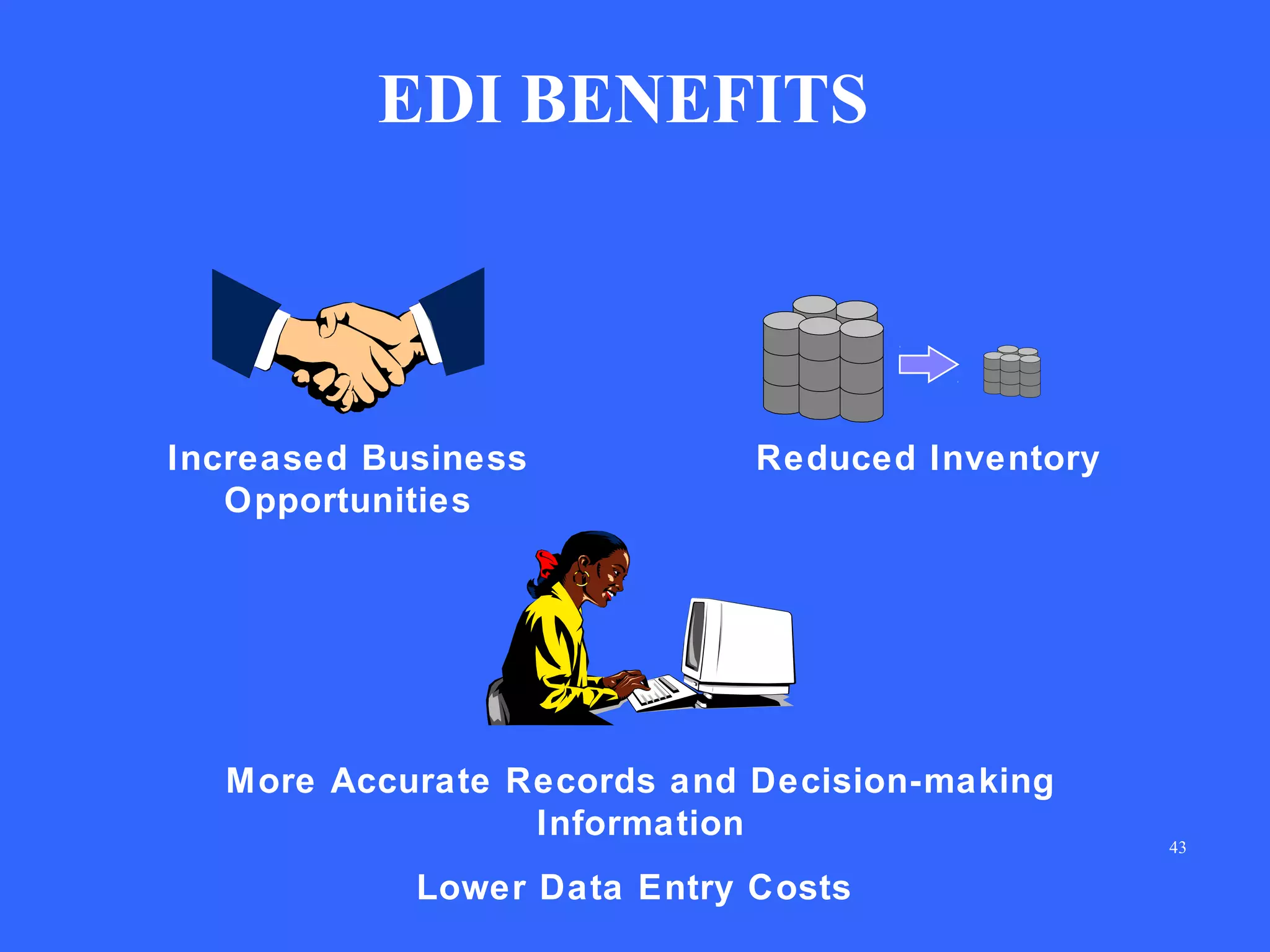

- 43. EDI BENEFITS Increased Business Opportunities ReducedInventory More Accurate Records and Decision-making Information Lower Data Entry Costs 43
- 44. EDI BENEFITS Decreased Mailing Costs ReductionIn Order Time Greater Customer Satisfaction Better Cash Management 44

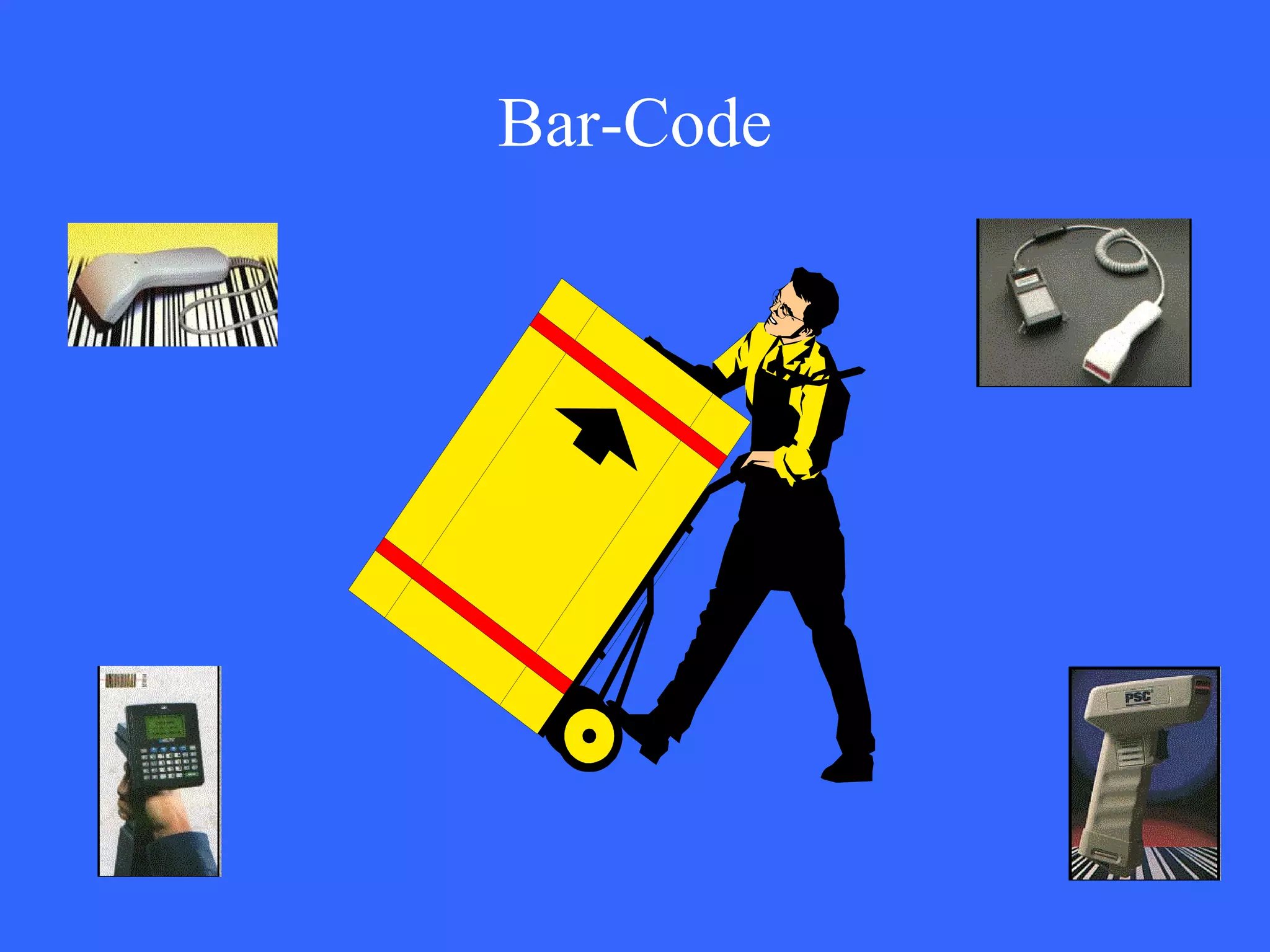

- 45.

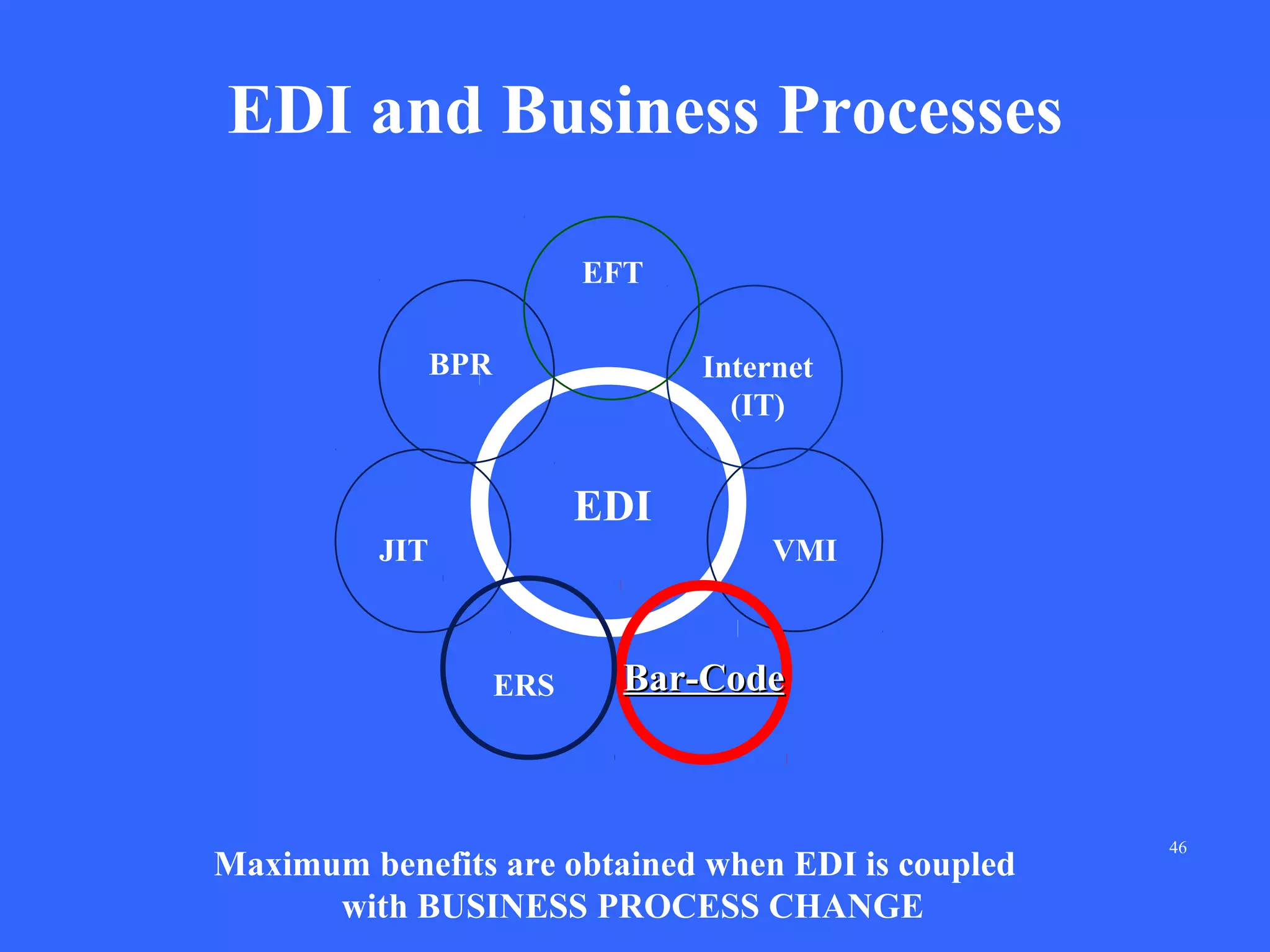

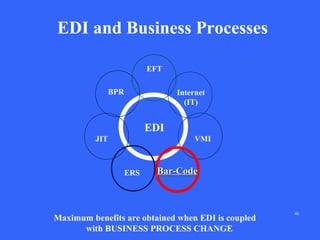

- 46. EDI and BusinessProcesses EFT BPR Internet (IT) EDI JIT VMI ERS Bar-Code Maximum benefits are obtained when EDI is coupled with BUSINESS PROCESS CHANGE 46
- 47.
- 48.

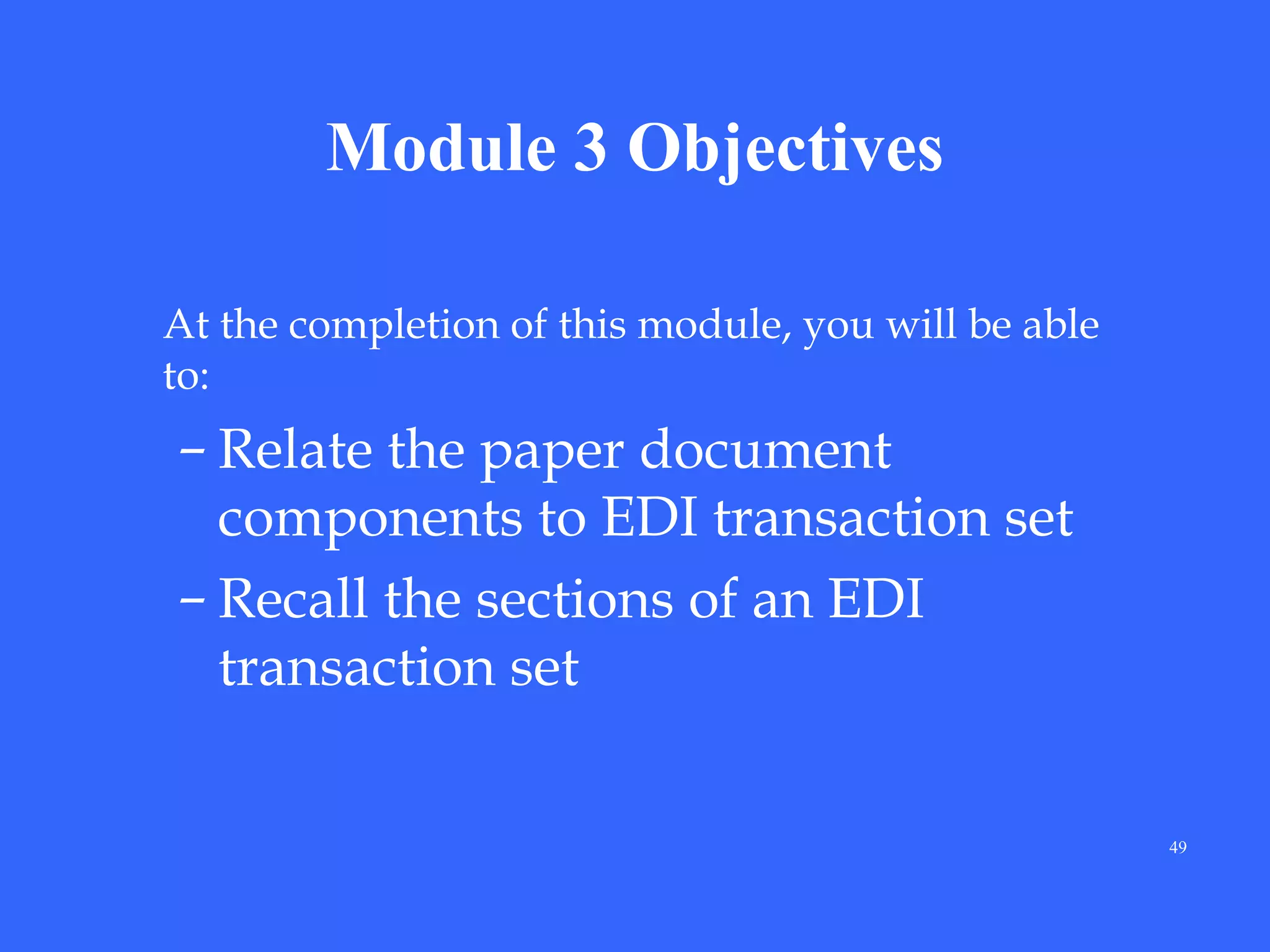

- 49. Module 3 Objectives Atthe completion of this module, you will be able to: – Relate the paper document components to EDI transaction set – Recall the sections of an EDI transaction set 49

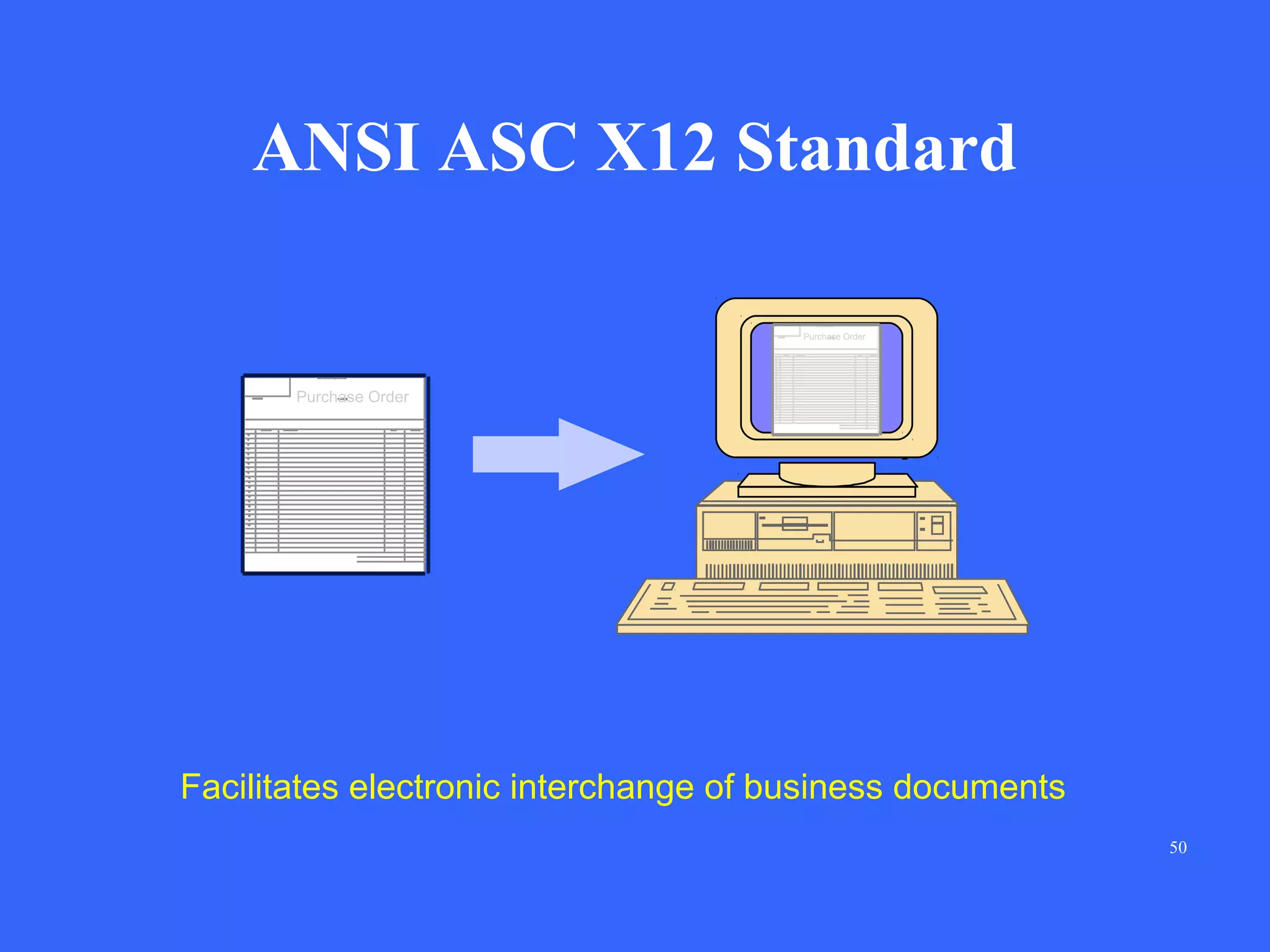

- 50. ANSI ASC X12Standard Purchase Order Purchase Order Facilitates electronic interchange of business documents 50

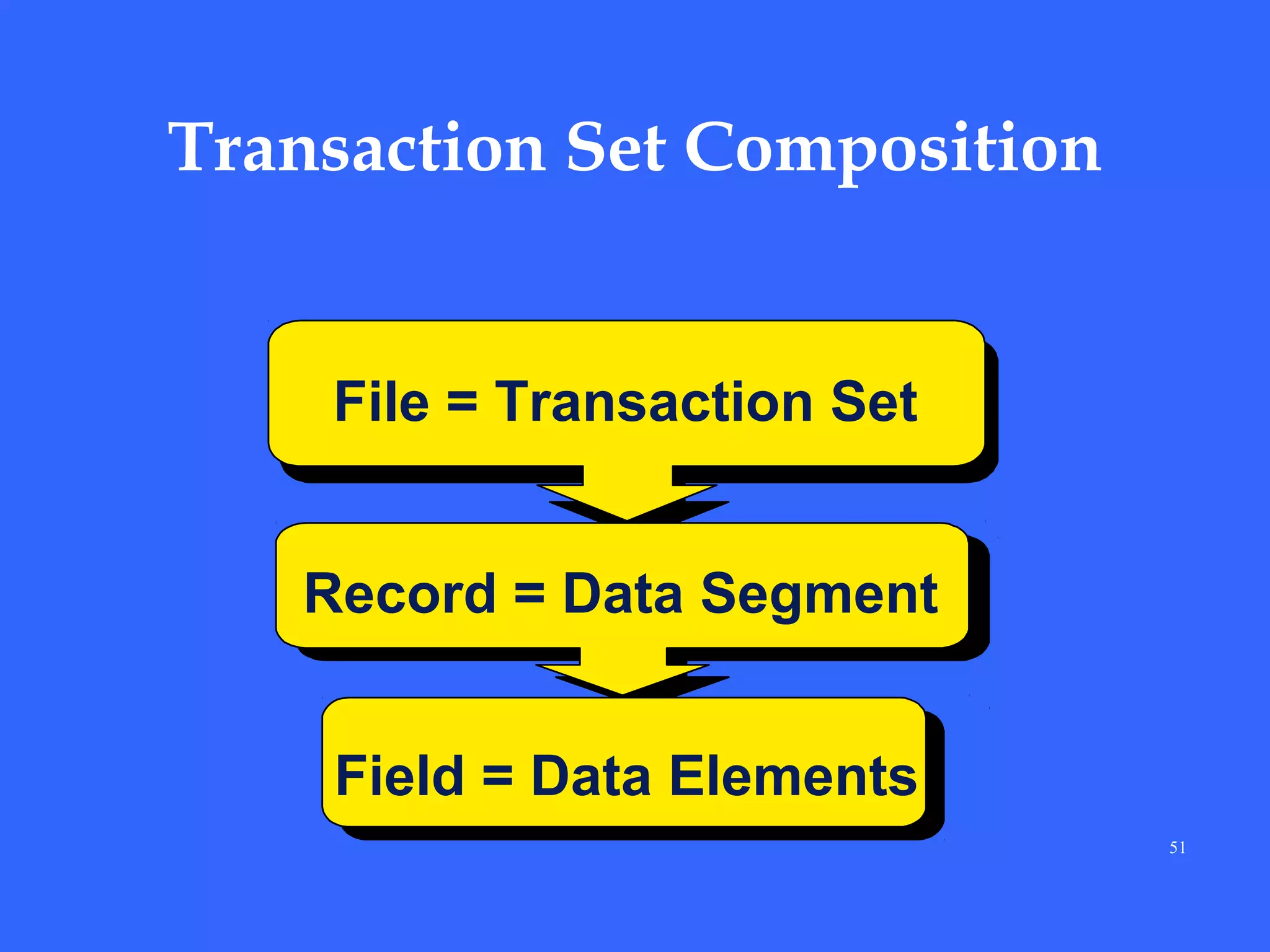

- 51. Transaction Set Composition File= Transaction Set Record = Data Segment Field = Data Elements 51

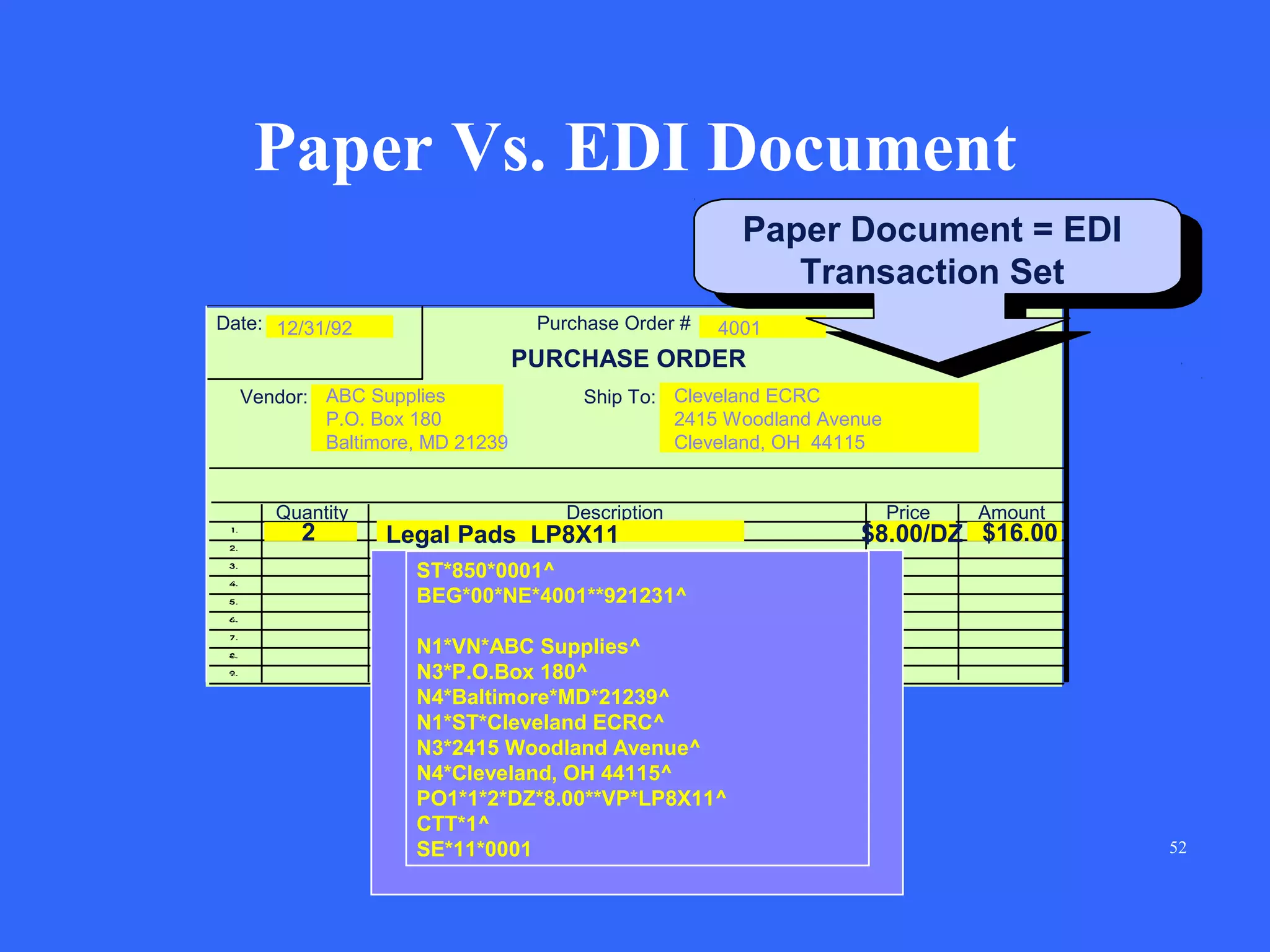

- 52. Paper Vs. EDIDocument Paper Document = EDI Transaction Set Date: 12/31/92 Purchase Order # 4001 PURCHASE ORDER Vendor: ABC Supplies P.O. Box 180 Baltimore, MD 21239 Quantity 2 Ship To: Cleveland ECRC 2415 Woodland Avenue Cleveland, OH 44115 Description Legal Pads LP8X11 Price Amount $8.00/DZ $16.00 ST*850*0001^ BEG*00*NE*4001**921231^ N1*VN*ABC Supplies^ N3*P.O.Box 180^ N4*Baltimore*MD*21239^ N1*ST*Cleveland ECRC^ N3*2415 Woodland Avenue^ N4*Cleveland, OH 44115^ PO1*1*2*DZ*8.00**VP*LP8X11^ CTT*1^ SE*11*0001 52

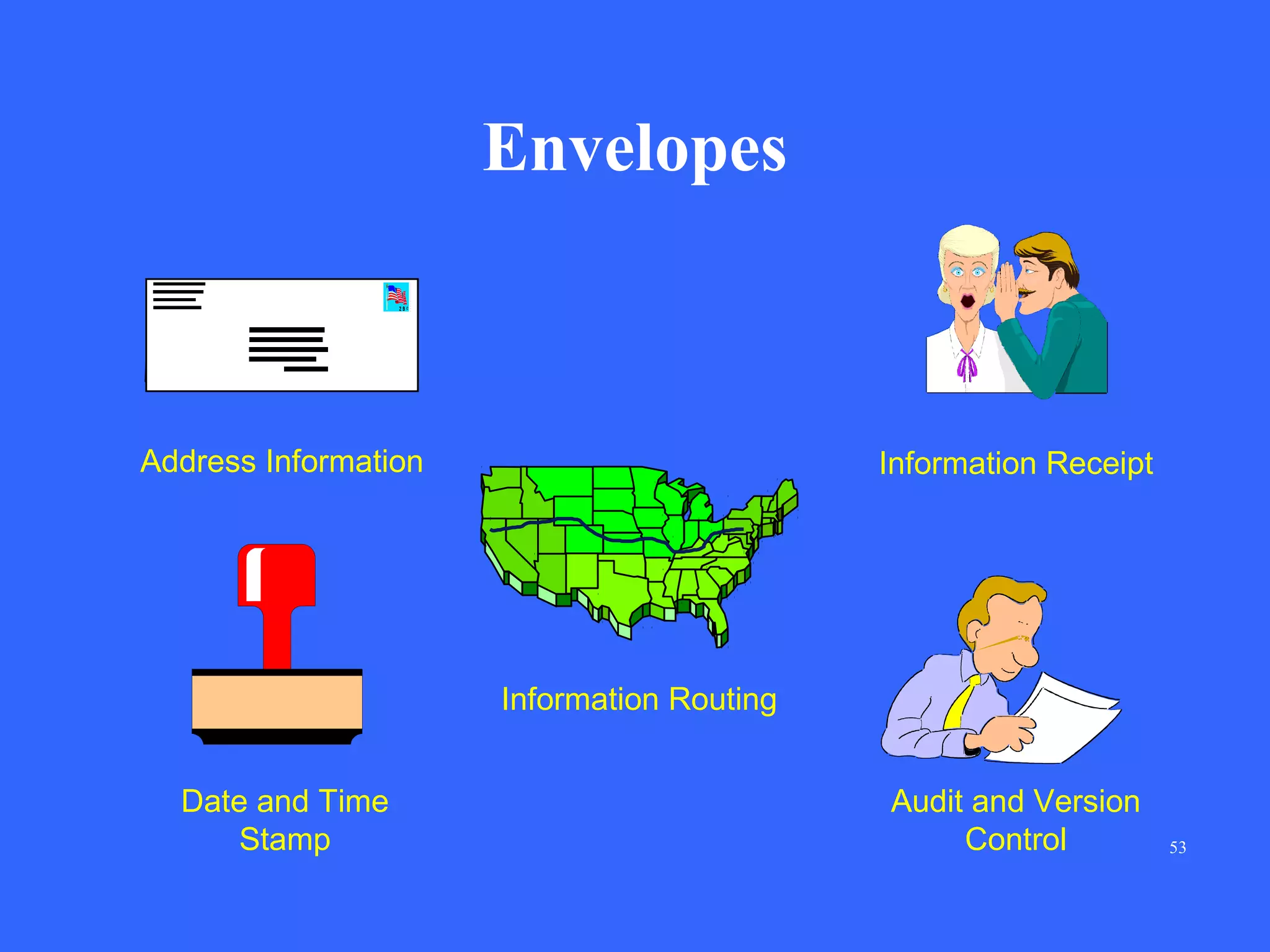

- 53. Envelopes Address Information Information Receipt InformationRouting Date and Time Stamp Audit and Version Control 53

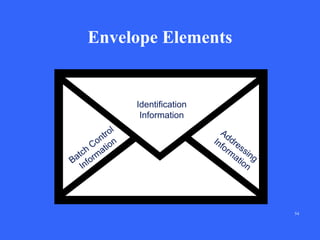

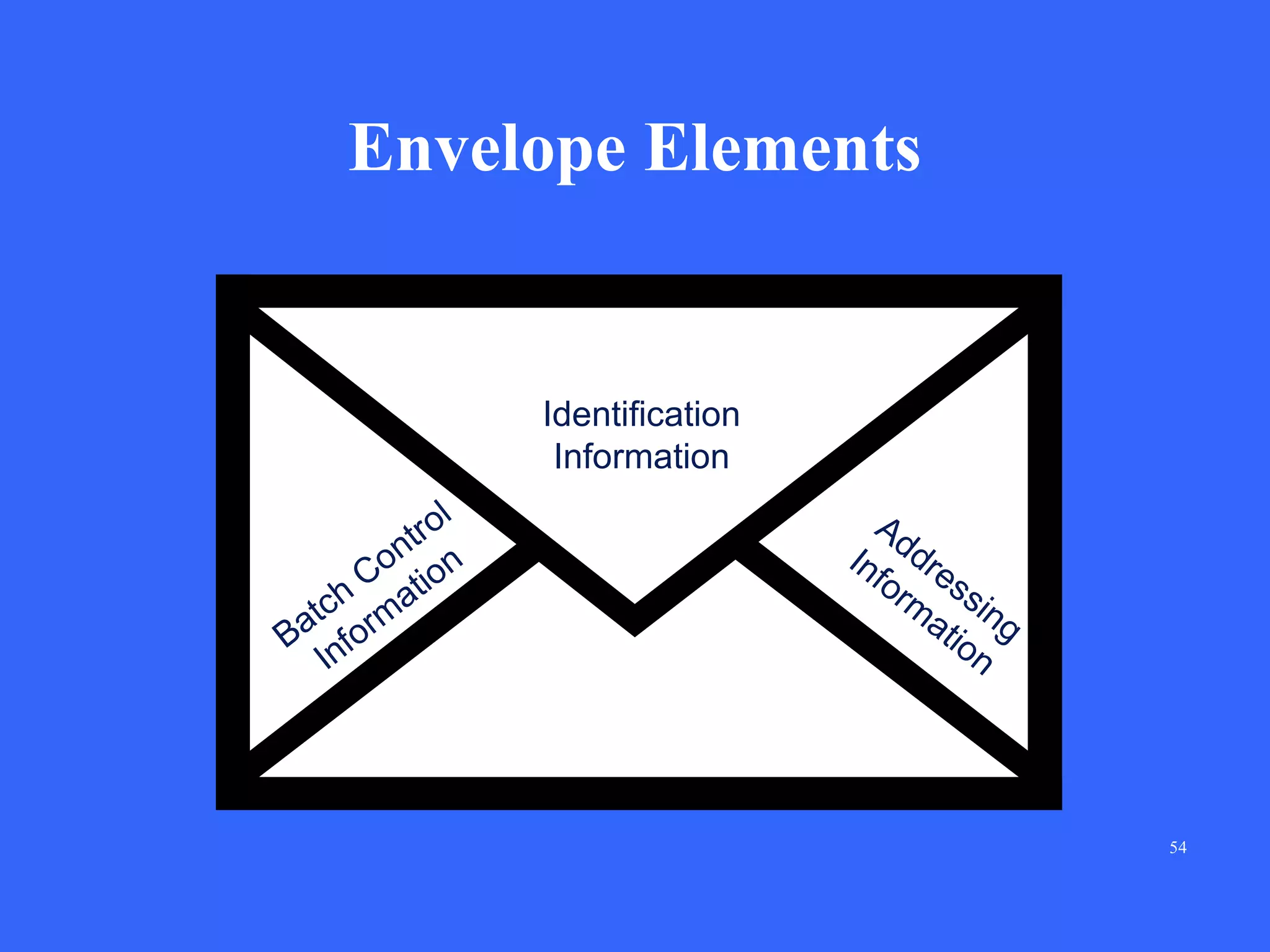

- 54. Envelope Elements Identification Information l tro on on C hati c a t or m B nf I Ad In dre fo rm ssin at g ion 54

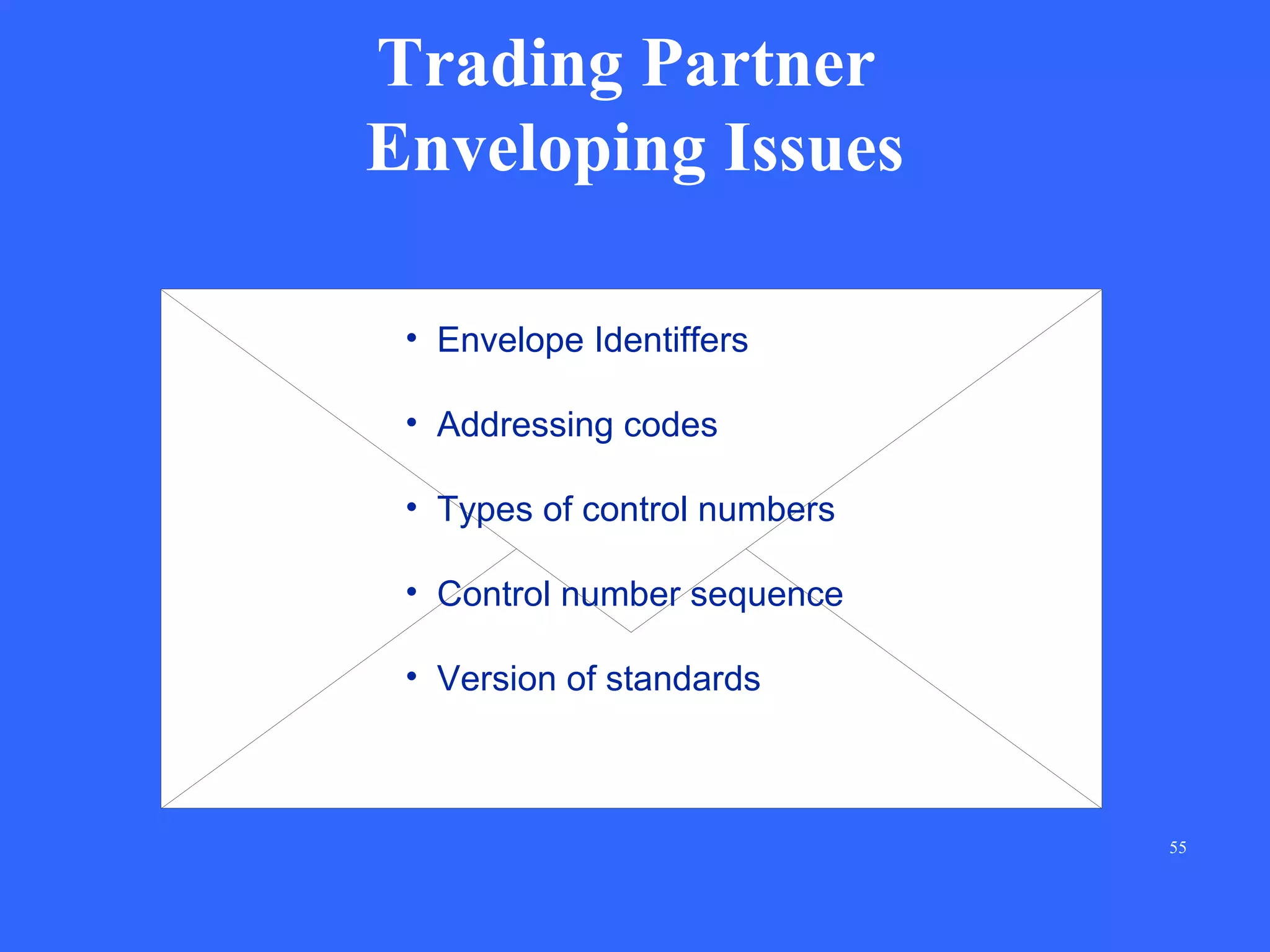

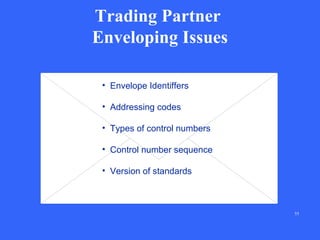

- 55. Trading Partner Enveloping Issues •Envelope Identiffers • Addressing codes • Types of control numbers • Control number sequence • Version of standards 55

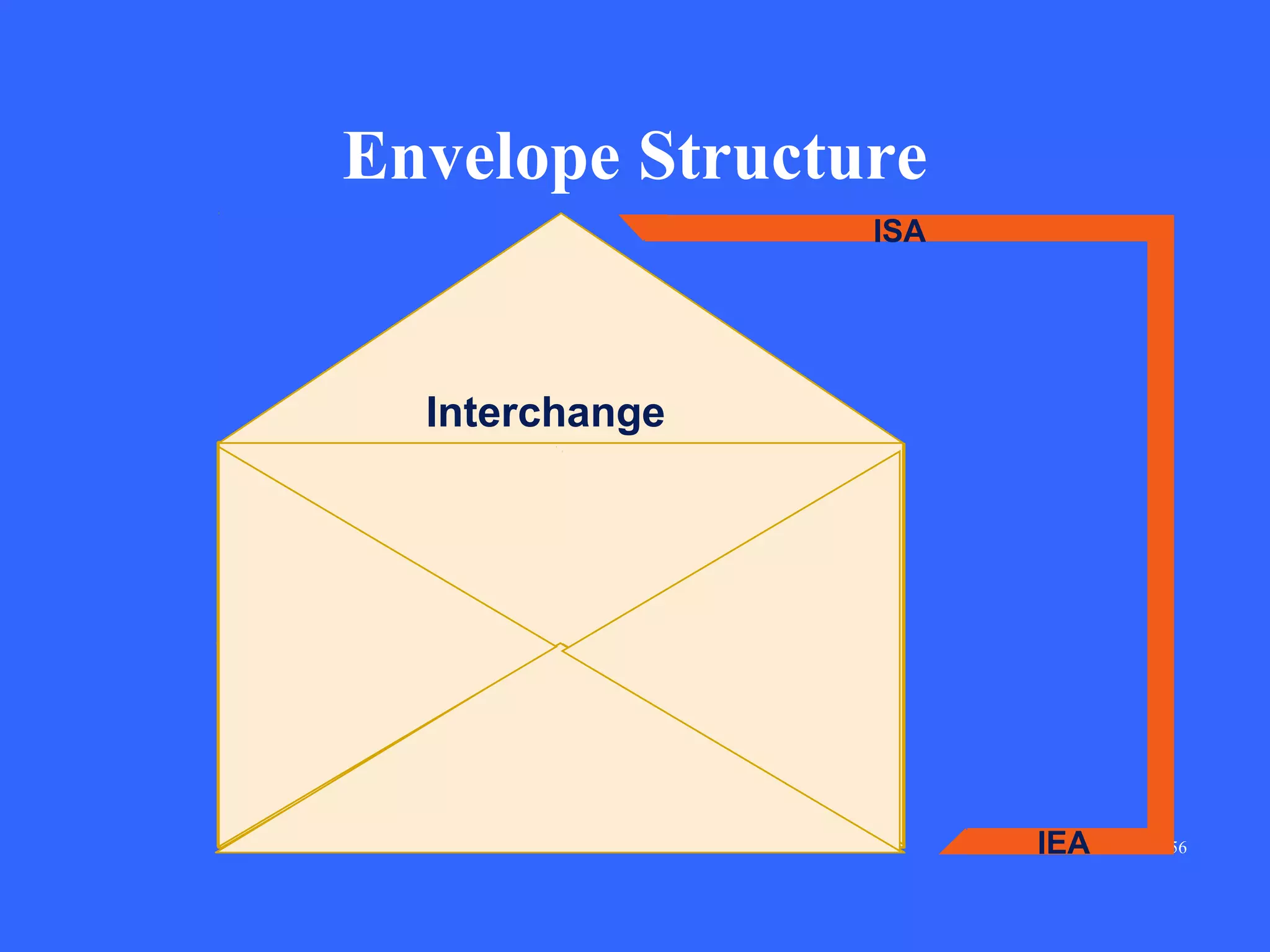

- 56.

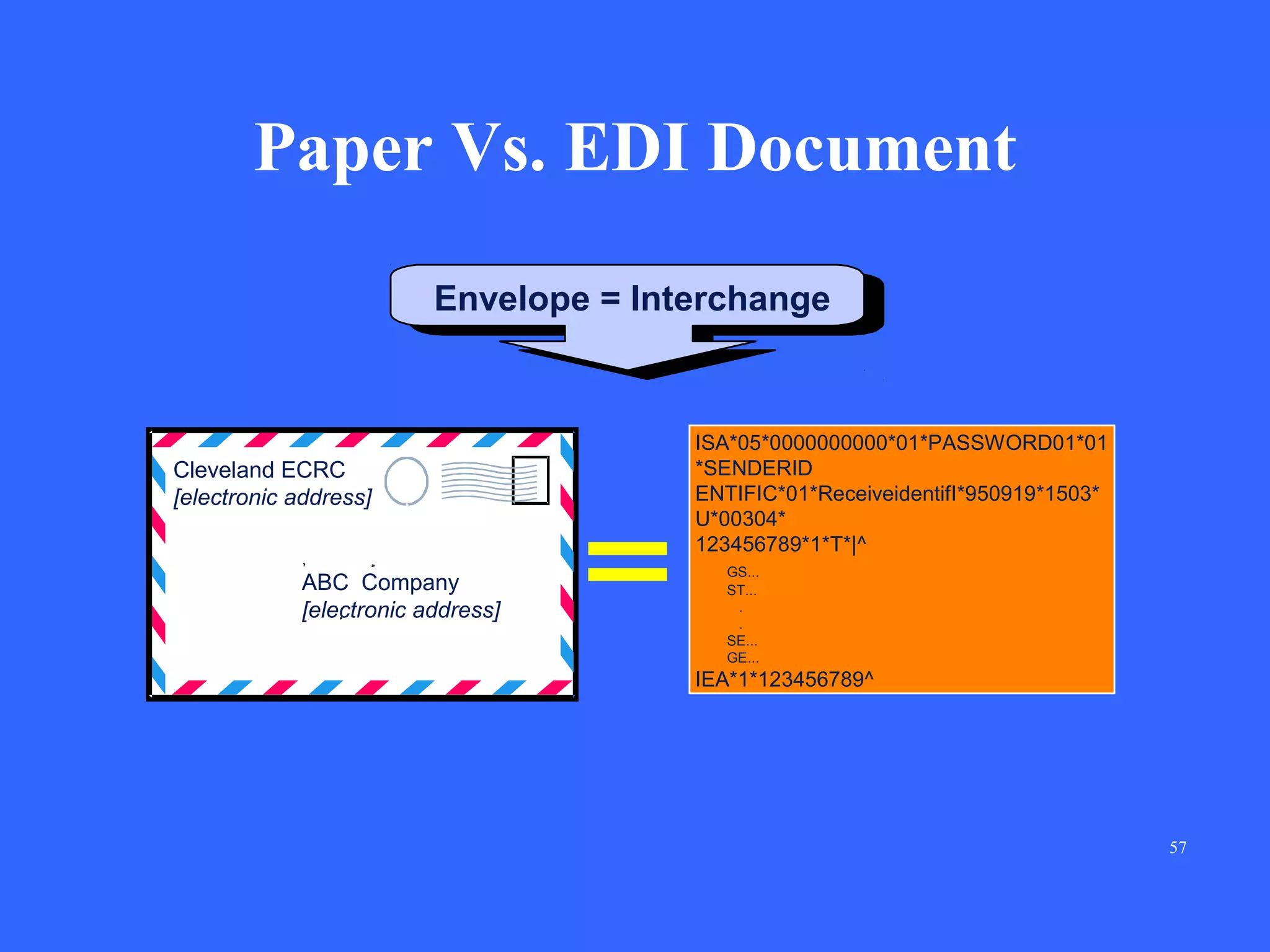

- 57. Paper Vs. EDIDocument Envelope = Interchange Cleveland ECRC [electronic address] ABC Company [electronic address] ISA*05*0000000000*01*PASSWORD01*01 *SENDERID ENTIFIC*01*ReceiveidentifI*950919*1503* U*00304* 123456789*1*T*|^ GS... ST... . . SE... GE... IEA*1*123456789^ 57

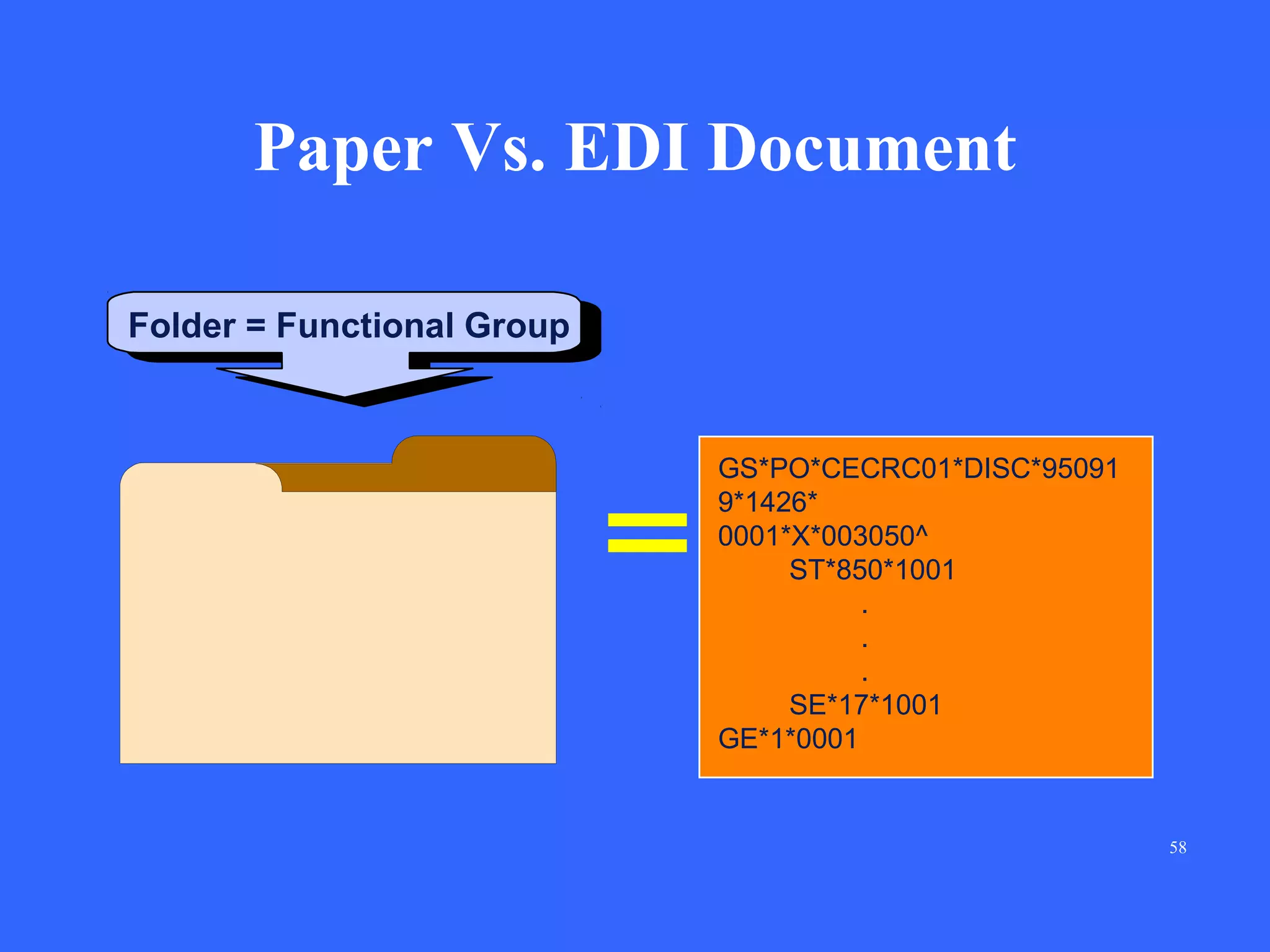

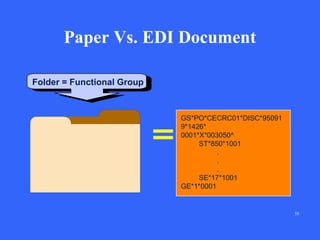

- 58. Paper Vs. EDIDocument Folder = Functional Group GS*PO*CECRC01*DISC*95091 9*1426* 0001*X*003050^ ST*850*1001 . . . SE*17*1001 GE*1*0001 58

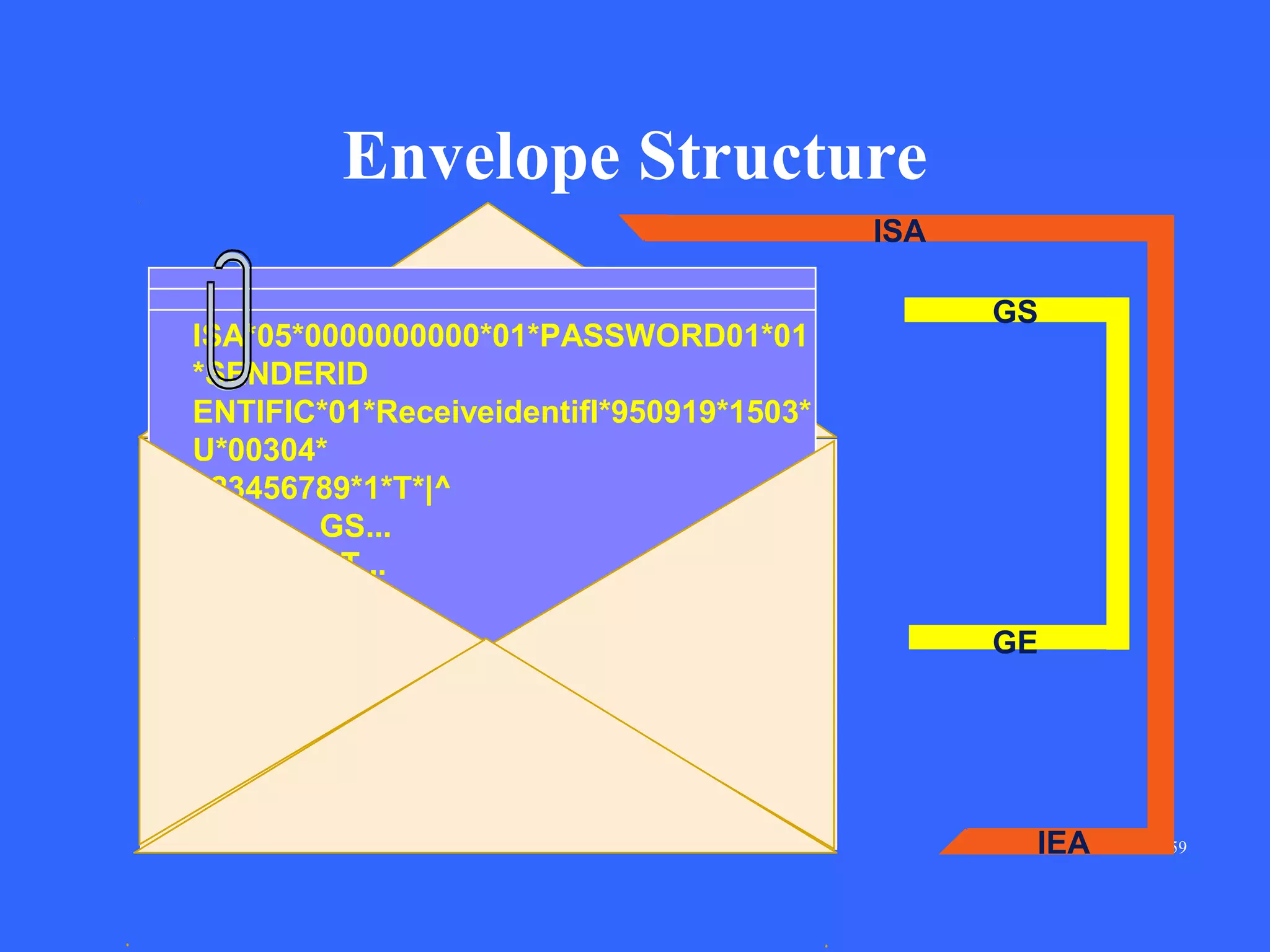

- 59.

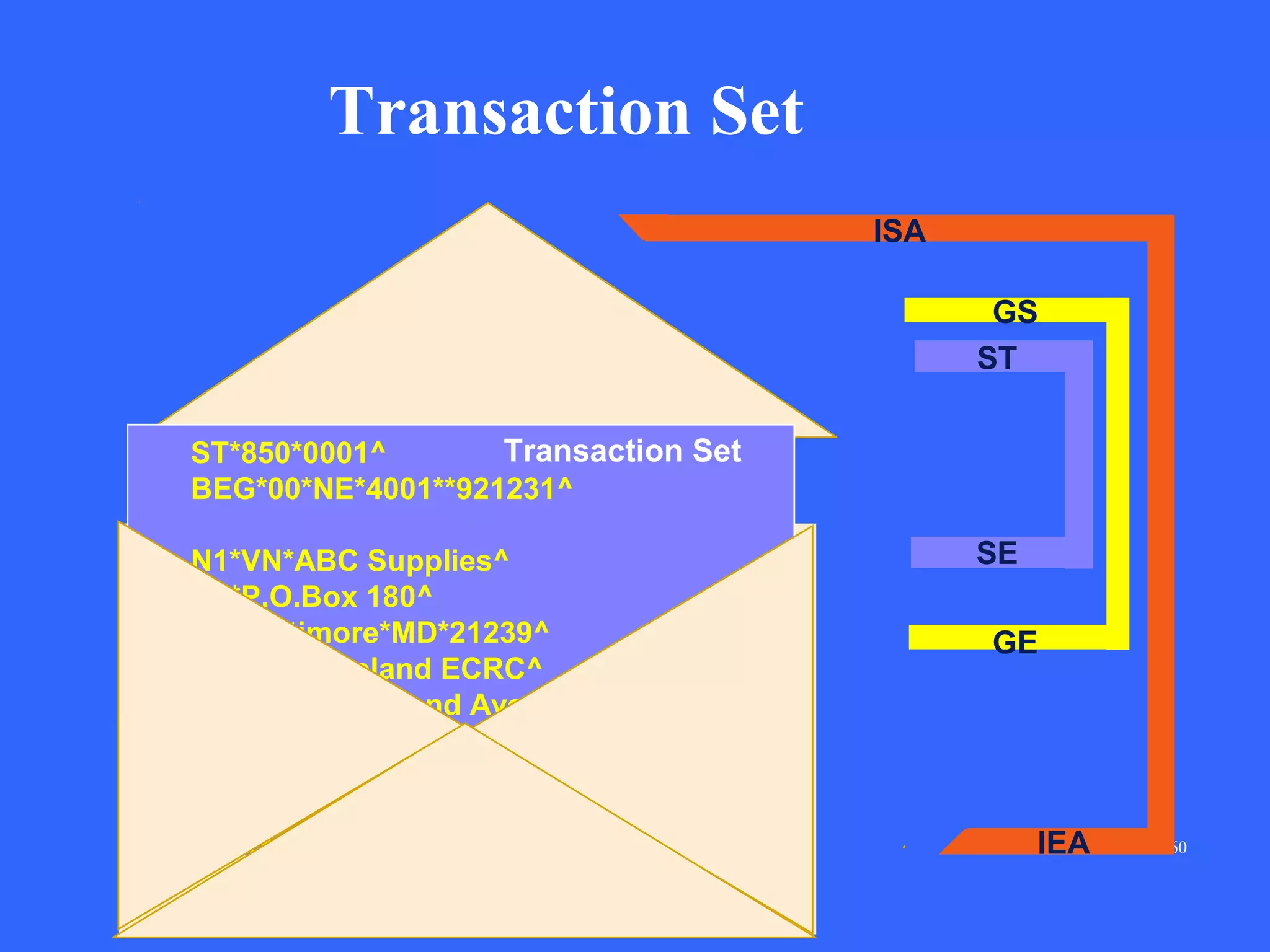

- 60. Transaction Set ISA GS ST Transaction Set ST*850*0001^ BEG*00*NE*4001**921231^ N1*VN*ABCSupplies^ N3*P.O.Box 180^ N4*Baltimore*MD*21239^ N1*ST*Cleveland ECRC^ N3*2415 Woodland Avenue^ N4*Cleveland *OH* 44115^ PO1*1*2*DZ*8.00**VP*LP8X11^ CTT*1^ SE*11*0001 SE GE IEA 60

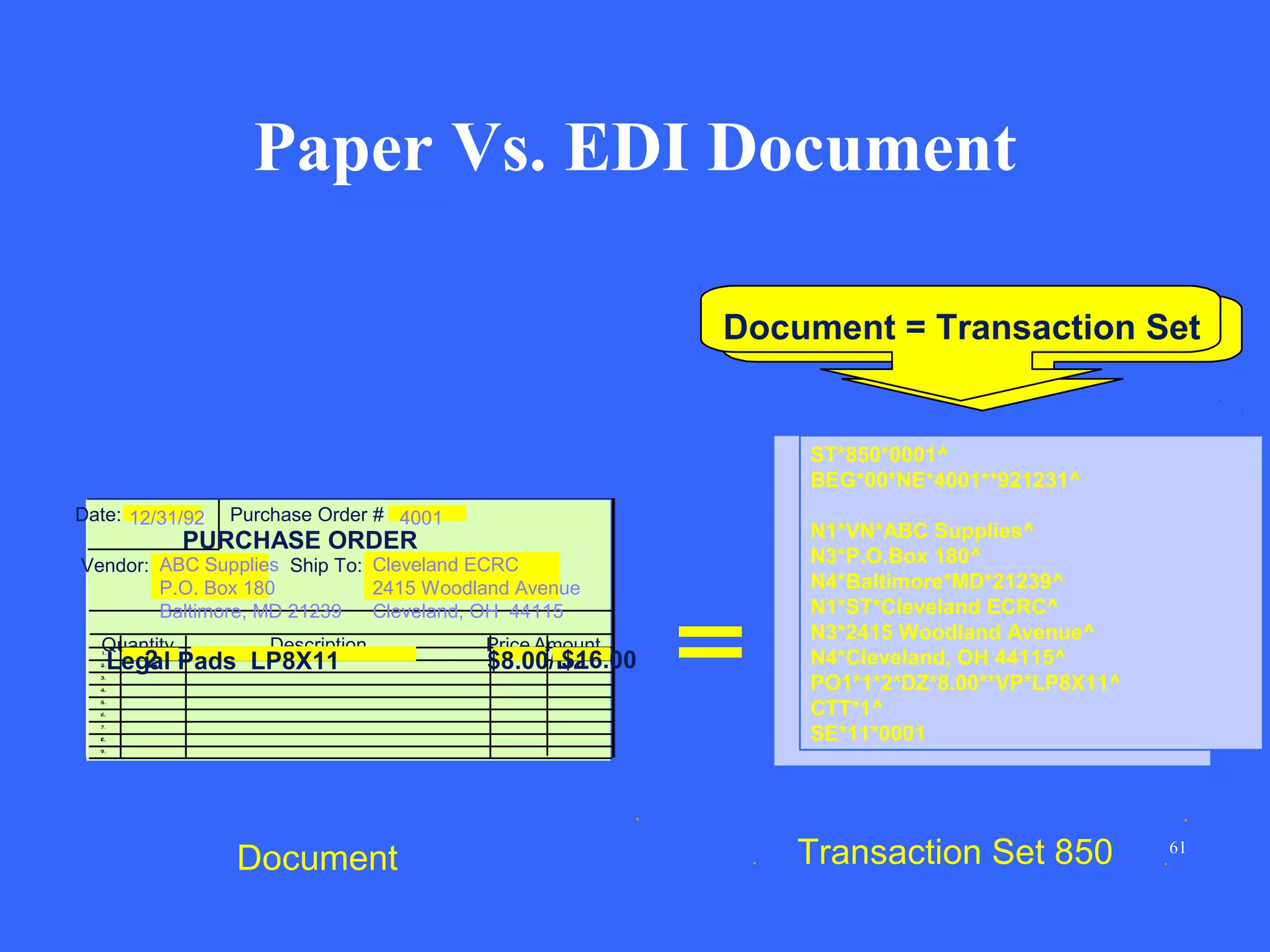

- 61. Paper Vs. EDIDocument Document = Transaction Set ST*850*0001^ BEG*00*NE*4001**921231^ Date: 12/31/92 Purchase Order # 4001 PURCHASE ORDER Vendor: ABC Supplies Ship To: Cleveland ECRC P.O. Box 180 2415 Woodland Avenue Baltimore, MD 21239 Cleveland, OH 44115 Quantity Description 2 Legal Pads LP8X11 Document Price Amount $16.00 $8.00/DZ N1*VN*ABC Supplies^ N3*P.O.Box 180^ N4*Baltimore*MD*21239^ N1*ST*Cleveland ECRC^ N3*2415 Woodland Avenue^ N4*Cleveland, OH 44115^ PO1*1*2*DZ*8.00**VP*LP8X11^ CTT*1^ SE*11*0001 Transaction Set 850 61

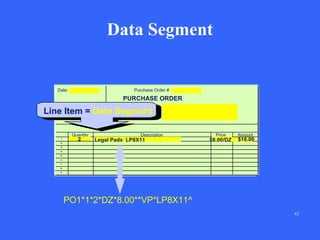

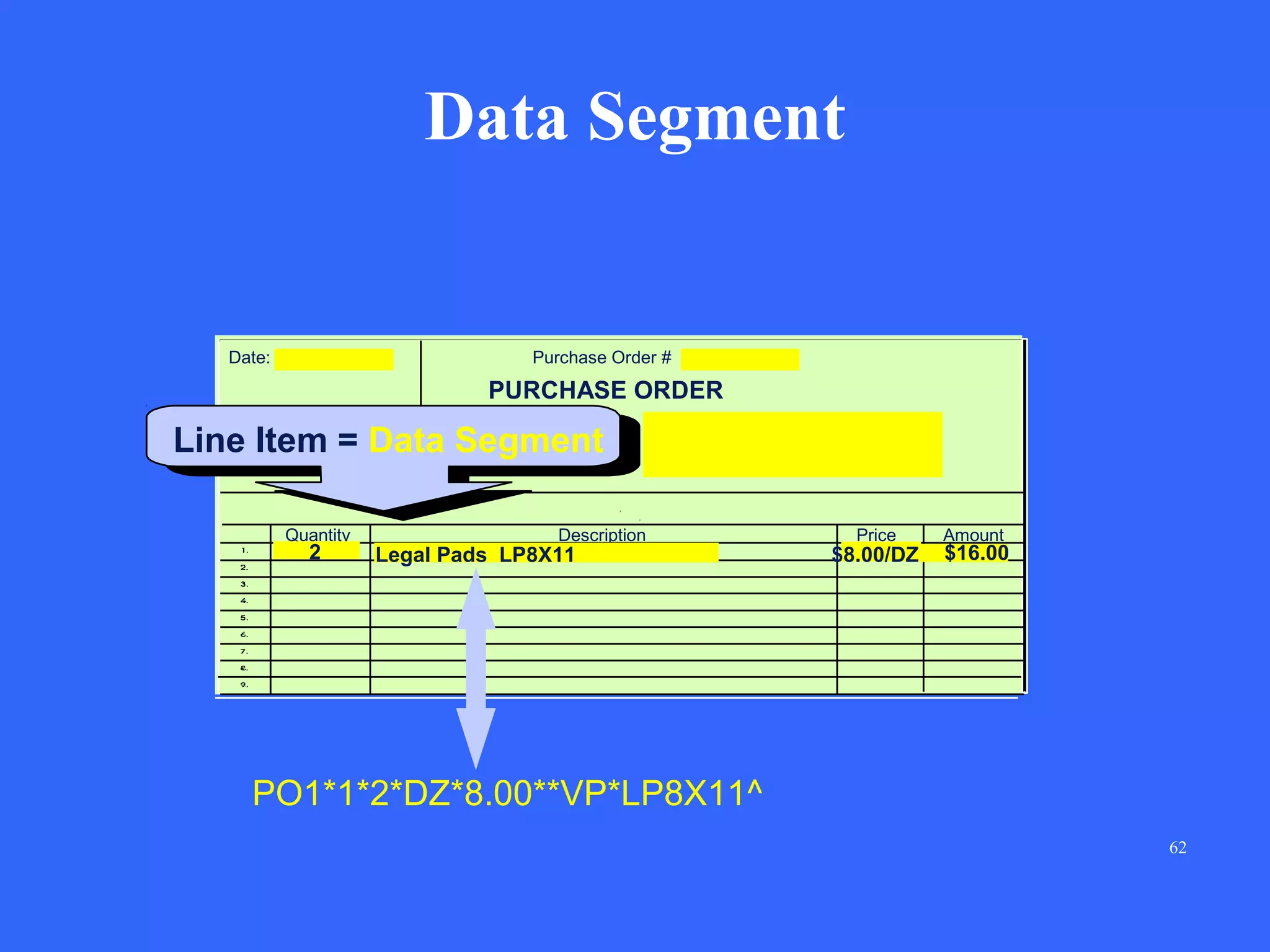

- 62. Data Segment Date: Purchase Order# PURCHASE ORDER Vendor: Ship To: Line Item = Data Segment Quantity 2 Description Legal Pads LP8X11 Price $8.00/DZ Amount $16.00 PO1*1*2*DZ*8.00**VP*LP8X11^ 62

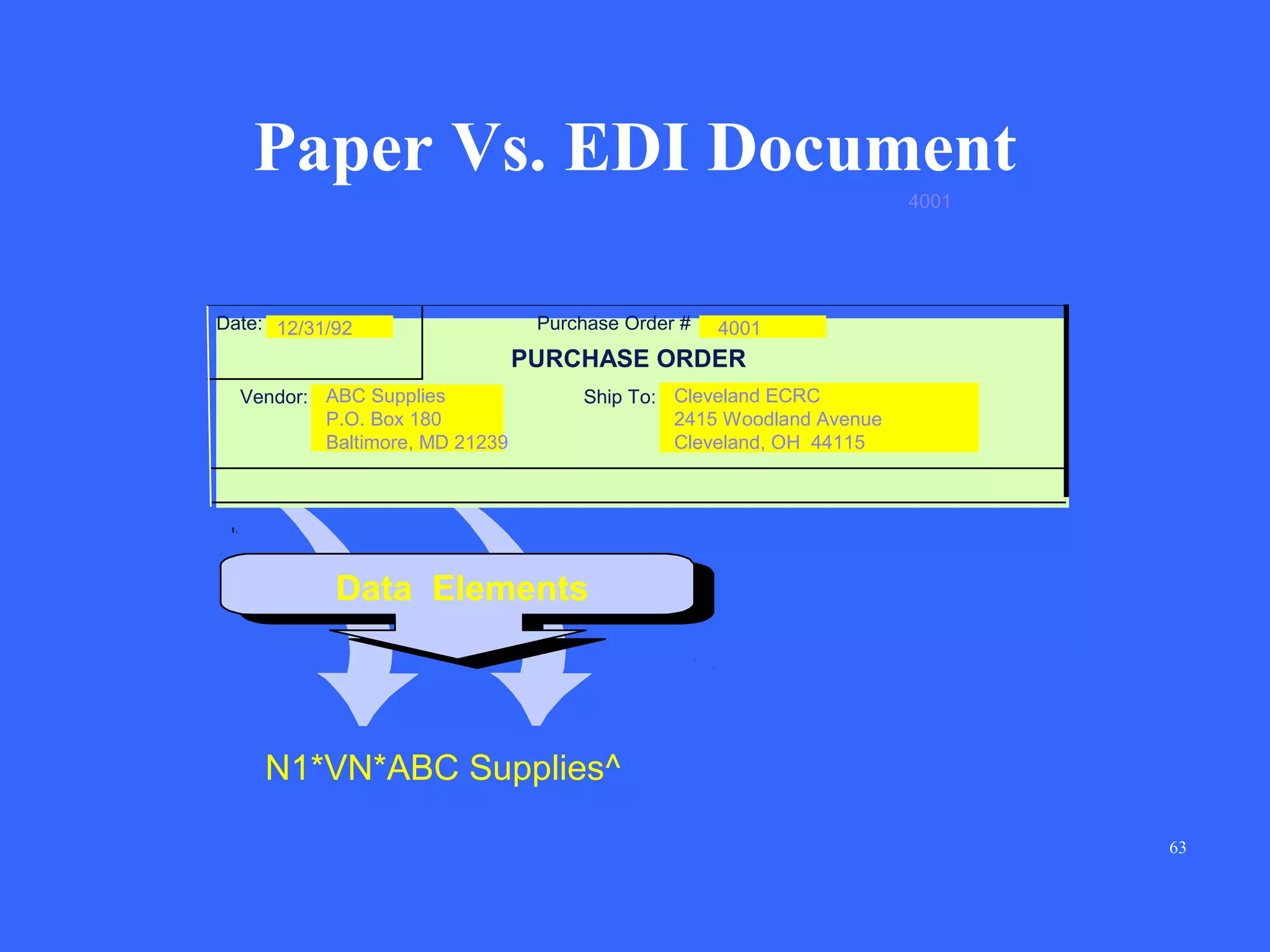

- 63. Paper Vs. EDIDocument 4001 Date: 12/31/92 Purchase Order # 4001 PURCHASE ORDER Vendor: ABC Supplies P.O. Box 180 Baltimore, MD 21239 Ship To: Cleveland ECRC 2415 Woodland Avenue Cleveland, OH 44115 Data Elements N1*VN*ABC Supplies^ 63

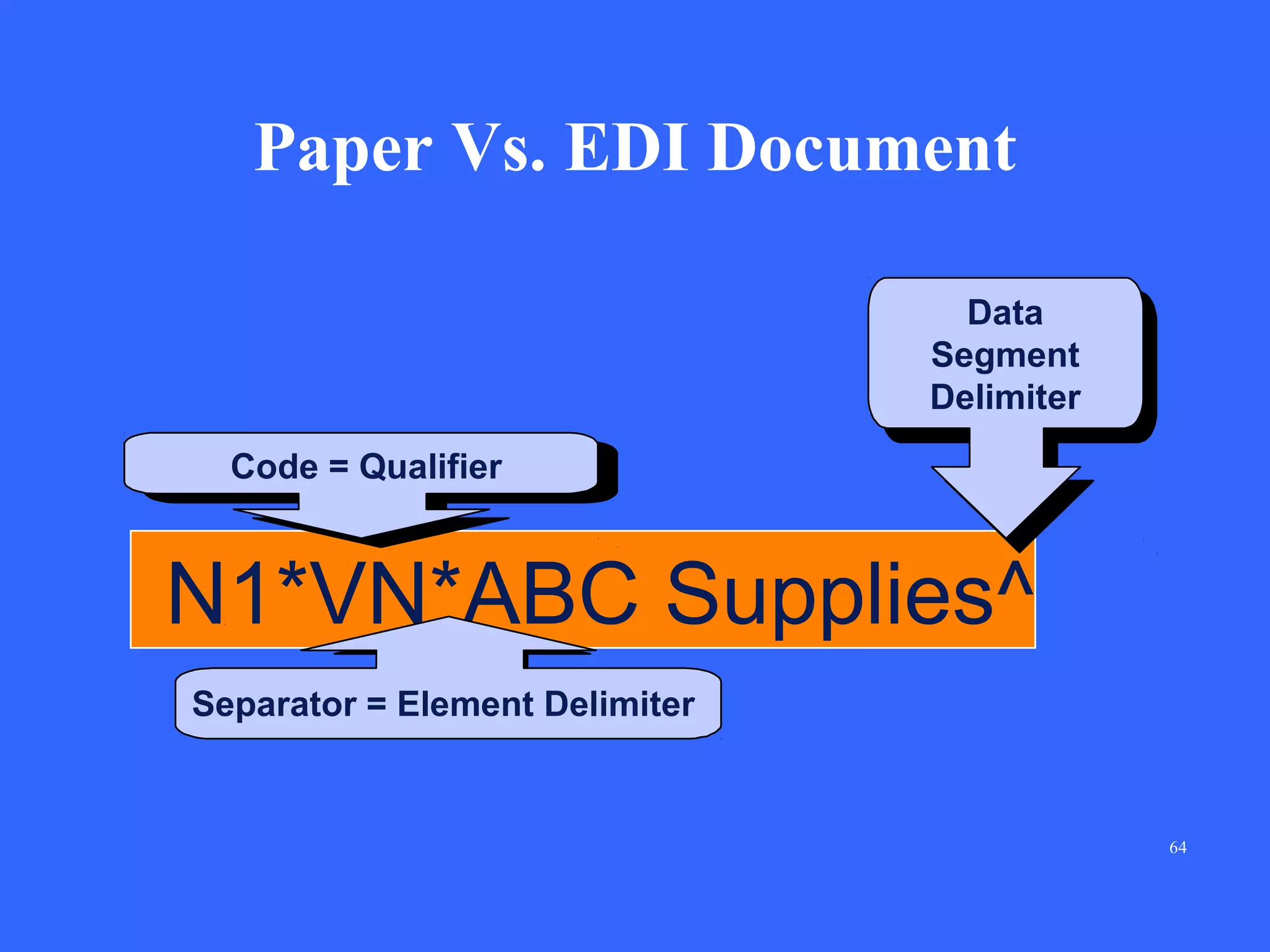

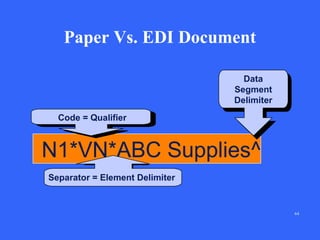

- 64. Paper Vs. EDIDocument Data Segment Delimiter Code = Qualifier N1*VN*ABC Supplies^ Separator = Element Delimiter 64

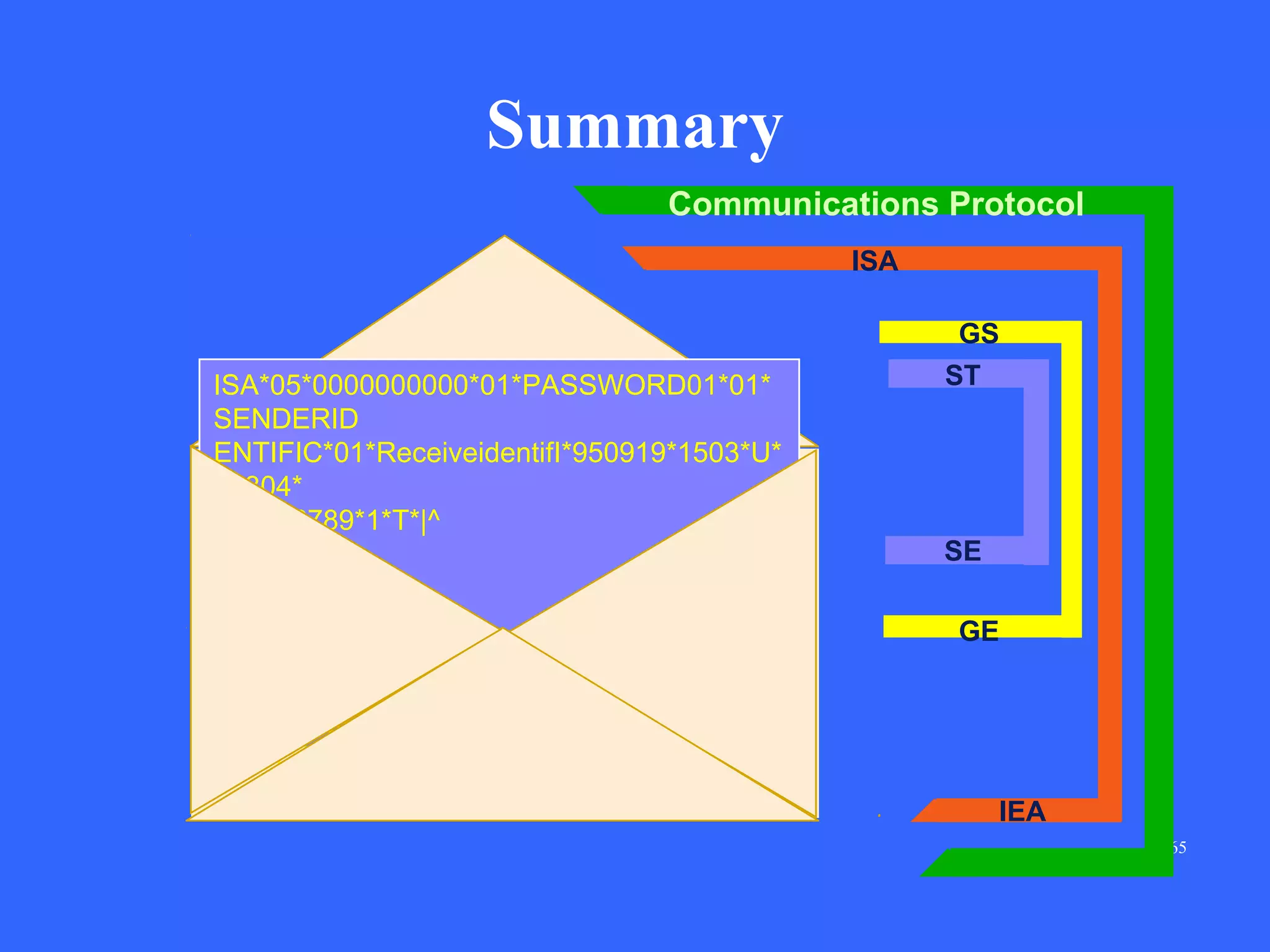

- 65.

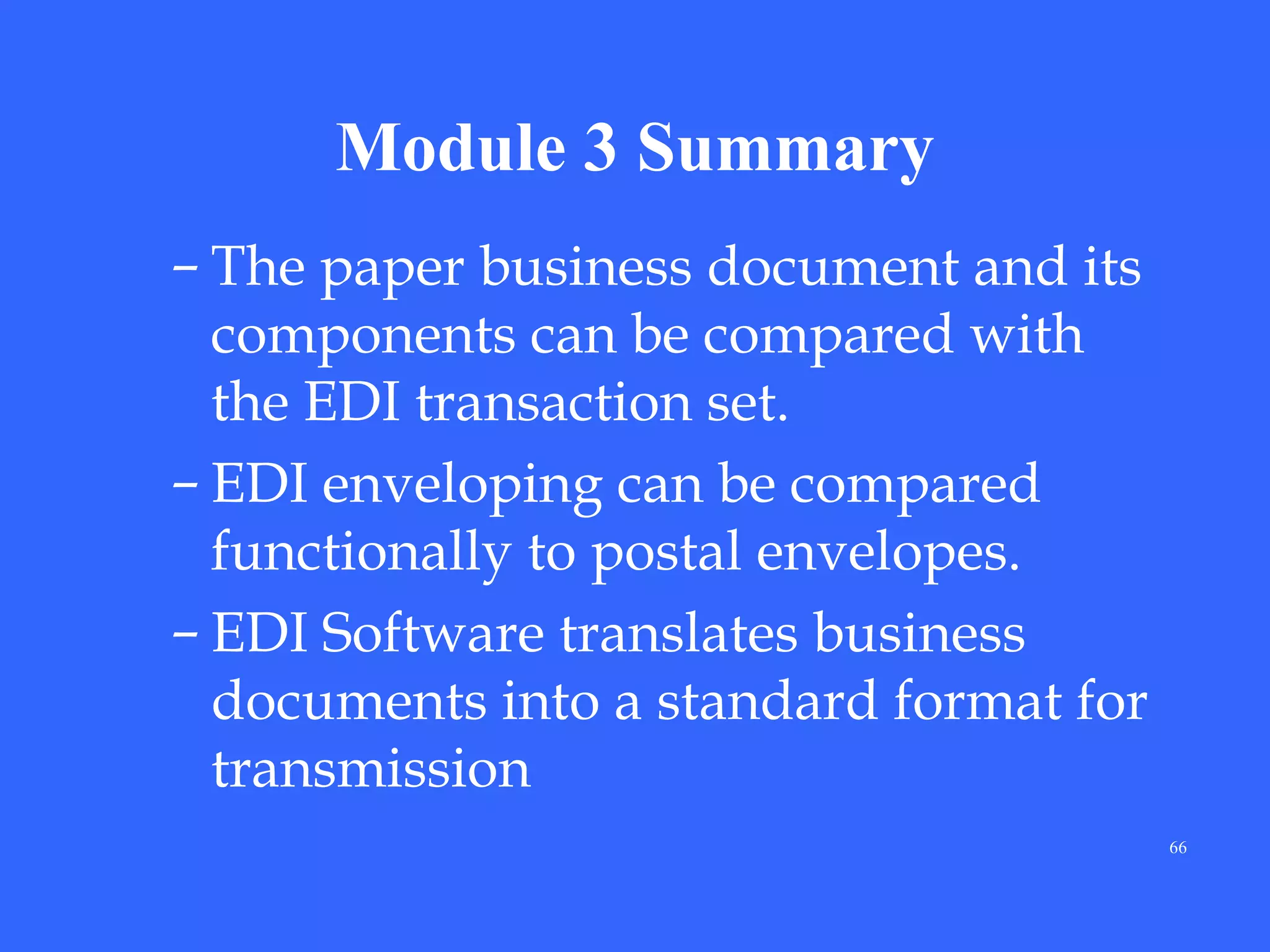

- 66. Module 3 Summary –The paper business document and its components can be compared with the EDI transaction set. – EDI enveloping can be compared functionally to postal envelopes. – EDI Software translates business documents into a standard format for transmission 66
- 67.

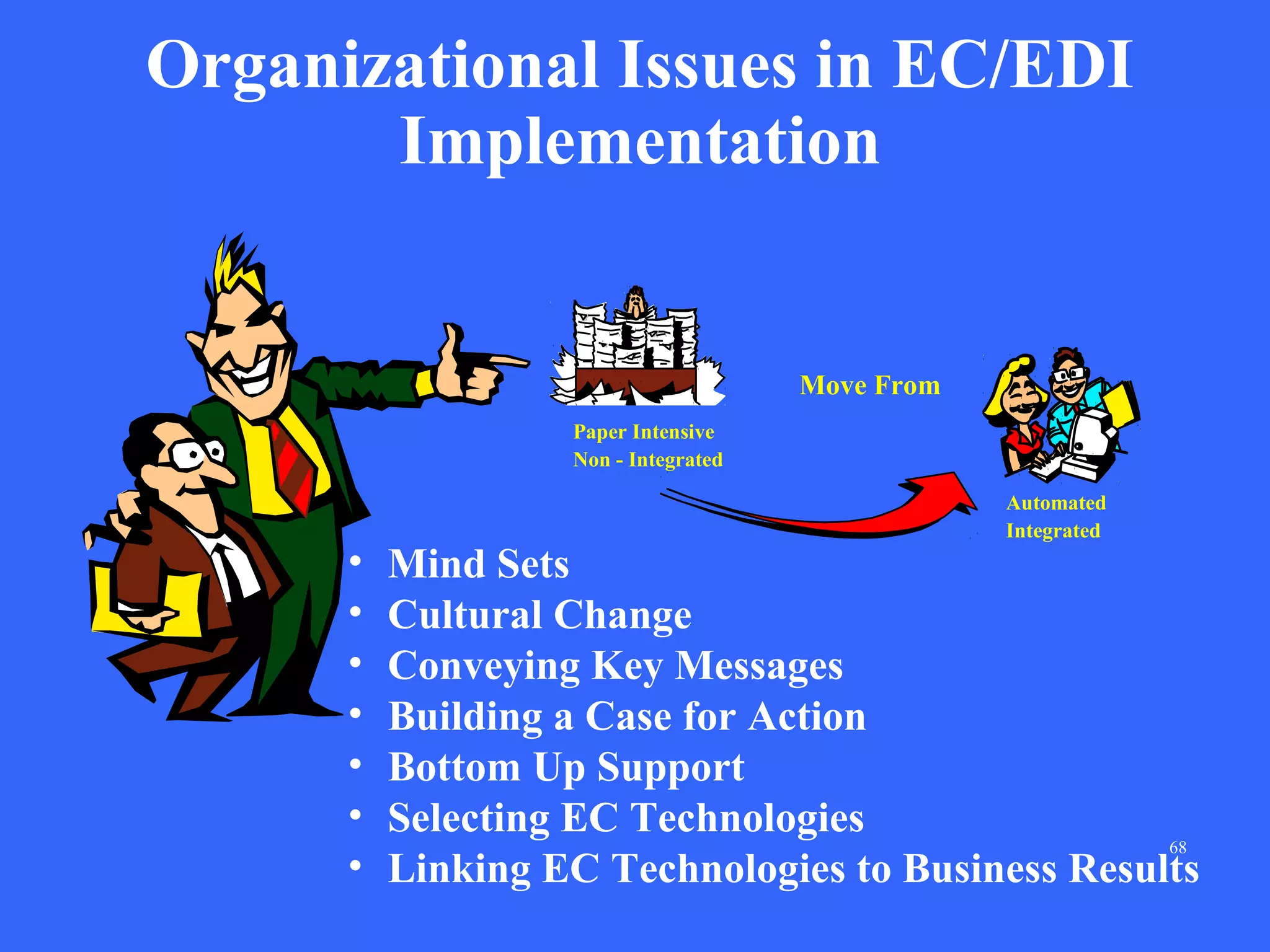

- 68. Organizational Issues inEC/EDI Implementation Move From Paper Intensive Non - Integrated • • • • • • • Automated Integrated Mind Sets Cultural Change Conveying Key Messages Building a Case for Action Bottom Up Support Selecting EC Technologies 68 Linking EC Technologies to Business Results

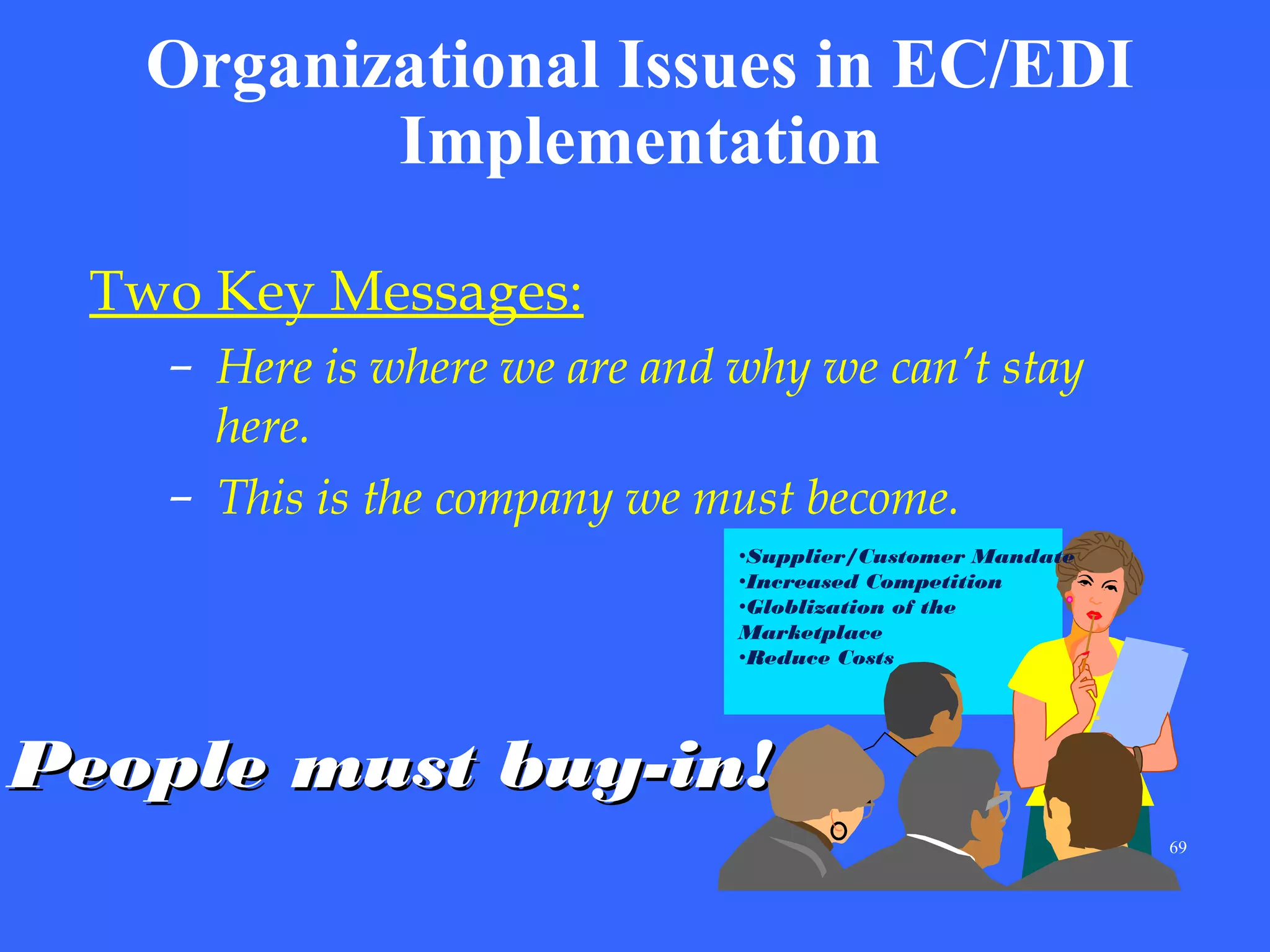

- 69. Organizational Issues inEC/EDI Implementation Two Key Messages: – Here is where we are and why we can’t stay here. – This is the company we must become. •Supplier/Customer Mandate •Increased Competition •Globlization of the Marketplace •Reduce Costs People must buy-in! 69

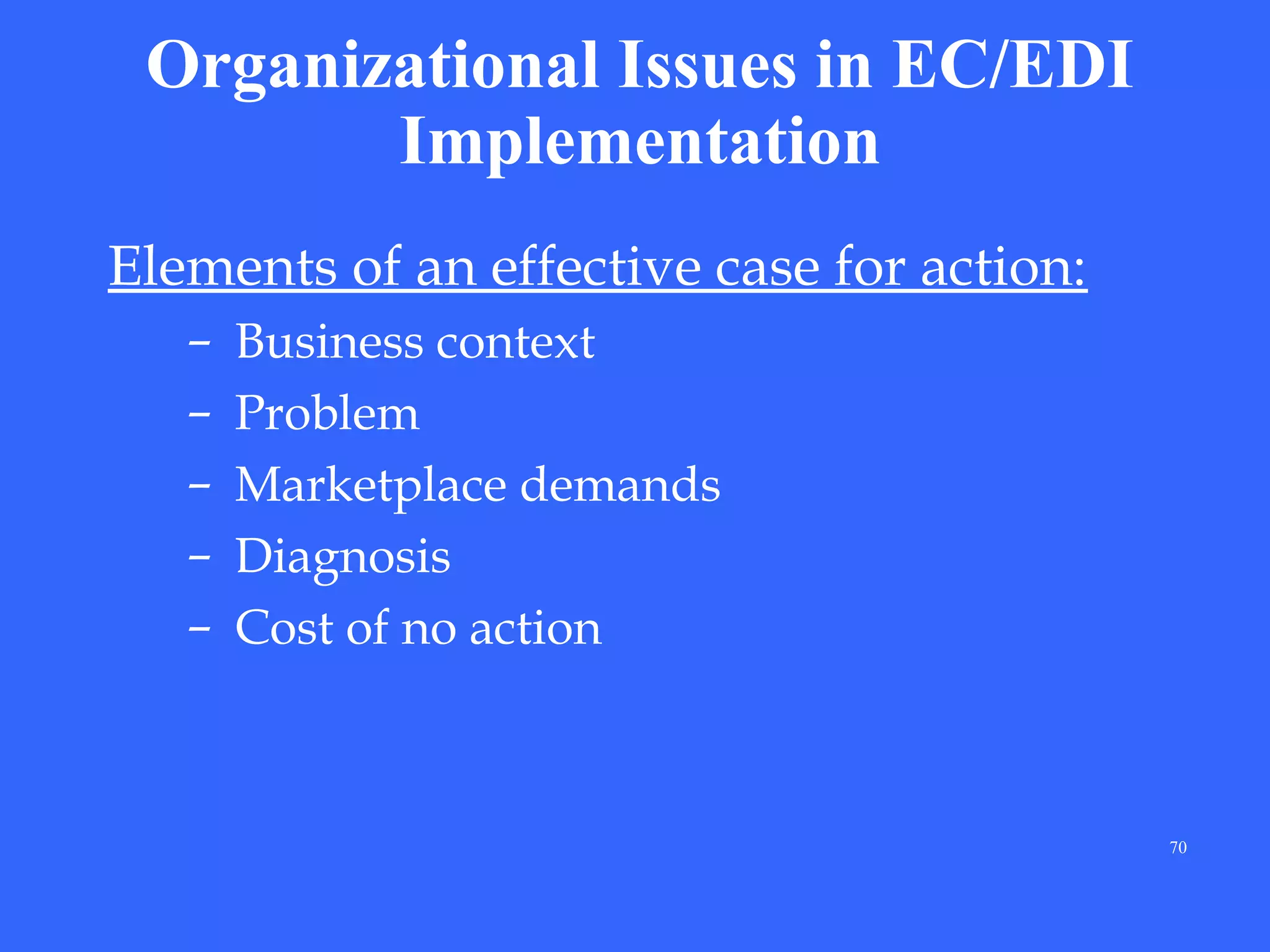

- 70. Organizational Issues inEC/EDI Implementation Elements of an effective case for action: – – – – – Business context Problem Marketplace demands Diagnosis Cost of no action 70

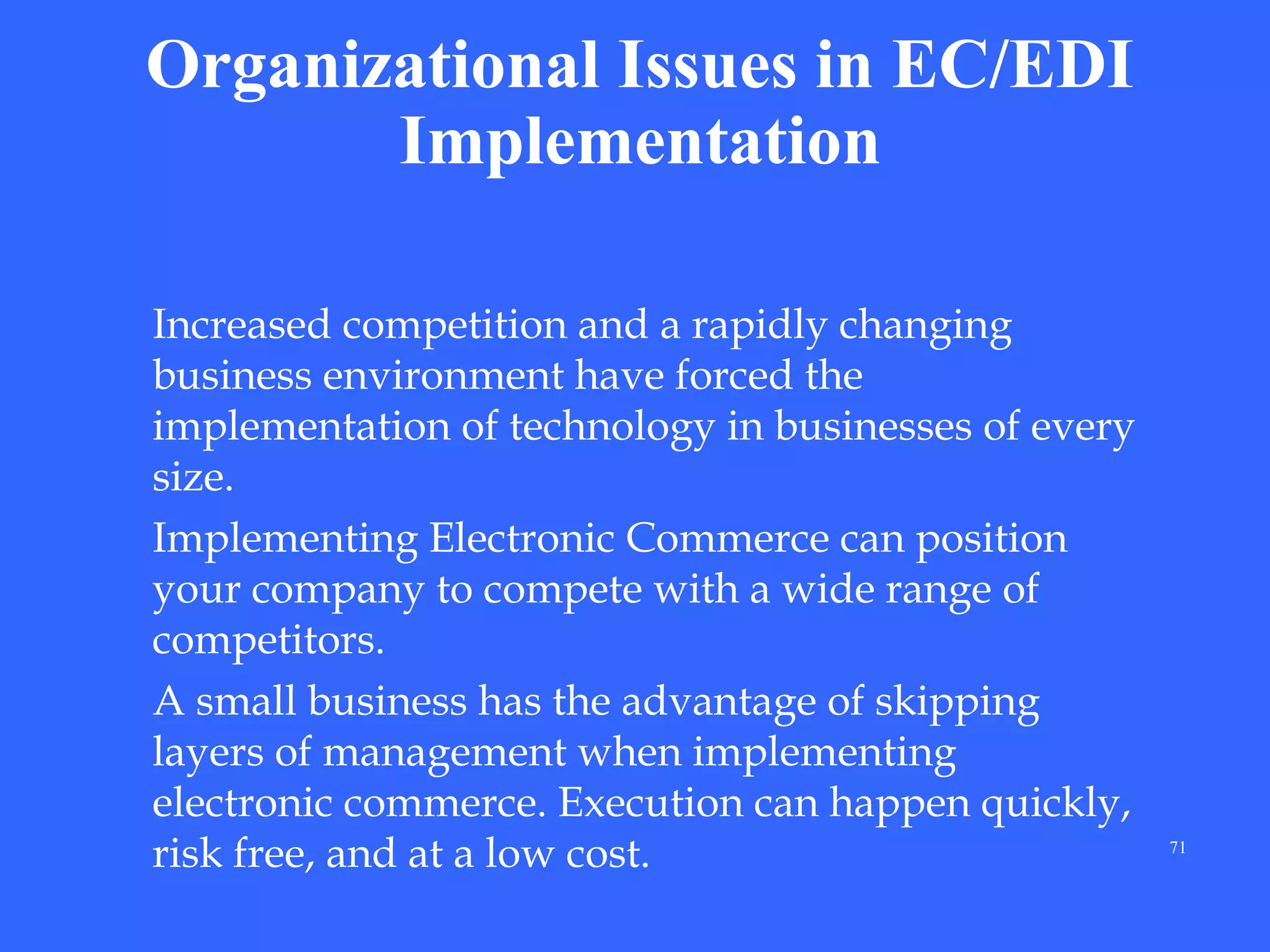

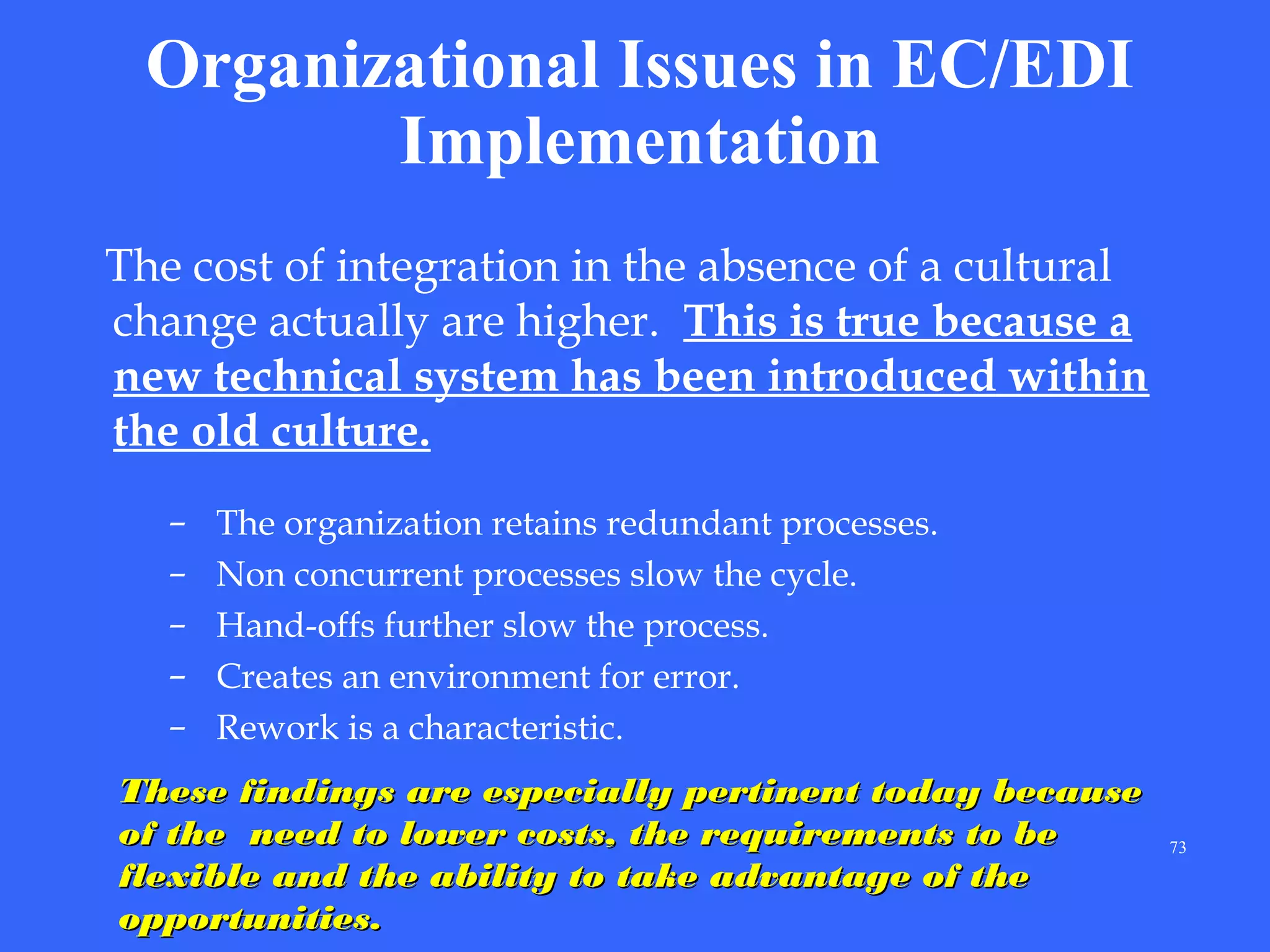

- 71. Organizational Issues inEC/EDI Implementation Increased competition and a rapidly changing business environment have forced the implementation of technology in businesses of every size. Implementing Electronic Commerce can position your company to compete with a wide range of competitors. A small business has the advantage of skipping layers of management when implementing electronic commerce. Execution can happen quickly, risk free, and at a low cost. 71
