1) Rolling mills require motors that can produce heavy torque at low RPM to roll metal ingots into blooms or slabs. DC motors are well-suited as they can provide high starting torque and wide speed variation. 2) Paper mill drives need variable speed control of multiple rolls. Synchronous motors connected via a Schrage motor allow independent yet coordinated speed control. 3) Marine drives utilize electric propulsion motors like induction or synchronous types to independently power propellers via alternators, providing flexibility and economical operation.

1. ELECTRIC DRIVE
SELECTION OF MOTOR FOR
DIFFERENT TYPES OF LOADS OR
SERVICE
BY
Prof. Sagar B. Kudkelwar
Electrical Engineering Department
Ballarpur Institute of Technology,
Ballarpur.

2. Rolling Mills
 Metal rolling is one of the most important manufacturing processes in the
modern world.
 Metal rolling is often the first step in creating raw metal forms.
The ingot or continuous casting is hot rolled into a bloom or a slab,
 There are two types of two types mills
1.Blooming Mill
2. Slabing Mill
 these are the basic structures for the creation of a wide range of
manufactured forms.
 Blooms typically have a square cross section of greater than 6x6 inches.
 Slabs are rectangular and are usually greater than 10 inches in width and
more than 1.5 inches in thickness
 .Rolling is most often, (particularly in the case of the conversion of an ingot
or continuous casting), performed hot.

3.  rolling operation requires production of heavy torque at low r.p.m. to effect
heavy reduction of material from ingots to blooms or slabs.
 Blooming mill may have 2 rolls or 3 rolls.
 two high blooming mill has arrangement of reversing the direction of
rotation of the rolls in order to carry out rolling of material through
successively reducing passes.
 In case of three high mill direction of rotation need not to be changed.
 By the use of tilt tables material can be pass between lower and middle
rolls or between middle and top rolls.
Blooms and slabs as obtained from blooming mill are further subjected to
rolling to produce plates, structural bars or billets.
Billets when further rolled produce rounds, square octagons ,flats angles etc.

5. Two Rolling Mill Three Rolling Mill

6. Depending upon type of mill selection of motor has to satisfy
following conditions.
1) Motor should have robust construction to withstand severest duty
2) It should be capable of developing short time torque to the extent
of 2 or 3 times of rated torque.
3) It should be capable of having wide speed variation.
4) It should be in a position to maintain preselected speed within
tolerances from no load to full load. Therefore it should have
quick response to change.

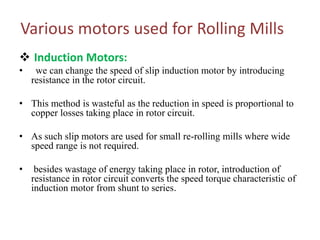

7. Various motors used for Rolling Mills
 Induction Motors:
• we can change the speed of slip induction motor by introducing
resistance in the rotor circuit.
• This method is wasteful as the reduction in speed is proportional to
copper losses taking place in rotor circuit.
• As such slip motors are used for small re-rolling mills where wide
speed range is not required.
• besides wastage of energy taking place in rotor, introduction of
resistance in rotor circuit converts the speed torque characteristic of
induction motor from shunt to series.

8. • Therefore speed can not e maintained constant from no load to full load.
• This will therefore motor to fly off to no load as soon as stock passes out
of the stand.
• this much reflects very much rolling on the quality stands of the rolling
mill.
•As such slip ring motors are suitable for roughing stands of the rolling mill.
•Wastage of energy in the rotor of slip motor which is proportional to the
reduction of speed can be avoided by employing cascaded induction motor

9. D. C. Motor
• D.C. motor is the only type of motor which can satisfy the stringent
requirements of modern rolling mills.
• By varying the applied voltage to the armature and keeping field constant
it is possible to change the speed of motor at constant torque up to rated
speed.
• In this way requirement of higher constant torque at low speed needed for
effecting heavy reduction in first passes is achieved.
• on the other hand low torque and higher speed is required for rolling
operation in final passes when for the section of stock having become
smaller, torque needed is low and elongated material requires higher speed
to clear off in the shortest possible time.
• this achieved by weakening field. after rated speed is achieved by the
increase of applied voltage to the armature.
• so in this way we get high speed at reduced torque i.e. H.P. remains same.
• In case of reversible rolling mills, in order to ensure high rate of
acceleration ,it becomes necessary to reduce the moment of inertia of motor
to minimum .
• this is achieved by increasing the length and diameter of armature.

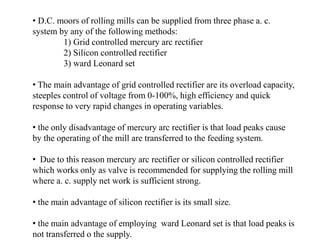

10. • D.C. moors of rolling mills can be supplied from three phase a. c.
system by any of the following methods:
1) Grid controlled mercury arc rectifier
2) Silicon controlled rectifier
3) ward Leonard set
• The main advantage of grid controlled rectifier are its overload capacity,
steeples control of voltage from 0-100%, high efficiency and quick
response to very rapid changes in operating variables.
• the only disadvantage of mercury arc rectifier is that load peaks cause
by the operating of the mill are transferred to the feeding system.
• Due to this reason mercury arc rectifier or silicon controlled rectifier
which works only as valve is recommended for supplying the rolling mill
where a. c. supply net work is sufficient strong.
• the main advantage of silicon rectifier is its small size.
• the main advantage of employing ward Leonard set is that load peaks is
not transferred o the supply.

11. SYNCHRONOUS MOTOR
• Synchronous motors are used for driving continuous mill where load is
maintained for relatively long period.
• Flywheel can not be used and consequently the motor carries can the entire
load.
• for slow speed, synchronous motors can be built more economically than
induction motors and at the same time, get P.F. correction.
• Besides main mill drive , motors are required for auxiliary drive such as for
driving the rolls of roller table, adjusting the gap between rolls, driving the
manipulators, for chopping the tail ends, cutting the material to required
length, winding the ends product into coils etc.

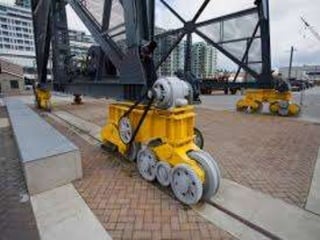

12. CRANES
Essential Requirement of a hoist or crane motor
o It should develop high starting torque
o It should withstand great number of switching operations.
D.C. MOTORS
 D.C. is usually employed on cranes in steel mills where safety and flexibility of
control are of first importance.
 Series motor is by far the most commonly type of motor which is used on account of
its inherent characteristic such that it adjust its speed to load.
 This characteristics prevents excessive power demand on heavy loads.
 During Dynamic breaking, series motor works as shunt generator..

13. A.C. Motors
• on cranes using a. c. slip ring induction motor are used where speed
control is obtained by rotor resistance.
• Speed range of slip ring motor is less than that of series motor .
• Dynamic breaking is applied by giving unbalanced supply to primary.
• This is done by giving single phase supply to the primary such that two
phase windings are in parallel and this in turns is in series with thir
winding.
• for outdoor service totally enclosed motors are best.
•Hoist motors have special electro-mechanical breaks which are applied
by springs to hold the load as soon as supply to motor goes off.

15. PAPER MILL
• Pulp stuff from storage tank after passing through strainers comes to
first section of paper making machine which consists of moving wire
mesh.
• subsequently this sheet of paper goes in between series of heated press
rolls, drying rolls, calendars, smoothing rolls and finally to reelers.

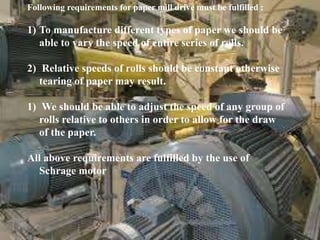

16. Following requirements for paper mill drive must be fulfilled :
1) To manufacture different types of paper we should be
able to vary the speed of entire series of rolls.
2) Relative speeds of rolls should be constant otherwise
tearing of paper may result.
1) We should be able to adjust the speed of any group of
rolls relative to others in order to allow for the draw
of the paper.
All above requirements are fulfilled by the use of
Schrage motor

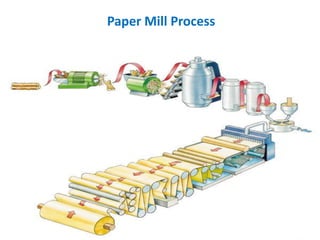

17. Paper Mill Process

18. Marine Drive
• Electric Drive propeller of ship is universal
Propeller: A propeller is type of fan that transmits power by conversion rotational
motion into thrust. A pressure difference is produced between the forward and
rear surfaces of the airfoil-shaped blade, and a fluid (such as air or water) is
accelerated behind the blade.
It has following Advantages.
1) Steam turbine or diesel engine has most economical speed of about 3000 r.p.m.
and 400 to 800 r.p.m. respectively. Propeller speed on the other had is in
between 100 to 200. r.p.m. We can run propeller and prime mover
independently. This enables prime mover to run at its most economical speed
2) At the time of slow speeds we can run only few prime mover sets to supply all
the propellers. Low speed cruising is now no longer uneconomical.
3) position of prime mover Speed control and reversing in case of electric
propulsion are easy and can be carried out from any convenient position instead
of signaling to engine room

19. • Position is not fixed by the propeller shaft as such there is greater
flexibility in the layout.

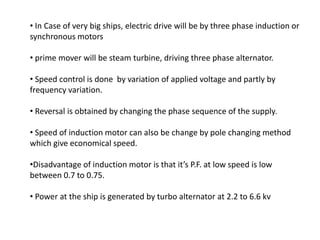

20. • In Case of very big ships, electric drive will be by three phase induction or
synchronous motors
• prime mover will be steam turbine, driving three phase alternator.
• Speed control is done by variation of applied voltage and partly by
frequency variation.
• Reversal is obtained by changing the phase sequence of the supply.
• Speed of induction motor can also be change by pole changing method
which give economical speed.
•Disadvantage of induction motor is that it’s P.F. at low speed is low
between 0.7 to 0.75.
• Power at the ship is generated by turbo alternator at 2.2 to 6.6 kv

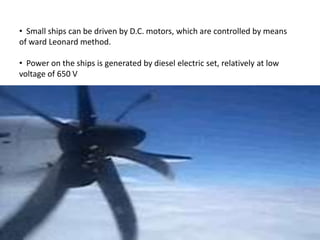

21. • Small ships can be driven by D.C. motors, which are controlled by means
of ward Leonard method.
• Power on the ships is generated by diesel electric set, relatively at low
voltage of 650 V

22. TEXTILE MILLS
• Loom motors operate in atmosphere which is laden wool-lint and moisture.
• Further the motor should high starting torque of about 2to3 times full load
torque.
• Loom motors have to start and stop many times in a day.
• this increases the motor heating during starting.
• Motors of low temperature rise under full load conditions are therefore
selected do that under working conditions of frequent starting and stopping
permissible temperature rise is not exceeded
• Keeping above requirements in view totally enclosed, fan cooled, high
torque squirrel cage motors are selected

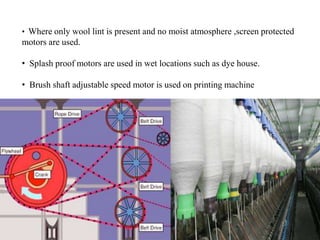

23. • Where only wool lint is present and no moist atmosphere ,screen protected
motors are used.
• Splash proof motors are used in wet locations such as dye house.
• Brush shaft adjustable speed motor is used on printing machine

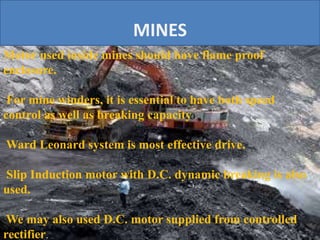

24. MINES
Motor used inside mines should have flame proof
enclosure.
For mine winders, it is essential to have both speed
control as well as breaking capacity
Ward Leonard system is most effective drive.
Slip Induction motor with D.C. dynamic breaking is also
used.
We may also used D.C. motor supplied from controlled
rectifier.

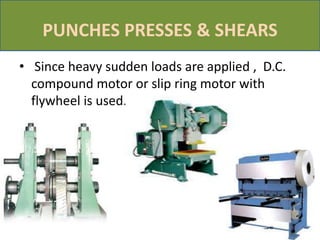

25. PUNCHES PRESSES & SHEARS
• Since heavy sudden loads are applied , D.C.
compound motor or slip ring motor with
flywheel is used.

26. LATHE, GRINDING & MILLING
MACHINE
• These machine tools require low starting torque and constant
operating speed.
• Therefore D.C. shunt motors or squirrel cage motors are
needed.
• In case of drills, requiring different operating speeds for
different metals.
• motors having two sets of stator pole changing winding are
used which give economical speed.

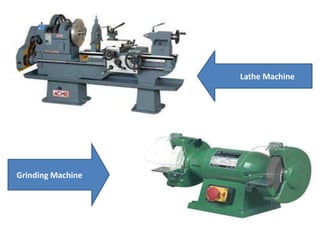

27. Lathe Machine
Grinding Machine

28. • Drip proof or totally enclosed surface cooled motors are most
frequently used, often mounted on a common bed plate and direct
coupled to the pump.
• Sometimes motor is flange mounted.
• Where pump speed does not come within the range of the fixed
motor speed ,V belt drive is employed.
• starting torque necessary for centrifugal pumps is about 40 to
50% of full load torque.
PUMPS

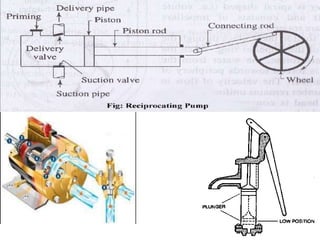

29. • For reciprocating pumps starting torque may be 100 to 200
% of full load torque
• It is advisable to use slip ring motors for reciprocating
pumps and squirrel cage motors for centrifugal pumps
Centrifugal Pump

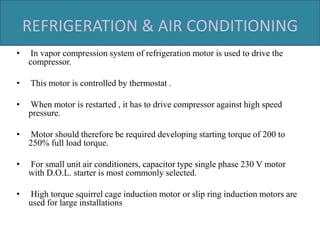

31. REFRIGERATION & AIR CONDITIONING
• In vapor compression system of refrigeration motor is used to drive the
compressor.
• This motor is controlled by thermostat .
• When motor is restarted , it has to drive compressor against high speed
pressure.
• Motor should therefore be required developing starting torque of 200 to
250% full load torque.
• For small unit air conditioners, capacitor type single phase 230 V motor
with D.O.L. starter is most commonly selected.
• High torque squirrel cage induction motor or slip ring induction motors are
used for large installations

32. • For very large plant size, synchronous motor, driving
turbo compressor may be found suitable specially when P.F.
correction is also required.
Compressor

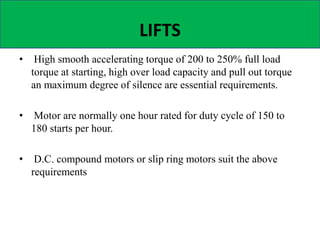

34. LIFTS
• High smooth accelerating torque of 200 to 250% full load
torque at starting, high over load capacity and pull out torque
an maximum degree of silence are essential requirements.
• Motor are normally one hour rated for duty cycle of 150 to
180 starts per hour.
• D.C. compound motors or slip ring motors suit the above
requirements

35. BELT CONVEYERS
• Belt conveyors are used for moving sand, coal
and others raw materials.
• Heavy loads have to accelerated.
• High torque squirrel cage or preferably slip ring
motors should be made as per requirement.
• Due to outside working conditions and presence
of grit and dust in atmosphere ,totally enclosed
surface cooled motors are used.

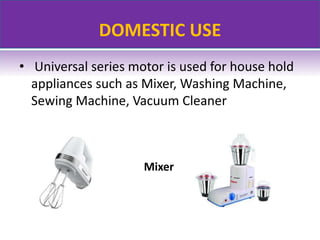

37. DOMESTIC USE
• Universal series motor is used for house hold
appliances such as Mixer, Washing Machine,
Sewing Machine, Vacuum Cleaner
Mixer

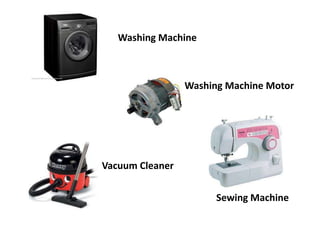

38. Washing Machine
Washing Machine Motor
Sewing Machine
Vacuum Cleaner
