1. EDIBLE FOOD COLORS
By
SAGARIKA DAS
M.Tech
Food Engineering & Technology
CIT KOKRAJHAR
sagarikadas231096@gmail.com
www.linkedin.com/in/sagarika-das
2. CONTENTS
INTRODUCTION 3
HISTORY OF FOOD COLOURS 6
PURPOSE OF FOOD COLOURING 7

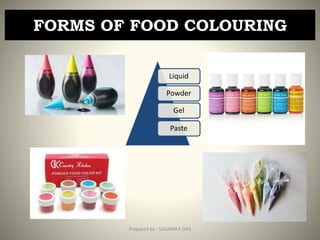

FORMS OF FOOD COLOUR 10
TYPES OF FOOD COLOURING 13
PERMITTED FOR LIMITED USE IN FOODS 20
APPROVED IN EU 23
LIMITATION OF USING NATURAL FOOD COLOUR 31
DYES AND LAKES 33
POSSIBLE HEALTH BENEFITS 37
2Prepared by : SAGARIKA DAS
3. INTRODUCTION
Food colouring, or colour additive, is any dye,
pigment or substance that imparts colour when it is
added to food or drink. They come in many forms
consisting of liquids, powders, gels and pastes. Food
colouring is used for both in commercial food
production and in domestic cooking. (Wikipedia)
Is any dye, pigment or substance that imparts
colour when it is added or applied to a food, drug,
cosmetics or to the human body .
It will give manufacturers a complete guide to the
wide range of food colours available, and which
colours will best suit their product, process and
shelf life conditions. It remains the ideal practical
tool for the food industry, and those interested in
the ingredients used to colour food .
3Prepared by : SAGARIKA DAS

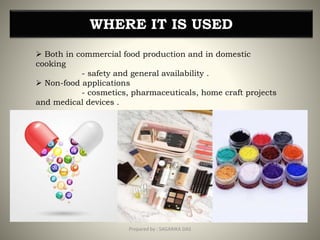

5. WHERE IT IS USED
Both in commercial food production and in domestic
cooking
- safety and general availability .
Non-food applications
- cosmetics, pharmaceuticals, home craft projects
and medical devices .
5Prepared by : SAGARIKA DAS

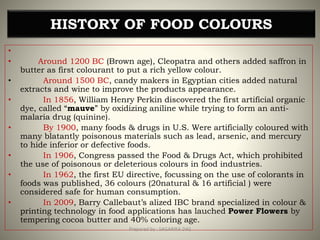

6. •
• Around 1200 BC (Brown age), Cleopatra and others added saffron in
butter as first colourant to put a rich yellow colour.
• Around 1500 BC, candy makers in Egyptian cities added natural
extracts and wine to improve the products appearance.
• In 1856, William Henry Perkin discovered the first artificial organic
dye, called “mauve” by oxidizing aniline while trying to form an anti-
malaria drug (quinine).
• By 1900, many foods & drugs in U.S. Were artificially coloured with
many blatantly poisonous materials such as lead, arsenic, and mercury
to hide inferior or defective foods.
• In 1906, Congress passed the Food & Drugs Act, which prohibited
the use of poisonous or deleterious colours in food industries.
• In 1962, the first EU directive, focussing on the use of colorants in
foods was published, 36 colours (20natural & 16 artificial ) were
considered safe for human consumption.
• In 2009, Barry Callebaut’s alized IBC brand specialized in colour &
printing technology in food applications has lauched Power Flowers by
tempering cocoa butter and 40% coloring age.
HISTORY OF FOOD COLOURS
6Prepared by : SAGARIKA DAS

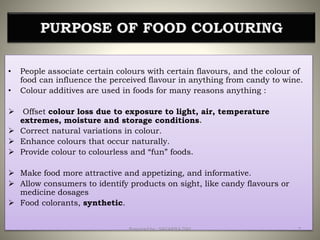

7. PURPOSE OF FOOD COLOURING
• People associate certain colours with certain flavours, and the colour of
food can influence the perceived flavour in anything from candy to wine.
• Colour additives are used in foods for many reasons anything :
Offset colour loss due to exposure to light, air, temperature
extremes, moisture and storage conditions.
Correct natural variations in colour.
Enhance colours that occur naturally.
Provide colour to colourless and “fun” foods.
Make food more attractive and appetizing, and informative.
Allow consumers to identify products on sight, like candy flavours or
medicine dosages
Food colorants, synthetic.
7Prepared by : SAGARIKA DAS

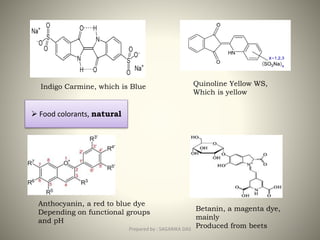

8. Indigo Carmine, which is Blue Quinoline Yellow WS,
Which is yellow
Food colorants, natural
Food colorants, natural
Anthocyanin, a red to blue dye
Depending on functional groups
and pH
Betanin, a magenta dye,
mainly
Produced from beets 8Prepared by : SAGARIKA DAS

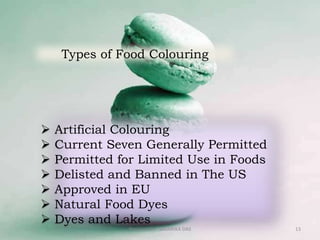

13. Types of Food Colouring
Artificial Colouring
Current Seven Generally Permitted
Permitted for Limited Use in Foods
Delisted and Banned in The US
Approved in EU
Natural Food Dyes
Dyes and Lakes
13Prepared by : SAGARIKA DAS

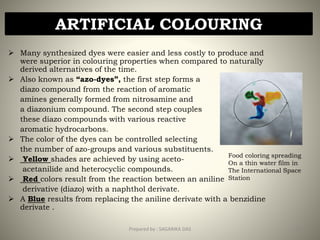

14. Many synthesized dyes were easier and less costly to produce and
were superior in colouring properties when compared to naturally
derived alternatives of the time.
Also known as “azo-dyes”, the first step forms a
diazo compound from the reaction of aromatic
amines generally formed from nitrosamine and
a diazonium compound. The second step couples
these diazo compounds with various reactive
aromatic hydrocarbons.
The color of the dyes can be controlled selecting
the number of azo-groups and various substituents.
Yellow shades are achieved by using aceto-
acetanilide and heterocyclic compounds.
Red colors result from the reaction between an aniline
derivative (diazo) with a naphthol derivate.
A Blue results from replacing the aniline derivate with a benzidine
derivate .
ARTIFICIAL COLOURING
Food coloring spreading
On a thin water film in
The International Space
Station
14Prepared by : SAGARIKA DAS
15. Current Seven Generally Permitted
FD&C Blue No. 1 -Brilliant Blue FCF,E133
(blue shades)
FD&C Blue No. 2 –Indigotine, E132
(indigo shade)
FD&C Green No. 3 –Fast Green FCF,E143
(turquoise shade)
FD&C Red No. 3 –Erythrosine,E127
(pink shade, commonly used in glace cherries)
FD&C Red No. 40 –Allura Red AC, E129
(red shade)
FD&C Yellow No. 5 –Tartrazine, E102
(yellow shade)
FD&C Yellow No. 6 –Sunset Yellow FCF,E110
(orange shade) 15Prepared by : SAGARIKA DAS

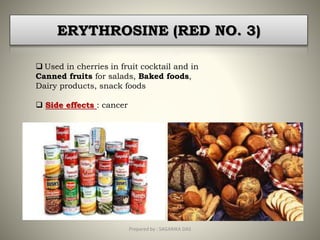

16. ERYTHROSINE (RED NO. 3)
Used in cherries in fruit cocktail and in
Canned fruits for salads, Baked foods,
Dairy products, snack foods
Side effects : cancer
16Prepared by : SAGARIKA DAS

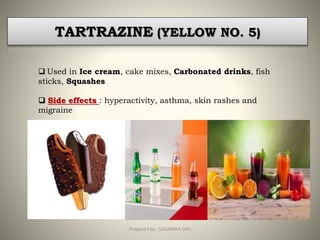

17. TARTRAZINE (YELLOW NO. 5)
Used in Ice cream, cake mixes, Carbonated drinks, fish
sticks, Squashes
Side effects : hyperactivity, asthma, skin rashes and
migraine
17Prepared by : SAGARIKA DAS

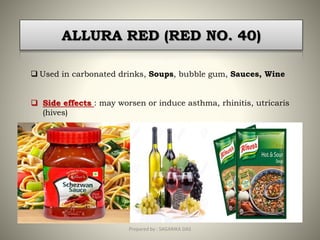

18. ALLURA RED (RED NO. 40)
Used in carbonated drinks, Soups, bubble gum, Sauces, Wine
Side effects : may worsen or induce asthma, rhinitis, utricaris
(hives)
18Prepared by : SAGARIKA DAS

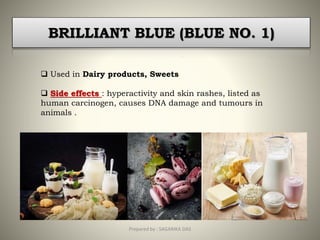

19. BRILLIANT BLUE (BLUE NO. 1)
Used in Dairy products, Sweets
Side effects : hyperactivity and skin rashes, listed as
human carcinogen, causes DNA damage and tumours in
animals .
19Prepared by : SAGARIKA DAS

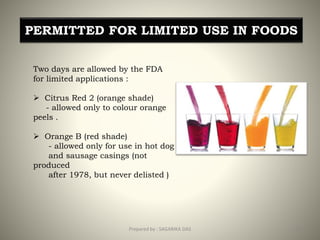

20. PERMITTED FOR LIMITED USE IN FOODS
Two days are allowed by the FDA
for limited applications :
Citrus Red 2 (orange shade)
- allowed only to colour orange
peels .
Orange B (red shade)
- allowed only for use in hot dog
and sausage casings (not
produced
after 1978, but never delisted )
20Prepared by : SAGARIKA DAS
21. DELISTED AND BANNED IN THE U.S
FD&C Red No. 2 –Amaranth, E123
FD&C Red No. 4
FD&C Red No.32 was used to colour Florida oranges.
FD&C Orange No.1 was one of the first water- soluble dyes to be
commercialized, and one of 7 original food dyes allowed under the Pure
Food & Drug Act of June 30,1906
FD&C Orange No.2 was used to colour Florida oranges.
FD&C Yellow No. 1,2,3 & 4
FD&C Violet No. 1.
21Prepared by : SAGARIKA DAS

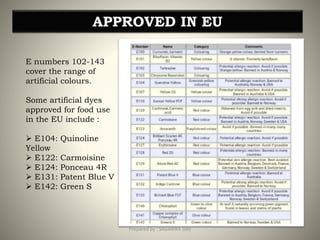

23. APPROVED IN EU
E numbers 102-143
cover the range of
artificial colours.
Some artificial dyes
approved for food use
in the EU include :
E104: Quinoline
Yellow
E122: Carmoisine
E124: Ponceau 4R
E131: Patent Blue V
E142: Green S
23Prepared by : SAGARIKA DAS

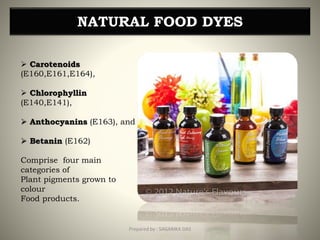

29. NATURAL FOOD DYES
Carotenoids
(E160,E161,E164),
Chlorophyllin
(E140,E141),
Anthocyanins (E163), and
Betanin (E162)
Comprise four main
categories of
Plant pigments grown to
colour
Food products.
29Prepared by : SAGARIKA DAS

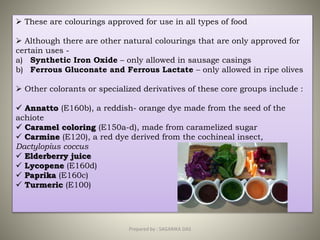

30. These are colourings approved for use in all types of food
Although there are other natural colourings that are only approved for
certain uses -
a) Synthetic Iron Oxide – only allowed in sausage casings
b) Ferrous Gluconate and Ferrous Lactate – only allowed in ripe olives
Other colorants or specialized derivatives of these core groups include :
Annatto (E160b), a reddish- orange dye made from the seed of the
achiote
Caramel coloring (E150a-d), made from caramelized sugar
Carmine (E120), a red dye derived from the cochineal insect,
Dactylopius coccus
Elderberry juice
Lycopene (E160d)
Paprika (E160c)
Turmeric (E100)
30Prepared by : SAGARIKA DAS

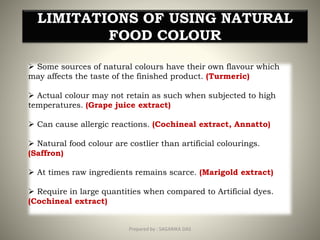

31. LIMITATIONS OF USING NATURAL
FOOD COLOUR
Some sources of natural colours have their own flavour which
may affects the taste of the finished product. (Turmeric)
Actual colour may not retain as such when subjected to high
temperatures. (Grape juice extract)
Can cause allergic reactions. (Cochineal extract, Annatto)
Natural food colour are costlier than artificial colourings.
(Saffron)
At times raw ingredients remains scarce. (Marigold extract)
Require in large quantities when compared to Artificial dyes.
(Cochineal extract)
31Prepared by : SAGARIKA DAS

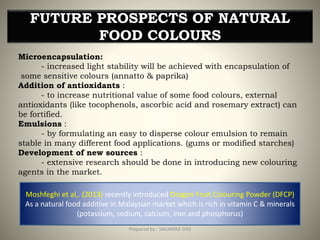

32. FUTURE PROSPECTS OF NATURAL
FOOD COLOURS
Microencapsulation:
- increased light stability will be achieved with encapsulation of
some sensitive colours (annatto & paprika)
Addition of antioxidants :
- to increase nutritional value of some food colours, external
antioxidants (like tocophenols, ascorbic acid and rosemary extract) can
be fortified.
Emulsions :
- by formulating an easy to disperse colour emulsion to remain
stable in many different food applications. (gums or modified starches)
Development of new sources :
- extensive research should be done in introducing new colouring
agents in the market.
Moshfeghi et al,. (2013) recently introduced Dragon Fruit Colouring Powder (DFCP)
As a natural food additive in Malaysian market which is rich in vitamin C & minerals
(potassium, sodium, calcium, iron and phosphorus)
32Prepared by : SAGARIKA DAS

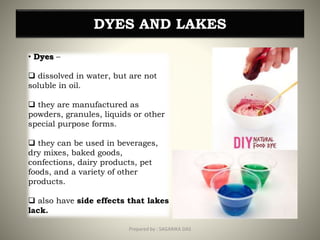

33. DYES AND LAKES
• Dyes –
dissolved in water, but are not
soluble in oil.
they are manufactured as
powders, granules, liquids or other
special purpose forms.
they can be used in beverages,
dry mixes, baked goods,
confections, dairy products, pet
foods, and a variety of other
products.
also have side effects that lakes
lack.
33Prepared by : SAGARIKA DAS

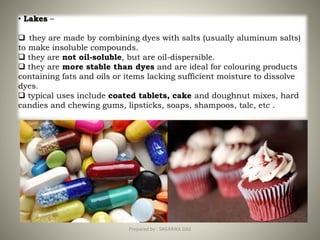

35. • Lakes –
they are made by combining dyes with salts (usually aluminum salts)
to make insoluble compounds.
they are not oil-soluble, but are oil-dispersible.
they are more stable than dyes and are ideal for colouring products
containing fats and oils or items lacking sufficient moisture to dissolve
dyes.
typical uses include coated tablets, cake and doughnut mixes, hard
candies and chewing gums, lipsticks, soaps, shampoos, talc, etc .
35Prepared by : SAGARIKA DAS
36. CRITICISM AND HEALTH IMPLICATIONS
Some FDA –approved food colourings pose certain risks to health.
Research has linked Erythrosine to thyroid cancer in rats.
The cochineal insect extract rarely causes sever allergic
reactions .
36Prepared by : SAGARIKA DAS

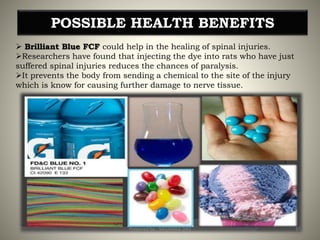

37. POSSIBLE HEALTH BENEFITS
Brilliant Blue FCF could help in the healing of spinal injuries.
Researchers have found that injecting the dye into rats who have just
suffered spinal injuries reduces the chances of paralysis.
It prevents the body from sending a chemical to the site of the injury
which is know for causing further damage to nerve tissue.
37Prepared by : SAGARIKA DAS
38. Prepared by : SAGARIKA DAS 38

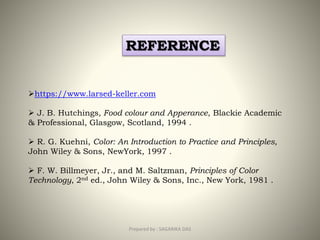

REFERENCE
https://www.larsed-keller.com
J. B. Hutchings, Food colour and Apperance, Blackie Academic
& Professional, Glasgow, Scotland, 1994 .
R. G. Kuehni, Color: An Introduction to Practice and Principles,
John Wiley & Sons, NewYork, 1997 .
F. W. Billmeyer, Jr., and M. Saltzman, Principles of Color
Technology, 2nd ed., John Wiley & Sons, Inc., New York, 1981 .
